The Method of Direct and Reverse Phase Portraits as a Tool for Systematizing the Results of Studies of Phase Transitions in Solutions of Thermosensitive Polymers

Akhat Bakirov
Eldar Kopishev
Kaisarali Kadyrzhan
Elvira Donbaeva
Aigerim Zhaxybayeva
Marat Duisembiyev
Faiziya Suyundikova
3 and
Ibragim Suleimenov
Department of Chemistry and Technology of Organic Substances, Natural Compounds and Polymers, Faculty of Chemistry and Chemical Technology, Al Farabi Kazakh National University, Almaty 050040, Kazakhstan
Department of Telecommunication Engineering, Institute of Communications and Space Engineering, Gumarbek Daukeev Almaty University of Power Engineering and Communications, Almaty 050040, Kazakhstan
Department of Chemistry, Faculty of Natural Sciences, L.N. Gumilyov Eurasian National University, Astana 010000, Kazakhstan
National Engineering Academy of the Republic of Kazakhstan, Almaty 050010, Kazakhstan
Authors to whom correspondence should be addressed.
Gels 2024, 10(6), 395;
Submission received: 21 April 2024 / Revised: 29 May 2024 / Accepted: 7 June 2024 / Published: 11 June 2024


It is shown that a more than significant amount of experimental data obtained in the field of studying systems based on thermosensitive hydrophilic polymers and reflected in the literature over the past decades makes the issue of their systematization and classification relevant. This, in turn, makes relevant the question of choosing the appropriate classification criteria. It is shown that the basic classification feature can be the number of phase transition stages, which can vary from one to four or more depending on the nature of the temperature-sensitive system. In this work, the method of inverse phase portraits is proposed for the first time. It was intended, among other things, to identify the number of phase transition stages. Moreover, the accuracy of this method significantly exceeds the accuracy of the previously used method of direct phase portraits since, for the first time, the operation of numerical differentiation is replaced by the operation of numerical integration. A specific example of the application of the proposed method for the analysis of a previously studied temperature-sensitive system is presented. It is shown that this method also allows for a quantitative comparison between the results obtained by the differential calorimetry method and the turbidimetry method. Issues related to increasing the resolution of the method of direct phase portraits are discussed.

1. Introduction

Phase transitions in solutions of thermosensitive polymers have attracted steady interest from researchers over the past few decades, so a query in the WoS database using the keywords “thermosensitive”, “thermoresponsive polymer” yields 18,886 results; their distribution by year is shown in Figure 1. Polymer-based systems in which such transitions occur are of interest for many practical applications. Thus, applications in oil and gas production are considered in the literature [1], in electronics [2], as well as in the energy field [3]. Traditional interest in the use of these systems in bioengineering and biomedical applications remains [4,5,6,7,8,9]. Heat-sensitive polymers are also of interest for environmental purposes; in particular, they can significantly improve [10] the continuous cycle of producing pure water using compression and swelling of hydrogels [11], provide energy savings for smart houses [12,13], etc.
To date, very extensive experimental material has been accumulated, reflecting the nature of phase transitions in systems based on thermosensitive polymers (their solutions as well as sols and gels), which is discussed in detail below. However, the range of experimental techniques used to study them remains quite limited. As a rule, methods such as viscometry, differential scanning calorimetry (DSC), and spectroscopy are used [14,15,16], as well as turibidimetry.
Thermosensitive polymers, as a rule, are synthesized on the basis of a fairly narrow range of starting substances, including those used in combination with other high-molecular and/or low-molecular components or combinations thereof. This follows from the review of articles presented below for the last five years, in which the classification is carried out according to the composition of the main component.
Methylcellulose (MC) is a cellulose derivative that has been extensively investigated for biomedical applications [14,17,18,19] and even for automatic fire extinguishing systems with controlled water release [20,21]. Stabenfeldt et al. [22,23] functionalized methylcellulose with the protein laminin, aiming towards the creation of a bioactive scaffold for neural tissue engineering. They reported that the laminin-functionalized oxidized methylcellulose (OXMC + LN) hydrogel promoted neuronal cell adhesion and showed higher cell viability rates than MC, oxidized methylcellulose (OXMC), or laminin-functionalized methylcellulose (MC + LN). The optimal ratio for hydrogel formation was determined by mixing agarose-carboxymethyl cellulose with gelatin at concentrations of 1% w/v, 3% w/v, and 5% w/v. It was observed that blends (C2-A0.5-G1 and C2-A1-G1), containing 2% w/v carboxymethyl cellulose, 0.5% or 1% w/v agarose, and 1% w/v gelatin, produced superior hydrogels with enhanced stability for up to 21 days in DPBS at 37 °C. These bioinks were successfully used in extrusion bioprinting, demonstrating the ability to print intricate 3D patterns [24].
Chitosan: Temperature-sensitive hydrogels such as hydroxybutyl chitosan gel (HBC) cross-linked with graphene oxide (GO) are promising for Pingyangmycin (PYM) rectal applications. HBC/GO@PYM exhibits 8 times higher drug loading than HBC@PYM [25]. An innovative thermosensitive injectable chitosan/poloxamer-based hydrogel has been developed for cardiac tissue regeneration. Gold nanoparticles (AuNPs) interacting with oxidized bacterial nanocellulose fibers (OBCs) were incorporated into the hydrogel at a percentage of 1% to modify its mechanical and electrical properties. In vitro biocompatibility testing using H9C2 cells showed high cell viability (>90% after 72 h) and efficient adhesion [26]. Mohamed et al. prepared complex polyelectrolyte chitosan/pectin nanoparticles by ionic gelation, coated them with phospholipid, and then incorporated them into an optimized thermosensitive injectable gel to improve the bioavailability of terbutaline sulphate [27]. The study by Stanzione et al. proposed a chitosan-based system that gels with the addition of beta-glycerophosphate and sodium bicarbonate solutions and is suitable for cell encapsulation. The systems gel under physiological conditions (37 degrees Celsius, pH 7.4), are stable in vitro for up to three weeks, have high swelling coefficients, and have mechanical stiffness suitable for cell encapsulation [28]. In this study, thermosensitive injectable hydrogels based on chitosan and polygalacturonic acid (PgA) were prepared and characterized. The biocompatibility and gelation time of the hydrogel were optimized by the addition of beta-glycerophosphate (beta GP) and hydroxyapatite. The results showed that hydrothermal treatment and incorporation of gelatin into the chitosan-beta GP hydrogel system improved the bioactivity and mechanical properties of the hydrogel [29]. A chitosan-gelatin-based thermosensitive hydrogel containing 5FU-alginate nanoparticles (5FU) has been formulated for the effective and sustained delivery of 5FU to the skin. Chitosan-gelatin-based hydrogels containing 5FU have exceptional properties and can be used for the sustained delivery of 5FU for the treatment of local skin cancers [30]. Highly deacetylated chitosan and N-isopropylacrylamide (NIPAM) were loaded with RALA/pEGFP-N1 nanoparticles, and release was studied. The nucleic acid cargo remained functional, as confirmed by the successful transfection of the NCTC-929 fibroblast cell line [31]. Another study aimed to develop and compare the performance of different chitosan hydrogel-based bioinks for 3D bioprinting. It was found that the type of gelling agent had a greater influence on these properties than the type of solvent [32].
Dextran: A new water-soluble thermosensitive star-like copolymer, dextran-graft-poly-N-isopropylacrylamide (Dg-PNIPAM), was created and characterized by various techniques (size-exclusion chromatography, differential scanning calorimetry, Fourier-transform infrared (FTIR) spectroscopy, dynamic light scattering (DLS) spectroscopy, and confocal laser scanning microscopy) [33].
Xyloglucan: In a series of papers, Dalvi et al. created Rufinamide nanocrystals and suspended them in a heat-sensitive xyloglucan-based gel to improve distribution from the nose to the brain [34,35,36]. In this work [37], an in situ gelling system for dual-response triamcinolone acetonide eye drops was developed and optimized using reacted tamarind seed xyloglucan and kappa-carrageenan polymers. The aim of the research was to develop a mucoadhesive gel formulation of sumatriptan for rectal administration using a combination of mucoadhesive polymers, poloxamer 407, and poloxamer 188. This formulation is designed to prolong the duration of drug residence in the rectum, thereby improving efficacy in the treatment of migraine [38]. Another paper reports the development of bioinspired thermosetting hydrogels composed of xyloglucan and cellulose nanocrystals for use as wound healing dressings, drug delivery vehicles, implants, etc. [39].
Gelatin is one of the most important materials on the basis of which thermosensitive polymers are produced. Ghanbari et al. developed hybrid injectable and biodegradable hydrogels based on oxidized alginate/gelatin with the addition of nitrogen-doped carbon dots as reinforcement and crosslinked with carbodiimide/N-hydroxysuccinimide. Graphene quantum dots significantly influence the degradation and interaction with cells and hydrogels [40,41,42].
In a study aimed at developing thermosensitive nanocomposite hydrogels based on a gelatin matrix with acetaminophen-loaded nanoparticles of the thermosensitive polymer PNIPAM. The system exhibited a reversible solution-to-gel transition around 37 degrees Celsius. The hydrogels containing a low ratio of PNIPAM to gelatin showed a more uniform and delayed release, indicating their good potential for drug delivery purposes [43,44].
An injectable self-healing hydrogel based on two extracellular matrix-derived biopolymers, gelatin and chondroitin sulphate, is being developed for use as a surgical adhesive to seal or reconnect torn tissue [45].
Vasya et al. developed microcarriers composed of near-infrared (NIR) light-absorbing GO, thermosensitive PNIPAM and biocompatible gelatin methacrylate. Under NIR light, the microcarriers have great potential for clinical applications in tissue repair [46,47].
Multifunctional temperature-sensitive microcarriers made from PNIPAM, poly(ethylene glycol) diacrylate, and methacryloyl gelatin for efficient cell expansion for industrial-scale cultivation of therapeutic cells [48].
Static substrates to simulate the dynamic behavior of the myocardium were cultured in vitro with The hydrogels were formed by crosslinking thermoresponsive poly(N-isopropylacrylamide-s-2-hydroxypropyl methacrylate-s-mercaptoethyl acrylate) synthesized using reversible addition-fragmentation chain transfer polymerization with gelatin [49].
The aim of another study was to develop thermoresponsive hydrogels made of poloxamer (P407) and polyvinyl alcohol for the purpose of delivering mupirocin nanoparticles to aid in wound healing. The mupirocin nanoparticles, which contained both the drug and either gelatin or poly(acrylic acid), were prepared through the process of spray drying [50].
This study presents a new hydrogel made up of bacterial cellulose, gelatin, and acid-treated halloysite nanotubes (Hal). The hydrogel aims to serve a dual purpose of providing structural support for tissue regeneration and enabling localized drug delivery [51].
This study employed threefold dendritic oligoethylene glycols (OEGs) to modify gelatin, a biomacromolecule known for its biocompatibility and bioactivity. The modification resulted in the creation of dendronized gelatins (GelG1s) with radial amphiphilic characteristics. The GelG1s exhibit either lower critical solution temperature (LCST) or upper critical solution temperature (UCST) thermoresponsive behavior, depending on the grafting ratio of the dendritic OEGs [52].
Chemically cross-linked gelatin microgels (ranging from 5 to 15 μm) were created by combining NIPAM, methylallyl polyethylene glycol, and GO via emulsion. In situ free radical polymerization resulted in a physical network within the microgels, forming double network (DN) microgels. These DN microgels exhibit thermosensitive properties and are responsive to NIR stimuli. In vitro studies have demonstrated that NIR irradiation efficiently induced the release of ropivacaine from the DN microgels, suggesting their potential in pain management [53].

1.1. Poly(ethylene glycol)—PEG

In the series of works conducted by Mueller-Buschbaum et al. [54,55,56,57] the kinetic rehydration of thin di-block copolymer poly(diethylene glycol monomethyl ether methacrylate)-block-polyPEG methyl ether methacrylate (PO2-b-PO300) films containing two thermoresponsive components is studied by in situ neutron reflectivity with different thermal stimuli in the D2O vapor atmosphere.
Sobczak et al.’s study on the development of injectable, thermosensitive hydrogel drug delivery systems for the release of 5-fluorouracil and paclitaxel. Biodegradable triblock copolymers were synthesized via ring-opening polymerization of epsilon-caprolactone or rac-lactide with PEG and zirconium(IV) acetylacetonate (Zr(acac)4) as co-initiator and catalyst [58,59,60].
Suljovrujic et al. have developed thermoresponsive hydrogels for biomedical applications. The hydrogels were created using oligo(ethylene glycol) dimethacrylate crosslinking monomers, and the study explored varying monomer/solvent ratios (10 to 100 wt%) [61,62,63].
Teodorescu et al. investigate the control of thermal response in aqueous solutions of PNIPAM-PEG-PNIPAM triblock copolymers through factors such as polymer concentration, composition, and additives. The study compares the effects of additives on Pluronic L61 and PNIPAM copolymers, revealing similar trends except for certain alcohols due to differences in polymer main chain structure [64,65,66,67].
A group of researchers have developed a sprayable hydrogel formulation that undergoes in situ gelation upon exposure to skin temperature. This is designed for effective wound dressing. The hydrogel consists of a copolymer blend, namely (PNIPAM (166)-co-n-butyl acrylate(9))-PEG-(PNIPAM (166)-co-n-butyl acrylate(9)), and includes silver-nanoparticle-decorated reduced GO nanosheets [68].
A thermoresponsive pseudo-block copolymer was synthesized by creating a PNIPAM star polymer with a beta-cyclodextrin core and an adamantyl-terminated PEG polymer. The polymer self-assembled through host-guest complexation and underwent the temperature-induced formation of supramolecular micelles [69].
There is a significant amount of research dedicated to developing drug formulations using triblock copolymers of polylactide and PEG [70,71,72,73,74].

1.2. PEO/PPO-Based Systems, Poly(ethylene oxide)—b-poly(propylene oxide)-b-poly(ethylene oxide) (PEO-PPO-PEO) Also Known as Poloxamer, Pluronic, Kolliphor, and Synperonic

Kozicki et al. have published a series of papers on the development and optimization of a radiochromic gel dosimeter using Pluronic F127 (F127). The potassium iodide based dosimeter with the F127 matrix shows potential for three-dimensional radiotherapy dosimetry. Another innovation is the printing of radiochromic hydrogels on woven fabrics for UV sensitivity using nitroblue tetrazolium chloride in the F127 matrix [75,76,77,78,79,80,81,82,83,84].
Alexandridis et al. investigated the properties of F127. Their study examines the complex interactions between surfactants and amphiphilic polymers, focusing on sodium dodecyl sulphate (SDS), F127, and Pluronic P123. In particular, F127 shows an earlier interaction with SDS than P123 due to differences in hydrophobicity. These results provide information for their applications in areas such as energy storage and solvent development [85,86,87,88,89].
Maintaining the integrity of cell membranes is critical for cell survival, and poloxamer 188 (P188) has been shown to be effective in protecting cell membranes from various insults. The results showed that P188, together with the PEO homopolymer (PEO8.4K), penetrates the bilayer without compromising its integrity, with the PEO providing the binding to the membranes. Collectively, these results shed light on the mechanisms underlying the membrane interactions and protective effects of P188 and related polymers, informing their potential therapeutic applications for membrane stabilization and drug delivery [90,91,92,93].
Aswal et al. studied F127 modified by the addition of PNIPAM at both ends of the PEO, resulting in the formation of a pentablock copolymer (PN41). The study of PN41 adsorption on hydrophobic gold surfaces revealed a temperature-dependent behavior influenced by polymer-solvent interactions. Pluronics F38, F68, F88, F98, and F108 with 80% hydrophilicity formed micelles with the PO core and hydrated EO corona at ambient temperature. The studies shed light on the behavior of PEO-PPO-PEO copolymers under temperature and salt and their applications in drug delivery and energy storage devices [94,95,96,97,98].
Poloxamer P407 has also been sufficiently investigated. There are studies on the development of plant-based larvicidal formulations with P407 against mosquitoes [99]. P407 is used to synthesize amphiphilic polyetherurethanes (PEU) for biomedical applications [100,101]. Poloxamer modified with dihydrocaffeic acid (P-DA) was developed to demonstrate improved mechanical strength, erosion resistance, tissue adhesion, and stability [102]. In addition, cannabidiol nanomicelles produced using P407 demonstrated anti-inflammatory effects in cell and animal studies, with greater efficacy and safety compared to CBD alone [103]. The reverse poloxamer (RP407) showed improved gelation properties compared to P407, which is relevant for applications such as drug delivery and protein stabilization. Mixing P407 and RP407 altered the size and packing of micelles, providing customized gelation behavior for various biomedical applications [104].

1.3. Poly(vinylcaprolactam)—PVCL

Venkatesu et al. studied the interaction of PVCL, their interactions with additives such as 1-allyl-3-methylimidazolium bromide, multi-walled carbon nanotubes, methylamine-based osmolytes, PNIPAM, deep eutectic solvents, and tryptophan-based amino acid ionic liquids, and their potential biomedical applications, laying the groundwork for innovative advances in drug delivery and biotechnology [105,106,107,108,109,110,111,112,113,114].
A new synthesis was tested by Pich et al., which yielded stimuli-responsive PVCL microgels decorated with zwitterionic poly(sulfobetaine), poly(phosphobetaine), poly(carboxybetaine), or selenium-functionalized chains via reversible addition-fragmentation chain transfer (RAFT) precipitation polymerization [115,116,117,118,119,120].
Coclite et al. illustrate the versatile synthesis and tunability of thermoresponsive polymers based on PVCL coupled to di(ethylene glycol)divinyl ether, Eudragit, or laser-induced graphene by initiating chemical vapor deposition, offering control over properties for drug delivery, sensors, actuators, and energy applications [121,122,123,124].
Research by Licea-Claverie et al. investigates the preparation of PVCL-based nanogels modified with galactose and loaded with cisplatin or doxorubicin (DOX) together with gold nanorods (GNRDs) using radical photopolymerization. Nanoparticle loads of up to 1 wt% were achieved in the study. In addition, thermoresponsive diblock copolymers consisting of PEG and PVCL blocks were prepared by RAFT polymerization. These copolymers effectively stabilized GNRDs and exhibited temperature-sensitive aggregation tendencies, indicating promising prospects in drug delivery systems for photothermal therapy [125,126,127,128].
To understand the physicochemical properties of temperature-responsive systems, Sala et al. prepared nanocomposites consisting of PVCL and silica nanoparticles of different sizes and concentrations. In addition, we developed thermosensitive nanocomposites using PVCL and silica particles that showed minimal toxicity and potential for integration with bone tissue, as well as serving as effective drug delivery systems for hydrophobic and DOX drugs. These nanocomposites exhibited controlled release mechanisms and showed encouraging anti-cancer effects in vitro [129,130,131,132].
Soft PVCL nanogels decorated with AuNPs or encapsulated GNRDs were investigated as carriers for small molecules and DOX. Nanoparticles were prepared for controlled drug delivery, with particle size and thermoresponsive behavior dependent on copolymer length and concentration. These results demonstrate the feasibility of using PVCL microgels as templates and stabilizers at high temperatures and offer novel synthesis strategies for hybrid microgels applicable in various fields of nanotechnology, including catalysis, sensing, and therapy [133,134,135,136,137].
It can be seen that, despite the limited range of basic thermosensitive components, the substances described in the literature are very diverse. Such a large amount of experimental material, as reflected in scattered articles, already requires systematization. It is also important that, to study phase transitions in systems of the type under consideration, different authors use different groups of experimental techniques.
Consequently, the question arises about the classification criteria on the basis of which such systematization can be carried out, as well as about the tools that would allow determining these criteria. Considering, however, that systems undergoing a phase transition with temperature variations are very diverse, at this stage of research, it is inappropriate to raise the question of quantitative classification criteria.
It seems much more productive to find criteria that ensure the formation of a qualitative classification. We also emphasize that, as follows from the above literature review, phase transitions can occur through different mechanisms; moreover, different stages of a phase transition can also occur through different mechanisms (in the case when it occurs in several stages). Consequently, it seems premature to raise the question of quantitative classification criteria. Qualitative classification criteria are also applicable in the cases where mechanisms causing phase transitions are of a different nature.
This work shows that one of the most significant qualitative criteria allowing for the classification of systems based on hydrophilic polymers is the number of stages inherent in the phase transition. To substantiate this conclusion, this work also developed a method of inverse phase portraits, which is used along with the method of direct phase portraits used in the literature.
We also emphasize that the method of inverse phase portraits, which allows for a convenient and visual comparison of the results of calorimetric and turbidimetric measurements, is proposed in this work for the first time. The very concept of “reverse phase portrait” is also used for the first time.

2. Results and Discussion

2.1. Results

2.1.1. Rationale for Using the Inverse Phase Portrait Method to Study Phase Transitions in Solutions of Thermosensitive Polymers

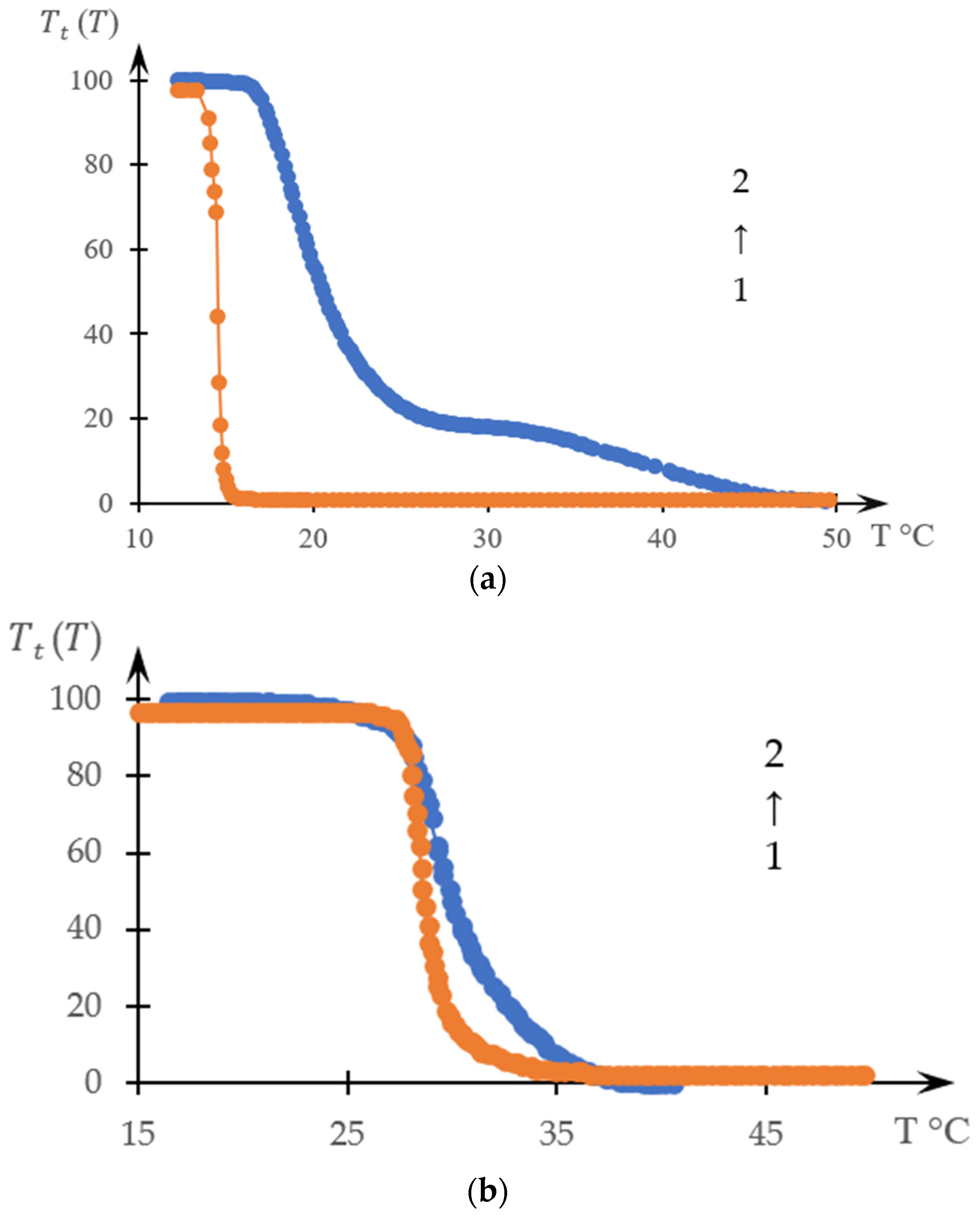

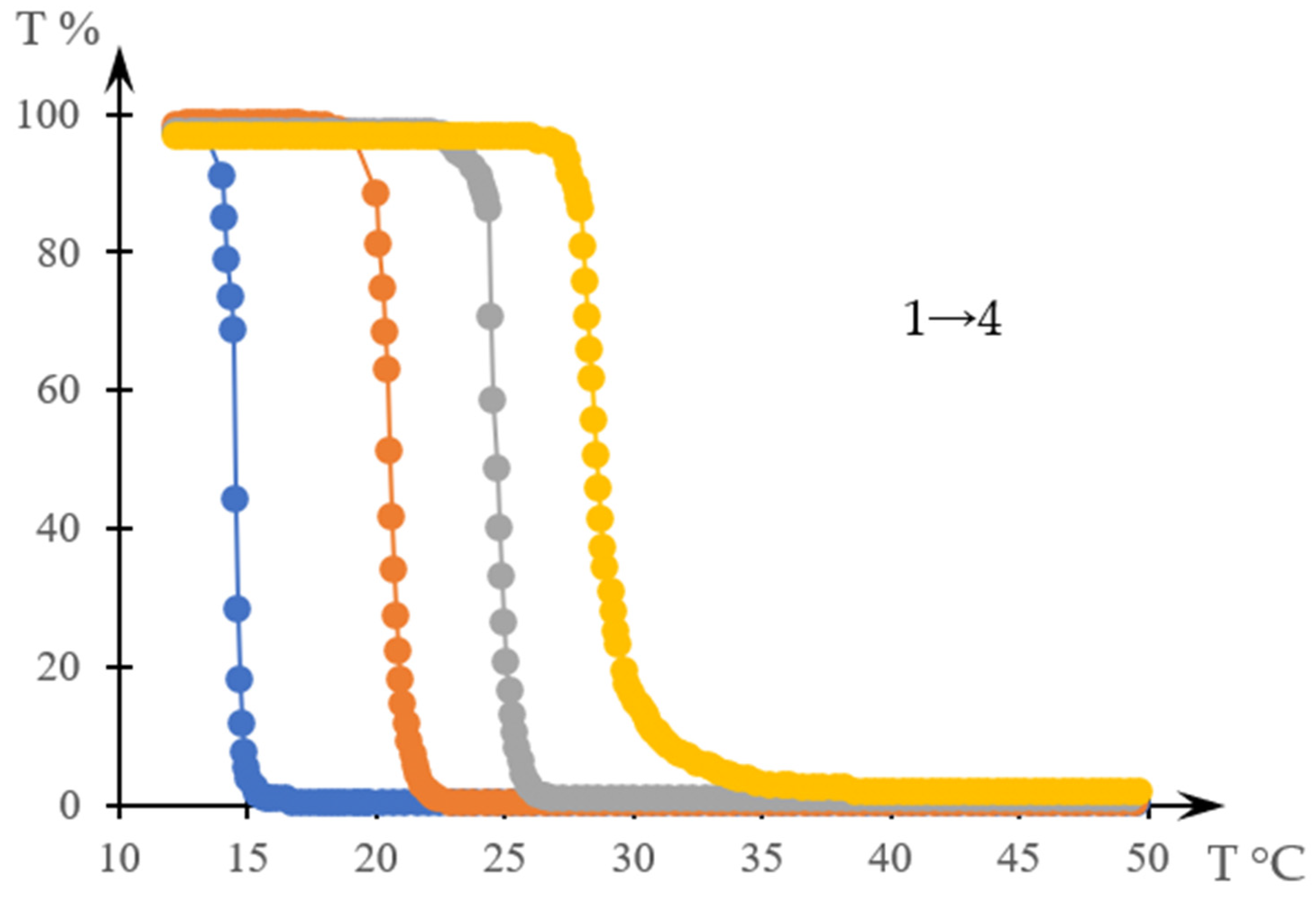

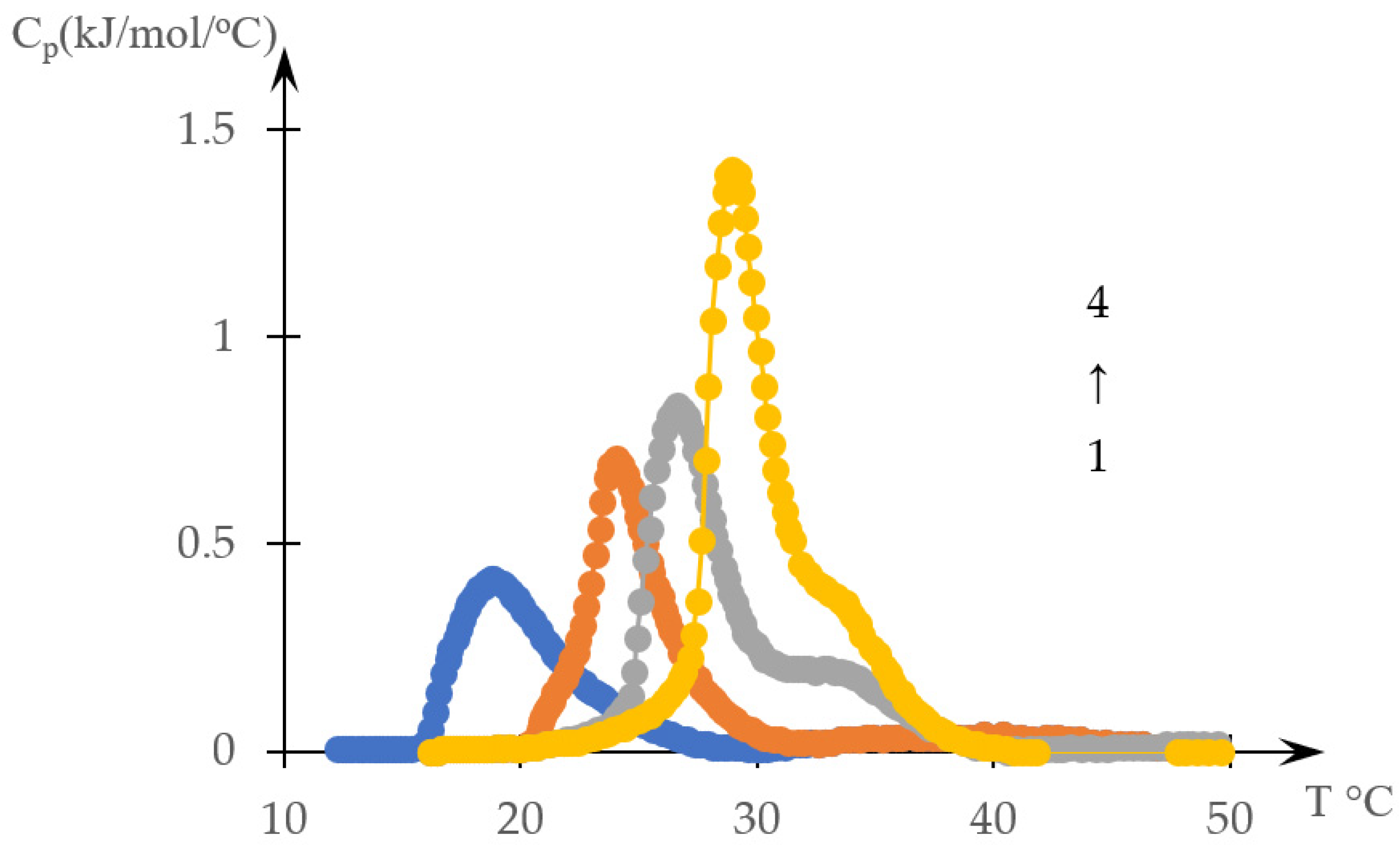

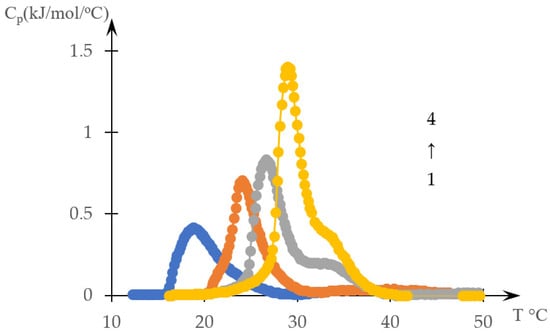

Figure 2 shows thermograms of aqueous solutions of systems based on thermosensitive polymers obtained in [138]. Figure 3 shows the transparency dependences of the same solutions obtained in the cited work.
The type of curves presented in Figure 2 qualitatively coincide with the types of curves that can be obtained by numerical differentiation of the curves shown in Figure 3.
This conclusion directly confirms the following construction. Let us move from the dependence C p ( T ) , where C p is the heat flux directly recorded by differential scanning calorimetry, to the dependence S ( T ) , where S T = T m T C p d T .
From obvious physical considerations (phase transitions in a system of arbitrary nature are associated with energy costs for changing the state of the system elements), the function S ( T ) can be compared with any other physical quantity that describes the resulting change in the state of the system. In relation to the case under consideration, it is permissible to use as such a function the function D ( T ) —the dependence of the turbidity of the solution on temperature. Indeed, the turbidity of the solution in question (provided that the phase transition leads to an increase in the proportion of insoluble components in the system) depends on the cumulative changes that occur in the system with increasing temperature.
The function D ( T ) , under the assumption that the phase transition caused by an increase in temperature is characterized by a transition from an almost transparent solution to an almost opaque one, can be reduced to a transmittance function T t ( T ) in accordance with the following formula:
T t T = 1 D T D 0 · 100 %
where D 0 is the observed amplitude of changes in optical density.
Provided that a comparison is made between curve T t T and curve S ( T ) , the latter should also be transformed using a similar formula
s t T = 1 S T S 0 · 100 %
Examples of graphs that compare curves obtained from the literature data T t T s t T [138], are presented in Figure 4a,b. Figure 4a refers to curves 1 in Figure 2 and Figure 3, and Figure 4b refers to curves 4 in the same figures.
It can be seen that the topologically obtained curves are quite close to each other, and in the case of Figure 4b, they are close to each other even quantitatively.
Further, the dependence C p ( S ) will be a direct analogue of the phase portrait, but constructed in relation to the function S ( T ) , since according to the construction of the function S ( T ) , the function C p ( S ) is its derivative.
Accordingly, a construction based on the dependence S ( C p ) can indeed be interpreted as an inverse phase portrait. Moreover, due to the topological similarity of the curves presented in Figure 4, direct phase portraits obtained on the basis of dependencies D ( T ) or T t T , it is advisable to compare precisely with inverse phase portraits obtained on the basis of experimentally obtained dependencies C p ( S ) .
It is significant that when constructing a direct phase portrait using the method [140,141], the calculation of the derivative is used (which in numerical calculations often leads to significant errors), while when constructing an inverse phase portrait, numerical integration is used, which gives more accurate results even when using the simplest method of rectangles.

2.1.2. Comparison of Direct and Reverse Phase Portraits

This section uses the results of [10]. The goal is to show that thermograms provide significantly more complete information about the nature of phase transitions in solutions based on thermosensitive polymers than measurements carried out by turbidimetry. More precisely, they provide more visual information about the processes under consideration. Under certain conditions, similar information can be obtained from measurements carried out by turbidimetry methods, but to obtain it, an appropriate methodology is required. Its basis is the method of phase portraits.
We emphasize that a fairly large array of data reflecting the behavior of thermosensitive polymers and systems based on them was previously obtained using the turbidimetry method, which, in particular, is reflected in the literature [142,143,144,145,146]. In fact, this array reflects the results of research conducted by various scientific schools in this direction for more than twenty years. It is to involve these data in constructing the overall picture that it seems possible to develop methods for processing experimental data that make it possible to extract the most complete information from previously obtained data.

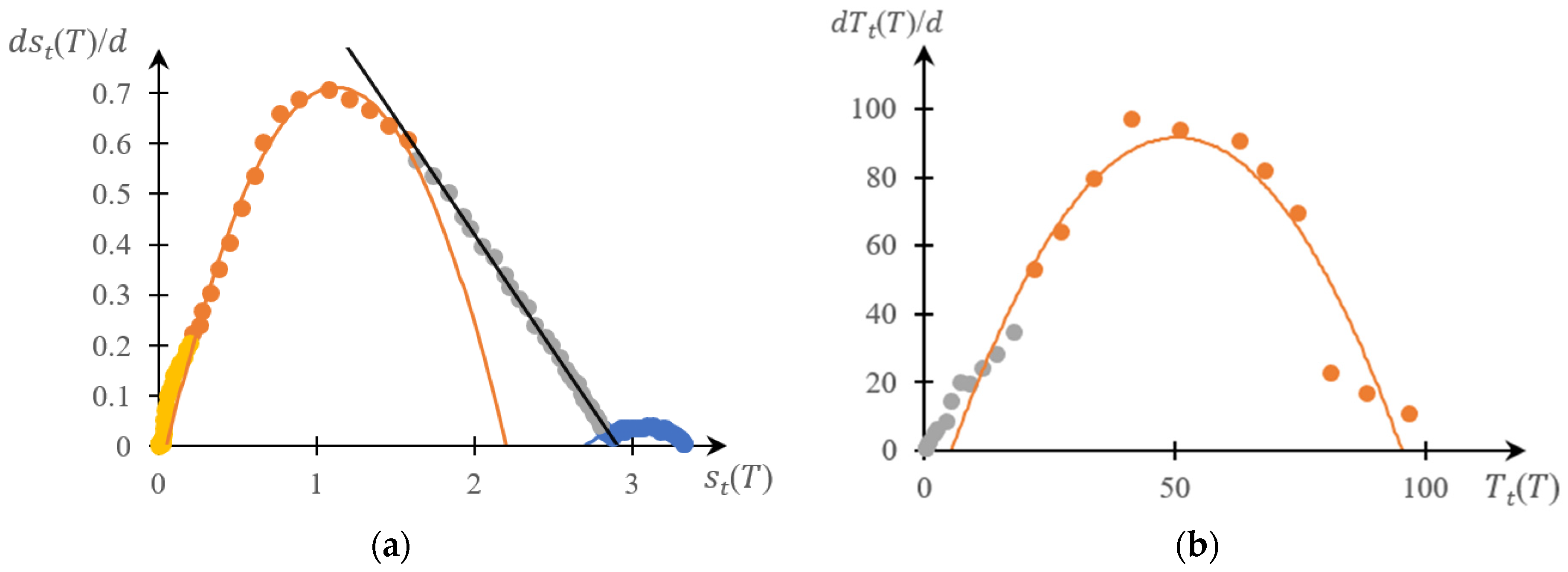

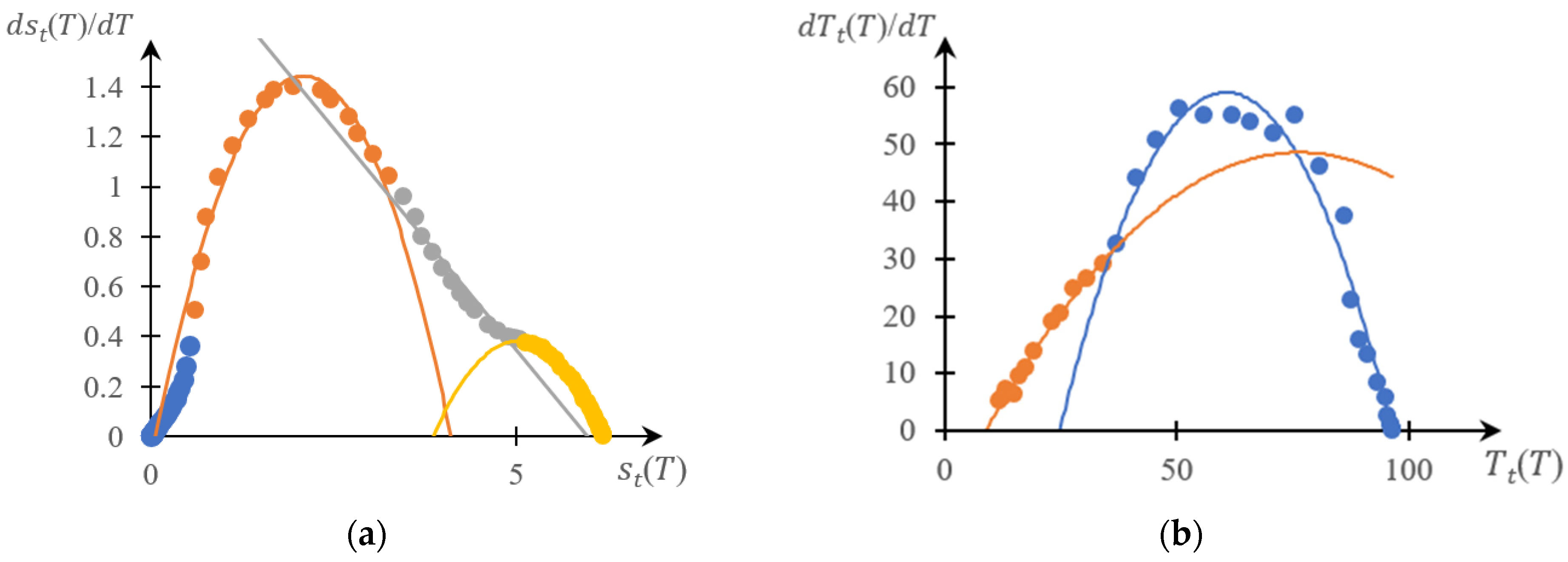

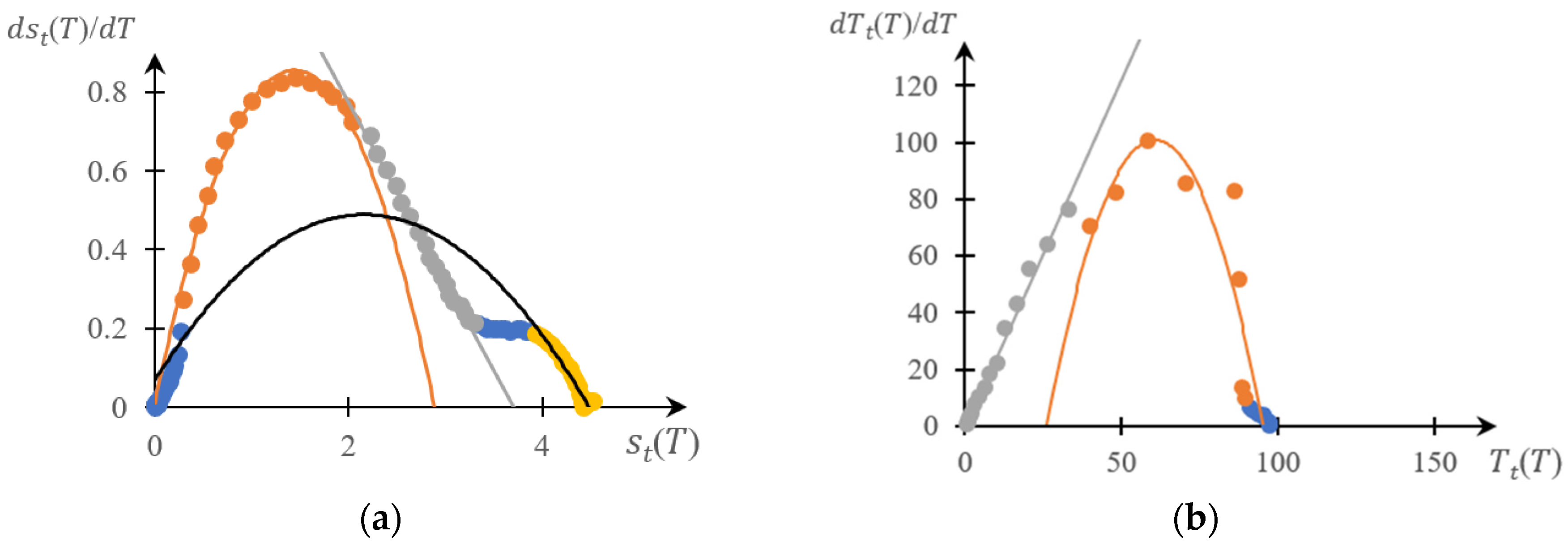

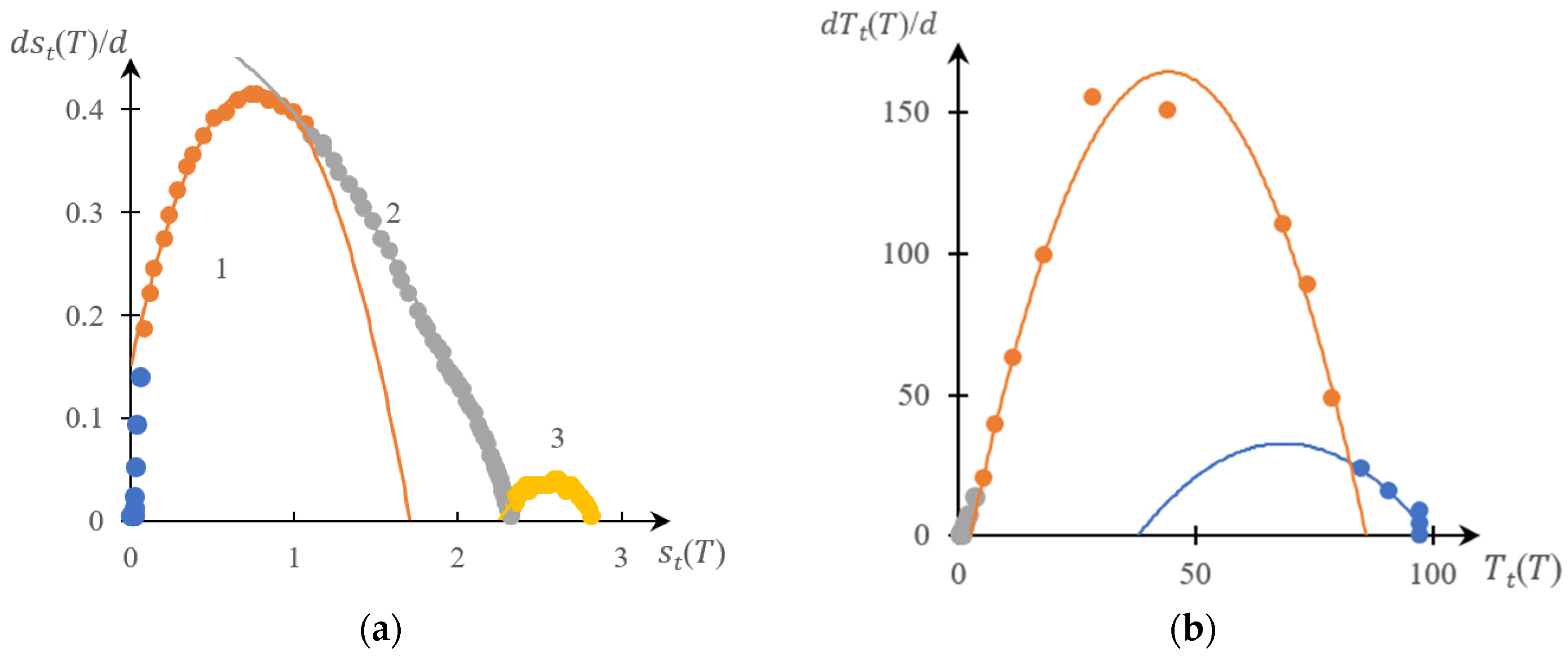

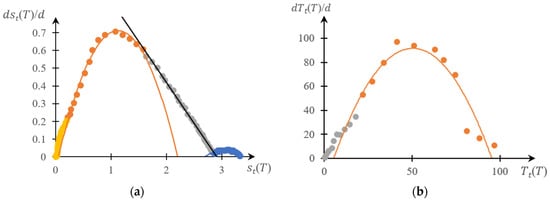

Figure 5, Figure 6, Figure 7 and Figure 8 show a comparison of phase portraits obtained using the curves presented in Figure 1 and Figure 3.
Figure 5 refers to curves 1 in the indicated figures, Figure 6 refers to curves 2, Figure 7 refers to curves 3, and Figure 8 refers to curves 4.
It can be seen that, as for previously studied systems [141,142,143,145], both phase portraits with acceptable accuracy fall into separate fragments, each of which is approximated by either a parabolic or linear dependence. Moreover, taking into account the accuracy factor, the direct and reverse phase portraits presented in these figures are characterized by a very specific topological symmetry. It manifests itself most clearly in Figure 7 and Figure 8: up to similarity transformation (axis scaling), these portraits are close to mirror-symmetrical.
This already creates the prerequisites for the development of appropriate classification characteristics, which are discussed below, although it should be noted that reverse phase portraits actually correspond to much higher accuracy than direct ones. This is due to the fact that the operation of numerical differentiation used in constructing phase portraits produces significantly larger errors than the operation of numerical integration.

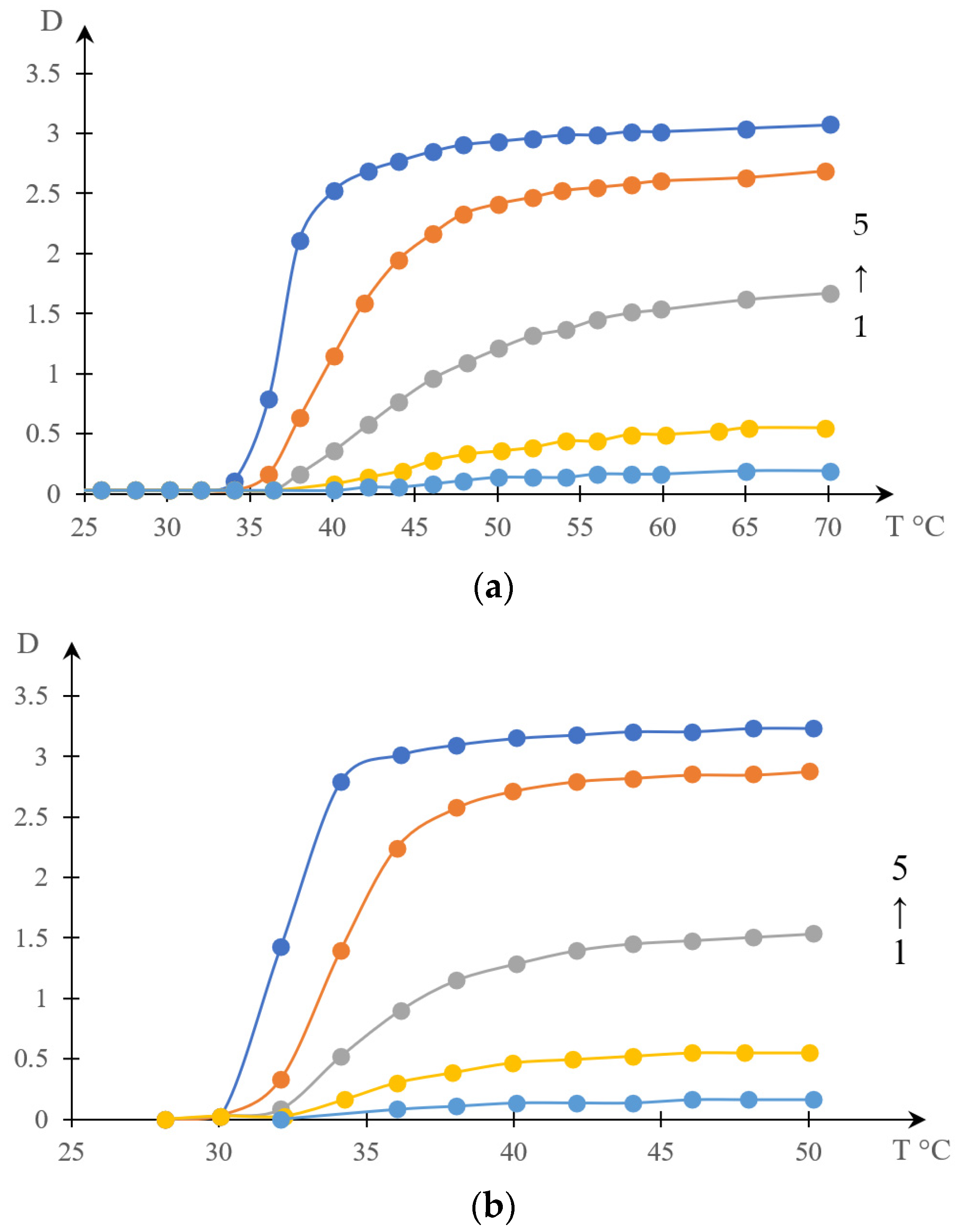

Next, Figure 9a,b shows the curves obtained in one study [139] by the turbidimetry method (note that in addition to the cited works, the data method was also used in many other studies, in particular [146,147,148,149,150], and adequate comparison with the results obtained using other experimental methods was not always carried out).

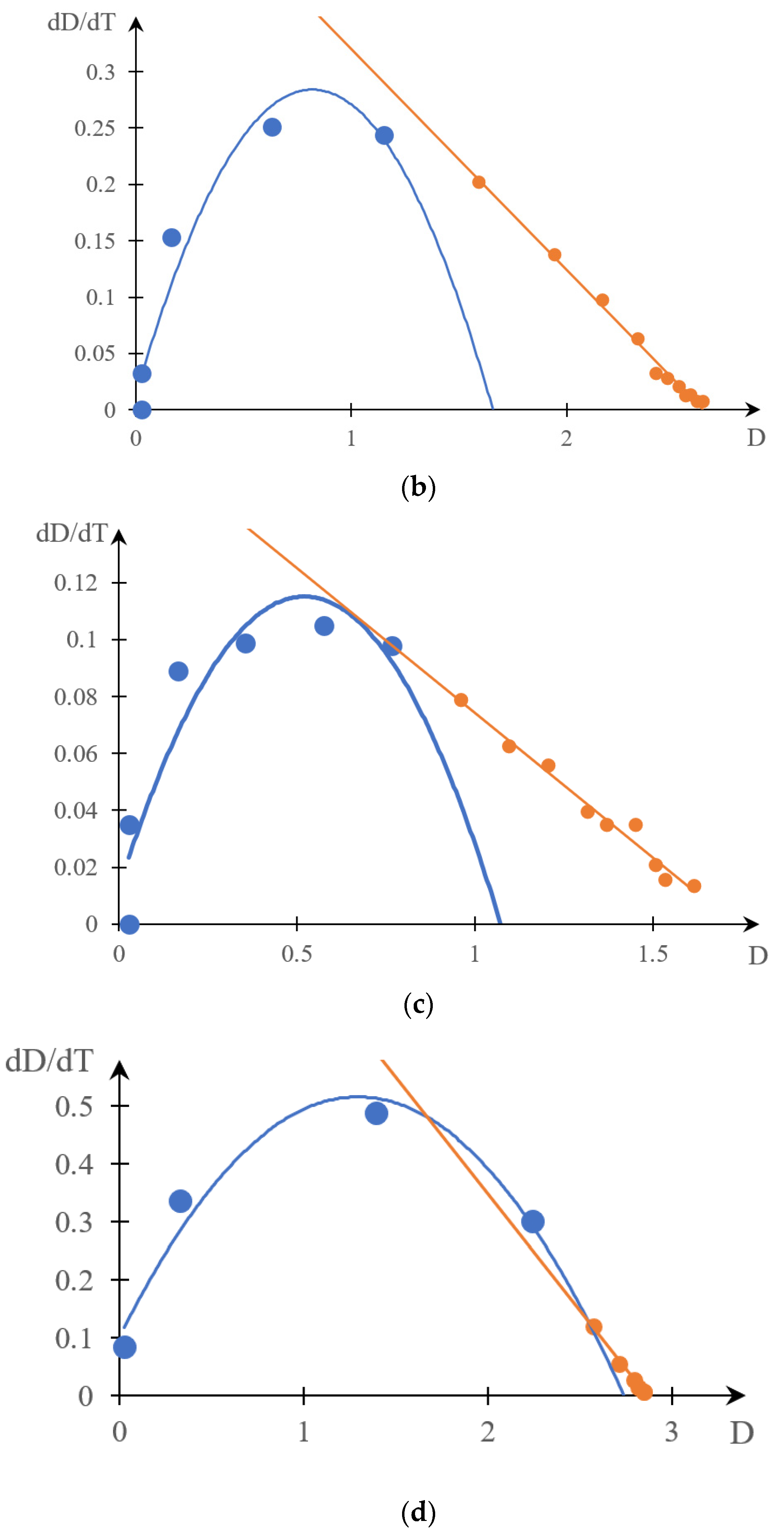

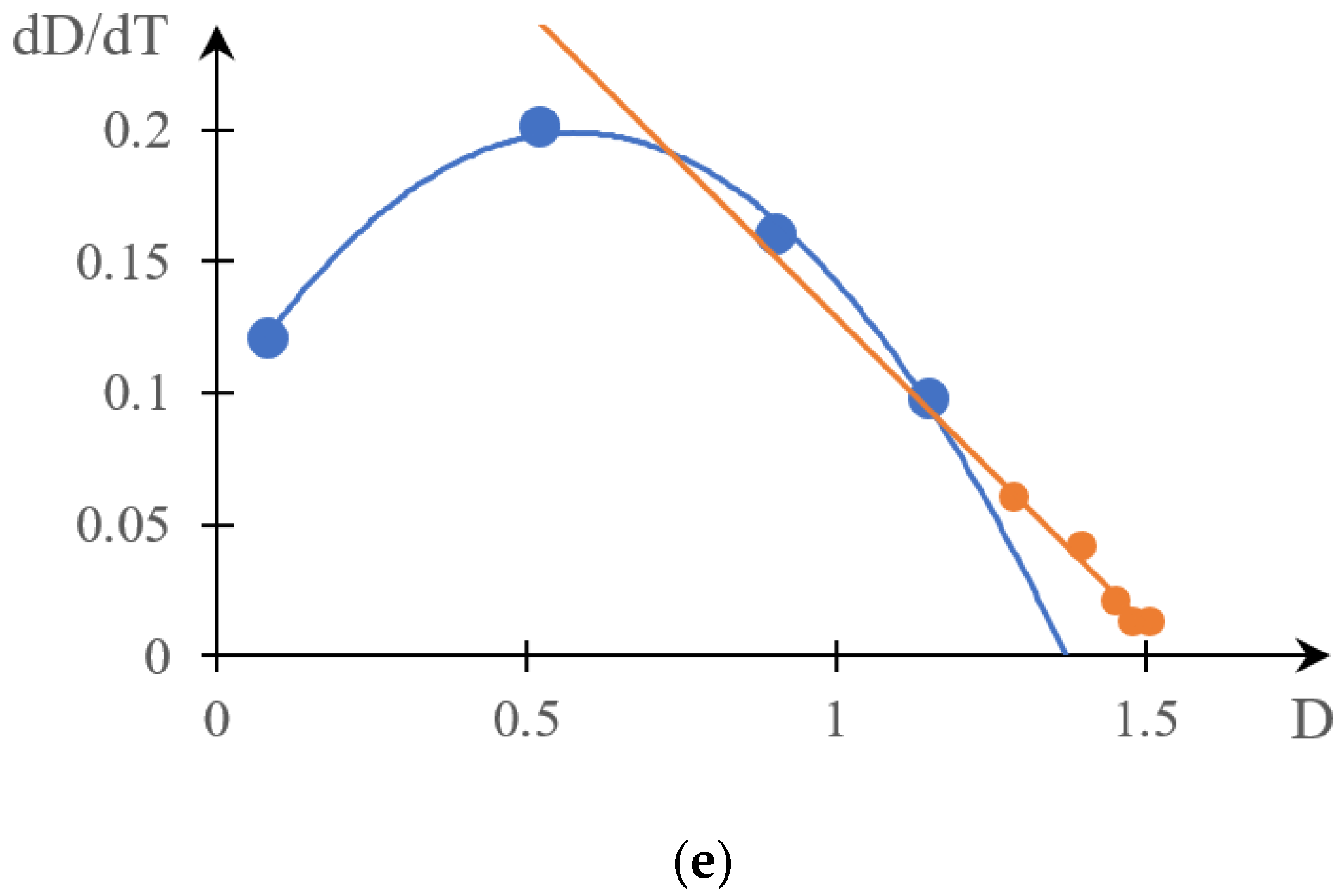

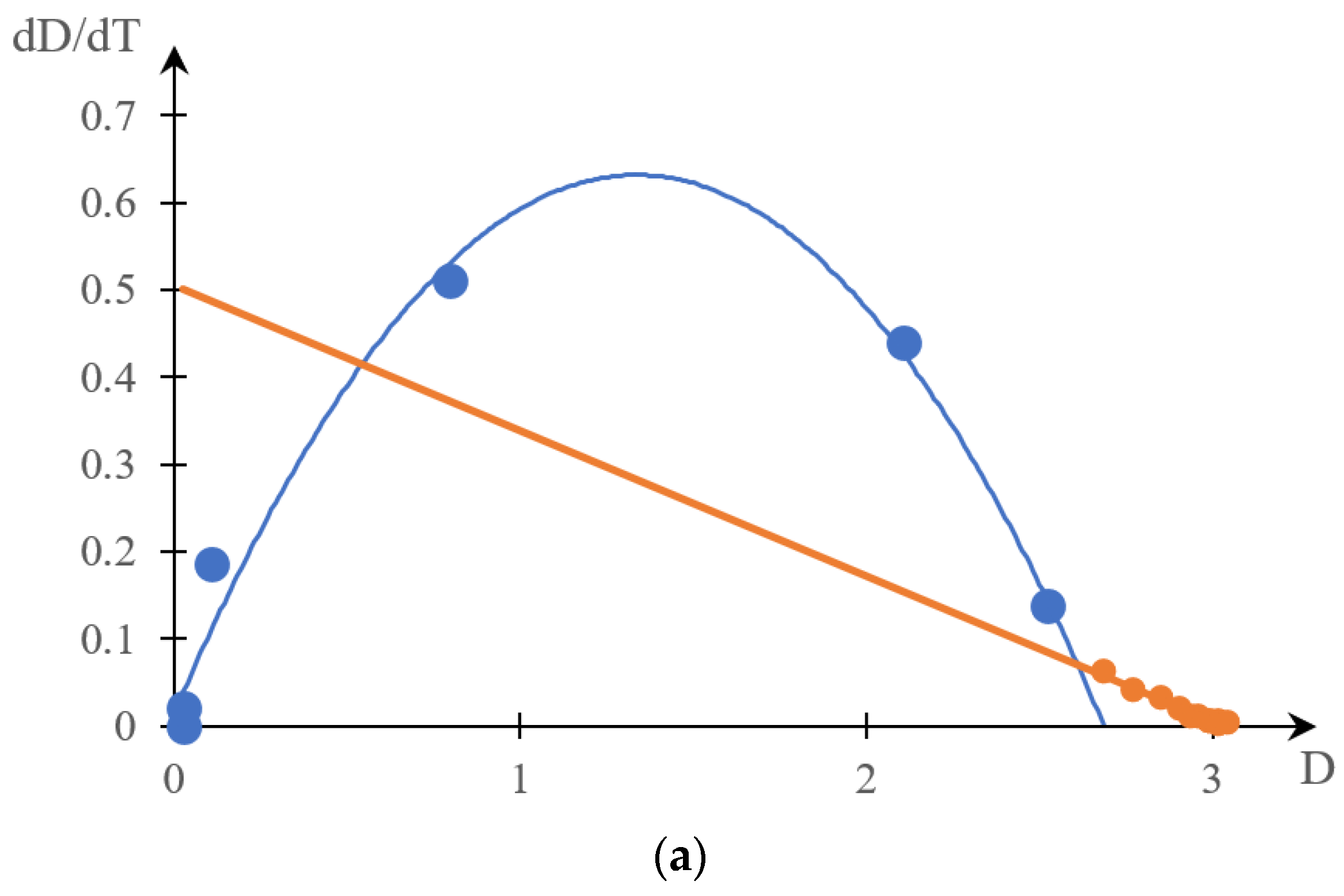

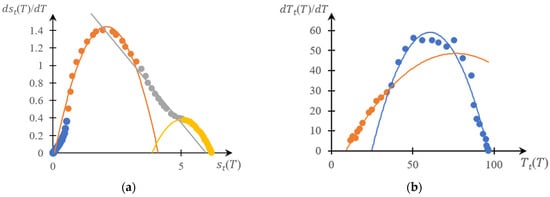

Figure 10 shows phase portraits corresponding to these experimental curves.
It can be seen that the resulting phase portraits fall into two separate segments. One of them is approximated with acceptable accuracy by a parabolic dependence, and the second by a linear one. This means that the phase transition studied in a previous study [139] occurs in two stages, and the presence of the second stage can only be established by the method of phase portraits.

2.2. Discussion

Thus, the staged nature of phase transitions in solutions of thermosensitive polymers (and, consequently, gels based on them) is no exception to the rule. As shown in Figure 10, a two-stage phase transition turns out to be inherent even in such well-studied systems as the copolymer of NIPAAm with 2-HEA. Thus, we can conclude that the system studied in this work [139] is qualitatively different from the systems studied, in particular, in the aforementioned studies [140,151]. The systems studied in these works correspond to strictly parabolic phase portraits, which allows us to conclude that the phase transition in them occurs in one stage.
However, direct analysis of the dependence of the optical density of a solution on temperature does not always reveal the existence of different stages. We can speak with confidence about the existence of the second stage of the phase transition (Figure 10), partly due to the fact that a similar conclusion can be made based on a comparison of the results obtained by turbidimetry and differential calorimetry.
In particular, this means that it is permissible to raise the question of the resolution of various methods used to study phase transitions in solutions of thermosensitive polymers (the higher the resolution, the more accurately the various stages of the phase transition can be identified). The results presented above clearly show that the resolution of differential calorimetry is noticeably higher than the resolution of turbidimetry. Let us emphasize once again that the presence of the second stage of phase transition in the system studied in one study [139] went unnoticed by the authors of the cited work. Similarly, the presence of several stages of phase transition is extremely difficult to identify directly based on the analysis of turbidimetric measurement data obtained in the literature [147,148,149,150]. This may not be surprising, since the appearance of the curves presented in Figure 9 does not indicate this. Identification of the second stage of the phase transition required the development of a specific method for processing experimental data based on the construction of phase portraits.
Based on the results of a few studies [144,145,146], we can assume that in the system studied in one study [139], the phase transition occurs in at least two stages. The nature of the occurrence of these stages can be interpreted as follows: As shown in [144,145,146], the same processes that are responsible for the compaction of a macromolecular coil (for example, hydrophobic interactions) can lead to the formation of hydrophobic interpolymer associates (HIAs) as well as hydrophobic-hydrophilic associates (HHAs). Such objects are unstable meshes that exist in a dynamic mode, i.e., connections in them are continuously destroyed and arise again. Consequently, as the amplitude of the forces ensuring the formation of insoluble products increases, the destruction of HIA or HGA must inevitably first take place; this is the first obligatory stage of the phase transition, preceding the actual formation of the insoluble product. We emphasize that this stage must take place regardless of how many stages correspond to the processes occurring within a separate macromolecular coil or a separate complex based on a macromolecule. These processes occur at subsequent stages of the phase transition, when the conditions for the formation of HIA or HGA no longer exist. Moreover, it can certainly be assumed that, depending on the chemical structure of a particular polymer, the processes associated with the compaction of a macromolecular coil that occur after the destruction of HIA or HGA do not necessarily occur in an abrupt manner.
Apparently, this is precisely the case that is realized in the system studied in a previously cited study [139]. In this case, the first stage (the destruction of the dynamic mesh) takes place first, proceeding in an abrupt manner. This stage corresponds to a parabolic fragment of the phase portrait. We emphasize that, as shown in [140,151], a transition close to a jump-like one corresponds precisely to parabolic phase portraits. The second stage, corresponding to the linear fragment of the phase portrait, corresponds to relatively smooth processes leading to compaction of the macromolecular coil and, accordingly, to the formation of an insoluble product.
The main conclusion that follows from the comparison presented above (Figure 5, Figure 6, Figure 7 and Figure 8), as well as from Figure 10, is as subsequently described.
There is a real opportunity to classify systems based on thermosensitive polymers that undergo phase transitions according to the number of stages that characterize such a transition. The number of these stages can be determined, for example, by the method of inverse phase portraits using the differential scanning calorimetry method. The number of stages can be determined by the number of fragments (linear and parabolic) into which the phase portrait is divided. In principle, the number of such stages can also be estimated using the turbidimetry method; however, it has significantly lower accuracy (resolution) since it is necessary to use a numerical differentiation procedure, which introduces noticeable errors in the construction of the phase portrait. However, for qualitative analysis (that is, to identify qualitative classification features), in principle, it is possible to use phase portraits obtained with relatively low accuracy.
We emphasize that the use of phase portraits obtained with low accuracy based on available literature data is also of undoubted interest, since this makes it possible to use the richest experimental material accumulated in the literature over the past decades.
In particular, based on the analysis of the phase portraits presented in Figure 10 and their comparison with the phase portraits obtained in the literature [140,141,142,143,145,151], it is possible to draw certain qualitative conclusions; in any case, it can be judged that this particular phase portrait deviates from the parabolic one, and therefore, it is permissible to conclude that the corresponding phase transition occurs in more than one stage. For the use of qualitative criteria, this seems quite sufficient, especially since image recognition methods using neural networks are currently well developed [152,153]. In the future, these methods can be applied to the processing of such phase portraits as those shown in Figure 10. As is known, existing image processing methods make it possible to restore an image, including one containing significant defects [152,153].
Note, however, that the resolution of the proposed method depends on several factors and not just on the accuracy of constructing or reconstructing the phase portrait. The possibility of confidently identifying several stages of a phase portrait is determined, among other things, by how far the stages of the phase transition under consideration are separated from each other in temperature. If the temperatures of different stages are close, but the corresponding segments of the phase portrait overlap each other, it is quite difficult to separate them. However, since different stages of the phase portrait correspond to different physicochemical mechanisms, as the materials of the study show, the proposed method is applicable to a fairly wide range of temperature-sensitive systems.
We also note that the proposed method also makes it possible to find dependencies that describe phase transitions in more complex cases than those corresponding to Equation (8). For example, we use the data presented in curve 3 in Figure 9b. In Figure 11, these data are represented by empty circles (curve 1).

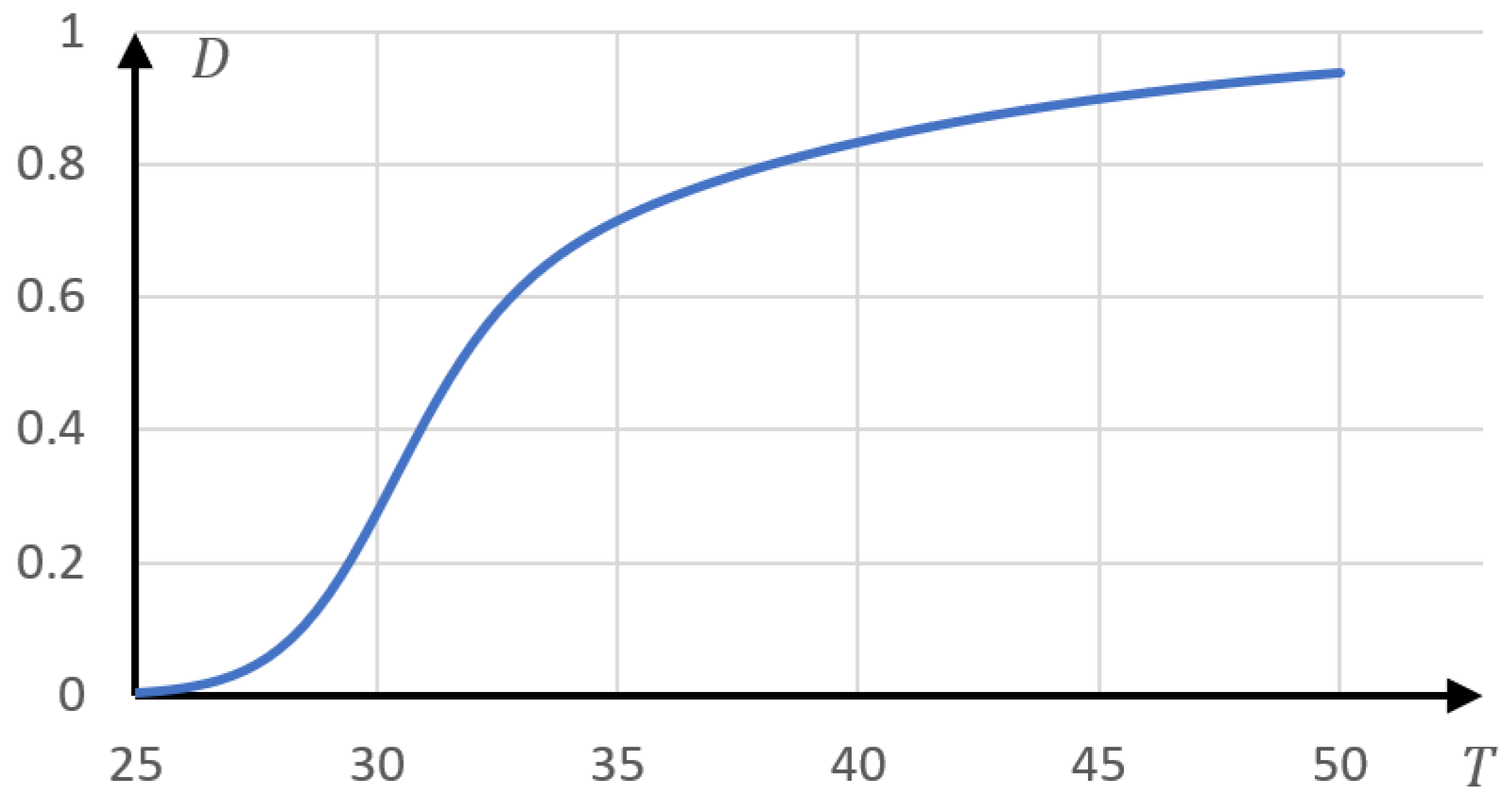

The phase portrait of this curve contains a section that is satisfactorily approximated by a linear dependence. This fragment of the phase portrait corresponds to the exponential dependence of the original curve.
D = D 0 1 exp T T 0 τ
Indeed, the derivative of function (3) is
d D d T = D 0 τ exp T T 0 τ
Consequently, quantities (3) and (4), as one would expect, are linearly related. That is, the linear phase portrait corresponds to the case when the system under consideration is described by a first-order linear differential equation.

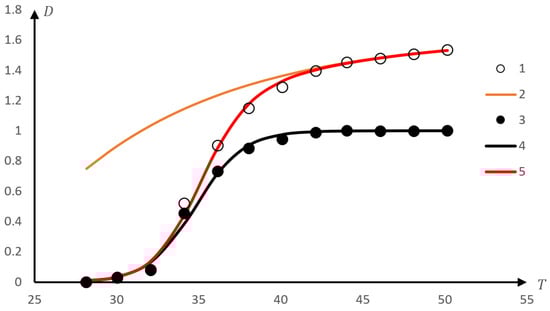

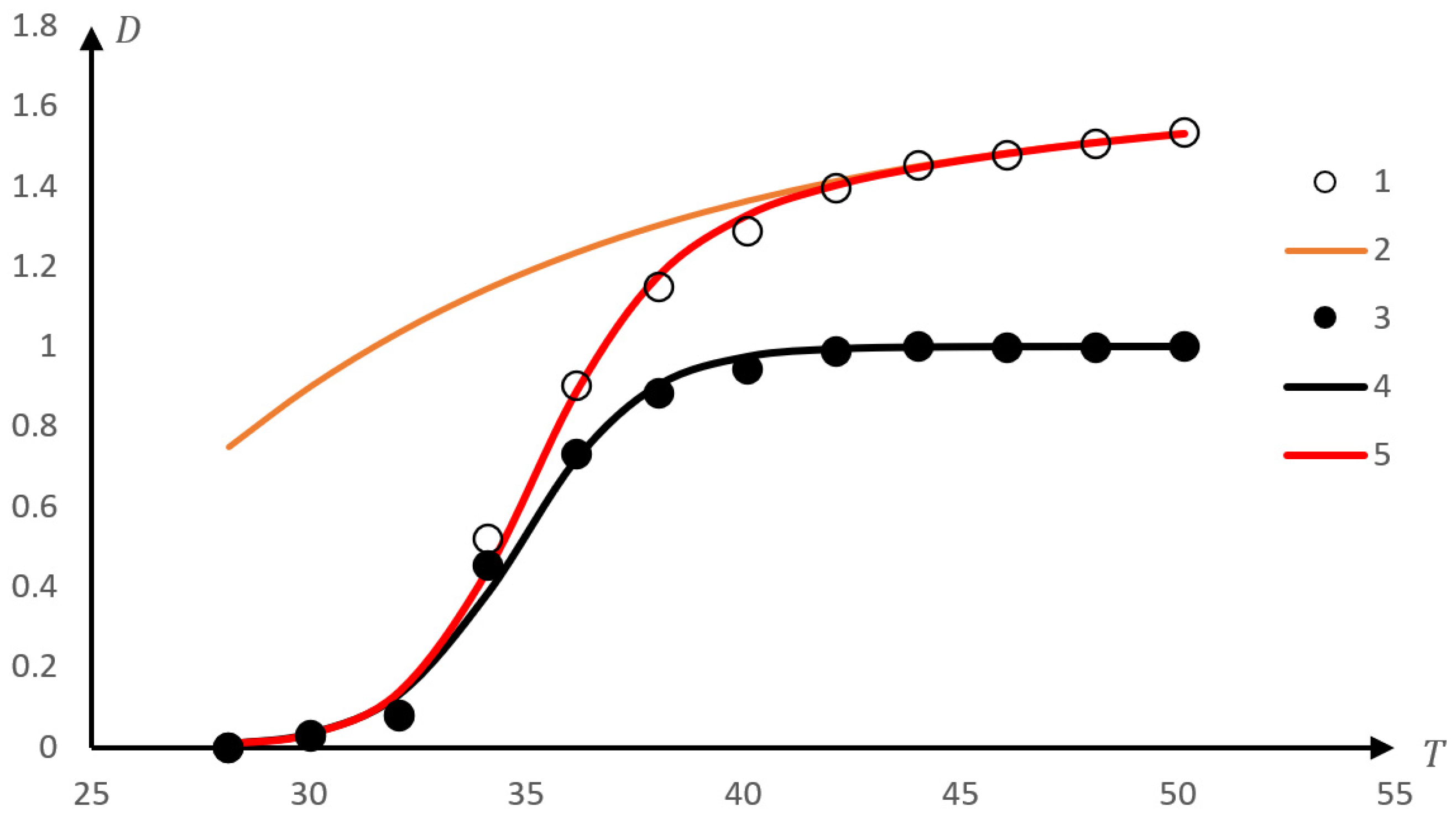

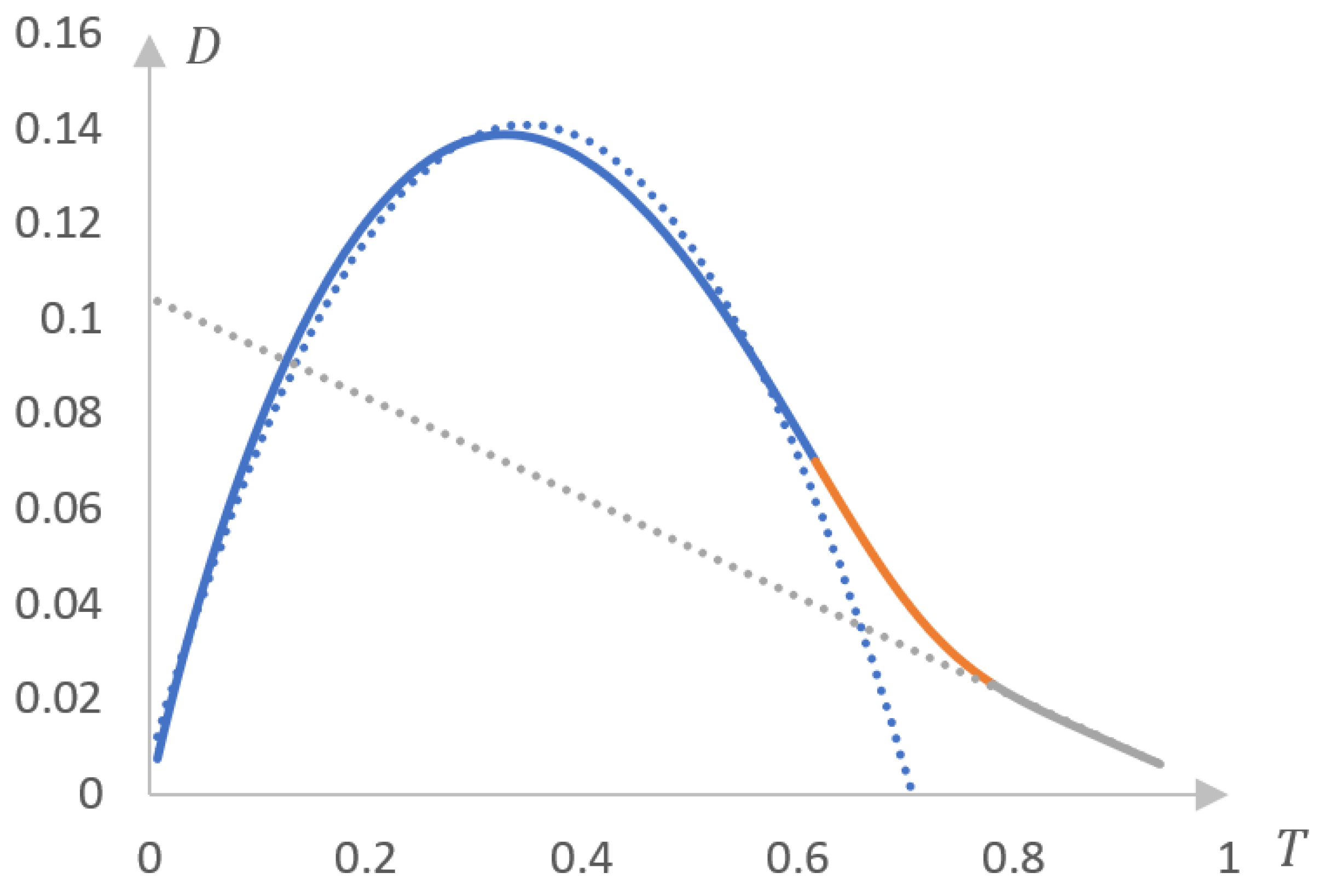

Figure 11 shows curve 2, corresponding to dependence of the form (3) with the following parameter values: T 0 = 22   K , τ = 10   K , D 0 = 1.63 .
It satisfactorily approximates that portion of the experimental dependence that corresponds to the linear fragment of the phase portrait. Full circles in Figure 11 (curve 3) show values representing the ratio of experimentally measured values to values calculated using an approximation of the form (3). Curve 4 is plotted according to Formula (8) with the following parameter values: T 0 = 34.8   K , τ = 1.45   K , D 0 = 1 . This curve approximates the given experimental data with satisfactory accuracy.
Therefore, we can conclude that the experimental results presented in Figure 11 must be satisfactorily described by a dependence of the form.
D = D 0 1 exp T T 01 τ 1 1 + exp T T 02 τ 2
where indices 1 and 2 number the parameters related to two different sections of the phase portrait.
Curve 5 is constructed according to Formula (5). It can be seen that it describes the experimental data with satisfactory accuracy.
Formula (5) was obtained from the following considerations: a fragment of the phase portrait corresponding to the completion of the phase transition is approximated by a straight line. In accordance with Formulas (3) and (4), this means that the corresponding section of the experimental curve should be approximated with satisfactory accuracy by an exponential dependence, as demonstrated by a comparison of curves 1 and 2 in Figure 11. If we proceed from the assumption that the phase transition described by curve 1 occurs in two stages, then we should come to the conclusion that this exponential dependence corresponds to a stage occurring at a higher temperature (compared to the first). It can also be assumed that in this temperature range, the first stage is completed. Therefore, it is permissible to try to separate the stages by isolating the second. To do this, you can divide the values corresponding to the experimental data by the values calculated using exponential approximation (curve 2, Figure 11). The result is curve 3, which can be approximated by Formula (8). This approximation actually provides acceptable accuracy (curve 4, Figure 11). As a result, the experimental dependence can be approximated by the product of two curves, each of which describes one of the stages of the phase transition. This is what Formula (5) expresses. Its numerator corresponds to the curve approximating the second (final) stage of the phase transition, and the denominator corresponds to the first. It is appropriate to note that this approach has its limits of applicability. Namely, in order for Formula (5) to be adequate, the characteristic temperatures corresponding to the first and second stages of the phase transition must differ quite noticeably. The criterion in this regard is the nature of the phase portrait. If it is possible to clearly identify fragments corresponding to parabolic and linear dependencies, then Formula (5) is certainly applicable.

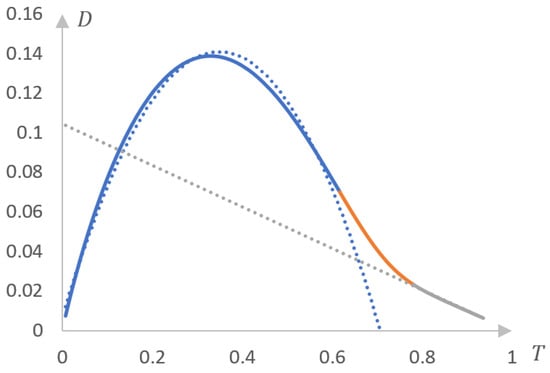

In Figure 12 shows a model curve, also constructed according to Formula (5). The phase portrait of this curve is shown in Figure 13.
By the nature of the curves, this portrait coincides with the phase portraits presented in Figure 10. Namely, it contains fragments approximated by a parabolic and linear dependence (as well as a transition region).
The presented example shows that, starting from the phase portrait, it is indeed possible to reconstruct quite complex dependencies that describe the phase transition. In addition, this example serves as additional confirmation of the adequacy of the proposed method. Namely, from Figure 13, it is clear that although the very nature of the curve under consideration is quite complex, nevertheless, the phase portrait shows areas that correspond to much simpler dependencies, including the one that corresponds to Formula (8).
The appearance of curve 1, Figure 11, and similar ones may be due to the following phenomena occurring during phase transitions. As shown in previous studies [144,145], the nature of the phase transition can be determined by the formation of supramolecular structures (hydrophilic interpolymer associates or hydrophobic-hydrophilic associates). They are formed due to the formation of unstable bonds between macromolecular coils. Therefore, the first stage of the phase transition (subject to the formation of such associates) will be associated precisely with the destruction of such structures. In this case, the decrease in the size of the macromolecular coil itself, caused by an increase in temperature, does not necessarily have to occur in an abrupt manner. The abrupt transition may be caused precisely by the destruction of associates of the above nature. Consequently, gradual compression of the macromolecular coil (which is expressed, among other things, in a change in the turbidity of the solution) can occur even after the associate is destroyed. Curve 1, Figure 11, its analogues, as well as Formula (5), presumably correspond to precisely this situation. The compression of the macromolecular coil itself proceeds quite smoothly, but at first it causes the destruction of the associate, which corresponds to the parabolic portion of the phase portrait. After the associate is destroyed, the compression of the macromolecular coil continues, but it continues to be quite smooth, which allows the use of exponential approximation (this corresponds to a linear fragment of the phase portrait).
This, however, does not exclude the need to develop methods that would make it possible to construct phase portraits using turbidimetry methods with higher accuracy than the numerical differentiation procedure allows. Indeed, as shown in Figure 4, Figure 5, Figure 6, Figure 7 and Figure 8, a comparison of the forward and reverse phase portraits obtained on the basis of turbidimetric and calorimetric measurements, respectively, is very informative. Such a comparison, among other things, makes it possible to most reliably verify the presence of several stages inherent in a specific phase transition.
In the future, such methods can be developed on the basis of radio engineering differentiation of the temperature dependence of the solution (or gel) transmission function. Note that similar methods have been used in plasma physics for more than a long time [154,155].
In relation to the case under consideration, the measurement scheme that allows one to directly obtain the derivative of the measured parameter with respect to temperature can be organized as follows: The temperature of the medium changes according to a law that corresponds to the sum of a linear (or function close to it) and harmonic oscillation. The optical vibration recording unit is configured so that it selects a component corresponding to a linear (or close to it) component and a separate component corresponding to a harmonic vibration. In this case, the amplitude of the harmonic oscillation is selected sufficiently small, i.e., such that the approximate equality is satisfied with acceptable accuracy.
T t T t + T cos ω t   T t T t + d T t d T T cos ω t
This relationship, in particular, shows that by isolating a harmonic at a ω frequency using radio engineering means, it is possible to determine the value of the derivative d T t d T without using the numerical differentiation procedure. The value of this derivative is proportional, as Formula (3) shows, to the amplitude of the signal recorded at a given frequency.
Of course, the systems under consideration have very specific specifics, which does not allow the use of methods developed in plasma physics directly. Indeed, in previous [156] it was shown that phase transitions in systems of the type under consideration can be accompanied by hysteresis phenomena. There is also a factor of their pronounced inertia, etc.
However, even taking into account the above complicating factors, the problem under consideration for the current level of development of electronics is quite simple. For example, hysteresis phenomena can be taken into account by radio engineering isolating the second harmonic in the expansion of the function on the left side of Formula (3) in the series Taylor by parameter. Moreover, it is possible to significantly simplify its solution by using equipment interfaced with the user’s smartphone via a radio channel. This φ [157,158,159] has several other purposes, including the creation of new equipment for viscometric measurements. In the cited works, it was shown that the computing capabilities of modern smartphones make it possible to significantly simplify the electronic circuits of measuring equipment, i.e., the task of creating methods for direct radio engineering differentiation of the dependence of the optical density of a solution on temperature is indeed solvable. This, in the future, will significantly increase the resolution of turbidimetry in terms of determining the number of phase transition stages and using fairly simple methods.

3. Conclusions

There is no doubt that the more than significant amount of experimental data accumulated over the past decades in the field of studying phase transitions in solutions and gels based on thermosensitive polymers requires systematization.
Such systematization can only be built on the basis of one or another classification, which, in turn, presupposes the formulation of certain classification characteristics.
The study shows that, due to the heterogeneity of the available experimental material, at this stage of research, it is advisable to use a qualitative classification criterion, which is proposed to be the number of phase transition stages.
The study shows that this number can be established using the phase portrait method, and it is possible to use both direct and reverse phase portraits. In the latter case, the experimental curve is considered a derivative of the quantity under study with respect to the control parameter, and its numerical integration is used to construct the inverse phase portrait. The construction of reverse phase portraits is proposed in this work for the first time, and their advantage is the increased (compared to the method of direct phase portraits) accuracy of experimental data processing. It is also shown that, in relation to the study of systems based on thermosensitive polymers, it is advisable to apply the direct phase portrait method to the results of turbidimetric measurements and the reverse phase portrait method to calorimetric measurements. The phase portrait method also creates the basis for obtaining approximation curves that describe experimental data.

4. Materials and Methods

This study used experimental data presented in the literature [138,139].
Data processing is carried out using the phase portrait method, described, in particular, in the literature [140,141,151,160,161], as well as using the method of inverse phase portraits, proposed for the first time in this work.
The phase portrait method [140,141,151,160] is described below.
There is an experimentally obtained dependence of the measured parameter (for example, the turbidity of a polymer solution D ) on the control parameter (for example, solution temperature T ). Based on these data, the derivative of the measured parameter with respect to the control parameter is calculated, for example d D d T , and then the dependence d D d T D is constructed.
There are known cases (for example, [140,151]), when such a dependence is a parabola:
d D d T = a 2 D 2 + a 1 D + a 0
where a i are the coefficients obtained based on experimental data.
Equation (7) admits an analytical solution, which has the form
D = D 0 exp ( T T 0 ) / τ 1 + exp ( T T 0 ) / τ
where D 0 is the amplitude of changes in optical density, T 0 is the temperature of the phase transition, τ is a constant characterizing the steepness of the phase transition, and which has the dimension of temperature.
In the literature [140,151], it was shown that this dependence well describes the experimental data corresponding to the case of a parabolic phase portrait.
Along with the method discussed above [140,141,151,160], which can be called the method of direct phase portraits, it is also permissible to use the method of inverse phase portraits when the experimentally measured quantity (for example, C p T [138]) is considered a derivative of a quantity obtained by integrating it over the control parameter. For example, it is permissible to consider the function
S T = T m T C p d T
and build its dependence on the function C p ( T ) .
As will be clear from what follows, this method complements the method of direct phase portraits, making it possible to more accurately identify the stages of phase transition in systems of the type under consideration.
The rationale for using direct and reverse phase portrait methods for the purposes of this work is as follows.
The advantage of the phase portrait method is its ability to identify the staged nature of phase transitions as well as to obtain differential equations that describe individual stages of a phase transition directly based on experimental data.
Namely, in the literature [141,142,143,144,145], it has been shown that the number of such stages can be different for different systems. Moreover, in other studies [143,144,145,162,163], it was shown that the staged nature of phase transitions can also be associated with fundamentally different processes. For example, for systems such as those studied in one study [144], it is determined by the formation of hydrophobic-hydrophilic associates (HHA), and for those studied in [145], it is determined by the formation of hydrophilic interpolymer associates (HIA). Such associates (both GGA and GIA) are unstable polymer networks, the bonds in which are continuously destroyed and created again [146].
The ability of macromolecules to form associates significantly depends [146] on the same factor that determines the formation of classical interpolymer complexes (or causes the coil-globule transition), i.e., on the formation of bonds between individual functional groups of macromolecules (hydrogen bonds, hydrophobic interactions). If the probability of the formation of such bonds is quite low, then interactions between different macromolecules prevail in the solution (if they are molecules of the same type, then HGA is formed; if they are different, HIA is formed). When the probability of the formation of such bonds increases (for example, due to an increase in temperature), HIA or HGA are destroyed, and instead of them, products are formed that include a relatively small number of macromolecules, for example, classical IPA [144,145,146].
The example of systems in which HGA and GIA are formed shows that a phase transition can indeed have a staged character, with different stages corresponding to the occurrence of processes of different natures.
The various stages of the phase transition in the cited works were identified using the phase portrait method discussed above. Namely, the topology of the phase portraits obtained in the literature [141,142,143,144,145] is different. In particular, phase portraits corresponding to the phase transition studied in [140,151] are strictly parabolic, which allows us to conclude that in this case the phase transition occurs in one stage. Phase portraits obtained in a previous study [145] break down into a set of linear sections. There are known cases when the phase portrait is a collection of parabolic sections [141,142].
This work shows that classification criteria that make it possible in the future to systematize a significant amount of data reflecting the features of phase transitions in systems based on thermosensitive (or, more broadly, stimulus-sensitive) polymers can be developed based on the phase portrait method. It is shown that, along with the method of obtaining direct phase portraits, it is also advisable to use the method of inverse phase portraits, which is proposed in this work for the first time.

Supplementary Materials

The following supporting information can be downloaded at:, Data for calculations and graphs of Figure 1, Figure 2, Figure 3, Figure 4, Figure 5, Figure 6, Figure 7, Figure 8, Figure 9, Figure 10, Figure 11, Figure 12 and Figure 13.

Author Contributions

Conceptualization, A.B. and I.S.; methodology, I.S., A.B. and E.K.; formal analysis, K.K., E.D., A.Z., M.D., F.S. and I.S.; writing—original draft preparation, A.B., E.K., K.K., E.D., A.Z., M.D., F.S. and I.S.; writing—review and editing, A.B., E.K., K.K., E.D., A.Z., M.D., F.S. and I.S.; visualization, E.K. and K.K.; supervision, I.S. All authors have read and agreed to the published version of the manuscript.


This research has been/was/is funded by the Science Committee of the Ministry of Higher Education and Science of the Republic of Kazakhstan (Grant No. AP15473354).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The original contributions presented in the study are included in the article/Supplementary Material, further inquiries can be directed to the corresponding authors.

Conflicts of Interest

The authors declare no conflicts of interest.


  1. Wang, J.; Liu, L.; Zhang, S.; Liao, B.; Zhao, K.; Li, Y.; Xu, J.; Chen, L. Review of the Perspectives and Study of Thermo-Responsive Polymer Gels and Applications in Oil-Based Drilling Fluids. Gels 2023, 9, 969. [Google Scholar] [CrossRef]
  2. Gopinath, S.; Adarsh, N.N.; Radhakrishnan Nair, P.; Mathew, S. Recent Trends in thermo-responsive Elastomeric Shape Memory Polymer Nanocomposites. Polym. Compos. 2023, 44, 4433–4458. [Google Scholar] [CrossRef]
  3. Tian, S.; Geng, Y.; Huang, L.; Li, S.; Wang, Q.; Su, X. Fundamental and Perspectives of Thermo-Responsive Materials for Dehumidification and Water Harvesting. J. Clean. Prod. 2023, 412, 137446. [Google Scholar] [CrossRef]
  4. Buchholz, B.A.; Shi, W.; Barron, A.E. Microchannel DNA Sequencing Matrices with Switchable Viscosities. Electrophoresis 2002, 23, 1398. [Google Scholar] [CrossRef]
  5. Schmaljohann, D. Thermo- and PH-Responsive Polymers in Drug Delivery. Adv. Drug Deliv. Rev. 2006, 58, 1655–1670. [Google Scholar] [CrossRef] [PubMed]
  6. Ballauff, M.; Lu, Y. “Smart” Nanoparticles: Preparation, Characterization and Applications. Polymer 2007, 48, 1815–1823. [Google Scholar] [CrossRef]
  7. Rzaev, Z.M.O.; Dincer, S.; Piskin, E. Functional Copolymers of N-Isopropylacrylamide for Bioengineering Applications. Prog. Polym. Sci. 2007, 32, 534–595. [Google Scholar] [CrossRef]
  8. Bromberg, L. Temperature-Responsive Gels and Thermogelling Polymer Matrices for Protein and Peptide Delivery. Adv. Drug Deliv. Rev. 1998, 31, 197–221. [Google Scholar] [CrossRef]
  9. Zha, L.; Banik, B.; Alexis, F. Stimulus Responsive Nanogels for Drug Delivery. Soft Matter 2011, 7, 5908. [Google Scholar] [CrossRef]
  10. Suleimenov, I.E.; Mun, G.A.; Pak, I.T.; Kabdushev, S.B.; Kenessova, Z.A.; Kopishev, E.E. Redistribution of the Concentrations in Polyelectrolyte Hydrogels Contacts as the Basis of New Desalination Technologies. News Natl. Acad. Sci. Repub. Kazakhstan Ser. Geol. Tech. Sci. 2017, 423, 198–205. [Google Scholar]
  11. Budtova, T.; Suleimenov, I. Physical Principles of Using Polyelectrolyte Hydrogels for Purifying and Enrichment Technologies. J. Appl. Polym. Sci. 1995, 57, 1653–1658. [Google Scholar] [CrossRef]
  12. Suleimenov, I.; Egemberdieva, Z.; Bakirov, A.; Baipakbayeva, S.; Kopishev, E.; Mun, G. Efficiency Problem of Renewable Energetics Systems in the Context of «smart House» Concept. E3S Web Conf. 2020, 164, 13002. [Google Scholar] [CrossRef]
  13. Seidaliyeva, A.; Kabdushev, S.; Baipakbayeva, S.; Kopishev, E.; Suleimenov, I. The Diversification of Energy Sources in Kazakhstan as a Way to Dampen the Consequences of a Predicted Crisis. Polityka Energ. Energy Policy J. 2024, 27, 173–188. [Google Scholar] [CrossRef]
  14. Li, L.; Shan, H.; Yue, C.Y.; Lam, Y.C.; Tam, K.C.; Hu, X. Thermally Induced Association and Dissociation of Methylcellulose in Aqueous Solutions. Langmuir 2002, 18, 7291–7298. [Google Scholar] [CrossRef]
  15. Liu, Y.-Y.; Shao, Y.-H.; Lü, J. Preparation, Properties and Controlled Release Behaviors of PH-Induced Thermosensitive Amphiphilic Gels. Biomaterials 2006, 27, 4016–4024. [Google Scholar] [CrossRef] [PubMed]
  16. Yin, X.; Hoffman, A.S.; Stayton, P.S. Poly(N-Isopropylacrylamide-co-Propylacrylic Acid) Copolymers That Respond Sharply to Temperature and PH. Biomacromolecules 2006, 7, 1381–1385. [Google Scholar] [CrossRef] [PubMed]
  17. Pham, D.T.; Phewchan, P.; Navesit, K.; Chokamonsirikun, A.; Khemwong, T.; Tiyaboonchai, W. Development of Metronidazole-Loaded In Situ Thermosensitive Hydrogel for Periodontitis Treatment. Turk. J. Pharm. Sci. 2021, 18, 510–516. [Google Scholar] [CrossRef] [PubMed]
  18. Guo, Y.; Sun, L.; Wang, Y.; Wang, Q.; Jing, D.; Liu, S. Nanomaterials Based on Thermosensitive Polymer in Biomedical Field. Front. Chem. 2022, 10, 946183. [Google Scholar] [CrossRef] [PubMed]
  19. Rohaľová, S.; Wolaschka, T.; Balážová, Ľ.; Paulovičová, K.; Tóthová, J.; Pavloková, S.; Stahorský, M.; Gajdziok, J. Formulation Optimization and Evaluation of Oromucosal in Situ Gel Loaded with Silver Nanoparticles Prepared by Green Biosynthesis. Eur. J. Pharm. Sci. 2024, 193, 106683. [Google Scholar] [CrossRef]
  20. Sun, L.; Lv, X.; Liu, N.; Qi, G.; Huang, Q. Spontaneous Coal Combustion Prevention Mechanisms of Thermosensitive Composite Hydrogel: An Experimental Study. Fuel 2023, 331, 125796. [Google Scholar] [CrossRef]
  21. Guo, S.; Yuan, S.; Geng, W.; Dong, Z. Preparation and Optimization of Thermosensitive Hydrogels for Inhibiting Coal Oxidation. Int. J. Energy Res. 2021, 45, 7783–7796. [Google Scholar] [CrossRef]
  22. Stabenfeldt, S.E.; García, A.J.; LaPlaca, M.C. Thermoreversible Laminin-functionalized Hydrogel for Neural Tissue Engineering. J. Biomed. Mater. Res. Part A 2006, 77A, 718–725. [Google Scholar] [CrossRef] [PubMed]
  23. Tate, M. Biocompatibility of Methylcellulose-Based Constructs Designed for Intracerebral Gelation Following Experimental Traumatic Brain Injury. Biomaterials 2001, 22, 1113–1123. [Google Scholar] [CrossRef] [PubMed]
  24. Sekar, M.P.; Budharaju, H.; Sethuraman, S.; Sundaramurthi, D. Carboxymethyl Cellulose-Agarose-Gelatin: A Thermoresponsive Triad Bioink Composition to Fabricate Volumetric Soft Tissue Constructs. SLAS Technol. 2023, 28, 183–198. [Google Scholar] [CrossRef]
  25. Li, X.; Chen, A.; Liu, Y.; Li, L. Preparation and Rectal Administration of Hydroxybutyl Chitosan/Graphene Oxide Composite Thermosensitive Hydrogel. React. Funct. Polym. 2023, 189, 105608. [Google Scholar] [CrossRef]
  26. Tohidi, H.; Maleki-Jirsaraei, N.; Simchi, A.; Mohandes, F.; Emami, Z.; Fassina, L.; Naro, F.; Conti, B.; Barbagallo, F. An Electroconductive, Thermosensitive, and Injectable Chitosan/Pluronic/Gold-Decorated Cellulose Nanofiber Hydrogel as an Efficient Carrier for Regeneration of Cardiac Tissue. Materials 2022, 15, 5122. [Google Scholar] [CrossRef]
  27. Mohamed, S.; Nasr, M.; Salama, A.; Refai, H. Novel Lipid–Polymer Hybrid Nanoparticles Incorporated in Thermosensitive in Situ Gel for Intranasal Delivery of Terbutaline Sulphate. J. Microencapsul. 2020, 37, 577–594. [Google Scholar] [CrossRef]
  28. Stanzione, A.; Polini, A.; La Pesa, V.; Romano, A.; Quattrini, A.; Gigli, G.; Moroni, L.; Gervaso, F. Development of Injectable Thermosensitive Chitosan-Based Hydrogels for Cell Encapsulation. Appl. Sci. 2020, 10, 6550. [Google Scholar] [CrossRef]
  29. Wasupalli, G.K.; Verma, D. Thermosensitive Injectable Hydrogel Based on Chitosan-Polygalacturonic Acid Polyelectrolyte Complexes for Bone Tissue Engineering. Carbohydr. Polym. 2022, 294, 119769. [Google Scholar] [CrossRef]
  30. Nawaz, A.; Ullah, S.; Alnuwaiser, M.A.; Rehman, F.U.; Selim, S.; Al Jaouni, S.K.; Farid, A. Formulation and Evaluation of Chitosan-Gelatin Thermosensitive Hydrogels Containing 5FU-Alginate Nanoparticles for Skin Delivery. Gels 2022, 8, 537. [Google Scholar] [CrossRef]
  31. Ziminska, M.; Wilson, J.J.; McErlean, E.; Dunne, N.; McCarthy, H.O. Synthesis and Evaluation of a Thermoresponsive Degradable Chitosan-Grafted PNIPAAm Hydrogel as a “Smart” Gene Delivery System. Materials 2020, 13, 2530. [Google Scholar] [CrossRef]
  32. Ku, J.; Seonwoo, H.; Park, S.; Jang, K.-J.; Lee, J.; Lee, M.; Lim, J.W.; Kim, J.; Chung, J.H. Cell-Laden Thermosensitive Chitosan Hydrogel Bioinks for 3D Bioprinting Applications. Appl. Sci. 2020, 10, 2455. [Google Scholar] [CrossRef]
  33. Chernykh, M.; Zavalny, D.; Sokolova, V.; Ponomarenko, S.; Prylutska, S.; Kuziv, Y.; Chumachenko, V.; Marynin, A.; Kutsevol, N.; Epple, M.; et al. A New Water-Soluble Thermosensitive Star-Like Copolymer as a Promising Carrier of the Chemotherapeutic Drug Doxorubicin. Materials 2021, 14, 3517. [Google Scholar] [CrossRef] [PubMed]
  34. Dalvi, A.V.; Ravi, P.R.; Uppuluri, C.T.; Mahajan, R.R.; Katke, S.V.; Deshpande, V.S. Thermosensitive Nasal in Situ Gelling Systems of Rufinamide Formulated Using Modified Tamarind Seed Xyloglucan for Direct Nose-to-Brain Delivery: Design, Physical Characterization, and in Vivo Evaluation. J. Pharm. Investig. 2021, 51, 199–211. [Google Scholar] [CrossRef]
  35. Dalvi, A.; Ravi, P.R.; Uppuluri, C.T. Rufinamide-Loaded Chitosan Nanoparticles in Xyloglucan-Based Thermoresponsive In Situ Gel for Direct Nose to Brain Delivery. Front. Pharmacol. 2021, 12, 691936. [Google Scholar] [CrossRef] [PubMed]
  36. Dalvi, A.; Ravi, P.R.; Uppuluri, C.T. Design and Evaluation of Rufinamide Nanocrystals Loaded Thermoresponsive Nasal in Situ Gelling System for Improved Drug Distribution to Brain. Front. Pharmacol. 2022, 13, 943772. [Google Scholar] [CrossRef]
  37. Khan, M.S.; Ravi, P.R.; Mir, S.I.; Rawat, P.S. Optimization and in Vivo Evaluation of Triamcinolone Acetonide Loaded in Situ Gel Prepared Using Reacted Tamarind Seed Xyloglucan and Kappa-Carrageenan for Ocular Delivery. Int. J. Biol. Macromol. 2023, 233, 123533. [Google Scholar] [CrossRef] [PubMed]
  38. Kassab, H.; Alkufi, H.; Hussein, L. Use of Factorial Design in Formulation and Evaluation of Intrarectal in Situ Gel of Sumatriptan. J. Adv. Pharm. Technol. Res. 2023, 14, 119. [Google Scholar] [CrossRef]
  39. Talantikite, M.; Stimpson, T.C.; Gourlay, A.; Le-Gall, S.; Moreau, C.; Cranston, E.D.; Moran-Mirabal, J.M.; Cathala, B. Bioinspired Thermoresponsive Xyloglucan–Cellulose Nanocrystal Hydrogels. Biomacromolecules 2021, 22, 743–753. [Google Scholar] [CrossRef] [PubMed]
  40. Ghanbari, M.; Salavati-Niasari, M.; Mohandes, F. Thermosensitive Alginate-Gelatin-Nitrogen-Doped Carbon Dots Scaffolds as Potential Injectable Hydrogels for Cartilage Tissue Engineering Applications. RSC Adv. 2021, 11, 18423–18431. [Google Scholar] [CrossRef]
  41. Ghanbari, M.; Salavati-Niasari, M.; Mohandes, F.; Firouzi, Z. Modified Silicon Carbide NPs Reinforced Nanocomposite Hydrogels Based on Alginate-Gelatin by with High Mechanical Properties for Tissue Engineering. Arab. J. Chem. 2022, 15, 103520. [Google Scholar] [CrossRef]
  42. Ghanbari, M.; Sadjadinia, A.; Zahmatkesh, N.; Mohandes, F.; Dolatyar, B.; Zeynali, B.; Salavati-Niasari, M. Synthesis and Investigation of Physicochemical Properties of Alginate Dialdehyde/Gelatin/ZnO Nanocomposites as Injectable Hydrogels. Polym. Test. 2022, 110, 107562. [Google Scholar] [CrossRef]
  43. Gheysoori, P.; Paydayesh, A.; Jafari, M.; Peidayesh, H. Thermoresponsive Nanocomposite Hydrogels Based on Gelatin/Poly (N-Isopropylacrylamide) (PNIPAM) for Controlled Drug Delivery. Eur. Polym. J. 2023, 186, 111846. [Google Scholar] [CrossRef]
  44. Mozafarian, D.; Jafari, M.; Paydayesh, A. Synthesis and Characterization of Gelatin/Poly N-Isopropylacryl Amide Nanocomposite Hydrogels by Response Surface Methodology. J. Macromol. Sci. Part B 2023, 62, 329–349. [Google Scholar] [CrossRef]
  45. Zhou, L.; Dai, C.; Fan, L.; Jiang, Y.; Liu, C.; Zhou, Z.; Guan, P.; Tian, Y.; Xing, J.; Li, X.; et al. Injectable Self-Healing Natural Biopolymer-Based Hydrogel Adhesive with Thermoresponsive Reversible Adhesion for Minimally Invasive Surgery. Adv. Funct. Mater. 2021, 31, 2007457. [Google Scholar] [CrossRef]
  46. Zhao, X.; Liu, Y.; Shao, C.; Nie, M.; Huang, Q.; Li, J.; Sun, L.; Zhao, Y. Photoresponsive Delivery Microcarriers for Tissue Defects Repair. Adv. Sci. 2019, 6, 1901280. [Google Scholar] [CrossRef] [PubMed]
  47. Li, S.; Wang, W.; Li, W.; Xie, M.; Deng, C.; Sun, X.; Wang, C.; Liu, Y.; Shi, G.; Xu, Y.; et al. Fabrication of Thermoresponsive Hydrogel Scaffolds with Engineered Microscale Vasculatures. Adv. Funct. Mater. 2021, 31, 2102685. [Google Scholar] [CrossRef]
  48. Dabiri, S.M.H.; Samiei, E.; Shojaei, S.; Karperien, L.; Khun Jush, B.; Walsh, T.; Jahanshahi, M.; Hassanpour, S.; Hamdi, D.; Seyfoori, A.; et al. Multifunctional Thermoresponsive Microcarriers for High-Throughput Cell Culture and Enzyme-Free Cell Harvesting. Small 2021, 17, 2103192. [Google Scholar] [CrossRef] [PubMed]
  49. Perera, M.M.; Fischesser, D.M.; Molkentin, J.D.; Ayres, N. Stiffness of Thermoresponsive Gelatin-Based Dynamic Hydrogels Affects Fibroblast Activation. Polym. Chem. 2019, 10, 6360–6367. [Google Scholar] [CrossRef]
  50. Kamlungmak, S.; Rugmai, S.; Tinpun, K.; Nakpheng, T.; Srichana, T. Phase Behavior, in Vitro Drug Release, and Antibacterial Activity of Thermoresponsive poloxamer–Polyvinyl Alcohol Hydrogel-loaded Mupirocin Nanoparticles. J. Appl. Polym. Sci. 2020, 137, 49325. [Google Scholar] [CrossRef]
  51. Wong, L.W.; Pasbakhsh, P.; Cheng, W.T.; Goh, C.B.S.; Tan, J.B.L. One-Pot Synthesis of Injectable Self-Healing Thermoresponsive Halloysite Nanotube-Reinforced Nanocomposite Hydrogels for Tissue Engineering. Appl. Clay Sci. 2023, 232, 106812. [Google Scholar] [CrossRef]
  52. Ding, Y.; Zhang, X.; Xu, B.; Li, W. LCST and UCST-Type Thermoresponsive Behavior in Dendronized Gelatins. Polym. Chem. 2022, 13, 2813–2821. [Google Scholar] [CrossRef]
  53. Pang, Q.; Zhao, J.; Zhang, S.; Zhang, X. Near-Infrared Triggered on-Demand Local Anesthesia Using a Jammed Microgels System. J. Biomater. Sci. Polym. Ed. 2020, 31, 2252–2267. [Google Scholar] [CrossRef] [PubMed]
  54. Zhong, Q.; Chen, C.; Mi, L.; Wang, J.-P.; Yang, J.; Wu, G.-P.; Xu, Z.-K.; Cubitt, R.; Mueller-Buschbaum, P. Thermoresponsive Diblock Copolymer Films with a Linear Shrinkage Behavior and Its Potential Application in Temperature Sensors. Langmuir 2020, 36, 742–753. [Google Scholar] [CrossRef] [PubMed]
  55. Zhong, Q.; Hu, N.; Mi, L.; Wang, J.-P.; Metwalli, E.; Biessmann, L.; Herold, C.; Yang, J.; Wu, G.-P.; Xu, Z.-K.; et al. Impact of Thermal History on the Kinetic Response of Thermoresponsive Poly(Diethylene Glycol Monomethyl Ether Methacrylate)-Block-Poly(Poly(Ethylene Glycol)Methyl Ether Methacrylate) Thin Films Investigated by In Situ Neutron Reflectivity. Langmuir 2020, 36, 6228–6237. [Google Scholar] [CrossRef] [PubMed]
  56. Hu, N.; Chen, C.; Metwalli, E.; Biessmann, L.; Herold, C.; Fu, J.; Cubitt, R.; Zhong, Q.; Mueller-Buschbaum, P. Hydration and Thermal Response Kinetics of a Cross-Linked Thermoresponsive Copolymer Film on a Hydrophobic PAN Substrate Coating Probed by In Situ Neutron Reflectivity. Langmuir 2021, 37, 6819–6829. [Google Scholar] [CrossRef] [PubMed]
  57. Hu, N.; Mi, L.; Metwalli, E.; Biessmann, L.; Herold, C.; Cubitt, R.; Zhong, Q.; Mueller-Buschbaum, P. Effect of Thermal Stimulus on Kinetic Rehydration of Thermoresponsive Poly(Diethylene Glycol Monomethyl Ether Methacrylate)-Block-Poly(Poly(Ethylene Glycol) Methyl Ether Methacrylate) Thin Films Probed by In Situ Neutron Reflectivity. Langmuir 2022, 38, 8094–8103. [Google Scholar] [CrossRef]
  58. Kasinski, A.; Zielinska-Pisklak, M.; Kowalczyk, S.; Plichta, A.; Zgadzaj, A.; Oledzka, E.; Sobczak, M. Synthesis and Characterization of New Biodegradable Injectable Thermosensitive Smart Hydrogels for 5-Fluorouracil Delivery. Int. J. Mol. Sci. 2021, 22, 8330. [Google Scholar] [CrossRef] [PubMed]
  59. Kasinski, A.; Zielinska-Pisklak, M.; Oledzka, E.; Nalecz-Jawecki, G.; Drobniewska, A.; Sobczak, M. Hydrogels Based on Poly(Ether-Ester)s as Highly Controlled 5-Fluorouracil Delivery Systems-Synthesis and Characterization. Materials 2021, 14, 98. [Google Scholar] [CrossRef]
  60. Kasinski, A.; Swierczek, A.; Zielinska-Pisklak, M.; Kowalczyk, S.; Plichta, A.; Zgadzaj, A.; Oledzka, E.; Sobczak, M. Dual-Stimuli-Sensitive Smart Hydrogels Containing Magnetic Nanoparticles as Antitumor Local Drug Delivery Systems-Synthesis and Characterization. Int. J. Mol. Sci. 2023, 24, 6906. [Google Scholar] [CrossRef]
  61. Suljovrujic, E.; Miladinovic, Z.R.; Micic, M.; Suljovrujic, D.; Milicevic, D. The Influence of Monomer/Solvent Feed Ratio on POEGDMA Thermoresponsive Hydrogels: Radiation-Induced Synthesis, Swelling Properties and VPTT. Radiat. Phys. Chem. 2019, 158, 37–45. [Google Scholar] [CrossRef]
  62. Krstic, M.; Miladinovic, Z.R.; Barudzija, T.; Mladenovic, A.; Suljovrujic, E. Stimuli-Responsive Copolymeric Hydrogels Based on Oligo(Ethylene Glycol) Dimethacrylate for Biomedical Applications: An Optimisation Study of PH and Thermoresponsive Behaviour. React. Funct. Polym. 2022, 170, 105140. [Google Scholar] [CrossRef]
  63. Suljovrujic, E.; Krstic, M.; Miladinovic, Z.R.; Petrovic, S.; Leskovac, A.; Stamboliev, G. Optimization of Thermoresponsive Hydrogels Based on Oligomers with Lower Critical Solution Temperature (LCST) Far below/above Physiological Temperatures for Biomedical Applications. React. Funct. Polym. 2023, 189, 105612. [Google Scholar] [CrossRef]
  64. Teodorescu, M.; Bercea, M.; Morariu, S. Miscibility Study on Polymer Mixtures in Dilute Solution. Colloids Surfaces A Physicochem. Eng. Asp. 2018, 559, 325–333. [Google Scholar] [CrossRef]
  65. Andrei, M.; Draghici, C.; Teodorescu, M. Thermoreversible Hydrogels from Hydrolytically Degradable Poly(N-isopropylacrylamide)-poly(ethylene glycol) Triblock copolymer and Gelatin. Univ. Politeh. Buchar. Sci. Bull. Ser. B-Chem. Mater. Sci. 2019, 81, 71–84. [Google Scholar]
  66. Stanescu, P.O.; Nachawati, R.; Abduraman, A.; Teodorescu, M. The Effect of Some Additives on the Thermal Response of Pluronic® L61 Poly(ethylene glycol)-poly(propylene glycol)-poly(ethylene glycol) Triblock Copolymer in Aqueous Solution. Univ. Politeh. Buchar. Sci. Bull. Ser. B-Chem. Mater. Sci. 2021, 83, 143–154. [Google Scholar]
  67. Stanescu, P.O.; Radu, I.C.; Draghici, C.; Teodorescu, M. Controlling the Thermal Response of Poly(N-Isopropylacrylamide)-Poly (Ethylene Glycol)-Poly(N-Isopropylacrylamide) Triblock Copolymers in Aqueous Solution by Means of Additives. React. Funct. Polym. 2020, 152, 104610. [Google Scholar] [CrossRef]
  68. Yan, X.; Fang, W.-W.; Xue, J.; Sun, T.-C.; Dong, L.; Zha, Z.; Qian, H.; Song, Y.-H.; Zhang, M.; Gong, X.; et al. Thermoresponsive in Situ Forming Hydrogel with Sol–Gel Irreversibility for Effective Methicillin-Resistant Staphylococcus Aureus Infected Wound Healing. ACS Nano 2019, 13, 10074–10084. [Google Scholar] [CrossRef]
  69. Song, X.; Zhang, Z.; Zhu, J.; Wen, Y.; Zhao, F.; Lei, L.; Phan-Thien, N.; Khoo, B.C.; Li, J. Thermoresponsive Hydrogel Induced by Dual Supramolecular Assemblies and Its Controlled Release Property for Enhanced Anticancer Drug Delivery. Biomacromolecules 2020, 21, 1516–1527. [Google Scholar] [CrossRef] [PubMed]
  70. Zhou, X.; He, X.; Shi, K.; Yuan, L.; Yang, Y.; Liu, Q.; Ming, Y.; Yi, C.; Qian, Z. Injectable Thermosensitive Hydrogel Containing Erlotinib-Loaded Hollow Mesoporous Silica Nanoparticles as a Localized Drug Delivery System for NSCLC Therapy. Adv. Sci. 2020, 7, 2001442. [Google Scholar] [CrossRef]
  71. Cao, D.; Chen, X.; Cao, F.; Guo, W.; Tang, J.; Cai, C.; Cui, S.; Yang, X.; Yu, L.; Su, Y.; et al. An Intelligent Transdermal Formulation of ALA-Loaded Copolymer Thermogel with Spontaneous Asymmetry by Using Temperature-Induced Sol–Gel Transition and Gel–Sol (Suspension) Transition on Different Sides. Adv. Funct. Mater. 2021, 31, 2100349. [Google Scholar] [CrossRef]
  72. Kim, S.H.; Thambi, T.; Giang Phan, V.H.; Lee, D.S. Modularly Engineered Alginate Bioconjugate Hydrogel as Biocompatible Injectable Scaffold for in Situ Biomineralization. Carbohydr. Polym. 2020, 233, 115832. [Google Scholar] [CrossRef] [PubMed]
  73. Dutta, K.; Das, R.; Ling, J.; Monibas, R.M.; Carballo-Jane, E.; Kekec, A.; Feng, D.D.; Lin, S.; Mu, J.; Saklatvala, R.; et al. In Situ Forming Injectable Thermoresponsive Hydrogels for Controlled Delivery of Biomacromolecules. ACS Omega 2020, 5, 17531–17542. [Google Scholar] [CrossRef] [PubMed]
  74. Wu, C.-H.; Sun, M.-K.; Kung, Y.; Wang, Y.-C.; Chen, S.-L.; Shen, H.-H.; Chen, W.-S.; Young, T.-H. One Injection for One-Week Controlled Release: In Vitro and in Vivo Assessment of Ultrasound-Triggered Drug Release from Injectable Thermoresponsive Biocompatible Hydrogels. Ultrason. Sonochem. 2020, 62, 104875. [Google Scholar] [CrossRef] [PubMed]
  75. Kouvati, K.; Jaszczak, M.; Papagiannis, P.; Kadlubowski, S.; Wach, R.; Maras, P.; Dudek, M.; Kozicki, M. Leuco Crystal Violet-Pluronic F-127 3D Radiochromic Gel Dosimeter. Phys. Med. Biol. 2019, 64, 175017. [Google Scholar] [CrossRef] [PubMed]
  76. Jaszczak, M.; Maras, P.; Kozicki, M. Characterization of a New N-Vinylpyrrolidone-Containing Polymer Gel Dosimeter with Pluronic F-127 Gel Matrix. Radiat. Phys. Chem. 2020, 177, 109125. [Google Scholar] [CrossRef]
  77. Dudek, M.; Piotrowski, M.; Maras, P.; Jaszczak, M.; Kozicki, M. Anisotropic Diffusion of Fe Ions in Fricke-XO-Pluronic F-127 and Fricke-XO-Gelatine 3D Radiotherapy Dosimeters. Phys. Med. Biol. 2021, 66, 155005. [Google Scholar] [CrossRef] [PubMed]
  78. Jaszczak, M.; Sasiadek, E.; Kadlubowski, S.; Dudek, M.; Kozicki, M. Preliminary Study on a New 3D Radiochromic KI-Pluronic F-127 Gel Dosimeter for Radiotherapy. Radiat. Phys. Chem. 2021, 185, 109507. [Google Scholar] [CrossRef]
  79. Kozicki, M.; Jaszczak, M.; Maras, P.; Naglik, R.; Dudek, M.; Kadlubowski, S.; Wach, R. Preliminary Study on a 3D Lung Mimicking Dosimeter Based on Pluronic F-127 Matrix. Radiat. Phys. Chem. 2021, 185, 109479. [Google Scholar] [CrossRef]
  80. Piotrowski, M.; Maras, P.; Kadlubowski, S.; Kozicki, M. Study of the Optimal Composition and Storage Conditions of the Fricke-XO-Pluronic F-127 Radiochromic Dosimeter. Materials 2022, 15, 984. [Google Scholar] [CrossRef]
  81. Jaszczak, M.; Sasiadek-Andrzejczak, E.; Kozicki, M. Discolouring 3D Gel Dosimeter for UV Dose Distribution Measurements. Materials 2022, 15, 2546. [Google Scholar] [CrossRef]
  82. Piotrowski, M.; Maras, P.; Wach, R.; Kadlubowski, S.; Kozicki, M. Impact of Salt on Thermal Stability and Dose Response of the Fricke-XO-Pluronic F-127 3D Radiotherapy Dosimeter. Materials 2022, 15, 5223. [Google Scholar] [CrossRef]
  83. Kozicki, M.; Bartosiak, M.; Maras, P.; Wach, R.; Kadlubowski, S. First Combined, Double-Density LCV-Pluronic F-127 Radiochromic Dosimeter Mimicking Lungs and Muscles. Adv. Mater. Technol. 2023, 8, 2201023. [Google Scholar] [CrossRef]
  84. Sasiadek-Andrzejczak, E.; Jaszczak, M.; Kozicki, M. Capsule Dosimeters for Ultraviolet Radiation Measurements on Coral Reefs and in Seawater. Materials 2023, 16, 5734. [Google Scholar] [CrossRef]
  85. Kancharla, S.; Zoyhofski, N.A.; Bufalini, L.; Chatelais, B.F.; Alexandridis, P. Association between Nonionic Amphiphilic Polymer and Ionic Surfactant in Aqueous Solutions: Effect of Polymer Hydrophobicity and Micellization. Polymers 2020, 12, 1831. [Google Scholar] [CrossRef]
  86. Kancharla, S.; Bedrov, D.; Tsianou, M.; Alexandridis, P. Structure and Composition of Mixed Micelles Formed by Nonionic Block Copolymers and Ionic Surfactants in Water Determined by Small-Angle Neutron Scattering with Contrast Variation. J. Colloid Interface Sci. 2022, 609, 456–468. [Google Scholar] [CrossRef]
  87. Zhang, Y.; He, Z.; Alexandridis, P.; Tsianou, M. Polymeric Surfactant Micelle Structure Modulated by Ionic Liquids. J. Mol. Liq. 2022, 346, 118195. [Google Scholar] [CrossRef]
  88. Tsoutsoura, A.; He, Z.; Alexandridis, P. Phase Behavior and Structure of Poloxamer Block Copolymers in Protic and Aprotic Ionic Liquids. Molecules 2023, 28, 7434. [Google Scholar] [CrossRef]
  89. Tsoutsoura, A.; He, Z.; Alexandridis, P. Effects of Ionic Liquids on the Cylindrical Self-Assemblies Formed by Poly(Ethylene Oxide)-Poly(Propylene Oxide)-Poly(Ethylene Oxide) Block Copolymers in Water. Polymers 2024, 16, 349. [Google Scholar] [CrossRef]
  90. Kim, M.; Heinrich, F.; Haugstad, G.; Yu, G.; Yuan, G.; Satija, S.K.; Zhang, W.; Seo, H.S.; Metzger, J.M.; Azarin, S.M.; et al. Spatial Distribution of PEO-PPO-PEO Block Copolymer and PEO Homopolymer in Lipid Bilayers. Langmuir 2020, 36, 3393–3403. [Google Scholar] [CrossRef]
  91. Hassler, J.F.; Crabtree, A.; Liberman, L.; Bates, F.S.; Hackel, B.J.; Lodge, T.P. Effect of Bottlebrush Poloxamer Architecture on Binding to Liposomes. Biomacromolecules 2022, 24, 449–461. [Google Scholar] [CrossRef]
  92. Crabtree, A.A.; Bates, F.S.; Hackel, B.J. Concentration Threshold for Membrane Protection by PEO-PPO Block Copolymers with Variable Molecular Architectures. ACS Appl. Polym. Mater. 2022, 4, 3259–3269. [Google Scholar] [CrossRef]
  93. Hassler, J.F.; Lawson, M.; Arroyo, E.C.; Bates, F.S.; Hackel, B.J.; Lodge, T.P. Discovery of Kinetic Trapping of Poloxamers inside Liposomes via Thermal Treatment. Langmuir 2023, 39, 14263–14274. [Google Scholar] [CrossRef]
  94. Parekh, P.; Ohno, S.; Yusa, S.; Lv, C.; Du, B.; Ray, D.; Aswal, V.K.; Bahadur, P. Synthesis, Aggregation and Adsorption Behaviour of a Thermoresponsive Pentablock Copolymer. Polym. Int. 2020, 69, 1113–1121. [Google Scholar] [CrossRef]
  95. Pillai, S.A.; Kumar, V.; Kuperkar, K.; Ray, D.; Aswal, V.K.; Kumar, S. Micellization and Clouding Singularity amid the Mixture of EO-PO-Based Star-Block Copolymer and Cationic Surfactants in Aqueous Solution. Colloid Interface Sci. Commun. 2021, 42, 100414. [Google Scholar] [CrossRef]
  96. Machhi, H.K.; Ray, D.; Panjabi, S.H.; Aswal, V.K.; Soni, S.S. Effect of Redox Active Multivalent Metal Salts on Micellization of Amphiphilic Block Copolymer for Energy Storage Devices via SANS, DLS and NMR. J. Mol. Liq. 2021, 341, 116904. [Google Scholar] [CrossRef]
  97. Patel, D.; Bhojani, A.K.; Ray, D.; Singh, D.K.; Bhattacharjee, S.; Seth, D.; Aswal, V.K.; Kuperkar, K.; Bahadur, P. Glucose-Induced Self-Assembly and Phase Separation in Hydrophilic Triblock Copolymers and the Governing Mechanism. Phys. Chem. Chem. Phys. 2022, 24, 21141–21156. [Google Scholar] [CrossRef]
  98. Khamitova, T.O.; Burkeev, M.Z.; Havlicek, D. Synthesis and Study of the Properties of Polymer-Immobilized Silver and Nickel Nanoparticles. Bull. L.N. Gumilyov Eurasian Natl. Univ. Chem. Geogr. Ecol. Ser. 2022, 141, 7–18. [Google Scholar] [CrossRef]
  99. Lucia, A.; Toloza, A.C.; Fanucce, M.; Fernandez-Pena, L.; Ortega, F.; Rubio, R.G.; Coviella, C.; Guzman, E. Nanoemulsions Based on Thymol-Eugenol Mixtures: Characterization, Stability and Larvicidal Activity against Aedes aegypti. Bull. Insectology 2020, 73, 153–160. [Google Scholar]
  100. Laurano, R.; Abrami, M.; Grassi, M.; Ciardelli, G.; Boffito, M.; Chiono, V. Using Poloxamer(R) 407 as Building Block of Amphiphilic Poly(Ether Urethane)s: Effect of Its Molecular Weight Distribution on Thermo-Sensitive Hydrogel Performances in the Perspective of Their Biomedical Application. Front. Mater. 2020, 7, 594515. [Google Scholar] [CrossRef]
  101. Kolpek, A.; Kazankapova, M.; Perdekhanova, A. Purification of Wastewater Using Domestic Carbon Adsorbents and Conducting Physico-Chemical Analysis of Water Composition. Bull. L.N. Gumilyov Eurasian Natl. Univ. Chem. Geogr. Ecol. Ser. 2023, 145, 25–35. [Google Scholar] [CrossRef]
  102. Wang, L.; Xu, J.; Xue, P.; Liu, J.; Luo, L.; Zhuge, D.; Yao, Q.; Li, X.; Zhao, Y.; Xu, H. Thermo-Sensitive Hydrogel with Mussel-Inspired Adhesion Enhanced the Non-Fibrotic Repair Effect of EGF on Colonic Mucosa Barrier of TNBS-Induced Ulcerative Colitis Rats through Macrophage Polarizing. Chem. Eng. J. 2021, 416, 129221. [Google Scholar] [CrossRef]
  103. Rao, Y.; Li, R.; Liu, S.; Meng, L.; Wu, Q.; Yuan, Q.; Liang, H.; Qin, M. Enhanced Bioavailability and Biosafety of Cannabidiol Nanomicelles for Effective Anti-Inflammatory Therapy. Particuology 2022, 69, 1–9. [Google Scholar] [CrossRef]
  104. White, J.M.; Crabtree, A.A.; Bates, F.S.; Calabrese, M.A. Effect of Chain Architecture on the Structure, Dynamics, and Rheology of Thermoresponsive Poloxamer Hydrogels and Associated Blends. Macromolecules 2023, 56, 6834–6847. [Google Scholar] [CrossRef]
  105. Umapathi, R.; Kumar, K.; Venkatesu, P.; Deenadayalu, N. Quantifying the Influence of Ionic Liquid on the Phase Behaviour of a Biomedical Thermoresponsive Polymer: A Biophysical Experimental Approach. React. Funct. Polymers 2019, 143, 104327. [Google Scholar] [CrossRef]
  106. Narang, P.; de Oliveira, T.E.; Venkatesu, P.; Netz, P.A. The Role of Osmolytes in the Temperature-Triggered Conformational Transition of Poly(N-Vinylcaprolactam): An Experimental and Computational Study. Phys. Chem. Chem. Phys. 2020, 22, 5301–5313. [Google Scholar] [CrossRef]
  107. Yadav, R.; Kumar, K.; Venkatesu, P. Monitoring Phase Transition Behavior of Poly(N-Vinylcaprolactam) via Nanostructure-Based Functionalized Carbon Nanotubes. J. Mol. Liq. 2020, 318, 114062. [Google Scholar] [CrossRef]
  108. Kumar, K.; Umapathi, R.; Ramesh, K.; Hwang, S.-K.; Lim, K.T.; Huh, Y.S.; Venkatesu, P. Biological Stimuli-Induced Phase Transition of a Synthesized Block Copolymer: Preferential Interactions between PNIPAM-b-PNVCL and Heme Proteins. Langmuir 2021, 37, 1682–1696. [Google Scholar] [CrossRef]
  109. Kumar, K.; Umapathi, R.; Bisht, M.; Ghoreishian, S.M.; Huh, Y.S.; Venkatesu, P. Tweaking Behavior of Hydrogen Bond Donor in Choline Chloride-Based Deep Eutectic Solvents for Regulating the Phase Transition of Poly(N-Vinylcaprolactam): A Sustainable Medium for an Early Hydrophobic Collapse. ACS Sustain. Chem. Eng. 2021, 9, 14335–14344. [Google Scholar] [CrossRef]
  110. Yadav, R.; Kahlon, N.K.; Kumar, S.; Devunuri, N.; Venkatesu, P. Biophysical Study on the Phase Transition Behaviour of Biocompatible Thermoresponsive Polymer Influenced by Tryptophan-Based Amino Acid Ionic Liquids. Polymer 2021, 228, 123871. [Google Scholar] [CrossRef]
  111. Umapathi, R.; Kumar, K.; Ghoreishian, S.M.; Rani, G.M.; Park, S.Y.; Huh, Y.S.; Venkatesu, P. Tunnelling the Structural Insights between Poly(N-Isopropylacrylamide) and Imidazolium Sulfate Ionic Liquids. J. Mol. Liq. 2022, 360, 119404. [Google Scholar] [CrossRef]
  112. Umapathi, R.; Kumar, K.; Ghoreishian, S.M.; Rani, G.M.; Park, S.Y.; Huh, Y.S.; Venkatesu, P. Effect of Imidazolium Nitrate Ionic Liquids on Conformational Changes of Poly(N-Vinylcaprolactam). ACS Omega 2022, 7, 39742–39749. [Google Scholar] [CrossRef] [PubMed]
  113. Yadav, R.; Kumar, S.; Kumar, K.; Venkatesu, P. Gold Nanospheres/Nanorods as Highly Promising Candidates for the Hydrophilic/Hydrophobic Balance of Poly(N-Vinylcaprolactam): A Thoughtful Design of Nanocomposites. New J. Chem. 2022, 46, 12381–12393. [Google Scholar] [CrossRef]
  114. Rawat, P.; Mor, S.; Yadav, R.; Narang, P.; Bisht, M.; Venkatesu, P. The Hydrophobic Collapse of Thermoresponsive Polymer Poly(N-Vinyl Caprolactam): A New Class of Biocompatible Solvents. New J. Chem. 2024, 48, 1771–1780. [Google Scholar] [CrossRef]
  115. Saha, P.; Kather, M.; Banerjee, S.L.; Singha, N.K.; Pich, A. Aqueous Solution Behavior of Thermoresponsive Polyzwitterionic Microgels Based on Poly(N-Vinylcaprolactam) Synthesized via RAFT Precipitation Polymerization. Eur. Polym. J. 2019, 118, 195–204. [Google Scholar] [CrossRef]
  116. Tan, K.H.; Demco, D.E.; Fechete, R.; Pich, A. Functional Selenium Modified Microgels: Temperature-Induced Phase Transitions and Network Morphology. Soft Matter 2019, 15, 3227–3240. [Google Scholar] [CrossRef] [PubMed]
  117. Djeljadini, S.; Lohaus, T.; Gausmann, M.; Rauer, S.; Kather, M.; Krause, B.; Pich, A.; Moeller, M.; Wessling, M. Trypsin-Free Cultivation of 3D Mini-Tissues in an Adaptive Membrane Bioreactor. Adv. Biosyst. 2020, 4, e2000081. [Google Scholar] [CrossRef]
  118. Banerjee, S.L.; Saha, P.; Ganguly, R.; Bhattacharya, K.; Kalita, U.; Pich, A.; Singha, N.K. A Dual Thermoresponsive and Antifouling Zwitterionic Microgel with PH Triggered Fluorescent “on-off” Core. J. Colloid Interface Sci. 2021, 589, 110–126. [Google Scholar] [CrossRef]
  119. Saha, P.; Palanisamy, A.R.; Santi, M.; Ganguly, R.; Mondal, S.; Singha, N.K.; Pich, A. Thermoresponsive Zwitterionic Poly(Phosphobetaine) Microgels: Effect of Macro-RAFT Chain Length and Cross-Linker Molecular Weight on Their Antifouling Properties. Polym. Adv. Technol. 2021, 32, 2710–2726. [Google Scholar] [CrossRef]
  120. Ganguly, R.; Saha, P.; Kringe, L.A.; Pich, A.; Singha, N.K.K. Thermoresponsive Microgels with High Loading of Zwitterions Exhibiting Superior Performance: A Macromonomer Approach. Macromol. Chem. Phys. 2023, 224, 2200349. [Google Scholar] [CrossRef]
  121. Muralter, F.; Perrotta, A.; Werzer, O.; Coclite, A.M. Interlink between Tunable Material Properties and Thermoresponsiveness of Cross-Linked Poly(N-Vinylcaprolactam) Thin Films Deposited by Initiated Chemical Vapor Deposition. Macromolecules 2019, 52, 6817–6824. [Google Scholar] [CrossRef] [PubMed]
  122. Muralter, F.; Coclite, A.M.; Werzer, O. Wrinkling of an Enteric Coating Induced by Vapor-Deposited Stimuli-Responsive Hydrogel Thin Films. J. Phys. Chem. C 2019, 123, 24165–24171. [Google Scholar] [CrossRef]
  123. Muralter, F.; Greco, F.; Coclite, A.M. Applicability of Vapor-Deposited Thermoresponsive Hydrogel Thin Films in Ultrafast Humidity Sensors/Actuators. ACS Appl. Polym. Mater. 2020, 2, 1160–1168. [Google Scholar] [CrossRef] [PubMed]
  124. Dallinger, A.; Kindlhofer, P.; Greco, F.; Coclite, A.M. Multiresponsive Soft Actuators Based on a Thermoresponsive Hydrogel and Embedded Laser-Induced Graphene. ACS Appl. Polym. Mater. 2021, 3, 1809–1818. [Google Scholar] [CrossRef] [PubMed]
  125. Cerda-Sumbarda, Y.D.; Dominguez-Gonzalez, C.; Zizumbo-Lopez, A.; Licea-Claverie, A. Thermoresponsive Nanocomposite Hydrogels with Improved Properties Based on Poly(N-Vinylcaprolactam). Mater. Today Commun. 2020, 24, 101041. [Google Scholar] [CrossRef]
  126. Gonzalez-Ayon, M.A.; Licea-Claverie, A.; Adriana Sanudo-Barajas, J. Different Strategies for the Preparation of Galactose-Functionalized Thermo-Responsive Nanogels with Potential as Smart Drug Delivery Systems. Polymers 2020, 12, 2150. [Google Scholar] [CrossRef]
  127. Gonzalez-Ayon, M.A.; Licea-Rodriguez, J.; Mendez, E.R.; Licea-Claverie, A. NVCL-Based Galacto-Functionalized and Thermosensitive Nanogels with GNRDs for Chemo/Photothermal-Therapy. Pharmaceutics 2022, 14, 560. [Google Scholar] [CrossRef]
  128. Marquez-Castro, J.E.; Licea-Claverie, A.; Licea-Rodriguez, J.; Quiroga-Sanchez, L.P.; Mendez, E.R. Surface Grafted Gold Nanorods (GNRDs) Using Thermosensitive Copolymers with Various Transition Temperatures: Nanomaterials with Potential Application for Photothermal Therapy. Eur. Polym. J. 2023, 197, 112341. [Google Scholar] [CrossRef]
  129. Ribeiro, L.S.; Sala, R.L.; de Jesus, L.A.O.; Cruz, S.A.; Camargo, E.R. Analyzing the Effects of Silica Nanospheres on the Sol-Gel Transition Profile of Thermosensitive Hydrogels. Langmuir 2021, 37, 7373–7379. [Google Scholar] [CrossRef]
  130. Sala, R.L.; Venancio, T.; Camargo, E.R. Probing the Structural Dynamics of the Coil-Globule Transition of Thermosensitive Nanocomposite Hydrogels. Langmuir 2021, 37, 1531–1541. [Google Scholar] [CrossRef]
  131. Assis, J.F.; Gabriel, A.M.; Goncalves, L.F.; Machado, M.R.F.; Morgado, D.L.; Sala, R.L.; Cristovan, F.H.; Oliveira, M.P.; Arantes, T.M.; Camargo, E.R. Thermosensitive and Biocompatible Nanocomposites of Poly(N-Vinylcaprolactam) and Hydroxyapatite with Potential Use for Bone Tissue Repair. Bionanoscience 2022, 12, 766–773. [Google Scholar] [CrossRef]
  132. Ribeiro, L.S.; Sala, R.L.; Robeldo, T.A.; Borra, R.C.; Camargo, E.R. Injectable Thermosensitive Nanocomposites Based on Poly(N-Vinylcaprolactam) and Silica Particles for Localized Release of Hydrophilic and Hydrophobic Drugs. Langmuir 2023, 39, 2380–2388. [Google Scholar] [CrossRef] [PubMed]
  133. Siirila, J.; Karesoja, M.; Pulkkinen, P.; Malho, J.-M.; Tenhu, H. Soft Poly(N-Vinylcaprolactam) Nanogels Surface-Decorated with AuNPs. Response to Temperature, Light, and RF-Field. Eur. Polym. J. 2019, 115, 59–69. [Google Scholar] [CrossRef]
  134. Fernandez-Quiroz, D.; Loya-Duarte, J.; Silva-Campa, E.; Arguelles-Monal, W.; Sarabia-Sainz, A.-I.; Lucero-Acuna, A.; del Castillo-Castro, T.; San Roman, J.; Lizardi-Mendoza, J.; Burgara-Estrella, A.J.; et al. Temperature Stimuli-Responsive Nanoparticles from Chitosan-Graft-Poly(N-Vinylcaprolactam) as a Drug Delivery System. J. Appl. Polym. Sci. 2019, 136, 47831. [Google Scholar] [CrossRef]
  135. Peng, J.; Tang, D.; Jia, S.; Zhang, Y.; Sun, Z.; Yang, X.; Zou, H.; Lv, H. In Situ Thermal Synthesis of Molybdenum Oxide Nanocrystals in Thermoresponsive Microgels. Colloids Surfaces A-Physicochem. Eng. Asp. 2019, 563, 130–140. [Google Scholar] [CrossRef]
  136. Yin, F.; Nguyen, H.H.; Coutelier, O.; Destarac, M.; Lauth-de Viguerie, N.; Marty, J.-D. Effect of Copolymer Composition of Controlled (N-Vinylcaprolactam/ N-Vinylpyrrolidone) Statistical Copolymers on Formation, Stabilization, Thermoresponsiveness and Catalytic Properties of Gold Nanoparticles. Colloids Surfaces A Physicochem. Eng. Asp. 2021, 630, 127611. [Google Scholar] [CrossRef]
  137. Roh, Y.H.; Eom, J.Y.; Choi, D.G.; Moon, J.Y.; Shim, M.S.; Bong, K.W. Gold Nanorods-Encapsulated Thermosensitive Drug Carriers for NIR Light-Responsive Anticancer Therapy. J. Ind. Eng. Chem. 2021, 98, 211–216. [Google Scholar] [CrossRef]
  138. Ren, H.; Qiu, X.P.; Shi, Y.; Yang, P.; Winnik, F.M.; Winnik, F.M. The Two Phase Transitions of Hydrophobically End-Capped Poly(N-Isopropylacrylamide)s in Water. Macromolecules 2020, 53, 5105–5115. [Google Scholar] [CrossRef] [PubMed]
  139. Nakan, U.; Rahmetullaeva, R.K.; Mun, G.A.; Shaihutdinov, E.M.; Yeligbaeva, G.Z.; Negim, E.S.M. Linear Copolymer of N-Isopropylacrylamide and 2-Hydroxyethylacrylate: Synthesis, Characterization and Monomer Reactivity Ratios. Orient. J. Chem. 2016, 32, 2347–2354. [Google Scholar] [CrossRef]
  140. Ermukhambetova, B.B.; Suleimenov, I.E.; Alikulov, A.Z.; Moldakhan, I.; Baipakbaeva, S.T.; Mun, G.A. On the Question of the Method for Determining the Critical PH Value during the Formation of Complexes between Nonionic Polymers and Polyacid in Aqueous Solutions. Polym. Sci. Ser. A 2021, 63, 8–14. [Google Scholar] [CrossRef]
  141. Mun, G.A.; Moldakhan, I.; Serikbay, A.M.; Kaldybekov, D.; Suleimenov, I.E.; Park, K. Hydrophilic Interpolymer Associates—The Key to Solving the Problem of Pre-Biological Evolution. Int. J. Biol. Chem. 2020, 13, 4–13. [Google Scholar] [CrossRef]
  142. Suleimenov, I.; Shaltykova, D.; Mun, G.; Obukhova, P.; Panchenko, S.; Isembergenov, N. Influence of Hydrophilic Interpolymer Associates on the Formation of Interpolymer Complexes. Adv. Mater. Res. 2013, 749, 60–64. [Google Scholar] [CrossRef]
  143. Suleimenov, I.; Shaltykova, D.; Sedlakova, Z.; Mun, G.; Semenyakin, N.; Kaldybekov, D.; Obukhova, P. Hydrophilic Interpolymer Associates as a Satellite Product of Reactions of Formation of Interpolymer Complexes. Appl. Mech. Mater. 2013, 467, 58–63. [Google Scholar] [CrossRef]
  144. Kabdushev, S.; Mun, G.; Suleimenov, I.; Alikulov, A.; Shaikhutdinov, R.; Kopishev, E. Formation of Hydrophobic–Hydrophilic Associates in the N-Vinylpyrrolidone and Vinyl Propyl Ether Copolymer Aqueous Solutions. Polymers 2023, 15, 3578. [Google Scholar] [CrossRef]
  145. Shaikhutdinov, R.; Mun, G.; Kopishev, E.; Bakirov, A.; Kabdushev, S.; Baipakbaeva, S.; Suleimenov, I. Effect of the Formation of Hydrophilic and Hydrophobic–Hydrophilic Associates on the Behavior of Copolymers of N-Vinylpyrrolidone with Methyl Acrylate in Aqueous Solutions. Polymers 2024, 16, 584. [Google Scholar] [CrossRef]
  146. Suleimenov, I.; Güven, O.; Mun, G.; Beissegul, A.; Panchenko, S.; Ivlev, R. The Formation of Interpolymer Complexes and Hydrophilic Associates of Poly(Acrylic Acid) and Non-Ionic Copolymers Based on 2-Hydroxyethylacrylate in Aqueous Solutions. Polym. Int. 2013, 62, 1310–1315. [Google Scholar] [CrossRef]
  147. Nakan, U.; Rakhmetullaeva, R.; Mun, G.A.; Yeligbaeva, G.Z.; Amitova, A.A.; Tolkyn, B.; Shaihutdinov, E.M.; Nursultanov, M.E.; Negim, E.S.M. Synthesis of Water Soluble Copolymers and Their Interpolymer Complexes with Poly(Acrylic Acid). J. Chem. Technol. Metall. 2018, 53, 83–87. [Google Scholar]
  148. Toktabayeva, A.; Rakhmetullayeva, R.; Abutalip, M.; Mamutova, A.; Batyrbayeva, A.; Mun, G. The New Hybrid Copolymers Based on N-Isopropylacrylamide. J. Chem. Technol. Metall. 2019, 54, 475–482. [Google Scholar]
  149. Toktabayeva, A.K.; Alikulov, A.Z.; Rakhmetullayeva, R.K.; Mun, G.A.; Tumabayeva, A.M.; Urkimbayeva, P.I.; Yu, V.K.; Seilkhanov, T.M. Synthesis and Study of Physico-Chemical Characteristics of Novel Cationic (Co)Polymers Based on n-Isopropylacrylamide and N-(2-Vinyloxyethyl)-n-(2-Cyanoethyl) Amine. J. Chem. Technol. Metall. 2019, 54, 467–474. [Google Scholar]
  150. Rakhmetullayeva, R.K.; Azhkeyeva, A.N.; Yeligbayeva, G.Z.; Shaikhutdynov, Y.M.; Mun, G.A.; Abutalip, M. New Thermo-Sensitive Hydrogel Based on Copolymer of 2-Hydroxyethyl Acrylate and Ethyl Acrylate. Eurasian Chem. J. 2017, 19, 47–55. [Google Scholar] [CrossRef]
  151. Mun, G.A.; Moldakhan, I.; Kabdushev, S.B.; Yermukhambetova, B.B.; Shaikhutdinov, R.; Yeligbayeva, G.Z. To the Methodology of Phase Transition Temperature Determination in Aqueous Solutions of Thermo-Sensitive Polymers. Eurasian Chem. J. 2020, 22, 129. [Google Scholar] [CrossRef]
  152. Lou, G.; Shi, H. Face Image Recognition Based on Convolutional Neural Network. China Commun. 2020, 17, 117–124. [Google Scholar] [CrossRef]
  153. Chen, H.; Geng, L.; Zhao, H.; Zhao, C.; Liu, A. Image Recognition Algorithm Based on Artificial Intelligence. Neural Comput. Appl. 2022, 34, 6661–6672. [Google Scholar] [CrossRef]
  154. Godyak, V.A.; Alexandrovich, B.M. Comparative Analyses of Plasma Probe Diagnostics Techniques. J. Appl. Phys. 2015, 118, 233302. [Google Scholar] [CrossRef]
  155. Demidov, V.I.; Ratynskaia, S.V.; Rypdal, K. Electric Probes for Plasmas: The Link between Theory and Instrument. Rev. Sci. Instrum. 2002, 73, 3409–3439. [Google Scholar] [CrossRef]
  156. Suleimenov, I.E.; Guven, O.; Mun, G.A.; Uzun, C.; Gabrielyan, O.A.; Kabdushev, S.B.; Agibaeva, L.; Nurtazin, A. Hysteresis Effects During the Phase Transition in Solutions of Temperature Sensitive Polymers. Eurasian Chem. J. 2017, 19, 41. [Google Scholar] [CrossRef]
  157. Suleimenov, I.; Kadyrzhan, K.; Kabdushev, S.; Bakirov, A.; Kopishev, E. New Equipment for Aromatherapy and Related Mobile App: A Tool to Support Small Peasant Farms in Kazakhstan in Crisis. In Smart Innovation, Systems and Technologies; Shamtsyan, M., Pasetti, M., Beskopylny, A., Eds.; Springer Nature Singapore Pte Ltd.: Berlin/Heidelberg, Germany, 2022; pp. 347–355. [Google Scholar]
  158. Suleimenov, I.E.; Kabdushev, S.B.; Kadyrzhan, K.; Shaltikova, D.B.; Moldakhan, I. New Technologies for Measuring Viscosity: Using Mobile Applications. In Proceedings of the 2020 6th International Conference on Computer and Technology Applications, Antalya, Turkey, 14–16 April 2020; pp. 129–133. [Google Scholar] [CrossRef]
  159. Suleimenov, I.E.; Mun, G.A.; Kabdushev, S.B.; Alikulov, A.; Shaltykova, D.B.; Moldakhan, I. The Design of Viscometer with Smartphone Controlling. Indones. J. Electr. Eng. Comput. Sci. 2022, 27, 366. [Google Scholar] [CrossRef]
  160. Suleimenov, I.E.; Budtova, T.V.; Adil’bekov, S.A.; Pereladov, I.Y.; Bekturov, E.A. Application of the Method of Phase Portraits to the Analysis of the Kinetics of Redistribution of Metal Ion Concentrations in the Polyelectrolyte Hydrogel-Multicomponent Solution System. Polym. Sci. Ser. A 2004, 46, 797–805. [Google Scholar]
  161. Ivanchina, E.D.; Chuzlov, V.A.; Ivanchin, N.R.; Borissov, A.; Seitenov, G.Z.; Dusova, R.M. Mathematical Modeling of the Process Catalytic Isomerization of Light Naphtha. Pet. Coal 2019, 61, 413–417. [Google Scholar]
  162. Safarov, R.; Berdenov, Z.; Urlibay, R.; Nossenko, Y.; Shomanova, Z.; Bexeitova, Z.; Kulak, A.; Varga, I.; Balog, A.; Domjánné, R.N.; et al. Spatial Distribution of Elements, Environmental Effects, and Economic Potential of Waste from the Aksu Ferroalloy Plant [Kazakhstan]. PLoS ONE 2023, 18, e0283251. [Google Scholar] [CrossRef]
  163. Safarov, R.Z.; Kargin, J.B.; Aibuldinov, Y.K.; Zhandildenova, A.K.; Makhmutov, B.B.; Sviderskiy, A.K.; Vatin, N.I. Structure and Content Analysis of Raw Materials for Production of Trimanganese Tetraoxide Pigment. Crystals 2021, 11, 1460. [Google Scholar] [CrossRef]

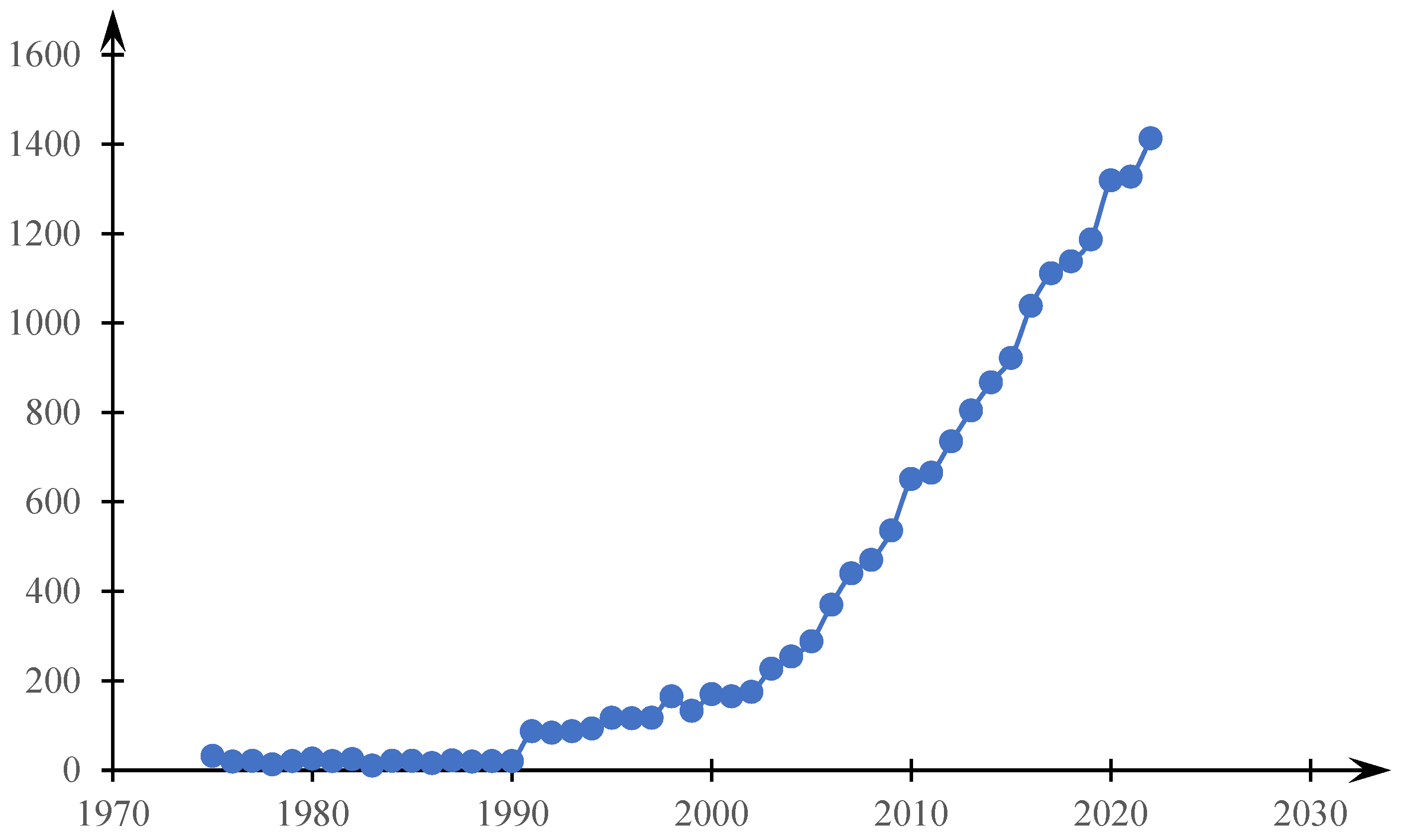

Figure 1. Statistics of search results for the keywords “thermosensitive”, “thermoresponsive polymer” in the WoS database by year.
Figure 1. Statistics of search results for the keywords “thermosensitive”, “thermoresponsive polymer” in the WoS database by year.
Gels 10 00395 g001
Figure 2. Thermograms of an aqueous solution of C12-PN-AzPy of varying molar masses (concentration: 0.5 mg/mL for polymers of molar masses 5K (1, blue) and 7K (2, orange); 1.0 mg/mL for polymers of molar masses 12K (3, gray) and 20K (4, yellow)) [138].
Figure 2. Thermograms of an aqueous solution of C12-PN-AzPy of varying molar masses (concentration: 0.5 mg/mL for polymers of molar masses 5K (1, blue) and 7K (2, orange); 1.0 mg/mL for polymers of molar masses 12K (3, gray) and 20K (4, yellow)) [138].
Gels 10 00395 g002
Figure 3. Turbidity curves of an aqueous solution of C12-PN-AzPy of varying molar masses (concentration: 0.5 mg/mL for polymers of molar masses 5K (1, blue) and 7K (2, orange); 1.0 mg/mL for polymers of molar masses 12K (3, gray) and 20K (4, yellow)) [138].
Figure 3. Turbidity curves of an aqueous solution of C12-PN-AzPy of varying molar masses (concentration: 0.5 mg/mL for polymers of molar masses 5K (1, blue) and 7K (2, orange); 1.0 mg/mL for polymers of molar masses 12K (3, gray) and 20K (4, yellow)) [138].
Gels 10 00395 g003
Figure 4. Comparison of curves T t T (1, orange) and s t T (2, blue) obtained from the data of [139]; (a) for curves 1 in Figure 2 and Figure 3, (b) for curves 4 in these figures.
Figure 4. Comparison of curves T t T (1, orange) and s t T (2, blue) obtained from the data of [139]; (a) for curves 1 in Figure 2 and Figure 3, (b) for curves 4 in these figures.
Gels 10 00395 g004
Figure 5. Reverse (a) and direct (b) phase portraits for curves 1 in Figure 2 and Figure 3. 1 and 3—parabolic sections of the phase portrait, 2—intermediate; different colors are used to mark different areas of the same phase portrait.
Figure 5. Reverse (a) and direct (b) phase portraits for curves 1 in Figure 2 and Figure 3. 1 and 3—parabolic sections of the phase portrait, 2—intermediate; different colors are used to mark different areas of the same phase portrait.
Gels 10 00395 g005
Figure 6. Reverse (a) and direct (b) phase portraits for curves 2 in Figure 2 and Figure 3; different colors are used to mark different areas of the same phase portrait.
Figure 6. Reverse (a) and direct (b) phase portraits for curves 2 in Figure 2 and Figure 3; different colors are used to mark different areas of the same phase portrait.
Gels 10 00395 g006
Figure 7. Reverse (a) and forward (b) phase portraits for curves 3 in Figure 2 and Figure 3; different colors are used to mark different areas of the same phase portrait.
Figure 7. Reverse (a) and forward (b) phase portraits for curves 3 in Figure 2 and Figure 3; different colors are used to mark different areas of the same phase portrait.
Gels 10 00395 g007
Figure 8. Reverse (a) and direct (b) phase portraits for curves 4 in Figure 2 and Figure 3; different colors are used to mark different areas of the same phase portrait.
Figure 8. Reverse (a) and direct (b) phase portraits for curves 4 in Figure 2 and Figure 3; different colors are used to mark different areas of the same phase portrait.
Gels 10 00395 g008
Figure 9. Dependences of the optical density of solutions of copolymer NIPAAm with 2-HEA with various ratios of hydrophilic chains 50:50 (a), 70:30 (b) on temperature: 0.0125% (1, light blue); 0.025% (2, yellow); 0.05% (3, gray); 0.1% (4, orange); 0.2% (5, dark blue) [139].
Figure 9. Dependences of the optical density of solutions of copolymer NIPAAm with 2-HEA with various ratios of hydrophilic chains 50:50 (a), 70:30 (b) on temperature: 0.0125% (1, light blue); 0.025% (2, yellow); 0.05% (3, gray); 0.1% (4, orange); 0.2% (5, dark blue) [139].
Gels 10 00395 g009
Figure 10. Phase portraits: curve 1 in Figure 9a (a), curve 2 in Figure 9a (b), curve 3 in Figure 9a (c), curve 1 in Figure 9b (d), and curve 1 in Figure 9b (e); blue color is a parabolic section, orange is a linear section.
Figure 10. Phase portraits: curve 1 in Figure 9a (a), curve 2 in Figure 9a (b), curve 3 in Figure 9a (c), curve 1 in Figure 9b (d), and curve 1 in Figure 9b (e); blue color is a parabolic section, orange is a linear section.
Gels 10 00395 g010aGels 10 00395 g010bGels 10 00395 g010c
Figure 11. An example of processing experimental data, leading to a dependence of the form (5); curve 1—experimental data; curve 2 (orange)—approximation of the section of the experimental curve corresponding to the linear phase portrait using exponential dependence (6); curve 3—the result of dividing the values corresponding to the experimental data by the result of approximation according to Formula (6); curve 4 (black)—approximation of the curve 3 using a formula of the form (2); curve 5 (red)—approximation of the original experimental data using a dependence of the form (8).
Figure 11. An example of processing experimental data, leading to a dependence of the form (5); curve 1—experimental data; curve 2 (orange)—approximation of the section of the experimental curve corresponding to the linear phase portrait using exponential dependence (6); curve 3—the result of dividing the values corresponding to the experimental data by the result of approximation according to Formula (6); curve 4 (black)—approximation of the curve 3 using a formula of the form (2); curve 5 (red)—approximation of the original experimental data using a dependence of the form (8).
Gels 10 00395 g011
Figure 12. Model curve constructed according to Formula (5); T 01 = 22   K , τ 1 = 10   K , T 02 = 30   K , τ = 1.2   K , D 0 = 1 .
Figure 12. Model curve constructed according to Formula (5); T 01 = 22   K , τ 1 = 10   K , T 02 = 30   K , τ = 1.2   K , D 0 = 1 .
Gels 10 00395 g012
Figure 13. Phase portrait of the model curve, Figure 12; blue—parabolic section of the phase portrait, gray—linear, orange—intermediate; parabolic and linear approximations are shown by dotted lines in the corresponding colors.
Figure 13. Phase portrait of the model curve, Figure 12; blue—parabolic section of the phase portrait, gray—linear, orange—intermediate; parabolic and linear approximations are shown by dotted lines in the corresponding colors.
Gels 10 00395 g013
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Bakirov, A.; Kopishev, E.; Kadyrzhan, K.; Donbaeva, E.; Zhaxybayeva, A.; Duisembiyev, M.; Suyundikova, F.; Suleimenov, I. The Method of Direct and Reverse Phase Portraits as a Tool for Systematizing the Results of Studies of Phase Transitions in Solutions of Thermosensitive Polymers. Gels 2024, 10, 395.

AMA Style

Bakirov A, Kopishev E, Kadyrzhan K, Donbaeva E, Zhaxybayeva A, Duisembiyev M, Suyundikova F, Suleimenov I. The Method of Direct and Reverse Phase Portraits as a Tool for Systematizing the Results of Studies of Phase Transitions in Solutions of Thermosensitive Polymers. Gels. 2024; 10(6):395.

Chicago/Turabian Style

Bakirov, Akhat, Eldar Kopishev, Kaisarali Kadyrzhan, Elvira Donbaeva, Aigerim Zhaxybayeva, Marat Duisembiyev, Faiziya Suyundikova, and Ibragim Suleimenov. 2024. "The Method of Direct and Reverse Phase Portraits as a Tool for Systematizing the Results of Studies of Phase Transitions in Solutions of Thermosensitive Polymers" Gels 10, no. 6: 395.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
