J. Fungi 2019, 5(4), 100; https://doi.org/10.3390/jof5040100

Article
PdMFS1 Transporter Contributes to Penicilliun digitatum Fungicide Resistance and Fungal Virulence during Citrus Fruit Infection
1
Instituto Valenciano de Investigaciones Agrarias (IVIA), Centro de Protección Vegetal y Biotecnología, Moncada, 46113 Valencia, Spain
2
Instituto de Agroquímica y Tecnología de Alimentos (IATA-CSIC), C. Catedrático Agustín Escardino 7, Paterna, 46980 Valencia, Spain
*
Correspondence: [email protected]; Tel.: +34963900022
Present Address: Evolutionary Genomics Group, División de Microbiología, Universidad Miguel Hernández, Apartado 18, San Juan, 03550 Alicante, Spain.
Present Address: Instituto de Agroquímica y Tecnología de Alimentos (IATA-CSIC). C. Catedrático Agustín Escardino 7, Paterna, 46980 Valencia, Spain.
Received: 4 September 2019 / Accepted: 16 October 2019 / Published: 18 October 2019

Abstract

:
A new Penicillium digitatum major facilitator superfamily (MFS) transporter (PdMFS1) was identified and functionally characterized in order to shed more light on the mechanisms underlying fungicide resistance. PdMFS1 can play an important role in the intensification of resistance to fungicides normally used in P. digitatum postharvest treatments. In the PdMFS1 disrupted mutants, a slight effect in response to chemical fungicides was observed, but fungicide sensitivity was highly affected in the overexpression mutants which became resistant to wide range of chemical fungicides. Moreover, P. digitatum knock-out mutants exhibited a lower rate of fungal virulence when infected oranges were stored at 20 °C. Disease symptoms were higher in the PdMFS1 overexpression mutants coming from the low-virulent P. digitatum parental strain. In addition, the gene expression analysis showed an induction of PdMFS1 transcription in all overexpression mutants regardless from which progenitor came from, and four-time intensification of the parental wild type strain during citrus infection reinforcing PdMFS1 role in fungal virulence. The P. digitatum MFS transporter PdMFS1 contributes not only to the acquisition of wide range of fungicide resistance but also in fungal virulence during citrus infection.
Keywords:
citrus; fungicide resistance; MFS transporter; Penicillium digitatum; postharvest; virulence

1. Introduction

Penicillium digitatum (Pers.: Fr) Sacc., is responsible for green mold, the most prevalent postharvest disease of citrus fruits [1]. Currently, control of this fungus is carried out by synthetic fungicides such as sterol demethylation inhibitors (DMIs), O-phenylphenol, or thiabendazole [2]. However, the continuous use of chemicals for preventing fungal diseases, has limited the efficacy and useful lifetime of fungicides. The emergence of fungal pathogens resistant to chemical compounds and the negative impact of fungicides on human health have warranted significant research attention in order to develop more effective control strategies.
Knowledge of the mechanisms of fungicide resistance has been extensively explored in recent years [3,4,5]. Among all the mechanisms described, the overexpression of efflux pumps of two classes of transporter proteins that included the ATP-binding cassette (ABC) or the major facilitator superfamily (MFS) transporters has been of greater interest since they can confer resistance towards many unrelated toxic compounds through active transport out of the cell, resulting in decreased intracellular drug concentrations [6].
MFS transporters are included in the group of secondary active transporters that can transport substances in reaction to ion gradients. MFS transporters can mediate antiport, uniport, and symportation of different products [7]. Many of these MFS transporters are relevant for transporting small molecules in response to ion gradients or molecules that function as a drug that regulate microorganism growth under stress conditions affecting membrane potential and internal pH [8]. In addition, these transporters have little substrate affinity contributing in the transfer of wide range of substrates and, therefore, might play a function in sensitivity to different compounds.
In plant pathogenic fungi, the MFS transporters are able to pump off fungal toxins that contribute on the increase of fungal aggressiveness to host plants [9,10,11,12]. Furthermore, overexpression of MFS transporters could confer resistance to wide range of chemical drugs at the same time, thus acquiring the fungus a multidrug resistance (MDR) phenotype [8,13].
The effect on toxin efflux and fungicide sensitivity has been shown in different fungal MFS transporters. For instance, the elimination of the Cercospora nicotianae MFS transporter reduced cercosporin toxin [10]. In Botrytis cinerea, BcMfs1 affected the sensitivity to camptothecin and cercosporin and DMI resistance [9] and mfsM2 showed increased fungicide efflux activity [11]. The deletion of MgMfs1 of Mycosphaerella graminicola affected resistance to strobilurin fungicides but not to other fungicides evaluated [12,13]. In Zymoseptoria tritici, the MgMFS1 transporter contributed to the MDR phenotype [14]. Moreover, the AaMFS19 MFS transporter was shown to play a role in resistance to oxidative stress and chemicals in the phytopathogenic fungus Alternaria alternata [15].
Recently, research conducted on P. digitatum reported two different MFS transporters PdMfs1 and Pdmfs2. PdMfs1 is apparently partially associated with imazalil-resistance and pathogenicity [16], while Pdmfs2 seems to be involved in prochloraz sensitivity, sporulation, and fungal aggressiveness [17].
In this work, we identified a new P. digitatum MFS transporter that is relevant for acquisition of a wide range of fungicide resistance, and it is important for fungal virulence. PdMFS1 characterization was carried out using gene deletion and gene overexpression in different P. digitatum strains and the evaluation of transcription profiling was also provided. Our results offer new insights into the molecular systems displayed by P. digitatum in the acquisition of fungicide resistance and higher virulence.

2. Materials and Methods

2.1. Microorganisms and Culture Conditions

Three different Penicillium digitatum strains were used: high virulent Pd1 resistant to imazalil, prochloraz, and thiabendazol among others; Pd27; and Pd149, both fungicide-sensitive and high and low virulent, respectively. All strains were already described in a previous work [4]. Fungal growth in solid and liquid media and conidia collection was carried out on potato dextrose agar (PDA; Liofilchem Laboratories, Teramo, Italy) or potato dextrose broth (PDB; Liofilchem Laboratories, Teramo, Italy) as reported before [18]. Cultures were grown at 25 °C with continuous light for one, two, or three days (liquid cultures), depending of the further use, or up to 1 week (agar media). Fungal spores were collected from 1 week old PDA plates by scraping them with a sterile spatula, and transferring them to sterile water. Spores were filtered, and counted with a haemocytometer, adjusting them to a desired final concentration.
Escherichia coli DH5α was used for cloning and plasmid storage. E. coli cultures were grown in LB (Luria Bertani) plates or LB liquid media amended with 100 μg/mL of kanamycin at 37 °C.
Agrobacterium tumefaciens C58C1 was employed for fungal transformation. Bacteria containing plasmid constructs was cultured in LB plates or LB liquid medium with 50 μg/mL Rifampicin and 100 μg/mL Kanamycin at 28 °C following the procedure already described [18].
Mature oranges (Citrus sinensis L. Osbeck) from the cultivars ‘Navelina’ or ‘Navelate’ not treated with fungicides, harvested from different orchards at IVIA in Moncada (Valencia, Spain), were used in this study.

2.2. Nucleic Acids Isolation

Genomic DNA was isolated from mycelium of P. digitatum grown in PDB as reported [19]. PCR amplicons obtained in this study were purified using Ultra Clean TM PCR Clean-up (MoBio, Solan Beach, CA, USA). Gene cloning was confirmed by DNA sequencing using the fluorescent chain-terminating dideoxynucleotide method [20].
RNA was extracted from frozen mycelium of P. digitatum grown in PDB using Trizol (Ambion Inc., Austin, TX, USA) following manufacturer’s recommendations. Total RNA during fruit infection was obtained from fruit peel discs as described previously [21].

2.3. Identification of PdMFS1

Primers M1-1 and M1-2 (Table S1) designed from the sequence of P. digitatum MFS transporter PDS09B02 [21] were used for identification of the genomic version by screening P. digitatum Pd1 DNA library as reported previously [18].
The analysis of the PdMFS1 protein domains were done using SMART (http://smart.embl-heidelberg.de). Protein sequence alignments were performed utilizing the Clustal W program [22] and Mega 7.0 program was used for the construction of phylogenetic tree with the neighbor-joining method [23].

2.4. PdMFS1 Gene Deletion and Gene Overexpression

Two different binary plasmids were constructed based on pRFHU2 and pRFHU vectors, for PdMFS1 gene disruption and PdMFS1 overexpression following the same procedure described before [24].
For gene deletion, PdMFS1 promoter and terminator regions were fused to hph gene using pRFHU2. For gene overexpression, the complete PdMFS1 gene including promoter and terminator was introduced in pRFHU plasmid following the strategy described previously [25].
C58C1 Agrobacterium-mediated transformation was performed as reported [19]. Mutants were selected from PDA plates amended with 100 μg/mL of hygromycin B as a selection media.
Confirmation of gene knock-out and gene overexpression was done by PCR using genomic DNA. Analysis of gene copy number was done by qRT-PCR as described [18].

2.5. Virulence Tests

For in vivo assays, ‘Navelina’ mature oranges without chemical treatments were infected as described previously [26]. Infection experiments were performed using freshly harvested orange (Citrus sinensis) that were wounded at four places around the equatorial axis and infected with 10 μL of a spore suspension adjusted to 105 conidia/mL. They were kept at 20 °C and 90% RH (Relative Humidity). Three replicates of five fruits each were carried out, and the infection experiments were done twice. As control, mock-inoculated fruits were used. Infection progression was measured as percentage of infected fruits (disease incidence) and diameter of macerated tissue (disease severity).

2.6. Fungicide Sensitivity Test

Increasing concentrations of four different chemicals, Imazalil (Textar I; Tecnidex), Prochloraz (Ascurit; Tecnidex), Philabuster (mixture of Imazalil and Pyrimethanil) (Decco Ibérica) (0, 0.5, 1, 2, 4, 8, and 10 μg/mL) and Thiabendazol (Textar 60 T; Tecnidex) (0, 0.5, 1, 2, 4, 8, and 10 μg/mL) were selected to evaluate fungicide sensitivity of P. digitatum strains. Each treatment was carried out using three replicas and two independent experiments. The measurements were performed in 96-well microtiter plates comparing growth at different fungicide concentrations with untransformed wild-type strain as a control assayed at the same time. The activity and efficacy of the different fungicides were evaluated following the protocol described before [25]. Sensitivity to different chemical compounds was measured as the average of the ratio between growth in presence of fungicides and the growth in absence of the chemicals expressed in percentage.

2.7. Quantitative Real-Time PCR

PrimeScript™ RT reagent Kit (Takara Bio Inc., CA, USA) was used for synthesis of the first strand of cDNA in a 20 μl reaction, following the indications of the manufacturer. Quantitative PCR was done as reported [18].
Values obtained resulted from the average of three biological replicates and two independent experiments. For PdMFS1 quantification, primers qM1F and qM1R were used, and as independent reference genes were selected β-tubulin (qTubF-qTubR), ribosomal 28S (q28SF-q28SR), and histone H3 (qH3F-qH3R) (Table S1).
The software LightCycler 480 SW 1.5 (Roche Diagnostics, Madrid, Spain) was used for cycle point quantification. Primer melting temperature allowed the selection of each primer set for specific amplification. The Relative Gene Expression (‘RGE’) was carried out as previously described [27].

2.8. Statistical Analysis

Evaluation of significant differences for sensitivity to chemicals and infection progression data was done using analysis of variance (ANOVA) with SAS software (SAS Institute Inc., Cary, NC, USA) statistical package. Statistically significance was considered when p < 0.05 using Tukey’s test for the separation of means.

3. Results

3.1. Analysis of PdMFS1

In a previous work, we constructed a cDNA library enriched in P. digitatum genes that were induced during citrus fruit infection using suppression subtractive hybridization (SSH) [21]. Among those P. digitatum genes that showed a significant differential expression during the infection, we found a cDNA (PDS09B02) that exhibited high homology to the MFS transporter family, and it was selected for functional characterization.
Screening of the P. digitatum Pd1 genomic library allowed to obtain the PdMFS1 genomic version that included exons and introns. Sequence evaluation showed that the genomic region contained an open reading frame of 2327 bp, with two introns of 79 and 64 bp, placed at positions 2298..2469, 2548..4374, and 4438..4625 of the coding region, and the deduced protein encoded 728 amino acids. This gene was named PdMFS1, and encodes a major facilitator superfamily transporter in P. digitatum. The presence of introns and exons in the PdMFS1 gene was done by sequencing the full cDNA fragment and compared to the genomic version. The PdMFS1 gene nucleotide sequence is accessible in GenBank as GU124565.
The nucleotide sequence of the PdMFS1 gene was compared in the three isolates of P. digitatum strains used (Pd1, P27, and Pd149). No differences were found either in the promoter region or in the coding region.
PdMFS1 showed characteristic DNA-binding motifs, particularly a domain with high identity to MFS transporters. The software TMPRED (Swiss Institute of Bioinformatics) was used for hydropathic analysis that showed that PdMFS1 has 12 putative transmembrane domains. Alignment of PdMFS1 sequence with other P. digitatum MFS transporters sequences available at the National Center for Biotechnology Information (NCBI) exposed a PdMFS1 cluster close to the Pdmfs2 P. digitatum MFS transporter [17] and MFS-4 [28], and far away from P. digitatum PdMfs1 in terms of homology and location [16] (Figure 1).

3.2. Generation of the PdMFS1 Mutants

In order to characterize PdMFS1 function, gene deletion was performed in P. digitatum Pd1 from which the PdMFS1 gene was obtained. The pΔMFS1 plasmid comprises a PdMFS1 promoter region amplified using M1-7–M1-8 primers (Table S1), followed by the hygromycin B resistant cassette and a PdMFS1 terminator region using M1-9–M-10 primers (Table S1). pΔMFS1 vector was used for Agrobacterium tumefaciens-mediated transformation in the P. digitatum Pd1 strain (fungicide resistant and high virulent) (Figure 2A).
Single spore mutants were grown on selected media and then mutants were confirmed by PCR for the presence of the hygromcycin B resistance marker with primers HygF-HygR. Verification of the elimination of PdMFS1 coding region was done by PCR in both flanks with primers HygRt/M1-11 and M1-16/HygFt. No amplification was observed in the wild-type (WT) strain and in ectopic transformants that consisted of Pd1 mutants containing pΔMFS1 plasmid but not inserted in locus, while null mutants showed an amplicon of 2.9 kb and 2.1 kb, respectively (Figure 2B). The PdMFS1 gene elimination in the null mutants was proven by the absence of amplicon when primers M1-1/M1-2 (Table S1) were used (Figure 2B).
To avoid the presence of null mutants with additional T-DNA integrations, the DNA copy number was analyzed in 10 mutants by real-time quantitative PCR (qRT-PCR), using WT as control and as a reference the β-tubulin gene. Among all transformants, we selected for further analysis ΔT1 and ΔT2 containing only a single T-DNA integration and one ectopic mutant (ET3). Evaluation of phenotypic traits revealed no differences in growth or sporulation on PDA between the deletants (ΔT1 and ΔT2), the ectopic mutant (ET3), and the WT strain (Figure 2C).

3.3. Overexpression of PdMFS1 in Different P. digitatum Strains

To evaluate the effect of the MFS overexpression in P. digitatum strains sensitive to several fungicides, P. digitatum Pd27 and Pd149 strains (both fungicide sensitive and with high and low virulence, respectively) were transformed using A. tumefaciens-mediated transformation (ATMT) with pOMFS1 plasmid (Figure 3A). This plasmid is derived from pRFHU vector [24] in which the full P. digitatum PdMFS1 coding sequence was introduced together with 1.2 kb of the promoter and 0.9 kb of the terminator (0.9 kb) using M1-12/M1-13 oligos (Figure 3A). Five transformants of each strain were confirmed by the presence of the hygromycin B gene using HygF/HygR oligos (Figure 3B). The 588 bp PCR amplicon was present in all transformants, but not in both Pd27 and Pd149 wild type strains. The T-DNA copy number was determined in all mutants from each strain by qRT-PCR as described above. Pd27 and Pd149 wild type strains were used as a control and β-tubulin was the reference gene. Of all the evaluated mutants, we chose OT1 and OT2 of Pd27 and OT3, and OT4 of Pd149 that contained one (OT1 and OT3) or two (OT2 and OT4) T-DNA copies integrated elsewhere in the genome (two or three copies of the PdMFS1 gene, respectively).
Evaluation of phenotypic features showed no differences between the mutants and their respective parental strains neither in growth nor in sporulation in PDA (Figure 3C).

3.4. Fungicide Sensitivity

Growth over 7 days at 25 °C of all selected P. digitatum strains (transformants and WT strains) in the presence of different concentration of fungicides showed no variation in fungicide sensitivity between transformants without the PdMFS1 gene and WT Pd1 parental strain for IMZ, PHI (mixture of IMZ and pyrimethanil), and TBZ. However, when Prochloraz (PCL) fungicide was used, fungicide sensitivity increased in deletant mutants, entailing 25% growth versus almost 60% growth observed in Pd1 at 1μg/mL of PCL (Figure 4).
Conversely, all overexpression mutants (OT1 to OT4) regardless parental strain showed multiple effect on fungicide sensitivity. The rate of fungicide resistance was higher in Pd27 mutants than in Pd149 mutants, as was shown for IMZ and TBZ fungicide, while for PCL the intensification was similar (Figure 5). Pd27 transformants were more resistant to all fungicides evaluated compared to Pd149 transformants. Pd149 mutants only were resistant until 1μg/mL IMZ and the percentage of growth reached was always less than the rise for Pd27 mutants. It was also noticeable that the Pd27 transformants exhibited a constant rate of PCL fungicide resistance expressed as 40% of growth while Pd149 transformants showed a progressive decrease concomitant to fungicide increase concentration starting with 80% of growth to end to 20%.

3.5. Virulence Evaluation

In order to evaluate whether PdMFS1 contributed to fungal pathogenicity/virulence, the evaluation of aggressiveness of the different P. digitatum mutants was done with infected orange fruits.
All strains used in this study were assayed, indicating disease incidence as a percentage of fruit infected and disease severity as area of macerated surface at different days post infection (dpi).
P. digitatum ectopic strain ET3 infection progressed identical as the parental strain Pd1. However, the deletion of PdMFS1 gene (∆T1 and ∆T2) resulted in a decrease in virulence, particularly during the first stages (3–4 dpi), as was shown on percentage of disease incidence (Figure 6A). The effect was more noticeable on disease severity than the one observed on disease incidence since the decrease was observed from 4–6dpi. (Figure 6B). The average of virulence reduction in the deletant mutants supposed a decrease between 20 and 40 of disease incidences and around 55–67 % of disease severity. At 7 dpi, no significant differences in the virulence were observed.
Virulence analysis was also performed for overexpression mutants. Pd27 transformants did not show any differences when compared to parental strain Pd27 and fungal strains behaved similar in incidence and severity (Supplementary Figure S1). On the contrary, Pd149 transformants (OT3 and OT4) exhibited an increase in virulence in both disease incidence and disease severity, although rate of disease incidence did not reach that of Pd1 (Figure 7).

3.6. Expression Pattern of PdMFS1

Transcription levels of PdMFS1 during axenic growth were the same in the WT-Pd1 as the ectopic mutant ET3, and gene elimination showed the absence of PdMFS1 gene expression. Evaluation of gene transcription during orange infection of Pd1 strain showed that PdMFS1 was increased during citrus fruit infection, reaching four times more gene transcription throughout the entire time assayed (Figure 8A).
The transcription level of the PdMFS1 gene was higher in all overexpressed mutants, regardless of the strain selected. Differences in the transcriptional rate were observed in OT1 compared to OT2, while no differences were observed for OT3 and OT4 (Figure 8B,C). Moreover, PdMFS1 gene expression in Pd149, similarly to Pd1, exhibited up-regulation during infection, although in this case the rate was only two times higher than during axenic growth (Figure 8C).

4. Discussion

The continuous appearance of fungicide resistant strains questions the effectiveness of fungicides, especially after public concern about the impact of these chemical compounds on health. This fact underscores the need to develop new targets to achieve a more efficient control in citrus postharvest. In that sense, MFS transporters might be a good alternative since they could play a part in multidrug resistance in bacteria and fungi [29].
The current work contributes to the clarification of the role of P. digitatum MFS transporters regarding to fungicide resistance and fungal virulence. This study is focused on identification and functional evaluation of PdMFS1, a new major facilitator superfamily transporter gene from P. digitatum. PdMFS1 exhibited a typical structure of MFS transporters containing a 12- transmembrane domain and showed a close phylogenetic relationship to one reported P. digitatum MFS transporter, Pdmfs2 [17], and other P. digitatum MFS transporters apparently up-regulated in the presence of prochloraz [28].
The functional analysis showed that this new transporter, PdMFS1, is involved in prochloraz sensitivity since its deletion decreased of 50% fungal growth at 0.5–2 μg/mL PCL concentration. This might indicate that PdMFS1 could pump prochloraz out of cells, as was shown for another P. digitatum MFS transporter (Pdmfs2) in a previous work [17], and in MgMFS1 of Z. tritici [14]. Nevertheless, the effect of this transporter in fungicide resistance seems to be wider since the overexpression of PdMFS1 transporter in two different fungicide sensitive strains (Pd27 and Pd149) resulted in a marked increase in resistance to prochloraz and to other fungicides frequently used in citrus postharvest such as imazalil, Philabuster (combination of imazalil and pyrimethanil), and thiabendazole. This result indicates that this transporter is capable of expelling a wide range of toxic products since these fungicides belong to different groups. PdMFS1 overexpression increased the level of fungicide resistance in a more noticeable way in the Pd27 strain than the Pd149 strain. The level of resistance reached by Pd149 was lower for all the fungicides tested with the only exception of the prochloraz, where the rate was much more similar. The differences observed between the two strains (Pd27 and Pd149) tested for PdMFS1 overexpression could be explained by the different growth or fitness of each strain. In fact, Pd27 is able to grow and infect much more effectively than the Pd149 strain.
This circumstance, together with the effect observed when PdMFS1 was deleted, would indicate a predominant role in pumping out prochloraz and the ability to eliminate other toxic compounds. So far, the two other MFS transporters characterized in P. digitatum showed that PdMfs1 is only associated with partial imazalil resistance [16], and Pdmfs2 appear to only partially contribute to prochloraz resistance [17]. Moreover, seven different P. digitatum MFS transporters were identified as being up-regulated in presence of prochloraz fungicide, indicating that the same function could be carried out for different genes of the same family [28].
The participation of fungicide sensitivity has been reported in other fungal MFS transporters, for instance, an MFS protein gene knockout in the Trichoderma harzianum fungus caused a loss of tolerance to fungicides [30]. Fungal mutants lacking the A. alternata MFS transporter AaMFS19 display sensitivity towards different compounds [15]. In B. cinerea, the contribution of BcMfs1 in the resistance of DMI fungicides was proven after elimination of the ABC transporter BcatrD and in the BcMfs1 overexpressing strains [9,31], following the same pattern that was observed by PdMFS1 for DMIs and TBZ fungicides
These results suggest that MFS transporters from different organisms present high complexity, and although MFS transporters belonged to the same family, could transport very diverse types of toxic compounds.
Analysis of gene expression confirmed that PdMFS1 exhibited the same rate of gene transcription in both fungicide-resistant (Pd1) and -sensitive strains (Pd27 or Pd149) of P. digitatum during axenic growth, indicating that basic efflux mechanism in PdMFS1 was present in all strains of P. digitatum.
Even if the sensitivity of ΔPdMFS1 to IMZ was slightly higher than that of the parental strain Pd1, it was still much more resistant than the one observed on DMI-sensitive strains Pd27 or Pd149. Therefore, PdMFS1 could only take part in influencing the baseline sensitivity to different fungicides (DMIs or bezimidazoles), as happened for ABC-based MDR [32] and for PMR1 (an ABC transporter gene of P. digitatum), but it could not be the major determinant in DMI resistance [33]. In all likelihood, IMZ resistance is mainly provided by overexpression of sterol demethylases genes (CYP51) [34,35,36], and benzimidazole resistance is acquired through beta-tubulin mutations [4]. In likelihood, the reason why the elimination of PdMFS1 does not drastically increase the sensitivity to all fungicides is that in the absence of a specific MFS transporter, other transporters of the same family can replace their function. This effect has been observed when the P. digitatum sucrose transporter PdSUT1 was deleted and the transcription of six different P. digitatum MFS transporters, including PdMFS1, was augmented [25].
By analyzing conidiation, we observed that neither deletion mutants nor overexpression mutants decreased conidia production compared to respective wild-types. The same result was observed in the PdMfs1 gene of P. digitatum [16]. By contrast, the loss of the Pdmfs2 gene, which is phylogenetically closer to PdMFS1, showed significantly altered the yield of conidia [17].
Besides, in many cases, eliminating a gene that encodes an MFS protein in pathogenic fungi resulted in the loss of virulence. In this work, infection assays revealed that when citrus fruits were inoculated with the deletant strains(ΔT1 and ΔT2), the disease was developed much slower than when citrus fruits were inoculated with the parental strain Pd1 or with the ectopic transformant ET3, suggesting that PdMFS1 also plays a role in virulence. A similar result was observed for the Pdmfs2 MFS transporter in P. digitatum, whereas the ΔPdmfs2 mutant was less virulent than the wild type [17].
However, the contribution of MFS transporters in virulence remains contradictory. In some cases their involvement in virulence has been demonstrated, as in the case of the Ctb4 transporter in C. nicotianae [10] and the AaMFS19 transporter in A. alternata [15], but does not occur in the case of the BcMfs1 transporter in B. cinerea [9] and the MgMfs1 transporter in M. graminicola [12,13].
Besides, most MFS transporters that affect virulence act as a toxin efflux pumps that contributes to the self-preservation of different toxins, and disruption of these genes drastically reduces pathogenicity [10,37]. However, among the several virulence genes described in P. digitatum that included a protein kinase [38], a chitin synthase [39], a o-mannosyl transferase [40], proteases [21], polygalacturonases [41], transcription factors [18,42,43,44], and MAP kinases [45,46], no toxin has been reported for P. digitatum to be involved in virulence processes. In that sense, the role of PdMFS1 in fungal virulence might be related to the elimination of host defense compounds.
Pd149-PdMFS1 overexpression mutants that raised their infection capacity confirmed the contribution of PdMFS1 gene in virulence. Additionally, PdMFS1 was induced during citrus infection in both high virulent and low virulent strains. Comparison of axenic growth and infection, particularly in Pd1, showed that the rate of transcription augmented four times and this reinforces that a PdMFS1-based efflux mechanism plays a relevant role in fungal virulence. The effect of PdMFS1 was previously reported using Northern analysis that showed transcription induction throughout the infection process [21].
The mechanisms that control MFS transporters are poorly known. In yeast, MFS transporters are controlled by several stress related transcription factors including Yap1, Msn2, Msn4, and Sfp1 [8], and in A. alternata, the transcription of the AaMFS19 MFS transporter is controlled by the Yap1 transcription activator, Hog1, and Fus3 mitogen-activated protein (MAP) kinases [15]. Currently, it has been reported that the expression of efflux transporters is essentially controlled by fungal transcription factors that belong to the zinc cluster (TFs [Zn2Cys6]) [5]. The regulation of P. digitatum MFS transporters remains unknown, although previous works revealed that two genes involved in signal transduction pathways, PdSte12 transcription factor and PdSlt2 (MAP) kinase, could act as negative regulators of PdMFS1 and other MFS P. digitatum transporters [18,46]. Besides, it has been described that fungi regulate and coordinate the different stages of the detoxification system by mutations in particular transcription factors [5]. Another system of MFS transporter regulation is the presence of the insertions in MFS promoters as Z. tritici [14] but in this work, no insertions in the promoter region or mutations in the coding region were detected in PdMFS1.
In summary, functional characterization of PdMFS1, by obtaining gene knockout mutants, revealed that this MFS transporter provides specifically resistance to prochloraz, enables a wide range of fungicide resistance, and contributes to the fungal virulence of this relevant postharvest pathogen of citrus fruit, probably by pumping out toxic compounds from the host and favoring transport of nutrients into fungal cells.

Supplementary Materials

The following are available online at https://www.mdpi.com/2309-608X/5/4/100/s1, Table S1: Oligo sequence used in this study, Figure S1: Evaluation of virulence of Pd27 overexpression mutants.

Author Contributions

Conceptualization, P.S.-T.; formal analysis, P.S.-T. and M.d.R.-C., methodology, P.S.-T. and L.G.-C., investigation M.d.R.-C. and P.S.-T., Data curation P.S.-T. and M.d.R.-C., writing—original draft preparation, P.S.-T., writing—review and editing P.S.-T. and M.L.-P. and funding acquisition P.S.-T., Project administration, P.S.-T.

Funding

This work was supported by funds of AGL2005-04921-C02-02, AGL2008-04828-C03 and AGL2011-30519-C03-02 projects from the Ministry of Science and Innovation (Spain). M.d.R.-C. was recipient of a fellowship from Instituto Nacional de Investigaciones Agrarias (INIA). M.L.-P. was supported by a “Formación de Personal Investigador” scholarship (BES-2006-12983).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Palou, L. Penicillium digitatum and Pencillium italicum (Green Mold, Blue Mold). In Postharvest Decay: Control Strategies; Bautista-Baños, S., Ed.; Elsevier: Amsterdam, The Netherlands, 2014; pp. 45–102. [Google Scholar]
  2. Kanetis, L.; Forster, H.; Adaskaveg, J.E. Baseline sensitivities for the new postharvest fungicides against Penicillium species on citrus and multiple resistance evaluations in P. digitatum. Plant Dis. 2008, 92, 261–269. [Google Scholar] [CrossRef] [PubMed]
  3. Ma, Z.; Michailides, T.J. Advances in understanding molecular mechanisms of fungicide resistance and molecular detection of resistant genotypes in phytopathogenic fungi. Crop Prot. 2005, 24, 853–863. [Google Scholar] [CrossRef]
  4. Sánchez-Torres, P.; Tuset, J.J. Molecular insights into fungicide resistance in sensitive and resistant Penicillium digitatum strains infecting citrus. Postharvest Biol. Technol. 2011, 59, 159–165. [Google Scholar] [CrossRef]
  5. Sang, H.; Hulvey, J.P.; Green, R.; Xu, H.; Im, J.; Chang, T.; Jung, G. A xenobiotic detoxification pathway through transcriptional regulation in filamentous fungi. mBio 2018, 9, e00457-18. [Google Scholar] [CrossRef] [PubMed]
  6. Morschhauser, J. Regulation of multidrug resistance in pathogenic fungi. Fungal Genet. Biol. 2010, 47, 94–106. [Google Scholar] [CrossRef]
  7. Yan, N. Structural advances for the major facilitator superfamily (MFS) transporters. Trend Biochem. Sci. 2013, 38, 151–159. [Google Scholar] [CrossRef]
  8. Dos Santos, S.C.; Teixeira, M.C.; Dias, P.J.; Sá-Correia, I. MFS transporter required for multidrug/multixenobiotic (MD/MX) resistance in the model yeast: understanding their physiological function through postgenomic approaches. Front. Physiol. 2014, 5, 180. [Google Scholar] [CrossRef]
  9. Hayashi, K.; Schoonbek, H.J.; de Waard, M.A. Bcmfs1. A novel major facilitator superfamily tranporter from Botrytis cinerea, provides tolerance towards the natural toxic compounds camptothecin and cercosporin and towards fungicides. Appl. Environ. Microbiol. 2002, 68, 4996–5004. [Google Scholar] [CrossRef]
  10. Choquer, M.; Lee, M.; Bau, H.; Chung, K. Deletion of a MFS transporter like gene in Cercospora nicotianae reduces cercosporin toxin accumulation and fungal virulence. FEMS Lett. 2007, 581, 489–494. [Google Scholar]
  11. Kretschmer, M.; Leroch, M.; Mosbach, A.; Walker, A.-S.; Fillinger, S.; Mernke, D.; Schoonbeek, H.-J.; Pradier, J.-M.; Leroux, P.; De Waard, M.A.; et al. Fungicide-Driven Evolution and Molecular Basis of Multidrug Resistance in Field Populations of the Grey Mould Fungus Botrytis cinerea. PLoS Pathog. 2009, 512, e1000696. [Google Scholar]
  12. Roohparvar, R.; De Waard, M.A.; Kema, G.H.; Zwiers, L.H. MgMfs1, a major facilitator superfamily transporter from the fungal wheat pathogen Mycosphaerella graminicola, is a strong protectant against natural toxic compounds and fungicides. Fungal Genet. Biol. 2007, 44, 378–388. [Google Scholar] [CrossRef] [PubMed]
  13. Roohparvar, R.; Mehrabi, R.; Van Nistelrooy, J.G.M.; Zwiers, L.; De Waard, M.A. The drug transporter MgMfs1 can modulate sensitivity of field strains of the fungal wheat pathogen Mycosphaerella graminicola to the strobilurin fungicide trifloxystrobin. Pest Manag. Sci. 2008, 64, 685–693. [Google Scholar] [CrossRef] [PubMed]
  14. Omrane, S.; Sghyer, H.; Audéon, C.; Lanen, C.; Duplaix, C.; Walker, A.-S.; Fillinger, S. Fungicide efflux and the MgMFS1 transporter contribute to the multidrug resistance phenotype in Zymoseptoria tritici field isolates. Environ. Microbiol. 2015, 178, 2805–2823. [Google Scholar] [CrossRef] [PubMed]
  15. Chen, L.H.; Tsai, H.C.; Chung, K.R. A Major Facilitator Superfamily Transporter-Mediated Resistance to Oxidative Stress and Fungicides Requires Yap1, Skn7, and MAP Kinases in the Citrus Fungal Pathogen Alternaria alternata. PLoS ONE 2017, 121, e0169103. [Google Scholar] [CrossRef]
  16. Wang, J.Y.; Sun, X.P.; Lin, L.Y.; Zhang, T.Y.; Ma, Z.H.; Li, H.Y. PdMfs1, a major facilitator superfamily transporter from Penicilliun digitatum, is partially involved in the imazalil-resistance and pathogenicity. African J. Microbiol. Res. 2012, 6, 95–105. [Google Scholar]
  17. Wu, Z.; Wang, S.; Yuan, Y.; Zhang, T.; Liu, J.; Liu, D. A novel major facilitator superfamily transporter in Penicillium digitatum (PdMFS2) is required for prochloraz resistance, conidiation and full virulence. Biotechnol. Lett. 2016, 38, 1349–1357. [Google Scholar] [CrossRef]
  18. De Ramón-Carbonell, M.; Sánchez-Torres, P. The transcription factor PdSte12 contributes to Penicillium digitatum virulence during citrus fruit infection. Postharvest Biol Technol. 2017, 125, 129–139. [Google Scholar] [CrossRef]
  19. Marcet-Houben, M.; Ballester, A.R.; de la Fuente, B.; Harries, E.; Marcos, J.F.; González-Candelas, L.; Gabaldón, T. Genome sequence of the necrotrophic fungus Penicillium digitatum, the main postharvest pathogen of citrus. BMC Genomics 2012, 13, 646. [Google Scholar] [CrossRef]
  20. Prober, J.M.; Trainor, G.L.; Dam, R.J.; Hobbs, F.W.; Robertson, C.W.; Zagursky, R.J.; Cocuzza, A.J.; Jensen, M.A.; Baumeister, K. A system for rapid DNA sequencing with fluorescent chain terminating dideoxynucleotides. Science 1987, 238, 336–341. [Google Scholar] [CrossRef]
  21. López-Pérez, M.; Ballester, A.R.; González-Candelas, L. Identification and functional analysis of Penicillium digitatum genes putatively involved in virulence towards citrus fruit. Mol. Plant Pathol. 2015, 16, 262–275. [Google Scholar]
  22. Larkin, M.A.; Blackshields, G.; Brown, N.P.; Chenna, R.; McGettigan, P.A.; McWilliam, H.; Valentin, F.; Wallace, I.M.; Wilm, A.; Lopez, R.; et al. Clustal W and Clustal X version 2.0. Bioinformatics 2007, 23, 2947–2948. [Google Scholar] [CrossRef] [PubMed]
  23. Kumar, S.; Stecher, G.; Tamura, K. MEGA7: Molecular Evolutionary Genetics Analysis Version 7.0 for Bigger Datasets. Mol. Biol. Evol. 2016, 33, 1870–1874. [Google Scholar] [CrossRef] [PubMed]
  24. Frandsen, R.J.N.; Andersson, J.A.; Kristensen, M.B.; Giese, H. Efficient four fragment cloning for the construction of vectors for targeted gene replacement in filamentous fungi. BMC Mol. Biol. 2008, 9, 70. [Google Scholar] [CrossRef] [PubMed]
  25. De Ramón-Carbonell, M.; Sánchez-Torres, P. Involvement of Penicillium digitatum PdSUT1 in fungicide sensitivity and virulence during citrus fruit infection. Microbiol. Res. 2017, 203, 57–67. [Google Scholar] [CrossRef] [PubMed]
  26. González-Candelas, L.; Alamar, S.; Sánchez-Torres, P.; Zacarías, L.; Marcos, J.F. A transcriptomic approach highlights induction of secondary metabolism in citrus fruit in response to Penicillium digitatum infection. BMC Plant Biol. 2010, 10, 194. [Google Scholar] [CrossRef] [PubMed]
  27. Ballester, A.R.; Marcet-Houben, M.; Levin, E.; Sela, N.; Selma-Lazaro, C.; Carmona, L.; Wisniewski, M.; Droby, S.; González-Candelas, L.; Gabaldón, T. Genome, transcriptome, and functional analyses of Penicillium expansum provide new insights into secondary metabolism and pathogenicity. Mol. Plant-Microbe Interact. 2015, 28, 232–248. [Google Scholar] [CrossRef] [PubMed]
  28. Liu, J.; Wang, S.; Qin, T.; Li, N.; Niu, Y.; Li, D.; Yuan, Y.; Geng, H.; Xiong, L.; Liu, D. Whole transcriptome analysis of Penicillium digitatum strains treatmented with prochloraz reveals their drug-resistant mechanisms. BMC Genomics 2015, 16, 855. [Google Scholar] [CrossRef]
  29. Fluman, N.; Ryan, C.; Whitelegge, J.; Bibi, E. Dissection of mechanistic principles of a secondary multidrug efflux protein. Mol. Cell 2012, 47, 777–787. [Google Scholar] [CrossRef]
  30. Liu, M.; Liu, J.; Wang, W.M. Isolation and functional analysis of Thmfs1, the first major facilitator superfamily transporter from the biocontrol fungus Trichoderma harzianum. Biotechnol Lett. 2012, 34, 1857–1862. [Google Scholar] [CrossRef]
  31. Hayashi, K.; Schoonbeek, H.; Sugiura, H.; De Waard, M.A. Multidrug resistance in Botrytis cinerea associated with decreased accumulation of the azole fungicide oxpoconazole and increased transcription of the ABC transporter gene BcatrD. Pestic. Biochem. Physiol. 2001, 70, 168–179. [Google Scholar] [CrossRef]
  32. De Waard, M.A.; Andrade, A.C.; Hayashi, K.; Schoonbeek, H.J.; Stergiopoulos, I.; Zwiers, L.H. Impact of fungal drug transporters on fungicide sensitivity, multidrug resistance and virulence. Pest Manag. Sci. 2006, 62, 195–207. [Google Scholar] [CrossRef] [PubMed]
  33. Hamamoto, H.; Nawata, O.; Hasegawa, K.; Nakaune, R.; Lee, Y.J.; Makizumi, Y.; Akutsu, K.; Hibi, T. The role of the ABC transporter gene PMR1 in demethylation inhibitor resistance in Penicillium digitatum. Pestic. Biochem. Physiol. 2001, 70, 19–26. [Google Scholar] [CrossRef]
  34. Ghosoph, J.M.; Schmidt, L.S.; Margosan, D.A.; Smilanick, J.L. Imazalil resistance linked to a unique insertion sequence in the PdCYP51 promoter region of Penicillium digitatum. Postharvest Biol. Technol. 2007, 44, 9–18. [Google Scholar] [CrossRef]
  35. Hamamoto, H.; Hasegawa, K.; Nakaune, R.; Lee, Y.J.; Makizumi, Y.; Akutsu, K.; Hibi, T. Tandem repeat of a transcription enhancer upstream of the sterol 14_demethylase gene (CYP51) Penicillium digitatum. Appl. Environ. Microbiol. 2000, 66, 3421–3426. [Google Scholar] [CrossRef] [PubMed]
  36. Sun, X.; Wang, J.; Feng, D.; Ma, Z.; Li, H. PdCYP51B a new putative sterol 14 alpha demethylase gene of Penicillium digitatum involved in resistance to imazalil and other fungicides inhibiting ergosterol synthesis. Appl. Microbiol. Biotechnol. 2011, 91, 1107–1119. [Google Scholar] [CrossRef] [PubMed]
  37. Callahan, T.M.; Rose, M.S.; Meade, M.J.; Ehrenshaft, M.; Upchurch, R.G. CFP, the putative cercosporin transporter of Cercospora kikuchii, is required for wild type cercosporin production, resistance, and virulence on soybean. Mol. Plant Microbe Interact. 1999, 12, 901–910. [Google Scholar] [CrossRef]
  38. Zhang, T.; Sun, X.; Qian, X.; Zhu, C.; Li, Q.; Li, H. PdSNF1, a sucrose non-fermenting protein kinase gene, is required for Penicillium digitatum conidiation and virulence. Appl. Microbiol. Biotechnol. 2013, 97, 5433–5445. [Google Scholar] [CrossRef]
  39. Gandía, M.; Harries, E.; Marcos, J.F. The myosin motor domain-containing chitin synthase PdChsVII is required for development, cell wall integrity and virulence in the citrus postharvest pathogen Penicillium digitatum. Fungal Gen. Biol. 2015, 67, 58–70. [Google Scholar] [CrossRef]
  40. Harries, E.; Gandía, M.; Carmona, L.; Marcos, J.F. The Penicillium digitatum protein O-mannosyl transferase Pmt2 is required for cell wall integrity, conidiogenesis, virulence and sensitivity to the antifungal peptide PAF26. Mol Plant Pathol 2015, 16, 748–761. [Google Scholar] [CrossRef]
  41. Vilanova, L.; López-Pérez, M.; Ballester, A.R.; Teixidó, N.; Usall, J.; Lara, I.; Viñas, I.; Torres, R.; González-Candelas, L. Differential contribution of the two major polygalacturonases from Penicillium digitatum to virulence towards citrus fruit. Int. J. Food Microbiol. 2018, 282, 16–23. [Google Scholar] [CrossRef]
  42. Zhang, T.; Qian, X.; Sun, X.; Li, H. The calcineurin-responsive transcription factor Crz1 is required for conidation, full virulence and DMI resistance in Penicillium digitatum. Microbiol Res. 2013, 168, 211–222. [Google Scholar] [CrossRef] [PubMed]
  43. Zhang, T.; Sun, X.; Xu, Q.; González-Candelas, L.; Li, H. The pH signaling transcription factor PacC is required for full virulence in Penicillium digitatum. Appl. Microbiol. Biotechnol. 2013, 97, 9087–9098. [Google Scholar] [CrossRef] [PubMed]
  44. Vilanova, L.; Teixidó, N.; Torres, R.; Usall, J.; Viñas, I.; Sánchez-Torres, P. Relevance of the transcription factor PdSte12 in Penicillium digitatum conidiation and virulence during citrus fruit infection. Int. J. Food Microbiol. 2016, 235, 93–102. [Google Scholar] [CrossRef] [PubMed]
  45. Ma, H.; Sun, X.; Wang, M.; Gai, Y.; Chung, K.R.; Li, H. The citrus postharvest pathogen Penicillium digitatum depends on the PdMpkB kinase for developmental and virulence functions. Int. J. Food Microbiol. 2016, 236, 167–176. [Google Scholar] [CrossRef]
  46. De Ramón-Carbonell, M.; Sánchez-Torres, P. PdSlt2 Penicillium digitatum mitogen-activated-protein kinase controls sporulation and virulence during citrus fruit infection. Fungal Biol. 2017, 121, 1063–1074. [Google Scholar]

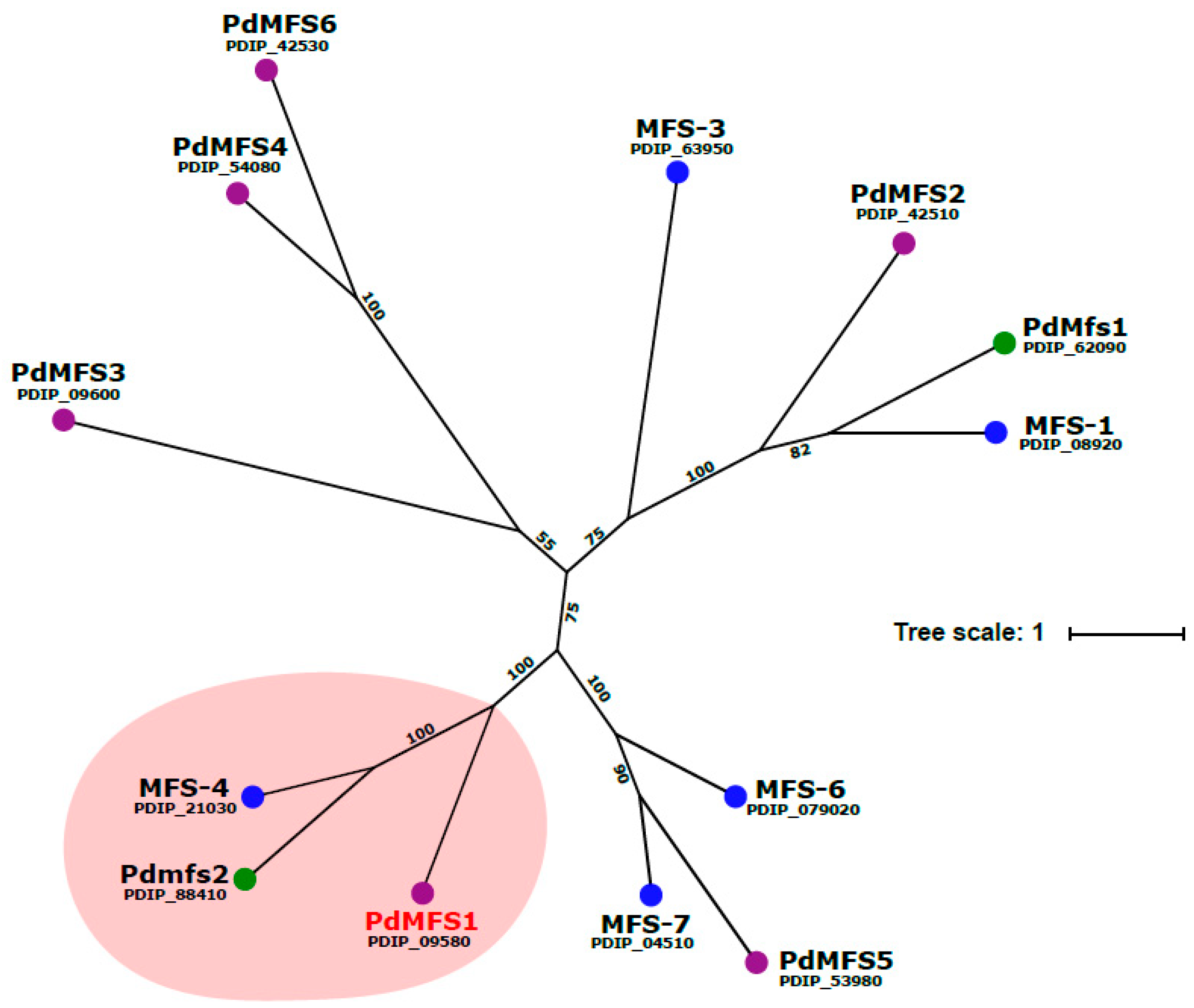

Figure 1. Unrooted Maximum Likelihood phylogenetic tree of selected P. digitatum major facilitator superfamily (MFS) transporters. PdMFS1, the new MFS transporter described in this study, is highlighted in red. Values indicate the number of times (in percent) that each branch topology was found during bootstrap analysis. The National Center for Biotechnology Information (NCBI) accession number is indicated below the name of each transporter.
Figure 1. Unrooted Maximum Likelihood phylogenetic tree of selected P. digitatum major facilitator superfamily (MFS) transporters. PdMFS1, the new MFS transporter described in this study, is highlighted in red. Values indicate the number of times (in percent) that each branch topology was found during bootstrap analysis. The National Center for Biotechnology Information (NCBI) accession number is indicated below the name of each transporter.
Jof 05 00100 g001
Figure 2. (A) Diagram of wild-type locus and the PdMFS1 replacement with the HygR selectable marker from pΔMFS1 by homologous recombination to generate the ΔMFS1 mutants; (B) Polymerase chain reaction (PCR) evaluation of the wild-type Pd1 strain, two ΔPdMFS1 null mutants (ΔT1, ΔT2) and the respective ectopic mutant (ET3) with analytic primers. (C) Phenotypical traits and conidiation. Fungal strains grown in potato dextrose agar (PDA) plates at 25 °C during six days.
Figure 2. (A) Diagram of wild-type locus and the PdMFS1 replacement with the HygR selectable marker from pΔMFS1 by homologous recombination to generate the ΔMFS1 mutants; (B) Polymerase chain reaction (PCR) evaluation of the wild-type Pd1 strain, two ΔPdMFS1 null mutants (ΔT1, ΔT2) and the respective ectopic mutant (ET3) with analytic primers. (C) Phenotypical traits and conidiation. Fungal strains grown in potato dextrose agar (PDA) plates at 25 °C during six days.
Jof 05 00100 g002

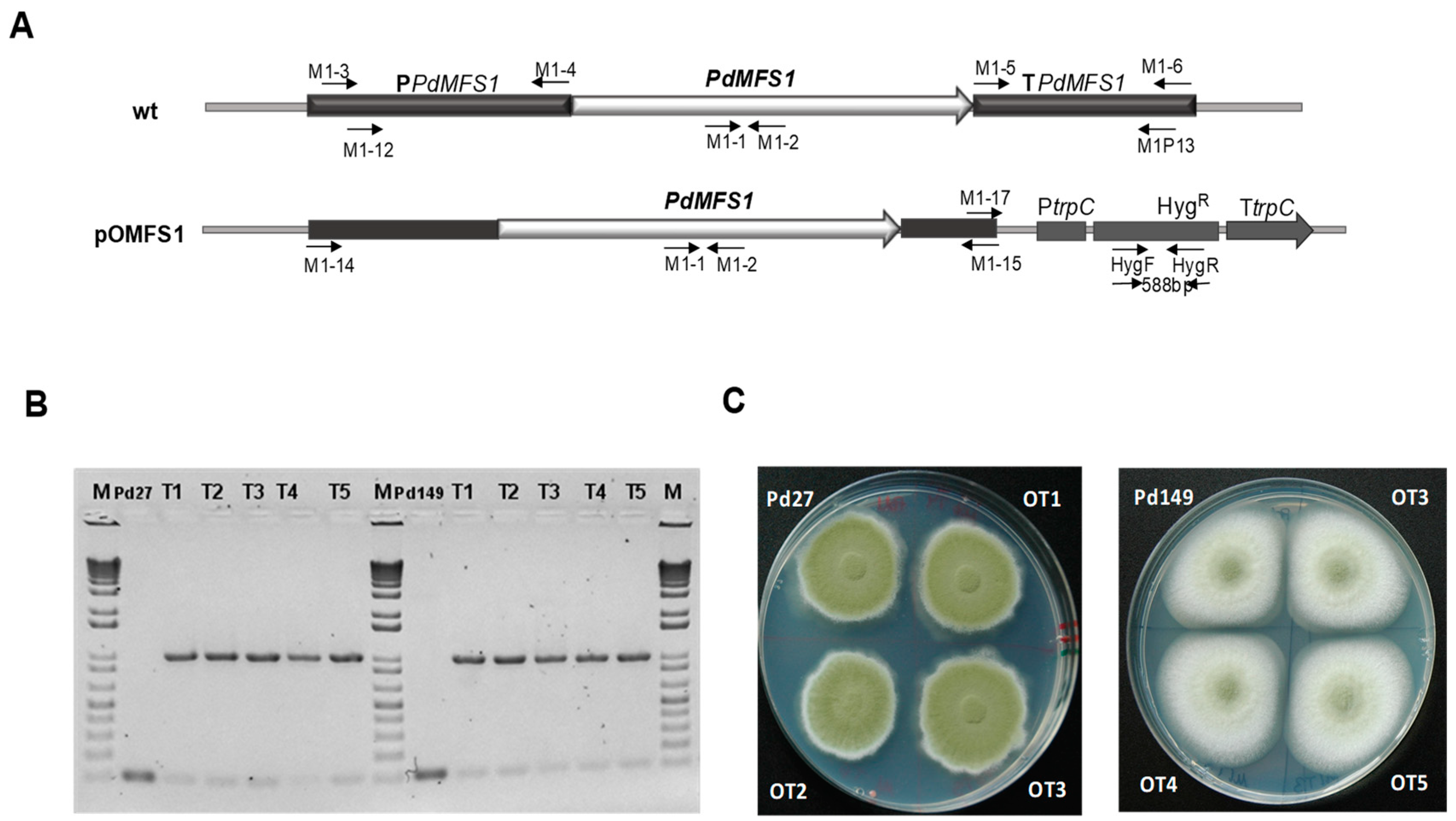

Figure 3. Construction and analysis of P. digitatum overexpression PdMFS1 transformants. (A) Map of plasmid pOMFS1. Diagram of wild-type locus and the PdMFS1 gene with the HygR selectable marker from pOMFS1 inserted elsewhere in the genome. Primers used in the construction of plasmid pOMFS1 and those used for the analysis of the transformants are shown. (B) Hygromycin polymerase chain reaction (PCR) analysis of the Pd27 wild type and Pd27-transformants, Pd149 wild type Pd149, and 149-transformants using primers HygF/HygR. Lanes correspond to WT: DNA from Pd27 strain, T1–T5: Pd27-overexpressed mutants and WT: DNA from Pd149 strain, T1–T5: Pd149-overexpression mutants. (C) Phenotypical features and conidiation. Fungal strains grown in PDA plates at 25 °C during six days.
Figure 3. Construction and analysis of P. digitatum overexpression PdMFS1 transformants. (A) Map of plasmid pOMFS1. Diagram of wild-type locus and the PdMFS1 gene with the HygR selectable marker from pOMFS1 inserted elsewhere in the genome. Primers used in the construction of plasmid pOMFS1 and those used for the analysis of the transformants are shown. (B) Hygromycin polymerase chain reaction (PCR) analysis of the Pd27 wild type and Pd27-transformants, Pd149 wild type Pd149, and 149-transformants using primers HygF/HygR. Lanes correspond to WT: DNA from Pd27 strain, T1–T5: Pd27-overexpressed mutants and WT: DNA from Pd149 strain, T1–T5: Pd149-overexpression mutants. (C) Phenotypical features and conidiation. Fungal strains grown in PDA plates at 25 °C during six days.
Jof 05 00100 g003

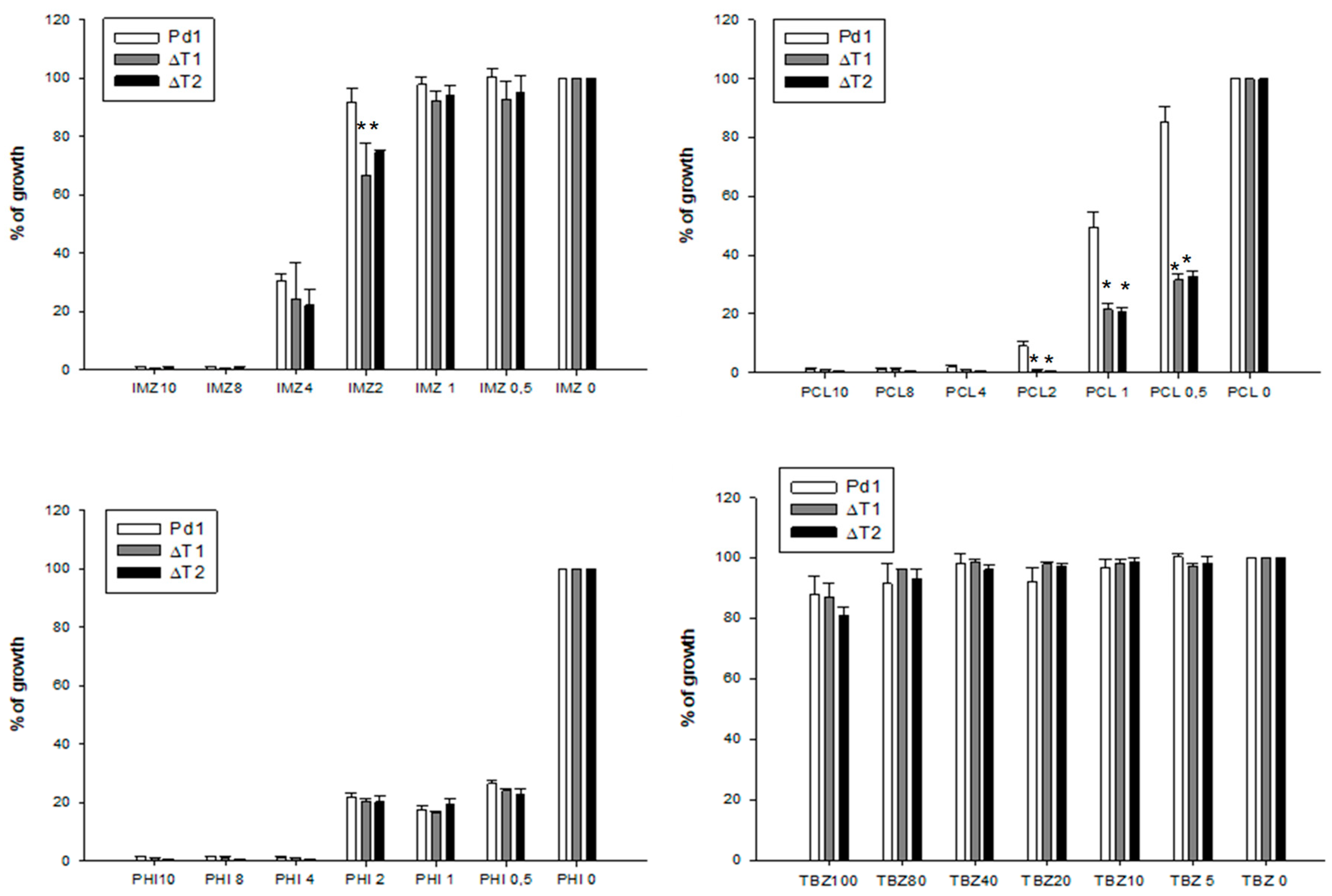

Figure 4. Evaluation of fungicide sensitivity in disruptant mutants compared to wild type Pd1. IMZ = imazalil, TBZ = Thiabendazol, PCL = Prochloraz, PHI = Philabuster. The fungicides concentration is expressed in μg/mL. Percentage of relative growth was calculated respect to the each strain grown without fungicide. Error bars represent standard deviation among three replicas. * Significant differences between treatments using Tukey’s test (p < 0.05).
Figure 4. Evaluation of fungicide sensitivity in disruptant mutants compared to wild type Pd1. IMZ = imazalil, TBZ = Thiabendazol, PCL = Prochloraz, PHI = Philabuster. The fungicides concentration is expressed in μg/mL. Percentage of relative growth was calculated respect to the each strain grown without fungicide. Error bars represent standard deviation among three replicas. * Significant differences between treatments using Tukey’s test (p < 0.05).
Jof 05 00100 g004

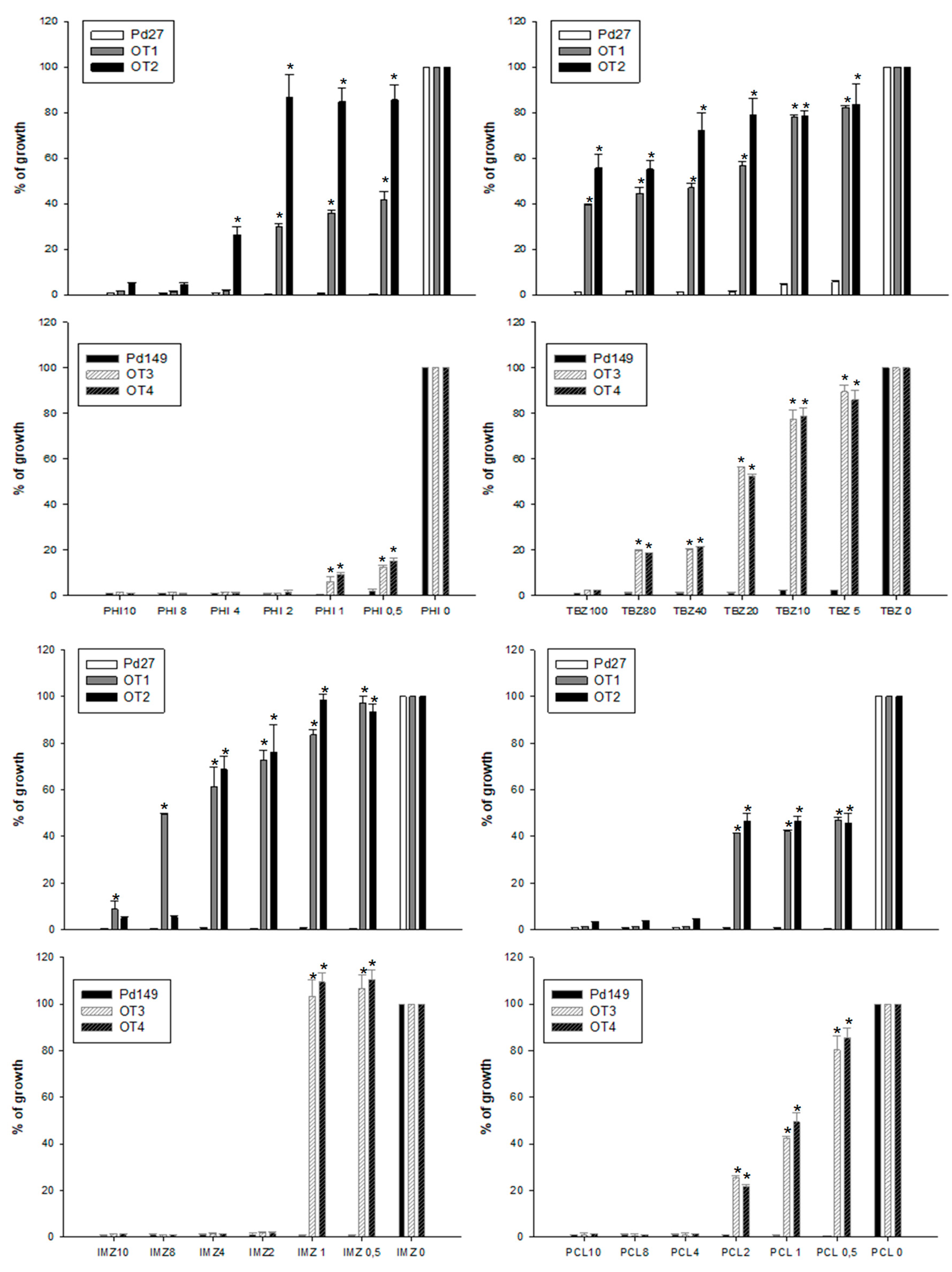

Figure 5. Evaluation of fungicide sensitivity in Pd27-(OT1, OT2) and Pd149-overexpression mutants (OT3, OT4) compared to both wild-type Pd27 and Pd149, respectively. PHI = Philabuster, TBZ = Thiabendazol, IMZ = imazalil, PCL = Prochloraz. The fungicides concentration is expressed in μg/mL. Percentage of relative growth was calculated respect to the each strain grown without fungicide. Error bars represent standard deviation among three replicas. * Significant differences between treatments using Tukey’s test (p < 0.05).
Figure 5. Evaluation of fungicide sensitivity in Pd27-(OT1, OT2) and Pd149-overexpression mutants (OT3, OT4) compared to both wild-type Pd27 and Pd149, respectively. PHI = Philabuster, TBZ = Thiabendazol, IMZ = imazalil, PCL = Prochloraz. The fungicides concentration is expressed in μg/mL. Percentage of relative growth was calculated respect to the each strain grown without fungicide. Error bars represent standard deviation among three replicas. * Significant differences between treatments using Tukey’s test (p < 0.05).
Jof 05 00100 g005

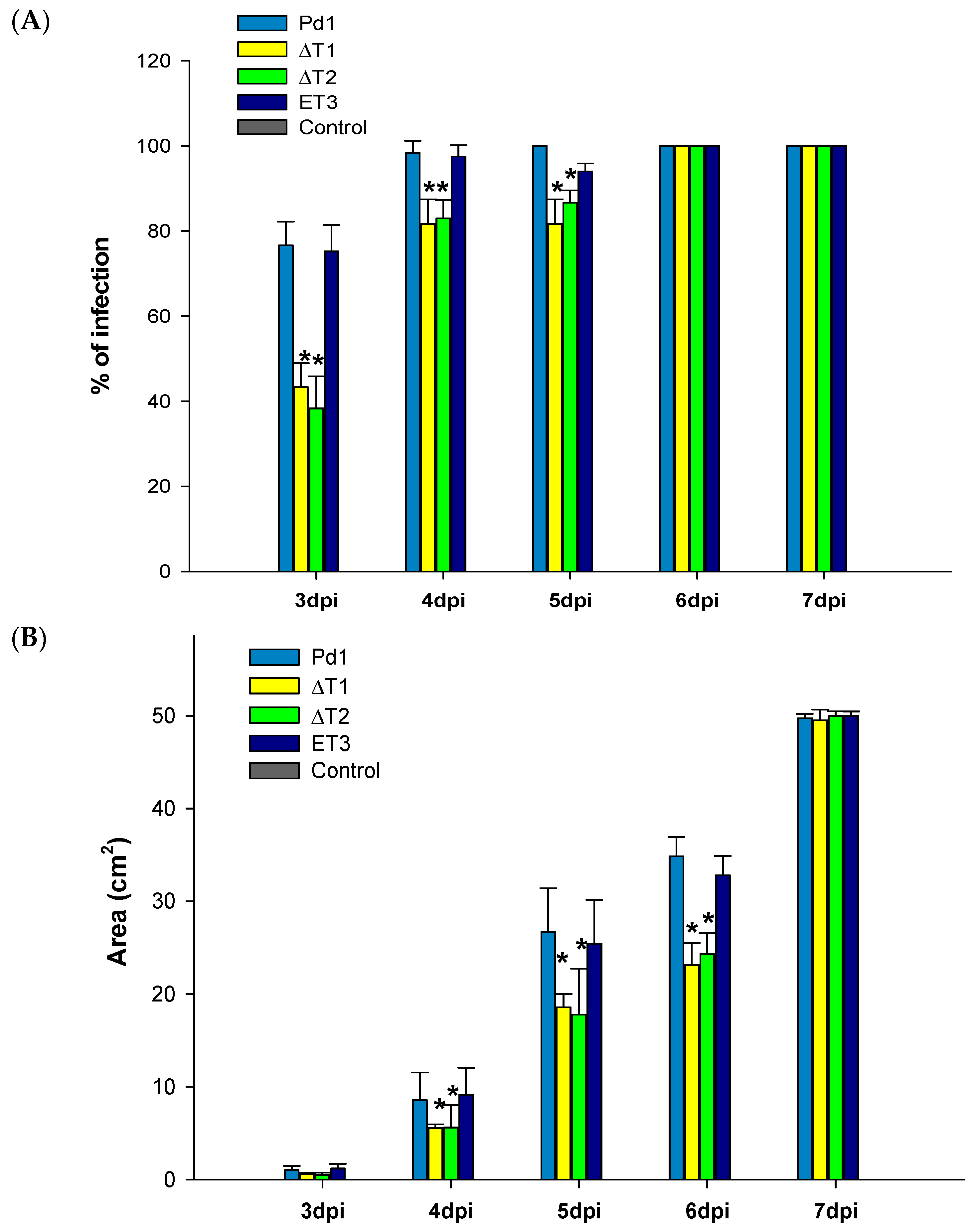

Figure 6. Analysis of fungal aggressiveness (A): disease incidence (%) and (B): disease severity (cm2). Virulence evaluation of Pd1, ectopic transformant ET3 and disruptant transformants (ΔT1, ΔT2). All are mean of two infection experiments. Control correspond to oranges mock inoculated. Error bars represent standard deviation. * Significant differences between treatments using Tukey’s test (p < 0.05) at each dpi.
Figure 6. Analysis of fungal aggressiveness (A): disease incidence (%) and (B): disease severity (cm2). Virulence evaluation of Pd1, ectopic transformant ET3 and disruptant transformants (ΔT1, ΔT2). All are mean of two infection experiments. Control correspond to oranges mock inoculated. Error bars represent standard deviation. * Significant differences between treatments using Tukey’s test (p < 0.05) at each dpi.
Jof 05 00100 g006
Figure 7. Evaluation of virulence as (A) disease incidence (%) and (B) disease severity (cm2). Virulence evaluation of Pd149 and the overexpression transformants (OT3, OT4). All are mean of three infection experiments. Control correspond to oranges mock inoculated. Error bars represent standard deviation. * Significant differences between treatments using Tukey’s test (p < 0.05) at each dpi.
Figure 7. Evaluation of virulence as (A) disease incidence (%) and (B) disease severity (cm2). Virulence evaluation of Pd149 and the overexpression transformants (OT3, OT4). All are mean of three infection experiments. Control correspond to oranges mock inoculated. Error bars represent standard deviation. * Significant differences between treatments using Tukey’s test (p < 0.05) at each dpi.
Jof 05 00100 g007

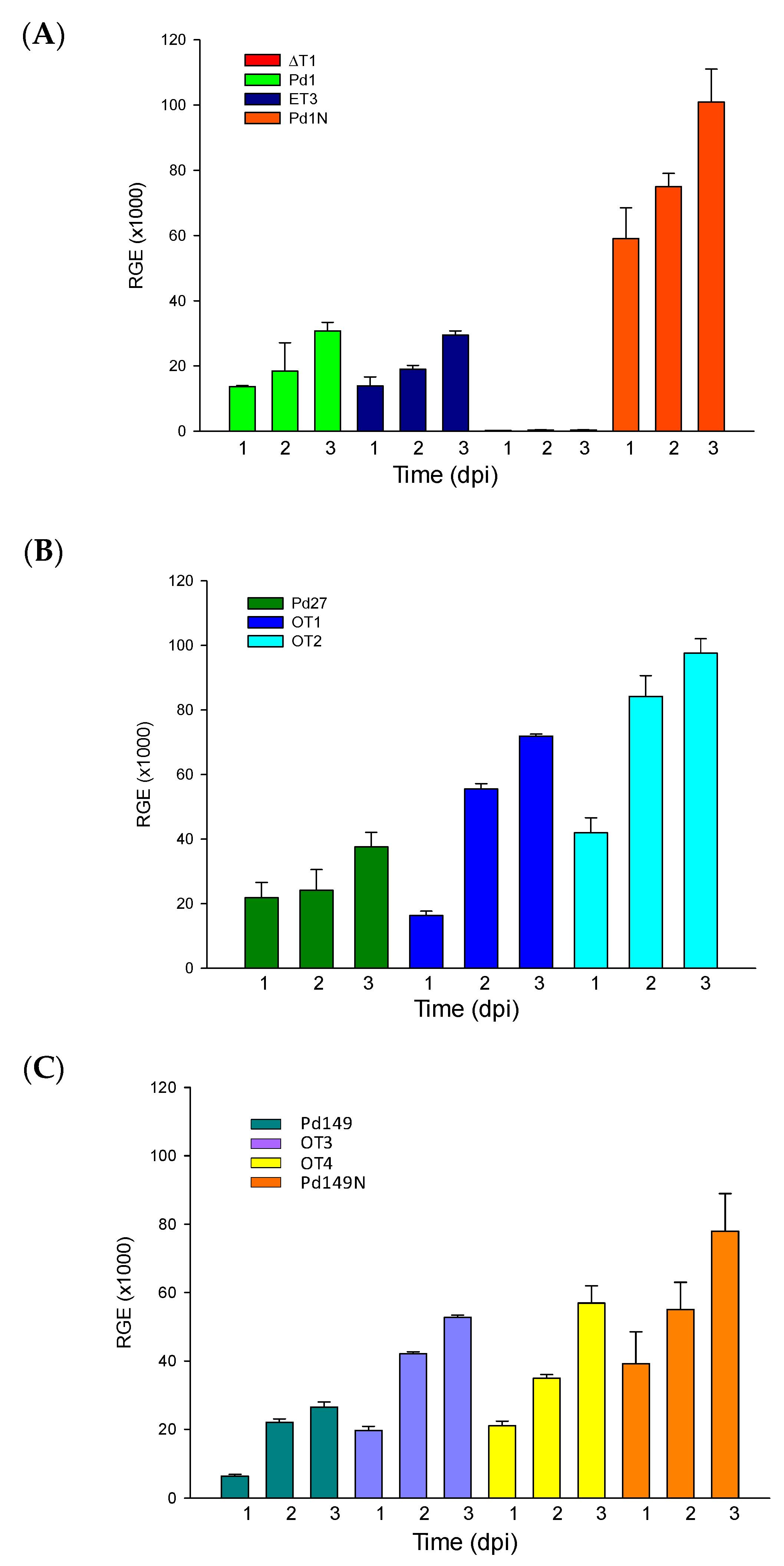

Figure 8. Analysis of PdMFS1 relative gene expression (RGE). (A) Time course evaluation of gene expression of Pd1 and deletant mutants in PDB liquid culture at 25 °C (Pd1, ΔT1, ET3) and during orange infection (Pd1N). (B) Time course evaluation of gene expression of Pd27 and overexpression transformants in PDB liquid culture at 25 °C. (C) Time course evaluation of gene expression of Pd149 and overexpression mutants in PDB liquid culture at 25 °C (Pd149, OT3, OT4) and during orange infection (Pd149N). In all cases: 1, 2 and 3 correspond to 1, 2 and 3 dpi, respectively. The expression levels are relative to three reference genes: ribosomal 28S RNA, β-tubulin and histone H3. Error bars indicate standard deviations of three biological replicates.
Figure 8. Analysis of PdMFS1 relative gene expression (RGE). (A) Time course evaluation of gene expression of Pd1 and deletant mutants in PDB liquid culture at 25 °C (Pd1, ΔT1, ET3) and during orange infection (Pd1N). (B) Time course evaluation of gene expression of Pd27 and overexpression transformants in PDB liquid culture at 25 °C. (C) Time course evaluation of gene expression of Pd149 and overexpression mutants in PDB liquid culture at 25 °C (Pd149, OT3, OT4) and during orange infection (Pd149N). In all cases: 1, 2 and 3 correspond to 1, 2 and 3 dpi, respectively. The expression levels are relative to three reference genes: ribosomal 28S RNA, β-tubulin and histone H3. Error bars indicate standard deviations of three biological replicates.
Jof 05 00100 g008
