Pax9 and Gbx2 Interact in the Pharyngeal Endoderm to Control Cardiovascular Development

by
Catherine A. Stothard
1,
Silvia Mazzotta
1,
Arjun Vyas
1,
Jurgen E. Schneider
2,
Timothy J. Mohun
3,
Deborah J. Henderson
1,
Helen M. Phillips
1 and
Simon D. Bamforth
1,*
1
Newcastle University Biosciences Institute, Centre for Life, Newcastle-upon-Tyne NE1 3BZ, UK
2
Biomedical Imaging, University of Leeds, Leeds LS2 9JT, UK
3
The Francis Crick Institute, London NW1 1AT, UK
*
Author to whom correspondence should be addressed.
J. Cardiovasc. Dev. Dis. 2020, 7(2), 20; https://doi.org/10.3390/jcdd7020020
Submission received: 25 March 2020 / Revised: 15 May 2020 / Accepted: 19 May 2020 / Published: 25 May 2020
(This article belongs to the Special Issue Leaders in Cardiovascular Research: A special issue dedicated to Professor Robert Anderson)
Browse Figures
Versions Notes

Abstract

The correct formation of the aortic arch arteries depends on a coordinated and regulated gene expression profile within the tissues of the pharyngeal arches. Perturbation of the gene regulatory networks in these tissues results in congenital heart defects affecting the arch arteries and the outflow tract of the heart. Aberrant development of these structures leads to interruption of the aortic arch and double outlet right ventricle, abnormalities that are a leading cause of morbidity in 22q11 Deletion Syndrome (DS) patients. We have recently shown that Pax9 functionally interacts with the 22q11DS gene Tbx1 in the pharyngeal endoderm for 4th pharyngeal arch artery morphogenesis, with double heterozygous mice dying at birth with interrupted aortic arch. Mice lacking Pax9 die perinatally with complex cardiovascular defects and in this study we sought to validate further potential genetic interacting partners of Pax9, focussing on Gbx2 which is down-regulated in the pharyngeal endoderm of Pax9-null embryos. Here, we describe the Gbx2-null cardiovascular phenotype and demonstrate a genetic interaction between Gbx2 and Pax9 in the pharyngeal endoderm during cardiovascular development.

1. Introduction

Normal morphogenesis of the mammalian heart and aortic arch arteries is controlled by a complex interaction of tissues and gene expression. Genetic mutations that alter heart development result in congenital heart defects which affect nearly 1% of the population, and result in structural defects to the heart and its associated great vessels [1]. Conotruncal defects affecting the outflow tract (OFT) of the heart and the aortic arch arteries are a major feature in 22q11 deletion syndrome (DS) [2], and of the 45 genes haploinsufficient in these patients, TBX1 is thought to be the most important for cardiovascular development [3,4,5]. The OFT is formed from cells of the second heart field (SHF), a group of progenitor cells located in the splanchnic mesoderm that migrate to the heart and subsequently continue to provide progenitors to the heart throughout embryogenesis [6]. Initially formed as a common vessel, the OFT divides into the aorta and pulmonary trunk, and these two vessels separate and rotate around each other as the aorticopulmonary septal complex spirals caudally. Septation is completed by the fusion of the interventricular septum with the OFT endocardial cushions of the atrioventricular canal [7] and requires a contribution from neural crest cells [8]. Failure in the fusion of the OFT cushions, or if the OFT rotates aberrantly, can result in common arterial trunk (CAT) and transposition of the great arteries (TGA), respectively [9]. An atrioventricular septal defect (AVSD) can occur if there is an abnormal fusion of the superior and inferior endocardial cushions [10]. The aortic arch arteries are derived from the pharyngeal arch arteries (PAAs) that form within the pharyngeal arches from SHF-derived endothelial cells [11]. The pharyngeal arches are a transient series of protrusions that develop in a cranial to caudal sequence along the lateral surface of the head [12] and are comprised of endoderm, mesoderm, ectoderm, and neural crest cell-derived mesenchyme [13]. The pharyngeal arches develop by forming pouches from the endoderm that meet clefts from the ectoderm to define the boundaries of each arch [14] and the endoderm is considered vital for providing cues for this patterning event in a range of species [15,16,17]. Disruption to pharyngeal segmentation is seen when pharyngeal endoderm gene expression is perturbed [15,18,19,20]. There are five bilaterally symmetrical pairs of PAAs that connect the aortic sac to the dorsal aorta. The PAAs then asymmetrically remodel to form the left-sided aortic arch and double circulatory system [21] and this process is conserved between mice and humans [22]. Aberrant PAA formation and remodelling can result in defects such as interruption of the aortic arch type B (IAA-B) [23].
The 22q11DS gene Tbx1 is known to interact with many genes in cardiovascular development, including Pax9 [24,25] and Gbx2 [24]. Pax9 is specifically expressed in the pharyngeal endoderm at embryonic day (E) 9.5 [26], although it is later expressed in the craniofacial region and skeleton. Mice deficient for Pax9 die perinatally with a cleft palate, absent pharyngeal-derived glands, skeletal abnormalities and have complex heart and aortic arch artery defects [25,27]. Pax9 has been shown to functionally interact with Tbx1 in the pharyngeal endoderm for 4th PAA morphogenesis, as double-heterozygous mice develop IAA-B [25]. Gbx2 has also been implicated in cardiovascular development [28,29] and is normally expressed in all three germ layers of the mouse at the early head fold stage (E7.5) in a domain that extends rostrally from the posterior end of the embryo, encompassing the node, into the prospective hindbrain [30]. In the pharynx, Gbx2 is expressed in the pharyngeal arch endoderm and ectoderm at E8.5 [31] but restricted to the pharyngeal endoderm by E9.5 [28]. Gbx2 is downregulated in the pharyngeal endoderm of Pax9-null embryos [25] and in the pharyngeal endoderm and ectoderm of Tbx1-null embryos [28].
In this study, we have examined the cardiovascular phenotype in Gbx2-null mice and identified a genetic interaction for cardiovascular development between Gbx2 and Pax9 in complex mutants in the pharyngeal endoderm. We also explored a potential genetic interaction between Tbx1, Pax9 and Gbx2 for aortic arch artery morphogenesis.

2. Materials and Methods

2.1. Mice

The mice used in this study have previously been described: Gbx2flox [32], Pax9+/− [27], Pax9Cre [25], Sox2Cre [33], Tbx1+/− [34], and R26ReYFP [35]. All mice were maintained on a C57Bl/6J genetic background. All studies involving animals were performed in accordance with the UK Home Office Animals (Scientific Procedures) Act 1986.

2.2. Breeding

Male and female mice were mated and the detection of a vaginal plug the next morning considered to be embryonic day (E) 0.5. Pregnant females were culled on the required day and embryos collected. Embryos at E9.5–E11.5 were staged by somite counting. PCR genotyping primers are available on request.

2.3. Imaging

Magnetic resonance imaging (MRI), High Resolution Episcopic Microscopy (HREM) and micro-computed tomography (µCT) techniques were performed as previously described [25,36,37,38,39]. Volume data sets were segmented using Amira software (ThermoFisher Scientific, Waltham, MA, USA) to create 3-dimensional (3-D) images. Structures were manually outlined using the label field function of Amira and surface rendered to produce the 3-D images. Intra-cardiac ink injections were performed as described [28]. Haematoxylin and eosin staining, immunohistochemistry, and whole-mount in situ hybridisation, were performed using standard techniques. mRNA expression on sections was examined by in situ hybridisation using RNAscope® Multiplex Fluorescent v2 Assay (Advanced Cell Diagnostics, Newark, CA, USA) following the manufacturer’s instructions. Probe and antibody details are given in Table S5.

2.4. Identifying Conserved Binding Sites in the GBX2 Locus

Human and mouse genomic GBX2 sequences were aligned in Geneious 10.2.6 (https://www.geneious.com) using the Align feature, identifying a highly conserved region ~2kb downstream from the 2nd and final GBX2 coding exon. This region was scanned for TBX1/5 and PAX5/9 consensus binding sequences using the rVista (https://rvista.dcode.org/) and JASPAR (http://jaspar.genereg.net/) databases. One TBX5 and three PAX5/9 sites were identified with the following sequences: TBX-BE-1, CAGCACCTCA; PAX-BE-1, AGGCAGCCCTTGATG; PAX-BE-2, GTCTCAGCTGGCTGATTAA; and PAX-BE-3, TTAATCCAAGGTTGGGTTTTG.

2.5. Luciferase Assay

The 500 bp Gbx2 conserved region was amplified from mouse genomic DNA by PCR and sub-cloned into the pGL3-Promoter plasmid (Promega, Madison, WI, USA) downstream of luciferase. The cDNAs for PAX9 and TBX1 were cloned into pcDNA3.1. JEG3 cells were seeded at a density of 1 × 105 cells per well in 24-well plates and transfections were performed in triplicate with jetPRIME (Polyplus-transfection, Illkirch, France) using a total of 0.5 µg DNA in a reaction volume of 300 μL. Positive control reporter constructs were 2xTkGl2, containing synthetic TBX binding sites [5], and p2.4BMP4-luc which binds PAX9 [40]. A renilla luciferase vector (5 ng) was included as a transfection control. Wells without DNA or with the empty pcDNA3.1 vector served as negative controls. All wells received an equal quantity of DNA per transfection. A dual-luciferase assay (Promega) was performed 24 h after transfection.

2.6. Flow Cytometry

The pharyngeal arch region of E9.5 Pax9Cre;eYFP control embryos (n = 5; 23–27 somites) was dissected from the rest of the embryo and dissociated to single cells with Accumax (ThermoFisher Scientific) by incubating at 37 °C for 30 min. The reaction was stopped by the addition of 10% fetal calf serum (FCS), the cells washed in PBS, and resuspended in 10% FCS. Cells were stained with propidium iodide. Fluorescence-activated cell sorting was performed on a Becton Dickinson FACS Aria II using a 100 µm nozzle and a sheath pressure of 20 psi. Single cells were gated using FSC-A vs SSC-A followed by FSC-A vs. FSC-H and FSC-A vs SSC-W to remove any doublets. Live single cells were gated using propidium iodide vs. FSC-A, and this population finally gated on eYFP-positive and -negative cells and sorted into collection tubes.

2.7. Quantitative Real-Time RT-PCR (qPCR)

RNA from flow-sorted cells was extracted using Trizol reagent (ThermoFisher Scientific) combined with a Purelink RNA Mini Kit (ThermoFisher Scientific) and on-column DNase1 treatment. RNA was eluted with 30 µL RNase-free water. Total RNA was converted to cDNA using a High-Capacity cDNA Reverse transcription kit (Applied Biosystems) and random hexamers. qPCR was performed using SYBR Green JumpStart Taq ReadyMix (Sigma, St. Louis, MO, USA) using previously described Gbx2 and Gapdh primers [25]. All qPCR reactions were performed in triplicate on a QuantStudio 7 Real-Time PCR System (ThermoFisher Scientific). Data were analysed using the comparative Ct method.

2.8. Statistical Analysis

A chi-squared test was used to compare genotype frequencies of litters. Fisher’s exact test and Pearson chi-squared test for associations were used to compare defect frequencies between the different genotypes (SPSS). qPCR data were tested for variance using the Shapiro–Wilk test (Prism 8.01 software, GraphPad) and a two-tailed unpaired t-test performed. Luciferase data were analysed using one-way ANOVA with Tukey’s multiple comparison test (Prism 8.01 software, GraphPad). Groups were considered significantly different when p < 0.05.

3. Results

3.1. Gbx2 Expression in the Pharyngeal Endoderm

Coordinated gene expression in the pharyngeal arches is a prerequisite for the correct development of the PAA. We confirmed the expression of Gbx2, Pax9 and Tbx1 in mid-embryogenesis mouse embryos. At E8.5, Gbx2 and Pax9 are expressed in the pharyngeal region of the mouse embryo, with Gbx2 also expressed at the mid-hindbrain boundary (Figure 1A,B) [27,28,41]. At E9.5, Gbx2 and Pax9 are co-expressed in the pharyngeal endoderm (Figure 1C), as are Pax9 and Tbx1 (Figure 1D) [25]. Gbx2, Pax9 and Tbx1 expression are maintained in the pharyngeal endoderm at E10.5 (Figure 1E,F). Analysis of Pax9Cre activated eYFP positive cells [25] by qPCR from E9.5 embryos confirmed that Gbx2 expression is enriched in the pharyngeal endoderm compared to the remaining pharyngeal arch tissues (Figure 1G). Gbx2 expression is bilaterally reduced in the pharyngeal endoderm of Pax9-null embryos at E9.5 as shown by whole-mount in situ hybridisation (Figure 1H–K) [25].
We have previously identified Gbx2 as a potential target gene of Pax9 [25]. To examine the Gbx2 locus for potential regulatory elements we aligned the mouse and human sequences and found a 500 bp region with 99% homology (Figure 1L). This region, located ~2kb downstream of the second and final Gbx2 coding exon, contains a previously reported TBX binding site [42]. Scanning this region identified the known TBX site as well as three potential PAX binding sites. This 500 bp conserved region was sub-cloned into a luciferase plasmid and transfected into JEG3 cells with PAX9 and TBX1 expression plasmids. Dual-luciferase assays showed a significant upregulation of luciferase in the presence of the PAX9 expression plasmid, but no effect was seen with TBX1 (Figure 1O). Co-transfection of PAX9 with TBX1 resulted in no increase in luciferase compared to the control suggesting that TBX1 might be repressing the effect of PAX9 on the Gbx2 conserved region. This data implies that PAX9 and TBX1 may interact with a potential GBX2 enhancer to regulate the expression of GBX2, and this interaction is likely to occur in the pharyngeal endoderm where all three genes are expressed from E9.5.

3.2. Gbx2-Null Cardiovascular Defects

As Gbx2 was significantly down-regulated in Pax9−/− embryos [25], and PAX9 was able to activate a conserved region of the Gbx2 locus, we asked whether these two genes genetically interacted in vivo. Gbx2−/− mice have previously been shown to have cardiovascular defects at foetal and embryonic stages [28,29]. To confirm these observations we created a null allele of Gbx2 by crossing Gbx2flox mice [32] with Sox2Cre mice [33], which drives Cre-mediated recombination in all embryonic tissues by gastrulation. Gbx2flox;Sox2Cre mice, carrying the recombined Gbx2-null allele, hereafter referred to as the Gbx2− allele, were subsequently crossed with wild-type mice to breed out the Sox2Cre allele and to propagate the Gbx2− allele through the germline. Heterozygous Gbx2+/− mice were intercrossed to generate Gbx2−/− embryos for analysis of cardiovascular developmental defects. Slide in situ hybridisation on E9.5 embryo sections demonstrated complete loss of Gbx2 RNA in Gbx2−/− embryos (Figure S1). Genotype analysis of embryos and neonates (E8.5 to P0) indicated there was a statistically significant reduction in the expected number of Gbx2−/− offspring observed (Table S1) despite no evidence of an excessive number of resorptions.
Analysis of Gbx2−/− embryos at E15.5 by magnetic resonance imaging (MRI) revealed that 64% (n = 16/25) had some form of cardiovascular developmental defect including aberrant right subclavian artery (A-RSA), right-sided aortic arch (RAA), right-sided arterial duct (RAD) and double-outlet right ventricle (DORV) (Figure 2A–C; Table 1), although interruption of the aortic arch (IAA) was not observed. Of these Gbx2−/− embryos with cardiovascular defects, 56% (n = 9/16) displayed additional overt left-right patterning defects such as right pulmonary isomerism, bilateral superior caval veins draining into a common right atrium (i.e., right atrial isomerism), and mirror-image aortic arch arteries (Figure 2D–H; Table 1). An enlargement of the right dorsal aorta, compared to the left, was also noted in two Gbx2−/− embryos analysed by high-resolution episcopic microscopy (HREM), indicating that these embryos would have developed an aberrant right-sided dorsal aorta by the foetal stage (Figure 2O,P). A left-right patterning phenotype in Gbx2−/− mice has not previously been reported. Left-right patterning is established via a Nodal-Pitx2c gene regulated pathway [43] and to investigate whether the left-right patterning defect was due to altered Pitx2c expression, whole-mount in situ hybridisation was performed on Gbx2−/− embryos at E8.5 (n = 6). No obvious change in Pitx2c expression, however, was observed in the left lateral plate mesoderm (Figure 2I,J).
Analysis of Gbx2−/− embryos at E10.5 by intracardiac ink injection and HREM demonstrated that the 4th PAA was affected in 71% (n = 12/17) of embryos, being either absent or hypoplastic (Figure 2K–P; Table 2). Ink injection of Gbx2+/− embryos at E10.5 revealed a low level of unilateral 4th PAA defects (Table 2). Embryos at E11.5 also showed PAA defects by HREM including absent and hypoplastic 4th PAAs as well as delayed septation of the OFT compared to stage-matched controls (Figure 2Q–S). Immunohistochemical staining for ERG1 showed that the endothelium within the 3rd and 4th pharyngeal arches had formed lumenised PAAs at E10.5 in control embryos (Figure 2T), but in Gbx2−/− embryos a visibly reduced number of endothelial cells around the 4th PAA, or only isolated endothelial cells present within the 4th pharyngeal arch, were observed (Figure 2U,V).
All mice deficient for Gbx2 die perinatally, and a high proportion of these are with cardiovascular abnormalities affecting the outflow tract and/or the 4th PAA-derived arteries. In contrast to previously published data, where 50% of Gbx2-null embryos had a PAA phenotype and 39% of foetuses had a cardiovascular defect [28,29], we observed a higher penetrance of cardiovascular abnormalities at embryonic (71%) and foetal (64%) stages. Our Gbx2-null embryos did not present with IAA as previously described [29]. Gbx2 has been postulated to be a downstream target of Pax9 [25], and here we also demonstrate that a conserved region in the Gbx2 locus is activated by PAX9.

3.3. Genetic Interaction between Gbx2 and Pax9

To investigate a genetic interaction in vivo, mice heterozygous for Pax9 and Gbx2, which are viable and fertile with no observed developmental defects, were intercrossed to produce Gbx2+/−;Pax9+/− mice and embryos for analysis. Gbx2+/−;Pax9+/− mice were observed to survive to weaning albeit at a significantly lower than expected number (p < 0.05; Table S2). To investigate any perinatal lethality to explain the loss of Gbx2+/−;Pax9+/− mice, neonates were observed from the day of birth. Four pups were recovered which had died on the first post-natal day, all of which were Gbx2+/−;Pax9+/−, and showed a cardiovascular defect when dissected including RAA, IAA-B and A-RSA (Figure 3A–C; Table 1). Surviving littermates were culled and a further eight Gbx2+/−;Pax9+/− neonates were identified which showed no cardiovascular defects. All wild type (n = 8), Gbx2+/− (n = 10) and Pax9+/− (n = 9) littermates were normal. To further investigate the Gbx2+/−;Pax9+/− cardiovascular phenotype, embryos were collected at E15.5 and analysed by histology. From 16 Gbx2+/−;Pax9+/− embryos collected, two had a defect affecting the arch arteries including RAA and A-RSA (Figure 3D–I) and RAD (Table 1). Embryos were collected at E10.5 to analyse the forming PAA by ink injection. This revealed that 30% (n = 19/63) of Gbx2+/−;Pax9+/− mutants had a defect where the 4th PAA was either hypoplastic or absent in affected embryos (Figure 3J–L; Table 2).
Our data therefore indicates that there is a genetic interaction occurring between Gbx2 and Pax9, albeit at a low incidence, where biallelic expression of both genes is required for cardiovascular development to proceed normally. There was a loss in the expected number of double heterozygous mice at weaning and an observable aortic arch artery phenotype in a subset of embryos and neonates, including IAA-B which was not seen in Gbx2−/− mice in this study (Table 1).
To see if a further reduction in Gbx2 and Pax9 alleles would result in a more penetrant cardiovascular phenotype, Gbx2+/−;Pax9+/− mice were intercrossed and embryos and neonates collected for analysis. Genotyping revealed that all mice null for Gbx2 were under-represented (p = 1.12 × 10−4; Table S3). We first analysed mutant mice null for Gbx2 and simultaneously heterozygous for Pax9 (i.e., Gbx2−/−;Pax9+/−). One Gbx2−/−;Pax9+/− neonate was recovered that died on the day of birth with IAA-B, A-RSA, and an absent left common carotid artery resulting in the left internal and external carotid arteries arising from the aortic arch and dorsal aorta as previously described in Pax9−/− embryos [25] (Figure 4A,B). Gbx2−/−;Pax9+/− embryos at E13.5 and E15.5 were examined for cardiovascular defects by histology and MRI respectively, which showed a significantly increased penetrance of OFT and arch artery defects compared to those observed in Gbx2−/− mice (100% versus 64%, p < 0.05; Figure 4C–M; Table 1). There was also a significant increase in the presentation of IAA-B in Gbx2−/−;Pax9+/− mice compared to Gbx2−/− mice (36% versus 0, p < 0.01; Figure 4B,E; Table 1), a defect not observed in our Gbx2−/− or Pax9+/− mice. We also observed a partial CAT (type A4 where the common trunk is associated with IAA [44]) in one Gbx2−/−;Pax9+/− embryo (Figure 4G), a phenotype not previously described in Gbx2-null and Pax9-null embryos [25,28,29]. Analysis of the PAA at E10.5 by ink injection revealed that all Gbx2−/−;Pax9+/− embryos had an affected 4th PAA, with a significantly higher incidence of bilateral 4th PAA defects compared to Gbx2−/− embryos (p < 0.05; Figure 4N–Q; Table 2).
As Pax9 heterozygosity modified the Gbx2−/− phenotype we next looked to see if Gbx2 heterozygosity modified the Pax9−/− phenotype. Gbx2+/−;Pax9−/− embryos examined at E15.5 and E10.5 presented with the typical Pax9-null cardiovascular phenotype (Figure 5) and no left-right patterning defects were seen. Two cases of type A4 partial CAT, however, were observed (Figure 5I; Table 1). At E10.5 there was an insignificant increase in the penetrance of 1st and 3rd PAA defects in the Gbx2+/−;Pax9−/− embryos (Figure 5L; Table 2).
From the Gbx2+/−;Pax9+/− intercross only three Gbx2−/−;Pax9−/− mice were recovered from a total of 172 offspring, one each at P0, E15.5 and E10.5, and these mice displayed the typical Pax9−/− phenotypes, as well as AVSD and full CAT (with an isolated right subclavian artery), both of which are defects not previously seen in either Gbx2−/− or Pax9−/− embryos (Figure 6; Table 1 and Table 2).
The thymus is always absent in Pax9−/− embryos [25], yet usually unaffected in Gbx2−/− embryos (Figure S2; Table S4). In 70% of Gbx2−/−;Pax9+/− embryos the thymus was abnormal or absent. The palate, however, was only affected in mice with Pax9−/− genotypes (Figure S2).
It appears, therefore, that creating complex alleles of Gbx2 and Pax9 reveals evidence of a genetic interaction occurring between these two genes as cardiovascular defects are seen in double heterozygous embryos. Furthermore, by creating more complex Gbx2;Pax9 alleles such as Pax9 heterozygosity with the Gbx2−/− genotype and Gbx2 heterozygosity with the Pax9−/− genotype, not only are Pax9-null type defects such as IAA-B and absent common carotid arteries introduced, but also a CAT phenotype not seen in either single Gbx2−/− or Pax9−/− embryos is observed.

3.4. Gbx2 and Pax9 Interact in the Pharyngeal Endoderm for Cardiovascular Development

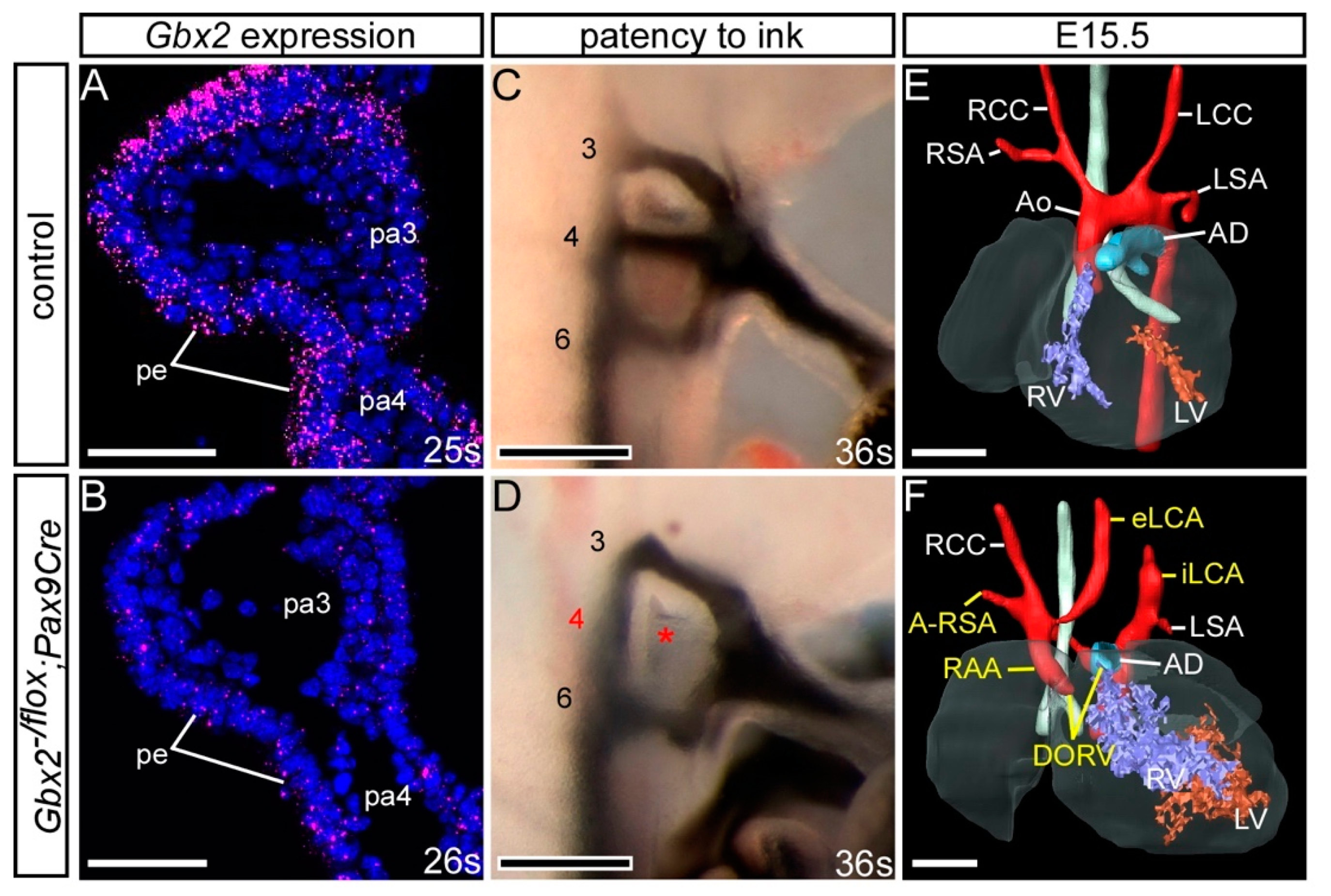

To further investigate the site of this genetic interaction we utilised our Pax9Cre mouse line, where the Pax9Cre allele corresponds to a Pax9-null allele [25], to conditionally recombine the Gbx2flox allele specifically in the pharyngeal endoderm (Figure S3). Embryos conditionally deleted for Gbx2 using Pax9Cre (i.e., Gbx2−/flox;Pax9Cre) lost the majority of Gbx2 mRNA expression from the pharyngeal endoderm at E9.5 (Figure 7B). Embryos at E10.5 were examined by ink injection to assess the PAAs. Whereas only 10% (2/19) of embryos double heterozygous for Gbx2 in the pharyngeal endoderm (i.e., Gbx2+/flox;Pax9Cre) had an abnormal 4th PAA (Table 2), there was a significant increase in the penetrance of 4th PAA defects (7/14; p < 0.05) in the embryos null for Gbx2 in the pharyngeal endoderm (i.e., Gbx2−/flox;Pax9Cre) (Figure 7D; Table 2). Examining Gbx2−/flox;Pax9Cre mutant mice at E15.5 by MRI revealed cardiovascular defects including RAA, A-RSA and absent common carotid arteries in 3/14 embryos analysed (Figure 7F; Table 1). Despite a relatively low incidence of cardiovascular defects in embryos with a conditional Pax9Cre driven deletion of Gbx2, this data collectively demonstrates that a genetic interaction between Gbx2 and Pax9 is taking place in the pharyngeal endoderm.

3.5. Exploring a Genetic Interaction between Gbx2, Pax9 and Tbx1

Tbx1 has been shown to genetically interact with Gbx2 and Pax9 in the pharyngeal ectoderm and endoderm respectively [25,28]. Our and published data [42] also show that Pax9 and Tbx1 occupy the same conserved region in the Gbx2 locus (Figure 1) and Tbx1, Pax9 and Gbx2 are co-expressed in the pharyngeal endoderm at E9.5 and E10.5 (Figure 1C–F) [25,28]. Pax9 and Gbx2, and Tbx1 and Gbx2, are downregulated in the pharyngeal endoderm of Tbx1−/− and Pax9−/− mice respectively (Figure 8A–L) [24,25] but Pax9 and Tbx1 expression were maintained in the pharyngeal endoderm of Gbx2−/− embryos at E9.5 (Figure 8D,H). We nevertheless speculated that a gene regulatory network may be occurring in the pharyngeal endoderm involving Gbx2, Pax9 and Tbx1. To investigate this we analysed Gbx2+/−;Pax9+/−;Tbx1+/− triple heterozygous embryos at E15.5-E16.5 by µCT imaging and compared the observed cardiovascular defects with double heterozygous Tbx1+/−;Pax9+/− and Tbx1+/−;Gbx2+/− embryos (Figure 8M–R; Table 3). Although a non-significant reduction in the penetrance of 4th PAA derived defects was seen in Tbx1+/−;Gbx2+/− embryos compared to Tbx1+/− embryos, a similar number and type of cardiovascular defect was observed between Tbx1+/−;Pax9+/− double heterozygous and Tbx1+/−;Gbx2+/−;Pax9+/− triple heterozygous embryos (Figure 8S,T). This suggests that there was no change to the Tbx1+/−;Pax9+/− 4th PAA-derived phenotype caused by haploinsufficiency of Gbx2.

4. Discussion

In this study, we have employed imaging and gene interaction methodologies to provide an in-depth analysis of the Gbx2 mutant cardiovascular phenotype throughout embryogenesis and demonstrate a genetic interaction with Pax9 in the pharyngeal endoderm.

4.1. Gbx2-Null Mice

Our analysis of the Gbx2-null cardiovascular phenotype revealed differences from two previously published papers. At mid-embryogenesis we found 71% of mutants had an abnormal 4th PAA, compared to 50% previously reported [28], and at foetal stages, we identified 64% of mutants had a cardiovascular defect, although none displayed IAA, compared to 39% previously reported where IAA was included [29]. One explanation for the cardiovascular phenotype discrepancy between studies is the Gbx2-null allele used. In the previously published studies, the neomycin selection cassette was retained in the first intron of Gbx2 [32,41], whereas it was removed from the allele used in our study. It is possible that the presence or absence of the neomycin cassette, which has been described to alter mutant mouse phenotypes [45], may have influenced the presentation of the cardiovascular phenotype. Alternatively, some cardiovascular defects may have been overlooked in the previous reports, or a subtle change in genetic background may influence the presentation of phenotypes.
The cardiovascular structures predominantly affected in Gbx2-null embryos were the OFT, with DORV seen in 40% of mutants, and the 4th PAA-derived vessels, with 50% of mutants having an aberrant subclavian artery which was either retro-oesphageal or isolated. Although the formation of the 4th PAA was more frequently observed to be affected at mid-embryogenesis in Gbx2-null embryos, with this vessel seen to be absent or hypoplastic in 71% of mutants, this did not translate into an IAA-B phenotype at the foetal stage as would be expected if the left 4th PAA had failed to form. Immunolabelling of Gbx2−/− embryos showed a disorganisation of the endothelial cells within the 4th pharyngeal arch indicating that the 4th PAA fails to lumenise. This has also been previously described in Gbx2−/− embryos [29], as well as in other mouse models where the failure of the 4th PAA is a feature, for example, in Pax9−/− [25] and Tbx1 mutant [28] embryos. The discrepancy in 4th PAA defects observed at an earlier developmental stage, yet not manifesting into a defect at a later stage, is a well-known phenomenon observed in Tbx1+/− embryos [25,28,46,47,48,49]. The recovery of the left 4th PAA may explain why we did not observe IAA-B in the Gbx2-null embryos.
Patients that present with an incomplete reversal of the internal organs are diagnosed with heterotaxy which refers to any defect of left-right patterning and arrangement of the visceral organs. We identified previously unreported left-right patterning defects in a third of all Gbx2-null mutants examined. We did not find any change in Pitx2c expression in the left lateral plate mesoderm in Gbx2-null embryos at E8.5, although we did not pre-select embryos for in situ hybridisation analysis based on any morphological abnormalities such as the orientation of the OFT. Gbx2 may function in left-right patterning independently of Pitx2c. Left-right patterning defects are largely a result of abnormalities at the node of the primitive streak from E7.0 [50] and Gbx2 is expressed in all three germ layers at gastrulation in the posterior epiblast [30], a region encompassing the node. Overall, the number of Gbx2−/− embryos obtained was significantly lower than expected showing that more than half of Gbx2−/− embryos are lost prior to E8.5 in early embryogenesis, regardless of the accompanying Pax9 genotype. Early Gbx2 expression could, therefore, be critical for gastrulation and some embryos lacking Gbx2 may not proceed through development at this stage. The surviving embryos may then go on to develop left-right patterning and cardiovascular defects. Alternatively, Gbx2 may function downstream of Pitx2c to regulate the asymmetric development of the internal organs. Pitx2 is a regulator of gene expression [51] and the Pitx2c isoform plays an important role in the final stages of organ asymmetry [52] including aortic arch and outflow tract development [53,54]. Pitx2c mutant mice have OFT defects due to abnormal proliferation within the OFT myocardium [55]. Gbx2 may, therefore, be a downstream target of Pitx2c and further work is required to investigate this possibility.

4.2. Genetic Interaction with Pax9

Mice double heterozygous for Gbx2 and Pax9 were under-represented at weaning, and some were found to die at birth with cardiovascular defects. These data indicate there is a genetic interaction between Pax9 and Gbx2 in cardiovascular development. Interestingly, the RAA and IAA-B phenotypes observed in Gbx2+/−;Pax9+/− neonates are commonly seen in Gbx2−/− and Pax9−/− mice respectively [25,29] but not in single heterozygous mice for these genes. When Gbx2−/− mice were also heterozygous for Pax9 (i.e., Gbx2−/−;Pax9+/−), 100% of embryos and neonates presented with a cardiovascular defect (significantly increased when compared to 64% of Gbx2−/− mice), including left-right patterning defects, and there was a significantly increased incidence of IAA-B. Moreover, CAT was observed, a phenotype not previously identified in Gbx2−/− or Pax9−/− mice [25,29]. When we produced embryos null for Pax9 and heterozygous for Gbx2 (i.e., Gbx2+/−;Pax9−/−), or double knockouts, they all presented with typical Pax9-null defects but also additionally displayed CAT or AVSD. Embryos with a Pax9−/− genotype, however, did not display a left-right patterning defect as seen in the Gbx2−/− mice. Our data suggest that a reduction in bi-allelic Gbx2 and Pax9 expression leads to a modification of the phenotypes typically seen in the single-gene knockout mice.
The cardiovascular defects observed in the Gbx2;Pax9 mutant mice such as AVSD, CAT and DORV are reminiscent of abnormal SHF development. Two-thirds of patients with heterotaxy have AVSD [56] and this defect arises from the failure of the SHF-derived dorsal mesenchymal protrusion to complete atrioventricular septation [57]. Patients with 22q11DS, where hemizygous expression of TBX1 underlies the observed cardiovascular defects, may present with CAT [58], and this phenotype is fully penetrant in Tbx1-null mice [34,59]. Tbx1 is expressed in the SHF [60], which overlaps with the pharyngeal endoderm [61], where Pax9 and Gbx2 are also expressed. It is therefore feasible that the pharyngeal endoderm expression of Pax9 and Gbx2 are influencing the formation of SHF-derived cardiovascular structures. There could also be a defective contribution in the Gbx2;Pax9 mutant mice from neural crest cells (NCC) migrating through the pharyngeal arches and into the OFT where they participate in septation [8]. Mouse models with NCC defects often present with CAT [62,63]. It has been reported that a reduced number of NCC are present within the caudal pharyngeal arches in Pax9-null embryos at E10.5 [25] and Gbx2-null mice show aberrant migration of NCC [28,29]. A NCC defect, combined with deficiencies in the pharyngeal endoderm component of the SHF, could, therefore, become more penetrant on a Gbx2;Pax9 mutant background resulting in a higher incidence of the CAT and IAA-B phenotypes [64].

4.3. Gbx2 and Pax9 Interact in the Pharyngeal Endoderm

Cardiovascular defects were observed when Gbx2 was conditionally deleted from the developing embryo using the Pax9Cre allele, and these were at a comparable level to that observed in the constitutive double heterozygous embryos, although the IAA-B phenotype was not seen. A higher incidence of 4th PAA defects, however, was seen in the conditional mutants at E10.5 when analysed by ink injection compared to those observed at foetal stages. As discussed above, it is well recognised that the 4th PAA can recover during development and there is not always a direct correlation to defects that are subsequently seen at the foetal stages. At the E10.5 stage, half the conditional Gbx2−/flox;Pax9Cre embryos presented with 4th PAA defects, whereas 100% of the constitutive Gbx2−/−;Pax9+/− embryos did, suggesting that either 4th PAA morphogenesis is only partly controlled from the pharyngeal endoderm or the Cre-mediated recombination of the Gbx2-floxed allele is not 100% efficient. Residual expression of Gbx2 RNA was observed in the pharyngeal endoderm of Gbx2−/flox;Pax9Cre embryos (Figure 7B), which may be due to the concomitant onset of Pax9Cre and Gbx2 expression at E8.5 resulting in a slight delay in Cre activity on the Gbx2-floxed allele. It has previously been shown that the deletion of Gbx2 from the pharyngeal ectoderm using AP2αCre mice resulted in a 47% penetrance of 4th PAA defects at E10.5 with the distribution of unilateral and bilateral 4th PAA defects in conditional endoderm and ectoderm mutants being very similar [28]. It is therefore tempting to speculate that Gbx2 expression from both pharyngeal epithelial tissues is required for correct 4th PAA morphogenesis. The incidence of defects seen at foetal and embryonic stages in the constitutive Gbx2−/−, Pax9−/− and Gbx2;Pax9 complex mutants was fairly concordant indicating that 4th PAA defects observed at E10.5 in these genotypes did proceed directly to arch artery defects at foetal stages.

4.4. The Tbx1;Pax9 Double Heterozygous Phenotype is not Modulated by Gbx2 Haploinsufficiency

Mice heterozygous for Tbx1 typically have defects affecting the 4th PAA such as IAA and A-RSA [65], but have also been shown to present with further cardiac defects such as VSD [59,66]. Tbx1 has been shown to genetically interact with Pax9 and Gbx2 in the pharyngeal endoderm and ectoderm, respectively [25,28]. We identified three PAX binding sites in a highly conserved region of the GBX2 locus, as well as a previously validated TBX binding site [42]. In luciferase assays, PAX9 was able to activate the Gbx2 conserved region although TBX1 did not, and when PAX9 and TBX1 were co-expressed, PAX9 was not able to activate the reporter. This suggests that PAX9 can activate Gbx2 through binding to the conserved region, whereas TBX1 acts as a repressor. However, to fully provide conclusive evidence for a molecular interaction for Gbx2 expression to be driven by Pax9 or Tbx1, further experiments would need to be performed such as an electromobility shift assay or chromatin immunoprecipitation experiments. Mutating the putative binding sites in the luciferase assay would also determine specificity. Gene expression is highly dynamic during cardiovascular development with constant switching between gene activation and suppression [67]. For example, Tbx1 acts as a poised enhancer to bind and keep DNA in the open state to then recruit other transcription or regulatory factors. It has been shown that Tbx1 recruits P53 to Gbx2 to modulate Gbx2 expression through histone methylation [42]. As Tbx1 also regulates histone modification [68] it could have a potential role in controlling the timely activation of Gbx2 by Pax9 during cardiovascular development.
Tbx1, Pax9 and Gbx2 are all expressed in the pharyngeal endoderm at E9.5 and E10.5, and could, therefore, function together in the endoderm which is acting as a signalling centre to interact with other tissue types required in PAA morphogenesis. Pax9 and Tbx1 were each downregulated in Tbx1−/− and Pax9−/− embryos respectively, which suggests that Tbx1 and Pax9 act in a non-hierarchal pathway [25]. Tbx1 and Pax9 expression in Gbx2−/− embryos, however, were unaffected indicating that these genes function hierarchically upstream of Gbx2. This is reflected in our phenotyping data where we did not identify any difference in the incidence of 4th PAA-derived defects at foetal stages in Tbx1+/−; Pax9+/−;Gbx2+/− triple heterozygous mutants compared to Tbx1+/−; Pax9+/− double heterozygous mutants. Of note, however, in our study we only identified a low penetrance of 4th PAA-derived defects in Tbx1+/−;Gbx2+/− mutants, and only one incidence (10%) of IAA-B. This is in contrast to that previously shown for embryos of the same genotype where 27% of mutants (6 out of 22) had IAA-B [28]. This could possibly be attributed to the use of a different Gbx2 targeted allele as discussed above.

5. Conclusions

In summary, a genetic regulatory network comprising of Tbx1, Pax9 and Gbx2 is required to control morphogenesis of the arch arteries and the outflow tract of the developing cardiovascular system, and this interaction occurs, in part, within the pharyngeal epithelia at mid-embryogenesis in the mouse. An earlier role for Gbx2 in establishing left-right patterning requires further investigation.

Supplementary Materials

The following are available online at https://www.mdpi.com/2308-3425/7/2/20/s1. Figure S1. No Gbx2 mRNA is detected in Gbx2−/− embryos created by recombining the Gbx2flox allele with Sox2Cre at E9.5; Figure S2. Thymus and palate abnormalities seen in Gbx2;Pax9 mutant embryos and neonates; Figure S3. Pax9Cre activity in the pharyngeal endoderm in E9.5 embryos. Table S1. Expected and observed genotypes of embryos and foetuses collected from a Gbx2+/− intercross; Table S2. Expected and observed genotypes of weaned pups from a Gbx2+/− × Pax9+/− cross; Table S3. Expected and observed genotypes of embryos and foetuses collected from a Gbx2+/−;Pax9+/− intercross; Table S4. Summary of thymus phenotypes observed in Gbx2 and Gbx2;Pax9 mutant embryos at E15.5 and neonates at P0; Table S5. Antibodies and probes used for immunostaining and in situ hybridisation.

Author Contributions

Conceptualization, S.D.B.; methodology, J.E.S. and T.J.M.; formal analysis, C.A.S. and S.D.B.; investigation, C.A.S, S.M. and A.V.; Writing—original draft preparation, S.D.B.; writing—review and editing, C.A.S., D.J.H. and H.M.P.; visualization, C.A.S. and S.D.B.; supervision, D.J.H., H.M.P. and S.D.B.; project administration, S.D.B.; funding acquisition, S.D.B. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by a British Heart Foundation project grant (PG/16/39/32115; to SDB) and a British Heart Foundation Non-Clinical PhD Studentship (FS/16/8/31984; to SDB). JES would like to acknowledge infrastructure funding from the British Heart Foundation, UK (SI/14/1/30718).

Acknowledgments

The 2xTk-GL2 and BMP4-luc control plasmids were gifts from Anita Rauch and Rena D’Souza. The Gbx2 and Pitx2 probes were gifts from Alexandra Joyner and Dominic Norris. We acknowledge the Newcastle University Flow Cytometry Core Facility (FCCF) for assistance with the generation of the flow cytometry data.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Andersen, T.A.; Troelsen Kde, L.; Larsen, L.A. Of mice and men: Molecular genetics of congenital heart disease. Cell. Mol. Life Sci. 2014, 71, 1327–1352. [Google Scholar] [CrossRef] [PubMed]
  2. Boudjemline, Y.; Fermont, L.; Le Bidois, J.; Lyonnet, S.; Sidi, D.; Bonnet, D. Prevalence of 22q11 deletion in fetuses with conotruncal cardiac defects: A 6-year prospective study. J. Pediatr. 2001, 138, 520–524. [Google Scholar] [CrossRef]
  3. Papangeli, I.; Scambler, P. The 22q11 deletion: DiGeorge and velocardiofacial syndromes and the role of TBX1. Wiley Interdiscip. Rev. Dev. Biol. 2013, 2, 393–403. [Google Scholar] [CrossRef] [PubMed]
  4. Yagi, H.; Furutani, Y.; Hamada, H.; Sasaki, T.; Asakawa, S.; Minoshima, S.; Ichida, F.; Joo, K.; Kimura, M.; Imamura, S.; et al. Role of TBX1 in human del22q11.2 syndrome. Lancet 2003, 362, 1366–1373. [Google Scholar] [CrossRef]
  5. Zweier, C.; Sticht, H.; Aydin-Yaylagul, I.; Campbell, C.E.; Rauch, A. Human TBX1 missense mutations cause gain of function resulting in the same phenotype as 22q11.2 deletions. Am. J. Hum. Genet. 2007, 80, 510–517. [Google Scholar] [CrossRef] [PubMed]
  6. Kelly, R.G. The second heart field. Curr. Top. Dev. Biol. 2012, 100, 33–65. [Google Scholar] [CrossRef] [PubMed]
  7. Anderson, R.H.; Moorman, A.F.; Brown, N.A.; Bamforth, S.D.; Chaudhry, B.; Henderson, D.J.; Mohun, T.J. Normal and abnormal development of the heart. In Pediatric and Congenital Cardiology, Cardiac Surgery and Intensive Care; da Cruz, E., Ivy, D., Jaggers, J., Eds.; Springer: London, UK, 2014; pp. 151–177. [Google Scholar]
  8. Waldo, K.; Miyagawa-Tomita, S.; Kumiski, D.; Kirby, M.L. Cardiac neural crest cells provide new insight into septation of the cardiac outflow tract: Aortic sac to ventricular septal closure. Dev. Biol. 1998, 196, 129–144. [Google Scholar] [CrossRef]
  9. Bajolle, F.; Zaffran, S.; Kelly, R.G.; Hadchouel, J.; Bonnet, D.; Brown, N.A.; Buckingham, M.E. Rotation of the myocardial wall of the outflow tract is implicated in the normal positioning of the great arteries. Circ. Res. 2006, 98, 421–428. [Google Scholar] [CrossRef]
  10. Anderson, R.H.; Wessels, A.; Vettukattil, J.J. Morphology and Morphogenesis of Atrioventricular Septal Defect With Common Atrioventricular Junction. World J. Pediatr. Congenit. Heart Surg. 2010, 1, 59–67. [Google Scholar] [CrossRef]
  11. Wang, X.; Chen, D.; Chen, K.; Jubran, A.; Ramirez, A.; Astrof, S. Endothelium in the pharyngeal arches 3, 4 and 6 is derived from the second heart field. Dev. Biol. 2017, 421, 108–117. [Google Scholar] [CrossRef]
  12. Graham, A.; Smith, A. Patterning the pharyngeal arches. Bioessays 2001, 23, 54–61. [Google Scholar] [CrossRef]
  13. Chapman, D.L.; Garvey, N.; Hancock, S.; Alexiou, M.; Agulnik, S.I.; Gibson-Brown, J.J.; Cebra-Thomas, J.; Bollag, R.J.; Silver, L.M.; Papaioannou, V.E. Expression of the T-box family genes,Tbx1-Tbx5, during early mouse development. Dev. Dyn. 1996, 206, 379–390. [Google Scholar] [CrossRef]
  14. Veitch, E.; Begbie, J.; Schilling, T.F.; Smith, M.M.; Graham, A. Pharyngeal arch patterning in the absence of neural crest. Curr. Biol. 1999, 9, 1481–1484. [Google Scholar] [CrossRef]
  15. Piotrowski, T.; Nusslein-Volhard, C. The endoderm plays an important role in patterning the segmented pharyngeal region in zebrafish (Danio rerio). Dev. Biol. 2000, 225, 339–356. [Google Scholar] [CrossRef]
  16. McCauley, D.W.; Bronner-Fraser, M. Neural crest contributions to the lamprey head. Development 2003, 130, 2317–2327. [Google Scholar] [CrossRef]
  17. Graham, A.; Okabe, M.; Quinlan, R. The role of the endoderm in the development and evolution of the pharyngeal arches. J. Anat. 2005, 207, 479–487. [Google Scholar] [CrossRef]
  18. Edlund, R.K.; Ohyama, T.; Kantarci, H.; Riley, B.B.; Groves, A.K. Foxi transcription factors promote pharyngeal arch development by regulating formation of FGF signaling centers. Dev. Biol. 2014, 390, 1–13. [Google Scholar] [CrossRef]
  19. Hasten, E.; Morrow, B.E. Tbx1 and Foxi3 genetically interact in the pharyngeal pouch endoderm in a mouse model for 22q11.2 deletion syndrome. PLoS Genet. 2019, 15, e1008301. [Google Scholar] [CrossRef]
  20. Jackson, A.; Kasah, S.; Mansour, S.L.; Morrow, B.; Basson, M.A. Endoderm-specific deletion of Tbx1 reveals an FGF-independent role for Tbx1 in pharyngeal apparatus morphogenesis. Dev. Dyn. 2014, 243, 1143–1151. [Google Scholar] [CrossRef]
  21. Hiruma, T.; Nakajima, Y.; Nakamura, H. Development of pharyngeal arch arteries in early mouse embryo. J. Anat. 2002, 201, 15–29. [Google Scholar] [CrossRef]
  22. Bamforth, S.D.; Chaudhry, B.; Bennett, M.; Wilson, R.; Mohun, T.J.; Van Mierop, L.H.; Henderson, D.J.; Anderson, R.H. Clarification of the identity of the mammalian fifth pharyngeal arch artery. Clin. Anat. 2013, 26, 173–182. [Google Scholar] [CrossRef] [PubMed]
  23. Suntratonpipat, S.; Bamforth, S.D.; Johnson, A.L.; Noga, M.; Anderson, R.H.; Smallhorn, J.; Tham, E. Childhood presentation of interrupted aortic arch with persistent carotid ducts. World J. Pediatr. Congenit. Heart Surg. 2015, 6, 335–338. [Google Scholar] [CrossRef] [PubMed]
  24. Ivins, S.; van Lammerts Beuren, K.; Roberts, C.; James, C.; Lindsay, E.; Baldini, A.; Ataliotis, P.; Scambler, P.J. Microarray analysis detects differentially expressed genes in the pharyngeal region of mice lacking Tbx1. Dev. Biol. 2005, 285, 554–569. [Google Scholar] [CrossRef] [PubMed]
  25. Phillips, H.M.; Stothard, C.A.; Shaikh Qureshi, W.M.; Kousa, A.I.; Briones-Leon, J.A.; Khasawneh, R.R.; O’Loughlin, C.; Sanders, R.; Mazzotta, S.; Dodds, R.; et al. Pax9 is required for cardiovascular development and interacts with Tbx1 in the pharyngeal endoderm to control 4th pharyngeal arch artery morphogenesis. Development 2019, 146. [Google Scholar] [CrossRef]
  26. Neubuser, A.; Koseki, H.; Balling, R. Characterization and developmental expression of Pax9, a paired-box-containing gene related to Pax1. Dev. Biol. 1995, 170, 701–716. [Google Scholar] [CrossRef]
  27. Peters, H.; Neubuser, A.; Kratochwil, K.; Balling, R. Pax9-deficient mice lack pharyngeal pouch derivatives and teeth and exhibit craniofacial and limb abnormalities. Genes Dev. 1998, 12, 2735–2747. [Google Scholar] [CrossRef]
  28. Calmont, A.; Ivins, S.; Van Bueren, K.L.; Papangeli, I.; Kyriakopoulou, V.; Andrews, W.D.; Martin, J.F.; Moon, A.M.; Illingworth, E.A.; Basson, M.A.; et al. Tbx1 controls cardiac neural crest cell migration during arch artery development by regulating Gbx2 expression in the pharyngeal ectoderm. Development 2009, 136, 3173–3183. [Google Scholar] [CrossRef]
  29. Byrd, N.A.; Meyers, E.N. Loss of Gbx2 results in neural crest cell patterning and pharyngeal arch artery defects in the mouse embryo. Dev. Biol. 2005, 284, 233–245. [Google Scholar] [CrossRef]
  30. Li, J.Y.H.; Joyner, A.L. Otx2 and Gbx2 are required for refinement and not induction of mid-hindbrain gene expression. Development 2001, 128, 4979–4991. [Google Scholar]
  31. Bouillet, P.; Chazaud, C.; Oulad-Abdelghani, M.; Dollé, P.; Chambon, P. Sequence and expression pattern of the Stra7 (Gbx-2) homeobox-containing gene induced by retinoic acid in P19 embryonal carcinoma cells. Dev. Dyn. 1995, 204, 372–382. [Google Scholar] [CrossRef]
  32. Li, J.Y.; Lao, Z.; Joyner, A.L. Changing requirements for Gbx2 in development of the cerebellum and maintenance of the mid/hindbrain organizer. Neuron 2002, 36, 31–43. [Google Scholar] [CrossRef]
  33. Hayashi, S.; Lewis, P.; Pevny, L.; McMahon, A.P. Efficient gene modulation in mouse epiblast using a Sox2Cre transgenic mouse strain. Mech. Dev. 2002, 119, S97–S101. [Google Scholar] [CrossRef]
  34. Jerome, L.A.; Papaioannou, V.E. DiGeorge syndrome phenotype in mice mutant for the T-box gene, Tbx1. Nat. Genet. 2001, 27, 286–291. [Google Scholar] [CrossRef] [PubMed]
  35. Srinivas, S.; Watanabe, T.; Lin, C.S.; William, C.M.; Tanabe, Y.; Jessell, T.M.; Costantini, F. Cre reporter strains produced by targeted insertion of EYFP and ECFP into the ROSA26 locus. BMC Dev. Biol. 2001, 1, 4. [Google Scholar] [CrossRef]
  36. Geyer, S.H.; Mohun, T.J.; Weninger, W.J. Visualizing Vertebrate Embryos with Episcopic 3D Imaging Techniques. Sci. World J. 2009, 9, 1423–1437. [Google Scholar] [CrossRef]
  37. Degenhardt, K.; Wright, A.C.; Horng, D.; Padmanabhan, A.; Epstein, J.A. Rapid 3D phenotyping of cardiovascular development in mouse embryos by micro-CT with iodine staining. Circ. Cardiovasc. Imaging 2010, 3, 314–322. [Google Scholar] [CrossRef]
  38. Bamforth, S.D.; Schneider, J.E.; Bhattacharya, S. High-throughput analysis of mouse embryos by magnetic resonance imaging. Cold Spring Harb. Protoc. 2012, 2012, 93–101. [Google Scholar] [CrossRef]
  39. Schneider, J.E.; Bose, J.; Bamforth, S.D.; Gruber, A.D.; Broadbent, C.; Clarke, K.; Neubauer, S.; Lengeling, A.; Bhattacharya, S. Identification of cardiac malformations in mice lacking Ptdsr using a novel high-throughput magnetic resonance imaging technique. BMC Dev. Biol. 2004, 4, 16. [Google Scholar] [CrossRef]
  40. Ogawa, T.; Kapadia, H.; Feng, J.Q.; Raghow, R.; Peters, H.; D’Souza, R.N. Functional Consequences of Interactions between Pax9 and Msx1 Genes in Normal and Abnormal Tooth Development. J. Biol. Chem. 2006, 281, 18363–18369. [Google Scholar] [CrossRef]
  41. Wassarman, K.M.; Lewandoski, M.; Campbell, K.; Joyner, A.L.; Rubenstein, J.L.; Martinez, S.; Martin, G.R. Specification of the anterior hindbrain and establishment of a normal mid/hindbrain organizer is dependent on Gbx2 gene function. Development 1997, 124, 2923–2934. [Google Scholar]
  42. Caprio, C.; Baldini, A. p53 suppression partially rescues the mutant phenotype in mouse models of DiGeorge syndrome. Proc. Natl. Acad. Sci. USA 2014, 111, 13385–13390. [Google Scholar] [CrossRef] [PubMed]
  43. Brennan, J.; Norris, D.P.; Robertson, E.J. Nodal activity in the node governs left-right asymmetry. Genes Dev. 2002, 16, 2339–2344. [Google Scholar] [CrossRef] [PubMed]
  44. Van Praagh, R.; Van Praagh, S. The anatomy of common aorticopulmonary trunk (truncus arteriosus communis) and its embryologic implications. A study of 57 necropsy cases. Am. J. Cardiol. 1965, 16, 406–425. [Google Scholar] [CrossRef]
  45. Olson, E.N.; Arnold, H.H.; Rigby, P.W.J.; Wold, B.J. Know Your Neighbors: Three Phenotypes in Null Mutants of the Myogenic bHLH Gene MRF4. Cell 1996, 85, 1–4. [Google Scholar] [CrossRef]
  46. Lindsay, E.A.; Baldini, A. Recovery from arterial growth delay reduces penetrance of cardiovascular defects in mice deleted for the DiGeorge syndrome region. Hum. Mol. Genet. 2001, 10, 997–1002. [Google Scholar] [CrossRef]
  47. Guris, D.L.; Duester, G.; Papaioannou, V.E.; Imamoto, A. Dose-dependent interaction of Tbx1 and Crkl and locally aberrant RA signaling in a model of del22q11 syndrome. Dev. Cell. 2006, 10, 81–92. [Google Scholar] [CrossRef]
  48. Randall, V.; McCue, K.; Roberts, C.; Kyriakopoulou, V.; Beddow, S.; Barrett, A.N.; Vitelli, F.; Prescott, K.; Shaw-Smith, C.; Devriendt, K.; et al. Great vessel development requires biallelic expression of Chd7 and Tbx1 in pharyngeal ectoderm in mice. J. Clin. Investig. 2009, 119, 3301–3310. [Google Scholar] [CrossRef]
  49. Ryckebusch, L.; Bertrand, N.; Mesbah, K.; Bajolle, F.; Niederreither, K.; Kelly, R.G.; Zaffran, S. Decreased Levels of Embryonic Retinoic Acid Synthesis Accelerate Recovery From Arterial Growth Delay in a Mouse Model of DiGeorge Syndrome. Circ. Res. 2010, 106, 686–694. [Google Scholar] [CrossRef]
  50. Shiratori, H.; Hamada, H. The left-right axis in the mouse: From origin to morphology. Development 2006, 133, 2095–2104. [Google Scholar] [CrossRef]
  51. Cox, C.J.; Espinoza, H.M.; McWilliams, B.; Chappell, K.; Morton, L.; Hjalt, T.A.; Semina, E.V.; Amendt, B.A. Differential regulation of gene expression by PITX2 isoforms. J. Biol. Chem. 2002, 277, 25001–25010. [Google Scholar] [CrossRef]
  52. Liu, C.; Liu, W.; Lu, M.F.; Brown, N.A.; Martin, J.F. Regulation of left-right asymmetry by thresholds of Pitx2c activity. Development 2001, 128, 2039–2048. [Google Scholar] [PubMed]
  53. Franco, D.; Campione, M. The role of Pitx2 during cardiac development. Linking left-right signaling and congenital heart diseases. Trends Cardiovasc. Med. 2003, 13, 157–163. [Google Scholar] [CrossRef]
  54. Liu, C.; Liu, W.; Palie, J.; Lu, M.F.; Brown, N.A.; Martin, J.F. Pitx2c patterns anterior myocardium and aortic arch vessels and is required for local cell movement into atrioventricular cushions. Development 2002, 129, 5081–5091. [Google Scholar] [PubMed]
  55. Ai, D.; Liu, W.; Ma, L.; Dong, F.; Lu, M.F.; Wang, D.; Verzi, M.P.; Cai, C.; Gage, P.J.; Evans, S.; et al. Pitx2 regulates cardiac left-right asymmetry by patterning second cardiac lineage-derived myocardium. Dev. Biol. 2006, 296, 437–449. [Google Scholar] [CrossRef]
  56. Burns, T.; Yang, Y.; Hiriart, E.; Wessels, A. The Dorsal Mesenchymal Protrusion and the Pathogenesis of Atrioventricular Septal Defects. J. Cardiovasc. Dev. Dis. 2016, 3, 29. [Google Scholar] [CrossRef]
  57. Snarr, B.S.; O’Neal, J.L.; Chintalapudi, M.R.; Wirrig, E.E.; Phelps, A.L.; Kubalak, S.W.; Wessels, A. Isl1 expression at the venous pole identifies a novel role for the second heart field in cardiac development. Circ. Res. 2007, 101, 971–974. [Google Scholar] [CrossRef]
  58. Unolt, M.; Versacci, P.; Anaclerio, S.; Lambiase, C.; Calcagni, G.; Trezzi, M.; Carotti, A.; Crowley, T.B.; Zackai, E.H.; Goldmuntz, E.; et al. Congenital heart diseases and cardiovascular abnormalities in 22q11.2 deletion syndrome: From well-established knowledge to new frontiers. Am. J. Med. Genet. Part A 2018, 176, 2087–2098. [Google Scholar] [CrossRef]
  59. Merscher, S.; Funke, B.; Epstein, J.A.; Heyer, J.; Puech, A.; Lu, M.M.; Xavier, R.J.; Demay, M.B.; Russell, R.G.; Factor, S.; et al. TBX1 is responsible for cardiovascular defects in velo-cardio-facial/DiGeorge syndrome. Cell 2001, 104, 619–629. [Google Scholar] [CrossRef]
  60. Xu, H.; Morishima, M.; Wylie, J.N.; Schwartz, R.J.; Bruneau, B.G.; Lindsay, E.A.; Baldini, A. Tbx1 has a dual role in the morphogenesis of the cardiac outflow tract. Development 2004, 131, 3217–3227. [Google Scholar] [CrossRef]
  61. Park, E.J.; Ogden, L.A.; Talbot, A.; Evans, S.; Cai, C.L.; Black, B.L.; Frank, D.U.; Moon, A.M. Required, tissue-specific roles for Fgf8 in outflow tract formation and remodeling. Development 2006, 133, 2419–2433. [Google Scholar] [CrossRef]
  62. Conway, S.J.; Henderson, D.J.; Copp, A.J. Pax3 is required for cardiac neural crest migration in the mouse: Evidence from the splotch (Sp2H) mutant. Development 1997, 124, 505–514. [Google Scholar] [PubMed]
  63. Keyte, A.; Hutson, M.R. The neural crest in cardiac congenital anomalies. Differentiation 2012, 84, 25–40. [Google Scholar] [CrossRef] [PubMed]
  64. Bradshaw, L.; Chaudhry, B.; Hildreth, V.; Webb, S.; Henderson, D.J. Dual role for neural crest cells during outflow tract septation in the neural crest-deficient mutant Splotch(2H). J. Anat. 2009, 214, 245–257. [Google Scholar] [CrossRef] [PubMed]
  65. Lindsay, E.A.; Vitelli, F.; Su, H.; Morishima, M.; Huynh, T.; Pramparo, T.; Jurecic, V.; Ogunrinu, G.; Sutherland, H.F.; Scambler, P.J.; et al. Tbx1 haploinsufficieny in the DiGeorge syndrome region causes aortic arch defects in mice. Nature 2001, 410, 97–101. [Google Scholar] [CrossRef] [PubMed]
  66. Zhang, Z.; Baldini, A. In vivo response to high-resolution variation of Tbx1 mRNA dosage. Hum. Mol. Genet. 2008, 17, 150–157. [Google Scholar] [CrossRef]
  67. Dupays, L.; Mohun, T. Spatiotemporal regulation of enhancers during cardiogenesis. Cell. Mol. Life Sci. CMLS 2017, 74, 257–265. [Google Scholar] [CrossRef]
  68. Fulcoli, F.G.; Franzese, M.; Liu, X.; Zhang, Z.; Angelini, C.; Baldini, A. Rebalancing gene haploinsufficiency in vivo by targeting chromatin. Nat. Commun. 2016, 7. [Google Scholar] [CrossRef]
Jcdd 07 00020 g001
Figure 1. Gbx2 and Pax9 expression in the pharyngeal endoderm. (A–F) RNA in situ hybridisation was used to visualise transcripts in the normal developing embryo. At E8.5 whole embryo in situ hybridisation reveals Pax9 (A) and Gbx2 (B) expression in the pharyngeal pouch (pp) region. Gbx2 is also expressed in the mid-hindbrain (mhb) (n = 3 embryos per probe, 9–11 somites). (C–F) RNAScope probes were used on sections at E9.5 (n = 3, 24–28 somites) and E10.5 (n = 3, 33 somites). At E9.5 Pax9 and Gbx2 (C), and Pax9 and Tbx1 (D) co-localise to the pharyngeal endoderm. At E10.5 Pax9 (E), Gbx2 (E’) and Tbx1 (F), are all expressed in the pharyngeal endoderm. (G) qPCR on flow-sorted cells from Pax9Cre;eYFP E9.5 embryos (n = 5, 23–27 somites) shows a significant enrichment for Gbx2 in the eYFP-positive cells compared to eYFP-negative. * p < 0.05; two-tailed unpaired t-test. (H,J) Whole embryo in situ hybridisation at E9.5 in wild-type (H; n = 3, 24–26 somites) and Pax9−/− (J; n = 6, 23–27 somites) embryos. Gbx2 expression is reduced in the pharyngeal pouch in Pax9−/− embryos. (I,K) Sections of stained embryos revealed reduced Gbx2 staining in the pharyngeal endoderm in Pax9−/− embryos (K) compared to controls (I). (L) Diagram of the GBX2 locus showing the degree of conservation (%) between human and mouse GBX2 sequences. A 500 bp region, ~2kb down from the second, and final, GBX2 coding exon is 99% conserved and contains PAX (blue) and TBX (red) binding elements (BE). (M–O) Luciferase assays show that Pax9 activates the Gbx2 conserved region but Tbx1 does not (O). Controls for Tbx1 (M) and Pax9 (N) show significant activation of luciferase. Data presented as the mean ± s.e.m. of 6 individual experiments, each performed in triplicate. * p < 0.05, *** p < 0.01, **** p < 0.001. Scale bars: 100 μm in (A,B,H,J); 50 μm in (C–F),(H’, I, J’,K). Abbreviations: me, mesoderm; pa, pharyngeal arch; pe, pharyngeal endoderm; s, somites. The somite numbers given in the legend reflect the range analysed for the whole study. The figure contains representative images only.
Figure 1. Gbx2 and Pax9 expression in the pharyngeal endoderm. (A–F) RNA in situ hybridisation was used to visualise transcripts in the normal developing embryo. At E8.5 whole embryo in situ hybridisation reveals Pax9 (A) and Gbx2 (B) expression in the pharyngeal pouch (pp) region. Gbx2 is also expressed in the mid-hindbrain (mhb) (n = 3 embryos per probe, 9–11 somites). (C–F) RNAScope probes were used on sections at E9.5 (n = 3, 24–28 somites) and E10.5 (n = 3, 33 somites). At E9.5 Pax9 and Gbx2 (C), and Pax9 and Tbx1 (D) co-localise to the pharyngeal endoderm. At E10.5 Pax9 (E), Gbx2 (E’) and Tbx1 (F), are all expressed in the pharyngeal endoderm. (G) qPCR on flow-sorted cells from Pax9Cre;eYFP E9.5 embryos (n = 5, 23–27 somites) shows a significant enrichment for Gbx2 in the eYFP-positive cells compared to eYFP-negative. * p < 0.05; two-tailed unpaired t-test. (H,J) Whole embryo in situ hybridisation at E9.5 in wild-type (H; n = 3, 24–26 somites) and Pax9−/− (J; n = 6, 23–27 somites) embryos. Gbx2 expression is reduced in the pharyngeal pouch in Pax9−/− embryos. (I,K) Sections of stained embryos revealed reduced Gbx2 staining in the pharyngeal endoderm in Pax9−/− embryos (K) compared to controls (I). (L) Diagram of the GBX2 locus showing the degree of conservation (%) between human and mouse GBX2 sequences. A 500 bp region, ~2kb down from the second, and final, GBX2 coding exon is 99% conserved and contains PAX (blue) and TBX (red) binding elements (BE). (M–O) Luciferase assays show that Pax9 activates the Gbx2 conserved region but Tbx1 does not (O). Controls for Tbx1 (M) and Pax9 (N) show significant activation of luciferase. Data presented as the mean ± s.e.m. of 6 individual experiments, each performed in triplicate. * p < 0.05, *** p < 0.01, **** p < 0.001. Scale bars: 100 μm in (A,B,H,J); 50 μm in (C–F),(H’, I, J’,K). Abbreviations: me, mesoderm; pa, pharyngeal arch; pe, pharyngeal endoderm; s, somites. The somite numbers given in the legend reflect the range analysed for the whole study. The figure contains representative images only.
Jcdd 07 00020 g001
Jcdd 07 00020 g002
Figure 2. Cardiovascular defects in Gbx2−/− embryos. (A–H) 3D reconstructions from MRI datasets of E15.5 embryos. (A) Gbx2+/+ control embryo with normal heart and aortic arch arteries. (B,C) In Gbx2−/− embryos (n = 25), defects seen include double outlet right ventricle (DORV) with interventricular communication (IVC), retro-oesophageal aberrant right subclavian artery (A-RSA), isolated RSA (I-RSA) and right-sided arterial duct (RAD). (D–H) Left-right patterning defects were observed in a subset of Gbx2−/− embryos (n = 9/25). (D) Normal lungs from a control embryo showing cranial (Cr), middle (Mi), caudal (Ca) and accessory (Ac) lobes of the right lung, and a single lobed left lung (LL). (E) Gbx2−/− embryo with right pulmonary isomerism. (F) Gbx2−/− embryo heart with mirror image arrangement of the arch arteries and the ventricles, DORV and an aberrant left subclavian artery (A-LSA). (G,H) Dorsal view of the heart and the caval veins. (G) Control embryo showing the right superior caval vein (RSCV) and inferior caval vein (ICV) draining directly into the right atrium (RA) and the left SCV (LSVC) draining into the RA via the coronary sinus (CS). (H) Gbx2−/− embryo with the right and left SCVs, and the paired ICV, draining directly into a common atrium (right atrial isomerism). (I,J) Whole-mount in situ hybridisation with a Pitx2 riboprobe. Pitx2 isoforms were seen in the head mesoderm (HM) and left lateral plate mesoderm (LLPM) of control (n = 3) and Gbx2−/− (n = 6) embryos. All embryos were between 9–11 somites. (K–M) Intracardiac ink injection into E10.5 embryos (34–38 somites). (K) In control embryos (n = 18), PAAs 3–6 are patent to ink, are of equivalent diameter and are bilaterally symmetrical. (L,M) In Gbx2−/− embryos (n = 17), the 4th PAAs are frequently hypoplastic (L) or non-patent to ink (M; asterisk). (N–S) Embryos were examined by high-resolution episcopic microscopy at E10.5 (34–35 somites; N–P) and E11.5 (45–47 somites; Q–S). Coronal views are shown. (N) In control E10.5 embryos (n = 5), the 3rd, 4th, and 6th PAAs, and the left and right dorsal aortae (L/RdAo), are of equal size and bilaterally symmetrical. (O,P) In Gbx2−/− embryos (n = 3), the 4th PAAs were either absent (O; asterisk), or hypoplastic (O,P). The left dorsal aorta was seen to be abnormally thinner than the right (O,P). (Q) In control embryos at E11.5 (n = 3), the outflow tract is septated into the aorta (A) and pulmonary trunk (pt), and the right 6th PAA has thinned. (R,S) In Gbx2−/− embryos (n = 5), the 4th PAAs are frequently unilaterally absent (asterisk). Septation of the aortic sac (as) is delayed. (T–V) Immunostaining using anti-ERG1 antibody at E10.5 (34–36 somites). (T) Control embryos (n = 3) have a ring of ERG1-positive endothelium lining the 3rd and 4th PAAs (white arrowheads). (U,V) In Gbx2−/− embryos (n = 4), the 4th PAAs appeared to have abnormal endothelial cells (U), or disorganized endothelial cells within the 4th pharyngeal arch in the absence of a PAA (V; yellow arrowheads). Scale bars: 500 μm in (A–H); 100 μm in (I–S); 50 μm in (T–V). Abbreviations: Ao, aorta; AD, arterial duct; LCC, left common carotid artery; LSA, left subclavian artery; LV, left ventricle; pa, pharyngeal arch; RCC, right common carotid artery; RSA, right subclavian artery; RV, right ventricle; s, somites. The somite numbers given in the legend reflect the range analysed for the whole study. The figure contains representative images only.
Figure 2. Cardiovascular defects in Gbx2−/− embryos. (A–H) 3D reconstructions from MRI datasets of E15.5 embryos. (A) Gbx2+/+ control embryo with normal heart and aortic arch arteries. (B,C) In Gbx2−/− embryos (n = 25), defects seen include double outlet right ventricle (DORV) with interventricular communication (IVC), retro-oesophageal aberrant right subclavian artery (A-RSA), isolated RSA (I-RSA) and right-sided arterial duct (RAD). (D–H) Left-right patterning defects were observed in a subset of Gbx2−/− embryos (n = 9/25). (D) Normal lungs from a control embryo showing cranial (Cr), middle (Mi), caudal (Ca) and accessory (Ac) lobes of the right lung, and a single lobed left lung (LL). (E) Gbx2−/− embryo with right pulmonary isomerism. (F) Gbx2−/− embryo heart with mirror image arrangement of the arch arteries and the ventricles, DORV and an aberrant left subclavian artery (A-LSA). (G,H) Dorsal view of the heart and the caval veins. (G) Control embryo showing the right superior caval vein (RSCV) and inferior caval vein (ICV) draining directly into the right atrium (RA) and the left SCV (LSVC) draining into the RA via the coronary sinus (CS). (H) Gbx2−/− embryo with the right and left SCVs, and the paired ICV, draining directly into a common atrium (right atrial isomerism). (I,J) Whole-mount in situ hybridisation with a Pitx2 riboprobe. Pitx2 isoforms were seen in the head mesoderm (HM) and left lateral plate mesoderm (LLPM) of control (n = 3) and Gbx2−/− (n = 6) embryos. All embryos were between 9–11 somites. (K–M) Intracardiac ink injection into E10.5 embryos (34–38 somites). (K) In control embryos (n = 18), PAAs 3–6 are patent to ink, are of equivalent diameter and are bilaterally symmetrical. (L,M) In Gbx2−/− embryos (n = 17), the 4th PAAs are frequently hypoplastic (L) or non-patent to ink (M; asterisk). (N–S) Embryos were examined by high-resolution episcopic microscopy at E10.5 (34–35 somites; N–P) and E11.5 (45–47 somites; Q–S). Coronal views are shown. (N) In control E10.5 embryos (n = 5), the 3rd, 4th, and 6th PAAs, and the left and right dorsal aortae (L/RdAo), are of equal size and bilaterally symmetrical. (O,P) In Gbx2−/− embryos (n = 3), the 4th PAAs were either absent (O; asterisk), or hypoplastic (O,P). The left dorsal aorta was seen to be abnormally thinner than the right (O,P). (Q) In control embryos at E11.5 (n = 3), the outflow tract is septated into the aorta (A) and pulmonary trunk (pt), and the right 6th PAA has thinned. (R,S) In Gbx2−/− embryos (n = 5), the 4th PAAs are frequently unilaterally absent (asterisk). Septation of the aortic sac (as) is delayed. (T–V) Immunostaining using anti-ERG1 antibody at E10.5 (34–36 somites). (T) Control embryos (n = 3) have a ring of ERG1-positive endothelium lining the 3rd and 4th PAAs (white arrowheads). (U,V) In Gbx2−/− embryos (n = 4), the 4th PAAs appeared to have abnormal endothelial cells (U), or disorganized endothelial cells within the 4th pharyngeal arch in the absence of a PAA (V; yellow arrowheads). Scale bars: 500 μm in (A–H); 100 μm in (I–S); 50 μm in (T–V). Abbreviations: Ao, aorta; AD, arterial duct; LCC, left common carotid artery; LSA, left subclavian artery; LV, left ventricle; pa, pharyngeal arch; RCC, right common carotid artery; RSA, right subclavian artery; RV, right ventricle; s, somites. The somite numbers given in the legend reflect the range analysed for the whole study. The figure contains representative images only.
Jcdd 07 00020 g002
Jcdd 07 00020 g003
Figure 3. Cardiovascular defects in Gbx2+/−;Pax9+/− mice. (A–C) Neonates were dissected on the day of birth. (A) Arch arteries of control neonates were normal. (B) A subset of Gbx2+/−;Pax9+/− neonates (4/12) displayed right-sided aortic arch (RAA; B) or IAA-B (C). (D–I) H&E stained transverse sections of E15.5 embryos. (D–F) Normal outflow tract (D), aortic arch arteries and thymus (Th; E,F) in a control embryo. (G–I) A Gbx2+/−;Pax9+/− embryo (from n = 16) with aberrant right subclavian artery (A-RSA; G), a right-sided aortic arch (RAA; H) and abnormal thymus (H,I). (J–L) Intracardiac ink injection into E10.5 embryos (34–41 somites). (J) In control embryos, PAAs 3–6 are patent to ink, are of equivalent diameter and are bilaterally symmetrical. (K,L) In Gbx2+/−;Pax9+/− embryos (n = 63), 32% had hypoplastic (K) or non-patent to ink (L; asterisk) 4th PAAs. Scale bars: 1 mm in (A–C); 500 μm in (D–L). Abbreviations: AD, arterial duct; Ao, aorta; AoA, aortic arch; LCC, left common carotid artery; LSA, left subclavian artery; PT, pulmonary trunk; RCC, right common carotid artery; RSA, right subclavian artery; s, somites. The somite numbers given in the legend reflect the range analysed for the whole study. The figure contains representative images only.
Figure 3. Cardiovascular defects in Gbx2+/−;Pax9+/− mice. (A–C) Neonates were dissected on the day of birth. (A) Arch arteries of control neonates were normal. (B) A subset of Gbx2+/−;Pax9+/− neonates (4/12) displayed right-sided aortic arch (RAA; B) or IAA-B (C). (D–I) H&E stained transverse sections of E15.5 embryos. (D–F) Normal outflow tract (D), aortic arch arteries and thymus (Th; E,F) in a control embryo. (G–I) A Gbx2+/−;Pax9+/− embryo (from n = 16) with aberrant right subclavian artery (A-RSA; G), a right-sided aortic arch (RAA; H) and abnormal thymus (H,I). (J–L) Intracardiac ink injection into E10.5 embryos (34–41 somites). (J) In control embryos, PAAs 3–6 are patent to ink, are of equivalent diameter and are bilaterally symmetrical. (K,L) In Gbx2+/−;Pax9+/− embryos (n = 63), 32% had hypoplastic (K) or non-patent to ink (L; asterisk) 4th PAAs. Scale bars: 1 mm in (A–C); 500 μm in (D–L). Abbreviations: AD, arterial duct; Ao, aorta; AoA, aortic arch; LCC, left common carotid artery; LSA, left subclavian artery; PT, pulmonary trunk; RCC, right common carotid artery; RSA, right subclavian artery; s, somites. The somite numbers given in the legend reflect the range analysed for the whole study. The figure contains representative images only.
Jcdd 07 00020 g003
Jcdd 07 00020 g004
Figure 4. Cardiovascular defects in Gbx2−/−;Pax9+/− mice. (A–B) Neonates were dissected on the day of birth. (A) Arch arteries of control neonates were normal. (B) One Gbx2−/−;Pax9+/− neonate found dead on the day of birth displayed IAA-B and an aberrant left and right internal and external carotid artery (iLC, eLC, iRC, eRC). (C–H) H&E stained transverse sections of E13.5 embryos (n = 5). A normal outflow tract (C), aortic arch (Ao) and thymus (Th; D) are seen in control embryos. In two Gbx2−/−;Pax9+/− mutant embryos (E–H) the defects include IAA-B (E), an aberrant right internal carotid artery (iRC; F), and a partial common arterial trunk (pCAT) emerging from the left ventricle (G). The pulmonary trunk is right-sided (R-PT; H) and the aorta was interrupted (not shown). The thymus is absent in both mutants (F,H). (J–M) 3D reconstructions of MRI datasets of hearts from a normal control embryo (J) and Gbx2−/−;Pax9+/− mutant embryos (n = 8). Defects include aberrant right subclavian artery (A-RSA; K,L), double outlet right ventricle (DORV; K,M), right-sided aortic arch (RAA; L,M). Situs patterning defects were also observed, including mirror image aortic arch arteries (RAA, RAD, RdAo) with aberrant left subclavian artery (A-LSA) and aberrantly positioned ventricles (M). (N–Q) Intracardiac ink injection into E10.5 embryos (35–39 somites). (N) In control embryos, PAAs 3–6 are patent to ink. (K,L) In Gbx2+/−;Pax9+/− embryos (n = 7), all had an aberrant 4th PAA including hypoplastic (O) or non-patent to ink (P,Q; asterisk) vessels. Scale bars: 1 mm in (A–B); 500 μm in (C–Q). Abbreviations: Ao, aorta; AD, arterial duct; dAo, dorsal aorta; LCC, left common carotid artery; LSA, left subclavian artery; LV, left ventricle; PT, pulmonary trunk; RCC, right common carotid artery; RSA, right subclavian artery; RV, right ventricle; s, somites. The somite numbers given in the legend reflect the range analysed for the whole study. The figure contains representative images only.
Figure 4. Cardiovascular defects in Gbx2−/−;Pax9+/− mice. (A–B) Neonates were dissected on the day of birth. (A) Arch arteries of control neonates were normal. (B) One Gbx2−/−;Pax9+/− neonate found dead on the day of birth displayed IAA-B and an aberrant left and right internal and external carotid artery (iLC, eLC, iRC, eRC). (C–H) H&E stained transverse sections of E13.5 embryos (n = 5). A normal outflow tract (C), aortic arch (Ao) and thymus (Th; D) are seen in control embryos. In two Gbx2−/−;Pax9+/− mutant embryos (E–H) the defects include IAA-B (E), an aberrant right internal carotid artery (iRC; F), and a partial common arterial trunk (pCAT) emerging from the left ventricle (G). The pulmonary trunk is right-sided (R-PT; H) and the aorta was interrupted (not shown). The thymus is absent in both mutants (F,H). (J–M) 3D reconstructions of MRI datasets of hearts from a normal control embryo (J) and Gbx2−/−;Pax9+/− mutant embryos (n = 8). Defects include aberrant right subclavian artery (A-RSA; K,L), double outlet right ventricle (DORV; K,M), right-sided aortic arch (RAA; L,M). Situs patterning defects were also observed, including mirror image aortic arch arteries (RAA, RAD, RdAo) with aberrant left subclavian artery (A-LSA) and aberrantly positioned ventricles (M). (N–Q) Intracardiac ink injection into E10.5 embryos (35–39 somites). (N) In control embryos, PAAs 3–6 are patent to ink. (K,L) In Gbx2+/−;Pax9+/− embryos (n = 7), all had an aberrant 4th PAA including hypoplastic (O) or non-patent to ink (P,Q; asterisk) vessels. Scale bars: 1 mm in (A–B); 500 μm in (C–Q). Abbreviations: Ao, aorta; AD, arterial duct; dAo, dorsal aorta; LCC, left common carotid artery; LSA, left subclavian artery; LV, left ventricle; PT, pulmonary trunk; RCC, right common carotid artery; RSA, right subclavian artery; RV, right ventricle; s, somites. The somite numbers given in the legend reflect the range analysed for the whole study. The figure contains representative images only.
Jcdd 07 00020 g004
Jcdd 07 00020 g005
Figure 5. Cardiovascular defects in Gbx2+/−;Pax9−/− mice. (A–C) Neonates were dissected on the day of birth. (A) Arch arteries of control neonates were normal. (B) Pax9−/− (n = 2) and (C) Gbx2−/−;Pax9+/− (n = 2) neonates found dead on the day of birth displayed interruption of the aortic arch (IAA-B) and presumed aberrant right subclavian artery. (D–F) 3D reconstructions of E15.5 hearts from MRI datasets. (D) Gbx2+/+ control embryo with normal heart and aortic arch arteries. (E) Pax9−/− embryos (n = 7) presented with defects such as IAA-B, A-RSA, double outlet right ventricle (DORV), hypoplastic aorta and aberrant carotid arteries (eRCA, iRCA). (F) Gbx2+/−;Pax9−/− embryos (n = 7) showed typical Pax9−/− cardiovascular defects including IAA-B and absent common carotid artery, but also common arterial trunk (CAT). (G–I) E15.5 embryos were sectioned and stained with H&E. (G) Control embryos had a normal outflow tract. (H) Pax9−/− embryos had DORV (not shown) and hypolastic aorta. (I) Gbx2+/−;Pax9−/− embryo with CAT. (J–L) Embryos at E10.5 were analysed by intracardiac ink injection (35–38 somites). (J) Control embryos had normal PAAs patent to ink. (K) Pax9−/− embryos showed typical defects such as persistent 1st, hypoplastic 3rd and absent 4th PAAs (asterisk), as did Gbx2+/−;Pax9−/− embryos (n = 6; L). Scale bars: 1 mm in (A–C); 500 μm in (D–L). Abbreviations: Ao, aorta; AD, arterial duct; LCC, left common carotid artery; LSA, left subclavian artery; LV, left ventricle; PA, pulmonary artery; PT, pulmonary trunk; RCC, right common carotid artery; RSA, right subclavian artery; RV, right ventricle; s, somites. The somite numbers given in the legend reflect the range analysed for the whole study. The figure contains representative images only.
Figure 5. Cardiovascular defects in Gbx2+/−;Pax9−/− mice. (A–C) Neonates were dissected on the day of birth. (A) Arch arteries of control neonates were normal. (B) Pax9−/− (n = 2) and (C) Gbx2−/−;Pax9+/− (n = 2) neonates found dead on the day of birth displayed interruption of the aortic arch (IAA-B) and presumed aberrant right subclavian artery. (D–F) 3D reconstructions of E15.5 hearts from MRI datasets. (D) Gbx2+/+ control embryo with normal heart and aortic arch arteries. (E) Pax9−/− embryos (n = 7) presented with defects such as IAA-B, A-RSA, double outlet right ventricle (DORV), hypoplastic aorta and aberrant carotid arteries (eRCA, iRCA). (F) Gbx2+/−;Pax9−/− embryos (n = 7) showed typical Pax9−/− cardiovascular defects including IAA-B and absent common carotid artery, but also common arterial trunk (CAT). (G–I) E15.5 embryos were sectioned and stained with H&E. (G) Control embryos had a normal outflow tract. (H) Pax9−/− embryos had DORV (not shown) and hypolastic aorta. (I) Gbx2+/−;Pax9−/− embryo with CAT. (J–L) Embryos at E10.5 were analysed by intracardiac ink injection (35–38 somites). (J) Control embryos had normal PAAs patent to ink. (K) Pax9−/− embryos showed typical defects such as persistent 1st, hypoplastic 3rd and absent 4th PAAs (asterisk), as did Gbx2+/−;Pax9−/− embryos (n = 6; L). Scale bars: 1 mm in (A–C); 500 μm in (D–L). Abbreviations: Ao, aorta; AD, arterial duct; LCC, left common carotid artery; LSA, left subclavian artery; LV, left ventricle; PA, pulmonary artery; PT, pulmonary trunk; RCC, right common carotid artery; RSA, right subclavian artery; RV, right ventricle; s, somites. The somite numbers given in the legend reflect the range analysed for the whole study. The figure contains representative images only.
Jcdd 07 00020 g005
Jcdd 07 00020 g006
Figure 6. Cardiovascular defects in the three Gbx2−/−;Pax9−/− mutants recovered. (A–D) Neonates were dissected on the day of birth. The thymus (A) and arch arteries (B) were normal in controls, but in a Gbx2−/−;Pax9−/− neonate the thymus was absent (asterisk; C) and the arch arteries were abnormal (D) displaying interrupted aortic arch type B (IAA-B), isolated right subclavian artery (I-RSA) and abnormal left carotid arteries (eLCA, iLCA). (E,F) 3D reconstructions of E15.5 hearts from MRI datasets. (E) Control embryo with normal heart and aortic arch arteries. (F) Gbx2−/−;Pax9−/− embryo with IAA-B, I-RSA, common arterial trunk (CAT) with interventricular communication (IVC), and aberrant carotid arteries (eLCA, iLCA, eRCA, iRCA). (G,H) Embryos at E10.5 were analysed by intracardiac ink injection. (G) Control embryos had normal PAAs patent to ink. (H) Gbx2−/−;Pax9−/− embryo with a non-patent 4th PAA (asterisk). (I–P) H&E stained transverse sections of E15.5 embryos. (I–L) Control embryo with normal heart (I), outflow tract (J), aortic arch arteries (K,L) and thymus (Th; L). (M–P) Sections from the Gbx2−/−;Pax9−/− embryo depicted in F. (M) An atrioventricular septal defect (AVSD) is seen, as well as the CAT (N) with associated I-RSA (O) and aberrant carotid arteries (P). Scale bars: 500 μm. Abbreviations: AD, arterial duct; Ao, aorta; AoA, aortic arch; dAo, dorsal aorta; LA, left atrium; LCC, left common carotid artery; LSA, left subclavian artery; LV, left ventricle; RA, right atrium; RCC, right common carotid artery; RSA, right subclavian artery; RV, right ventricle.
Figure 6. Cardiovascular defects in the three Gbx2−/−;Pax9−/− mutants recovered. (A–D) Neonates were dissected on the day of birth. The thymus (A) and arch arteries (B) were normal in controls, but in a Gbx2−/−;Pax9−/− neonate the thymus was absent (asterisk; C) and the arch arteries were abnormal (D) displaying interrupted aortic arch type B (IAA-B), isolated right subclavian artery (I-RSA) and abnormal left carotid arteries (eLCA, iLCA). (E,F) 3D reconstructions of E15.5 hearts from MRI datasets. (E) Control embryo with normal heart and aortic arch arteries. (F) Gbx2−/−;Pax9−/− embryo with IAA-B, I-RSA, common arterial trunk (CAT) with interventricular communication (IVC), and aberrant carotid arteries (eLCA, iLCA, eRCA, iRCA). (G,H) Embryos at E10.5 were analysed by intracardiac ink injection. (G) Control embryos had normal PAAs patent to ink. (H) Gbx2−/−;Pax9−/− embryo with a non-patent 4th PAA (asterisk). (I–P) H&E stained transverse sections of E15.5 embryos. (I–L) Control embryo with normal heart (I), outflow tract (J), aortic arch arteries (K,L) and thymus (Th; L). (M–P) Sections from the Gbx2−/−;Pax9−/− embryo depicted in F. (M) An atrioventricular septal defect (AVSD) is seen, as well as the CAT (N) with associated I-RSA (O) and aberrant carotid arteries (P). Scale bars: 500 μm. Abbreviations: AD, arterial duct; Ao, aorta; AoA, aortic arch; dAo, dorsal aorta; LA, left atrium; LCC, left common carotid artery; LSA, left subclavian artery; LV, left ventricle; RA, right atrium; RCC, right common carotid artery; RSA, right subclavian artery; RV, right ventricle.
Jcdd 07 00020 g006
Jcdd 07 00020 g007
Figure 7. Conditional deletion of Gbx2 from the pharyngeal endoderm. Embryos with one Gbx2-null allele and a heterozygous conditional deletion of Gbx2 using Pax9Cre (Gbx2−/flox;Pax9Cre) were analysed. (A,B) RNAscope in situ hybridisation for Gbx2 at E9.5 (n = 5 per genotype; 24–29 somites). (A) In control embryos Gbx2 expression was observed in the pharyngeal endoderm (pe) of the pharyngeal arches (pa). (B) Gbx2 expression was reduced in the pharyngeal endoderm of Gbx2−/flox;Pax9Cre mutants. (C,D) Embryos at E10.5 were analysed by intracardiac ink injection (36–38 somites). (C) Control embryos had normal PAAs patent to ink. (D) Gbx2−/flox;Pax9Cre embryos (n = 14) showed PAA defects such as absent 4th PAAs (asterisk). (E,F) 3D reconstructions of E15.5 hearts from MRI datasets. (E) Control embryo with normal heart and aortic arch arteries. (F) A Gbx2−/flox;Pax9Cre embryo (from n = 14 analysed) with double-outlet right ventricle (DORV), right-sided aortic arch (RAA), aberrant right subclavian artery (A-RSA) and abnormal left external and internal carotid arteries (eLCA, iLCA). Scale bars: 50 μm in (A,B); 100 μm in (C,D); 500 μm in (E,F). Abbreviations: Ao, aorta; AD, arterial duct; LCC, left common carotid artery; LSA, left subclavian artery; LV, left ventricle; RCC, right common carotid artery; RSA, right subclavian artery; RV, right ventricle; s, somite. The somite numbers given in the legend reflect the range analysed for the whole study. The figure contains representative images only.
Figure 7. Conditional deletion of Gbx2 from the pharyngeal endoderm. Embryos with one Gbx2-null allele and a heterozygous conditional deletion of Gbx2 using Pax9Cre (Gbx2−/flox;Pax9Cre) were analysed. (A,B) RNAscope in situ hybridisation for Gbx2 at E9.5 (n = 5 per genotype; 24–29 somites). (A) In control embryos Gbx2 expression was observed in the pharyngeal endoderm (pe) of the pharyngeal arches (pa). (B) Gbx2 expression was reduced in the pharyngeal endoderm of Gbx2−/flox;Pax9Cre mutants. (C,D) Embryos at E10.5 were analysed by intracardiac ink injection (36–38 somites). (C) Control embryos had normal PAAs patent to ink. (D) Gbx2−/flox;Pax9Cre embryos (n = 14) showed PAA defects such as absent 4th PAAs (asterisk). (E,F) 3D reconstructions of E15.5 hearts from MRI datasets. (E) Control embryo with normal heart and aortic arch arteries. (F) A Gbx2−/flox;Pax9Cre embryo (from n = 14 analysed) with double-outlet right ventricle (DORV), right-sided aortic arch (RAA), aberrant right subclavian artery (A-RSA) and abnormal left external and internal carotid arteries (eLCA, iLCA). Scale bars: 50 μm in (A,B); 100 μm in (C,D); 500 μm in (E,F). Abbreviations: Ao, aorta; AD, arterial duct; LCC, left common carotid artery; LSA, left subclavian artery; LV, left ventricle; RCC, right common carotid artery; RSA, right subclavian artery; RV, right ventricle; s, somite. The somite numbers given in the legend reflect the range analysed for the whole study. The figure contains representative images only.
Jcdd 07 00020 g007
Jcdd 07 00020 g008
Figure 8. Gbx2 heterozygosity does not modify the Tbx1;Pax9 double heterozygous phenotype. (A–L) Tbx1, Pax9 and Gbx2 expression in E9.5–E10.5 control and Tbx1−/−, Pax9−/− and Gbx2−/− embryos (n ≥ 3 embryos per probe; 23–34 somites). (A) Tbx1 is expressed in the pharyngeal endoderm, mesoderm and ectoderm in control embryos. Tbx1 expression is absent in Tbx1−/− embryos (B), reduced in Pax9−/− embryos (C), and normal in Gbx2−/− embryos (D). (E) Pax9 is expressed in the pharyngeal endoderm in control embryos. Pax9 expression is reduced in Tbx1−/− embryos (F), absent in Pax9−/− embryos (G), and present in Gbx2−/− embryos (H). (I) Gbx2 is expressed in the pharyngeal endoderm in control embryos. Gbx2 expression is reduced in Tbx1−/− embryos (J), reduced in Pax9−/− embryos (K), and absent in Gbx2−/− embryos (L). (M–R) 3D reconstructions of E15.5–16.5 hearts from µCT datasets. (M) Control embryo with normal heart and aortic arch arteries. (N) Tbx1+/− embryo with aberrant right subclavian artery (A-RSA). (O) Tbx1+/−;Pax9+/− embryo with interrupted aortic arch type B (IAA-B) and cervical origin of the right subclavian artery (cRSA). (P) Tbx1+/−;Gbx2+/− embryo with a right-sided aortic arch (RAA) and A-RSA. (Q,R) Tbx1+/−;Pax9+/−+/−;Gbx2+/− embryos with IAA-B and A-RSA. (S,T) Graphical representation of IAA-B incidence (S) and 4th pharyngeal arch artery (PAA) incidence (T) in Tbx1;Pax9;Gbx2 embryos. * p < 0.05; ** p < 0.001; *** p < 0.0001; Pearson chi-squared test for associations with continuity correction. Scale bars: 500 μm in M-R; 50 μm in (A–L). Abbreviations: Ao, aorta; AD, arterial duct; LCC, left common carotid artery; LSA, left subclavian artery; LV, left ventricle; me, mesoderm; pa, pharyngeal arch; pe, pharyngeal endoderm; p.ect, pharyngeal ectoderm; RCC, right common carotid artery; RSA, right subclavian artery; RV, right ventricle; s, somite. The somite numbers given in the legend reflect the range analysed for the whole study. The figure contains representative images only.
Figure 8. Gbx2 heterozygosity does not modify the Tbx1;Pax9 double heterozygous phenotype. (A–L) Tbx1, Pax9 and Gbx2 expression in E9.5–E10.5 control and Tbx1−/−, Pax9−/− and Gbx2−/− embryos (n ≥ 3 embryos per probe; 23–34 somites). (A) Tbx1 is expressed in the pharyngeal endoderm, mesoderm and ectoderm in control embryos. Tbx1 expression is absent in Tbx1−/− embryos (B), reduced in Pax9−/− embryos (C), and normal in Gbx2−/− embryos (D). (E) Pax9 is expressed in the pharyngeal endoderm in control embryos. Pax9 expression is reduced in Tbx1−/− embryos (F), absent in Pax9−/− embryos (G), and present in Gbx2−/− embryos (H). (I) Gbx2 is expressed in the pharyngeal endoderm in control embryos. Gbx2 expression is reduced in Tbx1−/− embryos (J), reduced in Pax9−/− embryos (K), and absent in Gbx2−/− embryos (L). (M–R) 3D reconstructions of E15.5–16.5 hearts from µCT datasets. (M) Control embryo with normal heart and aortic arch arteries. (N) Tbx1+/− embryo with aberrant right subclavian artery (A-RSA). (O) Tbx1+/−;Pax9+/− embryo with interrupted aortic arch type B (IAA-B) and cervical origin of the right subclavian artery (cRSA). (P) Tbx1+/−;Gbx2+/− embryo with a right-sided aortic arch (RAA) and A-RSA. (Q,R) Tbx1+/−;Pax9+/−+/−;Gbx2+/− embryos with IAA-B and A-RSA. (S,T) Graphical representation of IAA-B incidence (S) and 4th pharyngeal arch artery (PAA) incidence (T) in Tbx1;Pax9;Gbx2 embryos. * p < 0.05; ** p < 0.001; *** p < 0.0001; Pearson chi-squared test for associations with continuity correction. Scale bars: 500 μm in M-R; 50 μm in (A–L). Abbreviations: Ao, aorta; AD, arterial duct; LCC, left common carotid artery; LSA, left subclavian artery; LV, left ventricle; me, mesoderm; pa, pharyngeal arch; pe, pharyngeal endoderm; p.ect, pharyngeal ectoderm; RCC, right common carotid artery; RSA, right subclavian artery; RV, right ventricle; s, somite. The somite numbers given in the legend reflect the range analysed for the whole study. The figure contains representative images only.
Jcdd 07 00020 g008
Table 1. Number of cardiovascular defects observed in Gbx2;Pax9 mutant mice.
Table 1. Number of cardiovascular defects observed in Gbx2;Pax9 mutant mice.
GenotypenAbnormalVSDAVSDDORV +
IVC		CATRAA/RAD +/or A-SA aIAA-B +/−
A-RSA		Absent
CC b		L-R Defect c
Gbx2−/−2516
(64%)		2
(8%)		010 (40%)013
(52%)		009
(36%)
Gbx2+/−;
Pax9+/−		286
(21%)		00004
(14%)		2
(7%)		00
Gbx2−/−; Pax9+/−1414
(100%) *		3
(21%)		07
(50%)		1
(7%)		8
(57%)		5 **
(36%)		2
(16%)		6
(43%)
Pax9−/−99
(100%)		2
(22%)		03
(44%)		008
(89%)		5
(56%)		0
Gbx2+/−; Pax9−/−99
(100%)		2
(22%)		05
(56%)		2
(22%)		1
(11%)		8
(89%)		6
(67%)		0
Gbx2−/−; Pax9−/−22
(100%)		01
(50%)		01
(50%)		1
(50%)		1
(50%)		1
(50%)		0
Gbx2−/flox;
Pax9Cre		143
(21%)		00003
(21%)		01
(7%)		0
Embryos and neonates were collected from Gbx2+/−;Pax9+/− and Gbx2flox;Pax9Cre crosses. All embryos were analysed at E13.5-E15.5 by MRI, µCT and histology. Neonates were analysed by dissection at P0: Gbx2+/−;Pax9+/− (n = 12), Gbx2−/−; Pax9+/− (n = 1), Pax9−/− (n = 2), Gbx2+/−;Pax9−/− (n = 2), and Gbx2−/−;Pax9−/− (n = 1). Results for embryos and neonates are combined. The outflow tract phenotype was not assessed in neonates. All wild-type (n = 12), Pax9+/− (n = 8), Gbx2+/− (n = 22), Gbx2+/flox (n = 6), Gbx2−/flox (n = 9) and Pax9Cre (n = 12) control embryos and neonates assessed were normal. There was a statistically significant increase in the incidence of cardiovascular defects in total, and IAA-B specifically, in Gbx2−/−;Pax9+/− embryos compared to the Gbx2−/− embryos. * p < 0.05, ** p = 0.01 (Fisher’s exact test). a A-SA refers to a right or left retro-esophageal subclavian artery, cervical origin of the RSA, or an isolated RSA. One Pax9−/−, three Gbx2−/− and both Gbx2−/−; Pax9−/− embryos had isolated RSA. b Absent common carotid artery (CC), resulting in the internal and external carotid arteries arising directly from the main aortic vessels, unilaterally or bilaterally. c L-R defect refers to an overt left-right patterning defect where embryos show either right pulmonary isomerism, right atrial isomerism or mirror image branching of the aortic arch arteries. Abbreviations: AoA, aortic arch; A-RSA, aberrant right subclavian artery; A-SA, aberrant subclavian artery (left or right); AVSD, atrioventricular septal defect; DORV + IVC, double outlet right ventricle with interventricular communication; IAA-B, interruption of the aortic arch, type B; RAA, right-sided aortic arch; RAD, right-sided arterial duct; RSA, right subclavian artery; VSD, perimembranous ventricular septal defect.
Table 2. Number of pharyngeal arch artery defects observed in Gbx2;Pax9 mutant embryos.
Table 2. Number of pharyngeal arch artery defects observed in Gbx2;Pax9 mutant embryos.
Bilateral Defects
GenotypenPAAAbnormal (%)Unilateral DefectBilateral DefectPresentHypo/Int/AbsAbsent
Gbx2+/−4443 (7%)3 (7%)0---
Gbx2+/−;
Pax9+/−		63420 (32%)13 (21%)7 (11%)-34
Gbx2−/−17412 (71%)7 (41%)5 (29%)-32
Gbx2−/−; Pax9+/−747 (100%)1 (14%)6 (86%) *-24
Pax9−/− a22113 (59%)1 (5%)12 (55%)111-
28 (36%)3 (14%)5 (23%)41-
317 (77%)3 (14%)14 (64%)-104
422 (100%)1 (5%)21 (95%)-318
Gbx2+/−;
Pax9−/−		616 (100%)06 (100%)6--
22 (33%)2 (33%)0---
36 (100%)06 (100%)-15
46 (100%)06 (100%)--6
Gbx2−/−;
Pax9−/−		141 (100%)01 (100%)--1
Gbx2+/flox;
Pax9Cre		1942 (10%)1 (5%)1 (5%)--1
Gbx2−/flox;
Pax9Cre		1447 (50%) *5 (36%)2 (14%)-11
Embryos were collected from Gbx2+/−;Pax9+/− and Gbx2flox;Pax9Cre crosses and assessed for PAA defects by intracardiac ink injections. Gbx2−/− embryos were also imaged using HREM (E10.5, n = 3 and E11.5, n = 5) to visualise the PAA. Data are combined. For Pax9−/− and Gbx2+/−;Pax9−/− genotypes each left and right PAA 1–4 was scored as having a unilateral or bilateral defect, and the bilateral defects categorised as either present, a combination of hypoplastic, interrupted and/or absent (Hypo/Int/Abs), and bilaterally absent. For all other genotypes ink injection was performed at E10.5 and only the 4th PAA was scored. All control embryos, Pax9+/− (n = 18), Gbx2+/flox (n = 22) and Gbx2−/flox (n = 15) were normal. There was a significantly increased incidence of bilateral 4th PAA defects in Gbx2−/−; Pax9+/− embryos compared to Gbx2−/− embryos, and abnormal 4th PAA defects in Gbx2−/flox; Pax9Cre embryos compared to Gbx2+/flox; Pax9Cre embryos. * p < 0.05 (Pearson’s Chi-square test for associations). a New data (n = 2) combined with published data (n = 20) [25].
Table 3. Number of cardiovascular defects observed in Tbx1;Gbx2;Pax9 mutant mice.
Table 3. Number of cardiovascular defects observed in Tbx1;Gbx2;Pax9 mutant mice.
GenotypenVSDRAA +/or A-RSAIAA-B +/−
A-RSA		4th PAA Defect
Tbx1+/− a212
(10%)		13
(62%)		1
(5%)		14
(67%)
Tbx1+/−;
Pax9+/− b		245
(21%)		9
(38%)		15
(63%) **		24
(100%)
Tbx1+/−; Gbx2+/−103(30%)2(20%)1(10%)3(30%)
Tbx1+/−; Gbx2+/−; Pax9+/−83
(38%)		4
(50%)		4
(50%)		8
(100%)
Embryos were collected from Tbx1+/−;Gbx2+/− and Pax9+/− crosses. Embryos were analysed by µCT at E13.5-E16.5. There was a statistically significant increase in the incidence of IAA-B in the Tbx1+/−;Pax9+/− embryos compared with the Tbx1+/− embryos. ** p < 0.0001 (Pearson’s chi-squared test for associations with continuity correction). a New data (n = 3) combined with published MRI data (n = 19) [25]. b New data (n = 4) combined with published MRI data (n = 20) [25]. Abbreviations: A-RSA, aberrant right subclavian artery; IAA-B, interruption of the aortic arch, type B; RAA, right-sided aortic arch; VSD, perimembranous ventricular septal defect.

Share and Cite

MDPI and ACS Style

Stothard, C.A.; Mazzotta, S.; Vyas, A.; Schneider, J.E.; Mohun, T.J.; Henderson, D.J.; Phillips, H.M.; Bamforth, S.D. Pax9 and Gbx2 Interact in the Pharyngeal Endoderm to Control Cardiovascular Development. J. Cardiovasc. Dev. Dis. 2020, 7, 20. https://doi.org/10.3390/jcdd7020020

AMA Style

Stothard CA, Mazzotta S, Vyas A, Schneider JE, Mohun TJ, Henderson DJ, Phillips HM, Bamforth SD. Pax9 and Gbx2 Interact in the Pharyngeal Endoderm to Control Cardiovascular Development. Journal of Cardiovascular Development and Disease. 2020; 7(2):20. https://doi.org/10.3390/jcdd7020020

Chicago/Turabian Style

Stothard, Catherine A., Silvia Mazzotta, Arjun Vyas, Jurgen E. Schneider, Timothy J. Mohun, Deborah J. Henderson, Helen M. Phillips, and Simon D. Bamforth. 2020. "Pax9 and Gbx2 Interact in the Pharyngeal Endoderm to Control Cardiovascular Development" Journal of Cardiovascular Development and Disease 7, no. 2: 20. https://doi.org/10.3390/jcdd7020020

APA Style

Stothard, C. A., Mazzotta, S., Vyas, A., Schneider, J. E., Mohun, T. J., Henderson, D. J., Phillips, H. M., & Bamforth, S. D. (2020). Pax9 and Gbx2 Interact in the Pharyngeal Endoderm to Control Cardiovascular Development. Journal of Cardiovascular Development and Disease, 7(2), 20. https://doi.org/10.3390/jcdd7020020

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
