Non-Invasive Mapping of Ventricular Action Potential Reconstructed from Contactless Magnetocardiographic Recordings in Intact and Conscious Guinea Pigs

by
Riccardo Fenici
1,2,*,
Marco Picerni
2,3,
Peter Fenici
1,2 and
Donatella Brisinda
1,2,4,*
1
School of Medicine and Surgery, Catholic University of the Sacred Heart, 00168 Rome, Italy
2
Biomagnetism and Clinical Physiology International Center, 00144 Rome, Italy
3
Mathematics Area, SISSA—International School for Advanced Studies, 34136 Trieste, Italy
4
General Medicine and Aging Unit, Fondazione Policlinico Universitario A. Gemelli, Istituto di Ricerca e Cura a Carattere Scientifico (IRCCS), 00168 Rome, Italy
*
Authors to whom correspondence should be addressed.
J. Cardiovasc. Dev. Dis. 2025, 12(9), 343; https://doi.org/10.3390/jcdd12090343
Submission received: 26 June 2025 / Revised: 22 August 2025 / Accepted: 1 September 2025 / Published: 6 September 2025
Browse Figures
Versions Notes

Abstract

Optical mapping, nanotechnology-based multielectrode arrays and automated patch-clamp allow transmembrane voltage mapping with high spatial resolution, as well as L-type calcium and inward rectifier currents measurements using native mammalian cardiomyocytes. However, these methods are limited to in vitro and ex vivo experiments, while magnetocardiography (MCG) might offer a novel approach for non-invasive preclinical safety assessments of new drugs in intact and even conscious rodents by reconstructing the ventricular action potential waveform (rVAPw) from MCG signals. Objective: This study aims to assess the feasibility of rVAPw reconstruction from MCG signals in Guinea pigs (GPs) and validate the results by comparison with simultaneously recorded epicardial ventricular monophasic action potentials (eVMAP). Methods: Unshielded MCG (uMCG) data of 18 GPs, investigated anaesthetized and awake at ages of 5, 14, and 26 months using a 36-channel DC-SQUID system, were analyzed to calculate rVAPw from MCG’s current arrow map. Results: Successful rVAPw reconstruction from averaged MCG showed good alignment with eVMAP waveforms. However, some rVAPw displayed incomplete or distorted repolarization at sites with lower MCG amplitude. Conclusions: 300-s uMCG averaging allowed rVAPw reconstruction in intact GPs. Occasionally distorted rVAPw suggests the need for dedicated MCG devices development, with higher density of optimized vector sensors, and modelling tailored for small animal hearts.

Graphical Abstract

1. Introduction

Since the 1950s, cardiac action potential (AP) recording in animal models has been widely used in experimental cardiac electrophysiology and preclinical safety assessments of new drugs [1]. Later, optical mapping techniques enabled the simultaneous recording of multiple APs with higher spatial resolution, facilitating the detection of regional repolarization heterogeneity, conduction dynamics, and calcium transient behaviour [2,3]. In recent years, advancements in nanotechnology-based multielectrode arrays have significantly improved the transmembrane voltage mapping of excitable cells. Additionally, automated patch-clamp technologies now allow for the recording of action potentials, L-type calcium currents, and basal inward rectifier currents in native mammalian cardiomyocytes for drug screening [4]. However, these methods are limited to in vitro or ex vivo experiments.
In the search for efficient methods to bridge the gap between experimental and clinical electrophysiology, catheter techniques for clinical recording of monophasic action potentials (MAP) were introduced in the 1970s [5,6,7] and have been extensively studied since [8,9,10,11,12,13]. Despite its documented utility [14], MAP recording is invasive and provides only a limited number of simultaneous recording points [15], thus offering limited spatial resolution compared to other techniques used in experimental animal studies. In contrast, contactless mapping of the cardiac magnetic field, known as magnetocardiography (MCG), has shown promise in both experimental animal models [16,17,18,19,20] and human patients [21,22]. Moreover, the seminal work of Kandori et al. suggests that MCG holds significant potential to enhance non-invasive electrophysiological assessment by mapping the magnetically reconstructed ventricular action potential waveform (rVAPw) [23].
However, the published reconstruction of the transmembrane action potential waveform from MCG is limited to a few reported human cases [23,24] and, to the best of our knowledge, has not yet been attempted in live, intact experimental animals. This study aims to evaluate the feasibility and limitations of reconstructing the ventricular action potential waveform from MCG in Guinea pigs (GPs) as an initial step toward enhancing the potential of contactless MCG mapping to become a reliable, non-invasive method for in vivo mapping of action potentials with accuracy comparable to experimental optimal mapping techniques without animal sacrifice.
The unique availability of simultaneous MCG mapping and epicardial ventricular monophasic action potential (eVMAP) recording in our experimental MCG database [25] allowed for preliminary validation of the magnetic rVAPw by direct comparison with the eVMAP waveform. Subsequently, the same computational procedure was applied to assess the variability of the magnetic reconstruction of ventricular action potential waveforms related to the age, gender, and weight of the rodents, both under anaesthesia and when awake.

2. Materials and Methods

The study is a retrospective analysis of MCG signals data available in our MCG database with a custom mathematical processing based on the method originally proposed by Kandori et al. [23], integrated with the multimodal electrophysiological imaging developed in our biomagnetism research center, as described in the following subsections. The original experimental data acquisition had been approved by the institutional Ethical Committee and complies with the Guide for the Care and Use of Laboratory Animals and the ARRIVE guidelines [26,27].

2.1. Animals

MCG data from 18 GPs (8 males and 10 females), who underwent multiple unshielded MCG (uMCG) studies at mean ages of 5, 14, and 26 months (between 2004 and 2006), were selected for this study and retrospectively analyzed to reconstruct the ventricular action potential waveform [23].

2.2. Experimental Setup and Measurement Techniques

2.2.1. Unshielded MCG Recording Protocol and Postprocessing

All animals were studied awake without sedation (in a prone position) and in separate sessions under anaesthesia with intramuscular ketamine (50 mg kg−1 body weight) and diazepam (2 mg kg−1 body weight). They were placed in a supine position on a small cradle and covered with surgical clothing to prevent any possible contact with the MCG instrumentation (Figure 1A).
MCG mapping was performed using a 36-channel system (CardioMag Imaging, Inc., Schenectady, NY, USA) at the Catholic University’s unshielded Biomagnetism Center, which is fully equipped for interventional electrophysiology (Figure 1A). The z-component of the cardiac magnetic field (Bz) was recorded with 36 direct-current superconducting quantum interference device (DC-SQUID) sensors, coupled to second-order axial gradiometers (featuring a 50 mm baseline and 20 mm pick-up coil’s diameter), enclosed in a cylindrical cryostat. The sensors were arranged in a square 20 × 20 cm array with a 4 cm pitch (centre-to-centre). The average system effective sensitivity was 50 fT/√Hz from 1 Hz within the frequency range of DC–500 Hz, depending on the sensors’ tuning accuracy and the level of environmental noise [28]. All signals were digitally recorded (24-bit conversion at a 1 kHz sampling frequency) in both the supine and prone positions.
The distance between the bottom of the cryostat and the animal’s chest was kept constant (15 mm) for all animals, in both supine and prone positions. All recordings were performed under normal sinus rhythm and spontaneous breathing. uMCG mapping typi cally lasted 300 s. The repeatability and reproducibility of MCG recordings were tested as described in [29]. At the end of the procedure under anaesthesia, the animals were monitored until they fully regained consciousness and were then returned to the animal lodge facility.
To optimize the MCG signal-to-noise ratio before the reconstruction of time-variant magnetic field dynamics during sinus rhythm, post-processing of the MCG signals included digital filtering (using a selective COMB filter to remove 50 Hz power line noise and a low-pass filter at 100 Hz) and time averaging, typically over 300 s. For magnetic reconstruction of the ventricular action potential waveform, the reference baseline was manually set before the QRS onset.
After calculating the magnetic field distribution (MFD), the current arrow map (CAM) was computed according to Hosaka Cohen [30] and was automatically visualized onto the recording grid in a plane parallel to the anterior chest wall.
Although the CAM provides a current pattern of the heart without the need to solve a nonlinear inverse problem, the inverse solution using the magnetic dipole model was also calculated for three-dimensional (3D) MCG localization of ventricular sources, as part of the 3D reconstruction of the animal’s heart model [31], derived from two orthogonal fluoroscopic images, which were acquired with markers corresponding to the MCG sensor positions (Figure 1A).

2.2.2. Epicardial MAP Recording with the Amagnetic Catheter Technique

The patented multipurpose amagnetic catheter for MCG-compatible simultaneous multiple MAP (MultiMAP) recording [15,32] features a variable number of non-polarizable amagnetic electrodes at the tip, capable of simultaneously recording four monophasic action potentials and performing local cardiac pacing. The 3D position of the catheter’s tip was automatically detected and visualized using the Magnetic Source Imaging (MSI) method [33]. The accuracy of MSI for source localization was previously reported [34,35,36].
High-resolution MultiMAP recordings, with an inter-MAP electrode distance of 1.2 mm, were differentially amplified (bandwidth DC-500 Hz) and digitized at 1 kHz (CardioLab GE Medical System). All tip electrodes were connected to the positive input of high-impedance DC-coupled optically isolated differential preamplifiers, while the reference electrode was connected to the negative input of the amplifier. With this recording setup, MAP signals are oriented upward (Figure 1B).
In animals with simultaneous MCG and MAP recordings, one of the MAP analogue signals was connected to the MCG mapping system to synchronize the CardioMag with the Cardiolab data acquisition and to trigger MCG signal averaging [37] (Figure 1B). In the absence of MAP signals (i.e., when the animals were investigated only non-invasively with MCG), a single-lead ECG signal was used to trigger the MCG signal averaging, as usually performed during non-invasive MCG mapping.

2.2.3. Reconstruction of the Ventricular Action Potential from uMCG Signals

To reconstruct the ventricular action potential waveform from averaged MCG data, the method described by Kandori et al. [23] was applied. This method is based on the relationship between the ionic currents (inward and outward) of the cell membrane, which occur during the depolarization and repolarization phases, respectively, and generate the waveforms of both the action potential and the ECG.
The electrical propagation of the cell membrane was calculated using the heart conduction system model by Beeler and Reuter [38], along with the assumption that the MCG waveform reflects the spatial electrical activation of the heart. Since both ECG and MCG signals are measured at a distance from the current flow, they are associated with the derivative waveforms of the action potential generated by the current flow.
The components Ix and Iy of the CAM at each site are derived by approximating the partial derivatives of the normal component of the magnetic field Bz using the following expressions:
I x = ∂ B z ∂ y
and
I y = − ∂ B z ∂ x .
The magnitude of the current vectors, representing the intensity of the current, is calculated as the Euclidean norm:
I x 2 + I y 2 .
In this way, the CAM provides a dynamic, time-resolved visualization of the current pattern in the heart, avoiding the need to solve a nonlinear inverse problem.
Then, assuming a uniform cell-to-cell gap junction resistance (set to 1), the ventricular action potential waveform can be reconstructed by summing and subtracting electrical currents during different phases of the cardiac cycle.
During phase 0 (depolarization), currents from the onset to the end of the QRS complex (ventricular depolarization) are summed, starting from an initial value of zero and continuing until the end of the QRS (AP maximum). This summation reflects the rapid influx of Na+ ions that initiates and propagates the action potential.
During phases 1 to 3 (repolarization), currents are subtracted starting from the AP maximum value at the end of depolarization (QRSend) to the end of the T wave (Tend). This subtraction represents the outward flow of K+ ions during ventricular repolarization, gradually returning the membrane to its resting potential [23].

2.2.4. Preliminary Validation of the Magnetically rVAPw by Comparison with Simultaneously Recorded eVMAP

The data from eight sessions with simultaneous MCG and ventricular MAP recordings were preliminarily analyzed to evaluate the correlation between action potential waveforms reconstructed from MCG mapping (rVAPw) and those obtained from epicardial ventricular MAP (eVMAP) recordings using the amagnetic catheter technique [10,15] (Figure 1C).
A custom software was developed to analyze the rVAPw and eVMAP signals by automatically detecting the baseline, upstroke, peak, and offset of both signals. It also calculated the duration of phase 0, as well as the rVAPw and eVMAP durations measured at 30% (d30%), 50% (d50%), and 80% (d80%) repolarization levels. APD80 [3] was chosen to also allow measurements of rVAPw duration in few cases of incomplete repolarization or unstable baseline. These measurements are independent of scaling factors and the selected baseline value, ensuring they remain unaffected by the specific choice of the resistance factor (r = 1), as long as the uniformity assumption for r holds. Given the fixed position of the MAP electrodes, the direction of the local depolarization wavefront is also detectable [25].

2.2.5. Statistical Analysis

Statistical analysis was performed using SPSS (Version 21.0). Continuous variables are presented as mean ± standard deviation. Differences between groups were assessed using Student’s t-test (paired or unpaired, as appropriate) and one-way ANOVA to compare the results across the three groups. A p-value of <0.05 was considered statistically significant.

3. Results

3.1. uMCG Postprocessing and Ventricular Action Potential Waveform Reconstruction

At the age of 12 months, the weight was 643 ± 23.9 g (males), 570 ± 12.4 g (females). The average cardiac magnetic field intensity (picotesla) at the QRS peak was 5.04 ± 2.56 (males) and 4.18 ± 2.73 (females). After adaptive digital filtering and 300 s of signal averaging, the signal-to-noise (S/N) ratio of the uMCG signals within the DC-100 Hz bandwidth was sufficient for reproducible magnetic field analysis, calculation of the MFD, CAM, and magnetic reconstruction of the ventricular action potential in all animals selected for this study.

3.2. Preliminary Validation of the Magnetically rVAPw by Comparison with Simultaneously Recorded eVMAP

Data from eight recording sessions with high-quality simultaneous MCG mapping and eVMAP recordings were available. The comparative evaluation of Phase 0, d30%, d50%, and d80% of rVAPw and eVMAP, calculated after normalizing the rVAPw amplitude to that of eVMAP, is summarized in Table 1.
The table highlights the general agreement but also shows quantitative differences in the duration of both depolarization and repolarization parameters between eVMAP and rVAPw. In some cases, the repolarization of the rVAPw was incomplete, not reaching the baseline by the end of phase 3 (e.g., Figure 1C). Due to the spatial averaging effect of MCG, the mean values of all rVAPw repolarization duration parameters were longer than those of local eVMAP, though not significantly, although an opposite behaviour was observed in sessions n. 5 and 6. Only phase 0 duration of eVMAP was significantly shorter (Table 1).
Although the need for averaging impeded the evaluation of rVAPw restitution during pacing-induced premature beats, heart rate-dependent shortening of the magnetic rVAPw was demonstrable in one session. A sudden, spontaneous drop of the heart rate from 214 bpm to 127 bpm (Figure 1A) lasted long enough to allow separate MCG averaging for two distinct heart rate epochs (Figure 2B).
At the lower heart rate, the prolongation of the averaged rVAPw duration-reconstructed from the MCG signal recorded at grid position D4-closely matched that of the simultaneously recorded eVMAP. This was confirmed by overlaying the waveforms averaged at the two heart rates, after time-scale normalization of the respective heart rate windows (Figure 2C).

3.3. Magnetic Action Potential Reconstruction at Different Ages

The mean values of depolarization and repolarization parameters, calculated from the reconstructed rVAPw of MCG sessions repeated in each animal at the ages of five, fourteen, and twenty-six months, are summarized in Table 2.
The data presented refer to rVAPw from two MCG channels (D3 and D4), arbitrarily selected for quantitative assessment among those showing the highest magnetic field signals. Only the duration of Phase 0 was significantly shorter at the age of five months compared to fourteen and twenty-six months.
Graphic examples of rVAPw at different ages in the same animal are shown in Figure 3. Notably, the magnetically reconstructed action potential waveforms are reproducible, regardless of age or, consequently, weight.

3.4. Comparison Between Magnetically Reconstructed Action Potential in the Anaesthetized and Awake Conditions

The data for the magnetic action potential reconstructed from MCG recordings in the same animals, under both awake and anaesthetized conditions, are summarized in Table 3. The mean values of the rVAPw’s Phase 0 duration and repolarization durations, measured at d30%, d50%, and d80%, are presented. These values were calculated from two MCG channels (D3 and D4), which were arbitrarily selected for quantitative assessment based on their highest magnetic signal intensities.
All repolarization parameters (except for d80% at position D4) were significantly shorter in the awake condition. This is likely not due to the different heart rates, which were slightly lower on average when the animals were awake, but rather to the varying spatial source sensitivity of MCG recordings from the anterior and posterior chest walls. However, we preferred to study the awake animal in its natural position to minimize the animal’s stress. Graphic examples of rVAPw from the same animal in both the anesthetized and awake conditions are shown in Figure 4.

3.5. Comparison Between Magnetic Action Potential Reconstruction in Males and Females

No gender-related differences were found in the rVAPw Phase 0 and repolarization intervals duration, calculated from the two MCG channels arbitrarily selected for quantitative assessment based on the highest magnetic signals. Graphic examples of rVAPw from one male and one female guinea pig are shown in Figure 5.
The data for the magnetic action potential, reconstructed from MCG recordings in eight male and ten female guinea pigs at the age of fourteen months, are summarized in Table 4.

4. Discussion

Preclinical regulatory studies of potential cardiotoxic and proarrhythmic side effects of new drugs, as well as investigations into genetically mediated arrhythmogenic mechanisms, are typically conducted using small experimental animal models [39,40,41,42,43,44]. However, non-invasive assessment of ventricular repolarization inhomogeneity in small experimental animals is generally limited to the 12-lead or vector ECG [45,46]. Although body surface potential mapping (BSPM) has been successfully reported [47,48], it is rarely used in practice due to being cumbersome and time-consuming.
An alternative to BSPM, contactless magnetocardiographic mapping, is feasible in intact rodents and even conscious guinea pigs [17,18]. MCG is sensitive to both intracellular and extracellular currents, thus providing electrophysiological information that ECG cannot offer, as ECG is only sensitive to extracellular currents [22,49,50,51,52].
The correlation between magnetic field imaging and optical mapping of cardiac action potentials was first explored in isolated rabbit hearts [53]. More recently, mathematical modeling of cardiac electrophysiology at the cellular level has enhanced the understanding of the relationship between the cardiac action potential, current density, and the associated magnetic field [54,55]. That research further supports the idea that recording cardiac magnetic fields can provide valuable physical information for detecting the mechanisms underlying cardiac arrhythmias at both experimental and clinical levels [54,55]. Notably, the findings from these modelling studies align with experimental results obtained by the same authors, which involved an optical mapping cross-species investigation of rabbit and guinea pig epicardial ventricular surfaces, as well as human endocardial tissue [56].
However, optical mapping is not feasible in intact experimental animals. While preliminary evidence suggests that ventricular action potential waveforms can be reconstructed from MCG recordings in human subjects [23,24], this study aimed to evaluate the feasibility of reconstructing ventricular action potential waveforms from MCG in small experimental rodents. This represents the first step toward developing a novel MCG-based device specifically designed for non-invasive, in vivo experimental mapping of ventricular action potential waveforms, suitable for large-scale preclinical safety studies in intact animals and, where possible, in conscious animals. To the best of our knowledge, no studies have been published on this topic to date.
The guinea pig was chosen for this study because its ventricular action potential closely resembles that of humans, and the guinea pig is docile enough to permit MCG mapping in the conscious state [57]. To avoid animal sacrifice, the preliminary validation of the magnetically reconstructed ventricular action potential waveform was conducted by comparing it with the ventricular monophasic action potential, recorded via a minimally invasive percutaneous approach using an amagnetic catheter placed in contact with the ventricular epicardium. This method allowed for full recovery and survival of the animal at the end of the procedure [25].
Overall, the results of this study confirm the feasibility of using uMCG mapping in guinea pigs weighing 250 g or more. After averaging 300 s of MCG recordings, the signal-to-noise (S/N) ratio of the averaged signals was sufficient to reconstruct the ventricular action potential from cardiac magnetic field mapping data. This was achieved despite conducting the procedure in a laboratory fully equipped for clinical interventional electrophysiology, using an unshielded mapping system designed for clinical measurements with a four-centimeter pitch between sensors. While this system provides adequate spatial resolution for the human heart, it is important to note that the area covered by the sensor array is comparable to the size of the entire guinea pig and is not optimized for the smaller size of the guinea pig’s heart.
On the other hand, our results demonstrated that, even under unfavourable experimental conditions—such as working in an unshielded hospital laboratory and using an MCG mapping device designed for clinical applications—the reconstruction of the ventricular action potential from uMCG was feasible in all the investigated animals. Furthermore, we observed suggestive individual morphological reproducibility of the rVAPw waveforms, particularly for those calculated from grid sites where MCG signals exhibited the highest intensity. The comparison of rVAPw obtained from MCG recordings at different ages in the same animal (Table 2) showed high morphological reproducibility of the ventricular repolarization course. The average duration of phase 0 of the rVAPw was significantly shorter at 5 months (a young adult) compared to 26 months (aged), while the average values for the repolarization phase remained virtually unchanged. A similar degree of reproducibility was observed when comparing rVAPw obtained from MCG recordings in the same animal at the same age under both awake and anesthetized conditions (Table 3), although MCG mapping was performed from the back (prone position) when the animal was awake, and from the anterior chest wall (supine position) under anesthesia (Figure 4). In line with a previous study of guinea pig magnetocardiograms [58], no gender-related differences in ventricular repolarization duration were found in adult guinea pigs, as measured from the rVAPw at 14 months of age (Table 4).
Preliminary validation of the magnetically reconstructed rVAPw, compared with the simultaneously recorded eVMAP waveform, demonstrates good morphological alignment. This alignment is further supported by the absence of significant differences in the average repolarization durations measured at the 30%, 50%, and 80% amplitude levels (Table 1).
Although the current need for signal averaging prevents assessment of rVAPw restitution during pacing-induced premature beats, heart rate-dependent shortening of the magnetic rVAPw was nevertheless observed. This was demonstrated by the concordant changes in rVAPw and eVMAP durations in one animal during a spontaneous heart rate drop from 214 bpm to 127 bpm (Figure 1A), which lasted long enough to permit separate MCG averaging for two distinct heart rate epochs (Figure 2B).
As expected, the average rVAPw duration was longer than that of the eVMAP, reflecting the spatial averaging inherent to surface MCG mapping compared to the higher local spatial sensitivity of MAP recordings. This represents one of the limitations of the present preliminary study.
In conclusion, the current level of MCG spatial resolution—at least with a mapping device designed for clinical applications—is still far from reaching the threshold required for rVAPw reconstruction accuracy sufficient for experimental electrophysiological studies, with diagnostic performance comparable to that achieved with optical mapping in in vitro or ex vivo experiments. However, the findings of this study may provide valuable insights for guiding the development of innovative instrumentation designed for contactless magnetic mapping of ventricular action potentials in small intact animal models, taking advantage of the limitations discussed in more detail in the following dedicated section.

5. Limitations and Lessons Learned

Despite demonstrating the feasibility of reconstructing the ventricular action potential waveform in guinea pigs, with acceptable individual reproducibility across recording sessions conducted over two-year follow-ups, our results highlight significant limitations. These findings indicate that further work is needed to translate the proposed method into a reliable, dedicated tool for the non-invasive electrophysiological study of intact experimental animal models, yielding data comparable to that obtained from optical mapping [2,53,56,59].
First, the MCG recordings conducted in our unshielded laboratories were influenced by environmental hospital noise, which required signal averaging to achieve a signal-to-noise ratio sufficient for the reliable analysis of the weak magnetic field from the guinea pigs’ hearts. As a result, the reconstruction of the action potential waveform was only possible from the averaged MCG signal, rather than on a beat-to-beat basis.
Although we were fortunate enough to quantify a sudden heart rate-dependent variation in the rVAPw repolarization restitution using differential averaging of selected MCG epochs and validated it through direct comparison with simultaneous eVMAP recordings (Figure 2), the need for averaging means that the quantitative estimation of the dynamics of ventricular repolarization restitution is currently not feasible. Consequently, this limits the ability to detect transient spontaneous or drug-induced arrhythmogenic events that may favour spatially discordant alternans and re-entry [54,55,56]. This limitation needs to be addressed and could potentially be overcome by implementing real-time, novel AI-assisted denoising algorithms combined with small-size electromagnetic shielding [60].
Second, as mentioned earlier, while it is mathematically possible to extract the cardiac action potential waveform from uMCG signals, it is important to note that the MCG signal is derived from the spatial averaging of the current density generated by an undefined volume of underlying anisotropic cardiac tissue. This spatial averaging effect in MCG may explain the partial distortion of the rVAPw or the incomplete agreement observed between the morphology of rVAPw and that of eVMAP (e.g., Figure 1C). Furthermore, the accuracy of the rVAPw may be partly influenced by the method used to approximate electric current values, which can be affected by the distance between measurement sites. In this study, the large distance between sites, with a four-centimeter pitch of sensors in our MCG system, may contribute to this influence. Notably, since the relationship between the current (“I”) and the vertical component of the magnetic field (Bz) is highly localized, the calculation of current sources located at the center of the sensors is not significantly affected by the lower stability observed near the boundary regions. Increasing the spatial density and resolution of sensors would reduce the MCG averaging effect over the magnetic fields generated by multiple ventricular myocytes of varying natures (e.g., Purkinje fibers, M-cells, etc.) during data acquisition. This would provide a more realistic approximation of the transmembrane action potentials at least at the tissue level. This could be achieved by combining rVAPw reconstruction from MCG recorded with novel microfabricated millimeter-scale sensor arrays [61,62], high-resolution 3D magnetic source imaging [63], and integration with cardiac MRI [64]. Given that the propagation of cardiac currents is three-dimensional, a higher sensor density capable of simultaneously recording all three vector components of the cardiac magnetic field is essential [65].
Third, novel hardware should be complemented by more advanced computational modeling, including more accurate simulations of ionic currents [55,66,67], and a better understanding of how local action potentials from different regions of the heart correlate with the magnetic fields measured by MCG. This would enhance the accuracy of electric current (“I”) calculations and, consequently, enable more localized action potential reconstruction and differentiation.
Finally, while setting the resistance to a constant value of 1 in the formulas may not significantly affect the conceptual outcome [23], the computations should ideally account for average conductivity values, at least as averages across different types of cardiac myocytes and layers of cardiac tissue. The implementation of this adjustment would substantially increase the computational complexity of the model, requiring more powerful computational resources.

6. Conclusions

In this study, five-minute uMCG recordings were sufficient to non-invasively reconstruct the rVAPw in intact—and even awake—guinea pigs weighing 250 g or more, without causing harm to the animals. However, the atypical and partially incomplete repolarization patterns observed at several mapping sites suggest that the spatial resolution of the clinical 36-channel system used for MCG mapping is limited. Enhancing the 3D sensor density and spatial resolution is a minimal requirement for accurate, high-resolution measurement of cardiac magnetic field dynamics, and for distinguishing the underlying cardiac sources and electrophysiological events. Therefore, selecting the most appropriate sensor technology is essential to optimize the 3D spatial accuracy required for precise AP reconstruction [61,62].
In addition, advanced modelling and signal processing techniques, including deep learning algorithms [68], could enable multimodal integration of rVAPw mapping with MCG-based 3D source localization [69] and magnetoionographic parameters sensitive to transmembrane calcium and potassium currents, as well as subcellular Ca2+ transients [70].
Future advancements in magnetic sensor technologies, combined with AI-driven integration of biophysical models of cardiac electrophysiology and magnetism, and techniques such as magnetic induction tomography [71] and magnetoionography [70] may ultimately support fully non-invasive, high-resolution, real-time MCG-based assessment and imaging of cardiac electrophysiology in intact and awake experimental animals. This would establish MCG as a uniquely powerful non-invasive tool for experimental electrophysiological imaging, offering data quality comparable to that of invasive optical mapping [24]. The same method has been recently successfully applied to reconstruct ventricular action potential waveforms from clinical magnetocardiographic mapping in patients with different electrophysiological abnormalities and as well as in healthy volunteers [72].

Author Contributions

Conceptualization, R.F. and D.B.; methodology, R.F. and D.B.; software development, M.P. and R.F.; validation, R.F., M.P., P.F. and D.B.; formal analysis, M.P. and D.B.; investigation, R.F. and D.B.; resources, R.F. and D.B.; data curation, M.P. and D.B.; writing—original draft preparation, R.F.; writing—review and editing, R.F., M.P., P.F. and D.B.; visualization, R.F. and M.P.; supervision, R.F. and D.B.; project administration, R.F. and D.B.; funding acquisition, R.F. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding. The original data acquisition was partially supported by the Italian Ministero dell’Istruzione, dell’Università e della Ricerca (Grants: 9706577608_001, 9906571299_001 and 201064829_001) assigned for the development of the 36-channel uMCG instrumentation.

Institutional Review Board Statement

Ethical review and approval were waived for this study, which is a retrospective analysis of MCG signals available in the MCG database. The original experimental data acquisition, approved by the institutional Ethical Committee, complies with the Guide for the Care and Use of Laboratory Animals and the ARRIVE guidelines [26,27].

Informed Consent Statement

Not applicable.

Data Availability Statement

The unique datasets presented in this article are not readily available because the data are part of other ongoing research studies. Moreover, for institutional regulation, proprietary research data can be shared with external institutions only within the framework of officialized research cooperation agreements.

Conflicts of Interest

The authors declare that they have no conflicts of interest.

Abbreviations

The following abbreviations are used in this manuscript:
MCGMagnetocardiography
uMCG Unshielded MCG
rVAPw reconstructed Ventricular Action Potential waveform
GPsGuinea pigs
eVMAPepicardial Ventricular Monophasic Action Potential
APAction Potential
fTfemtotesla
kHzKilohertz
CAMCurrent Arrow Map
MFD Magnetic Field Distribution
3DThree-dimensional
EMDEffective Magnetic Dipole
msecMilliseconds
HRHeart Rate

References

  1. Hoffman, B.F.; Cranefield, P.F.; Lepeschkin, E.; Surawicz, B.; Herrlich, H.C. Comparison of cardiac monophasic action potentials recorded by intracellular and suction electrodes. Am. J. Physiol.-Leg. Content 1959, 196, 1297–1301. [Google Scholar] [CrossRef]
  2. Laughner, J.I.; Ng, F.S.; Sulkin, M.S.; Arthur, R.M.; Efimov, I.R. Processing and analysis of cardiac optical mapping data obtained with potentiometric dyes. Am. J. Physiol.-Heart Circ. Physiol. 2012, 303, H753–H765. [Google Scholar] [CrossRef]
  3. O’sHea, C.; Winter, J.; Kabir, S.N.; O’rEilly, M.; Wells, S.P.; Baines, O.; Sommerfeld, L.C.; Correia, J.; Lei, M.; Kirchhof, P.; et al. High resolution optical mapping of cardiac electrophysiology in pre-clinical models. Sci. Data 2022, 9, 135. [Google Scholar] [CrossRef]
  4. Seibertz, F.; Rapedius, M.; Fakuade, F.E.; Tomsits, P.; Liutkute, A.; Cyganek, L.; Becker, N.; Majumder, R.; Clauß, S.; Fertig, N.; et al. A modern automated patch-clamp approach for high throughput electrophysiology recordings in native cardiomyocytes. Commun. Biol. 2022, 5, 969. [Google Scholar] [CrossRef]
  5. Korsgren, M.; Leskinen, E.; Sjöstrand, U.; Varnauskas, E. Intracardiac Recording of Monophasic Action Potentials in the Human Heart. Scand. J. Clin. Lab. Investig. 1966, 18, 561–564. [Google Scholar] [CrossRef] [PubMed]
  6. Olsson, B.; Varnauskas, E.; Korsgren, M. Further improved method for measuring monophasic action potentials of the intact human heart. J. Electrocardiol. 1971, 4, 19–23. [Google Scholar] [CrossRef] [PubMed]
  7. Fenici, R.; Bellocci, F.; Zecchi, P. Monophasic action potential of human heart. Preliminary results with a new technique. Acta Medica Rom. 1973, 11, 300–312. [Google Scholar]
  8. Franz, M.R. Current status of monophasic action potential recording: Theories, measurements and interpretations. Cardiovasc. Res. 1999, 41, 25–40. [Google Scholar] [CrossRef]
  9. Chinyere, I.R.; Hutchinson, M.; Moukabary, T.; Lancaster, J.; Goldman, S.; Juneman, E. Monophasic action potential amplitude for substrate mapping. Am. J. Physiol.-Heart Circ. Physiol. 2019, 317, H667–H673. [Google Scholar] [CrossRef] [PubMed]
  10. Fenici, R.R.; Melillo, G. Biomagnetically localizable multipurpose catheter and method for MCG guided intracardiac electrophysiology, biopsy and ablation of cardiac arrhythmias. Int. J. Cardiovasc. Imaging 1991, 7, 207–215. [Google Scholar] [CrossRef]
  11. Fenici, R.R.; Covino, M.; Cellerino, C.; Di Lillo, M.; De Filippo, M.C.; Melillo, G. Magnetocardiographically-guided catheter ablation. J. Interv. Cardiol. 1995, 8, 825–836. [Google Scholar] [CrossRef]
  12. Moore, H.J.; Franz, M.R. Monophasic Action Potential Recordings in Humans. J. Cardiovasc. Electrophysiol. 2007, 18, 787–790. [Google Scholar] [CrossRef]
  13. Schmidt, M.M.; Iaizzo, P.A. The Visible Heart® project and methodologies: Novel use for studying cardiac monophasic action potentials and evaluating their underlying mechanisms. Expert Rev. Med. Devices 2018, 15, 467–477. [Google Scholar] [CrossRef]
  14. Franz, M.R. (Ed.) Monophasic Action Potentials: Bridging Cell and Bedside, 1st ed.; Futura Publishing Company Inc.: Armonk, NY, USA, 2000. [Google Scholar]
  15. Fenici, R. Biomagnetically Localizable Multipurpose Catheter and Method for Magnetocardiographic Guided Intracardiac Mapping, Biopsy and Ablation of Cardiac Arrhythmias. US-5056517-A, 15 October 1991. Available online: https://ppubs.uspto.gov/pubwebapp/static/pages/ppubsbasic.html (accessed on 21 August 2025).
  16. Brisinda, D.; Caristo, M.E.; Fenici, R. Contactless magnetocardiographic mapping in anesthetized Wistar rats: Evidence of age-related changes of cardiac electrical activity. Am. J. Physiol.-Heart Circ. Physiol. 2006, 291, H368–H378. [Google Scholar] [CrossRef]
  17. Meloni, A.M.; Fenici, R.; Brisinda, D. Contactless magnetocardiographic study of ventricular repolarization in intact Wistar rats: Evidence of gender-related differences. Basic Res. Cardiol. 2004, 99, 193–203. [Google Scholar] [CrossRef]
  18. Brisinda, D.; Caristo, M.E.; Fenici, R. Longitudinal study of cardiac electrical activity in anesthetized guinea pigs by contactless magnetocardiography. Physiol. Meas. 2007, 28, 773–792. [Google Scholar] [CrossRef]
  19. Jensen, K.; Skarsfeldt, M.A.; Stærkind, H.; Arnbak, J.; Balabas, M.V.; Olesen, S.-P.; Bentzen, B.H.; Polzik, E.S. Magnetocardiography on an isolated animal heart with a room-temperature optically pumped magnetometer. Sci. Rep. 2018, 8, 16218. [Google Scholar] [CrossRef] [PubMed]
  20. Jensen, K.; Bentzen, B.H.; Polzik, E.S. Small Animal Biomagnetism Applications. In Flexible High Performance Magnetic Field Sensors; Springer International Publishing: Cham, Switzerland, 2022; pp. 33–48. [Google Scholar]
  21. Brisinda, D.; Fenici, P.; Fenici, R. Clinical magnetocardiography: The unshielded bet—Past, present, and future. Front. Cardiovasc. Med. 2023, 10, 1232882. [Google Scholar] [CrossRef] [PubMed]
  22. Roth, B.J. The magnetocardiogram. Biophys. Rev. 2024, 5, 021305. [Google Scholar] [CrossRef] [PubMed]
  23. Kandori, A.; Shimizu, W.; Yokokawa, M.; Kamakura, S.; Miyatake, K.; Murakami, M.; Miyashita, T.; Ogata, K.; Tsukada, K. Reconstruction of action potential of repolarization in patients with congenital long-QT syndrome. Phys. Med. Biol. 2004, 49, 2103–2115. [Google Scholar] [CrossRef]
  24. Fenici, R.; Picerni, M.; Fenici, P.; Brisinda, D. An advanced vision of magnetocardiography as an unrivalled method for a more comprehensive non-invasive clinical electrophysiological assessment. Am. Heart J. Plus Cardiol. Res. Pract. 2025, 52, 100514. [Google Scholar] [CrossRef]
  25. Brisinda, D.; Sorbo, A.R.; Venuti, A.; Fenici, R. Percutaneous method for single-catheter multiple monophasic action potential recordings during magnetocardiographic mapping in spontaneously breathing rodents. Physiol. Meas. 2012, 33, 521–534. [Google Scholar] [CrossRef]
  26. National Research Council. Guide for the Care and Use of Laboratory Animals; The National Academies Press: Washington, DC, USA, 1996. [Google Scholar] [CrossRef]
  27. du Sert, N.P.; Ahluwalia, A.; Alam, S.; Avey, M.T.; Baker, M.; Browne, W.J.; Clark, A.; Cuthill, I.C.; Dirnagl, U.; Emerson, M.; et al. Reporting animal research: Explanation and elaboration for the ARRIVE guidelines 2.0. PLoS Biol. 2020, 18, e3000411. [Google Scholar] [CrossRef]
  28. Fenici, R.; Brisinda, D. First 36-channel System for Clinical Magnetocardiography in Unshielded Hospital Laboratory for Cardiac Electrophysiology. Int. J. Bioelectromagn. 2003, 5, 80–83. [Google Scholar]
  29. Sorbo, A.R.; Lombardi, G.; La Brocca, L.; Guida, G.; Fenici, R.; Brisinda, D. Unshielded magnetocardiography: Repeatability and reproducibility of automatically estimated ventricular repolarization parameters in 204 healthy subjects. Ann. Noninvasive Electrocardiol. 2017, 23, e12526. [Google Scholar] [CrossRef] [PubMed]
  30. Hosaka, H.; Cohen, D. Part IV Visual determination of generators of the magnetocardiogram. J. Electrocardiol. 1976, 9, 426–432. [Google Scholar] [CrossRef]
  31. Veisterä, H.; Fenici, R.; Lötjönen, J. Online Heart Model Creation for Magnetocardiographic Measurements. In Proceedings of the 14th International Conference on Biomagnetism, Boston, MA, USA, 8–12 August 2004; pp. 415–416. [Google Scholar]
  32. Fenici, R. Patent US6527724—Catheter Guidance by Magnetocardiographic Mapping. 2003. Available online: https://patentscope.wipo.int/search/en/result.jsf?_vid=P22-MF58HH-13176 (accessed on 31 August 2025).
  33. Fenici, R.R.; Brisinda, D.; Mäkijärvi, M.; Toivonen, L.; Pesola, K.; Nenonen, J.T.; Fenici, P. High resolution MSI-guided multiple monophasic action potential mapping with a single amagnetic catheter. In Biomag; Helsinki University of Technology: Espoo, Finland, 2000. [Google Scholar]
  34. Fenici, R.; Pesola, K.; Korhonen, P.; Mäkijärvi, M.; Nenonen, J.; Toivonen, L.; Fenici, P.; Katila, T. Magnetocardiographic Pacemapping for Nonfluoroscopic Localization of Intracardiac Electrophysiology Catheters. Pacing Clin. Electrophysiol. 1998, 21, 2492–2499. [Google Scholar] [CrossRef]
  35. Fenici, R.; Nenonen, J.; Pesola, K.; Korhonen, P.; Lotjonen, J.; Makijarvi, M.; Toivonen, L.; Poutanen, V.-P.; Keto, P.; Katila, T. Nonfluoroscopic Localization of an Amagnetic Stimulation Catheter by Multichannel Magnetocardiography. Pacing Clin. Electrophysiol. 1999, 22, 1210–1220. [Google Scholar] [CrossRef] [PubMed]
  36. Nenonen, J.; Pesola, K.; Lötjönen, J.; Lauerma, K.; Hänninen, H.; Korhonen, P.; Mäkijärvi, M.; Fenici, R.; Katila, T. Cardiomagnetic Source Imaging Studies with Focal and Distributed Source Models. Biomed. Eng. Biomed. Tech. 1999, 44, 135–138. [Google Scholar] [CrossRef]
  37. Fenici, R.; Brisinda, D. Bridging noninvasive and interventional electroanatomical imaging: Role of magnetocardiography. J. Electrocardiol. 2007, 40, S47–S52. [Google Scholar] [CrossRef]
  38. Beeler, G.W.; Reuter, H. Reconstruction of the action potential of ventricular myocardial fibres. J. Physiol. 1977, 268, 177–210. [Google Scholar] [CrossRef] [PubMed]
  39. Lester, R.M. Update on ICH E14/S7B Cardiac Safety Regulations: The Expanded Role of Preclinical Assays and the “Double-Negative” Scenario. Clin. Pharmacol. Drug Dev. 2021, 10, 964–973. [Google Scholar] [CrossRef]
  40. Turner, J.R.; Karnad, D.R.; Cabell, C.H.; Kothari, S. Recent developments in the science of proarrhythmic cardiac safety of new drugs. Eur. Heart J.–Cardiovasc. Pharmacother. 2016, 3, 118–124. [Google Scholar] [CrossRef]
  41. Polak, S.; Pugsley, M.K.; Stockbridge, N.; Garnett, C.; Wiśniowska, B. Early Drug Discovery Prediction of Proarrhythmia Potential and Its Covariates. AAPS J. 2015, 17, 1025–1032. [Google Scholar] [CrossRef][Green Version]
  42. Lee, W.; Ng, B.; Mangala, M.M.; Perry, M.D.; Subbiah, R.N.; Vandenberg, J.I.; Hill, A.P. Action Potential Morphology Accurately Predicts Proarrhythmic Risk for Drugs With Potential to Prolong Cardiac Repolarization. Circ. Arrhythmia Electrophysiol. 2023, 16, 399–410. [Google Scholar] [CrossRef] [PubMed]
  43. Mazzanti, A.; Kukavica, D.; Trancuccio, A.; Scilabra, G.G.; Coppini, L.; Pergola, V.; Tempo, E.; Pili, G.; Napolitano, C.; Priori, S.G. Genetics in arrhythmogenic cardiomyopathies: Where are we now and where are we heading to? Eur. Heart J. Suppl. 2025, 27, i98–i102. [Google Scholar] [CrossRef]
  44. Blackwell, D.J.; Schmeckpeper, J.; Knollmann, B.C. Animal Models to Study Cardiac Arrhythmias. Circ. Res. 2022, 130, 1926–1964. [Google Scholar] [CrossRef]
  45. Hamlin, R.L.; Kijtawornrat, A.; Keene, B.W.; Hamlin, D.M. QT and RR Intervals in Conscious and Anesthetized Guinea Pigs with Highly Varying RR Intervals and Given QTc-Lengthening Test Articles. Toxicol. Sci. 2003, 76, 437–442. [Google Scholar] [CrossRef]
  46. Hamlin, R.L.; Kijtawornrat, A.; Simonetti, O.; Roche, B.; Lolly, J.; Schmidt, J. Body surface potentials generated by heart from normal guinea pig. J. Pharmacol. Toxicol. Methods 2007, 56, e13. [Google Scholar] [CrossRef]
  47. Musso, E.; Stilli, D.; Olivetti, G.; Ricci, R.; Lagrasta, C. (Eds.) Body surface maps in chronically instrumented rats. In Electrocardiology; Elsevier Science Publishers B.V.: Amsterdam, The Netherlands, 1989; pp. 257–260. [Google Scholar]
  48. Suslonova, O.V.; Smirnova, S.L.; Roshchevskaya, I.M. Cardiac Body Surface Potentials in Rats with Experimental Pulmonary Hypertension during Ventricular Depolarization. Bull. Exp. Biol. Med. 2016, 162, 7–10. [Google Scholar] [CrossRef] [PubMed]
  49. Wikswo, J.P.; Barach, J.P. Possible sources of new information in the magnetocardiogram. J. Theor. Biol. 1982, 95, 721–729. [Google Scholar] [CrossRef]
  50. Roth, B.; Wikswo, J. Electrically silent magnetic fields. Biophys. J. 1986, 50, 739–745. [Google Scholar] [CrossRef]
  51. Irimia, A.; Swinney, K.R.; Wikswo, J.P. Partial independence of bioelectric and biomagnetic fields and its implications for encephalography and cardiography. Phys. Rev. E 2009, 79, 051908. [Google Scholar] [CrossRef]
  52. Roth, B.J. Biomagnetism: The First Sixty Years. Sensors 2023, 23, 4218. [Google Scholar] [CrossRef]
  53. McBride, K.K.; Roth, B.J.; Sidorov, V.; Wikswo, J.P.; Baudenbacher, F.J. Measurements of Transmembrane Potential and Magnetic Field at the Apex of the Heart. Biophys. J. 2010, 99, 3113–3118. [Google Scholar] [CrossRef]
  54. Nicoletti, M.; Crispino, A.; Loppini, A.; Gizzi, A.; Chiodo, L.; Cherubini, C.; Filippi, S. Impact of electric spatially discordant alternans on cardiac magnetic field. Phys. Rev. E 2025, 112, 024405. [Google Scholar] [CrossRef]
  55. Crispino, A.; Nicoletti, M.; Loppini, A.; Gizzi, A.; Chiodo, L.; Cherubini, C.; Filippi, S. Magnetic signature of thermoelectric cardiac dynamics. Phys. Rev. E 2025, 111, L012401. [Google Scholar] [CrossRef] [PubMed]
  56. Crispino, A.; Loppini, A.; Uzelac, I.; Iravanian, S.; Bhatia, N.K.; Burke, M.; Filippi, S.; Fenton, F.H.; Gizzi, A. A cross species thermoelectric and spatiotemporal analysis of alternans in live explanted hearts using dual voltage-calcium fluorescence optical mapping. Physiol. Meas. 2024, 45, 065001. [Google Scholar] [CrossRef] [PubMed]
  57. Hamlin, R. The guinea pig in cardiac safety pharmacology. J. Pharmacol. Toxicol. Methods 2007, 55, 1–2. [Google Scholar] [CrossRef]
  58. Brisinda, D.; Caristo, M.; Fenici, R. Contactless magnetocardiographic study of age- and gender-related variability of ventricular repolarization parameters in guinea pigs. Int. Congr. Ser. 2007, 1300, 443–446. [Google Scholar] [CrossRef]
  59. Crispino, A.; Loppini, A.; Uzelac, I.; Filippi, S.; Fenton, F.; Gizzi, A. Spatiotemporal Correlation Analysis of Cardiac Activation Patterns in Langendorff-Perfused Human Hearts: Insights for Arrhythmia Prediction. In Proceedings of the 2023 Computing in Cardiology Conference, Atlanta, GA, USA, 1–4 October 2023. [Google Scholar]
  60. Sun, J.; Zhao, X.; Zhang, X.; Zhang, D.; Zhao, Z.; Yang, J.; Lu, Y. Optimized design of small sized low noise magnetic shielding cylinder. Phys. Scr. 2024, 99, 025975. [Google Scholar] [CrossRef]
  61. Arai, K.; Kuwahata, A.; Nishitani, D.; Fujisaki, I.; Matsuki, R.; Nishio, Y.; Xin, Z.; Cao, X.; Hatano, Y.; Onoda, S.; et al. Millimetre-scale magnetocardiography of living rats with thoracotomy. Commun. Phys. 2022, 5, 200. [Google Scholar] [CrossRef]
  62. Ma, Y.; Chen, Y.; Yu, M.; Wang, Y.; Lu, S.; Guo, J.; Luo, G.; Zhao, L.; Yang, P.; Lin, Q.; et al. Ultrasensitive SERF atomic magnetometer with a miniaturized hybrid vapor cell. Microsyst. Nanoeng. 2024, 10, 121. [Google Scholar] [CrossRef]
  63. Nenonen, J.; Pesola, K.; Feneici, R.; Lauerma, K.; Mäkijärvi, M.; Katila, T. Current Density Imaging of Focal Cardiac Sources. Biomed. Eng. Biomed. Tech. 2001, 46, 50–53. [Google Scholar] [CrossRef]
  64. Mäkelä, T.; Pham, Q.C.; Clarysse, P.; Nenonen, J.; Lötjönen, J.; Sipilä, O.; Hänninen, H.; Lauerma, K.; Knuuti, J.; Katila, T.; et al. A 3-D model-based registration approach for the PET, MR and MCG cardiac data fusion. Med. Image Anal. 2003, 7, 377–389. [Google Scholar] [CrossRef]
  65. Su, S.; Xu, Z.; He, X.; Zhang, G.; Wu, H.; Gao, Y.; Ma, Y.; Yin, C.; Ruan, Y.; Li, K.; et al. Vector magnetocardiography using compact optically-pumped magnetometers. Heliyon 2024, 10, e29092. [Google Scholar] [CrossRef]
  66. Bin Im, U.; Kwon, S.S.; Kim, K.; Lee, Y.H.; Park, Y.K.; Youn, C.H.; Shim, E.B. Theoretical analysis of the magnetocardiographic pattern for reentry wave propagation in a three-dimensional human heart model. Prog. Biophys. Mol. Biol. 2008, 96, 339–356. [Google Scholar] [CrossRef] [PubMed]
  67. Bucelli, M.; Zingaro, A.; Africa, P.C.; Fumagalli, I.; Dede’, L.; Quarteroni, A. A mathematical model that integrates cardiac electrophysiology, mechanics, and fluid dynamics: Application to the human left heart. Int. J. Numer. Methods Biomed. Eng. 2023, 39, e3678. [Google Scholar] [CrossRef]
  68. Aghasafari, P.; Yang, P.-C.; Kernik, D.C.; Sakamoto, K.; Kanda, Y.; Kurokawa, J.; Vorobyov, I.; E Clancy, C. A deep learning algorithm to translate and classify cardiac electrophysiology. eLife 2021, 10. [Google Scholar] [CrossRef] [PubMed]
  69. Lombardi, G.; Sorbo, A.R.; Fenici, R.; Brisinda, D. Phantom assessment of unshielded Magnetocardiography repeatability, precision and accuracy in electric sources localization. Ann Hear 2017, 1, 35–40. [Google Scholar]
  70. Romic, I.G.; Bastiancic, A.L.; Zidan, D.; Mavric, M.; Brusich, S. Case Report: Extraction of a stylet-driven lead for left bundle branch area pacing > 2 years after implantation. Front. Cardiovasc. Med. 2024, 11, 1457025. [Google Scholar] [CrossRef] [PubMed]
  71. Marmugi, L.; Renzoni, F. Optical Magnetic Induction Tomography of the Heart. Sci. Rep. 2016, 6, 23962. [Google Scholar] [CrossRef] [PubMed]
  72. Fenici, R.; Picerni, M.; Fenici, P.; Brisinda, D. Non-invasive mapping of ventricular action potential waveforms reconstructed from clinical unshielded magnetocardiography. Potential diagnostic application and current limitations. Am. Heart J. Plus Cardiol. Res. Pract. 2025, 55, 100561. [Google Scholar] [CrossRef] [PubMed]
Jcdd 12 00343 g001

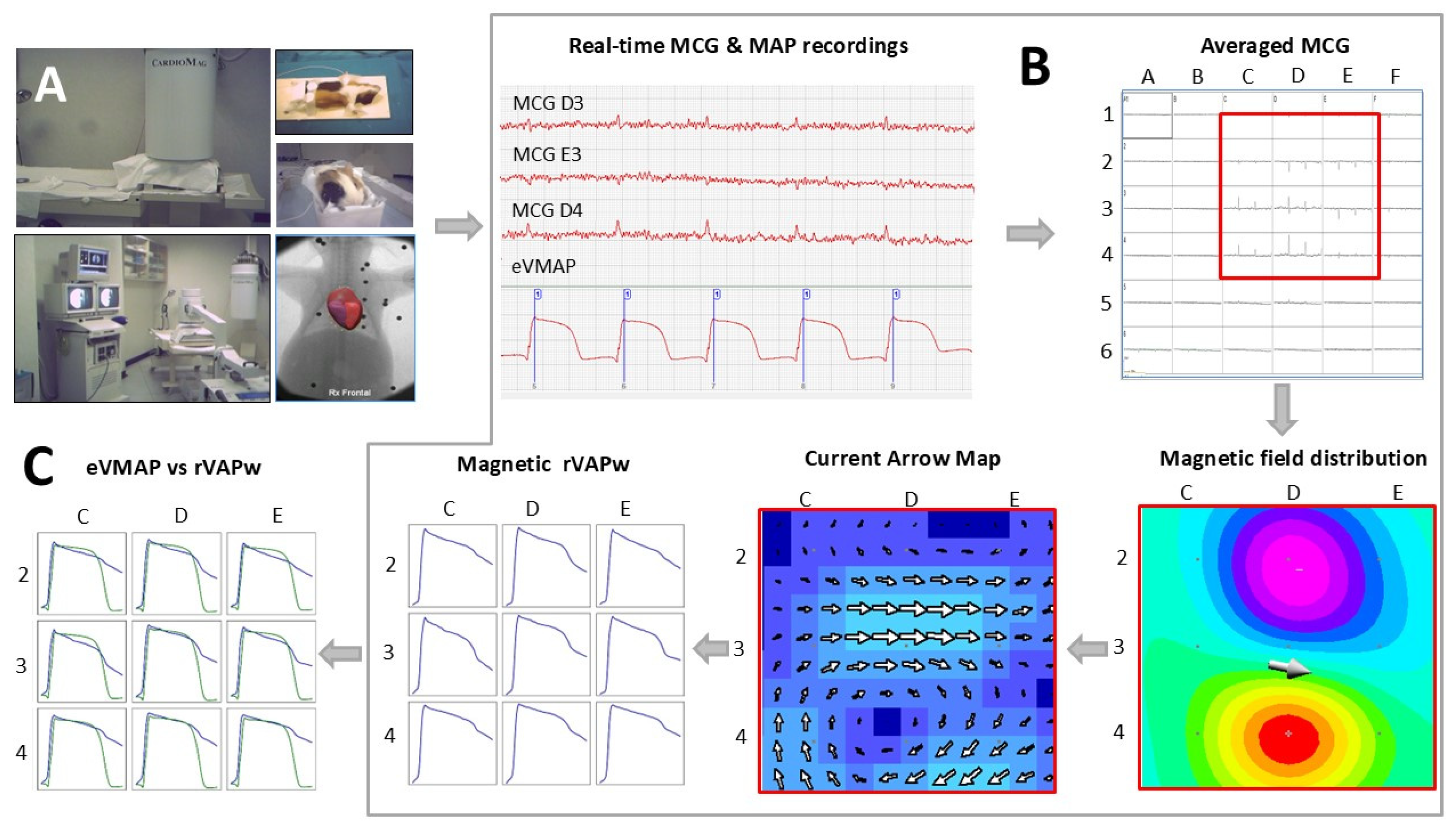

Figure 1. (A) Overview of the experimental setup; (B) Schematic of the data acquisition sequence, post-processing, and calculation for the non-invasive reconstruction of the ventricular action potential waveform (rVAPw) from MCG signals. The magnetic field distribution and the current arrow map refer to the 3 × 3 grid with the highest MCG signal (highlighted by the red square); (C) Overlay of averaged rVAPw (blue) and epicardial ventricular monophasic action potential (green) waveforms.
Figure 1. (A) Overview of the experimental setup; (B) Schematic of the data acquisition sequence, post-processing, and calculation for the non-invasive reconstruction of the ventricular action potential waveform (rVAPw) from MCG signals. The magnetic field distribution and the current arrow map refer to the 3 × 3 grid with the highest MCG signal (highlighted by the red square); (C) Overlay of averaged rVAPw (blue) and epicardial ventricular monophasic action potential (green) waveforms.
Jcdd 12 00343 g001
Jcdd 12 00343 g002

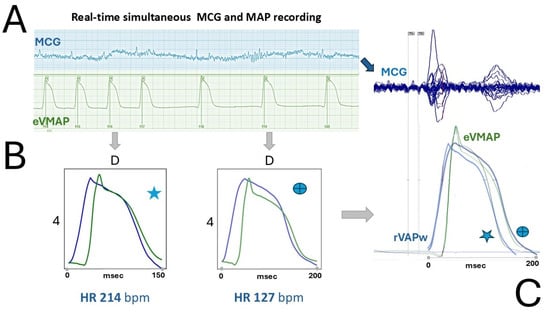

Figure 2. Example of ventricular repolarization adaptation to sudden heart rate decrease, as measured from magnetic rVAPw and simultaneous eVMAP. (A) Real-time recordings (left) and butterfly overlay of 36-channel averaged MCG signals; (B) Magnetic rVAPw (blue signal) and simultaneous eVMAP (green signal) obtained (grid position D4) with separate averaging of two epochs selected before (HR: 214 bpm) and after (HR: 127 bpm) sudden spontaneous heart rate variation (please note that the time scale at the same grid position D4 is different for the two epochs); (C) Overlay of rVAPw and eVMAP (both heart rates), after time scale normalization (Jcdd 12 00343 i001 HR 214 bpm; Jcdd 12 00343 i002 HR 127 bpm) clearly show the coherent shortening of both waveforms at the higher heart rate.
Figure 2. Example of ventricular repolarization adaptation to sudden heart rate decrease, as measured from magnetic rVAPw and simultaneous eVMAP. (A) Real-time recordings (left) and butterfly overlay of 36-channel averaged MCG signals; (B) Magnetic rVAPw (blue signal) and simultaneous eVMAP (green signal) obtained (grid position D4) with separate averaging of two epochs selected before (HR: 214 bpm) and after (HR: 127 bpm) sudden spontaneous heart rate variation (please note that the time scale at the same grid position D4 is different for the two epochs); (C) Overlay of rVAPw and eVMAP (both heart rates), after time scale normalization (Jcdd 12 00343 i001 HR 214 bpm; Jcdd 12 00343 i002 HR 127 bpm) clearly show the coherent shortening of both waveforms at the higher heart rate.
Jcdd 12 00343 g002
Jcdd 12 00343 g003

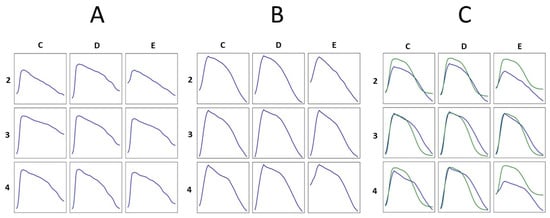

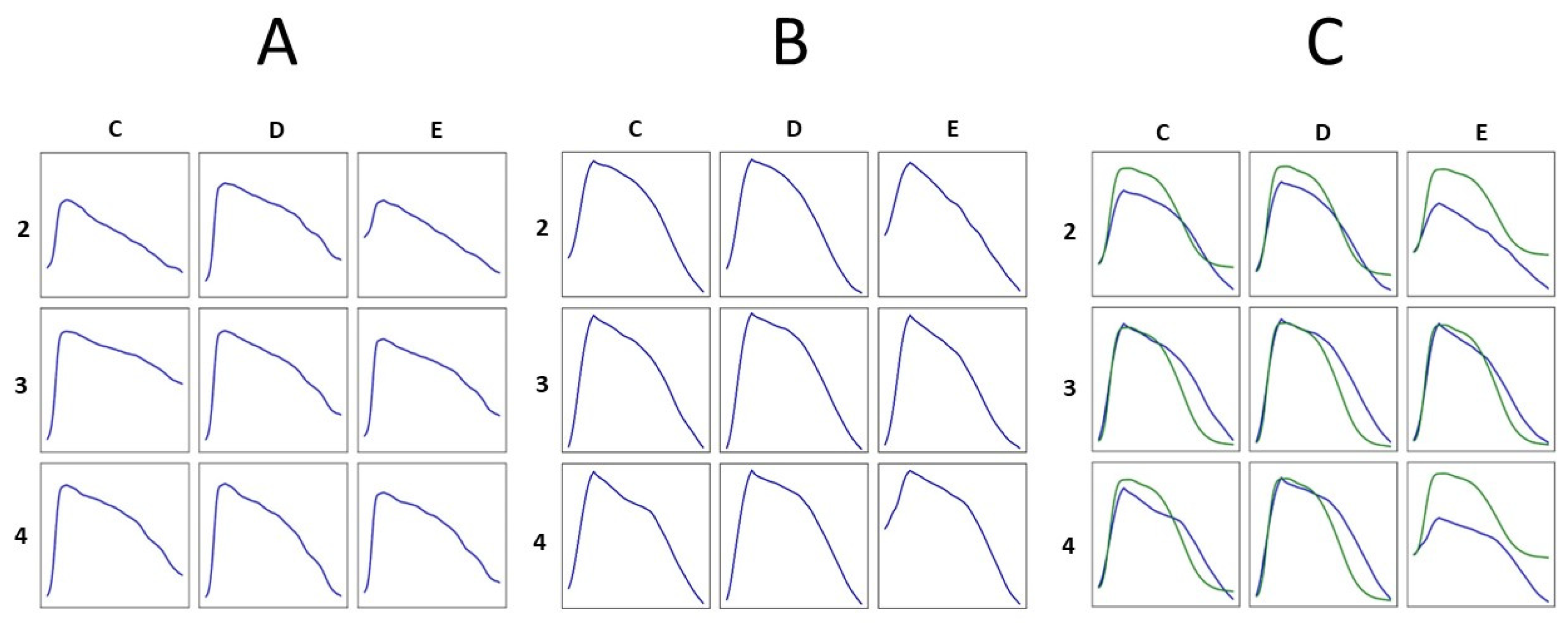

Figure 3. Examples of the morphological reproducibility of rVAPw calculated from MCG in the same animal at the ages of five (A) and twenty-six (B) months. (C) Comparison between rVAPw (blue waveform) and the simultaneously recorded epicardial ventricular MAP (green waveform) at the age of 26 months.
Figure 3. Examples of the morphological reproducibility of rVAPw calculated from MCG in the same animal at the ages of five (A) and twenty-six (B) months. (C) Comparison between rVAPw (blue waveform) and the simultaneously recorded epicardial ventricular MAP (green waveform) at the age of 26 months.
Jcdd 12 00343 g003
Jcdd 12 00343 g004

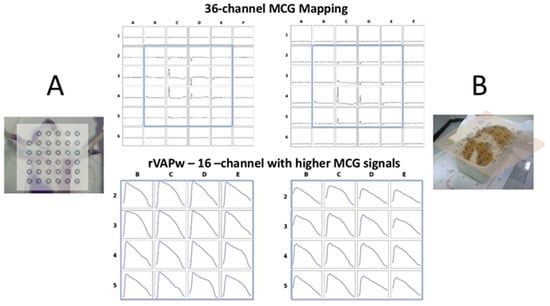

Figure 4. Magnetic action potential reconstruction and comparison between (A) anaesthetized and (B) awake conditions. The 36-channel sensor grid is overlayed on the animal in the supine and prone positions.
Figure 4. Magnetic action potential reconstruction and comparison between (A) anaesthetized and (B) awake conditions. The 36-channel sensor grid is overlayed on the animal in the supine and prone positions.
Jcdd 12 00343 g004
Jcdd 12 00343 g005

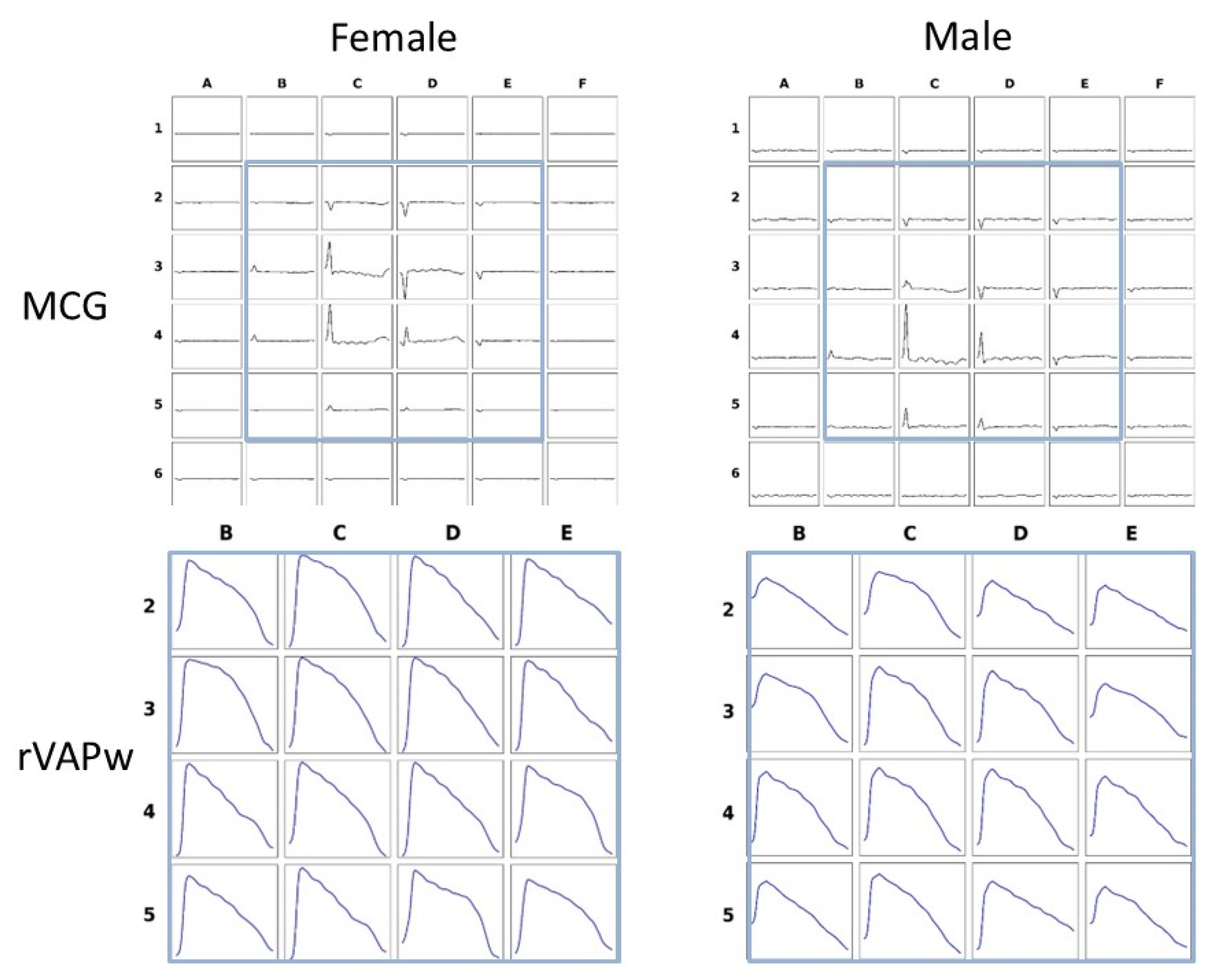

Figure 5. Examples of MCG signals mapped from the 36-point grid and the corresponding rVAPw are shown at the enlarged 4 × 4 selected grid sites with higher MCG signal intensity.
Figure 5. Examples of MCG signals mapped from the 36-point grid and the corresponding rVAPw are shown at the enlarged 4 × 4 selected grid sites with higher MCG signal intensity.
Jcdd 12 00343 g005
Table 1. Individual values of phase 0 and repolarization intervals duration.
Table 1. Individual values of phase 0 and repolarization intervals duration.
eVMAPrVAPw
MCG SessionAGE Weight HRPhase 0d30%d50%d80%Phase 0d30%d50%d80%
monthsgramsbpmmsecmsecmsecmsecmsecmsecmsecmsec
1296501721916317719518182214218
2296501571410018520816114169218
329650204177294116225686140
4296502001966901222988110142
528615213156195128214879119
6286151931689116134195787126
726422142189111114230108136175
82860019817531191672986121151
mean28.3606.5184.916.9 ◊86.9123.4151.523.0 ◊92.4125.3161.1
SD1.077.325.11.834.737.234.75.643.746.838.9
eVMAP: epicardial ventricular monophasic action potential; rVAPw: ventricular action potential reconstructed waveform from simultaneous MCG mapping. ◊: p < 0.05.
Table 2. Comparison of Phase 0 and repolarization duration, calculated from rVAPw, at different ages.
Table 2. Comparison of Phase 0 and repolarization duration, calculated from rVAPw, at different ages.
Age Sessions (months)
51426
rVAPwMean SDMean SDMean SDp
Phase 0193202234<0.01
D3 d30%531651195018ns
D4 d30%521551204917ns
D3 d50%821979237421ns
D4 d50%811980247220ns
D3 d80%113191111910719ns
D4 d80%112201122110820ns
HR256.346.7250.744.7253.149.0ns
HR: heart rate (bpm); other parameters in msec; rVAPw: magnetically reconstructed ventricular action potential waveform; ns: not significant.
Table 3. Comparison of Phase 0 and repolarization duration, calculated from rVAPw, in anaesthetized and awake conditions.
Table 3. Comparison of Phase 0 and repolarization duration, calculated from rVAPw, in anaesthetized and awake conditions.
AnaesthetizedAwake
rVAPwMeanSDMeanSDp
Phase 0203204ns
D3 d30%5719418<0.01
D4 d30%551944130.01
D3 d50%86216715<0.01
D4 d50%84226918<0.01
D3 d80%1161910215<0.01
D4 d80%1142110619ns
HR 257.746.9245.543.8ns
HR: heart rate (bpm); other parameters in msec; rVAPw: magnetically reconstructed ventricular action potential waveform; ns: not significant.
Table 4. Comparison of Phase 0 and repolarization duration, calculated from rVAPw, in males and females.
Table 4. Comparison of Phase 0 and repolarization duration, calculated from rVAPw, in males and females.
Males Females
rVAPw Mean SDMean SDp
Phase 0202192ns
D3 d30%48115324ns
D4 d30%51145225ns
D3 d50%77158128ns
D4 d50%79198029ns
D3 d80%1121411124ns
D4 d80%1141711124ns
HR 248.344.7252.846.2ns
HR: heart rate (bpm); other parameters in msec; rVAPw: magnetically reconstructed ventricular action potential waveform; ns: not significant.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Fenici, R.; Picerni, M.; Fenici, P.; Brisinda, D. Non-Invasive Mapping of Ventricular Action Potential Reconstructed from Contactless Magnetocardiographic Recordings in Intact and Conscious Guinea Pigs. J. Cardiovasc. Dev. Dis. 2025, 12, 343. https://doi.org/10.3390/jcdd12090343

AMA Style

Fenici R, Picerni M, Fenici P, Brisinda D. Non-Invasive Mapping of Ventricular Action Potential Reconstructed from Contactless Magnetocardiographic Recordings in Intact and Conscious Guinea Pigs. Journal of Cardiovascular Development and Disease. 2025; 12(9):343. https://doi.org/10.3390/jcdd12090343

Chicago/Turabian Style

Fenici, Riccardo, Marco Picerni, Peter Fenici, and Donatella Brisinda. 2025. "Non-Invasive Mapping of Ventricular Action Potential Reconstructed from Contactless Magnetocardiographic Recordings in Intact and Conscious Guinea Pigs" Journal of Cardiovascular Development and Disease 12, no. 9: 343. https://doi.org/10.3390/jcdd12090343

APA Style

Fenici, R., Picerni, M., Fenici, P., & Brisinda, D. (2025). Non-Invasive Mapping of Ventricular Action Potential Reconstructed from Contactless Magnetocardiographic Recordings in Intact and Conscious Guinea Pigs. Journal of Cardiovascular Development and Disease, 12(9), 343. https://doi.org/10.3390/jcdd12090343

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
