Figure 1.

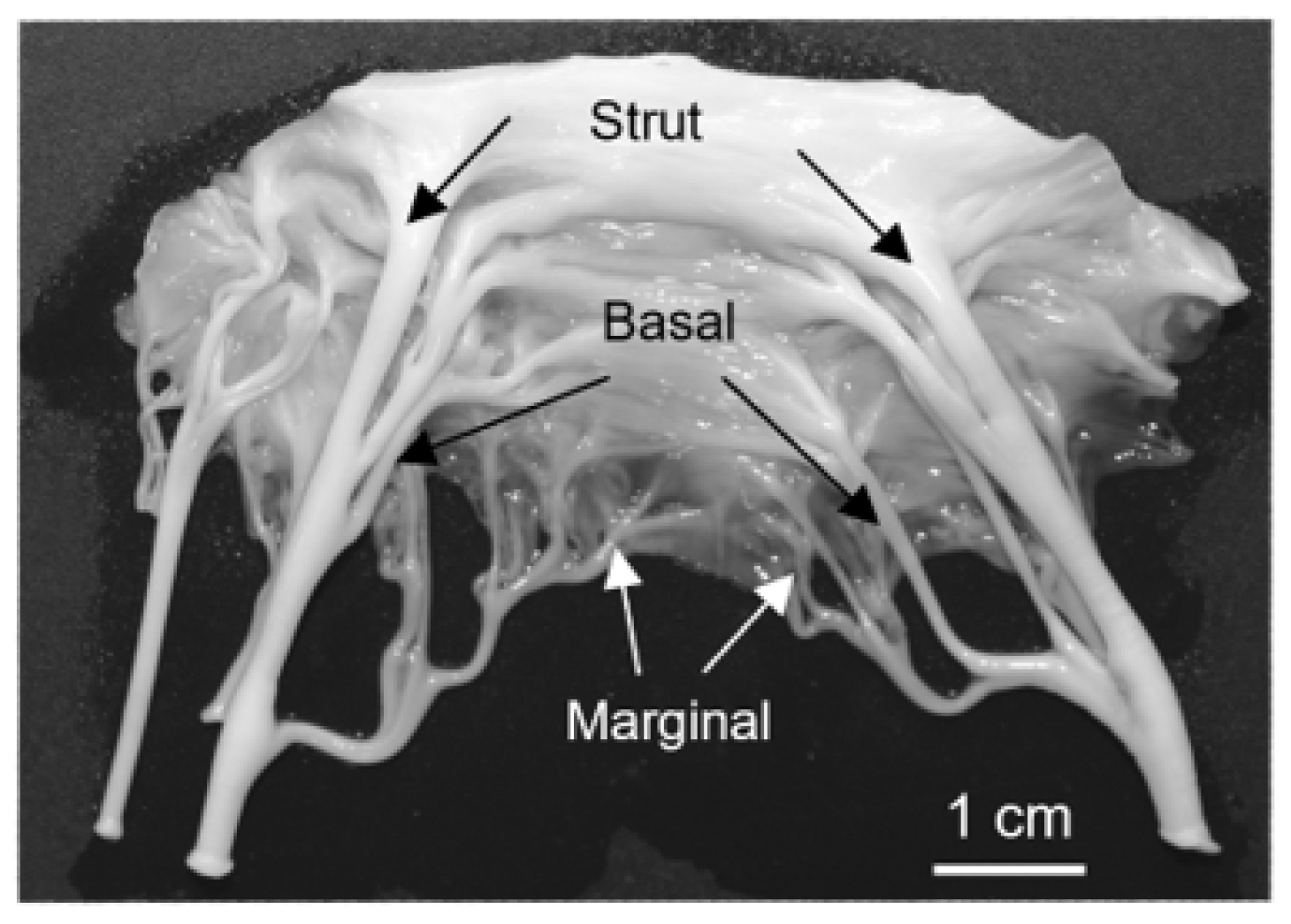

Representative image of an excised adult bovine anterior mitral valve. Arrows denote (in order from top to bottom) the strut, basal, and marginal chordae.
Figure 1.
Representative image of an excised adult bovine anterior mitral valve. Arrows denote (in order from top to bottom) the strut, basal, and marginal chordae.

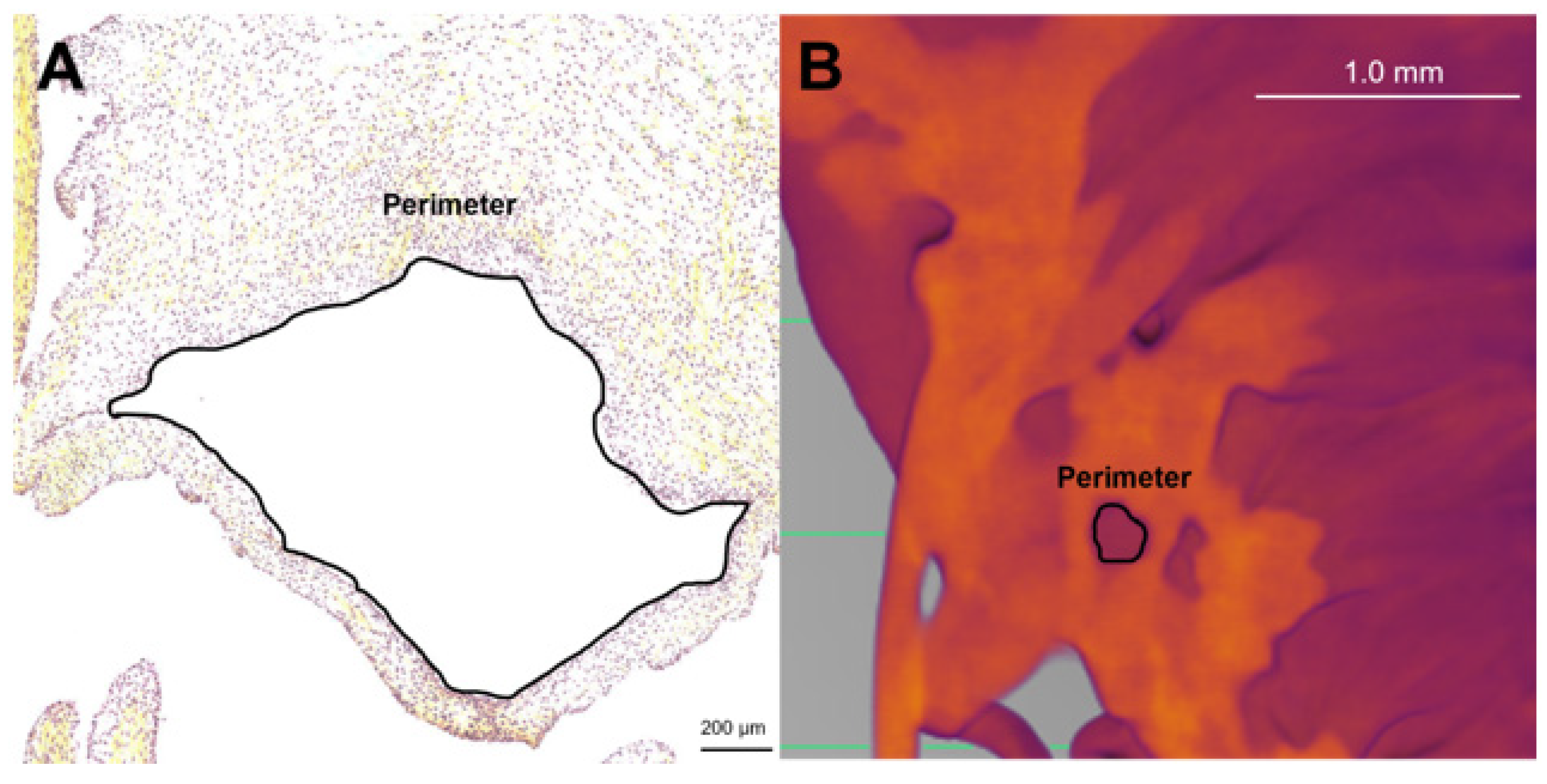

Figure 2.
Methods for measuring perforation dimensions in the two modalities. The perimeter was measured as an approximation of perforation size. Representative image of these measurements in a Movat Pentachrome stained section from 219 gestational days (A). Representative image of these measurements in 2D still image from micro-CT from 163 gestational days (B). Note the scale bar varies between images.
Figure 2.
Methods for measuring perforation dimensions in the two modalities. The perimeter was measured as an approximation of perforation size. Representative image of these measurements in a Movat Pentachrome stained section from 219 gestational days (A). Representative image of these measurements in 2D still image from micro-CT from 163 gestational days (B). Note the scale bar varies between images.

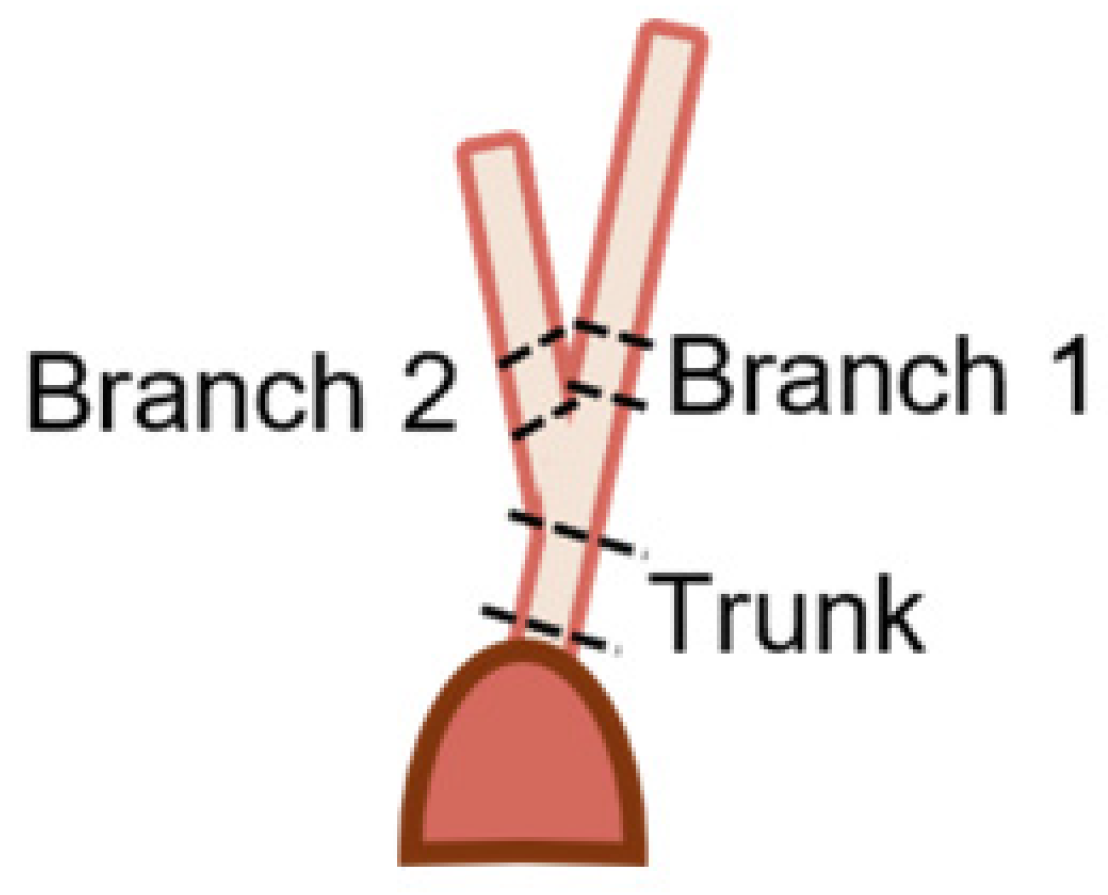

Figure 3.
Diagram depicting the location of samples for transmission electron microscopy. Trunk sections were taken from above the papillary muscle connection to just below the first bifurcation. Branch sections were taken from above the bifurcation to below their next bifurcation.
Figure 3.
Diagram depicting the location of samples for transmission electron microscopy. Trunk sections were taken from above the papillary muscle connection to just below the first bifurcation. Branch sections were taken from above the bifurcation to below their next bifurcation.
Figure 4.

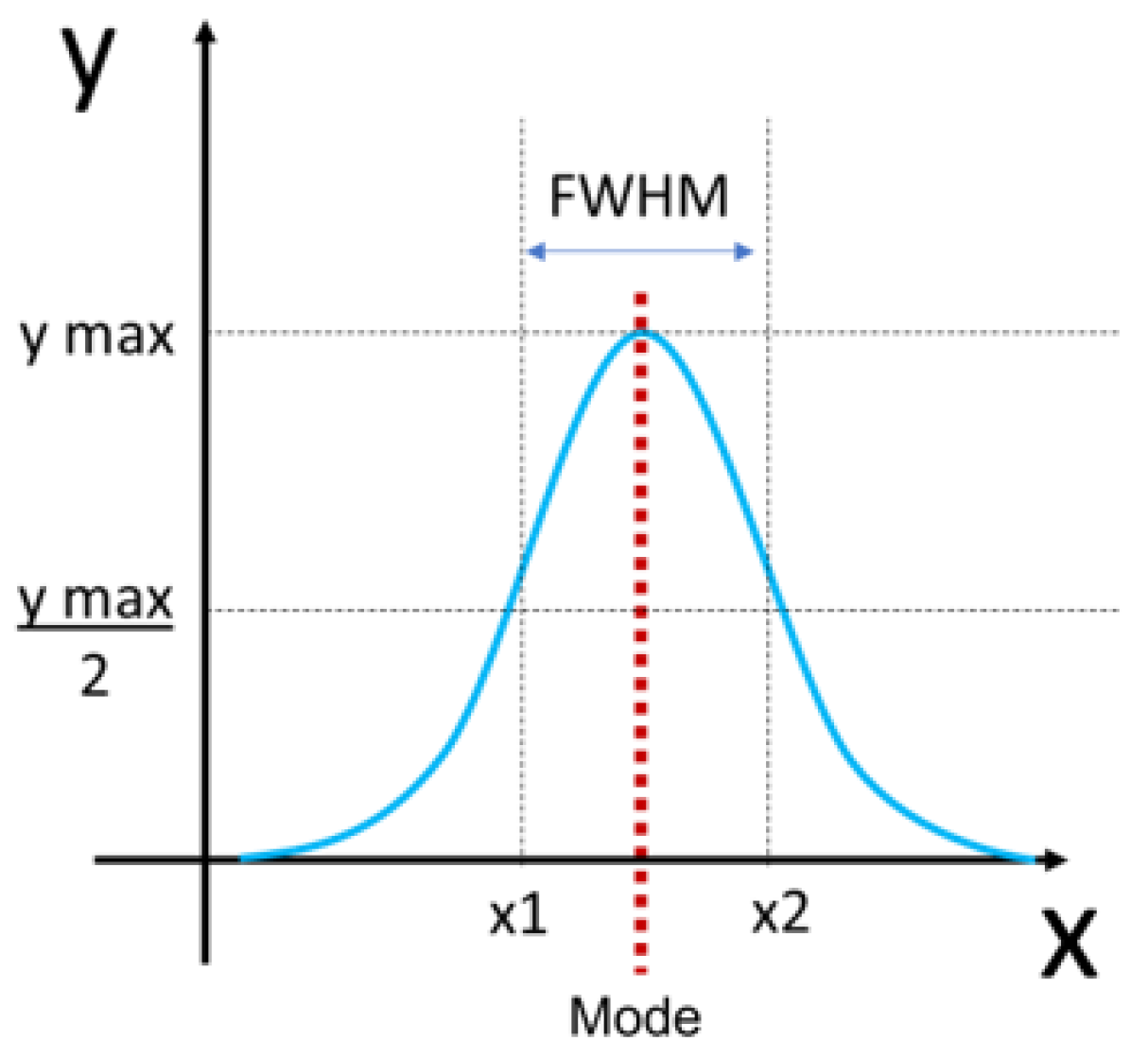

Determination of full width at half maximum (FWHM) and mode calculation from collagen fibril diameter distributions. The FWHM was measured by first identifying the maximum value of the distribution (y max) and then dividing that by 2 (y max/2). To find x1 and x2, the x value that corresponded with the maximum y value was defined. This was then used as a threshold to find the minimum (x1) and maximum value (x2) of x that corresponded with y max/2. FWHM was calculated by subtracting x2 minus x1 (blue double-sided arrow). The mode was defined as the most common value in the distribution (red dotted line).
Figure 4.
Determination of full width at half maximum (FWHM) and mode calculation from collagen fibril diameter distributions. The FWHM was measured by first identifying the maximum value of the distribution (y max) and then dividing that by 2 (y max/2). To find x1 and x2, the x value that corresponded with the maximum y value was defined. This was then used as a threshold to find the minimum (x1) and maximum value (x2) of x that corresponded with y max/2. FWHM was calculated by subtracting x2 minus x1 (blue double-sided arrow). The mode was defined as the most common value in the distribution (red dotted line).

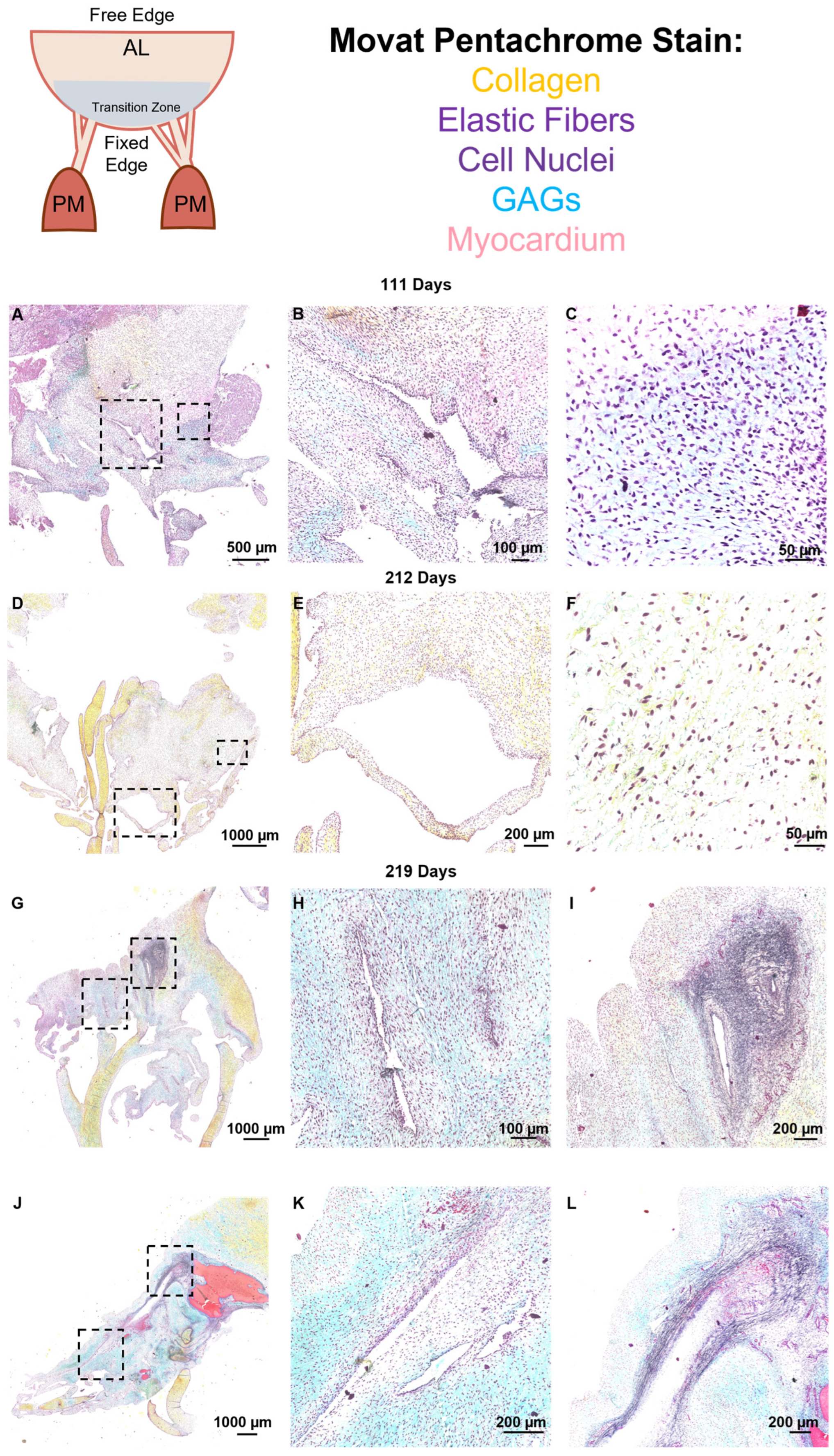

Figure 5.
Representative images of the “transition zone” found between the collagenous portions of the mitral anterior leaflet and chordae tendineae throughout gestation. (
A,
D,
G,
J) Overview of the “transition zone” in the anterior leaflet. Dashed boxes show where subsequent magnified panel images were taken from. (
B,
E,
H,
K) Magnified images of the cell-lined perforations present in this area. (
C) Magnified image of the “transition zone” demonstrating a lack of elastic fiber presence at earlier time points. (
F,
I,
L) Magnified images showing the pattern of elastic fiber organization in this transition zone at later developmental stages. (
A–
C) valve in the early second trimester (111 days into gestation). (
D–
F) third trimester (212 days into gestation). (
G–
I) third trimester (219 days into gestation). (
J–
L) full term (270 days). The long axes of perforations were often in the direction of the chordae tendineae. (
Figure 5G,J and
Figure 6B,C). Collagen is stained yellow-orange, elastic fibers are dark purple, muscle tissue, and blood cells are red, glycosaminoglycans are blue-green, and cell nuclei are dark red-purple. The scale bar varies per image.
Figure 5.
Representative images of the “transition zone” found between the collagenous portions of the mitral anterior leaflet and chordae tendineae throughout gestation. (
A,
D,
G,
J) Overview of the “transition zone” in the anterior leaflet. Dashed boxes show where subsequent magnified panel images were taken from. (
B,
E,
H,
K) Magnified images of the cell-lined perforations present in this area. (
C) Magnified image of the “transition zone” demonstrating a lack of elastic fiber presence at earlier time points. (
F,
I,
L) Magnified images showing the pattern of elastic fiber organization in this transition zone at later developmental stages. (
A–
C) valve in the early second trimester (111 days into gestation). (
D–
F) third trimester (212 days into gestation). (
G–
I) third trimester (219 days into gestation). (
J–
L) full term (270 days). The long axes of perforations were often in the direction of the chordae tendineae. (
Figure 5G,J and
Figure 6B,C). Collagen is stained yellow-orange, elastic fibers are dark purple, muscle tissue, and blood cells are red, glycosaminoglycans are blue-green, and cell nuclei are dark red-purple. The scale bar varies per image.
![Jcdd 11 00367 g005]()
Figure 6.

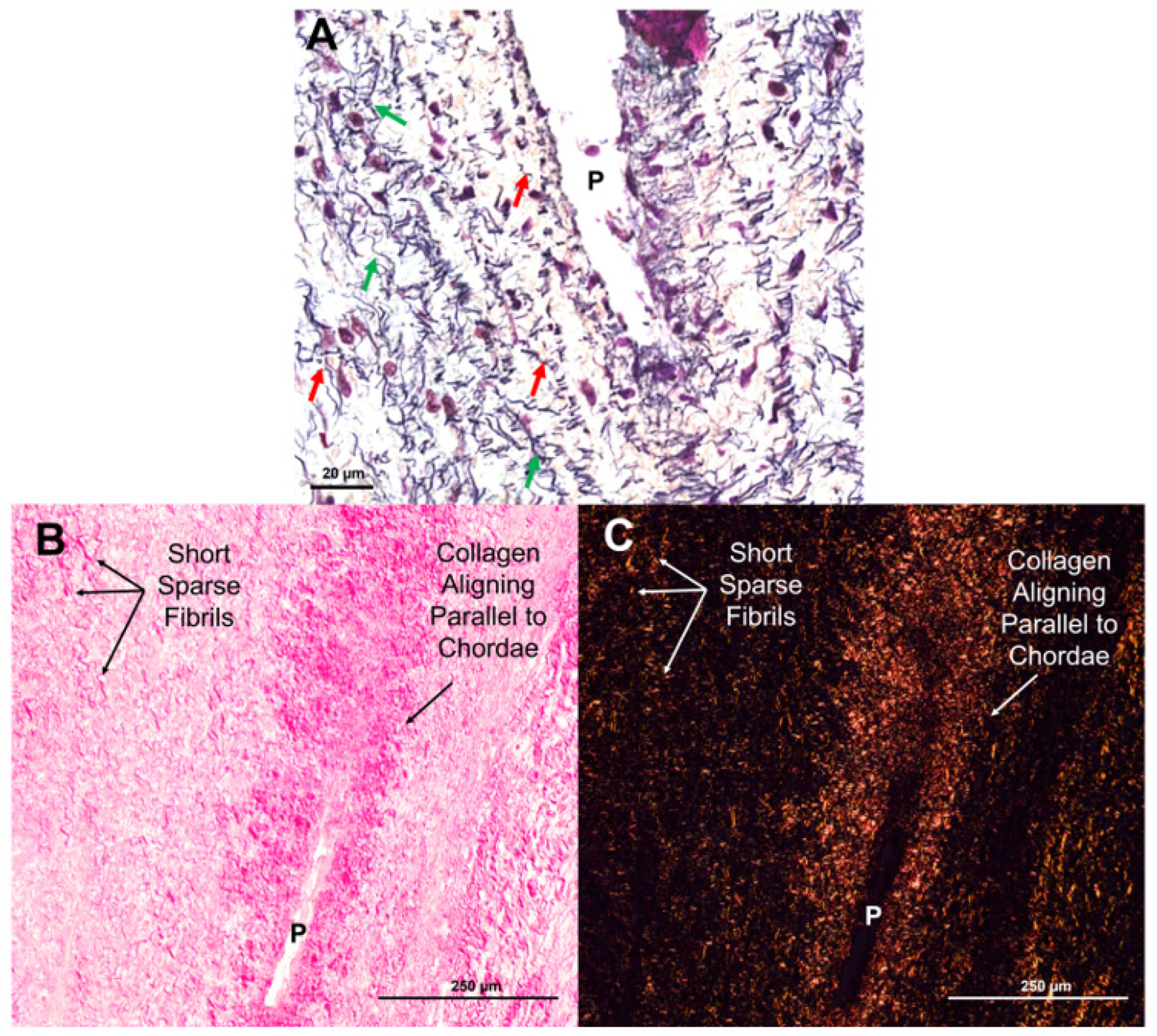

Elastin and collagen fibers first appear as short, sparse fragments before beginning to align in parallel with the chordae. (A) Movat pentachrome stained section of a perforation (P) with short elastic fragments (red arrows) and longer fragments (green arrows) beginning to align around it. Image taken at 14X magnification using the Pannoramic MIDI II. (B,C) Picrosirius red and hematoxylin-stained sections of a perforation (P) with shorter sparse collagen fibrils and collagen beginning to align parallel to the chordae under brightfield (B) and polarized light (C). Images were taken on a Nikon Eclipse E600 light microscope (Nikon Instruments Inc., Melville, NY, USA) equipped with a polarizer and an AmScope 10MU1400 digital camera (AmScope, Irvine, CA, USA). All photos were taken from sections from the same third trimester valve (219 days into gestation). The scale bar varies per image.
Figure 6.
Elastin and collagen fibers first appear as short, sparse fragments before beginning to align in parallel with the chordae. (A) Movat pentachrome stained section of a perforation (P) with short elastic fragments (red arrows) and longer fragments (green arrows) beginning to align around it. Image taken at 14X magnification using the Pannoramic MIDI II. (B,C) Picrosirius red and hematoxylin-stained sections of a perforation (P) with shorter sparse collagen fibrils and collagen beginning to align parallel to the chordae under brightfield (B) and polarized light (C). Images were taken on a Nikon Eclipse E600 light microscope (Nikon Instruments Inc., Melville, NY, USA) equipped with a polarizer and an AmScope 10MU1400 digital camera (AmScope, Irvine, CA, USA). All photos were taken from sections from the same third trimester valve (219 days into gestation). The scale bar varies per image.

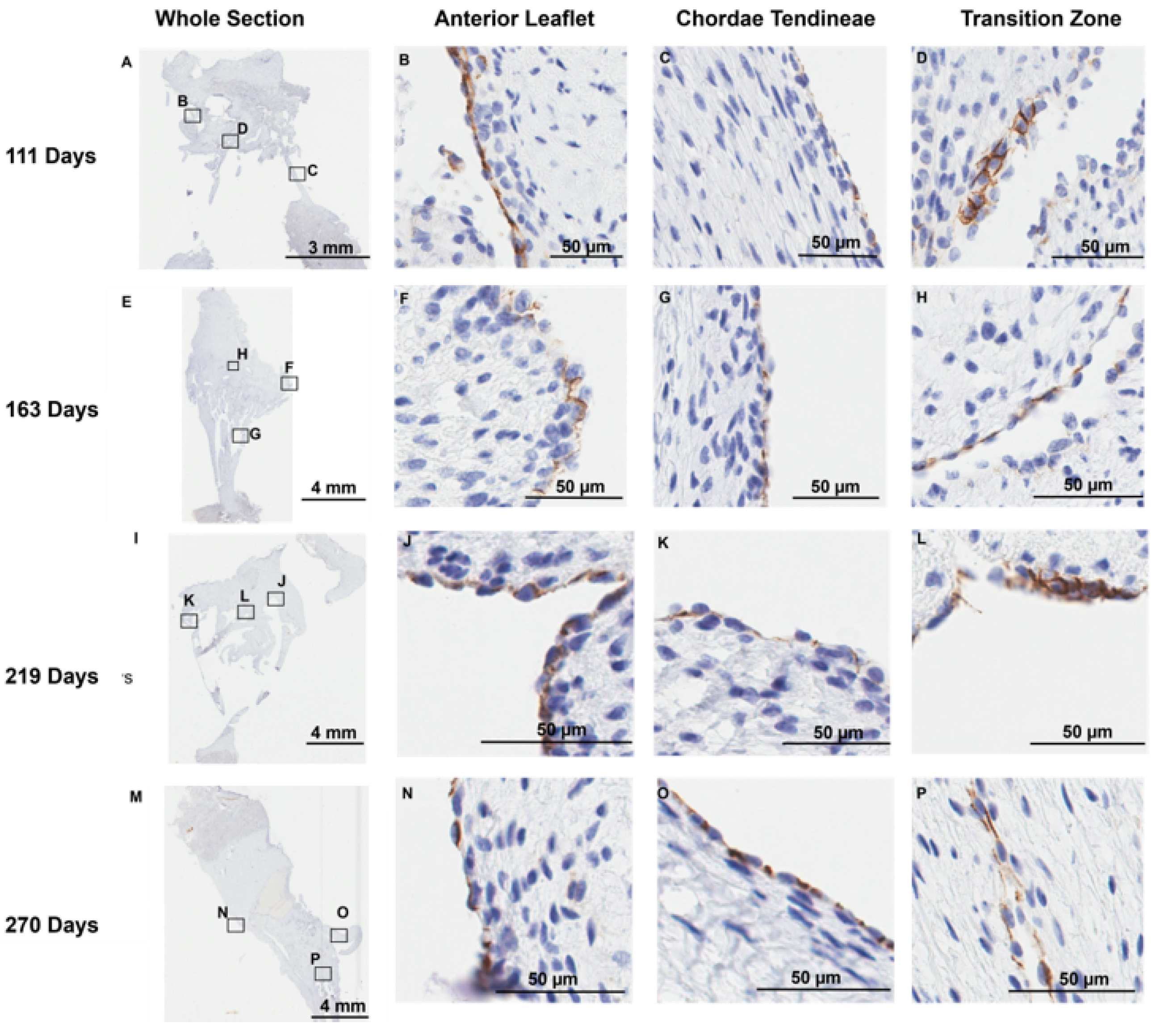

Figure 7.
Representative images of CD-31 (endothelial cell marker) expression throughout the mitral valve anterior apparatus. (A,E,I,M) Overview of the CD-31-stained sections. Boxes show where subsequent magnified panel images were taken from. (B,F,J,N) Magnified images of the outer edge of the anterior leaflet showing CD-31 staining in the cells lining the leaflet. (C,G,K,O) Magnified images of the outer edge of the chordae tendineae showing CD-31 staining in the cells lining them. (D,H,L,P) Magnified images showing CD-31 staining in the cells lining the perforations in the transition zone. (A–D) Valve in the early second trimester (111 days into gestation); (E–H) late second trimester (163 days into gestation); (I–L) third trimester (219 days into gestation); (M–P) full term (270 days). CD-31 positive cell staining is shown in brown. Cell nuclei are stained blue. Scale bar and magnification vary per image.
Figure 7.
Representative images of CD-31 (endothelial cell marker) expression throughout the mitral valve anterior apparatus. (A,E,I,M) Overview of the CD-31-stained sections. Boxes show where subsequent magnified panel images were taken from. (B,F,J,N) Magnified images of the outer edge of the anterior leaflet showing CD-31 staining in the cells lining the leaflet. (C,G,K,O) Magnified images of the outer edge of the chordae tendineae showing CD-31 staining in the cells lining them. (D,H,L,P) Magnified images showing CD-31 staining in the cells lining the perforations in the transition zone. (A–D) Valve in the early second trimester (111 days into gestation); (E–H) late second trimester (163 days into gestation); (I–L) third trimester (219 days into gestation); (M–P) full term (270 days). CD-31 positive cell staining is shown in brown. Cell nuclei are stained blue. Scale bar and magnification vary per image.
Figure 8.

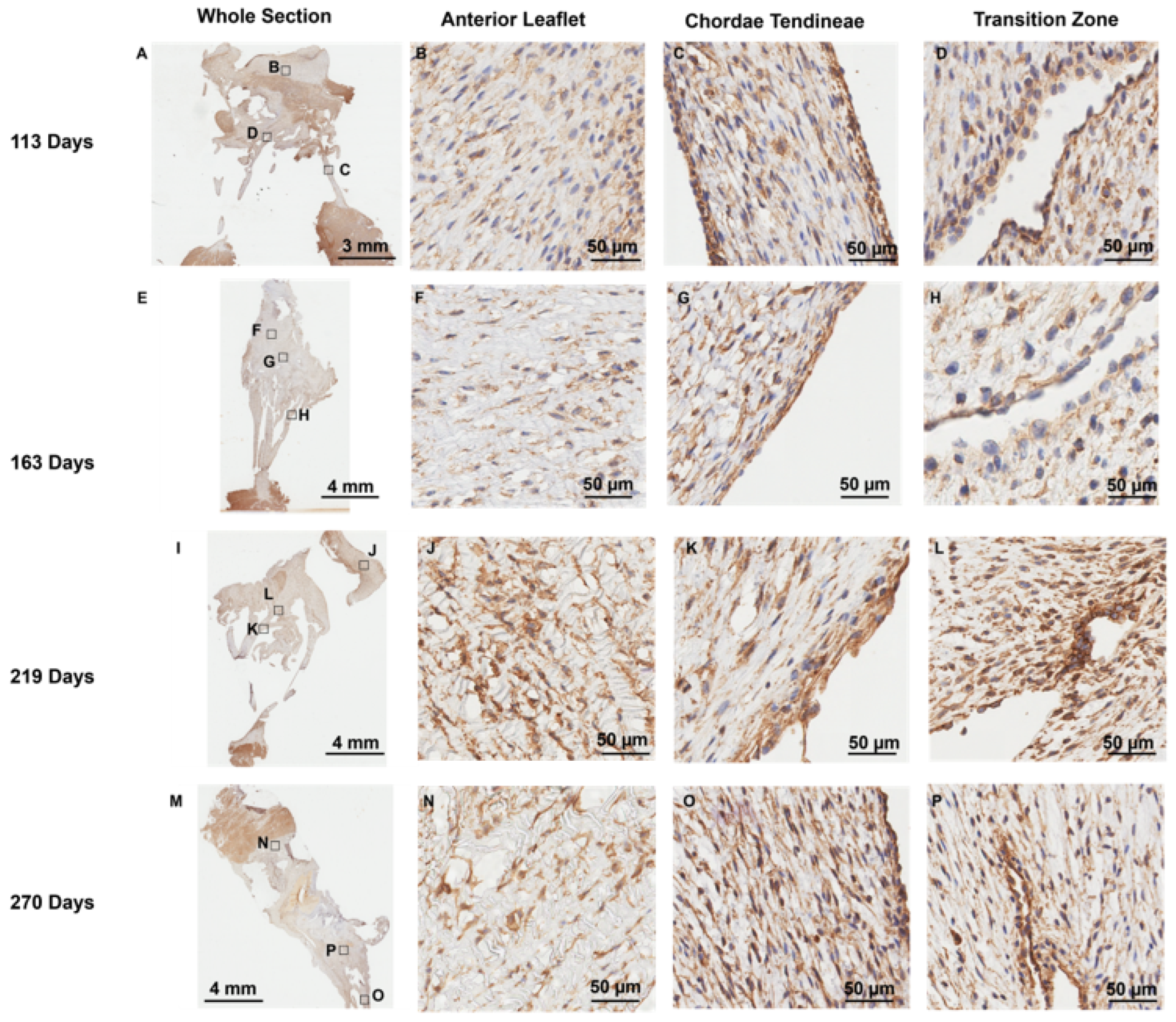

Representative images of MMP-1 expression throughout the mitral valve anterior apparatus. (A,E,I,M) Overview of the MMP-1-stained sections. Boxes show where subsequent magnified panel images were taken from. (B,F,J,N) Magnified images of the body of the anterior leaflet showing diffuse MMP-1 staining throughout. (C,G,K,O) Magnified images of the chordae tendineae showing diffuse MMP-1 staining within the chordae and dense expression in the outer chordal edges. (D,H,L,P) Magnified images showing MMP-1 staining in the cells lining the perforations in the transition zone as well as the tissue around them. (A–D) Valve in the early second trimester (111 days into gestation); (E–H) late second trimester (163 days into gestation); (I–L) third trimester (219 days into gestation); (M–P) full term (270 days). MMP-1 positive staining is shown in brown. Cell nuclei are stained blue. Scale bar and magnification vary per image.
Figure 8.
Representative images of MMP-1 expression throughout the mitral valve anterior apparatus. (A,E,I,M) Overview of the MMP-1-stained sections. Boxes show where subsequent magnified panel images were taken from. (B,F,J,N) Magnified images of the body of the anterior leaflet showing diffuse MMP-1 staining throughout. (C,G,K,O) Magnified images of the chordae tendineae showing diffuse MMP-1 staining within the chordae and dense expression in the outer chordal edges. (D,H,L,P) Magnified images showing MMP-1 staining in the cells lining the perforations in the transition zone as well as the tissue around them. (A–D) Valve in the early second trimester (111 days into gestation); (E–H) late second trimester (163 days into gestation); (I–L) third trimester (219 days into gestation); (M–P) full term (270 days). MMP-1 positive staining is shown in brown. Cell nuclei are stained blue. Scale bar and magnification vary per image.

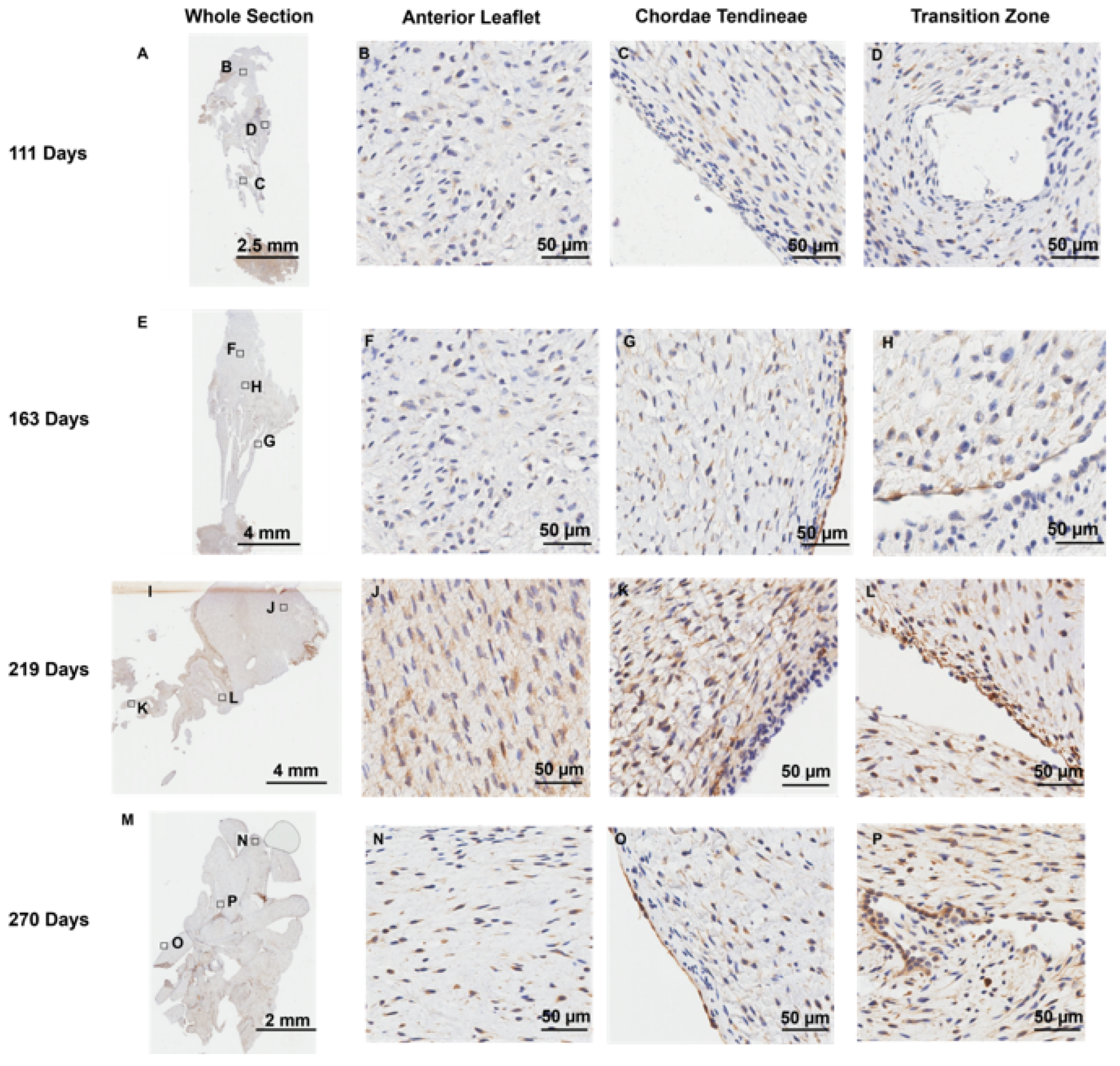

Figure 9.
Representative images of MMP-2 expression throughout the mitral valve anterior apparatus. (A,E,I,M) Overview of the MMP-2-stained sections. Boxes show where subsequent magnified panel images were taken from. (B,F,J,N) Magnified images of the body of the anterior leaflet showing diffuse MMP-2 staining throughout. (C,G,K,O) Magnified images of the chordae tendineae showing diffuse MMP-2 staining within the chordae and dense expression in the outer chordal edges. (D,H,L,P) Magnified images showing MMP-2 staining in the cells lining the perforations in the transition zone as well as the tissue around them. (A–D) Valve in the early second trimester (111 days into gestation); (E–H) late second trimester (163 days into gestation); (I–L) third trimester (219 days into gestation); (M–P) full term (270 days). MMP-2 positive staining is shown in brown. Cell nuclei are stained blue. Scale bar and magnification vary per image. Note that to preserve tissue integrity, the epitope retrieval time was reduced for MMP-2 staining; therefore, differences in intensity cannot be interpreted as differences in the levels of MMP expression between MMP-1 and MMP-2 sections.
Figure 9.
Representative images of MMP-2 expression throughout the mitral valve anterior apparatus. (A,E,I,M) Overview of the MMP-2-stained sections. Boxes show where subsequent magnified panel images were taken from. (B,F,J,N) Magnified images of the body of the anterior leaflet showing diffuse MMP-2 staining throughout. (C,G,K,O) Magnified images of the chordae tendineae showing diffuse MMP-2 staining within the chordae and dense expression in the outer chordal edges. (D,H,L,P) Magnified images showing MMP-2 staining in the cells lining the perforations in the transition zone as well as the tissue around them. (A–D) Valve in the early second trimester (111 days into gestation); (E–H) late second trimester (163 days into gestation); (I–L) third trimester (219 days into gestation); (M–P) full term (270 days). MMP-2 positive staining is shown in brown. Cell nuclei are stained blue. Scale bar and magnification vary per image. Note that to preserve tissue integrity, the epitope retrieval time was reduced for MMP-2 staining; therefore, differences in intensity cannot be interpreted as differences in the levels of MMP expression between MMP-1 and MMP-2 sections.
![Jcdd 11 00367 g009]()
Figure 10.

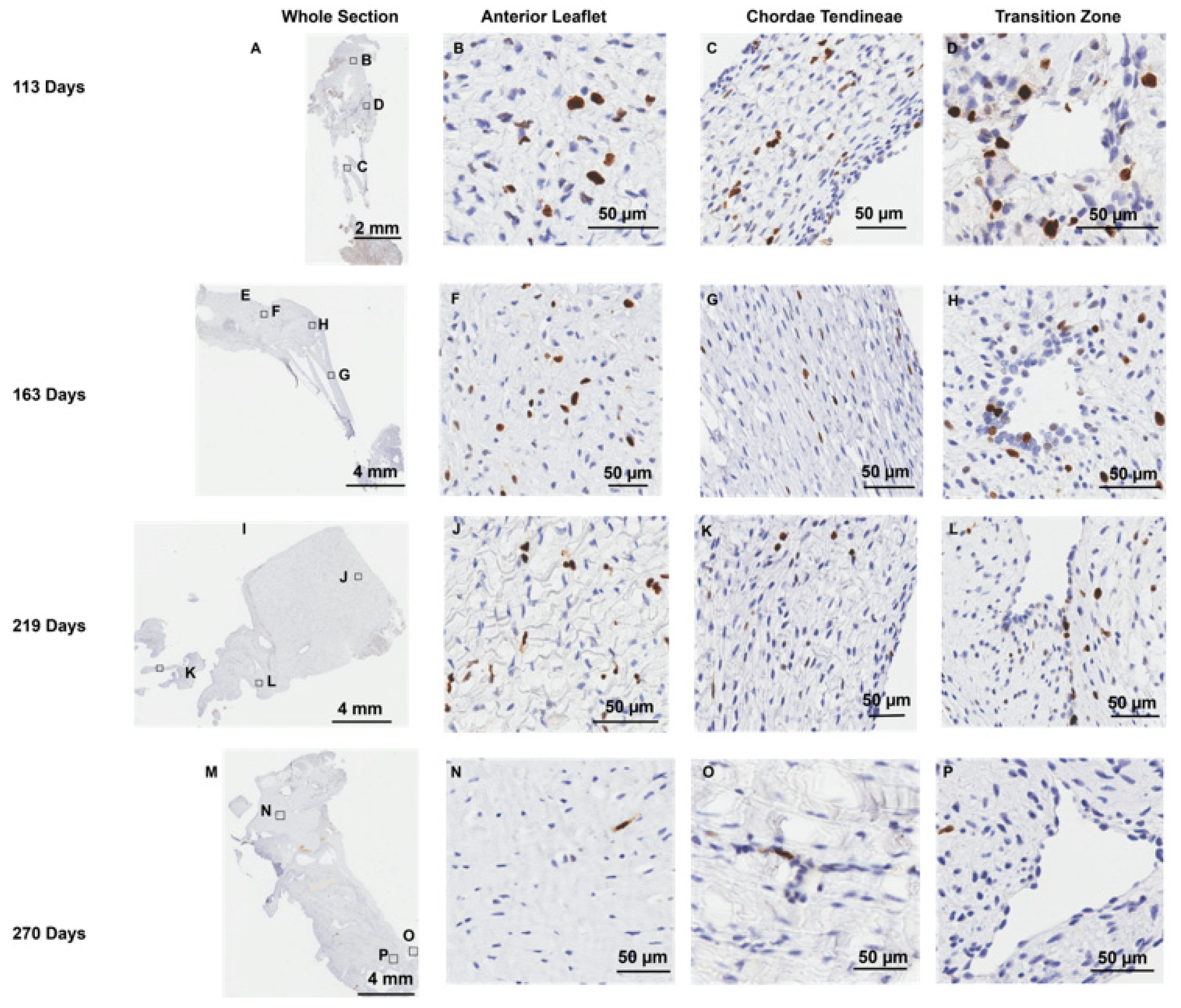

Representative images of Ki-67 expression throughout the mitral valve anterior apparatus. (A,E,I,M) Overview of the Ki-67-stained sections. Boxes show where subsequent magnified panel images were taken from. (B,F,J,N) Magnified images of the body of the anterior leaflet showing Ki-67 positive cells. (C,G,K,O) Magnified images of the chordae tendineae showing Ki-67 positive cell staining. (D,H,L,P) Magnified images showing Ki-67 staining in the cells lining the perforations in the transition zone as well as in the tissue around them. (A–D) Valve in the early second trimester (113 days into gestation); (E–H) late second trimester (163 days into gestation); (I–L) third trimester (219 days into gestation); (M–P) full term (270 days). Ki-67 positive cells are shown in brown. Ki-67 negative cell nuclei are stained blue. Scale bar and magnification vary per image.
Figure 10.
Representative images of Ki-67 expression throughout the mitral valve anterior apparatus. (A,E,I,M) Overview of the Ki-67-stained sections. Boxes show where subsequent magnified panel images were taken from. (B,F,J,N) Magnified images of the body of the anterior leaflet showing Ki-67 positive cells. (C,G,K,O) Magnified images of the chordae tendineae showing Ki-67 positive cell staining. (D,H,L,P) Magnified images showing Ki-67 staining in the cells lining the perforations in the transition zone as well as in the tissue around them. (A–D) Valve in the early second trimester (113 days into gestation); (E–H) late second trimester (163 days into gestation); (I–L) third trimester (219 days into gestation); (M–P) full term (270 days). Ki-67 positive cells are shown in brown. Ki-67 negative cell nuclei are stained blue. Scale bar and magnification vary per image.

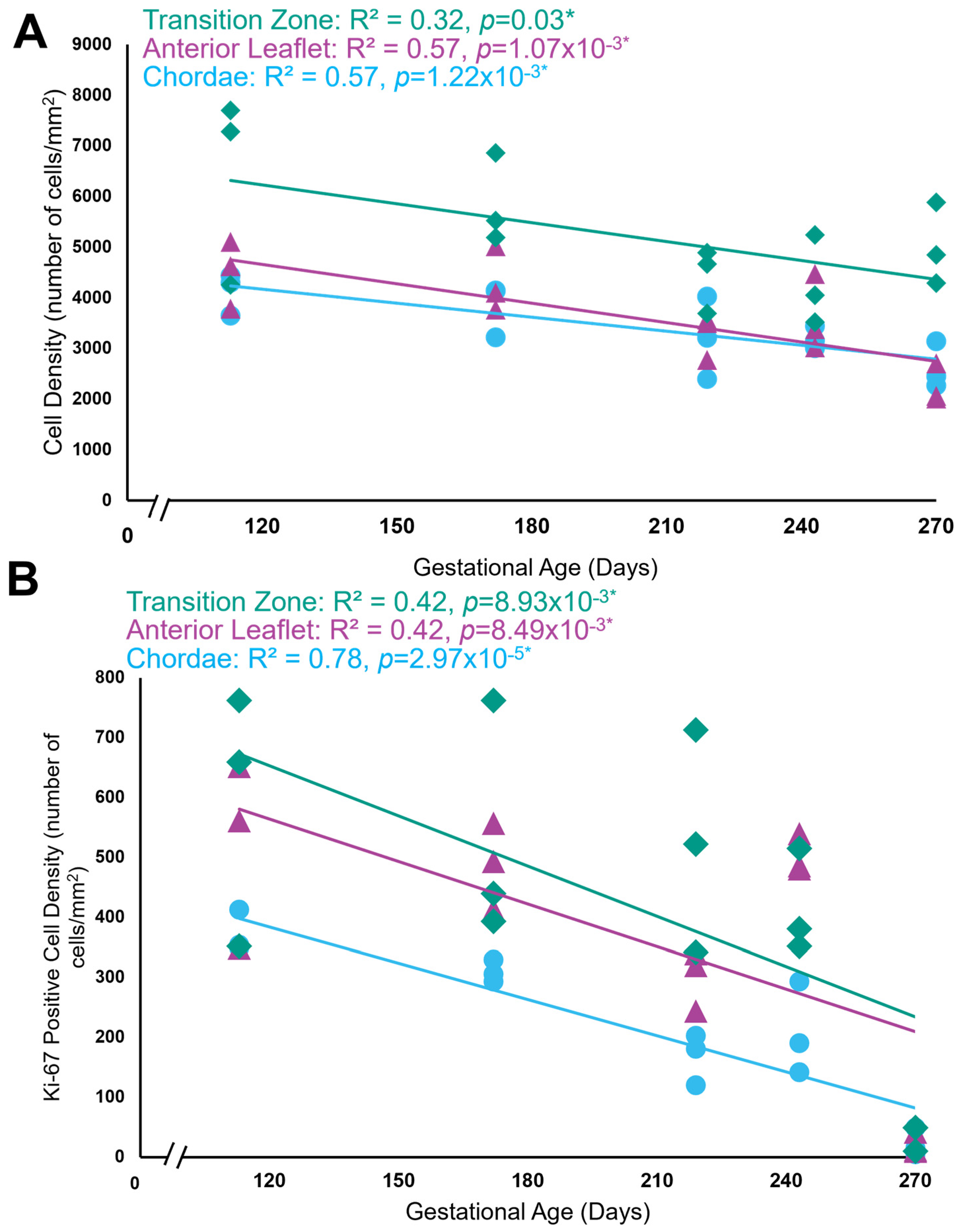

Figure 11.
Both total cell density and total Ki-67 positive cell density decreased over time but were highest within the transition zone. (A) Total cell density (number of cells per mm2) in the anterior leaflet (purple triangles), the chordae tendineae (blue circles), and the transition zone (green diamonds) plotted as a function of gestational age, showing a significant correlation between these variables for each area. (B) Total Ki-67 positive cell density (number of cells per mm2) in the anterior leaflet (purple triangles), the chordae tendineae (blue circles), and the transition zone (green diamonds) plotted as a function of gestational age, showing a significant correlation between these variables for each area. Data are shown from five animals of five gestational ages. For each animal, data are shown for the anterior leaflet, the transition zone, and chordae tendineae, where three grids were analyzed in each region. Note the x-axis break on both graphs. * Denotes a slope significantly greater than zero.
Figure 11.
Both total cell density and total Ki-67 positive cell density decreased over time but were highest within the transition zone. (A) Total cell density (number of cells per mm2) in the anterior leaflet (purple triangles), the chordae tendineae (blue circles), and the transition zone (green diamonds) plotted as a function of gestational age, showing a significant correlation between these variables for each area. (B) Total Ki-67 positive cell density (number of cells per mm2) in the anterior leaflet (purple triangles), the chordae tendineae (blue circles), and the transition zone (green diamonds) plotted as a function of gestational age, showing a significant correlation between these variables for each area. Data are shown from five animals of five gestational ages. For each animal, data are shown for the anterior leaflet, the transition zone, and chordae tendineae, where three grids were analyzed in each region. Note the x-axis break on both graphs. * Denotes a slope significantly greater than zero.
![Jcdd 11 00367 g011]()
Figure 12.

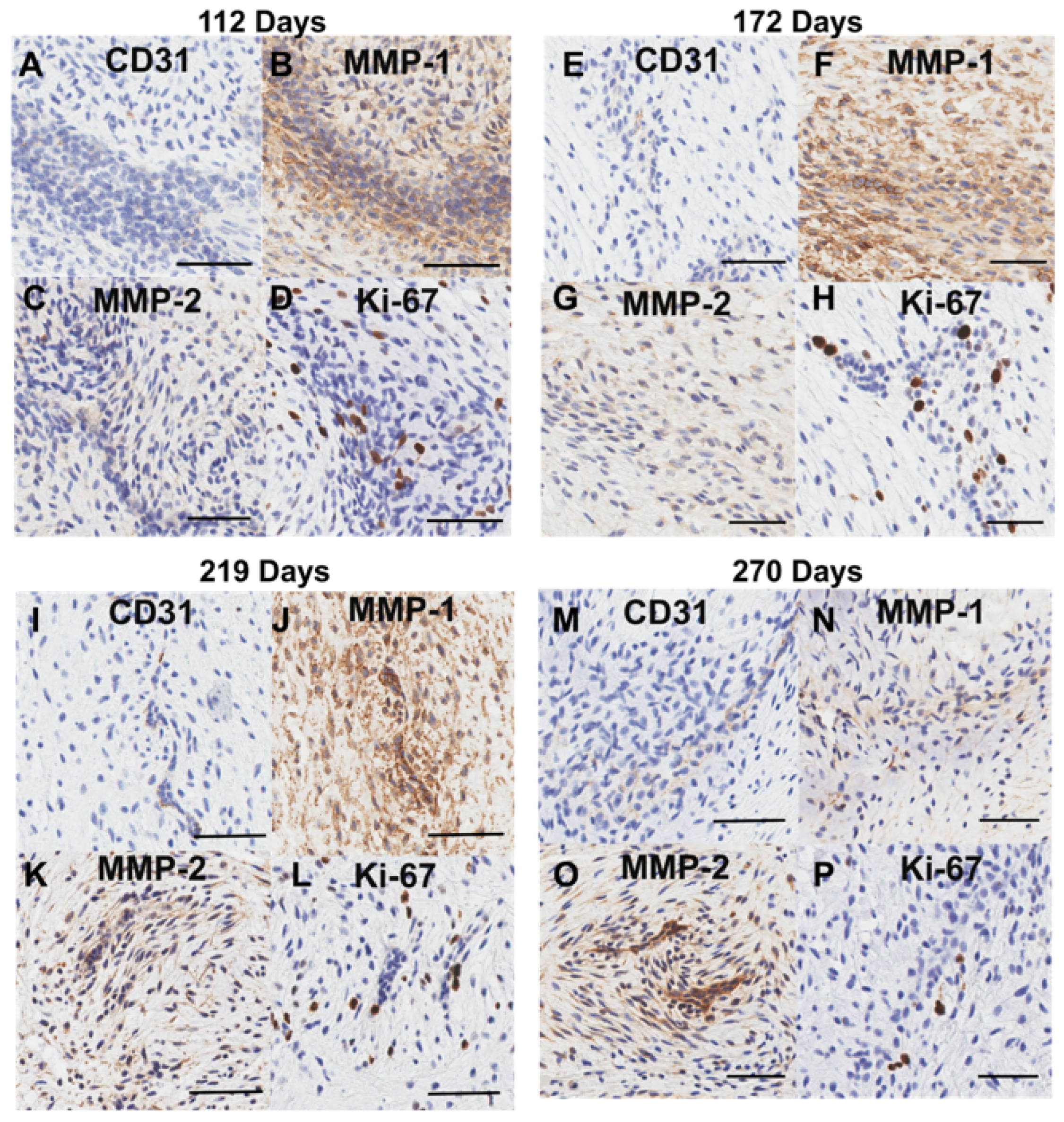

Representative images of the cell clusters present within the transition zone throughout gestation. (A,E,I,M) CD-31staining is present in cells within the clusters. (B,F,J,N) MMP-1 staining is found within and around the cell clusters. (C,G,K,O) MMP-2 staining is found within and around the cell clusters. (D,H,L,P) Some cells within the clusters are positive for Ki-67 staining. (A–D) Valve in the early second trimester (113 days into gestation); (E–H) late second trimester (163 days into gestation); (I–L) third trimester (219 days into gestation); (M–P) full term (270 days). Positive marker staining is shown in brown. Cell nuclei are stained blue. The scale bar varies per image.
Figure 12.
Representative images of the cell clusters present within the transition zone throughout gestation. (A,E,I,M) CD-31staining is present in cells within the clusters. (B,F,J,N) MMP-1 staining is found within and around the cell clusters. (C,G,K,O) MMP-2 staining is found within and around the cell clusters. (D,H,L,P) Some cells within the clusters are positive for Ki-67 staining. (A–D) Valve in the early second trimester (113 days into gestation); (E–H) late second trimester (163 days into gestation); (I–L) third trimester (219 days into gestation); (M–P) full term (270 days). Positive marker staining is shown in brown. Cell nuclei are stained blue. The scale bar varies per image.

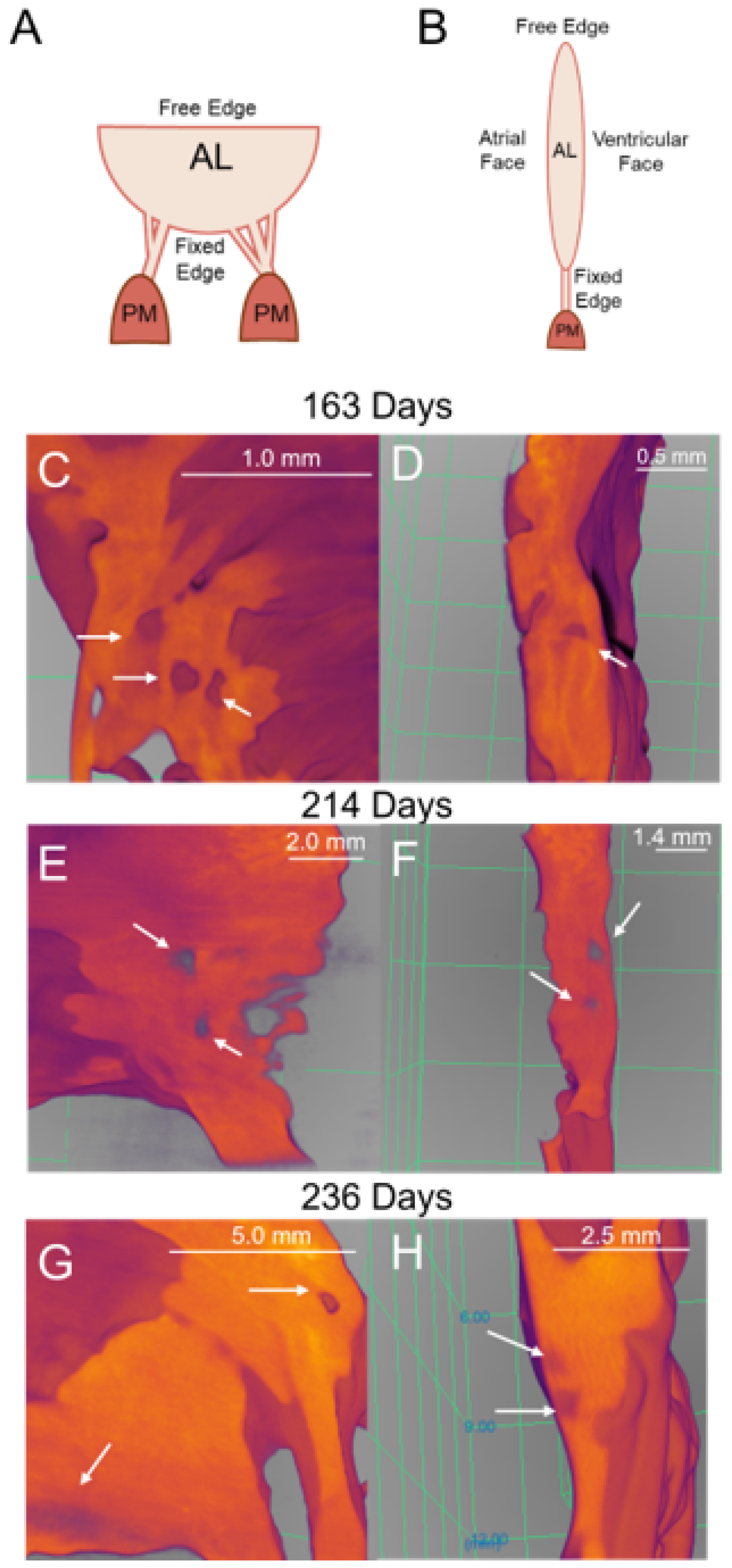

Figure 13.
Similar perforations to those found in histology are present in micro-CT 3D renderings of the fetal mitral valve. (A) Diagram representing the orientation of the mitral valve in (C,E,G) where the view is of the ventricular face. (B) Diagram representing the orientation of the mitral valve in (D,F,H) where it is a side view of the mitral valve. (C,D) Late second trimester (163 days into gestation) ventricular view (C) and side view (D). (E,F) Third trimester (214 days into gestation) ventricular view (E) and side view (F). (G,H) Later third trimester (236 days into gestation), ventricular view (G) and side view (H). White arrows denote perforations, seen as distinct circular disruptions in the structure. Image color is related to optical density; bright orange is denser tissue. The scale bar varies per image.
Figure 13.
Similar perforations to those found in histology are present in micro-CT 3D renderings of the fetal mitral valve. (A) Diagram representing the orientation of the mitral valve in (C,E,G) where the view is of the ventricular face. (B) Diagram representing the orientation of the mitral valve in (D,F,H) where it is a side view of the mitral valve. (C,D) Late second trimester (163 days into gestation) ventricular view (C) and side view (D). (E,F) Third trimester (214 days into gestation) ventricular view (E) and side view (F). (G,H) Later third trimester (236 days into gestation), ventricular view (G) and side view (H). White arrows denote perforations, seen as distinct circular disruptions in the structure. Image color is related to optical density; bright orange is denser tissue. The scale bar varies per image.

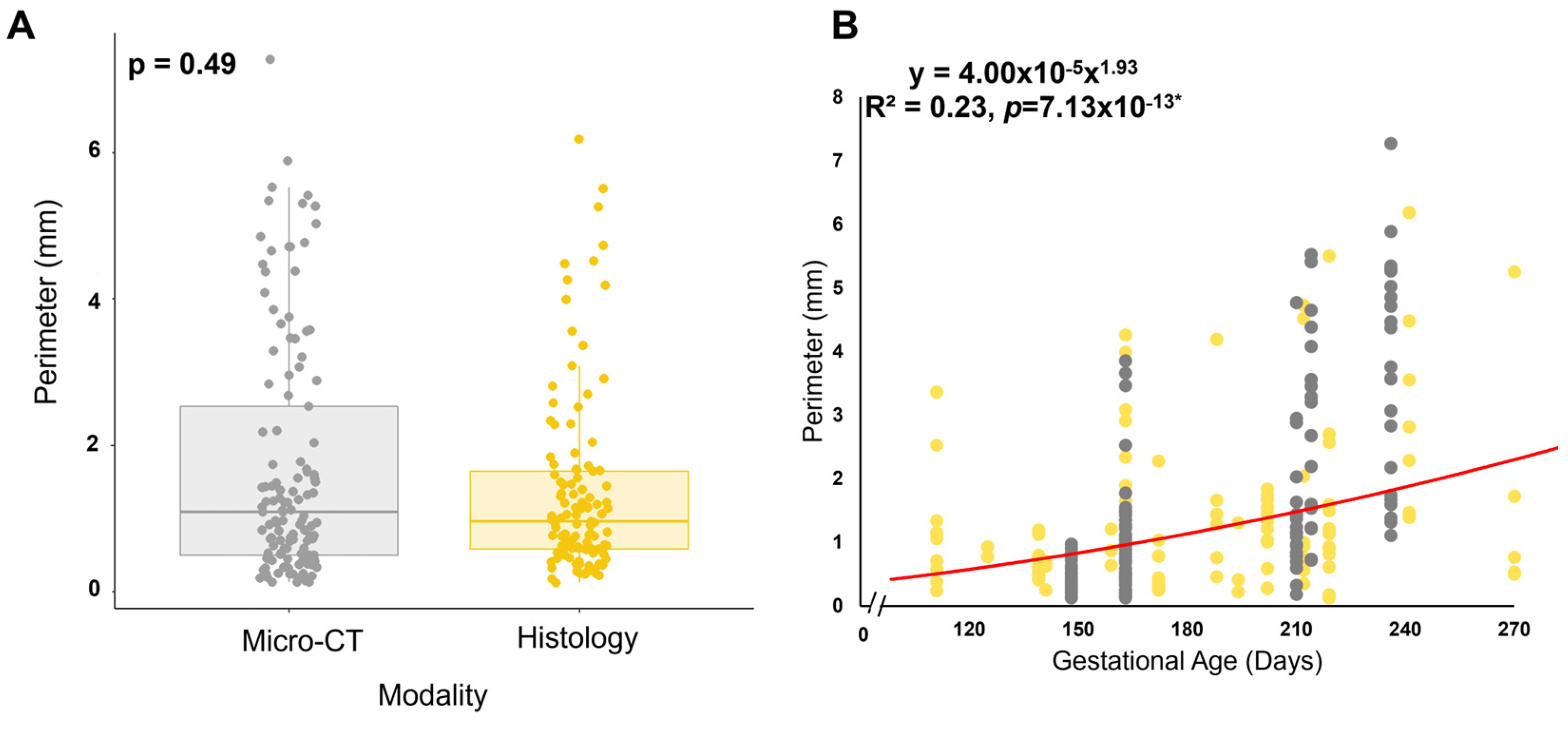

Figure 14.
Observed perforations possess similar dimensions between both imaging modalities. (A) A Mann–Whitney U test determined there was no significant difference. (B) Perimeter (mm) versus gestational age (in days) demonstrating a strong relationship between these variables. As there was no significant difference, all the perimeter sizes were binned together for the power relationship analysis. * and solid red line denote a slope significantly greater than zero. Each point represents n = 1 perforation. The total sample size was n = 44 for micro-CT and n = 56 for histology.
Figure 14.
Observed perforations possess similar dimensions between both imaging modalities. (A) A Mann–Whitney U test determined there was no significant difference. (B) Perimeter (mm) versus gestational age (in days) demonstrating a strong relationship between these variables. As there was no significant difference, all the perimeter sizes were binned together for the power relationship analysis. * and solid red line denote a slope significantly greater than zero. Each point represents n = 1 perforation. The total sample size was n = 44 for micro-CT and n = 56 for histology.
Figure 15.

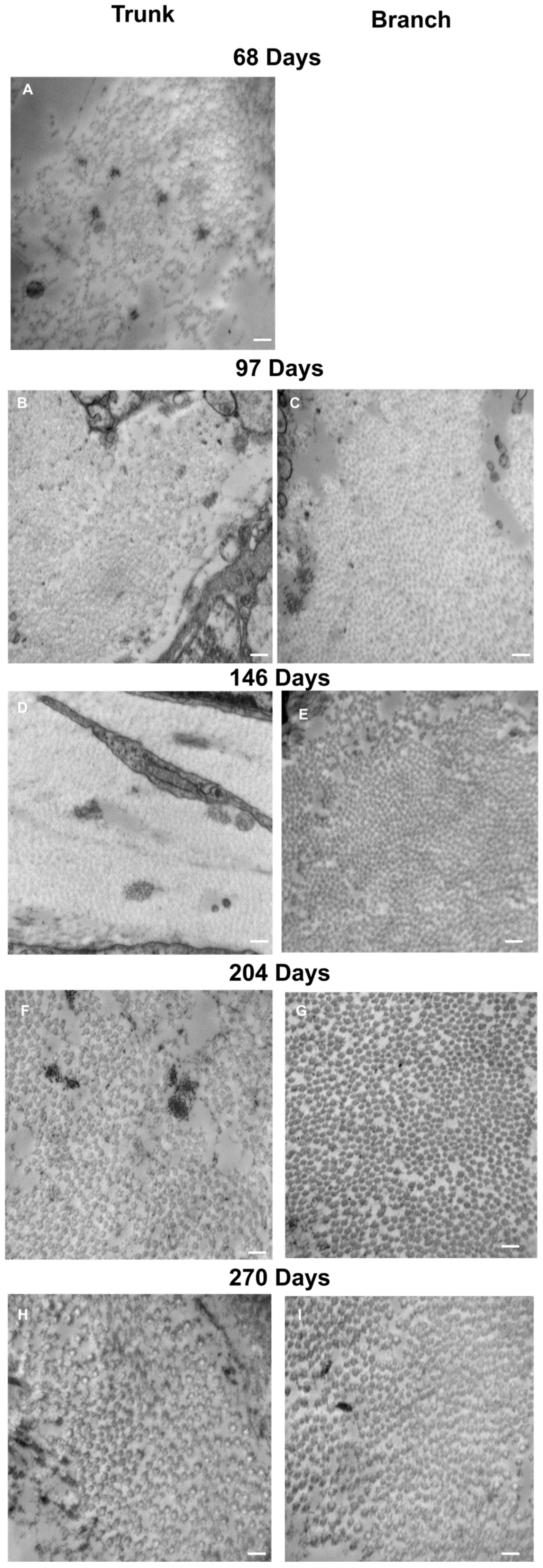

Representative transmission electron microscopy images of the trunk (A–E) and branch chordae (F–I) over gestation. (A) First trimester (68 days into gestation), no discernable branches were apparent. (B,F) Early second trimester (97 days into gestation). (C,G) Mid second trimester (146 days into gestation). (D,H) Early third trimester (204 days into gestation). (E,I) Full term (270 days into gestation). All images were taken at 50,000× magnification. The scale bar represents 200 nm.
Figure 15.
Representative transmission electron microscopy images of the trunk (A–E) and branch chordae (F–I) over gestation. (A) First trimester (68 days into gestation), no discernable branches were apparent. (B,F) Early second trimester (97 days into gestation). (C,G) Mid second trimester (146 days into gestation). (D,H) Early third trimester (204 days into gestation). (E,I) Full term (270 days into gestation). All images were taken at 50,000× magnification. The scale bar represents 200 nm.
Figure 16.

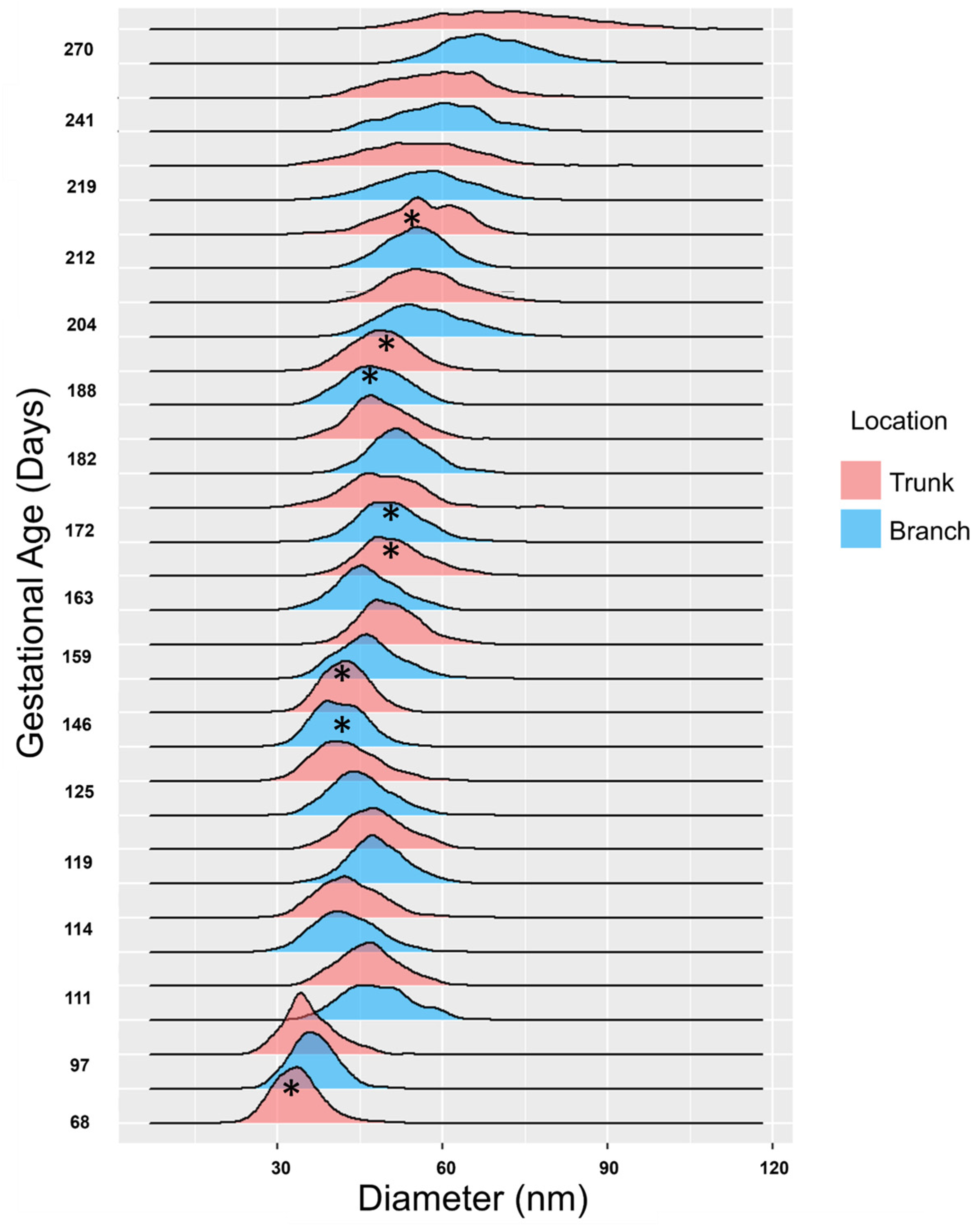

Collagen fibril diameters increase over gestation, with distributions alternating between unimodal and bimodal distributions in both the trunk and branch chordae. Collagen fibril diameters (in nm) are plotted as a histogram and binned by both gestational age in days as well as location (trunk in red, branches in blue). * denotes a bimodal distribution as measured via Hartigan’s diptest. Note that at 68 days, there were no discernable branch chordae, so only the trunk is shown.
Figure 16.
Collagen fibril diameters increase over gestation, with distributions alternating between unimodal and bimodal distributions in both the trunk and branch chordae. Collagen fibril diameters (in nm) are plotted as a histogram and binned by both gestational age in days as well as location (trunk in red, branches in blue). * denotes a bimodal distribution as measured via Hartigan’s diptest. Note that at 68 days, there were no discernable branch chordae, so only the trunk is shown.

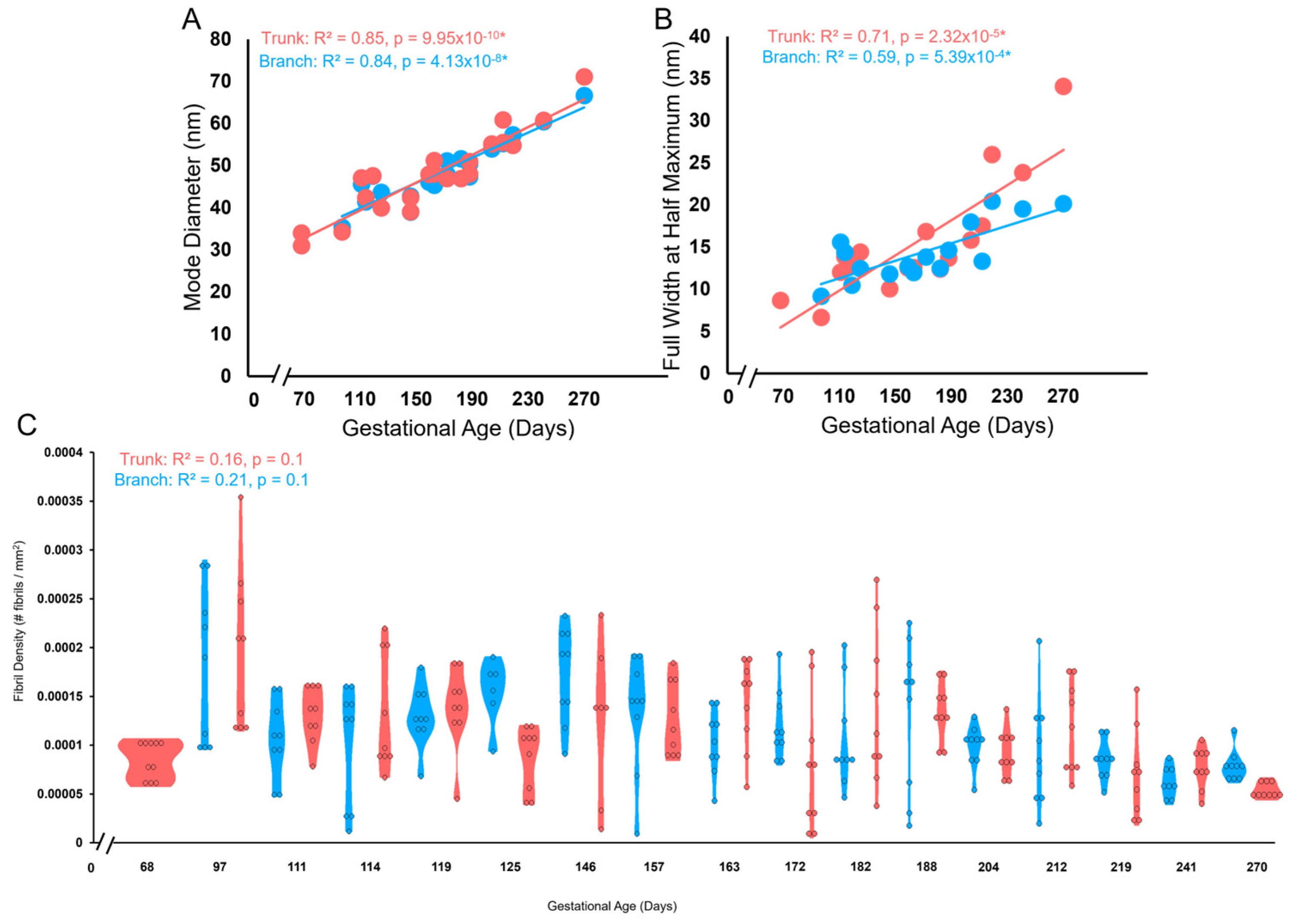

Figure 17.
The trunk and branch chordae exhibit similar increases in the collagen fibril diameter and FWHM with a constant collagen fibril density over gestation. (A) Mode diameter of the trunk (red circles) and branches (blue circles) in nm plotted as a function of gestational age. (B) FWHM of the trunk (red circles) and branches (blue circles) in nm plotted as a function of gestational age. There was no difference in the rate of increase between branches and trunk as measured by ANCOVA. (C) Violin plot of fibril density (number of fibrils per mm2) versus gestational age in days for either the trunk (red) or branches (blue). * denotes a slope significantly greater than zero.
Figure 17.
The trunk and branch chordae exhibit similar increases in the collagen fibril diameter and FWHM with a constant collagen fibril density over gestation. (A) Mode diameter of the trunk (red circles) and branches (blue circles) in nm plotted as a function of gestational age. (B) FWHM of the trunk (red circles) and branches (blue circles) in nm plotted as a function of gestational age. There was no difference in the rate of increase between branches and trunk as measured by ANCOVA. (C) Violin plot of fibril density (number of fibrils per mm2) versus gestational age in days for either the trunk (red) or branches (blue). * denotes a slope significantly greater than zero.

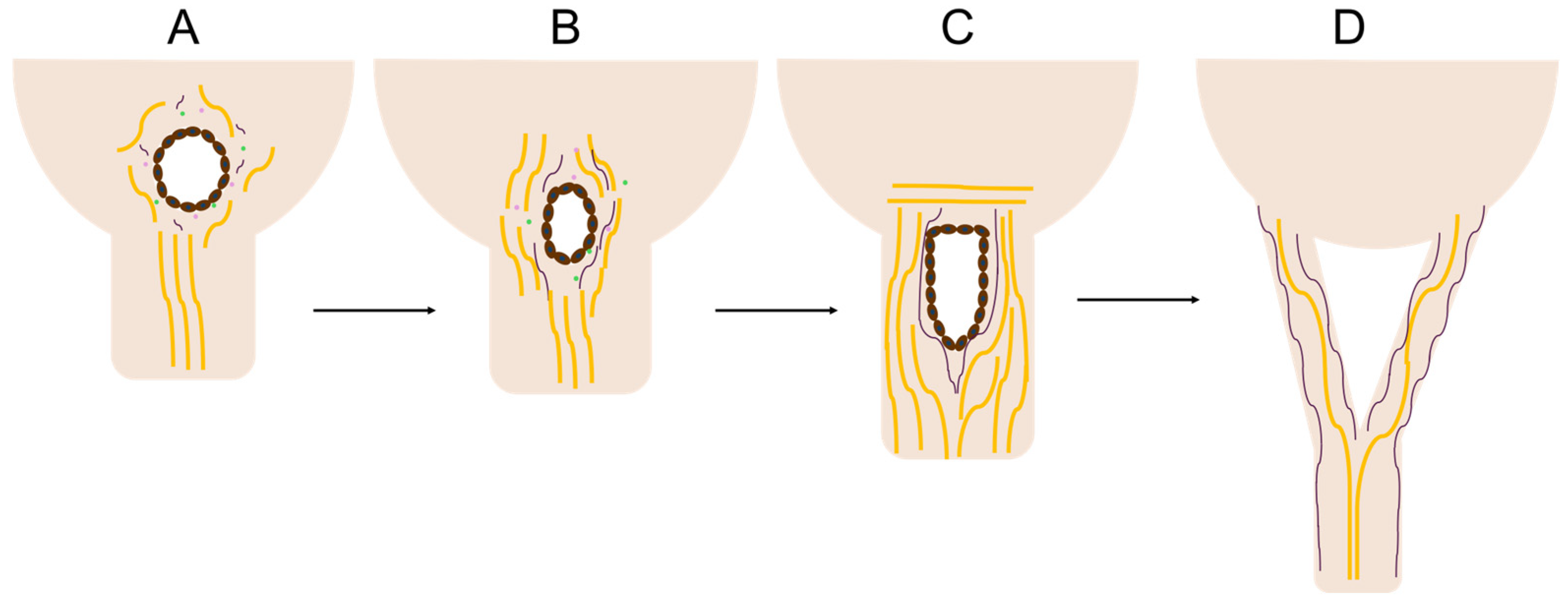

Figure 18.
Schematic depicting the stages of perforation development that splits a single attachment into two. (A) Perforations created by endothelial cell clusters possess an internal lining of endothelial cells (brown ovals with blue nuclei) that express MMP-1 (pink circles) and MMP-2 (green circles). Shorter collagen fibers (yellow) and elastic fiber fragments (purple) are found surrounding the perforation. (B) Collagen and elastic fibers begin to align in parallel with the chordae axis. (C) The cellular activity splits the single chordal attachment site into two, with collagen and elastic fibers aligning in parallel with the chordal axis. (D) The split continues to propagate longitudinally, creating two new chordal branches, and the perforation is remodeled into the bifurcation region.
Figure 18.
Schematic depicting the stages of perforation development that splits a single attachment into two. (A) Perforations created by endothelial cell clusters possess an internal lining of endothelial cells (brown ovals with blue nuclei) that express MMP-1 (pink circles) and MMP-2 (green circles). Shorter collagen fibers (yellow) and elastic fiber fragments (purple) are found surrounding the perforation. (B) Collagen and elastic fibers begin to align in parallel with the chordae axis. (C) The cellular activity splits the single chordal attachment site into two, with collagen and elastic fibers aligning in parallel with the chordal axis. (D) The split continues to propagate longitudinally, creating two new chordal branches, and the perforation is remodeled into the bifurcation region.

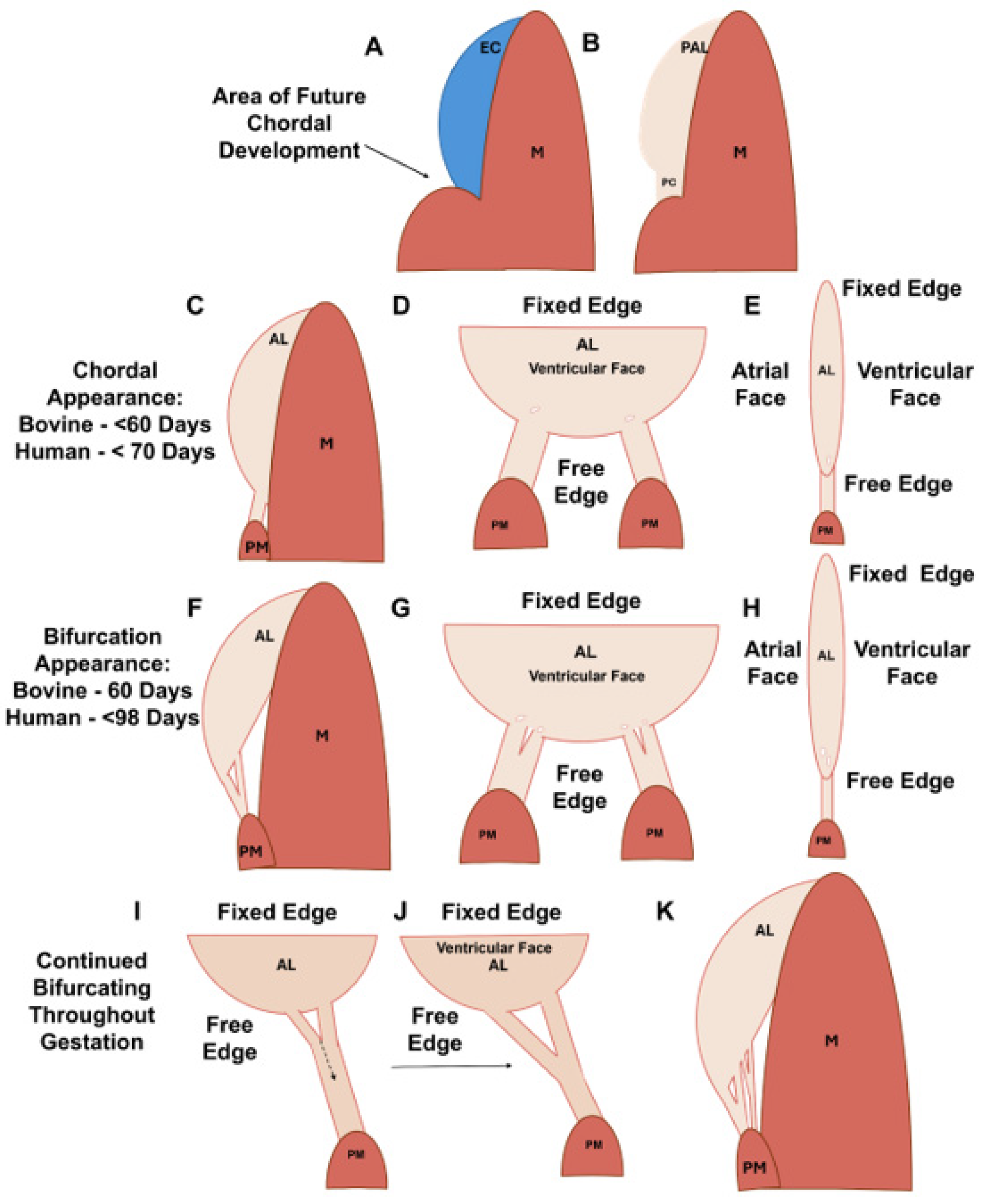

Figure 19.
Schematic depicting the stages of chordae tendineae formation over gestation. (A) In the post-fusion endocardial cushion (EC), the area that will form the first chordal tendon is specified towards the papillary muscle connection. (B) After cushion remodeling, the primordial anterior leaflet (PAL) possesses a more semilunar shape, and the primordial chordae (PC) is a thin section of tissue connected to the PAL and the papillary muscle. (C) Sometime before 60 days in bovines (before ~70 days in humans), the PC has been remodeled into the first chordal tendons while the anterior leaflet (AL) remains connected to the underlying myocardium (M). (D) The ventricular face view at the same time point showing the first two chordae with perforations forming at their attachment points. (E) The side view at the same time point showing the perforation. (F) The first bifurcation appears at approximately 60 days in bovines (sometime before 98 days in humans) as the anterior leaflet has begun to delaminate from the underlying myocardium. (G) The ventricular face view at the same time point showing the first initial branches and subsequent perforation formation to further bifurcate the new branches. (H) The side view at the same time point showing subsequent perforation formation. (I,J) The initiated split from the perforations will continue to propagate longitudinally down the trunk toward the papillary muscle (PM). (K) The end result of fetal development is a fan-like network of attachments to the leaflet.
Figure 19.
Schematic depicting the stages of chordae tendineae formation over gestation. (A) In the post-fusion endocardial cushion (EC), the area that will form the first chordal tendon is specified towards the papillary muscle connection. (B) After cushion remodeling, the primordial anterior leaflet (PAL) possesses a more semilunar shape, and the primordial chordae (PC) is a thin section of tissue connected to the PAL and the papillary muscle. (C) Sometime before 60 days in bovines (before ~70 days in humans), the PC has been remodeled into the first chordal tendons while the anterior leaflet (AL) remains connected to the underlying myocardium (M). (D) The ventricular face view at the same time point showing the first two chordae with perforations forming at their attachment points. (E) The side view at the same time point showing the perforation. (F) The first bifurcation appears at approximately 60 days in bovines (sometime before 98 days in humans) as the anterior leaflet has begun to delaminate from the underlying myocardium. (G) The ventricular face view at the same time point showing the first initial branches and subsequent perforation formation to further bifurcate the new branches. (H) The side view at the same time point showing subsequent perforation formation. (I,J) The initiated split from the perforations will continue to propagate longitudinally down the trunk toward the papillary muscle (PM). (K) The end result of fetal development is a fan-like network of attachments to the leaflet.
![Jcdd 11 00367 g019]()
Table 1.
Antibody specific differences in immunohistochemistry protocol.
Table 1.
Antibody specific differences in immunohistochemistry protocol.
Step | CD31 Staining | MMP-1 Staining | MMP-2 Staining | Ki-67 Staining |
---|
Heat-Induced Epitope Retrieval Time (Minutes) | 40 | 40 | 30 | 30 |
Primary Antibody and Dilution | CD31 rabbit polyclonal (Abcam, Cambridge, UK, ab28364, 1:50) | MMP-1 rabbit monoclonal (Abcam ab52631, 1:40) | MMP-2 rabbit polyclonal (Abcam ab97779, 1:200) | Ki-67 rabbit monoclonal (Abcam ab16667, 1:200) |
Primary Antibody Incubation Time (Minutes) | 60 | 60 | 30 | 60 |
Polymer Solution Incubation Time (Minutes) | 12 | 12 | 8 | 12 |
DAB Incubation Time (Minutes) | 20 | 20 | 10 | 20 |
