# Machine Learning for Optical Motion Capture-Driven Musculoskeletal Modelling from Inertial Motion Capture Data

^{1}

^{2}

^{3}

^{4}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Materials and Methods

#### 2.1. Data

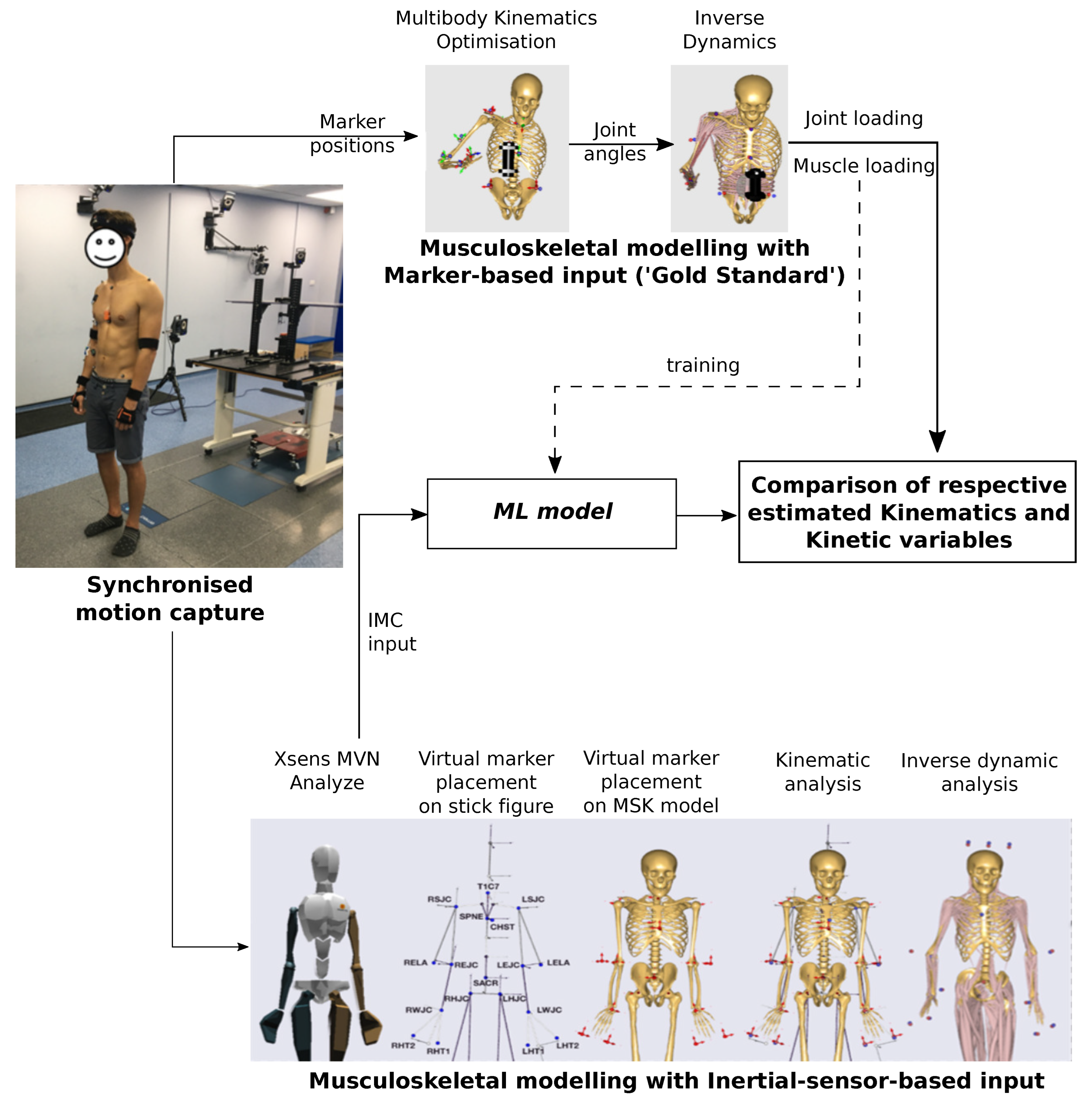

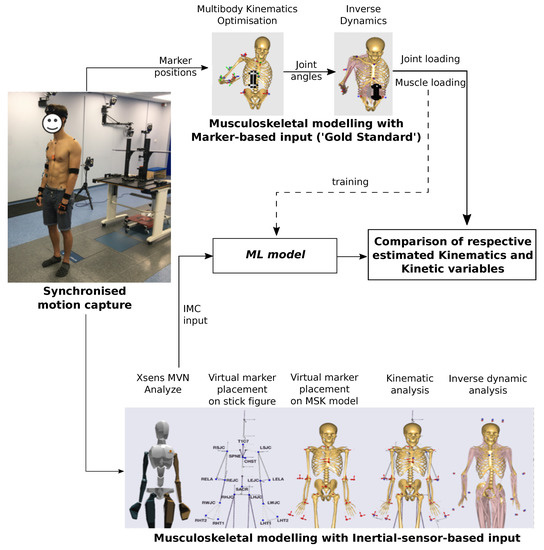

^{TM}T40S Series System (Vicon Motion Systems, Oxford, UK) for OMC data (sampled at 100 Hz) and a Full-body Xsens MVN Awinda Station (Xsens Technologies B. V., Enschede, The Netherlands) with 17 wireless IMU sensors for the IMC data (sampled at 60 Hz). Hence, we down-sampled the OMC-driven MSK outputs using cubic interpolation to match IMC input data’s sampling frequency (∼60 Hz). Passive retro-reflective markers (ø 9.5 mm) were placed on the participant’s skin using a double-sided hypoallergenic tape using the Plug-in Gait marker set [42]. Each IMU transmits data wirelessly to a master receiver in real-time and contains a gyroscope, magnetometer, 3D accelerometer, barometer, and thermometer [43]. Specifically, the IMU data from the gyroscope, magnetometer, and 3D accelerometer were used as inputs in the ML models. IMU sensors’ placement on the participants’ body segments and their setup, as well as calibration, was performed as per the Xsens MVN User Manual’s recommended protocol [44]. Data capture was synchronised between the two systems wherein the Xsens IMC system triggered the Vicon OMC system following the guidelines of Xsens with a specific trigger at the start and stop recording time [45]. Marker and sensor placement, as well as data capture for all subjects, were performed by the same tester (VHN) to remove inter-tester variability error.

^{TM}v.2.5 software [46] to clean and label the marker trajectories for MSK model inputs. The processed marker trajectories were exported in Coordinate 3D (.C3D) file format [47]. Meanwhile, Xsens MVN Analyze v.2018.0.0 software (Xsens Technologies B. V., Enschede, The Netherlands) [48] was employed for capturing the IMC data and exporting it as BioVision Hierarchy (.BVH) files for MSK model inputs where a stick-figure model was originally reconstructed. MSK modelling of the upper extremity was undertaken using AnyBody

^{TM}Modeling System (AnyBody

^{TM}Technology A/S, Aalborg, Denmark) separately for each of the mocap inputs as well as subject-specific anthropometric dimensions for scaling following these sources [18,41,49]. The ‘Inertial MoCap model’ and ‘Simple Full-Body model’ in the AnyBody Managed Model Repository (AMMR) v.2.1.1 (AnyBody

^{TM}Technology A/S, Aalborg, Denmark) were adapted separately to compute the respective kinetic variables (i.e., joint moments, joint reaction forces, and muscle forces) and kinematic variables (i.e., joint angles) of interest.

#### 2.2. Supervised Learning

- The time feature, normalised between zero and one, indicates the proportion of total time taken to complete the task at the subject’s chosen pace.
- Muscles are typically discretised into numerous muscle bundles in MSK models. MSK model outputs for muscle activations and muscle forces comprise features for the four considered superficial muscle groups, i.e., (a) Biceps Brachii, (b) Pectoralis major (Clavicle part), (c) Brachioradialis, and (d) Deltoid (Medial) [49]. The ‘maximum envelope’ of the tendon forces of specified bundles forming a certain muscle was calculated for further analysis. Muscle activation measures the force in a selected muscle relative to its strength.
- We have used many-to-one RNN architecture, which uses multiple previous inputs for an output; therefore, we transformed the time-series data into a sub-time-series of t frames by sliding across the original time-series in a step of one. Thus, the input of the RNN is $t\times 483$, where t was taken as 10.

#### 2.3. Validation and Train–Test Split

#### 2.4. Error Metrics

## 3. Results

## 4. Discussion

## 5. Study Limitations

## 6. Recommended Future Work

## 7. Conclusions

## Supplementary Materials

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## References

- Rau, G.; Disselhorst-Klug, C.; Schmidt, R. Movement biomechanics goes upwards: From the leg to the arm. J. Biomech.
**2000**, 33, 1207–1216. [Google Scholar] [CrossRef] [PubMed] - Anglin, C.; Wyss, U. Review of arm motion analyses. J. Eng. Med.
**2000**, 214, 541–555. [Google Scholar] [CrossRef] [PubMed] - Erdemir, A.; McLean, S.; Herzog, W.; van den Bogert, A.J. Model-based estimation of muscle forces exerted during movements. Clin. Biomech.
**2007**, 22, 131–154. [Google Scholar] [CrossRef] [PubMed] - Killen, B.A.; Falisse, A.; De Groote, F.; Jonkers, I. In Silico-Enhanced Treatment and Rehabilitation Planning for Patients with Musculoskeletal Disorders: Can Musculoskeletal Modelling and Dynamic Simulations Really Impact Current Clinical Practice? Appl. Sci.
**2020**, 10, 7255. [Google Scholar] [CrossRef] - Smith, S.H.; Coppack, R.J.; van den Bogert, A.J.; Bennett, A.N.; Bull, A.M. Review of musculoskeletal modelling in a clinical setting: Current use in rehabilitation design, surgical decision making and healthcare interventions. Clin. Biomech.
**2021**, 83, 105292. [Google Scholar] [CrossRef] - Fregly, B.J. A Conceptual Blueprint for Making Neuromusculoskeletal Models Clinically Useful. Appl. Sci.
**2021**, 11, 2037. [Google Scholar] [CrossRef] - Zhou, H.; Hu, H. Human motion tracking for rehabilitation—A survey. Biomed. Signal Process. Control
**2008**, 3, 1–18. [Google Scholar] [CrossRef] - Cappozzo, A.; Della Croce, U.; Leardini, A.; Chiari, L. Human movement analysis using stereophotogrammetry: Part 1: Theoretical background. Gait Posture
**2005**, 21, 186–196. [Google Scholar] - Jung, E.; Lin, C.; Contreras, M.; Teodorescu, M. Applied Machine Learning on Phase of Gait Classification and Joint-Moment Regression. Biomechanics
**2022**, 2, 44–65. [Google Scholar] [CrossRef] - Iosa, M.; Picerno, P.; Paolucci, S.; Morone, G. Wearable inertial sensors for human movement analysis. Expert Rev. Med. Devices
**2016**, 13, 641–659. [Google Scholar] [CrossRef] - Picerno, P.; Iosa, M.; D’Souza, C.; Benedetti, M.G.; Paolucci, S.; Morone, G. Wearable inertial sensors for human movement analysis: A five-year update. Expert Rev. Med. Devices
**2021**, 18, 1–16. [Google Scholar] [CrossRef] - Verheul, J.; Nedergaard, N.J.; Vanrenterghem, J.; Robinson, M.A. Measuring biomechanical loads in team sports—From lab to field. Sci. Med. Footb.
**2020**, 4, 246–252. [Google Scholar] [CrossRef] - Saxby, D.J.; Killen, B.A.; Pizzolato, C.; Carty, C.; Diamond, L.; Modenese, L.; Fernandez, J.; Davico, G.; Barzan, M.; Lenton, G.; et al. Machine learning methods to support personalized neuromusculoskeletal modelling. Biomech. Model. Mechanobiol.
**2020**, 19, 1169–1185. [Google Scholar] [CrossRef] [PubMed] - Arac, A. Machine learning for 3D kinematic analysis of movements in neurorehabilitation. Curr. Neurol. Neurosci. Rep.
**2020**, 20, 1–6. [Google Scholar] [CrossRef] - Frangoudes, F.; Matsangidou, M.; Schiza, E.C.; Neokleous, K.; Pattichis, C.S. Assessing Human Motion During Exercise Using Machine Learning: A Literature Review. IEEE Access
**2022**, 10, 86874–86903. [Google Scholar] [CrossRef] - Damsgaard, M.; Rasmussen, J.; Christensen, S.T.; Surma, E.; De Zee, M. Analysis of musculoskeletal systems in the AnyBody Modeling System. Simul. Model. Pract. Theory
**2006**, 14, 1100–1111. [Google Scholar] [CrossRef] - Delp, S.L.; Anderson, F.C.; Arnold, A.S.; Loan, P.; Habib, A.; John, C.T.; Guendelman, E.; Thelen, D.G. OpenSim: Open-source software to create and analyze dynamic simulations of movement. IEEE Trans. Biomed. Eng.
**2007**, 54, 1940–1950. [Google Scholar] [CrossRef] - Karatsidis, A.; Jung, M.; Schepers, H.M.; Bellusci, G.; de Zee, M.; Veltink, P.H.; Andersen, M.S. Musculoskeletal model-based inverse dynamic analysis under ambulatory conditions using inertial motion capture. Med. Eng. Phys.
**2019**, 65, 68–77. [Google Scholar] [CrossRef] [PubMed] - Konrath, J.M.; Karatsidis, A.; Schepers, H.M.; Bellusci, G.; de Zee, M.; Andersen, M.S. Estimation of the knee adduction moment and joint contact force during daily living activities using inertial motion capture. Sensors
**2019**, 19, 1681. [Google Scholar] [CrossRef] [PubMed] - Nagaraja, V.H.; Cheng, R.; Kwong, E.M.T.; Bergmann, J.H.; Andersen, M.S.; Thompson, M.S. Marker-based vs. Inertial-based Motion Capture: Musculoskeletal Modelling of Upper Extremity Kinetics. In Proceedings of the ISPO Trent International Prosthetics Symposium (TIPS) 2019, ISPO, Manchester, UK, 20–22 March 2019; pp. 37–38. [Google Scholar]
- Larsen, F.G.; Svenningsen, F.P.; Andersen, M.S.; De Zee, M.; Skals, S. Estimation of spinal loading during manual materials handling using inertial motion capture. Ann. Biomed. Eng.
**2020**, 48, 805–821. [Google Scholar] [CrossRef] - Skals, S.; Bláfoss, R.; Andersen, L.L.; Andersen, M.S.; de Zee, M. Manual material handling in the supermarket sector. Part 2: Knee, spine and shoulder joint reaction forces. Appl. Ergon.
**2021**, 92, 103345. [Google Scholar] [CrossRef] [PubMed] - Di Raimondo, G.; Vanwanseele, B.; Van der Have, A.; Emmerzaal, J.; Willems, M.; Killen, B.A.; Jonkers, I. Inertial Sensor-to-Segment Calibration for Accurate 3D Joint Angle Calculation for Use in OpenSim. Sensors
**2022**, 22, 3259. [Google Scholar] [CrossRef] [PubMed] - Philp, F.; Freeman, R.; Stewart, C. An international survey mapping practice and barriers for upper-limb assessments in movement analysis. Gait Posture
**2022**, 96, 93–101. [Google Scholar] [CrossRef] [PubMed] - Halilaj, E.; Rajagopal, A.; Fiterau, M.; Hicks, J.L.; Hastie, T.J.; Delp, S.L. Machine learning in human movement biomechanics: Best practices, common pitfalls, and new opportunities. J. Biomech.
**2018**, 81, 1–11. [Google Scholar] [CrossRef] - Xiang, L.; Wang, A.; Gu, Y.; Zhao, L.; Shim, V.; Fernandez, J. Recent Machine Learning Progress in Lower Limb Running Biomechanics with Wearable Technology: A Systematic Review. Front. Neurorobot.
**2022**, 16, 913052. [Google Scholar] [CrossRef] - Cronin, N.J. Using deep neural networks for kinematic analysis: Challenges and opportunities. J. Biomech.
**2021**, 123, 110460. [Google Scholar] [CrossRef] - Amrein, S.; Werner, C.; Arnet, U.; de Vries, W.H. Machine-Learning-Based Methodology for Estimation of Shoulder Load in Wheelchair-Related Activities Using Wearables. Sensors
**2023**, 23, 1577. [Google Scholar] [CrossRef] - Lee, C.J.; Lee, J.K. Inertial Motion Capture-Based Wearable Systems for Estimation of Joint Kinetics: A Systematic Review. Sensors
**2022**, 22, 2507. [Google Scholar] [CrossRef] - Sharma, R.; Dasgupta, A.; Cheng, R.; Mishra, C.; Nagaraja, V.H. Machine Learning for Musculoskeletal Modeling of Upper Extremity. IEEE Sens. J.
**2022**, 22, 18684–18697. [Google Scholar] [CrossRef] - Wouda, F.J.; Giuberti, M.; Bellusci, G.; Maartens, E.; Reenalda, J.; Van Beijnum, B.J.F.; Veltink, P.H. Estimation of vertical ground reaction forces and sagittal knee kinematics during running using three inertial sensors. Front. Physiol.
**2018**, 9, 218. [Google Scholar] [CrossRef] - Fernandez, J.; Dickinson, A.; Hunter, P. Population based approaches to computational musculoskeletal modelling. Biomech. Model Mechanobiol.
**2020**, 19, 1165–1168. [Google Scholar] [CrossRef] [PubMed] - Sohane, A.; Agarwal, R. Knee Muscle Force Estimating Model Using Machine Learning Approach. Comput. J.
**2022**, 65, 1167–1177. [Google Scholar] [CrossRef] - Mubarrat, S.T.; Chowdhury, S. Convolutional LSTM: A deep learning approach to predict shoulder joint reaction forces. Comput. Methods Biomech. Biomed. Eng.
**2023**, 26, 65–77. [Google Scholar] [CrossRef] [PubMed] - Cleather, D.J. Neural network based approximation of muscle and joint contact forces during jumping and landing. J. Hum. Perform. Health
**2019**, 1, f1–f13. [Google Scholar] - Giarmatzis, G.; Zacharaki, E.I.; Moustakas, K. Real-Time Prediction of Joint Forces by Motion Capture and Machine Learning. Sensors
**2020**, 20, 6933. [Google Scholar] [CrossRef] [PubMed] - Mundt, M.; Koeppe, A.; David, S.; Witter, T.; Bamer, F.; Potthast, W.; Markert, B. Estimation of gait mechanics based on simulated and measured IMU data using an artificial neural network. Front. Bioeng. Biotechnol.
**2020**, 8, 41. [Google Scholar] [CrossRef] - Mundt, M.; Koeppe, A.; David, S.; Bamer, F.; Potthast, W.; Markert, B. Prediction of ground reaction force and joint moments based on optical motion capture data during gait. Med. Eng. Phys.
**2020**, 86, 29–34. [Google Scholar] [CrossRef] - Mundt, M.; Thomsen, W.; Witter, T.; Koeppe, A.; David, S.; Bamer, F.; Potthast, W.; Markert, B. Prediction of lower limb joint angles and moments during gait using artificial neural networks. Med. Biol. Eng. Comput.
**2020**, 58, 211–225. [Google Scholar] [CrossRef] - Nagaraja, V.; Bergmann, J.; Andersen, M.S.; Thompson, M. Compensatory Movements Involved During Simulated Upper Limb Prosthetic Usage: Reach Task vs. Reach-to-Grasp Task. In Proceedings of the XV ISB International Symposium on 3-D Analysis of Human Movement, ISB, Salford, UK, 3–6 July 2018. [Google Scholar]
- Nagaraja, V.H.; Bergmann, J.H.; Andersen, M.S.; Thompson, M.S. Comparison of a Scaled Cadaver-Based Musculoskeletal Model With a Clinical Upper Extremity Model. J. Biomech. Eng.
**2023**, 145, 041012. [Google Scholar] [CrossRef] - Vicon Motion Systems. Plug-In Gait Reference Guide—Vicon Documentation. Available online: https://docs.vicon.com/display/Nexus212/Plug-in+Gait+Reference+Guide (accessed on 6 February 2023).
- Paulich, M.; Schepers, M.; Rudigkeit, N.; Bellusci, G. Xsens MTw Awinda: Miniature Wireless Inertial-Magnetic Motion Tracker for Highly Accurate 3D Kinematic Applications; Xsens: Enschede, The Netherlands, 2018; pp. 1–9. [Google Scholar]
- Xsens MVN User Manual. 2021. Available online: https://www.xsens.com/hubfs/Downloads/usermanual/MVN_User_Manual.pdf (accessed on 6 February 2023).
- Xsens. Syncronising Xsens Systems with Vicon Nexus. 2020. Available online: https://www.xsens.com/hubfs/Downloads/plugins%20%20tools/SynchronisingXsenswithVicon.pdf (accessed on 6 February 2023).
- Vicon Nexus™ 2.5 Manual. What’s New in Vicon Nexus 2.5—Nexus 2.5 Documentation. 2016. Available online: https://docs.vicon.com/display/Nexus25/PDF+downloads+for+Vicon+Nexus?preview=/50888706/50889382/ViconNexusWhatsNew25.pdf (accessed on 6 February 2023).
- Motion Lab Systems. C3D.ORG—The Biomechanics Standard File Format. Available online: https://www.c3d.org (accessed on 6 February 2023).
- MVN Analyze. Available online: https://www.movella.com/products/motion-capture/mvn-analyze#overview (accessed on 6 February 2023).
- Harthikote Nagaraja, V. Motion Capture and Musculoskeletal Simulation Tools to Measure Prosthetic Arm Functionality. Ph.D. Thesis, Department of Engineering Science, University of Oxford, Oxford, UK, 2019. [Google Scholar]
- Moisio, K.C.; Sumner, D.R.; Shott, S.; Hurwitz, D.E. Normalization of joint moments during gait: A comparison of two techniques. J. Biomech.
**2003**, 36, 599–603. [Google Scholar] [CrossRef] - Derrick, T.R.; van den Bogert, A.J.; Cereatti, A.; Dumas, R.; Fantozzi, S.; Leardini, A. ISB recommendations on the reporting of intersegmental forces and moments during human motion analysis. J. Biomech.
**2020**, 99, 109533. [Google Scholar] [CrossRef] - Goodfellow, I.; Bengio, Y.; Courville, A. Deep Learning; MIT Press: Cambridge, MA, USA, 2016; Available online: http://www.deeplearningbook.org (accessed on 20 April 2023).
- Hochreiter, S.; Schmidhuber, J. Long short-term memory. Neural Comput.
**1997**, 9, 1735–1780. [Google Scholar] [CrossRef] [PubMed] - Cho, K.; Van Merriënboer, B.; Bahdanau, D.; Bengio, Y. On the properties of neural machine translation: Encoder-decoder approaches. arXiv
**2014**, arXiv:1409.1259. [Google Scholar] - Rane, L.; Ding, Z.; McGregor, A.H.; Bull, A.M. Deep learning for musculoskeletal force prediction. Ann. Biomed. Eng.
**2019**, 47, 778–789. [Google Scholar] [CrossRef] - Bicer, M.; Phillips, A.T.; Melis, A.; McGregor, A.H.; Modenese, L. Generative Deep Learning Applied to Biomechanics: A New Augmentation Technique for Motion Capture Datasets. J. Biomech.
**2022**, 144, 111301. [Google Scholar] [CrossRef] [PubMed] - Leardini, A.; Chiari, L.; Della Croce, U.; Cappozzo, A. Human movement analysis using stereophotogrammetry: Part 3. Soft tissue artifact assessment and compensation. Gait Posture
**2005**, 21, 212–225. [Google Scholar] [CrossRef] - Chiari, L.; Della Croce, U.; Leardini, A.; Cappozzo, A. Human movement analysis using stereophotogrammetry: Part 2: Instrumental errors. Gait Posture
**2005**, 21, 197–211. [Google Scholar] [CrossRef] - Camomilla, V.; Dumas, R.; Cappozzo, A. Human movement analysis: The soft tissue artefact issue. J. Biomech.
**2017**, 62, 1. [Google Scholar] [CrossRef] [PubMed] - Hicks, J.L.; Uchida, T.K.; Seth, A.; Rajagopal, A.; Delp, S.L. Is my model good enough? Best practices for verification and validation of musculoskeletal models and simulations of movement. J. Biomech. Eng.
**2015**, 137, 020905. [Google Scholar] [CrossRef] - Wang, J.M.; Hamner, S.R.; Delp, S.L.; Koltun, V. Optimizing locomotion controllers using biologically-based actuators and objectives. ACM Trans. Graph. TOG
**2012**, 31, 1–11. [Google Scholar] [CrossRef] - Miller, R.H.; Umberger, B.R.; Hamill, J.; Caldwell, G.E. Evaluation of the minimum energy hypothesis and other potential optimality criteria for human running. Proc. R. Soc. Biol. Sci.
**2012**, 279, 1498–1505. [Google Scholar] [CrossRef] - Van den Bogert, A.J.; Geijtenbeek, T.; Even-Zohar, O.; Steenbrink, F.; Hardin, E.C. A real-time system for biomechanical analysis of human movement and muscle function. Med. Biol. Eng. Comput.
**2013**, 51, 1069–1077. [Google Scholar] [CrossRef] - Pizzolato, C.; Reggiani, M.; Modenese, L.; Lloyd, D. Real-time inverse kinematics and inverse dynamics for lower limb applications using OpenSim. Comput. Methods Biomech. Biomed. Eng.
**2017**, 20, 436–445. [Google Scholar] [CrossRef] - Pizzolato, C.; Reggiani, M.; Saxby, D.J.; Ceseracciu, E.; Modenese, L.; Lloyd, D.G. Biofeedback for gait retraining based on real-time estimation of tibiofemoral joint contact forces. IEEE Trans. Neural Syst. Rehabil. Eng.
**2017**, 25, 1612–1621. [Google Scholar] [CrossRef] [PubMed] - Lund, M.E.; de Zee, M.; Andersen, M.S.; Rasmussen, J. On validation of multibody musculoskeletal models. J. Eng. Med.
**2012**, 226, 82–94. [Google Scholar] [CrossRef] - Wagner, D.W.; Stepanyan, V.; Shippen, J.M.; DeMers, M.S.; Gibbons, R.S.; Andrews, B.J.; Creasey, G.H.; Beaupre, G.S. Consistency among musculoskeletal models: Caveat utilitor. Ann. Biomed. Eng.
**2013**, 41, 1787–1799. [Google Scholar] [CrossRef] - Cereatti, A.; Bonci, T.; Akbarshahi, M.; Aminian, K.; Barré, A.; Begon, M.; Benoit, D.L.; Charbonnier, C.; Dal Maso, F.; Fantozzi, S.; et al. Standardization proposal of soft tissue artefact description for data sharing in human motion measurements. J. Biomech.
**2017**, 62, 5–13. [Google Scholar] [CrossRef] [PubMed] - Fregly, B.J.; Besier, T.F.; Lloyd, D.G.; Delp, S.L.; Banks, S.A.; Pandy, M.G.; D’lima, D.D. Grand challenge competition to predict in vivo knee loads. J. Orthop. Res.
**2012**, 30, 503–513. [Google Scholar] [CrossRef] - Kinney, A.L.; Besier, T.F.; D’Lima, D.D.; Fregly, B.J. Update on grand challenge competition to predict in vivo knee loads. J. Biomech. Eng.
**2013**, 135. [Google Scholar] [CrossRef] [PubMed] - Bergmann, G.; Graichen, F.; Bender, A.; Kääb, M.; Rohlmann, A.; Westerhoff, P. In vivo glenohumeral contact forces—Measurements in the first patient 7 months postoperatively. J. Biomech.
**2007**, 40, 2139–2149. [Google Scholar] [CrossRef] - Westerhoff, P.; Graichen, F.; Bender, A.; Halder, A.; Beier, A.; Rohlmann, A.; Bergmann, G. In vivo measurement of shoulder joint loads during activities of daily living. J. Biomech.
**2009**, 42, 1840–1849. [Google Scholar] [CrossRef] [PubMed] - Nikooyan, A.A.; Veeger, H.; Westerhoff, P.; Graichen, F.; Bergmann, G.; Van der Helm, F. Validation of the Delft Shoulder and Elbow Model using in-vivo glenohumeral joint contact forces. J. Biomech.
**2010**, 43, 3007–3014. [Google Scholar] [CrossRef] [PubMed] - Skals, S.; Bláfoss, R.; Andersen, M.S.; de Zee, M.; Andersen, L.L. Manual material handling in the supermarket sector. Part 1: Joint angles and muscle activity of trapezius descendens and erector spinae longissimus. Appl. Ergon.
**2021**, 92, 103340. [Google Scholar] [CrossRef] - Skals, S.; Bláfoss, R.; de Zee, M.; Andersen, L.L.; Andersen, M.S. Effects of load mass and position on the dynamic loading of the knees, shoulders and lumbar spine during lifting: A musculoskeletal modelling approach. Appl. Ergon.
**2021**, 96, 103491. [Google Scholar] [CrossRef] [PubMed] - Bassani, G.; Filippeschi, A.; Avizzano, C.A. A Dataset of Human Motion and Muscular Activities in Manual Material Handling Tasks for Biomechanical and Ergonomic Analyses. IEEE Sens. J.
**2021**, 21, 24731–24739. [Google Scholar] [CrossRef] - Mathis, A.; Schneider, S.; Lauer, J.; Mathis, M.W. A primer on motion capture with deep learning: Principles, pitfalls, and perspectives. Neuron
**2020**, 108, 44–65. [Google Scholar] [CrossRef] - Winter, D.A. Biomechanics and Motor Control of Human Movement; John Wiley & Sons: Hoboken, NJ, USA, 2009. [Google Scholar]
- Ponvel, P.; Singh, D.K.A.; Beng, G.K.; Chai, S.C. Factors affecting upper extremity kinematics in healthy adults: A systematic review. Crit. Rev. Phys. Rehabil. Med.
**2019**, 31, 101–123. [Google Scholar] [CrossRef] - Horsak, B.; Pobatschnig, B.; Schwab, C.; Baca, A.; Kranzl, A.; Kainz, H. Reliability of joint kinematic calculations based on direct kinematic and inverse kinematic models in obese children. Gait Posture
**2018**, 66, 201–207. [Google Scholar] [CrossRef] - Peters, A.; Galna, B.; Sangeux, M.; Morris, M.; Baker, R. Quantification of soft tissue artifact in lower limb human motion analysis: A systematic review. Gait Posture
**2010**, 31, 1–8. [Google Scholar] [CrossRef] - Lamberto, G.; Martelli, S.; Cappozzo, A.; Mazzà, C. To what extent is joint and muscle mechanics predicted by musculoskeletal models sensitive to soft tissue artefacts? J. Biomech.
**2017**, 62, 68–76. [Google Scholar] [CrossRef] - Muller, A.; Pontonnier, C.; Dumont, G. Uncertainty propagation in multibody human model dynamics. Multibody Syst. Dyn.
**2017**, 40, 177–192. [Google Scholar] [CrossRef] - Aizawa, J.; Masuda, T.; Hyodo, K.; Jinno, T.; Yagishita, K.; Nakamaru, K.; Koyama, T.; Morita, S. Ranges of active joint motion for the shoulder, elbow, and wrist in healthy adults. Disabil. Rehabil.
**2013**, 35, 1342–1349. [Google Scholar] [CrossRef] - Cheng, R.; Nagaraja, V.H.; Bergmann, J.H.; Thompson, M.S. Motion Capture Analysis & Plotting Assistant: An Opensource Framework to Analyse Inertial-Sensor-based Measurements. In Proceedings of the ISPO Trent International Prosthetics Symposium (TIPS) 2019, ISPO, Manchester, UK, 20–22 March 2019; pp. 156–157. [Google Scholar]
- Cheng, R.; Nagaraja, V.H.; Bergmann, J.H.; Thompson, M.S. An Opensource Framework to Analyse Marker-based and Inertial-Sensor-based Measurements: Motion Capture Analysis & Plotting Assistant (MCAPA) 2.0. In Proceedings of the BioMedEng, London, UK, 5–6 September 2019. [Google Scholar]
- Carnegie Mellon University—CMU Graphics Lab—Motion Capture Library. 2003. Available online: http://mocap.cs.cmu.edu (accessed on 6 February 2023).
- Mundt, M.; Johnson, W.R.; Potthast, W.; Markert, B.; Mian, A.; Alderson, J. A Comparison of Three Neural Network Approaches for Estimating Joint Angles and Moments from Inertial Measurement Units. Sensors
**2021**, 21, 4535. [Google Scholar] [CrossRef] [PubMed] - Mathis, A.; Mamidanna, P.; Cury, K.M.; Abe, T.; Murthy, V.N.; Mathis, M.W.; Bethge, M. DeepLabCut: Markerless pose estimation of user-defined body parts with deep learning. Nat. Neurosci.
**2018**, 21, 1281–1289. [Google Scholar] [CrossRef] [PubMed]

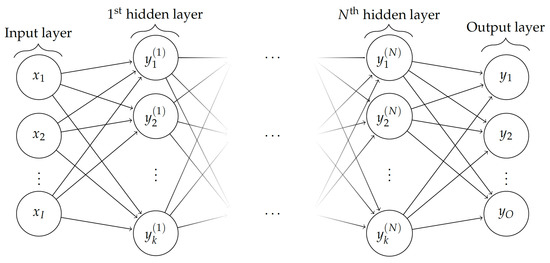

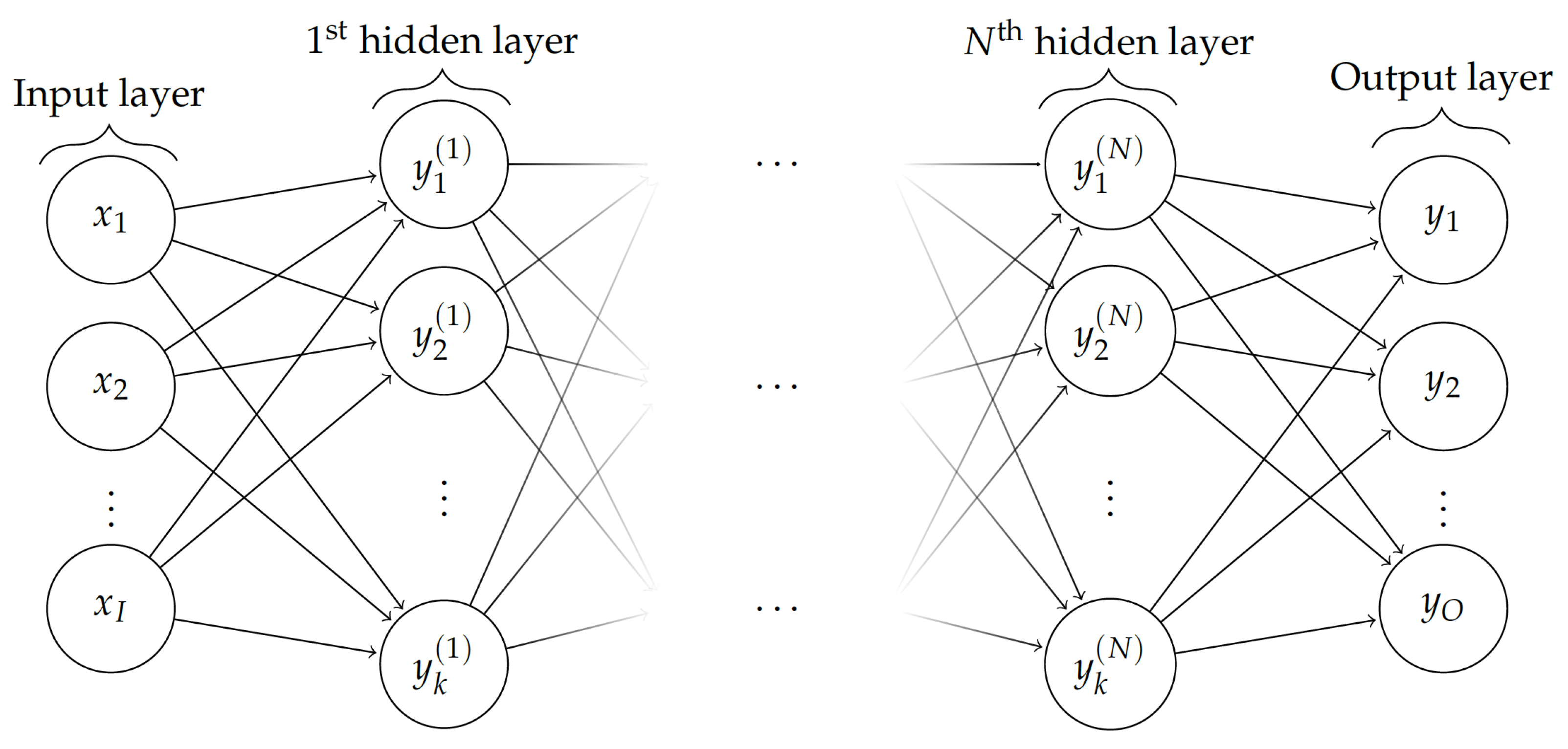

**Figure 2.**Typical Feed-forward Neural Network (FFNN) with O output nodes, I input nodes, and N hidden layers with k nodes/neurons each.

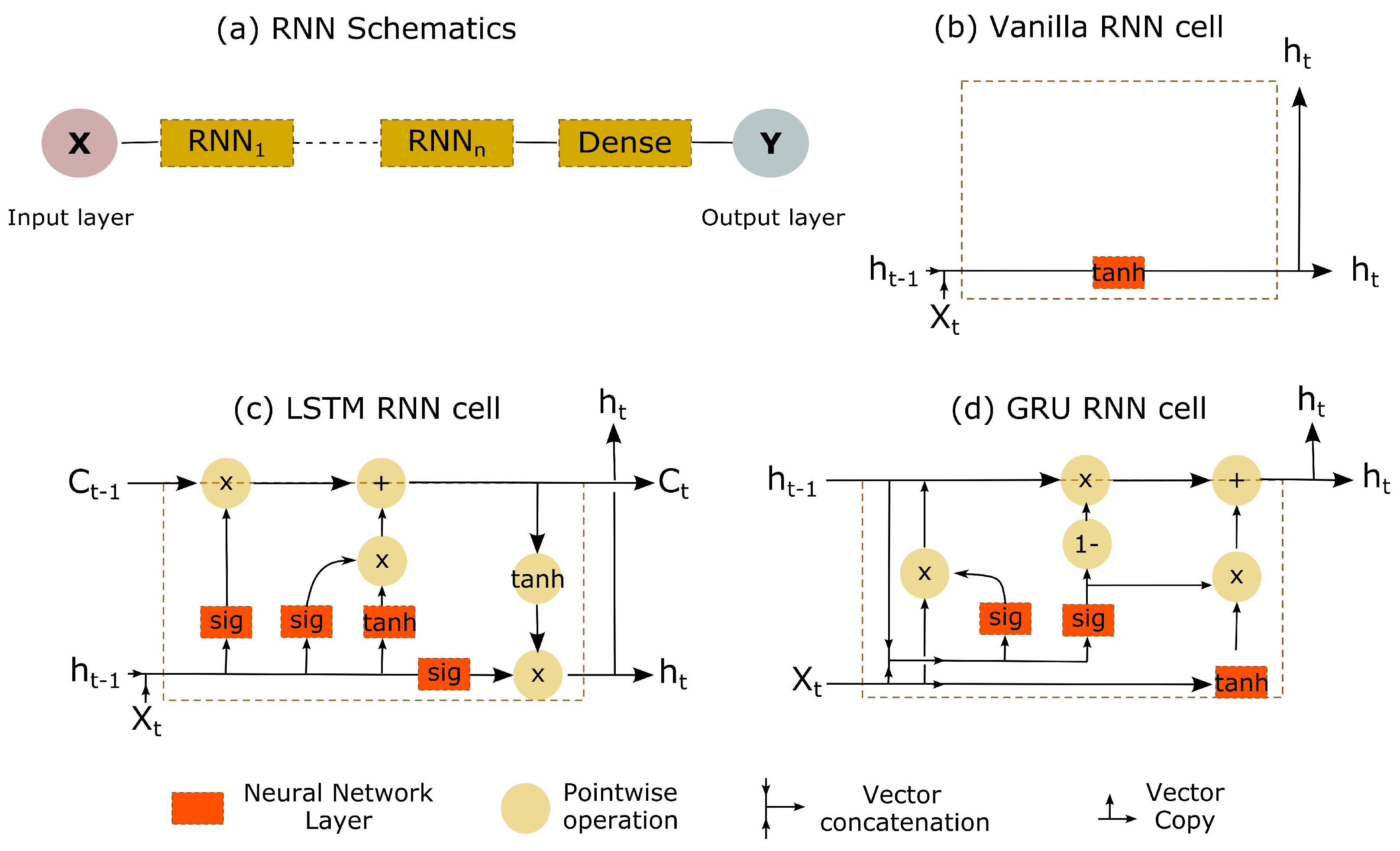

**Figure 3.**(

**a**) Typical deep Recurrent Neural Network (RNN) architecture containing n RNN cells and a final dense layer [52,53,54]. The schematics of various RNN cells considered include: (

**b**) vanilla RNN cell, (

**c**) Long Short-Term Memory (LSTM) cell, and (

**d**) Gated Recurrent Unit (GRU) cell. Note: ${X}_{t}$ is the input at any time t, ${C}_{t}$ is the cell state, and ${h}_{t}$ is the hidden state. Further note that the default activation function in RNN cells is tanh, while for recurrent steps in LSTM and GRU cells, the default recurrent activation function is sigmoid (sig).

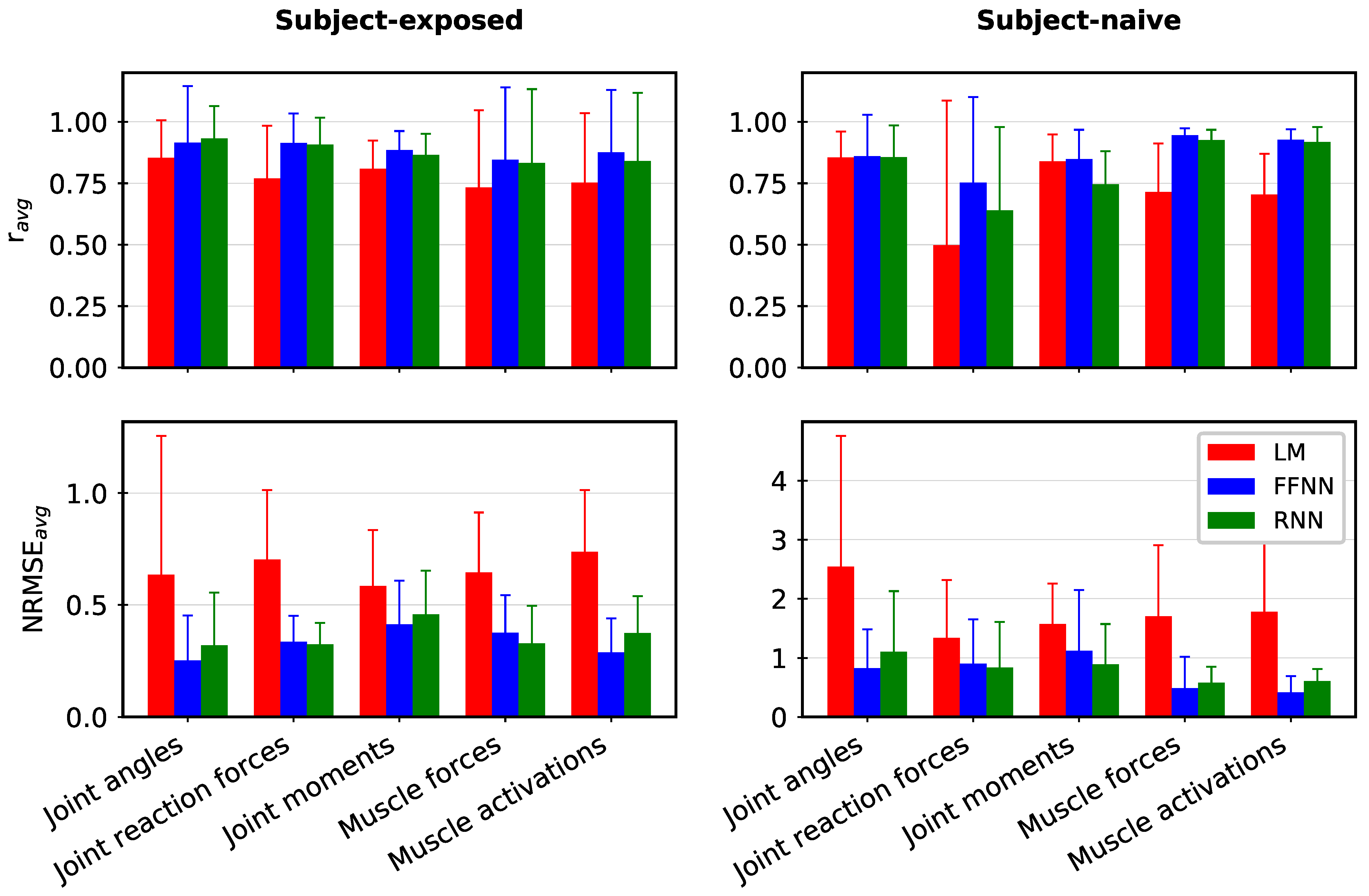

**Figure 4.**Average NRMSE values (NRMSE${}_{\mathrm{avg}}$) and average Pearson’s correlation coefficient (r${}_{\mathrm{avg}}$) for Linear Model (LM), Feed-Forward Neural Network (FFNN), and Recurrent Neural Network (RNN) predictions compared against the Musculoskeletal model outputs. The FFNN and RNN models consistently outperform the linear model. For a given output category, averaging is done over all output features and test trials (with the corresponding standard deviation shown as an error bar). See Supplementary Tables S1 and S2 for corresponding numerical data.

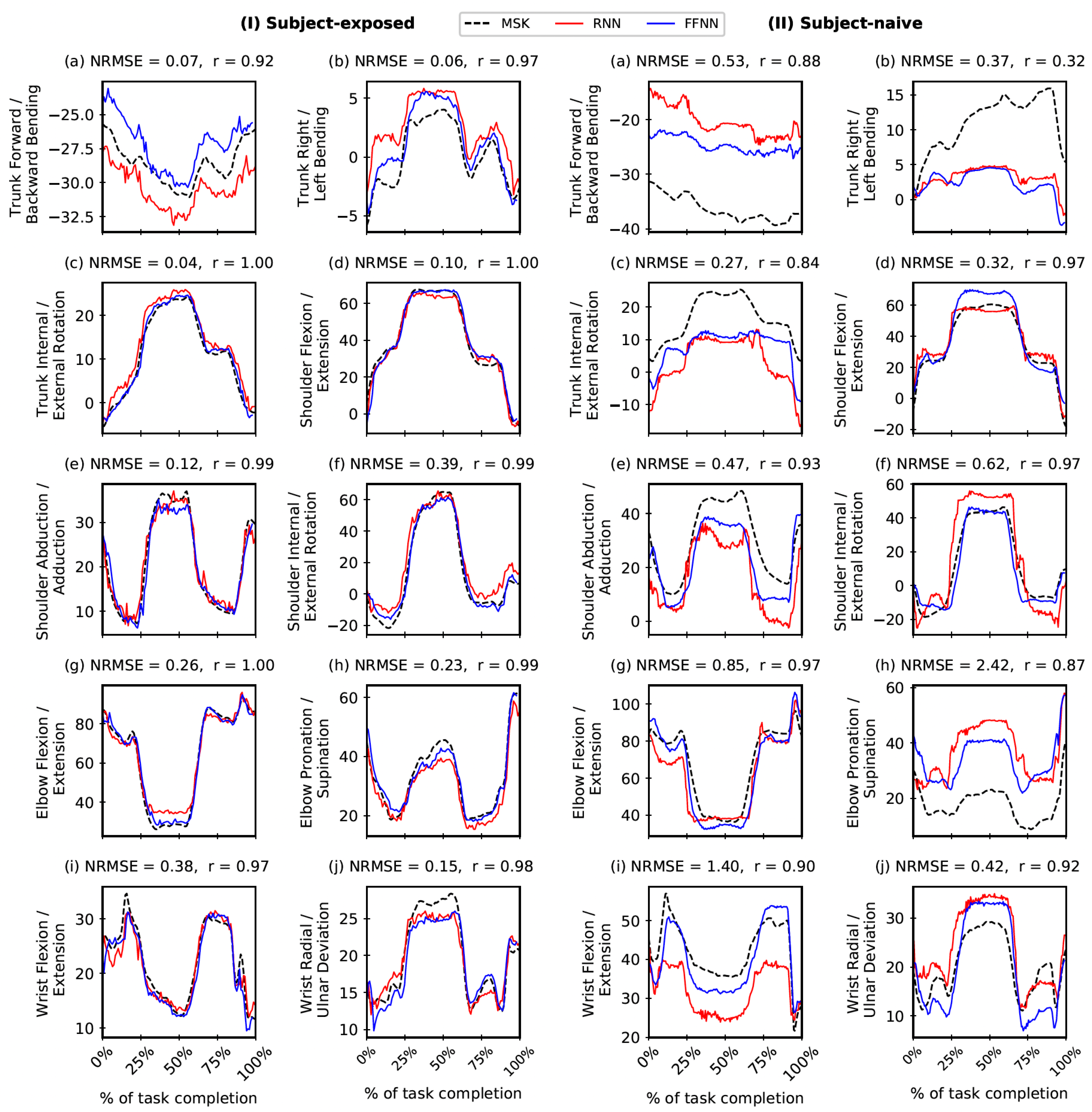

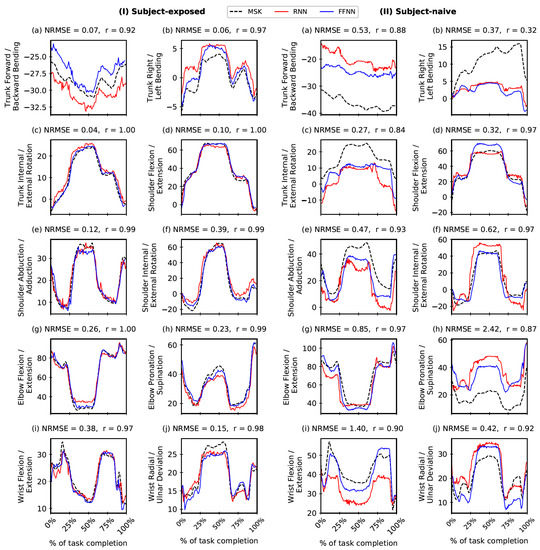

**Figure 5.**Comparing Feed-Forward Neural Network (FFNN) and Recurrent Neural Network (RNN) joint angles predictions (in degrees) with the corresponding outputs from the musculoskeletal (MSK) model. The comparison is shown for one trial in the held-out test data in Subject-exposed (

**left**) and Subject-naive (

**right**) settings. Note: Performance of FFNN and RNN are comparable (see Figure 4); in this figure, we report r and NRMSE values only for FFNN.

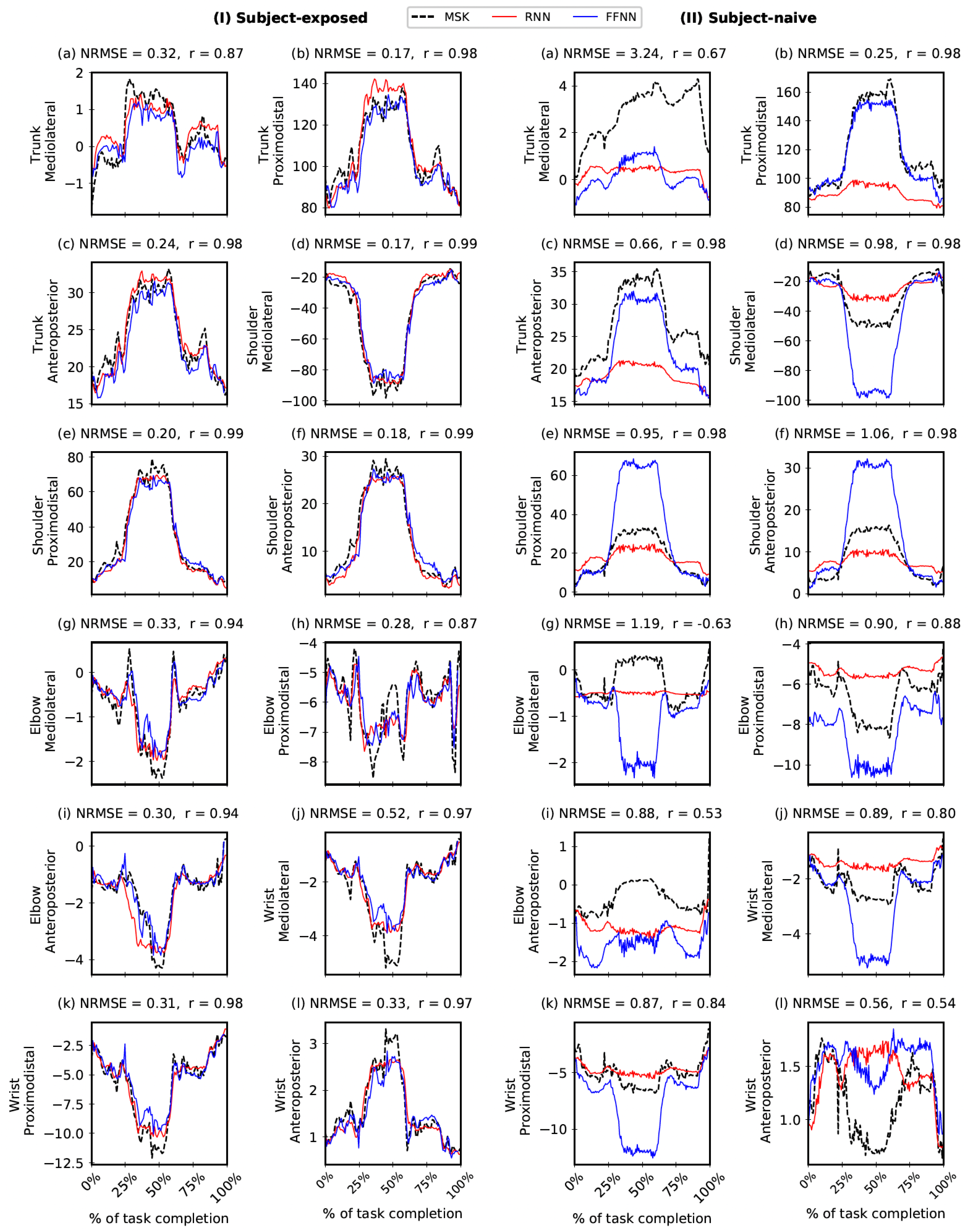

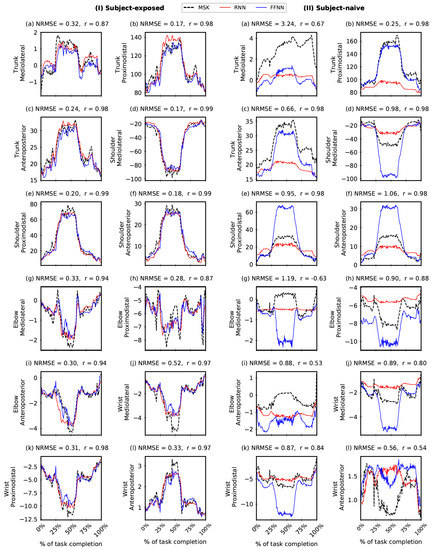

**Figure 6.**Comparing Feed-Forward Neural Network (FFNN) and Recurrent Neural Network (RNN) joint reaction forces predictions (in % Body Weight) with the corresponding outputs from the musculoskeletal (MSK) model. The comparison is shown for one trial in the held-out test data in Subject-exposed (

**left**) and Subject-naive (

**right**) settings. Note: Performance of FFNN and RNN are comparable (see Figure 4); in this figure, we report r and NRMSE values only for FFNN.

**Table 1.**Hyperparameters choices explored (43,740) for Feed-Forward Neural Network (FFNN) in subject-exposed and subject-naive settings and the optimal hyperparameters found for each MSK output category.

Output | Weight | Optimizer | Batch-Size | Epoch | Activation | Number of | Hidden | Learning | Dropout |
---|---|---|---|---|---|---|---|---|---|

Initialization | Function | Nodes | Layers | Rate | Probability | ||||

Hyperparameters explored | |||||||||

He normal, | RMSProp, | 64, | 50, | ReLU, | 200 to 1800 | 2, 4, 6, | 0.001, | 0, 0.2 | |

Random normal, | SGD, | 256, | 100, | sigmoid, | with increments | 8, 10 | 0.005 | ||

Xavier normal | Adam | 1028 | 200 | tanh | of 200 | ||||

Optimal hyperparameters | |||||||||

Subject-exposed settings | |||||||||

Muscle forces | Random normal | SGD | 64 | 50 | ReLU | 400 | 8 | 0.005 | 0.0 |

Muscle activations | Xavier normal | Adam | 256 | 100 | ReLU | 1000 | 6 | 0.005 | 0.0 |

Joint angles | Random normal | Adam | 256 | 200 | ReLU | 200 | 2 | 0.001 | 0.0 |

Joint reaction forces | Xavier normal | Adam | 256 | 100 | ReLU | 200 | 8 | 0.005 | 0.0 |

Joint moments | Xavier normal | Adam | 64 | 50 | sigmoid | 1400 | 2 | 0.001 | 0.2 |

Subject-naive settings | |||||||||

Muscle forces | Xavier normal | SGD | 64 | 200 | ReLU | 1200 | 8 | 0.005 | 0.2 |

Muscle activations | Random normal | Adam | 256 | 200 | ReLU | 1200 | 6 | 0.001 | 0.2 |

Joint angles | Random normal | Adam | 256 | 100 | ReLU | 800 | 4 | 0.005 | 0.0 |

Joint reaction forces | Random normal | Adam | 256 | 50 | ReLU | 800 | 8 | 0.001 | 0.0 |

Joint moments | Xavier normal | Adam | 64 | 50 | sigmoid | 1800 | 2 | 0.001 | 0.2 |

**Table 2.**Hyperparameters choices explored (23,328) for the Recurrent Neural Network (RNN) in subject-exposed and subject-naive settings and the optimal hyperparameters found for each MSK output category. In the RNN cell category, ‘B’ stands for Bidirectional cell (which processes the input time series in both forward and backward directions), LSTM is a Long Short-Term Memory cell, and GRU is a Gated Recurrent Unit cell.

Output | RNN Cell | Optimizer | Batch-Size | Epoch | Activation | Number of | RNN | Dropout | Learning |
---|---|---|---|---|---|---|---|---|---|

Function | Nodes | Layers | Probability | Rate | |||||

Hyperparameters explored for RNN | |||||||||

Vanilla, LSTM, | Adam, | 64, | 50, | ReLU, | 128, | 1, 2, | 0.1, 0.2 | 0.001, | |

GRU, B-Vanilla, | SGD, | 128, | 100, | sigmoid, | 256, | 3, 4 | 0.005 | ||

B-LSTM, B-GRU | RMSProp | 256 | 200 | tanh | 512 | ||||

Optimal hyperparameters | |||||||||

Subject-exposed settings | |||||||||

Muscle forces | LSTM | RMSprop | 64 | 100 | tanh | 256 | 1 | 0.1 | 0.001 |

Muscle activations | LSTM | RMSprop | 64 | 50 | sigmoid | 128 | 3 | 0.1 | 0.001 |

Joint angles | B-LSTM | Adam | 256 | 200 | sigmoid | 256 | 1 | 0.2 | 0.001 |

Joint reaction forces | LSTM | RMSprop | 128 | 50 | sigmoid | 128 | 2 | 0.1 | 0.001 |

Joint moments | B-LSTM | RMSprop | 64 | 100 | sigmoid | 256 | 1 | 0.1 | 0.001 |

Subject-naive settings | |||||||||

Muscle forces | GRU | Adam | 256 | 100 | ReLU | 512 | 3 | 0.2 | 0.001 |

Muscle activations | LSTM | RMSprop | 128 | 100 | tanh | 512 | 2 | 0.1 | 0.001 |

Joint angles | B-LSTM | Adam | 64 | 50 | tanh | 256 | 1 | 0.2 | 0.001 |

Joint reaction forces | LSTM | Adam | 64 | 50 | ReLU | 128 | 4 | 0.1 | 0.001 |

Joint moments | GRU | Adam | 128 | 100 | sigmoid | 256 | 2 | 0.2 | 0.005 |
