Nanocomposites of Barium Titanate Nanoparticles Embedded in Thermosetting Polymer Matrices (Novolac Resin/Unsaturated Polyesters/Epoxy Resin): A Comparative Study

Abstract

Polymer matrix nanocomposites with embedded ferroelectric barium titanate particles were developed and characterized. The utility of such nanocomposites is the energy storage capability that they exhibit, besides their low weight and cost, in comparison to materials that are customarily used for this purpose. The polymers that have been used as matrices in the composites belong to the three most usable thermosetting polymer resins (novolacs, unsaturated polyesters, and epoxy resins), were either laboratory synthesized or commercially supplied. Structure and morphology of the produced composite specimens were studied via Scanning Electron Microscopy (SEM), X-Ray Diffraction (XRD), and Fourier Transformation Infrared Spectroscopy (FTIR). Thermal, mechanical and electrical performance was examined via Differential Scanning Calorimetry (DSC), bending and shear strength tests (three-point method), and Broadband Dielectric Spectroscopy (BDS), respectively. Mechanical shear and bending strength values were determined, as well as mechanical failure mode (brittle or elastomer) were estimated. Dielectric measurements disclosed the presence of four relaxation processes (α-mode, β-mode, and γ-mode) and Interfacial Polarization between the system’s constituents. The comparative study ended with the calculation of energy density, so that the energy storing capability could be estimated.

1. Introduction

A new generation of composite materials has attracted the scientific interest, worldwide. More specifically, the development and study of polymer matrix composite materials with embedded ceramic inclusions, at the nano-scale level, appears to be the focal point of many research efforts [1,2,3]. These types of materials exhibit a set of attracting electrical properties, which can be exploited in many technological fields and in various uses, such as sensors, actuators, capacitors for storing electric energy, or even as parts of smart materials.

Nowadays, it is well established and accepted that a nano-scaled material has unique properties and is usually quite different and more attractive, in comparison to the same material at the macro-scale. The reason for this is the extensive interface associated with nano-scale and related phenomena. The presence of BaTiO₃ nano-particles in this type of thermosetting polymer composites, adds to the material’s system performance piezoelectric, ferroelectric, and pyroelectric properties, besides its energy storing capability. Additionally, the purpose of using polymers as the matrices of the composite materials is to easily enclose and protect the barium titanate nano-particles from external factors and to create a new integral composite material [1,2,3,4,5,6].

2. Materials and Methods

2.1. Laboratory Polymer Synthesis

Novolac and unsaturated polyesters were synthesized in the laboratory. Novolac resin (NV) is a phenol-formaldeyde resin and was created via progressive polymerization. The synthesis of novolac resin, comprises the polycondensation of phenol (Merck), with the presence of formaldehyde (Fluka) and as catalyst acetic acid (Fluka) has been used [2,3,7,8,9,10,11]. Unsaturated polyesters polymerization was held via a polyesterification reaction. In order to synthesize unsaturated polyesters, at least one unsaturated dicarboxylic acid monomer is required. In this research, maleic acid was the unsaturated dicarboxylic acid monomer used. In the synthesis stage of the unsaturated polyesters, not only one, but also a mixture of acids could be used, as long as their molar ratio did not exceed the diol’s molar ratio. The saturated diol that has been used was ethylene glycol. These were the raw materials that have been used for the poly-condensation reaction, in which water molecules were produced as a side product. Owing to the fact that water must be continuously removed from the reactor, for the reversible reaction, the distillation method was used. This type of poly-condensation is called poly-esterification, as poly-ester molecules were produced, on account of the poly-condensation of the dicarboxylic acid molecules (maleic acid) and diol molecules (ethylene glycol). The direct poly-esterification reaction was self-catalyzed by the carboxyl groups of the acids components, but due to the reduction in concentration of these groups, as the progress of synthesis reaction carried on with increasing conversation, other catalysts were often employed to maintain the rate of reaction. However, the drawback of using the esterification catalyst is that these components confer a negative effect by colorizing the final product. The theoretical molar proportion of the acid’s mixture to diol was 1:1, but practically a molar excess of 10% of the diol was used, as a result of the diol evaporation, which took place inside the reactor, due to the high temperature (this ratio refers to the feed ratio of the reactor). Toluene was added in the proportion of 3.5% v/w of the total monomers, so that a mixture, with the developed water—an azeotropic mixture—could be collected and removed from the reactor. Hydroquinone was employed as an inhibitor, in the proportion of 0.013 w/w of the total amount of monomers. As far as the synthesis stage had finished, unsaturated polyesters were mixed with 30% w/w styrene (vinylic co-monomer), so that product was ready for the curing process. Four different types of unsaturated polyesters were synthesized, with a difference in the acids’ proportions [1,3,12,13,14,15,16,17,18,19,20]. Their code names are shown in

Table 1. The raw materials used for the synthesis of the unsaturated polyesters (feed ratio).

Unsaturated Polyester Code Name	% mol Diacid/Total mol			% mol Diole/Total mol
	Maleic Acid (M)	Adipic Acid (A)	Phthalic Anydride (PA)	Ethylene Glycol (EG)
M1A3PA6	10	30	60	110
M3A4PA3	30	40	30	110
M4A4PA2	40	40	20	110
M7A2PA1	70	20	10	110
M6A4	60	40	0	110

.

Details about controlling the polymerization process and the calculation processes of the Acid Number and the kinetic parameters (for all of the above polyesters), has been described in previous research work [1,3,12,13,14,15,16,20] and the results are shown in

Table 2. The Acid Number of each laboratory synthesized unsaturated polyester.

Unsaturated Polyester Code Name	A.N. (mg KOH/gr Polyester)
M1A3PA6	34
M3A4PA3	37
M4A4PA2	41
M7A2PA1	47
M6A4	43

and

Table 3. Kinetic parameters of each laboratory synthesized unsaturated polyester.

Unsaturated Polyester Code Name	Ea		ko (kg∙mol−2∙min−1)	R2
	(kcal/mol)	(kJ/mol)
M1A3PA6	32.19	134.69	6.53 × 1013	0.957
M3A4PA3	19.87	83.14	3.60 × 107	0.871
M4A4PA2	14.45	60.44	2.27 × 104	0.738
M7A2PA1	17.60	73.66	2.19 × 106	0.779
M6A4	26.27	110.09	2.92 × 1010	0.986

.

2.2. Composite Specimens Preparation—The Curing Process

All specimens were developed using the compression molding technique. First, special mixtures have been prepared so that cross-linking reactions could take place afterwards. The polymers that were used as the polymer matrices in composites, belong to the phenol-formaldehyde resins (particularly to novolacs), unsaturated polyester resins, as well as epoxy resins. Novolac resin was prepared for curing, after adding the hardener-curing agent hexamethylenotetramine, purchased by Merck, in a ratio of 7:2 w/w [2,3,11]. The unsaturated polyesters that have been used are the ones mentioned in Table 2, together with a commercial one (thixotropic polyester with accelerator, Neotex, Athens, Greece) with the code name CUP (commercial unsaturated polyester). The preparation of these mixtures has discussed, in detail, in previous work [1]. As far as the epoxy resin is concerned, a commercial type for electrical purposes has been used (Epoxol 2874, Neotex S.A., Athens, Greece), which has the code name CER (commercial epoxy resin). The curing ratio was 58% w/w of the epoxy resin’s quantity, with commercial hardener. All of the above mixtures were mixed with a specific amount of barium titanate nano-powder (Sigma Aldrich, Taufkirchen, Germany) (with mean diameter in the range: 30–50 nm), in the following pre-selected proportions (0% w/w, 3% w/w, 5% w/w, 10% w/w, 15% w/w, 20% w/w BaTiO₃). These final liquid/solid (resin/nano-particles) mixtures were placed into steel moldings, for the compression molding technique. The curing program consisted of the following stages (for the specimens with unsaturated polyesters and epoxy resin: (i) Nano-composites under no pressure, at 60 °C, for 15 min; and (ii) nano-composites under a pressure of 8.5 MPa, at 60 °C, for 15 min [1,3,12,13,14,15,16,17,18,19,20]. While the curing program for the specimens with novolac consisted of: (i) Nano-composites at 140 °C, for one hour, with no pressure applied, and (ii) nano-composites at 170 °C, for one hour, while applying a pressure of 8.5 MPa [2,3,9,10,11]. Each category of the developed composite specimens had the following code names: NV-BT, M₁A₃PA₆-BT, M₃A₄PA₃-BT, M₄A₄PA₂-BT, M₆A₄-BT, M₇A₂PA₁-BT, CUP-BT, and CER-BT, combined with barium titanate nano-particles (BT), in the following concentrations: 0%, 3%, 5%, 10%, 15% and 20% w/w.

2.3. Structural Characterization

Two basic structural parameters were studied via Scanning Electron Microscopy (SEM): Specimen’s surface topography and nanoparticles dispersion, through each polymer matrix. SEM (FEI Quanta 200, FEI Company, Dawson Creek Drive, Hillsboro, USA) was also equipped with Element Dispersive X-Ray Analysis (EDAX) for element identity identification and % w/w content of each element. Another basic instrument that has been used for the structure examination, is X-Ray Diffraction (XRD). The XRD device is a Siemens D5000 Diffractometer (Siemens, Germany), using a Cu Ka source, scanning in the range of 5° to 120°, with a step of 0.0020° and a step-time of 1sec. Structure, and more specifically, the chemical bonds, were also studied via Vibrational Spectroscopy, and particular by means of an Infrared Spectroscopy, via Fourier Transformation (FT-IR) (Perkin Elmer FT-IR Spectrum GM-Waltham, MA, USA.). FT-IR measurements took place in the spectrum region between 4000–200 cm⁻¹ (middle infrared irradiation), in the form of transmittance versus wavelength. All developed specimens were studied via SEM-EDAX, XRD, and FT-IR; the results have been presented in the Results and Discussion part of the study.

2.4. Thermal Analysis

Thermal transitions and characteristic important temperatures of the specimens were studied via Differential Scanning Calorimetry (DSC). The employed Differential Scanning Calorimeter is a Q200 (TA Instruments, Lukens Drive, New Castle, PA, USA.), operating at a scan rate of 10 °C/min. Specimens of all developed samples were placed in an aluminum crucible, while an empty aluminum crucible was served as a reference material. The DSC thermal program consisted of the following stages—temperature was varied from ambient to 200 °C, followed by an isothermal remain at 200 °C, for 1 min. Afterwards, the cooling process consisted of cooling until 0 °C (via nitrogen flow), again with a cooling rate of 10 °C/min.

2.5. Mechanical Characterization

The Three-Point Method was used for the mechanic tests, in order to test the shear (ASTM-NORM D 2344-65T) and bending (DIN-53452) strength of each specimen [21]. Procedurally, the only difference between these two tests was that, in the shear strength test, the distance between the two points was 10 mm, while in the bending strength test, it was 100 mm. No special conditions were needed for the tests, as the tests took place at room temperature (25 °C). A deflection in the micrometer range was the parameter that was measured in both tests and, afterwards, the shear and bending strength were calculated in MPa [21,22]. Dimensionally, the developed specimens were classified in two categories—specimens that were suitable for the shear tests, with a length of 13.5 cm, width of 17 mm, and a thickness of 3 mm, while the specimens for the bending tests were 13 cm in length, 10 mm in width, and 3 mm in thickness.

2.6. Dielectric Characterization

All composite materials manufactured in this project were chosen for their dielectric properties, owing to the barium titanate nano-particles. This is the reason why dielectric characterization is very crucial. Broadband Dielectric Spectroscopy (BDS) was used to examine dielectric properties in the frequency range of 0.1 Hz to 1 MHz, using an Alpha-N Frequency Response Analyser (Novocontrol Technologies, Hundsagen, Germany). The employed dielectric cell (BDS-1200, Novocontrol) was a parallel-plate capacitor, with two gold-plated electrodes. Temperature was controlled via a Novotherm device, also supplied by Novocontrol, with an accuracy of ±0.1 °C. Experimental data were obtained by performing the isothermal frequency scans, for each examined specimens, from 30 °C to 160 °C, with a temperature step of 10 °C. The amplitude of the applied test voltage was kept constant at 1000 mV. Representative specimens from all of the developed polymer matrices were subjected to BDS measurements (0%, 5%, 10%, and 20% w/w in the BaTiO₃ content).

3. Results

3.1. Scanning Electron Microscopy (SEM) and Energy Dispersive X-Ray Spectroscopy (EDAX) Characterization

From Figure 1 and Figure 2, the topography of the Au-plated specimen’s surface, can be observed. In all of the specimens, the dispersion of the barium titanate nanoparticles is quite satisfactory, as no large agglomerates seem to have been created. The shape of a typical barium titanate dispersion within a polymer matrix, looks like a white cloud with a bigger concentration of barium titanate nano-particles in the core of the cloud, in comparison to the more distant places of each cloud. For comparison, a magnitude of 800 times has been selected for one specimen of every polymer matrix category. More details have been given for the specimen with an unsaturated polyester M₇A₂PA₁ matrix, as it is a typical image of all these specimens, with all of their observed characteristics (Figure 1). Figure 2a shows the surface of the specimen with a CER matrix, where there is a clear similarity with a specimen with an NV matrix (subfigure).

Table 4. X-ray spectroscopy measurements from the three selected specimens in Figure 1 and Figure 2.

Specimen Type	Chemical Element % w/w
	C (Κ)	O (Κ)	Ba (L)	Ti (Κ)	Total
20% w/w NV-BT	86.73	5.44	6.35	1.49	100.00
20% w/w M7A2PA1-BT	43.27	16.79	33.42	6,52	100.00
20% w/w CER-BT	65.57	5.00	23.67	5.76	100.00

and Figure 2b,c, show the concentration of each element that has been measured via the Energy Dispersive X-Ray Spectroscopy (EDAX), through spot characterization, inside a typical BaTiO₃ cloud, for the three selected nano-composites specimens shown in Figure 1 and Figure 2a. It is obvious that carbon, barium, oxygen, and titanium were detected, as expected. The highest proportion of all detected chemical elements corresponded to carbon, due to the polymer matrix.

3.2. X-Ray Diffraction (XRD) Characterization

Figure 3 depicts the XRD spectra of composites with 0%, 5%, 20%, and 100% w/w in the BaTiO₃ and M₁A₃PA₆ unsaturated polyester polymer matrix. The graphs are a mixture of an amorphous and a crystal material, where each phase prevails over the other, compared to the observed intensity (counts) [1,2,3,11,12,17,18,19,20]. The crystal phase is due to the barium titanate’s crystallinity, and the amorphous phase is due to the amorphous phase of each polymer matrix. The crystal phase appears with sharp peaks in the XRD spectra, while the amorphous phase appears with a wide peak in the low 2θ values. All specimens have exhibited exactly the same behavior, so a similar XRD spectra, as the ones shown in Figure 3.

Table 5. 2θ values from each amorphous polymer peak of all developed nano-composites.

Composite Polymer Matrix	2θ (°)
M1A3PA6	21.20
M3A4PA3	21.37
M4A4PA2	21.50
M6A4	21.40
M7A2PA1	21.49
CUP	19.72
NV	18.38
CER	17.67

, shows the 2θ values of all developed nano-composites, which are related to each polymer amorphous wide peak. It is obvious that the amorphous peak of all laboratory unsaturated polyesters are located approximately at 21°, while at about 20°, for the commercial one. Whereas, the novolac’s and the epoxy’s amorphous peak was located at about 18°.

3.3. Infra Red Spectroscopy via Fourier Transformation (FT-IR) Characterization

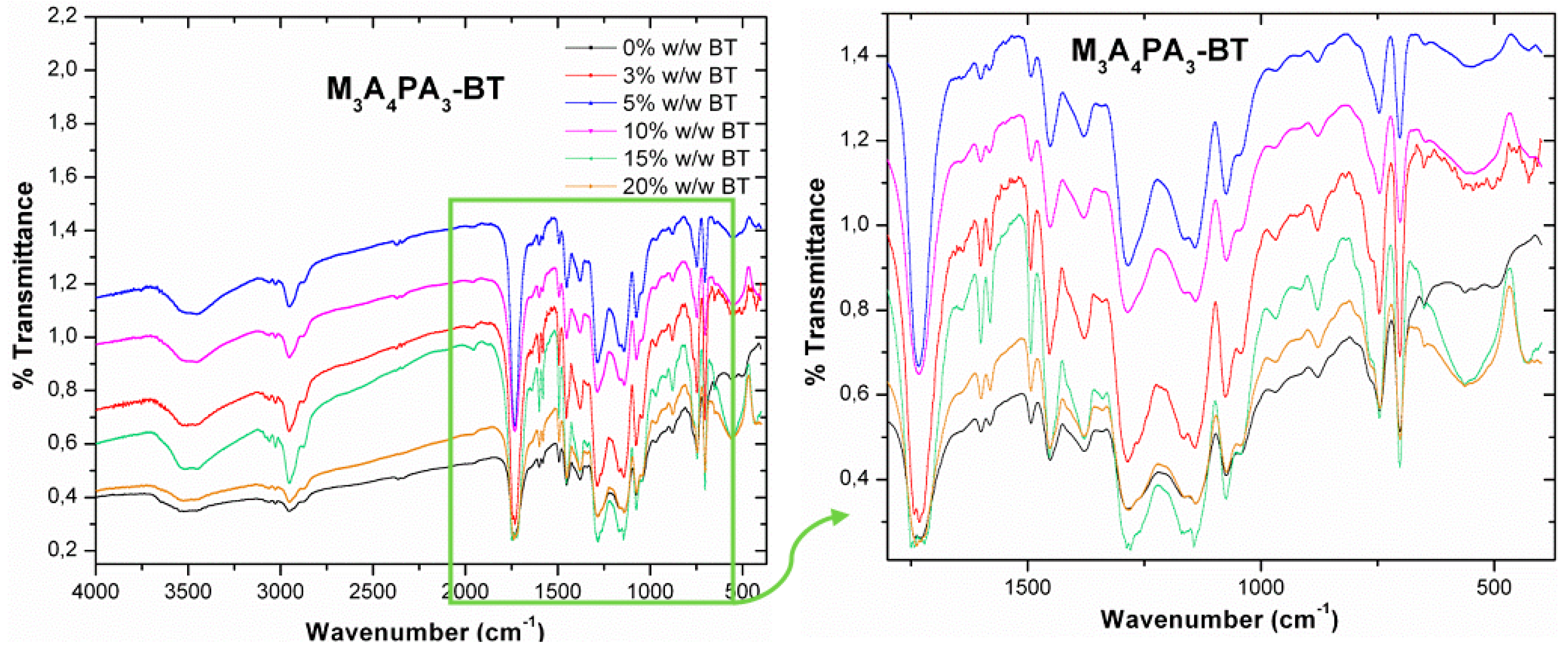

Figure 4 is a classical FT-IR spectra of the nano-composites consisting of barium titanate nano-particles embedded in polymer matrix. Specifically, Figure 4 depicts composites with the M₃A₄PA₃ unsaturated polyester as polymer matrix for all developed specimens from 0% w/w to 20% w/w, in BaTiO₃, the same procedure occurred for all developed composite categories. The window of values, at the left graph, ranged from 4000 cm⁻¹ to 200 cm⁻¹, while the right one was a focused spectrum from 1800 cm⁻¹ to 350 cm⁻¹, so that all characteristic peaks could be more easily distinguishable. All formed peaks have been identified and classified, throughout, in

Table 6. FT-IR spectra characteristic peaks from the novolac resin (NV).

Characteristic Chemical Group	Wavelength from Literature (cm−1)	Peak Appearance Wavelength (cm−1)
		Cured Novolac Resin (NV) (Phenol-Phormaldehyde resin)
-OH stretch vibration	3435–3383	3367 w/br
CH, >CH2, -CH3 stretch vibration, aliphatic parts	2960–2850	2954 w/sh, 2923 m/sh, 2856 m/br
C=C stretch vibration within the aromatic ring	1635–1630	1637 s/br
C=C stretch vibration within the aromatic ring	1615–1600	1610 s/br
C=C stretch vibration within the aromatic ring	1510–1504	1509 w/sh, 1498 w/sh
CH, >CH2, -CH3 bending vibration aliphatic parts (asymmetric bending)	1470–1457	1473 w/sh, 1457 m/sh
-ΟΗ bending vibration	1438–1415	1438 w/sh
CH, >CH2, -CH3 bending vibration aliphatic parts (symmetric bending)	1378–1370	1371 m/sh
-ΟΗ bending vibration	1330–1320	1340 w/br
CH, bending Hexa (HMTA)	1244–1240	1238 s/sh
stretch vibration within the aromatic ring	1210–1100	1213 w/br, 1141 w/br
Aromatic ring asymmetric rings	1100–1109	1100 w/sh
Aromatic ring asymmetric rings	1097–1050	1072 w/br, 1047 w/br
Hexa (HMTA)	1007–1000	1008 s/sh
C-H Deformation vibration 1 or 2 neighbour Η of benzene ring (para-substituents)	814–810	813 m/sh
C-H Deformation vibration 3 or 4 neighbour Η of benzene ring (meta- or ortho-substituents)	778–750	757 m/br
C-H Deformation vibration 5 neighbour Η of benzene ring	672–666	673 m/sh

,

Table 7. FT-IR spectra characteristic peaks from unsaturated polyesters (M₁A₃PA₆, M₃A₄PA₃, M₄A₄PA₂, M₆A₄, M₇A₂PA₁, and CUP).

Characteristic Chemical Group	Wavelength from Literature (cm−1)	Peak Appearance Wavelength (cm−1)
		Composite’s Cured Unsaturated Polyester Polymer Matrix
		M1A3PA6	M3A4PA3	M4A4PA2	Μ6A4	M7A2PA1	CUP
-OH stretch vibration	3600–3200	3512 m/br 3452 m/br	3523 m/br 3452 m/br	3446 s/br	3540 w/br 3459 w/br	3456 s/br	3534 w/br 3443 w/br
C-H stretch vibration, styrene’s aromatic ring	3024	3061 w/sh 3026 w/sh	3064 w/sh 3028 w/sh	3064 w/sh 3030 w/sh	3061w/sh 3029 w/sh	3062 w/sh 3026 w/sh	3062 w/sh 3028 w/sh
>CH2, -CH3 stretch vibration, aliphatic parts	2980–2950	2953 m/sh	2954 m/sh	2956 m/sh	2958 m/sh	2951 m/sh	2933 m/sh
>CH2 vibration stretch, circular and linear parts	2890–2850	2885 w/sh	2875 w/sh	2881 w/sh	2878 w/sh	2883 w/sh	28857 w/sh
CO2	2360	2345 w/sh	2362 w/sh 2339 w/br	2364 m/sh 2337 w/sh	2351 w/sh	2343 w/sh	2346 w/sh
>C=O Ester bond stretch vibration	1736–1726	1734 s/sh	1728 s/sh	1734 s/sh	1736 s/sh	1734 s/sh	1731 s/sh
C=C stretch vibration within the aromatic ring	1600, 1580, 1500	1598 m/sh, 1579 m/sh, 1492 m/sh	1598 w/sh, 1579 w/sh, 1492 w/sh	1602 w/br, 1583 w/sh, 1492 w/sh	1603 w/sh, -, 1495 w/sh	-, -, 1490 w/sh	1600 m/sh, 1581 m/sh, 1494 m/sh
C-C stretch vibration within the aromatic ring	1480–1400	1450 m/sh	1452 s/sh	1452 m/sh	1456 m/sh	1450 m/sh	1453 s/sh
CH3 Symmetric bending vibration	1390–1370	1373 m/sh	1379 m/sh	1386 m/sh	1393 m/sh	1394 m/sh	1381 w/sh
Csp3-O (ester bond)	1330–1200	1284 s/sh	1284 s/sh	1286 s/sh	1250 w/br	1282 s/sh	1283 s/sh
Csp3-O (alcohol bond)	1200–1100	1166 w/sh, 1136 m/sh	1163 w/sh, 1139 m/sh	1155 m/br	1162 m/sh	1161 m/sh	1122 m/sh
C-H «in plane» vibrations	1080–1036	1072 m/sh	1074 m/sh	1074 m/sh	1065 m/br	1074 m/sh	1068 m/sh
C=C unsaturated polyester’s double bond	982	964 w/sh	970 w/br	-	978 w/sh	981 w/br	990 w/br
C=C Styrene’s double bond	912	904 w/sh	-	925 w/br	_	-	913 w/br
C-H Deformation vibration «out of plane» 1 or 2 neighbour Η of benzene ring	876–815	877 w/sh	877 w/sh	879 w/sh	877 w/sh 814 w/br	879 w/sh	847 m/br
C-H Deformation vibration «out of plane» 3 or 4 neighbour Η of benzene ring	750	744 s/sh	746 s/sh	748 s/sh	764 m/sh	754 s/sh	745 s/sh
C-H Deformation vibration «out of plane» 5 neighbour Η of benzene ring	700, 666	700 s/sh, 650 w/sh	702 s/sh	702 s/sh, 650 w/br	703 s/sh	702 s/sh	700 s/sh 649 w/br

and

Table 8. FT-IR spectra characteristic peaks from the epoxy resin (the CER).

Characteristic Chemical Group	Wavelength from Literature (cm−1)	Peak Appearance Wavelength (cm−1)
		Cured Epoxy Resin (CER)
-OH stretch vibration	4000–3400	3416 s/br
C-H Aromatic ring stretch vibration,	3024	3034 w/sh
>CH2, -CH3 stretch vibration, aliphatic parts	3100–2800 (usually between 2960–2850)	2923 s/sh, 2854 w/sh
CO2	2360	2360 m/sh
Csp3-O alcohol BPA stretch vibration	1753–1743	1750 w/br
Aromatic ring (benzene’s backbone vibration, BPA molecule)	1610–1605	1608 s/sh
Isophorono-Diamine (IPD)	1580	1582 w/sh
C=C vibration stretch within the aromatic ring	1510–1505	1509 s/sh
>CH2, -CH3 aliphatic parts bending vibration («in plane» deformation vibration)	1450 ± 20	1456 m/sh
-ΟΗ bending vibration	1410–1260	1384 w/sh, 1362 w/sh, 1297 w/sh
Csp3-O stretch vibration, (aromatic ether)	1330–1200	1247 s/sh
stretch vibration, aromatic ring	1180	1181 s/sh
Csp3-OΗ Alcohol stretch vibration,	1150–1050	1109 m/sh, 1083 w/sh
aromatic C trans formations of ether bond (C-O-C) stretch vibration	1039–1034	1037 s/sh
C-O-C Epoxy group stretch vibration (oxirane bond)	930–914	957 w/br, 934 w/br
C-H Deformation vibration «out of plane» individual Η within aromatic ring	876	874 w/br
C-H Aromatic ring bending (out of plane)	830–829	828 s/sh
C-H Deformation vibration «out of plane» 3 or 4 neighbour Η of aromatic ring	750	749 m/br, 734 m/br
C-H Deformation vibration «out of plane»	675	698 m/sh
C-H Deformation vibration «out of plane» 5 neighbour Η of aromatic ring	666, 640	668 w/sh

, for all developed specimens. The symbols used for the identification of each peak, can be explained as follows: (i) Regarding the shape of the peak—(sh) means sharp and (br) means broad; (ii) regarding the magnitude of the peak—(s) means strong, (m) means medium, (w) means weak and (pl) means plateau. The most important, characteristic wavelength bands for each nano-composite category have been shaded in purple so that they are easily distinguishable. For the nano-composites with the novolac resin as a polymer matrix, the most important wavelength bands were—stretch vibration of the phenol’s –OH group, stretch vibration within the aromatic carbon ring of the phenol, bending vibration of the phenol’s –OH group, and vibrations within the hardener hexamethylenetetramine (HMTA) molecule (Table 6). For the nano-composites with the unsaturated polyester resin as a polymer matrix, the most important wavelength bands were—stretch vibration of the ester bond, the vibration of the alcohol bond, and the hardener styrene stretch vibration (Table 7). Finally, the nano-composites with the epoxy resin as a polymer matrix the most important wavelength bands were—bisphenol (BPA) vibration, vibration of the hardener isophoronodiamine (IPD or IPDA) molecule, vibration of the ether bond, and of the oxirane group [1,3,13,14,15,16,23,24,25,26,27,28,29].

Barium titanate has five characteristic regions in which peaks rise. These five characteristic regions have been commented on, in detail, in previous work [1]. These five characteristic peaks of barium titanate appear in all of the nano-composites examined with FT-IR spectroscopy; the results together, with the comments, have been listed in

Table 9. FT-IR spectra characteristic peaks from all of the developed nano-composites.

Characteristic Chemical Group	Wavelength from Literature (cm−1)	Peak Appearance Wavelength (cm−1)
		Composite Category
		NV-BT	M1A3PA6-BT	M3A4PA3-BT	M4A4PA2-BT	M6A4-BT	M7A2PA1-BT	CUP-BT	CER-BT
Ba-O, Ti-O stretch vibration	450–405 m/sh (region ii)	422 m/br (3%) 428 m/br (5%) 420 s/br (10%) 431 s/br (15%) 426 s/br (20%)	400 s/br (3%–20%)	426 m/br (3%, 5%) 424 s/br (10%) 430 s/sh (15%) 426 s/sh (20%)	very weak (3%) 443 w/br (5%) 428 s/br (10%) 432 s/br (15%) 432 s/sh (20%)	432 s/br (3%, 5%) 428 s/br (10–20%)	447 m/sh (3%) 439 w/br (5%) 439 m/br (10%) 405 s/br (15%) 430 s/br (20%)	458 m/br (3%, 5%) 431 s/br (10%–20%)	425 s/br (3%) 433 s/br (5%) 429 s/br (10%) 432 s/br (15%) 416 s/br (20%)
Ti-O stretch vibration	700–530 s/sh (region i)	698 w/br (3%) 700 s/br (5%–15%) 698 s/br (20%)	540 s/br (3%–20%)	545 m/br (3%) 547 m/br (5%) 543 m/br (10%) 565 s/br (15%) 563 s/br (20%)	very weak (3%) 563 s/br (5%) 559 s/br (10%) 553 s/br (15%) 561 s/br (20%)	504 s/sh (3%, 5%) 504 s/br (10–20%)	514 s/br (3%) 518 s/br (5%) 540 s/br (10%) 547 s/br (15%) 545 s/br (20%)	541 s/br (3%–20%)	558 s/br (3%) 561 s/br (5%) 560 s/br (10%) 559 s/br (15%, 20%)
Ba-O, Ti-O stretch vibration	860–852 w/sh (region iv)	Overlap with NV peak: 874 w/br	Overlap with M1A3PA6 peak: 877 w/sh	Overlap with M3A4PA3 peak: 877 w/sh	Overlap with M4A4PA2 peak: 879 w/sh	Overlap with M6A4 peak: 877 w/sh	Overlap with M7A2PA1 peak: 879 w/sh	Overlap with CUP peak: 847 m/br	Overlap with CER peak: 874 w/br
C-O stretch vibration	1444–1440 m/sh (region iii)	_	Overlap with M1A3PA6 peak: 1450 m/sh	Overlap with M3A4PA3 peak: 1452 s/sh	Overlap with M4A4PA2 peak: 1452 m/sh	Overlap with M6A4 peak: 1456 m/sh	Overlap with M7A2PA1 peak: 1450 m/sh	Overlap with CUP peak: 1453 s/sh	Overlap with CER peak: 1456 m/sh
-OH stretch vibration	3433–3389 m/br (region v)	Overlap with NV peak: 3416 s/br	Overlap with M1A3PA6 peak: 3452 m/br	Overlap with M3A4PA3 peak: 3452 m/br	Overlap with M4A4PA2 peak: 3446 s/br	Overlap with M6A4 peak: 3459 w/br	Overlap with M7A2PA1 peak: 3456 s/br	Overlap with CUP peak: 3443 w/br	Overlap with CER peak: 3416 s/br

. A difference was easily noticeable in the characteristics of each peak. This difference was attributed to the increase of the proportion of BaTiO₃ in the specimens, thus, a variation in the intensity of each peak occurred. As a conclusion about all examined FT-IR spectra, the following remarks could be made—there was a characteristic region which was attributed to the presence of each polymer matrix and there was a number of characteristic peaks which were attributed to the presence of the barium titanate nano-particles.

3.4. Thermal Characterization

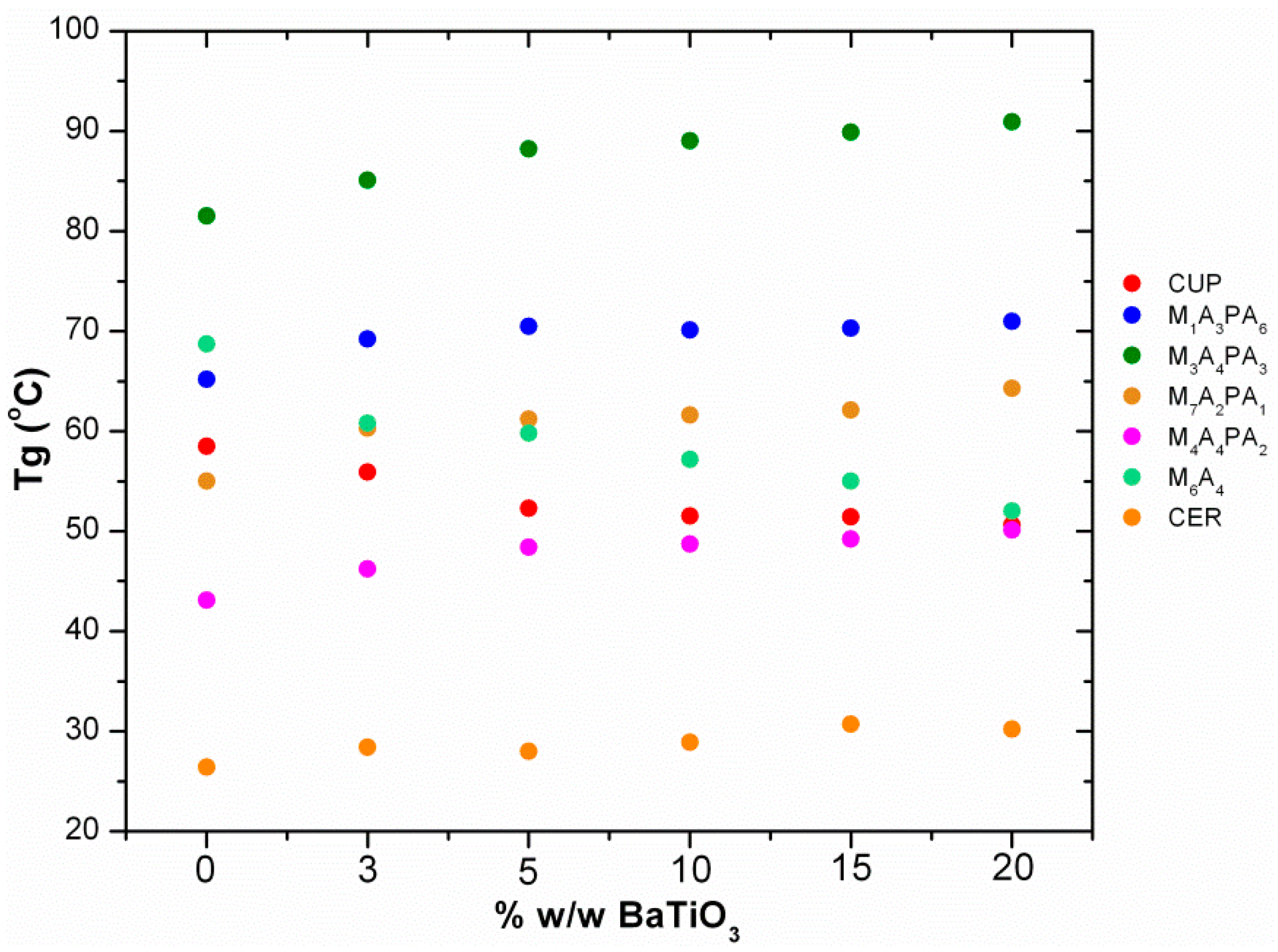

Thermal Analysis and, specifically, Differential Scanning Calorimetry (DSC) is a method which allows the determination of a number of important characteristic temperatures. The most important of all these characteristic temperatures is the glass transition temperature (Tg), due to the fact that these composites have polymers as matrices. The determination of the Tg was carried out via the point of inflexion of the transition. Even if all of the polymers employed for the developed composites were the thermosetting ones, practically, an amount of the initial thermoplastic (before the curing took place) never turned to thermosetting, via the curing process. Due to this, Tg must be calculated and estimated before using such materials. A comparative graph has been depicted in Figure 5, for all of the developed nano-composite categories, except for the nano-composites with the novolac resin as matrix. This happened because the novolac is the most perfectly cured thermosetting polymer, so no thermoplastic region existed after the curing process. By examining the graph, two kinds of behaviors could be detected. In the largest variety of the nano-composites (M₁A₃PA₆-BT, M₃A₄PA₃-BT, M₄A₄PA₂-BT, M₇A₂PA₁-BT, and CER-BT), Tg seemed to increase, while the content of the specimen in the barium titanate also increased. On the other hand, two kinds of nano-composites (M₆A₄-BT and CUP-BT) exhibited exactly a different behavior, so the Tg decreased while the content of the specimen in the barium titanate, increased. This behavior occurs, sometimes, in similar polymer matrix composites. In the first case, the barium titanate nano-particles seemed to bind the thermal energy, and did not release it easily, so the specimens could withstand higher temperatures, without harming the remaining thermoplastic regions. As a result, these specimens had higher glass transition temperatures. Contrariwise, the other two composite categories exhibited exactly the opposite behavior, the nano-particles seemed not to bind the thermal energy, so the polymer matrix was affected by a decrease in its Tg. Conclusively, the barium titanate nano-particles, in one case, acted protectively for the polymer matrix, and non-protectively, in the other.

3.5. Mechanical Characterization

Shear and bending tests took place via the three-point method, in order to calculate the shear and bending strengths of all developed specimens. In Figure 6 and Figure 7, not all composite categories existed. This happened because some of the developed specimens did not fail, in certain tests. For example, the unsaturated polyester with the code name M₁A₃PA₆, displayed a completely elastomeric behavior, so none of the M₁A₃PA₆-BT composites failed in the above-mentioned mechanical tests. In the shear test, all the other developed composites failed, except for the M₁A₃PA₆-BT composites. On the contrary, in the bending test, none of the composites with a laboratory synthesized unsaturated polyester as a polymer matrix, failed, as they exhibit an almost elastomeric behavior, while the NV-BT, CUP-BT, and the CER-BT composites exhibited a brittle behavior, so the composities of all these categories failed in the bending test. A very important remark was that, by increasing the content of the barium titanate, in all of the developed composites, both for shear and the bending tests, the shear and the bending strength decreased. This fact had to do with the type of adhesion between the nano-particles and the macro-molecular polymer chains, so this meant that by increasing the content of the barium titanates, it became more and more difficult for the nano-particles to disperse between the 3D-cured polymer network. Another very important point was that, the bending strength values exhibited three times higher values in relation to the shear ones, separately for each category. Finally, comparing the mechanical behavior of the three composite categories, the highest strength values were shown by the CER-BT composites, as was expected, followed by the strength values of the composites with the unsaturated polyester polymer matrix, and in the end, the poorest mechanical strength values were displayed by the NV-BT composites.

3.6. Broadband Dielectric Spectroscopy (BDS) Characterization

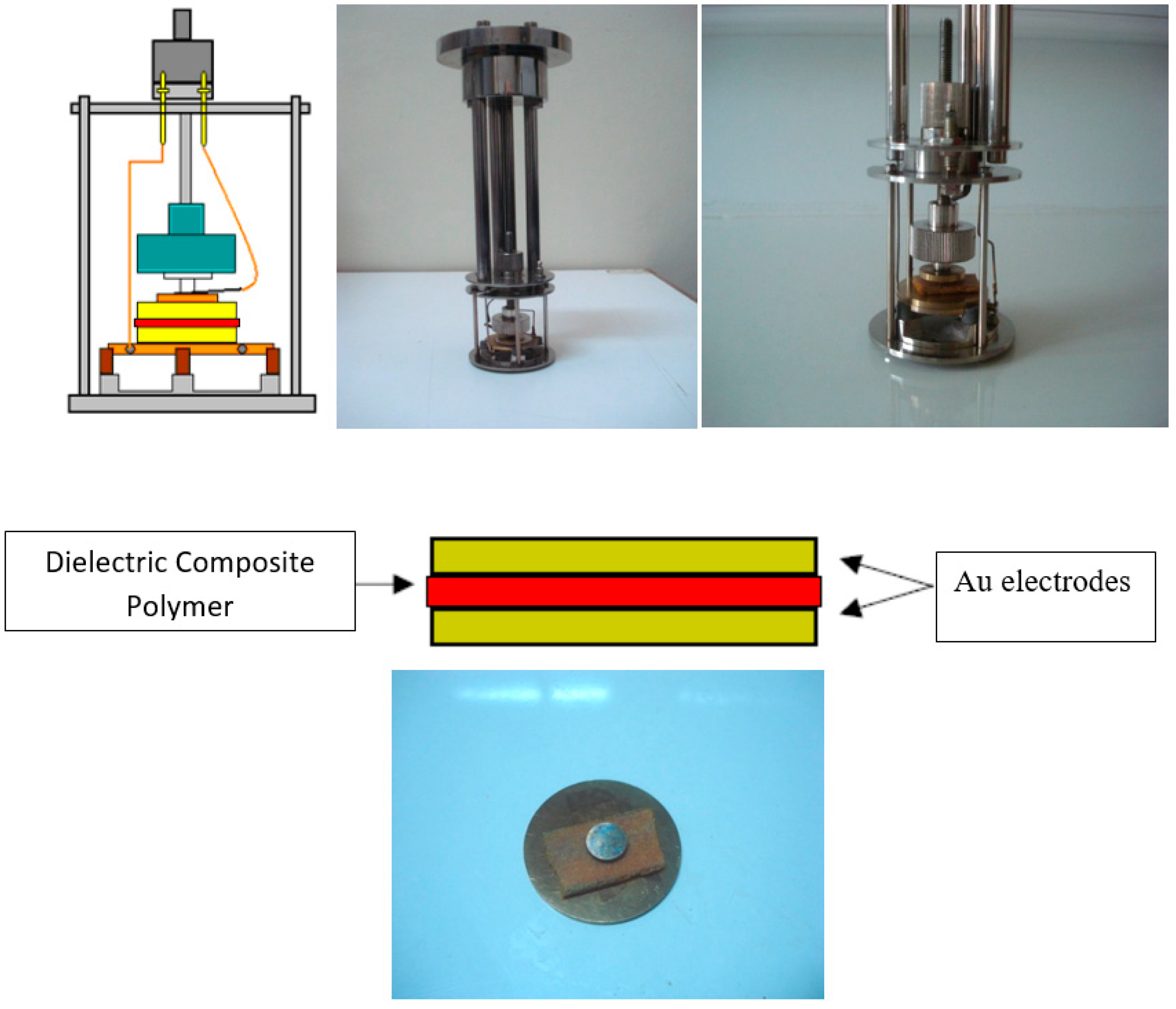

Dielectric measurements were conducted by means of a broadband dielectric spectroscopy (BDS), in the frequency range of 0.1 Hz to 10 MHz, using an Alpha-N Frequency Response Analyser (Novocontrol Technologies, Hundsagen, Germany). The employed dielectric cell (BDS-1200, Novocontrol) was a parallel-plate capacitor with two gold-plated electrodes (Figure 8). Temperature was controlled via the Novotherm device, supplied also by Novocontrol. Experimental data were obtained by performing isothermal frequency scans, for each examined specimen, from ambient to 150 °C, with a temperature step of 5 °C. The amplitude of the applied test voltage was kept constant at 1000 mV [2,3].

Dielectric measurements concerning the developed composites, disclosed the presence of three relaxation processes, which were attributed to the re-arrangement of the polar side groups (β-mode), glass-to-rubber transition of the polymer matrix (α-mode), and the Interfacial Polarization between the system’s constituents. First, dielectric permittivity was calculated and then, through Equation (1), conversed into the electric modulus. In all cases, the real part of electric permittivity diminished with the frequency reflecting the decrease of polarization, due to the inertia of the dipoles, to follow the alternation of the applied field. The electric modulus is considered as an effective formalism for the investigation of dielectric data, since it eliminates the parasitic and undesirable effect of electrode polarization [1,2,3,30,31,32]. Electric modulus is defined as the inverse quantity of complex permittivity, as shown in Equation (1), where ε′, M′ and ε″, M″ are the real and the imaginary parts of the dielectric permittivity and the electric modulus, respectively.

$$M^{\ast }=\frac{1}{{\epsilon }^{\ast }}=\frac{1}{{\epsilon }^{\prime }-j{\epsilon }^{″}}=\frac{{\epsilon }^{\prime }}{{{\epsilon }^{\prime }}^2+{{\epsilon }^{″}}^2}+j\frac{{\epsilon }^{″}}{{{\epsilon }^{\prime }}^2+{{\epsilon }^{″}}^2}=M^{\prime }+j{M}^{″}$$

(1)

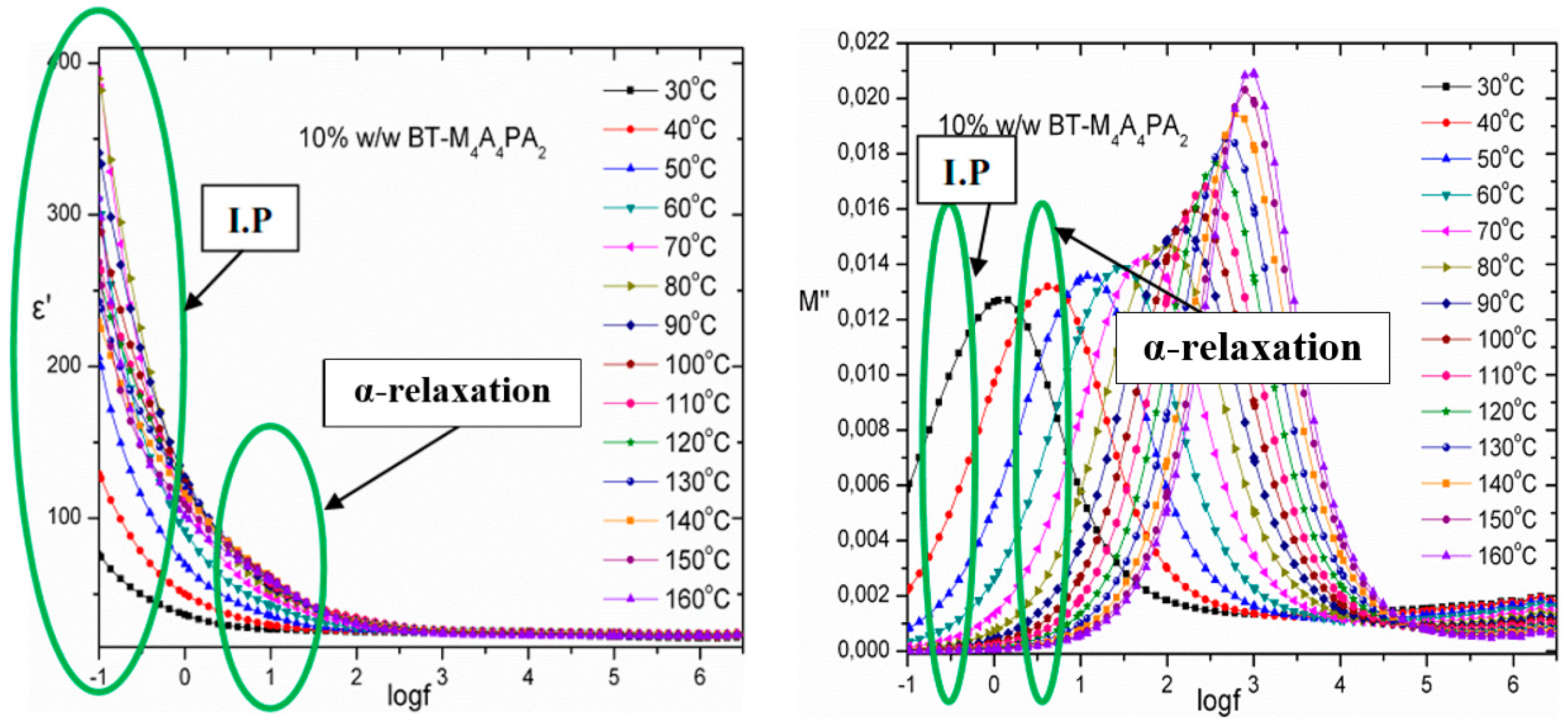

These relaxation processes can be easily be detected from Figure 9, Figure 10 and Figure 11, from the graphs of the real part of the dielectric permittivity and the imaginary part of the electric modulus, versus either frequency or temperature. The specimens, with the following specific content in the barium titanate, were not randomly selected, but they were the ones with the highest energy storing capability of each composite category (as will be explained afterwards). So, the three dimensions plots in Figure 9 depict the real part of the dielectric permittivity and the imaginary part of the electric modulus, versus the frequency and the temperature. It was clear that Interfacial Polarization appeared in relatively lower frequencies and relatively higher temperatures than the α-relaxation (Figure 9, Figure 10 and Figure 11), as the Interfacial Polarization’s dipoles were bigger than those of the α-relaxation, so larger amounts of energy were required. In higher frequency and lower temperature values, β-relaxation appeared. β-relaxation was related to a re-arrangement of the polar side groups, so these dipoles were smaller, compared to the larger parts of the polymer chain (α-relaxation), and because of this, a lower level of energy was needed. The cause of the β-relaxation for the novolac and the epoxy-based composites, was attributed to the re-arrangement of the hydroxyl polar side groups (-OH). Concerning the composites with the unsaturated polyesters as polymer matrix, β-relaxation was attributed to the re-arrangement of the oxygen molecules, connected with the main polymer chain, by a double bond.

The most important electric property of electric, from all that were examined, was the energy density—a parameter informing us about the magnitude of energy storing capability of each one of the developed composites. The density of energy was calculated via Equation (2):

$$\langle u\rangle =\frac{1}{2}\cdot {\epsilon }_0\cdot \epsilon \prime \cdot {\left(\frac{V_0}{d}\right)}^2$$

(2)

where ε₀ is the dielectric permittivity of vacuum, ε’ is the real part of dielectric permittivity of the corresponding specimen, V₀ is the applied voltage amplitude (which in our case was kept constant at 1 V), and d is the specimen’s thickness (being equal to 3 mm) [1,2,3,33].

Since the main application of the developed composites was to work as capacitors, the importance of energy density is apparent. Energy density has been calculated for all developed composites versus the whole testing range of frequencies and temperatures. Specific temperature and frequency values were chosen to examine the functionality of the specimens, under certain conditions. These certain conditions consisted of temperature at 30 °C, and frequency at 10⁻¹ Hz, values that simulate the functional conditions of a typical environment. In each temperature and frequency for the above-mentioned value, a scan through the whole testing frequency and temperature window took place. Two characteristic graphs of such scanning are shown in Figure 12. Composites with the Μ₇A₂PA₁ unsaturated polyester as a polymer matrix exhibited the highest energy density values, compared to all others. The energy density acquired its highest values at low frequencies and at high (but not the highest) temperatures. A very crucial observation was that the highest energy density values were not exhibited by the specimens with the highest content of barium titanate. For example, for composites with the Μ₇A₂PA₁ unsaturated polyester as a polymer matrix, the highest energy density values were shown by the specimen with 10% w/w content of barium titanate. This was probably due to the specificity of each polymer cured network and the corresponding manner in which the nano-particles were dispersed in it. The shape of the polymer 3D network, defines the mobility of the permanent dipoles, as well as the mobility of the developed dipoles, at the interface of the barium titanate nanoparticles and, therefore, the energy storing capability of each composite material. So, the permittivity did not increase monotonically with the filler content, as expected, because the quality of the achieved dispersion of the nano-particles diminished at high BaTiO₃ loadings, in some composite categories. The nano-particles tended to form clusters and agglomerates and the sample’s preparation was significantly hampered. The presence of agglomerates, the weak adhesion between particles and matrix, and the possible formation of small voids lead to lower permittivity values for the nanocomposites with a high barium titanate content. Therefore, the corresponding energy density values decreased [1]. The optimum content of barium titanate exhibited the highest energy density values, constituting the most tempting occasions of these composites for the developing applications, by also taking into account, the high cost of barium titanates. The specimens with the highest energy density value for each developed composite category are listed in

Table 10. Maximum energy density values versus frequency (at 30 °C) and versus temperature (at 10⁻¹ Hz), in relation to the composite’s content of barium titanate, for all developed categories of composite materials.

Type of Composite	<u> vs logf Graphs, at 30 °C		<u> vs Τemperature Graphs, at 10−1 Hz
	% w/w BaTiO3	<u>max (J/m3)	% w/w BaTiO3	<u>max (J/m3)
NV-BT	10	1.15 × 10−5	10	7.40 × 10−5
CUP-BT	20	4 70 × 10−6	5	5.25 × 10−4
M1A3PA6-BT	20	3.50 × 10−5	20	3.60 × 10−4
M3A4PA3-BT	20	2.30 × 10−5	20	2.80 × 10−4
M4A4PA2-BT	10	3.62 × 10−5	10	2.00 × 10−4
M7A2PA1-BT	10	1.35 × 10−4	10	2.80∙10−3
M6A4-BT	5	2.30 × 10−5	10	2.23 × 10−3
CER-BT	20	7.75 × 10−6	20	1.50 × 10−4

. It was obvious that in several composite categories, the highest energy density values were not shown by the specimens with the maximum content of barium titanate. Regarding the comparison between the composites, in relation to each polymer matrix, the lowest energy density was exhibited by the specimens with commercial unsaturated polyester resin and commercial epoxy resin as a polymer matrix. Then with slightly higher energy density values, followed the composites with the laboratory novolac resin as a polymer matrix. The highest energy density values were exhibited by the composites with laboratory unsaturated polyesters, as a polymer matrix, with the highest value being exhibited by the specimen with the 10% w/w BT-Μ₇A₂PA₁.

4. Discussion

The purpose of the present study was to develop novel polymer nanocomposites by combining the three most important and communal thermosetting polymer matrices with barium titanate nano-particles. The produced systems can be considered to be a new generation of nanocomposites, since they incorporate a distributed network of nanocapacitors. This network can be exploited for energy storage and, thus, a type of nano-device has been defined.

Barium titanate is known for its energy storing capability and, as a result, it is a widely used material for capacitors. Combining this new generation material with the most important thermosetting polymer, as matrices, completely new and innovative materials were developed. First, this research dealt with the synthesis process and kinetic analysis that take place in unsaturated polyesters. In the first part of this research work, a synthesis and kinetic analysis of unsaturated polyesters took place. The steps that followed concerned with the curing process—a compression molding technique—and was carried out via a thermo-compressor. The next stage was to carry out the structural characterization via Scanning Electron Microscopy, assisted with Electron Dispersive X-Ray Spectroscopy, X-Ray Diffraction, and Infrared Spectroscopy, via a Fourier Transformation. The glass transition temperature for all studied nanocomposites was determined via a differential scanning calorimetry. Then, the mechanical properties were studied via the three-point method, in order to calculate the shear and bending strength values for all developed specimens. Finally, the most important study consisted of the Broadband Dielectric Spectroscopy, as dielectric properties hold crucial importance for this kind of composite materials. In particular, the dielectric permittivity, electric modulus, and energy density were determined. Energy density was the most important parameter as it is the measure that quantifies the energy storing capability of a material. It was found that the optimum dielectric performance did not correspond to the maximum filler loading, in all composite types, and the highest values were exhibited by the 10% w/w BT-Μ₇A₂PA₁.

5. Conclusions

The above research sums up data and very important conclusion of a multi-annual study. It involves the three most important and common thermosetting polymers as polymers matrices and multi-functional nano-particles of barium titanate. So, there is not one composite better than the other, the only factor that matters its time is the certain application. The application defines the properties that each material must have, so if the in the application the engineer prefers higher energy density then laboratory M7A2PA1 should be the better choice, but if the application needs high mechanical properties in shear and bending strength then commercial epoxy resin composites might be a better option. Summarizing this article presents all the measured properties and the study of their structure in this concise comparative study.
