Proinflammatory Responses of 1-Nitropyrene against RAW264.7 Macrophages through Akt Phosphorylation and NF-κB Pathways

by
Ping-Kun Tsai
1,2,
Shih-Pin Chen
3,4,
Rosa Huang-Liu
5,
Chun-Jung Chen
6,
Wen-Ying Chen
7,
Yan-Yan Ng
8,† and
Yu-Hsiang Kuan
9,10,*,†
1
Department of Internal Medicine, Zuoying Branch of Kaohsiung Armed Forces General Hospital, Kaohsiung 81342, Taiwan
2
Department of Emergency Medicine, Tri-Service General Hospital, National Defense Medical Center, Taipei 11490, Taiwan
3
Department of Internal Medicine, School of Medicine, Chung Shan Medical University, Taichung 40201, Taiwan
4
Department of Internal Medicine, Chung Shan Medical University Hospital, Taichung 40201, Taiwan
5
School of Nutrition, Chung Shan Medical University, Taichung 40201, Taiwan
6
Department of Education and Research, Taichung Veterans General Hospital, Taichung 40705, Taiwan
7
Department of Veterinary Medicine, National Chung Hsing University, Taichung 40227, Taiwan
8
Department of Pediatric, Chung Kang Branch, Cheng Ching Hospital, Taichung 40764, Taiwan
9
Department of Pharmacy, Chung Shan Medical University Hospital, Taichung 40201, Taiwan
10
Department of Pharmacology, School of Medicine, Chung Shan Medical University, Taichung 40201, Taiwan
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Toxics 2021, 9(11), 276; https://doi.org/10.3390/toxics9110276
Submission received: 24 August 2021 / Revised: 6 October 2021 / Accepted: 14 October 2021 / Published: 21 October 2021
(This article belongs to the Section Toxicology)
Browse Figures
Versions Notes

Abstract

:
Air pollution is a major environmental and public health problem worldwide. A nitro-polycyclic aromatic hydrocarbon and the most abundant air pollutant in diesel engine exhaust, 1-nitropyrene (1-NP), is caused by the incomplete combustion of carbonaceous organic substances. Macrophages are effector cells of the innate immune cells that provide resistance in the peripheral tissue. The overactivation of macrophages results in inflammation. The generation of proinflammatory cytokines, such as interleukin (IL)-1β, IL-6, and tumour necrosis factor alpha, is induced by 1-NP in a concentration-dependent manner in macrophages. In this study, the production of proinflammatory mediators, such as nitrogen oxide and prostaglandin E2, was induced by 1-NP in a concentration-dependent manner through the expression of iNOS and COX2. The generation of proinflammatory cytokines, iNOS, and COX2 was induced by 1-NP through nuclear factor (NF)-κB p65 phosphorylation and the degradation of its upstream factor, IκB. Finally, Akt phosphorylation was induced by 1-NP in a concentration-dependent manner. These findings suggest that 1-NP exhibits a proinflammatory response through the NF-κB pathway activation due to Akt phosphorylation.

1. Introduction

Air pollution is caused by a mixture of pollutants floating in the atmosphere. These pollutants are generated from natural events, such as fires, storms, volcanic eruptions, and the release of pollen. Furthermore, a major source of air pollutants is human activity, such as fossil fuel combustion, agricultural activity, manufacturing (particularly in the form of factory exhausts), and mining [1,2,3]. Exposure to air pollutants is associated with many diseases, including cardiovascular diseases, neurodegenerative diseases, diabetes, and glaucoma [1,2,4,5]. Known as a nitro-polycyclic aromatic hydrocarbon and the most abundant nitroarene in diesel engine exhaust, 1-nitropyrene (1-NP) results from the incomplete combustion of carbonaceous organic substances [6,7]. Genotoxicity and apoptosis are induced by 1-NP in macrophages, liver and lung epithelial cells, and hepatoma cells [8,9,10,11,12]. Chronic inflammation in pulmonary fibrosis is induced by 1-NP through endoplasmic reticulum stress in mice [13]. Cytokines and chemokines are induced by 1-NP in the alveolar epithelial cell line A549 and the human bronchial epithelial cell line BEAS-2B [14,15].
Inflammation is a crucial defence mechanism against invasive microorganisms and inhaled air pollution, including diesel engine exhaust and particulate matter. The elimination of microorganisms and air pollutants due to proinflammatory mediators is accompanied by inflammation in peripheral tissues [16,17,18]. Macrophages are effector cells of the innate immune cells that provide resistance in the peripheral tissue [16]. Therefore, macrophage activation is involved in the action of proinflammatory mediators, including cytokines, nitrogen oxide (NO), and prostaglandin E2 (PGE2) [19,20]. The activation of the proinflammatory transcript factor nuclear factor (NF)-κB is induced by environmental pollutants in macrophages through the phosphoinositide 3-kinase (PI3K) and Akt signalling pathways [21,22]. However, the effects of 1-NP-induced inflammation in macrophages remain unclear. Thus, this study examined the proinflammatory responses and relative mechanisms of macrophage RAW264.7 cells treated with 1-NP.

2. Materials and Methods

2.1. Materials

Primary antibodies for cyclooxygenase-2 (COX-2), inducible nitric oxide synthase (iNOS), phosphoryl (P)-Akt, Akt, P-p38 mitogen-activated protein kinase (MAPK), p38 MAPK, P-p65, p65, IκB, and β-actin were obtained from Santa Cruz Biotechnology (Santa Cruz, CA, USA). All secondary antibodies used for Western blot assays were purchased from Jackson ImmunoResearch Laboratories (Baltimore, MD, USA). ELISA kits for interleukin (IL)-1β, IL-6, tumour necrosis factor (TNF) α, and prostaglandin (PG) E2 were purchased from Cayman Chemicals (Ann Arbor, MI, USA). All agents for cell culture were purchased from HyClone Laboratories (Logan, UT, USA). A Griess reaction assay kit, 1-NP, phosphate-buffered saline (PBS), dimethyl sulphoxide (DMSO), and other agents were obtained from Sigma-Aldrich (St. Louis, MO, USA). In this work, 1-NP was dissolved in DMSO and the final concentration of DMSO was found to be less than 0.05% in each test sample.

2.2. Cell Culture and Treatment

RAW264.7 murine macrophage-like cells purchased from the Bioresource Collection and Research Centre (BCRC, Hsinchu, Taiwan) were cultured in DMEM supplemented with 50 IU/mL penicillin and 100 µg/mL streptomycin at 37 °C in an atmosphere of 5% CO2 and 95% air. RAW264.7 cells were plated at a density of 5 × 105 cells/mL for 12 h, then the medium was replaced with a serum-free DMEM medium [11,12]. After cell incubation with 1-NP at the concentrations of 0, 3, 10, 30, and 50 μM for 30 min or 12 h, supernatants were collected for an enzyme-linked immunosorbent assay (ELISA) and Griess reaction assays; the cells were harvested for a protein expression assay.

2.3. ELISA Assay

The levels of interleukin (IL)-1β, IL-6, tumour necrosis factor alpha (TNFα), and PGE2 were measured using an ELISA assay kit according to the manufacturer’s instructions and the assay procedures of a previous study [23,24]. After cells were incubated with 1-NP at the indicated concentrations for 12 h, the supernatants were harvested and loaded into plates coated with anticytokine antibodies for 16 h at 4 °C. After being washed, biotin-conjugated anticytokine antibodies were placed onto a plate for 2 h at room temperature. After washing, streptavidin HRP solution and TMB substrate solution were loaded onto the plate. Sulfuric acid was used to stop the reaction and the absorbance was measured at 450 nm using a microplate reader (Synergy HT Multi-Mode Microplate Reader, Biotek, Winooski, VT, USA).

2.4. Griess Reaction Assay

After the cells were incubated with 1-NP at the indicated concentrations for 12 h, the level of NO production in the medium was detected with the Griess reaction. The same volumes of 1% sulphanilamide dissolved in 5% phosphoric acid and 0.1% N-(1-naphthyl) ethylenediamine dihydrochloride dissolved in water were added to the medium. The absorbance at 540 nm was determined using a microplate reader. The nitrite concentration in the samples was determined with reference to the dilution of sodium nitrite as a standard [20].

2.5. Western Blotting Assay

After cells were incubated with 1-NP at the indicated concentrations for 12 h, they were washed with ice-cold PBS and solubilised in RIPA lysis buffer [23,24]. Equal amounts of the protein were denatured in SDS, electrophoresed on SDS–PAGE, and transferred to polyvinylidene difluoride membranes. The membranes were probed with primary antibodies. After being washed, the membranes were re-probed with HRP-conjugated secondary antibodies. All membranes were developed and quantified with enhanced chemiluminescence labelling solution using an Infinity CX5 detection system (Vilber Lourmat, France).

2.6. Statistical Analysis

All the experiments were repeated at least thrice. Values were expressed in terms of the mean ± standard deviation (S.D.). The significance of the difference from the respective controls for each experimental test condition was assessed using a one-way ANOVA, followed by Bonferroni’s multiple comparisons post hoc test. Data were analysed using the SPSS software. A p value <0.05 was considered significant.

3. Results

3.1. Effects of 1-NP on Proinflammatory Cytokine Generation in RAW264.7 Macrophages

ELISA assays were used to quantify proinflammatory cytokines, such as IL-1β, IL-6, and TNFα, generated in the medium of RAW264.7 macrophages. As illustrated in Figure 1, 1-NP-treated cells produced significantly more proinflammatory cytokines than the control cells (p < 0.05). Proinflammatory cytokine inhibition presented in a concentration-dependent manner and a significant increase was seen starting at 10 μM (p < 0.05).

3.2. Effects of 1-NP on NO Generation and iNOS Expression in RAW264.7 Macrophages

The NO generation induced by 1-NP was measured using a Griess reaction assay on RAW264.7 macrophages. After RAW264.7 macrophages had been incubated with 1-NP for 12 h, PGE2 and NO were generated in a concentration-dependent manner and a significant increase was observed at 10 μM (p < 0.05, Figure 2). iNOS is the upstream factor of NO generation. The expression of iNOS was induced by 1-NP in a concentration-dependent manner, and a significant increase was seen starting at 10 μM (p < 0.05, Figure 2).

3.3. Effects of 1-NP on PGE2 Production, COX2 Expression, and cPLA2 Phosphorylation in RAW264.7 Macrophages

The PGE2 production induced by 1-NP was measured using an ELISA assay. After RAW264.7 macrophages were incubated with 1-NP for 12 h, PGE2 production was induced by 1-NP in a concentration-dependent manner, and a significant increase was seen starting at 10 μM (p < 0.05, Figure 3). COX2 expression and cPLA2 phosphorylation are upstream factors of PGE2 production. COX2 expression and cPLA2 phosphorylation were induced by 1-NP in a concentration-dependent manner, and a significant increase was seen starting at 10 μM (p < 0.05, Figure 3).

3.4. Effects of 1-NP on IκB Degradation and NFκB p65 Phosphorylation in RAW264.7 Macrophages

The activation of the proinflammatory transcript factor NF-κB p65 plays an essential role in the generation of proinflammatory cytokines and mediators. IκB degradation and NFκB p65 phosphorylation play important roles in NF-κB activation. IκB degradation and NFκB p65 phosphorylation were significantly higher relative to such levels in control cells after treatment with 1-NP for 12 h (p < 0.05, Figure 4). The phosphorylation of p65 presented in a concentration-dependent manner, and a significant increase was seen starting at 10 μM (p < 0.05, Figure 4).

3.5. Effects of 1-NP on Akt Phosphorylation in RAW264.7 Macrophages

Akt phosphorylation is a crucial upstream factor in NF-κB activation and involves IκB degradation. Akt phosphorylation was analysed in cells treated with 1-NP for 30 min. The phosphorylation of Akt in RAW264.7 cells stimulated with 1-NP increased markedly in a concentration-dependent manner, and a significant increase was seen starting at 10 μM (p < 0.05, Figure 5).

4. Discussion

The solubility and concentration of 1-NP are very low in the gas phase [25]. However, 1-NP is adsorbed as an air pollutant from diesel engine exhaust fumes and particulate matter. Previous studies have reported that concentrations of 1-NP from 0.5 to 275 μM in exhaust emissions from gasoline-powered engines, light-duty diesel-powered engines, and heavy-duty diesel-powered engines [26]. Therefore, we employed 1-NP at a level of 3 to 50 μM for this study. In our previous studies, we found that cytotoxicity was induced by 1-NP in a time- and concentration-dependent manner. After 1-NP was incubated with RAW264.7 cells for 12 h, the cytotoxicity was approximately 10, 20, and 35% at concentrations of 10, 30, and 50 μM, respectively. After 1-NP was incubated with RAW264.7 cells for 24 h and 48 h, more serious levels of cytotoxicity were generated [11,12]. Based on these findings, we suggest that cytotoxicity induced by 1-NP cannot be recovered. The longer it takes to treat cells with 1-NP, the greater are the harmful effects on the cells, and the more likely it is that the caused damage leads to cytotoxicity.
In previous studies, we found that cytotoxicity was induced by 1-NP in a time- and concentration-dependent manner. With the same duration of 1-NP treatment of 12 h, the level of cytotoxicity was approximately 10, 20, and 35% at concentrations of 10, 30, and 50 mM, respectively. After 1-NP was incubated with RAW264.7 cells for 24 and 48 h, more serious levels of cytotoxicity were generated. These findings suggest that the cytotoxicity induced by 1-NP cannot be recovered. In addition, the cytotoxicity and genotoxicity induced by 1-NP may occur via intracellular accumulation and metabolism [11,12]. Based on these findings, we hypothesise that the proinflammatory response is higher than the toxic effects after 1-NP is incubated with RAW264.7 cells for 12 h.
Macrophages play a crucial role in the innate immunity system in phagocytosis, digestion, and the elimination of invasive pathogens, microorganisms, and air pollutants through the generation of proinflammatory cytokines such as IL-1β, IL-6, and TNFα [27,28,29]. In addition to the linkage between innate and adaptive immunity, IL-1β, IL6, and TNFα were found to induce acute and strong inflammatory responses, including leukocyte recruitment and proinflammatory mediator generation. These inflammatory responses cause excessive damage to peripheral tissues and then result in pathological diseases, such as atherosclerosis, adult respiratory distress syndrome, and tumours [30,31,32]. The levels of IL-1β, IL6, and TNFα in mRNA are upregulated by 1-NP in mouse lungs [33]. The generation of IL-1β, IL6, and TNFα is induced by 1-NP in the human alveolar basal epithelial cell line, specifically in A549 cells, and the human bronchial epithelial cell line, specifically in BEAS-2B cells [15,29]. The findings of this study revealed that the production of IL-1β, IL6, and TNFα is induced by 1-NP in a concentration-dependent manner in RAW264.7 cells. These results suggest that proinflammatory cytokines are induced by 1-NP in macrophages.
In inflammatory pathogenesis, the excessive production of NO and PGE2 is an important contributor. After macrophages were treated with proinflammatory stimuli, NO and PGE2 were generated from iNOS and COX-2, respectively. In addition, cPLA2 phosphorylation was involved in COX-2-dependent PGE2 generation in macrophages [19,34]. This result is the first to demonstrate that 1-NP-induced NO generation occurs through iNOS upregulation and PGE2 production by the upregulation of COX-2 through cPLA2 phosphorylation. The present results reveal that inflammatory responses are induced by 1-NP in macrophages through the generation of proinflammatory mediators, such as NO and PGE2, and proinflammatory cytokines, such as IL-1β, IL6, and TNFα.
NF-κB acts as the major nuclear transcription factor promoter and stimulates the generation of proinflammatory mediators. NF-κB p65, also called RelA, is the most abundant functional subunit of NF-κB. IκB is a critical upstream factor of NF-κB activation. In the normal resting state of macrophages, IκB binds with NF-κB to create complex resistance in the cytosol [24,35]. After macrophages are exposed to pollutants and stimulants, NF-κB p65 is liberated from the IκB-NF-κB complex, translocated from the cytosol to nuclear, and bound to DNA to enhance the expression of proinflammatory mediators. At the same time, IκB is degraded by the proteasome in the cytosol. As has been shown previously, the phosphorylation of NF-κB p65 was increased by 1-NP in A549 cells and mouse lungs [33]. In this study, we further found the phosphorylation of p65 through the degradation of IκB in 1-NP-treated RAW264.7 macrophages. These results suggest that the generation of proinflammatory mediators is stimulated by 1-NP via the activation of the NF-κB pathway, including NF-κB p65 phosphorylation and IκB degradation.
In the pathogenesis of inflammation, the PI3K/Akt pathway plays a key role in mammal cells and animals. Akt, also named protein kinase B, is an important downstream effector of PI3K [36]. The activation of the NF-κB pathway is enhanced by Akt phosphorylation in the macrophages. After the treatment of mouse lungs and A549 cells with 1-NP, the phosphorylation of Akt was upregulated [10,33]. Here, the phosphorylation of Akt was induced by 1-NP in macrophages. Moreover, the concentration trend of Akt phosphorylation is similar to that of NF-κB pathway activation, including NF-κB p65 phosphorylation and IκB degradation, in 1-NP treated with RAW264.7 macrophages. These results indicate that NF-κB pathway activation is induced by 1-NP through Akt phosphorylation.
Our results demonstrate that the generation of proinflammatory mediators, such as NO and PGE2, is induced by 1-NP through the expression of iNOS and COX2. The expression of proinflammatory cytokines, including IL-1β, IL-6, and TNFα, was also induced by 1-NP. The expression of proinflammatory mediators and cytokines was induced by 1-NP through the activation of the NF-κB pathway and its upstream factor, Akt phosphorylation. In conclusion, inflammatory responses were induced by 1-NP through the activation of the NF-κB pathway via Akt phosphorylation.

Author Contributions

Conceptualisation, P.-K.T., Y.-Y.N. and Y.-H.K.; data curation, P.-K.T., S.-P.C., R.H.-L. and W.-Y.C.; formal analysis, R.H.-L., C.-J.C. and Y.-Y.N.; funding acquisition, P.-K.T., Y.-Y.N. and Y.-H.K.; investigation, P.-K.T., S.-P.C. and W.-Y.C.; methodology, S.-P.C., R.H.-L., C.-J.C., W.-Y.C. and Y.-H.K.; software, R.H.-L.; supervision, Y.-H.K.; validation, S.-P.C., W.-Y.C. and Y.-H.K.; writing—original draft preparation, P.-K.T., S.-P.C. and C.-J.C.; writing—review and editing, Y.-Y.N. and Y.-H.K. All authors have read and agreed to the published version of the manuscript.

Funding

This study was supported by research grants from the Ministry of Science and Technology of Taiwan (MOST 109-2320-B-040-MY3). We also thank the National Chung Hsing University and Chung Shan Medical University (NCHU-CSMU-10810 and NCHU-CSMU-11005) and the Zuoying Branch of Kaohsiung Armed Forces General Hospital under Grant No. ZBH108–07.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Abera, A.; Friberg, J.; Isaxon, C.; Jerrett, M.; Malmqvist, E.; Sjöström, C.; Taj, T.; Vargas, A.M. Air Quality in Africa: Public Health Implications. Annu. Rev. Public Health 2021, 42, 193–210. [Google Scholar] [CrossRef]
  2. Ain, N.U.; Qamar, S.U.R. Particulate Matter-Induced Cardiovascular Dysfunction: A Mechanistic Insight. Cardiovasc. Toxicol. 2021, 21, 505–516. [Google Scholar] [CrossRef] [PubMed]
  3. Sridharan, S.; Kumar, M.; Singh, L.; Bolan, N.S.; Saha, M. Microplastics as an emerging source of particulate air pollution: A critical review. J. Hazard. Mater. 2021, 418, 126245. [Google Scholar] [CrossRef] [PubMed]
  4. Li, R.L.; Ho, Y.C.; Luo, C.W.; Lee, S.S.; Kuan, Y.H. Influence of PM(2.5) Exposure Level on the Association between Alzheimer’s Disease and Allergic Rhinitis: A National Population-Based Cohort Study. Int. J. Environ. Res. Public Health 2019, 16, 3357. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Sun, H.Y.; Luo, C.W.; Chiang, Y.W.; Yeh, K.L.; Li, Y.C.; Ho, Y.C.; Lee, S.S.; Chen, W.Y.; Chen, C.J.; Kuan, Y.H. Association Between PM(2.5) Exposure Level and Primary Open-Angle Glaucoma in Taiwanese Adults: A Nested Case-Control Study. Int. J. Environ. Res. Public Health 2021, 18, 1714. [Google Scholar] [CrossRef] [PubMed]
  6. Bamford, H.A.; Bezabeh, D.Z.; Schantz, S.; Wise, S.A.; Baker, J.E. Determination and comparison of nitrated-poly-cyclic aromatic hydrocarbons measured in air and diesel particulate reference materials. Chemosphere 2003, 50, 575–587. [Google Scholar] [CrossRef]
  7. Gao, Y.; Yang, L.; Chen, J.; Li, Y.; Jiang, P.; Zhang, J.; Yu, J.; Wang, W. Nitro and oxy-PAHs bounded in PM2.5 and PM1.0 under different weather conditions at Mount Tai in Eastern China: Sources, long-distance transport, and cancer risk assessment. Sci. Total Environ. 2018, 622–623, 1400–1407. [Google Scholar] [CrossRef]
  8. Asare, N.; Landvik, N.E.; Lagadic-Gossmann, D.; Rissel, M.; Tekpli, X.; Ask, K.; Låg, M.; Holme, J.A. 1-Nitropyrene (1-NP) induces apoptosis and apparently a non-apoptotic programmed cell death (paraptosis) in Hepa1c1c7 cells. Toxicol. Appl. Pharmacol. 2008, 230, 175–186. [Google Scholar] [CrossRef] [Green Version]
  9. Shang, Y.; Zhou, Q.; Wang, T.; Jiang, Y.; Zhong, Y.; Qian, G.; Zhu, T.; Qiu, X.; An, J. Airborne nitro-PAHs induce Nrf2/ARE defense system against oxidative stress and promote inflammatory process by activating PI3K/Akt pathway in A549 cells. Toxicol. In Vitro 2017, 44, 66–73. [Google Scholar] [CrossRef]
  10. Wu, S.W.; Su, C.H.; Ho, Y.C.; Huang-Liu, R.; Tseng, C.C.; Chiang, Y.W.; Yeh, K.L.; Lee, S.S.; Chen, W.Y.; Chen, C.J.; et al. Genotoxic effects of 1-nitropyrene in macrophages are mediated through a p53-dependent pathway involving cytochrome c release, caspase activation, and PARP-1 cleavage. Ecotoxicol. Environ. Saf. 2021, 213, 112062. [Google Scholar] [CrossRef]
  11. Su, C.H.; Ho, Y.C.; Lee, M.W.; Tseng, C.C.; Lee, S.S.; Hsieh, M.K.; Chen, H.H.; Lee, C.Y.; Wu, S.W.; Kuan, Y.H. 1-Nitropyrene Induced Reactive Oxygen Species-Mediated Apoptosis in Macrophages through AIF Nuclear Translocation and AMPK/Nrf-2/HO-1 Pathway Activation. Oxid. Med. Cell. Longev. 2021, 2021, 9314342. [Google Scholar] [CrossRef] [PubMed]
  12. Fu, L.; Zhao, H.; Xiang, Y.; Xiang, H.X.; Hu, B.; Tan, Z.X.; Lu, X.; Gao, L.; Wang, B.; Wang, H.; et al. Reactive oxygen species-evoked endoplasmic reticulum stress mediates 1-nitropyrene-induced epithelial-mesenchymal transition and pulmonary fibrosis. Environ. Pollut. 2021, 283, 117134. [Google Scholar] [CrossRef] [PubMed]
  13. Ovrevik, J.; Låg, M.; Holme, J.A.; Schwarze, P.E.; Refsnes, M. Cytokine and chemokine expression patterns in lung epithelial cells exposed to components characteristic of particulate air pollution. Toxicology 2009, 259, 46–53. [Google Scholar] [CrossRef] [PubMed]
  14. Pei, X.H.; Nakanishi, Y.; Inoue, H.; Takayama, K.; Bai, F.; Hara, N. Polycyclic aromatic hydrocarbons induce IL-8 expression through nuclear factor kappaB activation in A549 cell line. Cytokine 2002, 19, 236–241. [Google Scholar] [CrossRef]
  15. Atri, C.; Guerfali, F.Z.; Laouini, D. Role of Human Macrophage Polarization in Inflammation during Infectious Diseases. Int. J. Mol. Sci. 2018, 19, 1801. [Google Scholar] [CrossRef] [Green Version]
  16. Gallo, M.; Street, M.E.; Guerra, F.; Fanos, V.; Marcialis, M.A. A review of current knowledge on Pollution, Cigarette Smoking and COVID-19 diffusion and their relationship with inflammation. Acta Biomed. 2020, 91, e2020148. [Google Scholar]
  17. Ziegler, K.; Kunert, A.T.; Reinmuth-Selzle, K.; Leifke, A.L.; Widera, D.; Weller, M.G.; Schuppan, D.; Fröhlich-Nowoisky, J.; Lucas, K.; Pöschl, U. Chemical modification of pro-inflammatory proteins by peroxynitrite increases activation of TLR4 and NF-kappaB: Implications for the health effects of air pollution and oxidative stress. Redox Biol. 2020, 37, 101581. [Google Scholar] [CrossRef]
  18. Huang, F.M.; Chang, Y.C.; Lee, S.S.; Yang, M.L.; Kuan, Y.H. Expression of pro-inflammatory cytokines and mediators induced by Bisphenol A via ERK-NFkappaB and JAK1/2-STAT3 pathways in macrophages. Environ. Toxicol. 2019, 34, 486–494. [Google Scholar] [CrossRef]
  19. Ni, Y.L.; Shen, H.T.; Lee, M.W.; Yeh, K.L.; Chiang, C.Y.; Kuan, Y.H. Safrole-induced expression of proinflammatory responses is associated with phosphorylation of mitogen-activated protein kinase family and the nuclear factor-kappaB/inhibitor of kappaB pathway in macrophages. Tzu Chi Med. J. 2020, 32, 344–350. [Google Scholar]
  20. Kuan, Y.H.; Huang, F.M.; Li, Y.C.; Chang, Y.C. Proinflammatory activation of macrophages by bisphenol A-glycidyl-methacrylate involved NFkappaB activation via PI3K/Akt pathway. Food Chem. Toxicol. 2012, 50, 4003–4009. [Google Scholar] [CrossRef]
  21. Wan, Q.; Yang, M.; Liu, Z.; Wu, J. Atmospheric fine particulate matter exposure exacerbates atherosclerosis in apolipoprotein E knockout mice by inhibiting autophagy in macrophages via the PI3K/Akt/mTOR signaling pathway. Ecotoxicol. Environ. Saf. 2021, 208, 111440. [Google Scholar] [CrossRef] [PubMed]
  22. Tsai, P.K.; Wu, S.W.; Chiang, C.Y.; Lee, M.W.; Chen, H.Y.; Chen, W.Y.; Chen, C.J.; Yang, S.F.; Yeh, C.B.; Kuan, Y.H. Evaluation of cytotoxicity, apoptosis, and genotoxicity induced by indium chloride in macrophages through mitochondrial dysfunction and reactive oxygen species generation. Ecotoxicol. Environ. Saf. 2020, 193, 110348. [Google Scholar] [CrossRef] [PubMed]
  23. Lin, F.C.; Lee, S.S.; Li, Y.C.; Ho, Y.C.; Chen, W.Y.; Chen, C.J.; Lee, M.W.; Yeh, K.L.; Tsai, S.C.; Kuan, Y.H. Protective Effects of Kirenol against Lipopolysaccharide-Induced Acute Lung Injury through the Modulation of the Proinflammatory NFκB Pathway and the AMPK2-/Nrf2-Mediated HO-1/AOE Pathway. Antioxidants 2021, 10, 204. [Google Scholar] [CrossRef] [PubMed]
  24. Albinet, A.; Leoz-Garziandia, E.; Budzinski, H.; Viilenave, E. Simultaneous analysis of oxygenated and nitrated polycyclic aromatic hydrocarbons on standard reference material 1649a (urban dust) and on natural ambient air samples by gas chromatography-mass spectrometry with negative ion chemical ionisation. J. Chromatogr. A 2006, 1121, 106–113. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. IARC Working Group on the Evaluation of Carcinogenic Risks to Humans. Diesel and Gasoline Engine Exhausts and Some Nitroarenes; IARC Monographs on the Evaluation of Carcinogenic Risks to Humans, No. 105; International Agency for Research on Cancer: Lyon, France, 2014. Available online: https://www.ncbi.nlm.nih.gov/books/NBK294270/ (accessed on 13 October 2021).
  26. Jayawardena, T.U.; Sanjeewa, K.K.A.; Lee, H.G.; Nagahawatta, D.P.; Yang, H.W.; Kang, M.C.; Jeon, Y.J. Particulate Matter-Induced Inflammation/Oxidative Stress in Macrophages: Fucosterol from Padina boryana as a Potent Protector, Activated via NFκB /MAPK Pathways and Nrf2/HO-1 Involvement. Mar. Drugs 2020, 18, 628. [Google Scholar] [CrossRef]
  27. Hirayama, D.; Iida, T.; Nakase, H. The Phagocytic Function of Macrophage-Enforcing Innate Immunity and Tissue Homeostasis. Int. J. Mol. Sci. 2017, 19, 92. [Google Scholar] [CrossRef] [Green Version]
  28. Xing, Z.; Afkhami, S.; Bavananthasivam, J.; Fritz, D.K.; D’Agostino, M.R.; Vaseghi-Shanjani, M.; Yao, Y.; Jeyanathan, M. Innate immune memory of tissue-resident macrophages and trained innate immunity: Re-vamping vaccine concept and strategies. J. Leukoc. Biol. 2020, 108, 825–834. [Google Scholar] [CrossRef]
  29. Yang, L.; Xie, X.; Tu, Z.; Fu, J.; Xu, D.; Zhou, Y. The signal pathways and treatment of cytokine storm in COVID-19. Signal Transduct. Target. Ther. 2021, 6, 255. [Google Scholar] [CrossRef]
  30. Poznyak, A.V.; Bharadwaj, D.; Prasad, G.; Grechko, A.V.; Sazonova, M.A.; Orekhov, A.N. Anti-Inflammatory Therapy for Atherosclerosis: Focusing on Cytokines. Int. J. Mol. Sci. 2021, 22, 7061. [Google Scholar] [CrossRef]
  31. Boutilier, A.J.; Elsawa, S.F. Macrophage Polarization States in the Tumor Microenvironment. Int. J. Mol. Sci. 2021, 22, 6995. [Google Scholar] [CrossRef]
  32. Hu, B.; Tong, B.; Xiang, Y.; Li, S.R.; Tan, Z.X.; Xiang, H.X.; Fu, L.; Wang, H.; Zhao, H.; Xu, D.X. Acute 1-NP exposure induces inflammatory responses through activating various inflammatory signaling pathways in mouse lungs and human A549 cells. Ecotoxicol. Environ. Saf. 2020, 189, 109977. [Google Scholar] [CrossRef] [PubMed]
  33. Park, E.J.; Park, K. Induction of pro-inflammatory signals by 1-nitropyrene in cultured BEAS-2B cells. Toxicol. Lett. 2009, 184, 126–133. [Google Scholar] [CrossRef] [PubMed]
  34. Huang, C.H.; Wang, S.C.; Chen, I.C.; Chen, Y.T.; Liu, P.L.; Fang, S.H.; Huang, S.P.; Yeh, H.C.; Liu, C.C.; Lee, P.Y.; et al. Protective Effect of Piplartine against LPS-Induced Sepsis through Attenuating the MAPKs/NF-κB Signaling Pathway and NLRP3 Inflammasome Activation. Pharmaceuticals 2021, 14, 588. [Google Scholar] [CrossRef]
  35. Liu, T.; Zhang, L.; Joo, D.; Sun, S.C. NF-κB signaling in inflammation. Signal Transduct. Target. Ther. 2017, 2, 17023. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  36. Linton, M.F.; Moslehi, J.J.; Babaev, V.R. Akt Signaling in Macrophage Polarization, Survival, and Atherosclerosis. Int. J. Mol. Sci. 2019, 20, 2703. [Google Scholar] [CrossRef] [PubMed] [Green Version]
Toxics 09 00276 g001 550

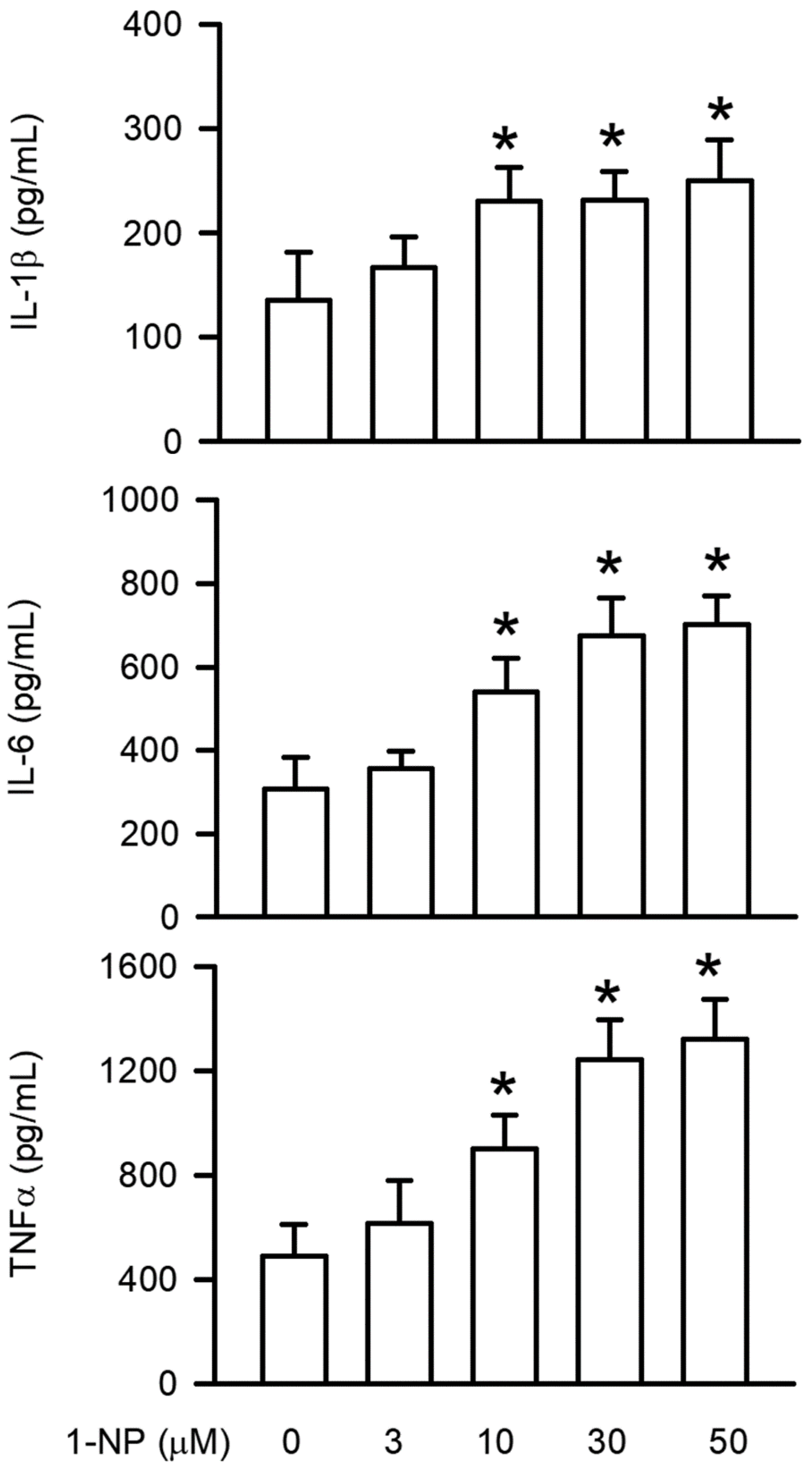

Figure 1. Proinflammatory cytokine generation was induced by 1-NP in RAW264.7 macrophages. Proinflammatory cytokines, including IL-1β, IL-6, and TNFα, were determined by the ELISA assay. Results are expressed as means ± SD (n = 4). * p < 0.05 is considered significant, compared with the control group, which indicated treatment with 1-NP at 0 μM.
Figure 1. Proinflammatory cytokine generation was induced by 1-NP in RAW264.7 macrophages. Proinflammatory cytokines, including IL-1β, IL-6, and TNFα, were determined by the ELISA assay. Results are expressed as means ± SD (n = 4). * p < 0.05 is considered significant, compared with the control group, which indicated treatment with 1-NP at 0 μM.
Toxics 09 00276 g001
Toxics 09 00276 g002 550

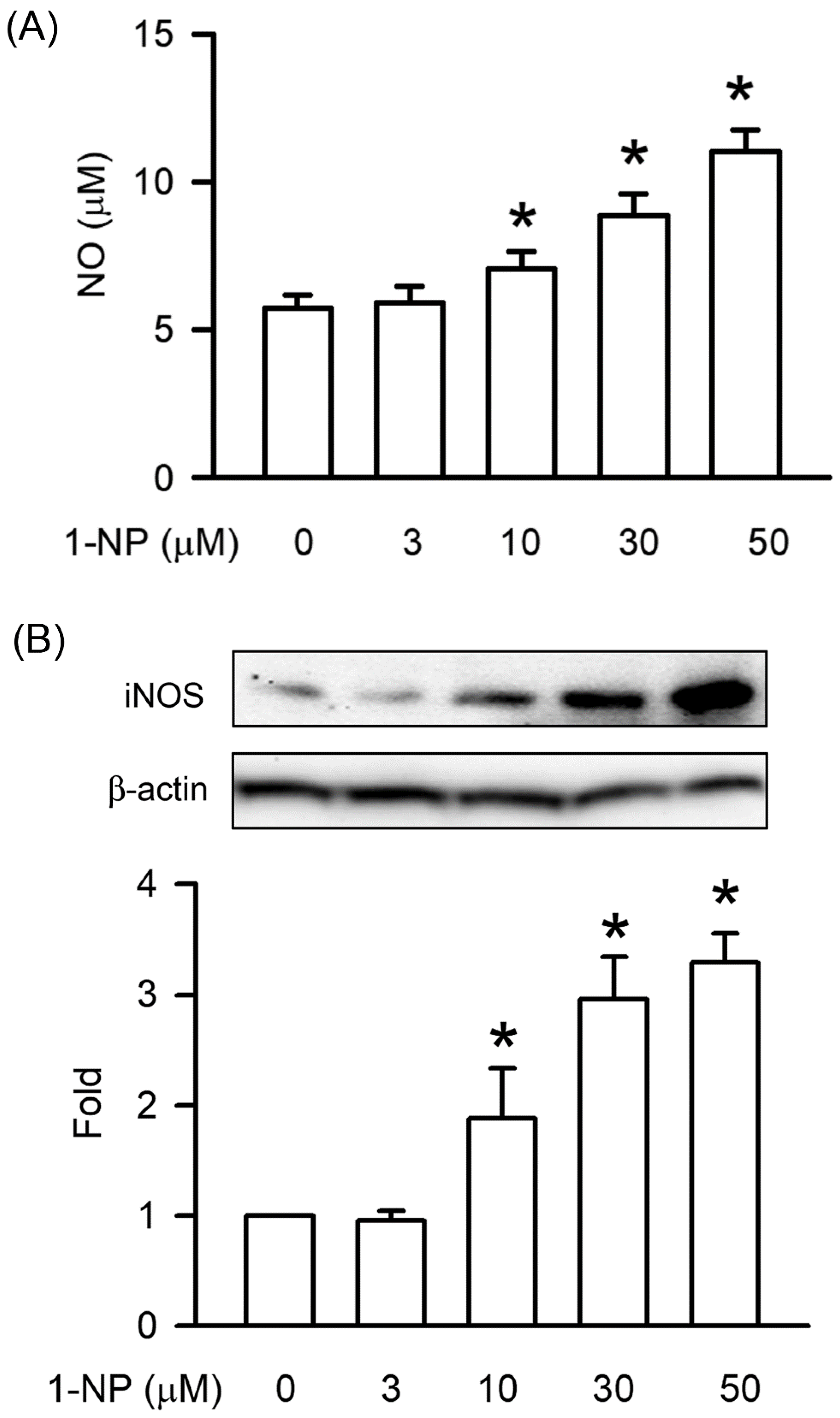

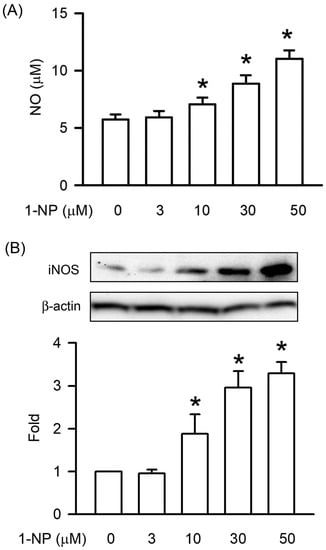

Figure 2. NO generation and iNOS expression were induced by 1-NP in RAW264.7 macrophages. The level of NO generation (A) and iNOS expression (B) was measured by a Griess reaction assay and Western blotting assay, respectively. Results are expressed as means ± SD (n = 3). * p < 0.05 is considered significant, compared with the control group, which indicated treatment with 1-NP at 0 μM.
Figure 2. NO generation and iNOS expression were induced by 1-NP in RAW264.7 macrophages. The level of NO generation (A) and iNOS expression (B) was measured by a Griess reaction assay and Western blotting assay, respectively. Results are expressed as means ± SD (n = 3). * p < 0.05 is considered significant, compared with the control group, which indicated treatment with 1-NP at 0 μM.
Toxics 09 00276 g002
Toxics 09 00276 g003 550

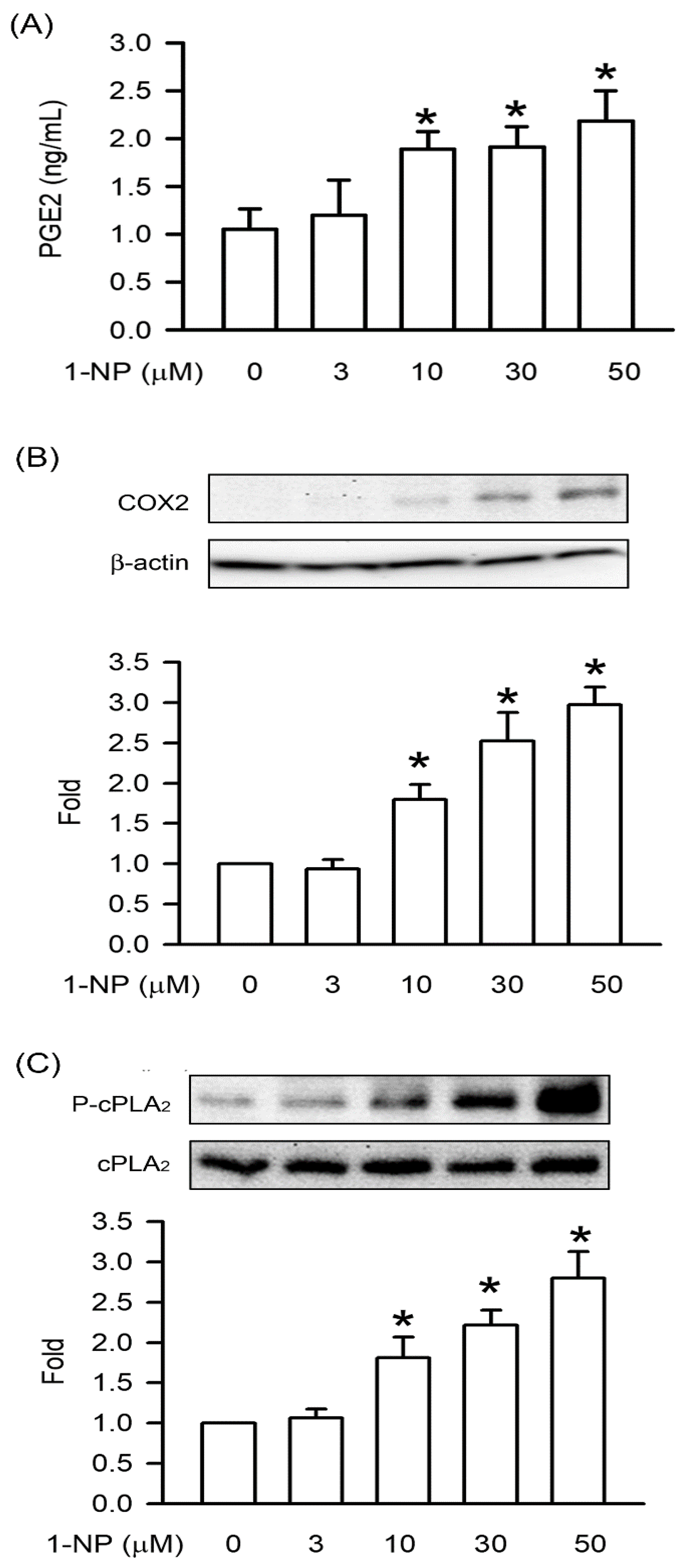

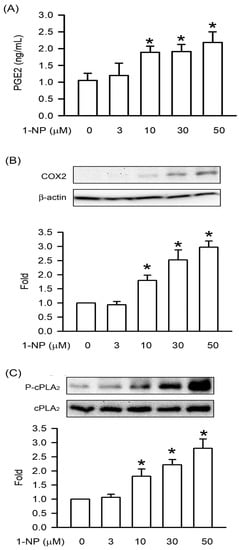

Figure 3. PGE2 production, COX2 expression, and cPLA2 phosphorylation were induced by 1-NP in RAW264.7 macrophages. (A) The level of PGE2 generation was measured by ELISA assay. The level of COX2 expression (B) and cPLA2 phosphorylation (C) was measured by Western blotting assay. Results are expressed as means ± SD (n = 3). * p < 0.05 is considered significant, compared with the control group, which indicated treatment with 1-NP at 0 μM.
Figure 3. PGE2 production, COX2 expression, and cPLA2 phosphorylation were induced by 1-NP in RAW264.7 macrophages. (A) The level of PGE2 generation was measured by ELISA assay. The level of COX2 expression (B) and cPLA2 phosphorylation (C) was measured by Western blotting assay. Results are expressed as means ± SD (n = 3). * p < 0.05 is considered significant, compared with the control group, which indicated treatment with 1-NP at 0 μM.
Toxics 09 00276 g003
Toxics 09 00276 g004 550

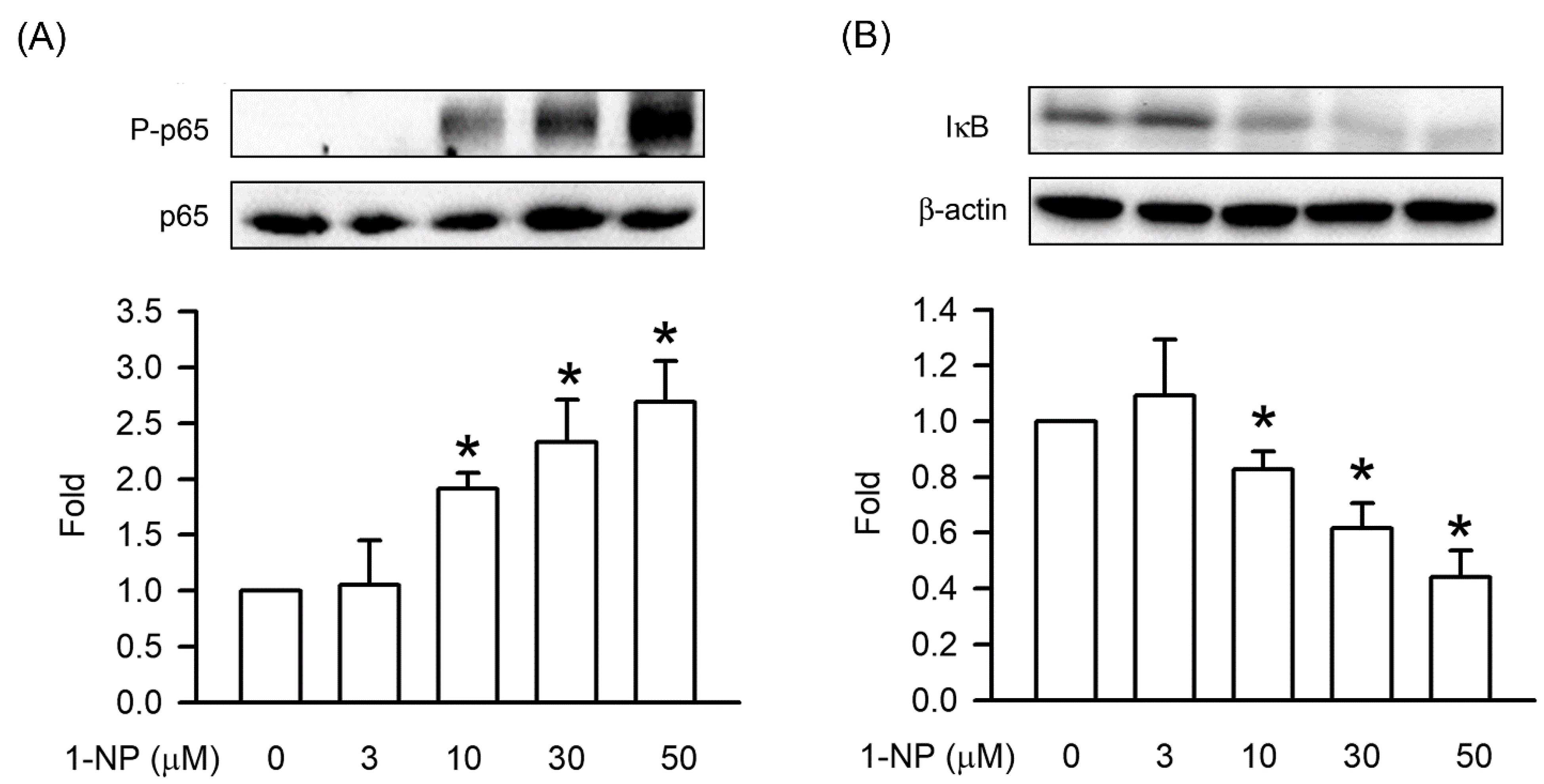

Figure 4. NFκB p65 phosphorylation and IκB degradation were induced by 1-NP in RAW264.7 macrophages. The level of NFκB p65 phosphorylation (A) and IκB degradation (B) was measured by a Western blotting assay. Results are expressed as means ± SD (n = 3). * p < 0.05 is considered significant, compared with the control group, which indicated treatment with 1-NP at 0 μM.
Figure 4. NFκB p65 phosphorylation and IκB degradation were induced by 1-NP in RAW264.7 macrophages. The level of NFκB p65 phosphorylation (A) and IκB degradation (B) was measured by a Western blotting assay. Results are expressed as means ± SD (n = 3). * p < 0.05 is considered significant, compared with the control group, which indicated treatment with 1-NP at 0 μM.
Toxics 09 00276 g004
Toxics 09 00276 g005 550

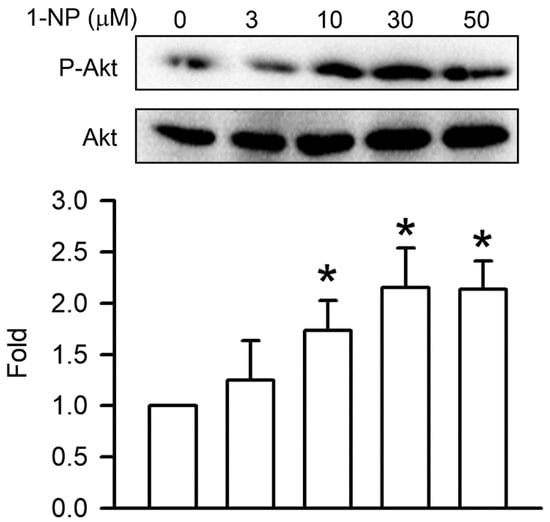

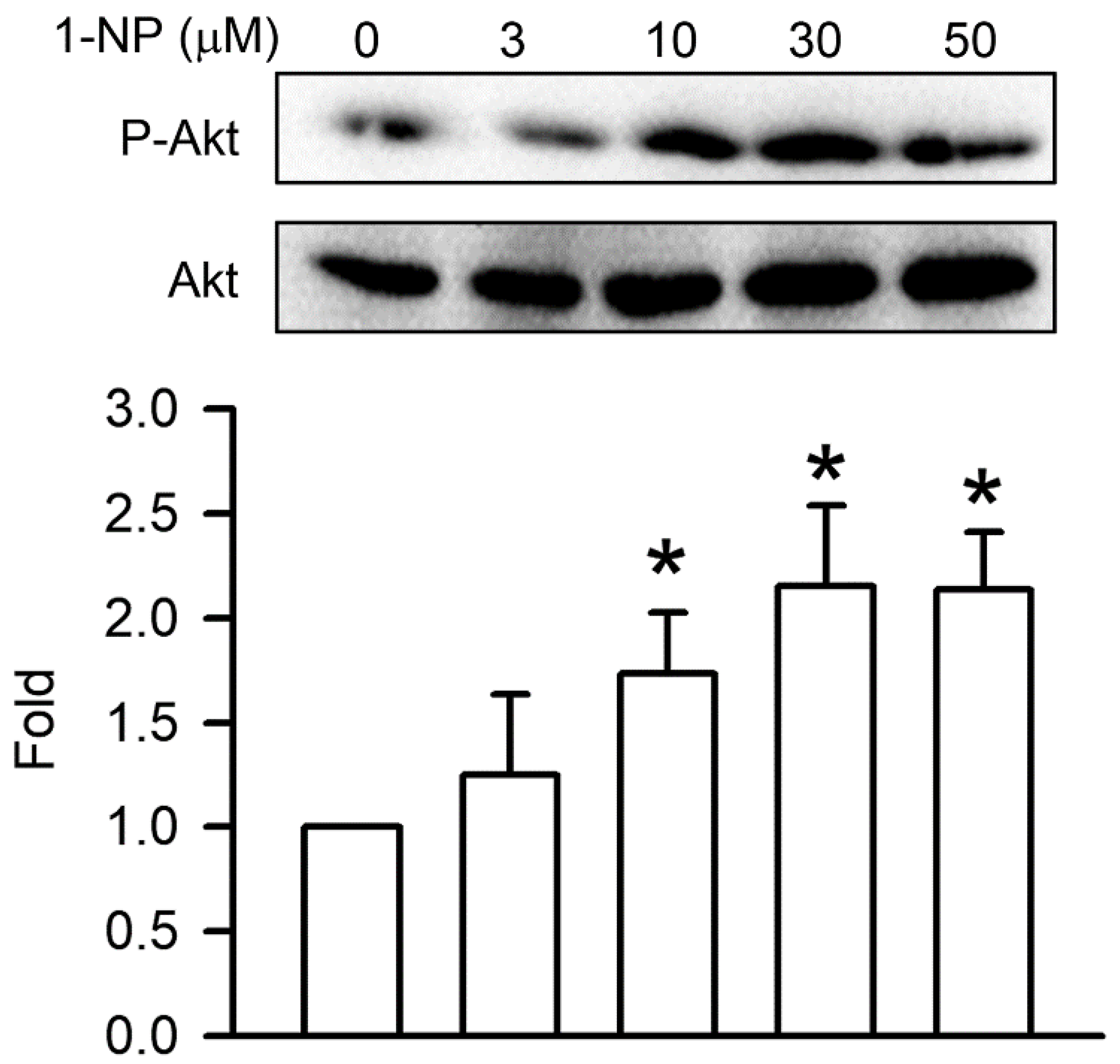

Figure 5. Akt phosphorylation was induced by 1-NP in RAW264.7 macrophages. The level of Akt phosphorylation was measured by a Western blotting assay. Results are expressed as means ± SD (n = 3). * p < 0.05 is considered significant, compared with the control group, which indicated treatment with 1-NP at 0 μM.
Figure 5. Akt phosphorylation was induced by 1-NP in RAW264.7 macrophages. The level of Akt phosphorylation was measured by a Western blotting assay. Results are expressed as means ± SD (n = 3). * p < 0.05 is considered significant, compared with the control group, which indicated treatment with 1-NP at 0 μM.
Toxics 09 00276 g005
