COVID-19 Disruption Strategy for Redesigning Global Supply Chain Network across TPP Countries

Abstract

Background: COVID-19 has disrupted and adversely affected supply chains worldwide. A global supply chain network that considers disruptions is needed. This study strategically analyzes the economic and structural effects of disruption on a global supply chain network with customs duty and the trans-pacific partnership (TPP) agreement. Methods: We present a cost minimization model which helps in understanding the difficulty of supplying materials or products to factories or customers if the supplier’s cities are facing disruption. This enables us to model and evaluate simultaneous considerations of supplier disruption, customs duty, and TPP in redesigning a global supply chain network. This network is modeled and formulated using integer programming, disruption scenarios, and a sensitivity analysis for customs duty. Results: Regarding the impact of disruptions on suppliers, two patterns emerge in the reconfigured network: direct changes due to supplier disruptions and indirect changes due to factory relocation. The sensitivity analysis for customs duty shows that the TPP has a positive impact on cost maintained, even in the presence of disruptions. Conclusions: Suppliers should be switched depending on the scale of disruption; when many distant suppliers need to be switched, the factory should be relocated to the country where these suppliers are located.

1. Introduction

A global supply chain is a series of links between procurement, production, storage, transportation, and sales across national borders [1]. The cross-border transactions across these elements of the global supply chain attract custom duties, that is, taxes on imported goods [2]. According to a survey [3], 38.6% of Japanese companies operating in the U.S. have changed their suppliers from China to other countries due to the impact of tariffs imposed by the U.S.-China trade friction. One such agreement for a more globalized supply chain is the trans-pacific partnership (TPP) [4]. The TPP is a free trade agreement signed between 11 countries, including Japan and Malaysia, and affects economies with an estimated output of USD 2.9 trillion. Under the TPP, trade in parts and products between participant countries has been free from customs duty since 2020 [4]. However, the TPP was never ratified by the U.S., which pulled out of the partnership in January 2017; consequently, the remaining 11 countries undertook their own agreement [5]. This agreement has now been termed as the comprehensive and progressive agreement for trans-pacific partnership (CPTPP), which was agreed upon in January 2018. In this study, CPTPP is used for grouping. The CPTPP includes Japan and Malaysia, while the U.S. and China are non-CPTPP member countries. TPP in this study means CPTPP.

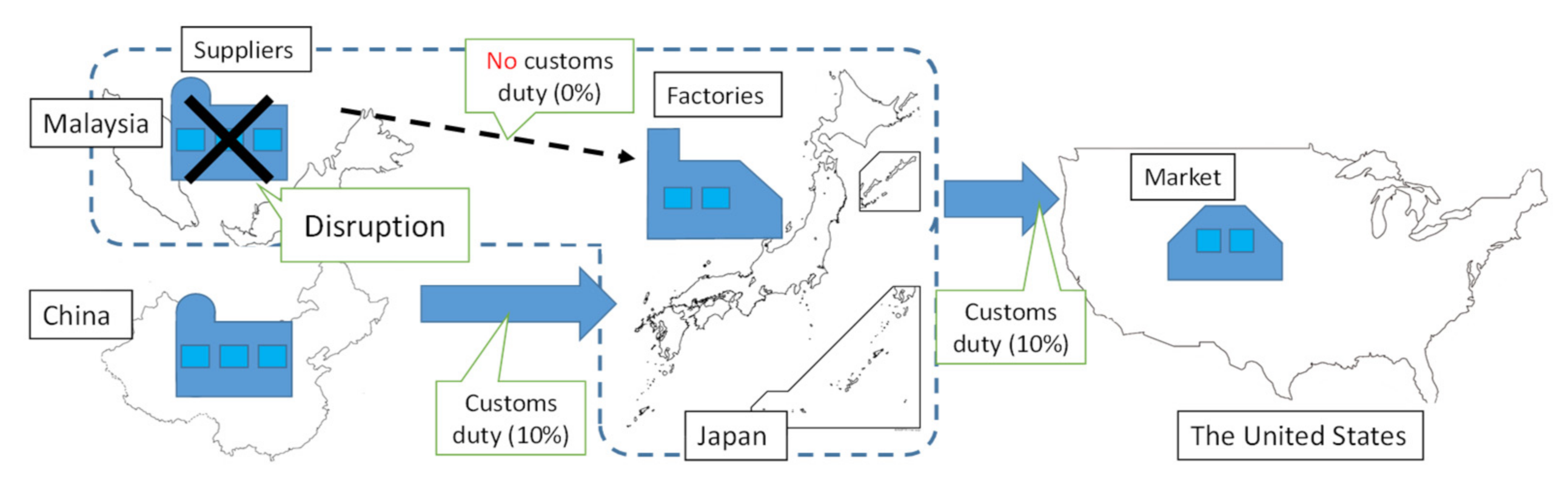

Figure 1 illustrates an example of a global supply chain, customs duty, and the TPP [6]. Parts are transported from a supplier in Malaysia to a factory in Japan. There is no customs duty because Malaysia and Japan are TPP member countries. However, in the transaction of a product from the factory in Japan to a market, such as in the U.S., a 10% customs duty is imposed on the product.

Notably, the COVID-19 pandemic [7] has seriously affected the production capacity of firms by causing shutdowns [8,9] and disruptions [10]. This interruption in the supply capacity due to unexpected events indicates the vulnerability of the global supply chain network [11]. For example, Toyota decided to stop production at 14 domestic and overseas factories during the pandemic [12]. This decision reduced the production quantity of an estimated 360,000 cars because it was difficult to procure parts from Southeast Asian suppliers during the pandemic.

An example of a supply chain disruption caused by COVID-19 all over the world is presented [13]. One such disruption is the supply disruption of parts from China to Japan. This disruption caused companies in Japan to stop production, impacting global supply chains and networks. Meanwhile, in the EU, there was a supply disruption, a labor shortage, and an increase in the time required. China faced supply disruptions, delays in land transportation, and labor shortages. Supply disruption also existed in Southeast Asia. Finally, the U.S. implemented quarantine measures for entering the country, which prevented entry into the country.

This paper simultaneously considers a global supply chain network with customs duties and supply disruption scenarios. How does the global supply chain network respond to the disruption caused by the pandemic under a customs duty scheme, including the TPP? Our study contributes to the literature by estimating the financial impact of different scales of disruption across countries in a global supply chain with customs duty and TPP; thus, this analysis examines a global supply chain at the complex intersection of business, unexpected disruptions, and politics. The scale of the disruption scenario is increased by assuming that the infection spreads faster. The example product considered here consists of 23 types of parts by bill of materials (BOM), which is a list of parts information such as the cost, size, materials, and required quantities to manufacture a product [14]. Lastly, we verify the condition that supplier disruptions lead to a switch to alternative suppliers.

The remaining of this paper is organized as follows. Section 2 reviews the global supply chain network models. In Section 3, the formulation are explained, and the disruption and TPP within the global supply chain network are considered. Section 4 prepares the disruption scenarios and other settings for the experiments. Section 5 and Section 6 analyze the impacts of disruption in a TPP and a non-TPP country, while Section 7 discusses the effect of customs duty rate and TPP under the disruption. Finally, Section 8 and Section 9 discuss and conclude this study and outlines future research directions.

2. Literature Review

With respect to the disruption, Araz et al. [15] undertook a literature review and showed the value and utility of data analysis for operational management. Govindan et al. [16] comprehensively reviewed papers in supply chain management design and noted an important problem, and consequently, an area of future research in supply chain network design. Tang [17] reviewed several quantitative models to support the development of new models for supply chain disruption. The author indicated that simulating the supply chain’s performance under different suppliers, criteria, and scenarios was a helpful method for a decision maker in selecting suppliers under uncertainty.

Regarding supply chain risk (SCR) management, Heckmann et al. [18] redefined SCR by extensively reviewing papers on risk concepts. The authors concluded that SCR and its characteristics should be modeled. Snyder et al. [19] reviewed papers in the fields of operation and management science, and noted that using multiple mitigation strategies was effective in minimizing the effects of disruption.

Table 1. Literature on supply chains and disruptions.

Literature	Type of Paper			Cost/Profit	Disruption		Global Supply Chain					Network Decision			Method
	Case Study	Review	Modeling		Consideration	Scale	Customs Duty	FTA	Region/Country		Type	BOM	Supplier Location	Factory Location
									TPP	Non-TPP
Nakamura et al. [20]			✓	✓			✓	TPP		England	Forward	✓	✓	✓	Integer programming
Hayashi et al. [21]			✓	✓			✓	TPP	Japan, Malaysia	China, The U.S.	Forward	✓	✓	✓	Integer programming
Amin and Baki [22]			✓	✓			✓	NAFTA			Forward		✓	✓	Mixed integer programming
Kovács and Kot. [23]		✓
Kot et al. [24]	✓								Canada	Iran, Turkey					Survey
Lahkani et al. [25]	✓									China					Blockchain
Jabbarzadeh et al. [26]			✓	✓	✓	Random				Iran	Closed-loop		✓	✓	Lagrangian relaxation
Ivanov and Dolgui [27]			✓	✓	✓						Intertwined supply networks				Dynamic game-theoretic modelling on ecosystem
Govindan et al. [28]			✓		✓	5 scales					Healthcare				Fuzzy inference
Ivanov [29]			✓		✓						Forward		✓		Dynamic systems theory
Min et al. [30]	✓			✓	✓	China				China					Telephone survey
This paper			✓	✓	✓	China, Malaysia	✓	✓	Japan, Malaysia	China, The U.S.	Forward	✓	✓	✓	Integer programming

lists the literature on supply chains and disruptions. In a field of economic supply chain, Nakamura et al. [20] analyzed the effect of the TPP on the global supply chain by modeling a global supply chain network considering TPP and Brexit. Their results showed that the UK’s Brexit and participation in the TPP would reduce the total costs in the global supply chain. Hayashi et al. [21] designed and analyzed a global supply chain network considering TPP and carbon taxes based on material-based emissions from product manufacturing. Their results demonstrate that increasing the tariff rate under the carbon tax regime caused a change in supplier selection. However, their model did not consider the risk of supply disruptions.

Amin and Baki [22] modeled a global closed-loop supply chain (CLSC) considering the exchange rate, tariff, and demand uncertainty. Their results indicated that profit decreased as the customs duty rate increased, while domestic suppliers were selected for the CLSC. Kovács and Kot [23] described the trends and challenges in logistics with reasons and drivers, and noted that the market environment was changing rapidly. They suggested that the entire supply chain should be constructed to increase production efficiency and use resources more effectively in horizontal network connections. Kot et al. [24] investigated the supply chain management practices in 613 small and medium-sized enterprises (SMEs) in Canada, Iran, and Turkey, and found that SMEs used supply chain management more than large companies. Their results also showed that environmental sustainability increased SMEs’ longevity; further, companies with more than 15 years of experience had a greater preference for implementing environmental sustainability. The authors also pointed out that environmental and social sustainability were closely related to the type of industry. Lahkani et al. [25] analyzed blockchain solutions using a case study of a Chinese e-commerce company. Their results showed that the efficiency of logistics and maintenance of digital documents were improved, indicating their superiority over traditional material management systems. They also indicated that blockchain solutions would create a sustainable economy by improving the transparency, traceability, and security of funding. However, no studies have considered the impact of the pandemic disruption on a global supply chain network model under the TPP with customs duties and costs simultaneously.

Concerning the resilience of a supply chain, Jabbarzadeh et al. [26] presented a stochastic robust optimization model showing resilience under disruption. However, the globality of the supply chain, such as customs duty and an economic partnership agreement, was not considered. Ivanov and Dolgui [27] introduced a new interconnected supply chain approach that considers resilience and viability in the case of extraordinary disruptions. However, the model did not recognize the locations of the suppliers and factories. Govindan et al. [28] developed a decision support system using the knowledge of physicians and a fuzzy inference system for managing demand in the healthcare supply chain. Using this system, users were classified based on age range and pre-existing diseases. The effectiveness of the approach was demonstrated through the application of the system in the real world. Ivanov [29] revealed the validity of the new notion of a viable supply chain (VSC) based on agility, resilience, and sustainability to examine the effects of the epidemic outbreak on the supply chain. The author emphasized that resilience was especially important for the VSC.

Regarding the impact of disruption, Min et al. [30] collected data through a telephone survey and analyzed the impact of the COVID-19 pandemic on the food supply chain in Wuhan. However, it is not considered whether suppliers and their countries should be switched and selected depending on the different scale of disruption, where factories relocated when suppliers were switched, and what the effect of TPP and non-TPP member countries was.

This study attempts to fill these research gaps for estimating the impact as an economical evaluator by measuring different scales of disruptions across different countries under customs duty and the TPP. Thus, the following research questions (RQs) were posed:

• RQ1: Which suppliers and their countries should be switched and selected depending on the different scales of disruption?
• RQ2: Where are factories relocated to when suppliers are switched?
• RQ3: What is the effect on TPP and non-TPP member countries?
• RQ4: What are managerial insights from the results?

3. Model and Formulation

3.1. Model

The proposed model in this study is built and validated by integrating models from three previous studies. First, Nakamura et al.’s [20] model of a basic global supply chain with custom duty and BOM is used. Second, a global supply chain embedded with TPP, as modeled by Hayashi et al., is considered [21]. Finally, the disruption is modeled based on how it is incorporated by Nagao et al. [6]. Furthermore, the validation of the proposed model is verified through a numerical experiment. Figure 2 shows a global supply chain network with supply disruptions and the TPP. Here, part j is produced by supplier o and transported to factory p. Then, the finished product, consisting of N_j type parts, is assembled in factory p. Finally, finished products are transported to market q.

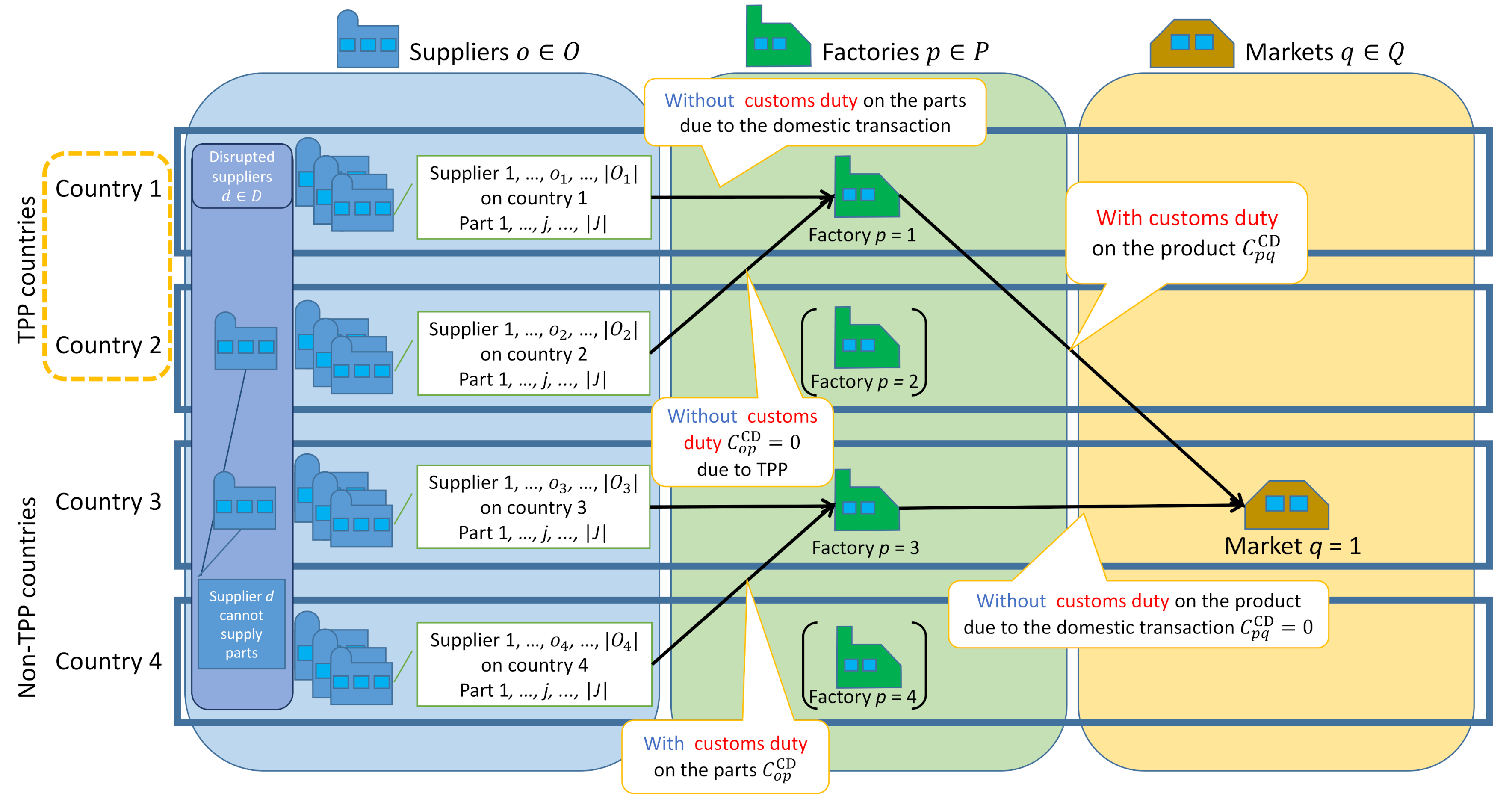

The global supply chain network with supply disruption and the TPP is modeled as follows: Given that supplier cities face the possibility of disruption, it would be impossible to supply parts to factory p. In this model, supplier d from a set of disrupted supplier cities D cannot supply any parts to factory p. Therefore, parts can only be transported from non-disrupted supplier o. In the disruption scenario where the world is affected concurrently, alternate/multi-sourcing is effective because the duration of the COVID-19 infection peak affecting disruption is different in different in countries [31,32].

Customs duties are imposed when parts or products are imported from outside the country. With respect to the TPP, customs duties, suppliers, factories, and markets are located in a set of countries. Group G defines a set of supplier cities in TPP countries. If a non-TPP country decides to trade with a TPP country, customs duty will be imposed by each country if both countries are not on the TPP list G. Of course, when trade is carried out between the countries that fall under the TPP, they are not required to pay the customs duty at each other’s borders.

This proposed model is applied at the strategic planning stage of a global supply chain, following Urata et al. [33], where a just-in-time environment is assumed in this study, which represents fewer inventory operations. Thus, inventory control, including lead time, is outside the scope of this study.

The notations used in this study are as follows:

Sets:

• O: Set of suppliers, o ∈ O
• $O_n$: Set of suppliers on county n, $O_n\subset$O
• G: Set of suppliers in countries forming the TPP, g ∈ G
• D: Set of disrupted supplier cities in supplier set O, d ∈ $D, D\subset$ O
• J: Set of parts, j ∈ J
• P: Set of factories, p ∈ P
• Q: Set of markets, q ∈ Q

Decision variables:

• $v_{opj}$: Number of parts j transported from supplier o to factory p
• $v_{pq}$: Number of products transported from factory p to market q
• $k_p$: Number of products manufactured in factory p
• $z_{pq}$: Binary value: 1 if the route between factory p and market q is opened, and 0 otherwise
• $u_p$: Binary value: 1 if factory p is opened, and 0 otherwise

Evaluation:

• TC: Total cost [USD]

Cost parameters:

• $C_{op}^{LC}$: Logistics cost per unit part for transporting from supplier o to factory p
• $C_{pq}^{LC}$: Logistics cost per unit product for transporting from factory p to market q
• $C_{oj}^{PC}$: Procurement cost of procuring per unit part j by supplier o
• $C_{op}^{CD}$: Customs duty per unit on transportation from supplier o to factory p
• $C_{pq}^{CD}$: Customs duty per unit on transportation from factory p to market q
• $C_p^{MF}$: Manufacturing cost per product at factory p
• $C_{pq}^{OR}$: Fixed cost for opening route between factory p and market q
• $C_p^{OF}$: Fixed cost of opening factory p

Production parameters:

• $N_j$: Total number of parts j, consisting of one product
• $N_q$: Demand for products in market q
• M: Very large number (Big M)
• $S_p$: Production capacity at factory p
• $S_{oj}{}_{ }$: Binary value: 1 if part j is supplied by supplier o, and 0 otherwise

3.2. Formulation

The global supply chain network is formulated as integer programming (IP) [34] based on Hayashi et al. [21] and Nagao et al. [6]. IP is well known as an appropriate way to adapt a global supply chain network to a transportation problem because it can be treated as linear programming, which enables us to solve large-scale problems [34]. The objective function of this study is to minimize the total cost of production TC, including transportation, procurement, customs duty, route opening, and factory opening costs, as shown in Equation (1).

Equation (2) stands for the condition that all of parts from the assigned suppliers meets the demand for all parts. Equation (3) means the constraint for all finished product at factory p is transported to markets. Equation (4) show the constraints that the number of finished products in market q transported to factories satisfies the demand. Equation (5) defines a constraint on a supplier as leading to supply disruptions when the supplier d belonging to a disrupted city D cannot supply parts to the factory. Equation (6) gives the production capacity of factories, while Equation (7) means the constraint for allowing transportation only through opened routes from factories to markets. Equations (8) and (9) set the binary restrictions for opening routes and factories and non-negativity for number of parts and products, respectively.

Objective function:

$$\begin{array}{ll}TC& ={\displaystyle {\displaystyle \sum }_{o\in O}}{\displaystyle {\displaystyle \sum }_{p\in P}}{\displaystyle {\displaystyle \sum }_{j\in J}}(C_{op}^{\mathrm{LC}}+C_{oj}^{\mathrm{PC}}+C_{oj}^{\mathrm{PC}}{C}_{op}^{\mathrm{CD}})v_{opj}\\ & +{\displaystyle {\displaystyle \sum }_{p\in P}}{\displaystyle {\displaystyle \sum }_{q\in Q}}\left(C_{pq}^{\mathrm{LC}}+C_p^{\mathrm{MF}}+C_p^{\mathrm{MF}}{C}_{pq}^{\mathrm{CD}}{}_{ }\right)v_{pq}\\ & +{\displaystyle {\displaystyle \sum }_{p\in P}}{\displaystyle {\displaystyle \sum }_{q\in Q}}{C}_{pq}^{\mathrm{OR}}{z}_{pq}+{\displaystyle {\displaystyle \sum }_{p\in P}}{C}_p^{\mathrm{OF}}{u}_p \to min\end{array}$$

(1)

Constraints:

$${\displaystyle \sum }_{o\in O}{S}_{oj}{v}_{opj}=N_j{k}_p \forall p\in P, \forall j\in J$$

(2)

$${\displaystyle \sum }_{q\in Q}{v}_{pq}=k_p \forall p\in P$$

(3)

$${\displaystyle \sum }_{p\in P}{v}_{pq}=N_q{}_{ } \forall q\in Q$$

(4)

$${\displaystyle \sum }_{j\in J}{\displaystyle \sum }_{p\in P}{v}_{dpj}=0 \forall d\in D$$

(5)

$${\displaystyle \sum }_{q\in Q}{v}_{pq}\le F_p{u}_p \forall p\in P$$

(6)

$$v_{pq}\le M{z}_{pq} \forall p\in P, \forall q\in Q$$

(7)

$$z_{pq},u_p=\left\{1,0\right\} \forall p\in P, \forall q\in Q.$$

(8)

$$v_{opj, }{v}_{pq}\ge 0 \forall o\in O, \forall p\in P, \forall j\in J, \forall q\in Q$$

(9)

4. Disruption Scenarios

To analyze the effect of supply disruptions in countries with and without the TPP in a global supply chain, this study considers an example of a global supply chain for a vacuum cleaner [35] with 23 types of parts, as in Hayashi et al. [21]. The product and supply chain data used for the numerical experiments are also based on Hayashi et al. [21] and were collected and assumed before the COVID-19 pandemic except disruption scenarios.

4.1. Global Supply Chain and Product Example

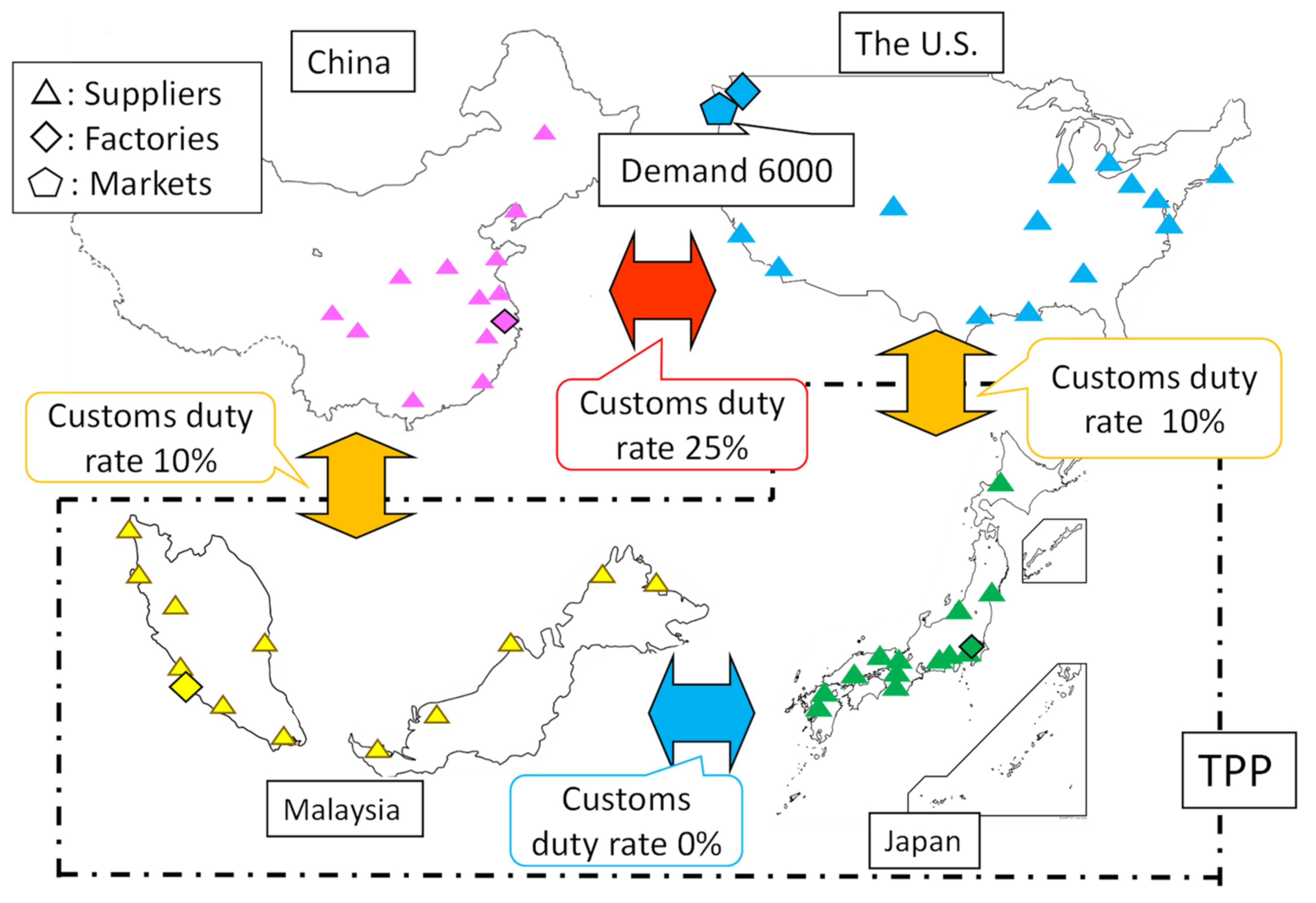

Figure 3 describes a global supply chain example and the setting. The details of global supply chain and product example are prepared as follows:

• A total of 52 cities (13 cities in four countries, the U.S., China, Japan, and Malaysia) are selected as suppliers. Transportation costs of parts between cities are provided based on the distances as shown in

  Table A1. Transportation costs of parts between cities [USD].

  	Shanghai	Kuala Lumpur	Seattle	Tokyo
  Atlanta	0.122976000	0.158640000	0.035079800	0.110339000
  Alor Star	0.035573720	0.003626180	0.127259000	0.051890640
  Guangzhou	0.012132400	0.025510000	0.103888000	0.029056110
  Fukuoka	0.008788560	0.045146750	0.084466000	0.008819450
  San Jose	0.099463000	0.136560000	0.011183700	0.083314000
  Penang	0.036278820	0.002715330	0.127960000	0.052476710
  Chongqing	0.014436300	0.029860350	0.101353000	0.031651550
  Hiroshima	0.010851200	0.047151850	0.082633000	0.006751860
  Detroit	0.114595500	0.149360000	0.062113800	0.101157000
  Kuantan	0.051490080	0.001972760	0.127875000	0.051490080
  Nanjing	0.002699630	0.036833410	0.092730000	0.019689570
  Yokohama	0.017503030	0.053083310	0.077094000	0.000277890
  Chicago	0.113569500	0.149216000	0.028162300	0.113350000
  Malacca	0.038106490	0.001216630	0.129929000	0.053625820
  Harbin	0.016802060	0.053281160	0.076662000	0.015767770
  Osaka	0.013644420	0.049536170	0.080111000	0.000396890
  Cleveland	0.115844000	0.150390000	0.032688700	0.104493000
  Kuala Lumpur	0.037533800	0.000010000	0.129359000	0.053276340
  Xian	0.012220570	0.035538450	0.095434000	0.027962100
  Nagoya	0.015013380	0.050886330	0.079133000	0.002588690
  Boston	0.117328500	0.149030000	0.040052200	0.107891000
  Johor Bahru	0.038023620	0.002961260	0.129694000	0.053162080
  Chengdu	0.016625960	0.030641050	0.101700000	0.033508700
  Sapporo	0.021920310	0.059928350	0.070269000	0.008330410
  Pittsburgh	0.117439500	0.151650000	0.034296200	0.106259000
  Kuching	0.036075300	0.009793970	0.125494000	0.048616730
  Changchun	0.014413130	0.050915280	0.078704000	0.052302800
  Kumamoto	0.008886780	0.044773390	0.084951000	0.008864890
  Los Angeles	0.104306500	0.141360000	0.015451700	0.088101000
  Sibu	0.033748960	0.011327220	0.123876000	0.046954700
  Dalian	0.008554320	0.044651240	0.084855000	0.016375080
  Kobe	0.013369700	0.049311650	0.080631000	0.004238580
  Houston	0.121954500	0.159310000	0.030680500	0.107318000
  Miri	0.030948910	0.013736200	0.120565000	0.043747360
  Hangzhou	0.001650620	0.035924960	0.093425000	0.019173776
  Shizuoka	0.016286970	0.051846520	0.078357000	0.001429900
  New Orleans	0.124391000	0.161280000	0.033910800	0.110491000
  Kota Kinabalu	0.028663010	0.016318100	0.117782000	0.040926890
  Jinan	0.007248680	0.040530120	0.089383000	0.020265060
  Kyoto	0.013960700	0.049944370	0.079857000	0.003641270
  Washington	0.119828500	0.153370000	0.037249000	0.109014000
  Sandakan	0.028482330	0.018413320	0.116546000	0.039917480
  Qingdao	0.005478160	0.041386020	0.088210000	0.017392910
  Sendai	0.019342960	0.055760450	0.074139000	0.003055610
  Saint Louis	0.115819500	0.152130000	0.027653800	0.104495000
  Ipoh	0.036490160	0.001758780	0.123818000	0.052512710
  Suzhou	0.000848760	0.037088570	0.092352000	0.018364290
  Niigata	0.017696580	0.542252800	0.075688000	0.002546620
  Denver	0.107845500	0.145240000	0.016302200	0.093269000
  Penang	0.036278820	0.002715330	0.127960000	0.052476710
  Fuzhou	0.006120420	0.031712790	0.097695000	0.022165510
  Wakayama	0.013242390	0.489808100	0.081014000	0.004432180

  Note: Red, yellow, blue, and green marked cells mean Chinese, Malaysian, Japanese, and the U.S’s suppliers and factories, respectively.

  in Appendix A.
• Four cities (Shanghai, Kuala Lumpur, Seattle, and Tokyo) are identified as candidate locations for factories. The production capacity of a factory is 3000 units. The market is set in Seattle in the U.S., and the demand is 6000 units of product. Transportation costs of product between factory cities and market cities are provided based on the distances as shown in

  Table A2. Transportation costs of product between factory and market cities [USD].

  	Shanghai	Kuala Lumpur	Seattle	Tokyo
  Shanghai	0.000100	0.375338	1.833208	0.176019
  Kuala Lumpur	0.375338	0.000100	1.293590	0.532763
  Seattle	1.833208	1.293590	0.000100	1.532334
  Tokyo	0.176019	0.532763	1.532334	0.000100

  Note: Red, yellow, blue, and green marked cells mean Chinese, Malaysian, Japanese, and the U.S’s factories and markets respectively.

  in Appendix A.
• Japan and Malaysia are CPTPP member countries; in contrast, the U.S. and China are non-CPTPP member countries in the experiments. The customs duty between the U.S. and China is set at 25%. Between a CPTPP country and a non-CPTPP country, a duty of 10% is imposed. For instance, the customs duty between Malaysia and China, and between Japan and the U.S., is 10%. Meanwhile, customs duty is not imposed between CPTPP countries such as Malaysia and Japan.

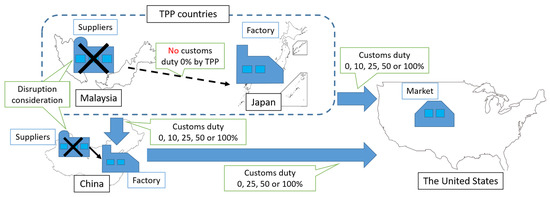

Figure 4 illustrates the situation of the numerical experiments. A global supply chain under disruption with a customs duty and the TPP is considered. When the supplier in a TPP country, such as Malaysia, is disrupted, the factory may consider switching to suppliers from other countries such as China, Japan, and the U.S. Therefore, the customs duty cost increases because the customs duty rate increases from 0% to 10% or 25%.

Regarding product example (

Table A3. BOM of the parts and procurement costs.

Part No.	Part Name	Required Number for a Product	Procurement Costs [USD]
			The U.S.	Malaysia	China	Japan
1	Wheel of nozzle	2	0.0153	0.0126	0.0138	0.0196
2	Wheel stopper	2	0.0037	0.0030	0.0033	0.0047
3	Upper nozzle	1	0.0545	0.0448	0.0492	0.0698
4	Lower nozzle	1	0.0447	0.0367	0.0403	0.0572
5	Nozzle	1	0.0374	0.0307	0.0337	0.0478
6	Right handle	1	0.0530	0.0435	0.0478	0.0678
7	Switch	1	0.0041	0.0034	0.0037	0.0058
8	Left handle	1	0.0560	0.0460	0.0505	0.0716
9	Left body	1	0.2028	0.1667	0.1829	0.2595
10	Right body	1	0.1948	0.1601	0.1757	0.2493
11	Dust case cover	1	0.0629	0.0517	0.0567	0.0964
12	Mesh filter	1	0.3209	0.2637	0.2894	0.5990
13	Connection pipe	1	0.0781	0.0642	0.0705	0.1012
14	Dust case	1	0.3022	0.2483	0.2725	0.4632
15	Exhaust tube	1	0.0286	0.0235	0.0258	0.0401
16	Upper filter	1	0.3085	0.2535	0.2782	0.5759
17	Lower filter	1	0.0318	0.0261	0.0286	0.0406
18	Protection cap	1	0.0341	0.0280	0.0307	0.0437
20	Rubber of outer flame of fan	1	0.0422	0.0347	0.0381	0.0556
21	Outer flame of fan	1	0.0913	0.0750	0.0823	0.1182
22	Lower fan	1	0.0163	0.0134	0.0147	0.0209
23	Fan	1	0.1029	0.0845	0.0928	0.1332

in Appendix A), the average procurement price of the parts and manufacturing cost of the product in each country are shown in

Table 2. The average procurement price of the parts and manufacturing cost of the product in each country [36,37].

Country	The Average Procurement Cost of the Parts [USD]	The Manufacturing Cost of the Product [USD]
Japan	0.143	6.29
The U.S.	0.095	4.65
Malaysia	0.086	2.51
China	0.078	2.20

. The procurement cost of parts is calculated using the Asian international input/output table [36] and each part’s weight and price level (

Table A4. Comparison of price levels between nations, with Japan set as 1 (Ministry of Internal Affairs and Communications, 2011).

Price Level Index	Equipment Residential Devices Maintenance
Japan	1
China	0.57
The United States	0.64
Malaysia	0.52

in Appendix A), as in Hayashi et al. [21]. The manufacturing cost of the product is also similar to that in Hayashi et al. [21], and is calculated by Japanese cost and ratio of gross domestic product to other countries, which are the U.S., China, and Malaysia [37].

4.2. Example of a Disruption Scenario

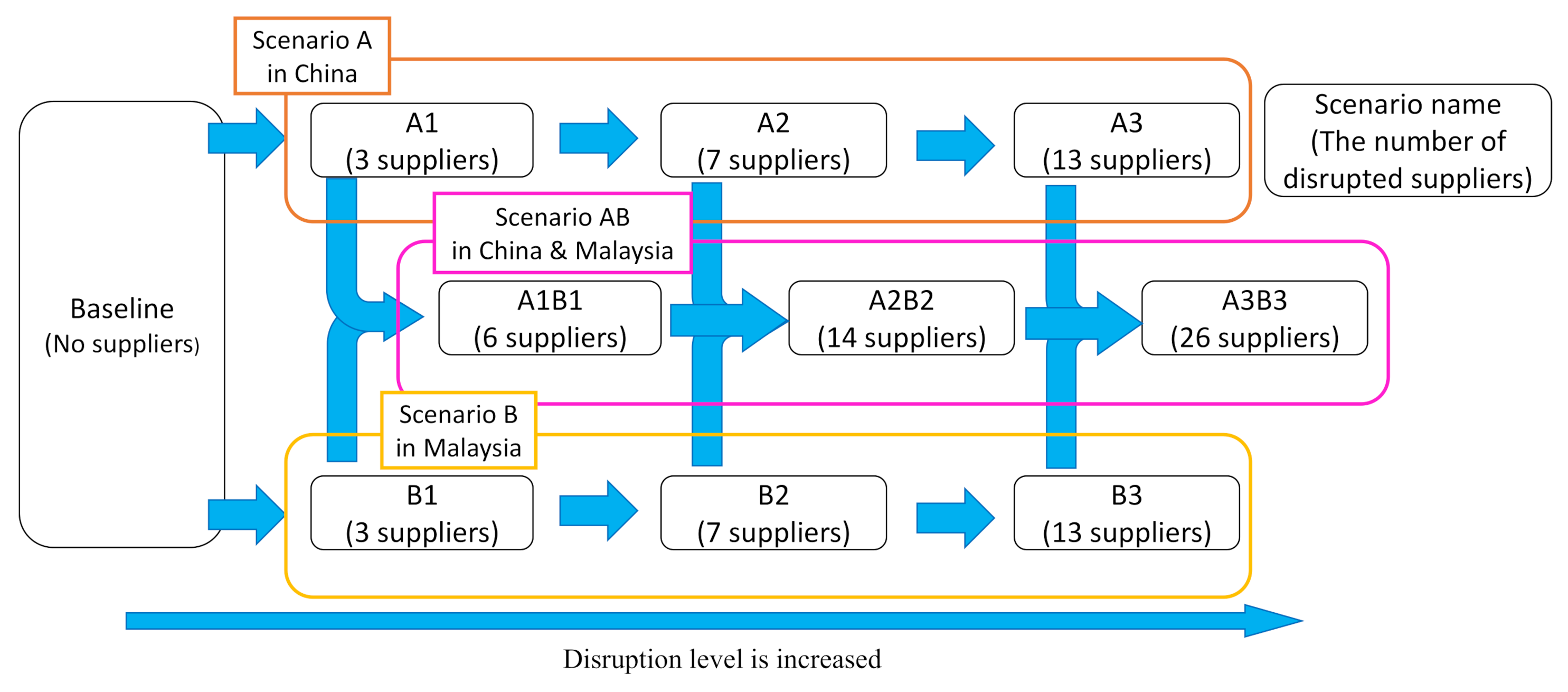

To evaluate the impact of supplier disruptions, this study considers three disruption scenarios: one in China [30], a non-TPP country; the other in Malaysia, a TPP country; and the last one in both China and Malaysia. The sequence of the disruptions is shown in Figure 5. It is assumed that the government decides whether the city is disrupted. Here, we consider different TPP and non-TPP countries in the scenarios. For instance, if a disruption occurs in Japan, which is a TPP country, there are many suppliers located in Japan. Therefore, the customer must identify whether it is feasible for them to order some parts from a non-TPP country, although they will have to pay customs duty for that. Even when there is a disruption in TPP countries such as Malaysia and Japan, they can still import and export their products without extra customs duty costs because of the effects of the TPP.

The area disrupted by COVID-19 increases in scale and covers the entire country as follows: For example, in scenario A, supplier disruption happens in China, which is a non-TPP country. Scenario A1 refers to the disruption in three cities (Xian, Chengdu, and Chongqing). Next, in scenario A2, in addition to these three cities, four other cities—Nanjing, Hangzhou, Jinan, and Suzhou—are disrupted. Finally, all cities in China are disrupted in scenario A3. Scenario AB are set to analyze the combined impact of scenarios A and B simultaneously. The details of each scenario are prepared as follow:

• Baseline: No disruption
• Scenario A: Supplier disruption in China, a non-TPP country.
  • A1: Disruption in three cities (Xi’an, Chengdu, and Chongqing)
  • A2: Disruption in seven cities (three cities in A1 + Nanjing, Hangzhou, Jinan, and Suzhou)
  • A3: Disruption of all Chinese suppliers

• Scenario B: Supplier disruption in Malaysia, a TPP country.
  • B1: Disruption in three cities (Miri, Kota Kinabalu, and Sandakan)
  • B2: Disruption in seven cities (three cities in B1 + Kuantan, Johor Bahru, Kuching, and Sibu)
  • B3: Disruption of all Malaysian suppliers

• Scenario AB: the combination of scenarios A and B.
  • A1B1: The combination of scenarios A1 and B1.
  • A2B2: The combination of scenarios A2 and B2.
  • A3B3: The combination of scenarios A3 and B3.

The numerical experiments were conducted using the optimization solver Numerical Optimizer [38] on an Intel^® Core™ i5-4300U CPU @ 1.90 GHz PC with Windows 10 Pro.

5. Results: Impact on Combined Disruption Scenarios with and without TPP Countries

In this Section 5, numerical experiments are conducted by the proposed model with disruption scenario in Section 4. Section 5.1 describes the result of total cost. Section 5.2 considers the degree of disruptions and the countermeasure. Section 5.3 analyzes the impact of disruption on supplier selection without factory relocation.

5.1. Results of Total Cost in Nine Scenarios

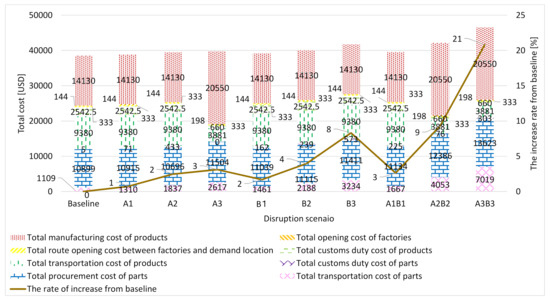

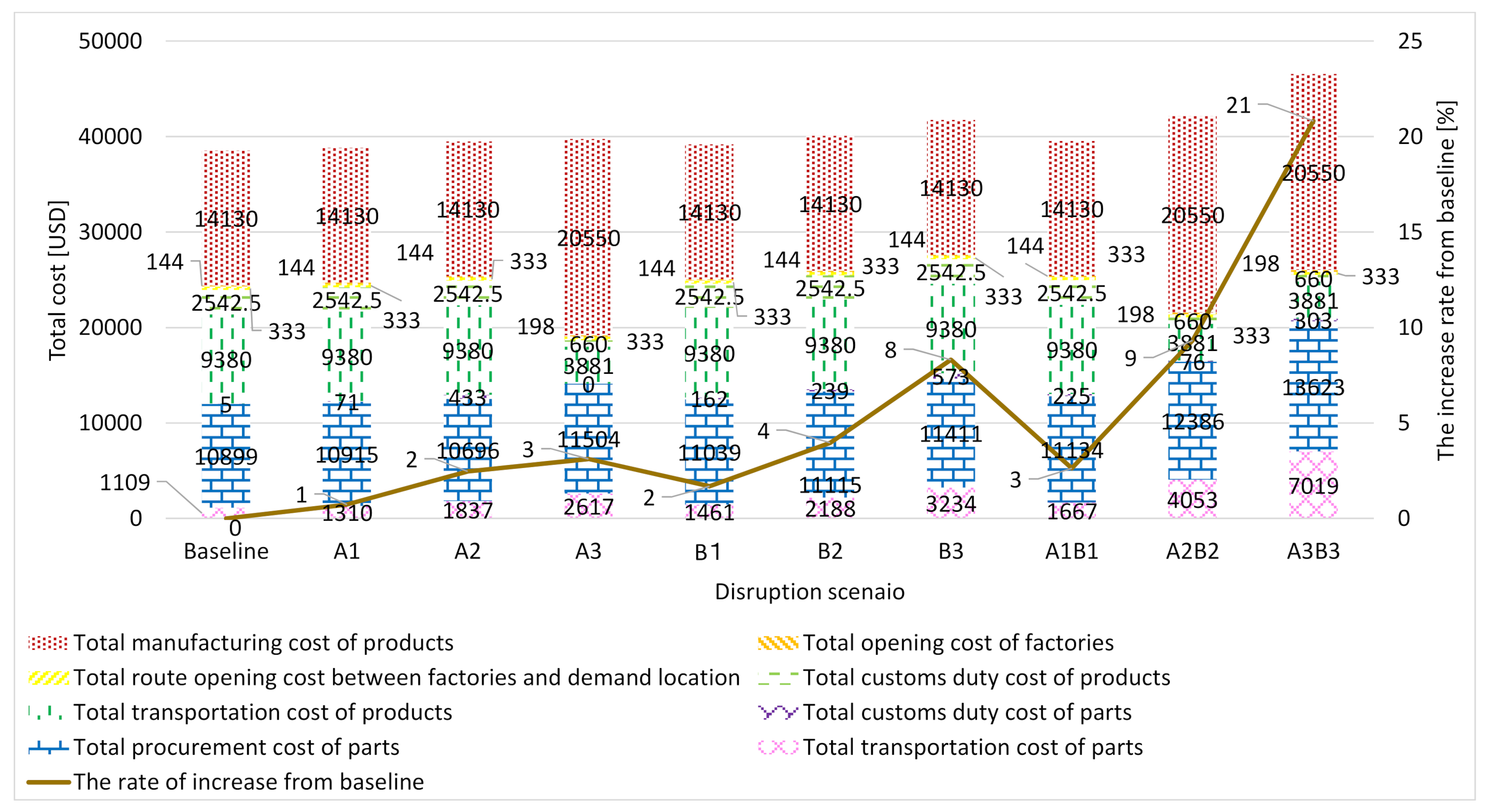

Firstly, total cost of each scenario is analyzed in order to evaluate economic impacts of disruption. Figure 6 shows the result of the total cost and the breakdown in each scenario. At the baseline, the total cost is USD 38,543. The trade relations and economic factors before the disruption caused by COVID-19 are that suppliers are selected mainly from China for the Shanghai factory, and from only Malaysia for the Kuala Lumpur factory. Parts #2 (wheel stopper) and #7 (switch) are supplied from Japan to the Shanghai factory. This is because their procurement costs are reasonable, even when the parts are supplied from Japan. Another reason is that their transportation costs from suppliers in China and Japan to the Shanghai factory are almost the same, as China is geographically expansive. The total cost mainly consists of the manufacturing cost for the product, the procurement cost for the parts, and the transportation cost for the product, at 36.7%, 28.3%, and 24.3%, respectively.

Regarding the breakdown of cost, the total customs duty of the parts in scenario A1 increases by 15 times from the baseline. However, in scenario B1, it increases by 34 times, because the transaction between Kuala Lumpur (in a TPP country) and the Chinese suppliers (a non-TPP country) increases by five types of parts. Chinese suppliers were selected over Japanese suppliers for this factory while Japanese suppliers were not chosen because of their high procurement costs. Thus, for low-level disruption cases, such as A1 and B1, cost suppression, as with the low procurement cost of China, is more effective than savings in customs duty through the TPP.

For scenario A1B1 (six cities’ disruption), the total cost increases by 2.6% compared to the baseline; this is almost equal to the 2.5% increase for scenario A2 (seven cities’ disruption), but much lower than the 4.0% increase for scenario B2 (seven cities’ disruption). For scenario A2B3 (14 cities’ disruption), the total cost increases by 9.3% from the baseline; this is higher than the 3.1% for scenario A3 (13 cities’ disruption) and 8.3% for scenario B3 (13 cities’ disruption). Thus, when small disruptions occur simultaneously in multiple countries, the impact on costs is as small as, or even smaller than, that for medium disruptions within a country. However, when medium disruptions occur in more than one country, the cost impact is greater than when all cities in a country are disrupted.

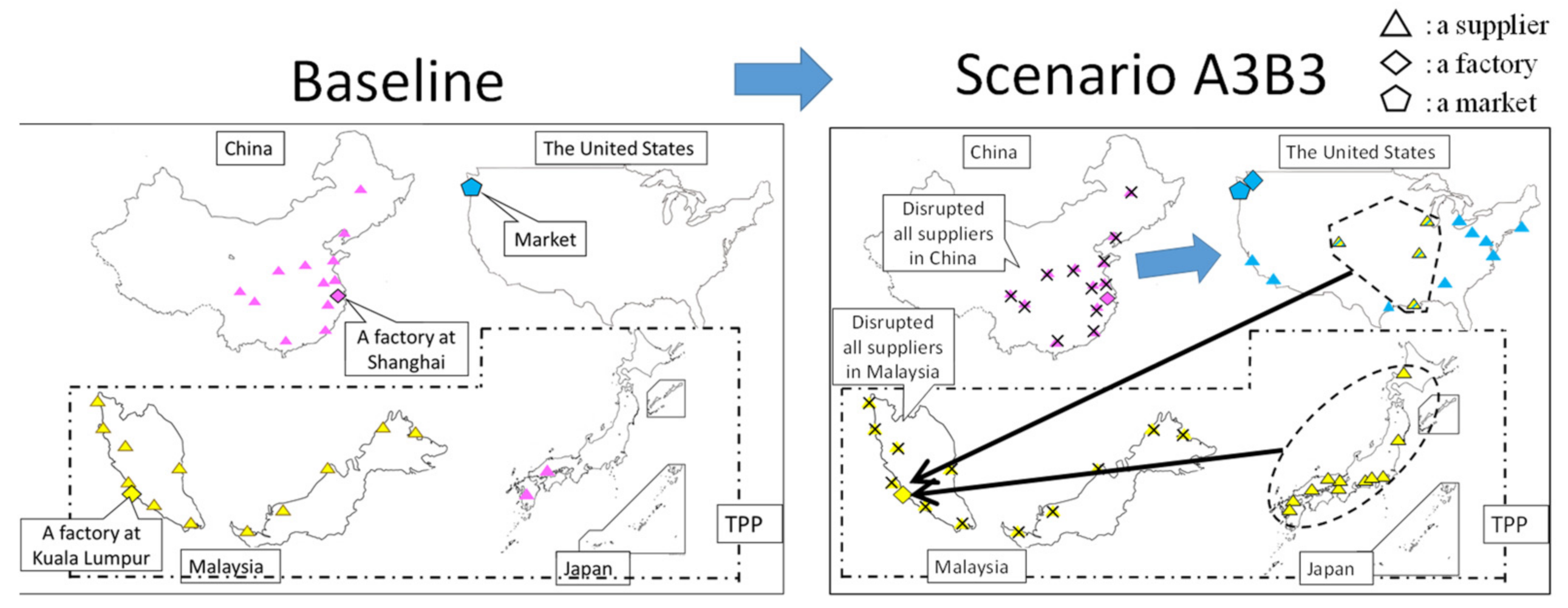

Figure 7 shows the results of redesigning the global supply chain network from the baseline to scenario A3B3. Japanese suppliers are selected for Malaysian factories because all Malaysian suppliers are disrupted in scenario A3B3. Therefore, 58% of the total customs duty costs of parts are saved by the TPP.

5.2. The Degree of Disruptions and the Countermeasure

Figure 8 shows the results for the selected factories in each scenario. As shown in Figure 8, the need to relocate a factory depends on the estimated possibility of disruption. Specifically, for low-level disruptions, the same factory as in the baseline scenario is selected, and disruptions may be dealt with by switching suppliers. However, as the disruption level increases, the factory may relocate from Shanghai to Seattle.

This Figure 8 also provides practical suggestions for the relocation of factories when the disruption level is expected to increase. Assuming that Chinese suppliers can recover quickly, the choice of factory location in Shanghai and Kuala Lumpur will depend on the overall disruption scenario. This is because the disruption of Chinese suppliers will prompt the factory to move to Seattle; however, once the Chinese supplier is restored, the optimal factory location will again be Shanghai. Therefore, disruption has a higher cost impact in Malaysia than in China. This may be because Malaysia has the lowest procurement cost for all parts at that time. Thus, assuming that Chinese suppliers recover quickly, the choice of factories in Shanghai and Kuala Lumpur will be effective when considering the overall disruption scenarios as shown in Figure 8.

5.3. Impact of Disruption on Supplier Selection without Factory Relocation

In contrast to Section 5.2, which addresses the cases where factories can be relocated, in this section, the cases in which factories cannot be relocated are analyzed. Figure 9 shows the changes in costs in different scenarios with and without factory relocation, while

Table 3. Selection of suppliers and factories with and without factory relocation.

Scenario		Baseline		A3				A2B2				A3B3
				With		Without		With		Without		With		Without
Factory		Shanghai	Kuala Lumpur	Seattle	Kuala Lumpur	Shanghai	Kuala Lumpur	Seattle	Kuala Lumpur	Shanghai	Kuala Lumpur	Seattle	Kuala Lumpur	Shanghai	Kuala Lumpur
#1	Wheel of nozzle	Guangzhou	Alor Star	Atlanta	Alor Star	Fukuoka	Alor Star	Atlanta	Alor Star	Guangzhou	Alor Star	Atlanta	Fukuoka	Fukuoka	Fukuoka
#2	Wheel stopper	Hiroshima	Penang	San Jose	Penang	Hiroshima	Penang	San Jose	Penang	Hiroshima	Penang	San Jose	Hiroshima	Hiroshima	Hiroshima
#3	Upper nozzle	Nanjing	Kuantan	Detroit	Kuantan	Yokohama	Kuantan	Detroit	Yokohama	Yokohama	Yokohama	Detroit	Yokohama	Yokohama	Yokohama
#4	Lower nozzle	Harbin	Malacca	Chicago	Malacca	Osaka	Malacca	Chicago	Malacca	Harbin	Malacca	Chicago	Osaka	Osaka	Osaka
#5	Nozzle	Xian	Kuala Lumpur	Cleveland	Kuala Lumpur	Nagoya	Kuala Lumpur	Cleveland	Kuala Lumpur	Nagoya	Kuala Lumpur	Cleveland	Nagoya	Nagoya	Nagoya
#6	Right handle	Chengdu	Johor Bahru	Boston	Johor Bahru	Johor Bahru	Johor Bahru	Boston	Sapporo	Sapporo	Sapporo	Boston	Sapporo	Sapporo	Sapporo
#7	Switch	Kumamoto	Kuching	Pittsburgh	Kuching	Kumamoto	Kuching	Pittsburgh	Kumamoto	Kumamoto	Kumamoto	Pittsburgh	Kumamoto	Kumamoto	Kumamoto
#8	Left handle	Dalian	Sibu	Los Angeles	Sibu	Sibu	Sibu	Los Angeles	Dalian	Dalian	Dalian	Los Angeles	Kobe	Kobe	Kobe
#9	Left body	Hangzhou	Miri	Houston	Miri	Miri	Miri	Houston	Shizuoka	Shizuoka	Shizuoka	Houston	Shizuoka	Shizuoka	Shizuoka
#10	Right body	Jinan	Kota Kinabalu	New Orleans	Kota Kinabalu	Kota Kinabalu	Kota Kinabalu	New Orleans	Kyoto	Kyoto	Kyoto	New Orleans	Kyoto	Kyoto	Kyoto
#11	Dust case cover	Qingdao	Sandakan	Washington	Sandakan	Sandakan	Sandakan	Washington	Qingdao	Qingdao	Qingdao	Washington	Sendai	Sendai	Sendai
#12	Mesh filter	Suzhou	Ipoh	Saint Louis	Ipoh	Ipoh	Ipoh	Saint Louis	Ipoh	Ipoh	Ipoh	Saint Louis	Saint Louis	Saint Louis	Saint Louis
#13	Connection pipe	Fuzhou	Penang	Denver	Penang	Penang	Penang	Denver	Penang	Fuzhou	Penang	Denver	Denver	Kumamoto	Denver
#14	Dust case	Nanjing	Penang	New Orleans	Penang	Penang	Penang	New Orleans	Penang	Penang	Penang	New Orleans	New Orleans	New Orleans	New Orleans
#15	Exhaust tube	Guangzhou	Kuching	Los Angeles	Kuching	Kumamoto	Kuching	Los Angeles	Guangzhou	Guangzhou	Guangzhou	Los Angeles	Kumamoto	Kumamoto	Kumamoto
#16	Upper filter	Hangzhou	Ipoh	Chicago	Ipoh	Ipoh	Ipoh	Chicago	Ipoh	Ipoh	Ipoh	Chicago	Chicago	Chicago	Chicago
#17	Lower filter	Xian	Miri	Detroit	Miri	Miri	Miri	Detroit	Shizuoka	Shizuoka	Shizuoka	Detroit	Shizuoka	Shizuoka	Shizuoka
#18	Protection cap	Jinan	Sibu	San Jose	Sibu	Kobe	Sibu	San Jose	Kobe	Kobe	Kobe	San Jose	Kobe	Kobe	Kobe
#20	Rubber of outerflame of fan	Qingdao	Johor Bahru	Houston	Johor Bahru	Johor Bahru	Johor Bahru	Houston	Qingdao	Qingdao	Qingdao	Houston	Sapporo	Sapporo	Sapporo
#21	Outer flame of fan	Dalian	Sandakan	Denver	Sandakan	Sandakan	Sandakan	Denver	Dalian	Dalian	Dalian	Denver	Sendai	Sendai	Sendai
#22	Lower fan	Chongqing	Kuantan	Cleveland	Kuantan	Yokohama	Kuantan	Cleveland	Yokohama	Yokohama	Yokohama	Cleveland	Yokohama	Yokohama	Yokohama
#23	Fan	Chengdu	Kuala Lumpur	Atlanta	Kuala Lumpur	Kuala Lumpur	Kuala Lumpur	Atlanta	Kuala Lumpur	Kuala Lumpur	Kuala Lumpur	Atlanta	Nagoya	Nagoya	Nagoya

Note: Red, yellow, blue, and green marked cells mean Chinese, Malaysian, Japanese, and the U.S’s suppliers and factories, respectively.

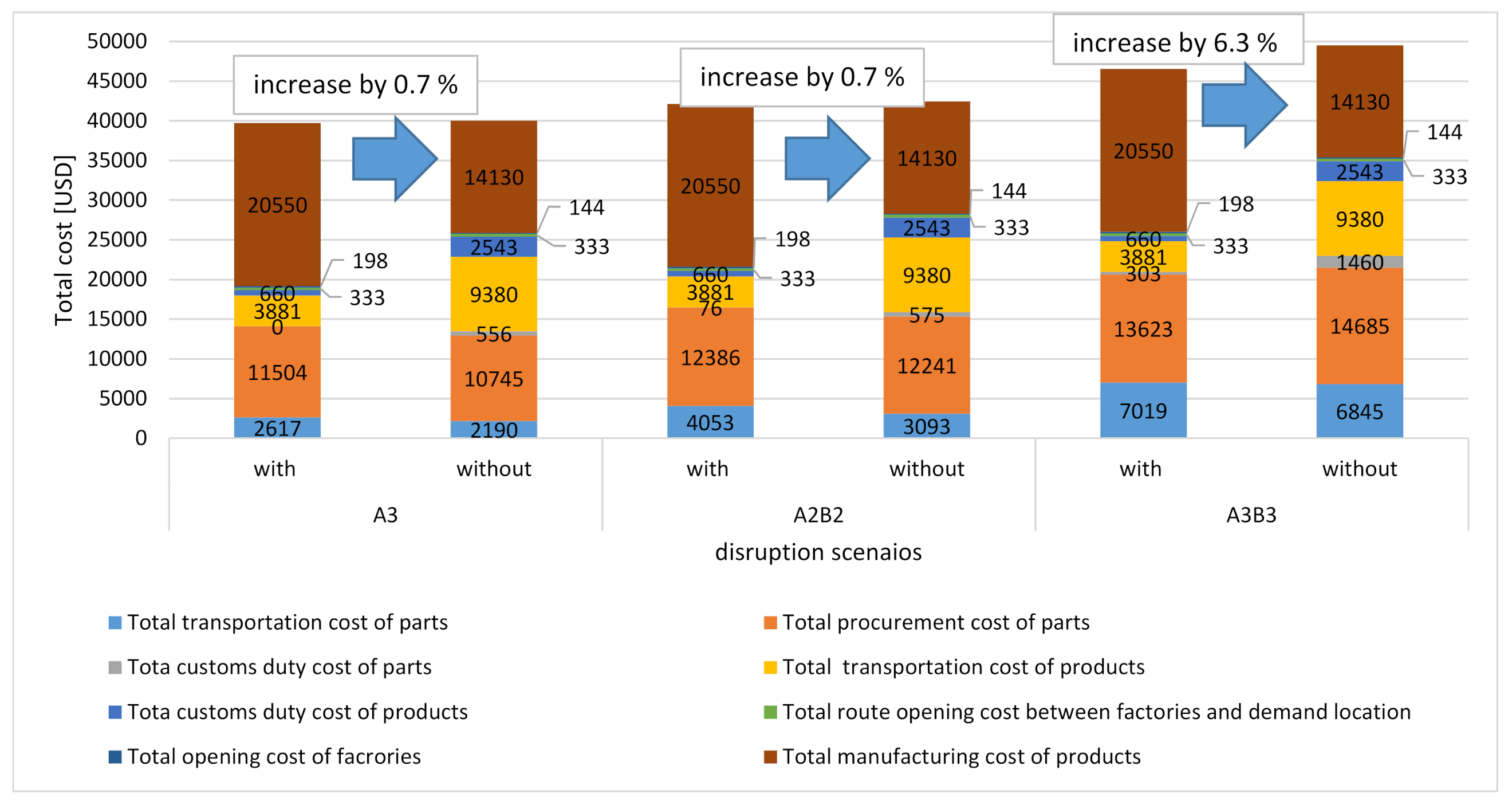

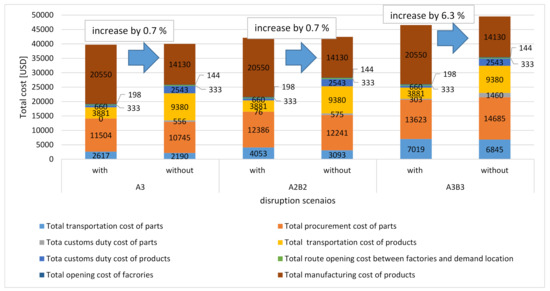

compares the factory and supplier choices. As shown in Figure 9, the total cost in scenarios A3 and A2B2 increases by 0.7% when the factory is not relocated, compared to when it is. In scenario A3, the main reason for this is that the total transportation cost of products, total customs duty of products, and total customs duty of parts increase by USD 5499, USD 1883, and USD 556, respectively. However, the overall increase in the total cost is only 0.7% because the cost breakdown across different costs changes: Seattle is chosen as the best location for an opening factory under total cost minimization; however, suppliers from Japan and Malaysia are consequently selected to reduce the total procurement and transportation costs of parts.

A similar phenomenon occurs in scenario A2B2. However, in scenario A3B3, the total cost increases significantly, by 6.3%. This could be mainly due to the increase in total procurement cost of parts by USD 1062, which, rather, decreases in scenarios A3 and A2B2, and the increment in the total customs duty of parts by USD 1157, which only increases by approximately USD 500 in both scenarios A3 and A2B2. From Table 3, the factory remains unchanged in scenario A3B3, and almost all factory suppliers in Shanghai and Kuala Lumpur factories become Japanese because the Chinese and Malaysian suppliers discontinue supplying the parts during the disruption. It is noted that the total procurement cost of parts increases because of the increase in Japanese suppliers. The customs duty of parts depends on their procurement cost; therefore, with a higher customs duty, the total customs duty of parts is increased.

These results show that the increment rate in the total cost for maintaining the factory in operation without relocation depends greatly on the scenario. When the factory is not relocated, the increment in total cost can be reduced by choosing cheaper alternative suppliers. However, the cost increment is significant in the case of very large disruptions.

6. Analysis of Disruption Impact: Non-TPP vs. TPP Countries

In Section 5, the impact of disruption was analyzed. This Section 6 discusses the TPP effects by contrasting the result of TPP versus non-TPP countries disruption. Firstly, in Section 6.1, the minimum scale disruption scenarios A1 and B1 in this study are compared and analyzed. Next, Section 6.2 explains the result of non-TPP country disruption in detail. Finally, we conclude the supplier selection under the supplier disruption.

6.1. Comparison of Results of the Disruption Scenarios A1 on a Non-TPP Country and B1 on a TPP One

To determine the disruption impact on TPP and non-TPP countries, this section analyzes the difference in disruption impact between China and Malaysia through a numerical experiment conducted on the total cost minimization presented in Section 5.

Table 4. Selection of suppliers and factories in scenarios A1 and B1.

	Baseline		Disruption Scenarios
			Scenario A1 in China, without TPP		Scenario B1 in Malaysia, with TPP
Factory	Shanghai	Kuala Lumpur	Shanghai	Kuala Lumpur	Shanghai	Kuala Lumpur
Supplier	12 in China 2 in Japan	13 in Malaysia	9 in China 3 in Malaysia 4 in Japan	13 in Malaysia	12 in China 2 in Japan	4 in China 9 in Malaysia

shows the selection results for suppliers and factories in disruption scenarios A1 on a non-TPP country and B1 on a TPP one. In all cases, factories are not relocated from Shanghai and Kuala Lumpur at baseline. However, the selection results for suppliers differ for each case. In scenario A1, with disruptions of three Chinese suppliers of the Shanghai factory, three Malaysian and four Japanese suppliers are selected for the three disrupted Chinese suppliers. One reason for this is that out of the four countries, the procurement cost for suppliers is the lowest in Malaysia. However, four Japanese suppliers are also selected because the transportation cost to Shanghai is lower in Japan than that from Kuala Lumpur in Malaysia owing to a shorter travel distance, even though their procurement cost is higher than that of Malaysian suppliers.

Regarding scenario B1, four Chinese suppliers are selected instead of the three disrupted Malaysian suppliers. However, Japanese and U.S. suppliers are not selected because of their higher procurement costs.

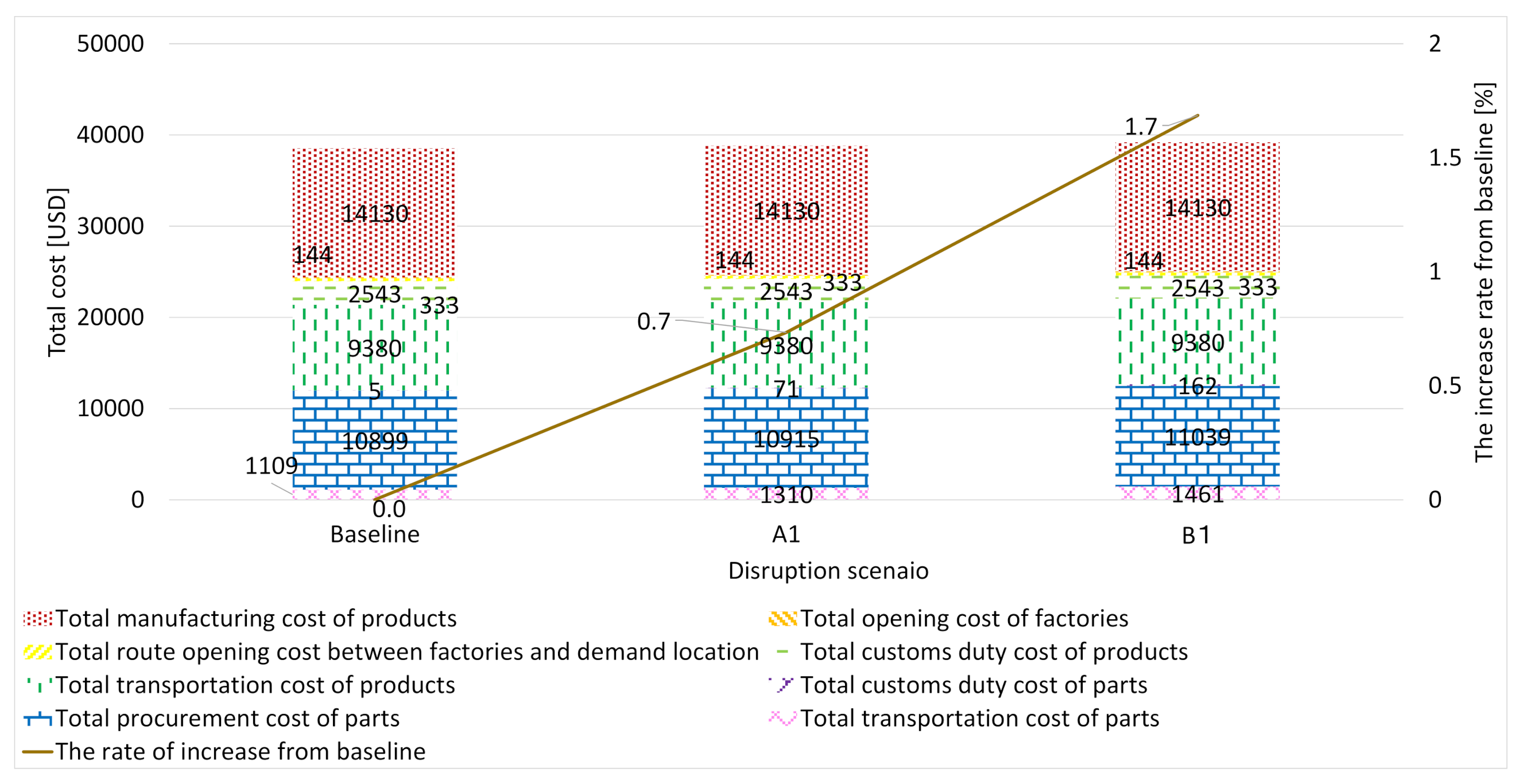

Figure 10 shows the results of the total cost at the baseline, and at scenarios A1 and B1. The difference in the total cost between the baseline and the scenarios is only approximately 1%. Thus, when the disruption is as small as three cities, whether in China or Malaysia, switching from the disrupted supplier to other suppliers is recommended rather than changing the factory.

6.2. The Impact of Non-TPP Country Disruption

6.2.1. The Impact on Total Cost and the Breakdown

To investigate the impact of non-TPP country disruption, this section shows the results of Chinese supplier disruptions. The results of the selection of suppliers and factories in scenario A are shown in

Table 5. The selection of suppliers and factories in scenario A.

Scenario	Selected factories	Selected Suppliers
Baseline	Shanghai	12 suppliers in China 2 suppliers in Japan
	Kuala Lumpur	13 suppliers in Malaysia
Scenario A1 3 suppliers disruption	Shanghai	9 suppliers in China 3 suppliers in Malaysia 4 suppliers in Japan
	Kuala Lumpur	13 suppliers in Malaysia
Scenario A2 7 suppliers disruption	Shanghai	5 suppliers in China 6 suppliers in Malaysia 5 suppliers in Japan
	Kuala Lumpur	13 suppliers in Malaysia
Scenario A3 All suppliers disruption in China	Kuala Lumpur	13 suppliers in Malaysia
	Seattle	13 suppliers in the United States

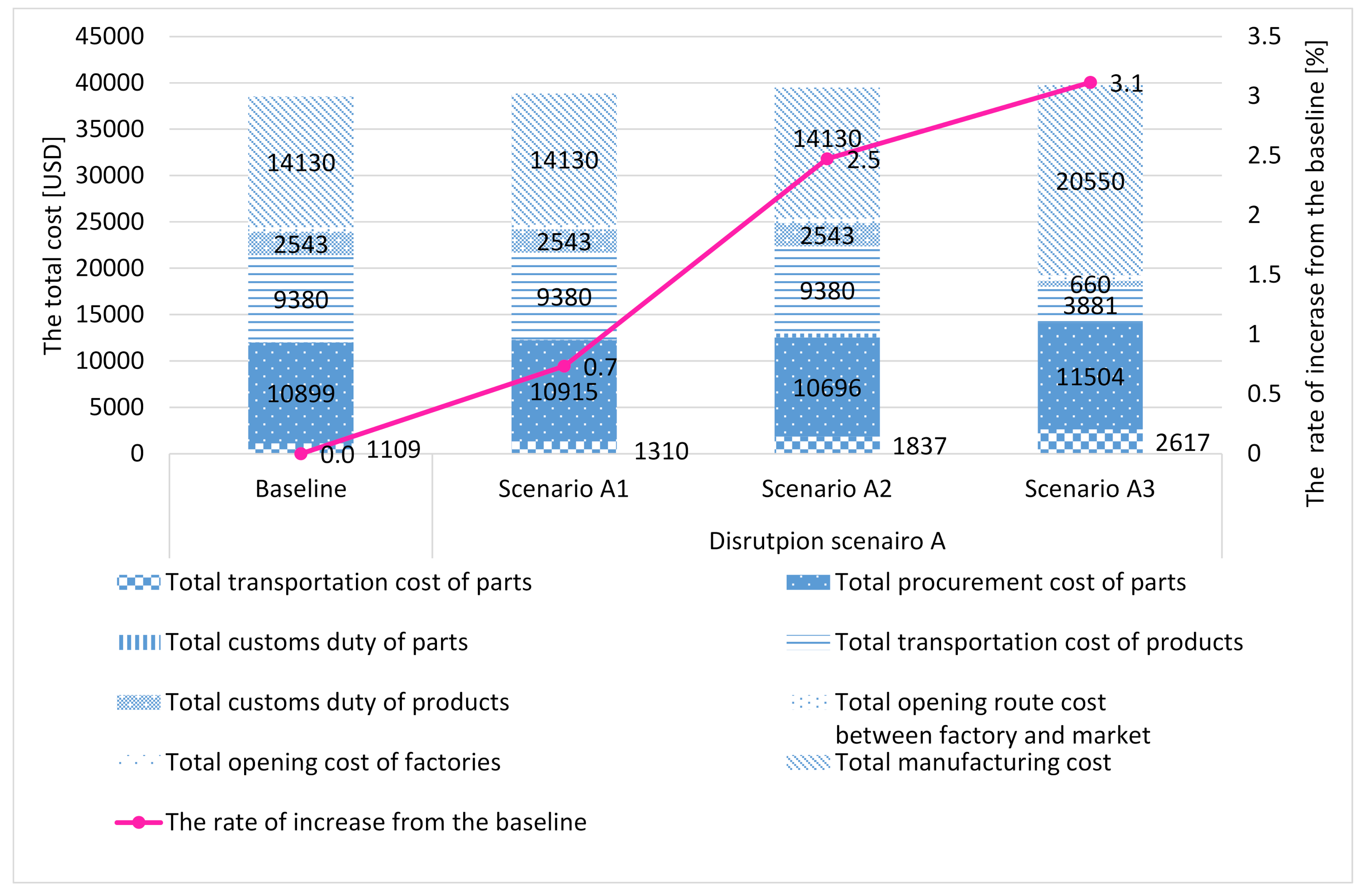

. Figure 11 shows the total costs and its rates of increase in scenario A. The total cost in scenario A3 increases by 3.1% compared to the baseline. This is a result of the redesign of the global supply chain by relocating factories and suppliers because of supplier disruptions in China. Specifically, by moving the factory from Shanghai to Seattle in the U.S., where the market is located, parts are supplied from U.S. suppliers, while the total customs duty of the parts, total customs duty of the products, and total product transportation cost decrease by 100.00%, 58.63%, and 74.04%, respectively.

As the scale of disruptions increases in scenarios A1, A2, and A3, the total part transportation cost increases by 18.1%, 65.6%, and 135.9%, respectively. This is because the number of suppliers outside China increases due to disruptions. For instance, as shown in Table 5, three Chinese supplier cities are not selected because of the disruption, and three and four new suppliers from Malaysia and Japan, respectively, are selected in scenario A1. Similarly, in scenario A2, seven Chinese suppliers are not selected because of disruptions, and six suppliers from Malaysia and five suppliers from Japan are selected instead. Thus, Japanese suppliers with higher procurement costs are selected because the transportation cost from the Japanese supplier to the Shanghai factory is lower than that from Malaysian suppliers. Therefore, the Japanese supplier is expected to be selected for parts with lower procurement and transportation costs.

Moreover, the total part procurement cost increases by 0.14% in scenario A1, while it decreases by 1.9% in scenario A2 as shown in Figure 11. This is because disruptions lead to the selection of suppliers in Malaysia, where procurement costs for all parts are lower than in Japan and the U.S., instead of suppliers in China. In scenario A3, the total part procurement cost increases significantly by 5.60% compared to the other scenarios because the factory is moved to Seattle in the U.S., where the market is located; thus, all suppliers are selected from the U.S.

In addition, the total customs duty cost increases substantially, by 15 and 93 times in scenarios A1 and A2, respectively. This increase is due to the change in the choice of suppliers from the country of the factory to a foreign supplier upon disruption. In contrast, in scenario A3, the total customs duty cost of the product reduces by 100% because the factory is moved to Seattle, U.S., where the market is located; moreover, the total customs duty cost of the product is completely eliminated. It means that supplier disruptions significantly impact customs duty costs. However, the ratio of total customs duty cost of parts to total cost at the baseline is only 0.01%; furthermore, the impact of supplier disruptions on the total customs duty cost of the parts is greatest in scenario A2 among disruptions in China, at 1.12% of the total cost.

Hence, the total transportation cost of the products, total customs duty costs of products, factory opening costs, and total manufacturing costs remain unchanged in scenarios A1 and A2. However, in scenario A3, the costs change as the factory moves from Shanghai to Seattle. Specifically, the total product transportation costs and total customs duty of the products decrease by 58.6% and 74%, respectively, while the factory opening costs and total manufacturing costs increase to 35.80% and 54.50%, respectively. The factory moves from Shanghai to the U.S. where the market existed. However, the U.S. has a large landmass; this increases the domestic transportation costs, and thus, the total product transportation costs. Here, the domestic transportation cost is higher than the total transportation cost when the parts are imported. Therefore, the effects of supplier disruptions significantly impact factory relocation and costs, such as transportation costs of the product and parts, and customs duty costs of the product and parts.

6.2.2. The Impact on Supplier Selection under Supply Disruption

In scenarios A1 and A2, the factories are the same as the baseline (i.e., Shanghai and Kuala Lumpur). In scenario A1, the Chinese suppliers are removed as they are disrupted; instead, three new suppliers from Malaysia and two from Japan are selected. In scenario A2, more disrupted Chinese suppliers are removed; however, besides the suppliers selected in scenario A1, new suppliers are selected in three cities from Malaysia and one from Japan. There is no change in the choice of suppliers to the factory in Kuala Lumpur in scenarios A1 and A2. In scenario A3, the factory is relocated from Shanghai to Seattle. This means that all suppliers are in the same country as the selected factory. These results indicate that there is no effect on the supplier’s selection if the disruption occurs in a country different from the factory.

There are two types of factors for supplier selection. The first type is the direct effect of supplier disruptions. For example, as shown in Table 5, suppliers are switched for the factory in Shanghai in scenarios A1 and A2. Then, the total cost of the parts is expected to increase as shown in Figure 11 because the best suppliers are not chosen due to the disruption. The second type of factor is the indirect influence of factory relocation. For example, as shown in Table 5, suppliers for the factory at Seattle are the case in scenario A3. Then, the total manufacturing cost of products is expected to increase, as shown in Figure 11. This is because relocating a factory means moving the factory from the best factory location at the baseline to another location.

7. The Effect of the Customs Duty Rate Changes

This section deals with the impact of custom duty rate. Section 7.1 summaries the result of total custom duty cost in each scenario. Next, Section 7.2 describes the influences of changing custom duty rate on factory and supplier selection under disruption in Malaysia. Finally, Section 7.3 conducts sensitivity analysis for custom duty under the Malaysian disruption scenario in order to analyze the relationship between custom duty rates and supplier selection.

7.1. Total Customs Duty Cost by Each Scenario

This section discusses the customs duty cost and the effect of the TPP under disruption scenario B.

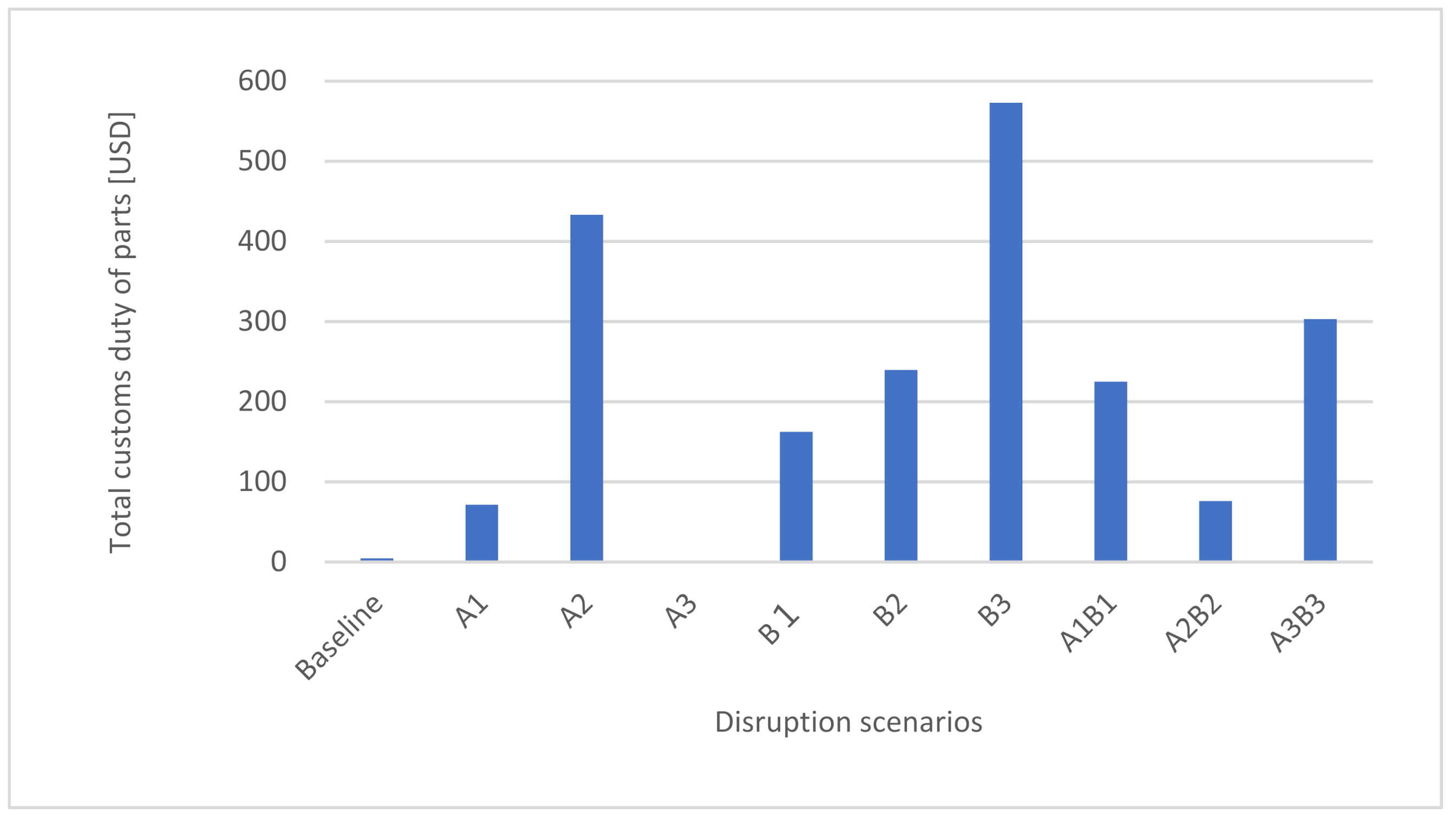

Figure 12 shows the results of the total customs duty cost of the parts in all scenarios. The total customs duty cost of parts in scenario A3B3 is lower than that in scenarios A2 and B3 by 30% and 47%, respectively. This is because the customs duty cost is zero between TPP participants, which are Japan and Malaysia in this set. In scenario A3B3, one of the factories is selected from Kuala Lumpur, and most of the suppliers are in Japan. Therefore, even though the disruption scale of scenario A3B3 is the largest among all scenarios, the total customs duty cost of parts is not the highest because of the effect of the TPP. Thus, this is an example which implies that the TPP has a good influence on economizing expenses in a situation with disruption.

7.2. Impact of Customs Duty Rate Changes on Factory and Supplier Selection under Malaysian Disruption Scenarios B

In this section, the selection of the supplier and the factory are analyzed under different customs duties through Malaysian disruption scenarios.

Table 6. The result of the selected factories and the number of suppliers in the country for Kuala Lumpur factory under changes in customs duty rates.

Disruption scenario B in Malaysia	Customs Duty Rate on Both of the Parts and Products [%]
	0	25	50	100
Baseline	Shanghai Kuala Lumpur	Shanghai Kuala Lumpur	Shanghai Seattle	Shanghai Seattle
	11 in China 1 in Japan	11 in China 1 in Japan	–	–
B1: 3 suppliers	Shanghai Kuala Lumpur	Shanghai Kuala Lumpur	Kuala Lumpur Seattle	Kuala Lumpur Seattle
	9 in China 1 in Japan	9 in China 1 in Japan	9 in China 2 in Japan	2 in China 7 in Japan
B2: 7 suppliers	Shanghai Kuala Lumpur	Shanghai Kuala Lumpur	Kuala Lumpur Seattle	Kuala Lumpur Seattle
	5 in China	5 in China	4 in China 1 in Japan	3 in Japan
B3: all suppliers	Shanghai Kuala Lumpur	Shanghai Kuala Lumpur	Kuala Lumpur Seattle	Kuala Lumpur Seattle
	(Only Malaysia)	(Only Malaysia)	(Only Malaysia)	(Only Malaysia)

shows the changes in factories and suppliers due to the Malaysian disruption scenarios and changes in customs duty rates. In the baseline (i.e., scenarios B1 and B2), the factories in Shanghai and Kuala Lumpur (Kuala Lumpur and Seattle) are selected when the customs duty rates are 10% and 25% (50% and 100%), respectively. The factory is moved from Shanghai to Seattle to reduce the product customs duty cost because the aim is to manufacture the product in the same country as the market. Regarding the choice of factories in scenario B3, Shanghai and Kuala Lumpur (Shanghai and Seattle) are selected when the customs duty rates are 10% and 25% (50% and 100%), respectively.

When the customs duty rate is approximately 10% or 25%, even if all Malaysian suppliers are disrupted, it will be less expensive to procure parts from Chinese suppliers and manufacture the product in the Kuala Lumpur factory. However, when the customs duty rate is 50% or more, the factory moves from Kuala Lumpur to Seattle to avoid the impact of customs duty on the import of parts and products.

7.3. Sensitivity Analysis by Customs Duty Rate in Scenario B

Finally, to analyze the effect of TPP, sensitivity analysis by customs duty rate is performed to the extent that the factory is not moved.

Table 7. Sensitivity analysis of costs to changes in customs duty rate from 41% to 100% in scenario B1.

	The Customs Duty Rate [%]
	41%	48%	51%	58%	96%	100%	41→100%
Total transportation cost of parts [USD]	2969.01	2997.26	3045.02	3078.35	3121.47	3170.39	6.78%
Total procurement cost of parts [USD]	11,644.20	11,864.90	12,094.80	12,202.50	12,321.60	12,357.80	6.13%
Total customs duty of parts [USD]	647.23	504.72	256.43	148.42	82.37	0.00	−100.00%
Total transportation cost of products [USD]	3881.07	3881.07	3881.07	3881.07	3881.07	3881.07	0.00%
Total customs duty of products [USD]	2706.00	3168.00	3366.00	3828.00	6336.00	6600.00	143.90%
Total fixed opening route cost between factory and market [USD]	333.40	333.40	333.40	333.40	333.40	333.40	0.00%
Total opening cost of factories [USD]	198.01	198.01	198.01	198.01	198.01	198.01	0.00%
Total manufacturing cost [USD]	20,550.00	20,550.00	20,550.00	20,550.00	20,550.00	20,550.00	0.00%
Total cost [USD]	42,928.91	43,497.36	43,724.73	44,219.75	46,823.92	47,090.67	9.69%

shows the resulting total and breakdown costs in the sensitivity analysis by customs duty rate from 41% to 100% in scenario B1. Notably, an increase in the customs duty rate from 41% to 100% significantly increases the total cost by 9.69%.

Table 7 also shows that the increment in customs duty rate does not affect the total transportation cost of products, the cost of establishing a route between factories and markets, and the total manufacturing cost. This is because factory relocation does not occur within the scope of this sensitivity analysis.

The total transportation and procurement costs of parts increase by 6.78% and 6.13%, respectively, with an increment in the customs duty rate from 41% to 100%. The relocation of suppliers from China to Japan perhaps increases the total transportation cost of parts due to the greater distance between the factory in Kuala Lumpur and suppliers. Furthermore, the total parts procurement cost increases because of the higher procurement cost of parts in Japan than in China.

The total customs duty cost of the product increases by 143.90%, while the total customs duty of parts decreases by 100.00% as the customs duty rate increases from 41% to 100%. The significant reduction in the total customs duty of parts is because Japan is selected as the supplier for the factory in Kuala Lumpur, where both Japan and Kuala Lumpur are within the TPP region. Therefore, in some cases, belonging to the TPP is effective in controlling the customs duty cost of parts.

Table 8. The customs duty rates and the choice of foreign supplier for the Kuala Lumpur factory.

Parts		The Customs Duty Rate [%]
Number	Name	41–47%	48–50%	51–57%	58–95%	96–99%	100%
9	Left body	Hangzhou	Hangzhou	Shizuoka	Shizuoka	Shizuoka	Shizuoka
10	Right body	Jinan	Kyoto	Kyoto	Kyoto	Kyoto	Kyoto
11	Dust case cover	Qingdao	Qingdao	Qingdao	Qingdao	Sendai	Sendai
17	Lower filter	Xian	Xian	Xian	Xian	Xian	Shizuoka
21	Rubber of outer flame of fan	Dalian	Dalian	Dalian	Sendai	Sendai	Sendai

Note: Red and blue marked cells mean Chinese and Japanese suppliers, respectively.

shows the customs duty rates and the choice of foreign suppliers for the Kuala Lumpur factory, where red and blue cells are for Chinese and Japanese suppliers, respectively. Parts #9, #10, #11, #17, and #21 were selected from suppliers outside Malaysia because of the disruption of suppliers in Malaysia in scenario B1. It is noticed that the number of Chinese (Japanese) suppliers selected decreases (increases) as the customs duty rate increases. Therefore, imports between countries belonging to the TPP are not affected by an increase in the customs duty rate imposed on imports of parts and products. Furthermore, in some cases, Japanese suppliers are more likely to be chosen as suppliers to a factory in Kuala Lumpur, especially in the event of a large increase in customs rates.

8. Discussion

This section summarizes the findings of the numerical experiments in Section 5, Section 6 and Section 7. Based on the results, the discussions here are outlined in terms of the nature of disruption, such as the size, duration, impact, and aftermath, as follows:

• Size: The disruption scale affects the total cost increment and the factory relocation from one of the selected factories at baseline, which is in China, to the market country, which is in the US.
• Duration: The duration is not directly considered in the numerical experiment. However, by assuming the sequences of different locations and sizes of disruption, as shown in Figure 5 and Figure 8, the disruption duration can be considered through the numerical experiment. Thus, some practical recommendations emerge from the results. First, if the duration of Chinese supplier disruption is brief, such as a few months, the factory in China should not be relocated because of the relocation cost. Second, if the duration of Chinese supplier disruption is long, such as a few years, the factory in China should be relocated to the market location, Seattle.
• Impact: The disruption impact differs by country. The large disruption including Chinese suppliers in scenarios A3, A2B2, and A3B3 causes factory relocation. Moreover, the relocation increases the manufacturing cost for the product because the price ratio and labor cost differ across countries. However, for Malaysian supplier disruptions, such as scenarios B1 to B3, the effect of disruption on factory relocation is not observed as suppliers are switched from the Malaysian suppliers to those from other countries.
• Aftermath: Once a factory is relocated to avoid the disruption, the factory must be maintained even when the disruption ends. Therefore, decision makers should carefully consider whether facilities such as factories are should indeed be relocated. The duration of the disruption is an important factor in determining this as production can be stopped in brief disruptions. In contrast, the way of maintaining production by switching to alternative suppliers and relocating a factory should be undertaken in lengthier disruptions, such as that caused by COVID-19.

In addition, some practical recommendations emerge from the results. The Malaysian factory is maintained under all nine scenarios, even when all Malaysian suppliers are disrupted in the experiments. The results show that automation in a Malaysian factory is effective in suppressing the increase in total costs under COVID-19 induced disruptions. The disruption duration is not considered directly in the numerical experiments. However, if the duration of Chinese supplier disruption is brief, such as several months, the factory in China should not be relocated considering the relocation cost. Second, if the duration of Chinese supplier disruption is long, such as some years, the factory in China should be relocated to the market location, which is Seattle in the experiment.

Against a large disruption, reconfiguring a global supply chain is appropriate. This result supports the orientation of the entire supply chain management for economic effectiveness [23]. Switching to alternative suppliers is effective for maintaining production. Furthermore, more corporations, including SMEs, should take sustainability actions. This includes countermeasures against disruptions, regardless of their longevity, such as a business continuity plan [24]. Finally, a new way of developing resilience using new technology, such as blockchain [25], should be considered in future studies.

9. Conclusions and Future Research

This study examines the impact of supplier disruptions caused by COVID-19 on redesigning global supply chain networks across TPP countries using nine scenarios with different scales of disruption. The main findings are as follows.

• The results of the nine disruption scenarios show that once the Chinese supplier is restored, the factory placement returns to Shanghai after the Chinese supplier disruption brings the factory to Seattle. Then, assuming the recovery speed of disrupted suppliers, strategic factory selection after the recovery of disruptions is proposed.
• The behaviors of total and breakdown costs under different scales of disruptions are analyzed through the disruption scenarios in China. Regarding supplier selection, there are two patterns: directly changed by supplier disruption, and indirectly changed due to factory relocation. Depending on the scale of disruption and the locations of occurrence, the impact on total cost changes regardless of the number of disrupted suppliers.
• Some potential scenarios are found where companies may or may not change their supply chain design due to fluctuations in duties and tariffs. Regarding the TPP effect, there is a case in which the TPP has a positive impact on maintaining costs despite disruption. Moreover, when the supplier disruption and the increment in the customs duty rate occurs simultaneously, there is a case in which suppliers in TPP countries are chosen to avoid an increase in customs duty costs.
• Alternative suppliers in the other country should be selected instead of disrupted ones. Then, the factory should be maintained at the existing location. However, when many suppliers are switched from far alternative suppliers to the existing country because of the disruption, the factory should be relocated to the country in which the suppliers are selected. Moreover, the results indicate that the TPP has a positive impact on maintaining costs despite disruption; it is the non-TPP countries which affect costs as customs duty costs increase. Therefore, non-TPP countries are gradually selected less under the customs duty-rate increment and disruption. Emerging one managerial insight is that in the maintained factory, regardless of the disruption, a capital investment such as automation should be carried out. Then, the operation can be continued under the disruption by switching to alternative suppliers while suppressing the total cost increases.

Further studies should consider factory disruptions. This study analyzes supplier disruptions in a global supply chain. Considering the impact of factory disruption is necessary to design a robust global supply chain network. The other studies should also consider devising resilient system designs to quickly restore the global supply chain [39], and consider the lead time at the operational stage under the disruption. Lastly, as carbon taxes have been and are increasingly being implemented [33,40,41], future studies should consider this as well.
