Article

Effect of Butyric Acid in the Proliferation and Migration of Junctional Epithelium in the Progression of Periodontitis: An In Vitro Study

by
Taichi Ishikawa
1,*,
Daisuke Sasaki
2,
Ryo Aizawa
3,
Yu Shimoyama
1,
Matsuo Yamamoto
3,
Tarou Irié
4 and
Minoru Sasaki
1
1
Division of Molecular Microbiology, Department of Microbiology, Iwate Medical University, 1-1-1 Idai-dori, Yahaba-Cho, Shiwa-Gun, Iwate 028-3694, Japan
2
Division of Periodontology, Department of Conservative Dentistry, School of Dentistry, Iwate Medical University, 1-3-27 Chuo-dori, Morioka, Iwate 020-8505, Japan
3
Department of Periodontology, School of Dentistry, Showa University, 2-1-1 Kitasenzoku, Ohta-ku, Tokyo 145-8515, Japan
4
Division of Anatomical and Cellular Pathology, Department of Pathology, Iwate Medical University, 1-1-1 Idai-dori, Yahaba-Cho, Shiwa-Gun, Iwate 028-3694, Japan
*
Author to whom correspondence should be addressed.
Dent. J. 2021, 9(4), 44; https://doi.org/10.3390/dj9040044
Submission received: 9 March 2021 / Revised: 6 April 2021 / Accepted: 13 April 2021 / Published: 16 April 2021
Browse Figures
Versions Notes

Abstract

:
Purpose: To elucidate the effects of butyric acid (BA), a metabolite of bacteria involved in periodontitis, and a possible enhancer of the junctional epithelial cells. Methods: A murine junctional epithelial cell line, JE-1, was used to assess the effects of sodium butyrate (NaB) as BA. Cell proliferation, migration and attachment were analyzed. Additionally, gene and promoter expression analysis was performed, i.e., cap analysis of gene expression (CAGE) and gene ontology (GO) term enrichment analysis. Results: NaB affected junctional epithelial cell proliferation, migration and attachment. A high concentration of NaB caused cell death and a low concentration tended to promote migration and adhesion. CAGE analysis revealed 75 upregulated and 96 downregulated genes in the cells after 0.2 mM NaB stimulation for 3 h. Regarding GO term enrichment, the genes upregulated >4-fold participated predominantly in cell migration and proliferation. The results of this study suggest that BA produced from periodontopathic bacteria is involved in periodontal tissue destruction at high concentrations. Furthermore, at low concentrations, BA potentially participates in periodontal disease progression by increasing proliferation, migration and attachment of the junctional epithelium and thereby increasing epithelial down-growth.

1. Introduction

Periodontitis is a chronic multifactorial inflammatory disease associated with dysbiotic dental plaque biofilms [1]. The disease has been associated with systemic diseases such as diabetes mellitus [2,3,4], cardiovascular disease [5,6,7], rheumatoid arthritis [8,9], and neurological disorders such as Alzheimer’s disease [10,11,12]. Furthermore, previous studies have associated periodontal diseases with the risk of various human malignant neoplasms, such as poorly differentiated oral squamous cell carcinoma [13,14], as well as preterm birth and low birth weight [15,16]. The onset and progression of periodontal disease generally leads to periodontitis via gingivitis due to the formation of dental plaque on periodontal tissue. As the lesion progresses, the periodontal ligament is destroyed by inflammation and the junctional epithelium enters a state of attachment loss in which the epithelium progresses and propagates onto the cementum towards the root apex side. Thereafter, attachment loss continues from the crown side, and a periodontal pocket is formed between the tooth surface and the gingiva [17,18]. The majority of previous studies have focused on pathogenic factors, such as fimbriae, lipopolysaccharides and exotoxins, of periodontopathic bacteria represented by the “red complex” species (namely Porphyromonas gingivalis, Treponema denticola and Tannerella forsythensis). In contrast, few studies have investigated the metabolites of periodontopathic bacteria.
Previous studies have reported the presence of 0–14 mM butyric acid (BA) in the subgingival plaque [19,20]; large amounts of this carboxylic acid are produced by periodontopathic bacteria such as P. gingivalis and Fusobacterium nucleatum [21]. P. gingivalis is one of the “red complex” species and F. nuclatum is one of the “orange complex” species. Both have a high and moderate risk of periodontitis, respectively. BA has been reported to induce apoptosis in human, murine B and murine T lymphocytes within periodontal tissue [22,23]. Additionally, the results of our previous studies indicate that BA enhances the migration of ameloblastoma via laminin 332 [24,25]. On the other hand, being a short-chain fatty acid, BA is beneficial as a major energy source for intestinal epithelial cells. Some intestinal bacteria metabolites may reach the rest of the body through the intestinal tissues and bloodstream; they may then affect the immune response of a host through the control of regulatory T cells (Tregs) [26]. Indeed, BA derived from Clostridium species, which are part of the human intestinal flora, induces the differentiation of Tregs in the intestinal tract [27]. Tregs play a major role in negatively controlling the immune response of autoreactive T cells; they are important in avoiding damage due to excessive autoimmune responses. In a mouse model of colitis, BA-induced Tregs have been shown to suppress colitis pathogenesis [28]. Thus, BA is considered to be beneficial in the intestinal tract but harmful in the oral cavity.
Given the potentially harmful effects of BA on oral health, it is necessary to elucidate the effects of BA on periodontal tissue. Some studies have suggested that BA is involved in periodontal disease [29,30]. BA stimulation was found to reduce the expression of cell adhesion factors, namely, integrin α6 and integrin β4, but increase intercellular adhesion molecule-1 (ICAM-1) in the gingival epithelium and cause tissue destruction [30]. In research conducted to date, gingival epithelial cell lines have been studied rather than the junctional epithelium because the former cell lines, such as Ca9-22, are considered to be an established model for the study of periodontal disease [31,32,33]. In these studies, which tested the cell adhesion ability of periodontopathic bacteria, the type of P. gingivalis and its fimbriae as well as the S-layer protein of T. forsythensis were important in the early stage of oral infections including periodontal disease. Importantly, however, the gingival and junctional epithelium differ in their development processes and they are thought to differ in cell responsiveness [34,35]. Recently, a junctional epithelial cell line has been established; hence, it has become possible to use the cell line in research and to study its differences from gingival epithelial cell lines [36].
Currently, there remains a lack of research regarding the effects of BA on the junctional epithelium. Therefore, in the present study, we investigated these effects by examining the cell proliferation, migration, attachment and gene transcription of junctional epithelial cells exposed to BA.

2. Materials and Methods

2.1. Cell Culture

The junctional epithelial cell line JE-1, previously established by Matsuo Yamamoto in Showa University, Tokyo, Japan [36], was cultured in CnT-Prime (CELLnTEC, Bern, Switzerland) supplemented with 1% penicillin–streptomycin mixed solution (Nacalai Tesque, Kyoto, Japan). The cell line was incubated in a humidified atmosphere with 5% CO2 at 37 °C. Unless otherwise stated, cells from 80% confluent cultures were used following detachment with TrypLE Express (Gibco, MA, USA).

2.2. Cell Proliferation and Inhibition Assay

A cell proliferation and inhibition assay was performed using a Cell Counting Kit-8 (Wako, Osaka, Japan) following the manufacturer’s instructions. The cells were seeded onto 96-well plates (Corning, NY, USA) at 1 × 103 cells/well in 100 µL of CnT-Prime. Cells were pre-incubated for 1 day before the assays began. After pre-incubation, the medium was changed to fresh CnT-Prime with various concentrations of NaB (0.02–20 mM; Wako) or fresh medium only (as a control), and then the cells were incubated for 7 days at 37 °C in 5% CO2. The estimated number of cells was recorded every 24 h. A SpectraMax M2 (Molecular Devices) was used to measure the optical density of the plate at a wavelength of 450 nm with a reference wavelength of 600 nm.

2.3. Migration Assay

A migration assay was conducted following a previously published method [37,38]. Briefly, 1 × 105 cells/well were plated in 24-well plates with 500 µL of CnT-Prime and then incubated for 2 days at 37 °C in 5% CO2. Subsequently, the monolayer was scratched with a pipette tip and washed with phosphate-buffered saline (PBS) to remove non-adherent cells. The cells were then cultured in CnT-Prime supplemented with 0.02–20 mM NaB or fresh medium only (as a control). Finally, the cells were photographed at 0 h and 24 h by using fluorescence microscopy BZ-9000 (Keyence, Osaka, Japan).

2.4. Cell Attachment Assay

A cell attachment assay was performed according to a previously reported method [39,40]. Briefly, cells were seeded onto 96-well culture plates (Maxisorp, Nunc, Roskilde, Denmark) at 1 × 105 cells/well in a culture medium with various concentrations of NaB (0.02–20 mM) or fresh medium only (as a control) and then incubated for 60 min at 37 °C in 5% CO2. Thereafter, the wells were washed three times with PBS and attached cells were fixed with 4% paraformaldehyde phosphate buffer solution (Wako) for 15 min. They were then stained overnight with 0.5% toluidine blue O (Wako). Subsequently, the plates were washed three times with PBS and then 100 µL of 2% SDS was added to each well to release the blue dye. A SpectraMax M2 (Molecular Devices) was used to measure the optical density at a wavelength of 620 nm.

2.5. Real-Time Quantitative Reverse-Transcription Polymerase Chain Reaction

Cells were disseminated onto 24-well plates at 1.0 × 105 cells/well in 500 µL of CnT-Prime for 24 h. The medium was then changed to either fresh medium containing various concentrations of NaB or fresh medium only (as a control), and the cells were incubated for 6 h at 37 °C in 5% CO2. After this treatment, total RNA was extracted from the cells using an RNeasy Mini Kit (Qiagen, Copenhagen, Denmark) in accordance with the supplied manufacturer’s instructions. The cDNA was synthesized with PrimeScript RT Master Mix (TaKaRa Bio., Shiga, Japan), and a real-time quantitative reverse-transcription polymerase chain reaction (qPCR) assay was performed using a Thermal Cycler Dice Real Time System (TaKaRa) following the manufacturer’s instructions. TB Green Premix Ex Taq II (TaKaRa) was used for the qPCR reaction. Primer sets, which were based on sequences for ICAM-1, integrin α6, integrin β4 and glyceraldehyde-3-phosphate dehydrogenase (GAPDH), were purchased from TaKaRa. The primers for Gapdh were used as an endogenous control. The cDNA amplification conditions were as follows: 95 °C for 30 s, followed by 40 cycles at 95 °C for 5 s and 60 °C for 30 s. Dissociation was performed to confirm the specificity of primers.

2.6. Gene and Promoter Expression Analysis

Gene and promoter expression analysis was performed according to previously published methods [41]. Cap analysis of gene expression (CAGE) library preparation, sequencing, mapping and gene expression were conducted on each RNA sample (DNAFORM). In brief, RNA quality was assessed with a Bioanalyzer (Agilent, CA, USA) to ensure that the RNA integrity number was >7.0 and the A260/280 and 260/230 ratios were >1.7. First-strand cDNAs were transcribed to the 5′-ends of capped RNAs and attached to CAGE “bar code” tags; the sequenced CAGE tags were mapped to the mouse vM24 genome using BWA software (v0.5.9) after discarding ribosomal or non-A/C/G/T base-containing RNAs. The CAGE-tag 5′ coordinates were inputted for CAGEr clustering [42] using the Paraclu algorithm [43] with the default parameters. The upregulated genes in 0.2 mM NaB-stimulated cells relative to unstimulated cells were identified with a threshold log2 fold change >2.0.

2.7. Gene Ontology (GO) Term Enrichment Analysis of CAGE Data

The differences in gene expression between unstimulated cells and those stimulated with 0.2 mM NaB for 3 h were detected using the DESeq2 package (v1.20.0). GO term enrichment analysis was performed using the DAVID database (https://david.ncifcrf.gov/, 2 November 2020).

2.8. Statistical Analysis

Results are presented as means and standard deviations. Significant differences were determined using one-way ANOVA followed by Tukey’s post hoc test. For the cell proliferation and inhibition assay, migration assay, cell attachment assay and qPCR, p < 0.05 was considered to be statistically significant. For GO term enrichment analysis, the p value is the threshold of the EASE score, a modified Fisher exact p value, for gene enrichment analysis. Following the DAVID database, p < 0.1 was considered to be statistically significant in GO analysis.

3. Results

3.1. Butyric Acid Has Concentration-Dependent Positive and Negative Effects on Cell Proliferation

There were significant differences in cell proliferation between the cells stimulated with BA at different concentrations at 24 h. Specifically, the number of cells increased and decreased significantly at 0.2 mM and 20 mM NaB, respectively (Figure 1A). The absorbance of unstimulated cells was 0.0508; the absorbance of stimulated cells was 0.0563, 0.06, 0.052 and 0.039 for 0.02, 0.2, 2 and 20 mM NaB stimulation, respectively (Figure 1A). Cell proliferation was also measured for 7 days. At high NaB concentrations of 2 and 20 mM, cells exhibited cytotoxicity and did not grow from the second or first day, respectively. However, cell proliferation was unaffected at 0.02 mM NaB and significantly increased at 0.2 mM NaB after 7 days of incubation (Figure 1B).

3.2. Butyric Acid Upregulates Cell Migration in a Concentration-Dependent Manner

A scratch assay was performed as an in vitro mimic of epithelial down-growth (migration on hard tissue) during periodontal disease exacerbation. As shown in Figure 2A,B, cells migrated to the cell-free area after 24 h of culture. When the cells were incubated for 24 h with 0.2 mM or 2 mM NaB, they appeared to migrate to the cell-free area more so than unstimulated cells (Figure 2B,D,E). However, when cells were stimulated with 20 mM NaB, they did not appear to migrate to the cell-free area, and many dead and floating cells were observed (Figure 2F).

3.3. Butyric Acid Enhances Cell Attachment

Cells stimulated with 0.02 mM showed no change, 0.2 and 20 mM NaB showed ~25% and ~35% more cell attachment, respectively, than unstimulated cells at 1 h (Figure 3). In addition, while 2 mM NaB had no significant effect on attachment, it did result in an increasing attachment trend.

3.4. Effects of Butyric Acid on Adhesion Molecule Expression

After 3 h of stimulation with 0.2 mM NaB, ICAM-1 mRNA expression in cells significantly increased (by ~60%); this expression also tended to increase after 1 h of stimulation but not to significant levels, and tended to be downregulated at 6 h (Figure 4A). Although the mRNA expression of integrin α6 and integrin β4 tended to increase after 3 h and 1 h of stimulation, respectively, the effects were not significant (Figure 4B, C).

3.5. CAGE and GO Term Enrichment Analysis

Given the significant increase in gene expression shown in Figure 4A, total RNA was extracted from these cells and CAGE and GO term enrichment analysis were performed. CAGE analysis revealed 75 upregulated and 96 downregulated genes in the cells after 3 h stimulation with 0.2 mM NaB. GO term enrichment analysis indicated that the genes upregulated >4-fold in the cells predominantly participated in cell migration and proliferation (Table 1).

4. Discussion

For the first time, the results of the present study show that BA participates in the progression of periodontitis by increasing the proliferation, migration and attachment of the junctional epithelium. By observing cell proliferation, we investigated the effects on tissue destruction involved in the progression of periodontal disease. In the cell proliferation and inhibition assay, low and high concentrations of NaB slightly increased cell proliferation and inhibited cell growth, respectively; thus, BA has opposing properties depending on concentration. This result supports previous studies in which intestinal cells [44], colonic epithelial cells [45], several oral cancer cells [46], and gingival epithelial cells [30] were used.
In the present study, we also observed the conflicting effects of BA on cell migration. Based on this experiment, we considered the effect on the down-growth of the junctional epithelium. Specifically, cell migration did not increase with the highest tested NaB concentration, 20 mM; indeed, many floating cells were observed, suggesting cell death. In contrast, cell migration increased with NaB stimulation at 0.2 and 2 mM. Interestingly, when cells were stimulated with 2 mM NaB, there was no significant change in cell proliferation after 24 h, but migration did increase. Therefore, it was suggested that low concentrations of BA may contribute to the down-growth of the junctional epithelium.
We speculated that cell attachment was involved in the observed cell migration. This is because strengthening adhesion may promote cell migration. In our investigation, cell adhesion tended to increase in a concentration-dependent manner. This may be related to changes in the expression of cell adhesion factors, three of which were also examined here by qPCR, ICAM-1, integrin α6 and integrin β4, having previously been reported in gingival epithelial cells [30]. qPCR can quantify the level of mRNA, which is not possible with conventional PCR, so it is possible to compare the expression levels of mRNA.
Our results generally support those of Takigawa et al. [30] but with some differences observed, i.e., both studies found a significant increase in ICAM-1 expression but we found no significant changes in integrin α6 and integrin β4 expression. However, increased ICAM-1 expression was observed earlier in junctional epithelial cells than the 6 h stimulation required in gingival epithelial cells; in contrast, expression tended to be downregulated at 6 h in junctional epithelial cells. Integrin α6 and integrin β4 are combined and function as a laminin receptor; they strongly promote cell adhesion to the extracellular membrane as well as migration and proliferation [39,47]. ICAM-1 is a factor involved in cell−cell adhesion and it plays a role in leukocyte migration. When inflammation occurs in periodontal disease, inflammatory cells such as leukocytes move to the gingival sulcus and cause an immune reaction [48]. Thus, our results suggest that the junctional epithelium reacts faster than the gingival epithelium, probably because it is closer to the periodontal tissue destruction site and dental plaque.
In GO term enrichment analysis of the genes and promoters for which expression was altered by NaB stimulation, the GO terms immune response, positive regulation of PI3K signaling, MAPK cascade, positive regulation of epithelial cell proliferation, cytokine activity, and growth factor activity were predominantly enriched. These GO terms are associated with cell proliferation and migration; thus, these findings support our cell proliferation and migration assay results. Since BA is a short-chain fatty acid, it has a low molecular weight and can easily enter cells. It also acts as a signaling molecule with biological effects, one of which is the epigenetic regulation of host gene expression by histone deacetylase (HDAC) inhibition [49]. We speculate that HDAC inhibitory action promoted the transcription of genes involved in cell proliferation and migration in the present study, leading to down-growth of the junctional epithelium. However, most of the genes associated with cell proliferation and migration were upregulated; the reason for this is unknown and will require further investigation. Another biological function of BA is the control of regulatory Tregs [26]; thus, additional studies are required to assess the possibility of BA-induced HDAC inhibition at the junctional epithelium and/or suppression of Tregs.
In summary, the effects of BA on the junctional epithelium reported here suggest that periodontopathic bacteria-produced BA may be involved in periodontal tissue destruction at high concentrations, while at low concentrations it potentially participates in the progression of periodontal disease through excessive increased proliferation, migration and attachment of the junctional epithelium.

Author Contributions

T.I. (Taichi Ishikawa) performed and designed most experiments. D.S. and Y.S. contributed with some experimental data. R.A. and M.Y. prepared and provided the cells. T.I. (Tarou Irié) and M.S. interpreted results with T.I. (Taichi Ishikawa). The manuscript was drafted by T.I. (Taichi Ishikawa) and edited by all authors. All authors have read and agreed to the published version of the manuscript.

Funding

The study was supported by KAKENHI Grant Number 17K17286 from the Japan Society for the Promotion of Science, Tokyo, Japan and partially supported by the grant from the Dental Society of Iwate Medical University Grant Number 17-1.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

We thank the members of the Department of Periodontology, School of Dentistry, Showa University, and we also thank Miho Ibi (Division of Anatomical and Cellular Pathology, Department of Pathology, Iwate Medical University) and Naoko Tominaga (DNAFORM, Yokohama, Kanagawa, Japan) for CAGE analysis and technical support.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Sanz, M.; Herrera, D.; Kebschull, M.; Chapple, I.; Jepsen, S.; Berglundh, T.; Sculean, A.; Tonetti, M.S.; Aass, A.M.; Aimetti, M.; et al. Treatment of stage I–III periodontitis—The EFP S3 level clinical practice guideline. J. Clin. Periodontol. 2020, 47 (Suppl. S22), 4–60. [Google Scholar] [CrossRef]
  2. Arimatsu, K.; Yamada, H.; Miyazawa, H.; Minagawa, T.; Nakajima, M.; Ryder, M.I.; Gotoh, K.; Motooka, D.; Nakamura, S.; Iida, T.; et al. Oral pathobiont induces systemic inflammation and metabolic changes associated with alteration of gut microbiota. Sci. Rep. 2014, 4, 1–9. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Grossi, S.G.; Skrepcinski, F.B.; DeCaro, T.; Robertson, D.C.; Ho, A.W.; Dunford, R.G.; Genco, R.J. Treatment of Periodontal Disease in Diabetics Reduces Glycated Hemoglobin. J. Periodontol. 1997, 68, 713–719. [Google Scholar] [CrossRef] [PubMed]
  4. Saremi, A.; Nelson, R.G.; Tulloch-Reid, M.; Hanson, R.L.; Sievers, M.L.; Taylor, G.W.; Shlossman, M.; Bennett, P.H.; Genco, R.; Knowler, W.C. Periodontal Disease and Mortality in Type 2 Diabetes. Diabetes Care 2004, 28, 27–32. [Google Scholar] [CrossRef] [Green Version]
  5. Leng, W.-D.; Zeng, X.-T.; Kwong, J.S.; Hua, X.-P. Periodontal disease and risk of coronary heart disease: An updated meta-analysis of prospective cohort studies. Int. J. Cardiol. 2015, 201, 469–472. [Google Scholar] [CrossRef]
  6. e Silva Filho, W.S.; Casarin, R.C.; Junior, E.L.N.; Passos, H.M.; Sallum, A.W.; Gonçalves, R.B. Microbial diversity similarities in periodontal pockets and atheromatous plaques of cardiovascular disease patients. PLoS ONE 2014, 9, e109761. [Google Scholar] [CrossRef]
  7. Ohki, T.; Itabashi, Y.; Kohno, T.; Yoshizawa, A.; Nishikubo, S.; Watanabe, S.; Yamane, G.; Ishihara, K. Detection of periodontal bacteria in thrombi of patients with acute myocardial infarction by polymerase chain reaction. Am. Heart J. 2012, 163, 164–167. [Google Scholar] [CrossRef]
  8. Chou, Y.Y.; Lai, K.L.; Chen, D.Y.; Lin, C.H.; Chen, H.H. Rheumatoid arthritis risk associated with periodontitis exposure: A nationwide, population-based cohort study. PLoS ONE 2015, 10, e0139693. [Google Scholar] [CrossRef] [PubMed]
  9. Ziebolz, D.; Pabel, S.O.; Lange, K.; Krohn-Grimberghe, B.; Hornecker, E.; Mausberg, R.F. Clinical periodontal and microbiologic parameters in patients with rheumatoid arthritis. J. Periodontol. 2011, 82, 1424–1432. [Google Scholar] [CrossRef] [PubMed]
  10. Ganesh, P.; Karthikeyan, R.; Muthukumaraswamy, A.; Anand, J. A potential role of periodontal inflammation in Alzheimer’s disease. Oral Health Prev. Dent. 2017, 15, 7–12. [Google Scholar]
  11. Harding, A.; Gonder, U.; Robinson, S.J.; Crean, S.; Singhrao, S.K. Exploring the Association between Alzheimer’s Disease, Oral Health, Microbial Endocrinology and Nutrition. Front. Aging Neurosci. 2017, 9, 398. [Google Scholar] [CrossRef] [PubMed]
  12. Teixeira, F.B.; Saito, M.T.; Matheus, F.C.; Prediger, R.D.; Yamada, E.S.; Maia, C.S.F.; Lima, R.R. Periodontitis and Alzheimer’s Disease: A Possible Comorbidity between Oral Chronic Inflammatory Condition and Neuroinflammation. Front. Aging Neurosci. 2017, 9, 327. [Google Scholar] [CrossRef] [PubMed]
  13. Michaud, D.S.; Liu, Y.; Meyer, M.; Giovannucci, E.; Joshipura, K. Periodontal disease, tooth loss, and cancer risk in male health professionals: A prospective cohort study. Lancet Oncol. 2008, 9, 550–558. [Google Scholar] [CrossRef] [Green Version]
  14. Tezal, M.; Sullivan, M.A.; Hyland, A.; Marshall, J.R.; Stoler, D.; Reid, M.E.; Loree, T.R.; Rigual, N.R.; Merzianu, M.; Hauck, L.; et al. Chronic periodontitis and the incidence of head and neck squamous cell carcinoma. Cancer Epidemiol. Prev. Biomark. 2009, 18, 2406–2412. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Liang, S.; Ren, H.; Guo, H.; Xing, W.; Liu, C.; Ji, Y.; Jiang, H.; Zhang, P.; Du, M. Periodontal infection with Porphyromonas gingivalis induces preterm birth and lower birth weight in rats. Mol. Oral Microbiol. 2018, 33, 312–321. [Google Scholar] [CrossRef] [PubMed]
  16. Udagawa, S.; Katagiri, S.; Maekawa, S.; Takeuchi, Y.; Komazaki, R.; Ohtsu, A.; Sasaki, N.; Shiba, T.; Watanabe, K.; Ishihara, K.; et al. Effect of Porphyromonas gingivalis infection in the placenta and umbilical cord in pregnant mice with low birth weight. Acta Odontol. Scand. 2018, 76, 433–441. [Google Scholar] [CrossRef]
  17. Hajishengallis, G.; Korostoff, J.M. Revisiting the Page & Schroeder model: The good, the bad, and the unknown in periodontal host response forty years later. Periodontol. 2000 2017, 75, 116–151. [Google Scholar]
  18. Page, R.C.; Schroeder, H.E. Pathogenesis of inflammatory periodontal disease. A summary of current work. Lab. Investig. 1976, 34, 235. [Google Scholar] [PubMed]
  19. Pöllänen, M.T.; Salonen, J.I.; Uitto, V.-J. Structure and function of the tooth-epithelial interface in health and disease. Periodontol. 2000 2003, 31, 12–31. [Google Scholar] [CrossRef] [Green Version]
  20. Tsuda, H.; Ochiai, K.; Suzuki, N.; Otsuka, K. Butyrate, a bacterial metabolite, induces apoptosis and autophagic cell death in gingival epithelial cells. J. Periodontal Res. 2010, 45, 626–634. [Google Scholar] [CrossRef]
  21. Niederman, R.; Buyle-Bodin, Y.; Lu, B.-Y.; Robinson, P.; Naleway, C. Short-chain Carboxylic Acid Concentration in Human Gingival Crevicular Fluid. J. Dent. Res. 1997, 76, 575–579. [Google Scholar] [CrossRef]
  22. Kurita-Ochiai, T.; Fukushima, K.; Ochiai, K. Volatile Fatty Acids, Metabolic By-products of Periodontopathic Bacteria, Inhibit Lymphocyte Proliferation and Cytokine Production. J. Dent. Res. 1995, 74, 1367–1373. [Google Scholar] [CrossRef]
  23. Kurita-Ochiai, T.; Ochiai, K.; Fukushima, K. Volatile Fatty Acid, Metabolic By-Product of Periodontopathic Bacteria, Induces Apoptosis in WEHI 231 and RAJI B Lymphoma Cells and Splenic B Cells. Infect. Immun. 1998, 66, 2587–2594. [Google Scholar] [CrossRef] [Green Version]
  24. Ishikawa, T.; Terashima, J.; Sasaki, D.; Shimoyama, Y.; Yaegashi, T.; Sasaki, M. Establishment and use of a three-dimensional ameloblastoma culture model to study the effects of butyric acid on the transcription of growth factors and laminin β3. Arch. Oral Biol. 2020, 118, 104845. [Google Scholar] [CrossRef]
  25. Ishikawa, T.; Terashima, J.; Shimoyama, Y.; Ohashi, Y.; Mikami, T.; Takeda, Y.; Sasaki, M. Effects of butyric acid, a bacterial metabolite, on the migration of ameloblastoma mediated by laminin 332. J. Oral Sci. 2020, 62, 435–438. [Google Scholar] [CrossRef]
  26. Schwarz, A.; Bruhs, A.; Schwarz, T. The Short-Chain Fatty Acid Sodium Butyrate Functions as a Regulator of the Skin Immune System. J. Investig. Dermatol. 2017, 137, 855–864. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  27. Zhou, D.; Pan, Q.; Liu, X.L.; Yang, R.X.; Chen, Y.W.; Liu, C.; Fan, G.J. Clostridium butyricum B1 alleviates high-fat diet-induced steatohepatitis in mice via enterohepatic immunoregulation. J. Gastroenterol. Hepatol. 2017, 32, 1640–1648. [Google Scholar] [CrossRef]
  28. Furusawa, Y.; Obata, Y.; Fukuda, S.; Endo, T.A.; Nakato, G.; Takahashi, D.; Nakanishi, Y.; Uetake, C.; Kato, K.; Kato, T.; et al. Commensal microbe-derived butyrate induces the differentiation of colonic regulatory T cells. Nature 2014, 504, 446–450. [Google Scholar] [CrossRef] [PubMed]
  29. Shirasugi, M.; Nakagawa, M.; Nishioka, K.; Yamamoto, T.; Nakaya, T.; Kanamura, N. Relationship between periodontal disease and butyric acid produced by periodontopathic bacteria. Inflamm. Regen. 2018, 38, 23. [Google Scholar] [CrossRef]
  30. Takigawa, S.; Sugano, N.; Nishihara, R.; Koshi, R.; Murai, M.; Yoshinuma, N.; Ochiai, K.; Ito, K. The effect of butyric acid on adhesion molecule expression by human gingival epithelial cells. J. Periodontal Res. 2008, 43, 386–390. [Google Scholar] [CrossRef] [PubMed]
  31. Hirose, K.; Isogai, E.; Mizugai, H.; Ueda, I. Adhesion of Porphyromonas gingivalis fimbriae to human gingival cell line Ca9-22. Oral Microbiol. Immunol. 1996, 11, 402–406. [Google Scholar] [CrossRef]
  32. Watanabe, K.; Yamaji, Y.; Umemoto, T. Correlation between cell-adherent activity and surface structure in Porphyromonas gingivalis. Oral Microbiol. Immunol. 1992, 7, 357–363. [Google Scholar] [CrossRef]
  33. Sakakibara, J.; Nagano, K.; Murakami, Y.; Higuchi, N.; Nakamura, H.; Shimozato, K.; Yoshimura, F. Loss of adherence ability to human gingival epithelial cells in S-layer protein-deficient mutants of Tannerella forsythensis. Microbiology 2007, 153, 866–876. [Google Scholar] [CrossRef] [Green Version]
  34. Schroeder, H.E.; Listgarten, M.A. The Junctional Epithelium: From Strength to Defense. J. Dent. Res. 2003, 82, 158–161. [Google Scholar] [CrossRef]
  35. Yajima-Himuro, S.; Oshima, M.; Yamamoto, G.; Ogawa, M.; Furuya, M.; Tanaka, J.; Nishii, K.; Mishima, K.; Tachikawa, T.; Tsuji, T.; et al. The junctional epithelium originates from the odontogenic epithelium of an erupted tooth. Sci. Rep. 2015, 4, 4867. [Google Scholar] [CrossRef]
  36. Seki, T.; Aizawa, R.; Tanaka, J.; Yajima-Himuro, S.; Kato, M.; Tanaka, K.; Mishima, K.; Yamamoto, M. Establishment of mouse gingival junctional epithelial cell line using a bioengineered tooth system. Biochem. Biophys. Res. Commun. 2018, 497, 167–172. [Google Scholar] [CrossRef]
  37. Hu, Y.; Rao, S.S.; Wang, Z.X.; Cao, J.; Tan, Y.J.; Luo, J.; Li, H.M.; Zhang, W.S.; Chen, C.Y.; Xie, H. Exosomes from human umbilical cord blood accelerate cutaneous wound healing through miR-21-3p-mediated promotion of angiogenesis and fibroblast function. Theranostics 2018, 8, 169–184. [Google Scholar] [CrossRef]
  38. Nguyen, P.A.; Pham, T.A.V. Effects of platelet-rich plasma on human gingival fibroblast proliferation and migration in vitro. J Appl. Oral Sci. 2018, 26, e20180077. [Google Scholar] [CrossRef] [Green Version]
  39. Ishikawa, T.; Wondimu, Z.; Oikawa, Y.; Ingerpuu, S.; Virtanen, I.; Patarroyo, M. Monoclonal antibodies to human laminin α4 chain globular domain inhibit tumor cell adhesion and migration on laminins 411 and 421, and binding of α6β1 integrin and MCAM to α4-laminins. Matrix Biol. 2014, 36, 5–14. [Google Scholar] [CrossRef] [PubMed]
  40. Ishikawa, T.; Wondimu, Z.; Oikawa, Y.; Gentilcore, G.; Kiessling, R.; Egyhazi Brage, S.; Hansson, J.; Patarroyo, M. Laminins 411 and 421 differentially promote tumor cell migration via α6β1 integrin and MCAM (CD146). Matrix Biol. 2014, 38, 69–83. [Google Scholar] [CrossRef]
  41. Goto, Y.; Ibi, M.; Sato, H.; Tanaka, J.; Yasuhara, R.; Aota, K.; Azuma, M.; Fukada, T.; Mishima, K.; Irié, T. PLAG1 enhances the stemness profiles of acinar cells in normal human salivary glands in a cell type-specific manner. J. Oral Biosci. 2020, 62, 99–106. [Google Scholar] [CrossRef] [PubMed]
  42. Haberle, V.; Forrest, A.R.; Hayashizaki, Y.; Carninci, P.; Lenhard, B. CAGEr: Precise TSS data retrieval and high-resolution promoterome mining for integrative analyses. Nucleic Acids Res. 2015, 43, e51. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  43. Frith, M.C.; Valen, E.; Krogh, A.; Hayashizaki, Y.; Carninci, P.; Sandelin, A. A code for transcription initiation in mammalian genomes. Genome Res. 2008, 18, 1–12. [Google Scholar] [CrossRef] [Green Version]
  44. Blottière, H.M.; Buecher, B.; Galmiche, J.P.; Cherbut, C. Molecular analysis of the effect of short-chain fatty acids on intestinal cell proliferation. Proc. Nutr. Soc. 2003, 62, 101–106. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  45. Siavoshian, S.; Blottiere, H.M.; Cherbut, C.; Galmiche, J.P. Butyrate stimulates cyclin D and p21 and inhibits cyclin-dependent kinase 2 expression in HT-29 colonic epithelial cells. Biochem. Biophys. Res Commun. 1997, 232, 169–172. [Google Scholar] [CrossRef]
  46. Miyazaki, Y.; Kikuchi, K.; González-Alva, P.; Inoue, H.; Noguchi, Y.; Tsuchiya, H.; Hayashi, J.; Shin, K.; Ochiai, K.; Kaoru, K. Association of butyric acid produced by periodontopathic bacteria with progression of oral cancer. J. Cancer Sci. Ther. 2010, 2, 026–032. [Google Scholar]
  47. Durbeej, M. Laminins. Cell Tissue Res. 2010, 339, 259–268. [Google Scholar] [CrossRef]
  48. Anbarasan, C.; Bavanilatha, M.; Latchumanadhas, K.; Ajit Mullasari, S. ICAM-1 molecular mechanism and genome wide SNP’s association studies. Indian Heart J. 2015, 67, 282–287. [Google Scholar] [CrossRef] [Green Version]
  49. Yuille, S.; Reichardt, N.; Panda, S.; Dunbar, H.; Mulder, I.E. Human gut bacteria as potent class I histone deacetylase inhibitors in vitro through production of butyric acid and valeric acid. PLoS ONE 2018, 13, e0201073. [Google Scholar] [CrossRef] [Green Version]
Dentistry 09 00044 g001 550

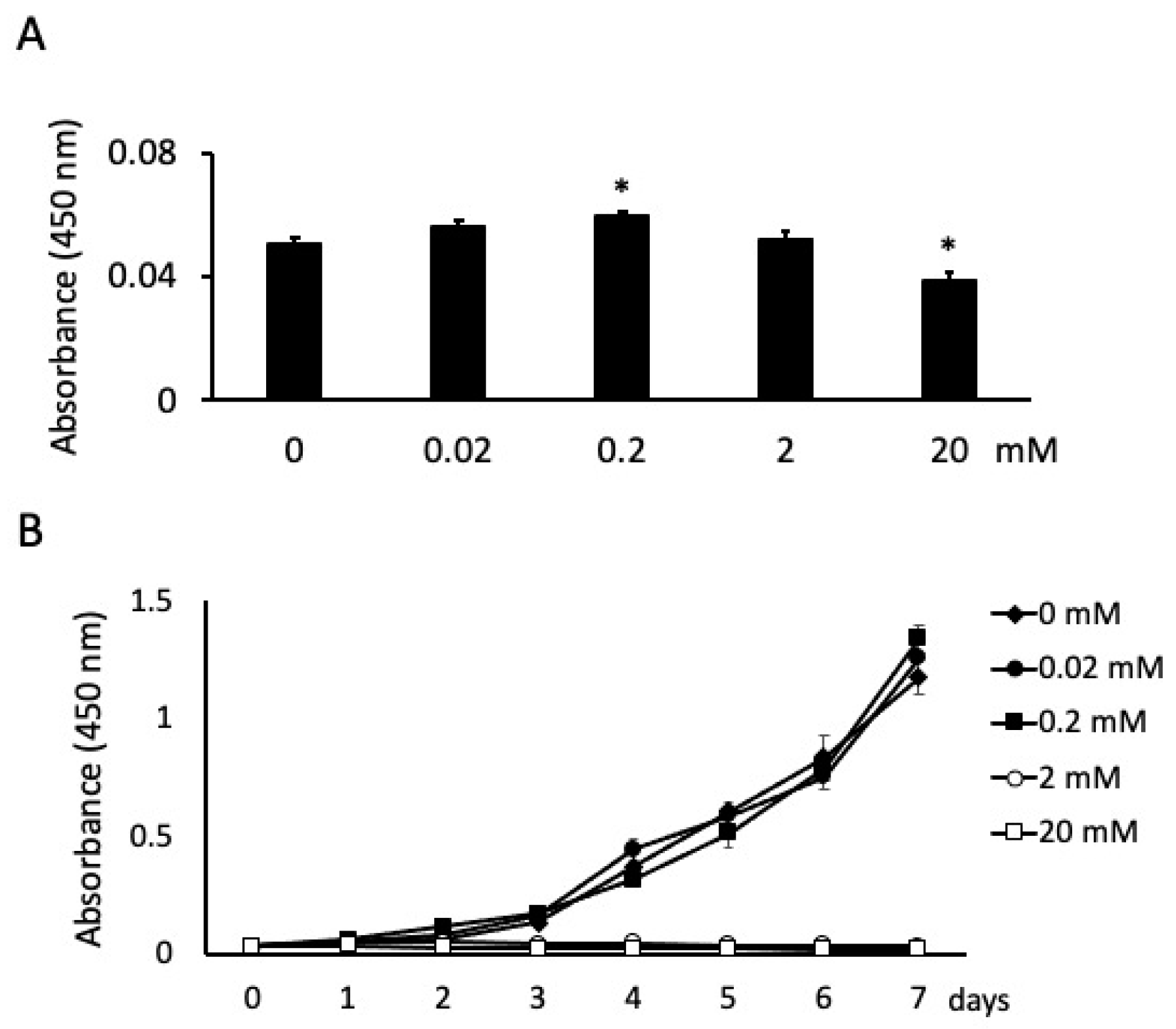

Figure 1. Effects of butyric acid (BA) on cell proliferation. Cells were incubated with several concentrations of sodium butyrate (NaB). Cell proliferations were measured at 24 h (A) and every 24 h until 7 days (B). Values are the mean ± standard deviation from eight independent experiments. * Significantly different from control cells (0 mM) (p < 0.05).
Figure 1. Effects of butyric acid (BA) on cell proliferation. Cells were incubated with several concentrations of sodium butyrate (NaB). Cell proliferations were measured at 24 h (A) and every 24 h until 7 days (B). Values are the mean ± standard deviation from eight independent experiments. * Significantly different from control cells (0 mM) (p < 0.05).
Dentistry 09 00044 g001
Dentistry 09 00044 g002 550
Figure 2. Effects of butyric acid (BA) on cell migration. Photomicrographs of scratch assay at day 0 (A), incubated with several concentrations of sodium butyrate (NaB), 0 mM (B), 0.02 mM (C), 0.2 mM (D), 2 mM (E) and 20 mM (F), for 1 day. All photomicrographs showed typical example of six independent experiments. Scale bar = 1 mm.
Figure 2. Effects of butyric acid (BA) on cell migration. Photomicrographs of scratch assay at day 0 (A), incubated with several concentrations of sodium butyrate (NaB), 0 mM (B), 0.02 mM (C), 0.2 mM (D), 2 mM (E) and 20 mM (F), for 1 day. All photomicrographs showed typical example of six independent experiments. Scale bar = 1 mm.
Dentistry 09 00044 g002
Dentistry 09 00044 g003 550

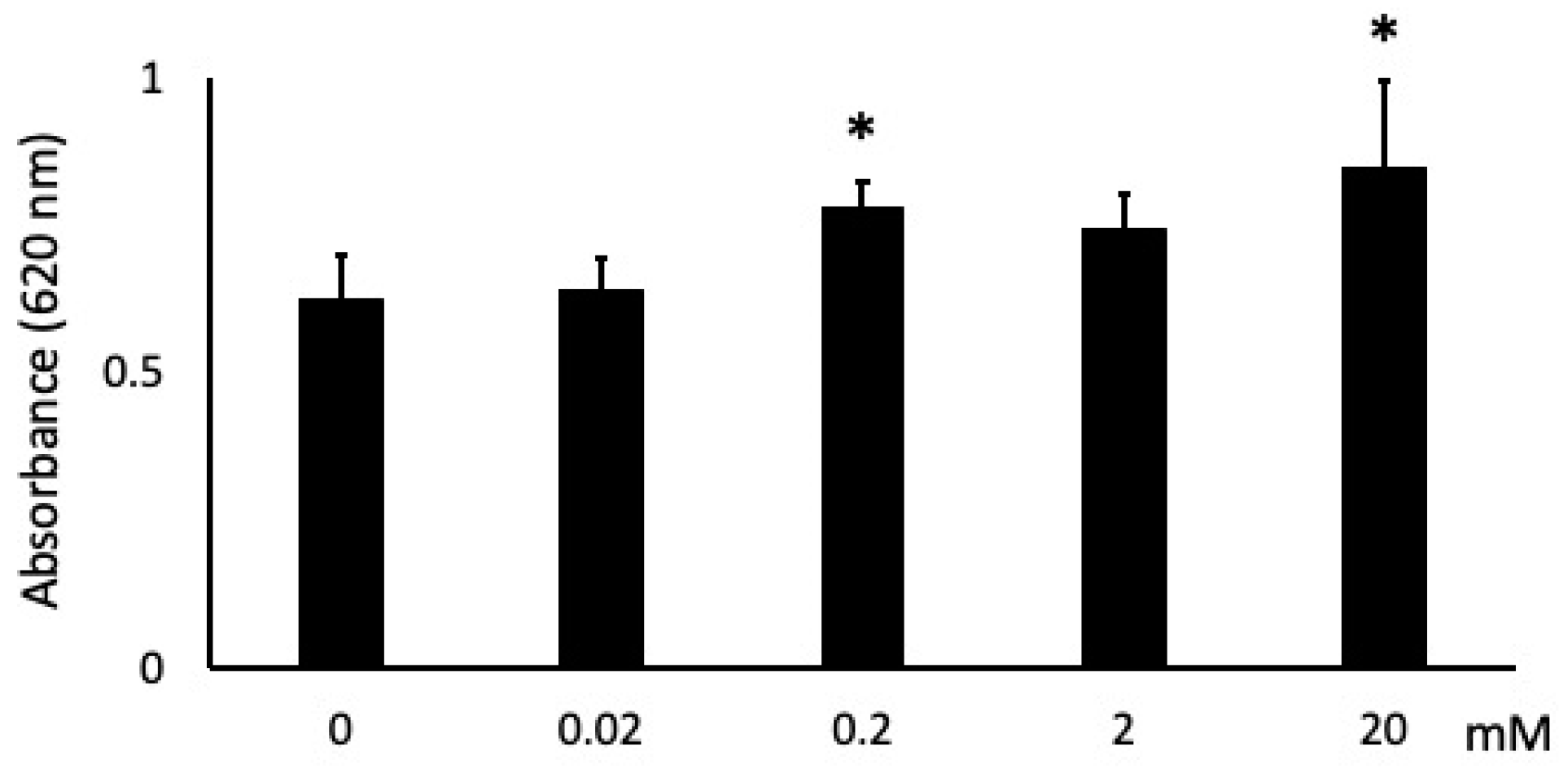

Figure 3. Effects of butyric acid (BA) on cell attachment. Cells were incubated with several concentrations of sodium butyrate (NaB), 0 mM, 0.02 mM, 0.2 mM, 2 mM and 20 mM, for 1 h. * Significantly different from control cells (0 mM) (p < 0.05). Values are the mean ± standard deviation from eight independent experiments.
Figure 3. Effects of butyric acid (BA) on cell attachment. Cells were incubated with several concentrations of sodium butyrate (NaB), 0 mM, 0.02 mM, 0.2 mM, 2 mM and 20 mM, for 1 h. * Significantly different from control cells (0 mM) (p < 0.05). Values are the mean ± standard deviation from eight independent experiments.
Dentistry 09 00044 g003
Dentistry 09 00044 g004 550

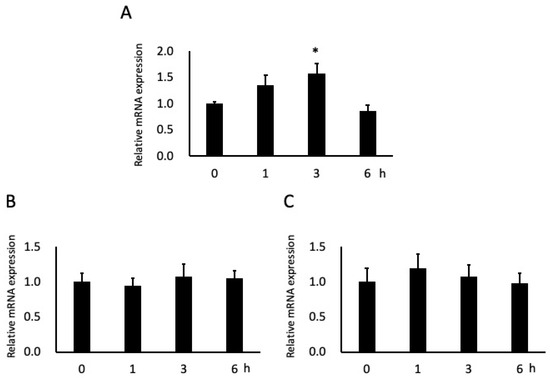

Figure 4. Effects of butyric acid (BA) on mRNA expressions of adhesion molecules. Cells were incubated with 0.2 mM sodium butyrate (NaB). Total RNAs were extracted from the beginning of the experiment (0 h), 1 h, 3 h and 6 h. Intercellular adhesion molecule-1 (ICAM-1) (A), integrin α6 (B) and integrin β4 (C) mRNA levels are shown relative to glyceraldehyde-3-phosphate dehydrogenase (GAPDH), the internal control. * Significantly different from control cells (0 mM) (p < 0.05). Values are the mean ± standard deviation from six independent experiments.
Figure 4. Effects of butyric acid (BA) on mRNA expressions of adhesion molecules. Cells were incubated with 0.2 mM sodium butyrate (NaB). Total RNAs were extracted from the beginning of the experiment (0 h), 1 h, 3 h and 6 h. Intercellular adhesion molecule-1 (ICAM-1) (A), integrin α6 (B) and integrin β4 (C) mRNA levels are shown relative to glyceraldehyde-3-phosphate dehydrogenase (GAPDH), the internal control. * Significantly different from control cells (0 mM) (p < 0.05). Values are the mean ± standard deviation from six independent experiments.
Dentistry 09 00044 g004
Table
Table 1. A list of the gene ontology term enrichment analysis among over 4-fold upregulated genes in JE-1 stimulated with 0.2 mM NaB.
Table 1. A list of the gene ontology term enrichment analysis among over 4-fold upregulated genes in JE-1 stimulated with 0.2 mM NaB.
CategoryTermCountGene IDp-Value
GOTERM_BP_DIRECTImmune response3Ccl5, Il7, Tnfsf134.60 × 10−2
GOTERM_BP_DIRECTPositive regulation of phosphatidylinostiol 3-kinase signaling2Ccl5, Tgfb27.80 × 10−2
GOTERM_BP_DIRECTNeutrophil chemotaxis2Ccl5, Epgn8.40 × 10−2
GOTERM_BP_DIRECTMAPK cascade2Ccl5, Tgfb28.40 × 10−2
GOTERM_BP_DIRECTPositive regulation of epitherial cell proliferation2Ccl5, Epgn9.20 × 10−2
GOTERM_CC_DIRECTExtracellular space7Actg1, Aga, Ccl5, Epgn, Il7, Tgfb2, Tnfsf139.90 × 10−3
GOTERM_MF_DIRECTCytokine activity4Ccl5, Il7, Tgfb2, Tnfsf132.10 × 10−3
GOTERM_MF_DIRECTGrowth factor activity3Epgn, Il7, Tgfb21.30 × 10−2
GOTERM_MF_DIRECTProtein self-association2Aga, Ccl57.00 × 10−2
