Dent. J. 2017, 5(1), 12; https://doi.org/10.3390/dj5010012

Review
Human Gingival Crevicular Fluids (GCF) Proteomics: An Overview
1
Prosthodontics and Implantology, College of Dentistry, King Faisal University, Al-Ahsa 31982, Saudi Arabia
2
Department of Orthodontics, Fatima Jinnah Dental College, Karachi 78650, Pakistan
3
Preventive Dental Sciences, College of Dentistry, Dar-Al-Uloom University, Riyadh 13314, Saudi Arabia
4
Department of Dentistry, Riyadh Consultative Clinics, Riyadh 11313, Saudi Arabia
5
Department of Restorative Dentistry, College of Dentistry, Al-Taibah University, Medina Munawwarah 41311, Saudi Arabia
6
Department of Dental Materials, Islamic International Dental College, Riphah International University, Islamabad 44000, Pakistan
*
Author to whom correspondence should be addressed.
Academic Editor: Jukka Meurman
Received: 21 January 2017 / Accepted: 18 February 2017 / Published: 22 February 2017

Abstract

:
Like other fluids of the human body, a gingival crevicular fluid (GCF) contains proteins, a diverse population of cells, desquamated epithelial cells, and bacteria from adjacent plaque. Proteomic tools have revolutionized the characterization of proteins and peptides and the detection of early disease changes in the human body. Gingival crevicular fluids (GCFs) are a very specific oral cavity fluid that represents periodontal health. Due to their non-invasive sampling, they have attracted proteome research and are used as diagnostic fluids for periodontal diseases and drug analysis. The aim of this review is to explore the proteomic science of gingival crevicular fluids (GCFs), their physiology, and their role in disease detection.
Keywords:
proteomics; proteins; biomarkers; gingival crevicular fluids (GCFs); dentistry

1. Introduction

Proteomic science aids in different areas of biomedical and clinical sciences with tools such as polyacrylamide gel electrophoresis (PAGE), high-pressure liquid chromatography (HPLC), mass spectrometry (MS), matrix-assisted laser desorption ionization (MALDI), and surface-enhanced laser desorption/ionization mass spectrometry (SELDI-MS) [1]. This science provides an understanding of healthy and diseased states of the human body through protein nature. Protein builds the human body and is known as the “working horses” of a cell. The ‘proteome’ is the cell’s proteins content. In short, proteomics is the discovery technology that rescues the understanding of the molecular behaviour of protein activity and how they respond to the process of a disease. Human body fluids such as blood, cerebrospinal fluid (CSF), saliva, gingival crevicular fluid (GCF), sera, urine, vaginal secretion, breast milk, sputum, peritoneal fluid, pleural fluid, and pericardial fluids are approved clinical samples for the diagnosis and maintenance of a disease state [2].
Human gingival crevicular fluid (GCF) was discovered in the nineteenth century, and its composition and oral defense mechanism were demonstrated by Brill and Björn in 1959 [3]. GCF is a physiological fluid that is classified as inflammatory exudate by many investigators, and some suggest it is an altered tissue transudate in a normal healthy state (see Figure 1). Originally, they originate from the gingival plexus of blood vessels in the gingival corium and are subjacent to the epithelium lining of the dental–gingival space. Its composition and flow were demonstrated by Waerhaug in 1952 [4,5]. Later, in 1974, Alfano presented two mechanisms based on GCF origination that include the engendering of standing osmotic gradient and the induction of classical inflammation [6]. GCF is used to detect periodontal diseases such as gingivitis, periodontitis (chronic and aggressive), and drug presence in periodontal pockets through the systematic pathway and is currently extensively used for proteomic analysis [7].
GCF basically contains local breakdown products such as tissues, inflammatory mediators, host inflammatory mediators, serum transudate (found in gingival sulcus), subgingival microbial plaque, extracellular proteins, and cells [8]. In Figure 2, detail of GCF composition is illustrated. This composition varies between periodontium in healthy and diseased conditions [9]. The amount of GCF production is quite small and varies according to the size of the gingival sulcus. Few investigators have measured GCF, and all observations have differed due to the variation in the GCF samples collected.
One group reported that the mean GCF volume ranged from 0.43 to 1.56 μL in the proximal spaces from the molar teeth [10]. Another group collected GCF from sulcus of slightly inflamed gingiva and reported approximately 0.1 mg in 3 min [11], which is the amount of GCF affected by mechanical factors, habitats (tobacco, smoke, and shisha), circadian periodicity, sex hormones, and periodontal surgeries (see Table 1). Engelberg et al. experimented on dogs by inducing a carbon gelatine mixture into the blood stream to understand the organization of vessels at the dento–gingival junction. Hence, it was histologically postulated that, in healthy tissue, these particles could not enter the intracellular spaces and remained in the capillaries. It was further shown that, in a state of acute inflammation, these particles can be found; in a healthy state, the vessels are organized in layers and close to gingival crevicular epithelium, whereas, in diseased or inflammation states, the layers are replaced by a loop form [12]. Furthermore, a series of experiments was performed, and it was concluded that capillary permeability varied according to the stimulus given and significantly increased in an inflamed state. This capillary permeability occasionally responded in a healthy state while chemo-mechanical massaging of the gingivae also showed changes. It was noted that there was a remarkable rise in pH of gingival sulcus as periodontitis developed, marked around 8.5. The rise in pH is associated with the destruction of proteins by bacteria in the sulcus. Ammonium that is basic in nature is produced as a by-product after the degradation of proteins and is thought to be the reason for the increase in pH of the crevicular sulcus. Other factors that are found to play a role in the progression from a healthy to a diseased state includes the oxygen level, the temperature, the redox potential, and the osmotic pressure [9].
Nature has provided the periodontium with connective tissue that is enriched with cellular and molecular components of blood; hence, gingival sulcus is consistently bathed by GCF [13]. This crevicular fluid provide a channel for the transportation of bacterial by-products into periodontium, as well as help to drive off host-derived by-products [14]. Many methods are available for the collection of GCF such as Intrasulcular and extrasulcular (see Figure 3) with the help of paper strips, capillary tubes, micropipette, gingival wash, and paper cones [5]. Other methods include using platinum loops, plastic strips, and paper points. In the last decade, researchers have favored using the paper strip in their research work due to easy insertion into a gingival crevice up to 1 mm of depth without bleeding from periodontal pockets [15] .

2. GCF as a Diagnostic Tool for Analysis of Oral Diseases

The oral cavity is a reservoir of the microbiome and harbours them, when unfavourable changes occur within the oral cavity; it results in pathological changes, such as gingivitis, periodontitis, and dental caries [16,17]. GCF, as a biomonitoring fluid, plays a constructive role in the diagnosis of oral diseases, especially for periodontitis and gingivitis. Its limited amount compromises the biochemical and proteomic analysis, and the severity of inflammation in periodontium affects its collection [15]. The introduction of mass spectrometry, with highly sensitive techniques, helping in the detection of protein and their components within many biological samples [18]. Its non-invasive collection technique helps in a sampling of any age group of human subjects and the attraction of allowing multiple sites for the sampling within the oral cavity. Until now, various inflammatory factors have been isolated from GCF, including cytokines, phosphatase, proteinase, local tissue degradation products, and proteins [19]. These factors have been reported to be possible diagnostic markers in periodontitis. GCF not only can be a future diagnostic tool in the identification of periodontitis but also can aid in detecting the progression of this disease. Early detection of periodontitis progression can be clinically useful by providing better control of disease activity and can improve patient monitoring [20]. Therefore, collecting GCF from multiple sites can aid in identifying high susceptibility for disease activity on those sites, the targeted risk site can be managed properly, and further progression of the disease can be controlled [21]. Huynh et al. studied the proteomic composition of GCF in healthy periodontium and compared them with proteome present in GCF of patients with gingivitis and chronic periodontitis. The GCF proteome analyzed was found different in each clinical condition and hence suggests that this analysis can assist us in knowing pathogenesis of the periodontal disease [22]. Tsuchida et al. collected GCFs from a healthy patient and compared them with patients having mild to moderate periodontal disease and with a patient suffering from the severe periodontal disease. The gel-free proteomic approach was used, and GCFs were labeled by a reagent called as Tandem Mass Tags (TMTs). In this method, 619 proteins were analyzed from the above-mentioned samples. Their reports showed, in severe periodontitis, higher amounts of lipocalin2 (LCN2) and matrix metalloproteinase-9 (MMP-9) were expressed. Furthermore, Pisano et al. worked on the peptides of GCF by using HPLC-ESI-MS and detected a high concentration of α-defensins, and small amounts of cystatin-A, basic PB peptides, and statherin were also detected [20].
External root resorption is a universal phenomenon that is associated with many factors such as trauma, orthodontic tooth movement periodontal disease, and physiological shedding of deciduous teeth. Rody Jr et al. worked to identify the biomarkers in GCF by using LC-MS (liquid chromatography-mass spectrometry). He postulated 2789 proteins in a control group, and 2421 proteins in resorption samples were identified. Therefore, these biomarkers can provide us with a new possible tool for the early detection of external root resorption so that orthodontic tooth movement should avoided, and other conditions mentioned above will better be managed [23].
Orthodontics is one of the major subspecialties of dentistry that deals with the management of malposition teeth and the jaws. Certain studies were conducted to assess changes within GCF during orthodontic tooth movement [24]. Initially, when orthodontic force is applied to allow tooth movement to occur, certain metabolic changes occur within periodontium along with the process of bone remodeling that includes some osteoblastic and osteoclastic activity. This biological and physiological process results in acute inflammatory response that occurs within periodontal space. Lactate dehydrogenase, an important enzyme that is released out after cell death, was reported as a potential marker, as its level was found to be elevated within GCF during orthodontic treatment. Serra et al. demonstrated the LDH level in GCF during the early stage of orthodontic treatment and formulated that, when orthodontic force is applied, the periodontium either goes under tension or compression, resulting in cell death. As hypothesized, the LDH level in GCF was elevated in those sites enduring orthodontic force and was independent of age and sex [25].
Bone cells are deposited at the site of tension and resorbed at the site of compression. A longitudinal study was performed to assess the level of alkaline phosphatase within GCF in a patient undergoing orthodontic treatment [26]. It was noted that the enzyme level was elevated at the site of tension, as compared to the site of compression. Hence, these enzymes represent future novel markers and are associated with gingival inflammation caused during forces applied by orthodontic appliances. Orthodontics demands accurate timings for the management of most skeletal discrepancies; different stages of bone growth and its maturation in the subject must be known. This is usually achieved most commonly by identifying and comparing chronological age and dental age, and by CVM staging and hand-wrist radiograph. The former methods are relatively unreliable, and the latter methods involve radiation exposure [27]. Hence, any method that is noninvasive with minimum side effects and that can help the clinician to identify the growth spurt is in highly demand. Research that showed variable peptides in the GCF of both pre-pubertal and post-pubertal subjects has been conducted recently [28]. Further studies are encouraged to find more information about these novel biomarkers.

3. GCF Proteomic Analysis

After collection, GCF samples will go through different steps of proteomics analysis, as illustrated in Figure 4. A variety of proteolytic enzymes has been identified in GCF, such as collagenase, elastase, and cathepsin B, D, H, and L [29]. These proteolytic enzymes are reported as the destructor of periodontal tissues and have the capability of degrading type-I collagen and glycoproteins [30].
The most commonly reported identified proteins from GCF are actin, keratins, histones, annexins, proteins S100-A9, apolipoprotein A-1, albumin, salivary gland antimicrobial peptides (histatins, HNP-1, -2 & -3, LL-37, statherin), and cystatin B [31,32]. Some immune-related proteins present in GCF include Ig gamma-1 chain C region, Ig gamma-3 chain C region, lactoferroxin-C, leukocyte elastase inhibitor, alpha 1 antitrypsin, heat shock protein beta-1, and coronin-1A [33]. Table 2 presents a detailed profiling of GCF proteins, proteomic tools used, and some of the proteins identified.

4. Conclusions

Gingival crevicular fluid is a serum exudate that originates from the periodontal sulcus or pocket and is regarded as a promising biological fluid for the detection of periodontal disease. Its composition resembles normal serum, but its volume fluctuates in certain conditions such as those of gingivitis, caries, external root resorption, and chronic periodontitis, as well as during orthodontic tooth movement. GCF is composed of variable substances that include immunoglobulin, enzymes, local mediators, toxin cells, protein peptides, tissue breakdown products, and microorganisms. The level of this substance when fluctuating in the above-mentioned conditions, as reported in many papers, will mark as a future diagnostic tool in their non-invasive analysis. Due to limitations in its collection, which includes volume size and contamination, collecting methods need further work, and a way to improve the ease for clinicians must be found; such development would help us to better demonstrate the pathogenesis of such diseases and to determine better strategies for treatment and early prevention.

Acknowledgments

We are thankful to Pakistan Human Saliva Research Group (PakSRG) for guiding us in the compilation of this whole manuscript.

Author Contributions

All authors work equally.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Duarte, T.; Spencer, C. Personalized Proteomics: The Future of Precision Medicine. Proteomes 2016, 4. [Google Scholar] [CrossRef] [PubMed]
  2. Khurshid, Z.; Naseem, M.; Sheikh, Z.; Najeeb, S.; Shahab, S.; Zafar, M.S. Oral antimicrobial peptides: Types and role in the oral cavity. Saudi Pharm. J. 2016, 24, 515–524. [Google Scholar] [CrossRef] [PubMed]
  3. Brill, N.; Björn, H. Passage of Tissue Fluid Into Human Gingival Pockets. Acta Odontol. Scand. 1959, 17, 11–21. [Google Scholar] [CrossRef]
  4. Waerhaug, J. The Source of Mineral Salts in Subgingival Calculus. J. Dent. Res. 1955, 34, 563–568. [Google Scholar] [CrossRef] [PubMed]
  5. Waerhaug, J.; Steen, E. The presence or absence of bacteria in gingival pockets and the reaction in healthy pockets to certain pure cultures; a bacteriological and histological investigation. Odontol. Tidskr. 1952, 60, 1–24. [Google Scholar] [PubMed]
  6. Alfano, M.C. The origin of gingival fluid. J. Theor. Biol. 1974, 47, 127–136. [Google Scholar] [CrossRef]
  7. Lin, P.H.; Yeh, S.K.; Huang, W.C.; Chen, H.Y.; Chen, C.H.; Sheu, J.R.; Lin, C.T.; Huang, Y.K. Research performance of biomarkers from biofluids in periodontal disease publications. J. Dent. Sci. 2015, 10, 61–67. [Google Scholar] [CrossRef]
  8. Lamster, I.B. Evaluation of components of gingival crevicular fluid as diagnostic tests. Ann. Periodontol. 1997, 2, 123–137. [Google Scholar] [CrossRef] [PubMed]
  9. Barros, S.P.; Williams, R.; Offenbacher, S.; Morelli, T. Gingival crevicular fluid as a source of biomarkers for periodontitis. Periodontol. 2000 2016, 70, 53–64. [Google Scholar] [CrossRef] [PubMed]
  10. Challacombe, S.J.; Russell, M.W.; Hawkes, J. Passage of intact IgG from plasma to the oral cavity via crevicular fluid. Clin. Exp. Immunol. 1978, 34, 417–422. [Google Scholar] [PubMed]
  11. Cimasoni, G. Crevicular fluid updated. Monogr. Oral Sci. 1983, 12, 1–152. [Google Scholar]
  12. Egelberg, J. The blood vessels of the dento-gingival junction. J. Periodontal Res. 1966, 1, 163–179. [Google Scholar] [CrossRef] [PubMed]
  13. Egelberg, J. Permeability of the dento-gingival blood vessels. J. Periodontal Res. 1966, 1, 180–191. [Google Scholar] [CrossRef] [PubMed]
  14. Tsuchida, S.; Satoh, M.; Umemura, H.; Sogawa, K.; Kawashima, Y.; Kado, S.; Sawai, S.; Nishimura, M.; Kodera, Y.; Matsushita, K.; et al. Proteomic analysis of gingival crevicular fluid for discovery of novel periodontal disease markers. Proteomics 2012, 12, 2190–2202. [Google Scholar] [CrossRef] [PubMed]
  15. Khurshid, Z.; Najeeb, S.; Mali, M.; Moin, S.F.; Raza, S.Q.; Zohaib, S.; Sefat, F.; Zafar, M.S. Histatin peptides: Pharmacological functions and its applications in dentistry. Saudi Pharm. J. 2017, 25, 25–31. [Google Scholar] [CrossRef]
  16. Khurshid, Z.; Zohaib, S.; Najeeb, S.Z.M. Proteomics Advancements in Dentistry. J. Dent. Health Oral. Disord. Ther. 2016, 4, 00104. [Google Scholar]
  17. Tsuchida, S.; Satoh, M.; Sogawa, K.; Kawashima, Y.; Kado, S.; Ishige, T.; Beppu, M.; Sawai, S.; Nishimura, M.; Kodera, Y.; et al. Application of proteomic technologies to discover and identify biomarkers for periodontal diseases in gingival crevicular fluid: A review. PROTEOMICS Clin. Appl. 2014, 8, 232–240. [Google Scholar] [CrossRef]
  18. Carneiro, L.G.; Venuleo, C.; Oppenheim, F.G.; Salih, E. Proteome data set of human gingival crevicular fluid from healthy periodontium sites by multidimensional protein separation and mass spectrometry. J. Periodontal Res. 2012, 47, 248–262. [Google Scholar] [CrossRef] [PubMed]
  19. Silva-Boghossian, C.M.; Colombo, A.P.V.; Tanaka, M.; Rayo, C.; Xiao, Y.; Siqueira, W.L. Quantitative proteomic analysis of gingival crevicular fluid in different periodontal conditions. PLoS ONE 2013, 8, e75898. [Google Scholar] [CrossRef] [PubMed]
  20. Pisano, E.; Cabras, T.; Montaldo, C.; Piras, V.; Inzitari, R.; Olmi, C.; Castagnola, M.; Messana, I. Peptides of human gingival crevicular fluid determined by HPLC-ESI-MS. Eur. J. Oral Sci. 2005, 113, 462–468. [Google Scholar] [CrossRef] [PubMed]
  21. Kinney, J.S.; Morelli, T.; Oh, M.; Braun, T.M.; Ramseier, C.A.; Sugai, J.V.; Giannobile, W.V. Crevicular fluid biomarkers and periodontal disease progression. J. Clin. Periodontol. 2014, 41, 113–120. [Google Scholar] [CrossRef] [PubMed]
  22. Huynh, A.H.S.; Veith, P.D.; McGregor, N.R.; Adams, G.G.; Chen, D.; Reynolds, E.C.; Ngo, L.H.; Darby, I.B. Gingival crevicular fluid proteomes in health, gingivitis and chronic periodontitis. J. Periodontal Res. 2015, 50, 637–649. [Google Scholar] [CrossRef] [PubMed]
  23. Rody, W.J., Jr.; Holliday, L.S.; McHugh, K.P.; Wallet, S.M.; Spicer, V.; Krokhin, O. Mass spectrometry analysis of gingival crevicular fluid in the presence of external root resorption. Am. J. Orthod. Dentofac. Orthop. 2014, 145, 787–798. [Google Scholar] [CrossRef] [PubMed]
  24. Najeeb, S.; Siddiqui, F.; Qasim, S.B.; Khurshid, Z.; Zohaib, S.; Zafar, M.S. Influence of uncontrolled diabetes mellitus on periodontal tissues during orthodontic tooth movement: A systematic review of animal studies. Prog. Orthod. 2017, 18. [Google Scholar] [CrossRef] [PubMed]
  25. Serra, E.; Perinetti, G.; D’Attilio, M.; Cordella, C.; Paolantonio, M.; Festa, F.; Spoto, G. Lactate dehydrogenase activity in gingival crevicular fluid during orthodontic treatment. Am. J. Orthod. Dentofac. Orthop. 2003, 124, 206–211. [Google Scholar] [CrossRef]
  26. Perinetti, G.; Paolantonio, M.; Attilio, M.D. Alkaline phosphatase activity in gingival crevicular fluid during human orthodontic tooth movement. Am. J. Orthod. Dentofac. Orthop. 2002, 122, 548–556. [Google Scholar] [CrossRef] [PubMed]
  27. Gabriel, D.B.; Southard, K.A.; Qian, F.; Marshall, S.D.; Franciscus, R.G.; Southard, T.E. Cervical vertebrae maturation method: Poor reproducibility. Am. J. Orthod. Dentofac. Orthop. 2009, 136, 478.e1–478.e7. [Google Scholar] [CrossRef]
  28. Wen, X.; Gu, Y.; Chen, F. Gingival Crevicular Fluid as a Novel Potential Source of Biomarkers Distinguishes Pubertal from Post-Pubertal Subjects. Diagnostics 2016, 6. [Google Scholar] [CrossRef] [PubMed]
  29. Kunimatsu, K.; Yamamoto, K.; Ichimaru, E.; Kato, Y.; Kato, I. Cathepsins B, H and L activities in gingival crevicular fluid from Chronic adult periodontitis patients and exprimental gingivitis subjects. J. Periodontal Res. 1990, 25, 69–73. [Google Scholar] [CrossRef] [PubMed]
  30. Symposium, C.F. Protein Degradation in Health and Disease; John Wiley & Sons: Amterdam, Netherland, 2009. [Google Scholar]
  31. Baliban, R.C.; Sakellari, D.; Li, Z.; DiMaggio, P.A.; Garcia, B.A.; Floudas, C.A. Novel protein identification methods for biomarker discovery via a proteomic analysis of periodontally healthy and diseased gingival crevicular fluid samples. J. Clin. Periodontol. 2012, 39, 203–212. [Google Scholar] [CrossRef] [PubMed]
  32. Ngo, L.H.; Darby, I.B.; Veith, P.D.; Locke, A.G.; Reynolds, E.C. Mass spectrometric analysis of gingival crevicular fluid biomarkers can predict periodontal disease progression. J. Periodontal Res. 2013, 48, 331–341. [Google Scholar] [CrossRef] [PubMed]
  33. Carneiro, L.G.; Nouh, H.; Salih, E. Quantitative gingival crevicular fluid proteome in health and periodontal disease using stable isotope chemistries and mass spectrometry. J. Clin. Periodontol. 2014, 41, 733–747. [Google Scholar] [CrossRef] [PubMed]
Figure 1. The anatomical location of gingival crevicular fluid (GCF) in a healthy subject.
Figure 1. The anatomical location of gingival crevicular fluid (GCF) in a healthy subject.
Dentistry 05 00012 g001

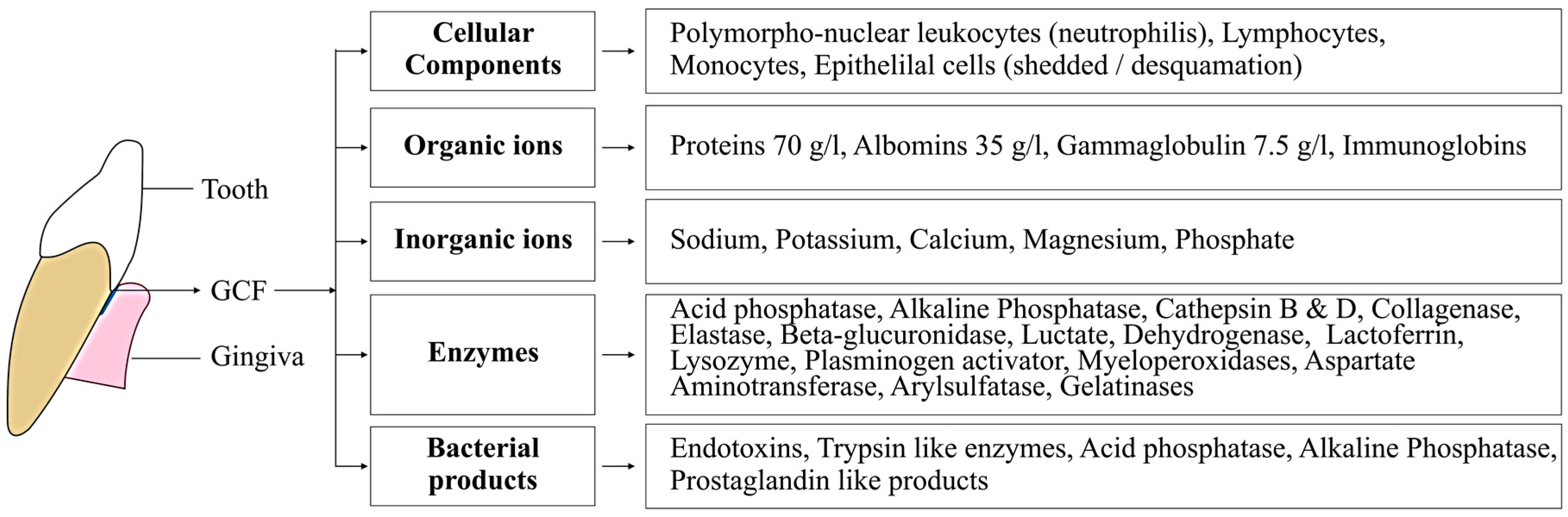

Figure 2. Illustration describing the composition of gingival crevicular fluids (GCFs).
Figure 2. Illustration describing the composition of gingival crevicular fluids (GCFs).
Dentistry 05 00012 g002

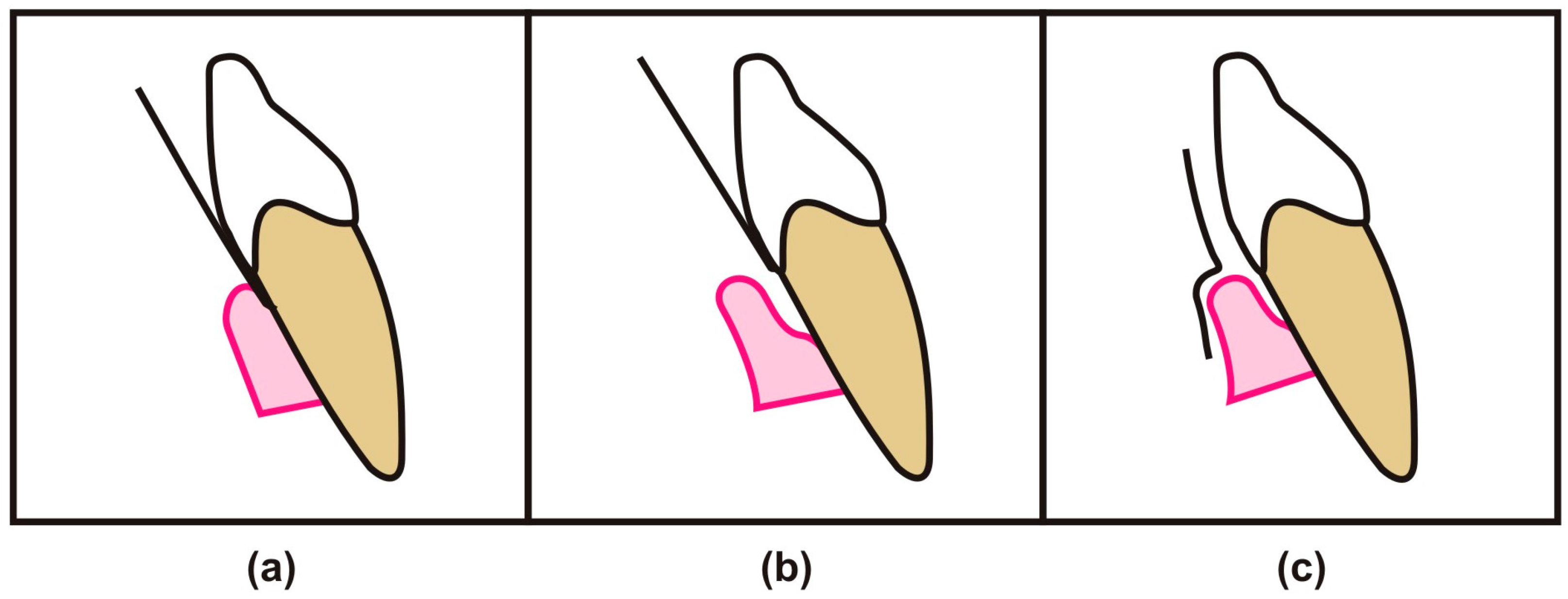

Figure 3. Illustration representing the different approaches of collecting gingival crevicular fluids (GCFs) from the oral cavity. (a) Intrasulcular approach; (b,c) Extrasulcular approach.
Figure 3. Illustration representing the different approaches of collecting gingival crevicular fluids (GCFs) from the oral cavity. (a) Intrasulcular approach; (b,c) Extrasulcular approach.
Dentistry 05 00012 g003

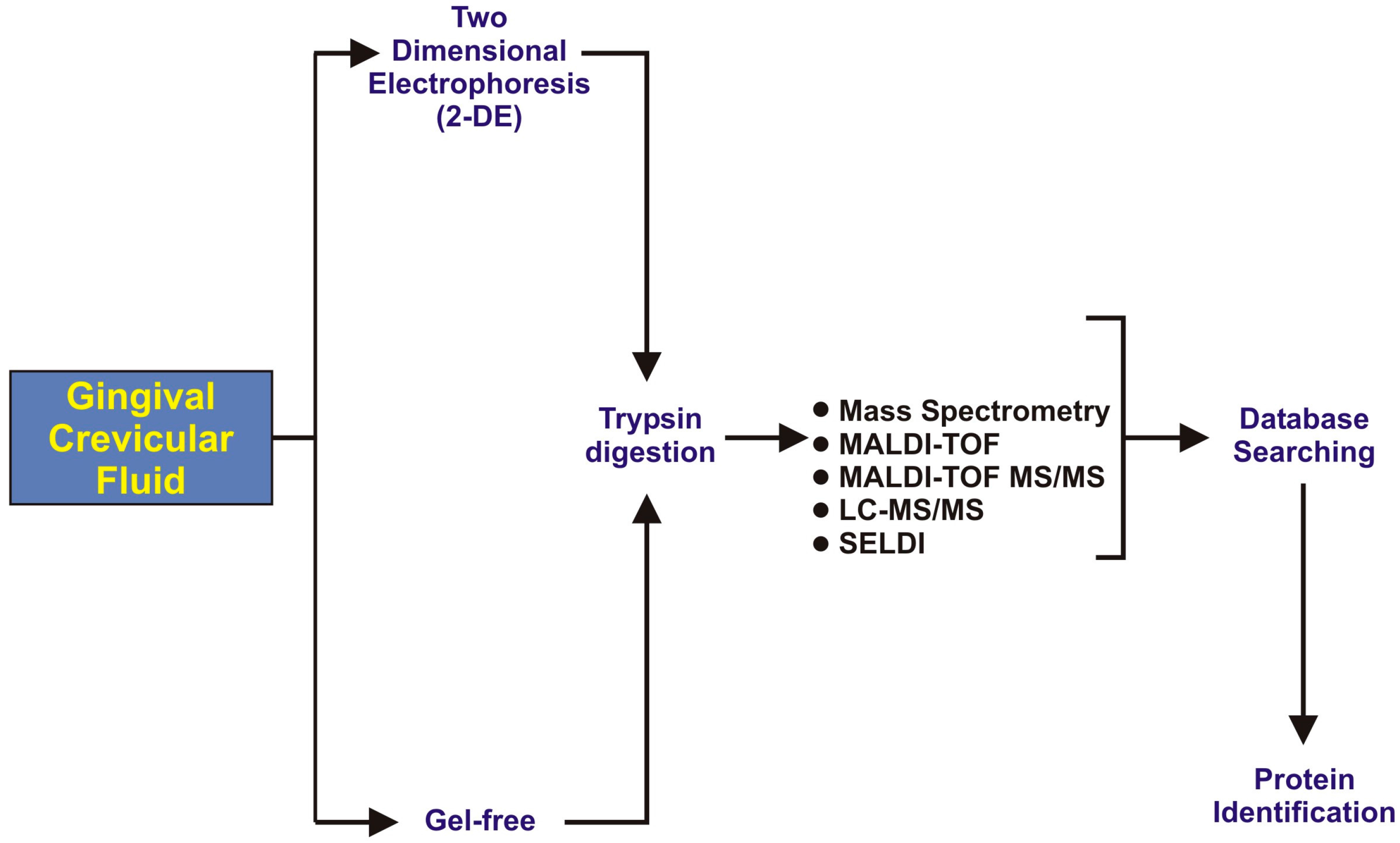

Figure 4. A flow diagram representing the proteomic analysis of healthy and diseased conditions via gingival crevicular fluid (GCF), adapted from Khurshid et al. [16].
Figure 4. A flow diagram representing the proteomic analysis of healthy and diseased conditions via gingival crevicular fluid (GCF), adapted from Khurshid et al. [16].
Dentistry 05 00012 g004
Table 1. Description of factors affecting the amount of GCF in the human oral cavity.
Table 1. Description of factors affecting the amount of GCF in the human oral cavity.
FactorsDescription
MechanicalChewing coarse foods, vigorous brushing and gingival massage are known to increase GCF production
Circadian periodicityThe amount of GCF increases gradually from 6 a.m. to 10 p.m. and it decreases after that
Periodontal surgeriesGCF production increases after periodontal surgeries, during the healing period
SmokingSmoking increases GCF flow.
This increase in GCF due to smoking is immediate and transient
Table 2. Description of reported studies on GCF biomarkers analysis.
Table 2. Description of reported studies on GCF biomarkers analysis.
Author & YearSample Collection SitesCollection MethodProteomic ToolNumber of Identified ProteinsOutcome of StudyRef.
Baliban et al., 2012Collected from pre-selected sites with probing depth >6 mm and <8 mm in periodontitis patients and for periodontal health from mesio-buccal sites of first molarFilter strips (Periopapers®, Interstate Drug Exchange, Amityville, NY, USA)Protein digest with trypsin, HPLC, fragmented analysis with tandem mass spectrometry (MS/MS)432 human proteins identified (120 new)Studied identified novel biomarkers from GCF of periodontal healthy and chronic periodontitis patients[31]
S.Tsuchida et al., 2012Labial side of maxillary incisors without crown and restorationAbsorbent paper points (ZIPPERER®, Munich, Germany)2DE, SDS-PAGE, Western Blot analysis, HPLC with LTQ-XL, HPLC with LTQ-Orbitrap XL, LC-MS/MS327 proteins identifiedSOD1 and DCD were significantly ↑ in GCF of periodontal patients[14]
Carneiro et al., 2012Healthy gingival sulcus of the second and third molar teethPeriopapers®, USATrypsin digested followed by nano-flow liquid chromatography electrospray ionization tandem mass spectrometry (LC-ESI-MS/MS) analysis and enzyme-linked immunosorbent essay (ELISA) for human albumin analysis199 proteins identifiedProvide protein analysis of healthy periodontium and explore GCF composition with new groups of proteins specific to GCF microenvironment[18]
Ngo et al., 2013Five deepest sites and molar sites except mesial surface were excludedMicrocaps (glass micocapillary tubes); Drummed Scientific, Brookmall, PA, USAMatrix-assisted laser desposition/ionization time-of-flight (MALDI-TOF) mass spectrometry-GCF mass spectra could be best for analyzing attachment loss and diagnosis of periodontal diseases[32]
Carina M., et al. 2013Chronic Periodontitis patients sample were taken from different sites (5 deep sites, 5 shallow sites with gingivitis, and 4 without bleeding on probing sites)Periopaper strip (ProFlow Inc. Amityville, NY, USA)Reversed-phase LC-ESi-MS/MS and ELISA230 proteins identifiedConcluded marked differences in GCF proteomics in different disease profiles[33]
Carneiro et al., 2014The pre-selected specific sites with moderate and severe chronic periodontal disease were defined by pocket depth of 5–7 mm (24 patients) and >7 mm (16 patients)Periopaper strips (Oraflow, Plainview, NY, USA)SDS-PAGE, Isotope-Coded-Affinity-Tag (ICAT) labeling, mTRAQ labeling, Nano-LC-ESI-MS/MS, Human Albumin ELISA Kit, and S100-A9 protein quantification by ELISA199 proteins IdentifiedInnovative approach concluded the novel changes in host and microbial derived GCF proteome of periodontal patients[19]
Rody, Jr. et al., 2014Collected from a deciduous second molar with radiographic evidence of root resorption on 1 quadrant (experimental site) and from the permanent first molar on the contralateral quadrant (control site) in the same jaw.Periopaper strips (Oraflow, Plainview, NY, USA)One dimensional LC-MS and Two dimensional LC-MS2789 proteins in control group and 2421 proteins in root resorption groupMass spectrometry is a useful tool for analyzing external root resorption[23]
Kinney et al., 2014Collection from the mesio-buccal aspect of each site (tooth) for up-to 28 teeth per patient.Methylcellulose strip (Pro Flow, Inc., Amityville, NY, USA)ELISA and Quantibody Human Cytokine Array-This method offers improved patient monitoring and disease control[21]
Huynh et al., 2015Collection were chosen based on how well they represented the healthy, gingivitis, and chronic periodontitis inclusion criteriaGlass-microcapillary tube (Drummond Scientific, Brookmall, PA, USA)One-dimensional Gel Electrophoresis and Nano-LC-ESI-MS121 proteins identifiedConcluded various biomarkers which differentiate between healthy periodontium, gingivitis, and chronic periodontitis[22]
