Europium-Doped Y₂O₃-Coated Diatomite Nanomaterials: Hydrothermal Synthesis, Characterization, Optical Study with Enhanced Photocatalytic Performance

Abstract

Eu-doped Y₂O₃ coated diatomite nanostructures with variable Eu³⁺ contents were synthesized by a facile hydrothermal technique. The products were characterized by means of energy dispersive X-ray photoelectron spectroscopy (EDX), scanning electron microscopy (SEM), powder X-ray diffraction (PXRD), Brunauer–Emmett–Teller (BET), UV-vis diffuse reflectance spectroscopy, and photoluminescence spectroscopy techniques. As claimed by PXRD, the particles were crystallized excellently and attributed to the cubic phase of Y₂O₃. The influence of substitution of Eu³⁺ ions into Y₂O₃ lattice caused a redshift in the absorbance and a decrease in the bandgap of as-prepared coated compounds. The pore volume and BET specific surface area of Eu-doped Y₂O₃-coated diatomite is greater than uncoated biosilica. The sonophotocata-lytic activities of as-synthesized specimens were evaluated for the degradation of Reactive Blue 19. The effect of various specifications such as ultrasonic power, catalyst amount, and primary dye concentration was explored.

1. Introduction

Advanced oxidation processes (AOPs) have achieved a substantial research interest for decolorization of toxic organic pollutants in different wastewater. The main mechanism of AOPs is the generation of •OH radicals which have greater oxidizing performance and led to attain faster and more effective decomposition of pollutants [1,2,3,4,5,6].

One kind of AOP operation is sonocatalysis that has recently been utilized for degradation of organic contaminants [7,8,9,10,11,12]. The chemical impact of ultrasonic irradiation is raised via the acoustic cavitation and results in collapse growth, and generation of bubbles inside a solution. Through collapsing the bubbles, localized hot spots are created with elevated temperature and pressure. Take into account such sever condition, the dissolved oxygen and water molecules can encounter straight thermal dissociation to produce particularly reactive radical species such as oxygen (•O), •OH, and hydrogen (•H) operating a substantial act to oxidize organic compounds in water [13,14,15,16].

The blend of photocatalysis and sono-catalysis seems to promote the decolorization share of organic contaminants due to synergistic results [17]. Besides the generation of reactive oxygen species (ROS) through cavitation, employing ultrasound in photocatalytic procedure has other satisfaction, such as boosting the functional surface area of the catalyst through blocking the aggregation of particles, incrementing the contaminants’ mass transfer between the catalyst surfaces and solution, intercepting catalyst deactivation via constantly cleansing absorbed molecules from the catalyst surface through micro bubbling and micro streaming, and increasing the number of high temperature and pressure regions via breaking up micro-bubbles made via the ultrasound into smaller ones in the existence of catalyst nanoparticles [17,18,19].

Diatomite (diatomaceous earth), fossilized diatoms, is already used as adsorbent and carrier material. Additionally, the porous structure of diatom made it a potential heterogeneous catalyst [20,21,22]. Yttrium oxide (Y₂O₃) is an essential engineering compound in various fields because of its physical and chemical properties, such as relatively large bandgap energy, high melting point, and high permittivity [23,24,25,26]. Previously, Eu-doped Y₂O₃ nanostructures were prepared through several processes such as the combustion method [27], hydrothermal method [28], laser vaporization [29], sol gel method [30] and co-precipitation method [31], Precipitation method [32], and evaporation method [33] for various applications of thermoluminescence, photoluminescence imaging and luminescence. Lanthanide-incorporated nano-structured semiconductors have freshly been employed as active sonocatalyst and photocatalysts. With empty 5d orbitals and partly occupied 4f orbitals, Ln³⁺ cations could also remarkably boost the separation rate of photoinduced charge carriers within semiconductor catalysts and promote markedly the sonocatalytic performance [1,34,35,36,37,38]. The photoluminescence properties of Eu³⁺-doped Y₂O₃ nanostructures have attracted much attention due to its red phosphors characteristics in the last decade [39,40,41].

This work deals with describing a simple hydrothermal route for the preparation of coated-diatom with europium-doped Y₂O₃ (Eu_xY_2−xO₃) nanomaterials. The nanoparticles’ sonocatalytic activity was assessed for RB 19 (see

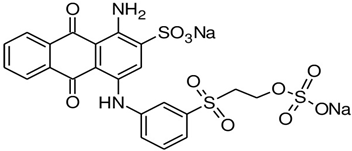

Table 1. The characteristics of C.I. reactive blue 19.

Chemical Structure
Color index name	Reactive Blue 19
Molecular formula	C22H16N2Na2O11S3
Color index number	219-949-9
λmax (nm)	592
Mw (g/mol)	626.54

). No report exists on the sonocatalytic degradation of Reactive Blue 19 (RB 19) in the presence of coated-diatom with europium-doped Y₂O₃. The sono-photocatalytic degradation of organic dye was examined and optimized and the influence of inorganic ions on the degradation effects of RB19 was investigated.

2. Experimental Methods

2.1. Chemicals and Materials

The chemicals used in this work had analytical grades and utilized with no further purification. Diatomaceous earth (97.5% SiO₂), YCl₃ (99.99%), ethanol (99%), and Eu(NO₃)₃·5H₂O were purchased from Sigma-Aldrich(Seoul, Korea). RB19 was acquired from the Zhejiang Yide Chemical Company (Hangzhouwan Industrial Park, Shangyu, China).

2.2. Characterization

Using PXRD characterization at room temperature, the samples’ crystal phase composition was determined via a D8 Advance diffractometer (Bruker, Karlsruhe, Germany) with an emission current of 30 mA, monochromatic high-intensity Cu Ka radiation (λ = 1.5406 Å), and accelerating voltage of 40 kV. Elemental analyses were obtained using a linked ISIS-300, (Oxford Instruments, Abingdon, UK) (energy dispersion spectroscopy) detector. Using an electron microscope (SEM, S-4200, Hitachi, Tokyo, Japan), the surface state and the morphology were observed. Moreover, the obtained SEM images were analyzed using manual microstructure distance measurement software (Nahamin Pardazan Asia Co., Iran) to determine the diameter size distribution of obtained samples. A diffuse reflectance UV-Vis spectrophotometer was used to evaluate the samples’ optical absorption spectra (Varian Cary 3 Bio, Australia). Via a Spex FluoroMax-3 spectrometer (Longjumeau, France), photoluminescence spectra were acquired after dispersing a small amount of specimen in distilled water using ultrasound. The Specific surface areas were performed through a single point BET technique utilizing Micrometrics Gemini V and Gemini 2375. Cell para an emission current of 30 mA, an emission current of 30 mA, an emission current of 30 mA, an emission current of 30 mA, an emission current of 30 mA, an emission current of 30 mA, an emission current of 30 mA, an emission current of 30 mA, an emission current of 30 mA, an emission current of 30 mA, meters were calculated with Celref program from powder XRD patterns, and reflections have been determined and fitted using a profile fitting procedure with the Winxpow program. The reflections observed in 2θ = 10–70° were used for the lattice parameter determination.

2.3. Preparation of Eu-Doped Y₂O₃ Nanoparticles

Eu-doped yttrium oxide nanomaterials with various Eu contents (0–8 mol%) were acquired hydrothermally. In a typical synthesis, Eu (NO₃)₃.5H₂O and proper molar ratios of YCl₃ were dissolved first in 40 mL of deionized water. Therefore, EDTA (0.4 g) and 2 mmol NaOH were added drop-wise to the solution at moderate speed with stirring. The above solution was transferred into 100-mL autoclave with Teflon-lined stainless steel. Then it was settled in an oven at 250 °C for 72 h and finally allowed to cool to room temperature naturally. Gathering the as-prepared Eu_xY_2-xO₃ nanoparticles, they were rinsed several times with distilled water and absolute ethanol for eliminating remained impurities, and then dried for 2 h at 60 °C at vacuum. The result was a white powder.

2.4. Diatomite Coated with Eu-Doped Y₂O₃ Nanoparticles

The diatom was weighed and added to 25 mL deionized water and was continuously stirred to spread evenly. Then, 1.5 g Eu-doped Y₂O₃ compounds with various Eu content were added to the above solution to fully disperse. After 1 h of ultrasonic irradiation, the solution transferred into a 100-mL autoclave with Teflon-lined stainless steel, settled in an oven at 160 °C for 12 h, and then cools down naturally to room temperature. The final coated-diatom was obtained after washing and drying the precipitates at 60 °C.

2.5. The Evaluation of Catalytic Activity

The sonophotocatalytic activity of the diatom biosilica coated with Eu-doped yttria nanomaterial was examined to degrade RB19 as a model organic pollutant. In a general route, suspending the nanocatalyst (0.1 g) was carried out in an aqueous solution of the model dye (100 mL) of with a recognized initial concentration at pH = 6. So, the suspension was radiated into the ultrasonic bath via a 40 W compact fluorescent visible lamp armed with a cutoff filter to show visible light illumination (λ of higher than 420 nm). To determine the removal of dye, A UV–vis spectrophotometer was employed through the absorbance at λ_max = 592 nm. The degradation effectiveness (DE) was calculated as follows:

$$DE (\%)=\left(1-\frac{C}{C_0}\right)\times 100$$

(1)

where C₀ and C are the dye’s initial and ultimate concentrations within the solution (mg/L), respectively. To evaluate the nanocatalyst’s reusability, the utilized catalyst was separated from the solution, rinsed with distilled water, and utilized in a new run after drying at 70 °C.

3. Results and Discussion

3.1. Characterizing the Synthesized Samples

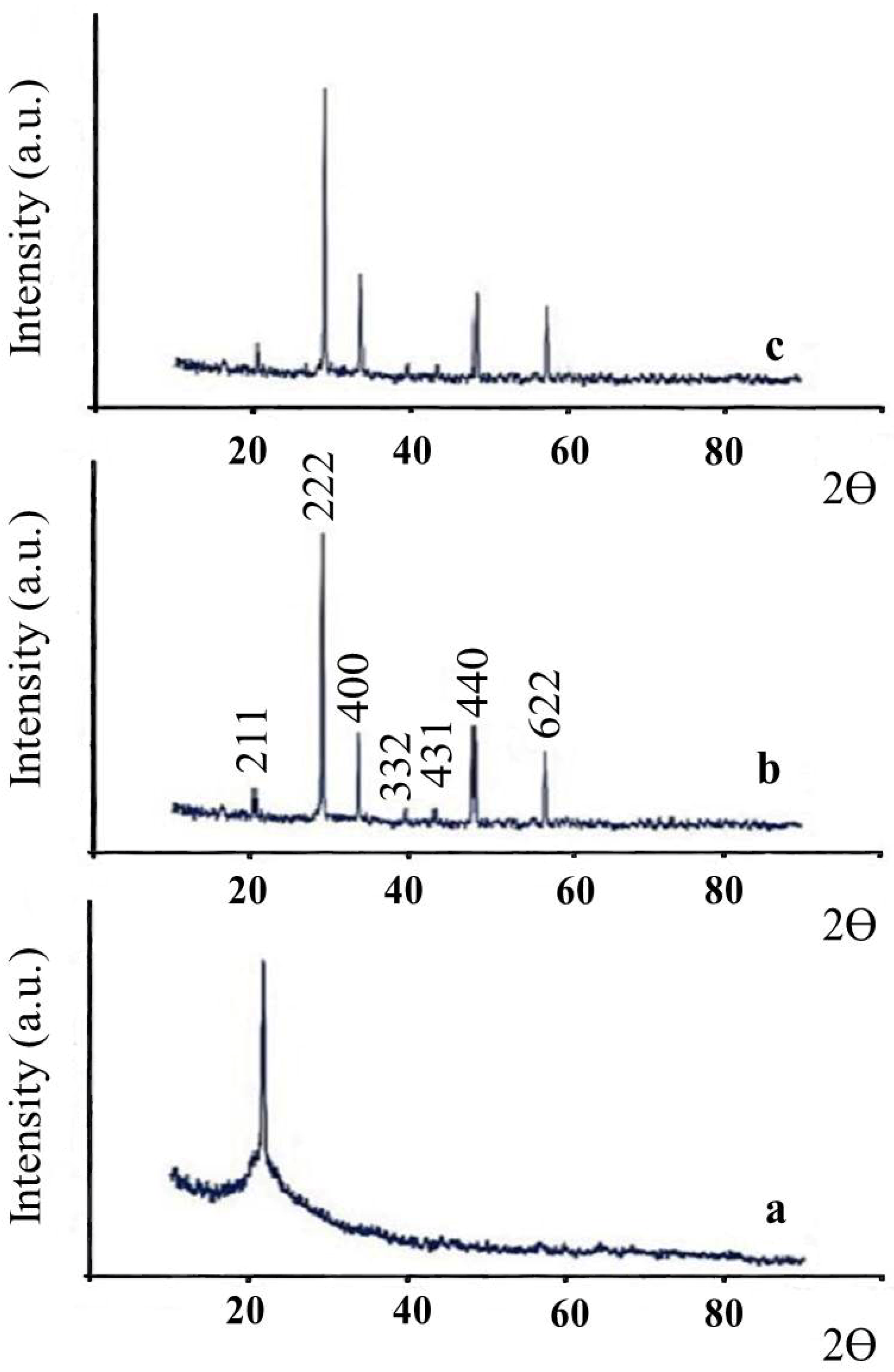

Figure 1 presents the PXRD pattern of uncoated diatomite, Y₂O₃, and diatom-coated with Eu-doped Y₂O₃. The diatomite PXRD pattern is indexed readily to SiO₂ (JCPDS card no. 00-001-0647) whilst the four broad and strong peaks with attributed reflections (222), (400), (440), (622) and 2θ = 29.1, 33.7, 48.6, and 58.2° are related to the cubic structure of yttria, respectively (JCPDS card no. 41-1105) [42]. The indistinguishable forms of the PXRD patterns of the Y₂O₃ and the coated with Eu_xY_2-xO₃ compounds propose that the surface of the diatom is equally covered. As illustrated in Figure 1, the substitution of yttria by Eu³⁺, only the peaks related to the Y₂O₃ were still noticed and no other peaks corresponding to Y(OH)₃, Eu₂O₃ or other impurities were detected, which displays that the Eu³⁺ ions substitute Y³⁺ ions in yttria structure. A negligible shift was observed to lower diffraction for diatomite-coated with Eu-dopedY₂O₃ samples. This could be attributed with the Y₂O₃ lattice’s contraction owing to the substitution of Eu³⁺ ions, with a bigger radius (1.07 Å) in comparison to Y³⁺ ions (1.02 Å) [7,35]. The XRD pattern of diatom-coated with 6%Eu-doped Y₂O₃ is provided in Supplementary Materials as Figure S1.

The cell parameters of the synthesized materials were calculated from the PXRD patterns. With increasing dopant content (x), a parameter for Eu³⁺ increases (Figure 2). The trend for lattice constants can be correlated to the effective ionic radii of the Ln³⁺ ions, which results in larger lattice parameters for Eu³⁺ doped materials.

Figure 3 displays SEM images of the diatom-coated with 6% Eu-doped Y₂O₃ and uncoated sample produced by the hydrothermal route. The skeletal-remain biosilica with high porosity structure is shown in Figure 3a. High porosity and the surface morphology of diatom can be employed as the template to enhance the potential of functional materials. Figure 3b represents the image of 6% Eu-doped Y₂O₃ nanoparticles which diameter of these particles is around 20–60 nm. The size distribution of 6% Eu-doped Y₂O₃ is provided in Supplementary Materials as Figure S2 indicating the particles size mainly around 20–60 nm. Following the immobilization of 6% Eu-doped yttrium oxide, the SEM image of diatomite is seen in Figure 3c,d. Changing the mass ratio of the substrate–diatomite and the coating material–doped-Y₂O₃ controls the thickness of the coating layers. To achieve smooth, stable, and uniform coating, the optimum ratio is 1.5.

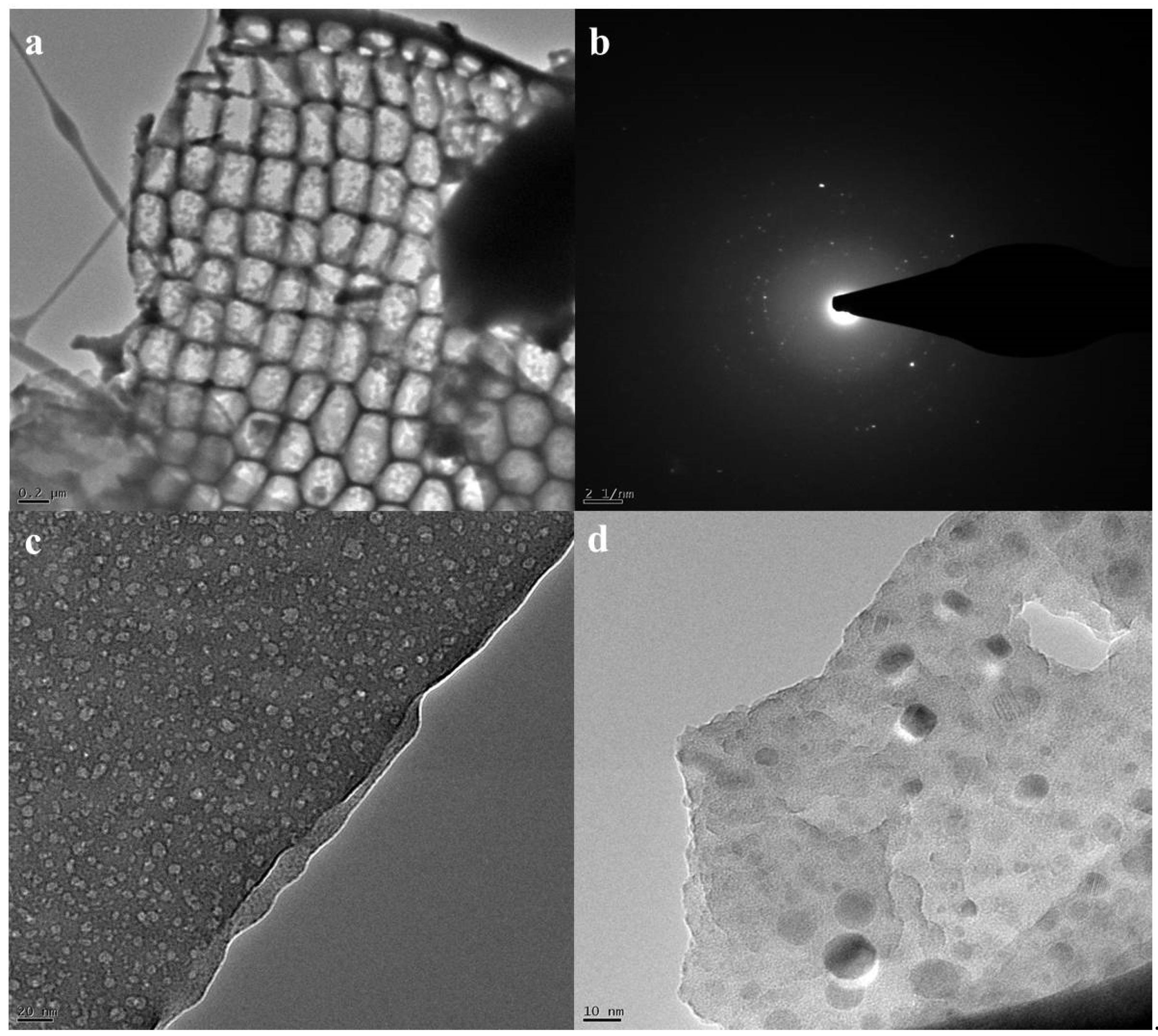

Figure 4 displays the TEM and HRTEM images of 6% Eu-doped Y₂O₃-coated diatomite at different magnification. The SAED pattern of as-prepared 6% Eu doped samples shows good crystallinity of obtained compounds (Figure 4b). The HRTEM images also confirms the nanosized coated Eu-doped Y₂O₃ on biosilica as shown in Figure 4c,d.The size of coated particles are around 8–20 nm, respectively. More characterization results related to various content of Eu are provided in Supplementary Materials as Figures S3–S7.

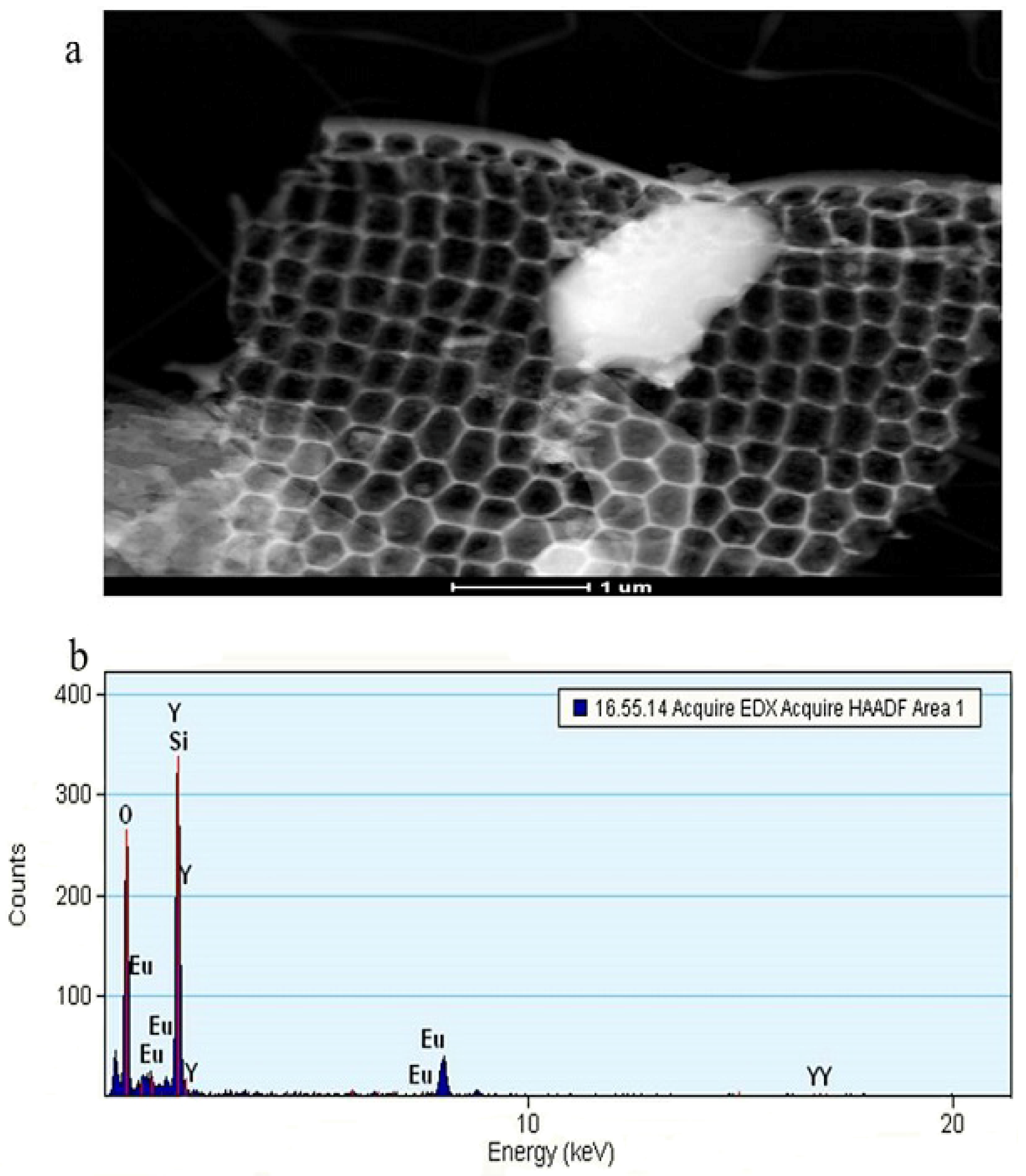

The elemental mapping of O, Y, Eu and Si in the diatom-coated with Eu-doped Y₂O₃ sample was shown in Figure 5 confirming the XRD outcome and purity of sample. The atomic percent of as-prepared sample are provided in

Table 2. The atomic percent of 6% Eu-doped Y₂O₃-coated diatomite.

Element	Line Type	wt%	Atomic %	Factory Standard
O	K series	55.50	69.38	Yes
Si	K series	39.50	28.27	Yes
Y	L series	3.88	2.21	Yes
Eu	M series	1.12	0.14	Yes
Total:		100.00	100.00

displaying the composition, elements and there is no impurity in the prepared sample.

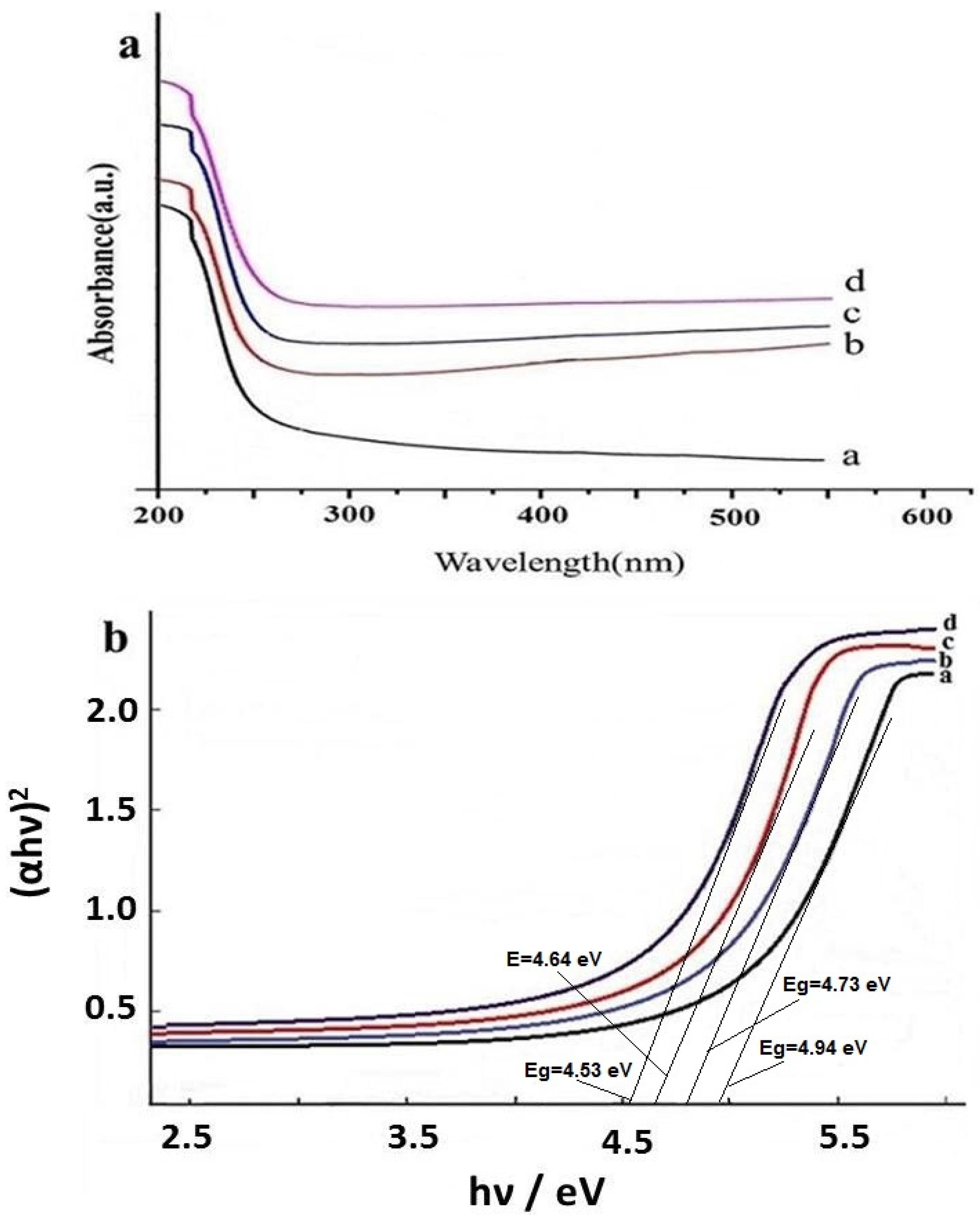

Figure 6a shows the absorbance spectra of Eu-doped Y₂O₃ coated diatomite compounds. A redshift in absorbance spectra is seen with increasing dopant content.

The as-synthesized compound’s band-gap energy can be calculated from the interception of the obtained linear area with the energy axis according to (hvα)² versus (hv) (Tauc plot) (Figure 6b). Compared to the pure sample, the doped Y₂O₃ has lower Eg values, and it is deducted by incrementing the dopant.

Table 3. Bandgap energy of diatom coated with Eu-doped Y₂O₃ nanostructures.

Sample	Band Gap (eV)
Diatom coated with Y2O3	4.94
diatom coated with 4% Eu-doped Y2O3	4.73
diatom coated with 6% Eu-doped Y2O3	4.64
diatom coated with 8% Eu-doped Y2O3	4.53

lists the band-gap energy for Eu-doped Y₂O₃ coated diatomite nanoparticles.

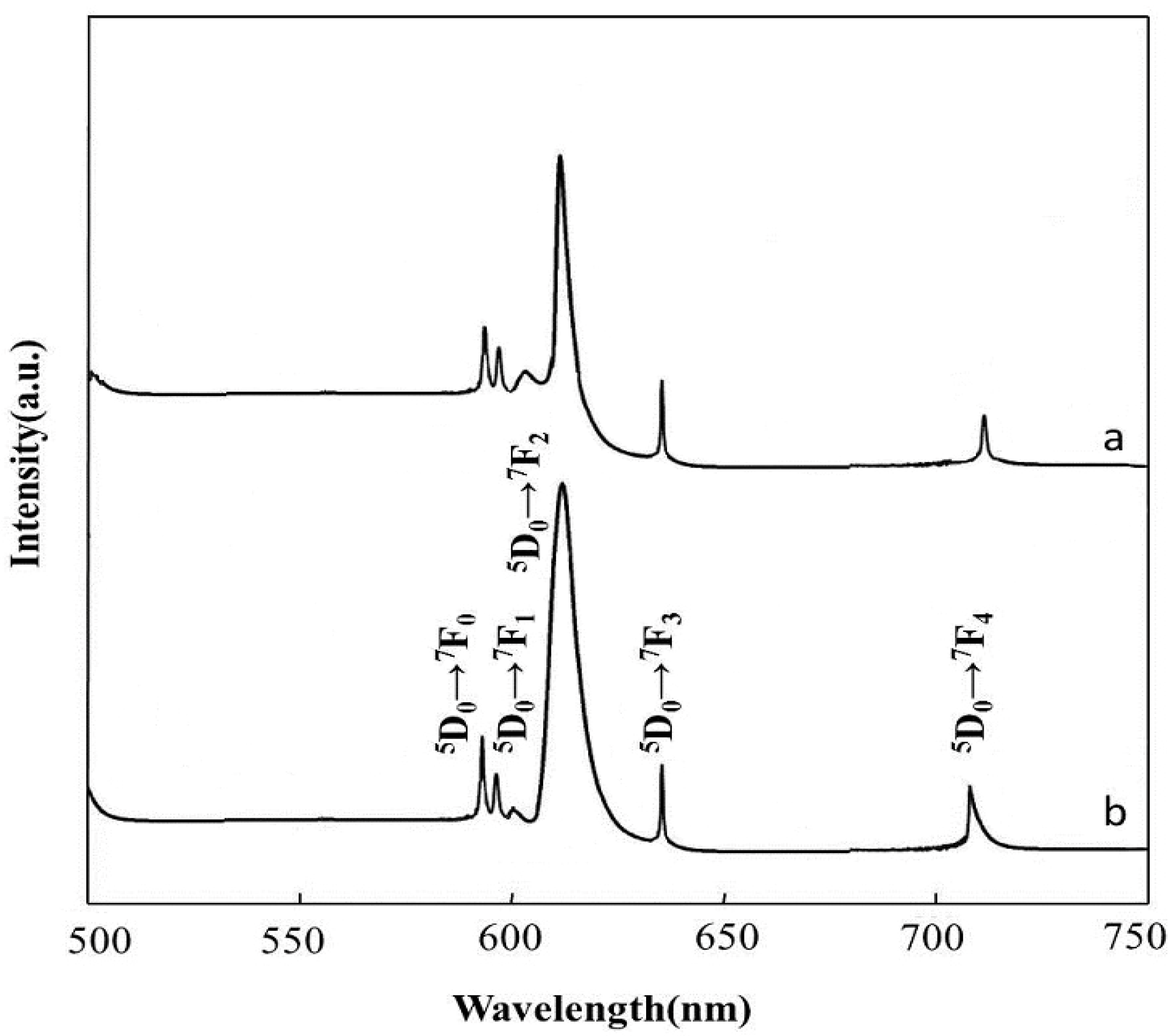

Figure 7 displays the PL spectra of the as-prepared diatom coated with 6% and 8% Eu-doped Y₂O₃ samples (Eu_xY_2-xO₃). Under UV irradiation, the samples present a strong emission centered at 614 nm, and other emission feature is an indication of europium cations in the cubic Y₂O₃ host lattice. The emission spectra are consisting of Eu^{3+ 5}D₀–⁷F_J transitions (J = 0, 1, 2, 3 and 4) with the eminent peak ⁵D₀–⁷F₂ (614 nm). Other peaks at 583 (⁵D₀–⁷F₀₎, 596 (⁵D₀–⁷F₁), 633 (D₀–⁷F₃) and 711 nm (⁵D₀–⁷F₄₎ were observed, respectively [43]. The schematic bandgap model for the luminescence of Eu³⁺ doped in Y₂O₃ lattice was provided in Supplementary Materials as Figure S8.

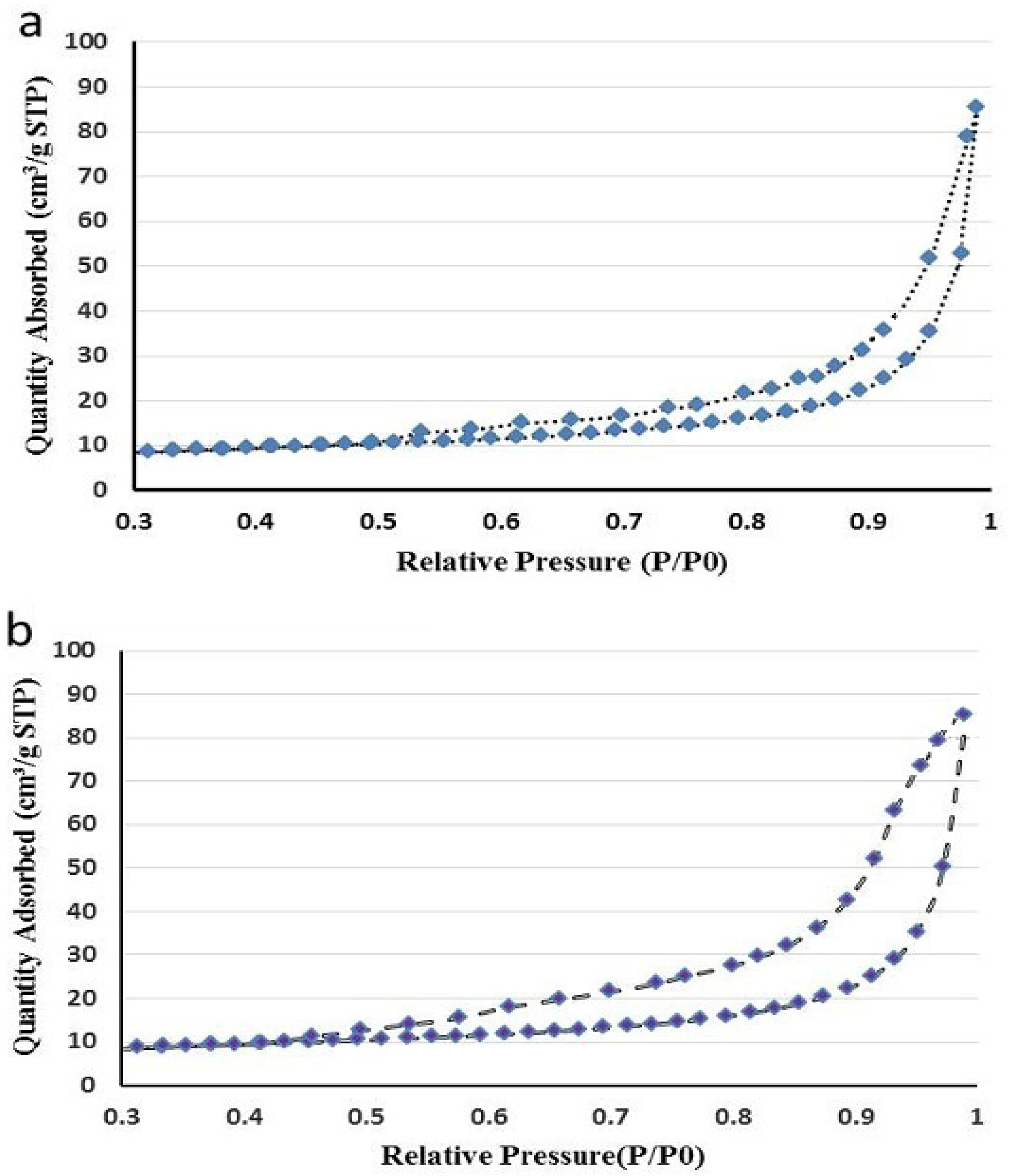

Adsorption/desorption isotherm of nitrogen for uncoated diatomite and coated with 6% Eu³⁺-substituted Y₂O₃ are shown in Figure 8. In the case of both specimens, two isotherms with obvious hysteresis loop were noticed in the pressure range of 0.3–1.0 p/p₀. The BET specific surface area of biosilica is 1.5 m²/g. Additionally, the BET specific surface area of diatomite coated with 6% Eu-substituted Y₂O₃ (8.7 m²/g) considerably exceeds that of uncoated diatom. A superior adsorption performance is expected for coated-diatom with europium-doped Y₂O₃ nanoparticles.

3.2. Synergistic Effect of Photocatalysis and Sonocatalysis on the Degradation of RB19 Using Diatomite Coated with Eu-Doped Y₂O₃ Nanoparticles

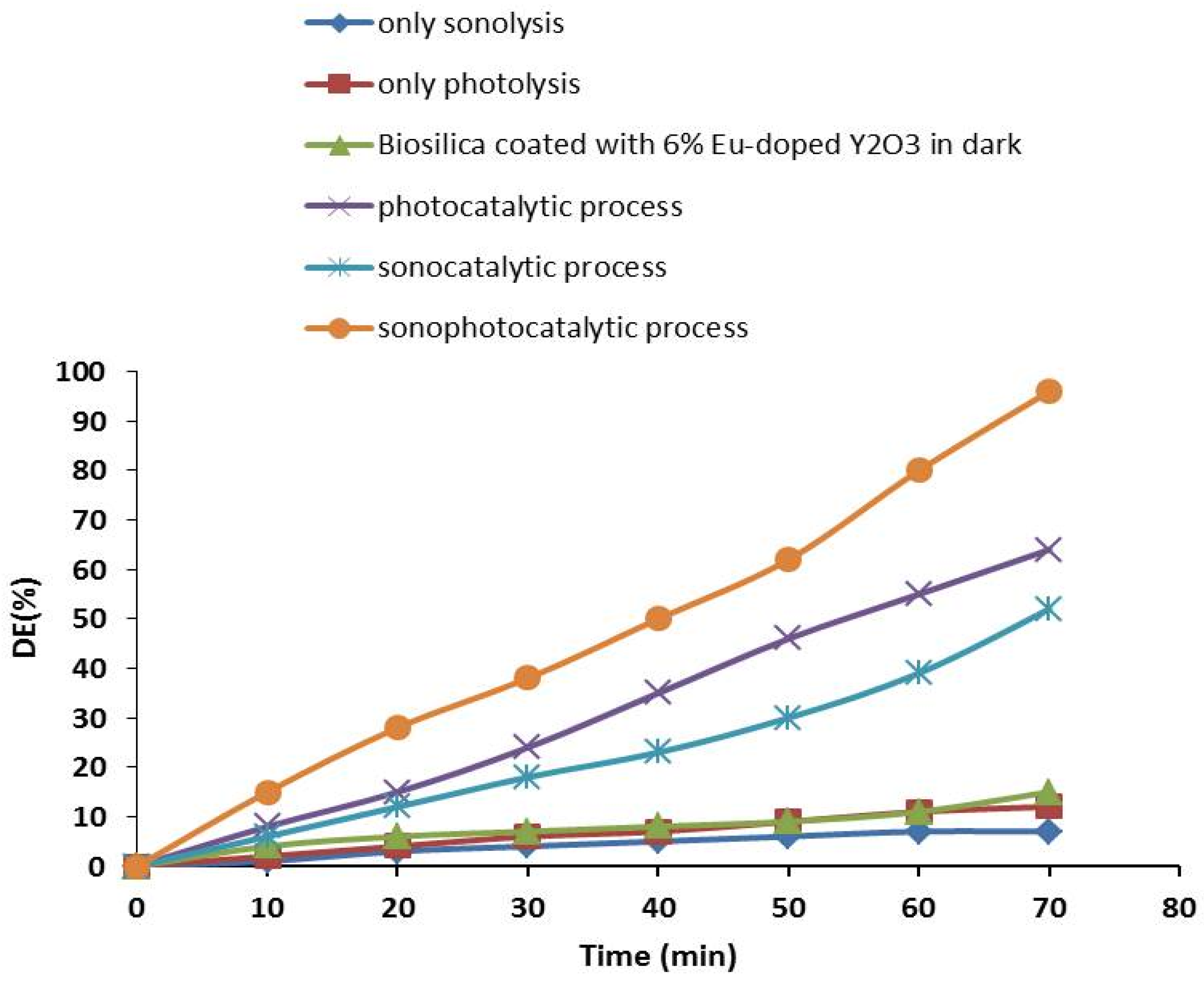

By comparative evaluations, the photo-, sono-, and sono-photocatalytic performance of the prepared diatomite coated with Eu-doped Y₂O₃ were assessed, for which the results are displayed in Figure 9. The degradation percent was very low in the absence of catalyst nanoparticles under light irradiation, which demonstrates that photolysis doesn’t contribute to the RB19 elimination from the solution.

The findings of the assay conducted in dark condition present that surface adsorption has no remarkable effect on degrading the dye solution. The degradation efficiency by the photocatalytic route was less than 64%. The degradation efficiency through sonocatalytic degradation (52%) was higher than sonolysis (7%). The degradation percentage was outstandingly boosted in the sonophotocatalytic process (96.45%) owing to synergistic impacts between photo- and sono-catalysis. This can be simplified as: firstly, the production of several ROSs through the integrated cavitation effects and photocatalytic procedure, secondly, the elevated mass transfer rates, thirdly, the catalyst nanoparticles disaggregation by ultrasound and the larger active surface areas, and fourthly, the creation of more hot spots through catalyst nanoparticles [17,18,19]. Figure 10 shows the spectra of the lamp used for catalytic process.

As displayed in Figure 11, the graph of (−ln (C/C₀) vs. time indicates linear trend for all three sono-photocatalytic, photocatalytic and sonocatalytic processes, displaying pseudo-first-order kinetics [1,44,45]. It is apparent that the pseudo-first-order kinetic constant and degradation ability in sono-photocatalysis (k_{obs,sono-photo}) are bigger than those for sonocatalysis (k_obs,sono) and photocatalysis (k_obs,photo). These outcomes totally introduce the concept of a synergistic impact.

To examine the decolorization process’s mechanism and to reveal the chief oxidative species, assays were conducted in the presence of proper scavengers of active species. As stated by Figure 12, the addition of t-BuOH (a scavenger of hydroxyl radicals) results in decreasing of 14% in the decomposition percent. By addition of oxalate (a scavenger of h⁺_VB), the decolorization efficiency reduced to 54%. In the case of Cl⁻ and I⁻ (scavenger of hole) it reaches to 27 and 33% respectively. The dye degradation was inhibited remarkably as benzoquinone (BQ) was added (a scavenger of superoxide radicals). These results display that the superoxide radicals and h⁺_VB were the substantial oxidative species in degradation of organic dye. In addition, the hydroxyl radicals also affect the degradation. Considering the synergistic impacts of photo- and sono-catalysis, a possible mechanism for the decolorization procedure can be proposed [17,19]:

(1) The two light irradiation and US can excite the catalyst particles to formation of electron-hole pairs:

Eu-doped Y₂O₃ coated diatom + (hν and US) → h⁺ + e⁻

(2)

(2) The reaction of adsorbed oxygen molecules and electrons of conduction band lead to produce ^•O₂⁻, HO₂^•, and H₂O₂:

e⁻ + O₂ → ^•O₂⁻

(3)

^•O₂⁻ + H⁺→ HO₂^•

(4)

e⁻ + H⁺ + HO₂^• → H₂O₂

(5)

(3) Water molecules or hydroxyl anions can be oxidized by the photogenerated holes to produce hydroxyl radicals:

OH⁻ + h⁺ → ^•OH

(6)

h⁺ + H₂O → ^•OH + H⁺

(7)

(4) The pyrolysis of water molecule can be boosted by the US to generate hydrogen and hydroxyl radicals:

H₂O + US → H^• + ^•OH

(8)

^•OH + ^•OH → H₂O₂

(9)

(5) Eventually, the molecules of dye can be decomposed by the produced active spices:

Reactive blue 19 + reactive oxygen species (ROSs) → degrading dye molecules

3.3. Effect of Eu³⁺ Content of Diatom Coated Eu-Doped Y₂O₃ Nanoparticles

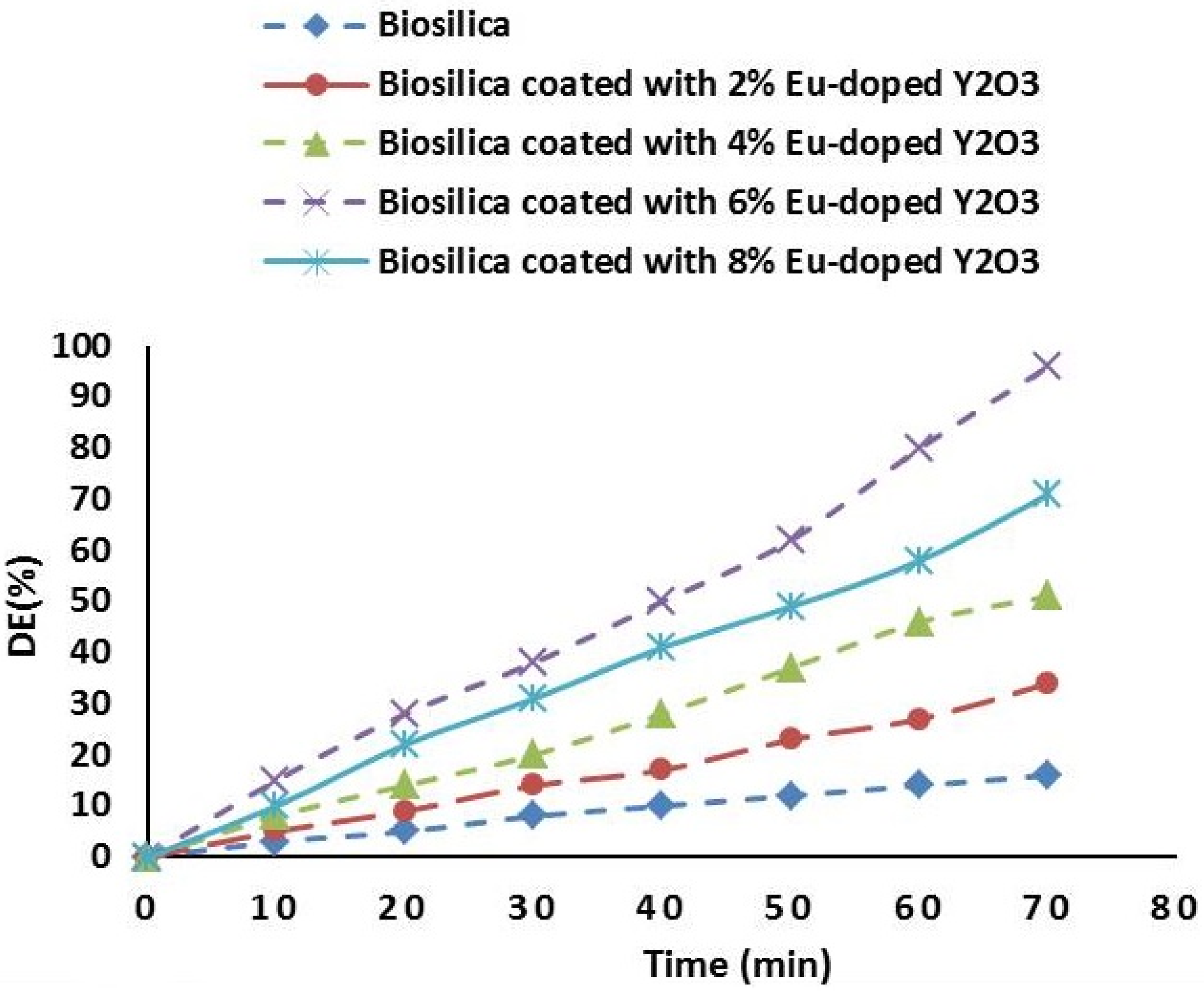

The removal effectiveness of RB 19 over diatomite coated Eu-doped Y₂O₃ sonocatalysts during 70 min of sonophotolysis is shown in Figure 13. The doped samples with proper content of Eu³⁺ ion had much better catalytic performance compared with uncoated biosilica. For diatom coated 6% Eu doped Y₂O₃ nanoparticles, the highest decolorization efficiency was achieved. Two mechanisms can explain these findings. First, rare-earth cations such as Eu³⁺ restrain the electron–hole recombination and act as an electron scavenger. Second, the new energy level under the conduction band edge of Y₂O₃ is created by substituting of Eu³⁺ into yttria lattice [46,47]. Considering the standard redox potentials of E₀ (Eu³⁺/Eu²⁺) = −0.35 V and E₀ (O₂/O₂⁻) = 0.338 V, the existence of Eu³⁺ in yttria structure can improve the following reactions [48]:

Eu³⁺ + e → Eu²⁺

(10)

Eu²⁺ + O₂ → Eu³⁺ + O₂^●−

(11)

O₂^●− + H⁺ → HO^●₂

(12)

2HO^●₂→ H₂O₂ + O₂^●

(13)

^●OH, H₂O₂ and O₂^● radicals are well-known powerful oxidants for the degrading of organic dye [49].

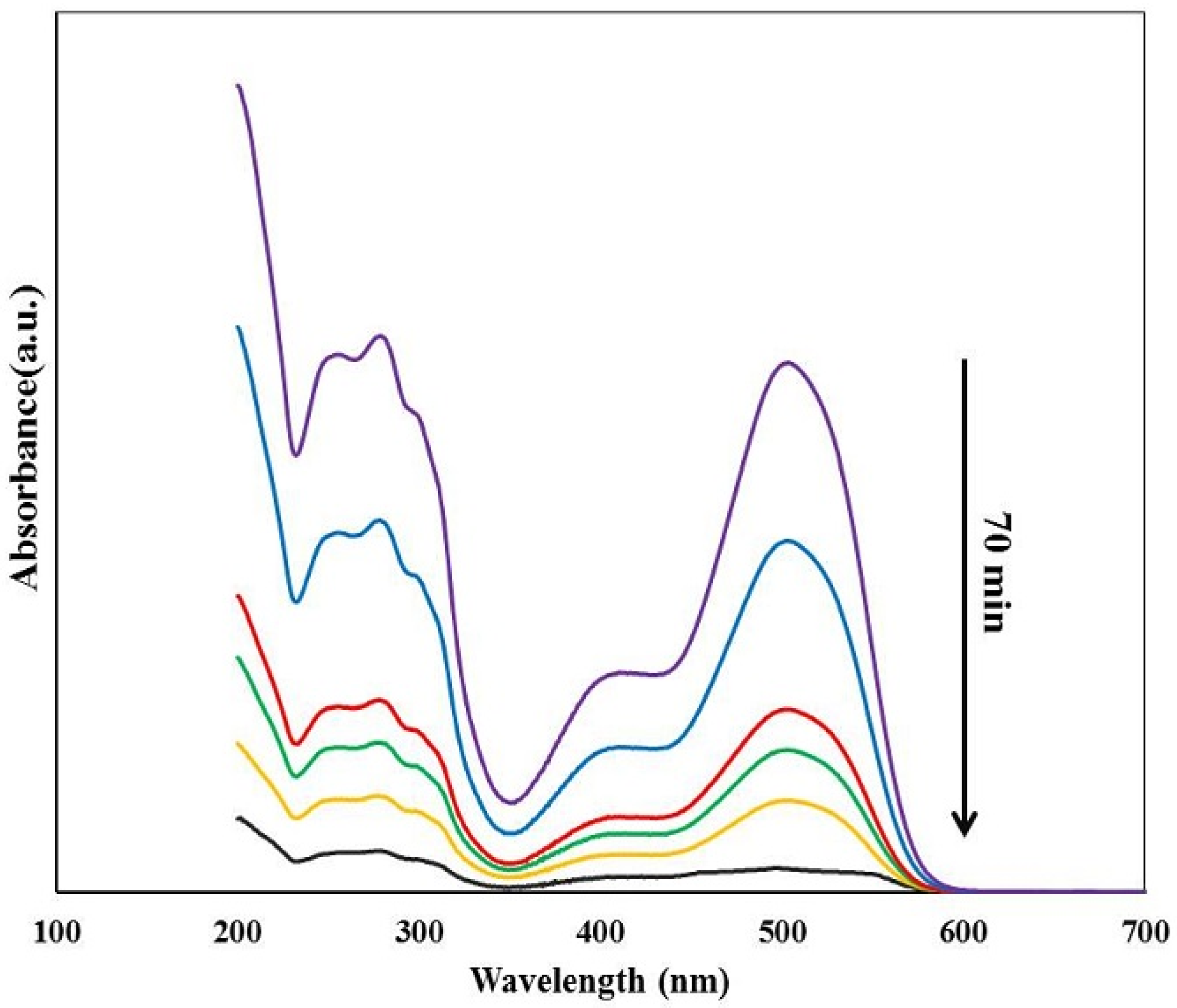

The UV–vis absorption spectra of RB 19 at various irradiation periods for the sonophotocatalytic process are shown in Figure 14. The reducing concentration of RB 19 during the catalytic process is used to examine the performance of the catalyst.

3.4. Primary Dye Concentration Effect

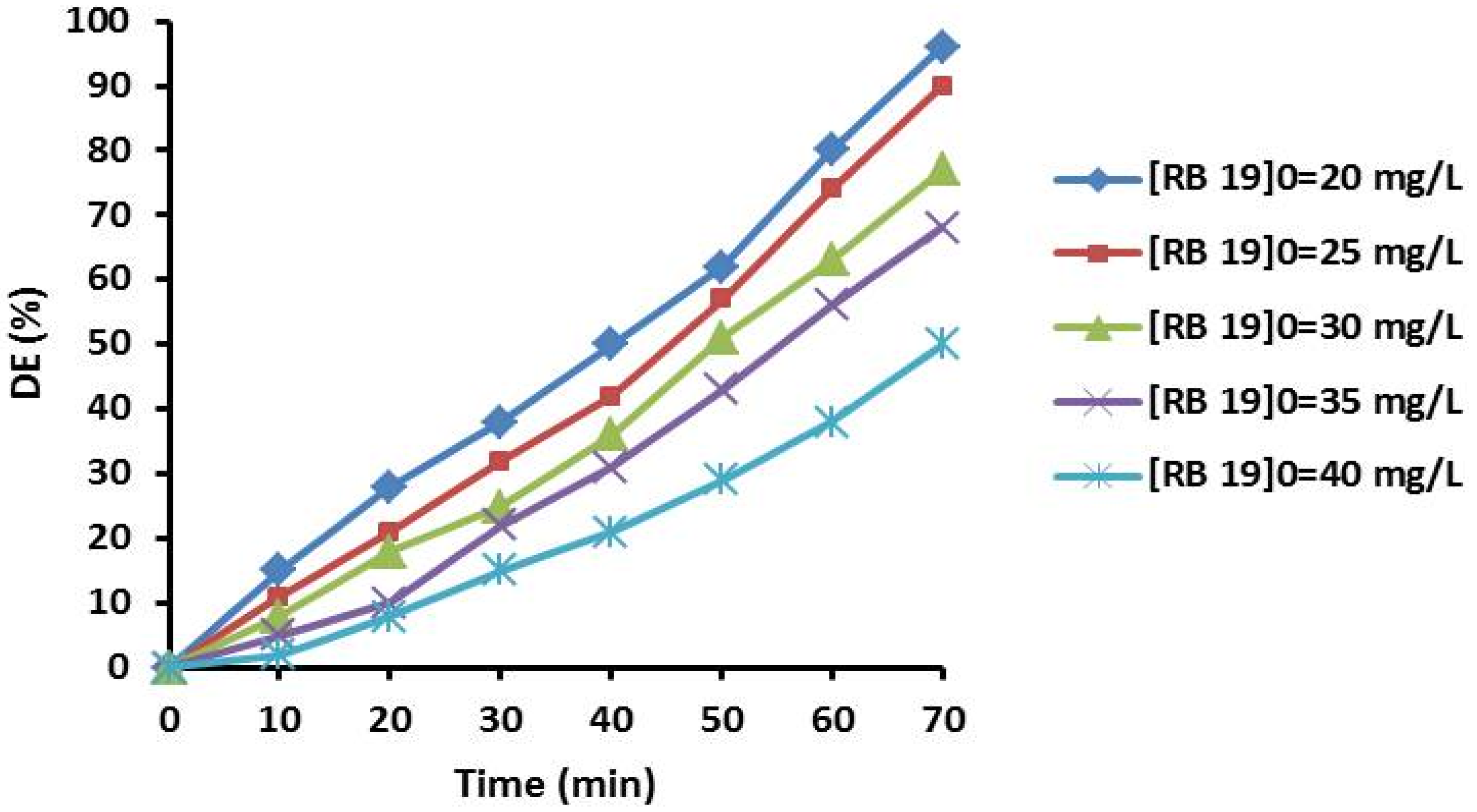

Various initial dye concentrations in the range of 20 to 40 mg/L were used in this study. As seen in Figure 15, DE % reduced from 96.54 to 49.21% in the case of initial concentration 20 to 40 mg/L. Filling the energetic sites on the catalyst’s surface by pollutants molecules at high concentration results in an astounding decrease in the degradation effectiveness. The prevention of diffusion of light to the catalyst’s surface can led to unsatisfactory performance at dense concentration of dye solution [50].

3.5. The Amount of Catalyst Effect

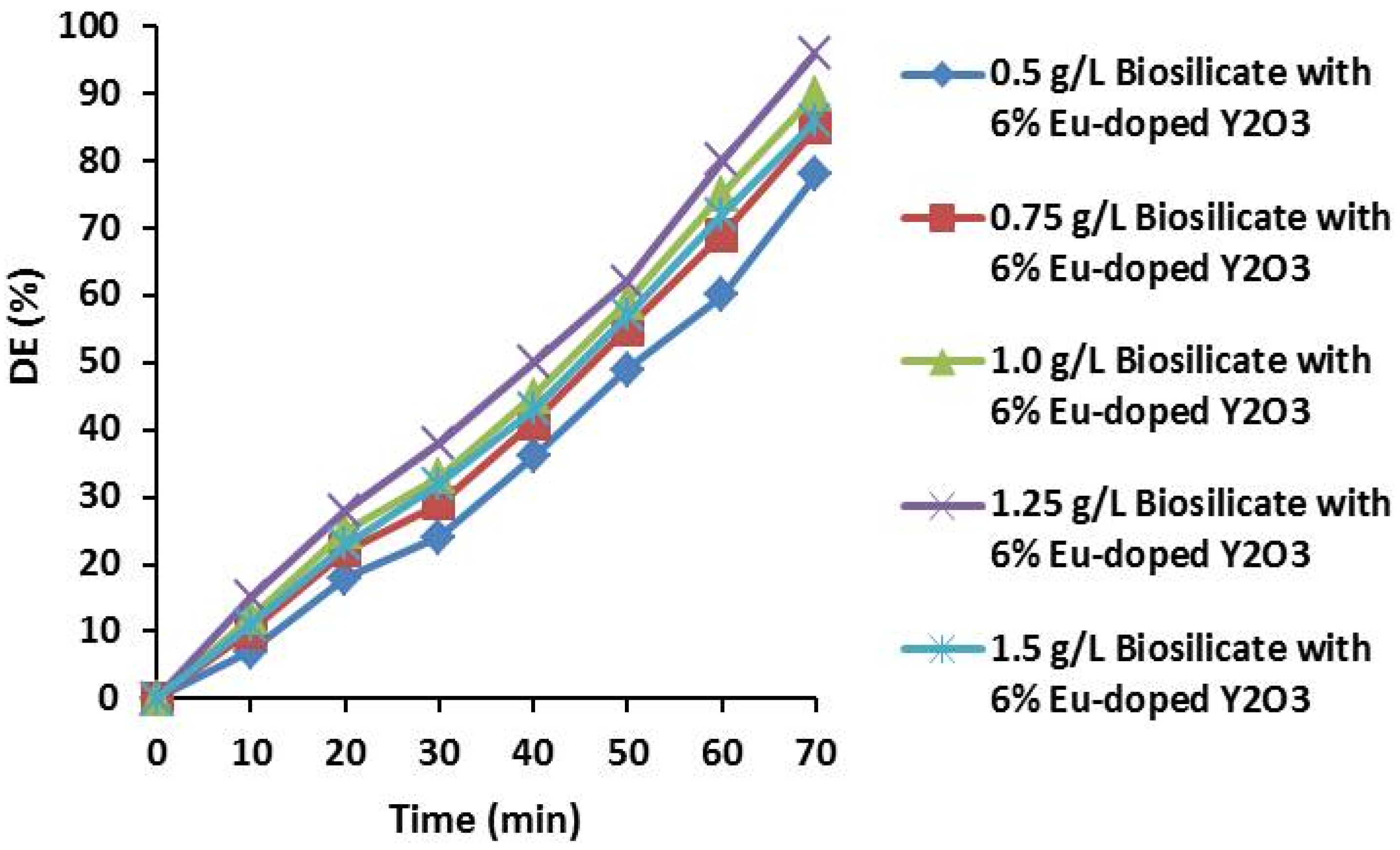

The effect of catalyst value on the removal percentage of RB 19 is seen in Figure 16. The sonication period and primary dye concentration were 70 min and 20 mg/L, respectively. At concentration of 0.5, 0.75, 1.0, 1.25 and 1.5 g/L, the color removal ratio was 78.43, 85.92, 90.76 and 96.45%, sequentially. The DE% increased from 0.5 to 1.25 g/L, and then reduced. This could be explained by the aggregation of catalyst beyond 1.25 g/L which led to reducing ultrasound scattering and decreasing the number of active sites [7,17].

3.6. Effect of Sonication Energy

The decolorization percent of RB19 under different ultrasonic power in the range 60 to 150 W was also investigated. Employing the 50 to 150 W/L sonication power, the degradation percentage is increased from 84.17% to 96.45% (Figure 17). Enhanced degradation ratio was achieved through increasing the ultrasonic power which the production of •OH radicals increases. Moreover, the disturbance of the solution was elevated with significant power and accordingly promotes the mass transfer rate of dye, reactive species and intermediates between catalyst’s surface and the bulk solution [51]. In order to save energy, the experiments set on 120 W due to slight contrast of degradation percentage between 120 and 150 W.

3.7. Photocatalyst Recycling and Photostability

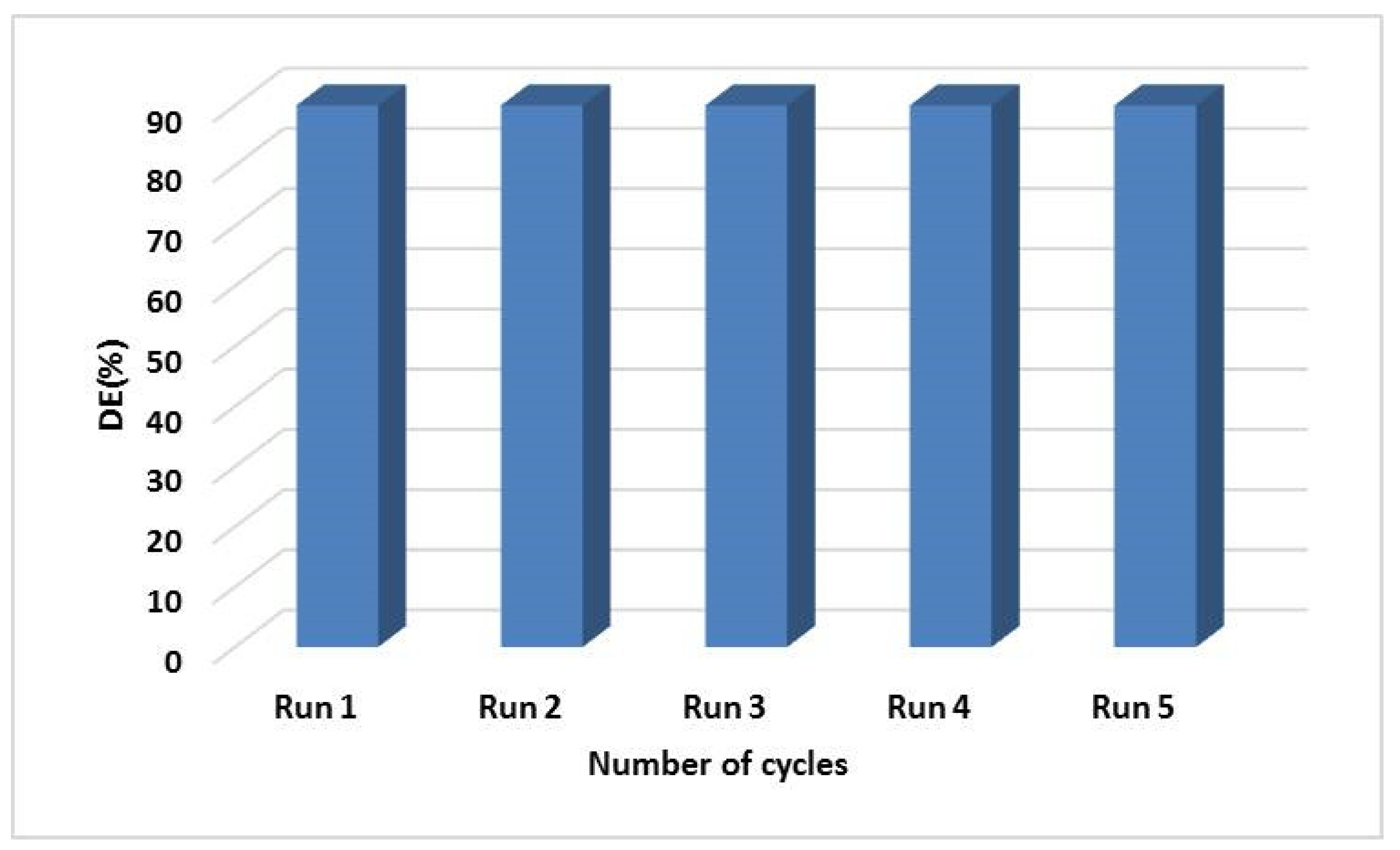

Figure 18 displays the reusability of diatomite coated 6% Eu-doped yttrium oxide, which was tested at a reaction period of 70 min, a dye concentration of 20 mg/L and 1.25 g/L of catalyst powder. These settings are the optimum operational parameters values verified through experiments. After five continuous tests, the reduction in the sono-photocatalytic procedure was slight, which validates the prepared particles’ high potential stability and reusability.

In comparison to other routine semiconductors such as TiO₂, ZnO, CdS, etc., Eu-doped Y₂O₃ coated-diatom displays astonishing photocatalytic activity toward degradation of organic dye. It is notable that the time of degradation process is 70 min and the decolorization efficiency is over 90 percent competing with previous ordinary catalysts.

4. Conclusions

Europium-doped Y₂O₃-coated diatomite nanomaterials were prepared via facile hydrothermal route and employed for degradation of reactive blue 19 in an aqueous solution. Substitution of Eu³⁺ into yttrium oxide lattice led to a redshift in absorbance spectra and reduction of bandgap respectively. The PL spectra of as-prepared Eu-doped Y₂O₃ coated diatomite are composed of ⁵D₀–⁷F_J transitions. The decolorization effectiveness of the as-synthesized compounds was much bigger in sono-photocatalytic procedure than that of other routes. 6% Eu³⁺-incorporated Y₂O₃ coated diatom exhibits the best degradation ratio. Radical scavengers reduce the sonophotocatalytic degradation percentage of R B 19 particularly subject to 1,4 benzoquinone. The results revealed that diatomite coated with Eu³⁺-incorporated yttrium oxide nanoparticle can be employed in numerous experimental runs with no notable drop in photocatalytic performance.
