Metal Substitution Effect on a Three-Dimensional Cyanido-Bridged Fe Spin-Crossover Network
Department of Chemistry, School of Science, The University of Tokyo, 7-3-1 Hongo, Bunkyo-ku, Tokyo 113-0033, Japan
Cryogenic Research Center, The University of Tokyo, 2-11-16 Yayoi, Bunkyo-ku, Tokyo 113-0032, Japan
Author to whom correspondence should be addressed.
Received: 4 September 2017 / Accepted: 21 September 2017 / Published: 24 September 2017


We report the CoII-substitution effect on a cyanido-bridged three-dimensional FeII spin-crossover network, Fe2[Nb(CN)8](4-pyridinealdoxime)8·2H2O. A series of iron–cobalt octacyanidoniobate, (FexCo1−x)2[Nb(CN)8](4-pyridinealdoxime)8·zH2O, was prepared. In this series, the behavior of FeII spin-crossover changes with the CoII concentration. As the CoII concentration increases, the transition of the spin-crossover becomes gradual and the transition temperature of the spin-crossover shifts towards a lower temperature. Additionally, this series shows magnetic phase transition at a low temperature. In particular, (Fe0.21Co0.79)2[Nb(CN)8](4-pyridinealdoxime)8·zH2O exhibits a Curie temperature of 12 K and a large coercive field of 3100 Oe.
spin-crossover; magnetic phase transition; cyanido-bridged metal assembly; metal substitution

1. Introduction

The spin-crossover phenomenon between low-spin (LS) and high-spin (HS) states has been extensively studied in many fields [1,2,3,4,5,6,7,8,9,10,11,12,13]. This phenomenon can be modulated by various physical and chemical stimulations (e.g., light, pressure, temperature, vapor molecule, and metal substitution), and it has potential for sensor and memory applications [14,15]. To control the spin-crossover behavior, the metal substitution effect on the spin-crossover behavior for some FeII spin-crossover materials has been investigated [16,17,18,19,20,21,22,23,24,25].
In the field of molecule-based magnets [26,27,28,29,30], cyanido-bridged metal assemblies have drawn attention because they exhibit various magnetic functionalities such as a high Curie temperature (Tc) [31,32,33,34], a charge transfer transition [35,36,37,38,39,40,41,42], and an externally stimulated phase transition phenomena [43,44,45,46,47]. In the recent years, we have synthesized several kinds of magnetic cyanido-bridged bimetal assemblies possessing Fe spin-crossover sites. For example, CsFe[Cr(CN)6]·1.3H2O exhibits a spin-crossover phenomenon at 211 K in the cooling process (T1/2↓) and 238 K in the heating process (T1/2↑), and a ferromagnetic phase transition at 9 K [48]. Fe2[Nb(CN)8](3-pyridylmethanol)8·4.6H2O shows a gradual spin-crossover phenomenon at 250 K and a ferrimagnetic phase transition at 12 K [49]. However, the photoresponsivities were not reported for these compounds.
In 2011, we synthesized a cyanido-bridged metal assembly, Fe2[Nb(CN)8](4-pyridinealdoxime)8·2H2O, which shows a spin-crossover phenomenon at 130 K [50]. When this material is irradiated with 473-nm light, a spontaneous magnetization is observed. This photoinduced ferrimagnetic phase exhibits a TC value of 20 K and a coercive field (Hc) value of 240 Oe. This is the first demonstration of light-induced spin crossover ferrimagnetism. In 2014, we prepared Fe2[Nb(CN)8](4-bromopyridine)8·2H2O, which is the first chiral photomagnet, and observed 90° optical switching of the polarization plane of second harmonic light [51].
From the viewpoint of controlling the magnetic performance of a photomagnetic material, metal replacement is effective. In particular, Co2[Nb(CN)8](4-pyridinealdoxime)8·2H2O, which is a metal-substituted compound of Fe2[Nb(CN)8](4-pyridinealdoxime)8·2H2O described above as the first photoinduced spin-crossover magnet, shows a large coercive field of 15,000 Oe [52]. In this work, we synthesize cyanido-bridged metal assemblies containing both Fe and Co ions, (Fe1−xCox)2[Nb(CN)8](4-pyridinealdoxime)8·zH2O, and discuss the crystal structures, spectroscopic properties, and magnetic properties.

2. Results and Discussions

2.1. Syntheses

The preparation of (Fe1−xCox)2[Nb(CN)8](4-pyridinealdoxime)8·zH2O was performed by reacting a mixed aqueous solution of FeCl2·4H2O, CoCl2·6H2O, l-(+)-ascorbic acid, and 4-pyridinealdoxime, with an aqueous solution of K4[Nb(CN)8]·2H2O with Fe/Co ratios [Fe]/([Fe] + [Co]) of 0, 0.1, 0.25, 0.5, 0.75, and 1, yielding a microcrystalline powder. Stirring was continued for 1 h. Then the solution was filtered and washed twice by water. Elemental analyses indicate that the chemical formulae of the obtained compounds are Fe2[Nb(CN)8](4-pyridinealdoxime)8·3H2O (x = 0, compound 1), (Fe0.92Co0.08)2[Nb(CN)8](4-pyridinealdoxime)8·3H2O (x = 0.08, compound 2), (Fe0.71Co0.29)2[Nb(CN)8](4-pyridinealdoxime)8·3H2O (x = 0.29, compound 3), (Fe0.50Co0.50)2[Nb(CN)8](4-pyridinealdoxime)8·3H2O (x = 0.50, compound 4), (Fe0.21Co0.79)2[Nb(CN)8](4-pyridinealdoxime)8·3H2O (x = 0.79, compound 5), and Co2[Nb(CN)8](4-pyridinealdoxime)8·3H2O (x = 1, compound 6). (See Section 3) The compounds of 1 and 6 in this work correspond well to the formulae in our previous reports [50,52].

2.2. Crystal Structures and Spectroscopic Properties

Table 1 and Figure 1 show the results of the Rietveld analyses of the powder X-ray diffraction (XRD) patterns for 16. Structural analyses show that the crystal structures of 1 and 6 are isostructural to those reported in our previous papers [50,52]. Rietveld analyses of the XRD patterns of 25 were performed using the crystal structure of 1 as the initial structure with the occupancies of Fe and Co based on the chemical formula. The lattice constant versus x value (Co content) plot shows that the lattice constant of the a-axis decreases from 20.2893 Å (x = 0) to 20.2105 Å (x = 1) (0.4% decrease), while that of the c-axis slightly decreases from 15.0224 Å (x = 0) to 15.0066 Å (x = 1) (0.1% decrease), and the unit cell volume decreases from 6184.1 Å3 (x = 0) to 6129.7 Å3 (x = 1) (0.9% decrease) with increasing x value (Table 1, Figure 2). It is noteworthy that the XRD peaks become broader with an increasing x value. The SEM images indicate that this broadening is caused by the reduction of the crystallite size (Figure S1).
The crystal structure and coordination geometries of this series are explained using 3 as an example. 3 has a tetragonal crystal structure in the I41/a space group with a = 20.2572(6) Å and c = 15.0154(6) Å. The asymmetric unit is composed of a quarter of the [Nb(CN)8] anion, half of the [M(4-pyridinealdoxime)4] (M = Fe or Co) cation, and a water molecule. Here, we assume that Fe and Co are randomly incorporated. The coordination geometries of the Nb and M sites are dodecahedron (D2d) and pseudo-octahedron (D4h), respectively. For the eight CN groups of Nb(CN)8, four CN groups are bridged to the M ions, and the other four CN groups are not bridged. Two cyanide nitrogen atoms coordinate to the two axial positions of the M site and four pyridyl nitrogen atoms of 4-pyridinealdoxime are located at the other four equatorial positions. A cyanido-bridged three-dimensional (3D) network structure is formed by the M–NC–Nb component (Figure 3).
The infrared spectrum of 1 shows two CN stretching peaks at 2130 cm−1 and 2151 cm−1, which are ascribed to the CN stretching peak due to non-bridged CN (Nb–CN) and bridged CN between Nb and Fe (Nb–CN–Fe), respectively. In 26, a different peak is observed around 2160 cm−1, and its intensity increases with an increasing CoII concentration, while the peak around 2151 cm−1 decreases. This indicates that the peak around 2160 cm−1 is due to the bridged CN between Nb and Co (Nb–CN–Co) (Figure 4).

2.3. Magnetic Properties

Figure 5a shows the temperature dependence of the product of the magnetic susceptibility and the temperature (χMT) of 16 under an external magnetic field of 5000 Oe. The χMT values of 16 at 300 K are 7.04, 7.08, 6.77, 6.11, 5.79, and 5.16 K·cm3·mol−1, respectively. These values agree with the estimated values of 6.96, 6.83, 6.48, 6.14, 5.79, and 5.16 K·cm3·mol−1, which are obtained by Equation (1)
χ M T = N A μ B 2 3 k B { 2 x g Co 2 S Co ( S Co + 1 ) + 2 ( 1 x ) g Fe 2 S Fe ( S Fe + 1 ) + g Nb 2 S Nb ( S Nb + 1 ) }
where NA is Avogadro’s constant, μB is the Bohr magneton, kB is the Boltzmann constant, gi is the g value of atom i, Si is the spin quantum number of atom i, and x is the Co content [53,54], assuming gFe = 2.1, gCo = 2.4, gNb = 2.0, SFe = 2, SCo = 3/2, and SNb = 1/2.
As the temperature decreases, the χMT values decreases at intermediate temperatures in 15, while the χMT value of 6 is almost constant between 50 K and 300 K. Thus, the occurrence of the FeII spin-crossover phenomenon for all of the FeII containing compounds is confirmed by the magnetic susceptibility measurements. The thermal spin-crossover temperature (T1/2), which is estimated as the temperature where the temperature differential of χMT is maximized, shows that with an increasing x value, T1/2 shifts to a lower temperature (Figure 5b and Figure S2). In addition, with an increasing x value, spin crossovers become more gradual. According to the reported observations [16,17,18,19,20,21,22,23,24,25], these results are explained as follows. Since the ionic radii of Co(II)HS (0.75 Å) is closer to Fe(II)HS (0.78 Å) than Fe(II)LS (0.61 Å) [55], the spin-crossover from Fe(II)HS to Fe(II)LS becomes unfavorable, leading to a decrease of the spin transition temperature. Additionally, because the distance between spin-crossover sites becomes longer by metal substitution, the cooperativity between spin-crossover sites decreases, resulting in a gradual spin-crossover behavior.
Next, we measured the magnetic properties in the low temperature region. Figure 6a shows the magnetization vs. temperature plots of 16 with cooling temperature at an external magnetic field of 10 Oe. The magnetization vs. temperature curves of 2 and 3 show a small shoulder below 15 K. 4, 5, and 6 clearly show spontaneous magnetization with critical temperatures (Tc) of 8 K, 12 K, and 18 K, respectively. The magnetization vs. external magnetic field plots at 2 K show that the magnetic coercive fields of 4, 5, and 6 are 1400 Oe, 3100 Oe, and 13,000 Oe, respectively (Figure 6b). The singleness of the Tc values and the shape of magnetic hysteresis loop indicate that Fe and Co are mixed with each other on the atomic level. The observation of such a large coercive field is attributed to the single-ion anisotropy of Co ion possessing an unquenched orbital angular momentum.

3. Materials and Methods

3.1. Syntheses

K4[Nb(CN)8]·2H2O was synthesized according to the reported procedure [56]. Other reagents were purchased from commercial sources (Wako Pure Chemical Industries and Tokyo Chemical Industries) and were used without further purification. For the preparation of (FexCo1−x)2[Nb(CN)8](4-pyridinealdoxime)8·zH2O, a 98-cm3 aqueous solution containing FeCl2·4H2O and CoCl2·6H2O (0.2 mmol in total), l-(+)-ascorbic acid (0.4 mmol), and 4-pyridinealdoxime (4 mmol), was added to an aqueous solution (2 cm3) of K4[Nb(CN)8]·2H2O (0.1 mmol) with Fe/Co ratios [Fe]/([Fe] + [Co]) of 0, 0.1, 0.25, 0.5, 0.75, and 1, yielding a microcrystalline powder. Stirring was continued for 1 h. Then the solution was filtered and washed twice by water. Elemental analyses indicate that the chemical formulae of the obtained compounds were Fe2[Nb(CN)8](4-pyridinealdoxime)8·3H2O (1), (Fe0.92Co0.08)2[Nb(CN)8](4-pyridinealdoxime)8·3H2O (2), (Fe0.71Co0.29)2[Nb(CN)8](4-pyridinealdoxime)8·3H2O (3), (Fe0.50Co0.50)2[Nb(CN)8](4-pyridinealdoxime)8·3H2O (4), (Fe0.21Co0.79)2[Nb(CN)8](4-pyridinealdoxime)8·3H2O (5), and Co2[Nb(CN)8](4-pyridinealdoxime)8·3H2O (6). Calcd. for 1: Fe, 7.74; Nb, 6.43; C, 46.59; H, 3.77; N, 23.28. Found for 1: Fe, 7.98; Nb, 6.69; C, 46.71; H, 3.72; N, 23.39. Calcd. for 2: Fe, 7.11; Co, 0.65; Nb, 6.43; C, 46.57; H, 3.77; N, 23.28. Found for 2: Fe, 7.07; Co, 0.67; Nb, 6.40; C, 46.57; H, 3.66; N, 23.33. Calcd. for 3: Fe, 5.49; Co, 2.36; Nb, 6.43; C, 46.53; H, 3.77; N, 23.25. Found for 3: Fe, 5.68; Co, 2.45; Nb, 6.44; C, 46.44; H, 3.69; N, 23.39. Calcd. for 4: Fe, 3.86; Co, 4.07; Nb, 6.42; C, 46.49; H, 3.76; N, 23.23. Found for 4: Fe, 3.81; Co, 4.13; Nb, 6.32; C, 46.40; H, 3.69; N, 23.39. Calcd. for 5: Fe, 1.62; Co, 6.42; Nb, 6.41; C, 46.43; H, 3.76; N, 23.20. Found for 5: Fe, 1.56; Co, 6.47; Nb, 6.39; C, 46.71; H, 3.71; N, 23.12. Calcd. for 6: Co, 8.13; Nb, 6.41; C, 46.39; H, 3.75; N, 23.18. Found for 6: Co, 8.26; Nb, 6.54; C, 46.37; H, 3.71; N, 23.18.

3.2. Measurements

Elemental analyses for C, H, and N were carried out by standard microanalytical methods while those for Fe, Co, and Nb were analyzed by inductive plasma mass spectroscopy. FT-IR spectra were recorded on a FT-IR4100 spectrometer (JASCO, Tokyo, Japan). X-ray powder diffraction was measured on a Ultima-IV powder diffractometer (Rigaku, Tokyo, Japan). Rietveld analyses were performed using PDXL program (Rigaku, Tokyo, Japan). Magnetic susceptibility and magnetization measurements were carried out using a MPMS superconducting quantum interference device (SQUID) magnetometer (Quantum Design, San Diego, CA, USA).

4. Conclusions

In this work, we synthesized and characterized ternary metal cyanido-bridged metal assemblies of (FexCo1−x)2[Nb(CN)8](4-pyridinealdoxime)8·zH2O. The magnetic measurements reveal that all of the Fe-containing systems present a spin-crossover phenomenon. In particular, (Fe0.21Co0.79)2[Nb(CN)8](4-pyridinealdoxime)8·zH2O exhibits a coexistence of a spin-crossover phenomenon and a magnetic phase transition with Tc of 12 K and a large Hc of 3100 Oe. Additional investigations on the photomagnetic effect are in progress.

Supplementary Materials

The following are available online at Cif and cif-checked files of 16. Figure S1: SEM images and particle size distributions of 16; Figure S2: Co fraction (x) dependence of spin-crossover transition temperature of 15.


The present research was supported in part by a JSPS Grant-in-Aid for specially promoted Research (Grant Number 15H05697). We also recognize the Cryogenic Research Center, The University of Tokyo, and Nanotechnology Platform, which are supported by MEXT.

Author Contributions

Shin-ichi Ohkoshi conceived and designed the project. Kenta Imoto and Shinjiro Takano performed the experiments. Kenta Imoto and Shinjiro Takano analyzed the data. Shin-ichi Ohkoshi and Kenta Imoto wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Gütlich, P.; Goodwin, H.A. Spin Crossover in Transition Metal Compounds; Springer: New York, NY, USA, 2004. [Google Scholar]
  2. Halcrow, M.A. Spin Crossover Materials: Properties and Applications; John Wiley & Sons: Chichester, UK, 2013. [Google Scholar]
  3. Gütlich, P.; Hauser, A.; Spiering, H. Thermal and Optical Switching of Iron (II) Complexes. Angew. Chem. Int. Ed. Engl. 1994, 33, 2024–2054. [Google Scholar] [CrossRef]
  4. Decurtins, S.; Gütlich, P.; Köhler, C.P.; Spiering, H.; Hauser, A. Light-induced excited spin state trapping in a transition-metal complex: The hexa-1-propyltetrazole–iron (II) tetrafluoroborate spin-crossover system. Chem. Phys. Lett. 1984, 105, 1–4. [Google Scholar] [CrossRef]
  5. Hauser, A. Intersystem Crossing in Fe(II) Coordination Compounds. Coord. Chem. Rev. 1991, 111, 275–290. [Google Scholar] [CrossRef]
  6. Real, J.A.; Andres, E.; Munoz, M.C.; Julve, M.; Granier, T.; Bousseksou, A.; Varret, F. Spin Crossover in a Catenan Supramolecular System. Science 1995, 268, 265–267. [Google Scholar] [CrossRef] [PubMed]
  7. Halder, G.J.; Kepert, C.J.; Moubaraki, B.; Murray, K.S.; Cashion, J.D. Guest-dependent spin crossover in a nanoporous molecular framework material. Science 2002, 298, 1762–1765. [Google Scholar] [CrossRef] [PubMed]
  8. Renz, F.; Oshio, H.; Ksenofontov, V.; Waldeck, M.; Spiering, H.; Gütlich, P. Strong field iron (II) complex converted by light into a long-lived high-spin state. Angew. Chem. Int. Ed. 2000, 39, 3699–3700. [Google Scholar] [CrossRef]
  9. Gaspar, A.B.; Seredyuk, M.; Gütlich, P. Spin crossover in metallomesogens. Coord. Chem. Rev. 2009, 253, 2399–2413. [Google Scholar] [CrossRef]
  10. Ould Moussa, N.; Molnar, G.; Bonhommeau, S.; Zwick, A.; Mouri, S.; Tanaka, K.; Real, J.A.; Bousseksou, A. Selective Photoswitching of the Binuclear Spin Crossover Compound {[Fe(bt)(NCS)2]2(bpm)} into Two Distinct Macroscopic Phases. Phys. Rev. Lett. 2005, 94, 107205. [Google Scholar] [CrossRef] [PubMed]
  11. Papanikolaou, D.; Margadonna, S.; Kosaka, W.; Ohkoshi, S.; Brunelli, M.; Prassides, K. X-ray Illumination Induced Fe(II) Spin Crossover in the Prussian Blue Analogue Cesium Iron Hexacyanochromate. J. Am. Chem. Soc. 2006, 128, 8358–8363. [Google Scholar] [CrossRef] [PubMed]
  12. Bertoni, R.; Cammarata, M.; Lorenc, M.; Matar, S.; Létard, J.-F.; Lemke, H.-T.; Collet, E. Ultrafast Light-Induced Spin-State Trapping Photophysics Investigated in Fe(phen)2(NCS)2 Spin-Crossover Crystal. Acc. Chem. Res. 2015, 48, 774–781. [Google Scholar] [CrossRef] [PubMed]
  13. Trzop, E.; Zhang, D.; Pineiro-Lopez, L.; Valvarde-Munoz, F.J.; Munoz, M.C.; Palatinus, L.; Guerin, L.; Cailleau, H.; Real, J.A.; Collet, E. First Step towards a Devil’s Staircase in Spin-Crossover Materials. Angew. Chem. Int. Ed. 2016, 55, 8675–8679. [Google Scholar] [CrossRef] [PubMed]
  14. Kahn, O.; Martinez, C.J. Spin-transition polymers: From molecular materials toward memory devices. Science 1998, 279, 44–48. [Google Scholar] [CrossRef]
  15. Molnar, G.; Salmon, L.; Nicolazzi, W.; Terki, F.; Bousseksou, A. Emerging properties and applications of spin crossover nanomaterials. J. Mater. Chem. C 2014, 2, 1360–1366. [Google Scholar] [CrossRef]
  16. Gütlich, P.; Link, R.; Steinhäuser, H. Mössbauer-Effect Study of the Thermally Induced Spin Transition in Tris(2-picolylamine)iron(II) Chloride. Dilution Effect in Mixed Crystals of [FexZn1−x(2-pic)3]Cl2·C2H5OH (x = 0.15, 0.0029, 0.0009). Inorg. Chem. 1978, 9, 2509–2514. [Google Scholar] [CrossRef]
  17. Ganguli, P.; Gütlich, P.; Müller, E.W. Effect of metal dilution on the spin-crossover behavior in [FexM1−x(phen)2(NCS)2] (M = Mn, Co, Ni, Zn). Inorg. Chem. 1982, 21, 3429–3433. [Google Scholar] [CrossRef]
  18. Haddad, M.S.; Federer, W.D.; Lynch, M.W.; Hendrickson, D.N. An explanation of unusual properties of spin-crossover ferric complexes. J. Am. Chem. Soc. 1980, 102, 1468–1470. [Google Scholar] [CrossRef]
  19. Martin, J.-P.; Zarembowitch, J.; Bousseksou, A.; Dworkin, A.; Haasnoot, J.G.; Varret, F. Solid State Effects on Spin Transitions: Magnetic, Calorimetric, and Mössbauer-Effect Properties of [FexCo1−x(4,4′-bis-1,2,4-triazole)2(NCS)2]·H2O Mixed-Crystal Compounds. Inorg. Chem. 1994, 33, 6325–6333. [Google Scholar] [CrossRef]
  20. Tayagaki, T.; Galet, A.; Molnar, G.; Munoz, M.C.; Zwick, A.; Tanaka, K.; Real, J.A.; Bousseksou, A. Metal Dilution Effects on the Spin-Crossover Properties of the Three-Dimensional Coordination Polymer Fe(pyrazine)[Pt(CN)4]. J. Phys. Chem. B 2005, 109, 14859–14867. [Google Scholar] [CrossRef] [PubMed]
  21. Krivokapic, I.; Chakraborty, P.; Enachescu, C.; Bronisz, R.; Hauser, A. Low-Spin→High-Spin Relaxation Dynamics in the Highly Diluted Spin-Crossover System [FexZn1−x(bbtr)3](ClO4)2. Inorg. Chem. 2011, 50, 1856–1861. [Google Scholar] [CrossRef] [PubMed]
  22. Chakraborty, P.; Enachescu, C.; Walder, C.; Bronisz, R.; Hauser, A. Thermal and Light-Induced Spin Switching Dynamics in the 2D Coordination Network of {[Zn1−xFex(bbtr)3](ClO4)2}: The Role of Cooperative Effects. Inorg. Chem. 2012, 51, 9714–9722. [Google Scholar] [CrossRef] [PubMed]
  23. Zheng, S.; Siegler, M.-A.; Costa, J.-S.; Fu, W.-T.; Bonnet, S. Effect of Metal Dilution on the Thermal Spin Transition of [FexZn1–x(bapbpy)(NCS)2]. Eur. J. Inorg. Chem. 2013, 2013, 1033–1042. [Google Scholar] [CrossRef]
  24. Paradis, N.; Chastanet, G.; Palamarciuc, T.; Rosa, P.; Varret, F.; Boukheddaden, K.; Létard, J.-F. Detailed Investigation of the Interplay Between the Thermal Decay of the Low Temperature Metastable HS State and the Thermal Hysteresis of Spin-Crossover Solids. J. Phys. Chem. C 2015, 119, 20039–20050. [Google Scholar] [CrossRef]
  25. Baldé, C.; Desplanches, C.; Létard, J.-F.; Chastanet, G. Effects of metal dilution on the spin-crossover behavior and light induced bistability of iron(II) in [FexNi1−x(bpp)2](NCSe)2. Polyhedron 2017, 123, 138–144. [Google Scholar] [CrossRef]
  26. Kahn, O.; Gatteschi, D.; Miller, J.S.; Palacio, F. NATO ARW Molecular Magnetic Materials; Kluwer Academic Publishers: London, UK, 1991. [Google Scholar]
  27. Dunbar, K.R.; Heintz, R.A. Chemistry of Transition Metal Cyanide Compounds: Modern Perspectives. Prog. Inorg. Chem. 1997, 45, 283–391. [Google Scholar] [CrossRef]
  28. Miller, J.S.; Drillon, M. Magnetism–Molecules to Materials; Wilely-VCH: Weinheim, Germany, 2005. [Google Scholar]
  29. Train, C.; Gruselle, M.; Verdaguer, M. The fruitful introduction of chirality and control of absolute configurations in molecular magnets. Chem. Soc. Rev. 2011, 40, 3297–3312. [Google Scholar] [CrossRef] [PubMed]
  30. Ohkoshi, S.; Tokoro, H. Photomagnetism in Cyano-Bridged Bimetal Assemblies. Acc. Chem. Res. 2012, 45, 1749–1758. [Google Scholar] [CrossRef] [PubMed]
  31. Ferlay, S.; Mallah, T.; Ouahès, R.; Veillet, P.; Verdaguer, M. A room-temperature organometallic magnet based on Prussian blue. Nature 1995, 378, 701–703. [Google Scholar] [CrossRef]
  32. Hatlevik, Ø.; Buschmann, W.E.; Zhang, J.; Manson, J.L.; Miller, J.S. Enhancement of the Magnetic Ordering Temperature and Air Stability of a Mixed Valent Vanadium Hexacyanochromate(III) Magnet to 99 °C (372 K). Adv. Mater. 1999, 11, 914–918. [Google Scholar] [CrossRef]
  33. Holmes, S.M.; Girolami, G.S. Sol−Gel Synthesis of KVII[CrIII(CN)6]·2H2O:  A Crystalline Molecule-Based Magnet with a Magnetic Ordering Temperature above 100 °C. J. Am. Chem. Soc. 1999, 121, 5593–5594. [Google Scholar] [CrossRef]
  34. Ohkoshi, S.; Mizuno, M.; Hung, G.J.; Hashimoto, K. Magnetooptical Effects of Room Temperature Molecular-Based Magnetic Films Composed of Vanadium Hexacyanochromates. J. Phys. Chem. B 2000, 104, 9365–9367. [Google Scholar] [CrossRef]
  35. Verdaguer, M.; Bleuzen, A.; Marvaud, V.; Vaissermann, J.; Seuleiman, M.; Desplanches, C.; Scuiller, A.; Train, C.; Garde, R.; Gelly, G.; et al. Molecules to build solids: High TC molecule-based magnets by design and recent revival of cyano complexes chemistry. Coord. Chem. Rev. 1999, 190, 1023–1047. [Google Scholar] [CrossRef]
  36. Ohkoshi, S.; Einaga, Y.; Fujishima, A.; Hashimoto, K. Magnetic properties and optical control of electrochemically prepared iron–chromium polycyanides. J. Electroanal. Chem. 1999, 473, 245–249. [Google Scholar] [CrossRef]
  37. Herrera, J.M.; Marvaud, V.; Verdaguer, M.; Marrot, J.; Kalisz, M.; Mathonière, C. Reversible Photoinduced Magnetic Properties in the Heptanuclear Complex [MoIV(CN)2(CN–CuL)6]8+: A Photomagnetic High-Spin Molecule. Angew. Chem. Int. Ed. 2004, 43, 5468–5471. [Google Scholar] [CrossRef] [PubMed]
  38. Ohkoshi, S.; Tokoro, H.; Hozumi, T.; Zhang, Y.; Hashimoto, K.; Mathonière, C.; Bord, I.; Rombaut, G.; Verelst, M.; Cartier dit Moulin, C.; et al. Photo-induced magnetization in copper octacyanomolybdate. J. Am. Chem. Soc. 2006, 128, 270–277. [Google Scholar] [CrossRef] [PubMed]
  39. Mahfoud, T.; Molnar, G.; Bonhommeau, S.; Cobo, S.; Salmon, L.; Demont, P.; Tokoro, H.; Ohkoshi, S.; Boukheddaden, K.; Bousseksou, A. Electric-Field-Induced Charge-Transfer Phase Transition: A Promising Approach toward Electrically Switchable Devices. J. Am. Chem. Soc. 2009, 131, 15049–15054. [Google Scholar] [CrossRef] [PubMed]
  40. Bleuzen, A.; Marvaud, V.; Mathonière, C.; Sieklucka, B.; Verdaguer, M. Photomagnetism in Clusters and Extended Molecule-Based Magnets. Inorg. Chem. 2009, 48, 3453–3466. [Google Scholar] [CrossRef] [PubMed]
  41. Pajerowski, D.M.; Andrus, M.J.; Gardner, J.E.; Knowles, E.S.; Meisel, M.W.; Talham, D.R. Persistent Photoinduced Magnetism in Heterostructures of Prussian Blue Analogues. J. Am. Chem. Soc. 2010, 132, 4058–4059. [Google Scholar] [CrossRef] [PubMed]
  42. Ozaki, N.; Tokoro, H.; Hamada, Y.; Namai, A.; Matsuda, T.; Kaneko, S.; Ohkoshi, S. Photoinduced magnetization with a high Curie temperature and a large coercive field in a Co–W bimetallic assembly. Adv. Funct. Mater. 2012, 20, 2089–2093. [Google Scholar] [CrossRef]
  43. Ohkoshi, S.; Arimoto, Y.; Hozumi, T.; Seino, H.; Mizobe, Y.; Hashimoto, K. Two-dimensional metamagnet composed of cyano-bridged CuII–WV bimetallic assembly. Chem. Commun. 2003, 22, 2772–2773. [Google Scholar] [CrossRef]
  44. Kato, K.; Moritomo, Y.; Takata, M.; Sakata, M.; Umekawa, M.; Hamada, N.; Ohkoshi, S.; Tokoro, H.; Hashimoto, K. Direct Observation of Charge Transfer in Double-Perovskite-Like RbMn[Fe(CN)6]. Phys. Rev. Lett. 2003, 91, 255502. [Google Scholar] [CrossRef] [PubMed]
  45. Tokoro, H.; Matsuda, T.; Nuida, T.; Moritomo, Y.; Ohoyama, K.; Dangui, E.D.L.; Boukheddaden, K.; Ohkoshi, S. Visible-light-induced reversible photomagnetism in rubidium manganese hexacyanoferrate. Chem. Mater. 2008, 20, 423–428. [Google Scholar] [CrossRef]
  46. Vertelman, E.J.M.; Lummen, T.T.A.; Meetsma, A.; Bouwkamp, M.W.; Molnar, G.; Loosdrecht, P.H.M.; Koningsbruggen, P.J. Light- and Temperature-Induced Electron Transfer in Single Crystals of RbMn[Fe(CN)6] H2O. Chem. Mater. 2008, 20, 1236–1238. [Google Scholar] [CrossRef]
  47. Tokoro, H.; Nakagawa, K.; Imoto, K.; Hakoe, F.; Ohkoshi, S. Zero thermal expansion fluid and oriented film based on a bistable metal-cyanide polymer. Chem. Mater. 2012, 24, 1324–1330. [Google Scholar] [CrossRef]
  48. Kosaka, W.; Nomura, K.; Hashimoto, K.; Ohkoshi, S. Observation of an Fe(II) Spin-Crossover in a Cesium Iron Hexacyanochromate. J. Am. Chem. Soc. 2005, 127, 8590–8591. [Google Scholar] [CrossRef] [PubMed]
  49. Arai, M.; Kosaka, W.; Matsuda, T.; Ohkoshi, S. Observation of an Iron(II) Spin-Crossover in an Iron Octacyanoniobate-Based Magnet. Angew. Chem. Int. Ed. 2008, 47, 6885–6887. [Google Scholar] [CrossRef] [PubMed]
  50. Ohkoshi, S.; Imoto, K.; Tsunobuchi, Y.; Takano, S.; Tokoro, H. Light-induced spin-crossover magnet. Nat. Chem. 2011, 3, 564–569. [Google Scholar] [CrossRef] [PubMed]
  51. Ohkoshi, S.; Takano, S.; Imoto, K.; Yoshikiyo, M.; Namai, A.; Tokoro, H. 90-degree optical switching of output second-harmonic light in chiral photomagnet. Nat. Photonics 2014, 8, 65–71. [Google Scholar] [CrossRef]
  52. Imoto, K.; Takemura, M.; Nakabayashi, K.; Miyamoto, Y.; Orisaku, K.K.; Ohkoshi, S. Syntheses, crystal structures, and magnetic properties of Mn–Nb and Co–Nb cyanido-bridged bimetallic assemblies. Inorg. Chim. Acta 2015, 425, 92–99. [Google Scholar] [CrossRef]
  53. Ohkoshi, S.; Iyoda, T.; Fujishima, A.; Hashimoto, K. Magnetic properties of mixed ferro-ferrimagnets composed of Prussian blue analogs. Phys. Rev. B 1997, 56, 11642–11652. [Google Scholar] [CrossRef]
  54. Ohkoshi, S.; Abe, Y.; Fujishima, A.; Hashimoto, K. Design and Preparation of a Novel Magnet Exhibiting Two Compensation Temperatures Based on Molecular Field Theory. Phys. Rev. Lett. 1999, 82, 1285–1288. [Google Scholar] [CrossRef]
  55. Shannon, R.D. Revised Effective Ionic Radii and Systematic Studies of Interatomic Distances in Halides and Chalcogenides. Acta Cryst. 1976, A32, 751–767. [Google Scholar] [CrossRef]
  56. Herrera, J.M.; Franz, P.; Podgajny, R.; Pilkington, M.; Biner, M.; Decurtins, S.; Stoeckli-Evans, H.; Neels, A.; Garde, R.; Dromzée, Y.; et al. Three-dimensional bimetallic octacyanidometalates [MIV{(μ-CN)4MnII(H2O)2}2·4H2O]n (M = Nb, Mo, W): Synthesis, single-crystal X-ray diffraction and magnetism. Comptes Rendus Chim. 2008, 47, 6885–6887. [Google Scholar] [CrossRef]

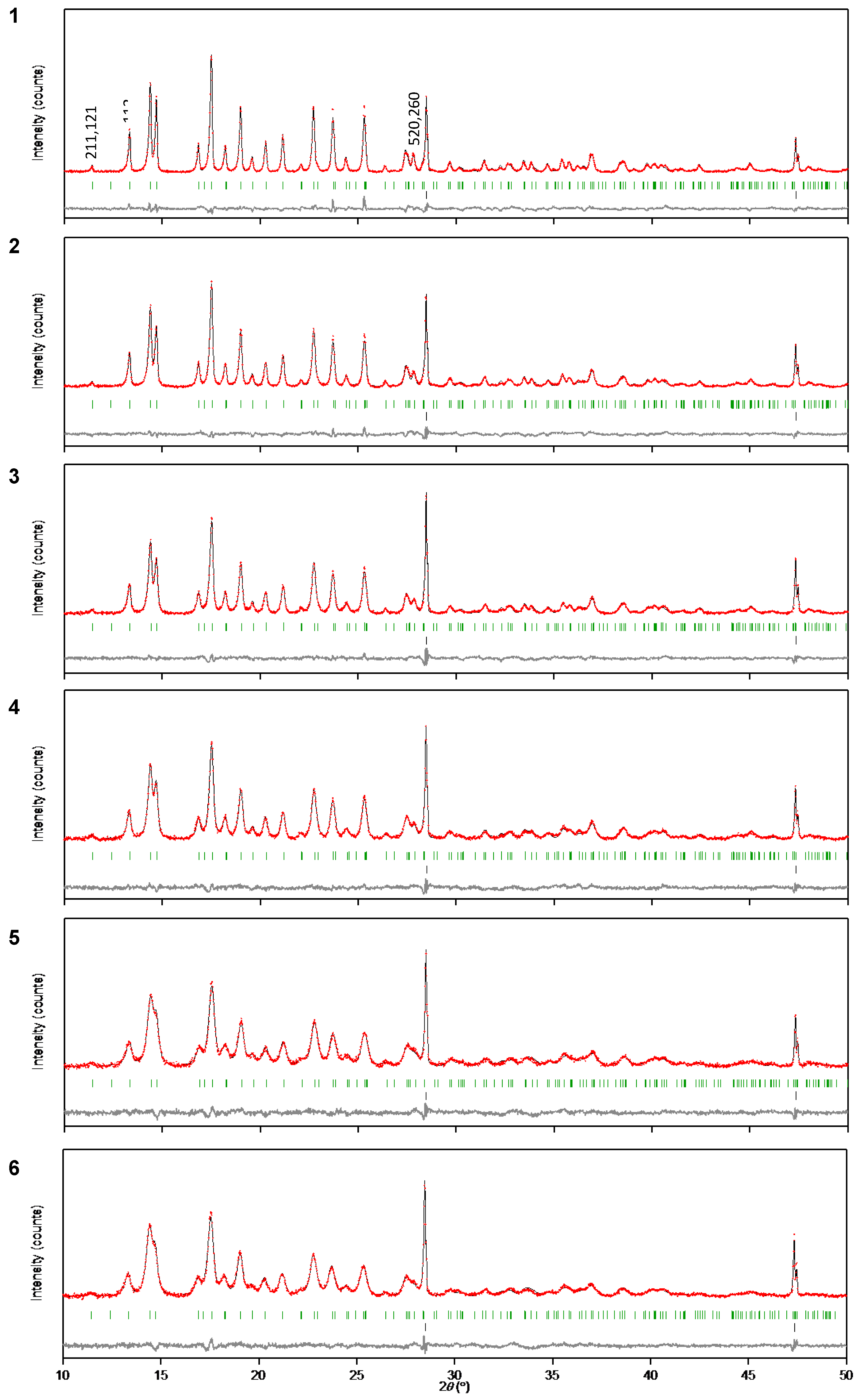

Figure 1. XRD patterns with Rietveld analyses of 16. Red plots, black lines, blue lines, green bars, and black bars are the observed patterns, calculated patterns, residue between the calculated and observed patterns, calculated positions of the Bragg reflections in the sample, and those of the silicon (Si) standard, respectively. The XRD peaks due to Si are shown as black sticks. Representative reflection indexes are shown in the XRD pattern of 1.
Figure 1. XRD patterns with Rietveld analyses of 16. Red plots, black lines, blue lines, green bars, and black bars are the observed patterns, calculated patterns, residue between the calculated and observed patterns, calculated positions of the Bragg reflections in the sample, and those of the silicon (Si) standard, respectively. The XRD peaks due to Si are shown as black sticks. Representative reflection indexes are shown in the XRD pattern of 1.
Inorganics 05 00063 g001
Figure 2. x dependence of (a) the a-axis; (b) the c-axis; and, (c) the unit cell volume (V).
Figure 2. x dependence of (a) the a-axis; (b) the c-axis; and, (c) the unit cell volume (V).
Inorganics 05 00063 g002

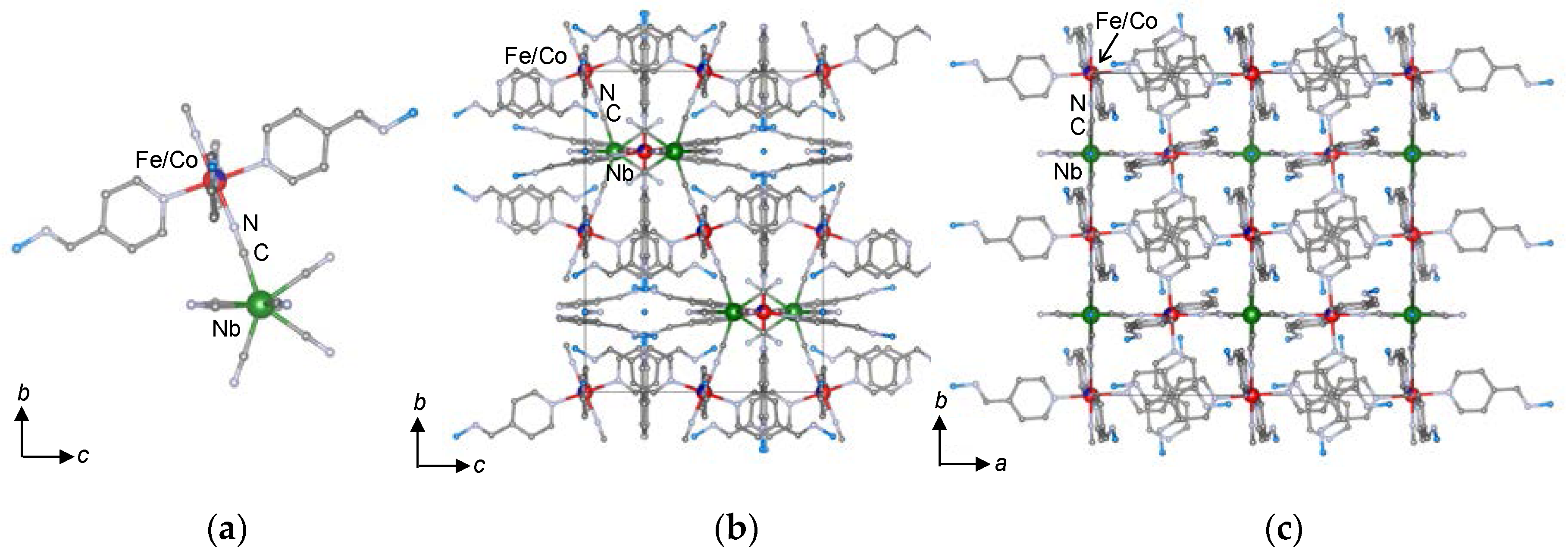

Figure 3. Crystal structure and coordination geometries around the metal centers for 3. (a) Coordination geometry around the metal centers; (b) crystal structure viewed from the a-axis; and, (c) from the c-axis. Water molecules are omitted for clarity.
Figure 3. Crystal structure and coordination geometries around the metal centers for 3. (a) Coordination geometry around the metal centers; (b) crystal structure viewed from the a-axis; and, (c) from the c-axis. Water molecules are omitted for clarity.
Inorganics 05 00063 g003
Figure 4. Infrared spectra of 16 at room temperature for the CN stretching region.
Figure 4. Infrared spectra of 16 at room temperature for the CN stretching region.
Inorganics 05 00063 g004
Figure 5. χMT vs. T plots (a) and ∂(χMT)/∂T vs. T plots (b) of 16.
Figure 5. χMT vs. T plots (a) and ∂(χMT)/∂T vs. T plots (b) of 16.
Inorganics 05 00063 g005

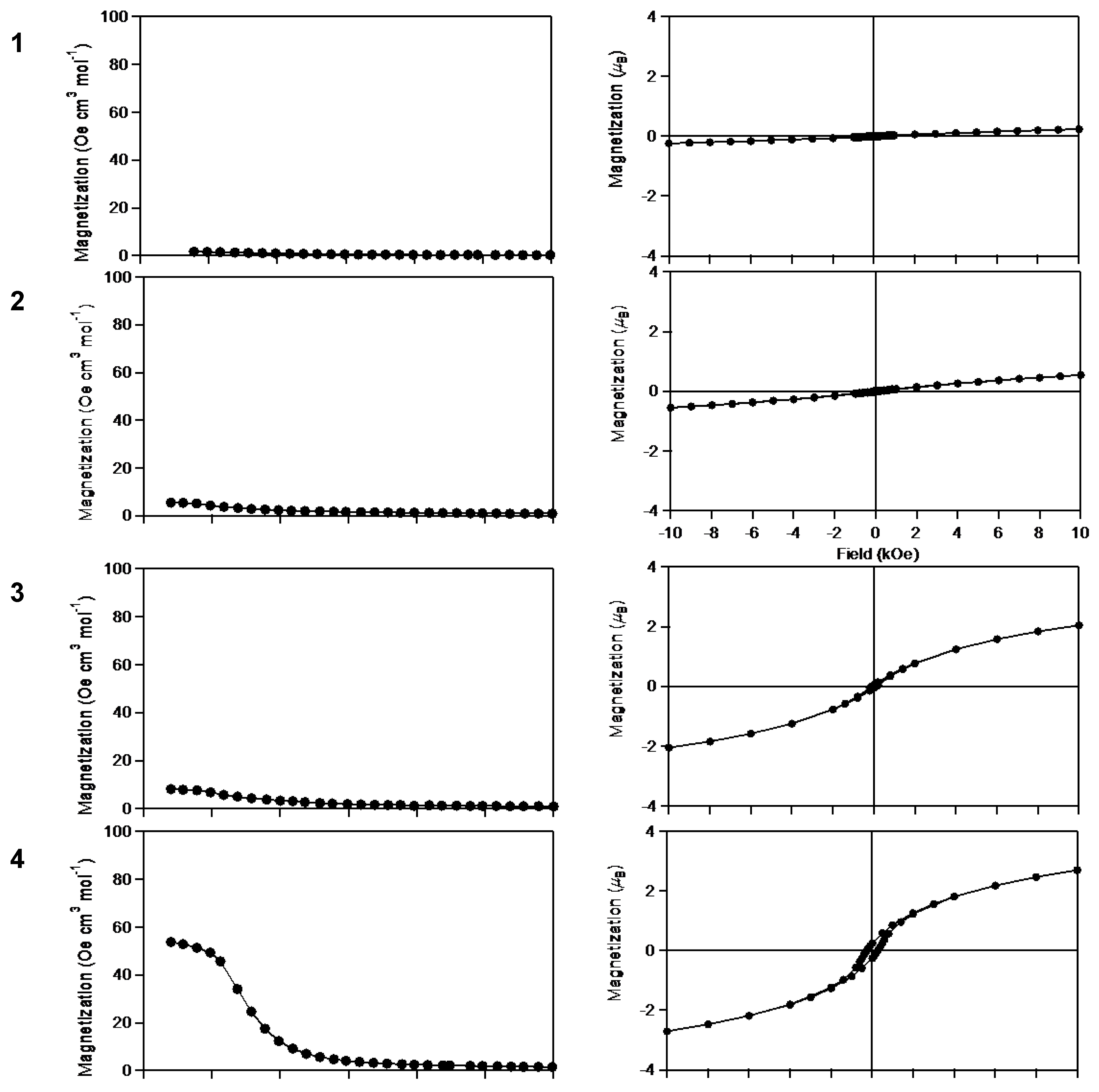

Figure 6. (a) Magnetization vs. temperature plots and (b) magnetization vs. external magnetic field plots of 16.
