# High-Power, Narrow-Linewidth Distributed-Feedback Quantum-Cascade Laser for Molecular Spectroscopy

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Methods

#### 2.1. Manufacturing

#### 2.2. Characterization

## 3. Discussion

## 4. Outlook

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Conflicts of Interest

## Abbreviations

QCL | Quantum Cascade Laser |

FWHM | Full Width Halfg Maximum |

DFB | Distributed Feedback Bragg Reflector |

MOPA | Master Oscillator Power Amplifier |

FNSPD | Frequency Noise Power Spectral Density |

CW | Continuous Wave |

## References

- Faist, J.; Capasso, F.; Sivco, D.L.; Sirtori, C.; Hutchinson, A.L.; Cho, A.Y. Quantum Cascade Laser. Science
**1994**, 264, 553. [Google Scholar] [CrossRef] [PubMed] - Santagata, R.; Tran, D.B.A.; Argence, B.; Lopez, O.; Tokunaga, S.K.; Wiotte, F.; Mouhamad, H.; Goncharov, A.; Abgrall, M.; Coq, Y.L.; et al. High-precision methanol spectroscopy with a widely tunable SI-traceable frequency-comb-based mid-infrared QCL. Optica
**2019**, 6, 411. [Google Scholar] [CrossRef] - Genner, A.; Martín-Mateos, P.; Moser, H.; Lendl, B. A Quantum Cascade Laser-Based Multi-Gas Sensor for Ambient Air Monitoring. Sensors
**2020**, 20, 1850. [Google Scholar] [CrossRef] [PubMed] - Krötz, P.; Stupar, D.; Krieg, J.; Sonnabend, G.; Sornig, M.; Giorgetta, F.; Baumann, E.; Giovannini, M.; Hoyler, N.; Hofstetter, D.; et al. Applications for quantum cascade lasers and detectors in mid-infrared high-resolution heterodyne astronom. Appl. Phys. B
**2008**, 90, 187. [Google Scholar] [CrossRef] - Germann, M.; Tong, X.; Willitsch, S. Observation of electric-dipole-forbidden infrared transitions in cold molecular ions. Nat. Phys.
**2014**, 10, 820. [Google Scholar] [CrossRef] - Argence, B.; Chanteau, B.; Lopez, O.; Nicolodi, D.; Abgrall, M.; Chardonnet, C.; Daussy, C.; Darquié, B.; Le Coq, Y.; Amy-Klein, A. Quantum cascade laser frequency stabilization at the sub-Hz level. Nat. Photonics
**2015**, 9, 456. [Google Scholar] [CrossRef] - Myers, T.L.; Williams, R.M.; Taubman, M.S.; Gmachl, C.; Capasso, F.; Sivco, D.L.; Baillargeon, J.N.; Cho, A.Y. Free-running frequency stability of mid-infrared quantum cascade lasers. Opt. Lett.
**2002**, 27, 170. [Google Scholar] [CrossRef] - Tombez, L.; Francesco, J.D.; Schilt, S.; Domenico, G.D.; Faist, J.; Thomann, P.; Hofstetter, D. Frequency noise of free-running 4.6 μm distributed feedback quantum cascade lasers near room temperature. Opt. Lett.
**2011**, 36, 3109. [Google Scholar] [CrossRef] - Razeghi, M.; Slivken, S.; Bai, Y.; Gokden, B.; Darvish, S.R. High power quantum cascade lasers. New J. Phys.
**2009**, 11, 125017. [Google Scholar] [CrossRef] - Bai, Y.; Bandyopadhyay, N.; Tsao, S.; Slivken, S.; Razeghi, M. Room temperature quantum cascade lasers with 27% wall plug efficiency. Appl. Phys. Lett.
**2011**, 98, 181102. [Google Scholar] [CrossRef] - Lyakh, A.; Maulini, R.; Tsekoun, A.; Go, R.; Patel, C.K.N. Multiwatt long wavelength quantum cascade lasers based on high strain composition with 70% injection efficiency. Opt. Express
**2012**, 20, 24272. [Google Scholar] [CrossRef] - Schawlow, A.L.; Townes, C.H. Infrared and Optical Masers. Phys. Rev.
**1958**, 112, 1940. [Google Scholar] [CrossRef] - Henry, C. Theory of the linewidth of semiconductor lasers. IEEE J. Quantum Electron.
**1982**, 18, 259. [Google Scholar] [CrossRef] - Aellen, T.; Maulini, R.; Terazzi, R.; Hoyler, N.; Giovannini, M.; Faist, J.; Blaser, S.; Hvozdara, L. Direct measurement of the linewidth enhancement factor by optical heterodyning of an amplitude-modulated quantum cascade laser. Appl. Phys. Lett.
**2006**, 89, 091121. [Google Scholar] [CrossRef] - Hangauer, A.; Wysocki, G. Gain Compression and Linewidth Enhancement Factor in Mid-IR Quantum Cascade Lasers. IEEE J. Sel. Top. Quantum Electron.
**2015**, 21, 74–84. [Google Scholar] [CrossRef] - Bartalini, S.; Borri, S.; Cancio, P.; Castrillo, A.; Galli, I.; Giusfredi, G.; Mazzotti, D.; Gianfrani, L.; De Natale, P. Observing the Intrinsic Linewidth of a Quantum-Cascade Laser: Beyond the Schawlow-Townes Limit. Phys. Rev. Lett.
**2010**, 104, 083904. [Google Scholar] [CrossRef] - Yamanishi, M.; Edamura, T.; Fujita, K.; Akikusa, N.; Kan, H. Theory of the Intrinsic Linewidth of Quantum-Cascade Lasers: Hidden Reason for the Narrow Linewidth and Line-Broadening by Thermal Photons. IEEE J. Quantum Electron.
**2008**, 44, 12. [Google Scholar] [CrossRef] - Najafian, K.; Meir, Z.; Willitsch, S. From megahertz to terahertz qubits encoded in molecular ions: Theoretical analysis of dipole-forbidden spectroscopic transitions in N
_{2}^{+}. Phys. Chem. Chem. Phys.**2020**, 22, 23083. [Google Scholar] [CrossRef] - Menzel, S.; Diehl, L.; Pflügl, C.; Goyal, A.; Wang, C.; Sanchez, A.; Turner, G.; Capasso, F. Quantum cascade laser master-oscillator power-amplifier with 1.5 W output power at 300 K. Opt. Express
**2011**, 19, 16229–16235. [Google Scholar] [CrossRef] - Hinkov, B.; Beck, M.; Gini, E.; Faist, J. Quantum cascade laser in a master oscillator power amplifier configuration with Watt-level optical output power. Opt. Express
**2013**, 21, 19180. [Google Scholar] [CrossRef] - Faist, J.; Hofstetter, D.; Beck, M.; Aellen, T.; Rochat, M.; Blaser, S. Bound-to-continuum and two-phonon resonance, quantum-cascade lasers for high duty cycle, high-temperature operation. IEEE J. Quantum Electron.
**2002**, 38, 533–546. [Google Scholar] [CrossRef] - Beck, M.; Faist, J.; Oesterle, U.; Ilegems, M.; Gini, E.; Melchior, H. Buried heterostructure quantum cascade lasers with a large optical cavity waveguide. IEEE Photonics Technol. Lett.
**2000**, 12, 1450–1452. [Google Scholar] [CrossRef] - Süess, M.J.; Peretti, R.; Liang, Y.; Wolf, J.M.; Bonzon, C.; Hinkov, B.; Nida, S.; Jouy, P.; Metaferia, W.; Lourdudoss, S.; et al. Advanced Fabrication of Single-Mode and Multi-Wavelength MIR-QCLs. Photonics
**2016**, 3, 26. [Google Scholar] [CrossRef] - Bertrand, M.; Franckié, M.; Forrer, A.; Faist, J. 2022; unpublished.
- Okoshi, T.; Kikuchi, K.; Nakayama, A. Novel method for high resolution measurement of laser output spectrum. Electron. Lett.
**1980**, 16, 630. [Google Scholar] [CrossRef] - Ludvigsen, H.; Tossavainen, M.; Kaivola, M. Laser linewidth measurements using self-homodyne detection with short delay. Opt. Commun.
**1998**, 155, 180. [Google Scholar] [CrossRef] - Baney, D.M.; Sorin, W.V. Fiber Optic Test and Measurement; Chapter 13; Prentice-Hall: Hoboken, NJ, USA, 1998. [Google Scholar]
- Bucalovic, N.; Dolgovskiy, V.; Schori, C.; Thomann, P.; Domenico, G.D.; Schilt, S. Experimental validation of a simple approximation to determine the linewidth of a laser from its frequency noise spectrum. Appl. Opt.
**2012**, 51, 4582. [Google Scholar] [CrossRef] [PubMed] - Domenico, G.D.; Schilt, S.; Thomann, P. Simple approach to the relation between laser frequency noise and laser line shape. Appl. Opt.
**2010**, 49, 4801. [Google Scholar] [CrossRef] - Gordon, I.; Rothman, L.; Hargreaves, R.; Hashemi, R.; Karlovets, E.; Skinner, F.; Conway, E.; Hill, C.; Kochanov, R.; Tan, Y.; et al. The HITRAN2020 molecular spectroscopic database. J. Quant. Spectrosc. Radiat. Transf.
**2022**, 277, 107949. [Google Scholar] [CrossRef] - Borri, S.; Bartalini, S.; Pastor, P.C.; Galli, I.; Giusfredi, G.; Mazzotti, D.; Yamanishi, M.; De Natale, P. Frequency-Noise Dynamics of Mid-Infrared Quantum Cascade Lasers. IEEE J. Quantum Electron.
**2011**, 47, 984. [Google Scholar] [CrossRef] - Sergachev, I.; Maulini, R.; Gresch, T.; Blaser, S.; Bismuto, A.; Müller, A.; Bidaux, Y.; Südmeyer, T.; Schilt, S. Frequency stability of a dual wavelength quantum cascade laser. Opt. Express
**2017**, 25, 11027. [Google Scholar] [CrossRef] - Bartalini, S.; Borri, S.; Galli, I.; Giusfredi, G.; Mazzotti, D.; Edamura, T.; Akikusa, N.; Yamanishi, M.; Natale, P.D. Measuring frequency noise and intrinsic linewidth of a room-temperature DFB quantum cascade laser. Opt. Express
**2011**, 19, 17996. [Google Scholar] [CrossRef] [PubMed] - Tombez, L.; Schilt, S.; Francesco, J.D.; Thomann, P.; Hofstetter, D. Temperature dependence of the frequency noise in a mid-IR DFB quantum cascade laser from cryogenic to room temperature. Opt. Express
**2012**, 20, 6851. [Google Scholar] [CrossRef] [PubMed] - Cappelli, F.; Galli, I.; Borri, S.; Giusfredi, G.; Cancio, P.; Mazzotti, D.; Montori, A.; Akikusa, N.; Yamanishi, M.; Bartalini, S.; et al. Subkilohertz linewidth room-temperature mid-infrared quantum cascade laser using a molecular sub-Doppler reference. Opt. Lett.
**2012**, 37, 4811. [Google Scholar] [CrossRef] [PubMed] - Borri, S.; Galli, I.; Cappelli, F.; Bismuto, A.; Bartalini, S.; Cancio, P.; Giusfredi, G.; Mazzotti, D.; Faist, J.; Natale, P.D. Direct link of a mid-infrared QCL to a frequency comb by optical injection. Opt. Lett.
**2012**, 37, 1011. [Google Scholar] [CrossRef] - Tombez, L.; Schilt, S.; Hofstetter, D.; Südmeyer, T. Active linewidth-narrowing of a mid-infrared quantum cascade laser without optical reference. Opt. Lett.
**2013**, 38, 5079. [Google Scholar] [CrossRef] - Sergachev, I.; Maulini, R.; Bismuto, A.; Blaser, S.; Gresch, T.; Bidaux, Y.; Müller, A.; Schilt, S.; Südmeyer, T. All-electrical frequency noise reduction and linewidth narrowing in quantum cascade lasers. Opt. Lett.
**2014**, 39, 6411. [Google Scholar] [CrossRef] - Fasci, E.; Coluccelli, N.; Cassinerio, M.; Gambetta, A.; Hilico, L.; Gianfrani, L.; Laporta, P.; Castrillo, A.; Galzerano, G. Narrow-linewidth quantum cascade laser at 8.6 μm. Opt. Lett.
**2014**, 39, 4946. [Google Scholar] [CrossRef]

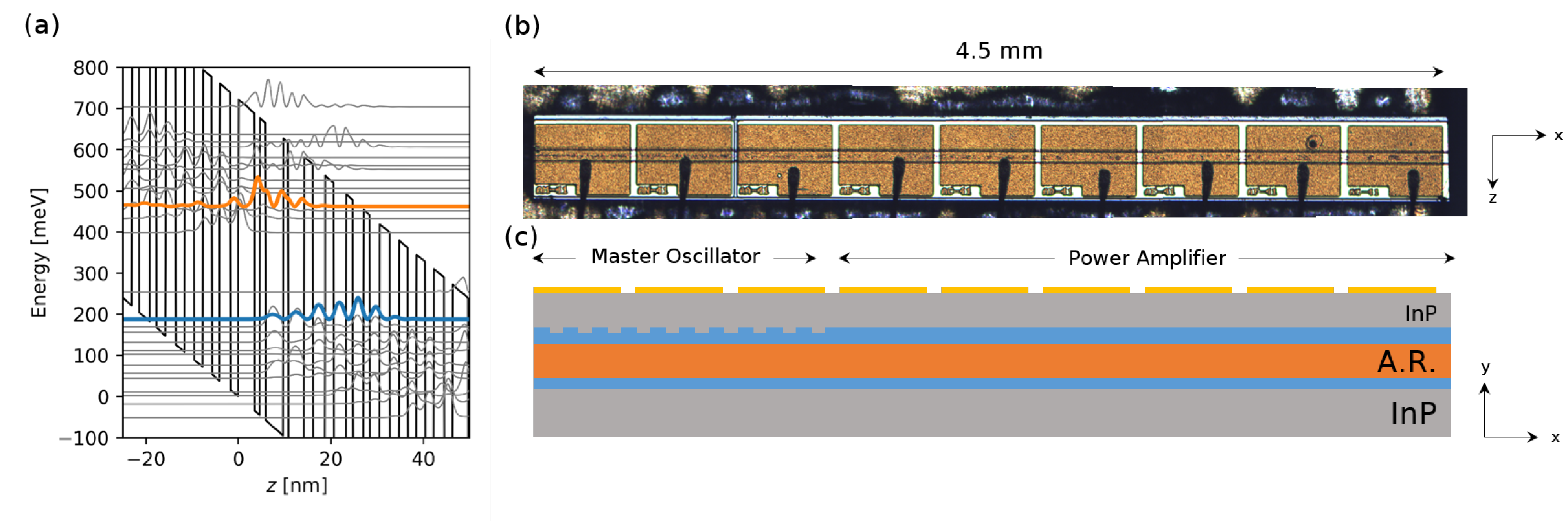

**Figure 1.**(

**a**) One period of the QCL active region together with the computed wavefunctions (grey). The wavefunctions of the upper and lower level of the lasing transitions occurring in this device are highlighted in orange and blue, respectively. (

**b**) Top-view photograph of the device. (

**c**) Schematic (not to scale) of the cross section of the device where the active region (AR), guiding layer, top-contact and InP are respectively colored in orange, blue, gold, and grey.

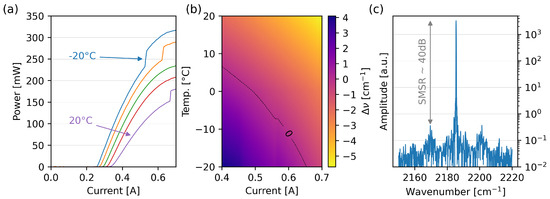

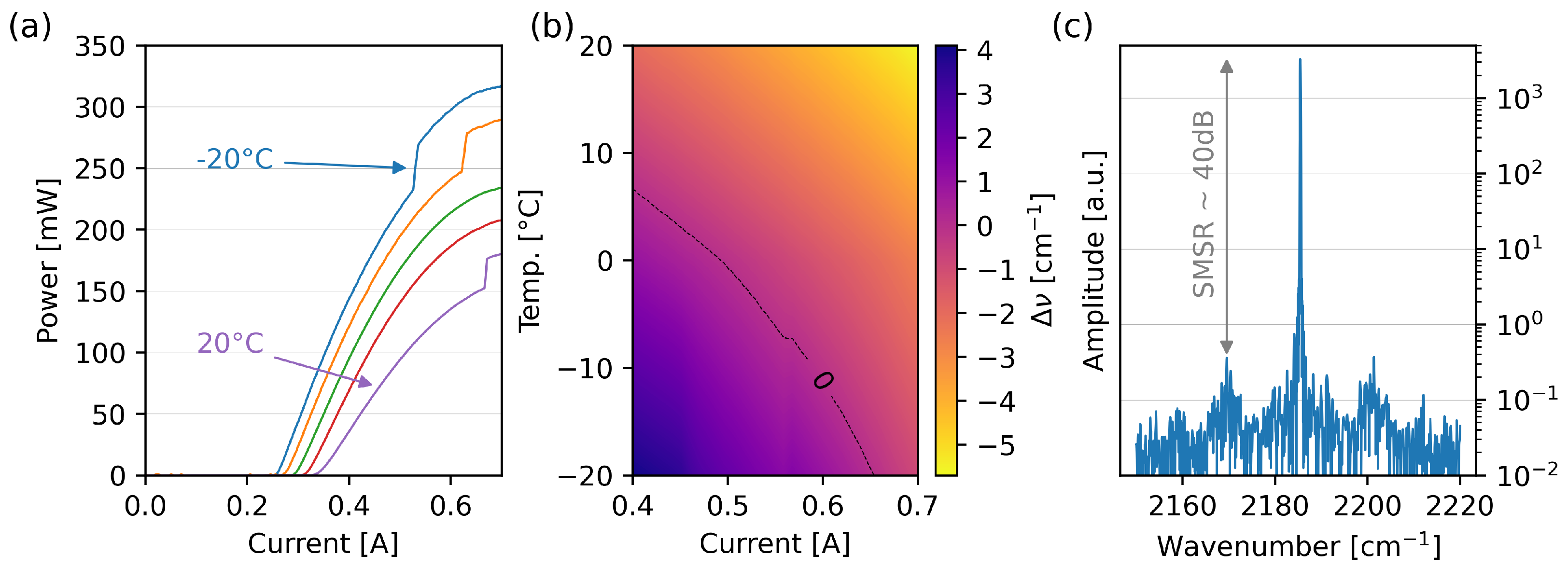

**Figure 2.**(

**a**) Light–current (L-I) curves of the present QCL for temperatures between −20 °C and 20 °C in increments of 10 °C. (

**b**) Spectral tunability map of the device as a function of current and temperature. The color map indicates the wavenumber difference to a reference spectroscopic transition in N${}_{2}$O at 2185.53 cm${}^{-1}$ represented by the dashed line. (

**c**) Spectrum recorded for a temperature of −20 °C and a current of 650 mA showing a side-mode-suppression ratio (SMSR) of ∼40 dB.

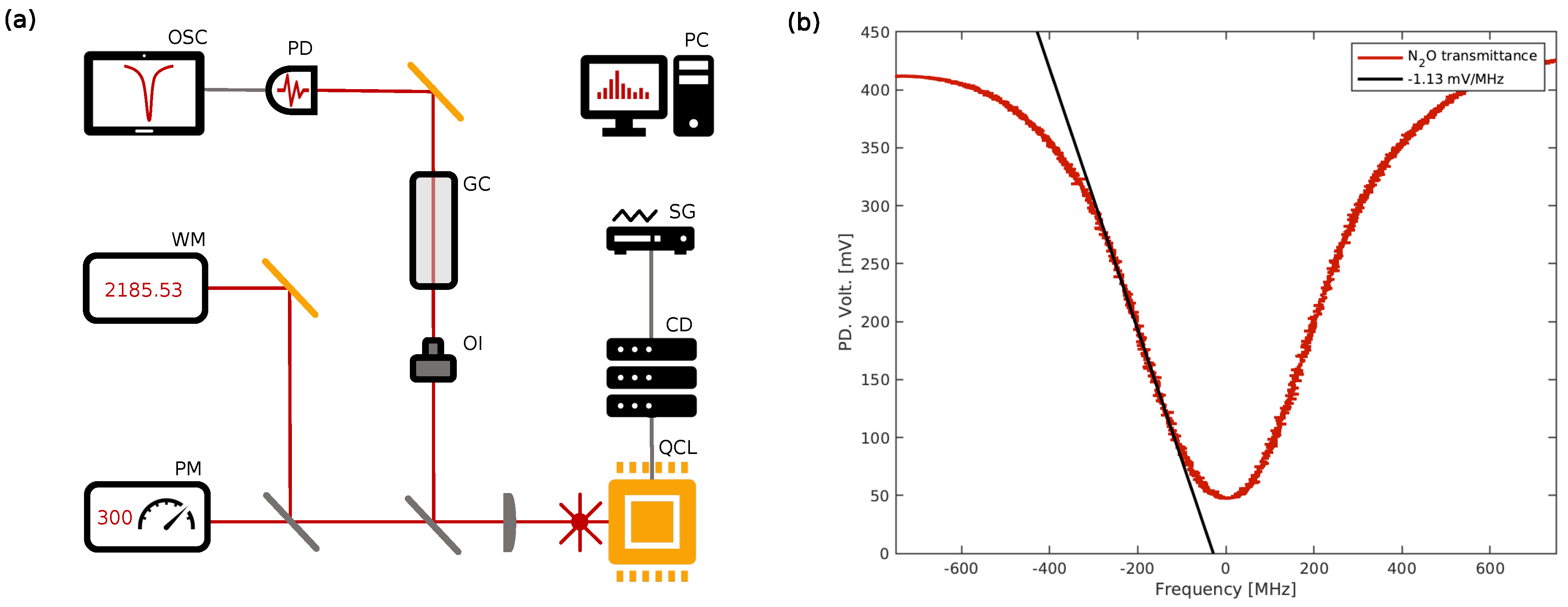

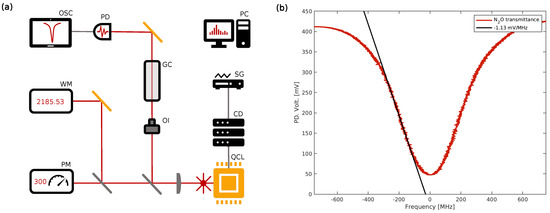

**Figure 3.**(

**a**) Schematic of the experimental setup for characterizing the laser linewidth. The QCL was controlled by a current driver (CD) which was modulated by a triangular waveform from a signal generator (SG). Radiation from the QCL passed through an optical isolator (OI) and a gas cell (GC) filled with N${}_{2}$O. The transmitted laser intensity was measured on an infrared-sensitive HgCdTe photodetector (PD) allowing the observation of absorption lines of N${}_{2}$O on an oscilloscope (OSC). A part of the laser light was split off and diverted to a wavemeter (WM) and a powermeter (PM). A computer (PC) controlled the experiment and was used to compute the FNPSD. (

**b**) Transmittance signal as a function of the frequency detuning from the laser set point of 2185.53 cm${}^{-1}$. The fit of a straight line to the linear region of the slope of the absorption line (black) yields a signal-to-frequency transfer factor of 1.13 mV/MHz.

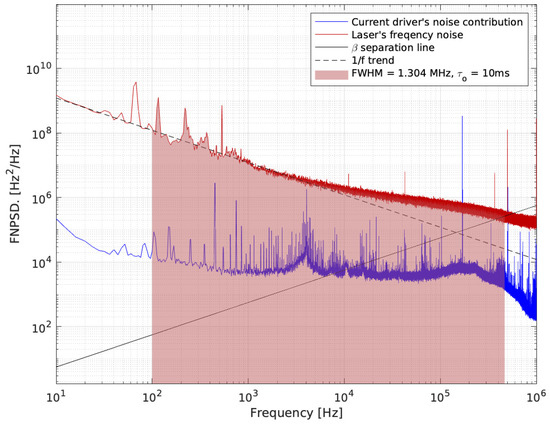

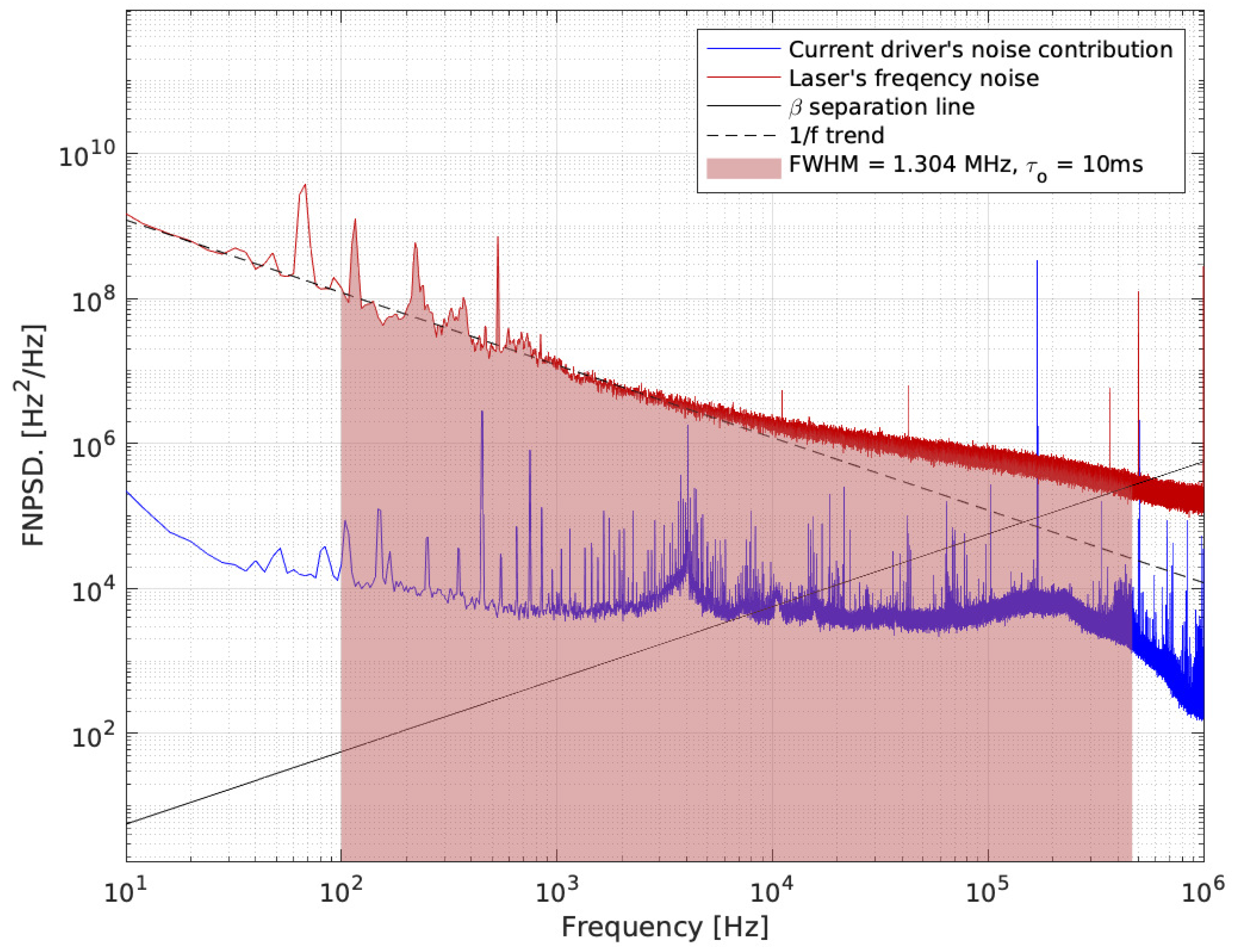

**Figure 4.**The frequency noise power spectral density (FNPSD) of the laser (red trace) follows an 1/f trend up to 2 kHz. The contribution of the current driver (blue trace) to the frequency noise is negligible. The FNPSD of the laser is crossed by the beta separation line at 467 kHz resulting in a laser linewidth equal to 1.3 MHz for an observation time $\tau $${}_{o}$ = 10 ms. The operation current and temperature of the laser were set to 650 mA and −20 ºC during the FNPSD measurment.

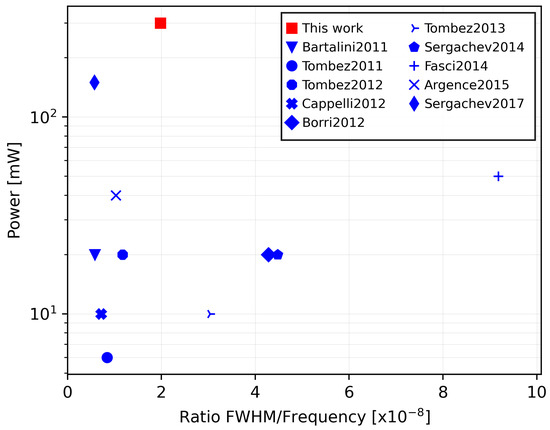

**Figure 5.**Maximum output powers as a function of the ratio of the FWHM with the emitted frequency of free-running narrow linewidth QCLs reported since 2010.

**Table 1.**Maximum output powers, free-running linewidths (full width at half maximum, FWHM), observation times and central wavelengths (WL) of free-running narrow linewidth QCLs reported in the literature since 2010.

Current State of the Art | |||||
---|---|---|---|---|---|

Pow. [mW] | FWHM [kHz] | Obs. Time [ms] | WL [$\mathsf{\mu}$m] | Author | Ref. |

>300 | 1300 | 10 | 4.56 | Bertrand 2022 | this work |

20 | 400 | 10 | 4.36 | Bartalini 2011 | [33] |

6 | 550 | 5 | 4.6 | Tombez 2011 | [8] |

20 | 770 | 10 | 4.56 | Tombez 2012 | [34] |

10 | 500 | 1 | 4.3 | Cappelli 2012 | [35] |

20 | 2750 | 50 | 4.67 | Borri 2012 | [36] |

10 | 2000 | 10 | 4.55 | Tombez 2013 | [37] |

20 | 1700 | 10 | 7.9 | Sergachev 2014 | [38] |

50 | 3200 | 1 | 8.6 | Fasci 2014 | [39] |

40 | 300 | 1000 | 10.3 | Argence 2015 | [6] |

150 | 380 | 1 | 4.5 | Sergachev 2017 | [32] |
