A Band-Switchable and Tunable THz Metamaterial Based on an Etched Vanadium Dioxide Thin Film

1
Terahertz Basic Research Section, Electronics and Telecommunications Research Institute (ETRI), Daejeon 34129, Korea
2
Future & Basic Technology Research Division, Electronics and Telecommunications Research Institute (ETRI), Daejeon 34129, Korea
3
Department of IT Convergence Engineering, Sahmyook University, Seoul 01795, Korea
*
Author to whom correspondence should be addressed.
Photonics 2022, 9(2), 89; https://doi.org/10.3390/photonics9020089
Submission received: 13 January 2022 / Revised: 27 January 2022 / Accepted: 31 January 2022 / Published: 2 February 2022

Abstract

:
A band-switchable and tunable terahertz (THz) metamaterial based on a vanadium dioxide (VO2) thin film was proposed in the THz frequency regime. The VO2 thin film with a high conductivity change rate and smooth phase transition characteristics was deposited. To obtain band switching characteristics and reduce THz wave loss, the VO2 thin film was etched in the form of a line. Two rectangular C-shaped resonators were configured to face each other, with an etched VO2 thin film line in between. When the VO2 thin film was in the insulator phase, the two resonators individually resonated, and when the VO2 thin film was in the metal phase, they were connected and resonated as one, showing band switching characteristics. According to the state of the VO2 thin film, the fabricated metamaterial resonated at 1.29 THz when the two resonators were electrically separated and resonated at 0.65 THz when the two resonators were electrically connected. In the band-switching process, the THz wave transmission characteristics were continuously tunable. The measurement results of the proposed structure clearly showed that the rectangular C-shaped metamaterial based on the etched VO2 thin film is capable of band switching and continuous transmission control. In the near future, band-switchable and tunable THz metamaterials based on etched VO2 thin films can be employed as key devices in THz wave 6G wireless communication technology.

1. Introduction

Terahertz (THz) technology has received considerable interest because of its potential application in various fields such as wireless communications, spectroscopy, imaging, and sensing [1,2,3,4]. Recently, many studies have been conducted on the THz frequency band for applications involving 6G broadband wireless communication technology [5,6,7,8]. To activate THz wireless communication technology, it is essential to develop various THz devices. Additionally, it is very important to develop a THz device capable of controlling the electromagnetic wave response characteristics for increasing the usability of the THz system. However, the electromagnetic properties of most natural materials are not suitable for use in the THz frequency band, thereby delaying the development of THz devices.
Metamaterials have received significant attention owing to their unique responses for manipulating electromagnetic resonances that are not normally found in natural materials [9,10,11,12]. The response of metamaterials to electromagnetic waves is determined by the structure of the metal resonator wherein the unit cell has a periodic pattern, which is smaller than the wavelength of the wave [13,14]. The resonance of metamaterials can be controlled by changing the dielectric properties of metamaterial substrates. The controllable resonance of artificially designed metamaterials can provide an opportunity to realize novel THz devices for various THz applications. Many studies have been reported on the implementation of tunable properties of THz metamaterials using semiconductors, graphene, liquid crystals, superconductors, and variable functional materials [15,16,17,18,19,20]. Vanadium dioxide (VO2) belongs to the category of 3d1 transition metal oxides, and it exhibits an insulator–metal phase transition at a critical temperature of 340 K. The dielectric properties of the VO2 thin film-based metamaterial substrate can be controlled by the phase transition of the VO2 thin film, thereby controlling the resonance properties of the metamaterial. It is a viable candidate for the development of THz tunable devices because it provides superior modulation and switching characteristics in the wideband THz region, owing to the rapid generation characteristics of free carriers undergoing a phase transition. Tunable metamaterials based on VO2 offer a promising approach to manipulating THz waves due to their ease of fabrication and high tunability [21,22,23,24,25]. However, the VO2 thin film-based variable metamaterial is difficult to implement band-changing characteristics when the device is constructed using the entire VO2 thin film, and transmission loss is relatively large. In this study, we propose a band-switchable and tunable THz metamaterial based on VO2 thin films. To secure the band switching characteristics, a facing rectangular C-shaped resonator was employed, and the VO2 thin film was etched in the form of a line only in the gap between the facing resonators. Specifically, THz VO2 thin films were grown with smooth phase transition properties and high rates of change for band switching and continuously tunable metamaterial applications. The proposed etched VO2-based THz metamaterial exhibited a band switching characteristic while continuously changing its transmittance characteristics.

2. Materials

It is important to grow a vanadium dioxide (VO2) thin film that satisfies the drastic change in electrical conductivity of more than 1000 times in the vicinity of the phase transition temperature and gradual critical temperature regime for enhancing continuous usability as a device for applications in the THz frequency range. Therefore, the ion-reactive RF sputtering method, which is suitable for the Volmer–Weber (VW: island formation) thin-film mode, was adopted to grow a film composed of high-quality, single-phase VO2 domains with a size of several tens of nanometers.
Specifically, VO2 thin films prepared on Al2O3 (0001) substrates were prepared by ion reactive radio-frequency (RF) sputtering. During the growth process, a high-purity vanadium metal (3-inch, >99.99%) was employed as a sputtering target, and an RF power of 100 W was biased to a sputtering gun (AJA International, Inc., North Scituate, MA, USA) for 20 min. The double-side polished α-Al2O3 (0001) substrate temperature was maintained at 550 °C, with an operating pressure of 5 × 10−2 Torr. The Ar/O2 mixed gas was maintained at a flow rate of each gas at 30 SCCM and 0.3 SCCM, respectively, within the chamber. Immediately after the sputtering process, the grown films were spontaneously cooled to room temperature.
As shown in Figure 1a, the atomic spatial arrangement of VO2 films, reconstructed onto Al2O3 (0001), was investigated via ω-2θ scan and ϕ scan using X-ray diffraction (XRD) (Rigaku, D/MAX-2500 diffractometer). Specifically, Cu Kα radiation (λ ≈ 1.54 Å) was used to produce X-rays. Based on the sharp and symmetric diffraction peaks in XRD, a high-quality VO2 thin film was well grown on Al2O3, and the crystallographic epitaxial alignments were determined as VO2 [010]||Al2O3 [001] (out-of-plane) and VO2 [100] or [001]||Al2O3 {110} (in-plane).
To investigate the effect of electrical transport on the phase transition properties of the VO2 film, the temperature dependence of the electrical resistivity of the film was investigated using the conventional four-probe method with a heating rate of 2 K/min in the range of 300–380 K under a pressure of 10−3 Torr. Figure 1b shows the abrupt drop in Δρ (ρ300K370k) ≈ 3.6 × 103 in electrical resistivity near the transition temperature of 345 K, which is defined as the apex of dlog(ρ)/dT (inset of Figure 1b).

3. Design and Simulation

To effectively control the resonance characteristics of metamaterials using the VO2 thin film, two facing rectangular C-shaped resonators were adopted for the unit cell. The VO2 thin film was etched to place the VO2 thin film only under the two gaps between the facing resonators, which significantly affected the resonant properties of the metamaterial. By etching the VO2 thin film, it is possible to control and switch the resonance band of the metamaterial by changing the conductivity of the VO2 thin film. Figure 2 shows the unit-cell structure of a band-switchable and tunable THz metamaterial in the form of two facing rectangular C-shaped resonators based on an etched VO2 thin film. The VO2 thin film exhibiting insulator–metal phase transition characteristics was etched in a line shape and placed in two gaps between the facing resonators. This device exhibited a structure in which two rectangular C-shaped metal line resonators face each other and are connected to the etched line-shaped VO2 thin film. The width of the VO2 line was designed as slightly larger than the gaps between the facing resonators, to ensure a clear contact between the rectangular C-shaped metal line and VO2 thin film. When the line-shaped VO2 thin film is in the insulator phase, the two rectangular C-shaped resonators are electrically separated, thereby showing intrinsic resonance characteristics of the rectangular C-shaped resonators. Conversely, when the VO2 thin film is in a metal phase, two resonators are electrically connected to form one resonator, and thus, new resonance characteristics are exhibited.
The unit cell of the metamaterial had a square structure, and the period length (cell_w and cell_h) was 60 μm. The vertical length (L) of the rectangular C-shaped resonator was 50 μm, and the horizontal length of the two rectangular C-shaped resonators connected with the width of the etched VO2 thin film line was 50 μm, which was the same as the vertical length. For stable contact between the resonators and thin film, the gap of the rectangular C-shaped resonator was set to 5 μm, and the width of the VO2 thin film line was set to 10 μm. To easily implement with general photolithography technology, the width of the metal line forming the metamaterial was set to 5 μm. The proposed metamaterial exhibits different transmission characteristics based on the polarization state of the incident THz electric field. As shown in Figure 2, mode 1 implies that the polarization of the electric field is parallel to the etched VO2 thin film line, and mode 2 implies that the polarization is perpendicular to the line. The proposed THz metamaterial was simulated using ANSYS HFSS electromagnetic wave simulator. The dielectric properties of the VO2 thin film are dependent on the change in the conductivity of the thin film, and the conductivity of the VO2 thin film changes with temperature. To simulate the change in the THz electromagnetic properties of the band-switchable and tunable metamaterial composed of the etched VO2 thin film, the change in VO2 conductivity based on the temperature was set in the range of 100–1,000,000 S/m. Additionally, the permittivity and dielectric loss tangent of the VO2 thin film were fixed to 9.1 and 0, respectively, and the frequency dependence of the material was not considered. Table 1 shows the detailed material constants used in the simulation.
The transmittance levels of the proposed metamaterial operating in modes 1 and 2 are shown in Figure 3. In the case of mode 1, resonance occurs predominantly due to the vertical structure length of the two facing rectangular C-shaped resonator structures because the direction of the incident THz electric field is the same as the direction of the etched VO2 thin film line pattern. This resonance appears in the 0.7 THz band, as shown in Figure 3a. As the conductivity of the VO2 thin film increases, the quality factor (Q factor) of the THz metamaterial decreases, and the resonance strength of the metamaterial is weakened. When the conductivity of the VO2 thin film exceeds 50,000 S/m, and the VO2 thin film changes from an insulator to a metallic phase, the overall transmittance characteristics of the metamaterial deteriorate. Additionally, the resonance at low frequencies is strengthened by the long length of the metallic VO2 line.
As shown in Figure 3b, in the case of mode 2, the direction of the incident THz electric field is perpendicular to the direction of the etched VO2 thin film line pattern, thereby leading to fundamental resonance in the horizontal structure of the C-shaped resonator. Therefore, when the VO2 thin film is in the insulator phase, the fundamental resonance of mode 2 occurs in the 1.4 THz band, which is approximately twice the frequency band of the fundamental resonance of mode 1. This is because the metamaterial of the two rectangular C-shaped resonators facing each other with the etched VO2 thin film exhibit a square structure. Hence, the resonance due to the vertical-versus-horizontal structure of the rectangular C-shaped resonator leads to a double frequency difference. During the phase transition of the VO2 film from insulator to metal, the quality factor and resonance strength of THz metamaterials gradually decrease as the conductivity of the VO2 film increases from 100 S/m to 25,000 S/m. As the conductivity of the VO2 thin film increases to more than 25,000 S/m, the quality factor and resonance strength of metamaterials gradually increase again, and the 1.4 THz fundamental resonance is switched to a new 0.7 THz resonance. The VO2 thin film in the metal phase electrically connects the two rectangular C-shaped resonators via the phase transition of the VO2 thin film, thereby resulting in a resonance similar to the resonance due to the vertical structure of the C-shaped resonator generated in mode 1. It can be confirmed that the resonance of the proposed metamaterial can be gradually tuned, and the resonance band can be switched via the insulator–metal phase transition of the VO2 thin film. In the process of changing the VO2 thin film from an insulator phase to a metal phase, the transmittance of the metamaterial changed from 82.5% to 4.0% in the 0.7 THz band, and from 3.7% to 69.5% in the 1.4 THz band.
Figure 4 shows the surface current density of the proposed metamaterial operating in mode 2. Figure 4a,b show the surface current density induced in the metamaterial at a resonance frequency of 1.4 THz, when the VO2 thin film is in the insulator phase, and 0.71 THz, when the thin film is in the metal phase, respectively. Figure 4a shows that each resonance generated in the two rectangular C-shaped resonators is clearly separated owing to the insulating properties of the VO2 thin film. Conversely, in the case of Figure 4b, two rectangular C-shaped resonators and the VO2 thin film are electrically connected to form a resonance similar to that of a single resonator due to the metallic properties of the VO2 thin film.
The variation in the transmittance of the proposed metamaterial in two resonance states according to the phase transition of the VO2 thin film is shown in Figure 5. The blue line shows the change in transmittance at a resonance frequency of 1.4 THz when VO2 is in the insulator phase, and the red line shows the change in transmittance at the resonance frequency of 0.71 THz in the case of the metal phase. The rate of change in transmittance of the metamaterial at the resonance frequency was 65.8% and 78.5% when the VO2 thin film was in the insulator phase and metal phase, respectively. It was confirmed that the proposed metamaterial using the etched VO2 thin film exhibits high tunability of transmittance and band switching characteristics.

4. Measurement and Discussions

As a substrate for VO2 thin film deposition, alumina (Al2O3) with a thickness of 430 μm was used. Alumina exhibits a similar dielectric constant as that of VO2 in an insulator phase, and it is widely used as a substrate for VO2 deposition. The thickness of VO2 was set as 100 nm. The temperature dependence of the electrical conductivity of the VO2 thin film was measured in the in-plane direction using a 4-probe measurement. The measured conductivity was 100 and close to 1,000,000 S/m in insulator and metal phases, respectively. The deposited VO2 thin film was etched using a reactive ion etching method to induce variability and band switching characteristics to the resonance characteristics of the proposed metamaterial. The etching of VO2 was performed for 3 min under standard etching conditions with an RF power of 200 W in gas mixtures based on CF4 and O2 at an operating pressure of 50 mTorr. To prove that the proposed metamaterial can exhibit tunability and band-switching functions, two rectangular C-shaped resonators were fabricated facing each other on an etched VO2 thin film line. A gold electrode (200 nm) with a Ti adhesive layer (20 nm) was deposited on the etched VO2 thin film via the DC sputtering method. The designed metamaterial was patterned using general photolithography and a lift-off process. Figure 6 shows a photograph of the fabricated band-switchable and tunable THz metamaterial in the form of two rectangular C-shaped resonators facing each other on an etched VO2 thin film.
The designed and fabricated metamaterials were measured using a THz time-domain spectroscopy (THz–TDS) system with an operating frequency range of 0.1 to 4 THz and a dynamic range greater than 60 dB at peak frequencies. (ADVANTEST TAS7400). To measure band switching and tunable characteristics based on the change in conductivity of the VO2 thin film, the fabricated material was placed on an external heater, with a hole in the center such that the THz wave can be appropriately transmitted. The voltage applied to the external heater can control the temperature of the heater, which, in turn, controls the conductivity of the VO2 thin film. Figure 7a,b show the THz time-domain waveforms of the metamaterials with respect to the voltage applied to the heater in modes 1 and 2, respectively. The measurement of the transmission characteristics was varied based on the polarization of the incident THz wave. When the polarization of the incident light was perpendicular to the VO2 thin film, the transmittance of the THz wave was higher than when it was parallel. Hence, the THz wave passing through the metamaterial was larger in mode 2 than in mode 1. Additionally, as the applied voltage increased and conductivity of the VO2 thin film increased, the transmission of THz waves generally decreased.
Figure 8a,b show the transmittances of the metamaterials according to the voltage applied to the heater in modes 1 and 2, respectively. The transmittance gradually changed in both modes based on the applied voltage. When the VO2 thin film is in an insulator phase, the metamaterial operating in mode 2 resonates at 1.29 THz, which is approximately twice the resonant frequency of the metamaterial operating in mode 1 at 0.65 THz. Although the resonant frequency of the fabricated metamaterial is slightly lower than the resonant frequency of the simulation shown in Figure 3, the measurement results indicate the same overall trend as the simulation results. In mode 2, the proposed metamaterial exhibited band-switchable and tunable transmission characteristics. As the applied voltage increased from 0 V to 1.5 V, the resonant frequency of the metamaterial decreased and Q-factor gradually decreased. When the applied voltage exceeded 1.6 V, and the VO2 thin film approached the metal phase, the resonance of the metamaterial gradually switched to the 0.65 THz band, and the Q-factor increased again. The maximum resonance strength measured in the 0.65 THz band of Figure 8b is weaker than the simulation result of Figure 3b. Figure 3b and Figure 8b show that the maximum conductivity of the VO2 thin film when measured is approximately 2e5 S/m, which is lower than the maximum conductivity of 1e6 S/m used in the simulation. Although the maximum value of the conductivity of the VO2 thin film does not reach the value used in the simulation, it was similar to the generally reported maximum value. Hence, it can be confirmed that the deposited VO2 thin film exhibits a high rate of change in conductivity while it continuously changes. In order to more accurately match the simulation results with the measurement results, the exact dielectric properties of the alumina and VO2 thin films measured in the terahertz band with frequency dependence should be applied to the simulation.
The band-switchable and tunable properties of THz metamaterials were successfully implemented using a rectangular C-shaped metal resonator and an etched VO2 thin film. The resonant frequency of the fabricated metamaterial was lower than the simulation result. However, this can be easily adjusted by reducing the overall size of the metamaterial structure. The resonance strength of metamaterials was weaker when VO2 was in a metal phase than when it was in an insulator phase. This can be solved by improving the properties of the VO2 thin film. Our measurement results clearly showed that the rectangular C-shaped metamaterial based on the etched VO2 thin film is capable of band switching and continuous transmittance control. As a result of evaluating the switching speed of the device for terahertz waves, the switching cycle time (insulating phase → metal phase → insulating phase) was measured to be 0.614 s. In the future, it is possible to improve the switching speed by controlling the strain at the interface between the thin film and the substrate, the type of dopant, and the doping concentration.
In this study, a novel structure in which a VO2 thin film is etched and combined with a metal structure was proposed to realize continuous terahertz band switching characteristics. The use of high-quality etched VO2 thin films with various types of metal resonators is expected to enable novel THz-tunable devices. The development of these tunable THz devices can aid in accelerating the commercialization of THz-wave 6G wireless communication technology.

5. Conclusions

We proposed a band-switchable and tunable THz metamaterial based on an etched vanadium dioxide (VO2) thin film. To secure the band-switchable characteristics of the metamaterial, the VO2 thin film was etched and patterned in the form of a line. The metamaterial consisted of two rectangular C-shaped resonators facing each other, and a VO2 thin film line was formed between the resonator gaps. Therefore, the operating band of the metamaterial can be switched by controlling the state of the VO2 thin film because the two C-shaped resonators are electrically separated when the VO2 thin film is in the insulator phase and electrically connected when the VO2 thin film is in the metal phase. Additionally, it was possible to continuously control the THz wave transmittance of the metamaterial by growing the VO2 thin film such that smooth phase transition can be realized, as opposed to rapid transition. As the phase transition of the VO2 thin film occurred, the resonance band of the metamaterial shifted from the 1.29 THz band to the 0.65 THz band. During the band-switching process, the resonant strength of the metamaterial can be tuned continuously. The proposed metamaterial based on the etched VO2 thin film successfully exhibits band-switching and tunable characteristics, and it is expected to be usefully applied to THz wave 6G wireless communication technology.

Author Contributions

Conceptualization, J.-H.S. and K.H.P.; methodology, J.-H.S., K.H.P. and H.-C.R.; software, H.-C.R.; writing—original draft preparation, J.-H.S. and H.-C.R.; writing—review and editing, H.-C.R.; supervision, H.-C.R. All authors have read and agreed to the published version of the manuscript.

Funding

This study was supported by the Fund of Sahmyook University in 2020.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data are contained within the article.

Conflicts of Interest

The authors declare that they have no known competing financial interests or personal relationships that could have influenced the research reported in this paper.

References

  1. Tonouchi, M. Cutting-edge terahertz technology. Nat. Photonics 2007, 1, 97–105. [Google Scholar] [CrossRef]
  2. Jepsen, P.U.; Cooke, D.G.; Koch, M. Terahertz spectroscopy and imaging–Modern techniques and applications. Laser Photonics Rev. 2011, 5, 124. [Google Scholar] [CrossRef]
  3. Zhang, X.C.; Shkurinov, A.; Zhang, Y. Extreme terahertz science. Nat. Photonics 2017, 11, 16–18. [Google Scholar] [CrossRef]
  4. Liu, H.B.; Zhong, H.; Karpowicz, N.; Chen, Y.; Zhang, X.C. Terahertz spectroscopy and imaging for defense and security applications. Proc. IEEE 2007, 95, 1514–1527. [Google Scholar] [CrossRef]
  5. Huang, K.-C.; Wang, Z. Terahertz terabit wireless communication. IEEE Microw. Mag. 2011, 12, 108–116. [Google Scholar] [CrossRef]
  6. Yang, Y.; Yamagami, Y.; Yu, X.; Pitchappa, P.; Webber, J.; Zhang, B.; Fujita, M.; Nagatsuma, T.; Singh, R. Terahertz topological photonics for on-chip communication. Nat. Photonics 2020, 14, 446–451. [Google Scholar] [CrossRef] [Green Version]
  7. Dan, I.; Ducournau, G.; Hisatake, S.; Szriftgiser, P.; Braun, R.; Kallfass, I. A terahertz wireless communication link using a superheterodyne approach. IEEE Trans. Terahertz Sci. Technol. 2020, 10, 2–43. [Google Scholar] [CrossRef]
  8. Ryu, H.-C.; Kim, N.; Han, S.-P.; Ko, H.; Park, J.-W.; Moon, K.; Park, K.H. Simple and cost-effective thickness measurement terahertz system based on a compact 1.55 μm λ/4 phase-shifted dual-mode laser. Opt. Express 2012, 20, 25990–25999. [Google Scholar] [CrossRef] [PubMed]
  9. Valentine, J.; Zhang, S.; Zentgraf, T.; Ulin-Avila, E.; Genov, D.A.; Bartal, G.; Zhang, X. Three-dimensional optical metamaterial with negative refractive index. Nature 2008, 455, 376–379. [Google Scholar] [CrossRef] [PubMed]
  10. Schurig, D.; Mock, J.J.; Justice, B.J.; Cummer, S.A.; Pendry, J.B.; Starr, A.F.; Smith, D.R. Metamaterial electromagnetic cloak at microwave frequencies. Science 2006, 314, 977–979. [Google Scholar] [CrossRef] [Green Version]
  11. Poddubny, A.; Iorsh, I.; Belov, P.; Kivshar, Y. Hyper metamaterials. Nat. Photonics 2013, 28, 958–967. [Google Scholar]
  12. Huo, P.; Zhang, S.; Liang, Y.; Lu, Y.; Xu, T. Hyperbolic metamatrials and metasurfaces: Fundamentals and applications. Adv. Opt. Mater. 2019, 7, 1801616. [Google Scholar] [CrossRef]
  13. Choi, M.; Lee, S.H.; Kim, Y.; Kang, S.B.; Shin, J.; Kwak, M.H.; Kang, K.-Y.; Lee, Y.-H.; Park, N.; Min, B. A terahertz metamaterial with unnaturally high refractive index. Nature 2011, 470, 369–373. [Google Scholar] [CrossRef]
  14. Chen, H.-T.; Padilla, W.J.; Zide, J.M.O.; Gossard, A.C.; Taylor, A.J.; Averitt, R.D. Active terahertz metamaterial devices. Nature 2006, 444, 597–600. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Chen, H.-T.; Padilla, W.J.; Cich, M.J.; Azad, A.K.; Averitt, R.D. A metamaterial solid-state terahertz phase modulator. Nat. Photonics 2009, 22, 148–151. [Google Scholar] [CrossRef]
  16. Ju, L.; Geng, B.; Horng, J.; Girit, C.; Martin, M.; Hao, Z.; Bechtel, H.A.; Liang, X.; Zettl, A.; Shen, Y.R.; et al. Graphene plasmonics for tunable terahertz metamaterials. Nat. Nanotechnol. 2011, 4, 630–634. [Google Scholar] [CrossRef] [PubMed]
  17. Sensale-Rodriguez, B.; Yan, R.; Kelly, M.M.; Fang, T.; Tahy, K.; Hwang, W.S.; Jena, D.; Liu, L.; Xing, H.G. Broadband graphene terahertz modulators enabled by intraband transition. Nat. Commun. 2012, 3, 1–7. [Google Scholar] [CrossRef] [PubMed]
  18. Kowerdziej, R.; Jaroszewicz, L. Active control of terahertz radiation using a metamaterial loaded with a nematic liquid crystal. Liq. Cryst. 2016, 43, 1120–1125. [Google Scholar] [CrossRef]
  19. Vafapour, Z.; Dutta, M.; Stroscio, M.A. Sensing, switching and modulating applications of a superconducting THz metamaterial. IEEE Sens. J. 2021, 21, 15187–15195. [Google Scholar] [CrossRef]
  20. Cao, Y.; Gan, S.; Geng, Z.; Liu, J.; Yang, Y.; Bao, Q.; Chen, H. Optically tuned terahertz modulator based on annealed multilayer MoS2. Sci. Rep. 2016, 6, 22899. [Google Scholar] [CrossRef] [PubMed]
  21. Wen, Q.-Y.; Zhang, H.-W.; Yang, Q.-H.; Xie, Y.-S.; Chen, K.; Liu, Y.-L. Terahertz metamaterials with VO2 cut-wires for thermal tenability. Appl. Phys. Lett. 2010, 97, 021111. [Google Scholar] [CrossRef]
  22. Liu, M.; Hwang, H.Y.; Tao, H.; Strikwerda, A.C.; Fan, K.; Keiser, G.R.; Sternbach, A.J.; West, K.G.; Kittiwatanakul, S.; Lu, J.; et al. Terahertz-field-induced insulator-to-metal transition in vanadium dioxide metamaterial. Nature 2012, 487, 345–348. [Google Scholar] [CrossRef] [PubMed]
  23. Shin, J.H.; Park, K.H.; Ryu, H.C. Electrically controllable terahertz square-loop metamaterial based on VO2 thin film. Nanotechnology 2016, 27, 195202. [Google Scholar] [CrossRef] [PubMed]
  24. Park, D.J.; Shin, J.H.; Park, K.H.; Ryu, H.C. Electrically controllable THz asymmetric split-loop resonator with an outer square loop based on VO2. Opt. Express 2018, 26, 17397–17406. [Google Scholar] [CrossRef] [PubMed]
  25. Shin, J.H.; Han, S.P.; Song, M.; Ryu, H.C. Gradual tuning of the terahertz passband using a square-loop metamaterial based on a W-doped VO2 thin film. Appl. Phys. Express 2019, 12, 032007. [Google Scholar] [CrossRef]

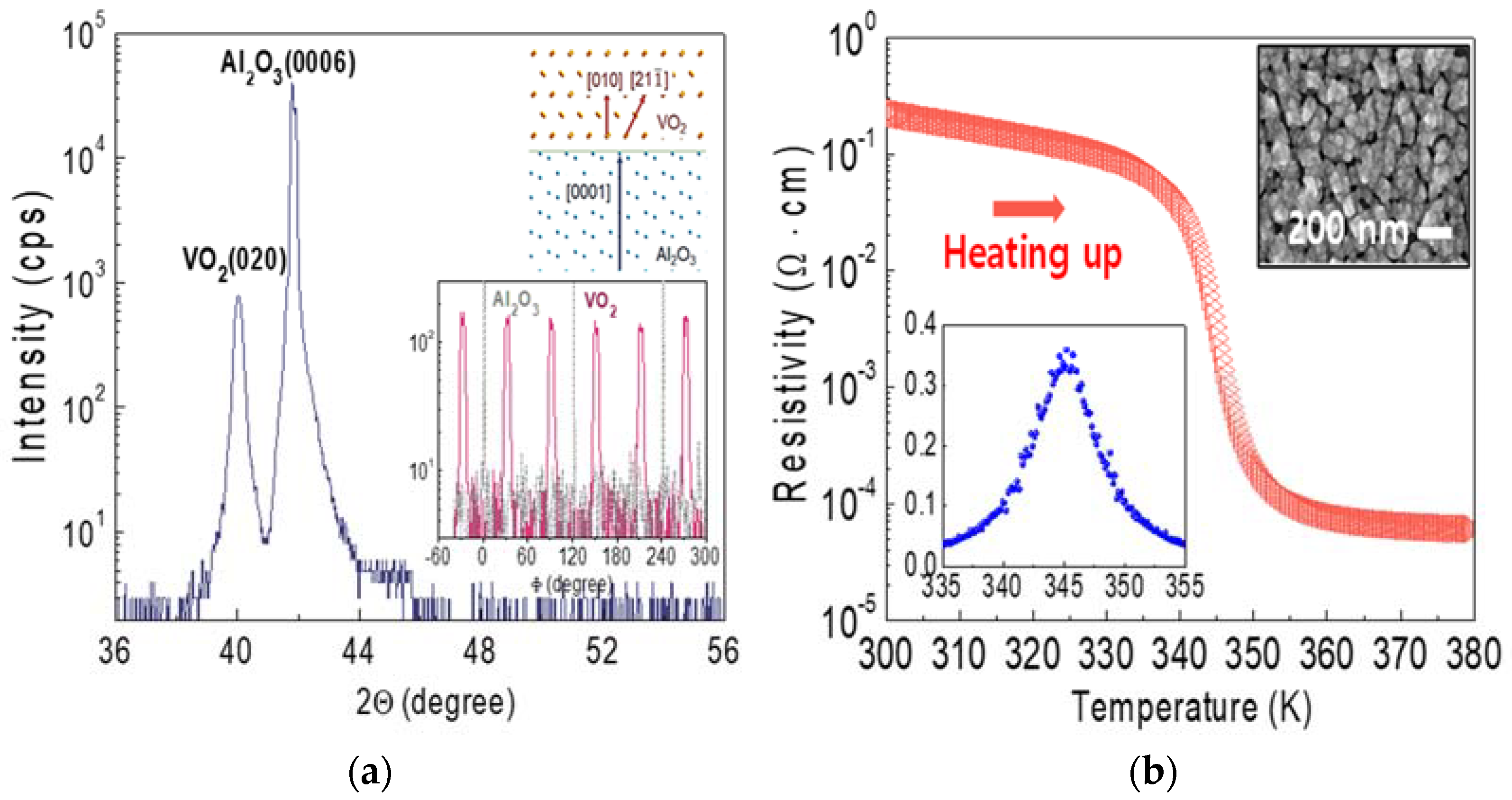

Figure 1. (a) X-ray omega-2 theta (ω-2θ) scan for VO2/c-Al2O3 inset (up-right: vertical crystalline alignment along the VO2/Al2O3 interface, down-right: in-plane reflection pattern of VO2 (011) peak; (b) electrical resistivity of the film as a function of temperature, inset: plain-view of SEM image (up-right), dlog(ρ)/dT curve in the vicinity of phase transition temperature (down-left).
Figure 1. (a) X-ray omega-2 theta (ω-2θ) scan for VO2/c-Al2O3 inset (up-right: vertical crystalline alignment along the VO2/Al2O3 interface, down-right: in-plane reflection pattern of VO2 (011) peak; (b) electrical resistivity of the film as a function of temperature, inset: plain-view of SEM image (up-right), dlog(ρ)/dT curve in the vicinity of phase transition temperature (down-left).
Photonics 09 00089 g001

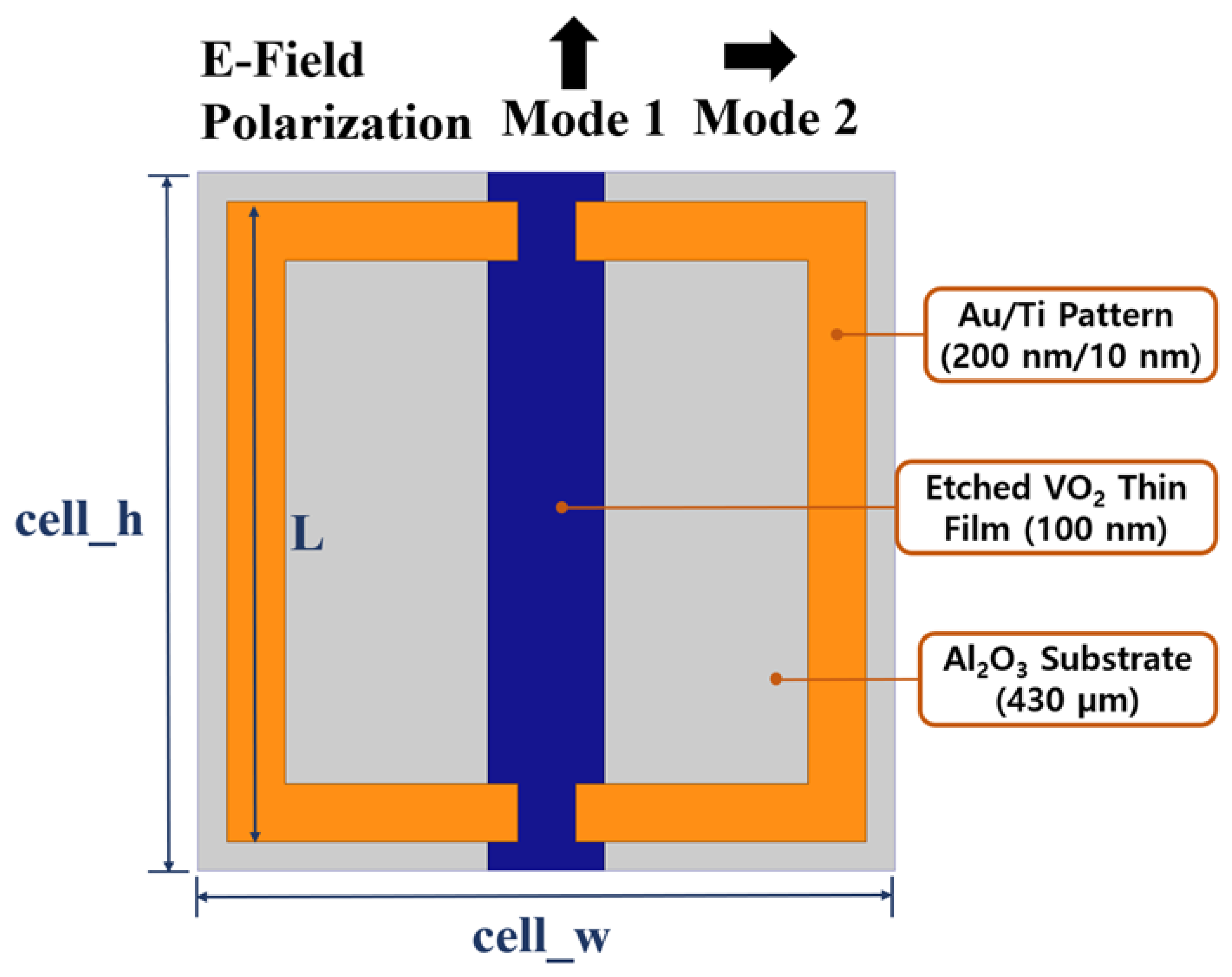

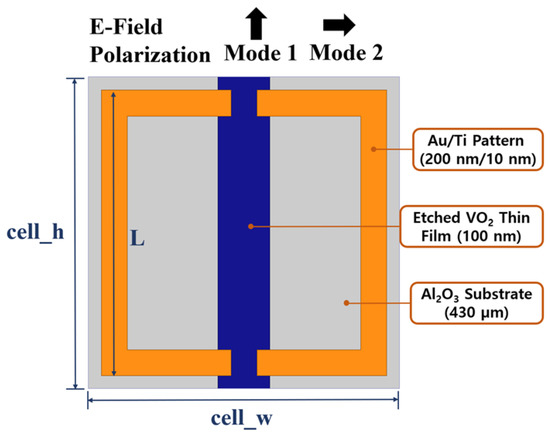

Figure 2. Schematic diagram of a band-switchable and tunable THz metamaterial in the form of two facing rectangular C-shaped resonators based on an etched VO2 thin film.
Figure 2. Schematic diagram of a band-switchable and tunable THz metamaterial in the form of two facing rectangular C-shaped resonators based on an etched VO2 thin film.
Photonics 09 00089 g002

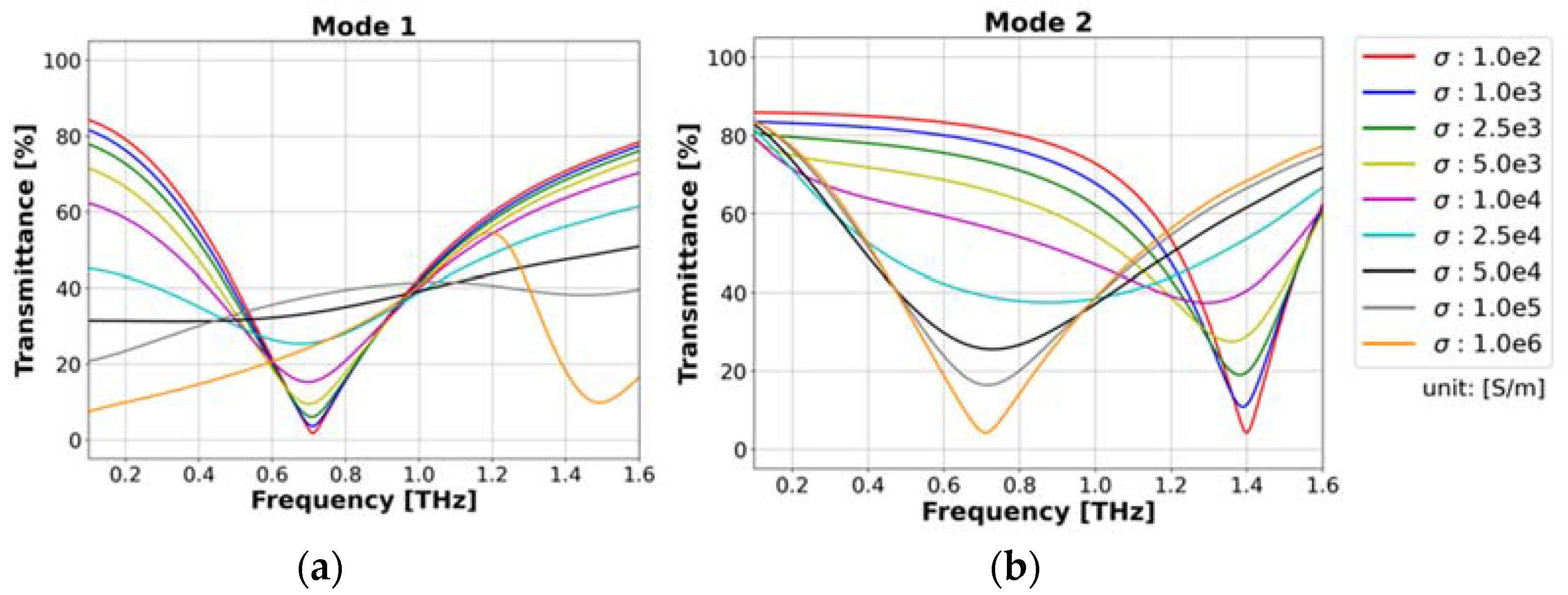

Figure 3. Transmittances of a band-switchable and tunable THz metamaterial in the form of two facing rectangular C-shaped resonators based on an etched VO2 thin film operating in (a) mode 1 and (b) mode 2.
Figure 3. Transmittances of a band-switchable and tunable THz metamaterial in the form of two facing rectangular C-shaped resonators based on an etched VO2 thin film operating in (a) mode 1 and (b) mode 2.
Photonics 09 00089 g003

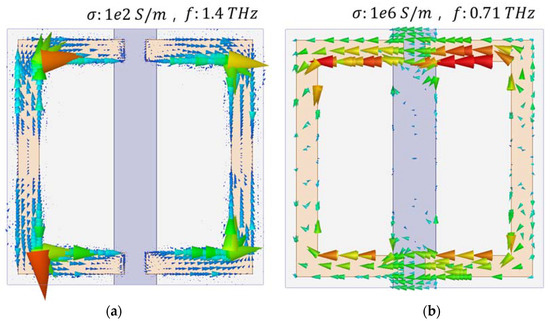

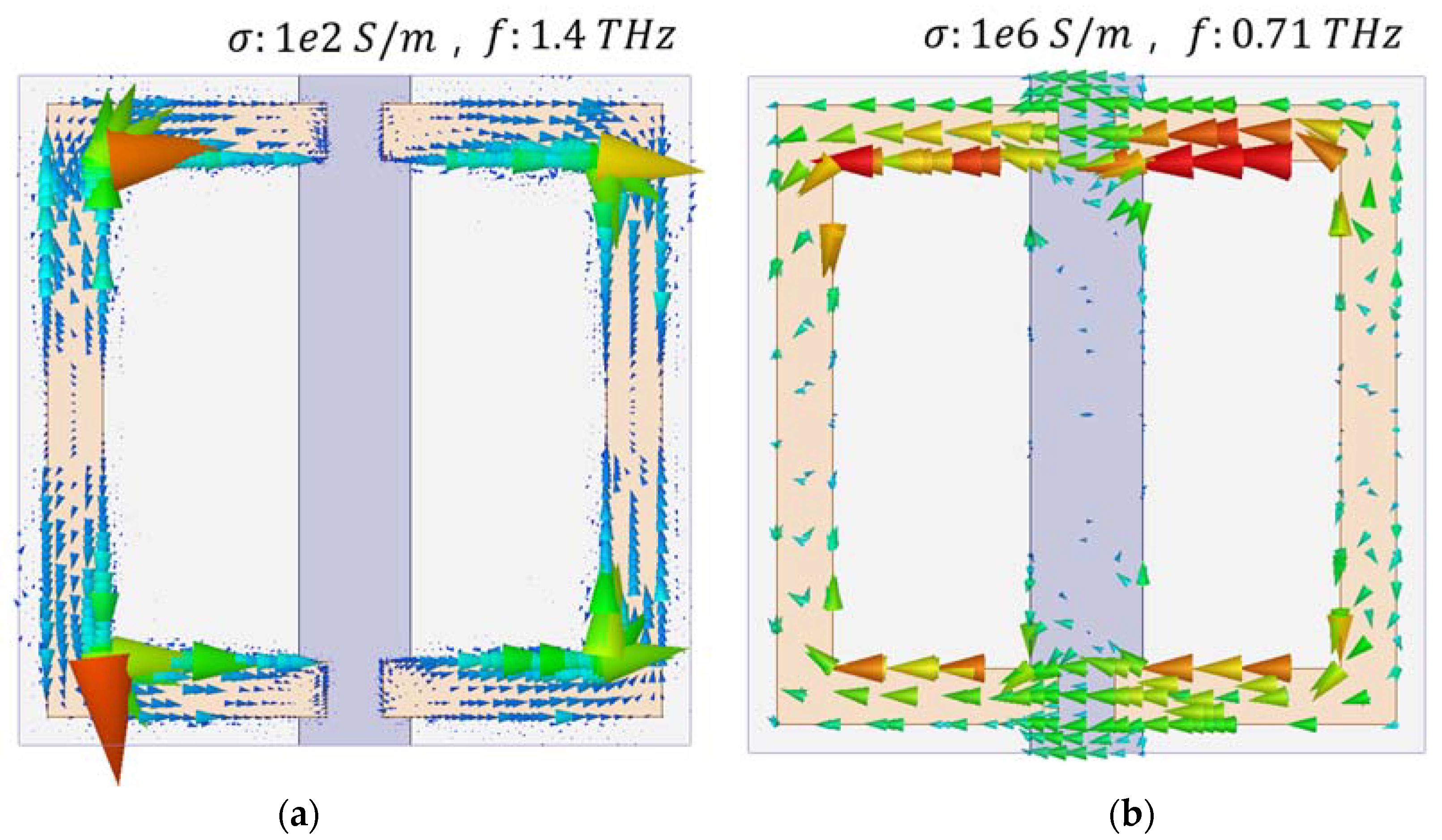

Figure 4. Surface current density of a band-switchable and tunable THz metamaterial in the form of two-facing rectangular C-shaped resonators based on an etched VO2 thin film operating in mode 2: (a) insulator phase ( σ = 100   S / m ,   f = 1.4   THz ) and (b) metal phase ( σ = 100   S / m ,   f = 1.4   THz ) .
Figure 4. Surface current density of a band-switchable and tunable THz metamaterial in the form of two-facing rectangular C-shaped resonators based on an etched VO2 thin film operating in mode 2: (a) insulator phase ( σ = 100   S / m ,   f = 1.4   THz ) and (b) metal phase ( σ = 100   S / m ,   f = 1.4   THz ) .
Photonics 09 00089 g004

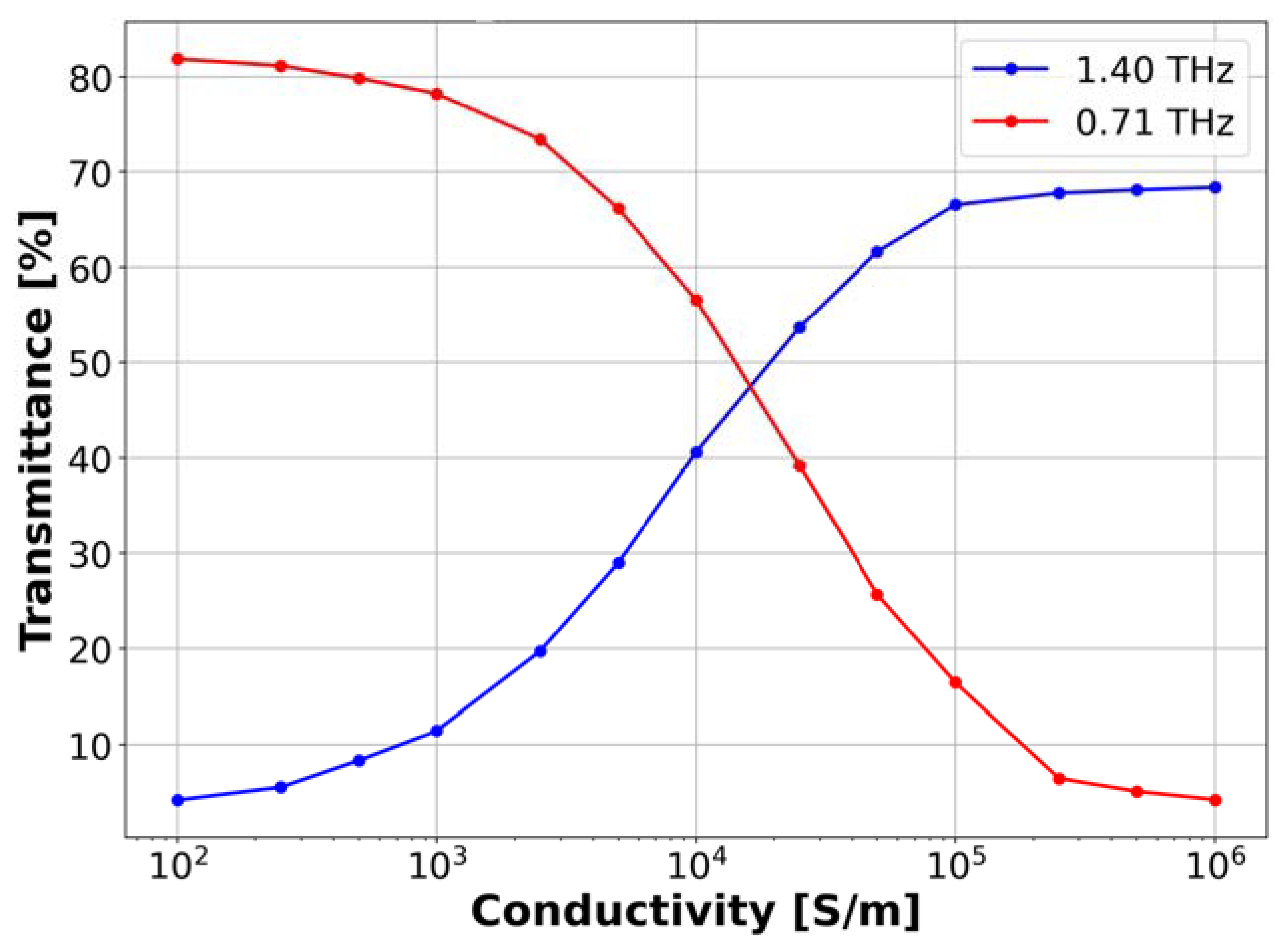

Figure 5. Variation in transmittance of the proposed metamaterial in two resonance states (blue line: insulator phase and f = 1.4 THz; red line: metal phase and f = 0.71 THz) based on the phase transition of the VO2 thin film.
Figure 5. Variation in transmittance of the proposed metamaterial in two resonance states (blue line: insulator phase and f = 1.4 THz; red line: metal phase and f = 0.71 THz) based on the phase transition of the VO2 thin film.
Photonics 09 00089 g005

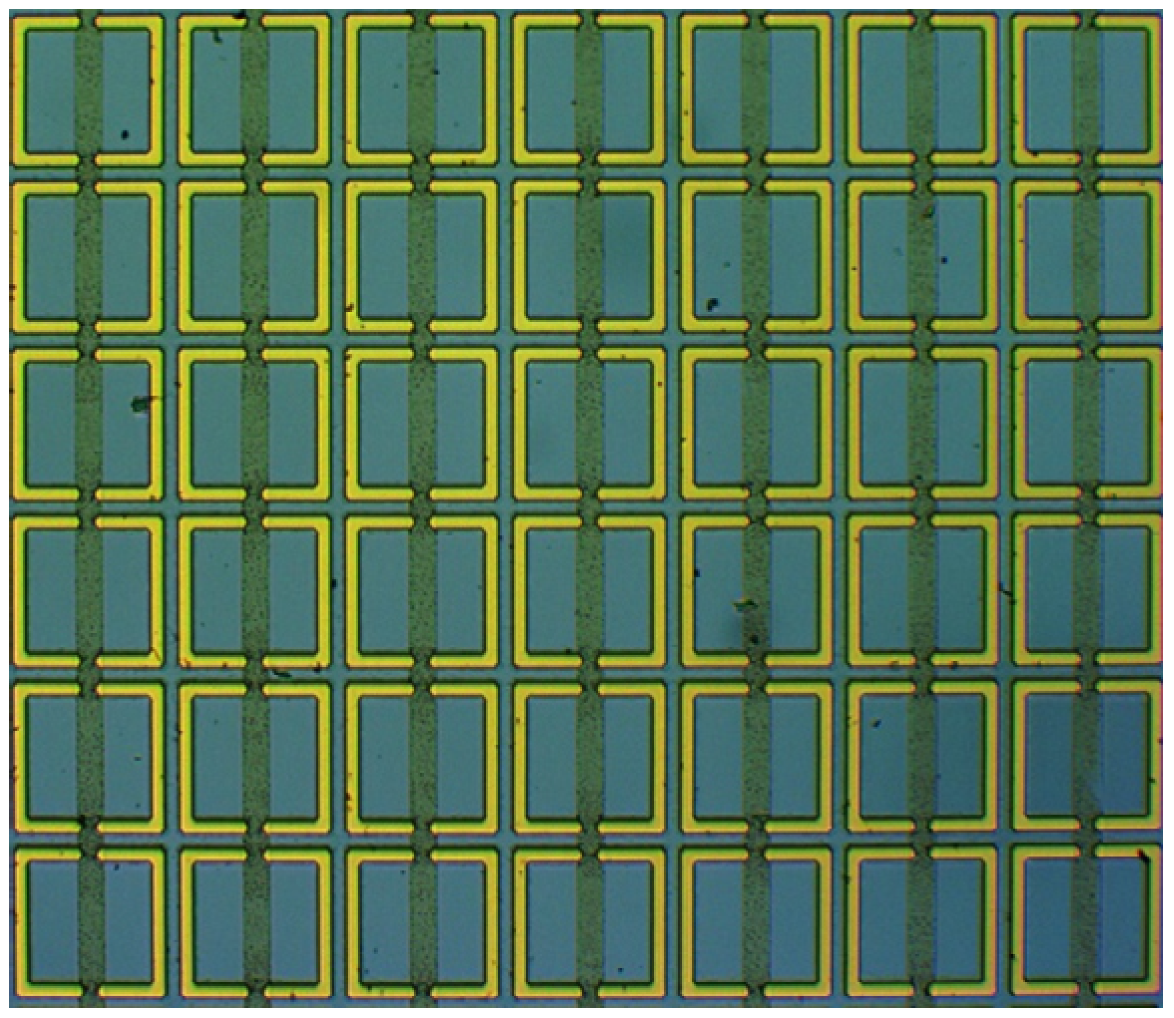

Figure 6. Photograph of the band-switchable and tunable THz metamaterial in the form of two rectangular C-shaped resonators facing each other on an etched VO2 thin film.
Figure 6. Photograph of the band-switchable and tunable THz metamaterial in the form of two rectangular C-shaped resonators facing each other on an etched VO2 thin film.
Photonics 09 00089 g006

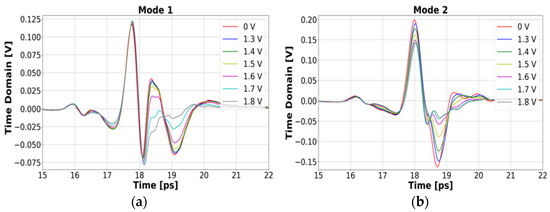

Figure 7. THz time-domain waveforms of metamaterials with respect to the applied voltage: (a) mode 1 and (b) mode 2.
Figure 7. THz time-domain waveforms of metamaterials with respect to the applied voltage: (a) mode 1 and (b) mode 2.
Photonics 09 00089 g007

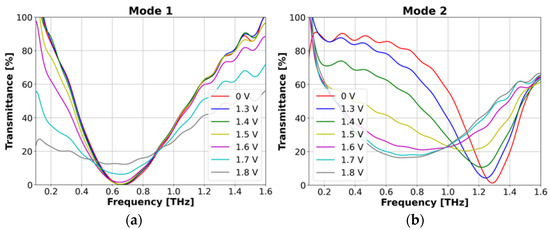

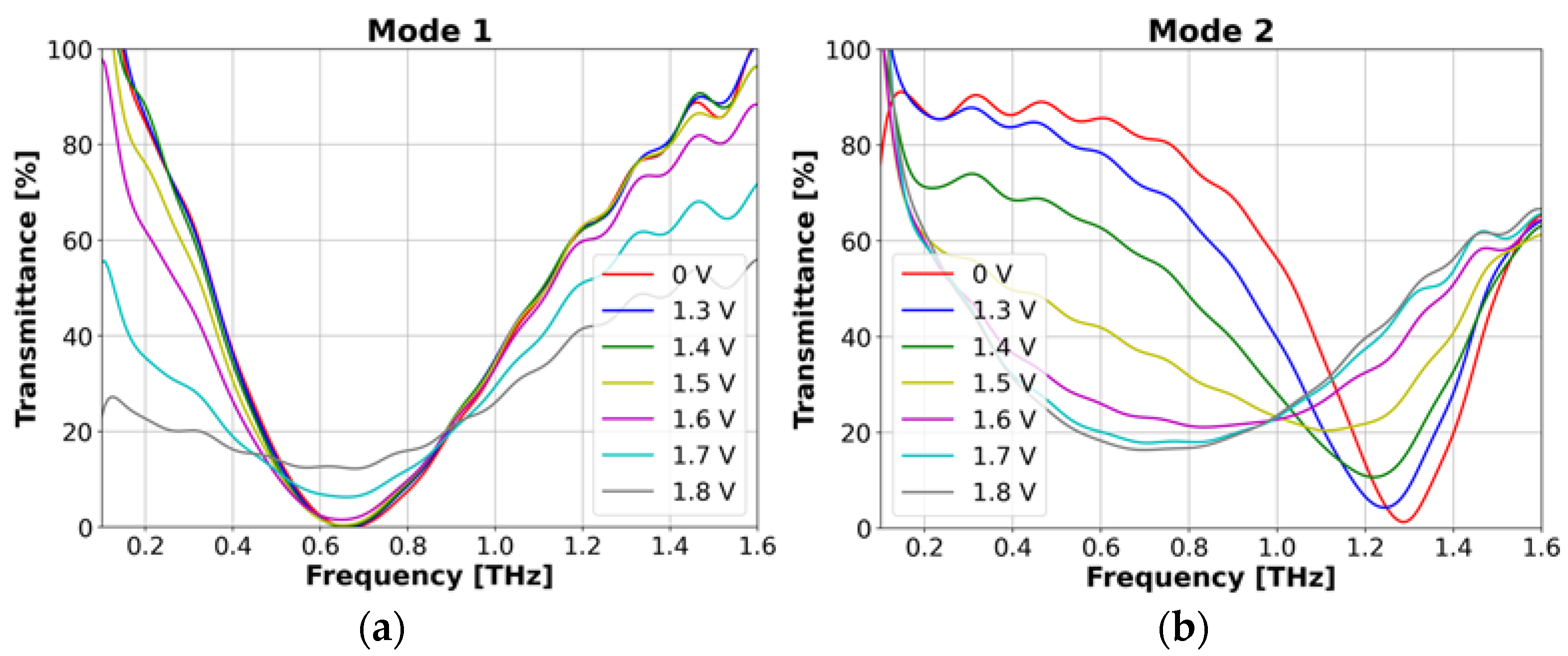

Figure 8. THz transmittance of metamaterials according to the applied voltage change (a) mode 1 and (b) mode 2.
