Systematic Performance Comparison of (Duobinary)-PAM-2,4 Signaling under Light and Strong Opto-Electronic Bandwidth Conditions

Abstract

We present a systematic comparison of PAM-2 (NRZ), Duobinary-PAM-2, PAM-4, and Duobinary-PAM-4 (duo-quaternary) signaling in the context of short-reach photonic communications systems using a Mach–Zehnder modulator as transmitter. The effect on system performance with a relaxed and constrained system’s opto-electronic bandwidth is analyzed for bit rates ranging from 20 to 116 Gb/s. In contrast to previous analyses, our approach employs the same experimental and simulation conditions for all modulation formats. Consequently, we were able to confidently determine the performance limits of each format for particular values of bit rate, system bandwidth, transmitter chirp, and fiber dispersion. We demonstrate that Duobinary-PAM-4 is a good signaling choice only for bandwidth-limited systems operating at relatively high speed. Otherwise, PAM-4 represents a more sensible choice. Moreover, our analysis put forward the existence of transition points: specific bit rate values where the BER versus bit rate curves for two different formats cross each other. They indicate the bit rate values where, for specific system conditions, switching from one modulation to another guarantees optimum performance. Their existence naturally led to the proposal of a format-selective transceiver, a component that, according to network conditions, operates with the most adequate modulation format. Since all analyzed modulations share similar implementation details, signaling switching is achieved by simply changing the sampling point and threshold count at the receiver, bringing flexibility to IM/DD-based optical networks.

1. Introduction

While we are approaching the day when coherent technology will become a sufficiently cost- and power-efficient alternative, transmission based on intensity-modulation with direct-detection (IM/DD) will continue to predominate in short-reach transmission systems. Although there is a wide range of currently available IM/DD formats [1,2], the simplest and most well-known, pulse-amplitude modulation of two levels (PAM-2) and its extension to four levels, termed quaternary pulse-amplitude modulation (PAM-4) [3,4,5], are still the formats of choice for the implementation of optical fiber transmission systems according to worldwide-accepted standards, recommendations, and multi-source agreements. Particularly relevant references are Ethernet standards such as 100 GbE and 400 GbE [6], passive optical network (PON) conventions such as XG-PON1, 10 G and 25 G EPONs [7], and possibly, near future silicon-photonics-based X-haul interconnects for 5G architectures using IM/DD [8]. A closely related modulation format, attractive because of its narrow bandwidth (BW) and tolerance to fiber chromatic dispersion (CD), is the so-called electrical duobinary (DB) format, the most prominent representative of partial response formats [9]. Although the term normally refers to a three-level signal produced from PAM-2 through spectral shaping, there is a PAM-M equivalent, here referred to as DB-PAM-M, whose optical implementation for M = 4 has recently received attention from the industry and academia [10,11,12,13,14,15]. Formally known as duo-quaternary modulation, the case of M = 4 is interesting because, despite being a seven-level signal, it shares with its M = 2 counterpart the appealing characteristics of tolerance to CD, relatively narrow BW, acceptable receiver sensitivity performance, and reasonably simple implementation [16]. Since it is derived from a PAM-4 sequence, it has the advantage of transporting two bits per symbol, increasing its spectral efficiency by a factor of two as compared to DB-PAM-2. Although DB-PAM-4 emerged more than 50 years ago [17], three factors explain the recent interest in this format. First, the adoption by the telecommunications industry of PAM-4 as the most commonly accepted format for the implementation of high-speed IM/DD photonic systems. Second, the need to transmit such high data rates employing a physical layer infrastructure (either already installed or based on off-the-shelf components) originally conceived for less demanding environments; that is, infrastructure based on the use of transceivers that normally exhibit comparatively lower opto-electronic BW. Third, the convenience of using a more CD-tolerant format to preserve the system’s reach when upgrading the bit rate. As a result of this interest, there have been reports mainly aiming to augment the value proposition of DB-PAM-4 and to explore its performance limits [18,19]. The investigations that compare PAM-4 and DB-PAM-4 are also interesting [13,14,15,20,21,22,23,24,25]. For instance, in [22], the better performance of PAM-4 over DB-PAM-4 is demonstrated at 18 Gb/s using a directly-modulated laser (DML) and a PIN photodiode, both exhibiting a BW of 10 GHz. However, according to [24], it is DB-PAM-4 which performs better under back-to-back (BtB) conditions at 112 Gb/s. After 10 km transmission over standard single-mode fiber (SSMF), no performance difference between formats was observed [24]. Similarly to other studies [10,13], these measurements were carried out at a single opto-electronic BW (electro-absorption modulator with 27 GHz BW and a PIN-TIA combination having 35 GHz BW) and bit rate (112 Gb/s), and therefore the effect of varying these system parameters on the performance of each modulation format was not systematically investigated. In the context of PONs, Torres-Ferrera et al. [25] analyzed the impact on power budget by varying the system BW when a 50 Gbd signal is employed. It was shown that DB-PAM-4 outperforms PAM-4 in BW-constrained systems, whereas the opposite occurs under sub-optimal filtering conditions. Following these achievements, it is clear that a thorough and systematic analysis along these lines is welcome. Such a study would be useful to decide which is the most adequate IM/DD format, from a system designer perspective, to be employed under certain conditions of bit rate, system BW, transmitter chirp, and fiber dispersion. The purpose of the present contribution is to fill this gap, thus complementing previous analyses. The main finding of our novel approach is that, given certain conditions of opto-electronic BW, we can produce BER versus bit rate curves for different modulation formats that exhibit the characteristic of crossing each other. We have dubbed these intersections “transition points.” Since normally the functional relation between BER and bit rate in an optical system is not constant, the existence of these transition points is important because they enable the possibility of keeping the transmission system within certain performance limits as the bit rate is varied. This can be accomplished by simply changing the employed modulation format. In other words, our analysis put forward the fact that one convenient way to extend the bit rate range on which a system with particular BW conditions can operate is to change its modulation format, choosing among PAM-2, DB-PAM-2, PAM-4, and DB-PAM-4. Of course, the analysis can be extended to other values of M [26]. We must bear in mind, notwithstanding, that higher-order modulation formats become less tolerant to signal-to-noise ratio (SNR) degradation [27].

The existence of the aforementioned transition points for the analyzed modulation formats naturally leads to the proposal of a format-selective transceiver, a component that, according to network conditions, operates with the most adequate modulation format to maintain a certain performance level. The optimum points to switch from one format to another are dictated by the transition points, which can be determined by experiments or simulations. Indeed, the transition points indicate the bit rate values where, for specific system conditions, switching from one modulation format to another guarantees optimum performance. The proposed transceiver then works similarly as a gearbox, changing gears (formats) to allow the increase in system speed. Although the idea of a multi-bit rate and multi-format transceiver is not entirely new [27,28,29], our proposal is, to the best of our knowledge, the first one of its kind to use PAM-M modulation formats together with their DB counterparts to set-up a flexible transceiver. This choice of signaling is especially attractive because a change in modulation format can be easily implemented, as discussed below, and hence the hypothetical transceiver can form part of an integrated opto-electronic module, ideally exhibiting low complexity and power consumption. Previous transceiver proposals and designs instead aim to bring flexibility to coherent optical networks using two-dimensional [30] and more sophisticated multi-dimensional modulation formats in combination with constellation shaping [31]. They have also employed multi-carrier intensity modulation (e.g., DMT) to perform optimum dynamic spectrum allocation within a certain granularity limit [32]. The IM/DD approach followed here is simpler, but still effective, as discussed below.

In summary, in this article, we first present an analysis of system performance as a function of bit rate for (DB)-PAM-2,4 in the context of short-reach optical transmission systems operating in O-band. This transmission window is increasing in popularity among different standardization bodies, e.g., IEEE P802.3ca 50G EPON [33] and IEEE P802.3bs 400 Gb/s Ethernet [6], and we envision that the 100G EPON will use the O-band as well. Two different system BW scenarios, consisting of light and strong filtering, are experimentally addressed, and the effect of CD is examined. Our approach demonstrates that the choice of optimal modulation format depends on the specific conditions of bit rate and system BW. Therefore, our results not only represent a valuable guide in the selection of the most appropriate modulation format for a particular system deployment, but uncovers the convenience of employing a format-selective element to switch the initially chosen modulation format to a different one if the prevailing system conditions, such as bit rate or reach, eventually change. This paper is divided into seven main sections. Section 2 reviews precoding and detection of partial response signals. Basically, a tutorial on the theoretical framework that supports our work and serves as a reference for the discussions presented within this paper. Section 3 describes the experimental and simulation details. Section 4 serves as the motivation for our study. It discusses the evolution of a signal in a BW-constrained environment as the bit rate increases, pointing out the relevance of partial response signaling. Section 5 is devoted to conveying the main results of our investigation in BtB and fiber transmission contexts, whereas Section 6 deals with the technical details of the hypothetical format-selective transceiver based in (DB)-PAM modulation. This is followed by the conclusions, presented in Section 7.

2. Detection of Duobinary Signals

Let a PAM-M data stream of n symbols, [$a_n$] $\in \{0,1,\dots ,M-1\}$, be encoded as a PAM-M signal, where M = 2, 4. Due to the finite BW exhibited by all the components of a transmission system, the eye diagram of the received signal under favorable transmission conditions will look like the one shown in Figure 1a (although a PAM-4 eye diagram is displayed, the following discussion also holds for M = 2). Thanks to the simplicity of IM/DD, the received version of [$a_n$], [$a_n^{\prime }$], can, in principle, be recovered by sampling the directly detected signal at sampling point A, followed by conventional slicing via thresholding. An alternative approach to recovering the data stream [$a_n^{\prime }$], nonetheless, consists of sampling the signal at point B and then slicing using (2M−2) thresholds, leading to a (2M−1) levels sequence; the so-called DB sequence [17]. [$a_n^{\prime }$] is then obtained by applying modulus M operation. The use of the alternative approach is particularly interesting when a high-speed PAM-M signal is transmitted through a communication system made up of cost-effective, narrow opto-electronic BW components, leading to an eye diagram that looks like the one shown in Figure 1b (for M = 4). Clearly, due to the strong filtering effect, slicing at the (2M−1) levels sampling point (B) will result in better identification of the correct data stream elements as compared to slicing at the traditional M levels sampling point (A), where the limited channel BW has a markedly reduced eye-opening. In other words, in this case, recovering the DB-PAM-M signal will result in a better BER than recovering the plain PAM-M signal. In the following sections, we will experimentally show to what extent this statement is correct.

The formalism behind the DB approach [2,12,16,17] is based on approximating the filtering effect of the overall system (including any optical filter) through a one-tap add-and-delay filter acting upon a PAM-M transmitted data stream, [$b_n$] $\in \{0,1,\dots ,M-1\}$. The filter equation can be cast as

$$c_k = b_k + b_{k-1},k = 1, 2, 3,\dots ,n;$$

(1)

where sequence [$c_n$] $\in \{0,1,\cdots ,2M-2\}$ becomes the digital counterpart of the (2M − 1) levels sampled analog signal. Assuming [$a_n$] = [$a_n^{\prime }$] (ideal case of no errors), then [$a_n$] can be simply recovered using

$$a_k = \left(c_k\right)modM.$$

(2)

Note, however, that for this expression to be true, [$b_n$] must fulfill the following condition

$$b_k = (a_k - b_{k-1})modM.$$

(3)

Operation (3) is called precoding [17], whereas [$c_n$] represents the DB-PAM-M sequence. The need for precoding in DB transmission can be demonstrated by noting from Equations (1) and (2) that since $a_k = (b_k + b_{k-1})modM$, then (3) can be written as $b_k = ((b_k + b_{k-1})modM - b_{k-1})modM$. Equality follows from employing the associative property of $modM$ operation and the fact that $b_k = \left(b_k\right)modM$.

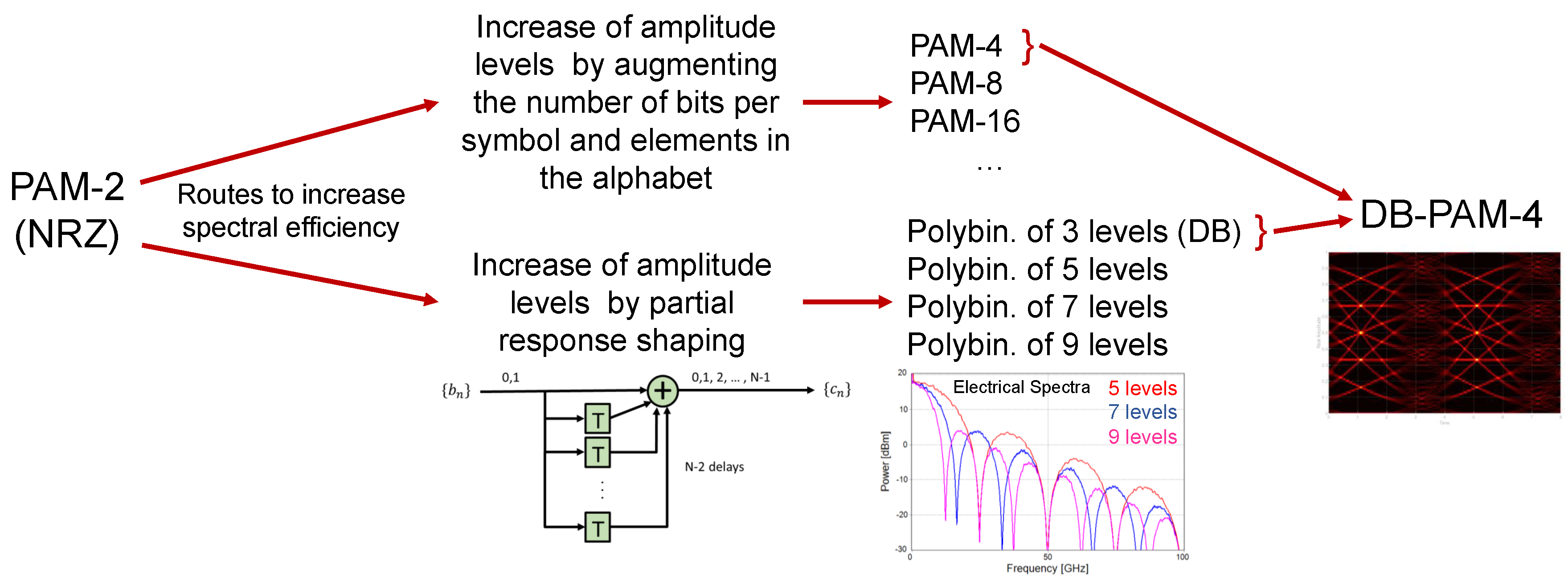

The advantage in terms of spectral efficiency exhibited by DB-PAM-4 over PAM-2 is the result of following two different approaches. Both are graphically depicted in Figure 2. On one hand, a gain in spectral efficiency is achieved by increasing the cardinality of the amplitude modulation to higher values of M, that is, increasing the number of bits associated with each symbol (or amplitude level) of the PAM-M alphabet. For instance, in PAM-8, each of the eight symbols carries three bits. This approach corresponds to the upper path in the diagram of Figure 2. On the other hand, the signal BW can be reduced for a certain transmission rate by extending the duobinary concept to polybinary modulation. This is the approach followed in the lower path of Figure 2. It consists of using heavier spectral shaping.

Although the increase in spectral efficiency associated with higher values of M in optical PAM-M modulation is well-known [34,35], polybinary modulation has received less attention. A polybinary signal of N levels is produced by using an add-and-delay filter consisting of N − 2 delays (see diagram in Figure 2) [16]. The corresponding equation reads

$$c_k = b_k + b_{k-1} + b_{k-2} +\cdots + b_{k-(N-2)},k = 1, 2, 3,\dots ,n.$$

(4)

Equation (1) then becomes a particular case of Equation (4) when N = 3. Precoding, in this case, is necessary to prevent error propagation. The corresponding equation is [16]

$$b_k = a_k⨂b_{k-1}⨂b_{k-2}⨂\cdots ⨂b_{k-(N-2)};$$

(5)

where ⨂ stands for XOR operation. Note that Equation (5) reduces to (3) when N = 3 and M = 2. An appealing property of polybinary signaling is that the marks and spaces pertaining to [$a_n$] uniquely correspond to the even and odd-numbered levels of [$c_n$], respectively [17]. This simplifies the decoding process, since [$a_n$] can be recovered from [$c_n$] by means of $a_k = \left(c_k\right)mod2$. This can be accomplished because although a polybinary signal has N levels when represented in the time-domain, it still runs at the speed of a plain NRZ signal since each level carries only one bit (instead of a multi-bit symbol). Hence, the bit period in polybinary and NRZ signals is the same.

According to Figure 2, DB-PAM-4 is then the result of combining an increase in cardinality (to M = 4), together with enough filtering to achieve polybinary modulation (with N = 3). It hence exhibits a narrower BW than either a PAM-4 signal or a DB signal, all transmitting at the same bit rate. This is confirmed by comparing the simulated 100 Gb/s electrical spectra shown in Figure 3. In bandwidth-unconstrained scenarios, the transmission of M-levels PAM-M signals should generally be preferred over its DB counterpart due to their lower number of amplitude levels and because this format is more tolerant to SNR degradation than DB-PAM-M [36]. However, (2M − 1) levels DB-PAM-M signals may show better performance when transmitted over a BW-limited system. As shown below, the adequate choice of modulation format mainly depends on system bandwidth and bit rate.

In this work, we will focus on the analysis of PAM-2, DB-PAM-2, PAM-4, and DB-PAM-4 modulation formats. Therefore, a practical approach to carry out the investigation with minimal modifications at the transmitter end consists of using Equation (3) to transmit a pre-coded data stream [$b_n$]. If the system BW is ample enough and the M-levels of the PAM-M signal can be distinguished in the corresponding eye diagram at the receiver, then sample at point A (see Figure 1a), slice the signal with M−1 thresholds and apply Equations (1) to undo precoding and (2) to retrieve the original transmitted sequence. In contrast, if the system BW is rather narrow (with respect to the bit rate), sample at point B (see Figure 1b) and slice the signal with 2M−2 thresholds to “naturally” obtain the DB-PAM-M sequence [$c_n$]. Then, use Equation (2) to recover the original sequence. In the subsequent sections, we have followed this convenient approach.

3. Experimental Setup

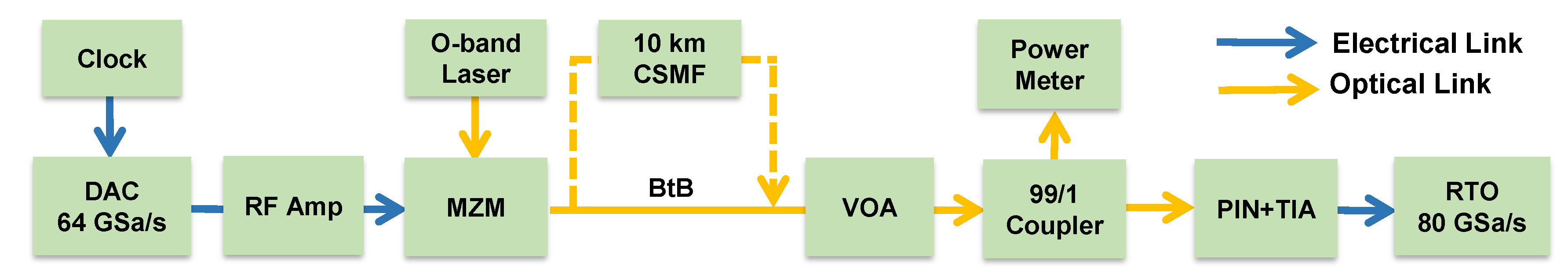

Figure 4 presents the block diagram of our setup, which is designed to carry out transmission using PAM-2,4 and DB-PAM-2,4 modulation and operation at bit rates ranging from 20 to 116 Gb/s (depending on the selected modulation format, as shown below). The off-line generated PAM-M sequence is initially precoded following Equation (3) and converted into an analog electrical signal using an 8-bit digital-to-analog converter (DAC) operating at 64 GSa/s. The DAC is compensated with pre-emphasis, but no pulse shaping was applied. The DAC output is connected to an RF amplifier (SHF 806E) which then drives a silicon Mach–Zehnder modulator (MZM) with 20 GHz 3-dB opto-electronic BW [5], operated at the quadrature point. An optically modulated signal with an approximate outer extinction ratio (ratio between the lowest and highest levels) of 4 dB is then generated. It is, in principle, a replica of the electrical PAM-M signal. A distributed feedback (DFB) laser emitting at 1309.7 nm is used as the CW source. This wavelength is 8 nm blue-shifted from the zero-dispersion wavelength (ZDW) of the 10-km SSMF that is used for data propagation. The back-to-back (BtB) condition has been analyzed as well. A variable optical attenuator (VOA) is employed in conjunction with a power meter monitor to ensure the injection of a signal into the optical front-end (OFE) with, in all cases, an average power of about −4 dBm. The OFE is an optical receiver that consists of a PIN photodiode and a linear trans-impedance amplifier (TIA) from MACOM, exhibiting a combined BW of 40 GHz. An Agilent real-time oscilloscope (RTO) with a maximum sampling rate of 80 GSa/s served as analog-to-digital converter (ADC). Two system bandwidths, mainly determined by the RTO, were investigated: a low BW case where the effective receiver BW was set to 11 GHz (with a “brick-wall” profile), and a high-BW case where the effective receiver BW was set to 23 GHz (with a “brick-wall” profile). Although slightly more relaxed, the former (latter) BW conditions resemble those found in 10 G (25 G) short-reach transmission systems. The off-line processing at the receiver, performed using Matlab, consisted of a simple linear feed-forward equalizer (FFE) with 11 taps for the low-BW case and 131 taps for the high-BW case. For ease of comparison, the same equalization conditions prevailed irrespective of the employed bit rate and modulation format. For each of the two system BWs, two different digital sequences were derived from the received signal. On one hand, we sampled the signal at point A (see Figure 1) and conducted slicing with M − 1 thresholds to obtain a PAM-M sequence. Then, Equations (1) and (2) were applied to recover the originally launched PAM-M symbols stream. On the other hand, we sampled the signal at point B (see Figure 1) and conducted slicing with 2M − 2 thresholds to recover the DB-PAM-M sequence. In this case, only Equation (2) was necessary to recover the originally launched PAM-M symbols stream. After straightforward PAM-M decoding, the bit-error-ratio (BER) was calculated by comparing the received and the transmitted bit sequences.

The simulation work that complemented the experimental analysis was carried out in a co-simulation Matlab/OptiSystem platform [37]. Matlab processed electrical and digital signals, while the OptiSystem simulated transmission in the optical domain, thus emulating the actual experimental setup. We employed standard optical component models and neither FFE equalization nor DAC/ADC limitations were included in the simulations. We took care to consider all BW constraints through adequate low-pass filtering of the transmitted signal. For the MZM, we set a V${}_{\pi }$ of 6 V with a bias voltage of 4.5 V at the quadrature point and a 3-dB opto-electronic BW, simulated through a 5th-order Bessel filter, of 20 GHz. We employed a single-polarization, standard split-step dispersive linear fiber model with an attenuation of 0.35 dB/km. Finally, for the OFE, we selected a PIN photodiode that included thermal and shot noise modeling via Gaussian distributions, followed by a TIA. The overall BW of the OFE was set to 40 GHz. Note, however, that the actual receiver BW is determined by the RTO, where cascaded 4th-order Bessel and brick-wall low-pass filters (LPF) were utilized. The simulation parameters of the receiver are presented in

Table 1. Main parameters of the receiver used in the simulations.

Parameter	Value	Units
Responsivity	0.7	A/W
TIA conversion gain	1400	$\Omega$
Input current noise density	18	pA/$\sqrt{\mathrm{Hz}}$
RTO Low-bandwidth case
4th-Order Bessel LPF bandwidth	7.3	GHz
Brick-wall LPF bandwidth	11	GHz
RTO High-bandwidth case
4th-Order Bessel LPF bandwidth	15.3	GHz
Brick-wall LPF bandwidth	23	GHz

.

4. Effect of System Bandwidth

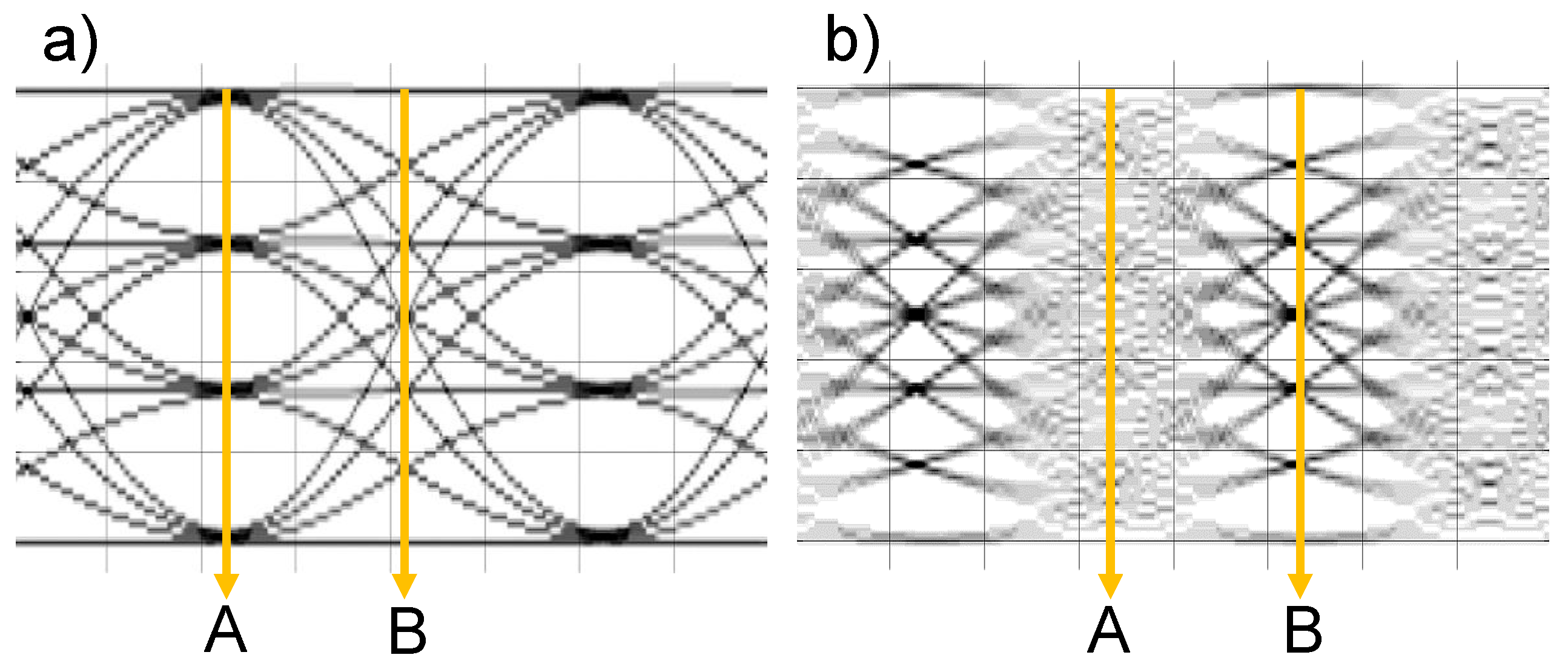

The evolution of the received four-level signal as the transmitted bit rate increases in a BtB system with a constant BW, is presented using simulated electrical eye diagrams in Figure 5. As the bit rate increases, the lowpass filtering effect produced by the BW of the system components becomes more severe, leading to an increase in eye closure at the “traditional” sampling point (A as defined in Figure 1). At 80 Gb/s, the signal levels cannot be distinguished anymore without the aid of adequate signal processing (e.g., FFE). At 100 Gb/s, the three eyes are completely closed. In contrast, the eyes that are centered at the alternative sampling point (B according to Figure 1), which corresponds to DB transmission, remain comparatively unaffected as the bit rate increases. Even at 100 Gb/s, the seven levels of the DB-PAM-4 signal can be distinguished. At 120 Gb/s no symbols can be extracted at either sampling point because the distortions produced by the relatively narrow filters are too strong. A similar situation occurs with a 2-level signal. However, since the overall BW of these signals is higher, the distortions manifest themselves at lower bit rates. From these remarks, it is straightforward to predict that the performance of a constant-BW optical system operating at relatively (with respect to the system BW) low bit rates will be better when retrieving the PAM-M signal (sampled at point A) than when retrieving the DB-PAM-M signal (sampled at point B). Under these circumstances, the eye-opening height and width of the “traditional” eyes become larger because there are fewer amplitude levels involved. However, for relatively high-speed transmission rates (or, equivalently, under demanding opto-electronic BW conditions), better performance is expected from retrieving the DB-PAM-M signal. This occurs because although a shorter eye-opening height and a narrower width will be measured from the corresponding eyes, these parameters become, in the DB case, more tolerant to the increase in bit rate (or overall system BW reduction), as already shown through simulations.

5. Optimum Modulation Format: Transition Points

5.1. Back-to-Back Case

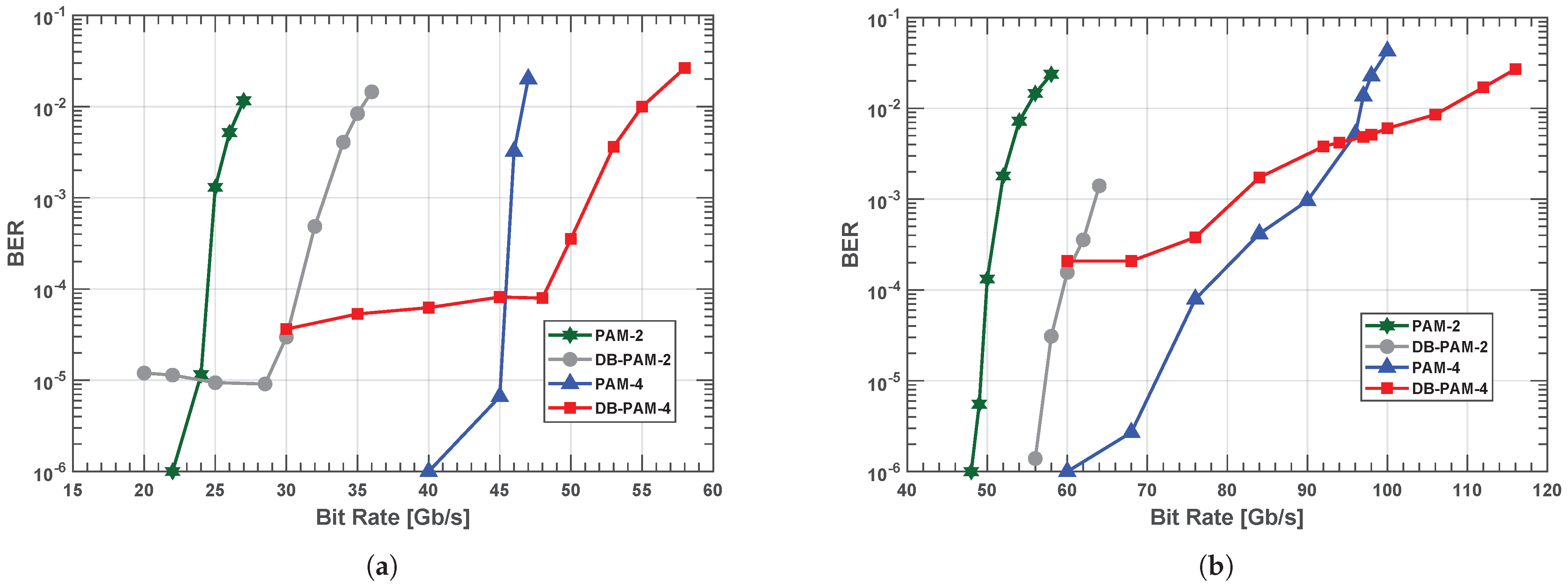

To quantitatively demonstrate our observations through experiments, we measured the BER of the received signal for different bit rate values. In these measurements, the minimum BER that we can report with confidence, limited by the number of bits employed for the error-counting calculation, is 10${}^{-6}$. Figure 6a shows the results for the low-BW system (described in Section 3) in BtB configuration. Pre-coded PAM-2 and PAM-4 signals are launched, whereas PAM-M and DB-PAM-M signals, M = 2, 4, are retrieved from sampling points A and B, respectively, as described in Section 2 and Section 3. It can indeed be observed that, for bit rates lower than 24 Gb/s, PAM-2 shows a better BER performance. However, it is its DB counterpart that offers better performance for bit rates from 25 up to about 35 Gb/s. In the case of M = 4, higher data rates can be reached. Initially, PAM-4 performs better, but at around 45 Gb/s we observe a handover of the lead to DB-PAM-4, showing the very good performance of the latter up to approximately 60 Gb/s, where excessively high values of BER (above 10${}^{-2}$) are measured. Figure 6a confirms the existence of the transition points, found at 24 Gb/s (for PAM-2/DB-PAM-2) and 45 Gb/s (for PAM-4/DB-PAM-4). They have also recently been observed in a similar performance analysis [25]. Figure 6a also shows that, concerning performance, M = 4 should generally be preferred over M = 2 in systems that involve bit rates beyond 25 Gb/s. This bound, however, varies according to the system BW conditions, as shown in Figure 6b. The performance comparison of non-DB PAM-M modulation formats have been discussed in [5].

We also carried out experiments with the high BW system operated in BtB. Figure 6b shows the resulting BER versus bit rate curves. Similar behavior to that shown in Figure 6a is observed, although higher bit rates can now be reached. Again, the DB-PAM-2 modulation format performs better than PAM-2 at a higher speed. The transition (or crossing) point here occurs at a very low BER and, therefore, is not discernible due to the limited number of bits employed for the error-counting calculations (i.e., we cannot reliably calculate BER values below 10${}^{-6}$). In contrast with the M = 2 case, the transition point is evident for M = 4. The transition of performance between PAM-4 and DB-PAM-4 occurs at about 96 Gb/s. Beyond that point, the use of DB-PAM-4 results in fewer transmission errors, whereas the opposite occurs at lower bit rates. Moreover, when DB-PAM-4 is employed together with forward-error correction (FEC), so-called “error-free” transmission at 106 Gb/s is feasible for a BER of 10${}^{-2}$, corresponding with the low-density parity-check (LDPC) FEC threshold [38].

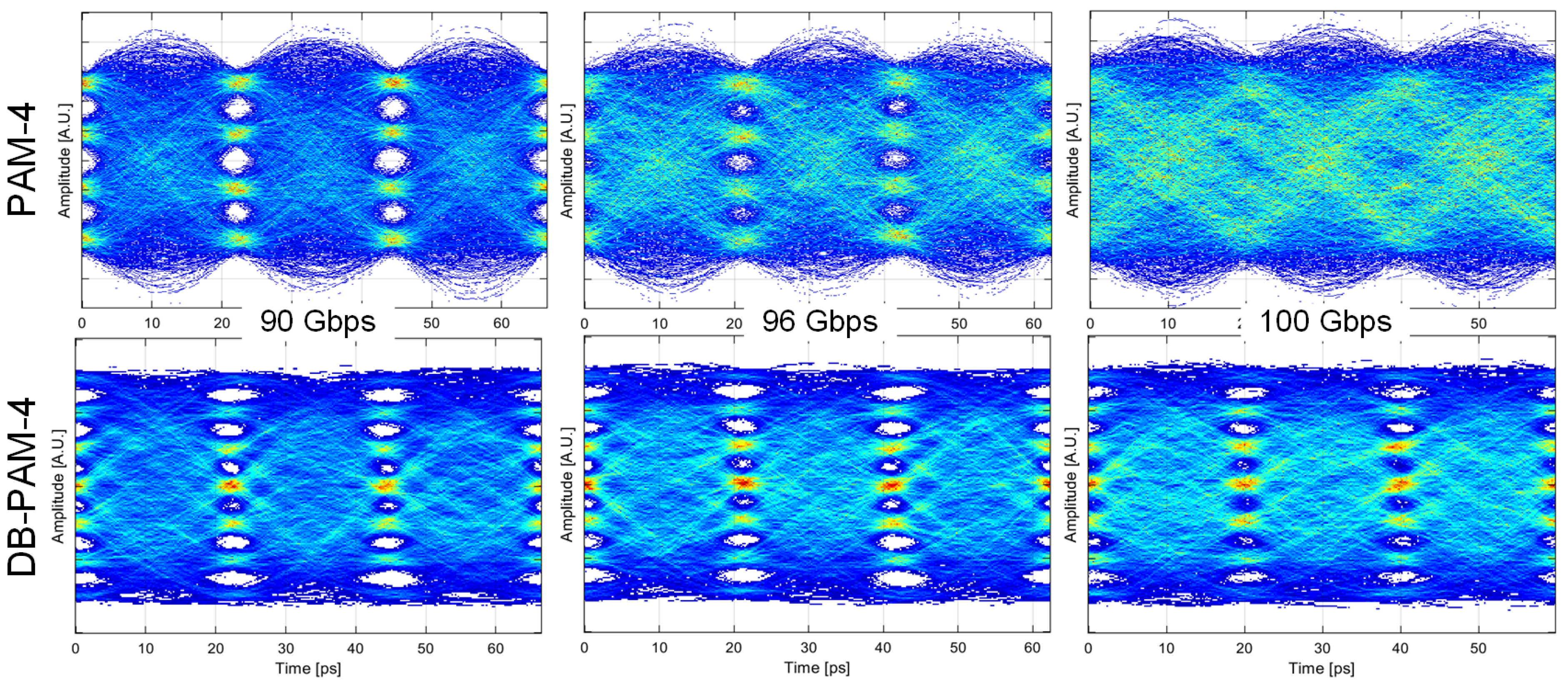

Figure 7 shows the measured eye diagrams for bit rate values around the transition point of 96 Gb/s, that is, where, according to Figure 6b, the measured BER for both M = 4 modulation formats is practically the same. The closure of the eyes as the bit rate grows in the PAM-4 case agrees with the fast increase in the BER values observed from the blue curve with triangles in Figure 6b. At 100 Gb/s, the four levels cannot be differentiated. In the DB-PAM-4 case, this effect is less severe, leading to a (red with squares) curve having a lower slope. Yet, at 100 Gb/s, the central eyes practically look closed, but the seven levels can still be distinguished. The BER floor that is exhibited in Figure 6a,b by the DB-PAM-2,4 curves at a low bit rate can be explained from the phenomenon already discussed at the beginning of Section 4. Indeed, according to Figure 5, the eye-opening of the six eyes (corresponding to DB transmission) remains practically unaffected during a considerable bit rate interval, thus leading to a constant BER value. This behavior changes at a very low bit rate (or equivalently, very ample system BW conditions) because, under these circumstances, the opening of these eyes starts degrading, leading to an eventual increase in BER. Conversely, the effect of reducing the bit rate on the three eyes corresponding to “traditional” (non-DB) transmission results in very clean, undistorted eyes, and hence excellent system performance. Under these very favorable transmission conditions, the use of DB-PAM-M modulation no longer makes sense.

Figure 6 can also be used to calculate, for a given maximum BER threshold, how much gain is achieved in terms of bit rate by switching from one modulation format to another. For the low- and high-BW systems,

Table 2. Maximum bit rate [Gb/s] achieved by each format for BER ≤ 10${}^{-2}$ in BtB configuration.

	PAM-2	DB-PAM-2	PAM-4	DB-PAM-4
Low-BW	26.8	35.3	46.7	55.0
High-BW	55.0	67.0 (EST)	96.8	107.0
EST: estimated.

presents the maximum speed that each format can reach, considering an upper bound for the BER of 10${}^{-2}$; this limit is commonly employed in connection to LDPC FEC [38]. For the low-BW scenario, the maximum transmission speed that can be reached employing PAM-2 is slightly greater than 25 Gb/s. By switching the format to DB-PAM-2, this figure improves by 8.5 Gb/s. The difference increases further (an extra 11.4 Gb/s) when shifting to PAM-4. The maximum bit rate of 55 Gb/s is attained only when using DB-PAM-4 modulation. This bit rate is 8.3 Gb/s faster than the 46.7 Gb/s exhibited by PAM-4. Similar results arise when considering the high-BW scenario. There, the maximum bit rate realized when using PAM-2 is 55 Gb/s. A 12 Gb/s increase results from shifting this modulation format to its DB counterpart. A considerable growth of almost 30 Gb/s is gained when using PAM-4 instead, leading to a maximum speed of 96.8 Gb/s. Switching to DB-PAM-4 represents a 10.2 Gb/s increment; this results in a maximum bit rate of 107 Gb/s. Based on these numbers, one might conclude that DB-PAM-4 should be the modulation format of choice for the implementation of a practical transceiver, since it is able to reach the highest bit rate and produce an acceptable performance for a wide range of bit rate values. Nevertheless, different conclusions might be drawn when setting different values for the BER threshold. This is a consequence of the existence of the previously discussed transition points. Indeed, let us assume, for instance, that a maximum BER of 10${}^{-4}$ is now considered for the high-BW scenario. Then, DB-PAM-4 will no longer be the format of choice. Instead, PAM-4 will produce better results, and, according to Figure 6b, the maximum transmission speed will decrease to 76 Gb/s. If, for some reason, DB-PAM-2 is selected in lieu of PAM-4, the maximum bit rate will fall 17 Gb/s shorter. As this discussion demonstrates, the choice of optimum modulation format is, in general, not straightforward. This occurs because the system performance improvement that can be gained through adequately selecting the best modulation format is very dependent on the prevailing conditions of system bandwidth, bit rate, fiber dispersion, signal processing choice, performance limits and so on.

It is evident from the measurements presented in Figure 6a,b that the transition point (bit rate) where the DB format surpasses in terms of BER performance its PAM-2,4 counterpart is very dependent on the overall system BW conditions. Therefore, the optimum choice of modulation format for a given system and bit rate has to be determined on a case-by-case basis, either experimentally or through simulations. Notwithstanding, we can always say that, in general, PAM-2,4 formats should be preferred when ample BW system conditions prevail and relatively low bit rates are involved. In contrast, DB-PAM-2,4 should be the format of choice when transmitting in BW-constrained systems with relatively high data rates. Moreover, as is well-known, higher cardinality formats are, in general, better suited for high-speed transmission [5], because they transmit a higher amount (log${}_2\left(M\right)$) of bits per symbol. Note, however, that M is also limited by the SNR of the system, since the use of a large number of amplitude levels results in indistinguishable eyes in noisy environments. Further research in this domain is, therefore, welcome [36,39].

5.2. The Effect of Fiber Dispersion

The choice of the optimum modulation format to increase the system throughput or reduce the BER for certain bit rates is also determined by the CD produced by the transmission fiber. Consequently, the determination of the transition points for a given system is also influenced by the amount of fiber CD. To gain some insight into the context of O-band, we carried out 10-km reach propagation experiments over SSMF, leading to BER versus bit rate curves practically identical to the ones shown in Figure 6a (consequently, these are not displayed). This occurs because the approximate accumulated CD, in this case, is only −6 ps/nm. It, therefore, has a very low impact on system performance.

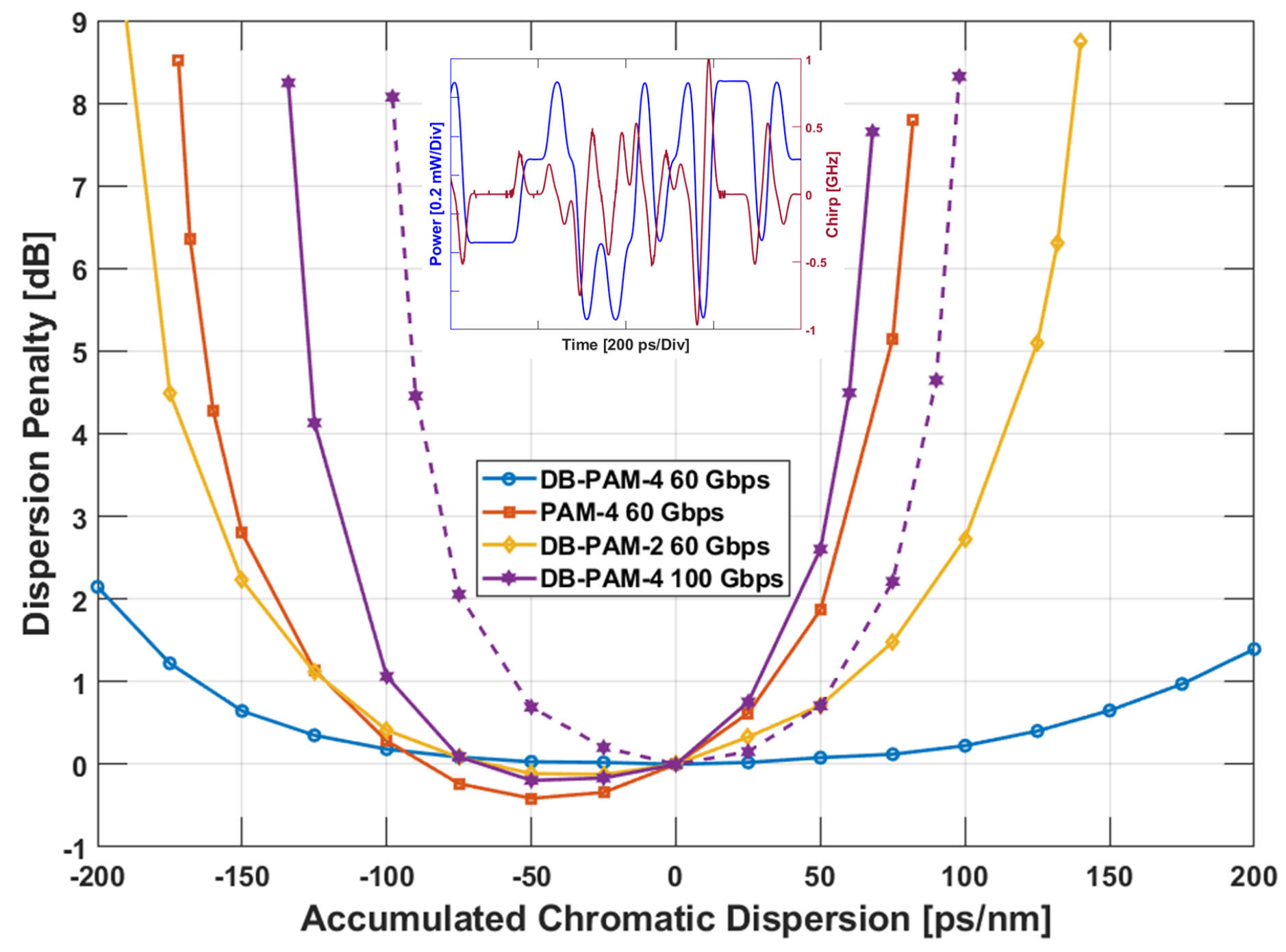

To extend the analysis beyond our experimental capabilities, we carried out simulations using the computational infrastructure described in Section 3. Figure 8 shows calculations of dispersion penalty for the LDPC-FEC threshold of BER = 10${}^{-2}$ [38], as the fiber-accumulated CD is varied for three of the modulation formats investigated in this work. We simulated the high BW system operating at 60 Gb/s. We chose this bit rate because it results in a similar performance for the three analyzed modulation formats. The bit rate was too high to include PAM-2 in the numerical analysis. The figure shows that, at this medium-range bit rate, DB-PAM-4 tolerates CD very well, presenting a 1.4 dB penalty only after having reached +200 ps/nm. This means that, under the aforementioned conditions, DB-PAM-4 is useful for 10-km SSMF transmission (or slightly longer fiber length) in C-band. This can be confirmed in Figure 9a, which shows the dispersion penalty presented in Figure 8, but this time displayed as a function of fiber length for particular values of wavelength ($\lambda$ = 1550 nm) and CD (18 ps/nm-km). Although somewhat more pronounced, Figure 8 shows that a similar increase in penalty is observed for fiber propagation that exhibits negative CD. The situation is different with PAM-4, whose penalty markedly increases as CD grows, irrespective of the CD sign. The performance of this modulation format quickly deteriorates under the presence of CD, except for an interval running from −90 to 0 ps/nm, where a negative power penalty (explained below) is observed. As shown in Figure 9a, the performance of this modulation format in C-band is rather poor, barely reaching 3-km transmission at a 2-dB dispersion penalty limit. The tolerance to CD of DB-PAM-2 can be considered rather moderate. According to Figure 8, DB-PAM-2 stands between PAM-4 and DB-PAM-4 for most of the investigated dispersion values. For the analyzed circumstances, this format presents a penalty of 2 dB at −145 ps/nm and 85 ps/nm. The latter corresponds to about 4.5 km propagation in C-band when employing an SSMF, as shown in Figure 9a. The use of longer fiber lengths leads to unacceptably higher penalties. In O-band, close to the ZDW, the CD tolerance of DB-PAM-2 is similar to that of the other analyzed formats, especially when propagating the waveform over fiber with negative dispersion. For instance, for D = −0.6 ps/nm-km, corresponding to the wavelength used in our experiments ($\lambda$ = 1310 nm), the dispersion penalty exhibited by all analyzed formats is practically immaterial up to almost 200 km; see Figure 9b. A discrepancy of DB-PAM-2 and, especially, PAM-4 with respect to DB-PAM-4, however, starts to grow as we increase the fiber length and/or move away from the ZDW; that is, when the absolute value of the accumulated dispersion increases. According to Figure 9b, the discrepancy at 290 km amounts to 3 dB for DB-PAM-2 and more than 7 dB for PAM-4. Hence, concerning CD tolerance, the use of DB-PAM-4 represents, in general, the best choice. The results presented in Figure 8 and Figure 9, which demonstrate the prominence of DB-PAM-4 in terms of insensitivity to CD, may, in part, be understood by remembering that an increase in accumulated dispersion can be interpreted as a narrowing of the fiber BW, and consequently, of the overall system BW [40]. Since, in general, partial-response signaling performs better than standard (non-DB) modulation formats under relatively constrained bandwidth conditions (see Section 4), then DB-PAM-2, and, in particular DB-PAM-4, are expected to withstand the deleterious effect of CD across a greater interval of increasing accumulated dispersion than their non-DB counterparts. This is precisely what Figure 8 and Figure 9 demonstrate.

It is also interesting to note that Figure 8 displays an asymmetry of the power penalty curves with respect to the zero-dispersion point. Some formats even exhibit a negative power penalty at around −50 ps/nm. This is explained by the interaction of the optical transmitter chirp with the negative CD. Indeed, as is well-known [41], the propagation of a signal with negative chirp over a negative-dispersion fiber of adequate length impacts favorably on system performance via pulse compression. The opposite occurs when a positive-dispersion fiber is employed. The inset in Figure 8, which presents a short interval of the power and corresponding frequency chirp of the 60 Gb/s PAM-4 signal prior to entering the fiber, confirms a blue- (red-) shift in the frequency components in the pulse’s leading (trailing) edge, corresponding to negative chirping. Since the simulated MZM is operated in push–pull mode, the amount of chirp produced by the modulator is relatively low: 2 GHz of maximum excursion.

If we now analyze the behavior of a signal operating at a higher bit rate of 100 Gb/s, it can be anticipated that it will become drastically affected by CD, irrespective of the modulation format. Even DB-PAM-4, whose dispersion penalty is shown using a solid line with stars in Figure 8, exceeds the penalty produced by PAM-4 at 60 Gb/s (orange line with squares). Despite this observation, and per similar comparative analyses [25], DB-PAM-4 remains the format of choice for high-speed transmission. Care has to be taken, however, to keep the difference between the selected transmission wavelength and the ZDW of the fiber within reasonable limits; otherwise, dispersion compensation becomes utterly necessary. At a high data rate, propagation in O-band instead of C-band should hence be preferred, as shown by our results. Figure 8 also displays, in a dashed line, the power penalty obtained with the DB-PAM-4 100 Gb/s signal (similar to the magenta solid line with stars), but this time produced with an MZM exhibiting a zero $\alpha$-factor. The even symmetry of the dashed curve around 0 ps/nm confirms that negative chirping is indeed responsible for the shift towards negative dispersion values which is observed in the rest of the (solid) curves. This analysis shows that the amount of chirp imprinted by the transmitter in the signal is, therefore, another parameter that must be taken into account when calculating the position of the transition points already discussed. In general, negative (positive) dispersion fibers favor the use of negatively (positively) chirped transmitters [42].

Finally, it must be mentioned that we have numerically investigated the effect of pulse-broadening induced by polarization-mode dispersion (PMD) in the 60 Gb/s analyzed signals. For that purpose, we calculated the variation in BER for optical fibers up to 100 km long and exhibiting a PMD parameter $D_p \le$ 0.5 ps$/\sqrt{\mathrm{km}}$. We considered the high-bandwidth system described in Section 3 with a marginal fiber dispersion of 1 ps/nm-km and zero attenuation. We found that, under these circumstances, the BER variation as a function of $D_p$ is negligible, as expected from a short-reach IM/DD system deployed with currently available commercial optical fibers.

6. Hypothetical Format-Selective Transceiver

Our experimental and numerical analysis demonstrates that the optimum choice of modulation format depends on the overall BW, data rate, phase-modulation characteristics of the transmitter, and the fiber CD specifications of the particular photonic system. Moreover, it serves as an aid to make this choice. However, our investigation also points out the convenience of employing a format-selective transceiver in multi-rate optical networks utilizing opto-electronic BW-constrained links. Indeed, such an adaptive multi-format transceiver would be able to maintain the system performance tolerances within reasonable limits in case the data rate, CD, or BW conditions of the link eventually change [43]—for example, in response to sudden network traffic demand variations, a link length increase, or to guarantee the interoperability of components belonging to a myriad of vendors that exhibit different BW specifications. For that, calculation of the aforementioned defined transition points for the particular link would be necessary. However, once computed, switching back and forth between the PAM and DB-PAM formats would be carried out by simply changing (even at a software level) the sampling point and slicing levels in the receiver. For instance, let us assume SSMF propagation close to the ZDW along 10 km in a photonic system having 10G components. According to Figure 6a, the use of a format-selective receiver operating at sampling point A (see Figure 1), allows the transmission of a PAM-4 signal running at 20 GBd with a BER below 10${}^{-3}$. However, if a data rate upgrade to 25 GBd is required, the same receiver will have to switch the modulation format to DB-PAM-4 because this symbol rate lies beyond the transition point. The receiver now operates at sampling point B and increases the threshold count, thus maintaining the required BER performance level. Selection of the best modulation format can also be carried out automatically aided by a control algorithm that optimizes a performance metric (e.g., the BER). For that, the implementation of a low-rate feedback channel from the receiver to transmitter, together with the use of pilot symbols for setup, might be convenient. Note that although the same receiver is employed in the PAM-4 and DB-PAM-4 cases, different parameter configurations for sampling (A/B), thresholding (3/6 levels), and signal processing (FFE) will be required in each case. As mentioned before, depending on the actual transceiver implementation, this can be performed at a software level, as we did in our experiments. Moreover, the proposed transmitter may simply be built on the already existing transceiver infrastructure available for PAM-4 modulation, thus increasing the feasibility of the proposed solution. When transmission away from the ZDW is required, the effect of residual fiber dispersion must be taken into account. In this case, the chirp induced by the transmitter in the optical waveform acts as an extra degree of freedom to optimize the position of the transition points for the application of interest. Indeed, by properly adjusting the operating point of the particular transmitter (e.g., by varying the driving voltage and current), fine-tuning the effective chirp parameter, and the associated interaction of the instantaneous optical frequency with the fiber CD, optimum performance can be achieved [44]. This, in turn, allows control of the overall system performance and, hence, of the location of the transition points in the BER versus bit rate plane.

It is important to note that the implementation of the format-selective transmitter strongly relies on the existence of the aforementioned transition points, uncovered through our analysis. As long as these points exist, the format-selective transceiver can employ other kinds of signaling. For instance, although based on a more involved implementation, attractive options are the recently proposed Tomlinson–Harashima precoded PAM-M optical modulation formats, whose optimum choice is also determined by the system conditions and bit rate [45,46].

7. Conclusions

We have investigated the performance of PAM-2 and PAM-4, but more importantly, their duobinary counterparts, in two photonic systems exhibiting different opto-electronic BW conditions. Our experimental and numerical analyses show that the optimum choice of format depends on the system’s BW, chromatic dispersion, optical chirp, and desired throughput, and it is determined by the so-called transition points for a particular transmission system. These points refer to the optimum bit rate values at which a transition from one modulation format to another is appropriate to maintain certain system performance. In general terms, duobinary formats should only be employed in BW-constrained environments where high transmission speeds are involved, for instance, in optical links with transceivers with low opto-electronic BW with respect to the data rate. Due to their tolerance to the effect of fiber chromatic dispersion, duobinary formats should also be preferred in the presence of a conspicuous level of this deleterious effect. Here, we experimentally showed that, by using DB-PAM-4, back-to-back transmission at a bit rate of 106 Gb/s can be achieved over a 25 G environment employing minimum DSP. Naturally, an increase in power penalty is expected as dispersion accumulates over the link. PAM-M is preferable under low demanding bandwidth conditions. These conclusions, together with the fact that these IM/DD formats share similar implementation details, naturally led to the proposal of a (DB)-PAM-based format-selective transceiver, here discussed for the first time. Apart from its relative simplicity, its main feature is that using components developed for 25 Gb/s systems allows transmission at different distances and bit rates, from around 20 to 100 Gb/s, without introducing an unnecessary performance penalty. The link capacity can, therefore, be dynamically adjusted depending on the propagation condition or any network reconfiguration. This will make possible the use of a single transceiver over a wide range of applications, thus increasing its meaning. The proposed adaptive transceiver also leverages the use of multi-level modulation formats in combination with their doubinary versions in IM/DD systems. We hope that the ideas treated in this article will help in the design of next-generation photonic systems for 5G, 100G PON, and 800 GbE networks.
