Switchable Metasurface with VO₂ Thin Film at Visible Light by Changing Temperature

Abstract

We numerically demonstrated switchable metasurfaces using a phase change material, VO${}_2$ by temperature change. The Pancharatnam–Berry metasurface was realized by using an array of Au nanorods on top of a thin VO${}_2$ film above an Au film, where the optical property of the VO${}_2$ film is switched from the insulator phase at low temperature to the metal phase at high temperature. At the optimal structure, polarization conversion efficiency of the normal incident light is about 75% at low temperature while that is less than 0.5% at high temperature in the visible region ($\lambda \sim$ 700 nm). Various functionalities of switchable metasurfaces were demonstrated such as polarization conversion, beam steering, Fourier hologram, and Fresnel hologram. The thin-VO${}_2$-film-based switchable metasurface can be a good candidate for various switchable metasurface devices, for example, temperature dependent optical sensors, beamforming antennas, and display.

1. Introduction

Metasurfaces have attracted much attention as fascinating optical elements because of flat and ultrathin subwavelength structures that manipulate the phase, amplitude, and polarization of an incident light [1,2,3]. In contrast to conventional optical elements, metasurfaces provide abrupt phase changes of an incident light, which enable metasurfaces to have a unique functionality to form an arbitral wavefront of a light beam, for example, beam shaping [1,4,5,6,7], polarization control [8,9,10,11,12], ultrathin lens [13,14,15,16], and holography [17,18,19,20,21].

There are several methods to realize an additional phase change at the metasurface. First, multi-resonance plasmonic elements were adapted on the metasurface which has the same reflectivity with desired phase changes [1,22,23]. Another method, the Pancharatnam–Berry (PB) phase, has been widely used because of continuous change of phase delay with constant transmittance (or reflectance) by simple geometrical rotation [24,25,26]. However, in order to get the anomalous refraction behavior, the incident beam should have a circular polarization. All dielectric Huygens’ metasurfaces with high-refractive-index dielectric rods are the alternative way to get high transmission without polarization sensitivity by overlapping electric and magnetic resonances at the same wavelength [27,28,29].

Recently, it has been reported that the optical properties of the metasurface could be actively controlled by using various tuning methods, for example, mechanical stretch, field effect, and phase change behavior [30,31,32,33]. Especially, phase change materials (PCMs) such as germanium antimony tellurium alloy (Ge${}_2$Sb${}_2$Te${}_5$, GST) and vanadium dioxide (VO${}_2$) have been intensively investigated due to their switchable ability of optical properties [34,35,36]. VO${}_2$ is one of the most interesting PCMs because of the unique metal-insulator-transition behavior which could be realized both thermally and electrically [37]. Unlike the GST, the phase transition of the VO${}_2$ from the insulating phase to the metallic phase occurs by temperature around 70 ${}^{\circ }$C which could exist in nature [35,36]. However, most of switchable metasurfaces using VO${}_2$ were realized in the mid-infrared (IR) or THz region not yet in the visible range [38,39,40]. One recent paper reported that reconfigurable multistate optical system for dynamic display was demonstrated by phase transition of VO${}_2$ film modulated by temperature, hydrogen-doping, and electron-doping [41]. In this paper, we demonstrated a switchable metasurface with a VO${}_2$ thin film in the visible region ($\lambda$ = 700 nm). The reflectarray metasurface was designed based on PB-phase principle, and possible applications of switchable metasurfaces, such as polarization conversion, beam steering, Fourier hologram, and Fresnel hologram were numerically performed. We believe that VO${}_2$ based metasurfaces in the visible region can provide a practical platform for various applications of dynamic switch by temperature.

2. Materials and Methods

2.1. Optical Properties of VO₂

The PCMs have fascinated many researchers due to their optical and electrical capabilities of active control. In this paper, we used the classical dispersion model based on the Drude–Lorentz model to realize the optical constant of a thin VO${}_2$ film in both the insulator and the metal phase for dispersive Finite-Difference Time-Domain (FDTD) method with auxiliary differential equation [42,43]. It is worth noting that low temperature for insulating phase of VO${}_2$ is below 30 ${}^{\circ }$C and high temperature for metallic phase is above 90 ${}^{\circ }$C [35,36,42,44]. The equation to describe the complex permittivity of the VO${}_2$ can be expressed by

$$\epsilon \left(\omega \right)={\epsilon }_{\infty }+\sum _{p=1,2}\frac{f_p{\omega }_p^2}{{\omega }_p^2-{\omega }^2-\mathrm{i}{\gamma }_p\omega },$$

(1)

where two poles of the Drude–Lorentz model were used to describe the dielectric constant of the VO${}_2$ film at low temperature and at high temperature, summarized in

Table 1. The parameters of two poles of the Drude–Lorentz model for the dielectric constant of VO${}_2$ from the visible to the IR region, directly taken from Ref. [44]. Here, the unit of ${\omega }_p$ and ${\gamma }_p$ are ${\hslash }^{-1}$ eV.

VO${}_2$ (Low T)		${\mathbf{\epsilon }}_{\infty }$ = 3.4		VO${}_2$ (High T)		${\mathbf{\epsilon }}_{\infty }$ = 4.5
p	$f_p$	${\omega }_p$	${\gamma }_p$	p	$f_p$	${\omega }_p$	${\gamma }_p$
1	1.1828	3.735	0.7	1	0.6383	3.1514	0.54
2	1.1502	0.9555	0.64	2	27.0133	0.3132	0.5

. Here, there is no Drude oscillator due to the plasma frequency far from the visible or near-IR region and the sufficiently large Drude collision rate [44].

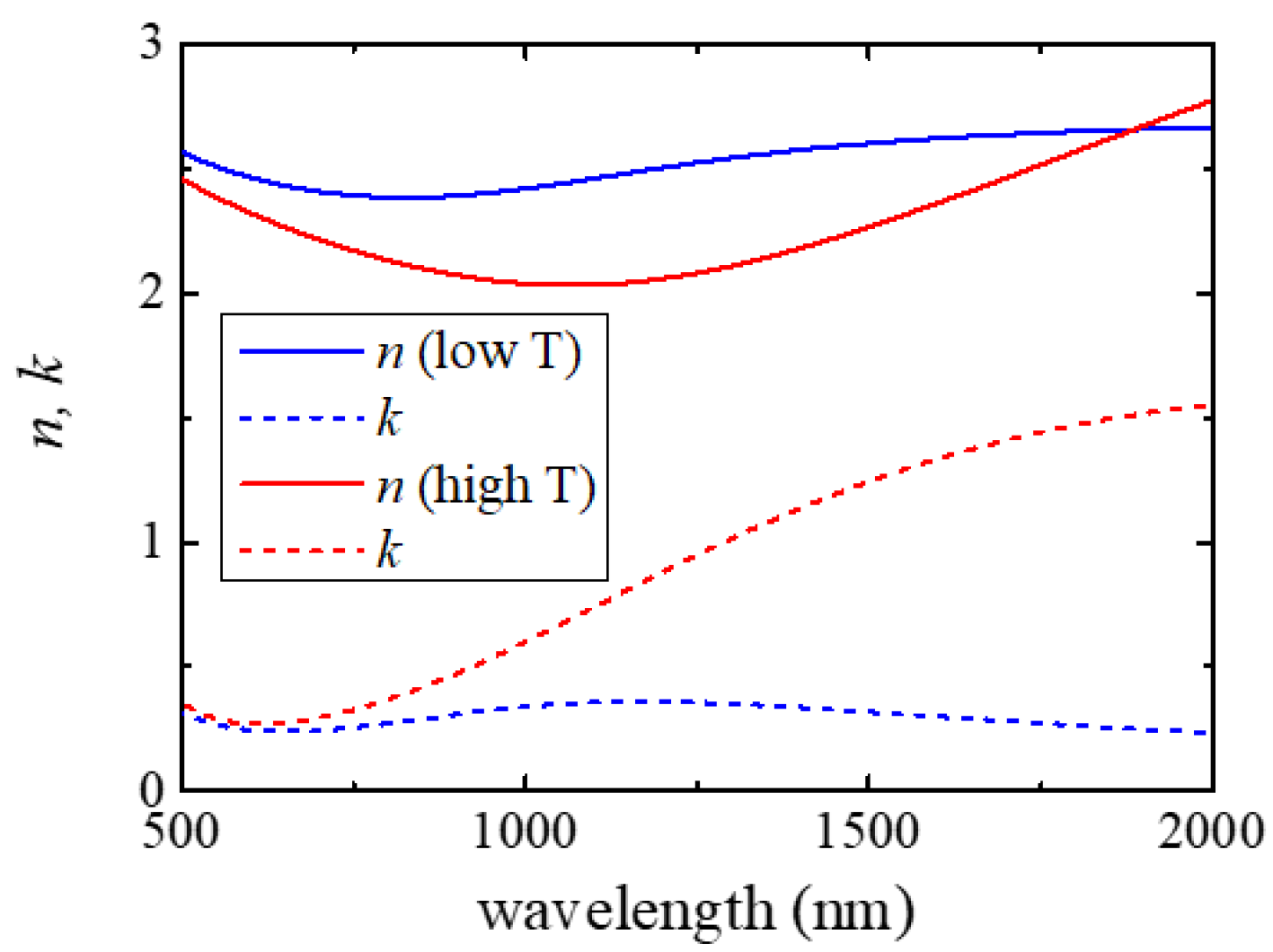

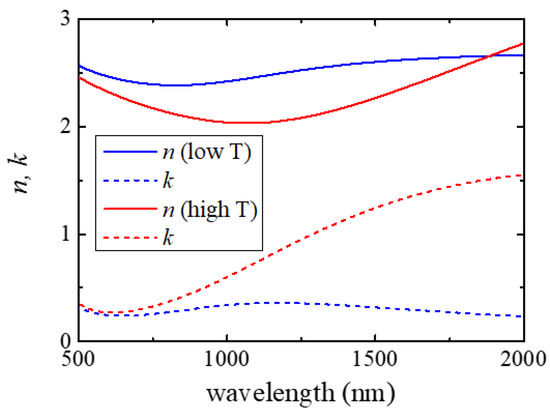

Figure 1 shows the spectral response of the refractive index, n and the extinction coefficient, k of VO${}_2$ by using the paramters in Table 1. As the wavelength increases, k of VO${}_2$ at high temperature increases gradually, however, that at low temperature is slightly changed.

2.2. Design of Geometrical Orientation of Au Nanorod

Based on PB-phase principle, a rotational angle of Au nanorod was determined. First, a desired phase was calculated. For horizontal beam steering, every single column of Au nanorod should make a constant phase change which was realized by rotating Au nanorod with half of the desired phase change. In case of Fourier hologram, a desired image was prepared with binary data, first. And then, the phase distribution was determined by two-dimensional fast Fourier transformation (2-D FFT) of the image with a random phase. Finally, the orientation of each Au nanorod was set as half of the calculated phase at a center position of Au nanorod. Design process of Au nanorods for Fresnel hologram was the same as Fourier hologram except the calculation of the phase distribution, which was calculated by Fresnel’s pingpong algorithm [45].

2.3. Numerical Method

We investigated optical performances of reflectarray metasurfaces with VO${}_2$ thin film by three-dimensional FDTD simulation [43]. For analyzing an amplitude and phase of a reflected light, the total-field/scattered-field method with the normal incident plane wave was used. Furthermore, a minimum spatial resolution was fixed at 4 nm for representing surface plasmon effect. In the beam steering and hologram simulation, the normal incident light was circularly polarized.

3. Applications and Discussions

3.1. Optimization of Reflectarray Metasurface with VO₂ Thin Film

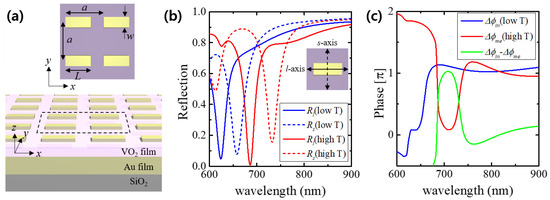

VO${}_2$ has the metal-insulator-transition behavior, and VO${}_2$ based metasurface manipulating the polarization control has widely been demonstrated in the IR and THz region [37,41,46]. However, high-efficient VO${}_2$ based metasurface in the visible range has not been reported yet. In this section, we proposed a simple metasurface with VO${}_2$ thin film with Au nanorod array, which provides a great advantage for the fabrication. Figure 2a shows the schematic view of a reflectarray PB-phase metasurface. An array of Au nanorods is on top of a thin VO${}_2$ film which lies on the Au thick film. The structural parameters of the Au nanorod are defined at Figure 2a. The optimized structural parameters of the Au nanorod (see Figure S1 in Supplementary Materials) are w = 80 nm and L = 200 nm when the period (a) and the thickness (t) is fixed at 300 nm and 30 nm, respectively. Here, the thickness of the VO${}_2$ film is set as 80 nm which is close to the optimum value for polarization conversion (see Figure S3 in Supplementary Materials), and the thickness of the Au film is fixed at 150 nm. Figure 2b shows temperature dependent reflection spectra with different input polarization which direction corresponds to the l- or s-axis of the Au nanorod shown in the inset. At low temperature, the dips of $R_l$ and $R_s$ were found at 620 and 660 nm, respectively. According to Figure 2c, a phase difference, $\Delta \varphi$ is around zero in the spectral region between two dips, however, $\Delta \varphi$ is almost $\pi$ in the longer wavelength. The same spectral response was observed at high temperature as the dips of $R_l$ and $R_s$ found at 690 nm and 730 nm, respectively. Especially, a spectrum subtracting two phase-difference spectra shown in Figure 2c is $\pi$ near 700 nm. Hence, when temperature increases over the critical temperature, reflection at $\lambda \sim$ 700 nm maintains over 65%, however, phase difference switches from $\pi$ to zero. This implies that the structure could have a functionality of a metasurface only at low temperature.

3.2. Manipulation of Reflected Light

3.2.1. Polarization Conversion of Reflected Light

First, we numerically investigated polarization conversion efficiency by the optimized VO${}_2$ based reflectarray metasurface structure consisted of a 45${}^{\circ }$-rotated Au nanorod. The details of the structure and characterization of 45${}^{\circ }$-rotated Au nanorod metasurface were described in Figure S2 at Supplementary Materials. Figure 3a,b show the polarization conversion ratio ($PCR$) at low temperature and that at the high temperature, respectively, defined as

$$PCR=\frac{R_{\mathrm{cr}}}{R_{\mathrm{cr}}+R_{\mathrm{co}}},$$

(2)

where $R_{\mathrm{co}}$ is the reflectance of the co-polarized light defined as $|E_{x,r}/E_{x,i}{|}^2$, and $R_{\mathrm{cr}}$ is the reflectance of the cross-polarized light defined as $|E_{y,r}/E_{x,i}{|}^2$. Here, $E_i$ is the amplitude of the incident electric field and $E_r$ is that of the reflected electric field. It is worth noting that if $PCR$ = 1, all the reflected light is the cross-polarized light, and if $PCR$ = 0, all the reflected light is the co-polarized light. As shown in Figure 3a, $PCR$ is over 0.90 at low temperature in the NIR region (>750 nm). Furthermore, $PCR$ is high at high temperature, but very low $PCR$($\sim zero$) is found near 700 nm. From these results, the proposed structure can act as a high efficient polarization conversion metasurface at all temperature in the NIR region. However, near 700 nm, polarization conversion occurs only at low temperature. As shown in Figure 3c, reflection spectra at w = 80 nm (the white lines marked in Figure 3a,b) clearly show this polarization conversion property. In the NIR region, $R_{\mathrm{cr}}$ is over 80%, while $R_{\mathrm{co}}$ is below 10% at both low and high temperature. However, at $\lambda \sim$ 700 nm, $R_{\mathrm{cr}}$ is about 75% at low temperature, but almost zero (∼0.5%) at high temperature.

3.2.2. Switchable Beam Steering

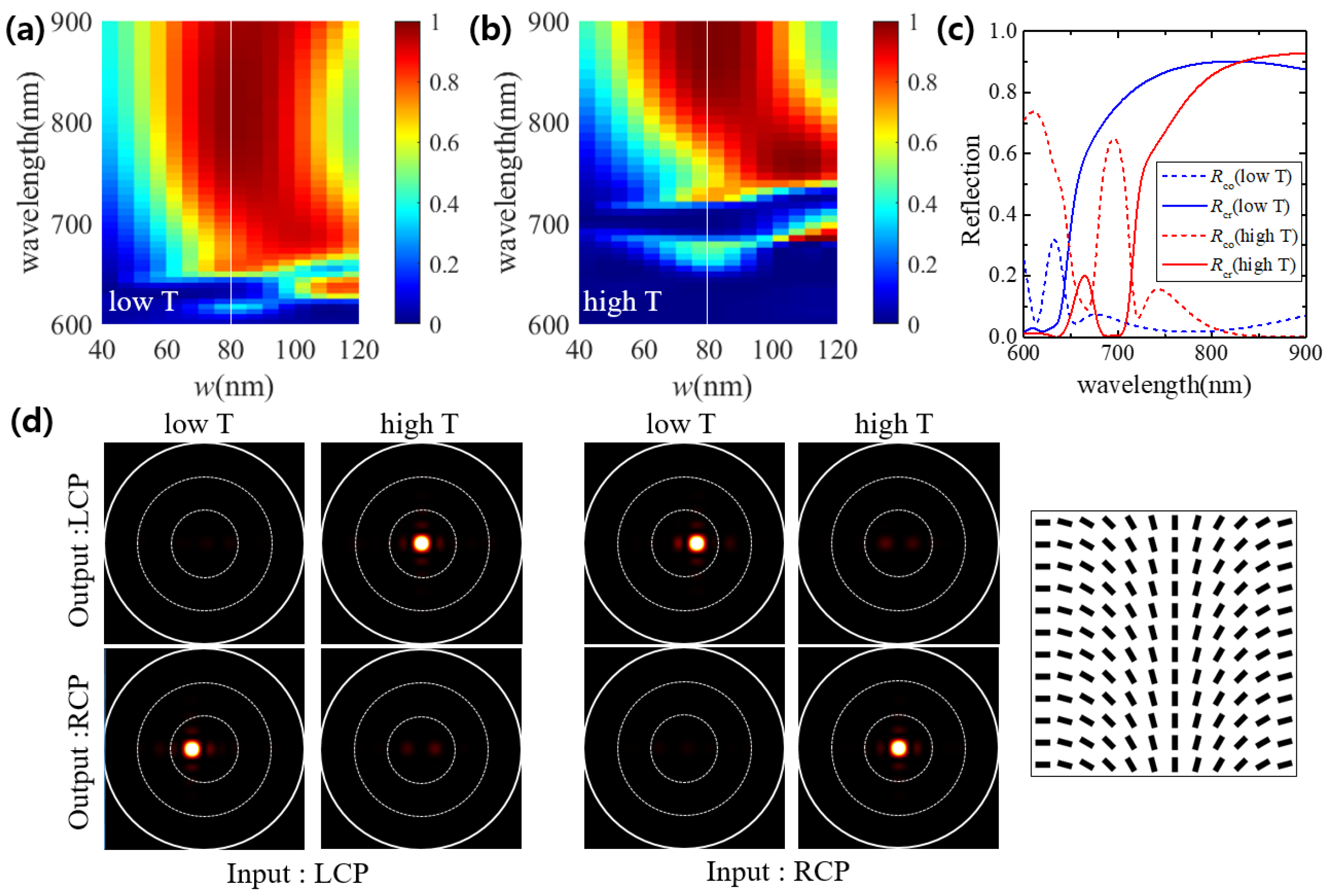

Second, switchable beam steering was investigated with the optimized VO${}_2$ based reflectarray metasurface at $\lambda$ = 700 nm by temperature change. The PB-phase metasurface is consisted of 12 Au nanorods by steps of 15${}^{\circ }$ change from the left to the right (see the right inset of Figure 3d). In the calculation, the input beam with the left-handed circular polarization (LCP) or the right-handed circular polarization (RCP) was used, and the polarization state of the reflected beam was analyzed by the angular radiation pattern from near-to-far-field transformation algorithm [47]. Figure 3d shows the polarization dependent angular radiation patterns of the reflected light. When the input polarization was LCP at low temperature, the reflected light was RCP with radiation angle, ∼11${}^{\circ }$ along the horizontal direction, which is well matched with the designed radiation angle defined as ${\tan }^{-1}(12a/\lambda )$. However, at high temperature, the reflected light had the same polarization in the normal direction. In case of the RCP input beam, the beam steering behavior was only observed at low temperature, too. Hence, switchable beam steering was successfully demonstrated at $\lambda$ = 700 nm by temperature change.

3.2.3. Beam Steering with Continuous Phase Change of VO${}_2$ Film

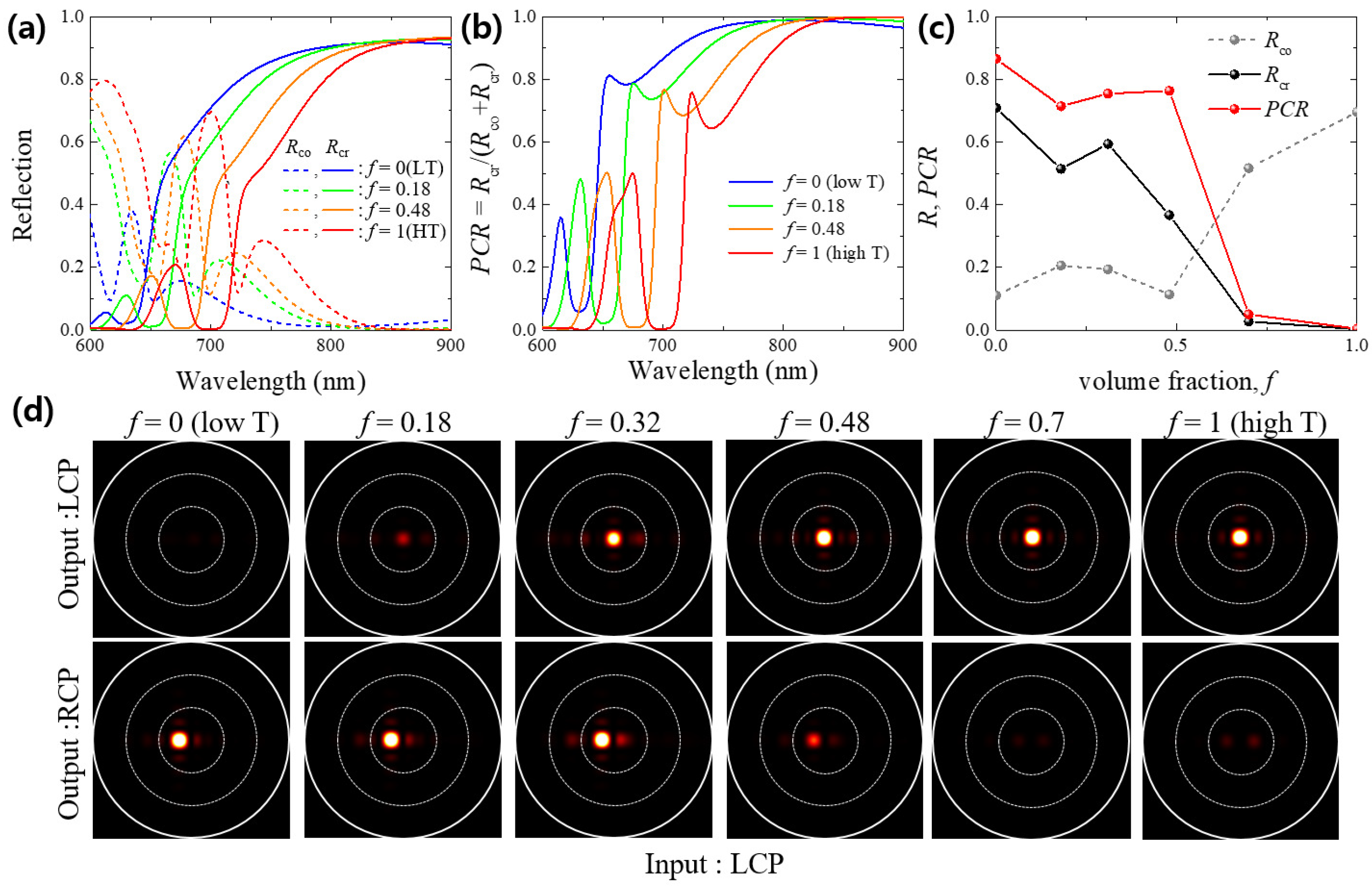

We numerically investigated $PCR$ of the optimized reflectarray metasurface with various degree of metallic phase of VO${}_2$ film. The Drude–Lorentz parameters for dielectric constant of VO${}_2$ with partial metallic phase were estimated by Bruggeman effective medium theory (see Supplementary Materials) [35,48]. As shown in Figure 4a, reflection spectra is red-shift as a volume fraction of metallic phase of VO${}_2$, f increases because of decreasing n. Consequently, $PCR$ spectra is also red-shift (see Figure 4b). Especially, $PCR$ is maintained over 70% at $\lambda$ = 700 nm when f increases until 0.5. However, $PCR$ suddenly decreases with further increasing f, and finally becomes zero at metal phase (f = 1). In consideration of complete phase change within small temperature difference, $PCR$ is very sensitive to temperature near the critical temperature [35]. In order to confirm sensitivity of $PCR$ to temperature, we investigated beam steering as a function of degree of metal phase in VO${}_2$ film. According to Figure 4d, as f increases, the cross-polarized light reflected at radiation angle, ∼11${}^{\circ }$ becomes weak. In contrast, the co-polarized light in normal reflection becomes strong which is well matched with Figure 4c. This result implies that radiation direction could be switched continuously without change of radiation angle by continuous phase change of VO${}_2$ film.

3.3. Fourier Hologram

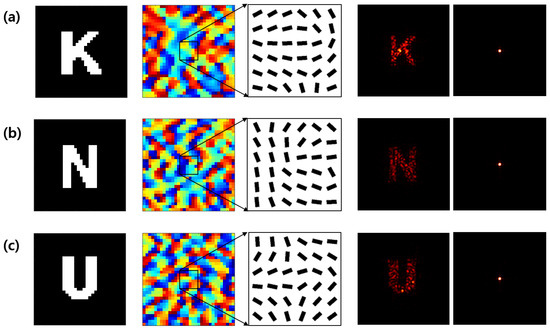

One of famous applications with metasurfaces is a hologram. According to the distance from a hologram to a reconstructed image, types of holograms can be classified [49]. The image hologram is a hologram to record a real image of the object formed by a lens. So the reconstructed image lies on the hologram. The Fresnel hologram is a hologram to record the near-field diffraction pattern of the object. Therefore, the reconstructed image is located near the hologram. The Fourier hologram is a hologram to record an interference pattern between Fourier transforms of the object and a collimated beam. So the object is placed in the front focal plane of a lens and the hologram is in the back focal plane of the lens. The reconstructed image is located in the far field, so to visualize the image, it is necessary to use another lens to form the image. We demonstrated switchable metasurface Fourier hologram at $\lambda$ = 700 nm which was designed by a computer generated hologram (CGH) technique [50]. Figure 5 shows the performance of Fourier hologram generated by the optimized VO${}_2$-film based reflectarray metasurface. The letter images at the left column in Figure 5 were prepared with 32 × 32-pixel binary images. Two middle columns in Figure 5 indicate the phase maps calculated by 2-D FFT and corresponding Au nanorod arrays, respectively. At low temperature, the holographic images were reconstructed as shown in the second right column. The speckle pattern on the holographic image is due to the random phase. At high temperature, the normal reflected lights were observed as shown in the right column, which correspond to the zeroth order diffraction. From this, we expect that the far-field image generated by VO${}_2$ based reflectarray metasurface Fourier hologram can be switchable by temperature.

3.4. Fresnel Hologram

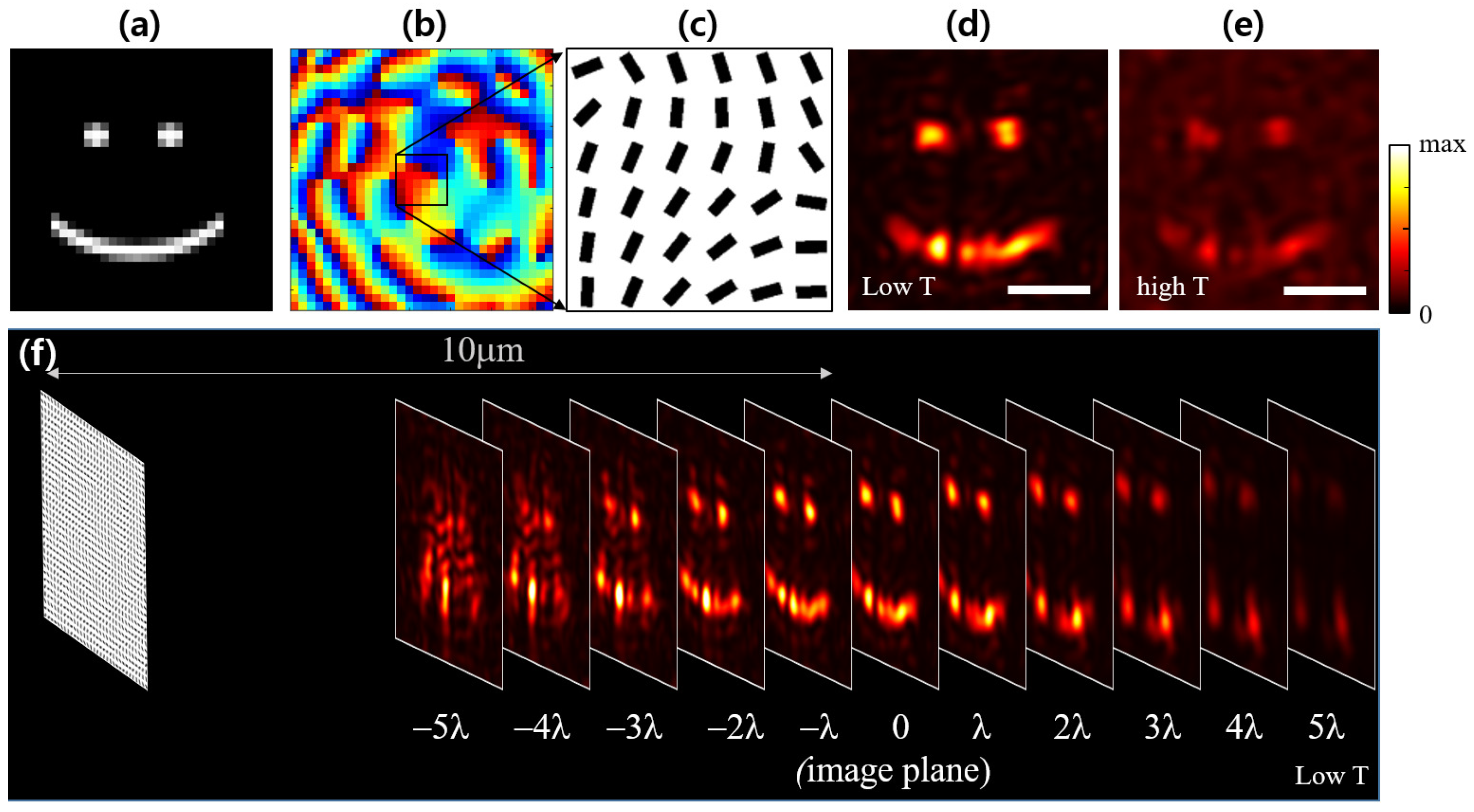

To investigate optical switching of the near-field hologram image in the visible region, we demonstrated the Fresnel hologram with the optimized VO${}_2$ based reflectarray metasurface at $\lambda$ = 700 nm. First, we prepared a 32 × 32-pixel binary image of a smiling face (Figure 6a) and calculated the phase distribution (Figure 6b) by CGH technique based on Fresnel’ pingpong algorithm [45]. According to the phase distribution, the optimal Au nanorods were arranged based on PB-phase principle (Figure 6c). Here, we designed a reflectarray metasurface hologram with an image plane at 10 m from the metasurface. Figure 6d shows the time-averaged intensity distribution at the image plane at low temperature, which agrees well with the original smiling face. However, at high temperature, the reconstructed image appears weakly because $R_{\mathrm{co}}$ component contributes to generate the smile image. Therefore, if the polarizer to remove the co-polarization component or off-axis hologram technique is adapted, switchable hologram on temperature could be realized. For the quantitative analysis, we calculated the signal-to-noise ratio (SNR) of the time-averaged intensity. In case of low temperature, SNR ∼ 16.5 dB, however, SNR ∼ 8.2 dB at high temperature. The SNR could be enhanced if the area of metasurface hologram increases. We also obtained the depth-of-field (DOF) in the holographic image at low temperature. According to the time-averaged intensity distributions obtained from different z-position shown in Figure 6f, DOF is estimated about 4$\lambda \simeq$ 3 m.

4. Conclusions

We numerically demonstrated switchable metasurfaces using a thin-VO${}_2$-film based reflectarray of Au nanorods in the visible region at $\lambda$ = 700 nm. First, the optical constants of VO${}_2$ from insulating phase at low temperature to metallic phase at high temperature was modelled by the Drude–Lorentz equation with Bruggeman effective medium theory in the visible to the IR region. An Au nanorod on top of a thin VO${}_2$ film above a thick Au film was optimized for high polarization conversion efficiency only at low temperature. The optimized reflectarray metasurface shows polarization conversion efficiency about 75% at $\lambda$ = 700 nm at low temperature, while the polarization conversion efficiency is less than 0.5% at high temperature. We numerically demonstrated various performances of switchable metasurfaces, such as polarization conversion, beam steering, Fourier hologram, and Fresnel hologram. The PB-phase principle was adapted to realize an arbitral phase distribution by controlling the angle of Au nanorods. We believe that the thin-VO${}_2$-film-based switchable metasurface in the visible region can be a practical platform for various applications of dynamic optical switch devices by temperature, such as optical sensors, beam forming antennas, and display.
