Communication

Parallelized and Cascadable Optical Logic Operations by Few-Layer Diffractive Optical Neural Network

by
Xianjin Liu
1,2,
Dasen Zhang
1,2,
Licheng Wang
1,2,
Ting Ma
1,2,
Zhenzhen Liu
1,2 and
Jun-Jun Xiao
1,2,*
1
College of Electronic and Information Engineering, Harbin Institute of Technology (Shenzhen), Shenzhen 518055, China
2
Shenzhen Engineering Laboratory of Aerospace Detection and Imaging, Harbin Institute of Technology (Shenzhen), Shenzhen 518055, China
*
Author to whom correspondence should be addressed.
Photonics 2023, 10(5), 503; https://doi.org/10.3390/photonics10050503
Submission received: 27 March 2023 / Revised: 18 April 2023 / Accepted: 25 April 2023 / Published: 26 April 2023
(This article belongs to the Special Issue Recent Trends in Computational Photonics)
Browse Figures
Versions Notes

Abstract

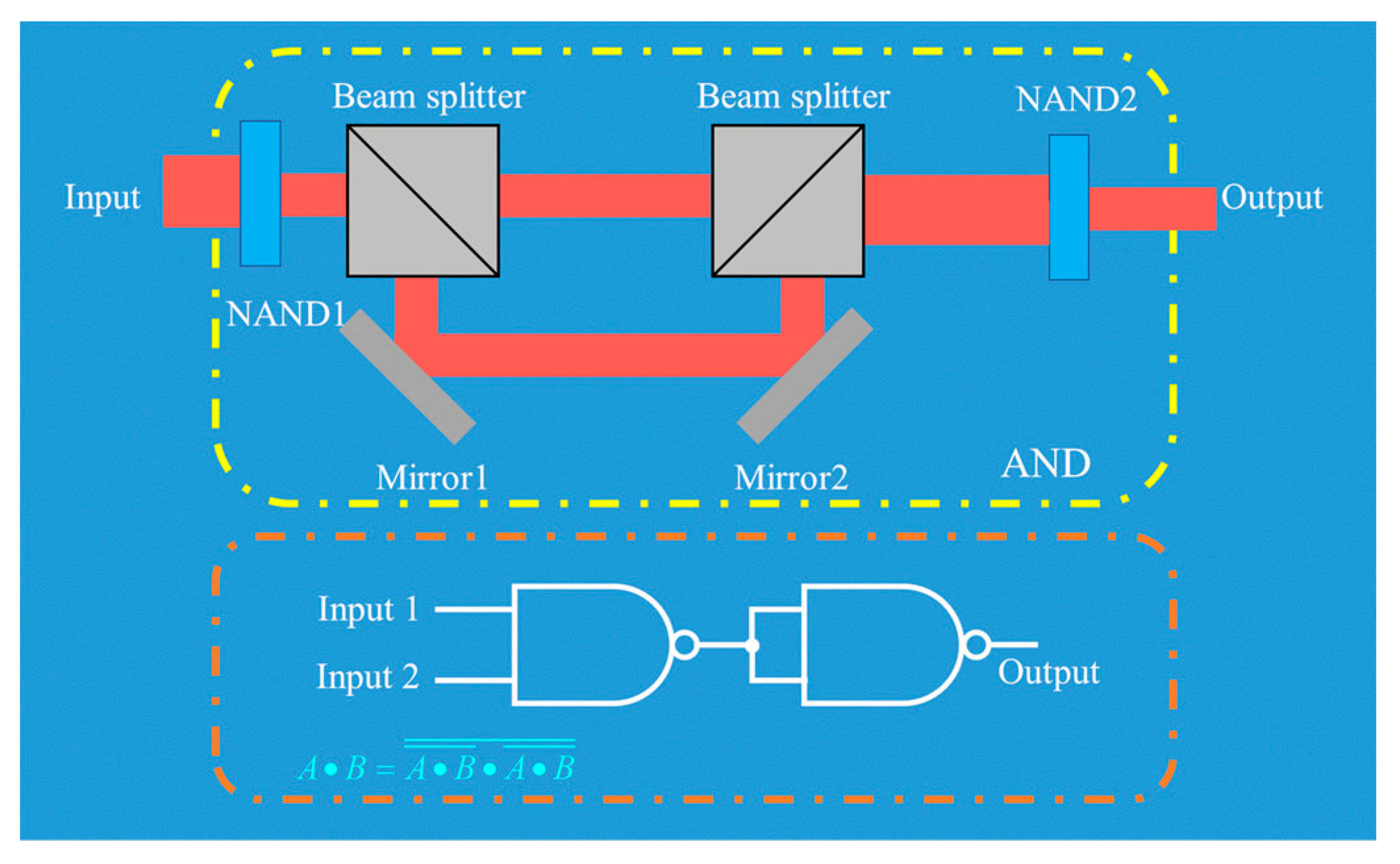

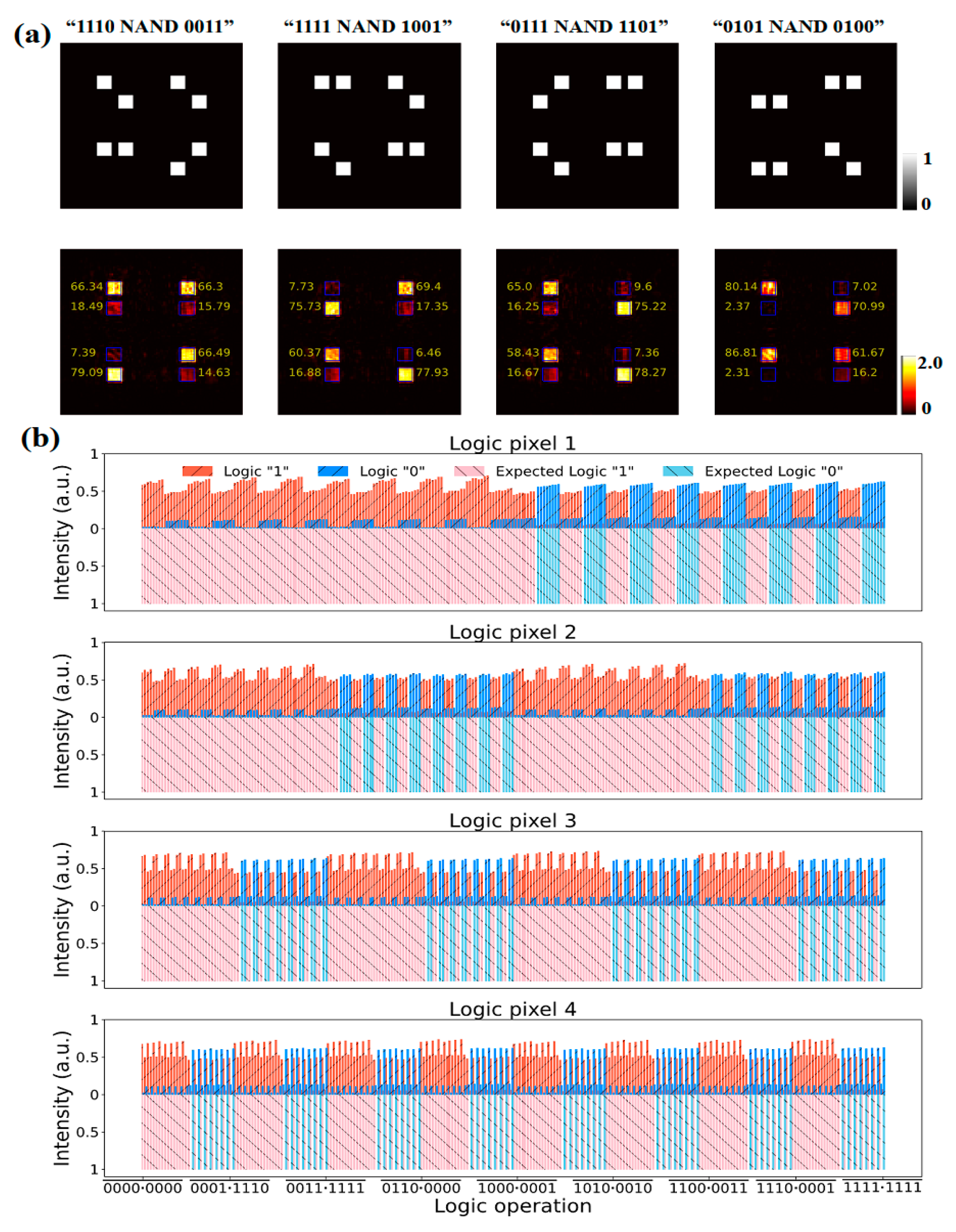

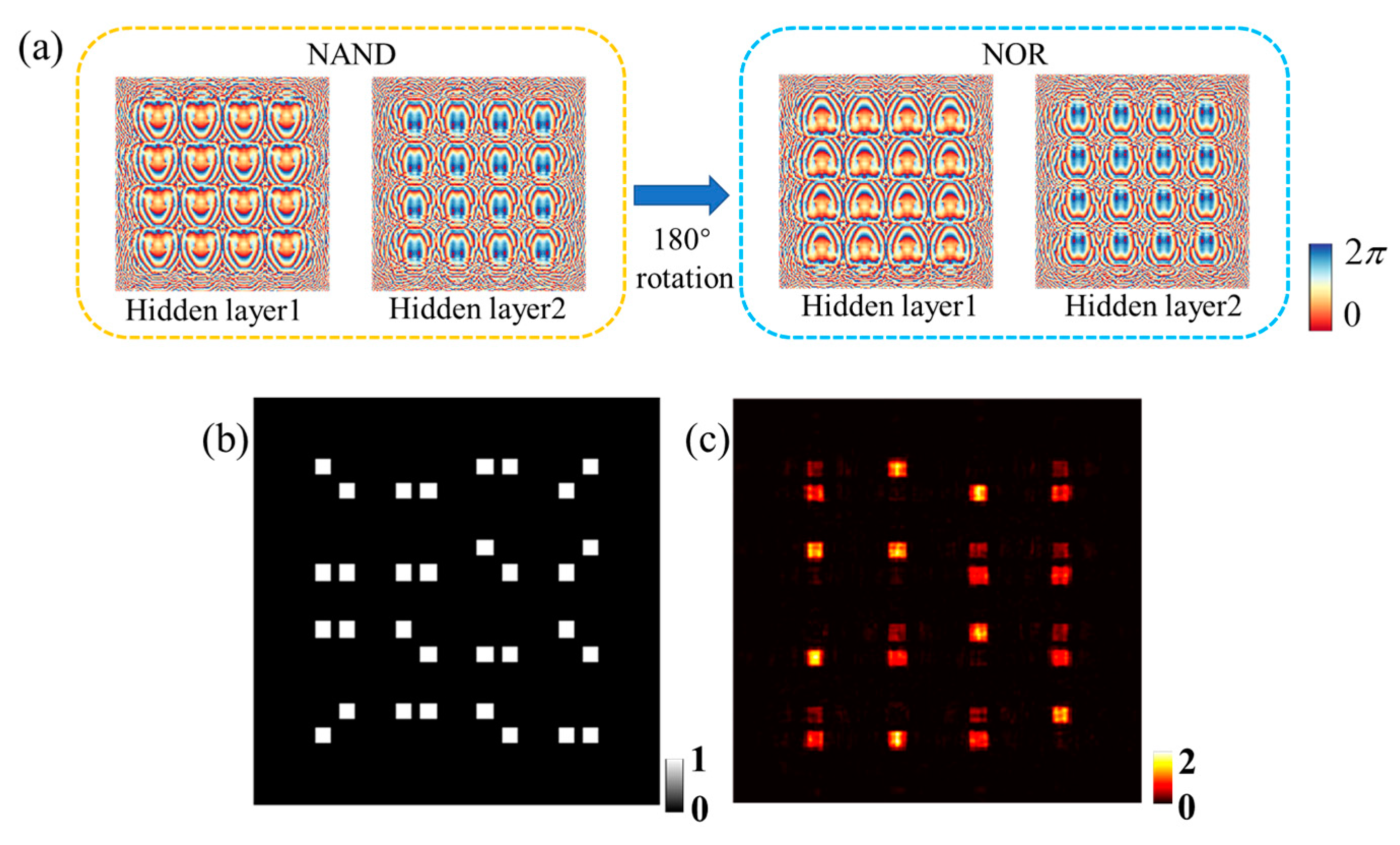

Optical computing has gained much attention due to its high speed, low energy consumption, and the fact that it is naturally parallelizable and multiplexable, etc. Single-bit optical logic gates based on a four-hidden-layer diffractive optical neural network (DONN) have been demonstrated with paired apertures. Here, we show a parallel-logic operation strategy based on two-hidden-layer DONN, showcasing their efficiency by multiple-bit (up to 16-bit) optical logic (e.g., NAND) operations. In addition, we demonstrate how NAND-DONN units can be utilized to achieve NOR and AND operations by flipping and cascading the DONN.
Keywords: diffractive optical neural network; parallel logic operation; multiple bits diffractive optical neural network; parallel logic operation; multiple bits
