# Finite Element Analysis of Laminar Heat Transfer within an Axial-Flux Permanent Magnet Machine

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

#### 1.1. Flow Characteristics

#### 1.2. Thermal Characteristics

#### 1.3. Research Objective

## 2. Flow Model

#### 2.1. Strong Form

#### 2.2. Mixed Variational Form

**Lemma**

**1.**

**Proof**.

#### 2.2.1. Weakly Imposed Dirichlet Boundary Condition

#### 2.2.2. Directional Do-Nothing Boundary Condition

#### 2.3. Validation

#### 2.3.1. Enclosed Rotating Disk

#### 2.3.2. Von Kármán Swirling Flow

#### 2.3.3. Infinite Rotor-Stator Configuration

## 3. Thermal Model

#### 3.1. Strong Form

#### 3.2. Variational Form

#### 3.3. Nusselt Number

#### 3.4. Validation

## 4. AFPM Simulation Setup

#### 4.1. Numerical Domain and Mesh

#### 4.2. Mesh Convergence

## 5. AFPM Design Analyses

#### 5.1. Flow Field

#### 5.2. Temperature Field

## 6. Conclusions

- When dealing with a partially heated stator surface, different heat transfer behavior is observed compared to the literature based on a uniformly heated stator surface. By partially heating the stator, one enables the entering fluid to dissipate its thermal energy in its path toward the axis of rotation. Decreasing the gap-length enhances this effect, as a lower surface-area-to-volume ratio is obtained, thereby effectively increasing the dissipation rate.
- Adding air-inlets will improve the overall cooling of the stator, but will locally worsen it inside the gap near the core surface. The main reason for this is the circulation zone at the core surface, which increases in size with an increase in gap-length or Reynolds number. It is noted that this observation for the laminar flow case does not necessarily translate to the turbulent regime.

- An air-inlet is always desired, even though the heat transfer at the core may locally become worse. The cooling through the remaining sides of the stator is expected to be substantially larger compared to having no air-inlet.
- A superposed throughflow at the air-inlet is desired over a conventional open air-inlet configuration. The reason for this is that one can then influence the flow field and therefore control the temperature of the core to some extent. The superposed flow is also able to remove the troublesome circulation zone near the core, increasing the heat transfer.
- An additional cooling circuit that could actively circulate a liquid, i.e., water, refrigerants, etc., will benefit the overall cooling of the stator. The circuit should be positioned such that it can dissipate the heat from the core both efficiently and practically, i.e., preferably located at the back of the stator disk.
- One could use highly conductive non-metal materials for the stator and rotor, dissipating the heat from critical areas even faster.

## Author Contributions

## Funding

## Conflicts of Interest

## Abbreviations

AFPM | Axial-Flux Permanent Magnet |

RFPM | Radial-Flux Permanent Magnet |

FEM | Finite Element Method |

IGA | Isogeometric Analysis |

DOF | Degree of Freedom |

BC | Boundary Condition |

3D | Three-dimensional |

SUPG | Streamline-Upwind Petrov-Galerkin |

DDN | Directional Do-Nothing |

LIC | Line Integral Convolution |

MKL | Math Kernel Library |

## Appendix A. Enclosed Rotor-Stator Analytic Solution

## Appendix B. Temperature Dependence

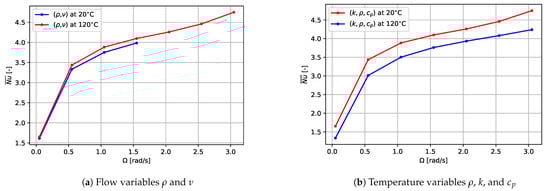

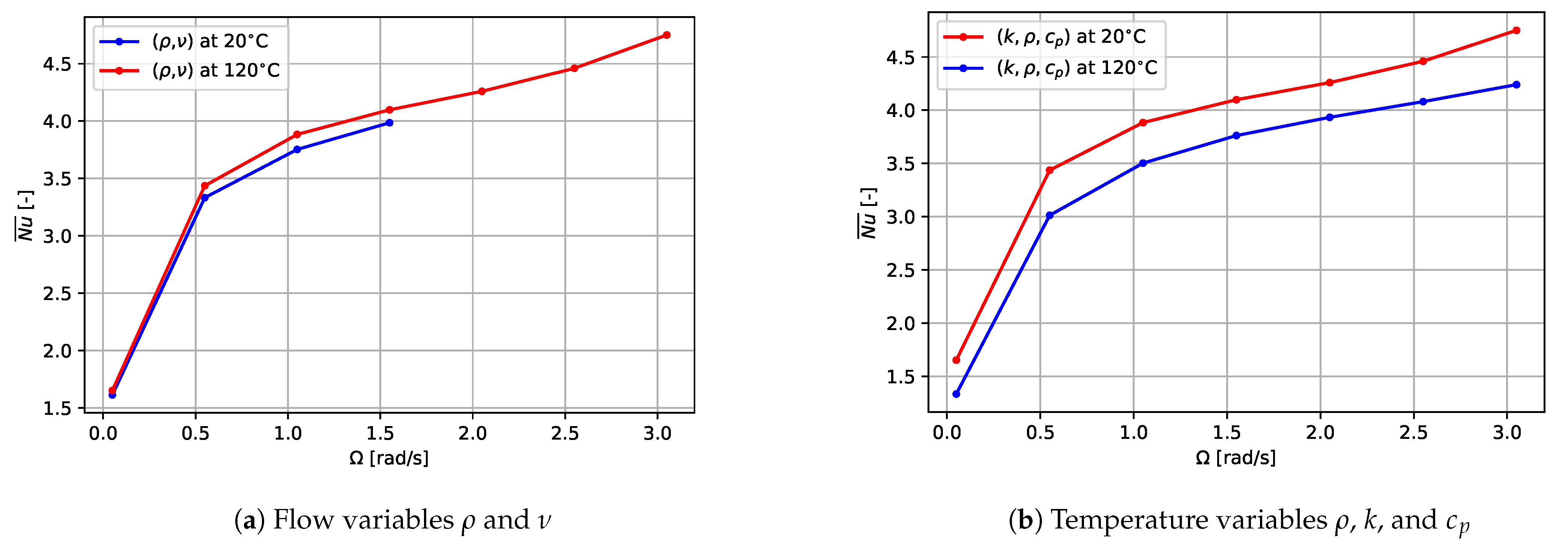

**Figure A1.**Effect of varying flow and temperature fluid properties, i.e., the density $\rho $, the viscosity $\nu $, the conductivity k and the specific heat capacity C

_{p}, on the average Nusselt number at the core surface.

## Appendix C. Material Properties

Material | Conductivity [W/mK] |
---|---|

Air $80{\phantom{\rule{3.33333pt}{0ex}}}^{\circ}$C | 0.030 |

Rotor support (Aluminum) | 237.0 |

Stator support (Resin) | 0.2 |

Permanent magnet | 7.6 |

Back-iron | 40.0 |

Core (Iron M270-50A) | 25.0 |

## Appendix D. Induced Heat Source

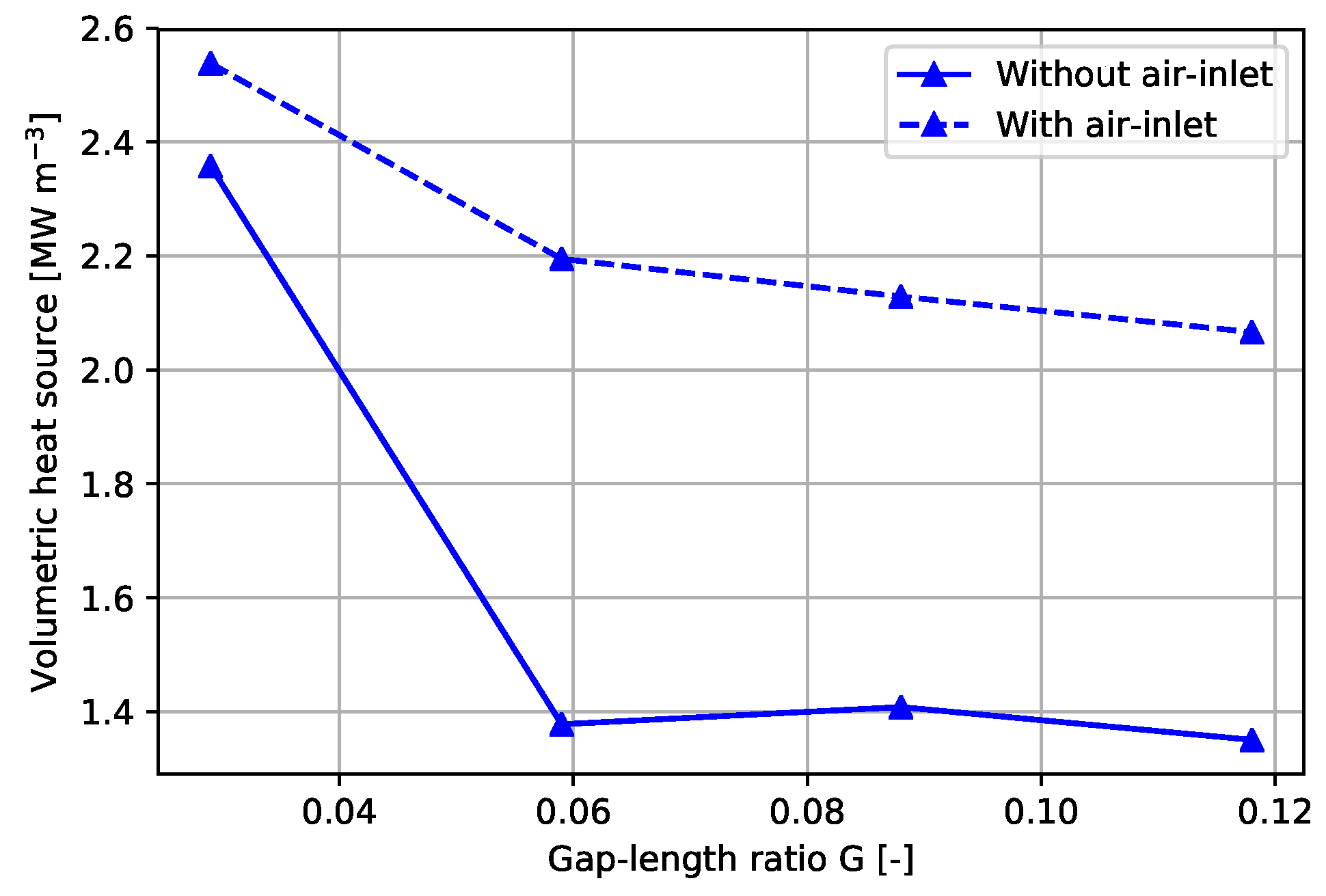

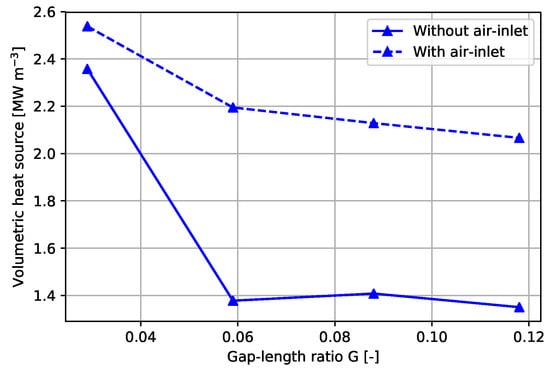

**Figure A2.**Applied heat source to the core for different gap-length ratios and $\mathrm{Re}=5513$. All values correspond to an average core surface temperature of $120{\phantom{\rule{3.33333pt}{0ex}}}^{\circ}\mathrm{C}$.

## References

- Gieras, J.F.; Wang, R.J.; Kamper, M.J. Axial Flux Permanent Magnet Brushless Machines; Springer Science & Business Media: Berlin, Germany, 2008. [Google Scholar]
- Friedrich, L.A.J.; Gysen, B.L.J.; Jansen, J.W.; Lomonova, E.A. Analysis of Motional Eddy Currents in the Slitted Stator Core of an Axial-Flux Permanent-Magnet Machine. IEEE Trans. Magn.
**2020**, 56, 1–4. [Google Scholar] [CrossRef][Green Version] - Ekman, V.W. Om jordrotationens inverkan pa vindstrømmar i hafvet. Arkiv för Matematik Astronomi och Fysik
**1905**, 2, 1. [Google Scholar] - Rasekh, A.; Sergeant, P.; Vierendeels, J. Development of Correlations for Windage Power Losses Modeling in an Axial Flux Permanent Magnet Synchronous Machine with Geometrical Features of the Magnets. Energies
**2016**, 9, 1009. [Google Scholar] [CrossRef][Green Version] - Howey, D.A. Thermal Design of Air-Cooled Axial Flux Permanent Magnet Machines. Ph.D. Thesis, Imperial College London, London, UK, 2010. [Google Scholar]
- Habibinia, D.; Rostami, N.; Feyzi, M.R.; Soltanipour, H.; Pyrhönen, J. New finite element based method for thermal analysis of axial flux interior rotor permanent magnet synchronous machine. IET Electr. Power Appl.
**2020**, 14, 464–470. [Google Scholar] [CrossRef] - von Kármán, T. Über laminare und turbulente Reibung. Zeitschrift für Angewandte Mathematik und Mechanik
**1921**, 1, 233. [Google Scholar] [CrossRef][Green Version] - Bödewadt, U.T. Die Drehströmung über festem Grunde. Zeitschrift für Angewandte Mathematik und Mechanik
**1940**, 20, 241–253. [Google Scholar] [CrossRef] - Batchelor, G.K. Note on a class of solutions of the Navier–Stokes equations representing steady rotationally symmetric flow. Q. J. Mech. Appl. Math.
**1951**, 4, 29–41. [Google Scholar] [CrossRef] - Harmand, S.; Pellé, J.; Poncet, S.; Shevchuk, I.V. Review of fluid flow and convective heat transfer within rotating disk cavities with impinging jet. Int. J. Therm. Sci.
**2013**, 67, 1–30. [Google Scholar] [CrossRef][Green Version] - Stewartson, K. On the flow between two rotating coaxial disks. Math. Proc. Camb. Philos. Soc.
**1953**, 49, 333–341. [Google Scholar] [CrossRef] - Childs, P.R.N. Rotating Flow; Butterworth-Heinemann, Elsevier: Paris, France, 2011. [Google Scholar]
- Zandbergen, P.J.; Dijkstra, D. Von Kármán swirling flows. Annu. Rev. Fluid Mech.
**1987**, 19, 465–491. [Google Scholar] [CrossRef] - Brady, J.F.; Durlofsky, L. On rotating disk flow. J. Fluid Mech.
**1987**, 175, 363. [Google Scholar] [CrossRef] - Poncet, S.; Chauve, M.P.; Schiestel, R. Batchelor versus Stewartson flow structures in a rotor-stator cavity with throughflow. Phys. Fluids
**2005**, 17. [Google Scholar] [CrossRef] - Barabas, B.; Clauss, S.; Schuster, S.; Benra, F.K.; Dohmen, H.J.; Brillert, D. Experimental and numerical determination of pressure and velocity distribution inside a rotor-stator cavity at very high circumferential Reynolds numbers. In Proceedings of the European Conference on Turbomachinery Fluid Dynamics and Thermodynamics, Madrid, Spain, 23–27 March 2015. [Google Scholar]
- Debuchy, R.; Gatta, S.; D’Haudt, E.; Bois, G.; Martelli, F. Influence of external geometrical modifications on the flow behaviour of a rotor-stator system: Numerical and experimental investigation. Proc. Inst. Mech. Eng. A J. Power Energy
**2007**, 221, 857–863. [Google Scholar] [CrossRef] - Itoh, M.; Yamada, Y.; Imao, S.; Gonda, M. Experiments on turbulent flow due to an enclosed rotating disk. Exp. Therm. Fluid Sci.
**1992**, 5, 359–368. [Google Scholar] [CrossRef] - Jacques, R.; Quéré, P.L.; Daube, O. Axisymmetric numerical simulations of turbulent flow stator enclosures. Int. J. Heat Fluid Flow
**2002**, 23, 381–397. [Google Scholar] [CrossRef] - Craft, T.; Iacovides, H.; Launder, B.; Zacharos, A. Some swirling-flow challenges for turbulent CFD. Flow Turbul. Combust.
**2008**, 80, 419–434. [Google Scholar] [CrossRef] - Hemeida, A.; Lehikoinen, A.; Rasilo, P.; Vansompel, H.; Belahcen, A.; Arkkio, A.; Sergeant, P. A Simple and Efficient Quasi-3D Magnetic Equivalent Circuit for Surface Axial Flux Permanent Magnet Synchronous Machines. IEEE Trans. Ind. Electron.
**2019**, 66, 8318–8333. [Google Scholar] [CrossRef] - Hill, R.W.; Ball, K.S. Direct numerical simulations of turbulent forced convection between counter-rotating disks. Int. J. Heat Fluid Flow
**1999**, 20, 208–221. [Google Scholar] [CrossRef] - Pellé, J.; Harmand, S. Heat transfer measurements in an opened rotor-stator system air-gap. Exp. Therm. Fluid Sci.
**2007**, 31, 165–180. [Google Scholar] [CrossRef] - Yuan, Z.X.; Saniei, N.; Yan, X.T. Turbulent heat transfer on the stationary disk in a rotor–stator system. Int. J. Heat Mass Transf.
**2003**, 46, 2207–2218. [Google Scholar] [CrossRef][Green Version] - Howey, D.A.; Holmes, A.S.; Pullen, K.R. Radially resolved measurement of stator heat transfer in a rotor–stator disc system. Int. J. Heat Mass Transf.
**2010**, 53, 491–501. [Google Scholar] [CrossRef][Green Version] - Hughes, T.J.R.; Cottrell, J.A.; Bazilevs, Y. Isogeometric analysis: CAD, finite elements, NURBS, exact geometry and mesh refinement. Comput. Methods Appl. Mech. Eng.
**2005**, 194, 4135–4195. [Google Scholar] [CrossRef][Green Version] - Bazilevs, Y.; Calo, V.M.; Hughes, T.J.R.; Zhang, Y. Isogeometric fluid–structure interaction: Theory, algorithms, and computations. Comput. Mech.
**2008**, 43, 3–37. [Google Scholar] [CrossRef] - Evans, J.A.; Hughes, T.J.R. Isogeometric divergence-conforming B-splines for the steady Navier–Stokes equations. Math. Models Methods Appl. Sci.
**2013**, 23, 1421–1478. [Google Scholar] [CrossRef] - Bazilevs, Y.; Hughes, T.J.R. Weak imposition of Dirichlet boundary conditions in fluid mechanics. Comput. Fluids
**2007**, 36, 12–26. [Google Scholar] [CrossRef] - Carraturo, M.; Giannelli, C.; Reali, A.; Vázquez, R. Suitably graded THB-spline refinement and coarsening: Towards an adaptive isogeometric analysis of additive manufacturing processes. Comput. Methods Appl. Mech. Eng.
**2019**, 348, 660–679. [Google Scholar] [CrossRef][Green Version] - Liu, N.; Beata, P.A.; Jeffers, A.E. A mixed isogeometric analysis and control volume approach for heat transfer analysis of nonuniformly heated plates. Numer. Heat Transf. B Fundam.
**2019**, 75, 347–362. [Google Scholar] [CrossRef] - Bazilevs, Y.; Veiga, L.; Cottrell, J.A.; Hughes, T.J.R.; Sangalli, G. Isogeometric Analysis: Approximation, stability and error estimates for h-refined meshes. Math. Models Methods Appl. Sci.
**2011**, 16, 1031–1090. [Google Scholar] [CrossRef] - Buffa, A.; de Falco, C.; Sangalli, G. Isogeometric analysis: Stable elements for the 2D Stokes equation. Int. J. Numer. Methods Fluids
**2011**, 65, 1407–1422. [Google Scholar] [CrossRef] - Evans, J.A.; Hughes, T.J.R. Isogeometric Divergence-Conforming B-Splines for the Darcy–Stokes–Brinkman Equations. Math. Models Methods Appl. Sci.
**2012**, 23, 671–741. [Google Scholar] [CrossRef] - Cottrell, J.A.; Hughes, T.J.R.; Reali, A. Studies of refinement and continuity in isogeometric structural analysis. Comput. Methods Appl. Mech. Eng.
**2007**, 196, 4160–4183. [Google Scholar] [CrossRef] - Dörfel, M.R.; Jüttler, B.; Simeon, B. Adaptive isogeometric analysis by local h-refinement with T-splines. Comput. Methods Appl. Mech. Eng.
**2010**, 199, 264–275. [Google Scholar] [CrossRef][Green Version] - Bazilevs, Y.; Calo, V.M.; Cottrell, J.A.; Evans, J.A.; Hughes, T.J.R.; Lipton, S.; Scott, M.A.; Sederberg, T.W. Isogeometric analysis using T-splines. Comput. Methods Appl. Mech. Eng.
**2010**, 199, 229–263. [Google Scholar] [CrossRef][Green Version] - Scott, M.A.; Li, X.; Sederberg, T.W.; Hughes, T.J.R. Local refinement of analysis-suitable T-splines. Comput. Methods Appl. Mech. Eng.
**2012**, 213-216, 206–222. [Google Scholar] [CrossRef] - Van Zwieten, G.; van Zwieten, J.; Verhoosel, C.V.; Fonn, E.; van Opstal, T.; Hoitinga, W. Nutils. Available online: https://zenodo.org/record/3949893#.YEgplNwRVPY (accessed on 10 March 2021).
- Cottrell, J.A.; Hughes, T.J.R.; Bazilevs, Y. Isogeometric Analysis: Toward Integration of CAD and FEA; John Wiley & Sons: Hoboken, NJ, USA, 2009. [Google Scholar] [CrossRef]
- Kuru, G.; Verhoosel, C.V.; van der Zee, K.G.; Van Brummelen, E.H. Goal-adaptive Isogeometric Analysis with hierarchical splines. Comput. Methods Appl. Mech. Eng.
**2014**, 270, 270–292. [Google Scholar] [CrossRef] - Kumar, M.; Kvamsdal, T.; Johannessen, K.A. Simple a posteriori error estimators in adaptive isogeometric analysis. Comput. Math. Appl.
**2015**, 70, 1555–1582. [Google Scholar] [CrossRef] - van der Zee, K.G.; Verhoosel, C.V. Isogeometric analysis-based goal-oriented error estimation for free-boundary problems. Finite Elem. Anal. Des.
**2011**, 47, 600–609. [Google Scholar] [CrossRef] - Saad, Y. Iterative Methods for Sparse Linear System. Stud. Comput. Math.
**2001**, 8, 423–440. [Google Scholar] [CrossRef] - Giannelli, C.; Jüttler, B.; Speleers, H. THB-splines: The truncated basis for hierarchical splines. Comput. Aided Geom. Des.
**2012**, 29, 485–498. [Google Scholar] [CrossRef][Green Version] - Deng, J.; Chen, F.; Li, X.; Hu, C.; Tong, W.; Yang, Z.; Feng, Y. Polynomial splines over hierarchical T-meshes. Graph. Models
**2008**, 70, 76–86. [Google Scholar] [CrossRef] - Wang, P.; Xu, J.; Deng, J.; Chen, F. Adaptive isogeometric analysis using rational PHT-splines. Comput. Aided Des.
**2011**, 43, 1438–1448. [Google Scholar] [CrossRef] - Sederberg, T.W.; Zheng, J.; Bakenov, A.; Nasri, A. T-Splines and T-NURCCs. ACM Trans. Graph.
**2003**, 22, 477–484. [Google Scholar] [CrossRef] - Scott, M.A.; Borden, M.J.; Verhoosel, C.V.; Sederberg, T.W.; Hughes, T.J.R. Isogeometric finite element data structures based on Bézier extraction of T-splines. Int. J. Numer. Methods Eng.
**2011**, 88, 126–156. [Google Scholar] [CrossRef] - Dokken, T.; Lyche, T.; Pettersen, K.F. Polynomial splines over locally refined box-partitions. Comput. Aided Geom. Des.
**2013**, 30, 331–356. [Google Scholar] [CrossRef] - Johannessen, K.A.; Kvamsdal, T.; Dokken, T. Isogeometric analysis using LR B-splines. Comput. Methods Appl. Mech. Eng.
**2014**, 269, 471–514. [Google Scholar] [CrossRef][Green Version] - Hansbo, P.; Juntunen, M. Weakly imposed Dirichlet boundary conditions for the Brinkman model of porous media flow. Appl. Numer. Math.
**2009**, 59, 1274–1289. [Google Scholar] [CrossRef] - Nitsche, J. Über ein Variationsprinzip zur Lösung von Dirichlet-Problemen bei Verwendung von Teilräumen, die keinen Randbedingungen unterworfen sind. Abhandlungen aus dem Mathematischen Seminar der Universität Hamburg
**1971**, 36, 9–15. [Google Scholar] [CrossRef] - Benk, J. Immersed Boundary Methods within a PDE Toolbox on Distributed Memory Systems. Ph.D. Thesis, Technische Universität München, München, Germany, 2012. [Google Scholar]
- Hoang, T.; Verhoosel, C.V.; Qin, C.Z.; Auricchio, F.; Reali, A.; van Brummelen, E.H. Skeleton-stabilized immersogeometric analysis for incompressible viscous flow problems. Comput. Methods Appl. Mech. Eng.
**2019**, 344, 421–450. [Google Scholar] [CrossRef][Green Version] - Hansbo, P. Nitsche’s method for interface problems in computational mechanics. GAMM Mitteilungen
**2005**, 28, 183–206. [Google Scholar] [CrossRef][Green Version] - Braack, M.; Mucha, P. Directional do-nothing condition for the Navier–Stokes Equations. J. Comput. Math.
**2014**, 32, 507–521. [Google Scholar] [CrossRef] - Khalili, A.; Rath, H.J. Analytical solution for a steady flow of enclosed rotating disks. Zeitschrift für Angewandte Mathematik und Physik ZAMP
**1994**, 45, 670–680. [Google Scholar] [CrossRef] - Cochran, W.G. The flow due to a rotating disc. Math. Proc. Camb. Philos. Soc.
**1934**, 30, 365–375. [Google Scholar] [CrossRef] - Van Eeten, K.M.P.; van der Schaaf, J.; van Heijst, G. Boundary layer development in the flow field between a rotating and a stationary disk. Phys. Fluids
**2012**, 24, 033601. [Google Scholar] [CrossRef] - Shevchuk, I.V. Convective Heat and Mass Transfer in Rotating Disk Systems, 45th ed.; Springer: Berlin, Germany, 2009. [Google Scholar]
- Elkins, C.J. Heat Transfer in the Rotating Disk Boundary Layer. Ph.D. Thesis, Stanford University, Stanford, CA, USA, 1997. [Google Scholar]
- Malik, M.R.; Wilkinson, S.P.; Orszag, S.A. Instability and transition in rotating disk flow. AIAA J.
**1981**, 19, 1131–1138. [Google Scholar] [CrossRef][Green Version] - Giovanni, A. Numerical Investigations of Air Flow and Heat Transfer in Axial Flux Permanent Magnet Electrical Machines. Ph.D. Thesis, Durham University, Durham, UK, 2010. [Google Scholar]
- Intel. Intel oneAPI Math Kernel Library (MKL). 2020. Available online: https://software.intel.com/content/www/us/en/develop/tools/oneapi/components/onemkl.html (accessed on 15 December 2020).
- Paraview. Line Integral Convolution. 2018. Available online: https://www.paraview.org/Wiki/ParaView/Line_Integral_Convolution (accessed on 9 December 2020).
- Soo, S.L. Laminar flow over an enclosed rotating disk. Trans. ASME
**1958**, 80, 287–296. [Google Scholar]

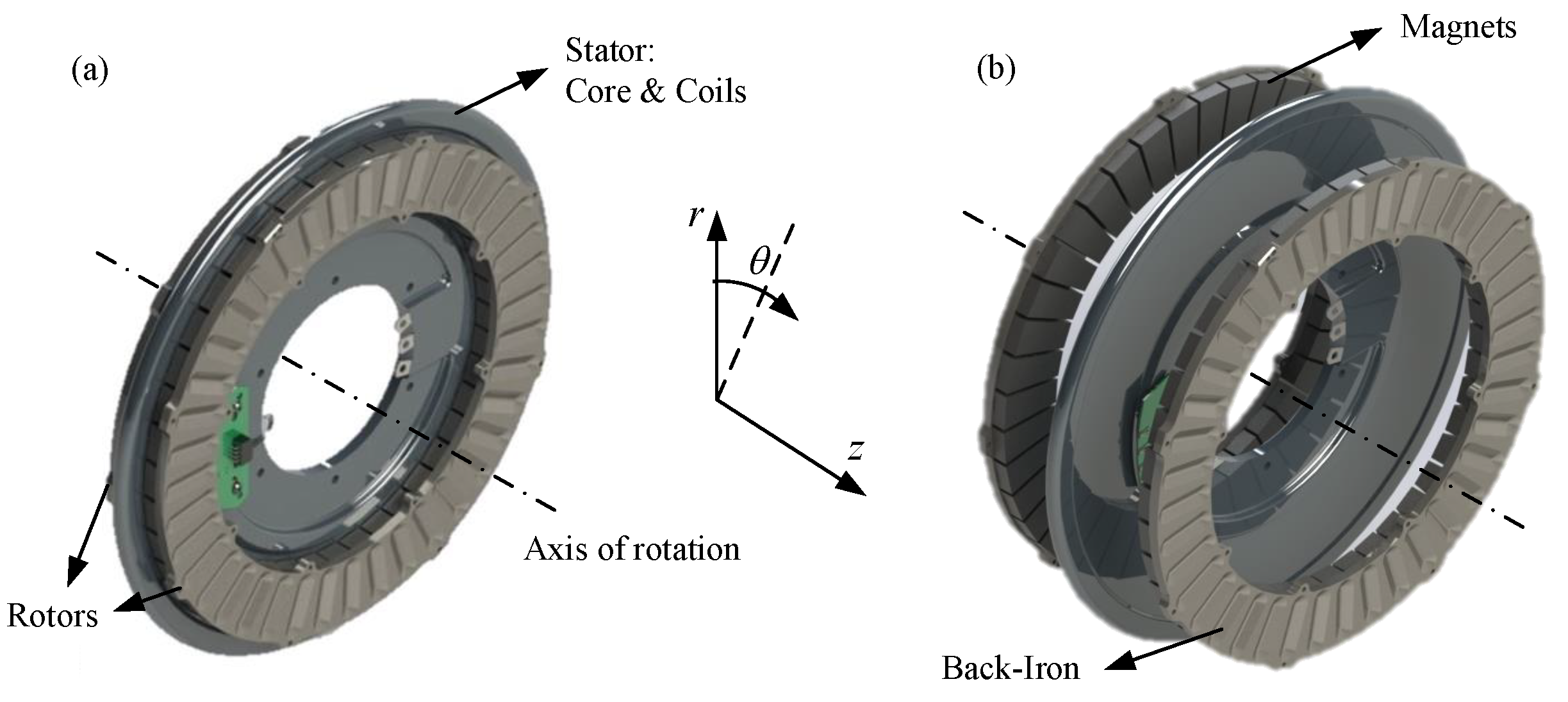

**Figure 1.**(

**a**) Example of an AFPM machine with an internal stator and two external rotors. (

**b**) Exploded view.

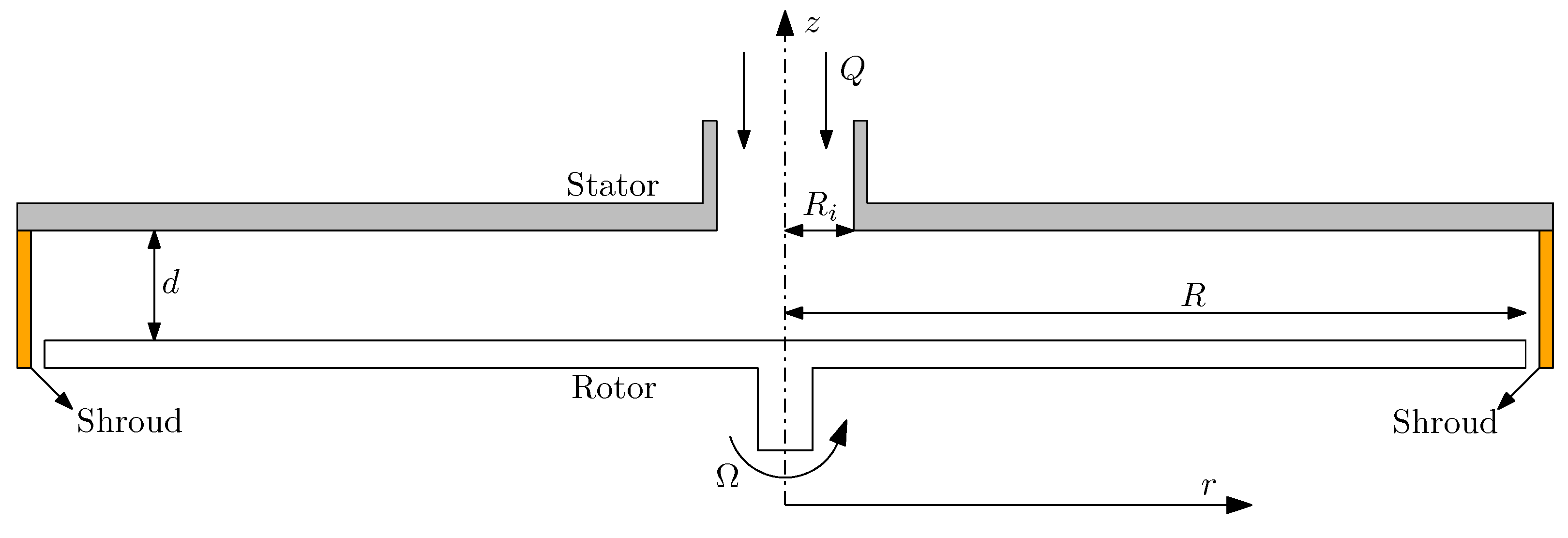

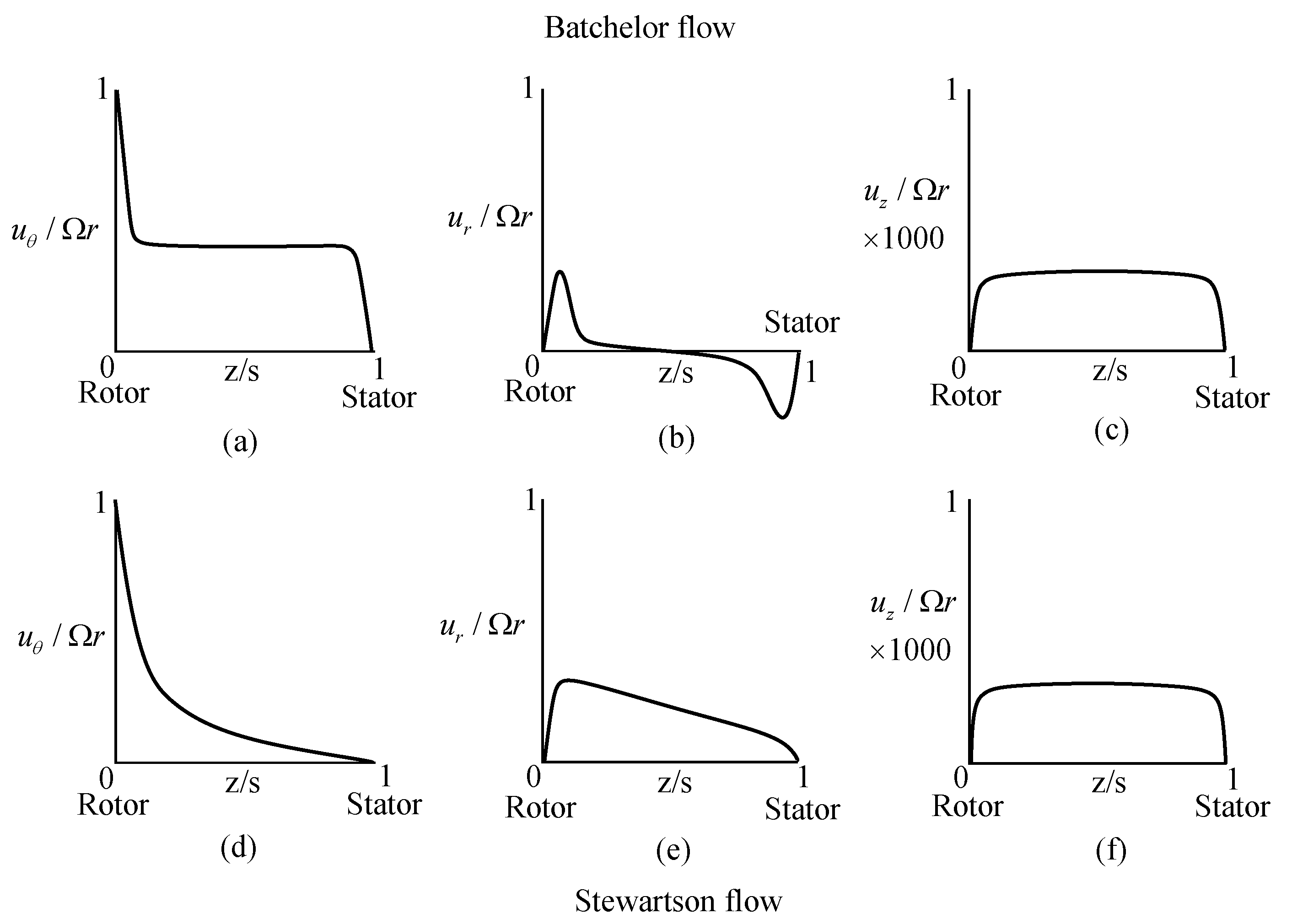

**Figure 3.**Sketches of the characteristic velocity profiles in a rotor-stator system. (

**a**–

**c**) are of the Batchelor type and (

**d**–

**f**) of the Stewartson type [12].

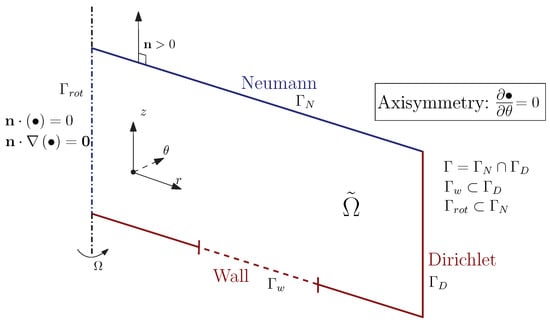

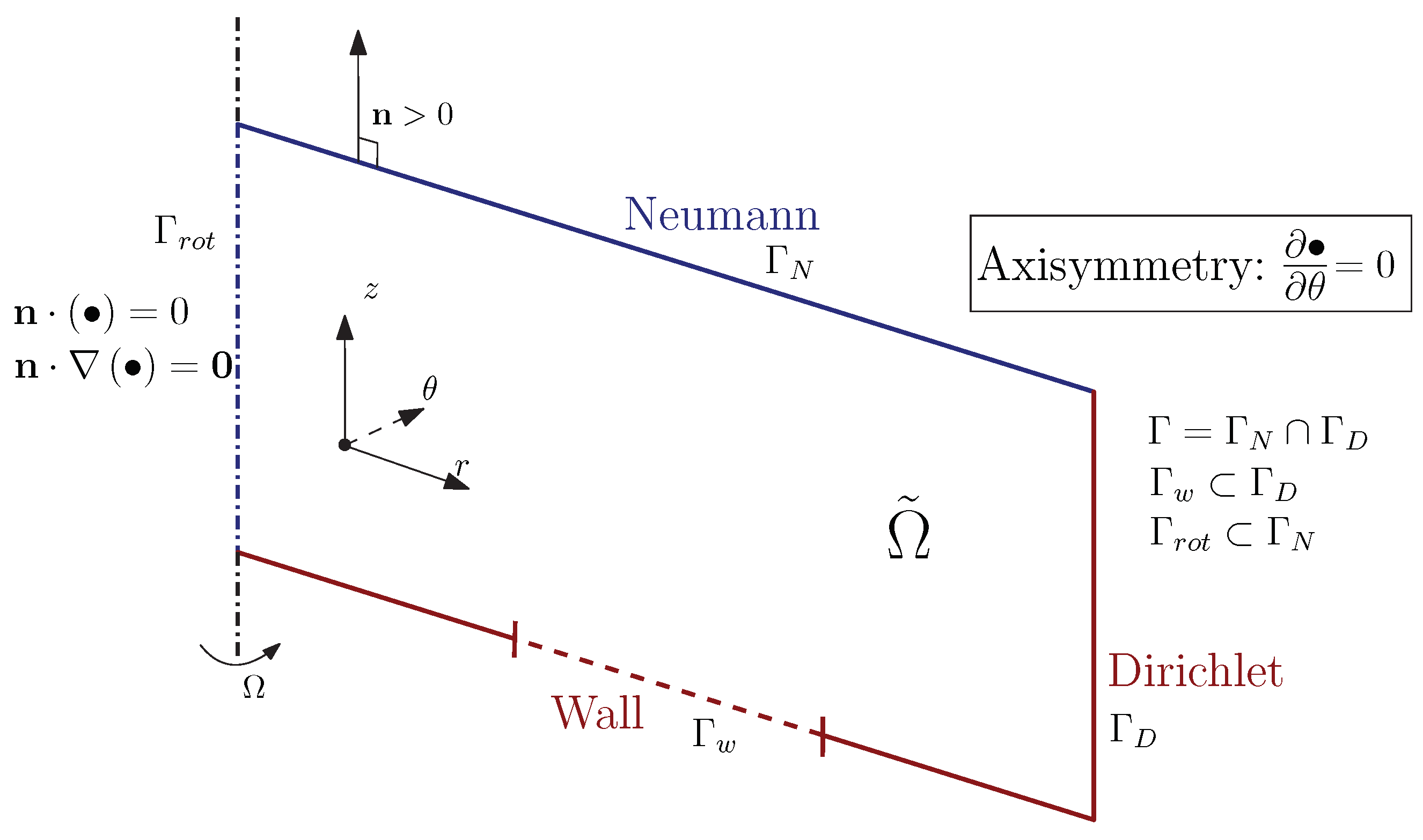

**Figure 4.**2D axisymmetric numerical domain representation, with $\left(\u2022\right)$ an arbitrary quantity.

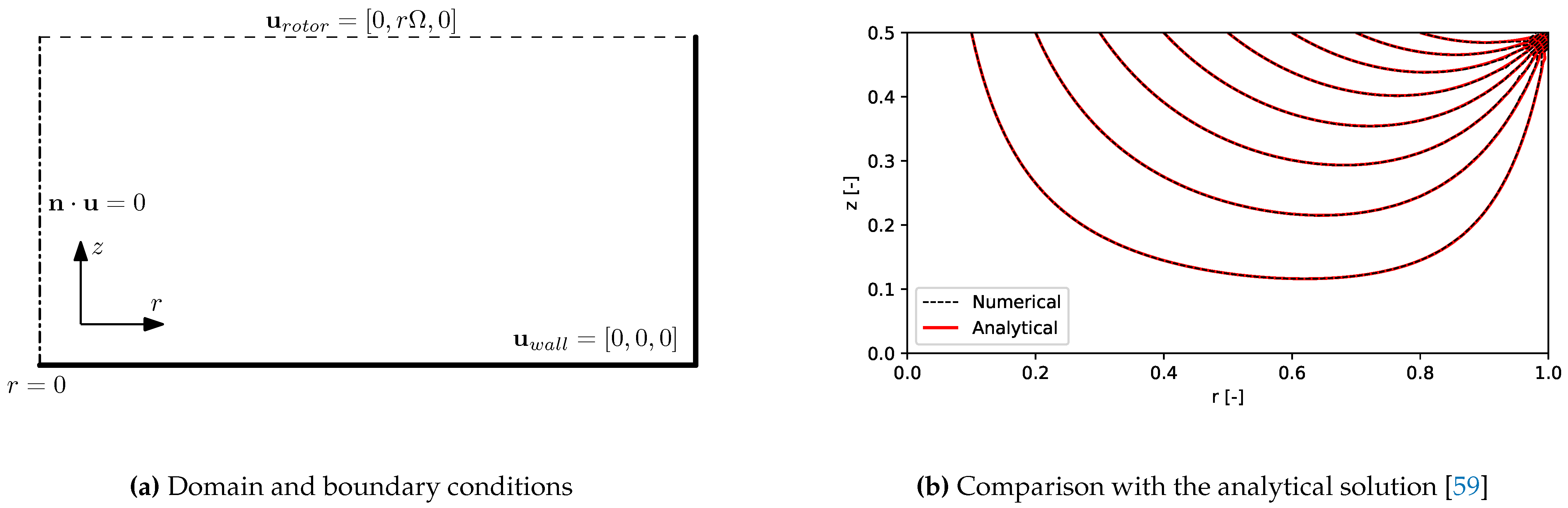

**Figure 5.**Enclosed rotor-stator problem benchmark and results. The domain has an aspect ratio of 0.5, which means that the radius is twice as high as the gap-length.

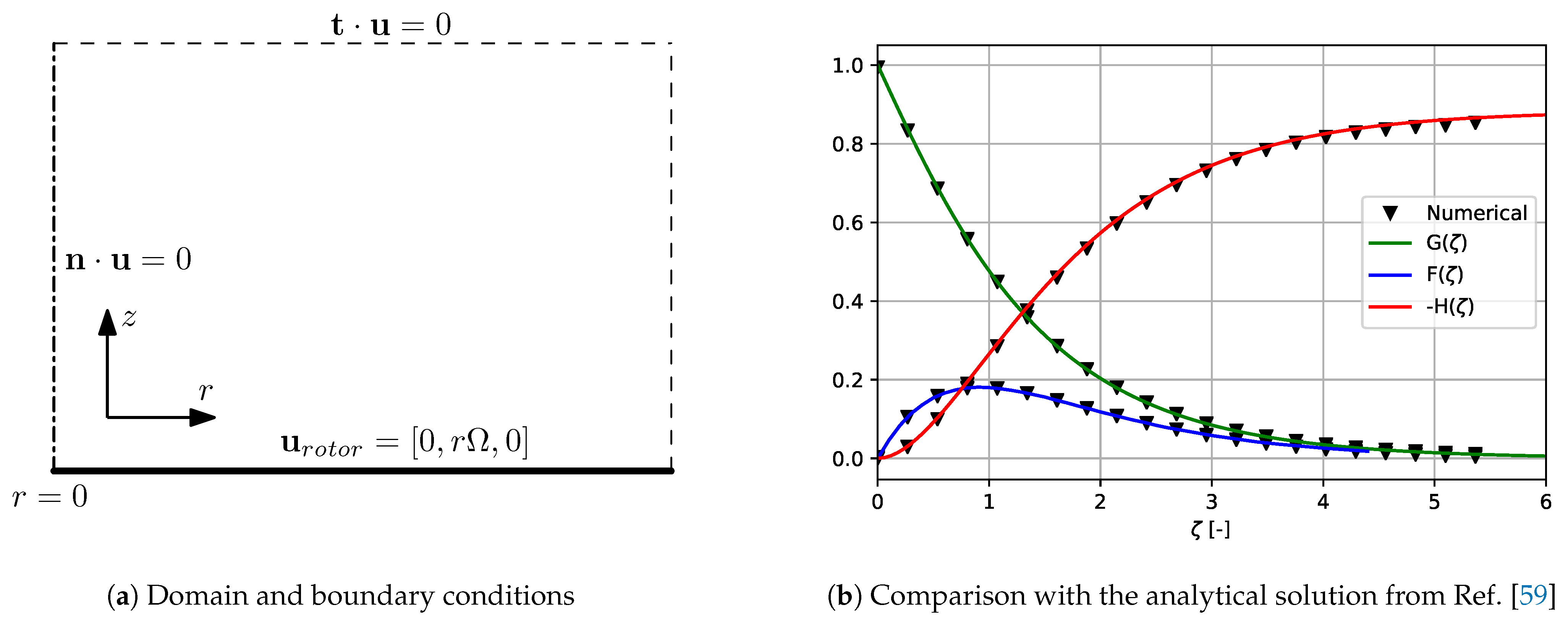

**Figure 6.**Von Kármán rotating disk problem benchmark and results. Numerical results are monitored at a fixed radial position, r/r

_{max}= 0.4.

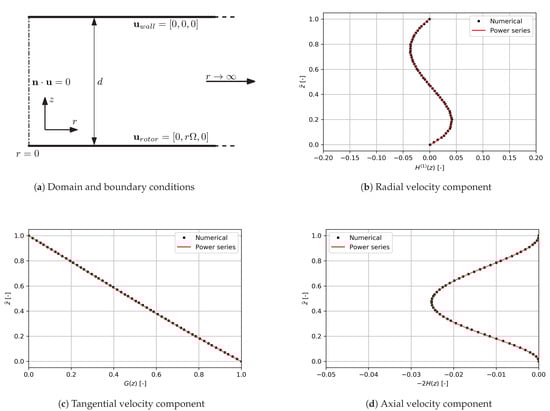

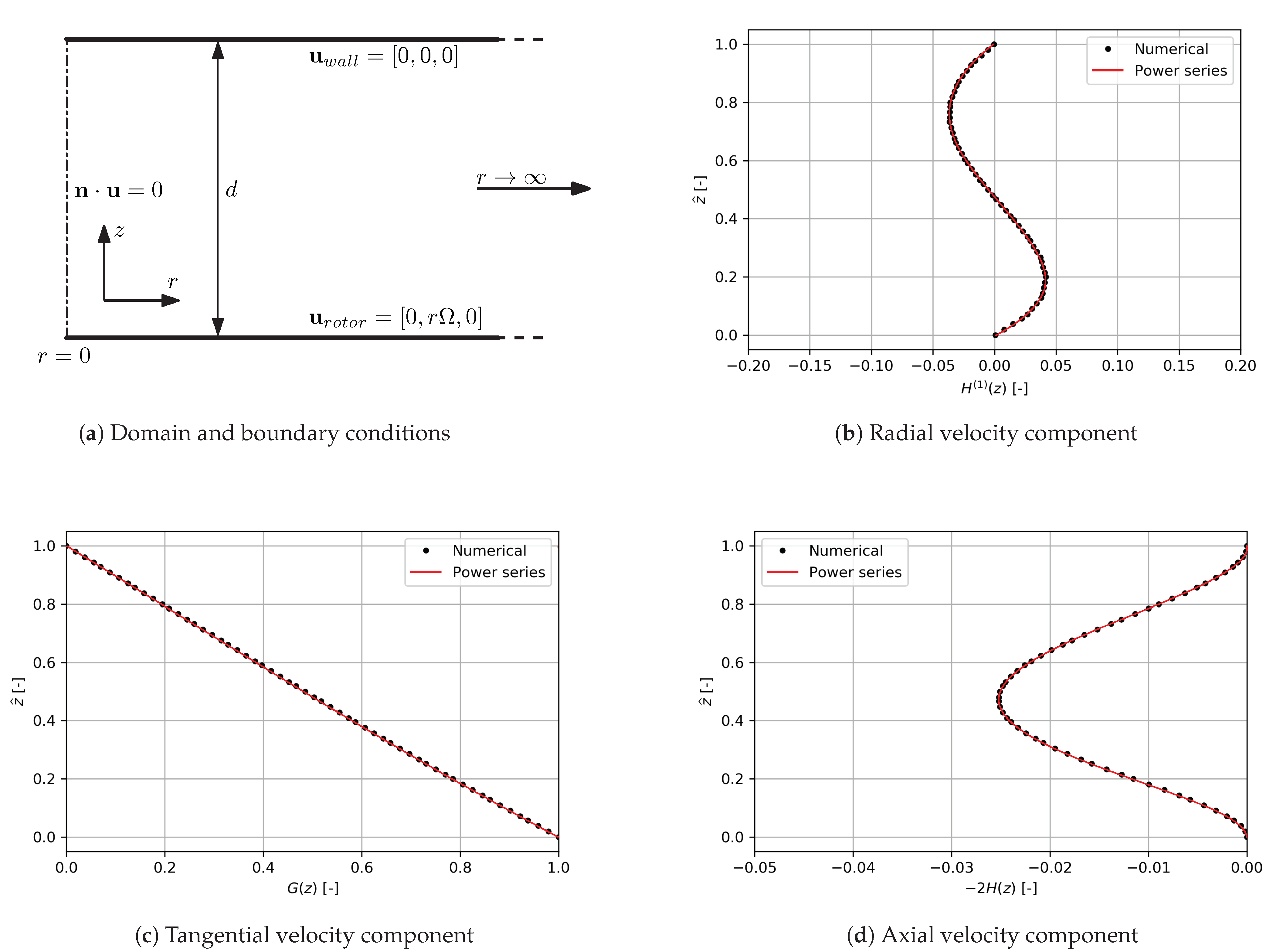

**Figure 7.**Infinite rotor-stator problem benchmark and results at Re

_{d}= 5, compared to reference power series data [60].

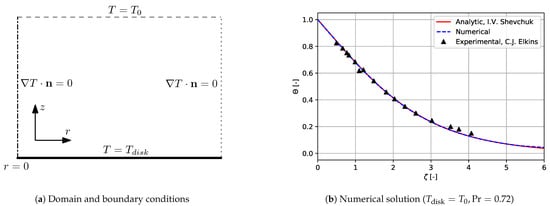

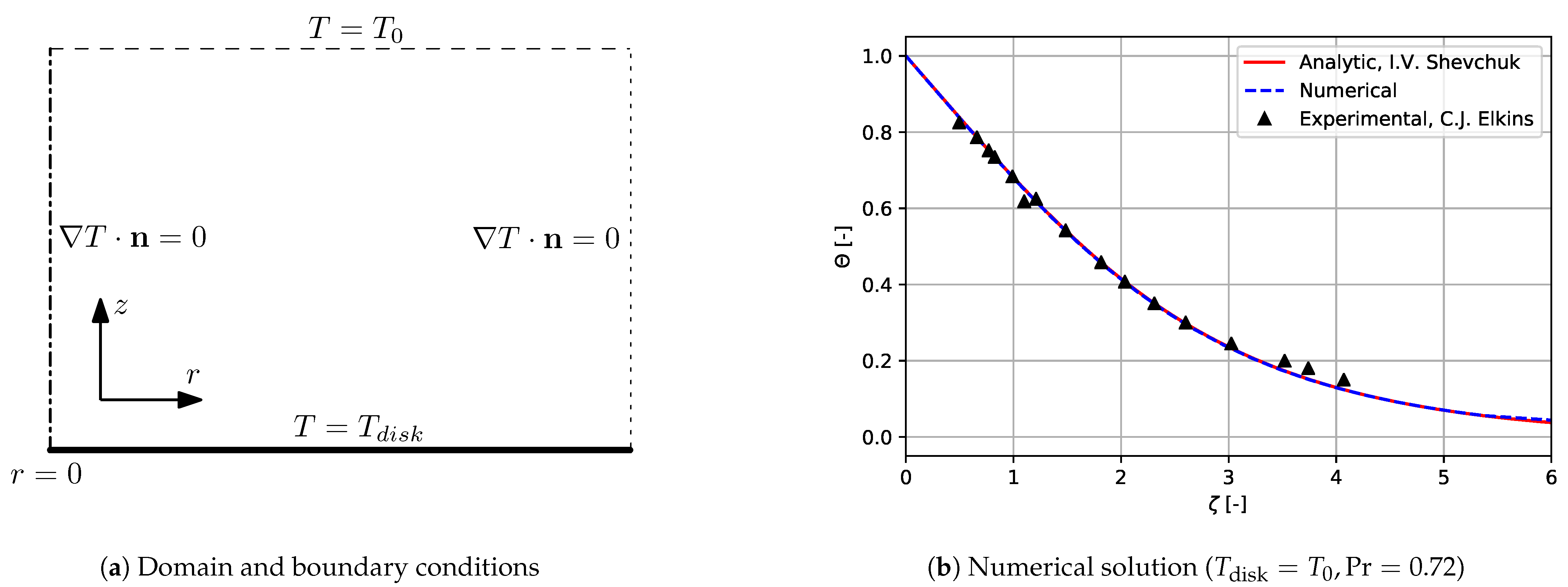

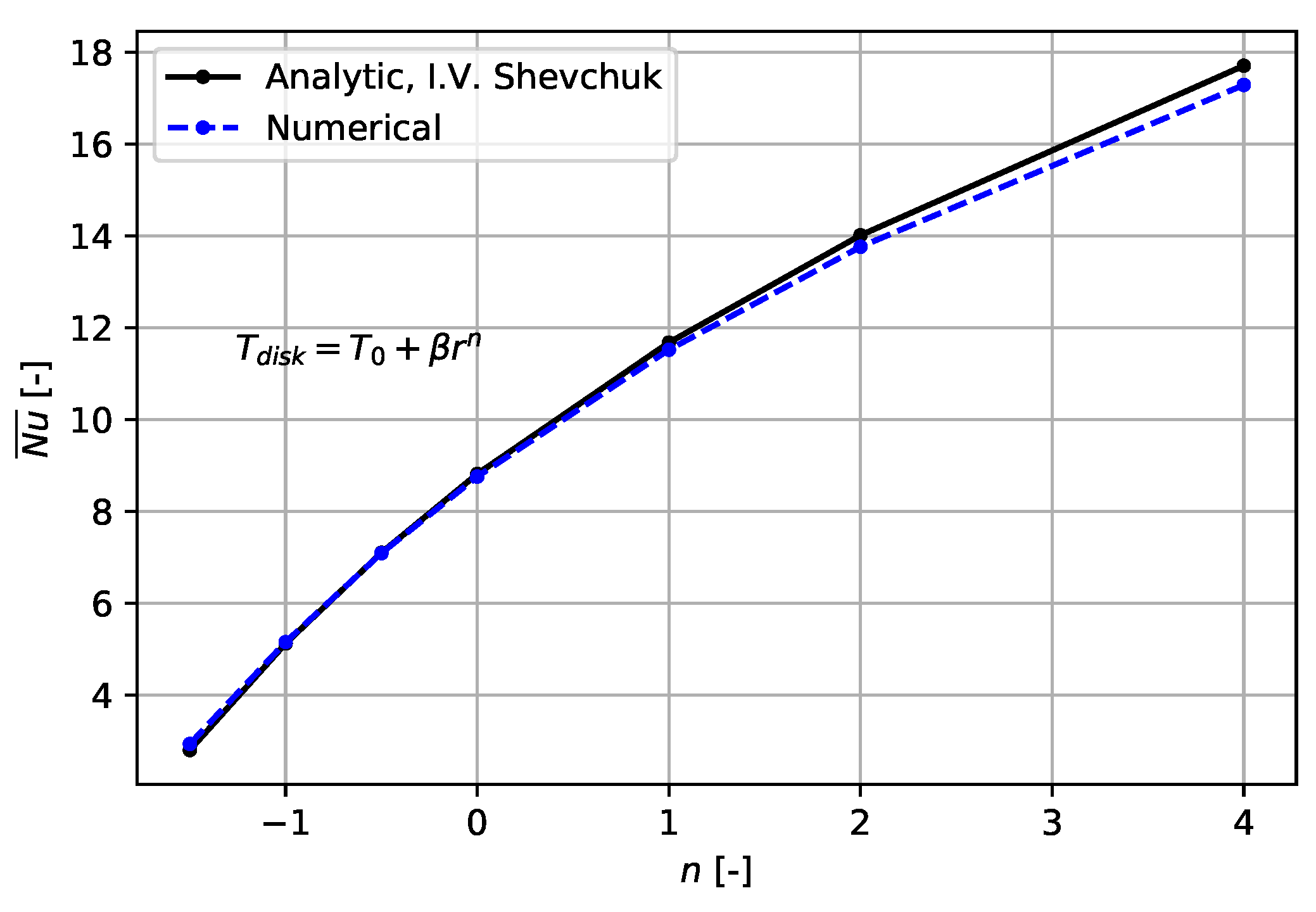

**Figure 9.**Comparison of the numerical and analytical solution [61] of the average Nusselt number for different temperature distributions at $\mathrm{Pr}=0.72$, $\mathrm{Re}=720$.

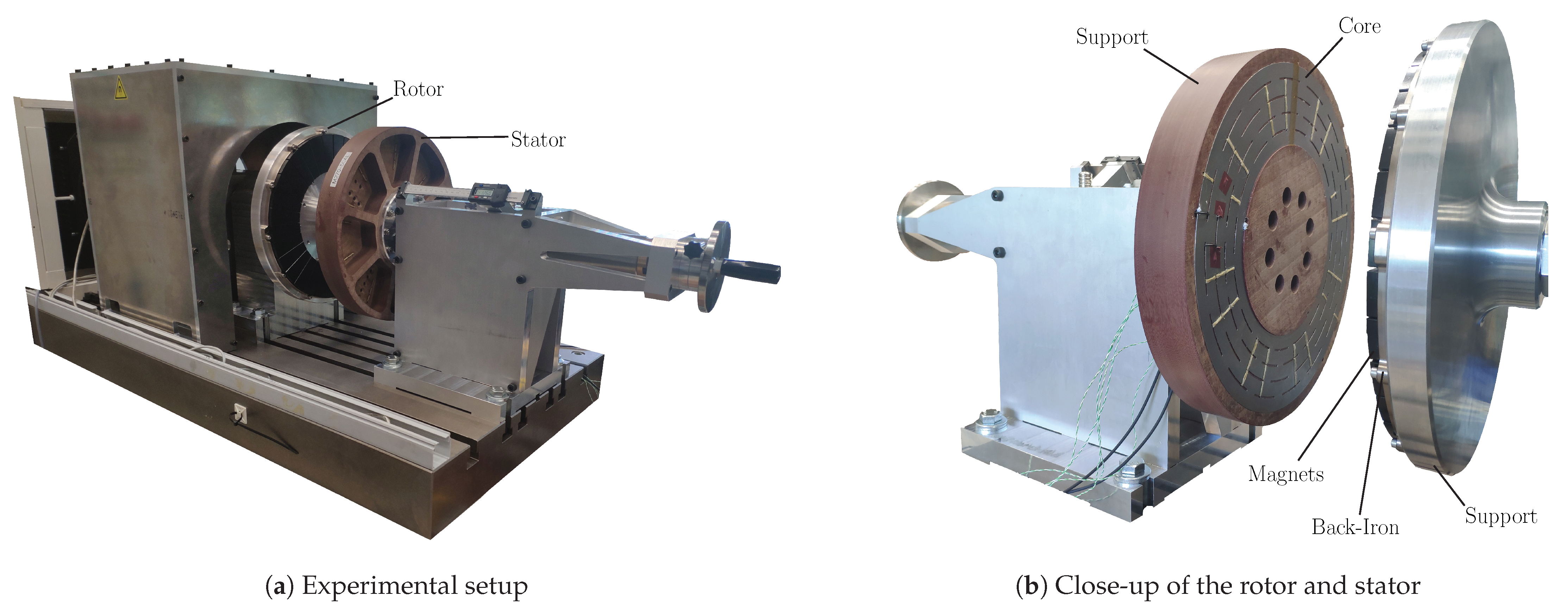

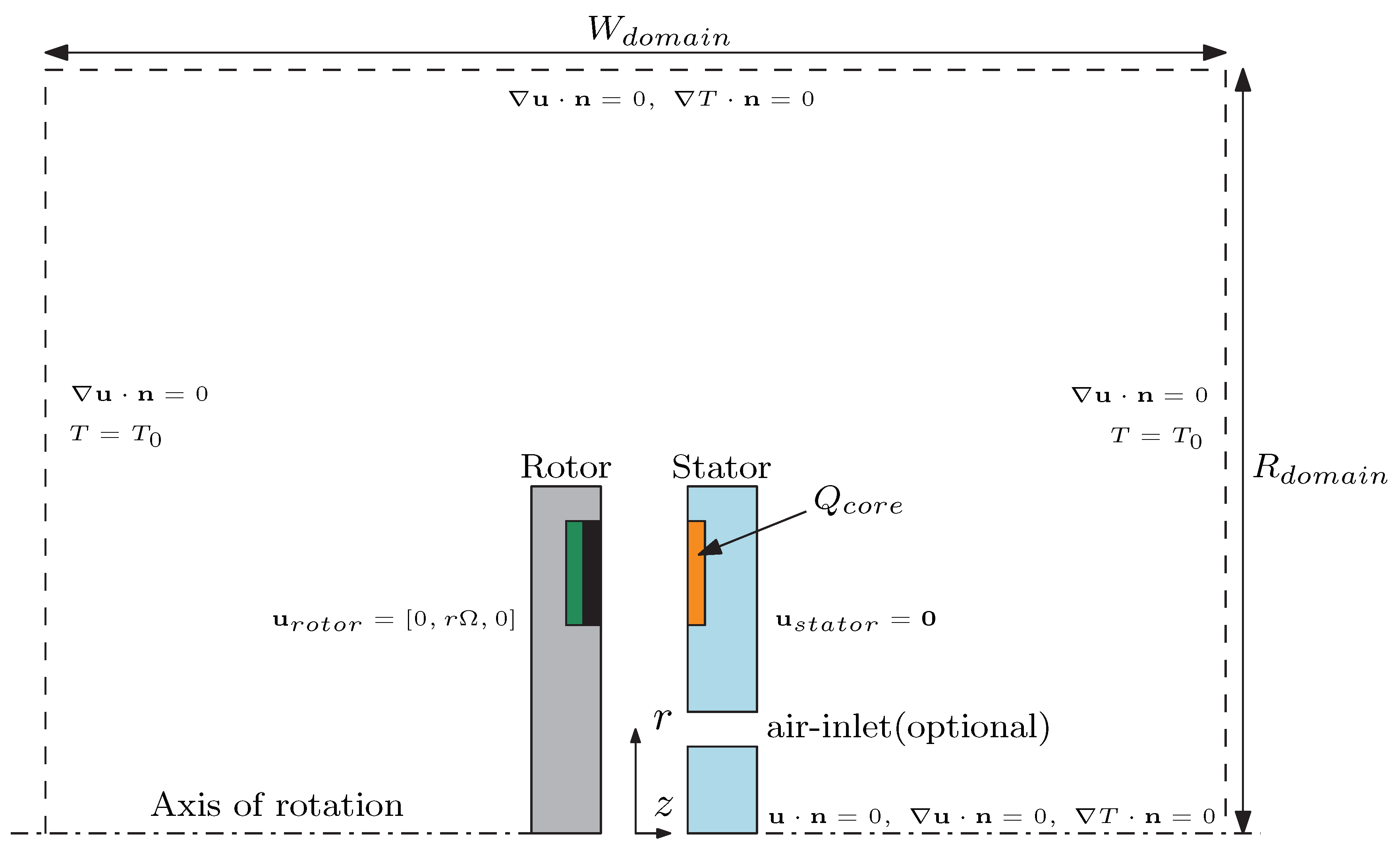

**Figure 11.**Numerical domain and the corresponding boundary conditions of both the fluid and temperature models. The colored areas correspond to solid parts and are neglected in the fluid simulation, as merely the boundaries obtain a prescribed velocity. The orange sub-domain corresponds to the core which has a heat source assigned to it.

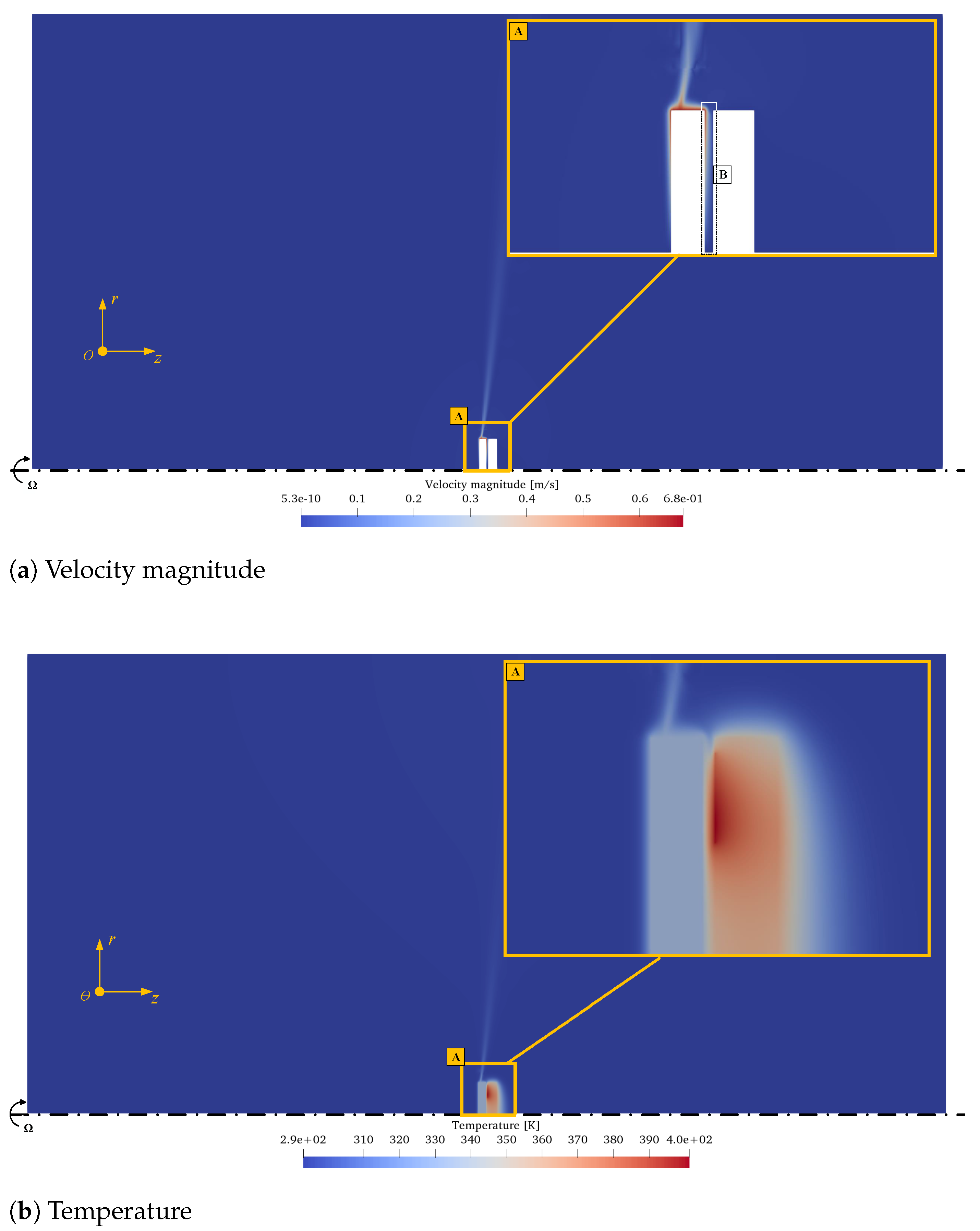

**Figure 12.**(

**a**) Velocity and (

**b**) temperature distribution computed by the coupled model on the AFPM domain for Re = 5513 and d = 10.0 mm. Zoom

**A**, corresponds to an enlargement of the area of interest, clearly showing the velocity stream and heated core at the stator disk.

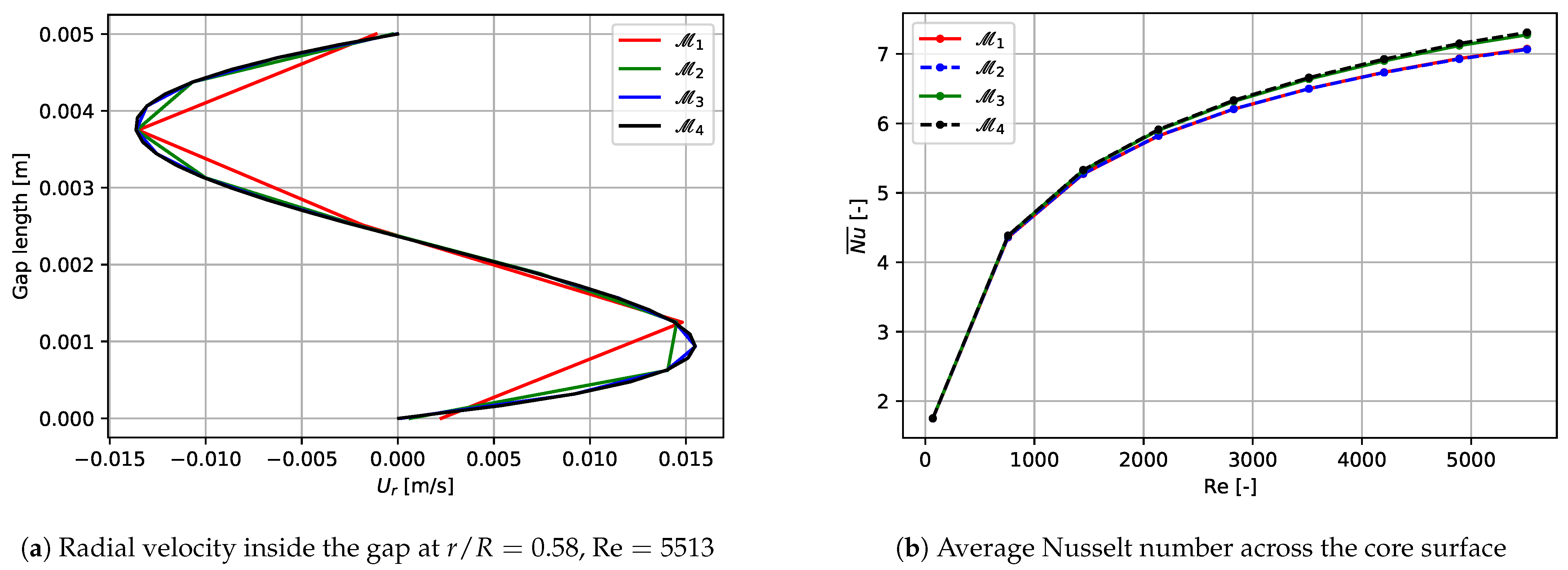

**Figure 13.**Convergence study of the main quantities of interest, viz., the radial velocity and average Nusselt number. Mesh sizes range from ${\mathcal{M}}_{1}$ = 82,252 to ${\mathcal{M}}_{4}$ = 217,914 degrees of freedom.

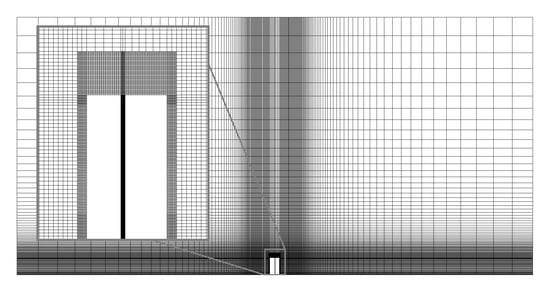

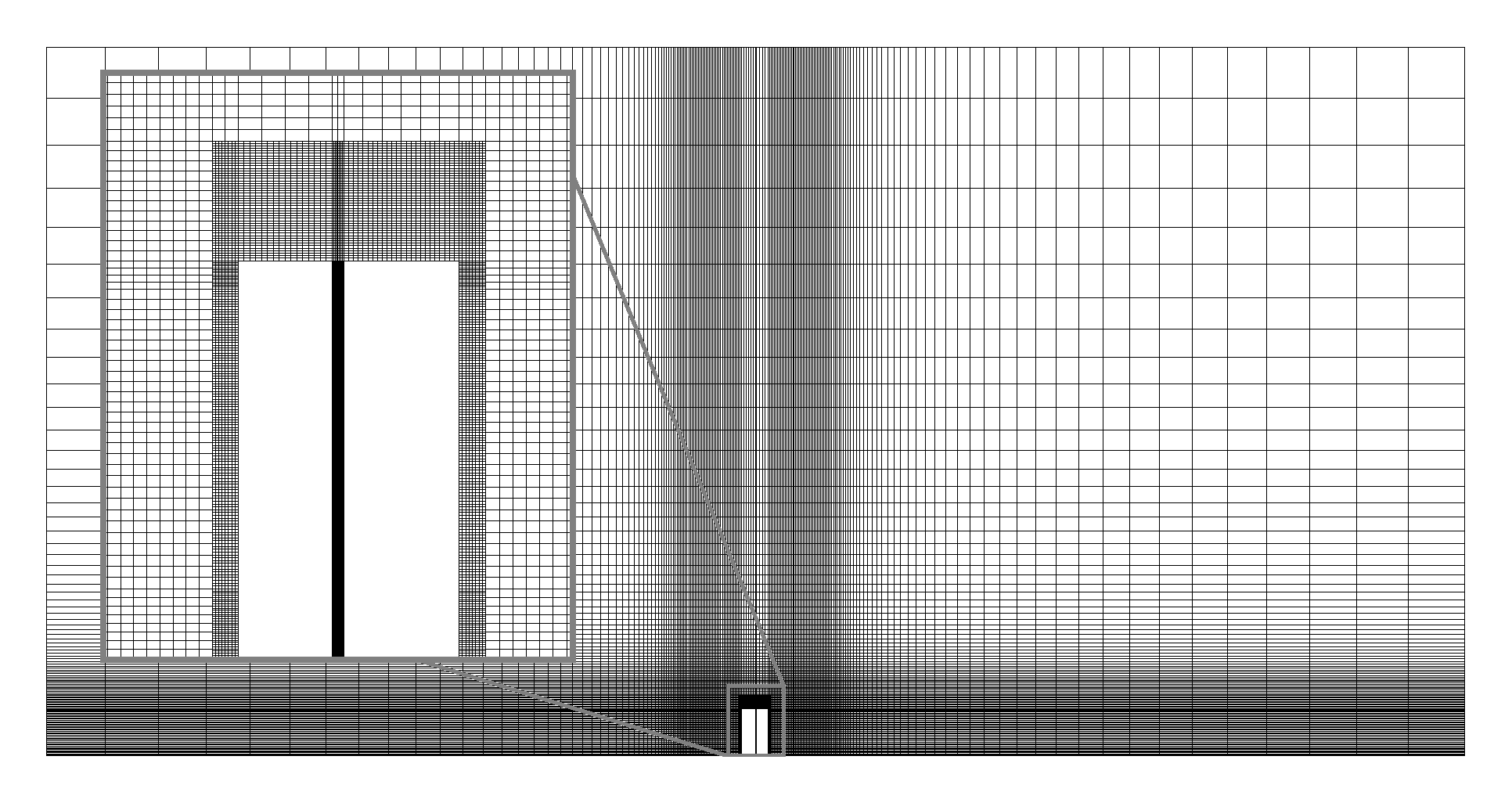

**Figure 14.**Visualization of the ${\mathcal{M}}_{3}$ fluid mesh, with a gap-length of 5 mm. Notice the heavy refinement inside the gap, where heat transfer is of great interest. The physical size of the domain equals $5\times 2.5$ m, which is obtained by stretching the boundary elements, reducing the number of degrees of freedom for such a large domain.

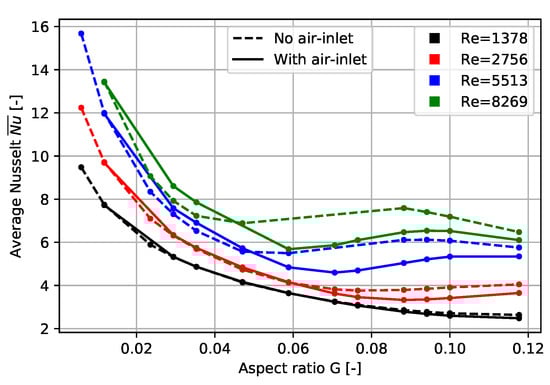

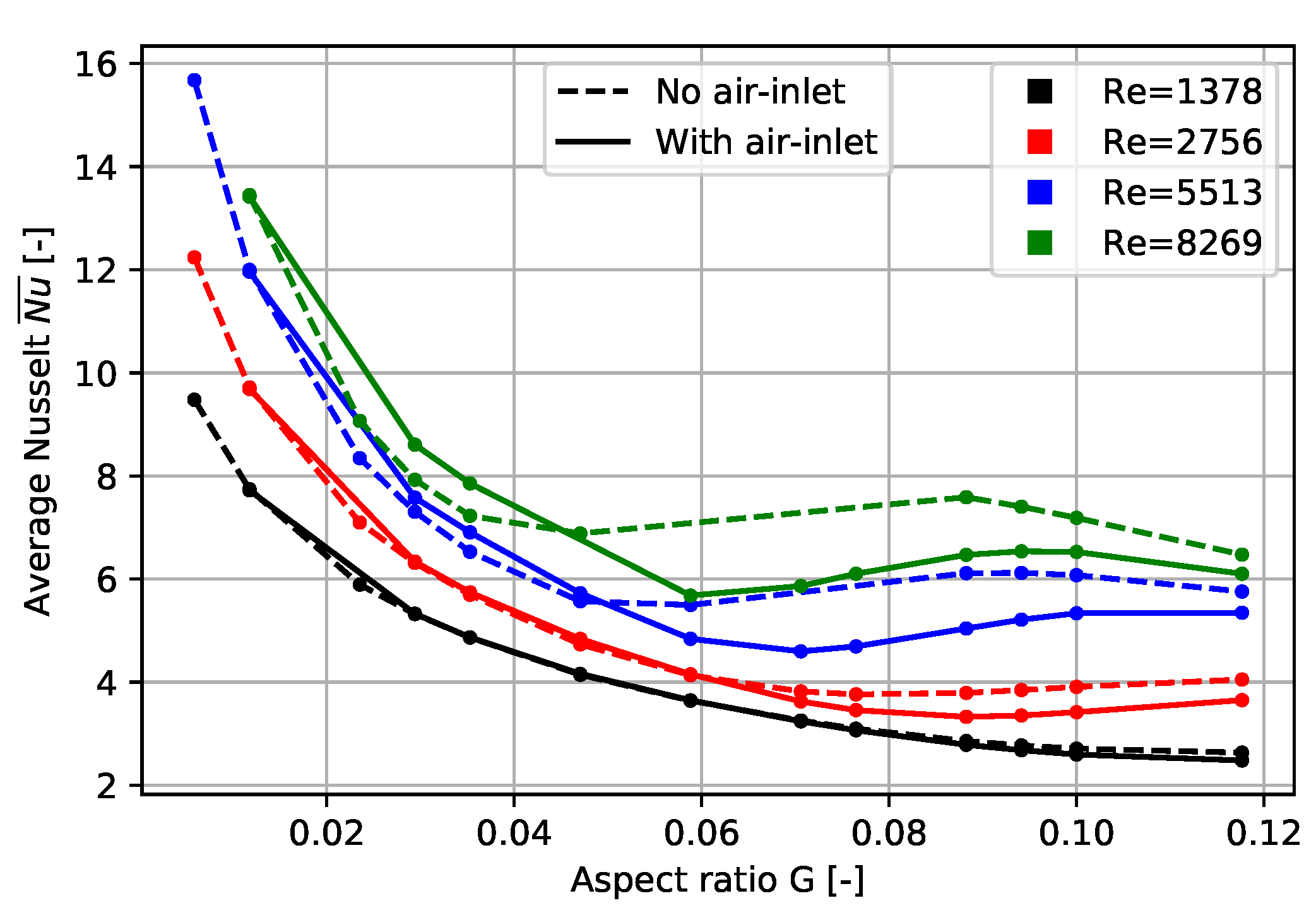

**Figure 15.**Influence of the gap-length aspect ratio, G, on the average Nusselt number. Use is made of two AFPM configurations, one with and one without an air-inlet for varying Reynolds numbers.

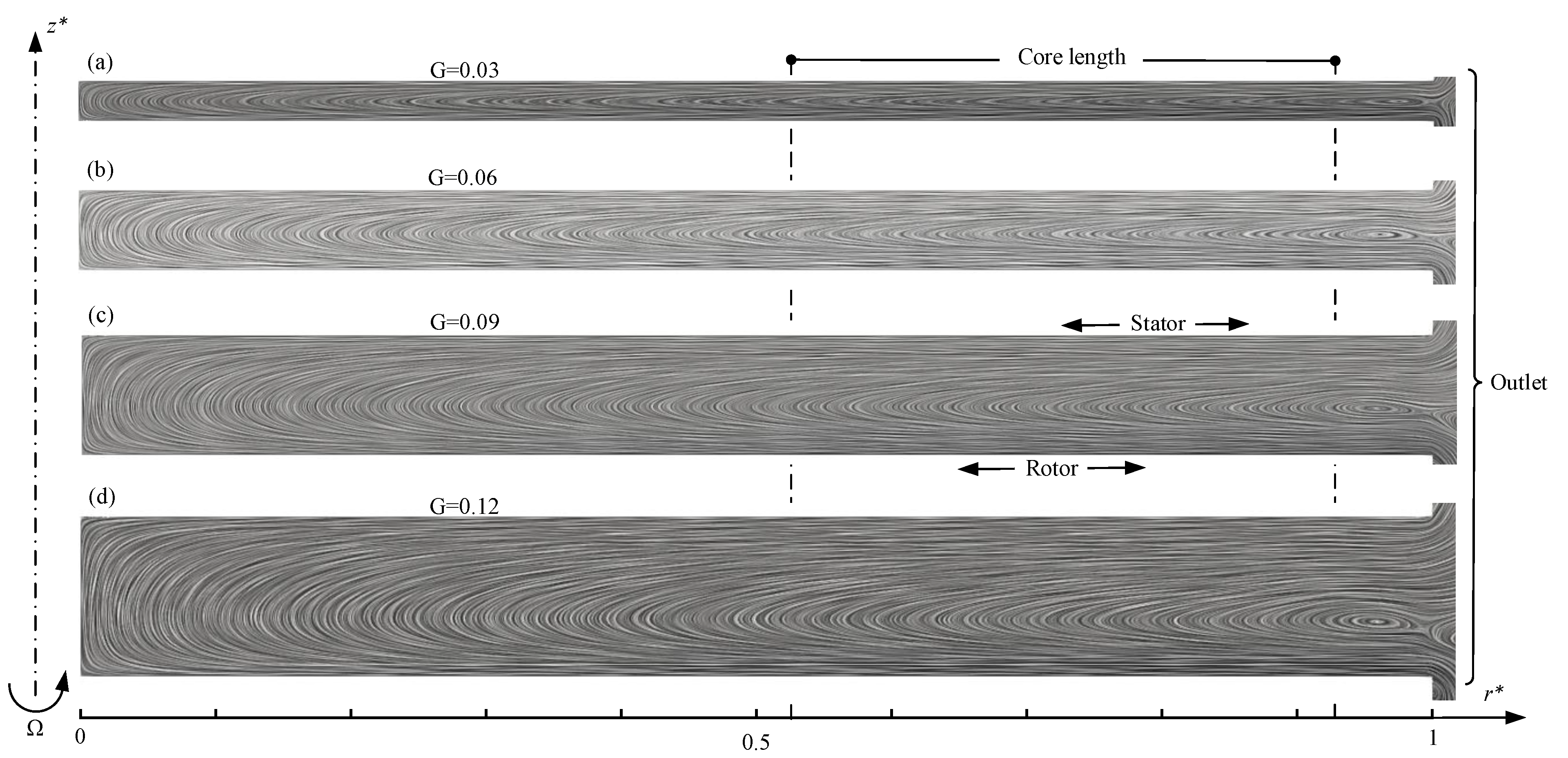

**Figure 16.**Line Integral Convolution (LIC) representation of the flow structure inside the AFPM machine for a fixed Reynolds number $\mathrm{Re}=5513$ without an air-inlet. (

**a**–

**d**) correspond to different gap-length ratios G. Use is made of two dimensionless length scales, ${z}^{*}=z/d$ and ${r}^{*}=r/R$, where d is the gap-length and R the outer radius.

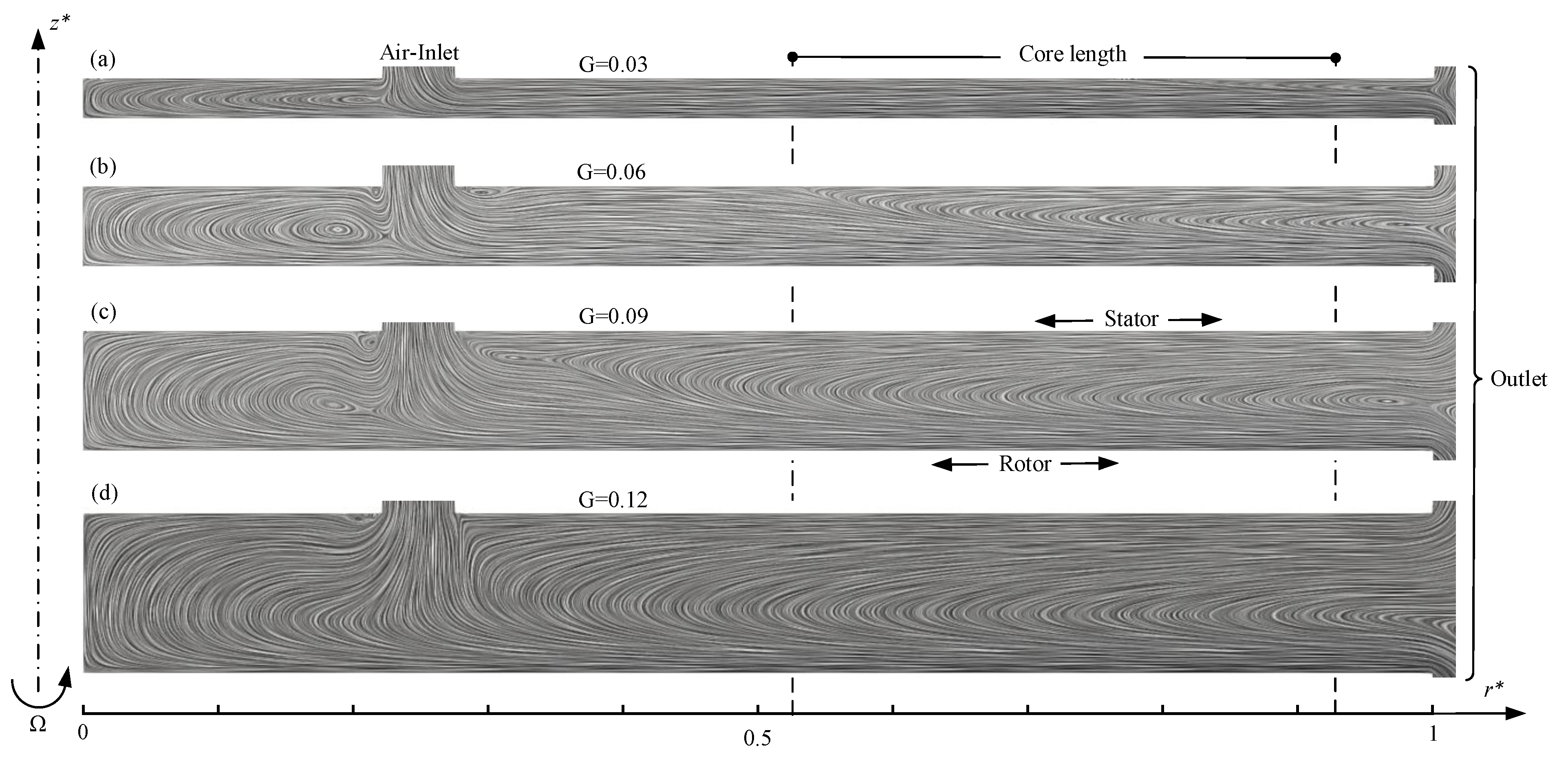

**Figure 17.**Line Integral Convolution (LIC) representation of the flow structure inside the AFPM machine for a fixed Reynolds number $\mathrm{Re}=5513$ with an air-inlet. (

**a**–

**d**) correspond to different gap-length ratios G. Use is made of two dimensionless length scales, ${z}^{*}=z/d$ and ${r}^{*}=r/R$, where d is the gap-length and R the outer radius.

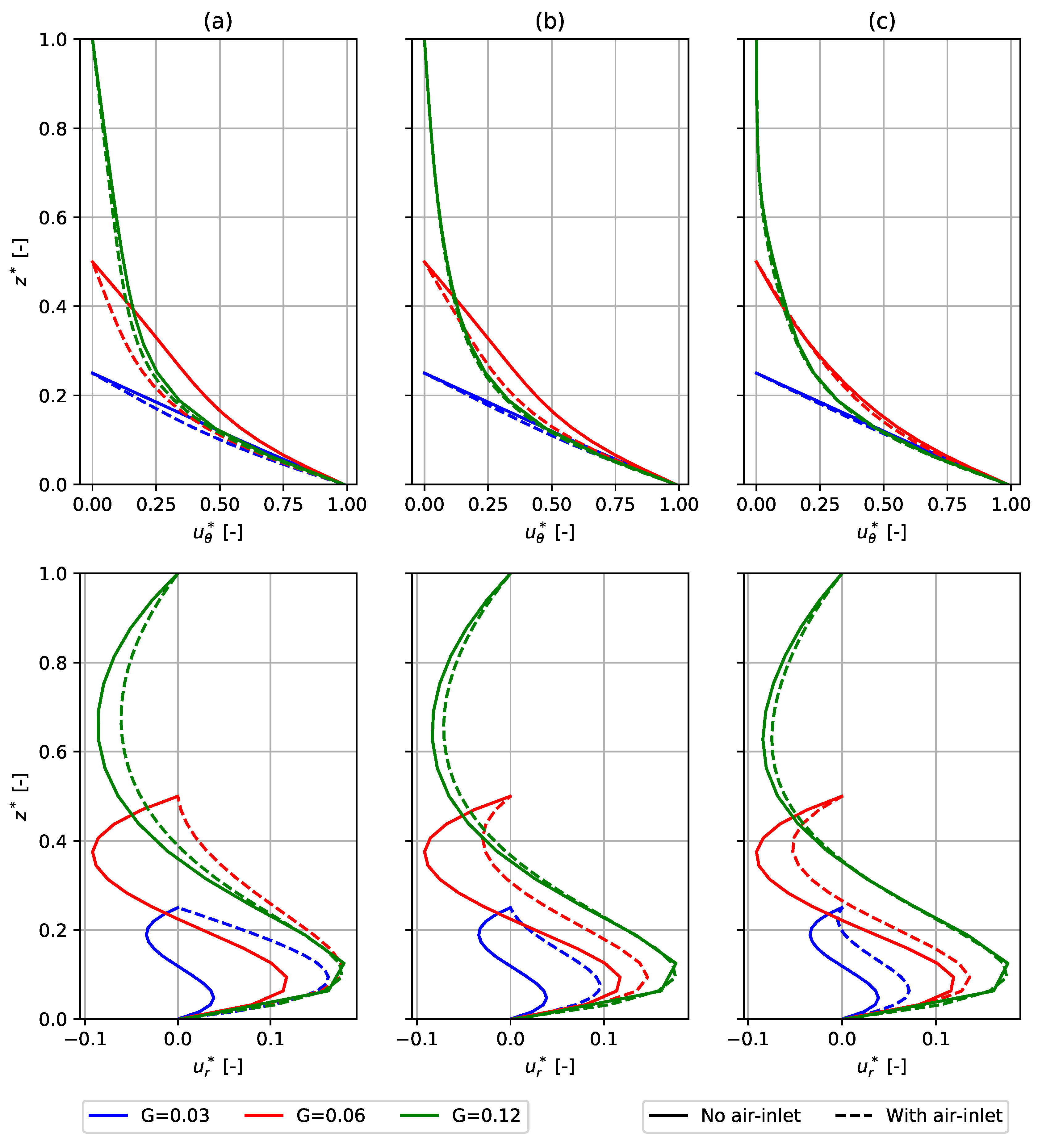

**Figure 18.**Velocity profiles corresponding to $\mathrm{Re}=5513$ inside the AFPM machine for different configurations and gap-length ratios, G. (

**a**–

**c**), respectively, correspond to the dimensionless radial position ${r}^{*}=r/R=0.52$, $0.73$, $0.93$. The remaining normalized values are: the tangential and radial velocity components, ${u}_{\theta}^{*}={u}_{\theta}/\left(\right)open="("\; close=")">\Omega r$ and ${u}_{r}^{*}={u}_{r}/\left(\right)open="("\; close=")">\Omega r$, and the gap-length ${z}^{*}=z/{d}_{\mathrm{max}}$, where ${z}^{*}=0$ corresponds to the rotor.

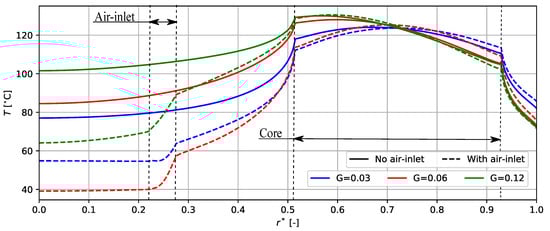

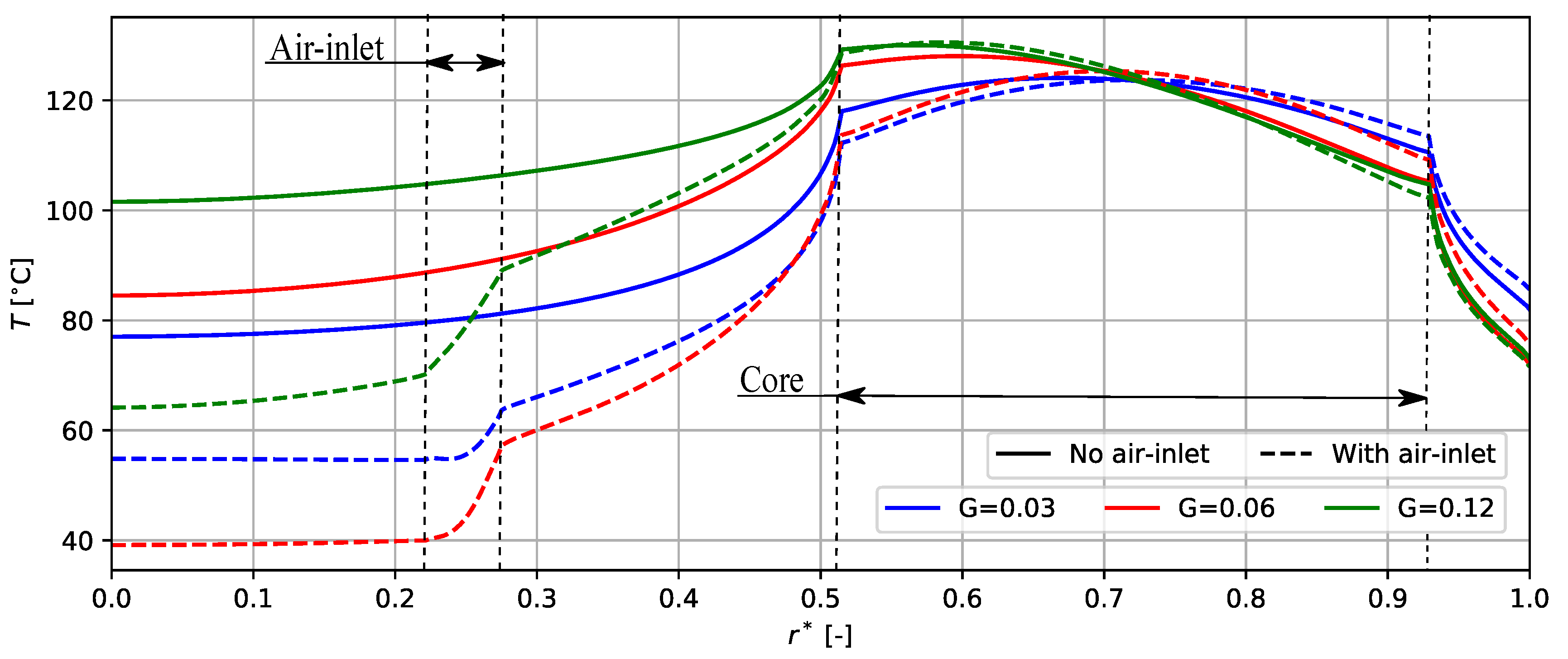

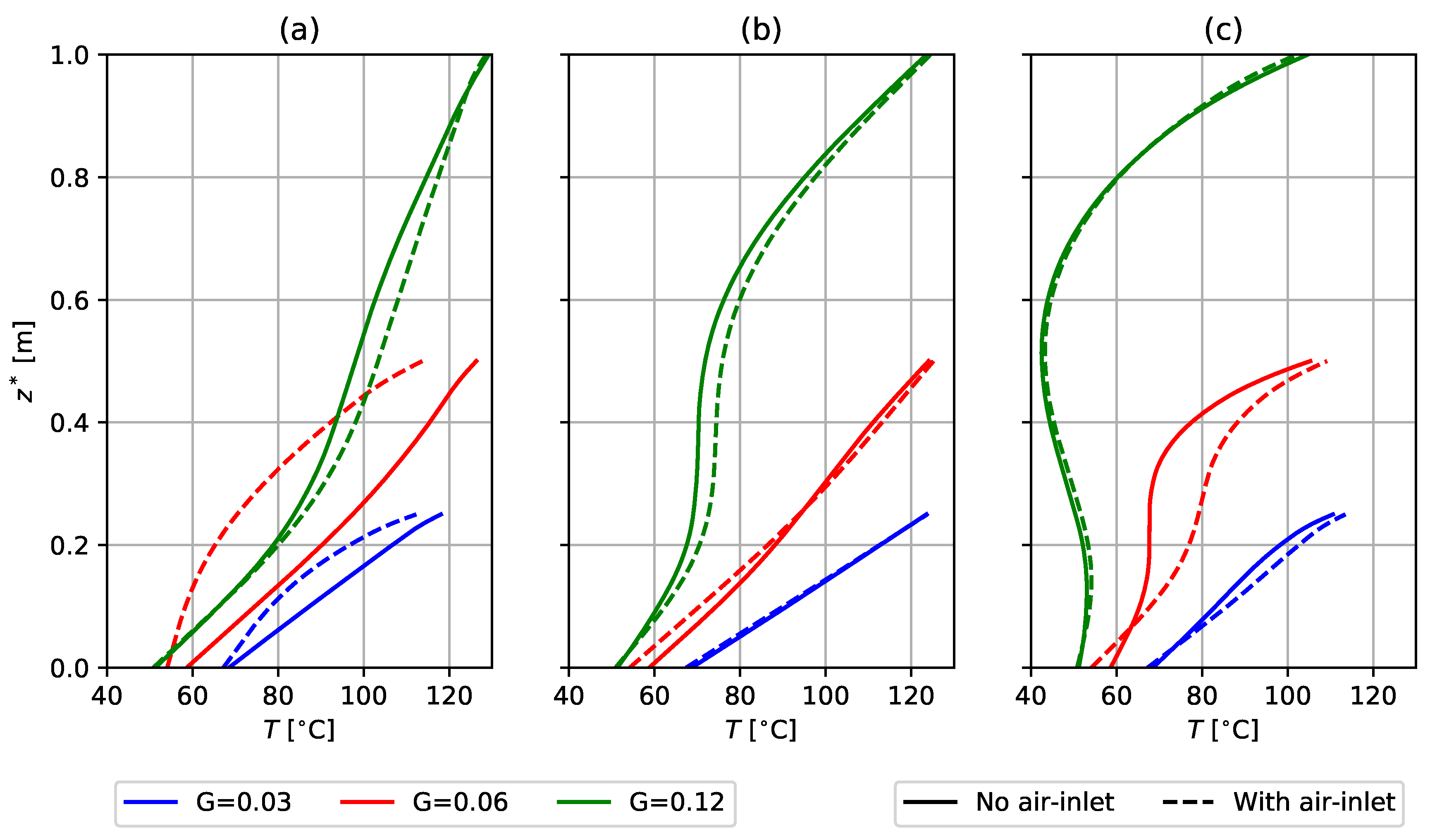

**Figure 20.**Temperature profile in the axial direction for ${r}^{*}=r/R$ (

**a**) $0.52$, (

**b**) $0.73$, and (

**c**) $0.93$. The normalized gap-length equals ${z}^{*}=z/{d}_{\mathrm{max}}$, where ${z}^{*}=0$ corresponds to the rotor.

$\mathbf{\Omega}$ [rad/s] | $\mathit{\nu}$[m${}^{2}$/s] | Domain Size $\mathit{R}\times \mathit{H}$ [m] | Element nr. $\mathit{R}\times \mathit{H}$ [-] | Spline Order [-] |
---|---|---|---|---|

1.0 | 1.0 | $1.0\times 0.5$ | $30\times 15$ | 2 |

Time-Step [s] | $\mathbf{\Omega}$ [rad/s] | $\mathit{\nu}$ [m${}^{2}$/s] | Domain Size $\mathit{R}\times \mathit{H}$ [m] | Element nr. $\mathit{R}\times \mathit{H}$ [-] | Spline Order [-] |
---|---|---|---|---|---|

0.02 | 1.0 | 0.2 | $12.0\times 12.0$ | $10\times 30$ | 2 |

$\mathbf{\Omega}$ [rad/s] | $\mathit{\nu}$[m${}^{2}$/s] | Domain Size $\mathit{R}\times \mathit{H}$ [m] | Element nr. $\mathit{R}\times \mathit{H}$ [-] | Spline Order [-] |
---|---|---|---|---|

1.0 | 1.0 | $2.0\times 1.0$ | $15\times 15$ | 2 |

$\mathbf{\Omega}$ [rad/s] | $\mathit{\nu}$ [m${}^{2}$/s] | Domain Size $\mathit{R}\times \mathit{H}$ [m] | Element nr. $\mathit{R}\times \mathit{H}$ [-] | Spline Order [-] | Prandtl Number [-] | $\mathit{\beta}$ [-] | ${\mathit{T}}_{0}$ [${}^{\circ}$C] |
---|---|---|---|---|---|---|---|

1.0 | 0.2 | $12.0\times 12.0$ | $10\times 30$ | 2 | 0.72 | 100.0 | 20.0 |

Disk Radius [m] | $\mathbf{\Omega}$ [rad/s] | $\mathit{\nu}$ [m${}^{2}$/s] | $\mathit{\rho}$ [kg/m${}^{3}$] | ${\mathit{c}}_{\mathit{p}}$ (air) [J/kgK] | Domain Size $\mathit{R}\times \mathit{H}$ [m] | Spline Degree [-] |
---|---|---|---|---|---|---|

0.17 | 0.0–6.0 | $2.097\times {10}^{-5}$ | 1.0 | 1008.0 | $2.5\times 5$ | 2.0 |

**Table 6.**Number of elements and dofs for the mesh convergence study for the fluid domain. The reported number of degrees of freedom pertains to quadratic spline basis functions.

${\mathcal{M}}_{1}$ | ${\mathcal{M}}_{2}$ | ${\mathcal{M}}_{3}$ | ${\mathcal{M}}_{4}$ | |
---|---|---|---|---|

${n}_{el}$ [-] | 20,256 | 21,216 | 29,280 | 53,640 |

${n}_{dof}$ [-] | 82,252 | 86,484 | 119,388 | 217,914 |
