High-Order Methods Applied to Nonlinear Magnetostatic Problems

Department of Electrical Engineering, Electromechanics and Power Electronics, Eindhoven University of Technology, 5600 MB Eindhoven, The Netherlands
*
Author to whom correspondence should be addressed.
Math. Comput. Appl. 2019, 24(1), 19; https://doi.org/10.3390/mca24010019
Received: 18 January 2019 / Accepted: 26 January 2019 / Published: 29 January 2019
  |
PDF [875 KB, uploaded 25 February 2019]
  |

Abstract

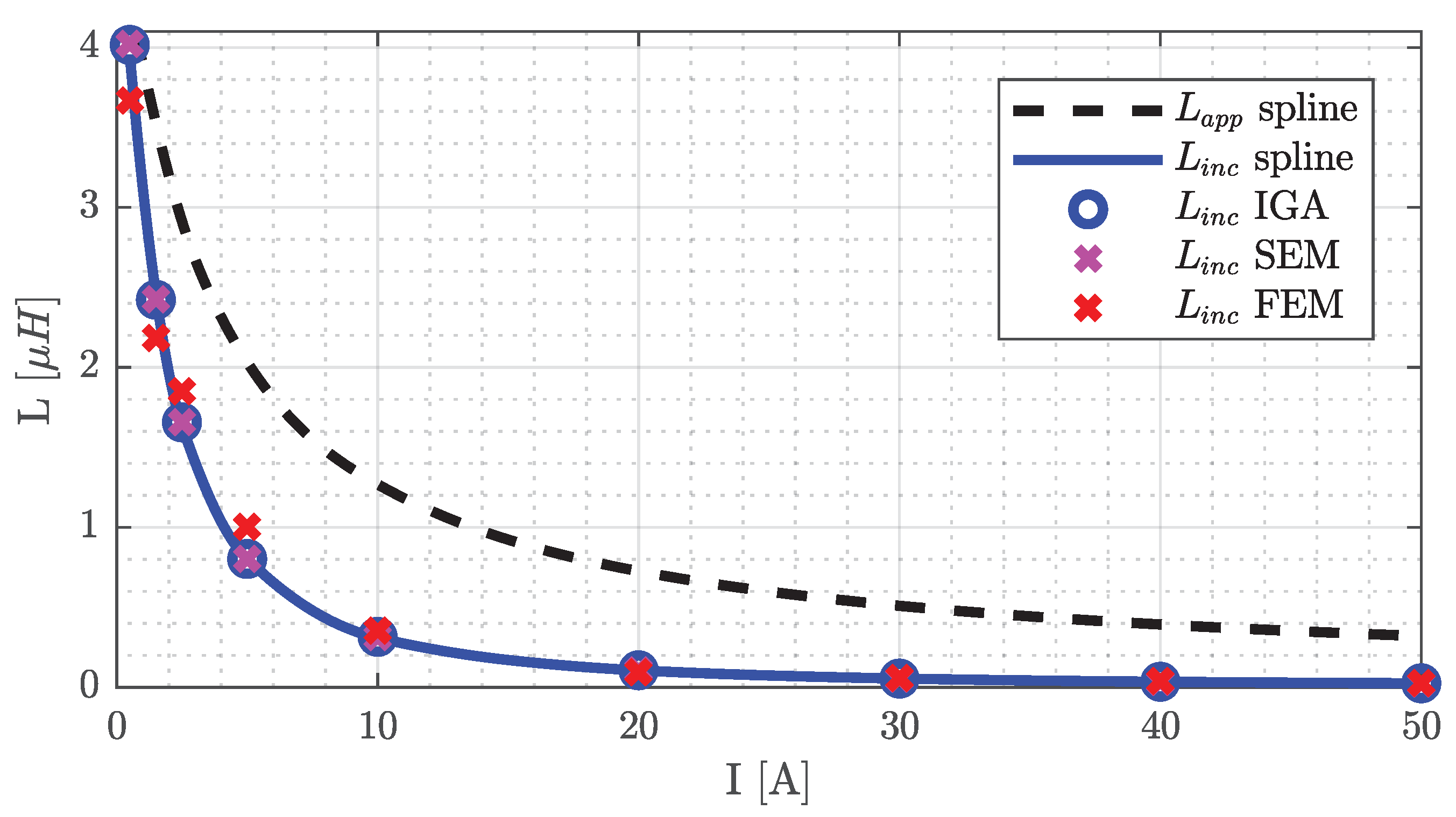

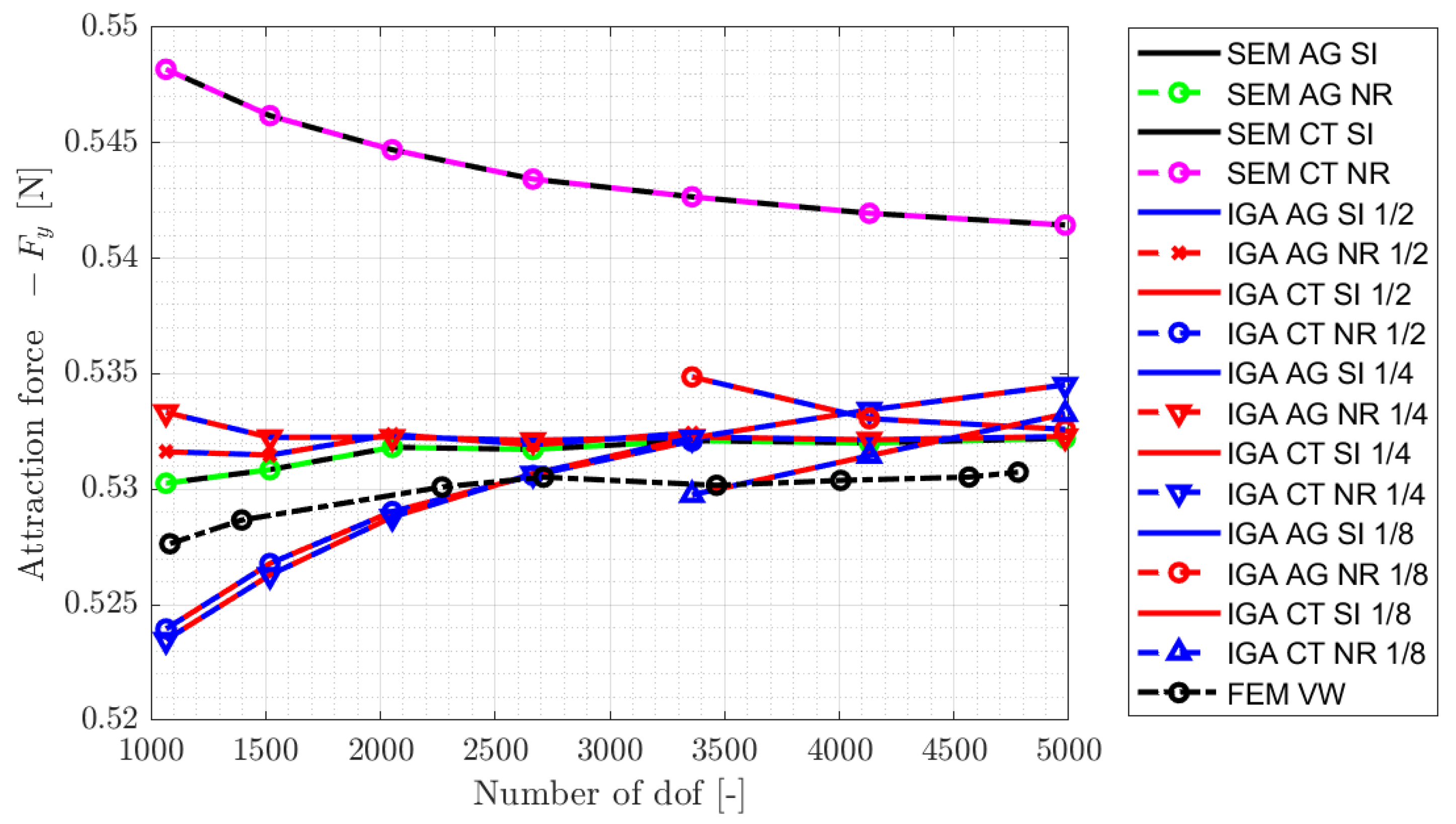

This paper presents a comparison between two high-order modeling methods for solving magnetostatic problems under magnetic saturation, focused on the extraction of machine parameters. Two formulations are compared, the first is based on the Newton-Raphson approach, and the second successively iterates the local remanent magnetization and the incremental reluctivity of the nonlinear soft-magnetic material. The latter approach is more robust than the Newton-Raphson method, and uncovers useful properties for the fast and accurate calculation of incremental inductance. A novel estimate for the incremental inductance relying on a single additional computation is proposed to avoid multiple nonlinear simulations which are traditionally operated with finite difference linearization or spline interpolation techniques. Fast convergence and high accuracy of the presented methods are demonstrated for the force calculation, which demonstrates their applicability for the design and analysis of electromagnetic devices. View Full-Text
Keywords: spectral element method; isogeometric analysis; incremental inductance spectral element method; isogeometric analysis; incremental inductance
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Friedrich, L.A.J.; Curti, M.; Gysen, B.L.J.; Lomonova, E.A. High-Order Methods Applied to Nonlinear Magnetostatic Problems. Math. Comput. Appl. 2019, 24, 19.
