Reliable Network Interdiction Models with Multiple Unit Costs

Abstract

This paper proposes a reliable network interdiction model with multiple unit costs, which maximizes the minimum arrival cost of the invader to the sink by setting obstacles on some arcs with limited resources in the given network. In other words, given a graph with a source and a sink, several arcs will be selected with limited resources such that each path contains as many weights as possible. This model needs to be transferred into a bilevel program because its constraints can hardly be listed explicitly even for a graph with a moderate size, because the number of paths between any two given points increases exponentially according to the size of the graph. This bilevel model is equivalent to an integer model with a low degree number of constraints by converting the inner programming to a shortest path problem. We first prove that this problem is non-deterministic polynomial-time (NP)-hard. Secondly, we reduce the number of constraints to the first power from the exponential degree by using the dual technique. Lastly, the national railway network is used to show the feasibility of our method.

1. Introduction

The network interdiction problem has been a classical problem in combinatorial optimization since the 1960s [1,2]. Recently, due to several malevolent intentional attacks such as terrorist attacks in Paris, the issue has acquired more attention. It can be seen as a special case of a static Stackelberg game [3,4]. Commonly, two players are involved in this problem: the interdictor and the invader. This problem concerns how the interdictor prevents the invader from getting through some arcs with sensors. The interdictor’s aim is to minimize the maximum flow of potential threats produced by invaders. Steinrauf et al. [5] and Ajay et al. [6] considered how to set sensors on some arcs to restrain the flow of drugs between big cities. However, an efficient optimal algorithm is not the emphasis of this study because this problem is proved to be non-deterministic polynomial-time (NP)-complete [7]. Practically, heuristic algorithms are often used for solving NP-complete problems rather than approximation algorithms. CPLEX (IBM ILOG CPLEX Optimization Studio, Ibm Corporation, Armonk, New York, USA), popular optimization software which we have been using, is usually used to solve mixed integer programs and can also help us figure out the interdiction problem. The probability of sensor failure, however, was hardly considered in earlier studies. Then, some more stochastic interdiction models were proposed after statistics become popular. Cormican et al. [8] presented a stochastic interdiction model and designed an approximation algorithm. Berry et al. [9] applied the interdiction model to a municipal water system. In that paper, the invader was toxic water which can be detected by water monitors. The interdiction problems used in many applications include military operations, such as critical infrastructure and key resources (CIKR) [10], homeland security [11], and border control [12,13]. The stochastic interdiction model is applied to thwart nuclear smuggling from the perspective of homeland security [14]; radiation sensors were installed to minimize the probability of evasion. With the application of CIKR, Scaparra et al. [15] proposed a bilevel program based on the network flow interdiction problem and provided an implicit enumeration (IE) algorithm. Essentially, most interdiction models are equivalent to bilevel mixed integer programs [15,16], whereas there cannot be a substantive breakthrough for these problems unless P = NP. The key point of the model is the inner program; this bilevel program can be transferred to a mixed integer program using dual techniques if the inner-level program is a linear one. Some other interdiction models have also been studied recently, such as the shortest path problem [17], matching problems [18], Program Evaluation and Review Technique (PERT) networks [19], and median problems [20].

Even with these studies, the interdiction models are not practical, especially for those situations including the invader’s multiple strikes. It is necessary to propose reliable models because the invader’s damage could be devastating. The idea of reliability is the basis of our previous work [21], and in this paper, we extend the model from the perspective of complexity, theory and practice. We extend the previous model [21] with multiple unit costs for both the interdictor and the invader. This model is transferred into a bilevel program because its constraints can hardly be listed explicitly, even for a graph with a moderate size. Besides proving the computational complexity of this problem, a practical case is given to illustrate the feasibility of our method.

This paper has two main contributions. Practically, the proposed model combined with the idea of reliability is more appropriate than the classic interdiction network models for applications in many fields, such as CIKR, border control and so on. Theoretically, this paper gives an approach to present a very complex integer program using the dual technique, even though it is still intrinsically difficult to solve this model from the perspective of computational complexity and we know it is impossible to solve this efficiently unless P = NP.

The remainder of this paper is organized as follows. Section 2 proposes an intuitive program as well as an equivalent bilevel program formulation. Section 3 proves that the proposed model is a NP-hard problem. The solution of this model is presented in Section 4. Section 5 illustrates the operability of our methods using the example of the national railway network. Finally, this study concludes the paper in Section 6.

2. Models

Let $G=(N,D,c,d,g,R)$ denote a directed network with node set N and arc set $D\subseteq N\times N$. Two special nodes are identified: the source node s and the sink node t. Each arc $(i,j)\in D$ has an interdiction cost $c_{ij}$, an invader cost $d_{ij}$ with a sensor on this arc and an invader cost $g_{ij}$ without a sensor on this arc, and R is the limit on total interdiction cost. Our aim is to maximize the minimum cost of the invader spent from the source node s to the sink node t by setting some sensors in arcs within limited resources, i.e., to maximize the minimum cost within all paths from the source to the sink.

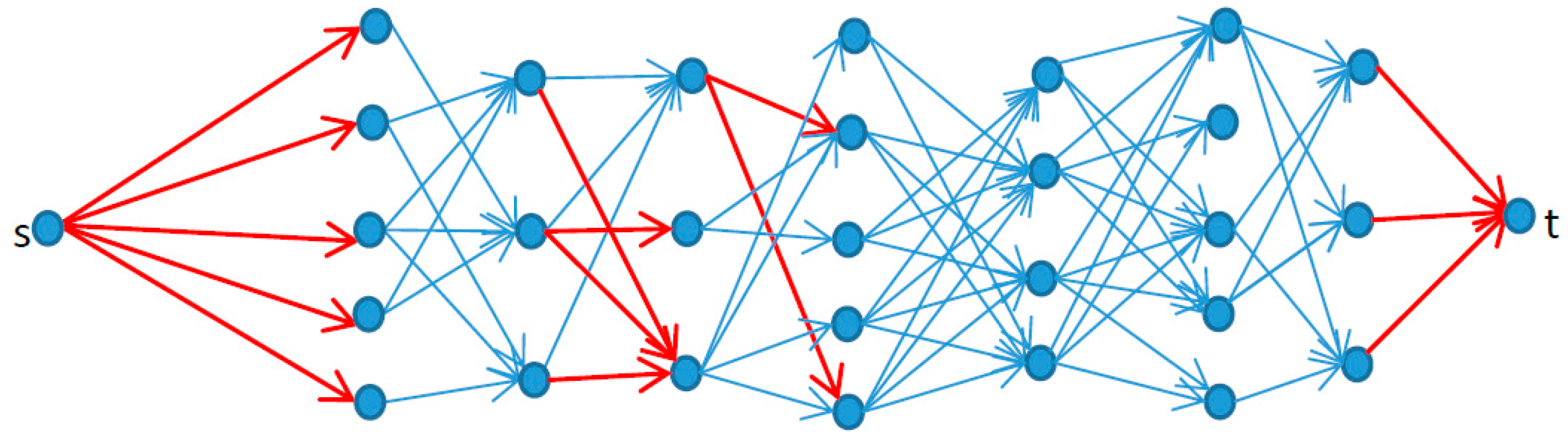

Figure 1 shows a simple example of this model by setting $c_{ij}=d_{ij}=1$ and $g_{ij}=0$ for all arcs; the interdictor’s strategy is choosing some arcs to make the costs of the invader getting to t from s as high as possible.

We can formulate $PATH$ for this problem:

$$\begin{gathered} \max \begin{array}{c}RI\end{array} \\ PATH\begin{array}{c}\{\begin{array}{c}{\displaystyle \sum _{\left(i,j\right)\in D}{c}_{ij}{x}_{ij}}\le R\\ {\displaystyle \sum _{\left(i,j\right)\in P}{d}_{ij}{x}_{ij}+g_{ij}\left(1-x_{ij}\right)}\ge RI\\ x_{ij}\in \left\{0,1\right\}\end{array}\begin{array}{c}P\in P^{\ast }\\ \left(i,j\right)\in D\end{array}\end{array} \end{gathered}$$

(1)

where P* denotes all paths from s to t, RI represents the cost of the invader getting to t from s and decision variables are $x_{ij}$:$x_{ij}=1$ if the interdictor sets up sensors on $(i,j)$, otherwise $x_{ij}=0$.

It is generally impossible to present all the constraints in this model even though the network is a moderate size; thus, we show the following equivalent model. Let ${d_{ij}}^{*}=d_{ij}{x}_{ij}+g_{ij}(1-x_{ij})$ for each arc $(i,j)$ and $G^{*}(N,D,c,d^{*},R)$ have a similar meaning as $G=(N,D,c,d,g,R)$ in $PATH$. Then we have the following equivalent bilevel program:

$$\begin{gathered} \max \begin{array}{c}RI\end{array} \\ P\begin{array}{c}\{\begin{array}{c}{\displaystyle \sum _{\left(i,j\right)\in D}{c}_{ij}{x}_{ij}}\le R\\ S{P}_{G^{\ast }}\left(x\right)\ge RI\\ x_{ij}\in \left\{0,1\right\}& \left(i,j\right)\in D\end{array}\end{array} \end{gathered}$$

(2)

where $S{P}_{G^{*}}\left(x\right)$ is the shortest path from the source to the sink in the directed network $G^{*}(N,D,s,t,c,d^{*},R)$ with a given $x$, and $x_{ij}$ has the same meaning within the model $PATH$. It is easy to confirm that the model $P$ is equivalent to the model $PATH$ and we will list this conclusion without proof.

Proposition 1.

Let $x$ be a feasible solution of $PATH$ and P. Then $x$ is an optimal solution of $PATH$ if and only if it is also an optimal solution of P.

We need to present $S{P}_{G^{\ast }}\left(x\right)$ formally as follows:

$$\begin{gathered} \min \begin{array}{c}{\displaystyle \sum _{\left(i,j\right)\in D}{d_{ij}}^{\ast }{t}_{ij}}\end{array} \\ SP\{\begin{array}{cc}At=e_0& \\ t_{ij}\in \left\{0,1\right\}& \left(i,j\right)\in D\end{array} \end{gathered}$$

(3)

where $A$ is the incident matrix of $G^{\ast }(N,D,d^{\ast })$, and $e_0={\left(1,-1,0,0,\dots ,0\right)}^T$ is the n-dimensional vector. The first constraint is on the vertex s, the second one is on the vertex t and the other is on the other vertexes among the first n constraints in this model. Further, $t_{ij}=1$ denotes the arc $(i,j)$ chosen by the invader, which is on the shortest path, and otherwise $t_{ij}=0$.

We will discuss the existence of an efficient algorithm for $PATH$ first before solving this model.

3. Computational Complexity

A decision form of $P$ is needed before discussing the computational complexity.

$PATH$ (decision). For any given network $G(N,D,s,t,c,d,g,R)$ and $RI$, does there exist an $x^{\ast }$ such that ${\displaystyle \sum _{\left(i,j\right)\in D}{c}_{ij}{x_{ij}}^{\ast }}\le R$ and ${\displaystyle \sum _{\left(i,j\right)\in P}[d_{ij}{x_i}^{\ast }+g_{ij}(1-{x_{ij}}^{\ast })]}\ge RI$ for each path from s to t?

Knapsack problem (decision): Given a set of items $I$ with each item $i\in I$ having a positive integer profit $u_i$ and a positive integer weight $w_i$ and two positive integers $U$ and $W$, there exists a subset $I^{*}\subseteq I$ such that ${\displaystyle {\sum }_{i\in I^{\ast }}{w}_i}\le W$ and ${\displaystyle {\sum }_{i\in I^{\ast }}{u}_i}\ge U$.

Theorem 1.

$PATH$ (decision) is NP-complete.

Proof of Theorem 1.

Consider a knapsack problem as defined above, which is well-known to be NP-complete [22]. Now we create a directed network $G(N,D)$ with $\left|I\right|+1$ vertexes named as $s=v_0,v_1,v_2,\cdots ,v_{\left|I\right|}=t$. For each item $i\in I$ in the knapsack problem, create an arc $i\in D$ directed from $v_{i-1}$ to $v_i$ with the cost of the interdictor $c_i=w_i$ and the cost of the invader $d_i=u_i$ and $g_i=0$. Furthermore, define $R=W$ and $RI=U$. This completes the construction.

Suppose there exists a subset $I^{*}\subseteq I$ such that ${\displaystyle {\sum }_{i\in I^{\ast }}{w}_i}\le W$ and ${\displaystyle {\sum }_{i\in I^{\ast }}{u}_i}\ge U$. Let ${x_i}^{*}=1$ for $i\in I^{*}$ and ${x_i}^{*}=0$ for the other arcs. Then it follows that

$${\displaystyle \sum _{\left(i,j\right)\in D}{c}_{ij}{x_{ij}}^{\ast }}={\displaystyle \sum _{i\in I}{c}_i{x_i}^{\ast }}={\displaystyle \sum _{i\in I^{*}}{w}_i}\le W=R$$

(4)

and

$${\displaystyle \sum _{\left(i,j\right)\in P}{d}_{ij}{x}_{ij}+g_{ij}\left(1-x_{ij}\right)}=={\displaystyle \sum _{i\in I}{d}_i{x_i}^{\ast }}={\displaystyle \sum _{i\in I^{*}}{u}_i}\ge U=RI$$

(5)

Conversely, suppose there exists an $x^{\ast }$ subject to ${\displaystyle \sum _{\left(i,j\right)\in P}[d_{ij}{x_i}^{\ast }+g_{ij}(1-{x_{ij}}^{\ast })]}\ge RI$ and ${\displaystyle \sum _{\left(i,j\right)\in D}{c}_{ij}{x_{ij}}^{\ast }}\le R$. Recap the construction of the arc set $D$, let $I^{*}$ correspond to the arcs which ${x_i}^{*}=1$, and then it follows:

$${\displaystyle {\sum }_{i\in I^{\ast }}{w}_i}={\displaystyle {\sum }_{i\in I}{c}_i}{x_i}^{*}={\displaystyle {\sum }_{(i,j)\in D}{c}_{ij}}{x_{ij}}^{*}\le R=W$$

(6)

and

$${\displaystyle {\sum }_{i\in I^{\ast }}{u}_i}={\displaystyle \sum _{i\in I}{d}_i{x_i}^{\ast }}={\displaystyle \sum _{\left(i,j\right)\in P}[d_{ij}{x_i}^{\ast }+g_{ij}(1-{x_{ij}}^{\ast })]}\ge RI=U$$

(7)

Together with the fact that $PATH$ is clearly in NP, this implies that $PATH$ is NP-complete. □

From Theorem 1, $PATH$ is a NP-hard problem without a polynomial time algorithm unless P = NP, in other words, we need to turn to focus on the non-polynomial algorithm.

4. Model Solution

For the following linear programming relaxation of SP (RSP), we have:

$$\begin{gathered} \min \begin{array}{c}{\displaystyle \sum _{\left(i,j\right)\in D}{d_{ij}}^{\ast }{t}_{ij}}\end{array} \\ RSP\begin{array}{}\end{array}\{\begin{array}{cc}At=e_0& \\ t_{ij}\ge 0& \left(i,j\right)\in D\end{array} \end{gathered}$$

(8)

Theorem 2.

$opt(SP)=opt(RSP)$ for any given feasible solution $x_{ij}$ of $P$.

Proof of Theorem 2.

We only need to prove $opt(SP)\le opt(RSP)$.

Firstly, we extend the constraint $t_{ij}=\{0,1\}$ for each arc $(i,j)\in D$ in $SP$ to the constraint $t_{ij}\in N$. That is

$$\begin{gathered} \min \begin{array}{c}{\displaystyle \sum _{\left(i,j\right)\in D}{d_{ij}}^{\ast }{t}_{ij}}\end{array} \\ SP1\{\begin{array}{cc}At=e_0& \\ t_{ij}\in N& \left(i,j\right)\in D\end{array} \end{gathered}$$

(9)

$SP$ can be seen as a minimum cost flow problem where the flow value is 1 and the capacity of each arc is 1, whereas $SP1$ can be also seen as a minimum cost flow problem where the flow value is 1 but the capacity of each arc can be arbitrarily large. Both have the same optimal value because ${d_{ij}}^{\ast }\ge 0$ for each arc $(i,j)\in D$, i.e., $opt(SP)=opt(SP1)$.

$opt(RSP)=opt(SP1)$ is true because the coefficient matrix of $SP1$ is a unimodular matrix. □

The dual form of RSP (DRSP) is as follows:

$$\begin{gathered} \max \begin{array}{c}{y}_s\end{array} \\ DRSP\{\begin{array}{cc}{y}_i-y_j\le {d_{ij}}^{\ast }{x}_{ij}& i,j\in N;\left(i,j\right)\in D\\ y_t=0& \end{array} \end{gathered}$$

(10)

Combined with the constraints of the upper-level program, we have the following program which has the same optimal value as $P$.

$$\begin{gathered} \max \begin{array}{c}{y}_s\end{array} \\ MIP\begin{array}{c}\{\begin{array}{l}{\displaystyle \sum _{\left(i,j\right)\in D}{c}_{ij}{x}_{ij}}\le R\hfill \\ y_i-y_j\le {d_{ij}}^{\ast }{x}_{ij}\hfill \\ y_t=0\hfill \\ x_{ij}\in \left\{0,1\right\}\hfill \end{array}\end{array}\begin{array}{l}\\ i,j\in N;\left(i,j\right)\in D\hfill \\ \\ \left(i,j\right)\in D\hfill \end{array} \end{gathered}$$

(11)

The Mixed Integer Program (MIP) in Equation (11) can be solved by software (e.g., CPLEX); thus, we transfer $P$ with the exponential number of constraints to $MIP$ with the polynomial number of constraints. In fact, we have this conclusion.

Theorem 3.

For any given graph $G(N,D)$ having the same parameter as $P$:

$$cons\left(MIP\right)=O\left(\left|D\right|\right)$$

(12)

where $cons\left(MIP\right)$ denotes the number of constraints in $MIP$, while the number of constraints in $PATH$ is exponential to $\left|D\right|$.

5. Numerical Results

5.1. Data Sources and Pre-Processing

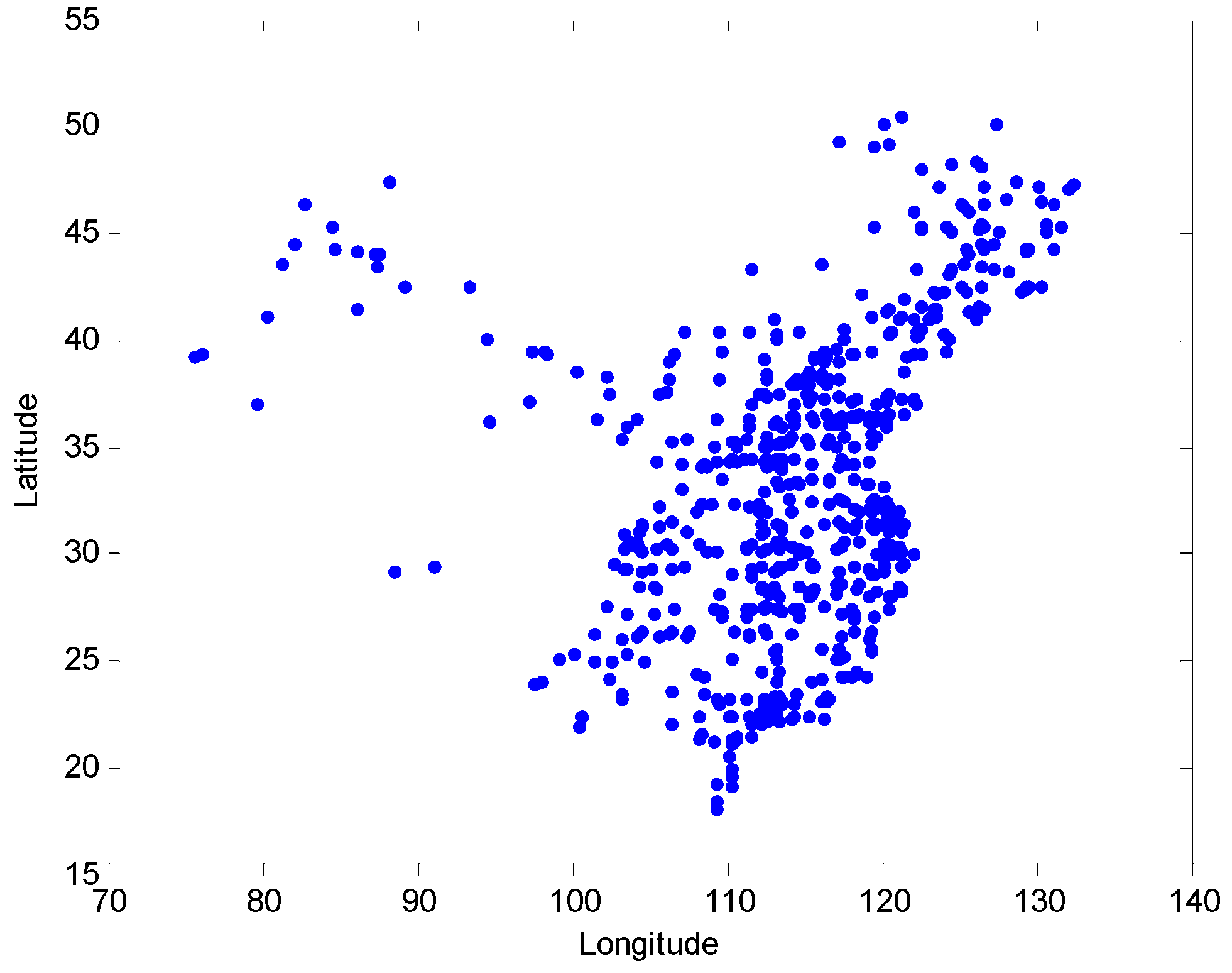

We downloaded the train lines data [23], which includes 3849 trains across China. Then we obtained the longitudes and latitudes of 616 major cities in China and plotted these cities according to their latitude and longitude in Figure 2.

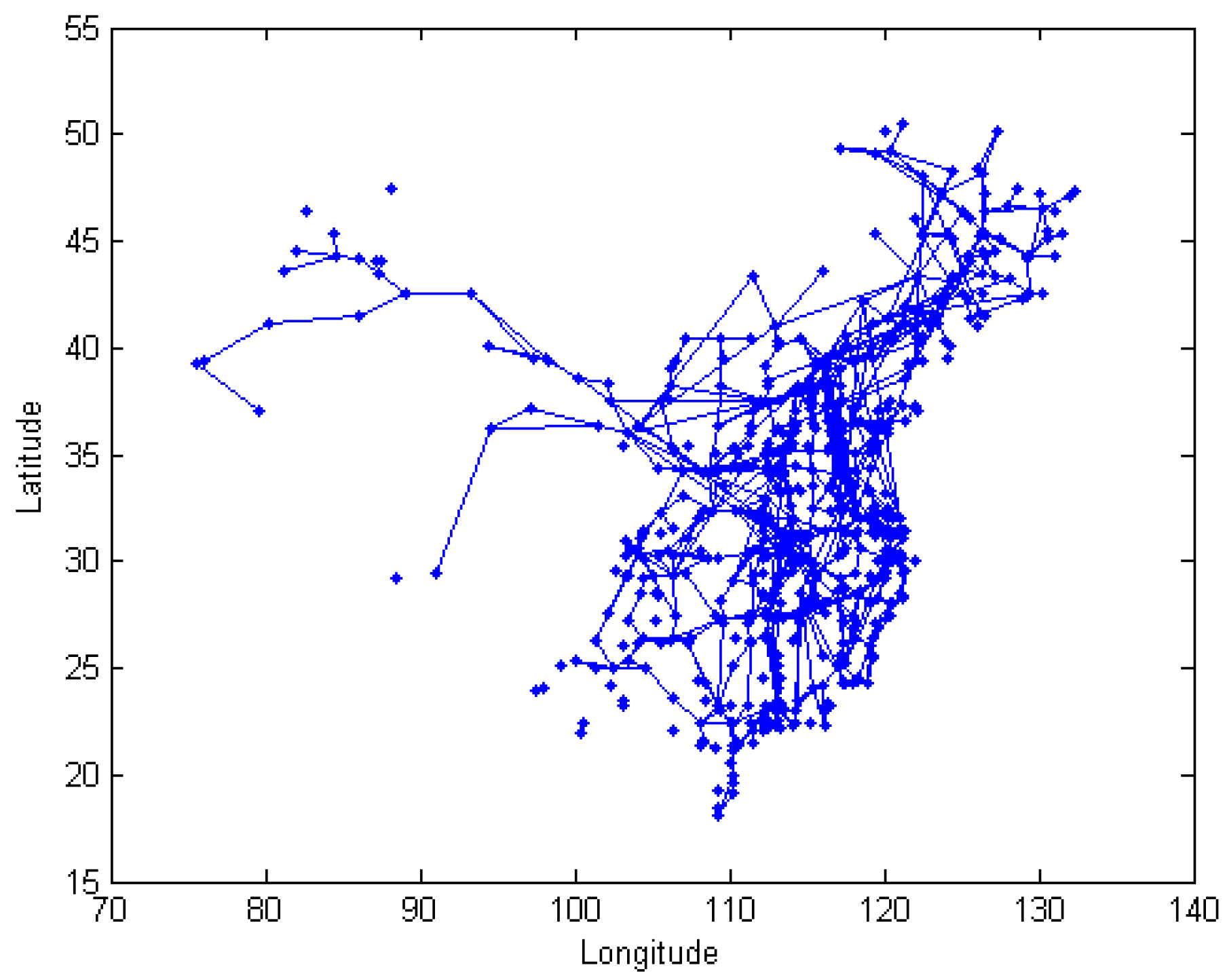

We got rid of some small cities in the data from the above website and obtained the railway information between the major cities, and plotted the railway map in Figure 3, combining it with Figure 2.

5.2. Software and Parameter Setting

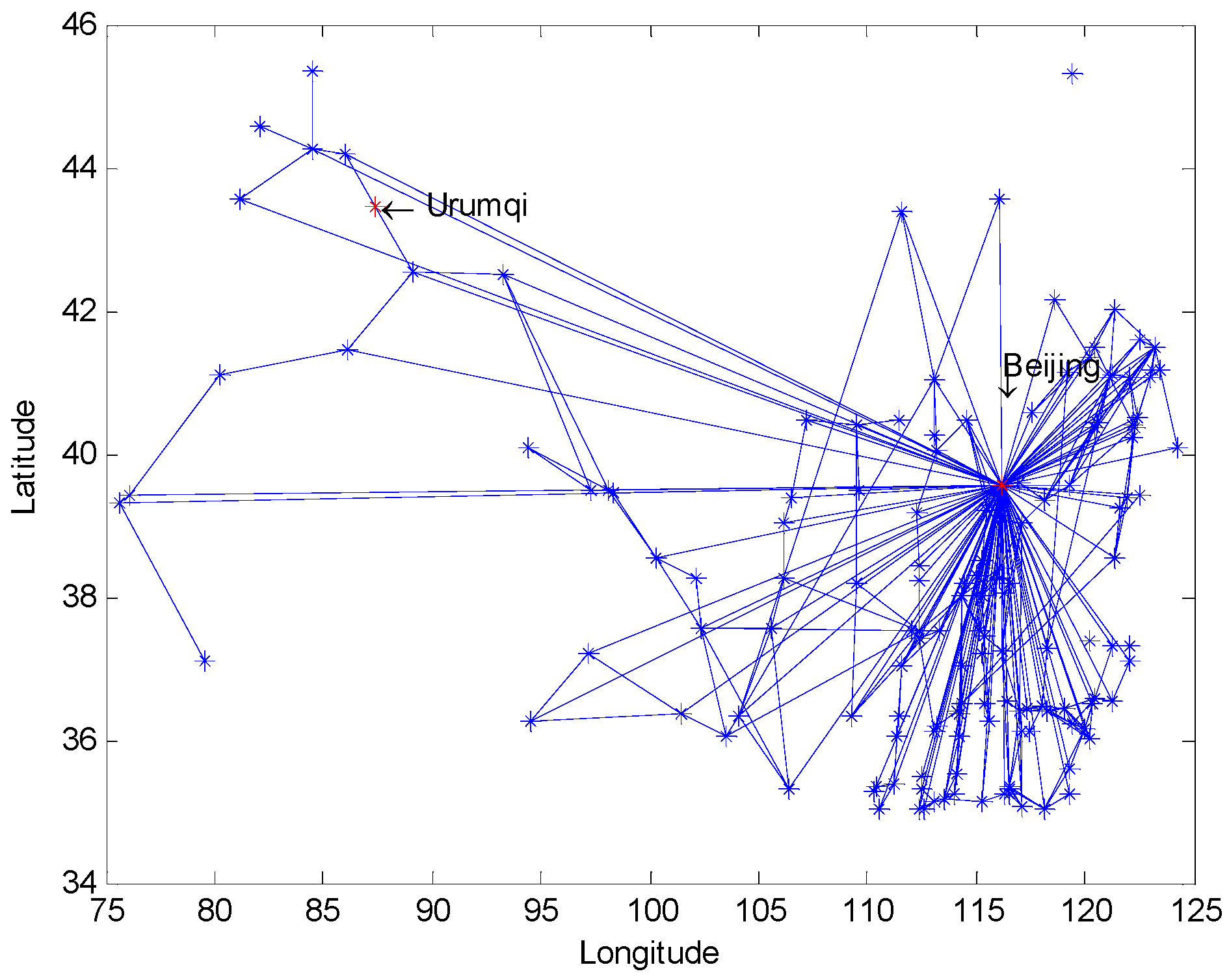

We used CPLEX to solve this model. The CPLEX program we used was an academic version 12.4 and was only able to solve limited sizes of models, so we simplified the number of nodes in the model which had no effect on presenting the conclusion from our experimental results. For example, when we set Urumqi as a source and Beijing as a sink, several southern and northeast cities will be deleted and the left network was shown in Figure 4.

Besides, we set $c_{ij}=d_{ij}=4$ (these numbers are scalar, and the following are the same) and $g_{ij}=1$ for cities near Beijing, and $c_{ij}=d_{ij}=3$ and $g_{ij}=1$ for cities far away from Beijing, and R = 30.

5.3. Solutions

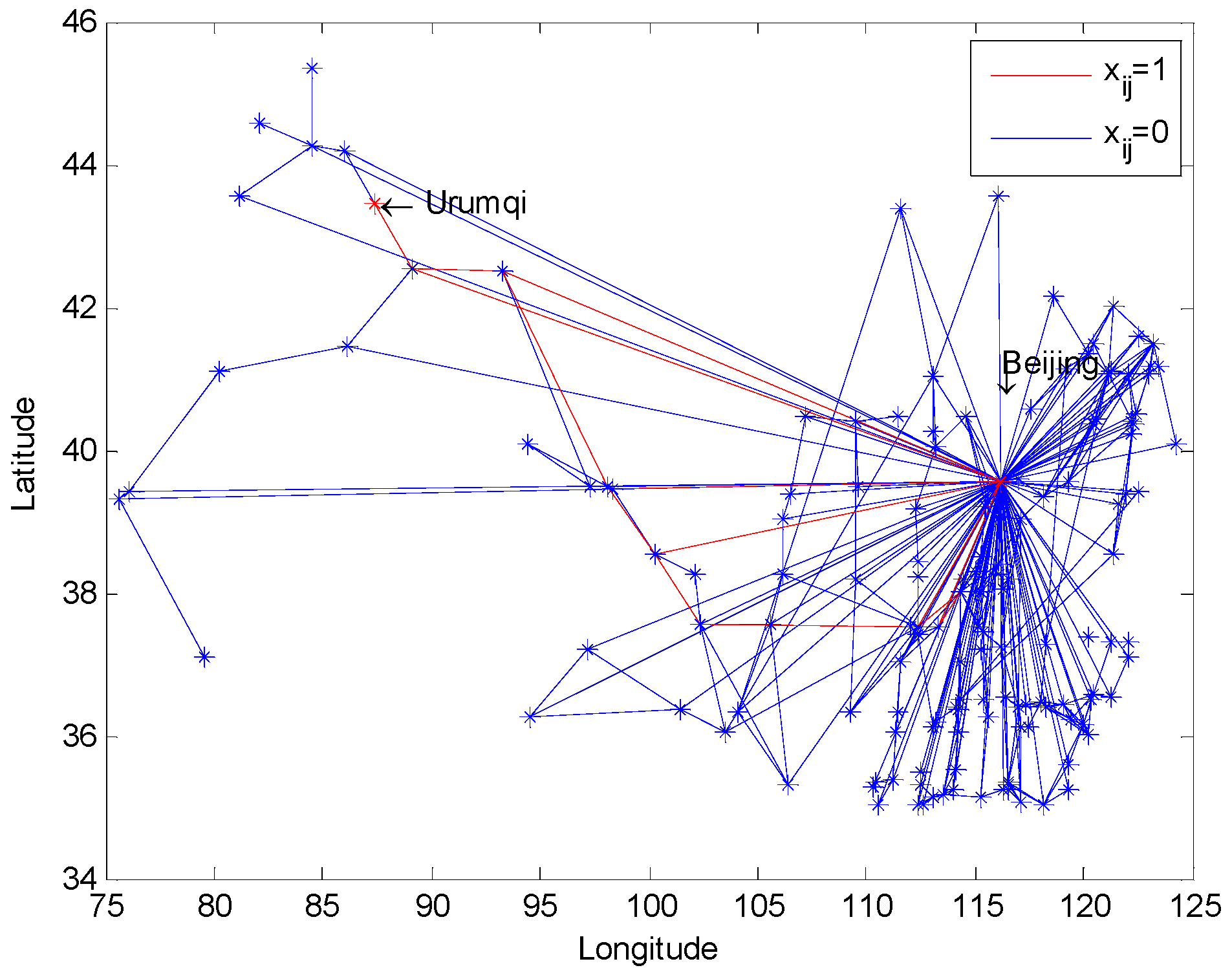

An optimal value is 11 with respect to the above example and $x_{ij}$ is indicated in the red lines in Figure 5.

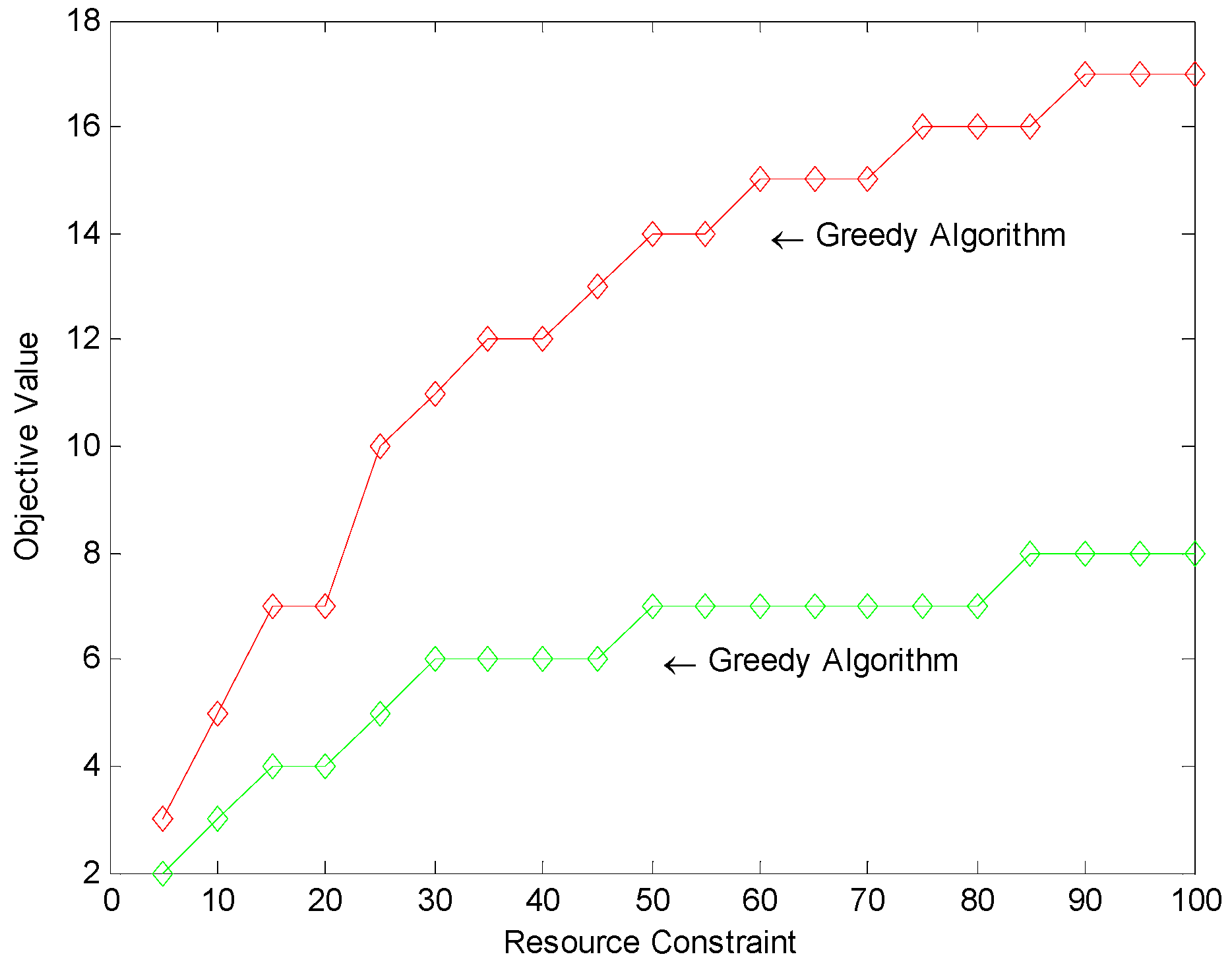

An intuitive thought may be choosing the minimum cut gradually. Two objective values are compared in Figure 6 and

Table 1. Comparing the objective value of the proposed model with the greedy algorithm.

Algorithm	Objective Value
RS	10	20	30	40	50	60	70	80	90	100
Greedy Algorithm	3	4	6	6	7	7	7	7	8	8
MIP	5	7	11	12	14	15	15	16	17	17

Notes: RS denotes the resource constraint in this problem and MIP is the Mixed Integer Program in Equation (11); the numbers in this table are scalar.

with respect to the resource constraint $R$. It proves that the greedy algorithm [24], which chooses the arcs of the least cost greedily unless exceeding the resource constraint R, is not a good one.

6. Conclusions

We simplified the model PATH in Equation (1) using the linear programming theory. This paper proposes a method to deal with bilevel integer programs theoretically and this model can be also directly used in the fields of border control, land defense and water resource monitoring.
