Development, Optimization and Validation of a Sustainable and Quantifiable Methodology for the Determination of 2,4,6-Trichloroanisole, 2,3,4,6-Tetrachloroanisole, 2,4,6-Tribromoanisole, Pentachloroanisole, 2-Methylisoborneole and Geosmin in Air

Abstract

Compounds 2,4,6-trichloroanisole (TCA), 2,3,4,6-tetrachloroanisole (TeCA), 2,4,6-tribromoanisole (TBA) and pentachloroanisole (PCA), 2-methylisoborneol (2MIB) and geosmin (GSM) have been reported as being responsible for cork and wine taint. A sustainable method based on thermal desorption-gas chromatography–mass spectrometry (TD-GC/MS) has been developed and optimized, taking into account desorption parameters and chromatographic and mass spectrometric conditions. The combination of parameters that jointly maximized the compound detection was as follows: desorption temperature at 300 °C, desorption time at 30 min, cryo-temperature at 20 °C and trap high temperature at 305 °C. The proposed methodology showed a good linearity (R ≤ 0.994) within the tested range (from 0.1 to 2 ng) for all target compounds. The precision expressed as repeatability and reproducibility was RSD < 10% in both. The limits of quantification ranged from 0.05 to 0.1 ng. The developed methodology and the sampling rates (R-values) of all targeted compounds (from 0.013 to 0.071 m³ h⁻¹) were applied to the air analysis of two wineries. The results showed that the developed methodology is a sustainable and useful tool for the determination of these compounds in air.

1. Introduction

Haloanisoles (HAs): 2,4,6-trichloroanisole (TCA), 2,3,4,6-tetrachloroanisole (TeCA), 2,4,6-tribromoanisole (TBA) and pentachloroanisole (PCA) are well-known wine contaminant compounds that cause unpleasant musty aromas. HAs are very volatile, easily transmitted through the air and highly capable of contaminating wine, wood, cork and many other materials. For years, the wine industry thought that HAs were exclusively associated with cork stoppers, but many studies have reported other sources of HAs contamination such as the use of pesticides and wood preservatives containing halophenols (HPs). Geosmin (GSM) and 2-methylisoborneol (2MIB) are produced as secondary metabolites by specific microorganisms, including actinomycetes, cyanobacteria (blue–green algae), myxobacteria and fungi. All of these are considered responsible for earthy–musty odours in drinking water and wine [1,2,3,4,5] and represent a serious economic problem for wineries.

In general, early detection of these compounds in wine, in auxiliary materials involved in the winemaking process or in air, is very important to prevent the contamination of wine [6]. A number of methods have been proposed for the determination of HAs, GSM and 2MIB but they have focused on cork stoppers, water or wine [5,7,8,9]. Due to the physical and chemical properties of these compounds, gas chromatography coupled to mass spectrometry (GC–MS or GC-MS/MS) has been the preferred technique for their detection and quantification. For solid and liquid samples (cork stoppers or wine), solid phase microextraction (SPME) and solid phase extraction (SPE) have been the most commonly used extraction techniques [8,10,11]. The only procedure to qualitatively determine HA in air is by using bentonite as a passive adsorbent. In this case, after a few days of bentonite exposure in air, a certain quantity is extracted with hexane and later analyzed using GC techniques. The results are expressed as ng of the compound per g of bentonite. Therefore, it is a qualitative method.

In order to promote a more sustainable and quantifiable methodology, an effective method based on thermal desorption coupled to gas chromatography (TD-GCMS) is proposed for the determination of low concentrations of selected compounds in air. In this case, targeted compounds are adsorbed onto porous polymers for subsequent analysis using TD-GCMS [12,13,14,15,16]. TD-GCMS allows the detection and quantification of the selected compounds in air using active or/and passive sampling procedures. Although both procedures provide good performance and great flexibility, passive sampling has gained popularity due this procedure not needing a calibrated pump to collect samples. In this case, compounds from the air accumulate onto the sampling medium via diffusion. For this reason, it is essential to determine the sampling rates or diffusive uptake rates (R-value) for each targeted compound. This value is a characteristic of each compound related to its physicochemical properties and can also be influenced by environmental conditions such as air temperature, humidity or sampler design [17,18]. Some studies have determined R-values in the laboratory using artificially polluted chambers or reactors [17,19,20,21,22,23]. Camino et al., 2015 [13] determined the R-values of TCA and trichlorophenol (TCP) for monitoring air in a winery.

The aim of the present work was to develop a sustainable and quantifiable methodology for the determination of HAs, GSM and 2MIB in air using TD-GCMS with application in the analysis of air in a winery. For the development of the proposed methodology, first a TD-GCMS method to analyze the sampling tubs was optimized and validated by applying an experimental design. Then, R-values (m³ h⁻¹) of each targeted compound were estimated using passive and active sampling. Tenax^® TA desorption tubes were selected as the media for adsorption in both sampling techniques and all tubes were analyzed using the validated TD-GCMS method.

2. Materials and Methods

2.1. Reagents and Solutions

Standards of TCA, TeCA, TBA, PCA, GSM and 2MIB were purchased from Sigma Aldrich (St. Louis, MO, USA). Each compound was dissolved in methanol (gas chromatography grade with >99% purity, supplied by Technochroma) to obtain a concentration of 100 mg L⁻¹.

2.2. Sorbent Tubes

Stainless steel thermal desorption tubes (6 mm O.D. × 90 mm long, 5 mm I.D., Markes International Limited, Pontyclun, UK) were used in this study. Tubes were packed, as described in Batterman et al., 2002, with 200 mg of Tenax^® TA supplied by Ingenieria Analitica, S.L (Barcelona, Spain), a porous polymer resin based on 2,6-diphenylene oxide with a particle size of 20–35 mesh, which has been designed for trapping volatile and semi-volatile organic compounds from air. The adsorbed selection was based on the results from Camino-Sanchez et al., 2013 [6]. Tenax^® TA tubes showed the highest response for TCA and TCP and the lowest water adsorption capacity. According to the commercial conditions, packed tubes were conditioned at 300 °C for 6 h at 45 mL min⁻¹ flow of high purity (99.999%) helium. After conditioning, tubes were sealed with stainless steel caps with Teflon seals screwed onto both ends.

2.3. Optimization and Validation of the TD-GCMS Method

In the thermal desorption method, desorption was carried out in two stages. First, the desorption tube was heated inside the desorption unit (at a desorption temperature, TDT) for a certain time (desorption time, DT) using helium as the carrier gas in splitless mode in order to desorbe the analytes and focus them into a cold trap (packed with Tenax TA) which was kept at a chosen temperature (trap low Cryo-temperature, TLCT). Afterwards, the desorption traps were heated to a chosen temperature (or trap high temperature, THT) at maximum heating rate (50 °C s⁻¹) and the compounds retained were introduced into the chromatographic column. Tube desorption temperature (TDT), desorption time (DT), trap low cryo-temperature (TLCT) and trap high temperature (THT) were optimized together using an experimental design. The Tenax TA tubes, spiked with a 5 mg L⁻¹ of each analyte, were analysed by GC-MS methodology. The peak area of each compound was the response variable.

An experimental design was used to optimize the TD-GCMS method. For this reason, a procedure to obtain tubes with known concentrations was used. The objective of the optimization was to find the best experimental condition (instrumental values) that maximized the detection of the six compounds simultaneously. A calibration solution loading ring (CSLR) system consists of an unheated injector with a controlled carrier gas supply (nitrogen) and a sorbent tube connection point. The sampling end of the sorbent tube was connected to the CSLR system, and the carrier gas flow rate was set at 80 mL min⁻¹. The quantity of 1 µL of a mixed solution, containing all target compounds at concentrations between 0.05 mg L⁻¹ and 5 mg L⁻¹ and prepared in methanol, was introduced through the injector septum using a standard GC syringe. Then, a loading time of 3 min was used to ensure that the methanol was eliminated and that the target analytes were retained in sufficient quantity in the tube. In this way, tubes with a known concentration were obtained and could be analyzed by TD-GCMS.

For the analysis of the previously prepared Tenax^® TA tubes, an Ultra A automated sampler and a Unity Thermal Desorption system (Markes International Limited, Llanstrisant, UK) connected to a GC-MS was used. First, a desorption and preconcentration phase of the analytes retained on the Tenax^® TA tubes was carried out using the thermal desorption system. Second, the detection and quantification was performed using GCMS equipment. The first procedure was optimized by applying an experimental design and the second procedure was validated.

GC-MS analysis was performed with an Agilent 6890 N chromatograph equipped with a Gerstel MPS2 auto-sampler and coupled to an Agilent 5973 N mass spectrometer. The separation was achieved using an HP-5MS column (30 m, 0.25 mm, 0.25 µm film thickness) (J&W Scientific, Folson, CA, USA) and a GC oven program starting at 55 °C (3 min), increased by 15 °C min⁻¹ to 125 °C, 1.5 °C min⁻¹ to 145 °C, 10 °C min⁻¹ to 183 °C, 1.5 °C min⁻¹ to 195 °C and 15 °C min⁻¹ to 250 °C (held for 3 min). The carrier gas was helium (99.999%) from Abello Linde (Barcelona, Spain) with a constant flow rate of 1 mL min⁻¹. The transfer line temperature was set at 300 °C and the ion source temperature at 250 °C. The mass spectrometer was operated in selected ion monitoring mode (SIM) detecting the following ion masses: 195 and 210 of TCA, 231 and 246 of TeCA, 346 and 331 of TBA, 280 and 265 of PCA, 112 and 125 of GSM and 95 of 2MIB. GC-MS chromatogram with selected compound peaks and retention times were showed in Figure 1.

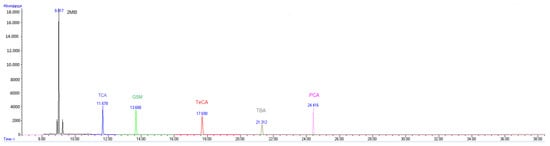

The compounds were quantified with calibration response curves generated from five different concentrations.

Instrumental variables (parameters) for the optimization procedure were selected according to (1) targeted compounds, (2) recommended manufacturer values (to improve the analytical assays) and (3) values previously reported in literature (

Table 1. Thermal desorption parameters and values.

Parameter	Value	Comments
Desorption time (min) (DT)	1 to 30	To be optimized
Desorption temperature (°C) (TDT)	35 to 300	To be optimized
Desorption mode	splitless	Necessary for maximum sensibility
Trap purge time (min)	1.0	Recommended for Tenax® TA tubes
Trap low cryo-temperature (°C) (TLCT)	−20 to 20	To be optimized
Trap heating rate (°C s−1)	50 (MAX)	Previously reported (Camino et al., 2013)
Trap high temperature (°C) (THT)	305 to 320	To be optimized

). In this case, a mixed solution at 5 mg L⁻¹ was used. The response variable was the area of the chromatographic peak of each compound.

In brief, tubes were heated to 300 °C and the sample was desorbed for 8 min at 40 mL min⁻¹. Then, the sample was transferred under a 30 mL min⁻¹ helium flow and cryo-focused into the cryotrap at 20 °C. Finally, the cryotrap was rapidly heated to 305 °C to transfer the analytes into the GC column.

The optimization method was also validated in terms of linearity, selectivity, detection and quantification limits, repeatability and reproducibility. A set of six concentrations over an analytical range (from 0.1 to 2 ng tube⁻¹) were analysed in triplicate for each compound. The response ratio of the analyte (area) was plotted as a function of analyte concentration and used to generate linear regression. Spiked solutions with low levels of target compounds were used to establish the limit of detection (LOD) and the limit of quantification (LOQ) of the method and overall: LOD is the concentration for signal/noise = 3 and LOQ is the concentration for signal/noise = 10. These limits were manually calculated from the ratio of the peak heights to the average noise before and after each peak. To evaluate the reproducibility and repeatability, spiked tubes at 1 ng tube⁻¹ were prepared and analysed on the same day (five replicates) and over a period of 5 days respectively and the results were expressed as %RSD. A blank was analyzed before each analysis.

2.4. Determination of R-Values

2.4.1. Passive Sampling Theory

Passive sampling theory was used to calculate the R-values. The fundamental principle of this theory is that chemicals from ambient air accumulate onto the sampling medium by way of gaseous diffusion. The uptake of a gaseous compound from the ambient air to a sampler is described as the effective concentration gradient between the air and the sampler. The mass of analyte retained onto the adsorbent (M_ad) is a function of the mass transfer coefficient and the concentration gradient, as defined by the following equation (Camino et al., 2015) Equation (1):

−dM_ad/dt = k_v·A_s·(C_air − C_ad/K_ad)

(1)

where k_v is the overall mass transfer coefficient (m s⁻¹), A_s is the sampler area (m²), C_air is the analyte air concentration (ng m³), C_ad is the analyte concentration on the adsorbent (ng m³), and k_ad is the sampler/air partition coefficient. For compounds of high k_ad and low ambient concentration, the mass transfer from ambient air to the sampling medium of the gaseous compound to be determined is controlled by the air mass transfer rate; therefore, the mass of analyte adsorbed onto the adsorbent is a linear function of time. Analyte concentration in air can be determined by the following equation Equation (2) [13].

C_air = M_ad·(k_v·A_s·t)⁻¹

(2)

The product of k_V × A_S is the R-value or sampling rate and can be considered as the main calibration parameter in passive sampling as it allows the easy calculation of the analyte concentration in the air. The R-value may be determined experimentally and is expressed as volume per time (m³ h⁻¹). The determination of the R-values has been reviewed elsewhere [13,18,19,24,25,26,27]. In the present study, a 10 L chamber was employed to evaluate R-values for different compounds. Therefore, the R-value was calculated using Equation (3), which is derived from Equation (2).

M_ad = C_air (k_v·As)·t

(3)

According to Equation (3), the mass of each analyte measured in the tube was plotted against time of exposure (t). The slope of each regression is defined as C_air·k_v·A_s [13]. Active sampling was employed for monitoring the true concentration of the evaluated compounds inside the calibration chamber (C_air) and was calculated assuming that all target analytes were completely evaporated.

2.4.2. Experimental Determination of R-Values

R-values (m³ h⁻¹) of each targeted compound were calculated using passive and active sampling at the same time. A mid-sized, 10 L glass reactor from Vidrafoc (Barcelona, Spain) was employed as a pollution chamber. At the top of the chamber, 6 mm diameter sampler places were used to position Tenax^® TA tubes. The chamber was located in a room with a controlled temperature (21 °C ± 2 °C) but humidity and temperature inside the chamber were also checked during assays using a thermo-hygrometer with a probe (TESTO 635).

Before spiking the chamber, a blank was prepared using active sampling at 140 mL min⁻¹ for 15 min to confirm the absence of previous contamination in the chamber air. A handheld air sampling pump SKC model 224-PCMTX8 (Arelco, Fontenay sous Bois, France) was employed to pump air samples through the Tenax^® TA tubes. The pump was calibrated using a DFC-HR digital flow meter (Altech, Deerfield, IL, USA) before each sampling. Then, the Tenax^® TA tubes were placed in the sampler places and the air in the chamber was subsequently spiked with a solution of 5 mg L⁻¹ of each compound. Passive sampling tubes were taken out of the chamber at different times: 1, 6, 24, 30, 48, 54 and 72 h. Active sampling was carried out after collecting each passive tube for monitoring the air concentration of the evaluated compound inside the chamber. As in the case of blanks, active sampling was performed at 140 mL min⁻¹ for 15 min using a pump. All tubes were enclosed and stored at 4 °C until they were analysed using the TD-GC-MS procedure previously reported. Finally, the chamber was cleaned with acetone and distilled water and left for 24 h until the next test. This procedure was repeated in triplicate for each compound.

2.5. Data Analysis

2.5.1. Optimization

The selected experimental design used for optimizing the TD-GCMS method was a full factorial design with four factors: desorption time (DT) with four levels (1, 8, 15 and 30 min); desorption temperature (TDT) with two levels (35 and 300 °C); trap low cryo-temperature (TLCT) with two levels (−20 and 20 °C); and trap high temperature (THT) with two levels (305 and 320 °C). The selected full factorial design had 32 unique factor level combinations that were replicated twice, leading to a total of 64 experimental runs. The full factorial design allowed estimation of main effects of each of the factors as well as all interactions without confounding.

Plots of the main effects and two-way interactions were inspected and Pareto plots and ANOVA tables were analyzed to assess whether each factor was significantly associated with each response. A separate regression model was fitted to each response (six models in total) including main effects and two-way interactions. Then, each model was simplified using backward elimination so that it included only significant terms. The significance level was set to ɑ = 0.1 because we choose to have a higher risk (10%) of concluding that a factor was significant even if no actual difference existed due to the fact that factors are very easy to change. For each model the goodness-of-fit of the regression and the assumptions of the ordinary least squares were checked.

Scatter plots of each pair of response variables and their correlations were inspected to assess the relationship between them. Finally, a response optimization procedure was applied to identify the combination of factor settings that optimized (maximized) the six response variables. The optimization was performed giving the same weight to each factor and by taking into account the best model fit for each response variable. The composite desirability was used to select the best combination of factors. Once the final combination of factors was selected, predicted estimates and their confidence intervals were inspected to determine the range of likely values for a future experiment under those conditions.

Minitab^® 18.1 Statistical Software (Addlink Software Cientifico, S.L.) was used to generate and analyze the experimental design. The response variables were the areas of the chromatographic peaks of each compound that were obtained employing ChemStation version 3.1 software.

2.5.2. Determination of R-Values

R-values (m³ h⁻¹) were experimentally calculated for each compound by the creation of a linear plot of the mass of analyte (M_ad, ng) against time (h) at a selected initial air concentration (5 mg L⁻¹) of the studied compound according to Equation (3). M_ad was obtained for each selected time using passive sampling. The slope of each regression is defined as C_air·k_v·A_s, the R-value for an analyte being k_v·A_s [13] and C_air the average concentration of this analyte in the air (ng m⁻³). The latter was calculated by active sampling. Therefore, R-values were calculated by dividing the obtained slope by C_air.

Validation and R-values measurements were performed using Microsoft Excel 2015.

3. Results

3.1. Optimization of Thermal Desorption Method (TD)

Table 2. Factors associated with each of the six compounds. A + (−) indicates that there is a positive (negative) association, i.e., increasing the factor increases (decreases) the value of the response.

	Main Effects				Interactions
Response	DT	TDT	TLCT	THT	DT*TDT	TLCT*THT
MIB	+	+	NA	NA	NA	NA
TCA	+	+	NA	NA	Yes	Yes
GSM	+	+	NA	NA	Yes	NA
TeCA	+	+	NA	NA	Yes	NA
TBA	+	+	+	−	NA	Yes
PCA	+	+	+	−	NA	Yes

NA: not applicable.

summarizes the significant associations between the factors and each of the six compounds. In all cases, factors DT and TDT are significantly positively associated with each compound, i.e., increasing the factor increases the response of the compound (see Figure A1, Figure A3, Figure A5, Figure A7, Figure A9 and Figure A11 in Appendix A). The interaction between DT and TDT is significant in compounds TCA, GMN and TeCA (see Figure A4, Figure A6 and Figure A8) and the interaction TLCT and THT is significant in TCA, TBA and PCA (see Figure A4, Figure A10 and Figure A12). When the latter interaction is significant, the main effects TLCT and THT also need to be in the model even though they are not significant (we have not reported them in Table 2 for simplicity).

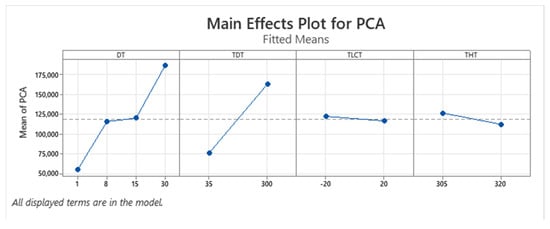

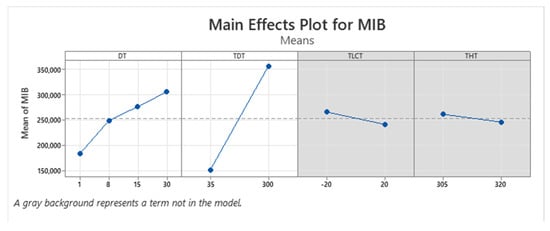

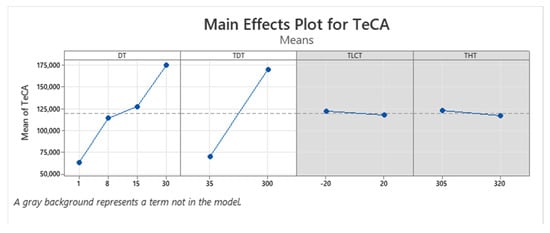

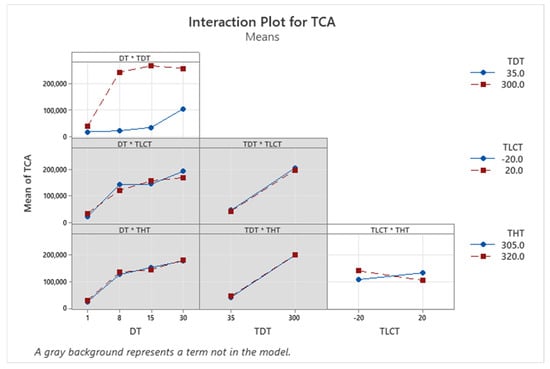

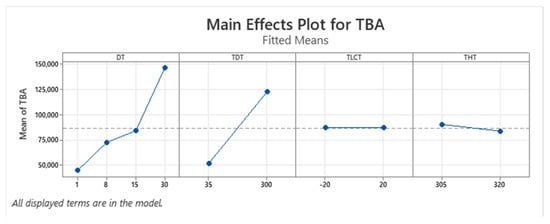

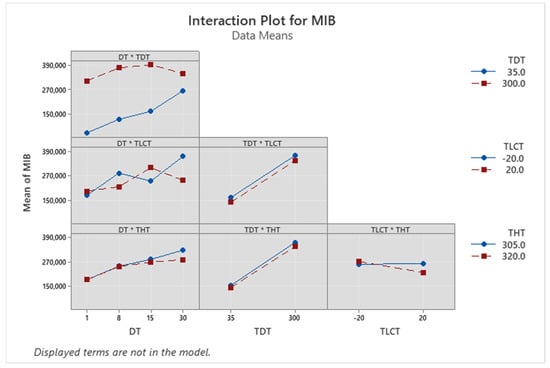

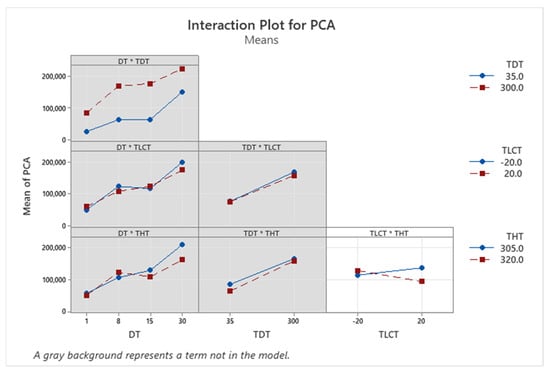

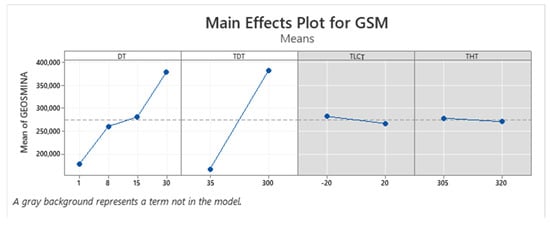

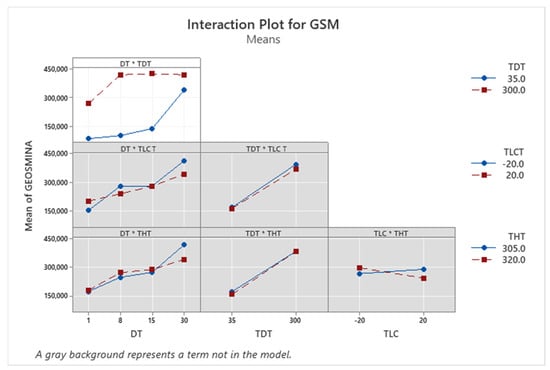

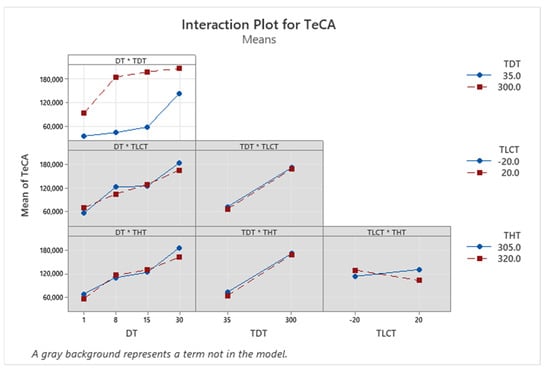

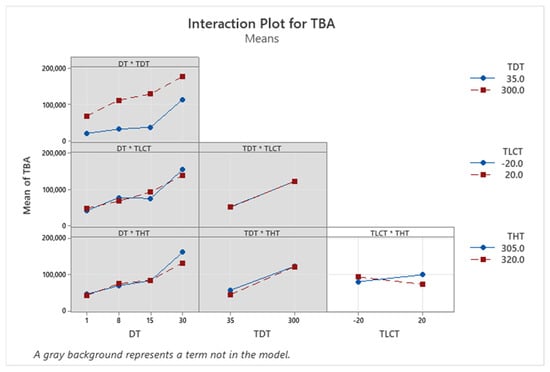

Plots of main effects and interactions (Figure A1, Figure A2, Figure A3, Figure A4, Figure A5, Figure A6, Figure A7, Figure A8, Figure A9, Figure A10, Figure A11 and Figure A12), as well as the model coefficients (

Table A1. Model coefficients for MIB.

Term	Coef	SE Coef	p-Value
Constant	253,509	14,785	0.000
DT = 1	−69,950	25,609	0.008
DT = 8	−4656	25,609	0.856
DT = 15	22,802	25,609	0.377
TDT = 35	−102,599	14,785	0.000

,

Table A2. Model coefficients for TCA.

Term	Coef	SE Coef	p-Value
Constant	122,107	7947	0.000
DT = 1	−94,342	13,764	0.000
DT = 8	9002	13,764	0.516
DT = 15	27,766	13,764	0.049
TDT = 35	−77,931	7947	0.000
TLCT = -20	2701	7947	0.735
THT = 305	−1109	7947	0.889
DT = 1 TDT = 35	67,602	13,764	0.000
DT = 8 TDT = 35	−31,962	13,764	0.024
DT = 15 TDT = 35	−37,698	13,764	0.008
TLCT = -20 THT = 305	−15,219	7947	0.061

,

Table A3. Model coefficients for GSM.

Term	Coef	SE Coef	p-Value
Constant	274,084	14,858	0.000
DT = 1	−96,736	25,735	0.000
DT = 8	−14,084	25,735	0.586
DT = 15	6418	25,735	0.804
TDT = 35	−107,638	14,858	0.000
DT = 1 TDT = 35	16,419	25,735	0.526
DT = 8 TDT = 35	−49,966	25,735	0.057
DT = 15 TDT = 35	−34,701	25,735	0.183

,

Table A4. Model coefficients for TeCA.

Term	Coef	SE Coef	p-Value
Constant	119,559	6706	0.000
DT = 1	−56,416	11,615	0.000
DT = 8	−5993	11,615	0.608
DT = 15	7603	11,615	0.515
TDT = 35	−50,143	6706	0.000
DT = 1 TDT = 35	21,250	11,615	0.073
DT = 8 TDT = 35	−20,271	11,615	0.086
DT = 15 TDT = 35	−19,625	11615	0.097

,

Table A5. Model coefficients for TBA.

Term	Coef	SE Coef	p-Value
Constant	86,714	5317	0.000
DT = 1	−42,159	9210	0.000
DT = 8	−14,411	9210	0.123
DT = 15	−2959	9210	0.749
TDT = 35	−35,341	5317	0.000
TLCT = −20	124	5317	0.981
THT = 305	3251	5317	0.543
TLCT = −20 THT = 305	−9584	5317	0.077

and

Table A6. Model coefficients for PCA.

Term	Coef	SE Coef	p-Value
Constant	118,958	7386	0.000
DT = 1	−64,400	12,794	0.000
DT = 8	−3661	12,794	0.776
DT = 15	620	12,794	0.962
TDT = 35	−43,603	7386	0.000
TLCT = −20	2866	7386	0.699
THT = 305	7159	7386	0.337
TLCT = −20 THT = 305	−14,159	7386	0.060

) together with the regression equation, are shown in Appendix A to enhance interpretability of the individual models. Results of the 62 experiments are in Appendix B.

In all models, the assumptions of the ordinary least squares are met except for two runs that show an anomalously low value in all compounds. These are runs 16 and 63 (see

Table A7. Results of the design of experiments.

Run (Standard Order)	DT	TDT	TLCT	THT	MIB	TCA	GSM	TeCA	TBA	PCA
1	1	35	−20	305	39,729	5980	51,859	30,126	24,167	29,759
2	1	35	−20	305	41,691	2051	26,508	37,057	19,137	41,719
3	8	35	−20	305	1062	5329	2128	7549	4438	8390
4	8	35	−20	305	113,150	27,479	123,655	67,597	45,365	79,090
5	15	35	−20	305	287,128	73,984	282,752	122,206	68,384	108,877
6	15	35	−20	305	29,209	13,847	38,480	15,355	9794	18,525
7	30	35	−20	305	356,711	102,751	443,958	177,078	152,746	207,312
8	30	35	−20	305	528,734	130,252	480,067	167,733	140,451	205,729
9	1	300	−20	305	321,284	31,773	249,483	74,043	73,626	101,608
10	1	300	−20	305	223,313	26,527	198,734	75,342	47,031	46,104
11	8	300	−20	305	506,839	291,312	519,946	225,261	139,775	208,774
12	8	300	−20	305	410,427	241,360	429,038	184,862	111,428	162,671
13	15	300	−20	305	352,257	245,729	418,726	191,182	114,042	176,334
14	15	300	−20	305	457,017	253,548	470,958	190,315	115,926	165,099
15	30	300	−20	305	430,410	276,330	441,079	219,637	184,751	229,804
16	30	300	−20	305	41,811	7421	88,853	38,062	37,029	47,382
17	1	35	20	305	12,286	6455	17,981	3676	800	1225
18	1	35	20	305	57,049	10,238	97,838	48,081	39,478	53,325
19	8	35	20	305	165,375	16,977	125,683	35,766	35,003	74,158
20	8	35	20	305	95,354	14,450	81,251	55,176	41,365	63,699
21	15	35	20	305	256,854	31,085	168,048	55,463	48,429	88,828
22	15	35	20	305	66,263	65,907	152,733	69,075	26,870	38,613
23	30	35	20	305	200,276	83,481	314,728	144,049	113,449	146,723
24	30	35	20	305	239,546	86,190	372,967	143,877	149,889	211,230
25	1	300	20	305	457,141	25,281	475,253	164,570	88,351	88,197
26	1	300	20	305	316,784	93,303	275,923	119,945	77,313	99,826
27	8	300	20	305	371,922	216,136	350,845	151,718	85,765	117,775
28	8	300	20	305	332,791	202,924	350,717	156,955	93,797	140,004
29	15	300	20	305	467,305	306,122	238,279	154,174	154,174	250,276
30	15	300	20	305	350,350	240,497	416,198	194,518	127,276	190,512
31	30	300	20	305	446,550	401,763	645,897	325,578	275,582	346,003
32	30	300	20	305	380,842	335,447	542,584	274,466	233,260	288,172
33	1	35	−20	320	34,947	6040	51,342	28,349	19,429	20,902
34	1	35	−20	320	74,483	30,764	147,709	52,043	28,349	23,773
35	8	35	−20	320	263,973	38,899	187,344	82,755	51,849	87,776
36	8	35	−20	320	135,191	13,940	75,521	21,590	27,166	69,227
37	15	35	−20	320	6711	2025	2963	1651	1240	2013
38	15	35	−20	320	177,200	33,002	156,131	68,055	41,884	71,770
39	30	35	−20	320	272,980	97,014	339,391	136,651	106,183	140,807
40	30	35	−20	320	240,804	147,960	297,407	138,987	88,768	96,628
41	1	300	−20	320	209,496	29,537	199,364	58,513	43,207	51,021
42	1	300	−20	320	438,840	38,076	294,124	95,677	72,674	80,455
43	8	300	−20	320	522,384	315,696	558,821	237,272	146,785	229,281
44	8	300	−20	320	307,007	206,712	347,495	151,281	89,498	138,143
45	15	300	−20	320	211,628	255,560	392,838	198,331	117,156	181,967
46	15	300	−20	320	427,898	272,181	484,278	214,030	131,009	204,106
47	30	300	−20	320	585,382	411,957	646,920	335,835	281,271	357,102
48	30	300	−20	320	453,946	358,835	570,533	253,783	244,263	306,228
49	1	35	20	320	59,301	40,814	152,110	47,271	22,924	22,668
50	1	35	20	320	128,583	37,143	143,682	27,395	11,213	9617
51	8	35	20	320	134,804	13,087	97,797	25,040	28,257	74,345
52	8	35	20	320	72,361	39,568	125,790	49,748	26,338	42,522
53	15	35	20	320	202,770	26,348	132,699	59,221	38,731	59,152
54	15	35	20	320	268,232	27,753	171,495	68,128	67,211	118,823
55	30	35	20	320	36,275	5026	47,982	28,455	29,874	40,194
56	30	35	20	320	230,066	177,791	416,276	206,119	134,749	153,933
57	1	300	20	320	203,962	22,891	182,810	61,889	64,813	89,814
58	1	300	20	320	318,045	37,369	272,839	86,310	80,373	112,924
59	8	300	20	320	186,840	223,351	377,598	180,314	112,725	174,757
60	8	300	20	320	362,158	230,536	406,363	184,179	117,303	174,143
61	15	300	20	320	356,928	249,009	434,678	197,170	121,469	189,884
62	15	300	20	320	503,220	301,370	526,770	235,723	156,489	48,466
63	30	300	20	320	62,800	13,215	17,413	5716	4469	4931
64	30	300	20	320	377,885	239,466	389,722	193,828	163,154	200,208

). When compared with their replicates (runs 15 and 64, respectively, from Table A7), much lower quantities of those compounds were found on those runs, which makes the residuals very low. The lack of fit test is non-significant on 2MIB, GSM and TeCA. For the other compounds, the lack of fit test is significant, showing that the model does not fit the data well, mainly due to the large variability between some replicates such as in runs 16 and 63.

For all compounds, the greater response is achieved with TDT = 300 and DT = 30 as can be seen in all interaction plots (DT*TDT): in most cases the response is more than double for the same DT value when TDT is set to 300 instead of 35. These results would relate to the volatility of the compounds. The interaction between TLCT and THT (TLCT*THT), even if significant, has a much lower effect size: in all cases, when THT is at 305, increasing TLCT increases the response while, when THT is at 320, increasing TLCT reduces the response.

Overall, the experimental conditions that give higher responses in one compound also give higher responses in the other compounds.

Table 3. Pearson correlation coefficients between the measurements of the six compounds under the 64 experimental conditions.

	2MIB	TCA	GSM	TeCA	TBA
TCA	0.776
GSM	0.899	0.875
TeCA	0.848	0.937	0.972
TBA	0.816	0.889	0.916	0.952
PCA	0.790	0.865	0.868	0.906	0.953

shows the Pearson correlation coefficients between each pair of responses; it can be seen that all values are greater than 0.776 which indicates that those experimental conditions that detect greater values of one compound also have a greater detection of the other compounds. This will facilitate the optimization of the six compounds simultaneously.

The optimization procedure to find the best combination of factors to jointly maximize the six compounds (with equal weights and importance) showed that the optimal solution was: DT = 30, TDT = 300, TLCT = 20 and THT = 305. This combination gave a composite desirability of 0.66. The predicted responses (fit) for this combination are shown on

Table 4. Predicted response variables (and 95% CI) for the six compounds under two experimental conditions. In all cases TDT = 300, TLCT = 20 and THT = 305. The optimal setting is with DT = 30; DT = 8 is the optimal setting for a desorption time of 8 min.

	Predicted Response (95% CI)
	DT = 30	DT = 8
PCA	248,455 (122,899; 374,011)	177,353 (135,501; 219,205)
TBA	194,295 (103,912; 284,678)	120,356 (90,228; 150,484)
TeCa	205,863 (91,872; 319,854)	183,980 (145,983; 221,977)
GSM	417,875 (165,319; 670,431)	417,603 (333,418; 501,788)
TCA	266,963 (128,930; 404,996)	252,412 (199,550; 305,275)
2MIB	407,913 (162,156; 653,670)	351,452 (285,296; 417,607)

. Note that none of the 95% confidence intervals were below 91,872.

However, because the DT is the critical value in operating conditions due to the need to analyze a larger number of samples in the minimum amount of time, the optimization was repeated, fixing DT at 8 and the optimal conditions were DT = 8, TDT = 300, TLCT = 20 and THT = 305. Under this scenario, the composite desirability was 0.55 (predicted responses are shown on Table 4). Under this experimental condition none of the compounds had a lower 95% confidence interval below 90,228.

3.2. TD-GC-MS Method Validation

The GC-MS method used to analyze all Tenax^® TA tubes was validated using the parameters DT = 8, TDT = 300, TLCT = 20 and THT = 305. The linearity of the method was studied in the range of 0.1 to 2 ng tube⁻¹ at six concentration levels. As shown in

Table 5. Results of the method validation (linearity range from 0.1–2 ng tube⁻¹): linearity (R²), limits of detection (LOD) and quantification (LOQ), repeatability and reproducibility (expressed as %RSD) of the TD-GCMS method.

Target Compounds	Quantification Ions		R2	LOD (ng tube−1)	LOQ (ng tube−1)	Repeatability (%RSD at 1 ng tube−1) a	Reproducibility (%RSD at 1 ng tube−1) a
	m/z 1	m/z 2
TCA	195	210	0.995	0.01	0.05	9.3	9.9
TeCA	231	246	0.994	0.06	0.1	6.0	9.6
TBA	346	331	0.995	0.05	0.1	6.8	5.7
PCA	280	265	0.994	0.03	0.05	3.5	3.9
GSM	112	125	0.995	0.03	0.05	8.9	9.0
2MIB	95	- b	0.994	0.03	0.06	2.5	3.9

^a RSD: relative standard deviation (n = 5). ^b None.

, multiple R² coefficients (R²) were higher than 0.994. LOD and LOQ values are shown in Table 5 and were determined visually, applying a signal-to-noise ratio established at 3 and 10 respectively. The limits of quantification were from 0.01 to 0.06 ng tube⁻¹. These results are generally similar to those reported in other studies of thermal desorption that use TD-GCMS [28,29]. The precision (reproducibility and repeatability) of the methodology was assessed expressing the random error of a set of individual measurements by means of the relative standard deviation (%RSD). As can be seen in Table 5, RSD (at 1 ng tube⁻¹) values were low, ranging from 2.5% to 9.3% for repeatability and from 3.9% and 9.9% for reproducibility. These values are similar to others reported by Camino et al., 2015 [13] for TCA and TCP.

3.3. R-Values

Table 6. Mass of TCA, TeCA, TBA, PCA, GSM and 2MIB (Mad, ng) at different exposure times. R-values obtained at 20 ± 3 °C and 21 ± 2% of humidity.

Exposure Time (h)	Mad, ng (Mean ± Standard Deviation)
	TCA	TeCA	TBA	PCA	GSM	2MIB
2	0.3 ± 0.1	1.2 ± 0.20	1.8 ± 0.0	1.3 ± 1.1	0.8 ± 0.3	0.1 ± 0.0
6	1.2 ± 0.8	3.0 ± 0.42	3.9 ± 2.5	2.7 ± 0.0	0.9 ± 0.2	0.7 ± 0.0
24	1.7 ± 0.6	6.32 ± 0.01	17.6 ± 0.0	13.2 ± 0.8	3.4 ± 1.2	1.3 ± 0.1
48	2.6 ± 1.1	10.12 ± 0.01	20.1 ± 0.0	23.4 ± 0.5	5.5 ± 2.0	1.8 ± 0.0
54	2.7 ± 0.8	11.86 ± 0.0	17.4 ± 0.0	20.9 ± 0.2	6.9 ±0.1	2.1 ± 0.1
72	2.8 ± 0.1	15.48 ± 0.13	16.6 ± 0.6	20.4 ± 0.7	9.3 ± 2.2	2.2 ± 0.1
96	3.2 ± 0.09	14.00 ± 0.0	13.4 ± 0.0	18.1 ± 0.5	12.8 ± 3.2	0.9 ± 0.1
120	4.1 ± 0.6	12.2 ± 0.0	8.0 ± 0.0	16.2 ± 0.1	7.2 ± 1.2	0.8 ± 0.2
R-values (m3 h−1)	0.035 ± 17.1	0.028 ± 0.8	0.013 ± 26.2	0.071.3 ± 3.9	0.032.3 ± 13.4	0.025 ± 28.8

summarizes the results of the passive sampling at each testing time and the R-values at 20 ± 3 °C and 21 ± 2% of humidity. According to our results, all compounds were detected from the first (2 h after the start of the assay) to the last sampling (96 h). The behaviour of all analytes was the same: increasing over exposure time until it decreased. Therefore, the tubes used for the determination of R-values were those from when it was increasing. The average R-values of each compound together with the RSD value is also presented in Table 6.

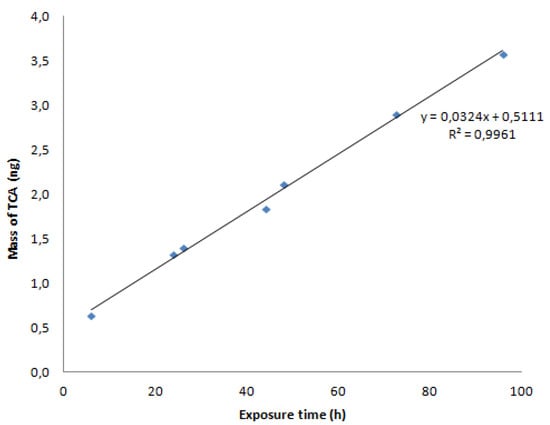

The response of these tubes (mainly from 2 to 54 or 72 h) showed good linearity with a coefficient of determination (R²) between 0.996 to 0.999 for all compounds. The R-values calculated from the correlation graph’s slope and average C_air were from 0.013 to 0.071 m³ h⁻¹. An example of a calibration curve obtained for calculating the R-values (in the case of TCA) is presented in Figure 2.

The diffusive uptake rates for airborne volatile organic compounds (VOCs) have been determined by implementing empirical models by Jia and Fu 2017 [17]. In their case they also used thermal desorption techniques and tubes packed with Tenax TA. Although the diffusive sampling rate can be dependent on certain factors such as the compound or time of exposure [30], the results obtained have the same order of magnitude as ours (0.078 from 0.0354 m³ h⁻¹). An R-value of 0.080 m³ h⁻¹ for polychlorinated biphenil was also obtained by Persoon and Hornbuckle (2009) [31]. In the case of TCA, our result (0.035 m³ h⁻¹) is higher than the value previously described (0.0019 m³ h⁻¹) [13].

3.4. Application of the Method in Wineries

In order to evaluate the performance of the proposed analytical method in real air samples, the air at two wineries was monitored using passive sampling. We placed the sampling tubes near the production area (w1), in the bottle cellar (w2) and storage (w3) in the case of Winery 1 and near to the production area (w4) in Winery 2. Sampling points were located in the middle of the area being sampled and it was ensured that the air was not coming directly from outdoors. The assays were conducted in duplicate. The minimum sampling time depended on the concentration of the analytes in the air because it had to be long enough to reach a mass of analyte in the sorbent and higher than the minimum measurable amount [13]. For this reason, five exposure times were selected (24, 72, 120, 168 h). The results or concentrations of selected compounds correspond to the mean of the concentrations obtained at each selected time. In addition, the temperature was checked but not the humidity as it would seem that this is not relevant during sampling [13]. Further, 0.008 ng m⁻³ of TCA and 0.003 ng m⁻³ of PCA were found in the bottle cellar of winery 1 (

Table 7. Concentrations of TCA, TeCA, TBA, PCA, GSM and 2MIB (ng·m⁻³) found in wineries and cork facilities. Mean ± standard deviation.

	TCA	TeCA	TBA	PCA	GSM	2MIB
w1	0.008 ± 0.006	<LD	<LD	0.003 ± 0.003	<LD	<LD
w2	<LD	<LD	<LD	<LD	<LD	<LD
w3	<LD	<LD	<LD	<LD	<LD	<LD
w4	<LD	<LD	<LD	<LD	<LD	<LD

LD is the limit of detection (see Table 5).

). Both compounds were detected in all selected periods. Neither TecA, TBA, GSM and 2MIB were found. None of the selected compounds were observed in Winery 2 (w2, w3 and w4).

A higher TCA concentration (72 ± 13 ng m⁻³) was found by Camino et al., 2015 [13] during the analysis of the air in a cellar.

4. Discussion

A sustainable and quantifiable methodology for the determination of HAs, GSM and 2MIB in air using TD-GCMS was developed. This methodology allows the detection and quantification of the selected compounds in air using a passive sampling procedure.

The experimental results showed that DT and TDT are significantly associated with all compounds: the higher the DT and TDT values are, the higher the detection of the compounds. The interaction between DT and TDT is also significant on TCA, GMN and TeCA, and in all three compounds it can be interpreted as: the compound detection (response) increases when DT increases (e.g., moving from 1 to 8), but this effect is higher when TDT is at 300 than when TDT is at 35. This is because, by increasing the desorption time and temperature, the adsorbed compounds are released in greater quantities due to their volatilization as the temperature increases. The final result is greater quantities of the selected compounds in the GC-MS inlet.

The other significant interaction was between TLCT and THT on compounds TCA, TBA and PCA. In each of these cases, the interpretation of the interaction is as follows: when THT is at 305, increasing TLCT increases the response; while when THT is at 320, increasing TLCT reduces the response. This finding does not correspond to what we would expect because lower TLCT values should increase the preconcentration of the compounds on the trap and higher THT values would increase the subsequent release of these compounds. The final result should be an increase in their amounts in the GC-MS inlet and therefore a greater response. The Type I error (false positive) for the experimental design was set to 0.1 and, particularly in the case of this interaction, the risk of determining that the interaction is significant while it is, in fact, not, is of 0.061, 0.077 and 0.060 for TCA, TBA and PCA, respectively. Therefore, more assays at different initial concentrations of the selected compounds should be carried out in subsequent studies

The experimental results also showed that all compounds could be maximized together because the correlation between them was high (greater than 0.766). The conditions that jointly maximize the six compounds were DT = 30, TDT = 300, TLCT = 20 and THT = 305 giving a composite desirability of 0.66. Those conditions lead to results similar to reducing the desorption time to 8 min (DT = 8, TDT = 300, TLCT = 20 and THT = 305). This is an important finding, allowing the samples to be analyzed in a shorter amount of time.

The optimized method displays good linearity over the concentration ranges explored, as well as good repeatability and reproducibility (both with RSD below 10%). In addition, sampling rates of selected compounds were experimentally calculated and the obtained values ranged from 0.013 to 0.071 m³ h⁻¹. The applicability of the technique developed in real samples was tested in different places in two wineries. The method showed enough sensitivity to detect TCA and PCA within the selected periods. In conclusion, the developed methodology can be used for the monitoring and quantification of all selected compounds in air using passive sampling.

5. Conclusions

A sustainable and quantifiable methodology for the determination of HAs, GSM and 2MIB in air using TD-GCMS with application in the analysis of air in a winery was developed. In brief, tubes were heated to 300 °C and the sample was desorbed for 8 min at 40 mL min⁻¹. Then, the sample was transferred under a 30 mL min⁻¹ helium flow and cryo-focused into the cryotrap at 20 °C. Finally, the cryotrap was rapidly heated to 305 °C to transfer the analytes into the GC column. The developed and optimized method displays good linearity over the concentration ranges explored, as well as good repeatability and reproducibility.

Then, sampling rates or R-values (m³ h⁻¹) of each targeted compound were estimated and the obtained values ranged from 0.013 to 0.071 m³ h⁻¹. The method showed enough sensitivity to detect TCA and PCA in wineries. The developed methodology can be used for the monitoring and quantification of all selected compounds in air using passive sampling.
