Solubility of Rare Earth Chlorides in Ternary Water-Salt Systems in the Presence of a Fullerenol—C₆₀(OH)₂₄ Nanoclusters at 25 °C. Models of Nonelectrolyte Solubility in Electrolyte Solutions

Abstract

The solubility in triple water-salt systems containing NdCl₃, PrCl₃, YCl₃, TbCl₃ chlorides, and water-soluble fullerenol C₆₀(OH)₂₄ at 25 °C was studied by isothermal saturation in ampoules. The analysis for the content of rare earth elements was carried out by atomic absorption spectroscopy, for the content of fullerenol—by electronic spectrophotometry. The solubility diagrams in all four ternary systems are simple eutonic, both consisting of two branches, corresponding to the crystallization of fullerenol crystal-hydrate and rare earth chloride crystal-hydrates, and containing one nonvariant point corresponding to the saturation of both solid phases. On the long branches of C₆₀(OH)₂₄*18H₂O crystallization, a C₆₀(OH)₂₄ decreases by more than 2 orders of magnitude compared to the solubility of fullerenol in pure water (salting-out effect). On very short branches of crystallization of NdCl₃*6H₂O, PrCl₃*7H₂O, YCl₃*6H₂O, and TbCl₃*6H₂O, the salting-in effect is clearly observed, and the solubility of all four chlorides increases markedly. The four diagrams cannot be correctly approximated by the simple one-term Sechenov equation (SE-1), and very accurately approximated by the three-term modified Sechenov equation (SEM-3). Both equations for the calculation of nonelectrolyte solubility in electrolyte solutions (SE-1 and SEM-3 models) are obtained, using Pitzer model of virial decomposition of excess Gibbs energy of electrolyte solution. It is shown that semi-empirical equations of SE-1 and SEM-3 models may be extended to the systems with crystallization of crystal-solvates.

1. Introduction

This work continues the cycle of studies, devoted to the study of solubility diagrams in systems, containing simultaneously water-soluble nanoclusters—light fullerenols-C₆₀(OH)_n or C₇₀(OH)_m, tris-malonates C₆₀ and C₇₀, (bis-, tris- and octo-) adducts of light fullerenes and rare earth salts (Sm³⁺, La³⁺, Gd³⁺, Y³⁺), actinoids (UO₂²⁺, and some transition and s-metals (Cu²⁺, Na⁺). Here are references to articles that studied the solubility of fullerenol C₆₀(OH)₂₄ or mixed fullerenols, based on it (for example, fullerenol-d) [1,2,3,4,5,6,7,8].

Solubility diagrams in systems with rare earth elements were quite similar: They did not form new compounds, the diagrams consisted of two branches: As a rule, long branches of crystallization of fullerenol crystal-hydrates and short branches of crystallization of rare earth salt crystal-hydrates. At the same time, on the branches of crystallization of fullerenol crystal-hydrates, as a rule, the effect of a strong decrease in the solubility of the latter was observed as the concentrations of rare earth salts increased, i.e., a strong salting-out of fullerenol from saturated solutions.

In addition to the purely scientific interest in the study of phase diagrams in systems with nanoclusters, there is also a practical interest. We point out two possible areas of application of the obtained data:

1. Rare earth salts can serve as a very effective salting-out agent for fullerenols from aqueous solutions. Taking into account the very low concentration of fullerenols in saturated solutions near nonvariant eutonic points (sometimes tenths and even hundredths of a mass % of fullerenol) such salting-out of fullerenol takes place almost without loss of the latter. Recovery of rare earths in this case is also trivial and is reduced to calcining eutonic sediments in air to burn fullerenol residues. Currently, the salting of fullerenols (and other water-soluble derivatives) is carried out, using methanol or ethanol or methyl acetate (which are much less effective). With repeated recrystallization of the sediment from aqueous solutions, a significant part of a very expensive product—fullerenol—is lost, and the salting agent itself must be regenerated.

2. On the other hand, fullerenol can be considered as a reagent for the separation of rare earth elements by the method of multi-stage recrystallization. Perhaps they will be effective in separating such pairs of rare earths as, for example, Nd-Pr. The classical separation of this pair of lanthanides by liquid extraction cascades is labor-intensive, multi-stage, and relatively inefficient.

Questions of theoretical or model consideration of solubility of nonelectrolytes in solutions of electrolytes in, as a rule, polar solvents, have been considered in the scientific literature for a long time—since the end of the 19th—beginning of the 20th centuriy (see, for example, the classical works of Sechenov [9,10,11]). First, the solubility of atmospheric gases (O₂, N₂, CO₂, Ar, etc.) in sea and ocean water (aqueous solutions of the mutual system Na⁺, K⁺, Ca²⁺, Mg²⁺//Cl⁻, SO₄²⁻, HCO₃⁻—H₂O) was considered, later the solubility of solid nonelectrolytes and weak electrolytes (for example, phenol—C₆H₅OH, urea—CO(NH₂)₂, glucose—C₆H₁₂O₆, ascorbic acid, sugars, fats, proteins). At the same time, solubility in non-aqueous solvents, such as methanol-CH₃OH, ethanol-C₂H₅OH, acetonitrile-CH₃CN, etc., were also considered in water in the presence of salts acids and bases—strong electrolytes. Recently, the range of water-soluble nonelectrolytes and weak electrolytes has expanded to systems with water-soluble nanoclusters, such as fullerenols, adducts of fullerenes with amino acids, carboxylic acids, proteins, etc. Studying the compatibility (solubility) of the latter with physiological fluids, such as: Saline solutions, blood, lymph, liquor, gastric juice, etc., which from a physicochemical point of view, are solutions of strong electrolytes, is an important task in the food industry, pharmacology, physiology, and medicine.

A simple semi-empirical equation describing the solubility of nonelectrolytes and weak electrolytes the concentration of electrolytes in polar solvents (linear dependence of the logarithm of solubility of non-electrolyte on the concentration of the electrolyte) was proposed by Sechenov, and is still sometimes used in describing simple systems of this type. In this paper, we present a model justification of the Sechenov equation and obtain a three-term modification of the latter, which will allow us to quantitatively describe solubility in such systems.

2. Experimental Part and Discussion of the Results

The solubility in ternary water-salt systems containing the chlorides NdCl₃, PrCl₃, YCl₃, TbCl₃, and water-soluble fullerenol C₆₀(OH)₂₄ at 25 °C was studied by isothermal saturation in ampoules: PrCl₃—C₆₀(OH)₂₄-H₂O, NdCl₃-C₆₀(OH)₂₄-H2O, YCl₃-C₆₀(OH)₂₄-H₂O, and TbCl₃-C₆₀(OH)₂₄-H₂O. Saturation was carried out for 6 h. Under the conditions of a shaker thermostat (temperature control accuracy ΔT ≤ 0.05 K, pressure—745 mm Hg, shaking frequency v = 1.5 Hz). After that, the saturated solutions were settled for 30 min, after which samples were taken from the ampoules for analysis.

The analysis for the content of rare earth elements was carried out by atomic absorption spectroscopy (Perkin Elmer PinAAcle 500 atomic absorption spectrometer), the relative error in the determination of rare earth elements is δ_REM³⁺ ≈ 1 ÷ 3 rel. mass % at high concentrations of rare earth metals C_REM³⁺ ≈ 10 ÷ 700 g/dm³ and δ_REM³⁺ ≈ 3 ÷ 5 rel. mass % at low concentrations of rare earth metals C_REM³⁺ ≈ 1 ÷ 10 g/dm³ (here and after: REM = Pr, Nd, Y, Tb).

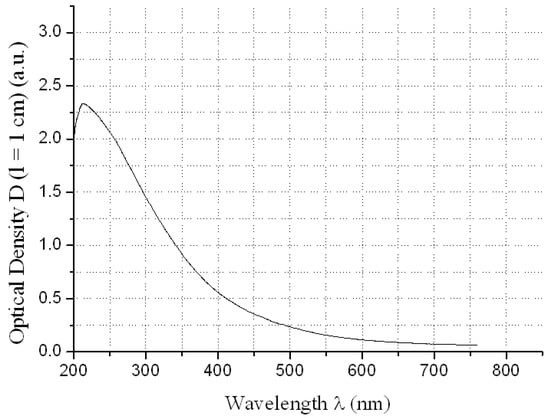

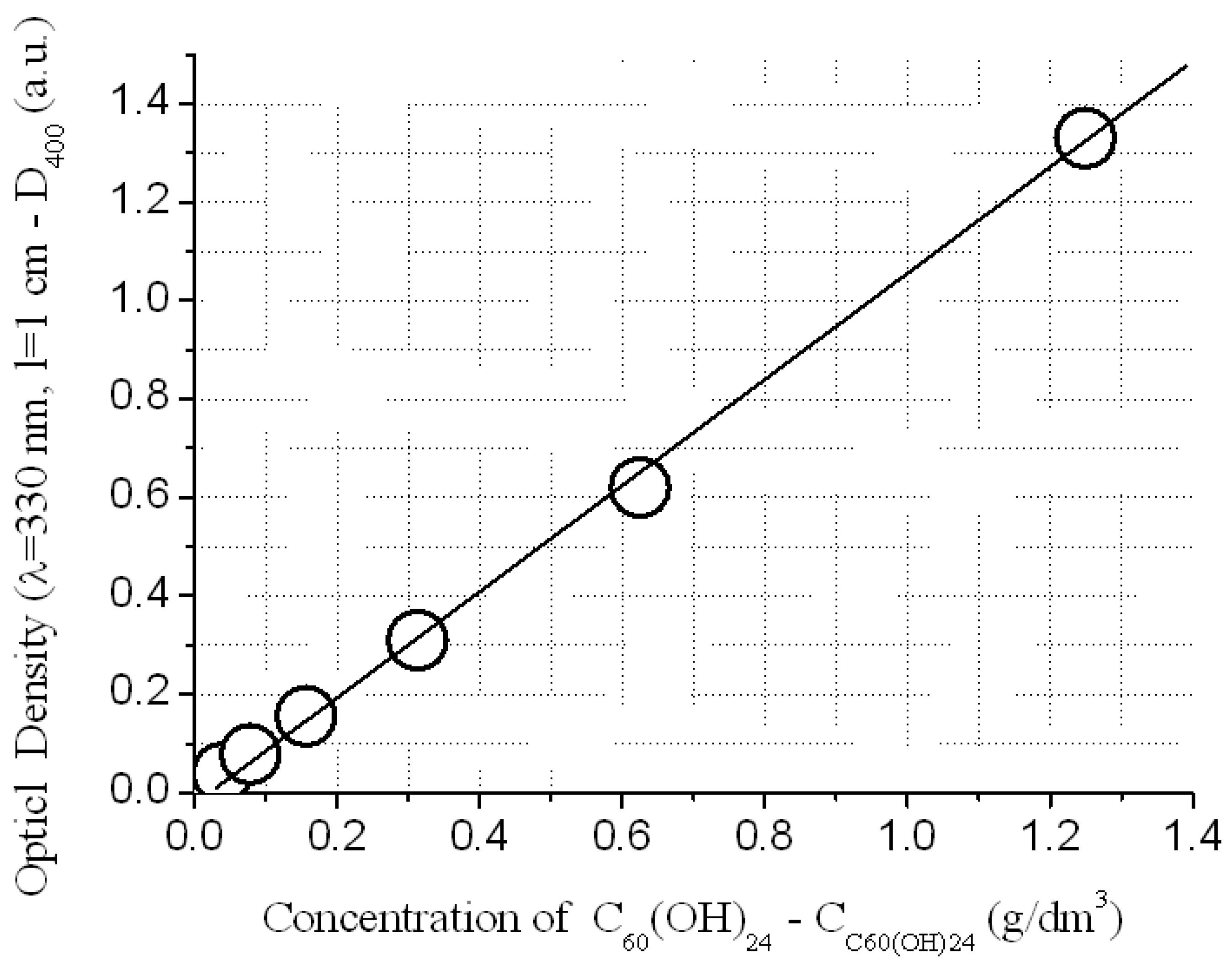

The analysis on the content of fullerenol were carried out by electron spectrophotometry, according to the Bouguer-Lambert-Ber law (spectro-photometer UV 1280) by the optical density at the wavelength λ = 400 nm − D₄₀₀ (see Figure 1 and Figure 2):

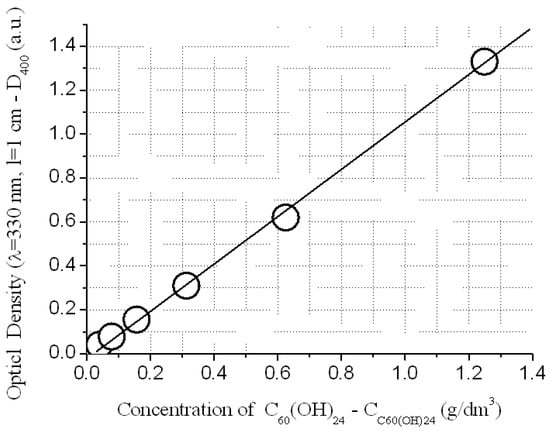

C(g/dm³) = 0.937*D₄₀₀ (width of the cuvette l = 1 cm)

(1)

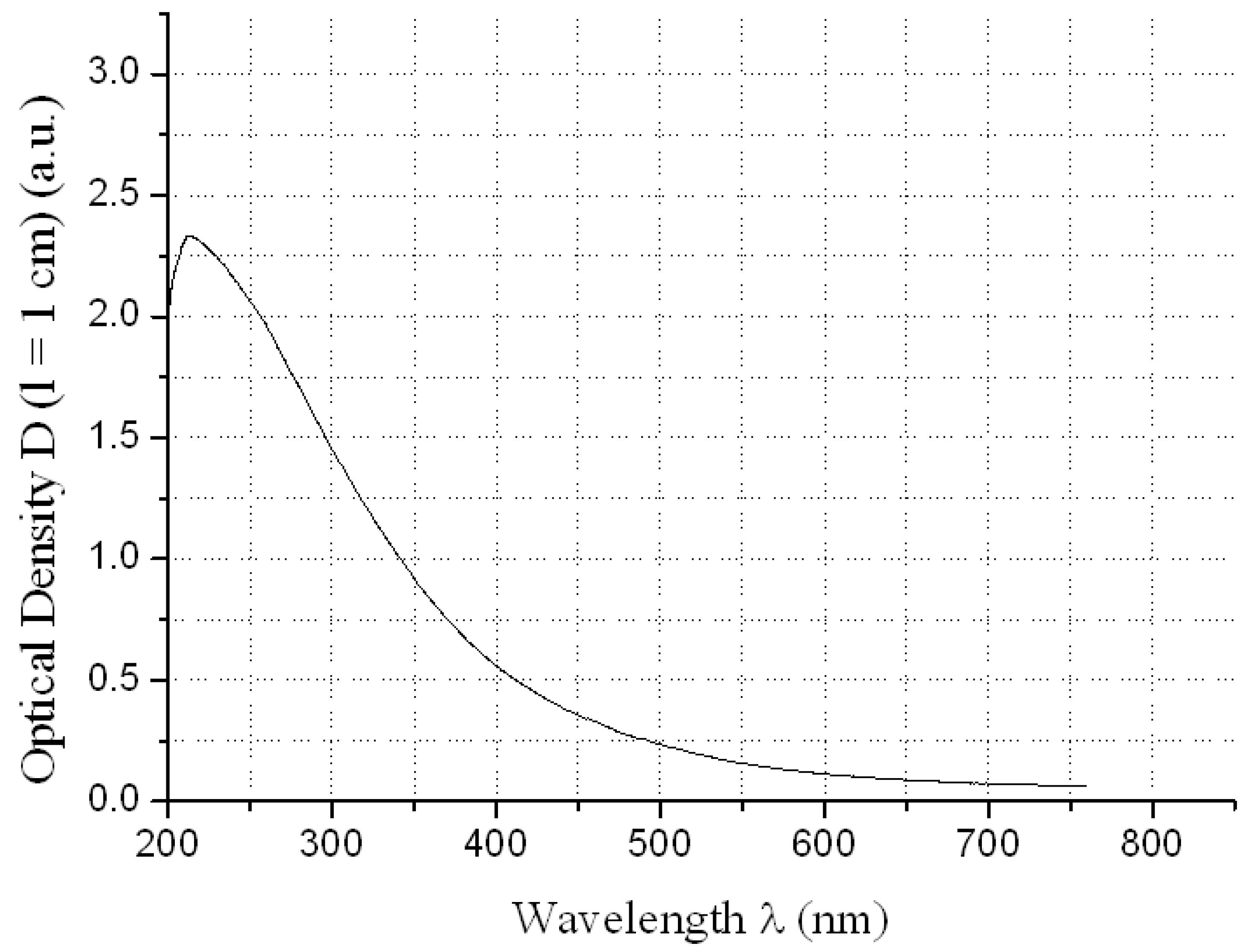

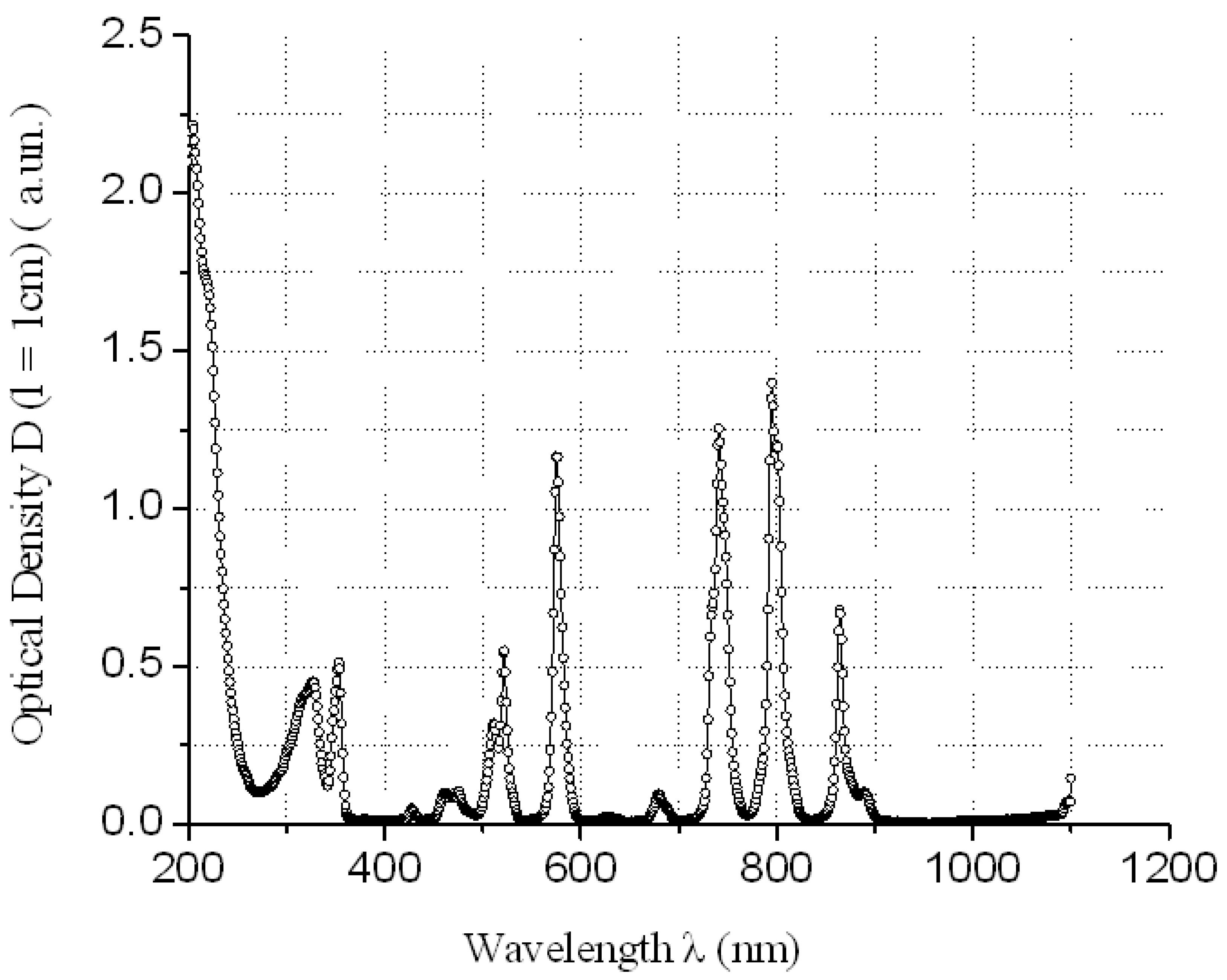

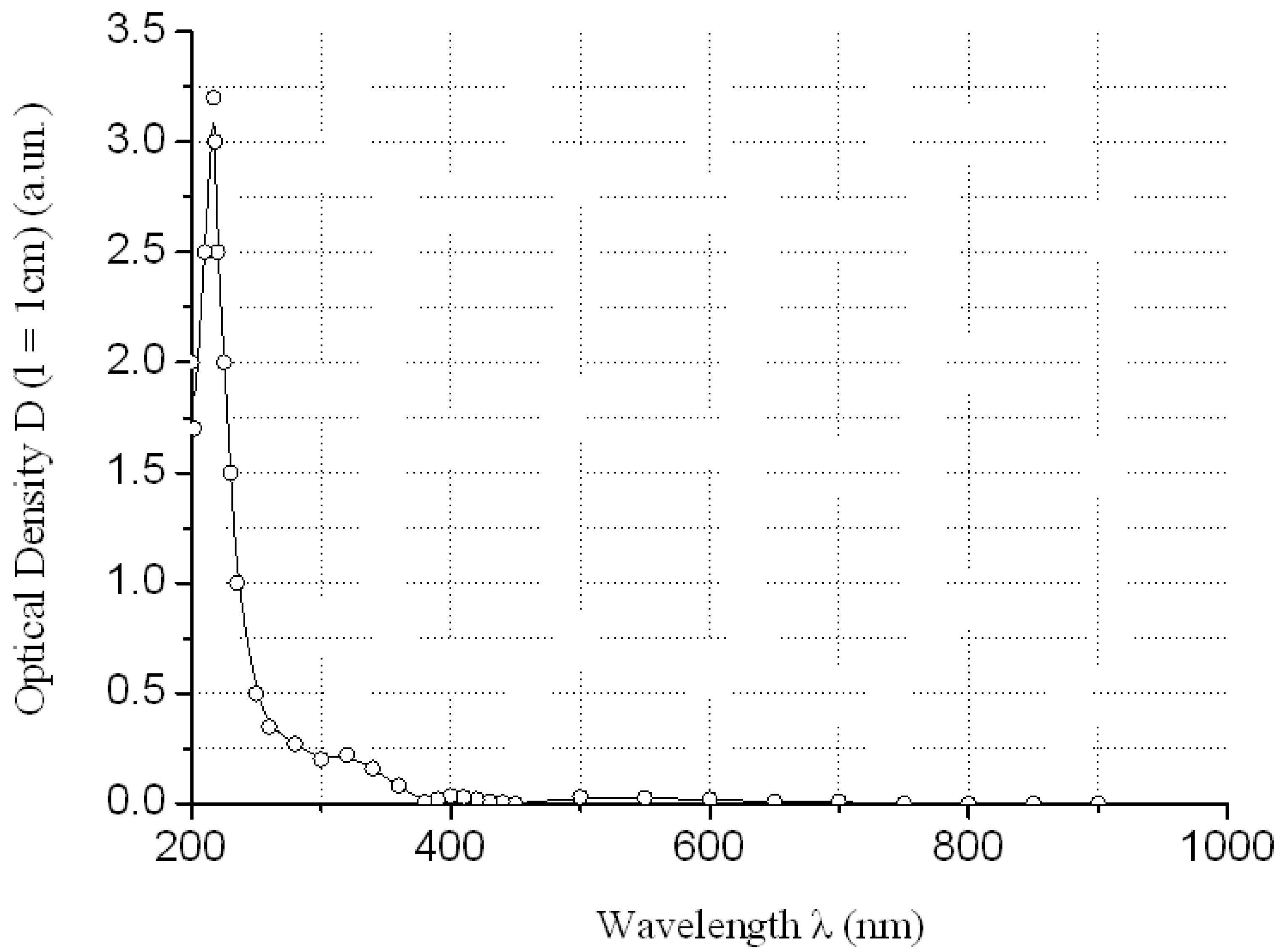

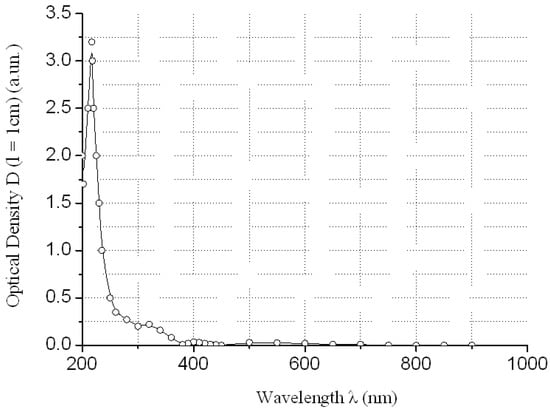

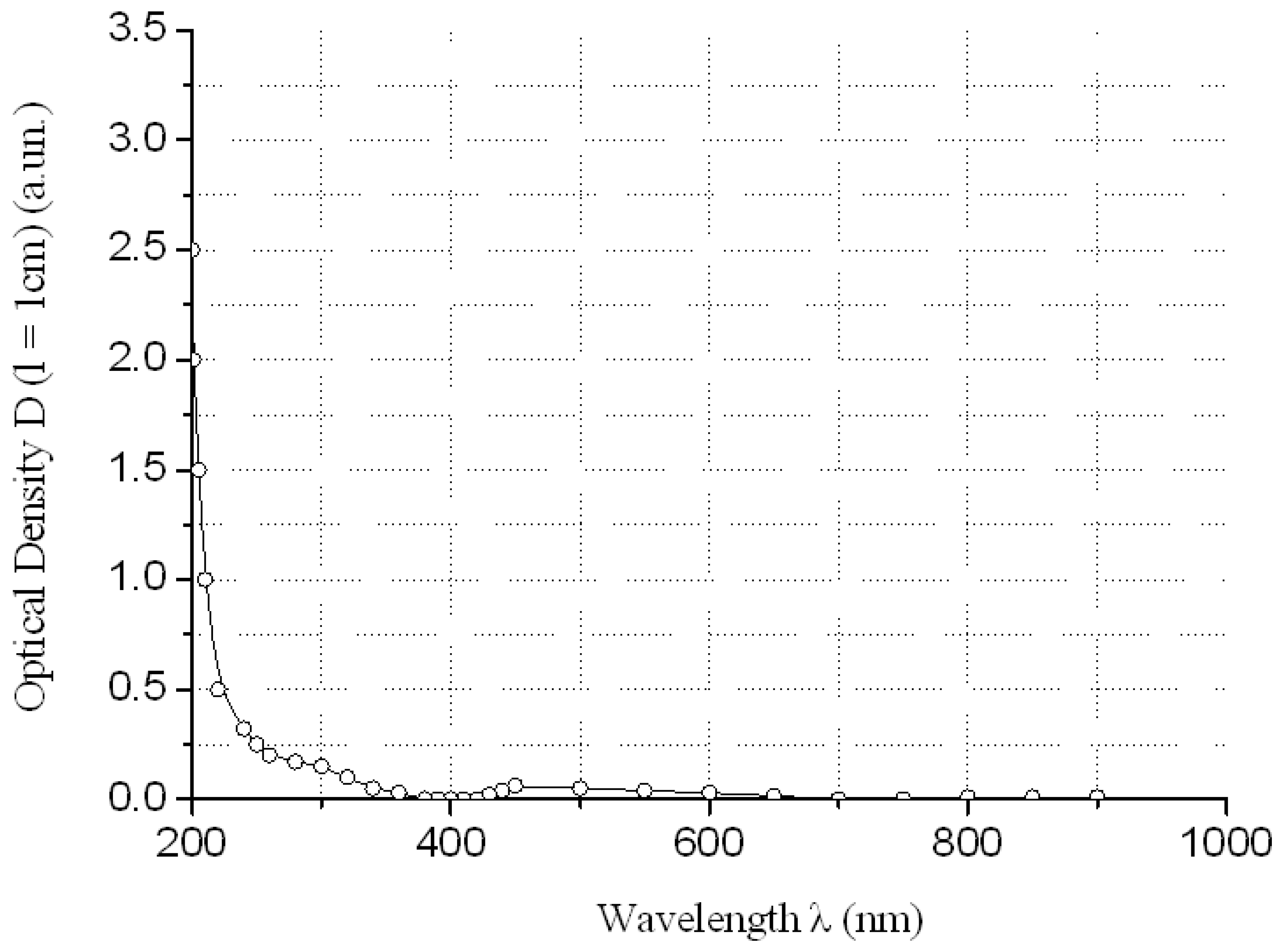

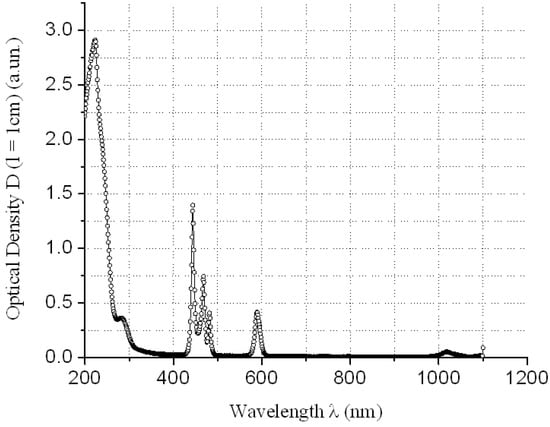

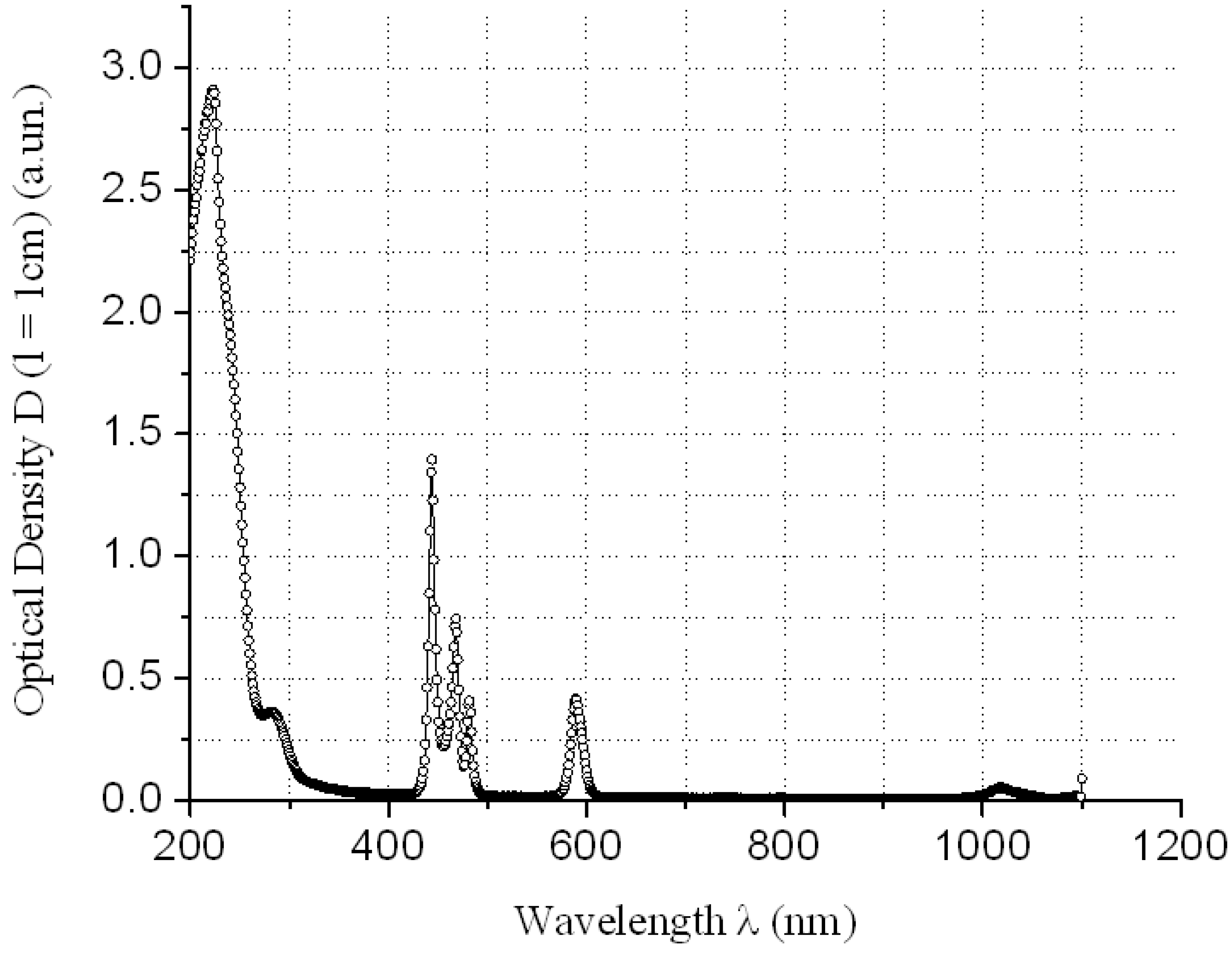

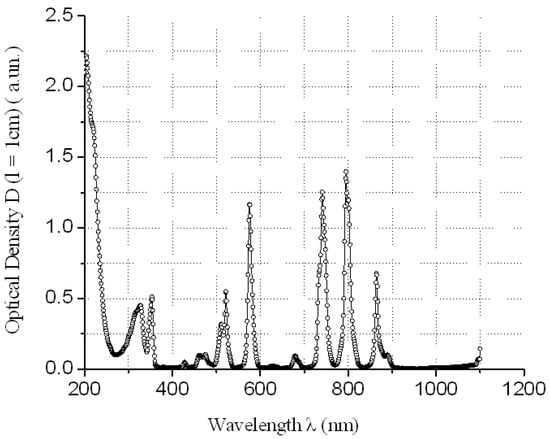

The absorption of REMCl₃ in the near ultraviolet region at λ = 400 nm can be neglected (see Figure 3, Figure 4, Figure 5 and Figure 6)—REM solutions are practically absolutely transparent in the classical violet region of the visible part of the spectrum. The relative error in the determination of fullerenol was δ_C60(OH)24 ≈ 3–5 rel. mass % at high C₆₀(OH)₂₄ concentrations: C_C60(OH)24 ≈ 0.5 ÷ 5.6 g/dm³ and δ_C60(OH)24 ≈ 5–10 rel. mass % at low C₆₀(OH)₂₄ concentrations: C_C60(OH)24 ≈ 0.1 ÷ 0.5 g/dm³.

To determine the molality concentrations of components, it was also necessary to be able to translate volume concentrations of C (g/dm³) into weight concentrations of C (mass. %) or molality m (mole/kg H₂O). To do this, it was necessary to determine the densities of saturated ternary solutions. The determination was carried out using quartz pycnometers with a working volume of about V $~$ 5 cm³, the standard liquid was distilled water. The error in determining the density was $\Delta \rho ~0.1 rel$.% with temperature control accuracy $\Delta$T ~ 0.05 K.

Data on solubility in triple systems PrCl₃-C₆₀(OH)₂₄-H₂O, NdCl₃-C₆₀(OH)₂₄-H₂O, YCl₃-C₆₀(OH)₂₄-H₂O, and TbCl₃-C₆₀(OH)₂₄-H₂O at 25 °C are presented in Figure 7, Figure 8, Figure 9 and Figure 10 and in

Table 1. Solubility in ternary systems PrCl₃-C₆₀(OH)₂₄-H₂O, NdCl₃-C₆₀(OH)₂₄-H₂O, YCl₃-C₆₀(OH)₂₄-H₂O, TbCl₃-C₆₀(OH)₂₄-H₂O at 25 °C and pressure 745 mm Hg. (Purity C₆₀(OH)₂₄—98.5 mass. %—HPLC, REMCl₃ (REM = Pr, Nd, Tb, Y) = 99 mass.%).

№	Molality mC60(OH)24, (mole/kg H2O)	Molality mPrCl3, (mole/kg H2O)	Solid Phase
1	0.0678	0.000	C60(OH)24*18H2O
2	0.0465	0.338	C60(OH)24*18H2O
3	0.0340	0.464	C60(OH)24*18H2O
4	0.0232	0.465	C60(OH)24*18H2O
5	0.0167	0.725	C60(OH)24*18H2O
6	0.0099	1.23	C60(OH)24*18H2O
7	0.0087	2.27	C60(OH)24*18H2O
8	0.0070	3.35	C60(OH)24*18H2O
9	0.0061	4.89	C60(OH)24*18H2O
10	0.0024	6.01	C60(OH)24*18H2O
11	0.0017	6.95	C60(OH)24*18H2O
12	0.0012	7.19	PrCl3*7H2O+ C60(OH)24*18H2O
13	0.00064	6.61	PrCl3*7H2O
14	0.000	6.10	PrCl3*7H2O
№	Molality mC60(OH)24. (mole/kg H2O)	Molality mNdCl3. (mole/kg H2O)	Solid Phase
1	0.0678	0.000	C60(OH)24*18H2O
2	0.0434	0.450	C60(OH)24*18H2O
3	0.0279	0.464	C60(OH)24*18H2O
4	0.0221	0.651	C60(OH)24*18H2O
5	0.0148	0.886	C60(OH)24*18H2O
6	0.0114	1.61	C60(OH)24*18H2O
7	0.0121	3.26	C60(OH)24*18H2O
8	0.0102	5.00	C60(OH)24*18H2O
9	0.0066	6.35	C60(OH)24*18H2O
10	0.0032	7.27	C60(OH)24*18H2O
11	0.0015	9.56	C60(OH)24*18H2O
12	0.00089	9.84	NdCl3*6H2O+ C60(OH)24*18H2O
13	0.00039	8.56	NdCl3*6H2O
14	0.000	7.48	NdCl3*6H2O
№	Molality mC60(OH)24. (mole/kg H2O)	Molality mYCl3. (mole/kg H2O)	Solid Phase
1	0.0678	0.000	C60(OH)24*18H2O
2	0.0577	0.421	C60(OH)24*18H2O
3	0.0488	0.759	C60(OH)24*18H2O
4	0.0283	1.51	C60(OH)24*18H2O
5	0.0204	1.77	C60(OH)24*18H2O
6	0.0107	2.39	C60(OH)24*18H2O
7	0.0052	3.13	C60(OH)24*18H2O
8	0.0029	4.17	C60(OH)24*18H2O
9	0.0021	4.43	C60(OH)24*18H2O
10	0.0019	5.12	C60(OH)24*18H2O
11	0.0017	5.38	C60(OH)24*18H2O
12	0.0015	5.69	YCl3*7H2O+ C60(OH)24*18H2O
13	0.00076	5.63	YCl3*7H2O
14	0.000	5.57	YCl3*7H2O
№	Molality mC60(OH)24. (mole/kg H2O)	Molality mTbCl3. (mole/kg H2O)	Solid Phase
1	0.0678	0.000	C60(OH)24*18H2O
2	0.0622	0.227	C60(OH)24*18H2O
3	0.0442	0.396	C60(OH)24*18H2O
4	0.0267	0.678	C60(OH)24*18H2O
5	0.0137	1.01	C60(OH)24*18H2O
6	0.0101	1.25	C60(OH)24*18H2O
7	0.0051	1.53	C60(OH)24*18H2O
8	0.0029	1.93	C60(OH)24*18H2O
9	0.0020	2.32	C60(OH)24*18H2O
10	0.0014	2.74	C60(OH)24*18H2O
11	0.0011	3.18	C60(OH)24*18H2O
12	0.00092	3.51	TbCl3*6H2O+ C60(OH)24*18H2O
13	0.00051	3.45	TbCl3*6H2O
14	0.000	3.40	TbCl3*6H2O

in molalities of rare earth salts and fullerenol.

m_c60(OH)24 = C_60(OH)24/C_H2O*(1000/M_C60(OH)24); m_REM = C_REMCl3/C_H2O*(1000/M_REMCl3)

(2)

where: m_i, C_i, M_i is the molality, concentration in mass. %, and the molecular weight of the i-th component of the solution.

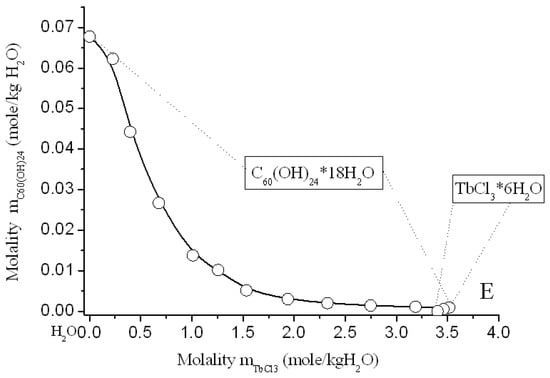

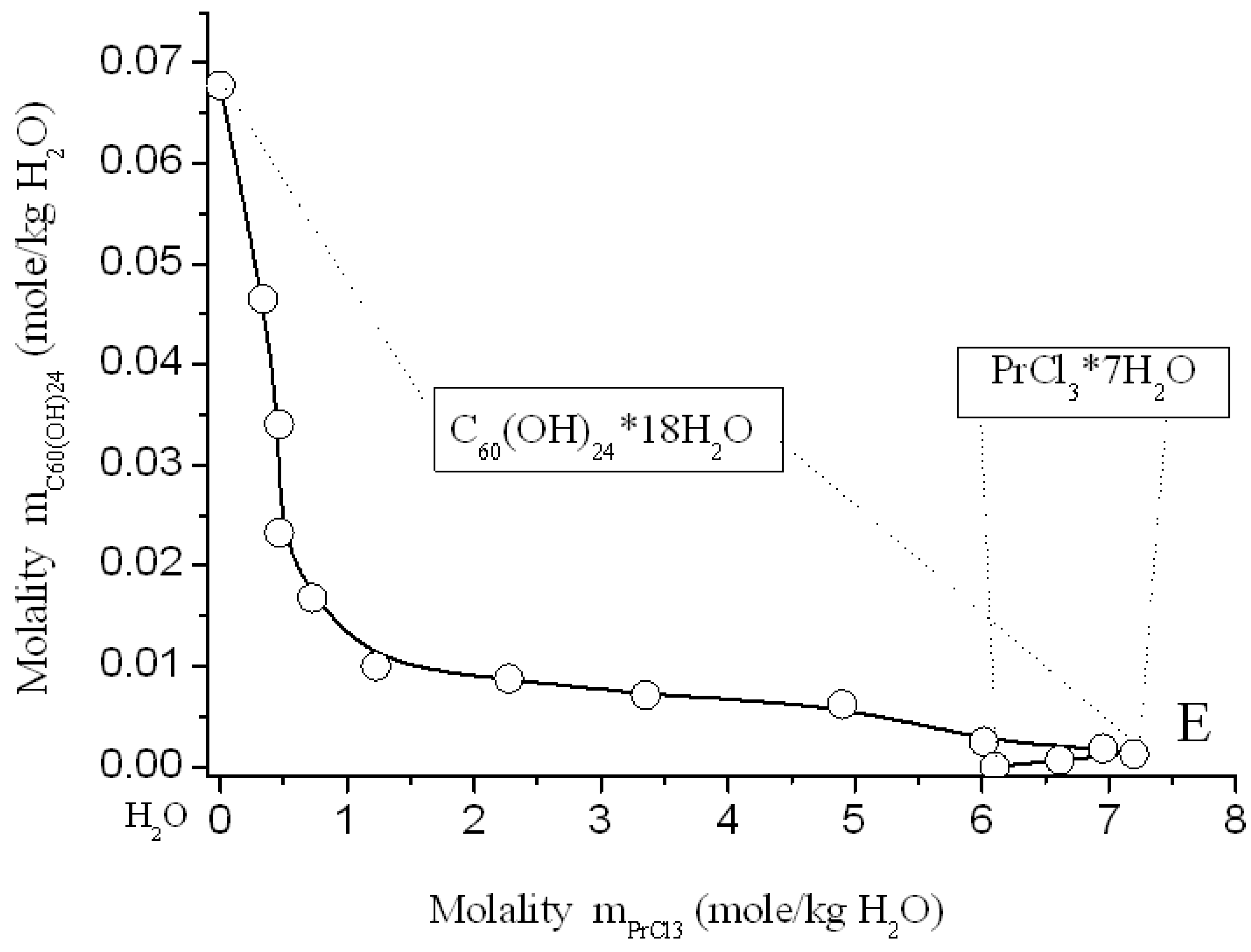

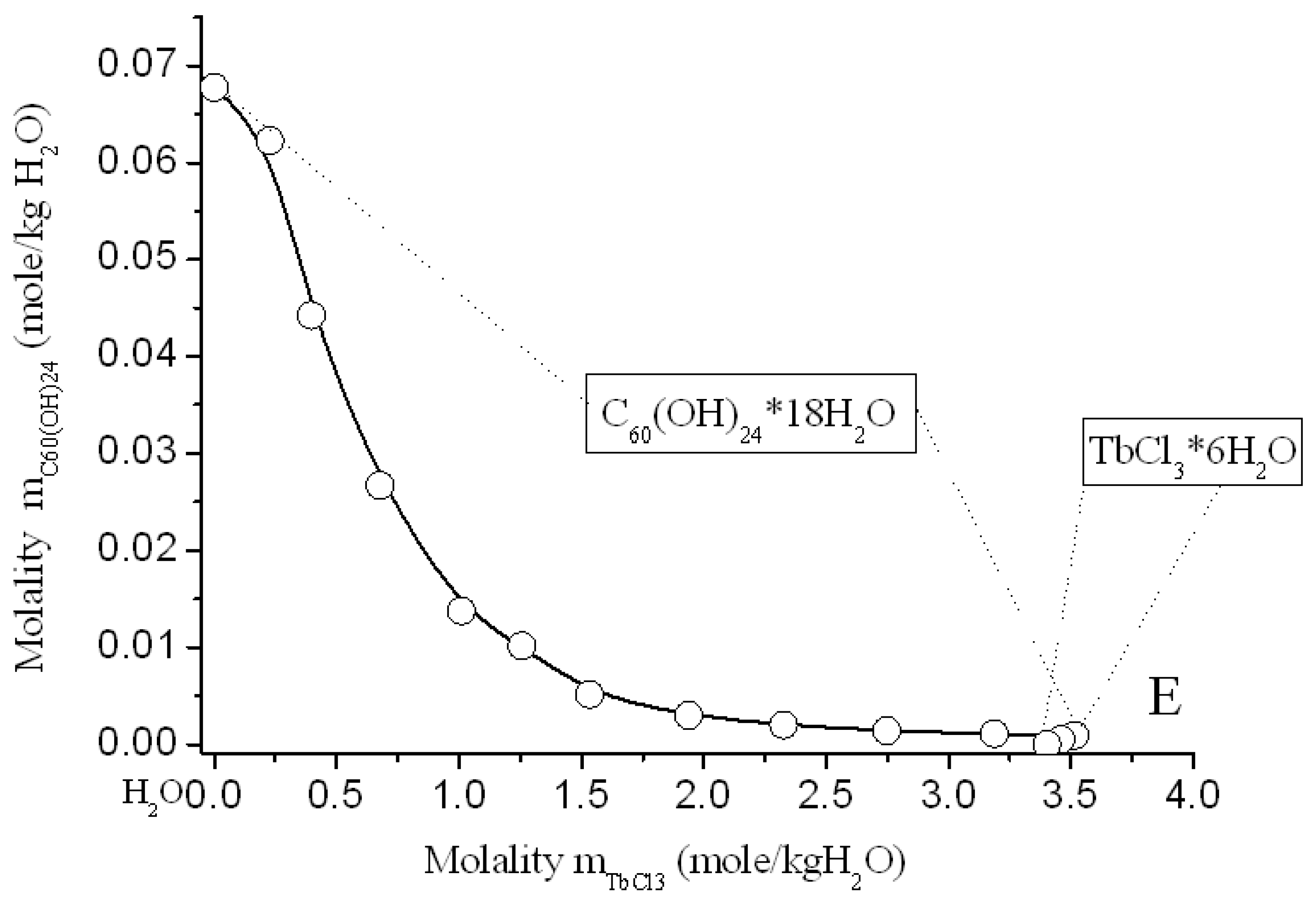

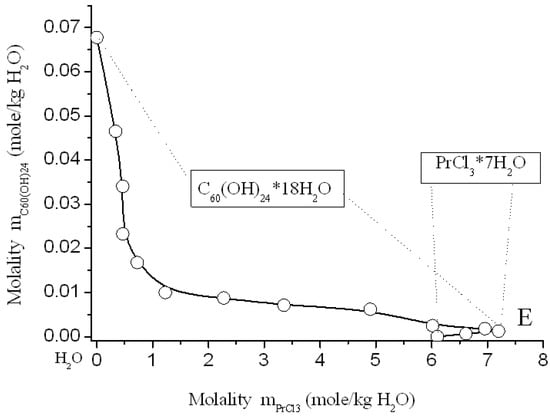

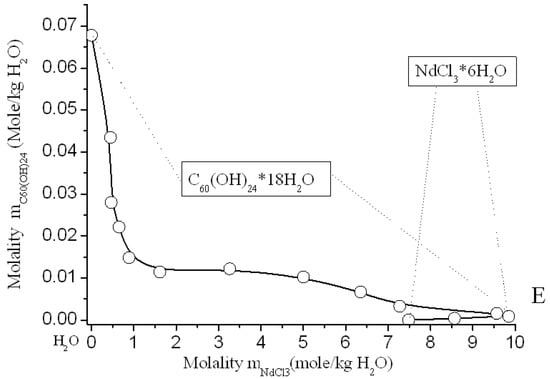

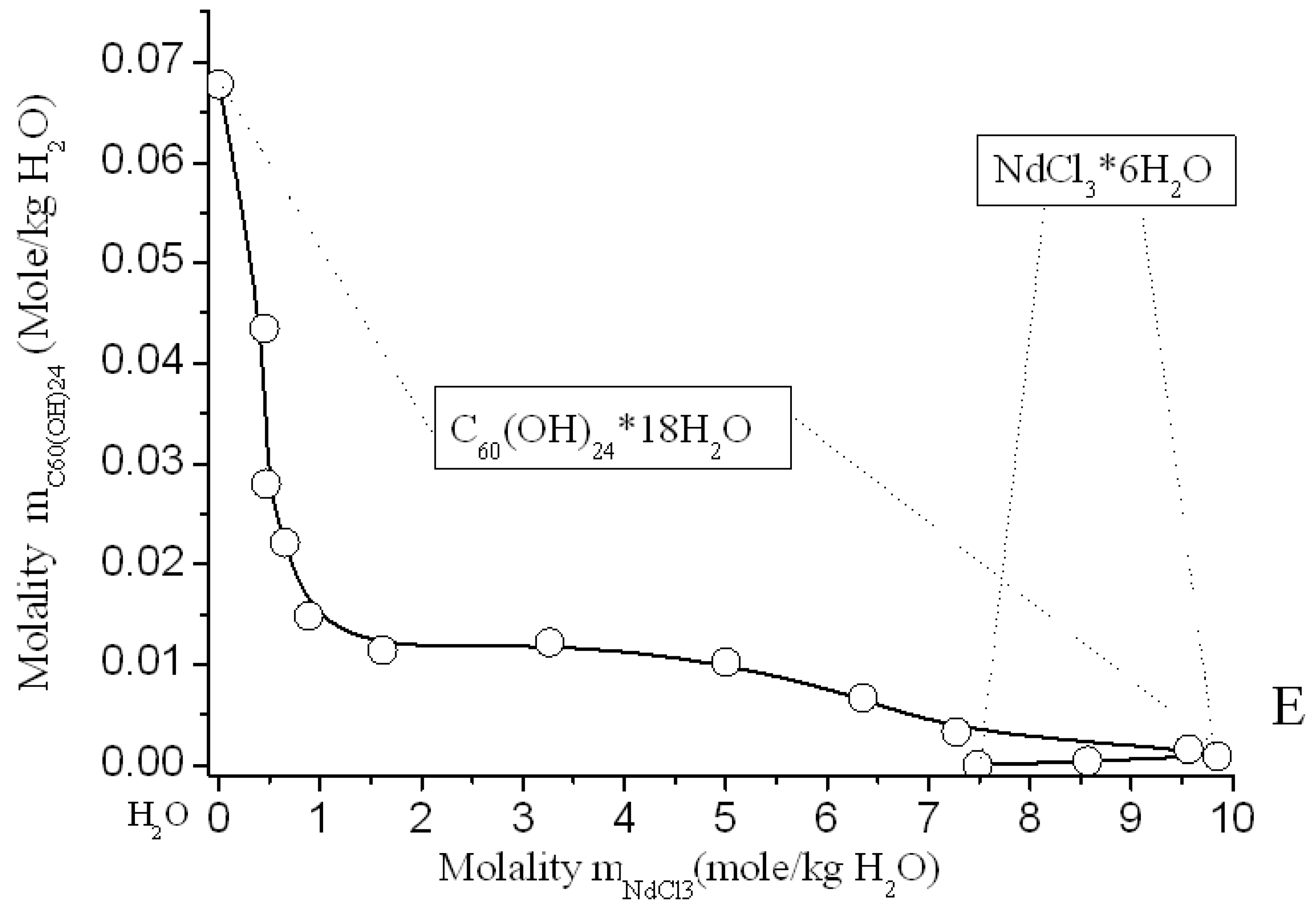

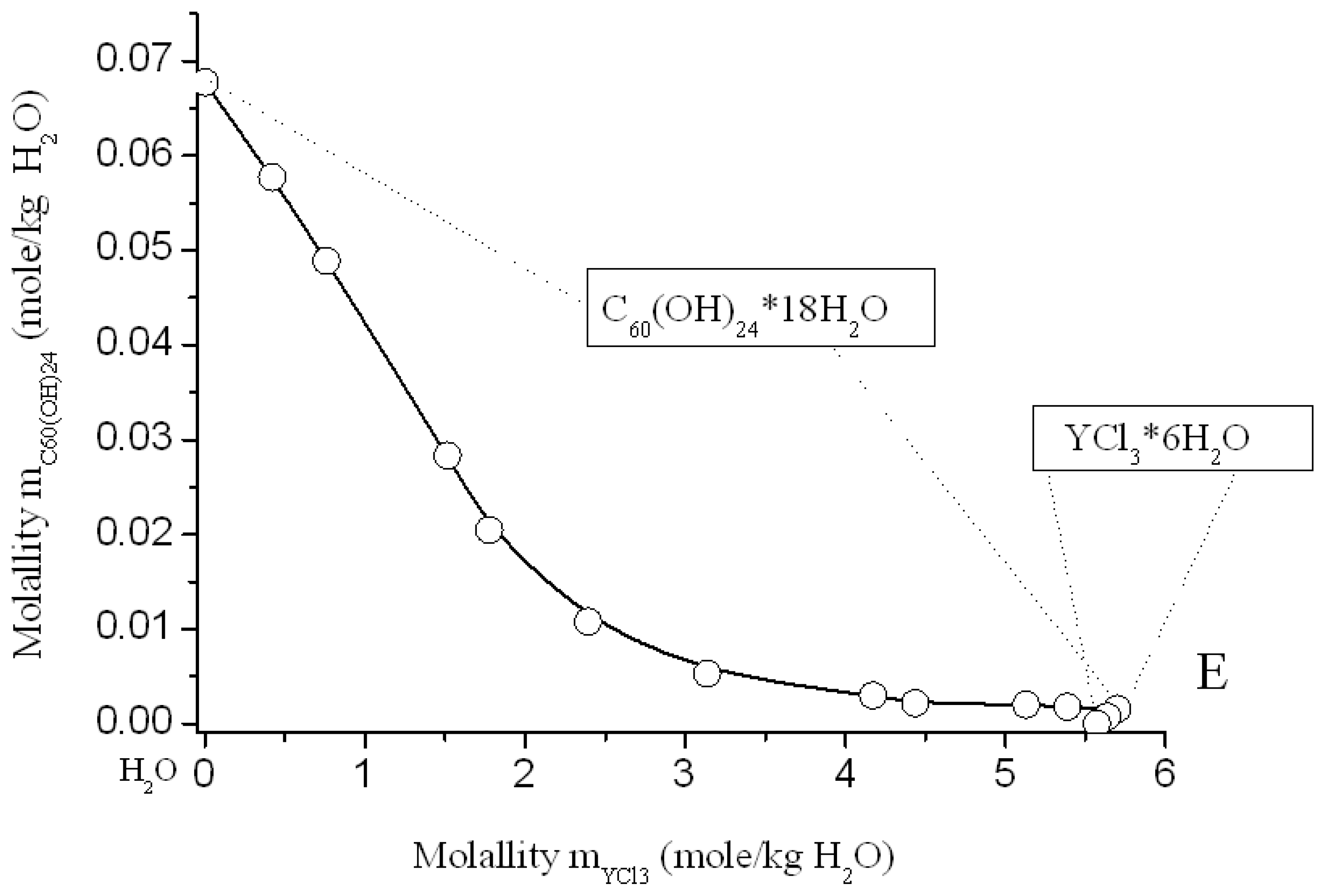

Solubility diagrams in four ternary systems are simple eutonic, both consist of two branches, corresponding to the crystallization of fullerenol crystal-hydrate and rare-earth chloride crystal-hydrates, and contain one eutonic nonvariant point corresponding to saturation with both solid phases [12,13,14]. On the long branches of C₆₀(OH)₂₄*18H2O crystallization, a pronounced salting-out effect is observed—the solubility of C₆₀(OH)₂₄*18H2O decreases by almost 2 orders of magnitude compared to the solubility of fullerenol in pure water. On very short branches of crystallization of NdCl₃*6H₂O, PrCl₃*7H₂O, YCl₃*6H₂O, and TbCl₃*6H₂O, the effect of salting-in is clearly observed, the solubility of crystal-hydrates of four chlorides increases markedly. The long crystallization curves themselves C₆₀(OH)₂₄*18H₂O in both cases have a rare concave-convex σ-id character with an inflection point:

dm_C60(OH)24/dm_REMCl3 = 0 and d²m_C60(OH)24/dm_REMCl3² = 0

(3)

3. Modeling of C₆₀(OH)₂₄*18H₂O Crystallization Branches in Ternary Systems REMCl₃-C₆₀(OH)₂₄—H₂O at 25 °C

3.1. Sechenov Equation of the Solubility of Nonelectrolyte in Electrolyte Solutions

For the primary modeling of the branches of crystallization of C₆₀(OH)₂₄*18H₂O in ternary systems PrCl₃—C₆₀(OH)₂₄—H₂O, NdCl₃—C₆₀(OH)₂₄—H₂O, YCl₃—C₆₀(OH)₂₄—H₂O, TbCl₃—C₆₀(OH)₂₄—H₂O at 25 °C, we used the equation of Sechenov (one parameter Sechenov Equation-SE-1):

ln(C⁰_C60(OH)24/C_C60(OH)24) = A^SC_REMCl3

(4)

where: C⁰_C60(OH)24 and C_C60(OH)24 solubility of C₆₀(OH)₂₄ in a binary system C₆₀(OH)₂₄—water and solubility of C₆₀(OH)₂₄ in a ternary system—an aqueous solution of REMCl₃ (REM = Pr, Nd, Y, Tb), C_REMCl3 is the concentration of REMCl₃ in a saturated solution, and A^S is the constant of the Sechenov equation. The scale of concentrations—C is generally uncertain (it can be C_V—g/dm³, molarity M-mole/dm³, molality m-mole/kg of solvent, and mole fraction X—a.u.). As is known, this equation often quite adequately describes the solubility of a nonelectrolyte or a weak electrolyte (usually gaseous) in solutions of a strong electrolyte in polar solvents (H₂O, CH₃OH, CH₃CN…) [9,10,11]. The results of the approximation are shown below in Figure 11, Figure 12, Figure 13 and Figure 14 and in

Table 2. Model parameters for the description of C₆₀(OH)₂₄*18H₂O crystallization branches in triple systems PrCl₃—C₆₀(OH)₂₄—H₂O, NdCl₃—C₆₀(OH)₂₄—H₂O, YCl₃—C₆₀(OH)₂₄—H₂O, TbCl₃—C₆₀(OH)₂₄—H₂O at 25 °C. The approximation quality parameters (χ²/DoF and R²) are also presented there. The Pearson criterion of approximation quality χ²/DoF is given by the relation: χ²/DoF = (1/v)∑[F(obs)_i–F(appr)_i]²/F(obs)_i, where: Summation is carried out for all experimental points from i = 1 to i =N—the number of experimental points (in our case, 14, Table).

Ternary System	Parameters of Approximal Equation ln(m0C60(OH)24/mC60(OH)24) = AsmREMCl3 + BsmREMCl32 + DsmREMCl33			χ2/DoF (a.u.)	R2 (a.u.)
	As (kg H2O/mole)	Bs (kg H2O/mole)2	Ds (kg H2O/mole)3
C60(OH)24—PrCl3—H2O	0.57222	-	-	0.39	0.77
C60(OH)24—PrCl3—H2O	0.98671	−0.06781	-	0.26	0.85
C60(OH)24—PrCl3—H2O	0.78111	-	−0.00531	0.32	0.82
C60(OH)24—PrCl3—H2O	1.89358	−0.49141	0.04272	0.06	0.97
C60(OH)24—NdCl3—H2O	0.42558	-	-	0.38	0.78
C60(OH)24—NdCl3—H2O	0.57683	−0.01846	-	0.37	0.80
C60(OH)24—NdCl3—H2O	0.48087	-	−0.00078	0.40	0.79
C60(OH)24—NdCl3—H2O	1.36942	−0.27304	0.01814	0.14	0.93
C60(OH)24—YCl3—H2O	0.71511	-	-	0.042	0.98
C60(OH)24—YCl3—H2O	0.80001	−0.01806	-	0.040	0.98
C60(OH)24—YCl3—H2O	0.78864	-	−0.00316	0.035	0.99
C60(OH)24—YCl3—H2O	0.34620	0.24447	−0.03352	0.0080	1.00
C60(OH)24—TbCl3—H2O	1.38583	-	-	0.099	0.96
C60(OH)24—TbCl3—H2O	1.83932	−0.16512	-	0.038	0.99
C60(OH)24—TbCl3—H2O	1.68419	-	−0.03675	0.026	0.99
C60(OH)24—TbCl3—H2O	1.23160	0.41114	−0.12007	0.016	0.99
Ternary System	Parameters of Approximal Equation$\ln \left(\frac{\widetilde{m_{C60\left(OH\right)24\ast 18H2O}^0}}{\widetilde{m_{C60\left(OH\right)24\ast 18H2O}}}\right)=A^{s-cs}\widetilde{m_{REMCl3}}++B^{s-cs}{\widetilde{m_{REMCl3}}}^2+D^{s-cs}{\widetilde{m_{REMCL3}}}^3$			χ2/DoF (a.u.)	$R$2 (a.u.)
	As-cs (kg H2O/mole)	Bs-cs (kg H2O/mole)2	Ds-cs (kg H2O/mole)3
C60(OH)24—PrCl3—H2O	1.90857	−0.49325	0.04281	0.06	0.97
C60(OH)24—NdCl3—H2O	1.38319	−0.27557	0.01830	0.14	0.93
C60(OH)24—YCl3—H2O	0.34351	0.24809	−0.03396	0.0082	1.00
C60(OH)24—TbCl3—H2O	1.23355	0.41812	−0.12175	0.016	0.99

. The result of the approximation is generally not satisfactory enough, because, first, it is not accurate enough (see Figure the value of the standard deviations of the calculated values ln(m⁰_C60(OH)24/m_C60(OH)24) from the experimentally obtained ones), and, secondly, the calculated curves do not at all convey the σ-id character of the experimental curves with inflection points (see Figure 11, Figure 12, Figure 13 and Figure 14). The reasons for this discrepancy are as follows:

The empirical Sechenov equation is written for the solubility branch of the unsolvated solid phase, and in our case the crystallization branch of the crystal-hydrate is described, i.e., the thermodynamic potential (solubility product-SP) of C₆₀(OH)₂₄*18H₂O, which retains its value on the crystallization branch of this compound, has the form:

lnSP(C₆₀(OH)₂₄*18H₂O) = ln (m_C60(OH)24) + ln(γ_C60(OH)24) + 18lna_H2O

(5)

where: a_H2O is the activity of H₂O in saturated solution, γ_C60(OH)24 is the activity coefficient C₆₀(OH)₂₄ in the molality scale with asymmetric normalization of redundant functions.

The C₆₀(OH)₂₄ nanoclusters themselves form a complex hierarchical sequence of associates: First-order associates are formed from monomers, then second-order associates are formed from first-order associates, and so on. The aqueous solutions of C₆₀(OH)₂₄ themselves are characterized by huge positive deviations from ideality, which often lead to the loss of diffusion stability by the solution [15,16].

It is unlikely that in saturated aqueous solutions PrCl₃—C₆₀(OH)₂₄—H₂O, NdCl₃—C₆₀(OH)₂₄—H₂O, YCl₃—C₆₀(OH)₂₄—H₂O, TbCl₃—C₆₀(OH)₂₄—H₂O electrolytes PrCl₃, NdCl₃, YCl₃, and TbCl₃ can be considered as very strong, it is likely the formation of ion pairs and larger ion associates in solutions.

3.2. Model Description of One-Parameter Sechenov Solubility Equation (SE-1)

Due to the fact that the Sechenov equation is historically considered to be empirical, we will give a derivation of this equation. Naturally, such a conclusion will be based on a semi-empirical model, in our case, the Pitzer model of strong electrolytes [17,18], and it is naturally impossible to call it strictly thermodynamic. The same conclusion is easily obtained using other semi-empirical models, such as the Bromley model [12] or the regular solutions model [14]. So, consider the branch of crystallization of unsolvated nonelectrolyte (NE) in a solution containing a polar solvent and a strong electrolyte (E = M_νcX_νa), ν_c and ν_a—number of cations and anions in molecule E:

lnSP(NE) = ln(m_NE)+ ln(γ_NE) = ln(m⁰_NE)+ ln(γ⁰_NE) = const

(6)

where: m_NE, γ_NE—molality and activity coefficient of NE in a ternary solution of NE-E-H₂O, m⁰_NE, γ⁰_NE—also in a binary system of NE-H₂O, SP(NE)—thermodynamic solubility product of NE. So:

ln(m⁰_NE/m_NE) = const + ln(γ_NE)

(7)

According to the physical sense, const = 0, because if: m_NE → m⁰_NE, ln(γ_NE) → 0 due to the conditions of asymmetric normalization for both E and NE.

ln(m⁰_NE/m_NE) = ln(γ_NE)

(8)

Take this to describe the concentration dependence of the ln(γ_NE) simplified model of Pitzer [17] taking into account only the second virial coefficients (λ_ij) in the expansion of the excess Gibbs energy of solution (G^ex) on the numbers of moles of the cation and anion of the electrolyte-E (n_c, n_a) and number of moles of NE (n_NE). We shall not take into account NE-NE interactions, as well as NE concentration in solution, are usually much smaller than the electrolyte, in our case, by 2 orders of magnitude. The physical sense of the second virial coefficients (λ_ij) is the following: It is reduced to RT energy of specific non-electrostatic interactions of 1 mole of i particles and 1 mole of j particles.

Then:

G^ex/RT = n_Sf(I) + 1/n_S [(λ_c-cn_c²) + (λ_a-an_a²) + (λ_c-an_cn_a) + (λ_c-NEn_cn_NE) + (λ_a-NEn_an_NE)]

(9)

where: n_S is the moles number of the solvent in 1 kg, and I is the molar ionic strength of the solution:

I = ½ [(n_c/n_S)z_c² + n_a/n_S)z_a²]

(10)

Function:

f(I) = (−4A^φIb)ln(1 + bI^1/2)

(11)

characterizes the energy of non-specific electrostatic interactions, according to the Debye-Hückel theory, A^φ is the Debye-Hückel constant, which depends on the temperature and permittivity of the solvent, and b = 1.2 [17] s, the non-variable Pitzer parameter. We assume, additionally, as in the Pitzer model, that λ_ij(I) (if i,j are cation and anion) can exclusively be functions of I and do not depend on n_NE. In addition, assume that λ_c-NE and λ_a-NE do not depend on I, because one of interacting particles (NE) has no charge. Then, given the fact that:

$$\frac{\partial F\left(I\right)}{\partial n_{NE}}=0,\frac{\partial {\lambda }_{ij}\left(I\right)}{\partial n_{NE}}=0,\frac{\partial {\lambda }_{c-NE}}{\partial n_{NE}}=0,\frac{\partial {\lambda }_{a-NE}}{\partial n_{NE}}=0$$

(12)

$$ln({\gamma }_{\mathrm{NE}})=\left[\frac{\frac{\partial G^{ex}}{RT}}{\partial n_{NE}}\right]={\lambda }_{c-NE}{m}_c+{\lambda }_{a-NE}{m}_a=A^s{m}_E$$

(13)

where:

$$A^s={\lambda }_{c-NE}{\nu }_c+{\lambda }_{a-NE}{\nu }_a$$

(14)

So, the Sechenov equations in model SE-1 (8) and (4) are proved.

3.3. Model Description of Modified Three-Parameter Sechenov Solubility Equation (SEM-3)

To increase the accuracy of the approximation, we used a modified Sechenov solubility equation (SEM-3—three parameter Sechenov equation model):

ln(m⁰_C60(OH)24/m_C60(OH)24) = A^sm_REMCl3 + B^sm_REMCl3² + C^sm_REMCl3³

(15)

where: A^s, B^s, D^s are the empirical (fitting) constants of the model SEM-3. As authors know, such an approximation is original and at the same time forced due to the nontrivial convex-concave course of the solubility branches of the nonelectrolyte in the studied systems. The appearance of a quadratic and cubic term in equation (15) is quite justified, since, for example, the expression for the activity coefficient of electrolyte, in the most popular now semi-empirical model of K. Pitzer [17,18], includes variable parameters with weights m² and m³-these are the parameters $B^{\gamma }\left(I\right)$ and, $C^{\gamma }$ respectively in binary systems and $\theta , \psi$ in ternary systems.

Let us consider the ternary system E(electrolyte)-NE(non-electrolyte)-S(solvent) and take into account virial coefficients of high order:

$$\begin{gathered} \raisebox{1ex}{$G^{ex}$}\!\left/ \!\raisebox{-1ex}{$RT$}\right.=n_{s}f\left(I\right)+\left(\frac{1}{n_s}\right){\displaystyle \sum }_i{\displaystyle \sum }_j{\lambda }_{ij}\left(I\right)n_i{n}_j+\left(\frac{1}{n_s^2}\right){\displaystyle \sum }_i{\displaystyle \sum }_j{\mu }_{ijk}{n}_i{n}_j{n}_k+\left(\frac{n_{NE}}{n_s}\right){\displaystyle \sum }_i{\lambda }_{iNE}{n}_i \\ +\left(\frac{n_{NE}}{n_s^2}\right){\displaystyle \sum }_i{\displaystyle \sum }_j{\mu }_{ij-NE}{n}_i{n}_j+\left(\frac{n_{NE}}{n_s^3}\right){\displaystyle \sum }_i{\displaystyle \sum }_j{\displaystyle \sum }_k{\omega }_{ijk-NE}{n}_i{n}_j{n}_k \end{gathered}$$

(16)

here:${\mu }_{ijk}$ and ${\omega }_{ijk-NE}$ are the third and fourth virial coefficients pf the decomposition of function $\raisebox{1ex}{$G^{ex}$}\!\left/ \!\raisebox{-1ex}{$RT$}\right.$ on the molar numbers of ions and NE. Pitzer [17] proposed to consider ${\mu }_{ijk}$ independent on I, some of them (corresponds to the three ions with the same charge) are equal to zero ${\mu }_{iii}=0$. Let us assume this, and additionally, that ${\omega }_{ijk-NE}$ are also independent on I, and some of them are also equal to zero: ${\omega }_{iii-NE}=0$.

So, one can easily find that:

$$ln{\gamma }_{NE}=\frac{\partial \left(\raisebox{1ex}{$G^{ex}$}\!\left/ \!\raisebox{-1ex}{$RT$}\right.\right)}{\partial n_{NE}}={\displaystyle \sum }_i{\lambda }_{iNE}{m}_i+{\displaystyle \sum }_i{\displaystyle \sum }_j{\mu }_{ijNE}{m}_i{m}_j+{\displaystyle \sum }_i{\displaystyle \sum }_j{\displaystyle \sum }_k{\omega }_{ijkNE}{m}_i{m}_j{m}_k$$

(17)

$$\begin{gathered} ln{\gamma }_{NE}=\left({\lambda }_{X-NE}{\nu }_X+{\lambda }_{M-NE}{\nu }_M\right)m_{NE}+\left({\mu }_{M-M-NE}{\nu }_M^2+{\mu }_{X-X-NE}{\nu }_X^2+{\mu }_{M-X-NE}{\nu }_M{\nu }_X\right)m_{NE}^2+ \\ ({\omega }_{M-M-M-NE}{\nu }_M^3+{\omega }_{X-X-X-NE}{\nu }_X^3+{\omega }_{M-M-X-NE}{\nu }_M^2{\nu }_X+{\omega }_{M-X-X-NE}{\nu }_X^2{\nu }_M)m_{NE}^3 \end{gathered}$$

(18)

And after simplifying:

$$\begin{gathered} ln{\gamma }_{NE}=\left({\lambda }_{X-NE}{\nu }_X+{\lambda }_{M-NE}{\nu }_M\right)m_{NE}+\left({\mu }_{M-M-NE}{\nu }_M^2+{\mu }_{X-X-NE}{\nu }_X^2+{\mu }_{M-X-NE}{\nu }_M{\nu }_X\right)m_{NE}^2+ \\ ({\omega }_{M-M-X-NE}{\nu }_M^2{\nu }_X+{\omega }_{M-X-X-NE}{\nu }_X^2{\nu }_M)m_{NE}^3 \end{gathered}$$

(19)

So, the modified three-parameter Sechenov Equation (15) is proven and:

$$A^s={\lambda }_{X-NE}{\nu }_X+{\lambda }_{M-NE}{\nu }_M$$

(20)

$$B^s={\mu }_{M-M-NE}{\nu }_M^2+{\mu }_{X-X-NE}{\nu }_X^2+{\mu }_{M-X-NE}{\nu }_M{\nu }_X$$

(21)

$$D^s={\omega }_{M-M-X-NE}{\nu }_M^2{\nu }_X+{\omega }_{M-X-X-NE}{\nu }_X^2{\nu }_M$$

(22)

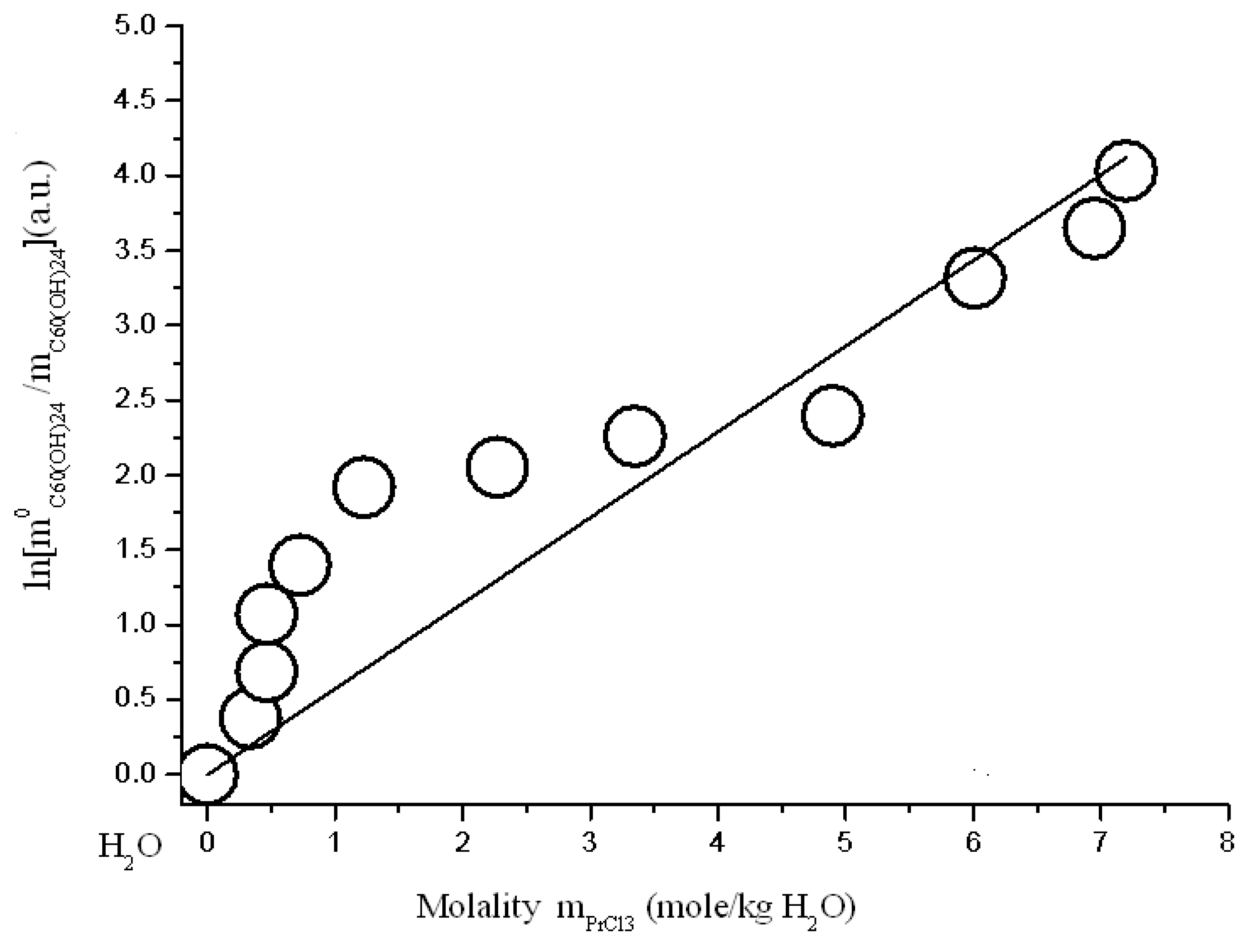

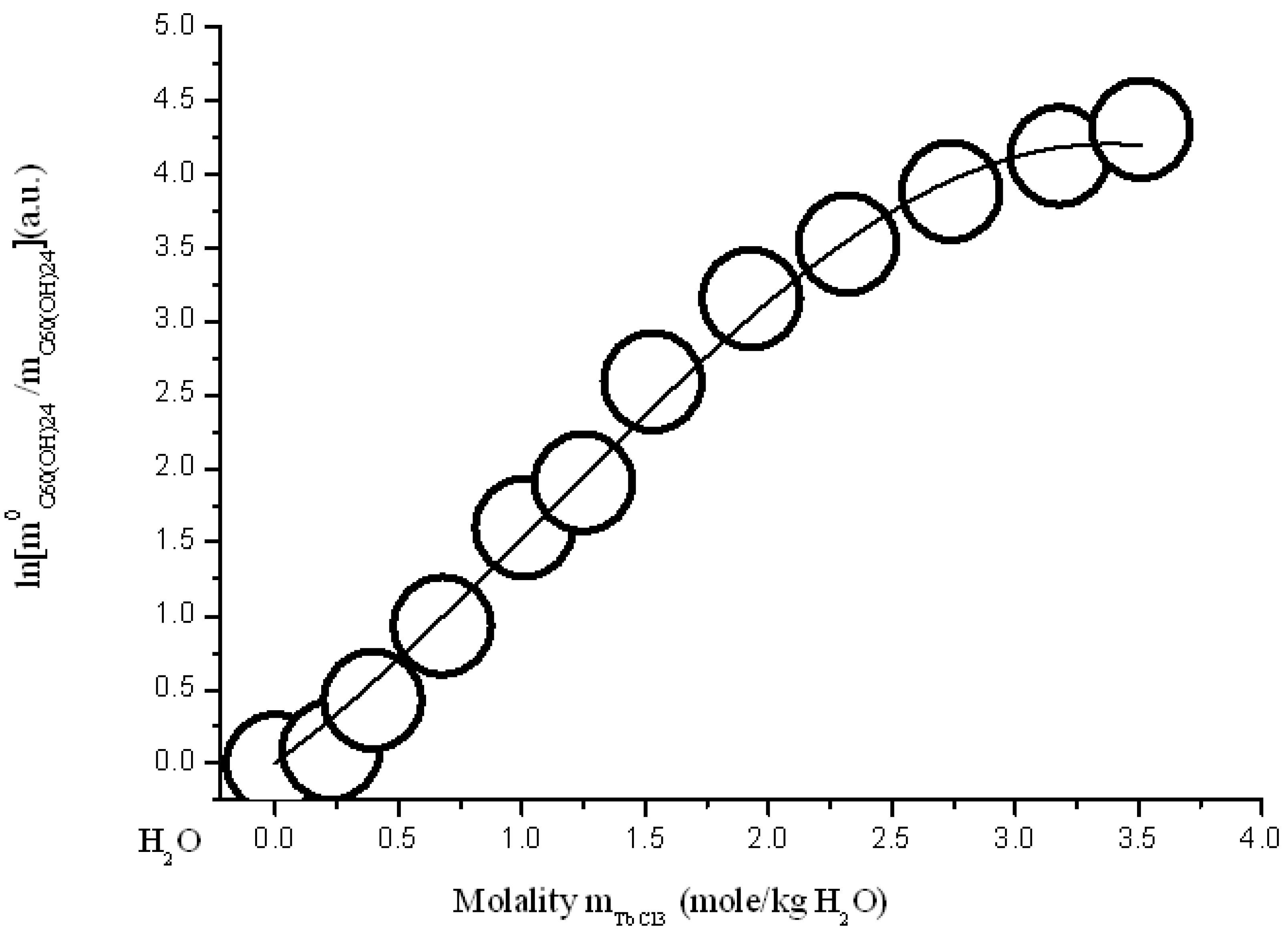

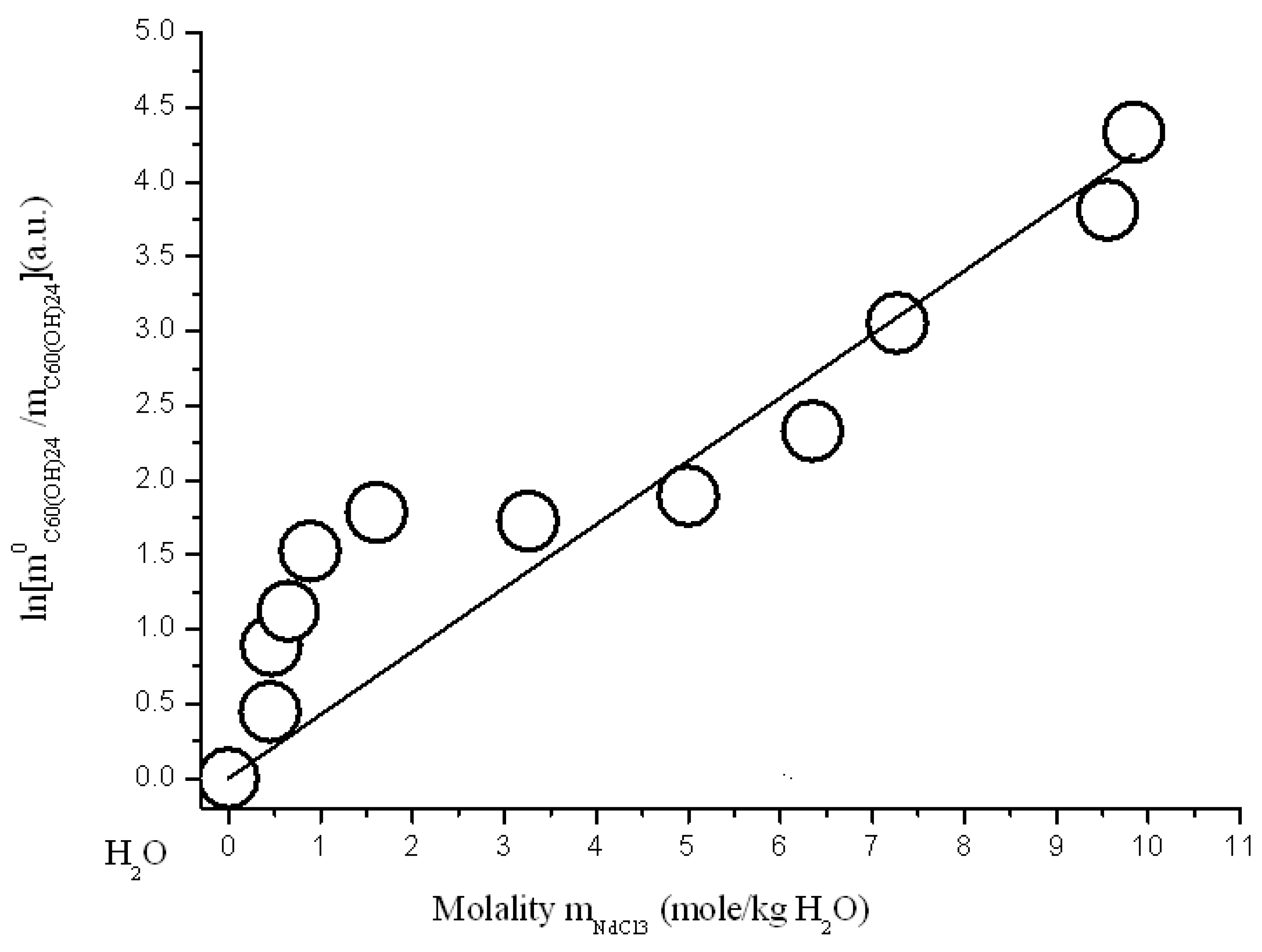

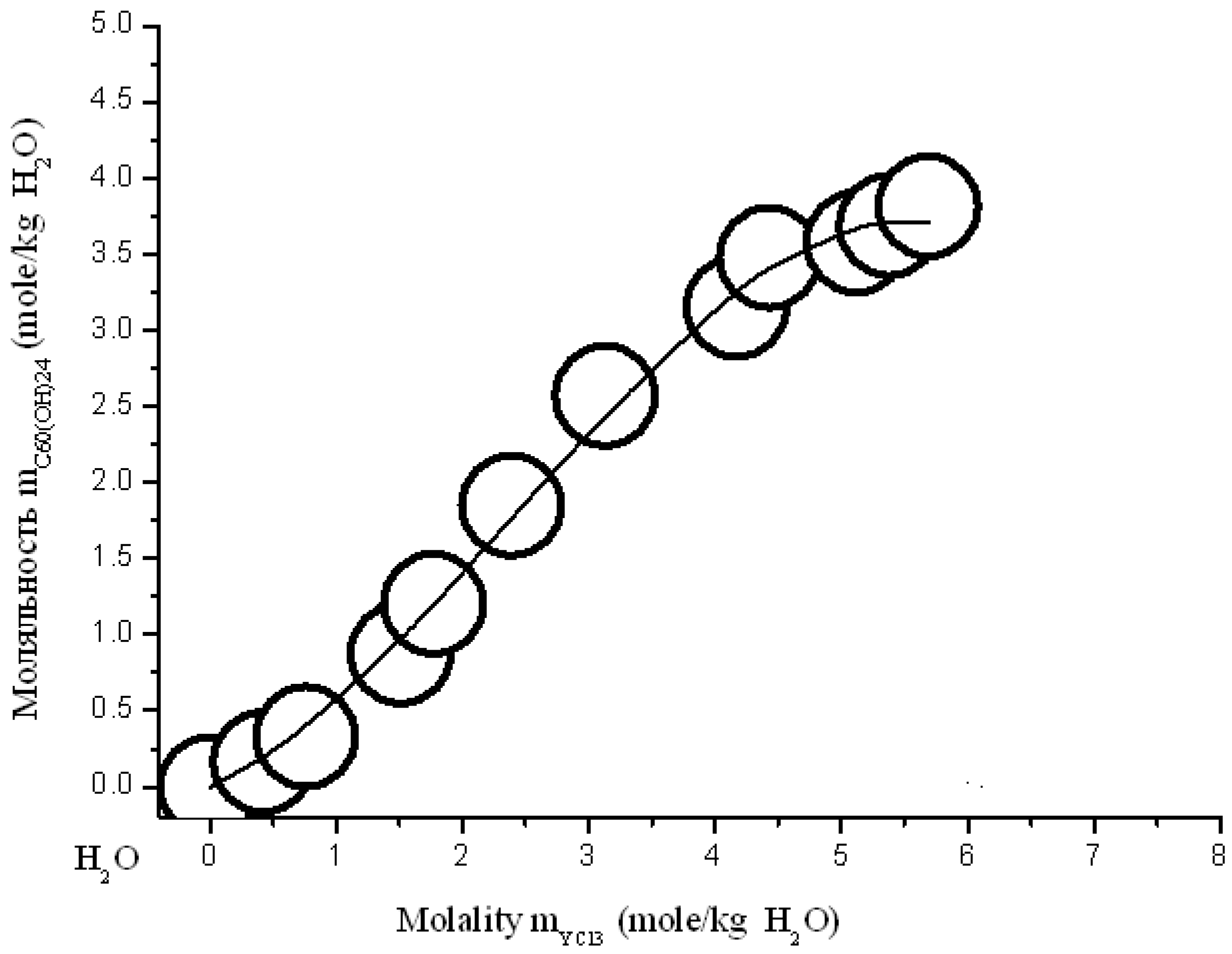

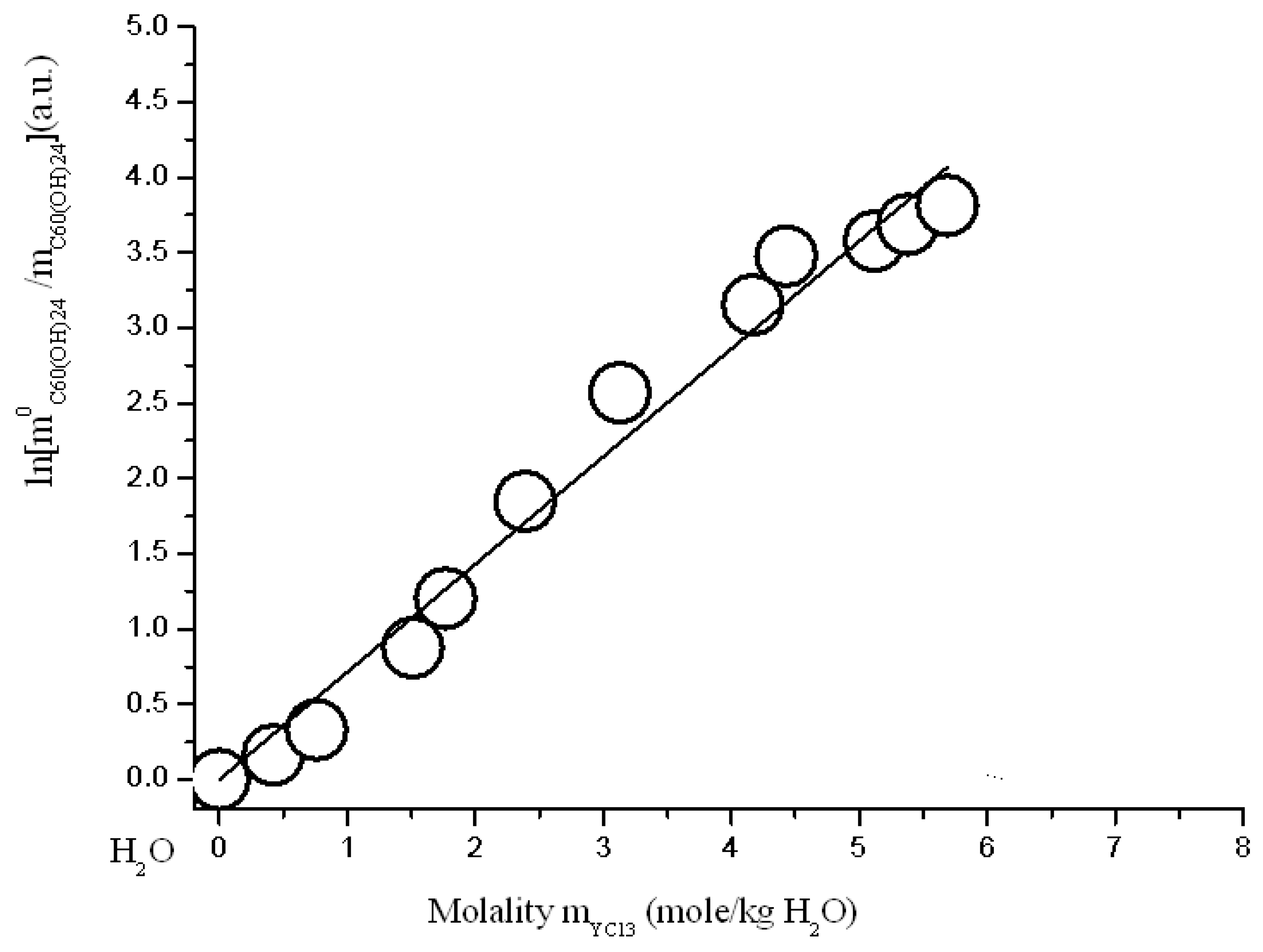

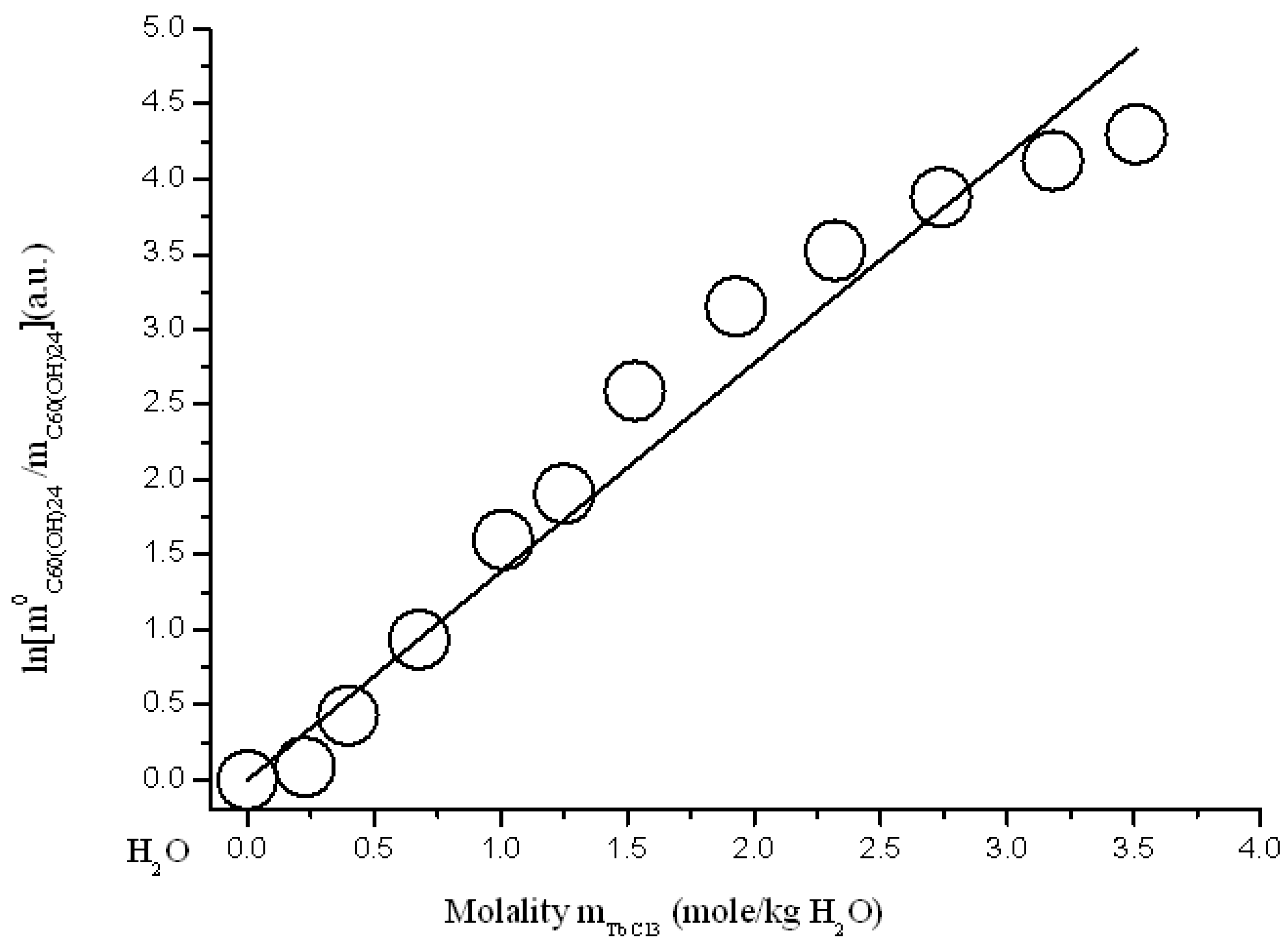

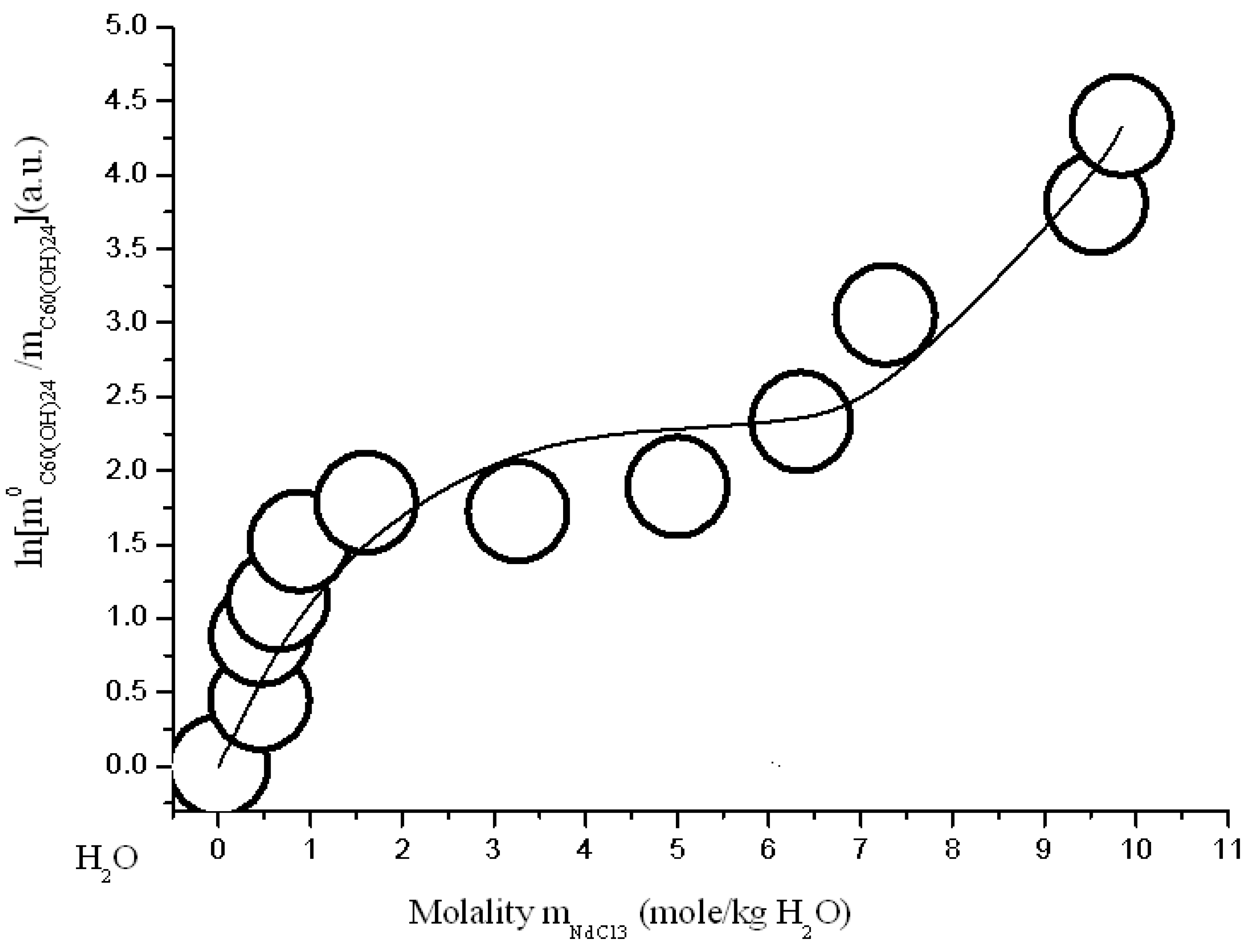

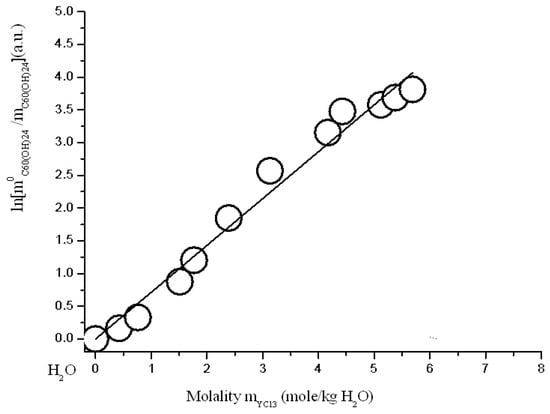

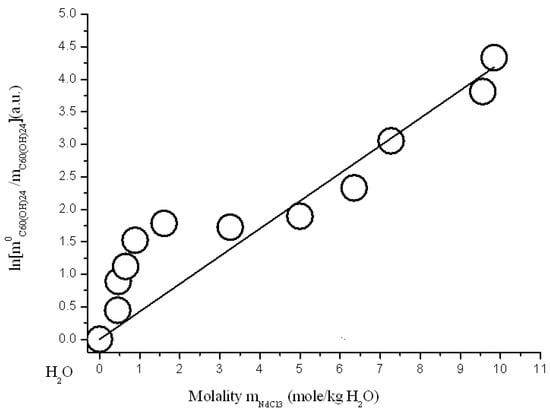

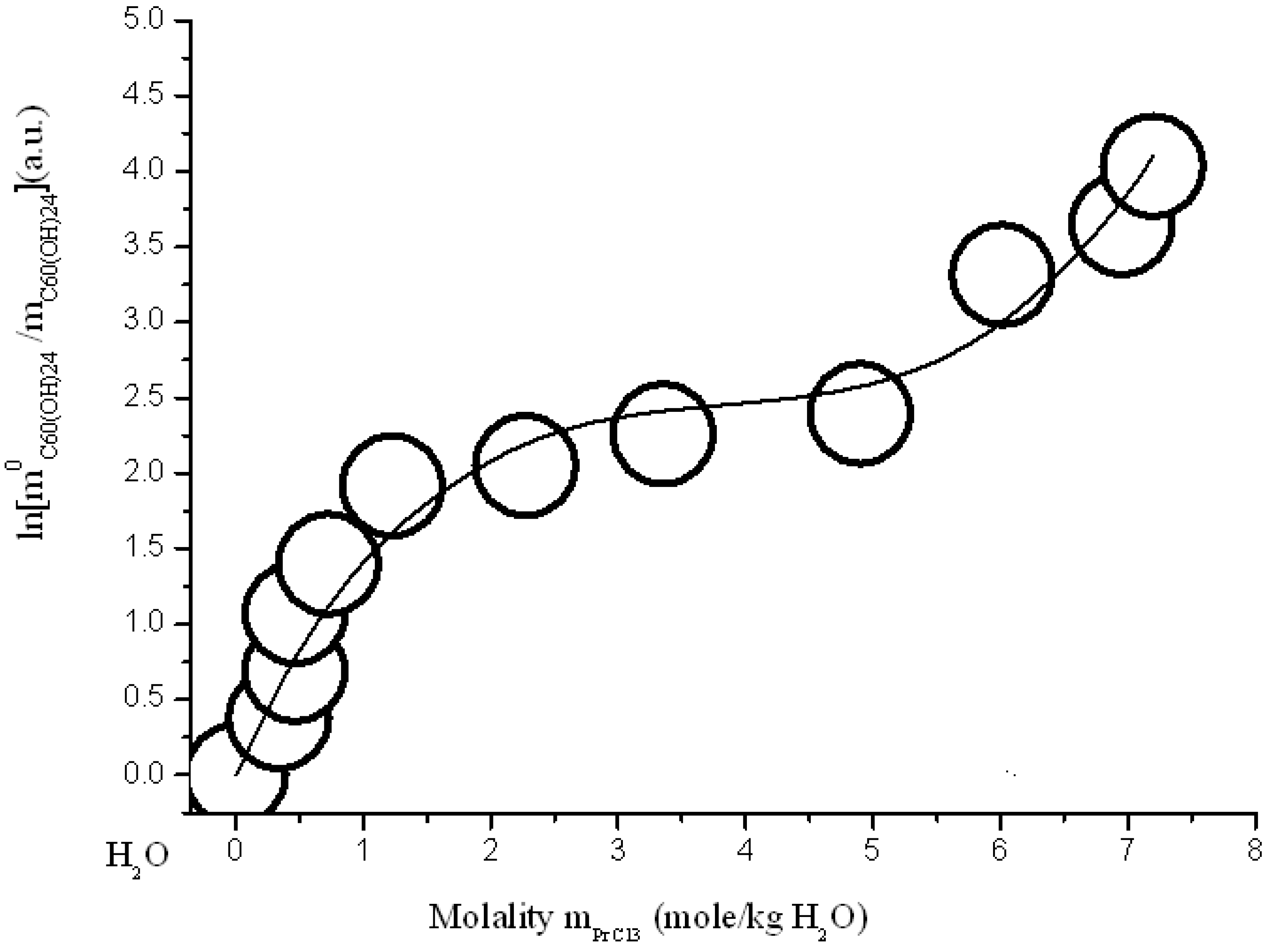

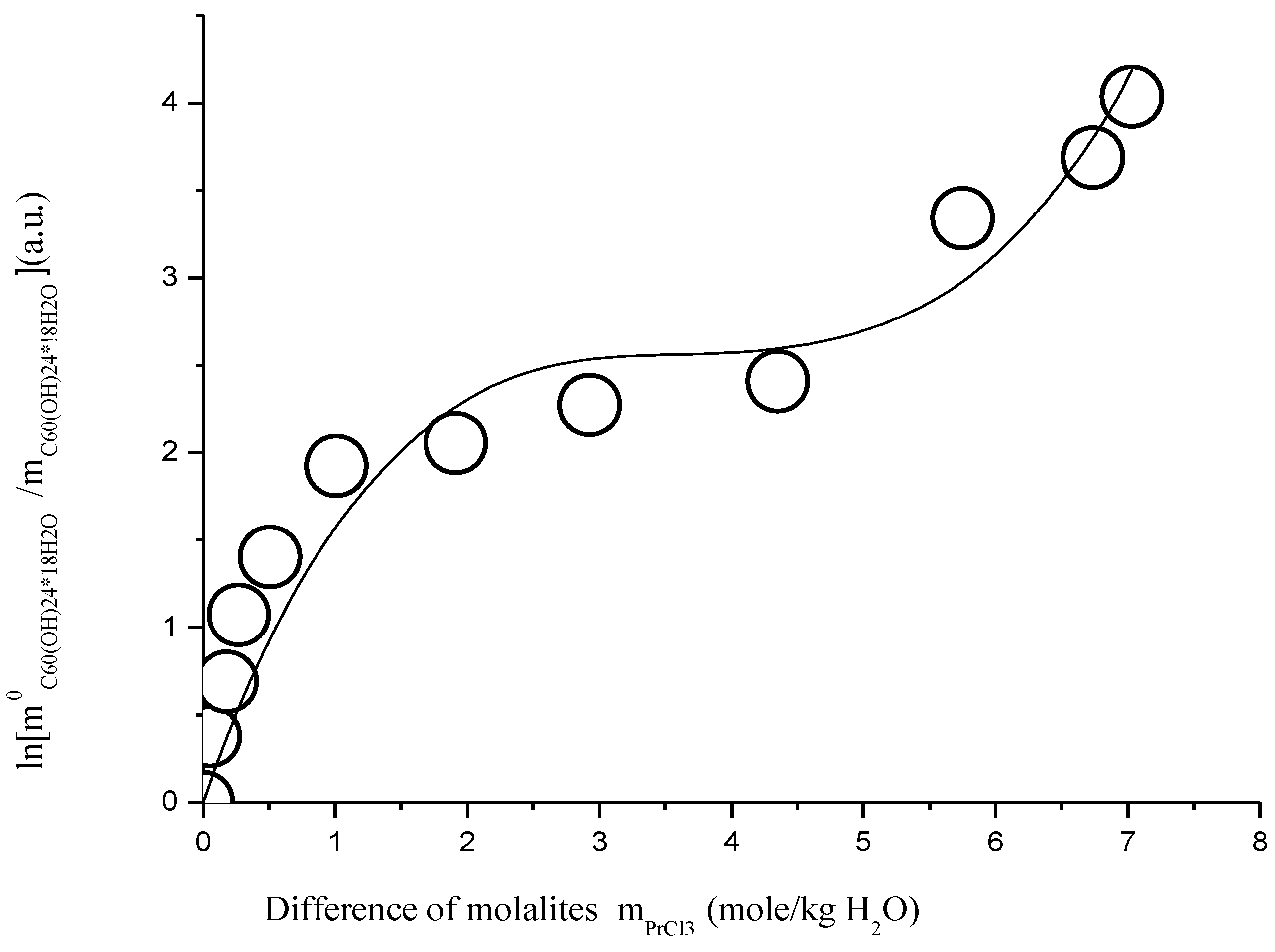

The simulation results are shown in Figure 15, Figure 16, Figure 17 and Figure 18 and in Table 2. As can be seen from the figures and the table: Firstly, the accuracy of the approximation has increased dramatically (the Parkinson’s approximation accuracy criterion χ²/DoF is 3–8 times higher) and, secondly, the model begins to perfectly describe the nontrivial concave-convex σ-id course of the crystallization curve. The last three-parameter SEM-3 allows us to expand the scope of the model for describing the branches of solubility of non-electrolytes in electrolyte solutions to high concentrations of the latter (to a molalities range from 4 to 7 mol per kg of solvent).

Curiously, no two-parameter model is capable of such a description (see Table 2).

3.4. Model Description of Modified Three-Parameter Sechenov Solubility Equation for the Crystallization of Crystal Solvates of Non-Electrolyte (SEM(CS)-3)

Earlier, we noted that all solubility equations should be used for the calculation of the solubility of pure non-solvated non-electrolyte-NE without solvent molecules in the solid phases. This applies to both models—SE-1 and SEM-3. Let us again consider the ternary system nonelectrolyte (NE)–electrolyte (E)–solvent (S), and describe the branch of crystallization of crystal solvate (NE*N_SS, N_S—number of solvent molecules in solid crystal solvate), in our case it is crystal hydrate C₆₀(OH)₂₄*18H₂O. For direct use of the equation of the SEM-3 model (Equation (15)), one should perform one simple mathematical operation—go from a natural set of composition variables (molalities of electrolyte and non-electrolyte—m_E, m_NE) to modified the set of composition variables (molalities of electrolyte and crystal solvate of non-electrolyte—$\widetilde{m_E} and \widetilde{m_{NE}}$):

$$\widetilde{m_{NE}}=m_{NE}\ast \left(\frac{1000}{M_S}\right)/\left(\frac{1000}{M_S}-m_{NE}\ast N_S\right)$$

(23)

$$\widetilde{m_E}=m_E\ast \left(\frac{1000}{M_S}\right)/\left(\frac{1000}{M_S}-m_{NE}\ast N_S\right)$$

(24)

In these variables, we will proceed to a different modification of SEM-3 equation, namely to SEM(CS)-3 equation:

$$\ln \left(\frac{\widetilde{m_{NE\ast N_{s}S}^0}}{\widetilde{m_{NE\ast N_{S}S}}}\right)=A^{s-cs}\widetilde{m_E}+B^{s-cs}{\widetilde{m_E}}^2+D^{s-cs}{\widetilde{m_E}}^3$$

(25)

where: A^s-cs, B^s-cs, and D^s-cs are the empirical (fitting) parameters of the model equation SEM(CS)-3 (25). In our case, it has following form:

$$\ln \left(\frac{\widetilde{m_{C60\left(OH\right)24\ast 18H2O}^0}}{\widetilde{m_{C60\left(OH\right)24\ast 18H2O}}}\right)=A^{s-cs}\widetilde{m_{REMCl3}}+B^{s-cs}{\widetilde{m_{REMCl3}}}^2+D^{s-cs}{\widetilde{m_{REMCL3}}}^3$$

(26)

where: REM = rare earth metals—Pr, Nd, Y, Tb.

The parameters of the SEM(CS)-3 model for both four systems are also represented in Table 2 (in the bottom). One can see that the SEM(SC)-3 equation can describe the crystallization curve of solubility of C₆₀(OH)₂₄*18H₂O with nearly absolutely the same accuracy as that of model SEM-3 in the direct component molalities (parameters of accuracy of approximation χ²/DoF and R² are almost the same). We should probably accept this conclusion, which matches the results of simulation model expected and common, at least until solubility of nonelectrolyte (NE) in the electrolyte (E) is relatively low, and the number of solvent molecules in solid crystal solvate (N_S), on the contrary, is not too large. In other words, as a rule, the Sechenov equations (SE-1 and SE-3) can be used to describe both systems with crystallization of unsolvated non-electrolyte and systems with crystallization of crystal-solvates. In Figure 19, as an example, and for the comparison, the results of calculation according to the SEM(CS)-3 model are represented for ternary system C₆₀(OH)₂₄—PrCl₃—H₂O at 25 °C.

4. Conclusions

Solubility in triple systems C₆₀(OH)₂₄—PrCl₃—H₂O, C₆₀(OH)₂₄—NdCl₃—H₂O, C₆₀(OH)₂₄—TbCl₃—H₂O, and C₆₀(OH)₂₄—YCl₃—H₂O at 25 °C was studied. Solubility diagrams in four ternary systems are simple eutonic, consist of two branches, corresponding to the crystallization of fullerenol crystal-hydrate and rare earth chloride crystal-hydrates, and contain one nonvariant point corresponding to saturation with both solid phases. On the long branches of C₆₀(OH)₂₄*18H₂O crystallization, a pronounced salting-out effect is observed—the solubility of C₆₀(OH)₂₄ decreases by more than 2 orders of magnitude compared to the solubility of fullerenol in pure water. On very short branches of crystallization of PrCl₃*7H₂O, NdCl₃*6H₂O, YCl₃*7H₂O, and TbCl₃*6H₂O, the effect of salting-in is clearly observed, the solubility of all chlorides increases markedly. All diagrams are fairly accurately approximated by classical one-parameter Sechenov equation and very accurately approximated by the three-parameter modified Sechenov equation in the whole concentration range up to 4-7 molalities of electrolytes.
