Experimental Analysis of the Performance and Load Cycling of a Polymer Electrolyte Membrane Fuel Cell

1
Thermal Engineering Group, Energy Engineering Department, School of Engineering, University of Sevilla, Camino de los Descubrimientos s/n, 41092 Sevilla, Spain
2
AICIA (Andalusian Association for Research & Industrial Cooperation)—Thermal Engineering Group, Camino de los Descubrimientos s/n, 41092 Sevilla, Spain
*
Author to whom correspondence should be addressed.
Contributed equally to this work.
Processes 2020, 8(5), 608; https://doi.org/10.3390/pr8050608
Received: 17 April 2020 / Revised: 5 May 2020 / Accepted: 11 May 2020 / Published: 20 May 2020
(This article belongs to the Special Issue Representative Model and Flow Characteristics of Fuel Cells)

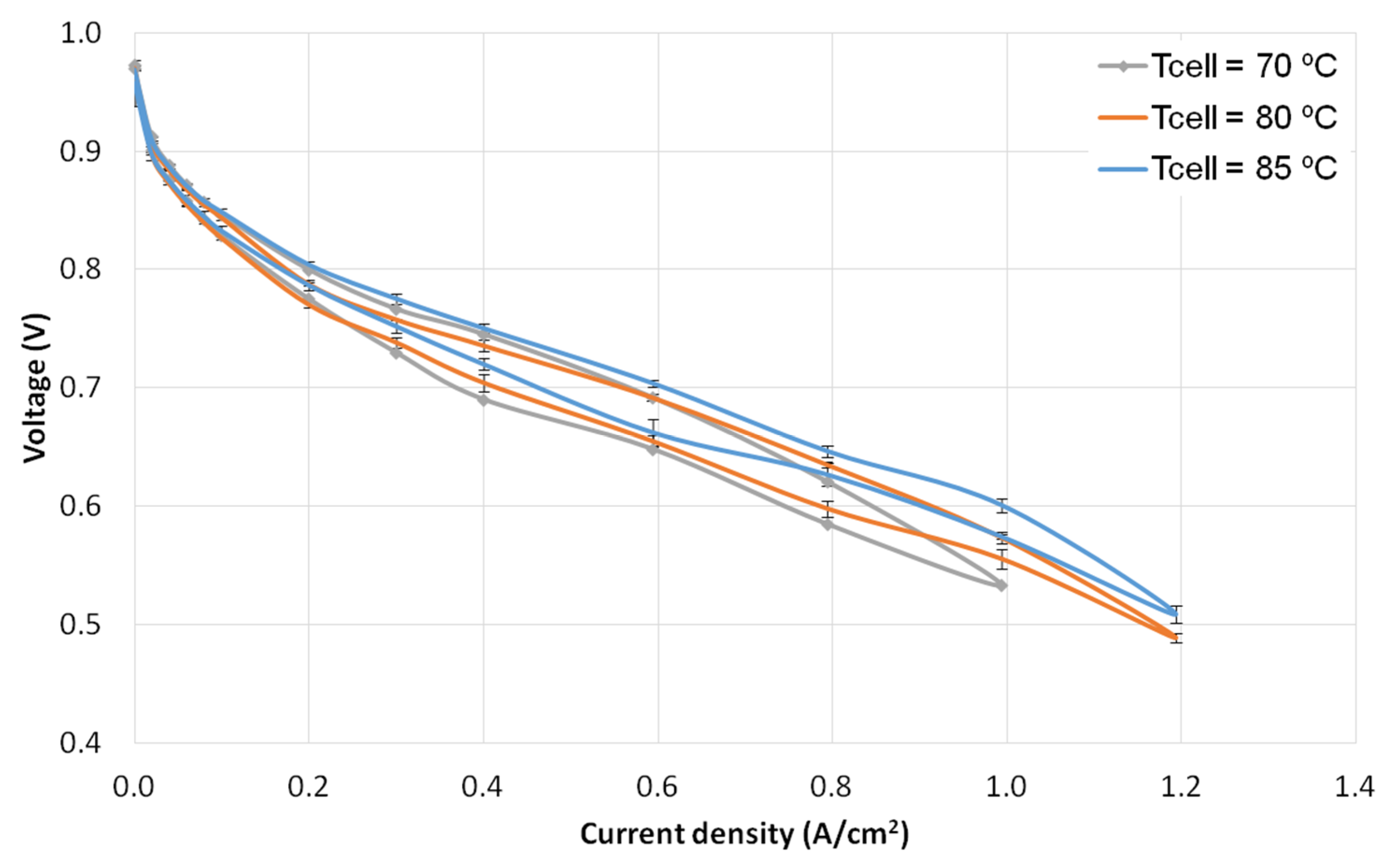

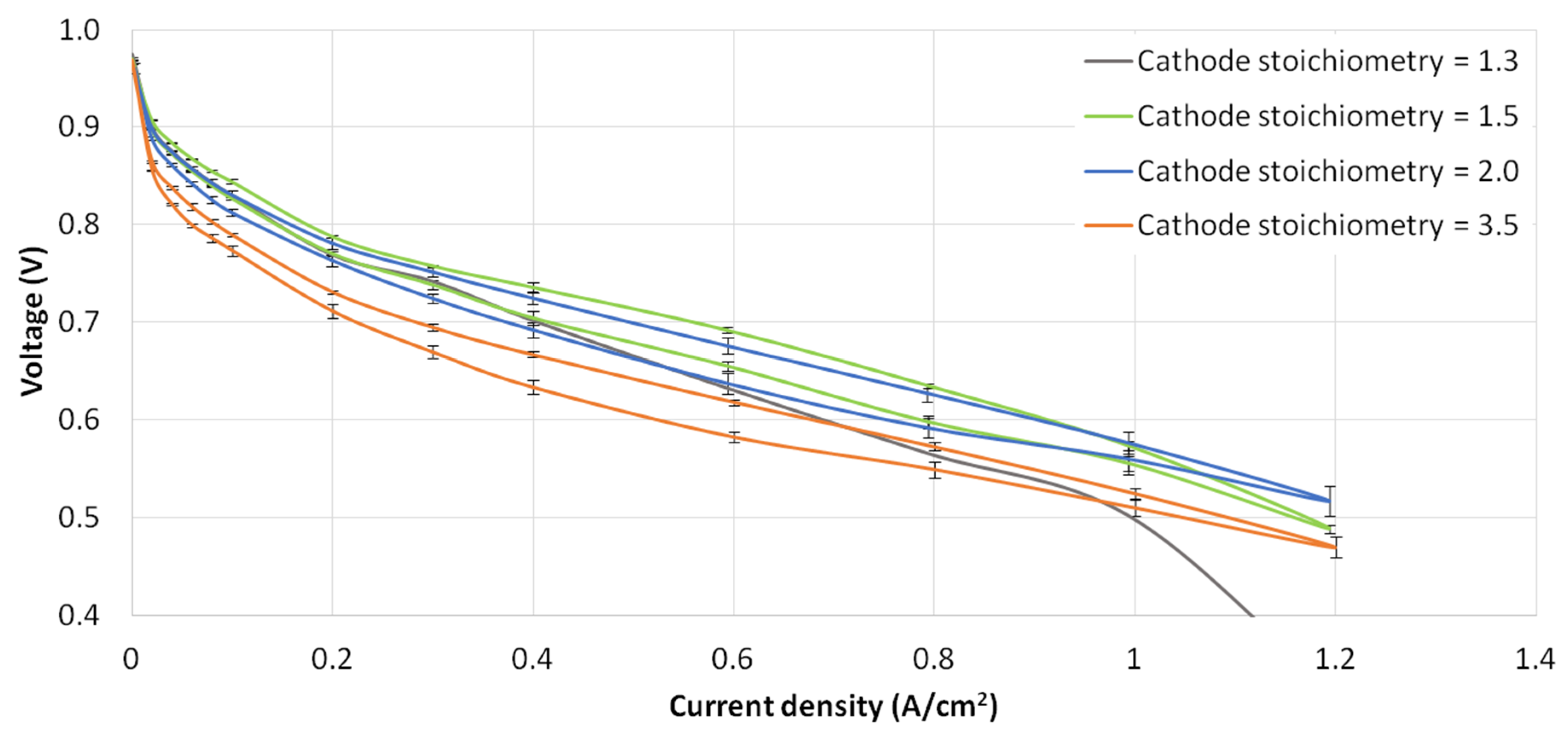

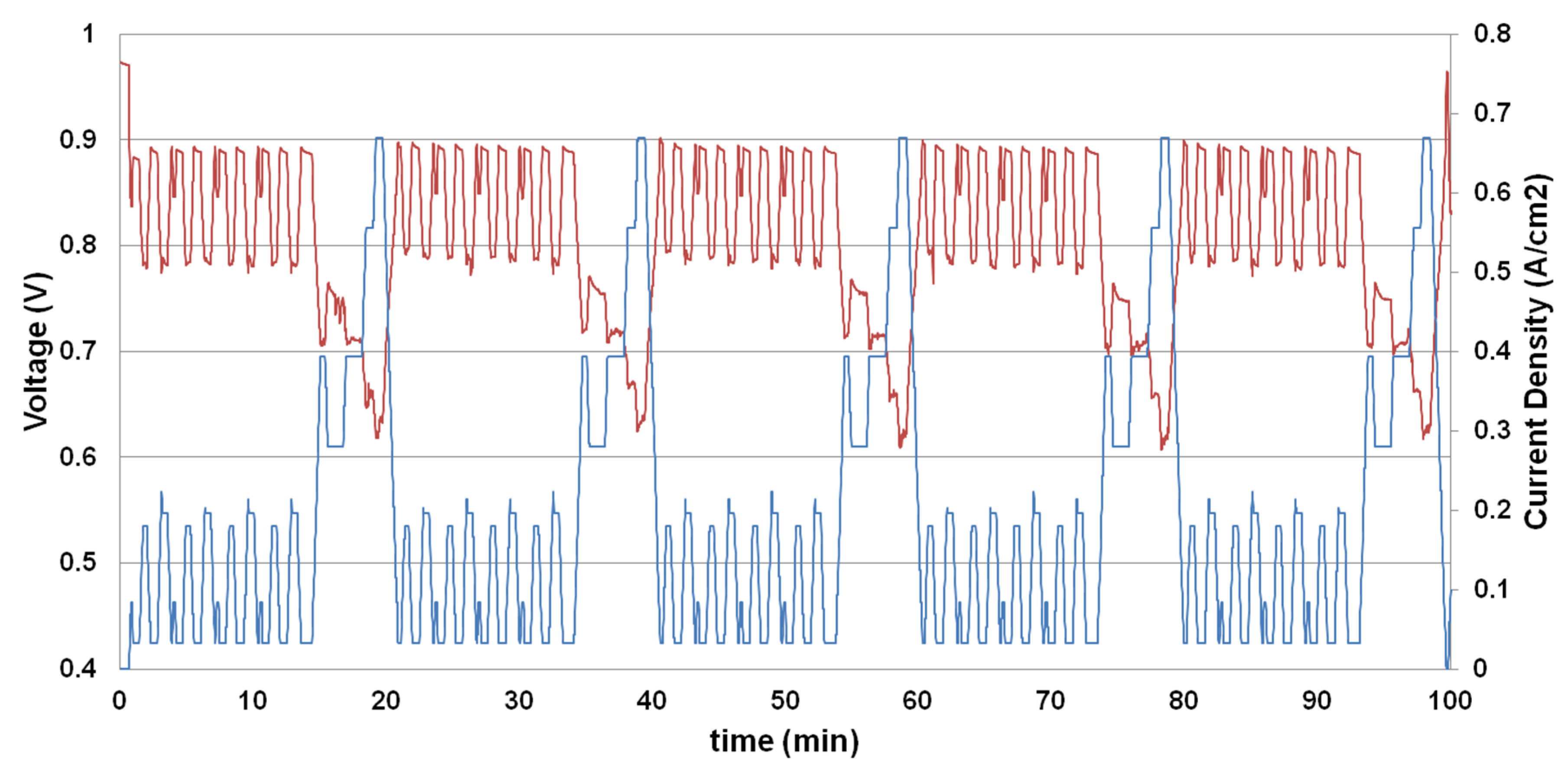

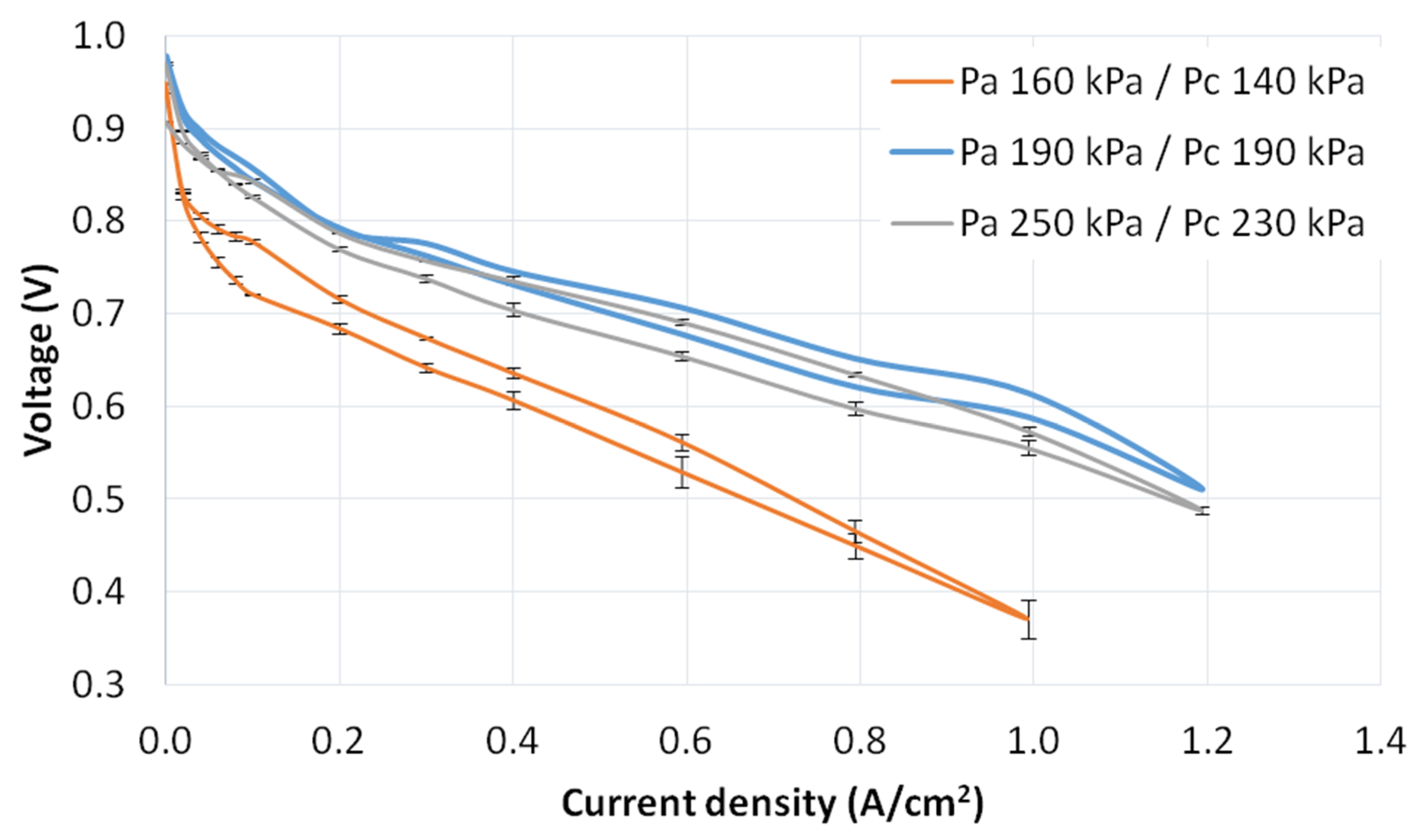

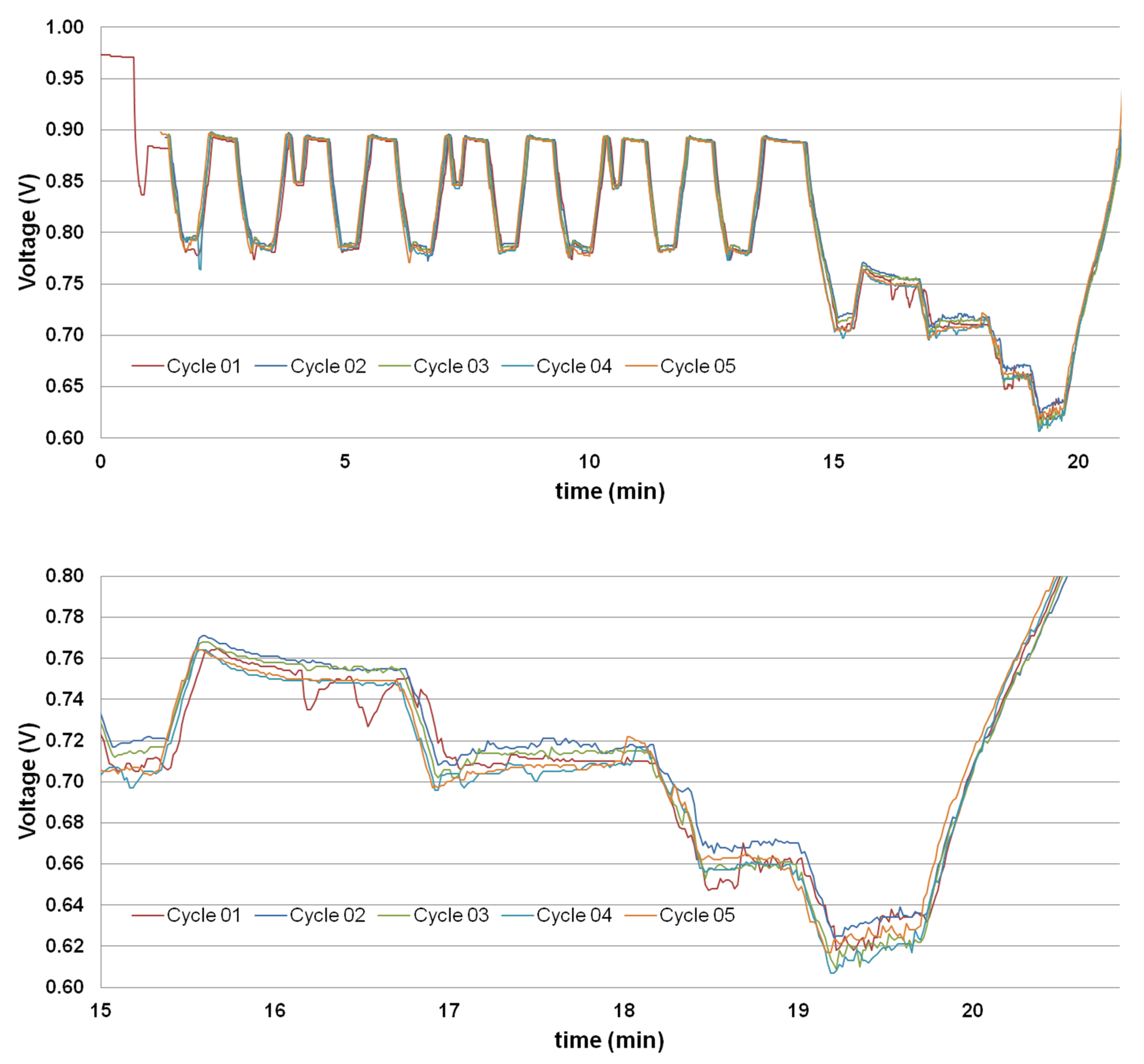

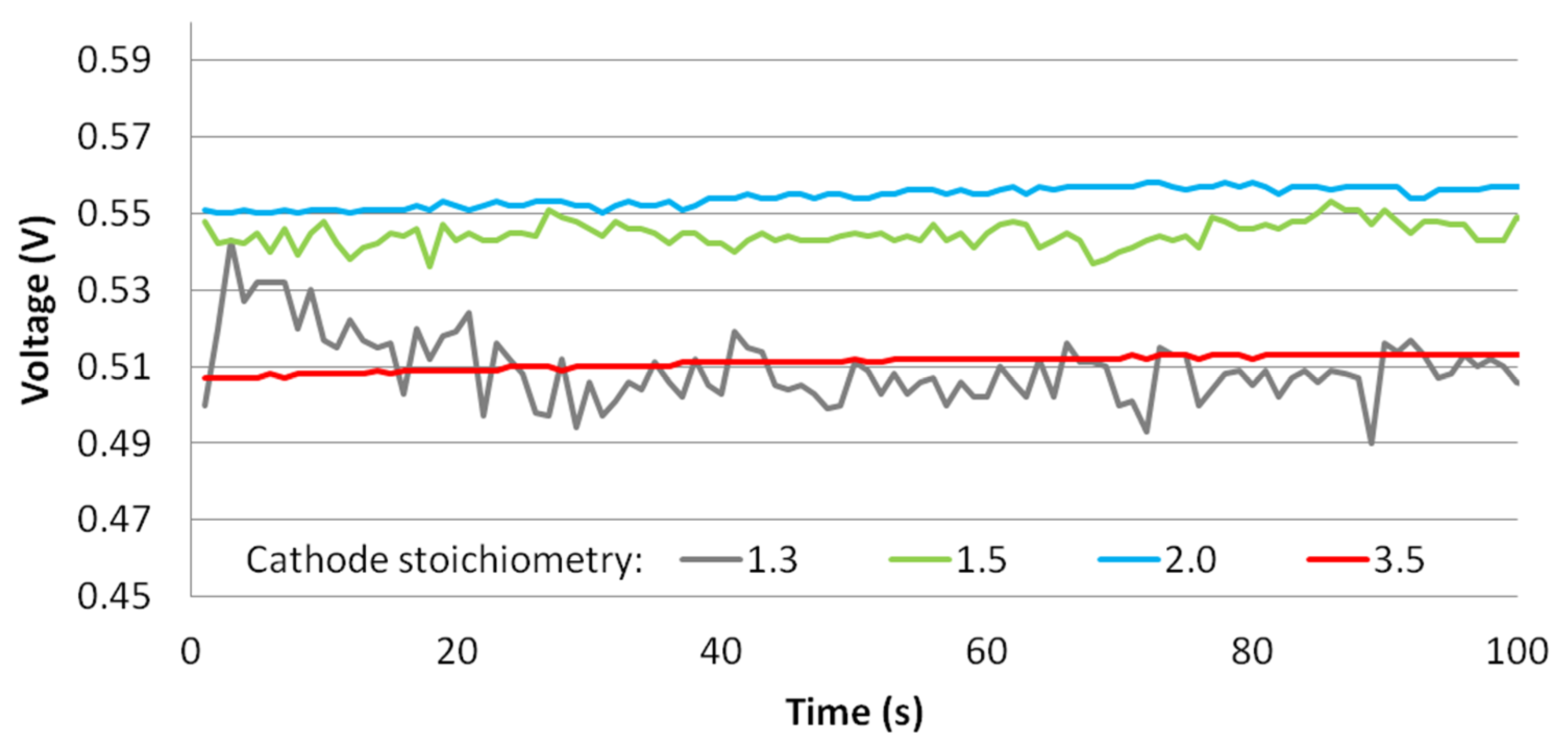

In this work, a comprehensive experimental analysis on the performance of a 50 cm2 polymer electrolyte membrane (PEM) fuel cell is presented, including experimental results for a dedicated load cycling test. The harmonized testing protocols defined by the Joint Research Centre (JRC) of the European Commission for automotive applications were followed. With respect to a reference conditions representative of automotive applications, the impact of variations in the cell temperature, reactants pressure, and cathode stoichiometry was analyzed. The results showed that a higher temperature resulted in an increase in cell performance. A higher operating pressure also resulted in higher cell voltages. Higher cathode stoichiometry values negatively affected the cell performance, as relatively dry air was supplied, thus promoting the dry-out of the cell. However, a too low stoichiometry caused a sudden drop in the cell voltage at higher current densities, and also caused significant cell voltage oscillations. No significant cell degradation was observed after the load cycling tests. View Full-Text
Keywords: fuel cell; polymer electrolyte membrane; polarization curve; load cycling; New European Driving Cycle fuel cell; polymer electrolyte membrane; polarization curve; load cycling; New European Driving Cycle
