# Fault Classification Decision Fusion System Based on Combination Weights and an Improved Voting Method

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Methods

#### 2.1. The AHP

- The weight vector is calculated as follows:$${W}_{i}={{W}_{i}}^{\prime}/{\displaystyle \sum _{i=1}^{n}{W}_{i}{}^{\prime}},$$$${{W}_{i}}^{\prime}=\sqrt[n]{{\displaystyle \prod _{j=1}^{n}{a}_{ij}}},\text{}i=1,\cdots ,n,$$
- Calculate the largest eigenvalue ${\lambda}_{\mathrm{max}}$ of the judgment matrix:$${\lambda}_{\mathrm{max}}=\frac{1}{n}{\displaystyle \sum _{i=1}^{n}\frac{{\left(A{w}_{d}\right)}_{i}}{{W}_{i}}}.$$
- The consistency check is performed as follows:$$CR=CI/RI,$$

#### 2.2. EW-TOPSIS

## 3. The Proposed Method

#### 3.1. Selection of Base Classifiers

#### 3.2. Classifier Performance Evaluation

#### 3.3. Formatting of Mathematical Components

## 4. Results

#### 4.1. TE Process

#### 4.2. Experiment

#### 4.3. Discussion

## 5. Conclusions

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## References

- Gao, Z.W.; Cecati, C.; Ding, S.X. A survey of fault diagnosis and fault-tolerant techniques part II: Fault diagnosis with knowledge-based and hybrid/active approaches. IEEE Trans. Ind. Electron.
**2015**, 62, 3768–3774. [Google Scholar] [CrossRef] - Tidriri, K.; Chatti, N.; Verron, S.; Tiplica, T. Bridging data-driven and model-based approaches for process fault diagnosis and health monitoring: A review of researches and future challenges. Annu. Rev. Control
**2016**, 42, 63–81. [Google Scholar] [CrossRef] - Zeng, L.; Long, W.; Li, Y. A novel method for gas turbine condition monitoring based on KPCA and analysis of statistics T
^{2}and SPE. Processes**2019**, 7, 124. [Google Scholar] [CrossRef] - Wu, X.; Gao, Y.; Jiao, D. Multi-label classification based on random forest algorithm for non-intrusive load monitoring system. Processes
**2019**, 7, 337. [Google Scholar] [CrossRef] - Dasarathy, B.V.; Sheela, B.V. A composite classifier system design: Concepts and methodology. Proc. IEEE
**1979**, 67, 708–713. [Google Scholar] [CrossRef] - Polikar, R. Ensemble based systems in decision making. IEEE Circuits Syst. Mag.
**2006**, 6, 21–45. [Google Scholar] [CrossRef] - Qu, J.; Zhang, Z.; Gong, T. A novel intelligent method for mechanical fault diagnosis based on dual-tree complex wavelet packet transform and multiple classifier fusion. Neurocomputing
**2016**, 171, 837–853. [Google Scholar] [CrossRef] - Moradi, M.; Chaibakhsh, A.; Ramezani, A. An intelligent hybrid technique for fault detection and condition monitoring of a thermal power plant. Appl. Math. Model.
**2018**, 60, 34–47. [Google Scholar] [CrossRef] - Pashazadeh, V.; Salmasi, F.R.; Araabi, B.N. Data driven sensor and actuator fault detection and isolation in wind turbine using classifier fusion. Renew. Energy
**2018**, 116, 99–106. [Google Scholar] [CrossRef] - Kannatey-Asibu, E.; Yum, J.; Kim, T.H. Monitoring tool wear using classifier fusion. Mech. Syst. Signal Proc.
**2017**, 85, 651–661. [Google Scholar] [CrossRef][Green Version] - Ng, Y.S.; Srinivasan, R. Multi-agent based collaborative fault detection and identification in chemical processes. Eng. Appl. Artif. Intell.
**2010**, 23, 934–949. [Google Scholar] [CrossRef] - Chen, Y.; Cremers, A.B.; Cao, Z. Interactive color image segmentation via iterative evidential labeling. Inf. Fusion
**2014**, 20, 292–304. [Google Scholar] [CrossRef] - Lin, Y.; Wang, C.; Ma, C.; Dou, Z.; Ma, X. A new combination method for multisensor conflict information. J. Supercomput.
**2016**, 72, 2874–2890. [Google Scholar] [CrossRef] - Liu, Y.; Ni, W.; Ge, Z. Fuzzy decision fusion system for fault classification with analytic hierarchy process approach. Chemom. Intell. Lab. Syst.
**2017**, 166, 61–68. [Google Scholar] [CrossRef] - Ge, Z.; Liu, Y. Analytic hierarchy process based fuzzy decision fusion system for model prioritization and process monitoring application. IEEE Trans. Ind. Inform.
**2019**, 15, 357–365. [Google Scholar] [CrossRef] - Saaty, T.L. How to make a decision: The analytic hierarchy process. Eur. J. Oper. Res.
**1990**, 48, 9–26. [Google Scholar] [CrossRef] - Shi, L.; Shuai, J.; Xu, K. Fuzzy fault tree assessment based on improved AHP for fire and explosion accidents for steel oil storage tanks. J. Hazard. Mater.
**2014**, 278, 529–538. [Google Scholar] [CrossRef] - Tang, Y.; Sun, H.; Yao, Q.; Wang, Y. The selection of key technologies by the silicon photovoltaic industry based on the Delphi method and AHP (analytic hierarchy process): Case study of China. Energy
**2014**, 75, 474–482. [Google Scholar] [CrossRef] - Samuel, O.W.; Asogbon, G.M.; Sangaiah, A.K.; Fang, P.; Li, G. An integrated decision support system based on ANN and Fuzzy_AHP for heart failure risk prediction. Expert Syst. Appl.
**2017**, 68, 163–172. [Google Scholar] [CrossRef] - Sara, J.; Stikkelman, R.M.; Herder, P.M. Assessing relative importance and mutual influence of barriers for CCS deployment of the ROAD project using AHP and DEMATEL methods. Int. J. Greenh. Gas Control
**2015**, 41, 336–357. [Google Scholar] [CrossRef] - Kumar, R.; Anbalagan, R. Landslide susceptibility mapping using analytical hierarchy process (AHP) in Tehri reservoir rim region, Uttarakhand. J. Geol. Soc. India
**2016**, 87, 271–286. [Google Scholar] [CrossRef] - Wang, T.; Chen, J.S.; Wang, T.; Wang, S. Entropy weight-set pair analysis based on tracer techniques for dam leakage investigation. Nat. Hazards
**2015**, 76, 747–767. [Google Scholar] [CrossRef] - Schneider, E.R.F.A.; Krohling, R.A. A hybrid approach using TOPSIS, Differential Evolution, and Tabu Search to find multiple solutions of constrained non-linear integer optimization problems. Knowl. Based Syst.
**2014**, 62, 47–56. [Google Scholar] [CrossRef] - He, Y.H.; Wang, L.B.; He, Z.Z.; Xie, M. A fuzzy TOPSIS and rough set based approach for mechanism analysis of product infant failure. Eng. Appl. Artif. Intell.
**2016**, 47, 25–37. [Google Scholar] [CrossRef] - Patil, S.K.; Kant, R. A fuzzy AHP-TOPSIS framework for ranking the solutions of Knowledge Management adoption in Supply Chain to overcome its barriers. Expert Syst. Appl.
**2014**, 41, 679–693. [Google Scholar] [CrossRef] - Wu, J.; Li, P.; Qian, H.; Chen, J. On the sensitivity of entropy weight to sample statistics in assessing water quality: Statistical analysis based on large stochastic samples. Environ. Earth Sci.
**2015**, 74, 2185–2195. [Google Scholar] [CrossRef] - Ji, Y.; Huang, G.; Sun, W. Risk assessment of hydropower stations through an integrated fuzzy entropy-weight multiple criteria decision making method: A case study of the Xiangxi River. Expert Syst. Appl.
**2015**, 42, 5380–5389. [Google Scholar] [CrossRef] - Yan, J.; Feng, C.; Li, L. Sustainability assessment of machining process based on extension theory and entropy weight approach. Int. J. Adv. Manuf. Technol.
**2014**, 71, 1419–1431. [Google Scholar] [CrossRef] - Kou, G.; Peng, Y.; Wang, G. Evaluation of clustering algorithms for financial risk analysis using MCDM methods. Inf. Sci.
**2014**, 275, 1–12. [Google Scholar] [CrossRef] - Nyimbili, P.; Erden, T.; Karaman, H. Integration of GIS, AHP and TOPSIS for earthquake hazard analysis. Nat. Hazards
**2018**, 92, 1523–1546. [Google Scholar] [CrossRef] - Downs, J.J.; Vogel, E.F. A plant-wide industrial process control problem. Comput. Chem. Eng.
**1993**, 17, 245–255. [Google Scholar] [CrossRef] - Russell, E.L.; Chiang, L.H.; Braatz, R.D. Data-Driven Techniques for Fault Detection and Diagnosis in Chemical Processes; Springer: London, UK, 2000. [Google Scholar]

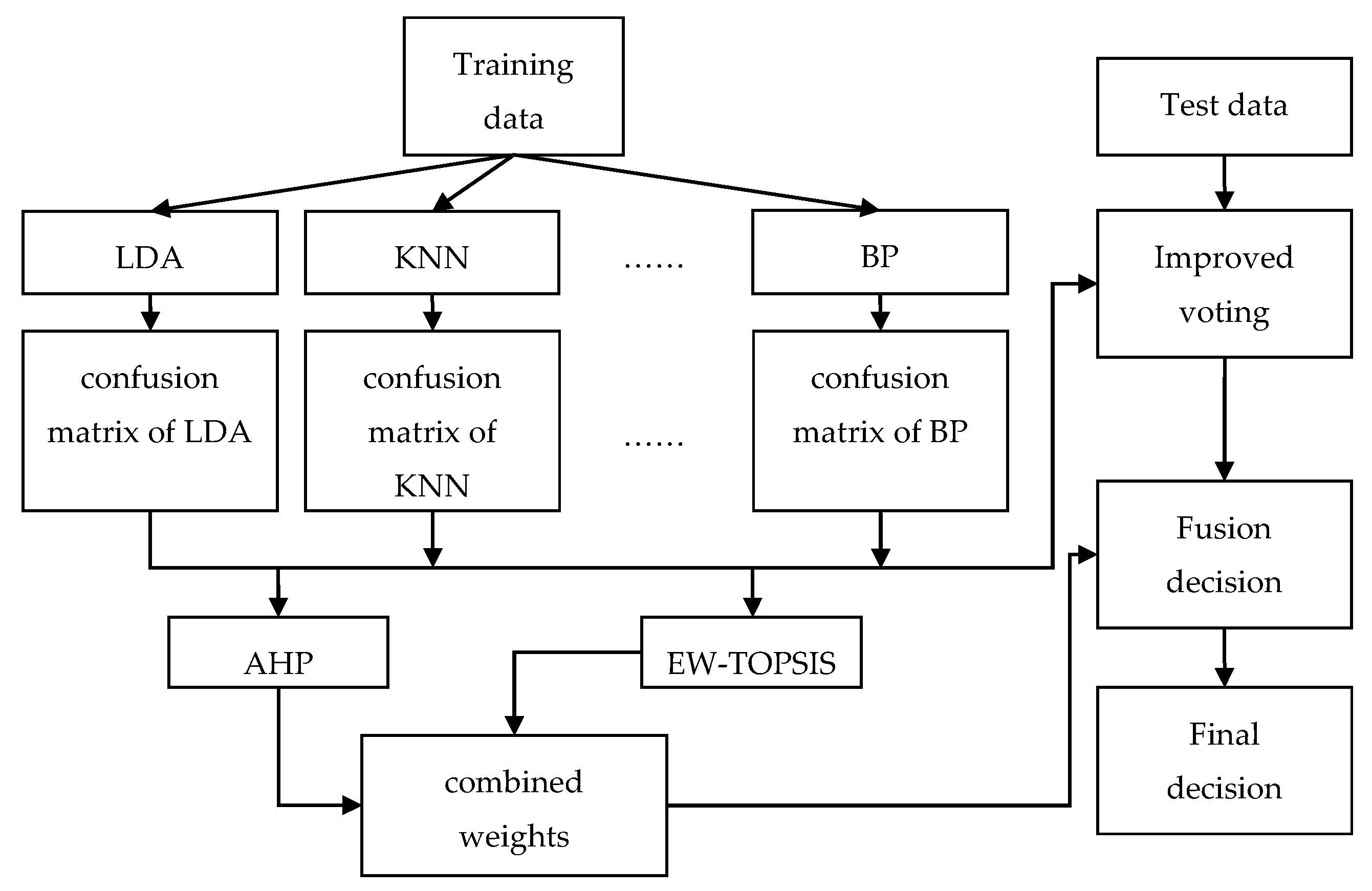

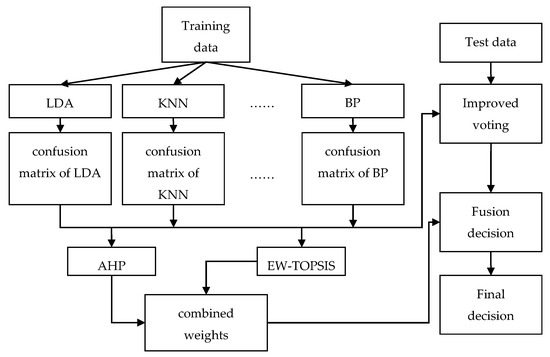

**Figure 1.**Decision fusion system based on combination weights and the improved voting method. AHP: analytic Hierarchy Process; BP: BP neural network; EW-TOPSIS: entropy weight-technique for order performance by similarity to ideal solution; KNN: K-nearest neighbor; LDA: linear discriminant analysis.

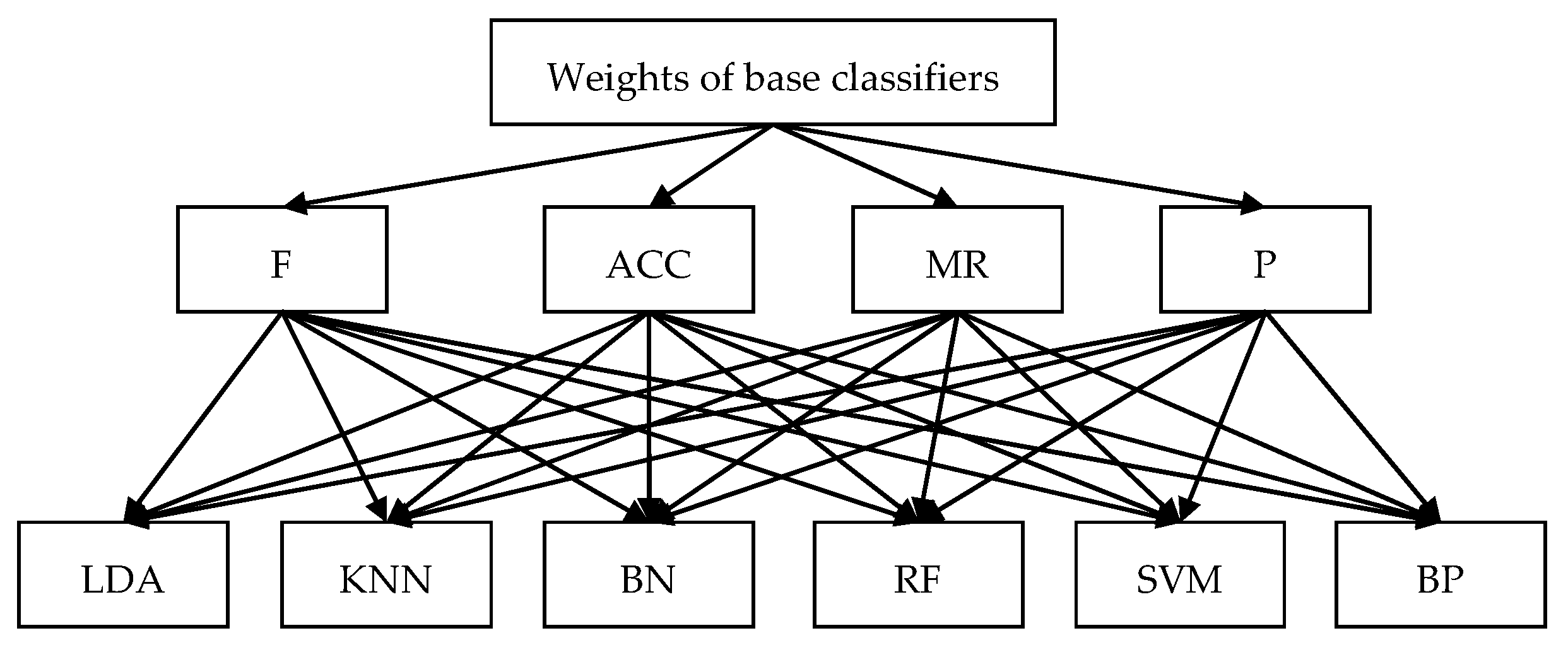

**Figure 2.**Hierarchy of the AHP. BN: Bayesian classifier; RF: random forest; F: F-value; ACC: Accuracy; MR: Missing Rate; P: Precision.

Importance Scale | Description |
---|---|

1 | Two factors are equally important |

3 | The first factor is slightly more important than the second factor |

5 | The first factor is very important relative to the second factor |

7 | The first factor is absolutely very important compared with the second factor |

9 | The first factor is extremely important compared with the second factor |

2, 4, 6, 8 | Median between adjacent scales |

n | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
---|---|---|---|---|---|---|---|---|

RI | 0 | 0 | 0.58 | 0.90 | 1.12 | 1.24 | 1.32 | 1.41 |

Indicators | F | ACC | MR | P | Weights |
---|---|---|---|---|---|

F | 1 | 2 | 2 | 3 | 0.4236 |

ACC | 1/2 | 1 | 1 | 2 | 0.2270 |

MR | 1/2 | 1 | 1 | 2 | 0.2270 |

P | 1/3 | 1/2 | 1/2 | 1 | 0.1223 |

Fault No. | LDA | KNN | BN | RF | SVM | BP | VOTE | IVM | CWM | ETIVM | AIVM | CWIVM |
---|---|---|---|---|---|---|---|---|---|---|---|---|

1 | 98 | 98.13 | 98.63 | 98.5 | 98.63 | 98.63 | 98.88 | 99.13 | 98.88 | 99.13 | 98.88 | 98.88 |

2 | 96.25 | 97.5 | 98.25 | 98 | 97.88 | 98.75 | 98.38 | 99 | 98.25 | 98.38 | 98.25 | 98.25 |

3 | 11.25 | 21.25 | 17.25 | 17.38 | 19.13 | 0 | 24.63 | 14.25 | 17.5 | 12.63 | 11.63 | 11.38 |

4 | 81.5 | 20.75 | 73.63 | 95.13 | 89.13 | 11.13 | 97.63 | 99.5 | 94.38 | 98.63 | 98.38 | 98.38 |

5 | 98.5 | 20.5 | 98.13 | 51.63 | 98.13 | 95.38 | 99.38 | 99.13 | 99.13 | 99.13 | 98.13 | 98.88 |

6 | 99.75 | 99.75 | 56.38 | 99.38 | 63.13 | 33.88 | 100 | 100 | 100 | 100 | 63.13 | 100 |

7 | 100 | 80.38 | 100 | 99.75 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 |

8 | 37.13 | 28.75 | 96.5 | 53.25 | 34 | 54.63 | 71.88 | 78 | 83 | 90.38 | 96.13 | 95.25 |

9 | 14.25 | 13 | 21.63 | 17.25 | 15.75 | 0 | 19.13 | 7.88 | 20.38 | 7.75 | 13.25 | 10.5 |

10 | 40.13 | 8.13 | 83.75 | 43.38 | 21.38 | 0 | 53.25 | 78.63 | 75.25 | 82 | 83.75 | 83.75 |

11 | 8.63 | 8.63 | 70.75 | 62 | 15.63 | 0 | 37.5 | 45.5 | 62.5 | 59.75 | 62.25 | 61.63 |

12 | 31.25 | 29.75 | 97.25 | 76.63 | 60.5 | 2.25 | 73.75 | 83.13 | 89 | 86.63 | 94.5 | 91.63 |

13 | 20.75 | 16.5 | 57.75 | 16.5 | 12.25 | 22.13 | 19.13 | 28.38 | 37.63 | 36.75 | 51.38 | 49.63 |

14 | 7.75 | 44.25 | 97.25 | 94 | 72.5 | 0 | 85.13 | 93.13 | 94.13 | 93.25 | 97 | 94.25 |

15 | 15 | 14.25 | 26.25 | 26 | 18.88 | 0 | 20.63 | 26.75 | 26.63 | 28.13 | 31 | 30.63 |

16 | 37.75 | 7.5 | 79.25 | 48.25 | 20.75 | 29 | 51.5 | 73.38 | 70.25 | 76.63 | 79.13 | 78.75 |

17 | 51.75 | 39.13 | 86.5 | 90.38 | 73.63 | 84.38 | 87.38 | 92.88 | 90.13 | 92.63 | 89.5 | 91.75 |

18 | 16.5 | 81.25 | 18.63 | 86.13 | 62 | 70 | 86.13 | 88.75 | 86.5 | 88.88 | 51.5 | 88.5 |

19 | 14.5 | 29.88 | 94.38 | 78.13 | 49.38 | 0 | 68 | 93.5 | 89.5 | 95.38 | 95.25 | 95.75 |

20 | 52 | 12.63 | 87.5 | 61.38 | 47.38 | 79.13 | 72.5 | 89.13 | 84.13 | 88.25 | 87.5 | 87.63 |

21 | 5.75 | 6.25 | 99.25 | 24 | 2.75 | 38 | 30 | 93.5 | 80.38 | 98.88 | 99.75 | 99.75 |

Average | 44.68 | 37.05 | 74.23 | 63.67 | 51.08 | 38.92 | 66.42 | 75.4 | 76.07 | 77.77 | 76.2 | 79.29 |
