# Temporal Mixing Behavior of Conservative Solute Transport through 2D Self-Affine Fractures

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Methodology

#### 2.1. Fracture Generation

#### 2.2. Computational Fluid Dynamics (CFD) Simulations of the Flow Field and Solute Transport in Single Rough Fractures

#### 2.3. Mixing: Scalar Dissipation Rate (SDR)

## 3. Results and Discussion

#### 3.1. Model Setup

^{3}and $\mu $ = 1.002 × 10

^{−3}Pa∙s) was used to saturate the void space in the fractures. The typical conservative solute transport (e.g., ${\mathrm{Cl}}^{-}$ in water) and the corresponding ${D}_{m}=2.03\times {10}^{-9}{\mathrm{m}}^{2}/\mathrm{s}$ were assumed depending on the reference of [47]. The matrix of the fracture was assumed impermeable and the rough fracture walls were considered as non-slip boundaries. As background flow, the steady-state flow was induced by a given pressure drop over the entire fracture. The solved flow field serves as the input for the transient solute transport model. The flow field and transient solute transport models based on Equations (10)–(16) were implemented in the COMSOL Multiphysics package version 5.2 (COMSOL Inc., Burlington, MA, USA) using the Galerkin finite-element method [48]. In order to ensure numerical stability and accuracy, the fracture domain was discretized into ~152,000 triangular elements. The number of triangular elements was determined by the mesh independence analysis. Under the same pressure gradient ($-\nabla p=185\mathrm{Pa}/\mathrm{m}$), the steady-state flow rate changes about 0.95% (from 9.550 $\times {10}^{-4}{\mathrm{m}}^{3}/\mathrm{s}$ to 9.641 $\times {10}^{-4}{\mathrm{m}}^{3}/\mathrm{s}$) as the number of triangular elements increases by about 104% (from 152,000 to 310,000). This indicates that 152,000 triangular elements are sufficient to provide stable and accurate numerical results.

#### 3.2. Influence of the Roughness of Fracture Walls on the Temporal Behavior of the Global SDR

#### 3.3. Validity of Predicting Global SDR from the Longitudinal SDR

## 4. Summary and Conclusions

## Author Contributions

## Funding

## Conflicts of Interest

## Nomenclature

$b\left(x\right)$ | The local aperture of the fracture |

$\overline{b}$ | The distance normal to the mean plane |

$c$ | The solute concentration |

$\overline{c}\left(x,t\right)$ | The mean longitudinal concentration projected in the transverse direction |

${d}_{0}$ | The shear displacement distance along the horizontal direction |

${D}_{m}$ | The molecular diffusion coefficient |

$H$ | Hurst exponent |

${h}_{x}$ | The horizontal distance |

L | The length of the whole fracture |

$\Delta L$ | The width of injected solute |

${m}_{0}$ | The mass of injected solute |

${M}^{2}\left(t\right)$ | The concentration second moment |

n | The normal direction to the outlet boundary |

$Pe$ | Peclet number |

$p$ | The fluid pressure |

${S}_{1}\left(x\right)$ | The top fracture wall |

${S}_{2}\left(x\right)$ | The bottom fracture wall |

$t$ | Time |

$\mathit{u}$ | The velocity vector |

W | The width of fracture in the out of plane direction |

${x}_{L}^{*}$ | The initial injection location of the solute mass |

$Z\left(x\right)$ | A function of independent variable $x$ |

$\lambda $ | Scaling factor |

$\mu $ | The dynamic viscosity |

$\rho $ | The density of fluid |

${\sigma}^{2}\left(\lambda \right)$ | The variance |

${\sigma}_{\lambda {h}_{x}}^{2}$ | The variance of increments with the distances $\lambda {h}_{x}$ |

${\sigma}_{{h}_{x}}^{2}$ | The variance of increments with the distances $\lambda $ |

${\sigma}_{b}$ | The standard deviation of the aperture |

${\tau}_{D}$ | The CHARACTERISTIC diffusion time |

${\tau}_{a}$ | The characteristic advection time |

$\chi \left(t\right)$ | The scalar dissipation rate |

${\chi}_{0}\left(t\right)$ | The analytical 1D SDR solution |

## References

- Berkowitz, B.; Cortis, A.; Dentz, M.; Scher, H. Modeling non-fickian transport in geological formations as a continuous time random walk. Rev. Geophys.
**2006**, 44. [Google Scholar] [CrossRef] - Dentz, M.; Le Borgne, T.; Englert, A.; Bijeljic, B. Mixing, spreading and reaction in heterogeneous media: A brief review. J. Contam. Hydrol.
**2011**, 120–121, 1–17. [Google Scholar] [CrossRef] [PubMed] - Rolle, M.; Kitanidis, P.K. Effects of compound-specific dilution on transient transport and solute breakthrough: A pore-scale analysis. Adv. Water Resour.
**2014**, 71, 186–199. [Google Scholar] [CrossRef] - Cai, J.; Hu, X.; Xiao, B.; Zhou, Y.; Wei, W. Recent developments on fractal-based approaches to nanofluids and nanoparticle aggregation. Int. J. Heat Mass Transf.
**2017**, 105, 623–637. [Google Scholar] [CrossRef] [Green Version] - Dou, Z.; Zhou, Z.; Wang, J.; Liu, J. Pore-scale modeling of mixing-induced reaction transport through a single self-affine fracture. Geofluids
**2018**, 2018, 9095143. [Google Scholar] [CrossRef] - Liu, R.; Li, B.; Jiang, Y.; Yu, L. A numerical approach for assessing effects of shear on equivalent permeability and nonlinear flow characteristics of 2-d fracture networks. Adv. Water Resour.
**2018**, 111, 289–300. [Google Scholar] [CrossRef] - Bolster, D.; Valdés-Parada, F.J.; LeBorgne, T.; Dentz, M.; Carrera, J. Mixing in confined stratified aquifers. J. Contam. Hydrol.
**2011**, 120–121, 198–212. [Google Scholar] [CrossRef] [PubMed] - Chiogna, G.; Cirpka, O.A.; Herrera, P.A. Helical flow and transient solute dilution in porous media. Trans. Porous Media
**2016**, 111, 591–603. [Google Scholar] [CrossRef] - Dentz, M.; Carrera, J. Mixing and spreading in stratified flow. Phys. Fluids
**2007**, 19, 017107. [Google Scholar] [CrossRef] - Dreuzy, J.-R.D.; Carrera, J. On the validity of effective formulations for transport through heterogeneous porous media. Hydrol. Earth Syst. Sci.
**2016**, 20, 1319–1330. [Google Scholar] [CrossRef] [Green Version] - Kapoor, V.; Kitanidis, P.K. Concentration fluctuations and dilution in aquifers. Water Resour. Res.
**1998**, 34, 1181–1193. [Google Scholar] [CrossRef] [Green Version] - Kitanidis, P.K. The concept of the dilution index. Water Resour. Res.
**1994**, 30, 2011–2026. [Google Scholar] [CrossRef] - Le Borgne, T.; Dentz, M.; Villermaux, E. Stretching, coalescence, and mixing in porous media. Phys. Rev. Lett.
**2013**, 110, 204501. [Google Scholar] [CrossRef] [PubMed] - Rolle, M.; Eberhardt, C.; Chiogna, G.; Cirpka, O.A.; Grathwohl, P. Enhancement of dilution and transverse reactive mixing in porous media: Experiments and model-based interpretation. J. Contam. Hydrol.
**2009**, 110, 130–142. [Google Scholar] [CrossRef] [PubMed] - Tartakovsky, A.M.; Tartakovsky, G.D.; Scheibe, T.D. Effects of incomplete mixing on multicomponent reactive transport. Adv. Water Resour.
**2009**, 32, 1674–1679. [Google Scholar] [CrossRef] - Cirpka, O.A.; Kitanidis, P.K. Characterization of mixing and dilution in heterogeneous aquifers by means of local temporal moments. Water Resour. Res.
**2000**, 36, 1221–1236. [Google Scholar] [CrossRef] [Green Version] - Dou, Z.; Zhou, Z.-F.; Wang, J.-G. Three-dimensional analysis of spreading and mixing of miscible compound in heterogeneous variable-aperture fracture. Water Sci. Eng.
**2016**, 9, 293–299. [Google Scholar] [CrossRef] - Cirpka, O.A. Choice of dispersion coefficients in reactive transport calculations on smoothed fields. J. Contam. Hydrol.
**2002**, 58, 261–282. [Google Scholar] [CrossRef] - Dou, Z.; Chen, Z.; Zhou, Z.; Wang, J.; Huang, Y. Influence of eddies on conservative solute transport through a 2d single self-affine fracture. Int. J. Heat Mass Transf.
**2018**, 121, 597–606. [Google Scholar] [CrossRef] - Dou, Z.; Zhou, Z.; Wang, J.; Huang, Y. Roughness scale dependence of the relationship between tracer longitudinal dispersion and peclet number in variable-aperture fractures. Hydrol. Process.
**2018**, 32, 1461–1475. [Google Scholar] [CrossRef] - Dreuzy, J.R.; Carrera, J.; Dentz, M.; Le Borgne, T. Time evolution of mixing in heterogeneous porous media. Water Resour. Res.
**2012**, 48, W06511. [Google Scholar] [CrossRef] - De Simoni, M.; Carrera, J.; Sánchez-Vila, X.; Guadagnini, A. A procedure for the solution of multicomponent reactive transport problems. Water Resour. Res.
**2005**, 41, 1–17. [Google Scholar] [CrossRef] - Aris, R. On the dispersion of a solute in a fluid flowing through a tube. Proc. R. Soc. Lond. A Math. Phys. Eng. Sci.
**1956**, 235, 67–77. [Google Scholar] [CrossRef] - Detwiler, R.L.; Rajaram, H.; Glass, R.J. Solute transport in variable-aperture fractures: An investigation of the relative importance of Taylor dispersion and macrodispersion. Water Resour. Res.
**2000**, 36, 1611–1625. [Google Scholar] [CrossRef] [Green Version] - Freyberg, D.L. A natural gradient experiment on solute transport in a sand aquifer: 2. Spatial moments and the advection and dispersion of nonreactive tracers. Water Resour. Res.
**1986**, 22, 2031–2046. [Google Scholar] [CrossRef] - Rolle, M.; Hochstetler, D.; Chiogna, G.; Kitanidis, P.K.; Grathwohl, P. Experimental investigation and pore-scale modeling interpretation of compound-specific transverse dispersion in porous media. Trans. Porous Media
**2012**, 93, 347–362. [Google Scholar] [CrossRef] - Chiogna, G.; Hochstetler, D.L.; Bellin, A.; Kitanidis, P.K.; Rolle, M. Mixing, entropy and reactive solute transport. Geophys. Res. Lett.
**2012**, 39. [Google Scholar] [CrossRef] [Green Version] - Rolle, M.; Chiogna, G.; Hochstetler, D.L.; Kitanidis, P.K. On the importance of diffusion and compound-specific mixing for groundwater transport: An investigation from pore to field scale. J. Contam. Hydrol.
**2013**, 153, 51–68. [Google Scholar] [CrossRef] [PubMed] - Miralles-Wilhelm, F.; Gelhar, L.W. Stochastic analysis of oxygen-limited biodegradation in heterogeneous aquifers with transient microbial dynamics. J. Contam. Hydrol.
**2000**, 42, 69–97. [Google Scholar] [CrossRef] - Kapoor, V.; Gelhar, L.W. Transport in three-dimensionally heterogeneous aquifers: 1. Dynamics of concentration fluctuations. Water Resour. Res.
**1994**, 30, 1775–1788. [Google Scholar] [CrossRef] - Le Borgne, T.; Dentz, M.; Bolster, D.; Carrera, J.; de Dreuzy, J.-R.; Davy, P. Non-fickian mixing: Temporal evolution of the scalar dissipation rate in heterogeneous porous media. Adv. Water Resour.
**2010**, 33, 1468–1475. [Google Scholar] [CrossRef] - Engdahl, N.B.; Ginn, T.R.; Fogg, G.E. Scalar dissipation rates in non-conservative transport systems. J. Contam. Hydrol.
**2013**, 149, 46–60. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Jha, B.; Cueto-Felgueroso, L.; Juanes, R. Quantifying mixing in viscously unstable porous media flows. Phys. Rev. E
**2011**, 84, 066312. [Google Scholar] [CrossRef] [PubMed] - Cardenas, M.B.; Slottke, D.T.; Ketcham, R.A.; Sharp, J.M. Navier-stokes flow and transport simulations using real fractures shows heavy tailing due to eddies. Geophys. Res. Lett.
**2007**, 34. [Google Scholar] [CrossRef] - Cardenas, M.B.; Slottke, D.T.; Ketcham, R.A.; Sharp, J.M. Effects of inertia and directionality on flow and transport in a rough asymmetric fracture. J. Geophys. Res.
**2009**, 114. [Google Scholar] [CrossRef] [Green Version] - Wang, L.; Cardenas, M.B. Non-fickian transport through two-dimensional rough fractures: Assessment and prediction. Water Resour. Res.
**2014**, 50, 871–884. [Google Scholar] [CrossRef] - Wang, L.; Cardenas, M.B. An efficient quasi-3d particle tracking-based approach for transport through fractures with application to dynamic dispersion calculation. J. Contam. Hydrol.
**2015**, 179, 47–54. [Google Scholar] [CrossRef] [PubMed] - Kang, P.K.; Brown, S.; Juanes, R. Emergence of anomalous transport in stressed rough fractures. Earth Planet. Sci. Lett.
**2016**, 454, 46–54. [Google Scholar] [CrossRef] [Green Version] - Mandelbrot, B.B. The Fractal Geometry of Nature; Macmillan: San Francisco, CA, USA, 1983; Volume 173. [Google Scholar]
- Dou, Z.; Zhou, Z.; Sleep, B.E. Influence of wettability on interfacial area during immiscible liquid invasion into a 3d self-affine rough fracture: Lattice boltzmann simulations. Adv. Water Resour.
**2013**, 61, 1–11. [Google Scholar] [CrossRef] - Mondal, P.K.; Sleep, B.E. Colloid transport in dolomite rock fractures: Effects of fracture characteristics, specific discharge, and ionic strength. Environ. Sci. Technol.
**2012**, 46, 9987–9994. [Google Scholar] [CrossRef] [PubMed] - Tatone, B.S.; Grasselli, G. A method to evaluate the three-dimensional roughness of fracture surfaces in brittle geomaterials. Rev. Sci. Instrum.
**2009**, 80, 125110. [Google Scholar] [CrossRef] [PubMed] - Develi, K.; Babadagli, T. Quantification of natural fracture surfaces using fractal geometry. Math. Geol.
**1998**, 30, 971–998. [Google Scholar] [CrossRef] - Wang, J.S.Y.; Narasimhan, T.N.; Scholz, C.H. Aperture correlation of a fractal fracture. J. Geophys. Res. Solid Earth
**1988**, 93, 2216–2224. [Google Scholar] [CrossRef] - Liu, R.; Jiang, Y.; Jing, H.; Yu, L. Nonlinear flow characteristics of a system of two intersecting fractures with different apertures. Processes
**2018**, 6, 94. [Google Scholar] [CrossRef] - Bolster, D.; Dentz, M.; Le Borgne, T. Hypermixing in linear shear flow. Water Resour. Res.
**2011**, 47. [Google Scholar] [CrossRef] [Green Version] - Li, Y.-H.; Gregory, S. Diffusion of ions in sea water and in deep-sea sediments. Geochim. Cosmochim. Acta
**1974**, 38, 703–714. [Google Scholar] - Comsol, A. Comsol Multiphysics User’s Guide; Version 5.2; COMSOL Inc.: Stockholm, Sweden, 2015; Volume 10, p. 333. [Google Scholar]
- Werth, C.J.; Cirpka, O.A.; Grathwohl, P. Enhanced mixing and reaction through flow focusing in heterogeneous porous media. Water Resour. Res.
**2006**, 42, 1165–1173. [Google Scholar] [CrossRef] - Taylor, G. Dispersion of soluble matter in solvent flowing slowly through a tube. Proc. R. Soc. Lond. A Math. Phys. Eng. Sci.
**1953**, 219, 186–203. [Google Scholar] [CrossRef] - Bouquain, J.; Méheust, Y.; Bolster, D.; Davy, P. The impact of inertial effects on solute dispersion in a channel with periodically varying aperture. Phys. Fluids
**2012**, 24, 083602. [Google Scholar] [CrossRef] [Green Version] - Briggs, S.; Karney, B.W.; Sleep, B.E. Numerical modeling of the effects of roughness on flow and eddy formation in fractures. J. Rock Mech. Geotech. Eng.
**2017**, 9, 105–115. [Google Scholar] [CrossRef] - Jin, Y.; Dong, J.; Zhang, X.; Li, X.; Wu, Y. Scale and size effects on fluid flow through self-affine rough fractures. Int. J. Heat Mass Transf.
**2017**, 105, 443–451. [Google Scholar] [CrossRef] - Dou, Z.; Zhou, Z.-F. Lattice boltzmann simulation of solute transport in a single rough fracture. Water Sci. Eng.
**2014**, 7, 277–287. [Google Scholar]

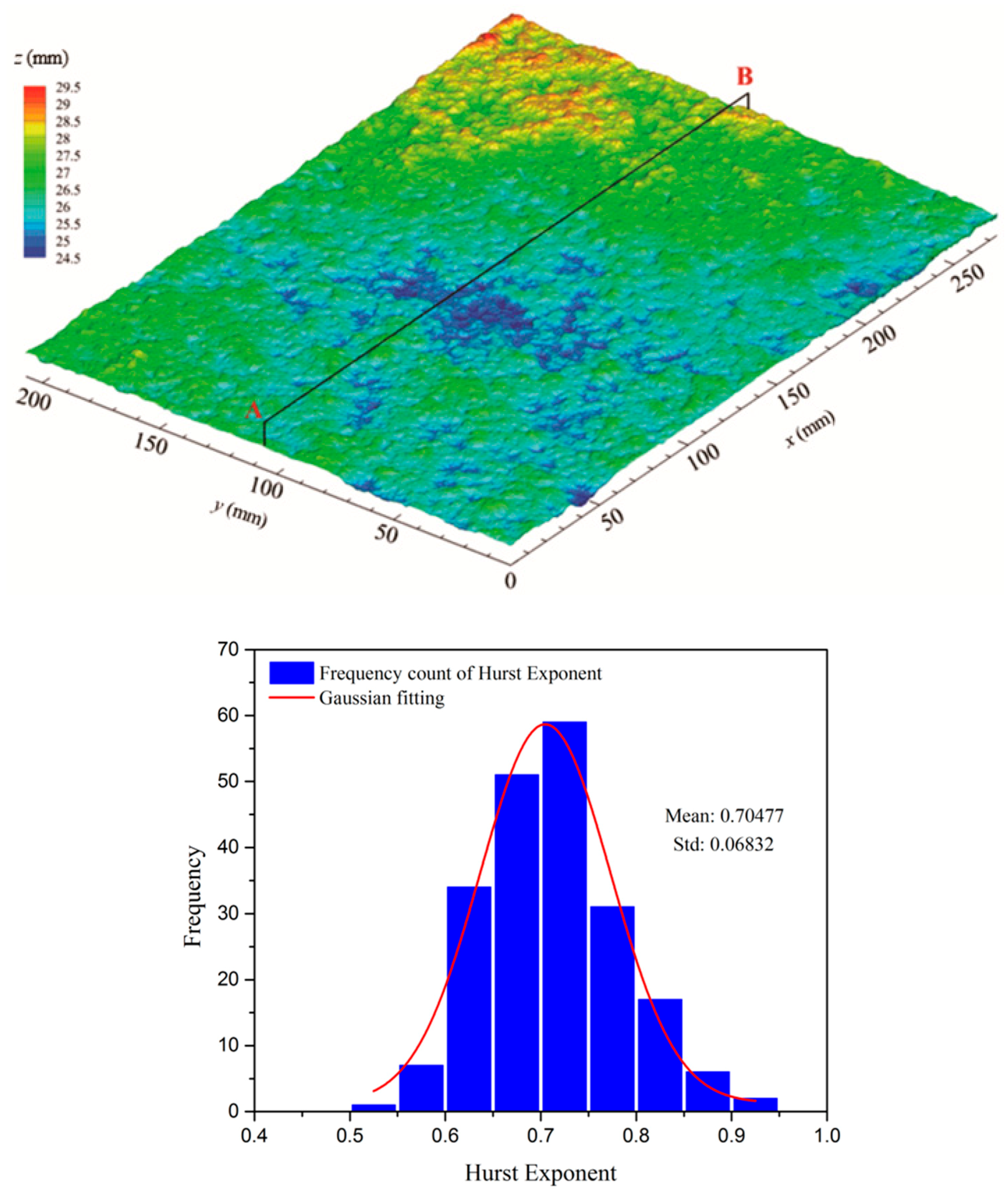

**Figure 1.**Dolomite rock fracture surface 3D profile and distribution of Hurst exponent for the different 2D profiles along the longitudinal direction.

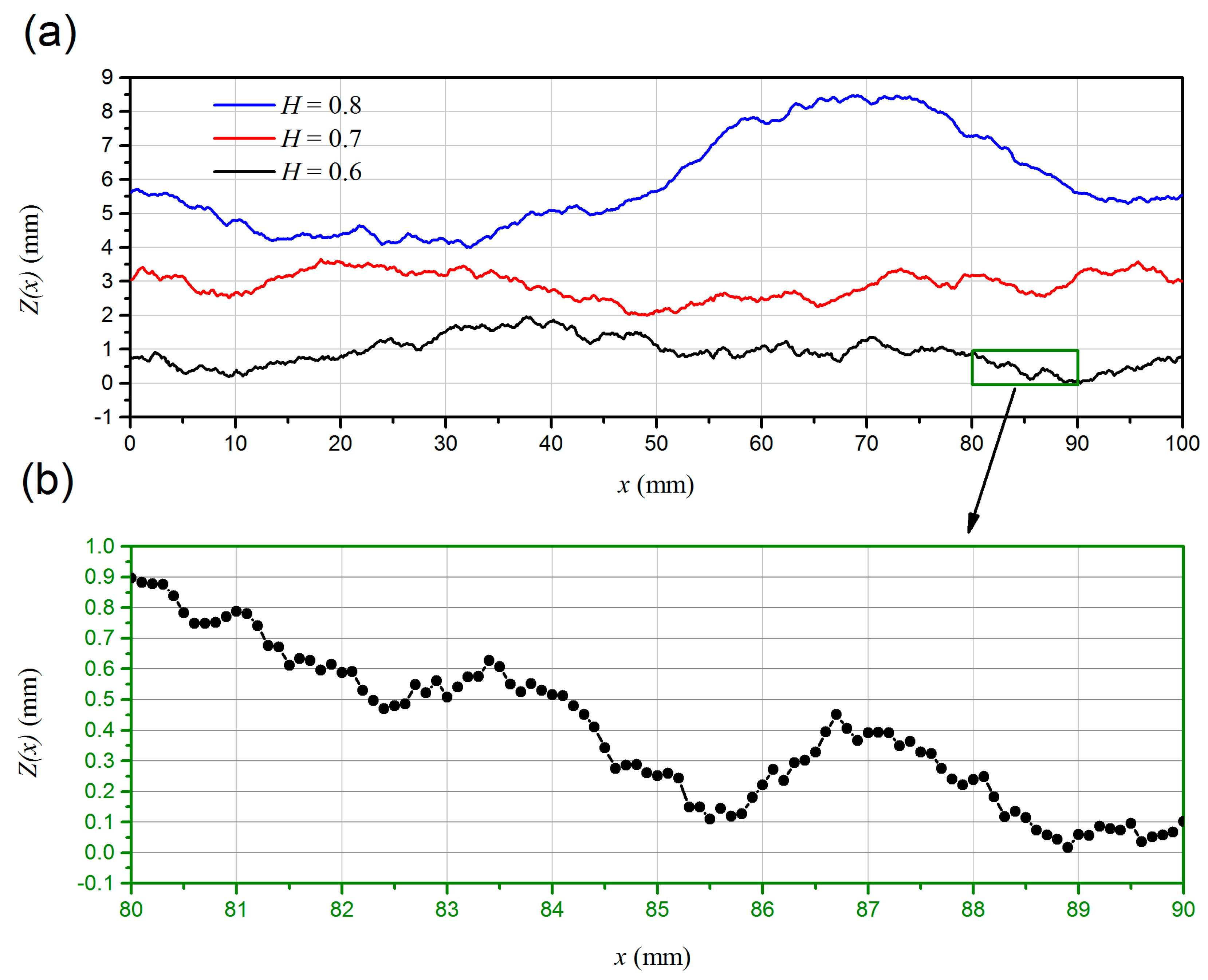

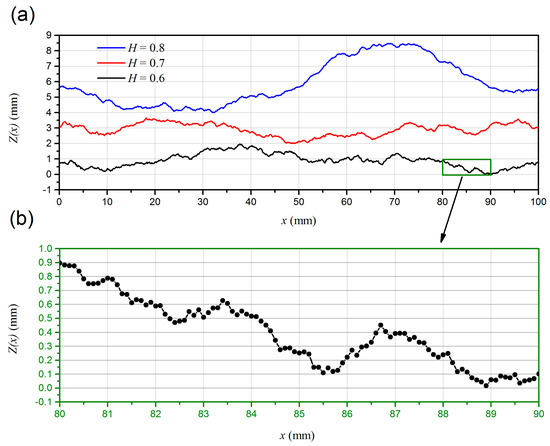

**Figure 2.**Self-affine fracture walls with the different Hurst exponents. (

**a**) The self-affine fracture walls with H = 0.6, H = 0.7, and H = 0.8, respectively. (

**b**) The zoom-in self-affine fracture wall with H = 0.6 between x = 80 mm and x = 90 mm.

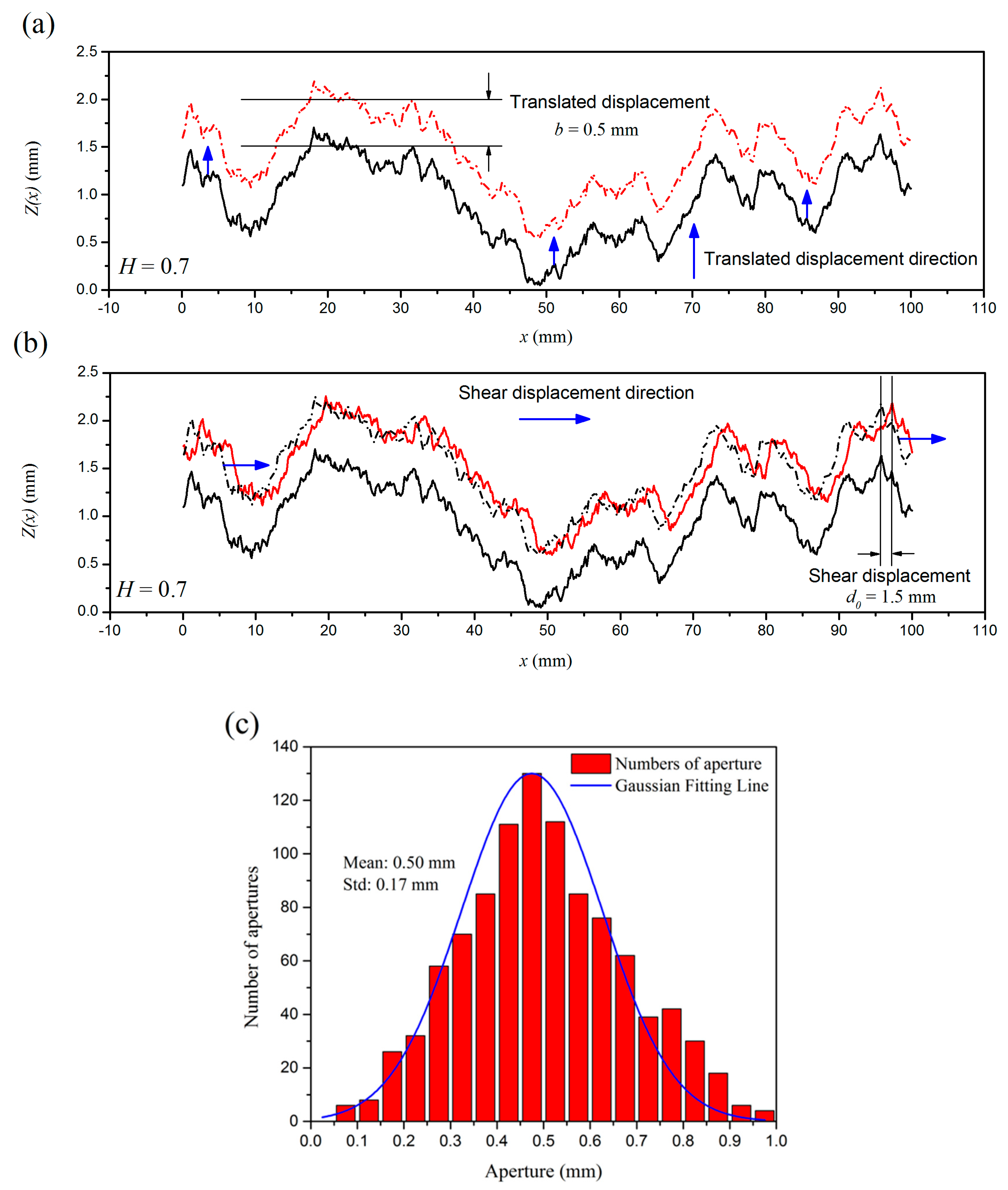

**Figure 3.**Reconstruction of aperture field in the self-affine rough fracture with H = 0.7. (

**a**) Reconstruction of constant-aperture rough fracture. (

**b**) Reconstruction of variable-aperture rough fracture. (

**c**) Gaussian distribution of aperture field for the variable-aperture rough fracture.

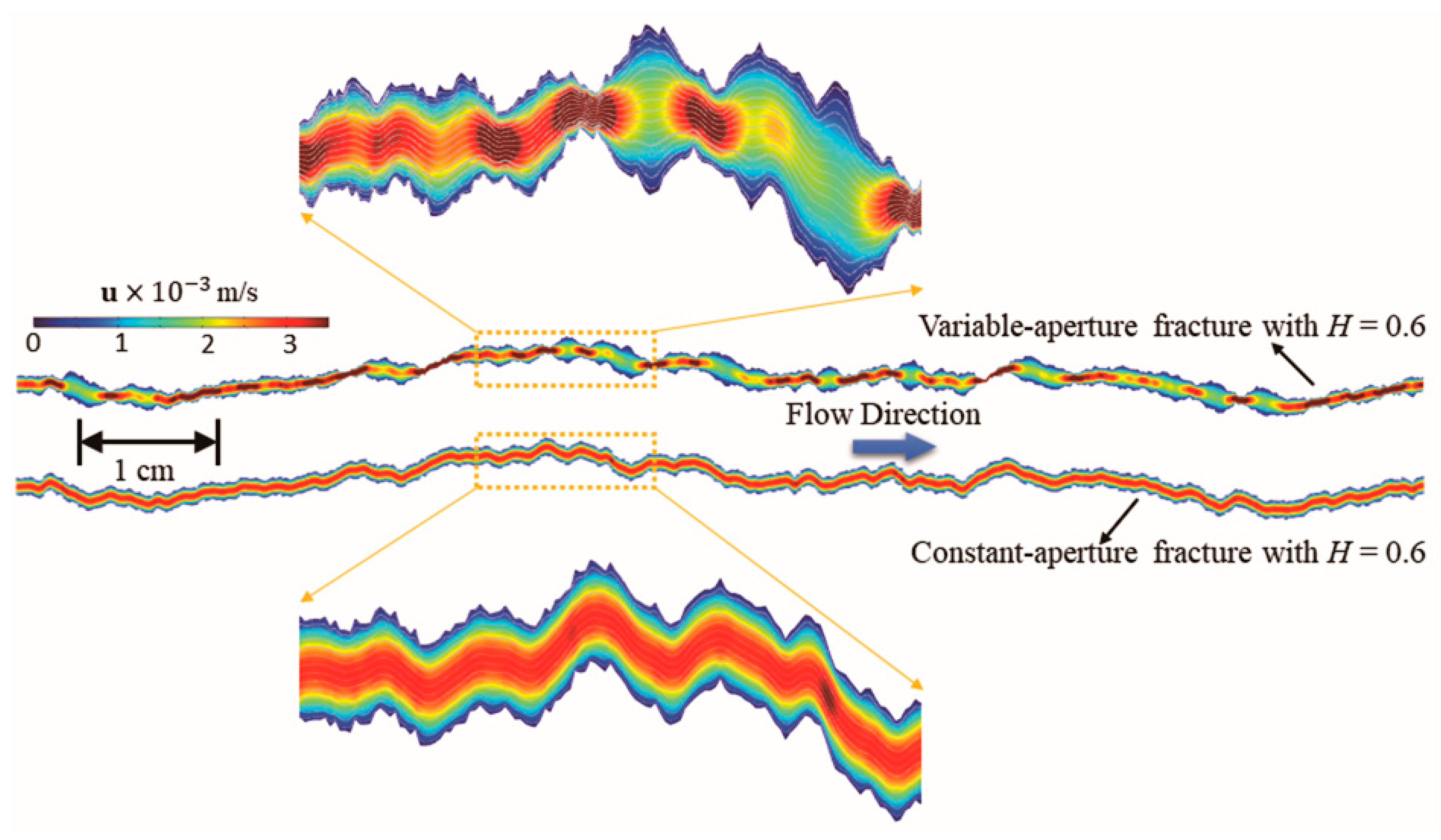

**Figure 4.**The flow fields in variable-aperture and constant-aperture fractures with H = 0.6 for Pe = 1000.

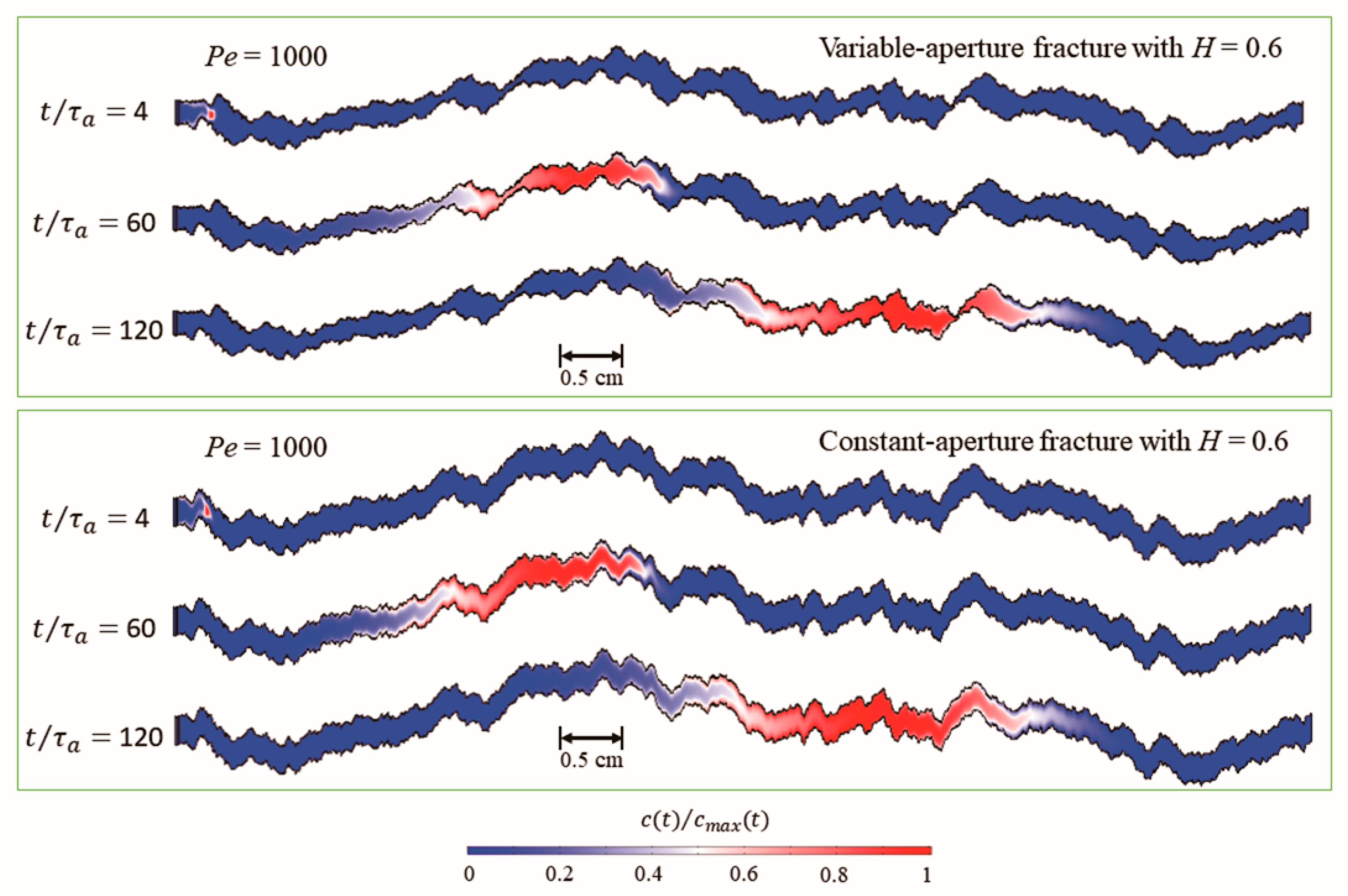

**Figure 5.**The solute transport in variable-aperture and constant-aperture fractures with H = 0.6 for Pe = 1000.

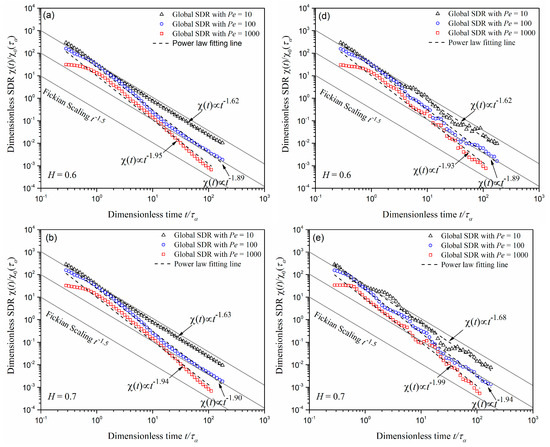

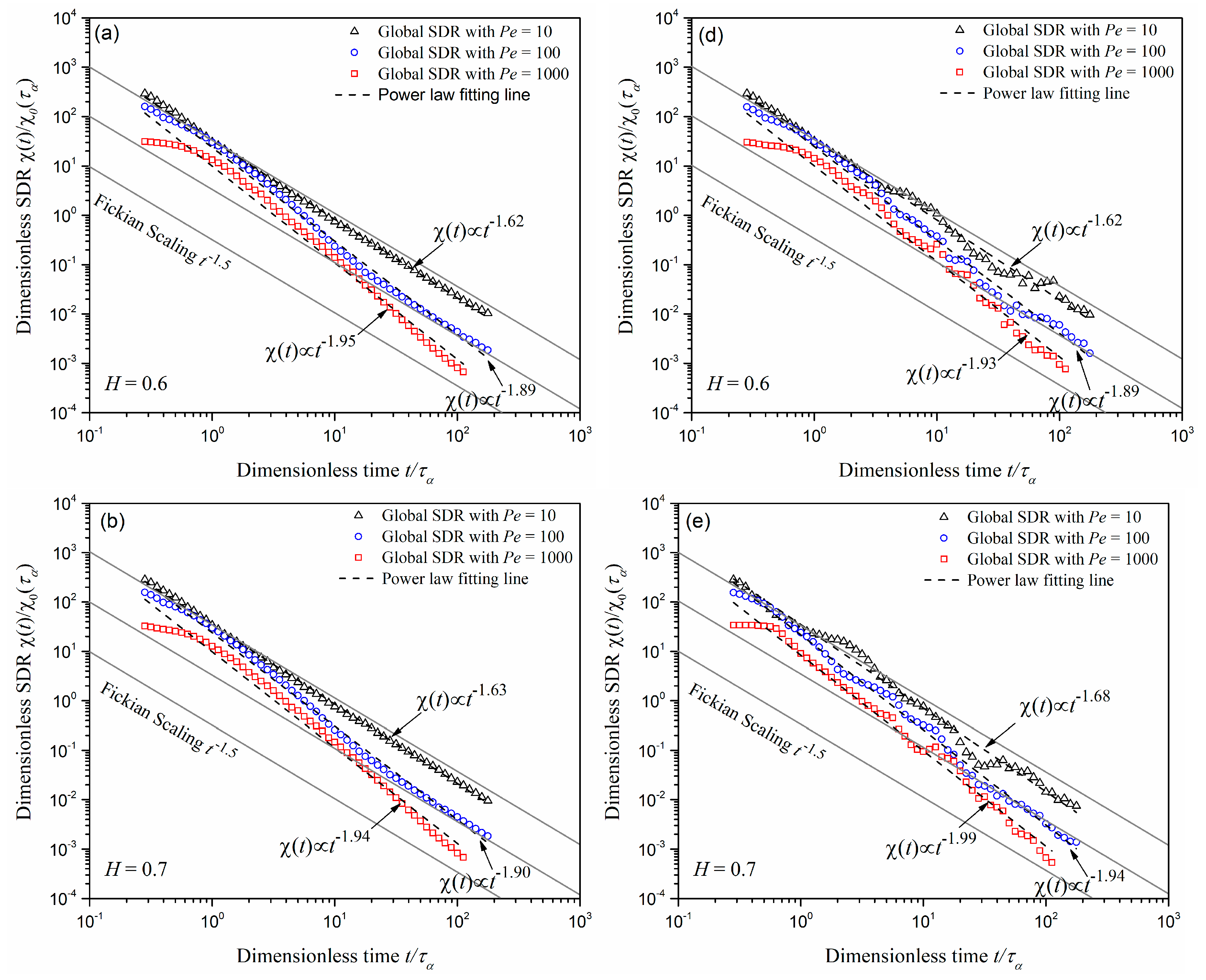

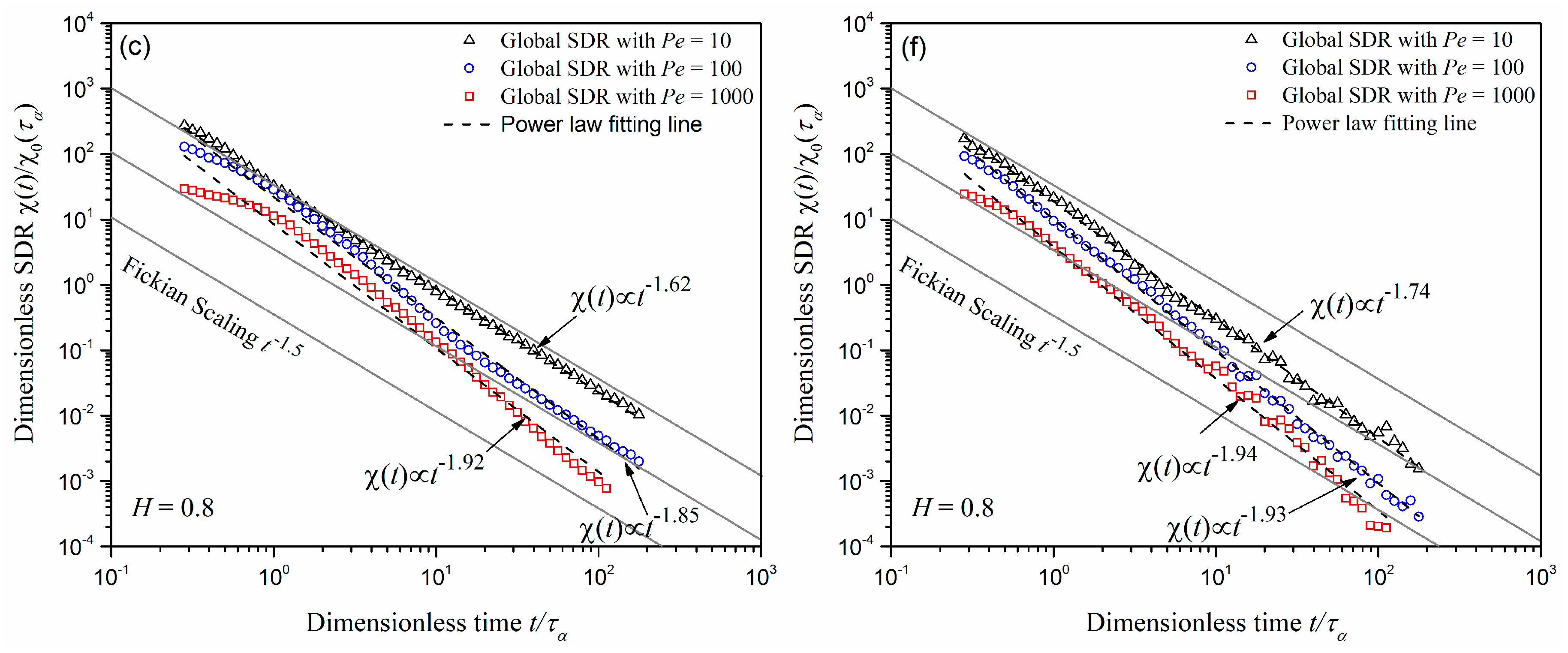

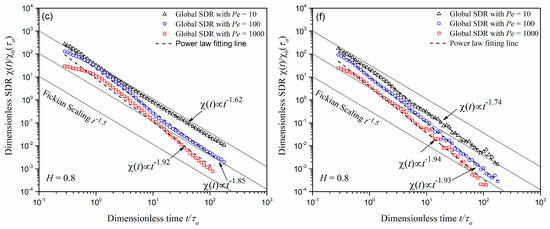

**Figure 6.**Scalar dissipation rate estimated in the constant-aperture fracture (

**a**–

**c**) and variable-aperture fracture (

**d**–

**f**) with H = 0.6, 0.7, and 0.8 for Pe = 10, 100, and 1000, respectively.

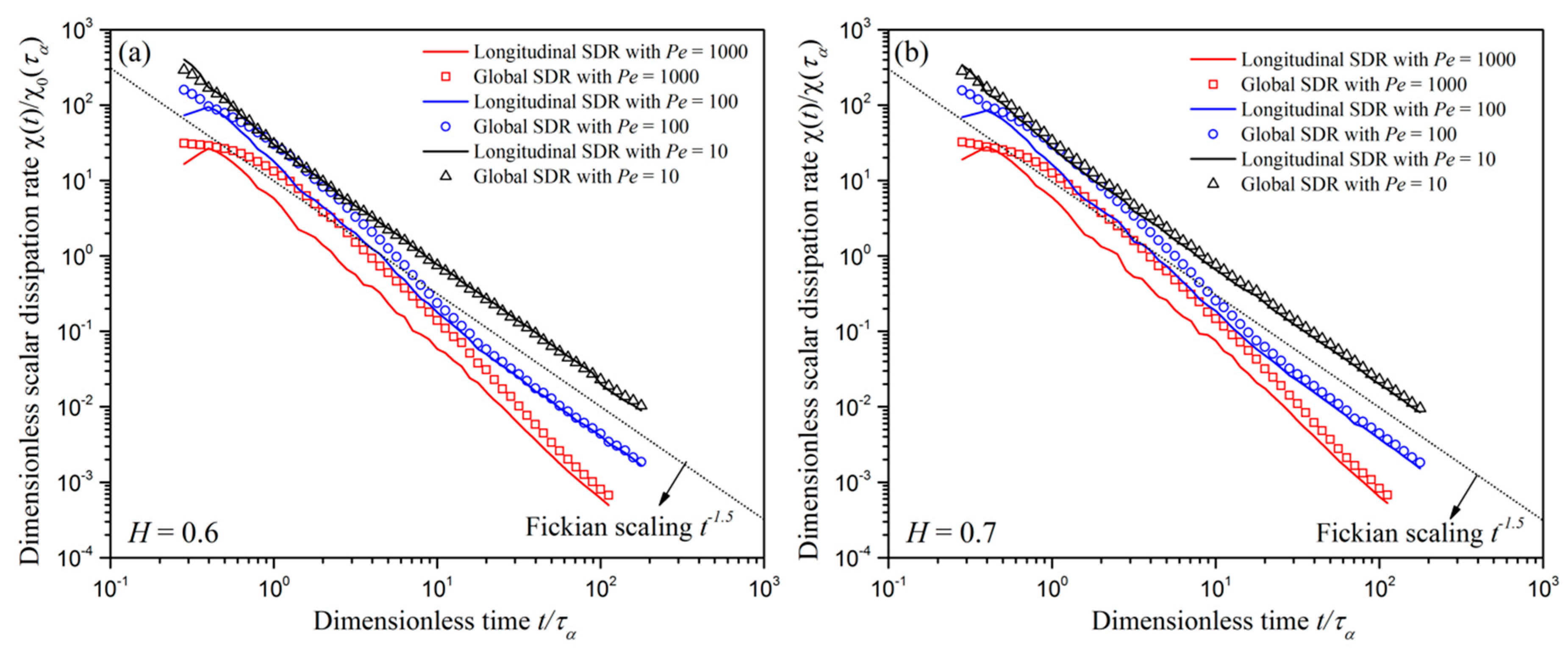

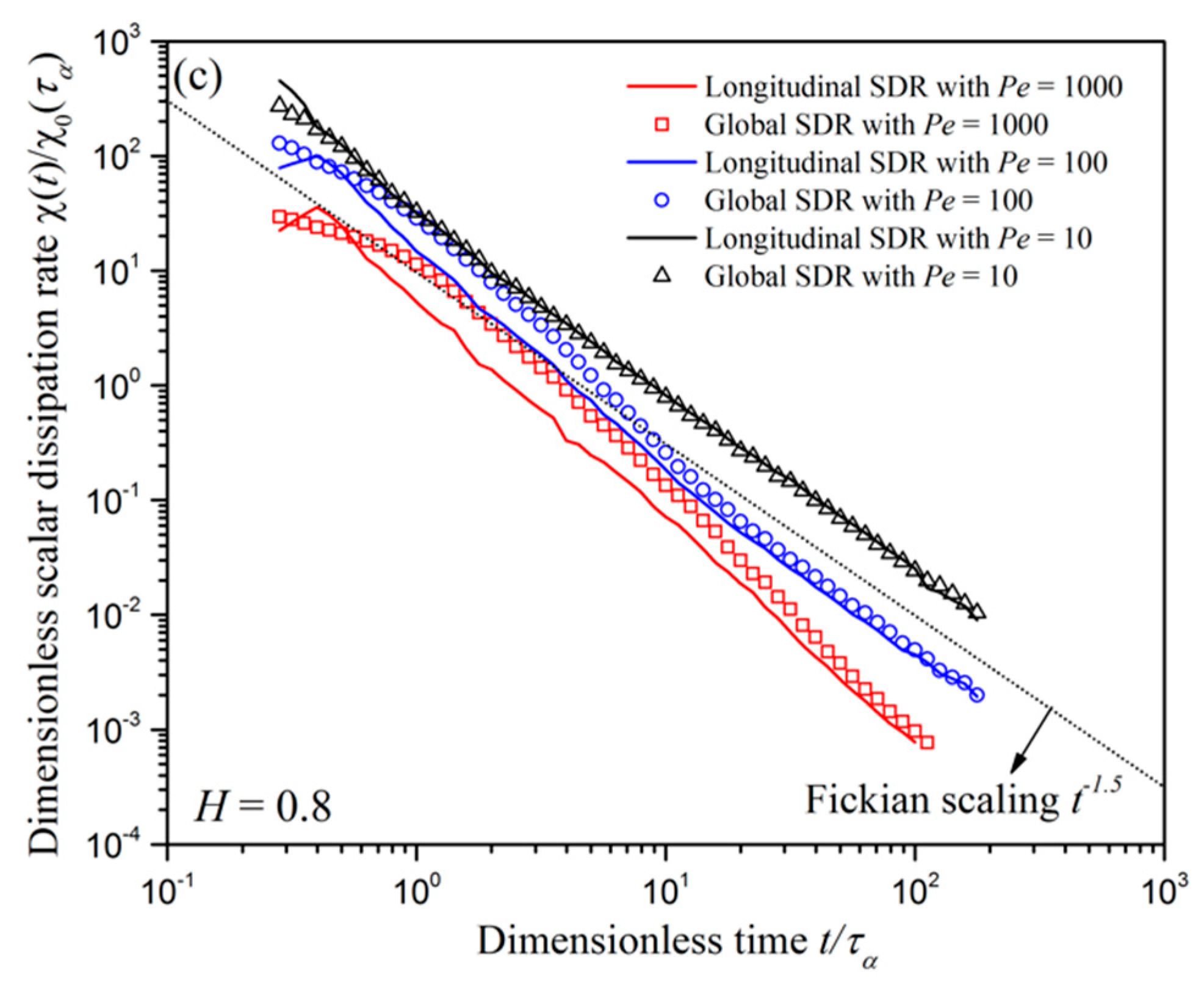

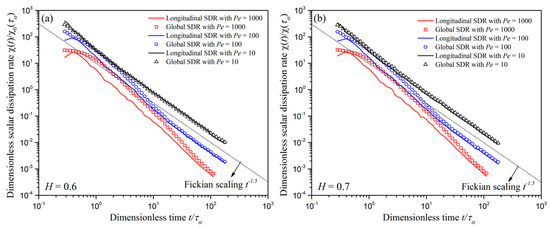

**Figure 7.**The global SDR estimated from the full concentration field and the longitudinal SDR estimated from the average of the concentration over the transverse cross-section in the constant-aperture fractures with the Hurst exponent H = 0.6 (

**a**), H = 0.7 (

**b**), and H = 0.8 (

**c**) for the Pe = 10, 100, and 1000.

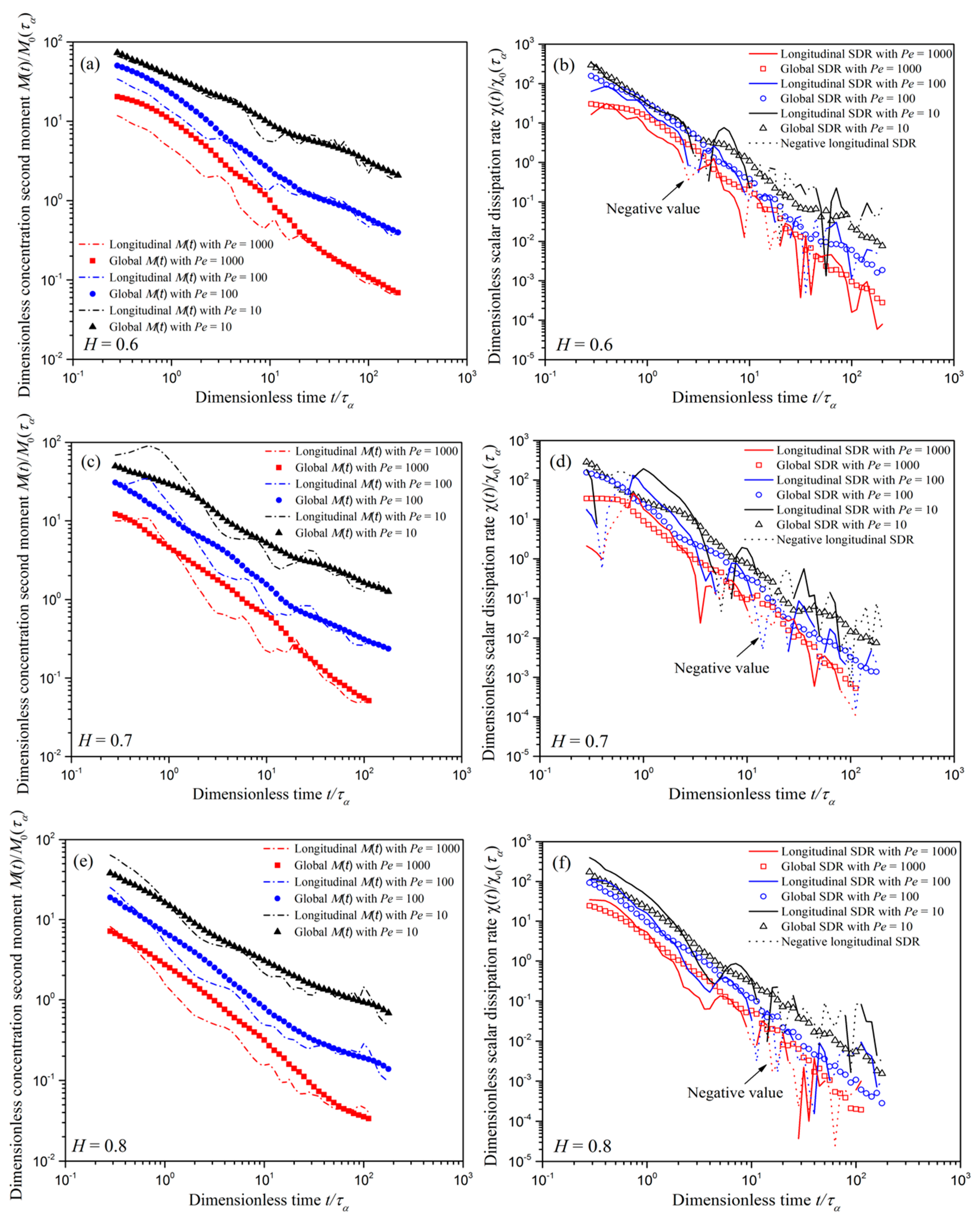

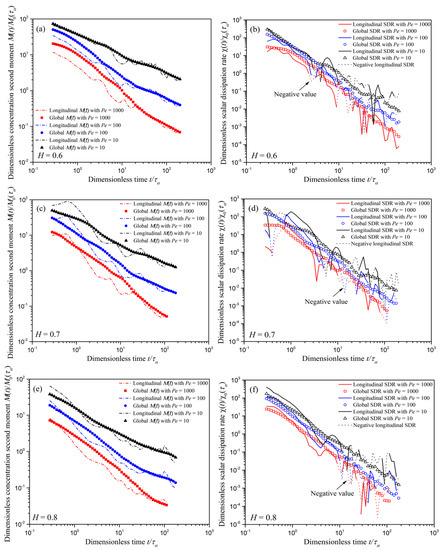

**Figure 8.**(
