2. Recycling and Reusing of Domestic Sewage
The environmental policy of the nation strongly advocates for the reuse of domestic sewage. Sewage reuse refers to the process by which sewage is treated to meet specific water quality standards, allowing it to be utilized as reclaimed water in place of conventional water resources. This reclaimed water can be employed for various purposes, including landscape irrigation, municipal miscellaneous uses, residential needs, ecological water replenishment, groundwater recharge, agricultural irrigation, and industrial production. Additionally, it facilitates the extraction of other resources and energy from sewage. The significance of this practice lies in its potential to optimize the water supply structure, enhance the availability of water resources, mitigate the imbalance between supply and demand, reduce water pollution, and ensure the security of water ecosystems. Currently, the definition and application of sewage recycling in China must adhere to “Guiding Opinions on Promoting Sewage Recycling” (FGHZ [2021] No. 13) [
16].
After domestic wastewater treatment, both recyclable water and surplus sludge, which can be reused, are generated [
17]. Surplus sludge is rich in phosphorus and other essential plant nutrients, making it a valuable organic fertilizer for agricultural and forestry applications [
18]. However, prior to utilizing sludge as a fertilizer, it is essential to ensure the removal of any potential heavy metals present, to comply with agricultural standards [
19,
20]. Furthermore, recyclable water should not be discharged into natural water bodies; instead, it must be managed appropriately, a process commonly referred to as sewage recycling.
2.1. Reusing of Domestic Sewage
In rural areas, the selection of household treatment systems, village group treatment initiatives, and integration into urban sewage networks has been tailored to regional characteristics and population density. Additionally, modular process technologies that combine engineering principles with ecological considerations have been promoted to enhance the local resource utilization of rural domestic sewage. During the wet season, the discharge limits for sewage treatment plants are established based on scientific and rational assessments, taking into account the necessity of improving the water quality of the basin’s ecological environment. Discharges into the environment, specifically into flowing river systems, are conducted under conditions that ensure stable and compliant effluent quality. In contrast, during the dry season, efforts are prioritized to convert treated effluent into usable water resources, with the aim of replenishing nearby natural water bodies and promoting the recycling and utilization of regional sewage resources. In areas characterized by resource-based water shortages, water supply is determined by both demand and quality, necessitating a strategic arrangement of the layout and construction of sewage treatment plant networks. While promoting for the use of reclaimed water in industrial production and municipal applications, it is necessary to adhere strictly to the water quality standards established by the State. Furthermore, reclaimed water should be utilized as an ecological supplement for rivers and lakes, implemented through a systematic approach of incremental water supplementation [
21].
Presently, the recycling rate in this region is predominantly impacted by rural areas, which encompass various activities such as garden landscaping, municipal miscellaneous uses (road washing), residential greening, ecological water replenishment (pond water replenishment), and agricultural irrigation (planting of flowers and grasses).
When the effluent from a sewage treatment plant is repurposed for urban miscellaneous water applications, the water quality adheres to the stipulations outlined in “Discharge Standard of Pollutants for Urban Sewage Treatment Plants” [
22] as well as local regulations. Additionally, it must comply with the criteria specified in “Water Quality of Urban Miscellaneous Water for Reuse of Urban Sewage” [
23]. The treated effluent can be utilized for various urban purposes, including irrigation and landscaping, road cleaning, vehicle washing, toilet flushing, and replenishing ecological landscapes. There are many national standards available for wastewater’s reuse (see
Appendix A Table A1).
There are generally two approaches to reuse: comprehensive reuse and selective reuse. Comprehensive reuse refers to the utilization of an urban sewage pipe network for the collection of sewage, followed by treatment at a sewage treatment plant, and the subsequent distribution of reclaimed water to users. This method aims to achieve the complete reuse of sewage. Furthermore, when employing the comprehensive reuse approach, there is a significant requirement for the demonstration of the design scale of the sewage treatment plant [
24,
25].
Selective reuse refers to the strategic implementation of reclaimed water reuse pipelines, which are typically installed in proximity to large building complexes or residential areas within urban environments. This approach facilitates the efficient distribution of reclaimed water. For smaller sewage sources located at a considerable distance from urban centers, decentralized sewage treatment systems can be employed. The treated effluent from these systems can be repurposed for applications such as landscaping and irrigation. This method offers greater flexibility and convenience, allowing for a better alignment between demand and system supply, thereby enhancing the development of urban sewage treatment and recycling infrastructures.
Table 1 outlines a typical design intended for approximately 400 residents in a rural setting.
Sewage generation primarily originates from two key sources: residential areas and public spaces, which include commercial establishments. In
Table 1, public and commercial venues contribute approximately 138.00 m
3/day, while residential consumption of fresh water is about 103.20 m
3/day. This results in a total sewage generation of approximately 252.05 m
3/day. Following appropriate treatment, the recycled water can be utilized for purposes such as road flushing or irrigation, with a requirement of 252.05 m
3/day for these applications. Consequently, the design can eliminate all sewage outlets, thereby minimizing the discharge of sewage into rivers and lakes. Based on local climatic conditions and regulations, a reservoir with a capacity of approximately 3500 m
3 is essential.
The implementation and construction of water recovery facilities in China are currently exhibiting a steady growth trend. In Zhejiang Province, particularly in Hangjiahu region, rural sewage treatment and reuse practices are relatively advanced compared to other areas in the country. While centralized water reuse systems have traditionally dominated urban settings, decentralized water reuse systems are being adopted in certain individual buildings and rural locales. In 2022, the municipal water supply in Hangjiahu region reached 0.69 billion m
3 (
Table 2), with over 70% of this volume derived from sewage. This reclaimed water is utilized for various ecological, environmental, and industrial applications, including cooling water, processing, and boiler water supply. Additionally, it serves agricultural irrigation and urban miscellaneous purposes, such as toilet flushing, gardening, car washing, and fire fighting, as well as irrigation for farmland [
26].
In Hangjiahu region, the utilization of reclaimed water for agricultural irrigation is approximately 12.16 million m
3, which constitutes 12.3% of the total water consumption. This consumption also encompasses water used for forestry, animal husbandry, aquaculture, and livestock. Industrial water consumption amounts to 31.87 million m
3, representing 32.2% of the total (
Table 3). Additionally, domestic water consumption by residents is recorded at 2.52 million m
3, accounting for 2.5%. The consumption of water for ecological environmental purposes is 52.55 million m
3, which makes up 53.0% of the total water usage.
2.2. Recycling and Treatment Processes of Domestic Sewage
- (1)
Decentralized rural domestic treatment processes
The treatment and reuse of rural domestic sewage is strongly advocated, with a recommendation to implement a decentralized system [
27,
28]. The benefits of such an approach are outlined as follows:
- (1)
Decentralized sewage treatment technology must exhibit strong resistance to impact loads, taking into account the varying qualities of influent and effluent water, as well as the different characteristics of the surrounding biological environment.
- (2)
The process demonstrates stability, and the treatment effect is optimal. In China, rural sewage treatment technologies typically select methods that exhibit superior sewage removal rates, thereby minimizing the risk of secondary purification or recurrent pollution. This approach ensures that the treatment process maintains a consistent performance, resulting in effluent water quality that complies with local regulations. Consequently, the treated water can be repurposed for use in various other industries.
- (3)
The investment in construction is minimal, and the operational costs are also low. The development of rural areas in China is characterized by significant disparities, with many regions experiencing relatively slow progress. This situation results in the majority of sewage treatment and recycling initiatives lacking substantial commercial surplus value. Therefore, when selecting decentralized sewage treatment processes, careful consideration has been given to local economic development. The construction and operational costs of these facilities are acceptable to local residents and align with their financial capabilities.

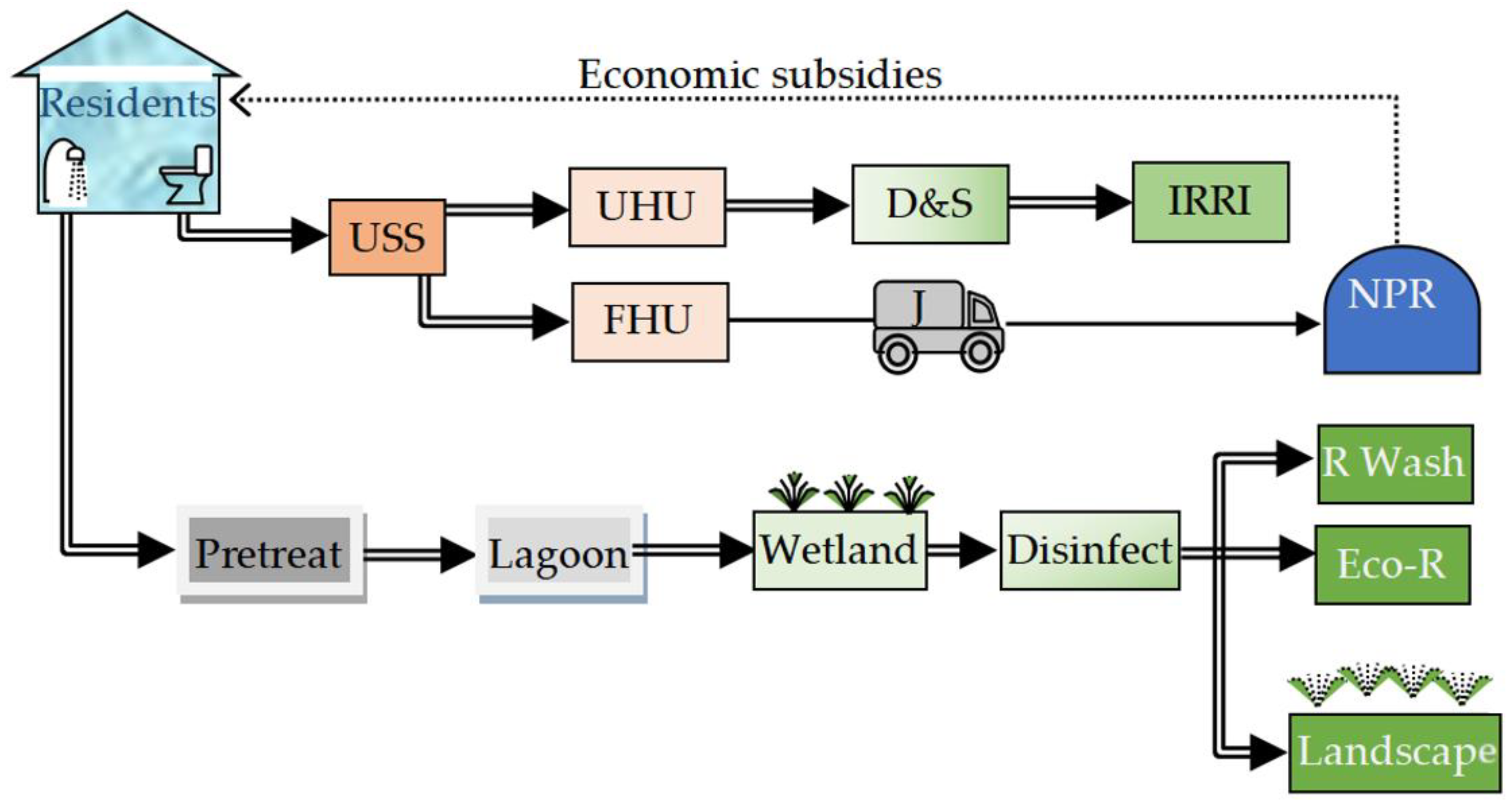

Figure 1 illustrates the most prevalent domestic sewage treatment processes and rural water reclamation methods. The most commonly used practical technologies for rural domestic sewage treatment in the region are integrated processes, including pretreatment combined with ecological filter bed technology, anaerobic processes coupled with A
2/O (Anaerobic-Anoxic-Oxic) technology, and anaerobic systems with subsurface flow constructed or artificial wetland technology.
There are two primary categories of rural wastewater that require recycling: the first is greywater generated from daily water usage, and the second is wastewater produced from toilet drainage, which typically contains significant quantities of essential plant nutrients, such as nitrogen and phosphorus. These nutrients are vital for crop irrigation. Agricultural irrigation does not necessitate the removal of nitrogen and phosphorus, provided that the quality of the effluent is adequately controlled and stabilized [
29,
30]. Furthermore, Chinese farmers have a long-standing tradition, spanning thousands of years, of utilizing human feces and urine as fertilizers via a feces harmless unit (FHU), often a septic tank.
The treatment processes for toilet drainage primarily involve urinary-fecal separation and urine source separation. Two methods are employed for urinary-fecal separation: the toilet-built-in source separation collection method and the siphon dry method. The toilet-built-in source separation collection method necessitates the direct and separate collection of feces and urine. Both urine and feces can be separately collected, with the supernatant, or “head water”, being used for plant irrigation as a fertilizer. The feces, on the other hand, require treatment at a fertilizer manufacturing facility, where they are converted into fertilizers through processes such as fermentation, decomposition, and composting.
The siphon dry toilet method facilitates the collection of feces and urine into different storage containers after they have been combined. This separation technique is similar to the classification of kitchen waste, which differentiates between dry and wet waste for uniform recycling. The siphon dry toilet method necessitates the centrifugation of the liquid and solid components in separate layers, allowing for the individual collection of both the liquid and solid phases.
The urine or supernatant obtained from urine source separation (USS) was processed locally in a urine treatment unit designed to render the urine harmless (UHU), converting it into its inorganic state. Following disinfection and sterilization (D&S), the recycled water is enriched with nitrogen and phosphorus for the recovery (NPR), making it suitable for reuse in agricultural irrigation in the vicinity [
31]. The implementation of decentralized rural domestic treatment processes is advantageous due to their reduced costs. Additionally, the collected feces necessitate the establishment of transfer stations or biocomposting facilities within human settlements to facilitate the transportation of the processed resources to a centralized fertilizer manufacturing plant. To promote sustainable practices, local governments may provide financial subsidies to residents through the manufacturer.
In the treatment of grey wastewater, it is essential to eliminate all contaminants. Typically, both aerobic and anaerobic processes, as well as their combinations, are employed to reduce contamination levels. Natural purification methods, such as lagoon digestion and artificial wetland filtration, are prioritized. The recyclability of grey wastewater is limited and is contingent upon the specific applications for which the reclaimed water is utilized. Common uses include landscape irrigation, municipal purposes, road washing (R Wash), residential applications (i.e., residential greening), and ecological water replenishment (Eco-R), including the replenishment of pond water.
The pretreatment of greywater aims to remove larger suspended and floating particles present in sewage. Specifically, the impurities that can be intercepted by screening processes include wood chips, peels, fibers, hair, plastic products, and other materials that may obstruct the water inlet pipes and various pumps of subsequent treatment facilities, thereby increasing the treatment load. During the pretreatment stage, integrated processes, such as anaerobic digestion combined with A2/O technology, may be employed to mitigate contamination. Following this, techniques such as lagoons or oxidation ponds are typically utilized to further convert organic substances into their inorganic forms. The transformation of nitrogen and phosphorus during the composting of oxidation pond sludge is expected to be effective. Subsequently, nitrogen and phosphorus removal is achieved through several integrated systems, including Constructed Wetlands (CW) and oxidation ponds. The disinfected effluent from these systems can be safely utilized for applications such as road flushing, ecological water replenishment, and landscape irrigation.
The local government has compiled “Zhejiang Rural Domestic Wastewater Treatment Practical Technology Manual”, which establishes technical specifications for the pipe network, technical processes, model selection, construction, and operation and maintenance of rural domestic sewage treatment in Zhejiang Province. This manual has been disseminated throughout the province by Provincial Agricultural Office and the Environmental Protection Department. It serves as a guide and summarizes the “top ten” practical technologies in the domain of rural domestic sewage treatment in Zhejiang Province, including pretreatment combined with ecological filter bed technology, anaerobic processes coupled with A
2/O technology, and anaerobic processes integrated with submerged flow CW technology [
14].

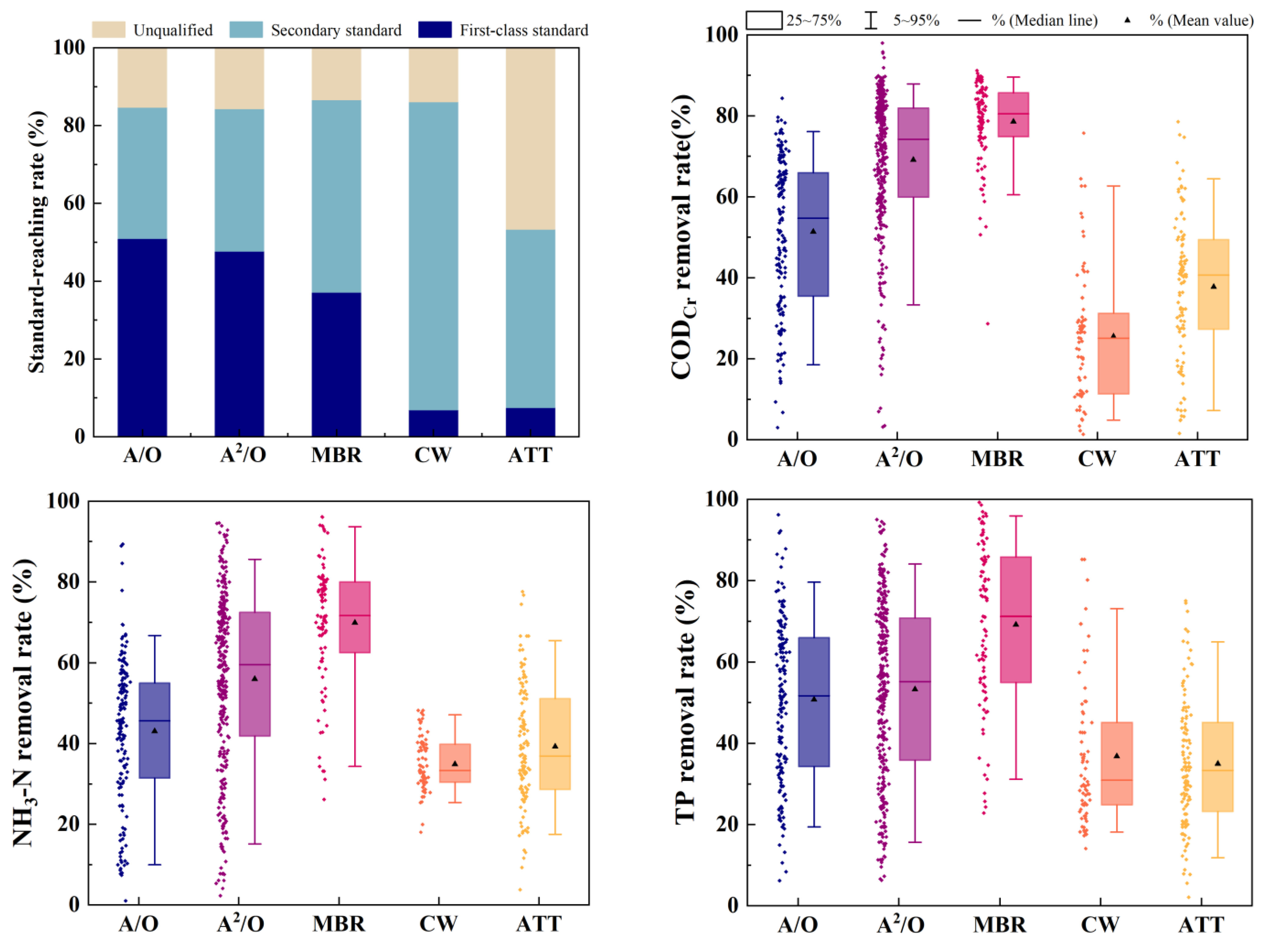

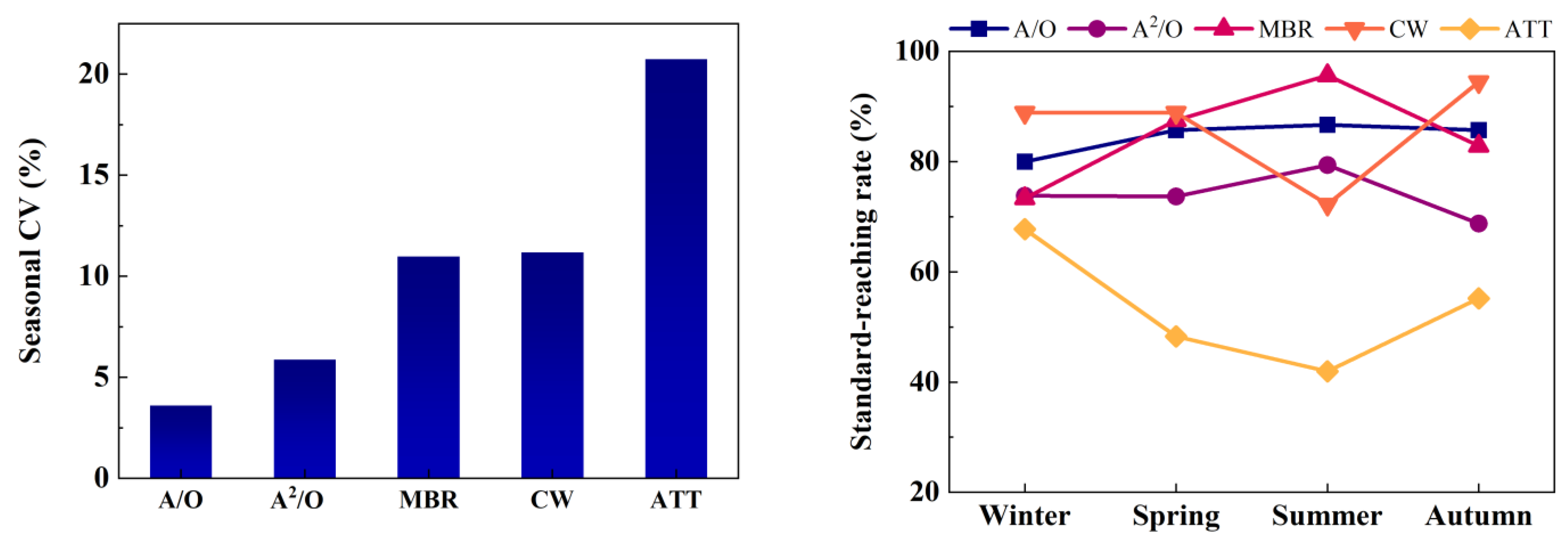

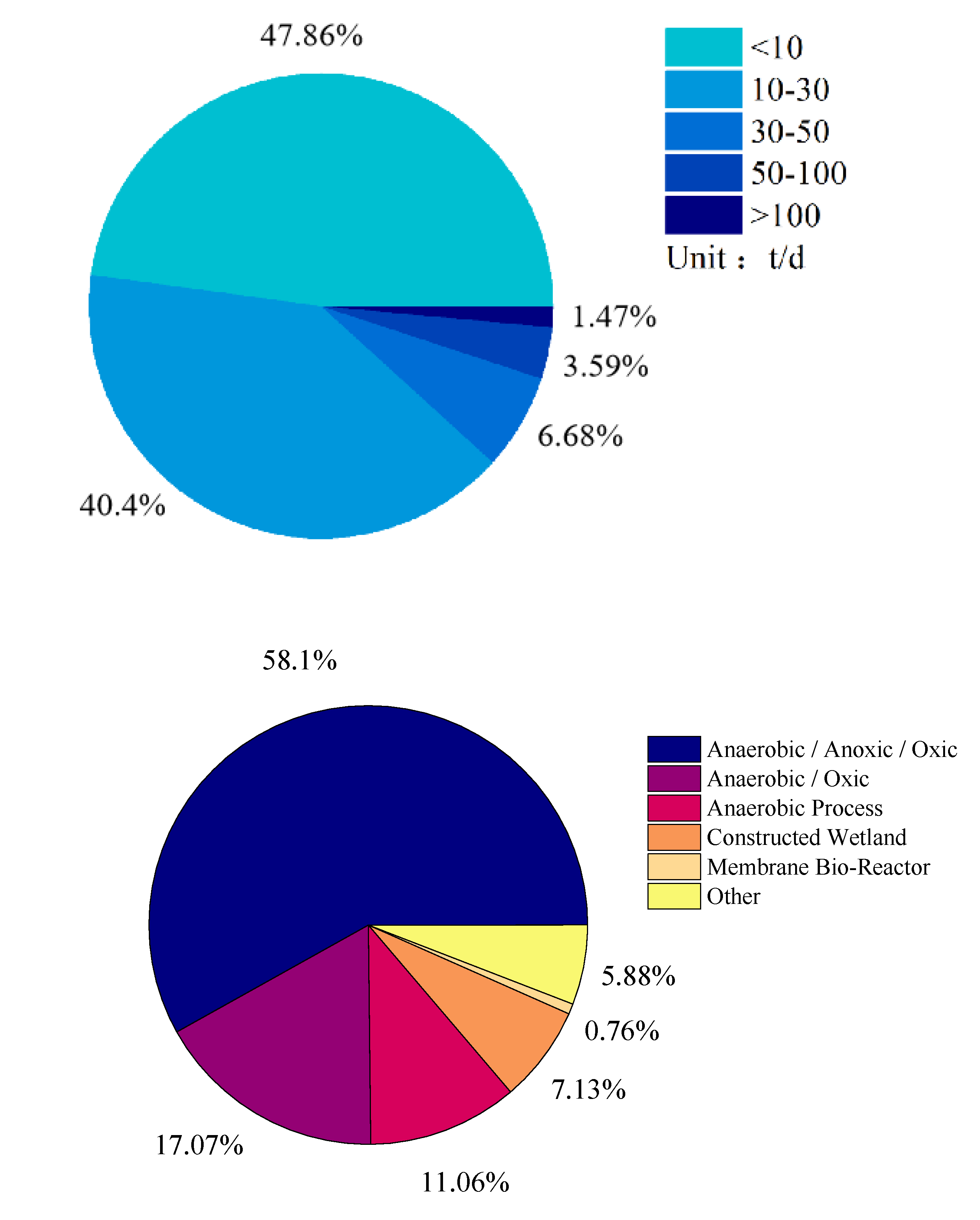

According to a survey conducted in 2017, ATT (Anaerobic Treatment Technology) processes and combined anaerobic + ecological treatment processes (e.g., artificial wetlands, ecological ponds, and biological filter bed technologies) constituted 44.23% of the total. In contrast, A/O (Anoxic/Oxic) and A2/O combined with ecological treatment processes accounted for 35.54%, while micro-power and micro-power combined with ecological treatment processes represented 6.24%. In Hangjiahu region, aerobic and aerobic with ecological treatment processes are predominantly utilized. This differs from other areas, such as Wenzhou, Jinhua, Quzhou, and Lishui, where anaerobic and anaerobic with ecological treatment processes are primarily employed.

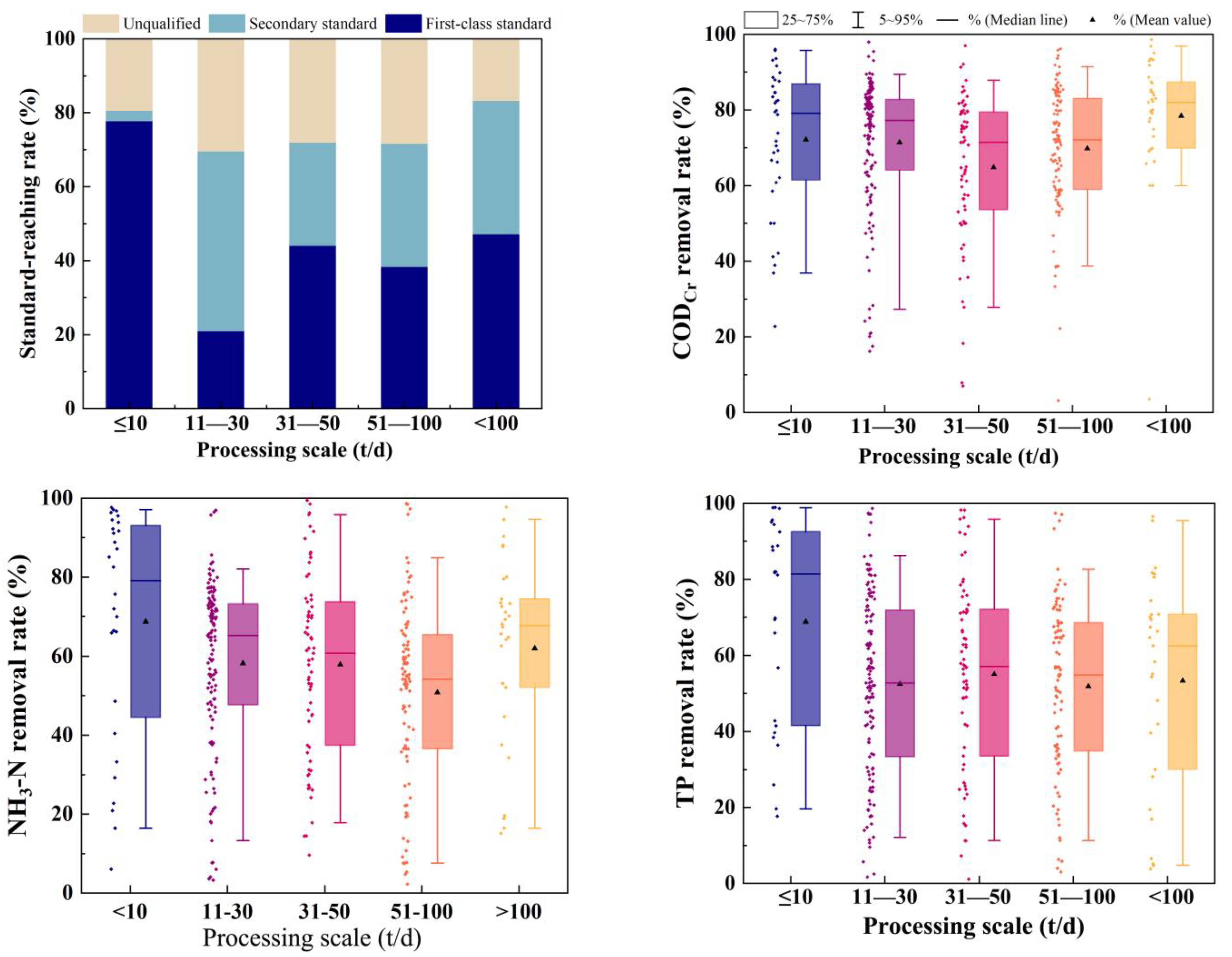

The selection of rural domestic sewage treatment technologies is significantly impacted by factors such as topography, geographical location, and economic development. In the northern regions of Zhejiang Province, which are predominantly characterized by plain river network areas, there is a greater emphasis on the complete removal of pollutants and the reduction of contaminant concentrations. Conversely, in the southern regions, where mountainous terrain is prevalent, there is a tendency to favor anaerobic and combined anaerobic with ecological treatment processes. Additionally, alternative technologies, such as soil infiltration, have been explored, as they appear to be more appealing and feasible for implementation in hilly areas compared to artificial wetlands.
- (2)
Source separation drainage system and resource recovery
Human manure serves as an effective farmyard fertilizer, having played a significant role in agricultural practices for thousands of years [
32]. However, the process of water flushing results in the loss of essential nutrients such as nitrogen, phosphorus, and potassium found in feces, which is counterproductive from a sustainable development perspective. Analysis of various types of domestic sewage indicates that the concentrations of nitrogen, phosphorus, and potassium in yellow water and brown water are considerably higher than those in gray water. Human urine and feces are substantial contributors to the nutrient load in central sewage systems, accounting for approximately 80% of nitrogen and 60% of phosphorus in wastewater [
33]. Only 1% of the volume of urine contributes to 80% of the nitrogen and 60% of the phosphorus nutrients in municipal wastewater derived from toilet drainage. If all toilet waste were to be repurposed for agricultural use, it is estimated that 75% to 85% of nitrogen, phosphorus, and potassium could be utilized as resources rather than being treated as potential environmental pollutants. The recycling of these nutrients through technological means for agricultural production represents a promising direction for rural sewage treatment. Comprehensive reviews of technologies for nutrient recovery from wastewater have been conducted in previous studies [
34,
35].
Human urine represents a highly effective resource for the primary macronutrients (e.g., nitrogen, phosphorus, and potassium) essential for fertilizer production. It typically contains concentrations of 10~12 g/L nitrogen, 0.1~0.5 g/L phosphorus, and 1.0~2.0 g/L potassium. Various technologies are available for the recovery of these nutrients from human urine. However, these processes necessitate source separation and subsequent treatment (
Figure 1).
The source separation drainage system not only minimizes the volume of washing water, thereby contributing to water conservation, but also decreases sewage discharge and enhances sewage treatment capacity. Additionally, the organic fertilizer generated from this system can bolster food security. Numerous countries have long implemented engineering applications of source separation drainage systems, and China has also been exploring this approach in recent years.
Until the conclusion of the 1980s, the predominant agricultural practice in many rural areas of China involved the collection of human urine as a primary fertilizer. Each household maintained its own toilet and cesspit. Following natural fermentation and digestion within the septic tank, the resulting urine and feces were utilized as fertilizer for rice, wheat, fruits, and vegetables cultivated in the fields. However, with the development of urbanization, this traditional method of manure treatment has been progressively supplanted by centralized sewage treatment systems, a trend that is also evident in the rural regions of Hangjiahu region.
The treatment of sewage, primarily due to the discharge of human urine and feces, is often both costly and ineffective. This inefficiency arises from the significant energy expenditure associated with the removal of nitrogen and phosphorus during the water treatment process, which is estimated to constitute approximately 50~70% of the total energy consumption. Notably, nitrogen and phosphorus are valuable resources. Consequently, the removal of these elements not only consumes energy but also leads to the wastage of essential resources. Conversely, if nitrogen, phosphorus, and other resources are recovered prior to treatment, it may be possible to eliminate the need for the nitrogen and phosphorus removal processes altogether.
A demonstration project utilizing a source separation system has been implemented in a rural residential area of Huzhou City. This ecological drainage system for residential areas employs the Struvite process to effectively remove macronutrients from both black water and gray water, subsequently classifying these for treatment, which results in a reduction of sewage treatment costs. The system is capable of recovering 62% of nitrogen, 48% of phosphorus, and 45% of potassium from domestic sewage. Furthermore, a framework for the separate quality discharge, treatment, and recycling of source-separated materials has been established to facilitate the storage, decomposition, and fertilization of the collected struvite, ultimately yielding an organic nitrogen fertilizer that is nutrient-rich and readily decomposable. Additionally, “Eco-Town” project, which integrates “agritainment” with sustainable practices, has been actively implemented, promoting the recycling of resources from the ecological drainage system.
- (3)
Sludge fertilizer, recovery of phosphorus and potassium in sludge
- (1)
Method of making organic fertilizer from domestic sludge
The water content of sludge obtained from sewage treatment plants typically ranges from 75% to 80%. This sludge is subsequently dried to approximately 60% moisture content using sludge drying equipment before undergoing composting. The standard operational procedure involves placing raw materials with low water content beneath the fermentation tank, followed by layering mixed organic waste on top. This method optimizes the utilization of liquid organic fertilizer present in the raw materials, thereby enhancing the nutrient availability within the mixture. During fermentation, the moisture content of the material is maintained at approximately 50% to 55%. When the temperature reaches between 65 °C and 70 °C, the mixture can be turned over to facilitate cooling. It is crucial to monitor the temperature, as excessively high temperatures can result in the destruction of beneficial bacteria within the raw materials. If the concentration of beneficial bacteria in the final product does not meet established standards, the mixture may require an additional fermentation period of 5 days to 7 days during the summer months before being discharged from the tank. In winter, the mixture can be stored in a designated facility for fermentation for 12 days to 15 days, ensuring that the temperature remains at or above 60 °C to 65 °C, with a resultant moisture content of 35% to 40% [
36,
37].

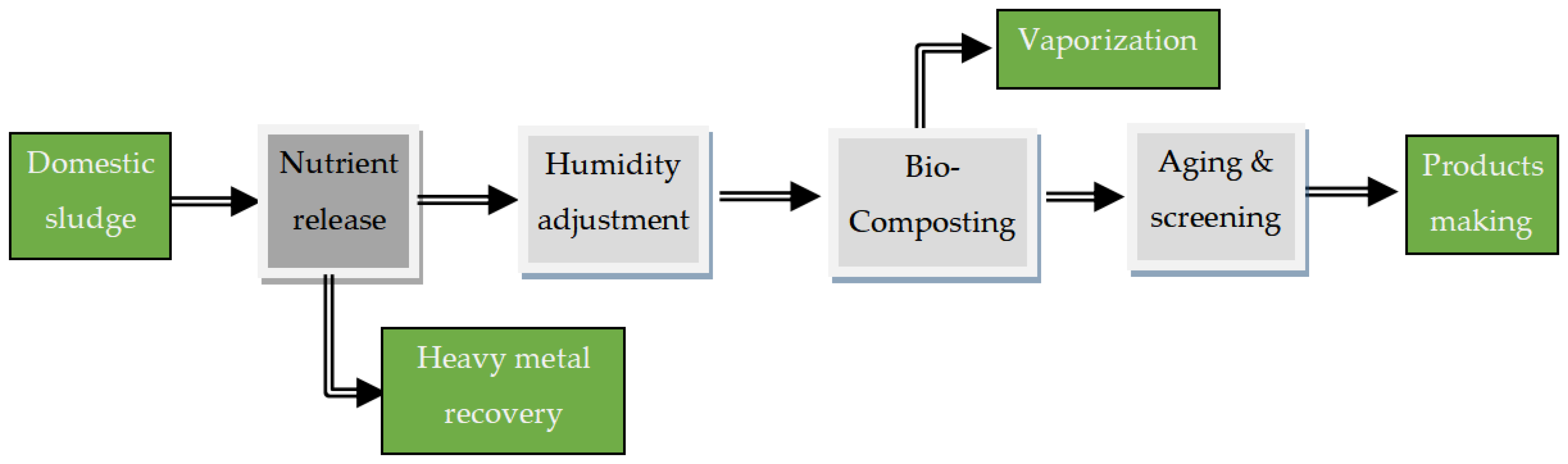

Figure 2 depicts a standard procedure for the production of organic fertilizer. The cell membranes of the sludge are disrupted to release inorganic substances, including heavy metal ions contained within the intracellular organic matter, through the addition of agents such as acids or chelates. Subsequently, heavy metals are extracted for recovery. Following the adjustment of humidity levels, the sludge undergoes composting under aerated conditions, during which moisture content decreases due to vaporization. The sludge is suitable for use as fertilizer once stabilization has been achieved.
The procedures for the production of fertilizer are typically as follows: Firstly, the sludge undergoes preliminary treatment, which includes processes such as screening and compression, aimed at removing impurities and larger particles. This initial step is crucial for facilitating the effective progression of subsequent treatments. Next, the moisture content and air permeability of the sludge are adjusted. Water is added to the treated sludge to achieve an optimal humidity level, generally between 50% and 60%, while ensuring adequate air circulation within the mixture to promote the growth and decomposition of microorganisms. The ideal moisture content is characterized by the material being grasped in the hand, exhibiting watermarks without dripping, and being sufficiently loose to disintegrate upon falling to the ground.
Secondly, the incorporation of auxiliary materials is recommended. Mixing the sludge with other organic materials, such as agricultural waste and food processing byproducts, can enhance the organic matter content and improve the nutrient balance of the resulting fertilizer. Additionally, these auxiliary materials can help regulate the moisture content and air permeability of the mixture.
Thirdly, composting fermentation involves placing the mixture in a well-ventilated composting area and regularly turning it to promote uniform fermentation. Throughout the fermentation process, the microorganisms present in the sludge decompose organic matter, release nutrients, and generate heat, accompanied by the evaporation of water.
Fourthly, After a period of fermentation, the mixture stabilizes through a process known as “aging”. Following this, the aged organic fertilizer is crushed and screened to eliminate bulk materials, resulting in a uniform powdered organic fertilizer.
Finally, the prepared organic fertilizer is packaged in accordance with established specifications, labeled with the product name, ingredients, usage instructions, and additional relevant information, before being made available for sale. Through these processes, domestic sludge can be effectively transformed into organic fertilizer, thereby facilitating resource reuse and mitigating environmental pollution.
The amount of sludge generated by rural and urban sewage treatment plants in Hangjiahu region averages approximately 1 ton/day of dry sludge, corresponding to an annual average of 10,000 tons of sewage. This is equivalent to about 5 tons of sludge, assuming a moisture content of 80%. Typically, sludge production is higher during the summer months and slightly lower in winter. The dry sludge output constitutes approximately 5000 to 15,000 of the wastewater treatment capacity. For a treatment facility with a capacity of 100,000 m3, the daily production of dry sludge ranges from 5 tons to 15 tons. Generally, the sludge is dehydrated to a moisture content of 80%, resulting in a wet sludge cake production of approximately 25 ton/day to 75 ton/day.
Following the fermentation of sludge into organic fertilizer, it can undergo various processes such as crushing, granulation, cooling, and coating to produce the final fertilizer product.
Sludge organic fertilizer can only be distributed following rigorous quality control measures and compliance with agricultural standards. The applications of sludge organic fertilizer include roadside greening, the cultivation of ornamental plants, mine reclamation, and various agricultural and forestry purposes. As a nutrient-rich soil amendment, sludge can serve multiple functions, such as a soil conditioner, urban lawn enhancement, flower cultivation, landscaping, and the greening of arid regions and barren mountainous areas. Furthermore, it can be utilized as a raw material in agricultural fields to capitalize on the high organic content of the nutrient-rich soil. Additionally, nutrients such as nitrogen, phosphorus, and potassium may be incorporated based on specific soil characteristics to produce organic-inorganic composite fertilizers.
- (2)
Removal of heavy metals
Sludge serves as a valuable fertilizer, being rich in nitrogen, phosphorus, potassium, and other essential nutrients. However, it may also contain toxic heavy metals that pose safety concerns. The removal of heavy metals from sludge presents an effective solution, and various methods have been developed for this purpose [
38,
39]. Among these methods, bioleaching has garnered significant attention from researchers globally due to its economic viability, high efficiency, sustainability, and robust engineering applicability. Notably, a critical advantage of bioleaching is that it does not substantially alter the properties of the sludge.
Bioleaching is a biotechnological process wherein specific microorganisms (e.g.,
Thiocbacillus acidophilus) or their metabolites facilitate the dissolution of heavy metals through a series of biochemical reactions, including oxidation-reduction, complexation, adsorption, and dissolution [
40]. This microbial leaching technique demonstrates a high efficacy in the removal of various heavy metals, achieving removal rates exceeding 90% for copper, zinc, nickel, manganese, and cadmium [
41,
42,
43]. Numerous factors affect the efficiency of the bioleaching process:
- (a)
The form of heavy metals significantly impacts the leaching process; specifically, metals in a stable state exhibit greater resistance to leaching, whereas those in an unstable state are more readily removed;
- (b)
The dosage and type of substrate impact the metabolic activity of bacteria and determine the prevalence of dominant bacterial species;
- (c)
The quantity of inoculation can significantly reduce the duration of the cultivation period. An insufficient inoculation amount may result in the failure of the desired strain to establish itself as the dominant strain. In this context, the removal rate increases gradually within the range of 5% to 10%, eventually stabilizing thereafter;
- (d)
The performance of sludge dewatering is significantly enhanced following biological leaching, although temperature and pH levels will also affect various strains to certain degree.
Additionally, emerging technologies, including anaerobic acidification leaching and the separation extraction of sludge, are being developed to enhance the efficacy of heavy metal removal.
Bio-leachate undergoes appropriate treatment to facilitate resource recovery. The heavy metal sludge produced during the treatment of heavy metal wastewater should be recycled initially to prevent secondary pollution [
44]. Hazardous waste must be transferred to qualified facilities for proper treatment. Temporary disposal sites for sludge should adhere to the regulations [
45]. The most suitable technique for this process is the electrodeposition method.
The electrochemical method represents a significant cleaning technology with diverse applications [
46]. This approach is effective in the removal and recovery of heavy metal ions from wastewater. “Technical Specification for Electrochemical Advanced Treatment of Heavy Metal Wastewater” [
47] is a Hunan Provincial Local Standard of China, which offers technical guidance for the treatment of heavy metal-laden wastewater, particularly for electrodeposition technology.

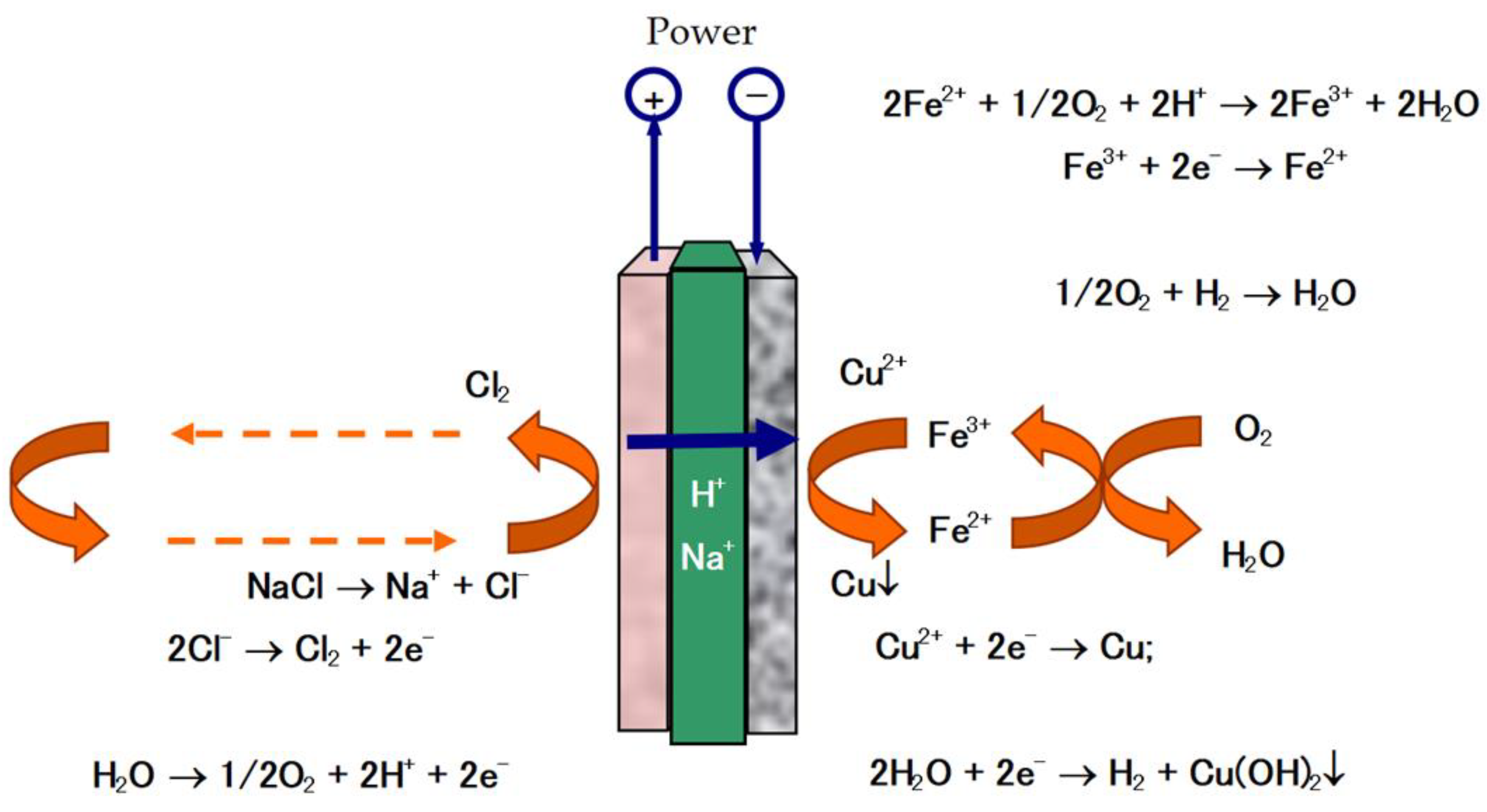

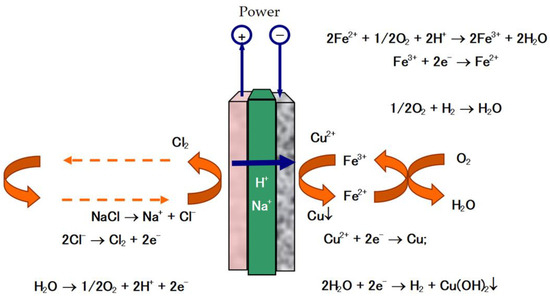

The electrodeposition of heavy metals involves the reduction of metal ions onto the electrode and the chemical deposition of metal hydroxides resulting from the accumulation of alkalinity at the cathode. In
Figure 3, as an example, copper ions are predominantly deposited in the cathodic chamber of an electrolytic cell either the metallic element or the precipitation of copper hydroxide due to the formation of hydroxides. The introduction of oxygen at the cathode can be advantageous, as it may either inhibit the formation and evolution of hydrogen gas or facilitate reactions involving iron ions, thereby enhancing overall efficiency. Furthermore, the presence of oxygen can significantly reduce the voltage of the electrolytic cell, which in turn decreases the power input required for the process. In the anodic chamber, the presence of sodium chloride can lead to the formation of chlorine, a highly effective disinfectant. Conversely, in the absence of sodium chloride, the primary reaction at the anode would be the evolution of oxygen, which is not utilizable in this context. Gold, silver, copper, zinc, mercury, lead, and cadmium can be easily deposited onto the cathode in either their metallic element or hydroxide form. Arsenic will dissolves into an alkaline solution that was formed in cathodic chamber and is difficult to form the hydroxide precipitation.
The extraction of heavy metals from sludge facilitates the production of nutritious and safe fertilizers, while also enabling the effective recycling of phosphorus, a critical resource [
48]. It is widely acknowledged that a significant portion of the phosphorus utilized by humans ultimately enters wastewater systems. In China, municipal sewage generates over 290,000 tons of phosphorus annually, which accounts for approximately 5.5% of the total phosphate fertilizer consumption. By shifting the paradigm from “phosphorus removal” to “phosphorus recovery”, the dual challenges of phosphorus resource scarcity and environmental pollution more effectively. Phosphorus is a non-renewable resource with unique characteristics, and global reserves of phosphate rock are limited. Various studies provide differing estimates regarding the availability of phosphorus resources on Earth and their longevity, with projections ranging from several decades to several centuries.
Another method for the utilization of sludge involves thermal digestion to extract phosphorus. Sludge sourced from Jiaxing Wastewater Treatment Plant in Hangjiahu region has been demonstrated to be effectively reclaimed through thermal treatment [
49]. The phosphorus recovery rate can exceed 90%, with struvite purity also surpassing 90%, indicating a highly efficient approach for the utilization of sewage sludge during hydrothermal conversion [
50]. Pollution control and resource recovery in the study area constitute a fundamental aspect of the successful implementation of “Five Water Co-Governance” in Zhejiang Province [
51,
52].
2.3. Sustainability of Environmental Quality
- (1)
Further improvements of system planning
Similar to other regions in China, the residential structures in the rural Hangjiahu region are predominantly self-constructed. A significant number of these houses have not undergone professional planning and management concerning construction land. The foundational construction of these buildings lacks standardization, with many structures positioned less than 1 m apart, which presents considerable challenges for pipeline installation. The implementation of the toilet revolution has led to the conversion of many rural households to water-flushing toilets. However, the overall planning of water supply and drainage systems, along with the renovation of rural toilets, has not been adequately addressed. This has resulted in poor infrastructure connectivity and an insufficient sewage collection system, leading to a low rate of sewage collection. Consequently, numerous domestic wastewater, including kitchen effluent, is allowed to seep directly into the ground or into ditches.
During the 2010s, the development of pipe networks experienced significant delays, leading to suboptimal efficiency in sewage treatment. In certain rural areas, the planning for sewage collection networks has not kept pace, resulting in inadequate separation of rainwater and wastewater, as well as a failure to distinguish between domestic and industrial sewage. This has contributed to the overall inefficiency of sewage treatment systems. Simultaneously, due to challenges in sewage collection, the design capacity of the sewage treatment plant often exceeds the actual wastewater discharge from residents. This mismatch results in insufficient water intake for ongoing operation, leading to the underutilization of the plant and contributing to high operational costs [
53].
In response to the aforementioned issues, the local government has implemented robust measures to enhance local conditions and improve top-level design, thereby ensuring that planning is conducted in a scientific and rational manner as follows:
- (a)
Develop comprehensive planning through stakeholder consultation and coordination: Prior to the planning phase, it is essential to segment the rural sewage treatment project in accordance with the specific conditions of the rural living environment. This segmentation should be based on a thorough consideration of ecological protection, environmental management, resource utilization, rural revitalization, regional development, and an overall assessment of the rural layout, including the construction of water supply and drainage systems as well as the renovation of rural sanitation facilities. Concurrently, it is imperative to engage multiple stakeholders in the formulation of the rural sewage treatment plan. This includes facilitating consultations among government representatives, local residents, and enterprises to ensure that the perspectives and opinions of rural inhabitants and various stakeholders are gathered and integrated into the planning process.
- (b)
Enhance expert support and guidance to develop unified planning at the county level: By conducting thorough investigations and offering expert guidance, it is essential to assess the current status and challenges associated with rural domestic sewage treatment in local areas. This assessment will facilitate the scientific determination of appropriate collection and treatment methods. Subsequently, a scientifically sound and contextually appropriate planning framework should be developed, utilizing the county as the organizational unit. The objective is to achieve a cohesive strategy encompassing unified planning, construction, and management, thereby addressing the deficiencies in the layout, technology selection, and management integration of rural domestic sewage treatment projects.
- (c)
Upgrade and remediate existing sewage collection system: This approach is based on the principle of optimizing the utilization of the current pipe network. It evaluates the rationality of the drainage system and the layout of the pipe network, the compatibility of pipe network construction, the standardization of operational and management practices, and the economic feasibility to ascertain the necessity for transformation. In cases of inadequate pipe networks, misconnections, mixed connections, or leakage connections, efforts should be made to improve the construction of the sewage collection system to increase the sewage collection rate. Additionally, for instances where rainwater is inadvertently mixed into the pipe network, leading to persistently low intake concentrations, a rainwater and pollution diversion transformation is recommended. Furthermore, for aging, damaged, or obstructed pipe networks, renovation should be undertaken.
According to the investigation, in 2010, the operational capacity of the sewage treatment plant was less than 66% of its design capacity, with approximately 36% of the system facing operational difficulties due to a misaligned sewage collection network. This situation has undergone continuous improvement, with enhanced operational management and the assignment of responsibilities to specific individuals. By 2020, the capacity of the sewage treatment plant had increased to over 99%, and nearly 100% of the operational processes were effectively executed, attributed to the successful renovation of the sewage collection network.
- (2)
Increased sufficient investment in infrastructure construction

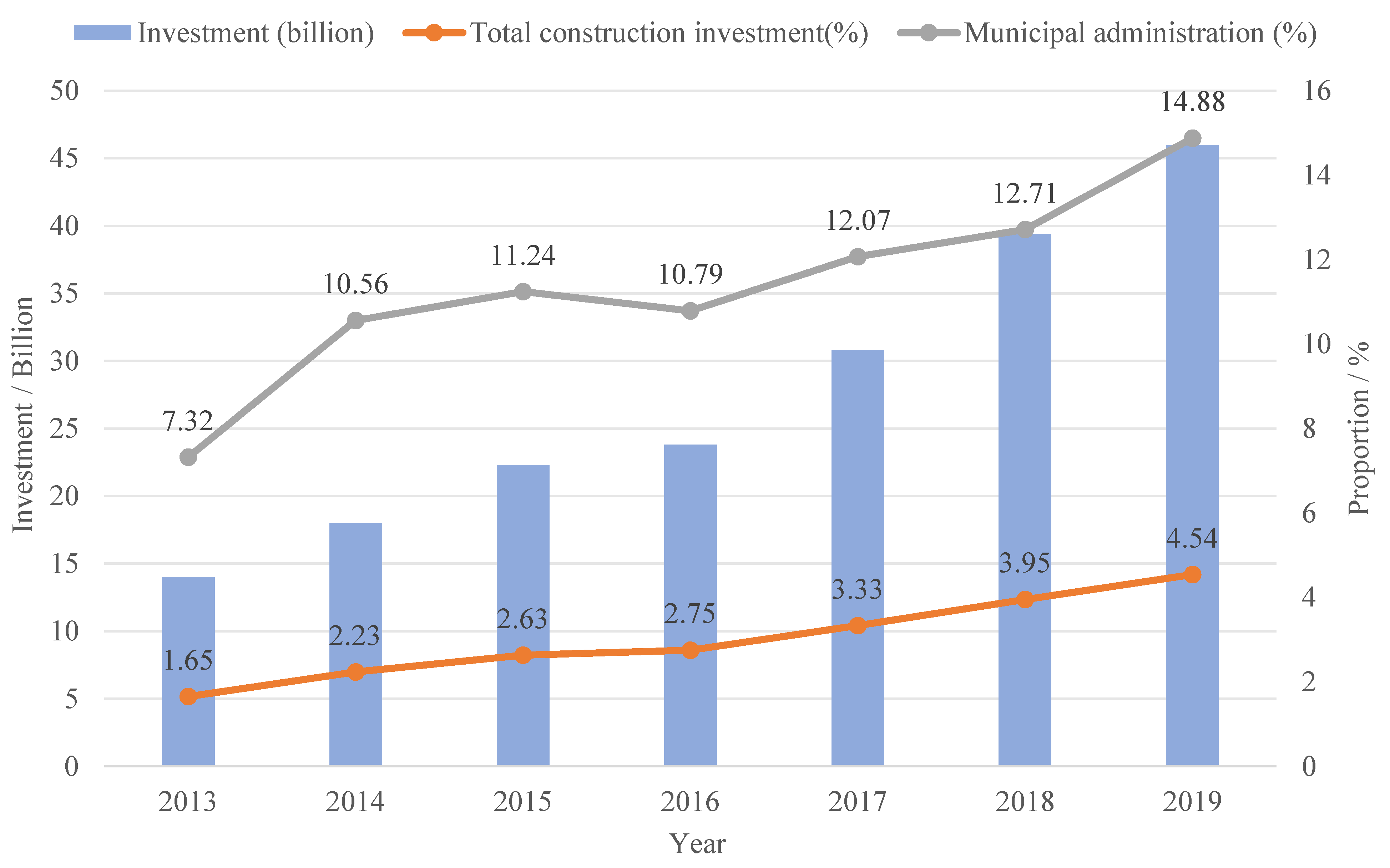

The data in
Figure 4 indicates that from 2013 to 2019, there has been a consistent year-on-year increase in investment in rural drainage and sewage treatment infrastructure in China. However, the absolute value of this investment remains lower than that allocated to urban areas [
54,
55]. In 2019, the investments in urban drainage and sewage treatment facilities amounted to 156.24 billion yuan and 80.37 billion yuan, respectively. In contrast, the investments in rural drainage and sewage treatment facilities were 46.144 billion yuan and 27.569 billion yuan, which represent approximately 29.53% and 34.30% of the corresponding urban investments.
From the perspective of investment allocation, between 2013 and 2019, there was a consistent increase in the proportion of investments directed towards drainage facilities and sewage treatment facilities within the total construction investment, as well as in municipal investment. The regional and national investments in rural drainage and sewage treatment facilities are summarized in
Table 4. In 2019, drainage facilities and sewage treatment facilities represented 4.54% and 2.71% of the total investment in rural construction, respectively, with neither exceeding 5%. Conversely, the proportion of municipal investment in rural areas was 14.88% and 8.89%, respectively, both of which did not surpass 15%.
From the perspective of investment intensity, the investment in drainage facilities and sewage treatment facilities in administrative villages across the nation in 2019 amounted to 90,300 yuan and 54,000 yuan, respectively. In comparison, the investment intensity for these facilities in Hangjiahu region was significantly higher, at 165,800 yuan and 108,600 yuan, respectively. In 2019, the per capita investment intensity for national drainage facilities and sewage treatment facilities was recorded at 63.20 yuan and 37.80 yuan, respectively. In contrast, the investment intensity in Hangjiahu region was significantly higher, at 121.30 yuan and 80.71 yuan, respectively.
For the increasing costs associated with building materials and labor, the current low level of investment intensity is insufficient to address the pressing issues faced in rural areas. Consequently, relevant departments within local government are compelled to resort to compromising the quality of projects to fulfill work tasks and meet performance indicators. Notably, Hangjiahu region exhibits investment levels that are more than double the national average in China, indicating that there remains significant potential for enhancement. Therefore, it is imperative to strengthen investment and incentive mechanisms to ensure the effective sourcing and management of funds [
55,
56].
This study aims to enhance the mechanisms governing government funding. This will be achieved through a comprehensive evaluation of diverse capital investments, thereby improving the matching funds at this level. Specific awards and subsidies will be formulated to expedite the allocation of funds. For instance, it can effectively integrate project funds related to agriculture, rural development, human settlements, and rural beautification. This includes establishing a dedicated fund for rural domestic sewage treatment, enhancing the government funding mechanism through a model of “central subsidies, local financing, and cost recovery”, and creating a robust fund guarantee system.
The enhancement of social capital can be achieved through various channels. Given the limited capacity of enterprises to contribute to social capital and the inadequate effectiveness of rural sewage treatment initiatives, it is necessary to strengthen the incentive mechanisms for social capital investment. By implementing demonstration projects for rural sewage treatment, relevant enterprises can receive both financial and policy support. Additionally, regional projects can be bundled together, allowing for the integration of multiple initiatives such as road construction, toilet reform, and ongoing management in rural development. This approach aims to create profitable complex projects that will attract enterprise participation. Furthermore, contributions from environmental protection organizations, investments from public welfare funds, and the active engagement of successful entrepreneurs returning to their hometowns can significantly mobilize social resources for funding. Concurrently, it is important to guide qualified regions in effectively integrating the development of rural sewage treatment infrastructure with distinctive industries, leisure agriculture, and rural tourism. This strategy seeks to achieve the integrated development of rural industries while simultaneously enhancing the quality of human settlements [
57].
The refinement of capital allocation and management is essential. In accordance with the developmental needs of various regions, it is imperative to delineate the objectives and requirements specific to different areas and types of rural domestic sewage treatment. A scientific assessment of the financial resources necessary for the execution of various stages of rural sewage treatment must be conducted to ensure that capital investments yield the anticipated results. During the construction and renovation of rural sewage facilities, it is advisable to actively explore the implementation of an agent construction system. This approach would facilitate the optimal utilization of market funds, enhance the allocation and management of financial resources, and transition the management and maintenance aspects to the market in the later stages. Such measures aim to establish a robust industrial chain encompassing enterprise products, operations, and the enhancement of research and development efficiency.
- (3)
Quality of late operation management
The funding for the construction of rural drainage and sewage treatment infrastructure in China primarily derives from national and local financial support, while the funds for operation and maintenance are predominantly sourced from local finances. In numerous regions, although government-funded infrastructure is constructed, rural areas often struggle to bear the ongoing operation and maintenance costs. This has led to a challenging situation where projects are “affordable to build but unsustainable to operate”, resulting in the gradual discontinuation of sewage treatment facilities. Factors contributing to this issue include the economic development level in rural areas, the absence of specialized operation and management teams, an overall low standard of management, and the lack of scientifically sound and reasonable management and protection mechanisms. Therefore, rural sewage facilities are unable to fulfill their intended functions effectively.
Currently, the administrative agencies responsible for rural sewage treatment are fragmented, leading to significant overlap in functions. This fragmentation results in ambiguous regulatory responsibilities and exacerbates the challenges associated with supervision. For instance, Hangzhou’s “One Hundred Villages Demonstration, One Thousand Villages Renovation” project is overseen by Rural Agricultural Department, “1250” project is managed by Ecological Environment Bureau, and “One Million Household Sewage Purification Biogas” project is handled by Energy Office.
The local government is currently implementing various management models. The selection of an appropriate management approach should be contingent upon local conditions and a comprehensive evaluation of multiple factors, with economic considerations being paramount. In regions characterized by favorable economic conditions, a market-oriented operational model that incorporates government oversight and social participation may be adopted. This model allows for the engagement of third-party companies to ensure the professional management of facilities. Conversely, in areas with less favorable economic conditions, a phased management approach that combines independent management by villagers with government assistance, or a financial contribution model for village management, may be more suitable. Furthermore, to optimize resource utilization and enhance the effectiveness of management operations and maintenance, it is necessary to leverage advancements in Internet technology to establish an unattended sewage treatment operation system and an intelligent supervision platform.
There is a need to establish and enhance relevant mechanisms. This includes improving the diversified, full-process supervision system for rural domestic sewage treatment, strengthening oversight throughout all phases (i.e., from planning and construction to acceptance and long-term operation and maintenance). A comprehensive supervision framework should be developed, with government law enforcement as the primary authority, while actively involving rural residents and society. This system should enable online evaluation, supervision, reporting, problem consultation, and immediate feedback for national rural domestic sewage treatment projects. Furthermore, a long-term infrastructure management and protection mechanism should be created, with the government enhancing systems and management practices across operation, administration, oversight, and technical inspection. This could include establishing management awards, appropriate payment mechanisms for villagers, and assigning technical personnel for routine inspections and maintenance. Additionally, a multi-departmental cooperation framework should be established, with clear roles and responsibilities, ensuring effective policy coordination, defining departmental tasks, and fostering communication by adjusting supporting policies on environmental protection, finance, and ecology, while formulating detailed responsibility lists.
Sustainable efforts are ongoing and have never ceased. The local government has consistently increased support and funding for environmental protection in rural wastewater treatment. As a result, the processing rate and efficiency have more than doubled the national average. Sewage treatment and water supply protection remain key challenges in implementing “Five Water Co-Governance” strategy within river network areas. Continuous water treatment, ecological restoration, and monitoring will be essential to ensuring long-term sustainability in Hangjiahu region.
2.4. Domestic Sewage Treatment and Ongoing Environmental Policy
- (1)
Improvement of surrounding water quality after domestic sewage treatment
One of the key components of “Five Water Co-Governance” initiative is sewage treatment. This plan, introduced in 2014 by Zhejiang Province, encompasses sewage treatment, flood prevention, waterlogging drainage, water supply protection, and water conservation, all aimed at enhancing environmental quality and improving people’s livelihoods [
58,
59]. Below are examples of the improvements in domestic sewage quality in the region following treatment:
Jiashan County is one of the cities in Hangjiahu region, situated within the water network area of Hangjiahu Plain, characterized by an complex system of rivers and numerous lakes. Historically, the inhabitants of this region have relied on water for their livelihoods, and the pristine waters of Jiashan envelop the city [
60]. It is a shared aspiration among the residents of Jiashan to restore and preserve the picturesque landscape of clear waters and verdant shores.
Cities, including Jiashan, have responded to the provincial government’s initiative to implement “Five Water Co-Governance” campaign. This initiative has facilitated developments in sewage treatment while simultaneously promoting the objectives of “Five Water Co-Governance” framework. Since 2021, various regions within the county have exerted considerable effort to establish zones with zero direct sewage discharge, as well as to develop and enhance a long-term operation and maintenance mechanism. These efforts aim to further improve public satisfaction and well-being regarding the water ecological environment. Following the successful establishment of zero direct discharge sewage areas in 2021, the county has achieved municipal acceptance for the establishment of a provincial benchmark park in Yaozhuang Economic Development Zone. Additionally, the construction of benchmark towns within the zero direct discharge sewage areas in Tianning Town and Dayun Town has been completed and has also received municipal acceptance.
Jiashan County, with a population of approximately 664,000, has 24.8% of its residents living in rural areas. In pursuit of enhancing the quality and expanding the zero-direct sewage discharge zone, the county has prioritized the establishment of a long-term supervision, operation, and maintenance mechanism for this initiative. The water quality standard compliance rate in Jiashan County is 100% across various categories: the overall area, the drinking water source area, the exit section, and the city-to-town section. Since 2022, the county has fully embraced the concept of “lucid waters and lush mountains are invaluable assets”, actively advancing the comprehensive prevention and control of water pollution as well as ecological restoration efforts. These initiatives have led to a significant improvement in the quality of the water ecological environment. The achievement of these four “100%” compliance rates reflects the county’s effective water management strategies, particularly in relation to sewage treatment and its positive effect on the surrounding water quality in rural areas.
In the rural areas, a monthly inspection competition is conducted across each town, village, and street to ensure zero direct sewage discharge from industrial sources. This initiative encompasses comprehensive inspections, high-standard rectifications, industry supervision, and graded assessments. Over the past year, a total of 397 industrial enterprises, residential areas, and various other sectors were subjected to on-site inspections, resulting in the identification of 477 issues, all of which have been addressed and rectified. The provincial environmental technology company has been commissioned to evaluate the effectiveness of the zero direct sewage discharge initiative in nine towns and streets within the county, utilizing expert assistance. Simultaneously, the county has also pioneered an innovative “Construction, Management, and Maintenance integration” mechanism for ensuring zero direct sewage discharge in urban residential areas. Since the beginning of this year, transparent operation and maintenance practices have been implemented in 115 residential areas, with the establishment of operation and maintenance bulletin boards. Among these, 67 areas have been entrusted to Water Group for professional operation and maintenance, thereby reinforcing long-term operational responsibilities. For instance, Tianning Town has consolidated the management of 26 residential areas and has engaged the county water service group for professional operation and maintenance, ensuring that each facility is constructed, accepted, and maintained effectively. Currently, 24 residential areas have passed the water storage test, achieving a qualification rate of 92.3%.
- (2)
Ecological environment improvement project
An additional example of increased investment can be observed in the domain of rural sewage treatment. “Xiangfudang Ecological Environment Improvement” project represents one of the 20 landmark initiatives and allocated to “Xiangfudang Water” project amounts to 189 million yuan in the Jiashan area, coinciding with the third anniversary of the establishment of the demonstration area. This project employs a comprehensive approach that includes simultaneous treatment of water and shorelines, ecosystem restoration, and the conceptualization of water as a vital element. The experiences and practices derived from the demonstration area are integrated and showcased, focusing on the protection of water ecology, enhancement of water quality, and effective management of water resources.
Specifically, in the Jiashan area, lakes, ponds, and small streams have been rearranged to connect the rivers with water channels, expanding the smooth flow of the river network, establishing ecological ponds, and providing habitats for migratory birds. Through the diversion, expansion, and excavation of water ponds, lagoons, streams, and creeks, the water surface area of large rivers has been widened, in somewhere ponds, lagoons and creeks are reallocated and rivers are enlarged. Also, the sewage entering ponds or lagoons undergoes strict quality control to ensure that the water quality meets environmental requirements. Thus, it effectively provides habitats for wild animals and establishes ecological diversity. The results indicate that presently, the regional ecology is thriving, characterized by vibrant biodiversity. A comprehensive survey and assessment of the region’s biodiversity revealed the presence of five species of nationally protected second-class birds, six species of nationally protected second-class wild animals, eight species of fish endemic to China, 97 species of other birds, and 52 species of fish in Jiashan. The enhancement of water quality and environmental conditions has facilitated the emergence of fireflies in rural areas such as Xitang, Yaozhuang, and Weitang. In 2022, Shengjiawan was designated as a key site for the province’s biodiversity experience initiative. High-standard water ecological restoration projects in areas such as Jiangjiagang, Yaozhuang Town, Shili Water Town, and Dayun Town have effectively realized the concept of “transforming beauty into prosperity” in rural regions.
This initiative represents a microcosm of Jiashan’s endeavors to establish a pilot county for water ecological restoration within the province. Emphasizing top-level design, the county allocated 7.5 million yuan to develop a comprehensive water ecological protection and restoration plan, as well as an implementation strategy, from a high starting point. The plan aims to establish “Jiashan Model for Waterfront Residential Development in Yangtze River Delta”, focusing on four key areas: water ecological restoration, comprehensive water environment treatment, protection and utilization of water resources, and the intelligent supervision of water ecology, all within a framework of systematic planning [
61].
- (3)
Ecological water restoration and scenery
Jiaxing is situated in the lower reaches of Taihu Lake and Canal Basin within Hangjiahu Plain, an area characterized predominantly by inbound water flows. The region has historically faced significant challenges related to water quality. In recent years, a novel approach has been advanced to water pollution management that emphasizes a balanced focus on pollution prevention, ecological restoration, and the reconstruction of water systems. These efforts aim to enhance the quality of the water environment, transitioning from mere category improvements to achieving ecological health.
To maintain the water quality and environment, in Lanxi Pond located at the junction of Tongxiang City and Wujiang District of Suzhou, Jiangsu province, an Unmanned Aerial Vehicle (UAV) is used to in situ monitor unusual situation, ascends slowly over the river, swiftly covering a wide area. Real-time images of the entire river are observed by inspectors from both Tongxiang and Wujiang. These stakeholders communicate and collaborate via the screen to monitor water quality and the ecological development along both riverbanks. With UAV’s high-altitude capabilities, thermal imaging (e.g., to monitor cyanobacteria outbreak), and other advanced features, the water environment and floating objects for instance on the surface can be clearly observed.
To collaboratively protect the Border Rivers, staff from both sides conducted a joint inspection of Lanxi Pond, located at the confluence of the two provinces. Compared with the traditional river patrol mode, the joint river patrol can, on the one hand, better find the problems in the river through UAV, on the other hand, the ‘river leaders’ of the two places can directly communicate face-to-face, discuss countermeasures, solve problems immediately in the exchange, and make the river patrol more comprehensive and efficient.
Rivers and ponds are not only hydrophobic and water storage areas, but also scenery. Transforming a river into a green space not only improves the urban living environment but also enhances the well-being and happiness of its residents. In recent years, Jiaxing has effectively leveraged the assessment to strengthen water governance, and allocates a budget and invests in the daily maintenance of landscape water every year. By refining the evaluation process and advancing upgrades, the city has reinforced water control responsibilities at all levels, addressing obstacles and encouraging underperforming areas to overcome challenges and strive for excellence.
Also, the local government has actively integrated into the “Five Water Co-Governance” platform, promoting multi-dimensional coordination and digital management of the water ecological environment, including supervision, protection, and restoration. This approach has significantly enhanced the city’s overall capacity for intelligent water governance. A smart sewage management system is also developed, featuring a “digital twin” application for the sewage pipe network, and establishing a smart network for the city’s sewage infrastructure.
As a result of these measures, the two banks of rivers and ponds are adorned with verdant trees, while the river flows in a long, blue course. As one traverses the land of Jiahe, one can observe the prevalence of clear waters and lush banks [
62]. Jiaxing, situated to the eastern of Hangjiahu region, is characterized by its picturesque waterways. This scenic beauty has consistently represented the aspirations of the residents of Jiaxing. With the ongoing enhancement of water management initiatives, the aquatic environment has experienced significant improvement.
Currently, the proportion of Class I to III water quality in the state-controlled, provincial-controlled, and municipal-controlled sections of the city is 100%. Furthermore, the compliance rate for the functional areas at junction sections is also 100%, and the water quality standard for drinking water sources at levels above the county remains stable at 100%.
“Green-Water-Action” initiative has transformed Beizhuangbang, located in Zhongdai Street, Pinghu City, into an aesthetically and environmentally appealing area. In addition to the construction of ecological revetments, an underwater forest has been planted, and both a water stage and a cloud bridge have been built along the river course. Standing on the bridge, one can enjoy a picturesque view of the entire village. For the villagers, the phrase “people live in the scenery” has become a vivid reality.
By implementing measures such as enhancing management and protection mechanisms, restoring the ecological environment, and improving the cultural landscape, the Village has embodied the charm of a Jiangnan water town, with its rippling blue waves and harmonious integration of people and water. In the village, river dredging, water system connectivity, bank slope stabilization, ecological restoration, and other renovations has been undertaken, giving the river a revitalized appearance. This area has not only become a popular leisure and recreational space for nearby residents but also a picturesque addition to the region’s scenic rural tourism routes.
2.5. Domestic Sewage Treatment and Its Combination of Rainwater Collection
- (1)
Crisscrossed rivers for floodwater storage, quick drainage and flood discharge
In Hangjiahu region, a complex network of rivers is densely interwoven, and ponds and lagoons are dispersed throughout the area. Over the past fifty years, occurrences of drought and flooding have been minimal, primarily due to the extensive distribution of rivers and the region’s efficient drainage systems. Hangjiahu region is characterized as a low-lying plain with a shallow water table and gentle topography, which supports extensive rice cultivation. The rural population has a long-standing agricultural tradition, spanning thousands of years, and possesses considerable expertise in managing the challenges posed by floods and droughts. Typically, small ditches and streams are excavated adjacent to residences or along contour lines to create ponds or lagoons. These structures serve to collect rainwater, mitigate flooding, store precipitation, and utilize cofferdams to retain both rainwater and floodwater.
Historically, Hangjiahu Plain has faced significant environmental challenges. In 1909, the region was severely impacted by catastrophic flooding. This was followed by a prolonged drought in 1934, during which the cracks in the riverbed were reported to be as large as a human palm. The year 1954 witnessed the most intense plum rain in a century, resulting in extensive flooding of rice fields and a complete loss of harvest. Records indicate that between 1949 and 1978, Hangjiahu Plain experienced five major floods and eight significant droughts, leading to substantial economic losses. In response to these recurring issues, a comprehensive planning initiative known as “South-to-North Water Diversion” project was proposed for Hangjiahu Plain. This initiative included the construction of a drainage outlet in Hangzhou Bay, aimed at addressing the dual challenges of waterlogging and drought in the region. The infrastructure comprises four drainage gates, one large pumping station, four main drainage rivers, several auxiliary channels, bridges, control gates, and revetments. The primary river channel extends 66.7 km in length. On 15 November 1978, a workforce of 300,000 laborers commenced operations at the construction site, which spanned 41.29 km. Following 43 days of intensive labor, Changshan River dam was breached, marking the completion of the first phase of the river channel excavation. Changshan River, which measures over 40 km in length, more than 80 m in width, and exceeds 3 m in depth, was thereby established.
In 1980, Changshan Gate was inaugurated to facilitate the drainage of water from Hangjiahu Plain into Qiantang River. Subsequently, in 1984, construction commenced on the second phase of “Changshan River” project. By 1985, the third phase of “Changshan River” dredging project was completed, establishing a connection to the Beijing-Hangzhou Grand Canal. At this juncture, over 200 km of primary river channels had been constructed.
Changshan Sluice serves as the principal drainage facility within “South Drainage” project, managing 40% of the flood drainage capacity for the South Drainage of Hangjiahu Plain. In 1991, Taihu Basin experienced a significant flood event. During this occurrence, Changshan Sluice utilized all seven openings to facilitate flood drainage, achieving a volume that was more than 50% less than that recorded during the major rainy season of 1954, thereby contributing to a successful grain harvest. In 2023, Changshan River Hub was operational for 94 days, during which it released water on 40 occasions, addressing 12 flood events and draining a cumulative total of 873 million m3, a volume equivalent to that of 61 West Lakes.
Changshan River Hub, in conjunction with various interconnected tributaries, effectively manages water flow during periods of flooding and conserves water during droughts. This system ensures that agricultural yields can be maintained in Hangjiahu plains, irrespective of adverse weather conditions. Furthermore, each village, community, and settlement is equipped with a flood management system. Ditches and ponds are excavated along contour lines to maximize the collection of rainfall within residential areas, thereby facilitating the storage of floodwater. Typically, these ditches and ponds function as oxidation ponds, purifying the domestic wastewater generated by community residents, while also enhancing the aesthetic appeal of the residential environment. A diverse array of aquatic plants, flowers, and other vegetation is cultivated along the banks of the ditches and ponds, contributing to the overall beauty of the landscape.

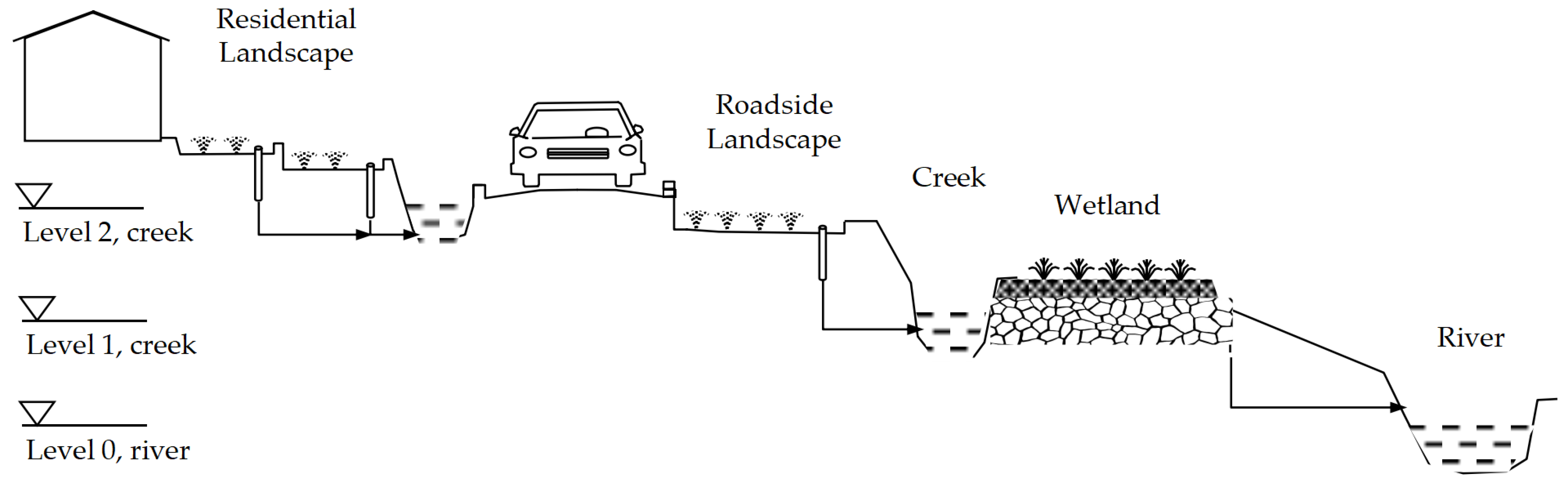

In
Figure 5, rainwater and pollutants are initially segregated. The initial rainwater is captured within the residential landscape area, which is approximately 10~20 cm lower than the road surface or surrounding ground. A small volume of rainwater is retained in this landscape area at the onset of rainfall. As precipitation intensifies, rainwater that exceeds the height of the road curbs within the landscape area is directed to the pond or lagoon using a siphon or drain. This pond or lagoon is situated at a height comparable to that of the road surfaces, thereby preventing the roads from becoming inundated.
- (2)
Curbs design and the recycled water used for landscape irrigations.
Curbs, commonly referred to as “road curbs” or “curb stones”, are precast concrete blocks or masonry structures positioned between the roadway and the sidewalk, elevated above the road surface and approximately level with the sidewalk. Their primary function is to safeguard pedestrians and to facilitate the formation of drainage ditches along the edge of the roadway. For water conservancy projects, curbs are also identified as “wheel guards”, which denote the convex ridges located on both sides of pier-type and narrower jetty-type docks. This section does not aim to address the topic of curbstones; rather, it focuses on the design of roadside landscape belts and rainwater collection systems.
In Hangjiahu region, the design of roadside landscape belts incorporates a gradient that positions them 10~20 cm lower than the adjacent road surface. This design consideration primarily addresses the management of rainwater runoff; during precipitation events, rainwater from the road surface is directed into the lower landscape area. The initial runoff may transport various pollutants, including particulate matter and harmful substances that are adsorbed onto these particulates. As the rainwater flows into the roadside landscape area, these pollutants are intercepted and deposited within the underlying soil. As rainfall continues and the volume of water increases, the landscape area eventually reaches capacity, leading to overflow. To facilitate effective drainage, a siphon or floor drain is installed within the landscape area. The siphons are positioned 10~20 cm above the landscape belt, aligning with the road surface but remaining lower than the curbstone. Once the rainwater level reaches the siphon height, it is evacuated from the landscape area. At this stage, the volume of rainwater is substantial, and the water that is siphoned away contains a reduced concentration of pollutants, thereby allowing it to be directed into recycled water systems.

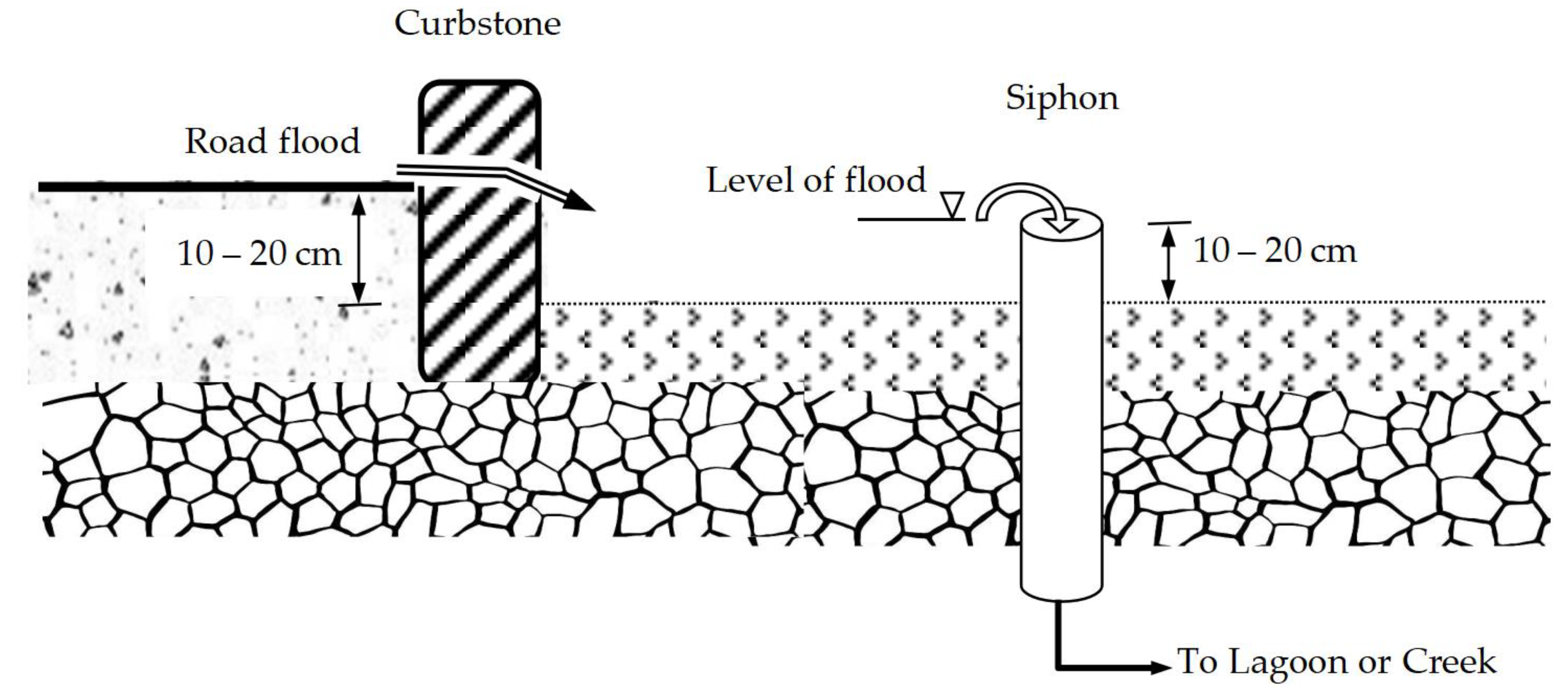

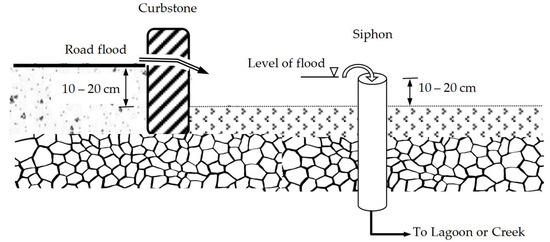

To facilitate the unobstructed flow of rainwater into the roadside landscape, the design of the road curbstone is of paramount importance. Typically, the height of the road curbstone on the side adjacent to the vehicle is approximately 10~15 cm higher than the road surface. Conversely, the landscape area on the opposite side, corresponding to the vehicle, is designed to be approximately 10~15 cm lower than the road surface. To ensure that rainwater can flow directly and efficiently into the landscape area, the road curbstone incorporates a gap or opening at specified intervals, which is set to the same elevation as the road surface. This design allows rainwater to enter the landscape area through the gap. The width of the gap is generally two to four times the height of the road curbstone (

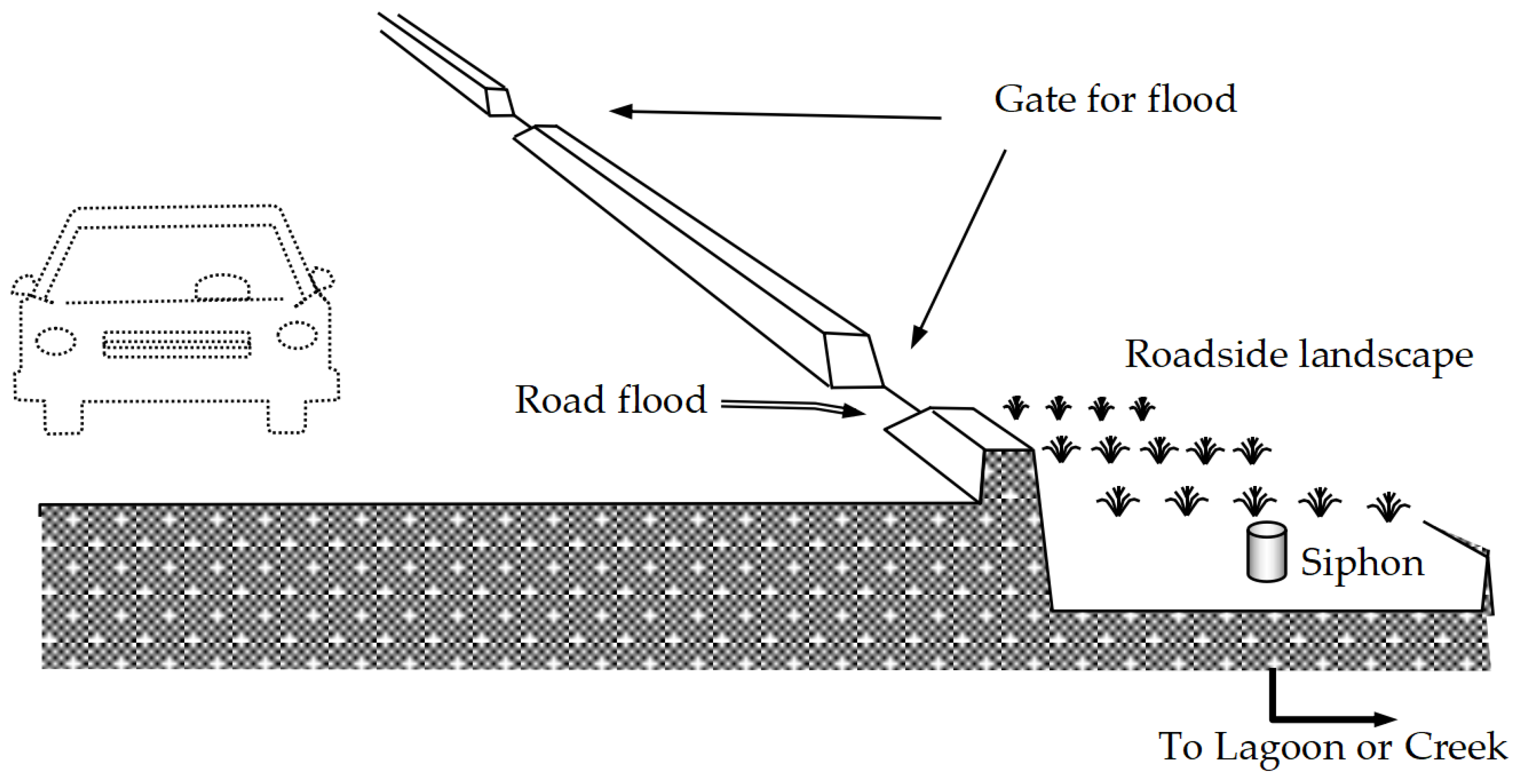

Figure 6 and
Figure 7).
- (3)
Domestic sewage reclaimed and replenishment
Jiaxing is actively pursuing the designation of a national pilot city for water ecological restoration and is currently undergoing the approval process. As part of the initial cohort of pilot cities for this initiative, Jiaxing has commenced construction on 59 projects, with a total investment amounting to 3.314 billion yuan. The city plans to implement comprehensive ecological restoration efforts for its rivers and lakes, develop Key Points of Jiaxing City’s 2022 Green Water Action, and issue Technical Guidelines for the Ecological Restoration of Plain River Networks. Additionally, the construction of 419 km of green water rivers is set to be completed. The city is committed to vigorously advancing the water ecological restoration project, which includes three initiatives supported by central ecological environment protection funds, notably in the eastern region of Jiashan.
Water quality management is an ongoing endeavor, with current achievements laying the groundwork for future benefits. Moving forward, Jiaxing will commit to a scientific, systematic, precise, and comprehensive approach to water management. The region aims to address existing deficiencies in water control by establishing high standards, creating quality benchmarks, and developing a comprehensive vision for water management. These efforts are intended to enhance the sense of well-being and satisfaction among the populace.

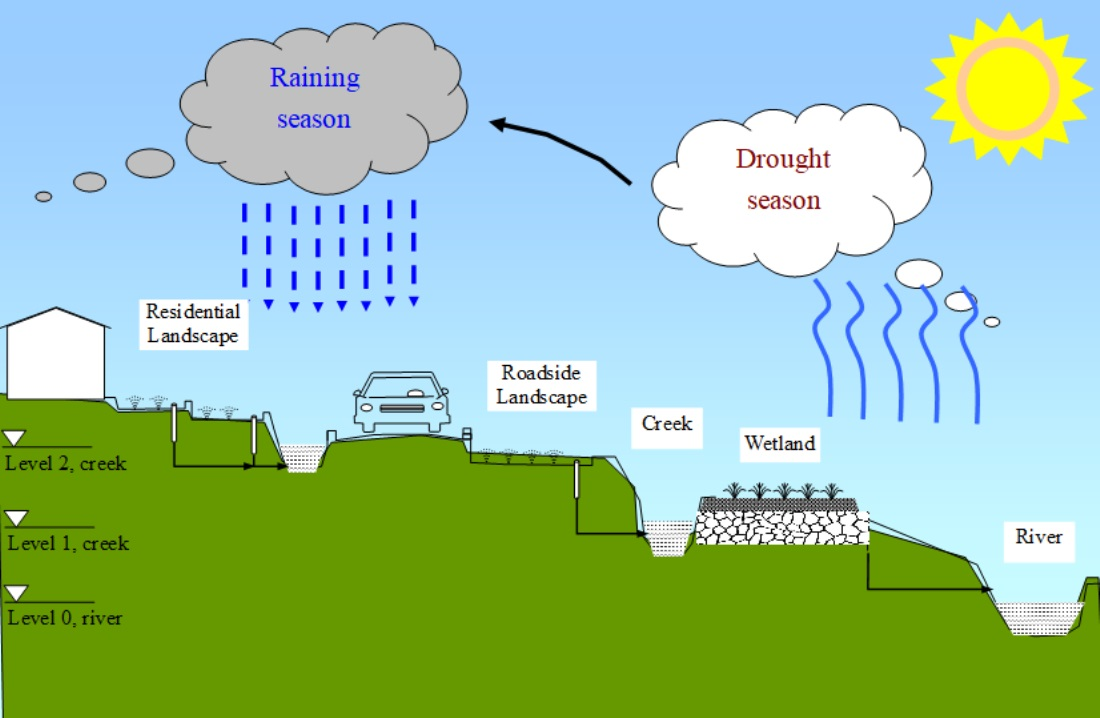

The integration of recycled water from sewage treatment, along with natural precipitation, is directed into oxidation ponds or lagoons to facilitate the safe utilization of recycled water. In
Section 2, domestic wastewater undergoes pre-treatment and homogenization prior to its introduction into oxidation ponds for natural purification. Subsequently, it is further refined through artificial wetlands before being discharged and reintroduced into the river network. All processes related to the reclamation and replenishment of domestic sewage must adhere to the relevant regulations.
The most recent regulations on the reclamation and replenishment of domestic sewage are “Groundwater Management Regulations”, issued as Order No. 748 by State Council of People’s Republic of China. These regulations were adopted at the 149th Executive Meeting of State Council on 15 September 2021, and were promulgated to come into force on 1 December 2021. Developed in accordance with Water Law of People’s Republic of China, Water Pollution Prevention and Control Law, and other relevant laws, these regulations aim to strengthen groundwater management, prevent overexploitation and pollution, ensure the quality and sustainable use of groundwater, and promote the development of ecological civilization.
After undergoing treatment, domestic sewage is categorized as recycled water. There are several methods for recharging recycled water, primarily including the utilization of surface water, water sourced from rivers and ditches, water from reservoirs and ponds, and the injection of water into wells. These methods may be employed individually or in combination. The examples are listed as follows:
- (a)
Surface water recharge: This category of recharge can be further subdivided into two types. The first type occurs in agricultural fields or recreational areas, where surface water is utilized for recharge in conjunction with conventional irrigation practices. This approach not only diminishes the volume of groundwater extraction but also contributes to the conservation of groundwater resources. When surface water is employed for irrigation, the resultant seepage from various channels and irrigated fields also serves to replenish groundwater supplies. Consequently, the most effective and simple method of recharge involves the use of surface water for supplementary irrigation in areas reliant on well irrigation. The second type involves the diversion of floodwaters during the flood season or the diversion of river base flow during the non-irrigation season, specifically aimed at enhancing groundwater recharge. To facilitate the replenishment of substantial water volumes within a limited timeframe, it is essential to identify appropriate topographical features and highly permeable land as recharge sites. This process may require the construction of water diversion channels and land edge ridges, as well as the implementation of deep or extensive flooding techniques.
- (b)
Recharge using river channels and ditches: Dry riverbanks composed of gravel, sand, or sandy soil, as well as abandoned ancient river channels visible on the surface, and irrigation canals and drainage ditches constructed in sandy and loamy regions, exhibit a high capacity for water infiltration. Utilizing these ditches for water conveyance or developing engineered water storage systems can substantially enhance groundwater replenishment along the coastal areas.
- (c)
Recharge through reservoir and pond water storage: In hilly regions, mountain pond reservoirs are constructed utilizing valley topography, while in flat areas, plain reservoirs are established in depressions. Many of these projects may lack the necessary conditions for effective water storage due to leakage in the reservoir area. However, such projects serve important functions in flood control and retention, and the water that escapes can contribute to the replenishment of groundwater in the surrounding and downstream regions. Tiankai Reservoir, a medium-sized valley reservoir, and Daning Reservoir, a plain reservoir located on the right bank of the lower reaches of Lugou Bridge on Yongding River in Fangshan District, Beijing, exemplify such initiatives, which play a crucial role in groundwater replenishment.
- (d)
Recharge through injection of water into well: This approach is particularly suitable for urban and industrial areas due to its localized effect. Additionally, it serves as an effective means of replenishing deep confined aquifers. However, the limited flow area of the well’s filter pipe poses a risk of clogging, which can complicate maintenance efforts. Consequently, the recharge water undergoes disinfection and filtration prior to injection.
