Integration of Renewable Energy and Electric Vehicles in Power Systems: A Review

Nikolaos M. Manousakis
Panagiotis S. Karagiannopoulos
George J. Tsekouras
1 and
Fotios D. Kanellos
Department of Electrical and Electronics Engineering, School of Engineering, University of West Attica, 250, Thivon Avenue, Aigaleo, GR12241 Athens, Greece
School of Electrical and Computer Engineering, Technical University of Crete, 9, Akrotiri Campus, GR73100 Chania, Greece
Author to whom correspondence should be addressed.
Processes 2023, 11(5), 1544;
Submission received: 9 April 2023 / Revised: 12 May 2023 / Accepted: 15 May 2023 / Published: 18 May 2023
(This article belongs to the Special Issue Optimal Design for Renewable Power Systems)


Electric vehicles (EVs) represent a promising green technology for mitigating environmental impacts. However, their widespread adoption has significant implications for management, monitoring, and control of power systems. The integration of renewable energy sources (RESs), commonly referred to as green energy sources or alternative energy sources, into the network infrastructure is a sustainable and effective approach to addressing these matters. This paper provides a comprehensive review of the integration of RESs and EVs into power systems. The bibliographic analysis revealed that IEEE Access had the highest impact among journals. In order to enhance the classification of the reviewed literature, we have provided an analytical summary of the contributions made by each paper. The categorization facilitated the recognition of the primary objectives explored in the reviewed works, including the classification of EVs and RESs, the incorporation of RESs and EVs into power systems with an emphasis on emissions, the establishment of EV charging stations and parking facilities, EV batteries and battery energy storage systems, strategies for managing the integration of RESs with EVs, EV aggregators, and the financial implications. In order to provide researchers with a valuable synopsis of the implementation particulars, the papers were bifurcated into two primary classifications, namely mathematical algorithms and heuristic algorithms. The mixed integer linear programming algorithm and particle swarm optimization algorithm were commonly utilized formulations in optimization. MATLAB/Simulink was the primary platform used for executing a considerable portion of these algorithms, with CPLEX being the dominant optimization tool. Finally, this study offers avenues for further discourse and investigation regarding areas of research that remain unexplored.

1. Introduction

The efficient use of energy has significantly contributed to the advancement of civilization. During the pre-industrial epoch, the predominant sources of energy were derived from human and animal labor, as well as the combustion of wood for the purposes of cooking, heating, and metal smelting. The utilization of coal played a pivotal role in the onset of the industrial revolution, as it facilitated the mechanization of various industries, improved transportation systems, and propelled the emerging technology of steam engines. During the preceding century, the exploration and utilization of fossil fuels constituted a significant catalyst for economic growth and advancement [1].
However, the utilization of fossil fuels such as natural gas, oil, and coal incurs substantial expenses related to climate change, ecological degradation, and public health that are not accounted for in prevailing market valuations. The aforementioned costs are commonly referred to as externalities within academic discourse. Externalities are generated at every stage of the supply chain of fossil fuels, including combustion, refining, transportation, and extraction. The process of combusting fossil fuels results in the release of carbon dioxide (CO2) into the atmosphere. This phenomenon is considered to be the primary contributor to the current climate change, which is causing alterations in the Earth’s ecosystems and posing health risks to both the environment and human populations.
The accumulation of carbon in storage amplifies the greenhouse effect, resulting in the phenomenon of global warming. In addition, aside from carbon dioxide, the combustion of fossil fuels results in the emission of nitrogen oxides and sulfur oxides, which contribute to the formation of acidic precipitation.
In recent decades, researchers have directed their attention towards alternative solutions for electricity production in order to mitigate the greenhouse effect and meet the growing demand for electricity. The aforementioned solutions rely on the premise that a majority of renewable energy sources can be readily transformed into electrical energy. The growth of renewable energy is currently experiencing a rapid expansion. Wind power and solar photovoltaic (PV) are widely adopted renewable energy sources. As of 2021, the grid-connected photovoltaic (PV) system has demonstrated remarkable growth and is currently considered the most rapidly expanding renewable energy technology, boasting a total capacity of 843.09 GW [2]. Meanwhile, wind power has also played a significant role in the renewable energy landscape thus far.

2. Related Work

Given the prevailing circumstances and with the aim of further reducing emissions, various novel technologies have been integrated into power systems. The integration of renewable and environmentally sustainable energy sources is essential in attaining carbon neutrality while simultaneously guaranteeing a consistent and cost-effective energy supply. The ongoing shift towards a sustainable and eco-friendly energy system necessitates expediting the process and revolutionizing pivotal industries such as transportation while simultaneously establishing the requisite infrastructure and governance [3]. Electric vehicles are a technology that is increasingly gaining popularity thanks to their environmentally sustainable nature. According to a recent study, it is projected that the revenue generated from the electric vehicle market will reach a value of $457.60 billion by the year 2023. Additionally, the study estimates that the sales volume of electric vehicles will reach 16.21 million units by the year 2027 [4].
Enhancing the energy efficiency of vehicles, specifically in terms of energy consumption per unit distance, is a significant constraint in augmenting the levels of greenhouse gas emissions from road transportation. The enhancement of vehicle efficiency can be attained through the advancement of novel vehicle technologies and the augmentation of pre-existing technologies [5], while the work of [6] conducts a comprehensive evaluation of contemporary energy storage systems intended for use in automotive contexts. The literature has extensively analyzed the fundamentals, theory, and design of EVs [7,8,9,10,11].

3. Contribution

This manuscript provides a comprehensive analysis of the incorporation of sustainable energy sources and electric automobiles into electrical grids. The assessment encompasses a total of 175 pieces of literature that have been published within the last 15 years. The primary contributions can be summarized as follows:
  • To the best of the authors’ knowledge, this is the first comprehensive review of the amalgamation of renewable energy technology within power grids, coupled with electrification applications.
  • The publications were arranged in chronological order to highlight the research focus of the last fifteen years. This enables researchers to ascertain whether additional inquiry is justified.
  • The estimation of the impact of highly influential journals is determined by the aggregate number of publications attributed to each respective journal. This information enables researchers to determine the frequency of publication in a given journal, thereby aiding in the selection of an appropriate venue for disseminating their research findings.
  • The analytical presentation of each work’s contribution in a table facilitates the researchers’ comprehension of the topic and enables them to acquire a general understanding of it efficiently.
  • A taxonomy of integration objectives pertaining to renewable energy sources and electric vehicles is carried out.
  • The analysis of relevant literature led to the extraction of conclusions pertaining to the algorithms utilized and their specific implementation details.
  • The identification of gaps in the existing literature has led to the highlighting of potential areas for future research.
The subsequent sections of the document are structured in the following manner. Section 4 provides an overview of the background of RES, whereas Section 5 offers an account of the background of EV. Section 6 presents a bibliographic analysis of the 175 works that were reviewed. Section 7 outlines the primary contribution of each publication, while Section 8 offers a discourse on the integration objectives of RESs and EVs. Section 9 outlines the algorithms utilized and various implementation details. Section 10 of the paper addresses potential areas for future research, while Section 11 provides concluding remarks.

4. Renewable Energy Sources

A power system is a complex system of components that converts the conventional energy from coal as well as the energy provided by renewable energy sources into electrical energy [12]. The term renewable energy sources refers to energy sources derived from resources that can be renewed naturally on a human timeline. Wind, solar PV, hydropower, natural gas, and bioenergy all qualify as examples of renewable sources. Renewable energy is frequently utilized for the generation of electricity, as well as for heating, cooling, and transportation.
Considering the proportion of total power capacity based on the different types of energy sources, the wind and solar PV penetration was incremental in the last decade, as is the estimation for the coming years [13]. These two renewable energy sources are the dominant renewables considering their integration along with EVs.

4.1. Wind Energy

Effective wind farm installation, based on an optimal arrangement of wind turbines (WTs), maximizes electricity generation. Wind speed influences wind energy [14]. Wind speed may be measured below wind turbines using testing equipment. The 1/7 power law is utilized to estimate the wind speed at a specific height for a turbine’s wind profile [15]:
( v v r ) = ( h h r ) c
The formula for calculating wind speed at a certain height v involves the known wind speed at a different height vr, a coefficient c, and the height at which the wind speed is being measured h. The coefficient typically ranges between 0.1 and 0.4.
Meteorological factors such as wind speed and air density have a significant impact on the amount of electricity produced by wind energy, as demonstrated by [16]:
P = 1 2 a ρ A V 3
In the above equation, V represents wind speed expressed in m/s, A is the swept area of the wind turbine in m2, ρ denotes the density of air in kg/m3, and α represents the Betz’s constant.

4.2. Solar Energy

Photovoltaic (PV) solar panels or concentrated solar power plants may transform solar energy into electricity. Although PV solar panels employ solid-state semiconductors to convert sunlight directly into electricity, concentrated solar power plants utilize lenses or mirrors to focus solar radiation, producing enough heat to power steam turbines or engines to generate energy [17].
PV solar panels use solar cells, which function well at low temperatures. As the temperature rises, solar cell power efficiency, nsolar, remains constant. The electricity output, Psolar, can be calculated considering the solar irradiation intensity, s, expressed in W/m2, and the area of aggregated solar cells, α, expressed in m2.
P s o l a r = n s o l a r s α
The electricity generated by photovoltaic solar panels can be expressed as follows:
P P V = A β μ ( t )
where A represents the panel’s area, β represents its efficiency, and μ represents the solar insolation whose value can be selected based on official statistics.

5. Electric Vehicles

A mode of transportation powered by electricity is referred to as an electric vehicle. Electric vehicles are not a new concept, with experts investigating them since the 19th century. EVs have been studied by a vast number of researchers and engineers, and their progress has always been influenced by economic and environmental factors. Some of the most significant events that have had an impact on the development of electric vehicles are mentioned bellow [18].
  • 1832: Robert Anderson created the first primitive EV.
  • 1901: Edison tackles the issue of EV batteries; Ferdinand Porsche created the first hybrid EV.
  • 1968: Oil crises lead to a resurgent interest in EVs.
  • 1971: NASA’s lunar rover was the first electric vehicle utilized for Moon exploration.
  • 1974: Many companies started to design and produce EVs.
  • 1990: New regulation for electromobility.
  • 1997: Toyota Prius was the first mass-produced hybrid EV.
  • 2010: Nissan Leaf was the first mass-produced full electric EV; Chevy Volt was the first mass-produced plug-in hybrid EV.
  • 2013: Cost reduction for EV batteries.
  • 2014: Massive production of EVs from different companies.
  • 2022: Global sales of electric vehicles increased by about 60%, surpassing 10 million for the first time.
There are three distinct categories of electric vehicles now available on the market [19]:
  • Vehicles using a gasoline engine and an electric motor are called hybrid electric vehicles. While the car is moving slowly or at a complete stop, such as in traffic, the electric motor assists with propulsion.
  • Similar to hybrid electric vehicles, but with the added convenience of being able to plug in and charge from an electrical outlet, plug-in hybrid electric vehicles offer the best of both worlds.
  • Vehicles using electric motors and batteries as power sources are known as full electric vehicles.
In recent times, a novel classification, namely the fuel cell electric vehicle, has been incorporated. A fuel cell EV is capable of producing its own electrical power through the use of hydrogen fuel cells, in contrast to conventional EVs that exclusively rely on batteries. It is noteworthy that there exist 60 electric vehicle (EV) manufacturing companies globally, with 43 of them having already introduced their models into the EV market. Table 1 displays the top five companies in terms of sales of plug-in hybrid and full electric vehicles in the year 2022. According to the source [20], BYD held a significant market share of 18.4% in the plug-in hybrid electric vehicle sector, whereas Tesla emerged as the dominant company with an 18.2% share in the global market.

6. Bibliographic Analysis

To conduct a bibliographic analysis on the integration of renewable energy sources and electric vehicles into power systems, data from 175 sources were collected from various digital libraries, including IEEE Xplore, as referenced in the works [21,22,23,24,25,26,27,28,29,30,31,32,33,34,35,36,37,38,39,40,41,42,43,44,45,46,47,48,49,50,51,52,53,54,55,56,57,58,59,60,61,62,63,64,65,66,67,68,69,70,71,72,73,74,75,76,77,78,79,80,81,82,83,84,85,86,87,88,89,90,91,92,93,94,95,96,97,98,99,100,101,102,103,104,105,106,107,108,109,110,111,112,113,114,115,116,117,118,119,120,121,122,123,124,125,126,127,128,129,130,131,132,133,134,135,136,137,138,139,140,141,142,143,144,145,146,147,148,149,150,151,152,153,154,155,156,157,158,159,160,161,162,163,164,165,166,167,168,169,170,171,172,173,174,175,176,177,178,179,180,181,182,183,184,185,186,187,188,189,190,191,192,193,194,195]. The downloaded information regarding metadata comprises various details such as the publication date, title, abstract, authorship, references, and keywords. Additionally, it includes information on implementation, computational environment, and citations.

6.1. Chronological Distribution Analysis of Research Works

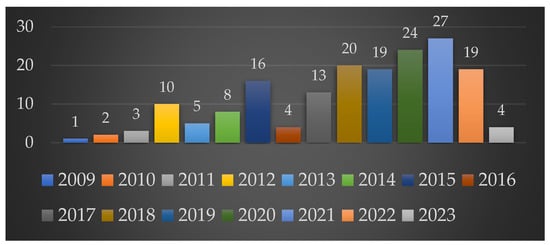

In the context of this analysis, the year of publication of the reviewed works was taken into consideration. Figure 1 illustrates the temporal distribution of the published works within the period spanning from 2009 to the present day.
The results indicate that the incorporation of renewable energy sources and electric vehicles into power systems has garnered considerable attention from scholars over the past half-decade.

6.2. Citations and Impact of Works in Terms of Publications Per Journal

As of February 2023, a total of 175 works have been cited 15,428 times. Table 2 displays the top five most frequently referenced publications within the literature. It is noteworthy that the aforementioned works have garnered over 350 citations, with the latest publication dating back to 2014.
Table 3 displays the journals that have published more than three articles and are considered the most “productive” based on the number of publications.

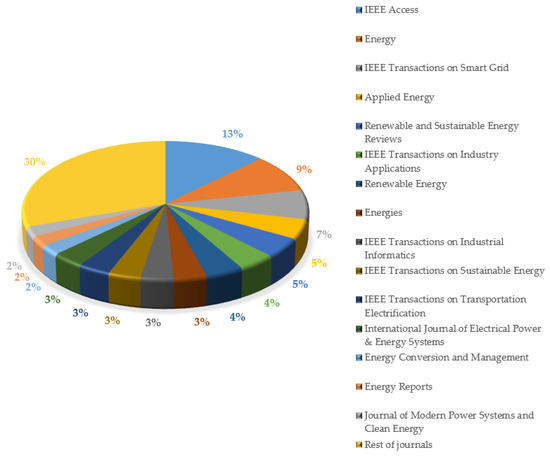

The percentage distribution for the total of 175 journal articles is illustrated in Figure 2.

7. Contributions of the Published Works

Table 4 presents the individual contributions of the 175 publications that were reviewed.
The most important present objectives from all of the studies that were evaluated and took into account the current goals of combining RES and EVs are presented in Table 5. These objectives include the type of electric vehicles, the type of renewable energy sources, the integration of RESs and EVs into power systems targeting emissions, the electric vehicle charging stations and parking lots, the electric vehicle batteries and the battery energy storage systems, the control approaches for EVs to integrate RESs, the electric vehicle aggregators, and the cost impact. Furthermore, subsequent research ought to concentrate on examining power systems’ demand, charging infrastructure capacity, smart energy management systems, integration of renewable energy sources, power system resiliency and adaptability, wireless charging, and the environmental impact of renewable energy sources. The upcoming sections will provide an analytical discussion of the current objectives and future works.

8. RESs’ and EVs’ Integration Objectives

This section presents and discusses the main findings of all of the reviewed works considering RESs’ and EVs’ integration objectives.

8.1. Type of EVs

The literature contains reviewed works that can be categorized according to EV type, as outlined in Table 6. The findings indicate that the investigation pertaining to the amalgamation of RES and EVs in power systems predominantly concentrates on full electric EVs, with a limited amount of research directed towards other types of EVs.

8.2. Type of RES

Based on the data presented in Table 7, it can be inferred that the majority of the works analyzed involve the utilization of hybrid renewable energy systems that rely on both solar photovoltaic and wind turbine energy sources. Hydrogenation [115,132,146,189], fuel cells [26,104,127,174,194], thermal power [95,121], and biogas plant [95] are among the other limited options available.

8.3. Integration of RESs and EVs into Power Systems Targeting Emissions

EVs are gaining popularity at a rapid pace thanks to their comparatively lower emissions of pollutants in comparison with other types of vehicles. This section pertains to research initiatives that seek to mitigate emissions through the utilization of RESs’ and EVs’ integration. The aforementioned initiatives aim to decrease emissions through the mitigation of fossil fuel dependency [62,70,80,81,84,97,121,146,160,165,180,184].
The Italian energy system was subjected to modeling in accordance with a selected regulation strategy in order to optimize its technical and economic operation by minimizing primary energy consumption and CO2 emissions, as evidenced in [62]. The work of [184], on the other hand, examines various plausible scenarios for Italy, which involve the expansion of renewable and storage capacity to meet the ever-increasing demand for electrification, particularly in the context of electric vehicles.
The work of [70] introduces a framework for possibilistic stochastic programming that combines possibilistic programming, flexible programming, and chance-constrained programming. This framework is designed to facilitate planning for the mitigation of pollutant emissions in the presence of RESs and EVs. In the work of [80], a discourse is held regarding the optimization of EVs’ and RESs’ employment in a power grid with the aim of reducing emissions. The article [81] presents an electric vehicle recharging mechanism that aims to decrease CO2 emissions and improve fuel economy. Meanwhile, the work of [97] discusses a dynamic wireless electric vehicle charging system that utilizes wind power. In [121], the authors investigate a smart charging–discharging operation for cyber-physical energy systems. Lastly, the work of [180] explores the concept of a slow-charging option. The study presented in [84] investigates a multi-objective approach for economic emission dispatching, while the work of [146] examines a solution to the emission dispatch problem that incorporates risk considerations. In [160], an alternative solution is proposed for ascertaining the quantity of EVs in operation, which offers adaptable full EV functionality and mitigates emissions. The article in [165] presents a schedule for unit commitment pertaining to plug-in hybrid EVs in the context of uncertain conditions, with the aim of achieving reduced greenhouse gas emissions.

8.4. EV Charging Station—EV Parking Lot

An EV charging station is a piece of equipment that facilitates the connection of an electric vehicle to an external source of electricity. This enables the recharging of the batteries in both plug-in hybrid and fully electric vehicles. Certain charging stations possess sophisticated functionalities such as intelligent metering, cellular compatibility, and network connectivity, while others adopt a more streamlined approach and prioritize fundamental features. An EV parking lot is a designated area that is exclusively reserved for the purpose of accommodating electric vehicles while they are connected to an EV charging station. Table 8 presents a taxonomy of research works related to the integration of RESs and EVs in the context of charging stations or parking lots. Based on the information presented in the table, it can be inferred that a significant proportion of the associated research endeavors pertain to electric vehicle charging stations.

8.5. EV Batteries and Battery Energy Storage Systems

Battery energy storage systems refer to a collection of devices that are capable of storing energy generated from RESs, such as wind and solar PV energy. These systems can then release the stored energy in an efficient manner to meet consumer demand, resulting in a stable electricity supply and potential cost savings. Batteries, commonly referred to as rechargeable or storage batteries, are devices designed to store energy and have the capability to be recharged. Several distinct types of batteries can be identified, including the flow cell battery, lithium-ion battery, lithium ferrophosphate battery, lithium sulphur battery, solid-state battery, lead acid battery, and nickel cadmium battery.
The works of [23,71,137,152,155,156,159,173,178] have concentrated on enhancing the effectiveness of battery energy storage systems that are present in the sites of WT and/or PV units. The battery structures associated with graphene [31], lithium-air and lithium-sulfur [32], vanadium redox flow [67], and lithium-ion [73] are of interest. In the work of [107], a proposed scheme for managing EV charging involves battery protection. The work of [144] discusses a battery charger, while the work of [189] presents information on the effect of discharging batteries.

8.6. Control Approaches for EVs to Integrate RESs

Numerous research works have been published focusing on the most efficient control approaches for the incorporation of EVs along with RESs. The controlled charging of EVs is studied considering high wind penetration in [46] and hybrid wind and photovoltaic penetration for demand-side response in [101]. The load frequency control for EVs integrating wind and solar energy [105,129,157], or solar energy and biomass [195], is also discussed. A hybrid control approach tuned via utilizing the optimal power flow problem is proposed in [60]. A fuzzy logic controller for EVs and wind energy is proposed in [170].
A multitude of scholarly publications have been produced with a focus on identifying optimal control methodologies for integrating EVs with RESs. The study of controlled charging of electric vehicles has been examined in relation to high wind penetration in [46] and in the context of demand-side response for hybrid wind and photovoltaic penetration in [101]. The article delves into the topic of load frequency control for electric vehicles that incorporate renewable energy sources such as wind and solar energy [105,129,157], as well as solar energy and biomass [195]. The article in [60] presents a proposed hybrid control approach that has been fine-tuned through the utilization of the optimal power flow problem. The proposal of a fuzzy logic controller for electric vehicles and wind energy can be found in [170].

8.7. EV Aggregator

The EV aggregator bears the responsibility of ensuring the seamless functioning and provision of services of EVs on the electricity market. The work of [94] proposes optimal bidding strategies for EV aggregators in day-ahead energy and ancillary services markets that account for variable wind energy. The article in [110] presents an aggregator designed to effectively manage EV loads and optimize PV energy utilization through the implementation of intelligent charging protocols that leverage controllable EV demand. The literature discusses stochastic models that consider the integration of aggregated plug-in electric vehicle fleets into power systems, in conjunction with either wind energy or both wind and solar energy. These models are presented in [132,139], respectively. The literature has documented the use of aggregators for managing EVs and PV generation [145], EVs and direct controllable loads while considering various sources of uncertainty [163], and EVs and distributed hybrid RESs [175].

8.8. Cost Impact

In the work of [26], a proposed energy infrastructure is presented that is both renewable and cost-effective. The article in [46] presents a discussion on the cost reductions that can be achieved through the implementation of controlled charging of EVs. The article in [61] presents a model for dispatching production costs. A study analyzing the effects of the charging profile of electric vehicles on production costs is presented in [63]. The study presented in [65] investigates the reduction in daily electricity expenses through the integration of RESs and EVs. The topic of cost-efficient interactions between EVs and RESs is discussed in [80]. The research conducted in [160,165] explores the operations of the smart grid, which consider the discharging and charging of EVs and RESs. The aim of this approach is to achieve a reduction in both costs and emissions.

9. Algorithms and Implementation Details

Based on the analysis of 175 publications in the relevant literature, certain conclusions can be drawn regarding the algorithms employed and the specifics of their implementation. A vast majority of published research articles propose a formulation that is backed by both mathematical algorithms and heuristic algorithms. Regarding mathematical algorithms, the dominant is the mixed integer linear programming. Particle swarm optimization and genetic algorithm are widely recognized as the most commonly employed heuristic algorithms. Table 9 provides a classification of all mathematical and heuristic algorithms used in the literature, respectively. Furthermore, a considerable proportion of the suggested endeavors have been executed utilizing MATLAB/Simulink [38,85,95,97,103,105,107,114,129,135,142,157,166,170,185,188,194,195]. MATLAB/Simulink is a software tool that provides a graphical block diagram interface for creating and analyzing complex systems that incorporate multiple domains. It enables users to simulate and evaluate system performance prior to hardware implementation and facilitates codeless deployment of the system. Several optimization tools have also been adopted and the most frequently used is CPLEX, as can be concluded by the data in Table 10.

10. Research Gaps for Future Discussion

The subsequent elements of topics that necessitate further investigation and assessment are summarized as follows.

10.1. Power System Demand

Power grids are currently experiencing strain due to the amplified utilization of RESs and the difficulty presented by the heightened variability of energy supply. The proliferation of EVs could potentially result in an augmented burden on the electrical grid, thereby requiring additional investments into grid infrastructure to effectively manage the escalating power demand. The burgeoning EV market poses a significant challenge for utilities and power generators, who must grapple with the task of predicting the timing and location of the corresponding surge in demand for electricity. Conversely, charging electric vehicles during non-peak hours, such as late night or early morning, would substantially diminish the probability of overloading the power grid.

10.2. Insufficient Capacity of Charging Infrastructure

In comparison with conventional petrol stations, charging stations present a greater challenge in terms of accessibility because of investment costs and complex infrastructure development. The installation expenses of charging stations are subject to variation based on the charger type, and additional costs such as regulatory fees and permits have contributed to the high cost of investment in charging stations. In addition, facilitating the ability for individuals to charge their electric vehicles in their typical parking locations, such as their residence or place of employment, presents its own set of obstacles. The challenges involve managing charging capabilities in multi-tenant structures, grid connections, and charging slot availability. This phenomenon has resulted in a decreased network of functional charging stations, discouraging prospective consumers from adopting EVs.

10.3. Smart Energy Management Systems

Energy management systems utilize an integrated digital platform to facilitate the synchronization of RESs, such as wind and solar power, with demand assets, including electric vehicle chargers, within an energy system. The employment of the Internet of Things (IoT) enables the real-time monitoring of asset health and performance, thereby optimizing the utilization of RESs and reducing both operational expenses and system expenditures. Furthermore, it permits the co-optimization of EVs and permanent storage alongside others interconnected with the grid facilities. The provision of supplementary stability services of the power grid that are compatible with regional RESs is instrumental in equalizing the electrical load and guaranteeing a dependable energy supply, as well as constant market prices.

10.4. Integration of Other RESs

The focal point of research endeavors predominantly centers on the amalgamation of RESs, such as wind and solar power, in tandem with the process of electrification. The potential integration of alternative forms of energy, such as geothermal and marine wave energy, along with offshore wind farms, has yet to be thoroughly examined. However, this approach may offer viable solutions for charging EVs in remote, mountainous, or island regions that are challenging to reach.

10.5. Resiliency and Adaptability of Power Systems

Modern electrical infrastructure must possess the capacity to endure the inescapable consequences of climate change, including but not limited to extreme heat, prolonged dry spells, and severe weather events, while also being capable of responding to such impacts. It is anticipated that the ratio of energy obtained from solar and wind sources will rise, necessitating that these systems maintain optimal functionality in the absence of wind or sunlight. An adaptable power system has the capability to manage peak demand periods while ensuring an uninterrupted supply of electricity. Apart from ensuring the presence of a variety of energy sources, the system can be further improved through various means. One potential approach to enhancing efficiency involves augmenting the energy storage capacity; integrating the heating, transportation, and industrial domains in a strategic manner; or implementing dynamic pricing, smart grids, and appliances to manage demand peaks.

10.6. Wireless Charging

Automakers are likely to hit stalemates on the competitive front lines of range and charging speed as the EV industry grows. Increasing range comes with weight, packaging, and cost implications as well as stress on the already brittle supply chain for battery materials. The maximum power of charging stations will set a speed limit on vehicle charging, thus automakers will work to set their EVs apart. Many already promote ferocious acceleration, extreme off-road prowess, advanced driver-assistance features, or cutting-edge styling. However, given the variety of options consumers will soon have, even these characteristics run the risk of becoming commodities. Under these conditions, wireless charging is positioned to be a standout feature in the next generation of EVs for the brands that adopt it first.

10.7. Environmental Impact of RESs’ Integration

Despite the significant attention garnered by RES systems in the fields of economics, environment, and technology in the past decade, there exists a potential for their adverse impact on the environment. As the adoption of EVs proliferates, it is imperative to conduct an assessment of the environmental impact associated with utilizing charging stations that are energized by sustainable sources of energy, including but not limited to photovoltaic, wind, hydro, biomass, and geothermal energy. This task is imperative and requires immediate attention because of its essential nature. It is imperative that the various phases of design, construction, installation, servicing, and cleaning are both technically and ecologically feasible. Furthermore, a thorough examination of the impacts that these stages exert on the environment’s natural resources and biodiversity ought to be conducted.

11. Conclusions

This paper investigates the integration of RESs and EVs into energy systems. The assessment encompasses a comprehensive collection of 175 literary works that have been published within the last fifteen years, pertaining to the field of literary study. Based on a bibliographic analysis, it was found that the journals with the highest impact, as determined by the total number of papers published per journal, were IEEE Access, Energy, and IEEE Transactions on Smart Grid. A summary of each paper’s contribution is provided, while a classification of research works pertaining to the integration of RESs and EVs is analyzed based on several factors presented in the literature. These include the type of EVs and/or RESs, the integration of RESs and EVs into power systems with a focus on emissions, EV charging stations and parking lots, EV batteries and battery energy storage systems, control approaches for integrating RESs with EVs, EV aggregators, and the cost implications associated with such integration. Focusing upon the formulation and the implementation details, it can be concluded that the majority of research articles that have been published have put forth a formulation that is supported by both mathematical algorithms and heuristic algorithms. The mixed integer linear programming algorithm and the particle swarm optimization algorithm are widely recognized as the most prominent mathematical and heuristic algorithms, respectively. A considerable portion of the studies were executed using MATLAB/Simulink, with CPLEX serving as the predominant optimization tool. Moreover, there exist several areas of research that require further exploration to enhance the incorporation of RESs into electricity networks in tandem with electromobility. The primary topics of discussion in the realm of power systems include the demand for power, inadequacy of charging infrastructure, implementation of intelligent energy management systems, integration of additional RESs, resilience and adaptability of power systems, wireless charging, and the environmental effect of RESs’ integration.

Author Contributions

Conceptualization, N.M.M. and P.S.K.; methodology, N.M.M. and P.S.K.; validation, N.M.M., P.S.K., G.J.T. and F.D.K.; investigation, N.M.M.; resources, N.M.M.; data curation, N.M.M.; writing—original draft preparation, N.M.M.; writing—review and editing, N.M.M., P.S.K., G.J.T. and F.D.K.; visualization, N.M.M.; supervision, N.M.M., G.J.T. and F.D.K. All authors have read and agreed to the published version of the manuscript.


This research received no external funding.

Data Availability Statement

No data available.

Conflicts of Interest

The authors declare no conflict of interest.
