Quantum Physisorption of Gas in Nanoporous Media: A New Perspective

Abstract

Although numerous investigations have revealed the gas physisorption characteristics of porous media, the essence of physisorption behavior of gas within nanoscale space is still indistinct. We speculated that the physisorption behavior of a complex molecular system (e.g., CH₄ and CO₂) exhibits a quantum effect due to the confinement effect of nanopores. Gas molecules occur in varied orbitals following certain probabilities and, therefore, have separate energy levels inside a nanoscale space. Energy level transition of molecules from excited state to ground state triggers gas physisorption, while non-uniform spatial distribution of energy-quantized molecules within nanopores dominates the gas physisorption behavior. The spatial distribution of gas molecules can be adjusted by temperature, pressure and potential energy field. Based on the quantum effect, we developed a physisorption equation from the perspective of quantum mechanics to re-understand the basic principles of gas physisorption within nanopores.

1. Introduction

Climate change induced by increasing emission of greenhouse gases of methane (CH₄) and carbon dioxide (CO₂) threatens the living environment of human beings [1,2,3,4]. To reduce carbon emissions, carbon capture and storage (CCS) has long been a concern of global scholars and government organizations [5,6,7,8]. Physical adsorption is one of the significant properties utilized to accomplish CCS by nanoporous media. There are two types of storage media that have received widespread attention, and they are: (a) naturally formed organic-rich rocks (coal, shale), which are rich in nanoscale pores and are an important geological place for CH₄ and CO₂ storage [9,10,11,12,13]; (b) artificially synthesized nanoporous materials such as metal-organic frameworks (MOFs), which have been widely used for the separation and storage of CH₄ and CO₂ due to their super adsorption capacity and highly adsorptive selectivity [14,15,16,17,18].

During the past century, the nature of the gas physisorption has been investigated in light of various possible theories, such as monolayer adsorption [19], multi-molecular layer adsorption [20], potential theory [21,22], and volume filling of micropores [23]. The most famous adsorption theory proposed by Langmuir regards gas physisorption behavior as the dynamic equilibrium of evaporation-condensation of gas on plane surfaces [19]. Although it has been successfully applied to characterize the physisorption behavior of CO₂ and CH₄, essential issues involving how gas physisorption is triggered within nanoscale pores and what dominates the gas physisorption behavior are still thought provoking.

In this presentation, we proposed a new theory from the perspective of quantum mechanics improving our understanding of the basic principles of the physisorption of gases within confined nanoscale space and provided a new idea to predict the physisorption behavior of CH₄ and CO₂ within nanoporous media. Especially in the fields of energy and the environment, including geo-resources (coalbed methane and shale gas) assessment and extraction, gas storage and transport, gas separation and purification, and CCS technique, the quantum physisorption theory proposed here would be demonstrated as a powerful tool.

2. Theory and Modelling

2.1. Quantum Effect of Gas Physisorption

A conceptually physical model of quantum physisorption for CH₄ and CO₂ gases was established. Gas molecules within the confined nanoscale space make up the Boltzmann system, which is characterized by the same molecular properties, negligible intermolecular interaction, and discrete energy levels with an unlimited number of molecules at each energy level. The molecular energy of the Boltzmann system is quantized, that is, the energy levels are separated, which is manifested as a quantum effect. This quantum effect embodies two aspects: (a) The potential energy of interaction between pore surface and molecule shows a discontinuously quantized distribution, and the spatial potential energy field consists of n + 1 energy levels in different orbitals with a number set of M=$\left\{i|i\in N,i\le n,n\ge 2 \right\}$ (Figure 1A). The potential energy in different orbitals is an integer multiple of the smallest potential energy unit E₀, that is, E_pi = (i−n)E₀, and the lowest potential energy −nE₀ occurs near the pore surface (Figure 1B,C). (b) The kinetic energy of molecules is simplified to two states according to phase difference, in which the non-adsorbed molecules have the same kinetic energy, that is $E_{vi}=\overline{E_v}, i\ge 1$; while the adsorbed molecule locates in the orbital with the lowest potential energy, and its kinetic energy is $E_{vi}=E_{v0},i=0$. Therefore, gas molecules in different orbitals have separate energy levels, i.e., $E_i=E_{vi}+E_{pi}$. The width of the excited molecular orbital should be an integer multiple of the de Broglie wavelength, which satisfies the condition of maintaining standing wave. Molecules can exist stably in the orbital when this condition is met (Figure 1D). Based on this understanding, the maximum quantum number n can be discriminated by a function of considering the gas type, molecular kinetic diameter, and temperature of molecular system, expressed as (see Appendix A):

$$n=\frac{d\sqrt{2RTM}}{h{N}_A\sqrt{\pi }}$$

(1)

It can be further expressed as $n=0.277\sqrt{T}$ and $n=0.399\sqrt{T}$ for CH₄ and CO₂, respectively. Because the value of n should be a positive integer, the smaller integer is assigned to the value of n when the calculated n value is between two integers. Theoretically, the maximum quantum number of CH₄ and CO₂ gradually increases with the increasing temperature. Under the same temperature conditions, the maximum quantum number of CO₂ is greater than that of CH₄.

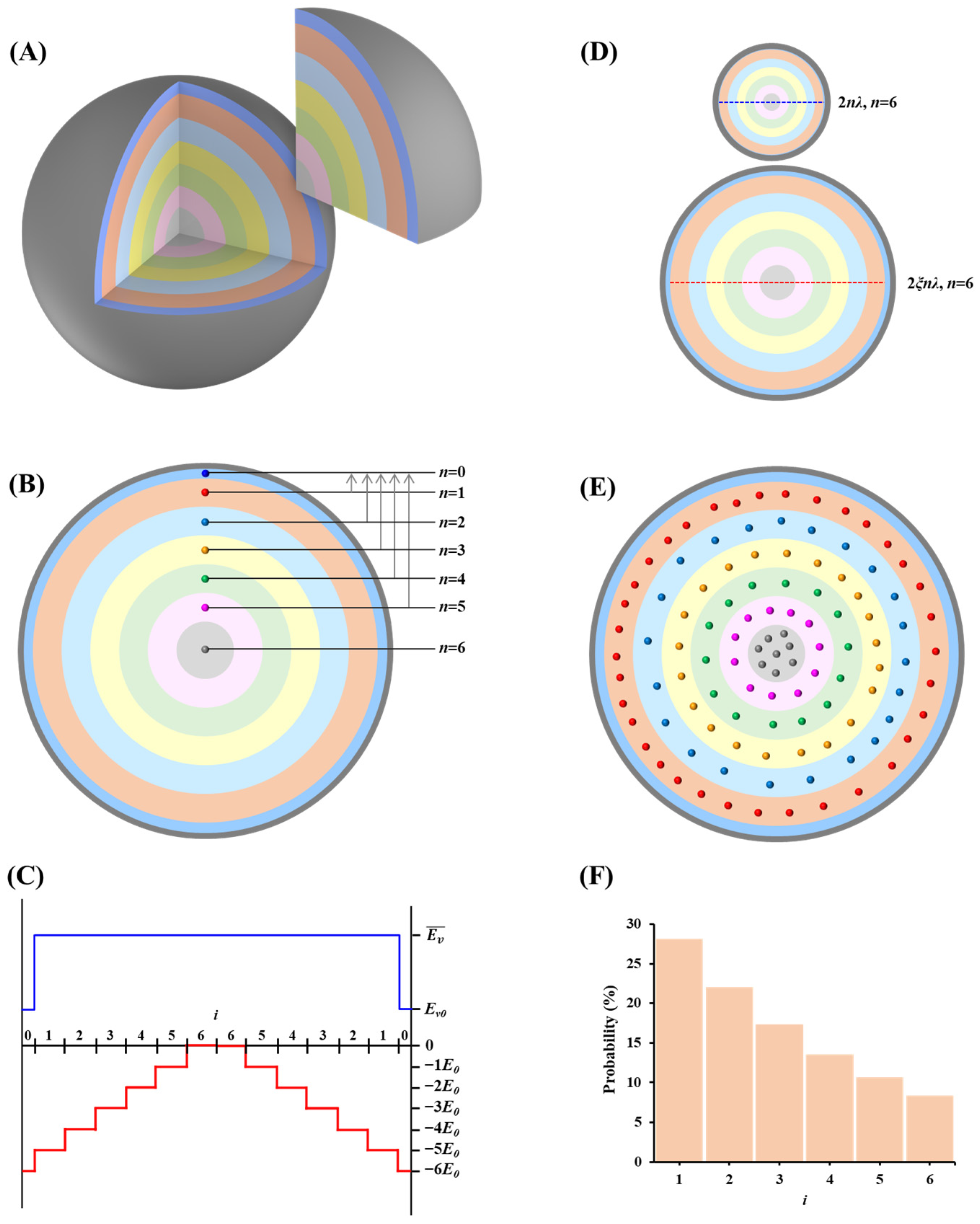

After molecules are injected into the nanoscale space, the specific location of molecules at the initial moment before the molecules are adsorbed cannot be predicted, but in the quantized energy field, gas molecules will be distributed in orbitals (1 ≤ i ≤ n) by a certain probability distribution (Figure 1E,F), and the distribution conforms to the classic Boltzmann distribution law [24], that is:

$$f_i=\frac{\mathit{exp}\left(-\frac{i{E}_0}{k_{B}T}\right)}{{{\displaystyle \sum }}_{j=1}^n\mathit{exp}\left(-\frac{j{E}_0}{k_{B}T}\right)}$$

(2)

Molecules in the same orbital have a uniform quantum state, and have diverse quantum states in different orbitals. Ideally, from the surface (the lowest potential energy, orbital i = 0) to the inside of a pore, the molecular energy level gradually increases. Excited gas molecules in orbitals i = 1~n − 1 are unstable and will spontaneously return to the ground state (orbital i = 0) near the pore surface. When the molecule returns to the ground state orbital, it appears to be adsorbed on the pore surface. Therefore, the physisorption behavior of gas molecules is exactly the result of molecular energy level transition, and the amount of adsorption is the number of molecular transitions.

Energy level transition of gas molecules occurs only when the kinetic energy and potential energy decrease simultaneously and follows the principles: (a) Only transitions from i = 1~n − 1 orbitals (excited state) to i = 0 orbital (ground state) occur, showing a transition selectivity; (b) It is not that all the molecules in an excited state will undergo energy level transition, but that they have a certain probability of transition, that is, transition is probabilistic; (c) The probability of energy level transition is equal to each other for all molecules due to the exactly identical molecular properties; (d) Molecular transition speed is equal to the average velocity of molecular motion; (e) During the molecular transition, energy releases including both the kinetic energy and potential energy and is numerically equal to the difference in energy level, i.e., $\Delta E_{i-0}=E_i-E_0$.

The orbital of i = n belongs to the zero potential energy region, and molecules in this orbital are always in a free state because they get rid of the constraints of gas-solid interaction. In addition, desorption is the reverse process of the adsorption and can be regarded as the process of molecules returning to the excited state from the ground state when receiving external energy.

2.2. Equation of Quantum Physisorption

Gas physisorption isotherm is parameterized according to the above physical model. Based on the quantum statistical physics, a quantum equation for the CH₄ and CO₂ physisorption within nanoporous media was established (see Appendix B). The total amount (n_a) of gas adsorption is the sum of molecular transition from energy levels of i = 1~n−1 and can be expressed as:

$$n_a={\displaystyle \sum }_{i=1}^{n-1}{n}_{ai}$$

(3)

where n_ai is the adsorption amount of gas molecules at i-th energy level and is equal to the number of transitions of gas molecules at the i-th energy level, which can be determined by the quantum physisorption equation:

$$n_{ai}=\frac{n_{mi}p-k_{i}z}{p}, n_{ai}\ge 0, k_{i+1}>k_i$$

(4)

where,

$$n_{mi}=\frac{\mathit{exp}\left(-\frac{i{E}_0}{k_{B}T}\right)\times n_L}{{{\displaystyle \sum }}_{j=1}^{n-1}\mathit{exp}\left(-\frac{j{E}_0}{k_{B}T}\right)}$$

(5)

In Formula (4), k_i is the adsorption coefficient of gas molecules at the i-th energy level, which reflects the adsorption saturation speed of gas during pressurization process, generally $k_{i+1}>k_i$. A smaller k_i value indicates a faster physisorption saturation. Gases of different energy levels start to undergo transition at varied initial pressures, which are equal to $\frac{k_{i}z}{n_{mi}}$. In other words, the transition occurs when the molecules reach a certain concentration. During the process of gas pressurization, when the pressure p reaches the initial pressure, the molecules of the i-th energy level begin to undergo energy level transitions, which conform to the quantum physisorption equation.

Additionally, the results obtained by widely used volumetric and gravimetric methods are the Gibbs excess adsorption (n_e), which is not the actual amount of adsorbed gas (n_a). When the gas-adsorbed volumes cannot be ignored especially at high pressure, they can be converted into each other through the density ratio of free gas to adsorbed gas [25], which is mathematically expressed as:

$$n_e=\left(1-\frac{{\rho }_g}{{\rho }_a}\right)n_a$$

(6)

3. Application Method of Quantum Physisorption Theory

The quantum physisorption theory is applicable to the adsorption processes of CH₄ and CO₂ in various nanoporous media, such as metal organic frameworks (MOFs), porous organic frameworks (POFs), molecular sieve, activated carbon, coal rock, shale rock, and clay minerals etc. For a set of isotherm adsorption data of CH₄ or CO₂ measured by widely used volumetric and gravimetric methods, the adsorption isotherm can be parameterized by using the equation of quantum physisorption.

Firstly, the maximum quantum number can be determined by Equation (1) for CH₄ and CO₂, respectively. Because the value of n should be a positive integer, the smaller integer is assigned to the value of n when the calculated n value is between two integers. Details are presented in Appendix A.

Secondly, to determine the free phase density and compressibility factor of gases at experimental temperature and pressure conditions, the data can be directly obtained from the Reference Fluid Thermodynamic and Transport Properties Database (REFPROP), which was developed by the National Institute of Standards and Technology (NIST). REFPROP is a computer program, distributed through the Standard Reference Data Program of NIST, that provides thermophysical properties of pure fluids and mixtures over a wide range of fluid conditions including liquid, gas, and supercritical phases.

Thirdly, it is necessary to analyze the isotherm adsorption data (absolute adsorption amount vs. gas pressure) by combining Equations (3)–(5). If the adsorption data is the Gibbs excess adsorption, Equation (6) also needs to be employed. The next thing that needs to be done is to obtain the undetermined parameters in these adsorption equations, including E₀, n_L, k_i, and ρ_a (for excess adsorption). In this study, we developed a computer program based on particle swarm algorithm, which can get the above parameters by fitting the experimental data (m points) with these adsorption equations and minimizing the relative error (Equation (7)). After determining the parameters, the amounts of adsorbed molecules at different energy levels can also be calculated by using Equation (4), so as to predict the physisorption behavior.

$$\delta ={{\displaystyle \sum }}_{i=1}^m\left|\frac{n_{cal}^i-n_{mea}^i}{n_{mea}^i}\right|$$

(7)

In this study, relative error δ was used instead of residual (as shown in literature [26]) taking into account the large difference in adsorption amounts at low and high gas pressures.

4. Results and Discussion

4.1. Calculated Results

This study is not focused on analyzing the differences of gas physisorption in various porous media but on verifying the feasibility of the theory and exploring the gas physisorption mechanism. Therefore, two MOFs (Cu₃(BTC)₂, MOF-2) and two shale rocks were presented here as a case study. Related parameters obtained by using the average of repetitive analyses were listed in

Table 1. Analyzed results of the studied cases.

Porous Media	T (K)	nL (cm3/g)	E0 (10−23 J)	ρa (kg/m3)	Adsorption Coefficient (cm3·MPa/g)
					k1	k2	k3	k4	k5
a Cu3(BTC)2	298.00	273.1466	425.5455	1809.4766	0.3846	0.7750	1.1527	3.3665	6.4195
b MOF-2	298.00	94.4453	134.5343	1819.1773	0.0897	0.2472	0.6186	1.1612	2.8258
c Sleen Shale	338.15	5.0481	40.6973	382.8547	0.0307	0.1187	0.2194	0.3992	/
d Grange Hill Shale	331.15	1.2984	46.3658	/	0.0007	0.0042	0.0091	0.0239	/

^a Cu₃(BTC)₂ adsorbs CO₂ at 298 K [15]. ^b MOF-2 adsorbs CO₂ at 298 K [15]. ^c Sleen shale adsorbs CH₄ at 338.15 K [27]. ^d Grange Hill shale adsorbs CH₄ at 333.15 K [12]. 1 mol = 22.4 × 10³ cm³ (STP, 273.15 K, 101.325 kPa).

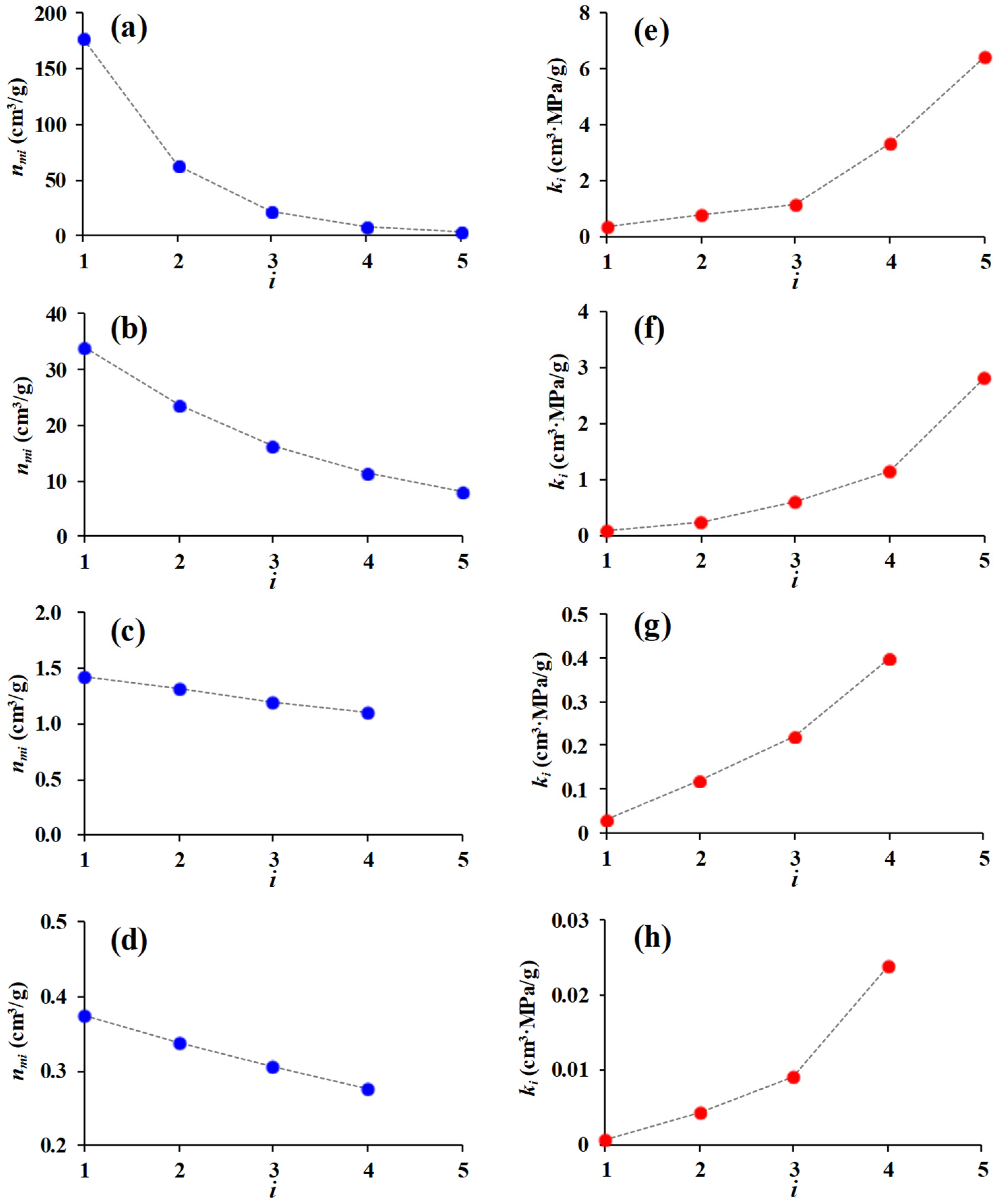

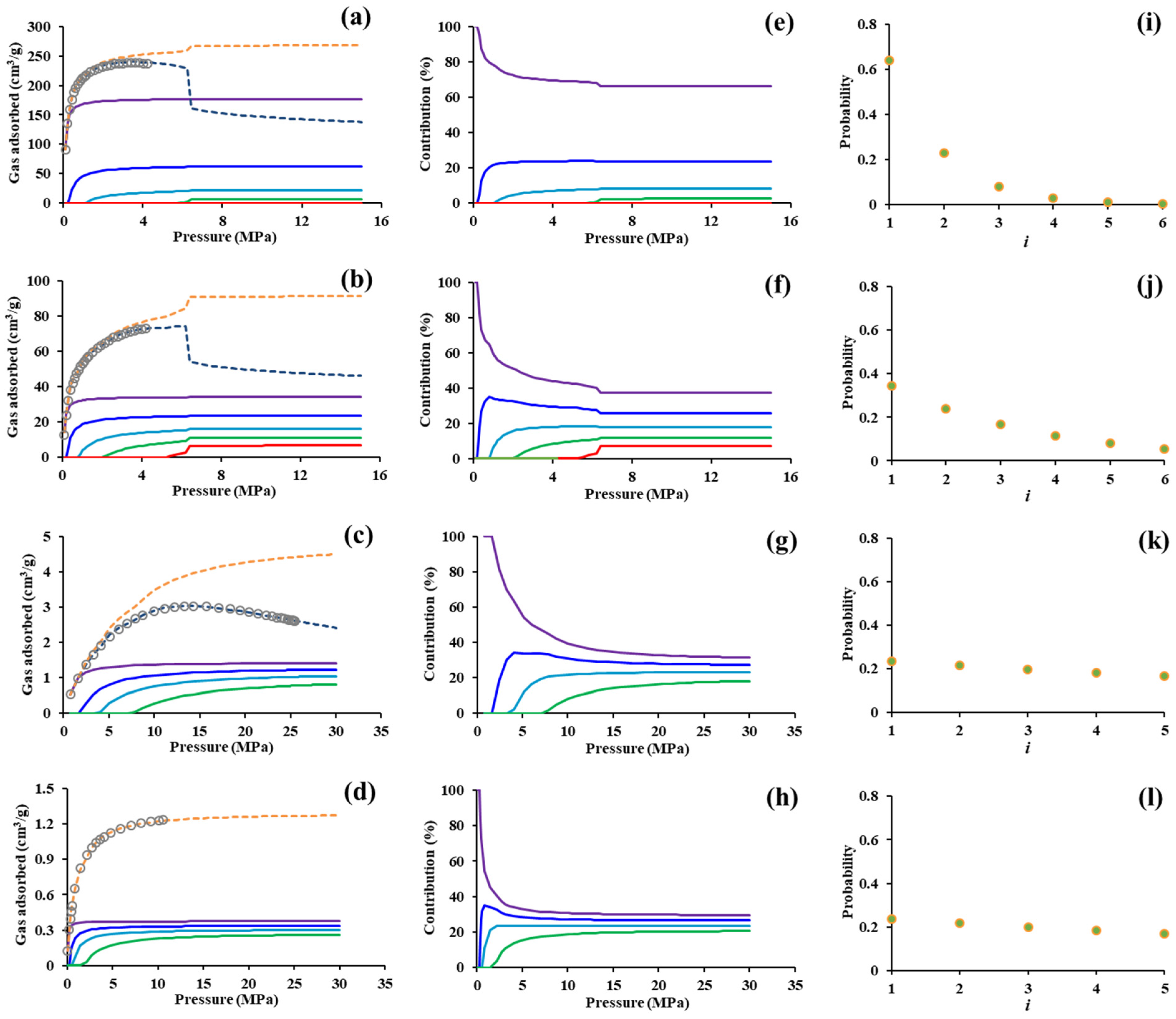

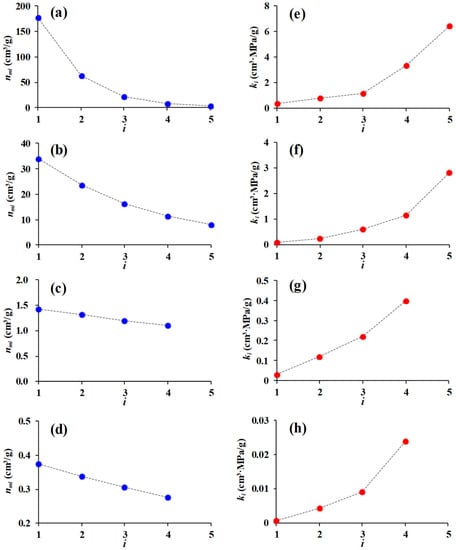

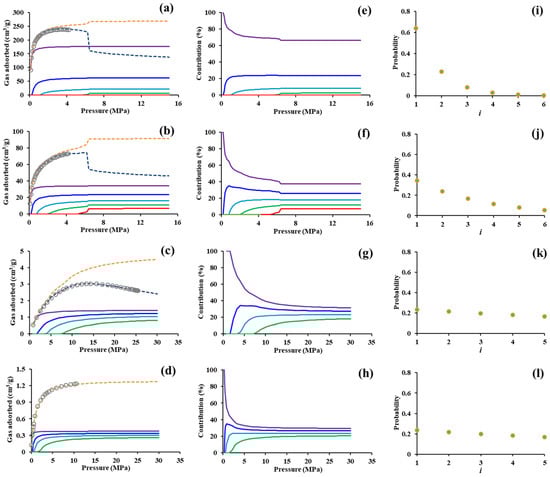

. MOFs have homogeneous pore structure [15], while shale is a chemically heterogeneous porous rock [12]. The quantum physisorption equation can well predict the adsorption behavior of CH₄ and CO₂ in the above nanoporous media, and the adsorption of gases with different energy levels is markedly distinct (Figure 2a–d). We can see that the contribution to total adsorption amount decreases as molecular energy level increases, particularly at the stage of rapid increase in adsorption amount (Figure 2h). The gap between the contributions of different energy levels is dominated by probability distribution of molecules in different orbitals. As gas adsorption trends towards saturation, the gap gradually decreases until it reaches stability. As shown in Figure 3, it can be seen that with the increase in the quantum number, maximum the adsorption amount of molecules (n_mi) decreases in an exponential form while the adsorption coefficient of molecules (k_i) gradually increases. This indicates that a larger adsorption amount and a fast adsorption saturation speed will occur in molecules with relatively lower energy level. This also implies that gas molecules near the pore surface are more likely to adsorb.

4.2. Mechanism of Quantum Physisorption

The physisorption behavior of complex molecular systems of CH₄ and CO₂ confined within nanopores is essentially resulted from energy level transition of gas molecules from excited state to ground state. The ground state orbital is located near the internal pore surface, which resembles the elementary space described by Langmuir [19]. The maximum adsorption capacity theoretically equals to the total space occupied by the ground state orbital, which positively associates with internal surface area of pores. Vast specific surface area for MOFs may be the main reason that the MOFs have larger adsorption capacity compared to shale rock. The actual adsorption amount of gas closely relates to the gas pressure, gas temperature, and potential energy field of the gas-solid system. Under certain temperature and pressure conditions, excited gas molecules are initially unevenly distributed in the orbitals (i = 1~n) following the Boltzmann distribution law. The molecular amount of energy level transition is a function of the total number of molecules with the same transition probability. Therefore, the amount of gas physisorption gradually increases due to the increase in the total amount of molecules in all the orbitals during pressurization process. Change in pressure, however, does not change the probability of molecular transition. In addition, there is an initial pressure at which adsorption occurs; that is, the law of quantum physisorption is followed when a certain amount of molecules is reached.

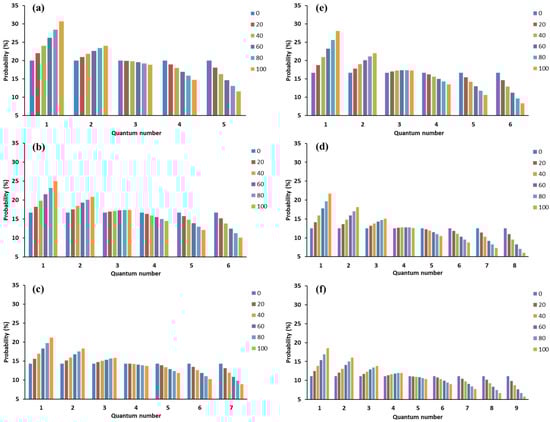

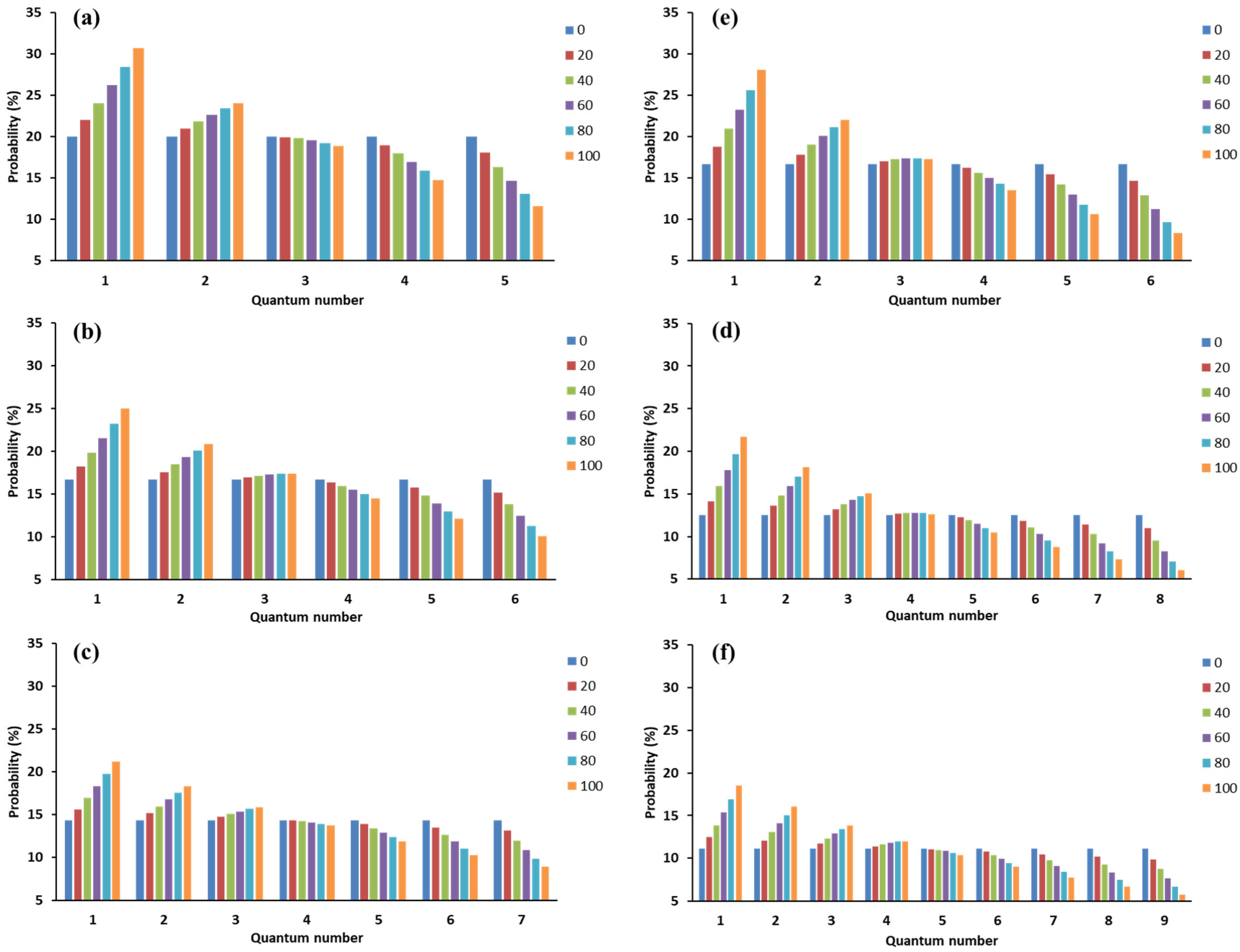

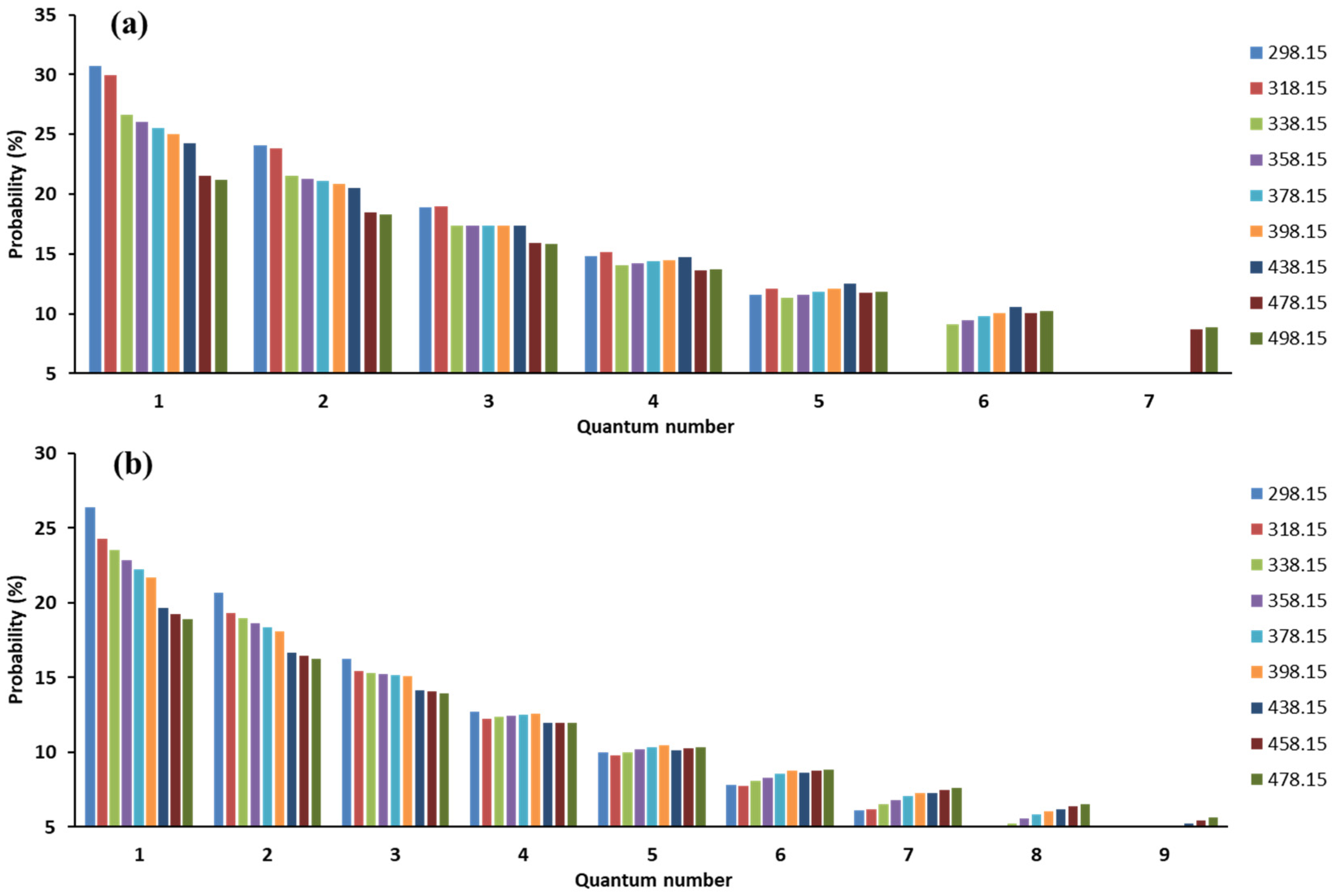

Potential energy of gas-solid interaction decrease or temperature increase will promote a more even molecular distribution within nanoscale space (Figure 2i–l), which enhances the difficulty of gas physisorption. As an extreme case, the gas molecules evenly distribute inside nanopores and will be non-adsorptive for a gas-solid system without interaction or under an extremely high temperature condition. With an enhanced potential energy field, the percentage of molecules with a low quantum number (especially i = 1 and 2) will increase (Figure 4), which causes an increasing adsorption amount. Temperature also adjusts the probability distribution of molecules in orbitals together with a potential energy field. As shown in Figure 5, the increase of temperature will cause a dramatic decrease in the percentage of molecules with a low quantum number. Therefore, the temperature increase makes it more difficult for gas physisorption. Previously, the impacts of specific surface area of porous medium and temperature on the adsorbed amount have been widely observed. These phenomena can be reasonably explained by the quantum physisorption theory.

5. Conclusions

In summary, this study attempts to explore the essence of the physisorption behavior of gas (CH₄ and CO₂) within nanoscale space. We proposed a new mechanism to re-understand the basic principles of gas physisorption within nanoscale space and found that the physisorption behavior of the complex molecular system of CH₄ and CO₂ within nanoporous media exhibits a quantum effect; that is energy level transition induces gas physisorption. Based on this phenomenon, we established a quantum physisorption equation, which matches well with experimental data for various nanoporous media. This discovery differs from any traditional theory and is expected to open a new field involving in the quantum physisorption of gases. Confidently, the quantum physisorption theory proposed will be of significance to the researchers of multidisciplinary sciences (energy, environment, physics, and materials).
