Systematic Review

Hemodynamic Response to Tracheal Intubation Using Indirect and Direct Laryngoscopes in Pediatric Patients: A Systematic Review and Network Meta-Analysis

by
Risa Takeuchi
1,
Hiroshi Hoshijima
2,*,
Masanori Tsukamoto
3,
Shinichi Kokubu
4,
Takahiro Mihara
5 and
Toshiya Shiga
6
1
Bunkoukai Special Needs Dental Clinic, 2765-5 Ujiie, Sakura 329-1311, Japan
2
Division of Dento-Oral Anesthesiology, Graduate School of Dentistry, Tohoku University, 4-1 Seiryomachi, Sendai 980-8575, Japan
3
Systemic Management for Dentistry, Kagoshima University Hospital, 8-35-1 Sakuragaoka, Kagoshima 890-0075, Japan
4
Department of Anesthesiology, Dokkyo Medical University, 880 Kitakobayashi, Mibu 321-0293, Japan
5
Department of Health Data Science, Graduate School of Data Science, Yokohama City University, Yokohama 236-0004, Japan
6
Department of Anesthesiology and Pain Medicine, International University of Health and Welfare Ichikawa Hospital, 6-1-4 Kounodai, Ichikawa 272-0827, Japan
*
Author to whom correspondence should be addressed.
Children 2025, 12(6), 786; https://doi.org/10.3390/children12060786
Submission received: 22 May 2025 / Revised: 12 June 2025 / Accepted: 12 June 2025 / Published: 16 June 2025
(This article belongs to the Section Pediatric Anesthesiology, Perioperative and Pain Medicine)
Browse Figures
Versions Notes

Abstract

:
Purpose: Hemodynamic response, particularly increased heart rate (HR) and blood pressure, can occur during tracheal intubation and is an adverse event to be avoided. The aim of this study was to use a network meta-analysis (NMA) to develop a ranking of hemodynamic responses (HR and mean blood pressure, MBP) after intubation of indirect and direct laryngoscopes in pediatric patients. Method: Studies were eligible for inclusion if they had a prospective randomized design, compared hemodynamic response (HR and MBP) to tracheal intubation between indirect and/or direct laryngoscopes, and were conducted in pediatric patients. The pooled difference between each intubation device’s intubation time is expressed as a weighted mean difference (WMD) of a 95% confidence interval (CI). The intubation time of the device was evaluated using P-scores calculated from the network point estimates and standard errors. A random-effects model was used when pooling effect sizes. We also analyzed intubation time as a related factor to hemodynamic responses. Results: From the electronic databases, we selected 16 trials for review. In a Macintosh-referenced analysis, Airtraq suppressed an increase of HR and MBP during tracheal intubation in pediatric patients significantly more than a Macintosh laryngoscope. (HR; WMD = −16.7, 95%CI −22.5 to −10.9, MBP; WMD = −8.57, 95%CI −10.9 to −6.27). Airtraq also topped the HR and MBP P-score rankings. The results of this study showed similar laryngoscopes in the top five rankings of P-scores (Airtraq, Coopdech video laryngoscope, Miller, C-MAC, Wis-Hipple) for HR and intubation time. Conclusions: We applied a network meta-analysis to create a consistent ranking of intubation devices that prevent hemodynamic changes during tracheal intubation in pediatric patients. In this NMA, Airtraq proved to be the best laryngoscope for preventing hemodynamic responses during tracheal intubation in pediatric patients. In the analysis of intubation time, Airtraq showed the shortest intubation time.

1. Introduction

Hemodynamic response, in particular increased heart rate (HR) and blood pressure, can occur during tracheal intubation and is an adverse event to be avoided. Tracheal intubation stimulates the sympathetic nervous system and oropharyngeal and upper airway receptors, which increases blood catecholamine levels and leads to dramatic changes in hemodynamics [1,2]. In pediatric patients, the autonomic nervous system is immature, and when the sympathetic nervous system becomes dominant, excessive secretion of catecholamines causes severe tachycardia, arrhythmia, myocardial ischemia, and cardiac arrest [3]. Furthermore, in children, inhalational anesthetics used for induction of anesthesia, such as sevoflurane and halothane, interact with catecholamines and can cause further complications, including myocardial ischemia and severe arrhythmia [4,5].
In clinical settings, a range of indirect laryngoscopes is employed for tracheal intubation in pediatric patients. Unlike direct laryngoscopes such as Macintosh or Miller, which require alignment of the oral, pharyngeal, and laryngeal axes to obtain a direct view of the glottis, indirect laryngoscopes are equipped with a camera at the blade tip that transmits glottic images to an external screen [6,7]. This design feature eliminates the necessity of aligning the three anatomical axes, potentially making the procedure less invasive [8,9,10]. As a result, indirect laryngoscopy may reduce the hemodynamic response associated with intubation in pediatric patients.
Evidence from adult studies, including meta-analyses, has shown that indirect laryngoscopes are linked to significantly lower hemodynamic responses during intubation compared to direct methods [11,12]. However, pediatric studies offer inconsistent findings: while some suggest a blunted hemodynamic reaction with indirect devices [8,10,13], others report no notable difference between direct and indirect approaches [9,14,15,16]. Consequently, there is still no definitive consensus regarding the effect of laryngoscope type on hemodynamic response in pediatric tracheal intubation.
This study aims to clarify this issue by conducting a network meta-analysis (NMA) to compare and rank the hemodynamic responses elicited by different laryngoscope types in children undergoing intubation.

2. Methods

2.1. Protocol and Registration

The preparation of this manuscript was guided by the PRISMA-NMA (Preferred Reporting Items for Systematic Reviews and Meta-Analyses extension for Network Meta-Analyses) guidelines [17]. The study protocol was pre-registered with PROSPERO (registration number: CRD42023360282).

2.2. Search Strategy

A thorough search of the PubMed, EMBASE (Excerpta Medica), and Cochrane Central Register of Controlled Trials databases was conducted in March 2023. In addition to database searches, we manually reviewed the reference lists of the selected articles and relevant review papers to identify any additional eligible studies. No limitations were placed on the type of publication or language. Details of the search methodology can be found in Supplemental S1.

2.3. Study Selection and Data Collection

Potentially relevant articles were extracted and assessed for eligibility independently by two authors (H.H. and T.S.) working independently. If data in the extracted articles were found to be missing or inconsistent, we contacted the authors directly for clarification. We also searched the website to confirm that the protocol for each study included in the meta-analysis had been published before the research was undertaken and that the protocol was implemented as stated. Non-publication of a protocol on the website was recorded as a risk of bias.
Studies were eligible for inclusion if they had a prospective randomized design and compared hemodynamic response (HR and mean blood pressure [MBP]) to tracheal intubation between indirect and/or direct laryngoscopes for pediatric patients. We extracted data collected from the earliest time recorded after tracheal intubation onward. Studies excluded were those involving manikins, those in which tracheal intubation was performed during cardiopulmonary resuscitation, those involving adult patients, and those that involved the use of double-lumen tubes.

2.4. Intubation Time

We also compared the intubation time required for each type of laryngoscope to determine if it affected the hemodynamic response. Intubation time was also ranked by NMA using continuous data.

2.5. Risk of Bias Within Individual Studies

The risk of bias in each included study was assessed in accordance with the guidelines outlined in the Cochrane Handbook [18] (Supplemental S2). Two reviewers (H.H. and T.M.) independently conducted the evaluations to ensure objectivity.

2.6. Certainty of Evidence

The quality of the evidence for each estimate in the network meta-analysis was evaluated using the GRADE methodology (Grading of Recommendations, Assessment, Development and Evaluation) [19]. To facilitate this assessment, we employed the CINeMA (Confidence in Network Meta-Analysis) web-based tool, which adheres to a previously established evaluative framework [20]. The inconsistency between direct and indirect evidence was assessed using a per-design interaction random-effects model. Significant inconsistencies were suggested when p < 0.05 was reported in the consistency analysis or when confidence intervals excluded nulls [21].

2.7. Publication Bias

To explore potential small-study effects in relation to the primary outcome, we generated a comparison-adjusted funnel plot. Prior to constructing this plot, we hypothesized that more recently introduced devices might be favored in smaller trials. Consequently, laryngoscopes were ordered chronologically from the oldest to the most recent, allowing us to standardize comparisons between earlier and newer interventions and calculate differences in effect sizes accordingly.

2.8. Statistical Analysis

The HR and MBP differences between each device were combined and expressed as weighted mean differences (WMD) with 95% confidence intervals (CI). Also, the difference in intubation time between each device was combined and expressed as a WMD with a 95%CI. A random-effects model was used when pooling effect sizes. The ranking of HR, MBP, and intubation time for each device was determined by calculating P-scores based on the network point estimates and standard errors. The P-score serves as a frequentist alternative to the Bayesian network surface under the cumulative ranking curve and represents the average level of certainty that one intervention is superior to another. P-scores can be used to rank interventions on a scale of 0 (worst) to 1 (best) within a range of interventions. This NMA will be performed using R version 4.2.2 (R Foundation for Statistical Computing, Vienna, Austria) with the netmeta package. A random-effects model was used when pooling effect sizes.

3. Results

An initial search across the specified electronic databases yielded 750 potentially relevant studies. After screening titles and abstracts, 602 articles were excluded. The remaining 148 articles underwent full-text review to assess their eligibility based on the predefined inclusion and exclusion criteria. A further 132 studies were excluded that compared anesthetic agents (n = 60), used a laryngeal mask (n = 31), assessed cardiopulmonary complications as the outcome (n = 19), did not compare hemodynamic response (n = 10), nonrelevant studies (n = 8), compared intraoperative vital signs (n = 4), or used an unknown type of laryngoscope (n = 1). The remaining 16 articles met the inclusion criteria and contained the data necessary for the planned comparison (Supplemental S3) [8,9,10,13,15,16,22,23,24].
All of the trials eligible for inclusion in the meta-analysis were published between 2007 and 2022. Fourteen of the sixteen studies included patients aged 1 year or older or 12 years or younger. The remaining two studies included children up to 18 years of age. The most commonly used indirect laryngoscope was the Airtraq, followed by the McGrath, C-MAC, or Truview EVO2. Overall, the most commonly used laryngoscope was the Macintosh laryngoscope (used in 12 studies), followed by Airtraq and Miller, which were used in five studies. McGrath, C-MAC, Truview EVO2, and McCoy laryngoscopes were used in two studies each. Wis-Hipple and AirwayScope were used in one study. Fourteen of the sixteen studies reported the American Society of Anesthesiologists Physical Status classification, which was I–II. Fourteen studies were performed in patients with normal airways, and one study did not report airway status. One study included pediatric patients with difficult airway settings. The methods used for induction and management of anesthesia varied from study to study (Table 1).

3.1. Risk of Bias and Quality of Evidence

The risk of bias diagram is shown in Supplemental S4. The quality of the randomized controlled trials improved, and the risk of bias decreased between 2007 and 2022. Patient randomization was performed in all studies, but blinding as to the laryngoscope used was not possible in any of the studies. Whether the study evaluators were blinded was unclear in eight of the sixteen studies. Pre-registration of the study protocols tended to be more common for recent research, with many older studies not having a record of pre-registration.

3.2. Overall Analysis

3.2.1. Heart Rate During Tracheal Intubation

Fifteen studies (1101 patients) included an analysis of HR during tracheal intubation. In a Macintosh-referenced analysis, the increase in HR during tracheal intubation in pediatric patients was suppressed to a significantly greater extent by the Airtraq and Coopdech video laryngoscopes than by the Macintosh laryngoscope (Airtraq; WMD = −16.7, 95%CI −22.5 to −10.9, Coopdech video laryngoscope; WMD = −13.7, 95%CI −26.9 to −0.55; Figure 1A). The expected P-score and ranking of each intubation device for the analysis of HR during tracheal intubation are shown in Figure 2A. The highest ranked of all the laryngoscopes was the Airtaq (P-score 0.96), while the Coopdech video laryngoscope, Miller, C-MAC, Wis-Hipple, AirwayScope, and McCoy all ranked higher than the Macintosh. The Truview EVO2 ranked lowest (P-score 0.14). A league table of the results for all comparison pairs in terms of HR is presented in Supplemental S5. Consistency analysis did not detect inconsistency across global models between the direct and indirect comparisons (p = 0.76). The node-splitting analysis indicated no significant discrepancies between direct and indirect comparisons (see Supplemental S6). Imprecision assessments using CiNeMA are presented in Supplemental S7. Regarding heterogeneity, 33% of the comparisons showed confidence and prediction intervals that extended toward both clinically meaningful benefit and harm, raising substantial concerns (Supplemental S8). A comparison-adjusted funnel plot is illustrated in Supplemental S9A. Egger’s test suggested the presence of publication bias in the hazard ratio (HR) data (p = 0.01), which are summarized in Table 2.

3.2.2. Mean Blood Pressure During Tracheal Intubation

Analysis of MBP during endotracheal intubation included nine studies and 680 patients. In the Macintosh analysis, only Airtraq significantly reduced the increase in MBP during tracheal intubation compared to the Macintosh laryngoscope (WMD = −8.57, 95%CI −10.9 to −6.27; Figure 2B). The expected P-score and ranking of each intubation device with respect to MBP during tracheal intubation are shown in Figure 2B. Among all the laryngoscopes, the suppression of MBP during tracheal intubation was highest for the Airtraq (P-score 0.99) and lowest for the Miller (P-score 0.13). The Macintosh laryngoscope ranked second among all the laryngoscopes (Supplemental S10). The p-value for inconsistency could not be calculated because the network was star-shaped. The results of imprecision and heterogeneity obtained from CiNeMA are shown in Supplementals S11 and S12. A comparison-adjusted funnel plot is shown in Supplemental S9B. MBP had fewer than nine studies, so it was not possible to perform Egger’s test. The summary table of the MBP is shown in Table 3.

3.2.3. Intubation Time

The analysis of intubation time included 13 studies and 1011 patients. In the analysis with reference to the Macintosh, only the Airtraq significantly reduced intubation time. (WMD = −12.2, 95%CI −16.5 to −6.0; Figure 1C). Figure 2C displays the anticipated P-scores and ranking for each intubation device in terms of intubation time. Among the devices, the Airtraq demonstrated the shortest intubation time, with a P-score of 0.96. The next ranked laryngoscope was the Coopdech video laryngoscope, followed by the Miller, C-MAC, and Wis-Hipple. These top-ranking results were similar to the results of the HR ranking (Supplemental S13). Consistency analysis did not detect inconsistency across global models between the direct and indirect comparisons (p = 0.33). The node-splitting model showed no indication of inconsistency between direct and indirect evidence. (Supplemental S14). The results of imprecision and heterogeneity obtained from CiNeMA are shown in Supplementals S15 and S16. The comparison-adjusted funnel plot and Egger’s test results indicate no publication bias (p = 0.11) (Supplemental S9C). The summary table of the intubation time is shown in Supplemental S17.

4. Discussion

In this study, we used NMA to compare hemodynamic fluctuations during tracheal intubation between direct and indirect laryngoscopes in pediatric patients. Pairwise meta-analysis showed that only the Airtraq significantly suppressed the hemodynamic response during tracheal intubation of these patients. According to the NMA P-score ranking, the Airtraq had the best ability to suppress both HR and MBP and the shortest intubation time.
The primary contributors to the hemodynamic response—such as elevated heart rate and blood pressure—observed during tracheal intubation are associated with the mechanical stimulation of the upper airway caused by laryngoscopy and tube insertion [32,33]. In direct laryngoscopy, proper visualization of the glottis typically requires alignment of the oral, pharyngeal, and tracheal axes. This process involves applying upward force with the laryngoscope blade to lift the tongue and epiglottis, which can act as a significant stimulus. Previous studies have reported that this lifting force reaches around 30–50 N when a direct laryngoscope is used [34,35,36,37].
However, there is no need to align the three axes when using an indirect laryngoscope [8,9,10], so tracheal intubation can be performed successfully even with a small lifting force [34,35]. The Airtraq, which had the highest P-score ranking in our study, has been reported to have a lifting force of only 10.4 ± 2.8 N during tracheal intubation [34]. This small lifting force is thought to have contributed to the suppression of the hemodynamic response. Similarly, the Airwayscope, which ranked high for the suppression of HR in our study, requires a median lifting force of 11 N (interquartile range, 8–14) [35]; also, the lifting force of the C-MAC laryngoscope is reported to be 11.5 ± 8.1 N [38].
Another possible explanation for the Airtraq’s ability to reduce the hemodynamic response lies in its built-in guiding channel for the endotracheal tube. This feature facilitates smoother tube advancement by helping maintain an optimal angle between the tracheal tube tip and the axis of the trachea, thereby potentially minimizing mechanical stress during intubation [39]. This reduces the stimulation of the tracheal wall by the tracheal tube and, consequently, the hemodynamic response.
Prolonged tracheal intubation increases irritation to the upper airway and heightens HR and MBP during or after tracheal intubation. In this study, we performed an NMA to determine whether the length of tracheal intubation was associated with hemodynamic responses. We found that the same laryngoscopes were in the top five P-score rankings for both HR and intubation time (i.e., the Airtraq, Coopdech video laryngoscope, Miller, C-MAC, and Wis-Hipple). Therefore, it is likely that there is some correlation between the length of tracheal intubation and fluctuations in hemodynamics in pediatric patients. However, further research is needed.
The reduction of hemodynamic responses during tracheal intubation using an intubation device has various advantages. First, it is advantageous for use in awake intubation of patients with upper airway obstruction, for whom intubation is expected to be difficult. Second, it may also be beneficial for preventing these complications in patients with potential myocardial ischemia and cerebral hemorrhage during tracheal intubation. Third, in situations where sufficient general anesthetic drugs are not available in emergency departments or ICUs, an intubation device that suppresses hemodynamic responses may provide safer intubation for these patients.

5. Limitations

This NMA has some potential limitations. First, it was not possible for operators to be blinded to the type of laryngoscope used, which means that the possibility of researcher bias cannot be excluded. Second, each study used various types and dosages of anesthetic agents, which may have introduced further bias because of their potential effects on the hemodynamic response during tracheal intubation. For example, some studies used glycopyrrolate, which increases heart rate (HR). Ketamine, known to increase heart rate and blood pressure, was used in some other studies. On the other hand, one of the included studies used clonidine as a premedication, which may decrease HR. Opioids such as fentanyl and sufentanil are commonly used as induction drugs and may blunt the response to intubation. The lack of information on the depth of anesthesia at the time of tracheal intubation, such as BIS or minimum alveolar concentration, creates further uncertainty about the actual cause of the hemodynamic changes observed. A third limitation is the different ages of patients in each RCT. This study included pediatric patients aged from 0 to 18 years. Since children grow in height and weight, the degree of difficulty of tracheal intubation differs depending on the target age, and the size of the laryngoscope blade used also differs. Variability in patient age further influences baseline cardiovascular tone and anesthetic sensitivity. A fourth limitation is that the hemodynamic response during tracheal intubation is only one functional aspect of laryngoscope performance and therefore must be used taking into account individual patient characteristics. Fifth, we were unable to investigate bradycardia during tracheal intubation. This NMA did not include RCTs in which bradycardia occurred during tracheal intubation, so analysis was not possible. However, bradycardia during tracheal intubation in children may be critical, so future investigation is necessary. Other limitations include differences in sample size and the skill levels of the laryngoscopists in the original studies.

6. Conclusions

We applied a network meta-analysis to create a consistent ranking of intubation devices that prevent hemodynamic changes during tracheal intubation in pediatric patients. In this NMA, Airtraq proved to be the best laryngoscope for preventing hemodynamic responses during tracheal intubation in pediatric patients. According to the analysis of intubation time, the Airtraq also had the shortest intubation time.

Supplementary Materials

The following supporting information can be downloaded at https://www.mdpi.com/article/10.3390/children12060786/s1: Supplemental S1: Search strategy. Supplemental S2: The methodological domain of risks of bias. Supplemental S3: Meta-analysis flow chart. RCT, randomized controlled trial. Supplemental S4: The risk of bias assessment. Green circles, red circles, and yellow circles indicate “low risk of bias”, “high risk of bias”, and “unclear risk of bias”, respectively. Supplemental S5: League table of the heart rate. Supplemental S6: Results of the inconsistency of the heart rate. Supplemental S7: Results of the imprecision of the heart rate. Supplemental S8: Results of heterogeneity of the heart rate. Supplemental S9: Results of the funnel plot of the heart rate (A), mean blood pressure (B), and intubation time (C). Supplemental S10: League table of the mean blood pressure. Supplemental 11: Results of imprecision of the mean blood pressure. Supplemental S12: Results of heterogeneity of the mean blood pressure. Supplemental S13: League table of the intubation time. Supplemental S14: Results of the inconsistency of the intubation time. Supplemental S15: Results of the imprecision of the intubation time. Supplemental S16: Results of heterogeneity of the intubation time. Supplemental S17: Summary of findings table for the intubation time.

Author Contributions

H.H. and R.T. had full access to all of the data in the study and take responsibility for the integrity of the data and the accuracy of the data analysis. Study concept and design: R.T., H.H., S.K. and T.S. Acquisition, analysis, or interpretation of data: H.H., T.M. and T.S. Drafting of manuscript: R.T., H.H., M.T. and T.S. Critical revision of the manuscript for important intellectual content: R.T., H.H. and T.M. Statistical analysis: H.H., T.M. and T.S. Obtaining funding: None. Administrative, technical, or material support: H.H. and M.T. Supervision: R.T., H.H. and T.S. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Takki, S.; Tammisto, T.; Nikki, P.; Jaattela, A. Effect of laryngoscopy and intubation on plasma catecholamine levels during intravenous induction of anaesthesia. Br. J. Anaesth. 1972, 44, 1323–1328. [Google Scholar] [CrossRef] [PubMed]
  2. Shribman, A.J.; Smith, G.; Achola, K.J. Cardiovascular and catecholamine responses to laryngoscopy with and without tracheal intubation. Br. J. Anaesth. 1987, 59, 295–299. [Google Scholar] [CrossRef] [PubMed]
  3. Agostoni, M.; Fanti, L.; Gemma, M.; Pasculli, N.; Beretta, L.; Testoni, P.A. Adverse events during monitored anesthesia care for GI endoscopy: An 8-year experience. Gastrointest. Endosc. 2011, 74, 266–275. [Google Scholar] [CrossRef]
  4. Redhu, S.; Jalwal, G.K.; Saxena, M.; Shrivastava, O.P. A Comparative Study of Induction, Maintenance and Recovery Characteristics of Sevoflurane and Halothane Anaesthesia in Pediatric Patients (6 months to 6 years). J. Anaesthesiol. Clin. Pharmacol. 2010, 26, 484–487. [Google Scholar] [CrossRef] [PubMed]
  5. Paris, S.T.; Cafferkey, M.; Tarling, M.; Hancock, P.; Yate, P.M.; Flynn, P.J. Comparison of sevoflurane and halothane for outpatient dental anaesthesia in children. Br. J. Anaesth. 1997, 79, 280–284. [Google Scholar] [CrossRef]
  6. Singh, R.; Singh, P.; Vajifdar, H. A comparison of Truview infant EVO2 laryngoscope with the Miller blade in neonates and infants. Paediatr. Anaesth. 2009, 19, 338–342. [Google Scholar] [CrossRef]
  7. Kim, H.J.; Kim, J.T.; Kim, H.S.; Kim, C.S. A comparison of GlideScope videolaryngoscopy with direct laryngoscopy for nasotracheal intubation in children. Paediatr. Anaesth. 2011, 21, 1165–1166. [Google Scholar] [CrossRef]
  8. Das, B.; Samanta, A.; Mitra, S.; Jamil, S.N. Comparative evaluation of Airtraq optical Laryngoscope and Miller’s blade in paediatric patients undergoing elective surgery requiring tracheal intubation: A randomized, controlled trial. Indian J. Anaesth. 2017, 61, 326–331. [Google Scholar] [CrossRef]
  9. Giraudon, A.; Bordes-Demolis, M.; Blondeau, B.; Sibai de Panthou, N.; Ferrand, N.; Bello, M.; Dahlet, V.; Semjen, F.; Biais, M.; Nouette-Gaulain, K. Comparison of the McGrath((R)) MAC video laryngoscope with direct Macintosh laryngoscopy for novice laryngoscopists in children without difficult intubation: A randomised controlled trial. Anaesth. Crit. Care Pain Med. 2017, 36, 261–265. [Google Scholar] [CrossRef]
  10. Orozco, J.A.; Rojas, J.L.; Medina-Vera, A.J. Haemodynamic response and effectiveness of tracheal intubation with Airtraq(R) versus Macintosh laryngoscope in paediatric patient undergoing elective surgery: Prospective, randomised and blind clinical trial. Rev. Esp. Anestesiol. Reanim. 2018, 65, 24–30. [Google Scholar] [CrossRef]
  11. Hoshijima, H.; Maruyama, K.; Mihara, T.; Mieda, T.; Shiga, T.; Nagasaka, H. Airtraq(R) reduces the hemodynamic response to tracheal intubation using single-lumen tubes in adults compared with the Macintosh laryngoscope: A systematic review and meta-analysis of randomized control trials. J. Clin. Anesth. 2018, 47, 86–94. [Google Scholar] [CrossRef]
  12. Nagumo, T.; Hoshijima, H.; Maruyama, K.; Mihara, T.; Mieda, T.; Sato Boku, A.; Shiga, T.; Nagasaka, H. Hemodynamic response related to the Airway Scope versus the Macintosh laryngoscope: A systematic review and meta-analysis with trial sequential analysis. Medicine 2023, 102, e33047. [Google Scholar] [CrossRef] [PubMed]
  13. Riad, W.; Moussa, A.; Wong, D.T. Airtraq versus Macintoch laryngoscope in intubation performance in the pediatric population. Saudi J. Anaesth. 2012, 6, 332–335. [Google Scholar] [CrossRef] [PubMed]
  14. Javaherforooshzadeh, F.; Gharacheh, L. The Comparison of Direct Laryngoscopy and Video Laryngoscopy in Pediatric Airways Management for Congenital Heart Surgery: A Randomized Clinical Trial. Anesth. Pain Med. 2020, 10, e99827. [Google Scholar] [CrossRef] [PubMed]
  15. Patil, V.V.; Subramanya, B.H.; Kiranchand, N.; Bhaskar, S.B.; Dammur, S. Does C-MAC((R)) video laryngoscope improve the nasotracheal intubating conditions compared to Macintosh direct laryngoscope in paediatric patients posted for tonsillectomy surgeries? Indian J. Anaesth. 2016, 60, 732–736. [Google Scholar] [CrossRef]
  16. Inal, M.T.; Memis, D.; Kargi, M.; Oktay, Z.; Sut, N. Comparison of TruView EVO2 with Miller laryngoscope in paediatric patients. Eur. J. Anaesthesiol. 2010, 27, 950–954. [Google Scholar] [CrossRef]
  17. Hutton, B.; Moher, D.; Cameron, C. The PRISMA Extension Statement. Ann. Intern. Med. 2015, 163, 566–567. [Google Scholar] [CrossRef]
  18. Higgins, J.P.; Green, S. Cochrane Handbook for Systematic Reviews of Interventions Version 5.1.0. The Cochrane Collaboration. Available online: https://methods.cochrane.org/risk-bias-2 (accessed on 11 June 2025).
  19. Guyatt, G.H.; Oxman, A.D.; Vist, G.E.; Kunz, R.; Falck-Ytter, Y.; Alonso-Coello, P.; Schünemann, H.J.; Group, G.W. GRADE- an emerging consensus on rating quality of evidence and strength of recommendations. BMJ 2008, 336, 924–926. [Google Scholar] [CrossRef]
  20. Nikolakopoulou, A.; Higgins, J.P.T.; Papakonstantinou, T.; Chaimani, A.; Del Giovane, C.; Egger, M.; Salanti, G. CINeMA: An approach for assessing confidence in the results of a network meta-analysis. PLoS Med. 2020, 17, e1003082. [Google Scholar] [CrossRef]
  21. Krahn, U.; Binder, H.; Konig, J. A graphical tool for locating inconsistency in network meta-analyses. BMC Med. Res. Methodol. 2013, 13, 35. [Google Scholar] [CrossRef]
  22. Soltani, A.E.; Maleki, A.; Espahbodi, E.; Goudarzi, M.; Ariana, P.; Takzare, A. Comparison of the Laryngoscopic View using Macintosh and Miller Blades in Children Less than Four Years Old. J. Med. Life 2020, 13, 431–434. [Google Scholar] [CrossRef] [PubMed]
  23. Yi, I.K.; Kwak, H.J.; Kim, K.M.; Ahn, S.H.; Lee, S.Y.; Kim, J.Y. Comparison of Pentax Airway Scope and Macintosh laryngoscope for orotracheal intubation in children: A randomised non-inferiority trial. Acta Anaesthesiol. Scand. 2019, 63, 853–858. [Google Scholar] [CrossRef] [PubMed]
  24. Shayeghi, S.; Ghasemi, M.; Sadeghi, A.; Razavi, S.S. Hemodynamic responses to orotracheal intubation with a video laryngoscope in infants: A comparison study. J. Res. Med. Sci. 2007, 12, 251–256. [Google Scholar]
  25. RajsiShah; Lalchandani, K.; Chaudhary, R.; Patel, J. Comparison of the Airtraq video laryngoscope versus Macintosh laryngoscope for tracheal intubation in the pediatric patients: A prospective randomized controlled trial. Int. J. Health Sci. 2022, 6, 1544–1553. [Google Scholar] [CrossRef]
  26. Hur, M.; Kim, J.Y.; Min, S.K.; Lee, K.; Won, Y.J.; Kim, J.E. Comparison of McGrath Videolaryngoscope and Macintosh Laryngoscope in Children with Torticollis: Randomized Controlled Trial. Children 2021, 8, 1171. [Google Scholar] [CrossRef]
  27. Elattar, H.; Abdel-Rahman, I.; Ibrahim, M.; Kocz, R.; Raczka, M.; Kumar, A.; Senbruna, B.; Gensler, T.; Lerman, J. A randomized trial of the glottic views with the classic Miller, Wis-Hipple and C-MAC (videolaryngoscope and direct views) straight size 1 blades in young children. J. Clin. Anesth. 2020, 60, 57–61. [Google Scholar] [CrossRef]
  28. Pangasa, N.; Dali, J.S.; Sharma, K.R.; Arya, M.; Pachisia, A.V. Comparative evaluation of Truview evo2 and Macintosh laryngoscope for ease of orotracheal intubation in children—A prospective randomized controlled trial. J. Anaesthesiol. Clin. Pharmacol. 2019, 35, 25–29. [Google Scholar] [CrossRef]
  29. Yadav, P.; Kundu, S.B.; Bhattacharjee, D.P. Comparison between Macintosh, Miller and McCoy laryngoscope blade size 2 in paediatric patients—A randomised controlled trial. Indian J. Anaesth. 2019, 63, 15–20. [Google Scholar] [CrossRef]
  30. Hazarika, R.; Rajkhowa, T.; Nath, M.P.; Parua, S.; Kundu, R. Airtraq® Optical Laryngoscope versus Coopdech® Video Laryngoscope for Intubation Performance in the Pediatric Patients: A Randomized Single Hospital Study. Int. J. Sci. Study 2016, 4, 78–80. [Google Scholar]
  31. Iohom, G.; Franklin, R.; Casey, W.; Lyons, B. The McCoy straight blade does not improve laryngoscopy and intubation in normal infants. Can. J. Anaesth. 2004, 51, 155–159. [Google Scholar] [CrossRef]
  32. Edwards, N.D.; Alford, A.M.; Dobson, P.M.; Peacock, J.E.; Reilly, C.S. Myocardial ischaemia during tracheal intubation and extubation. Br. J. Anaesth. 1994, 73, 537–539. [Google Scholar] [CrossRef] [PubMed]
  33. Prys-Roberts, C.; Greene, L.T.; Meloche, R.; Foex, P. Studies of anaesthesia in relation to hypertension. II. Haemodynamic consequences of induction and endotracheal intubation. Br. J. Anaesth. 1971, 43, 531–547. [Google Scholar] [CrossRef] [PubMed]
  34. Hindman, B.J.; Santoni, B.G.; Puttlitz, C.M.; From, R.P.; Todd, M.M. Intubation biomechanics: Laryngoscope force and cervical spine motion during intubation with Macintosh and Airtraq laryngoscopes. Anesthesiology 2014, 121, 260–271. [Google Scholar] [CrossRef]
  35. Goto, T.; Koyama, Y.; Kondo, T.; Tsugawa, Y.; Hasegawa, K. A comparison of the force applied on oral structures during intubation attempts between the Pentax-AWS airwayscope and the Macintosh laryngoscope: A high-fidelity simulator-based study. BMJ Open 2014, 4, e006416. [Google Scholar] [CrossRef] [PubMed]
  36. Evans, A.; Vaughan, R.S.; Hall, J.E.; Mecklenburgh, J.; Wilkes, A.R. A comparison of the forces exerted during laryngoscopy using disposable and non-disposable laryngoscope blades. Anaesthesia 2003, 58, 869–873. [Google Scholar] [CrossRef]
  37. Bucx, M.J.; Scheck, P.A.; Van Geel, R.T.; Den Ouden, A.H.; Niesing, R. Measurement of forces during laryngoscopy. Anaesthesia 1992, 47, 348–351. [Google Scholar] [CrossRef]
  38. Pieters, B.; Maassen, R.; Van Eig, E.; Maathuis, B.; Van Den Dobbelsteen, J.; Van Zundert, A. Indirect videolaryngoscopy using Macintosh blades in patients with non-anticipated difficult airways results in significantly lower forces exerted on teeth relative to classic direct laryngoscopy: A randomized crossover trial. Minerva Anestesiol. 2015, 81, 846–854. [Google Scholar]
  39. Suzuki, A.; Abe, N.; Sasakawa, T.; Kunisawa, T.; Takahata, O.; Iwasaki, H. Pentax-AWS (Airway Scope) and Airtraq: Big difference between two similar devices. J. Anesth. 2008, 22, 191–192. [Google Scholar] [CrossRef]
Children 12 00786 g001

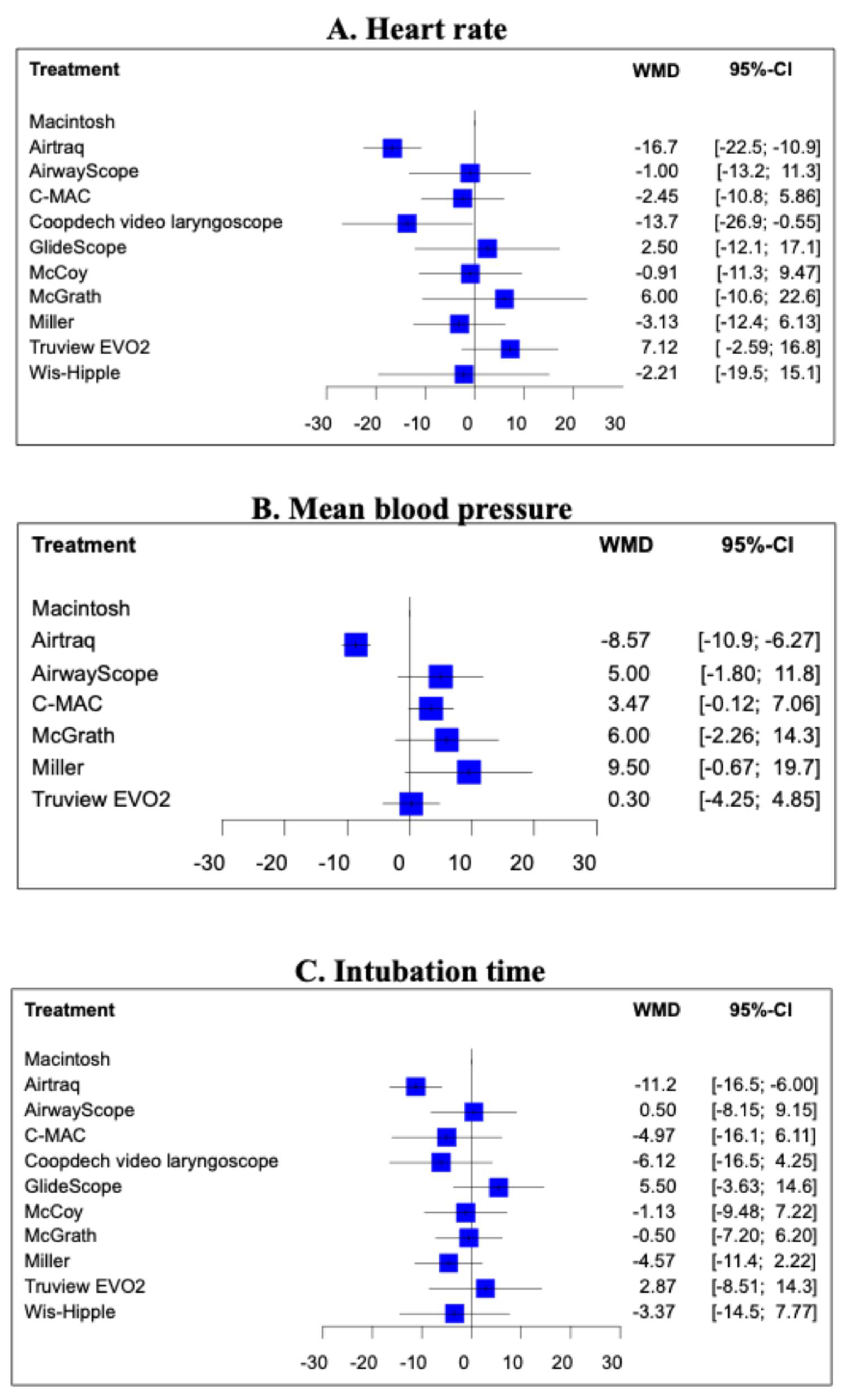

Figure 1. Forest plot of mean blood pressure response during tracheal intubation for each laryngoscope when referenced to Macintosh laryngoscope. A forest plot of the main results. (A) Forest plot of heart rate response during tracheal intubation for each laryngoscope when referenced to Macintosh laryngoscope. (B) Forest plot of mean blood pressure response during tracheal intubation for each laryngoscope when referenced to Macintosh laryngoscope. (C) Forest plot of intubation time for tracheal intubation for each laryngoscope when referenced to Macintosh laryngoscope.
Figure 1. Forest plot of mean blood pressure response during tracheal intubation for each laryngoscope when referenced to Macintosh laryngoscope. A forest plot of the main results. (A) Forest plot of heart rate response during tracheal intubation for each laryngoscope when referenced to Macintosh laryngoscope. (B) Forest plot of mean blood pressure response during tracheal intubation for each laryngoscope when referenced to Macintosh laryngoscope. (C) Forest plot of intubation time for tracheal intubation for each laryngoscope when referenced to Macintosh laryngoscope.
Children 12 00786 g001
Children 12 00786 g002

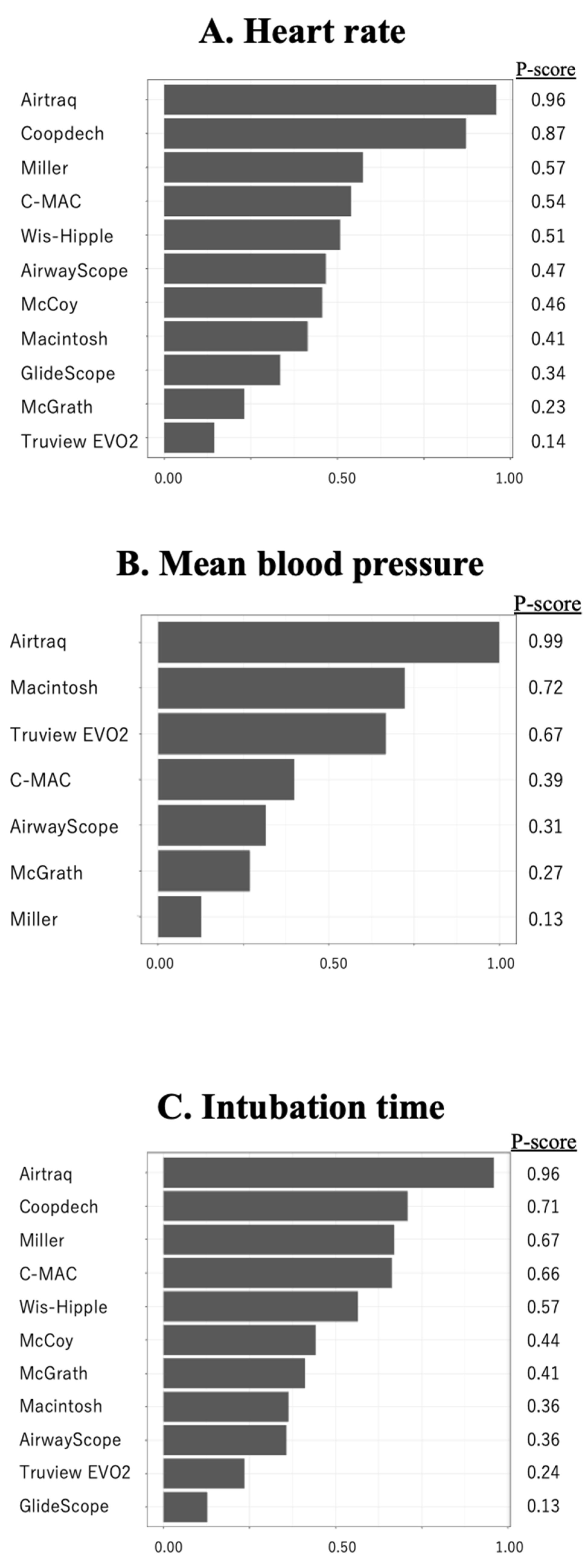

Figure 2. The results of heart rate, mean blood pressure, and intubation time by P score ranking. The results of heart rate (A), mean blood pressure (B), and intubation time (C) by P-score ranking.
Figure 2. The results of heart rate, mean blood pressure, and intubation time by P score ranking. The results of heart rate (A), mean blood pressure (B), and intubation time (C) by P-score ranking.
Children 12 00786 g002
Table 1. Characteristics of included studies.
Table 1. Characteristics of included studies.
AuthorYearType of LaryngoscopePatient Age or Body WeightASA StatusAirway ConditionType of SurgeryMethods of Induction Anesthesia
RajsiShah R [25]2022Macintosh (40)
Airtraq (40)		3–12 yI-IINormalElective surgeryPremedication: glycopyrrolate 5 μg/kg, midazolam 0.5 mg. Anesthesia induction: propofol 2 mg/kg, suxamethonium 2 mg/kg.
Hur M [26]2021Macintosh (15)
McGrath (15)		1–10 yI-IIDifficult (Torticollis)Torticollis surgeryAnesthesia induction: propofol 2.5–3.0 mg/kg, fentanyl 1 mcg/kg, rocuronium 1 mg/kg.
Soltani AE [22]2020Macintosh (30)
Miller (32)		0–4 yI-IINormalElective surgeryPremedication: midazolam 0.5 mg/kg and ketamine 2.5 mg/kg. Anesthesia induction: sevoflurane 8%, fentanyl 1 μg/kg
Elattar H [27]2020Miller (29)
C-MAC (36)
Wis-Hipple (31)		<18 yI-IINormalElective surgeryAnesthesia induction: sevoflurane 8%, nitrous oxide (66%, and oxygen 33%, (propofol 2–3 mg/kg).
Yi IK [23]2019Macintosh (68)
AirwayScope (68)		1–10 yI-IINormalElective surgeryNo premedication. Anesthesia induction: sevoflurane 5–8%, oxygen 100%, (propofol 2.5–3 mg/kg), rocuronium 0.6 mg/kg.
Pangasa N [28]2019Macintosh (25)
Truview EVO2 (25)		2–8 yI-IINormalElective surgeryPremedication: oral midazolam 0.5 mg/kg. Anesthesia induction: sevoflurane 8%, oxygen, rocuronium 0.6 mg/kg, fentanyl 2 μgm/kg.
Yadav P [29]2019Macintosh (25)
Miller (25)
McCoy (25)		2–6 yI-IINormalElective surgeryAnesthesia induction: halothane and oxygen, fentanyl 2 μg/kg, atracurium 0.5 mg/kg, glycopyrrolate 0.01 mg/kg.
Orozco JA [10]2018Macintosh (40)
Airtraq (40)		2–8 yI-IINormallaparoscopic cholecystectomyPremedication: clonidine 0.5 g/kg. Anesthesia induction: propofol 2.5 mg/kg, rocuronium 0.6 mg/kg, fentanyl 1.5 g/kg, 1% lidocaine.
Giraudon A [9]2017Macintosh (67)
McGrath (65)		10–20 kgI-IINormalElective surgeryAnesthesia induction: sevoflurane (end tidal concentration of 4.5%), (unknown neuromuscular blockade), sufentanil 0.3 mcg/kg, or alfentanil 20 mg/kg.
Das B [8]2017Miller (30)
Airtraq (30)		2–10 yI-IINormalElective surgery Premedication: oral midazolam 0.3 mg/kg. Anesthesia induction: sevoflurane, oxygen, rocuronium 0.6 mg/kg.
Patil VV [15]2016Macintosh (30)
C-MAC (30)		8–18 yI-IINormalTonsillectomy surgeriesPremedication: glycopyrrolate 10 μg/kg, fentanyl 2 μg/kg, midazolam 10 μg/kg intravenous. Anesthesia induction: propofol 2 mg/kg, vecuronium 0.1 mg/kg.
Riad W [13]2012Macintosh (25)
Airtraq (25)		2–10 yINormalElective surgeryPremedication: oral midazolam 0.5 mg/kg. Anesthesia induction: sevoflurane, oxygen, fentanyl 2 μg/kg, atracurium 0.5 mg/kg, glycopyrrolate 0.04 μg/kg.
Inal MT [16]2010Miller (25)
Truview EVO2 (25)		2–8 yN/AN/AN/AAnesthesia induction: sevoflurane, oxygen, nitrous oxide 60%, rocuronium 0.8 mg/kg.
Shayeghi S [24]2007Macintosh (32)
GlideScope (30)		Infant (2.56 y ± 2.19,
3.21 y ± 1.77)		N/ANormalElective surgeryAnesthesia induction: thiopental sodium 6 mg/kg, atracurium 0.5 mg/kg.
Hazarika R [30]2006Airtraq (50)
Coopdech video laryngoscope (50)		6–36 mI-IINormalElective surgeryPremedication: midazolam 0.3 mg/kg, Anesthesia induction: sevoflurane 8%, nitrous oxide (66% nitrous oxide and oxygen 33%), fentanyl 2 μg/kg, atracurium 0.5 mg/kg.
Iohom G [31]2004Miller (20)
McCoy (20)		0–6 mI-IINormalElective surgeryAnesthesia induction: sevoflurane 8%, nitrous oxide (66% nitrous oxide and oxygen 33%).
American Society of Anesthesiologists-Physical Status classification (ASA-PS)
Table 2. Summary of findings table for heart rate.
Table 2. Summary of findings table for heart rate.
Patients: pediatric patients who received tracheal intubationChildren 12 00786 i001
Interventions: indirect laryngoscope, miller laryngoscope
Comparator (reference): macintosh laryngoscope
Outcome: heart rate
Setting: elective surgery
Total studies: 15 RCT
Total Participants: 1101		Mean difference
(95%CI)		Certainty of evidenceReasons for
downgrading		P score
Airtraq
(4 RCT; 145 participants)		−16.7 (−22.5 to −10.9)⨁⨁◯◯
Low		Within-study bias and reporting bias0.96
Airway scope
(1 RCT; 68 participants)		−1.00 (−13.3 to 11.3)⨁◯◯◯
Very low		Within-study bias, reporting bias, and imprecision0.47
C-MAC
(2 RCT; 96 participants)		−2.45 (−10.8 to 5.86)⨁◯◯◯
Very low		Within-study bias, reporting bias, imprecision, and heterogeneity0.54
Coopdech video laryngoscope
(1 RCT; 50 participants)		−13.7 (−26.9 to −0.55)⨁◯◯◯
Very low		Within-study bias, reporting bias, and heterogeneity0.87
Glidescope
(1 RCT; 30 participants)		2.20 (−12.1 to 17.1)⨁⨁◯◯
Low		Within-study bias and reporting bias0.34
Macintosh
(11 RCT; 397 participants)		Not estimableReference comparatorNot estimable0.41
McCoy
(1 RCT; 45 participants)		6.00 (−10.6 to 22.6)⨁◯◯◯
Very low		Within-study bias, reporting bias, imprecision, and heterogeneity0.46
McGrath
(2 RCT; 80 participants)		−3.47 (−10.8 to −3.39)⨁◯◯◯
Very low		Within-study bias, reporting bias, and imprecision0.23
Miller
(6 RCT; 158 participants)		−3.13 (−12.4 to 6.13)⨁◯◯◯
Very low		Within-study bias, reporting bias, imprecision, and heterogeneity0.57
Truview EVO2
(2 RCT; 50 participants)		7.12 (−2.59 to 16.8)⨁◯◯◯
Very low		Within-study bias, reporting bias, imprecision, and heterogeneity0.14
Wis-Hipple
(1 RCT; 31 participants)		−2.21 (−19.5 to 15.1)⨁◯◯◯
Very low		Within-study bias, reporting bias, and imprecision0.51
RCT: Randomized controlled trial, CI:Confidence interval.
Table 3. Summary of findings table for mean blood pressure.
Table 3. Summary of findings table for mean blood pressure.

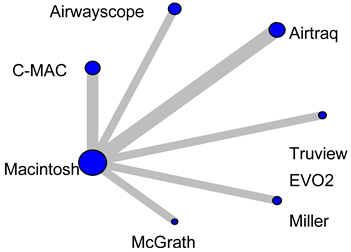

Patients: pediatric patients who received tracheal intubationChildren 12 00786 i002
Interventions: indirect laryngoscope, miller laryngoscope
Comparator (reference): macintosh laryngoscope
Outcome: mean blood pressure
Setting: elective surgery
Total studies: 9 RCT
Total Participants: 680		Mean diffence
(95%CI)		Certainty of evidenceReasons for
downgrading		P score
Airtraq
(3 RCT; 110 participants)		−8.57 (−10.9 to −6.27)⨁◯◯◯
Very low		Within-study bias, reporting bias, heterogeneity, and incoherence0.99
Airway scope
(1 RCT; 68 participants)		5.00 (−1.80 to 11.8)⨁◯◯◯
Very low		Within-study bias, reporting bias, imprecision, heterogeneity, and incoherence0.32
C-MAC
(2 RCT; 95 participants)		3.74 (−0.12 to 7.06)⨁◯◯◯
Very low		Within-study bias, imprecision, heterogeneity, and incoherence0.39
Macintosh
(9 RCT; 335 participants)		Not estimableReference comparatorNot estimable0.72
McGrath
(1 RCT; 15 participants)		6.00 (−2.26 to 14.26)⨁◯◯◯
Very low		Within-study bias, reporting bias, imprecision, heterogeneity, and incoherence0.27
Miller
(1 RCT; 32 participants)		9.50 (−0.67 to 19.7)⨁◯◯◯
Very low		Within-study bias, reporting bias, imprecision, heterogeneity, and incoherence0.13
Truview EVO2
(1 RCT; 25 participants)		0.30 (−4.25 to 4.85)⨁◯◯◯
Very low		Within-study bias, imprecision, heterogeneity, and incoherence0.67
RCT: Randomized controlled trial, CI:Confidence interval.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Takeuchi, R.; Hoshijima, H.; Tsukamoto, M.; Kokubu, S.; Mihara, T.; Shiga, T. Hemodynamic Response to Tracheal Intubation Using Indirect and Direct Laryngoscopes in Pediatric Patients: A Systematic Review and Network Meta-Analysis. Children 2025, 12, 786. https://doi.org/10.3390/children12060786

AMA Style

Takeuchi R, Hoshijima H, Tsukamoto M, Kokubu S, Mihara T, Shiga T. Hemodynamic Response to Tracheal Intubation Using Indirect and Direct Laryngoscopes in Pediatric Patients: A Systematic Review and Network Meta-Analysis. Children. 2025; 12(6):786. https://doi.org/10.3390/children12060786

Chicago/Turabian Style

Takeuchi, Risa, Hiroshi Hoshijima, Masanori Tsukamoto, Shinichi Kokubu, Takahiro Mihara, and Toshiya Shiga. 2025. "Hemodynamic Response to Tracheal Intubation Using Indirect and Direct Laryngoscopes in Pediatric Patients: A Systematic Review and Network Meta-Analysis" Children 12, no. 6: 786. https://doi.org/10.3390/children12060786

APA Style

Takeuchi, R., Hoshijima, H., Tsukamoto, M., Kokubu, S., Mihara, T., & Shiga, T. (2025). Hemodynamic Response to Tracheal Intubation Using Indirect and Direct Laryngoscopes in Pediatric Patients: A Systematic Review and Network Meta-Analysis. Children, 12(6), 786. https://doi.org/10.3390/children12060786

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
