Cardioluminescence in Transgenic Zebrafish Larvae: A Calcium Imaging Tool to Study Drug Effects and Pathological Modeling

by
Manuel Vicente
1,
Jussep Salgado-Almario
1,
Michelle M. Collins
2,
Antonio Martínez-Sielva
1,
Masafumi Minoshima
3,
Kazuya Kikuchi
3,4,
Beatriz Domingo
1,* and
Juan Llopis
1,*
1
Physiology and Cell Dynamics Group, Centro Regional de Investigaciones Biomédicas (CRIB) and Facultad de Medicina de Albacete, Universidad de Castilla-La Mancha, C/Almansa 14, 02006 Albacete, Spain
2
Department of Anatomy, Physiology, and Pharmacology, College of Medicine, University of Saskatchewan, Saskatoon, SK S7N 5E5, Canada
3
Department of Material and Life Science, Graduate School of Engineering, Osaka University, Suita, Osaka 565-0871, Japan
4
WPI-Immunology Frontier Research Center, Osaka University, Suita, Osaka 565-0871, Japan
*
Authors to whom correspondence should be addressed.
Biomedicines 2021, 9(10), 1294; https://doi.org/10.3390/biomedicines9101294
Submission received: 29 July 2021 / Revised: 7 September 2021 / Accepted: 20 September 2021 / Published: 22 September 2021
(This article belongs to the Special Issue Biosensors at the Aid of Medicine)
Browse Figures
Versions Notes

Abstract

:
Zebrafish embryos and larvae have emerged as an excellent model in cardiovascular research and are amenable to live imaging with genetically encoded biosensors to study cardiac cell behaviours, including calcium dynamics. To monitor calcium ion levels in three to five days post-fertilization larvae, we have used bioluminescence. We generated a transgenic line expressing GFP-aequorin in the heart, Tg(myl7:GA), and optimized a reconstitution protocol to boost aequorin luminescence. The analogue diacetyl h-coelenterazine enhanced light output and signal-to-noise ratio. With this cardioluminescence model, we imaged the time-averaged calcium levels and beat-to-beat calcium oscillations continuously for hours. As a proof-of-concept of the transgenic line, changes in ventricular calcium levels were observed by Bay K8644, an L-type calcium channel activator and with the blocker nifedipine. The β-adrenergic blocker propranolol decreased calcium levels, heart rate, stroke volume, and cardiac output, suggesting that larvae have a basal adrenergic tone. Zebrafish larvae treated with terfenadine for 24 h have been proposed as a model of heart failure. Tg(myl7:GA) larvae treated with terfenadine showed bradycardia, 2:1 atrioventricular block, decreased time-averaged ventricular calcium levels but increased calcium transient amplitude, and reduced cardiac output. As alterations of calcium signalling are involved in the pathogenesis of heart failure and arrhythmia, the GFP-aequorin transgenic line provides a powerful platform for understanding calcium dynamics.

1. Introduction

Cardiovascular diseases are the leading cause of death worldwide and are among the most challenging to diagnose and treat due to the complexity of their pathophysiology. Ca2+ plays a pivotal role in the excitation–contraction coupling of the heart and alterations in Ca2+ cycling and its associated proteins and pathways may trigger pathological disorders [1,2]. Ca2+ handling has been extensively studied, mainly in isolated cardiomyocytes obtained from animals or from differentiated human pluripotent stem cells [3,4,5,6]. While this approach provides a detailed insight of the Ca2+ fluxes, the interaction between different heart cells, other organs, and the nervous and endocrine systems is lost. Thus, to fully understand pathological processes, in vivo animal models are crucial.
The zebrafish has emerged as an excellent model in cardiovascular research because of its high genetic tractability, ex-utero embryonic development, and transparency [7,8,9,10,11,12,13]. The zebrafish heart is composed of only two chambers, the atrium and ventricle. Despite this anatomical difference, zebrafish heart physiology, heart rate (HR), and action potential resemble those of humans [14,15,16], although some of the ionic channels and regulation are not identical [17,18].
Non-invasive Ca2+ imaging techniques in zebrafish embryos and larvae contribute to our understanding of Ca2+ handling and its relationship with cardiac diseases. Genetically encoded Ca2+ indicators, like the single-fluorophore GCaMPs, have been successfully used to image Ca2+ dynamics in the embryonic heart [11,19,20,21]. They require uncoupling of contraction from Ca2+ changes either by using morpholino oligomers against troponin T [22] or with myosin II inhibitors like para-amino blebbistatin [23] to avoid motion imaging artifacts. We have previously used ratiometric biosensors, which call for special optical components to acquire two emission images simultaneously to correct these artifacts [24]. Fluorescent biosensors provide excellent temporal and spatial resolution of the cardiac Ca2+ transients, but suffer from some pitfalls, particularly for imaging the heart. The fast HR necessitates acquiring time-lapse images with minimal interval between them so that the dynamics of the Ca2+ transients may be recorded. In practice, this limits the duration of an experiment to a few seconds at a time, depending on the instrumentation, to avoid excessive photobleaching. A solution is the use of low-light-level techniques like light sheet microscopy, which is less harmful to the cells than widefield microscopy [20,25], but more costly. A second drawback is the autofluorescence of the vitello, adjacent to the heart, or of commonly used drugs like para-amino blebbistatin.
These technical issues prompted us to explore aequorin bioluminescence to image heart Ca2+ continuously for hours, acquiring all emitted photons during that time. By contrast with fluorescence, bioluminescence does not need excitation light. The photoprotein aequorin has been widely employed to measure Ca2+ in many cell types and animal models [26,27,28] and has been demonstrated to be biocompatible in zebrafish [29,30,31,32]. The functional photoprotein is formed when apoaequorin binds the substrate coelenterazine (CTZ) [26]. In our previous work, aequorin fused with GFP (GA) [33] was used to visualize cytoplasmic and mitochondrial Ca2+ in skeletal muscle of zebrafish embryos for hours [32]. Despite its low photon yield compared with fluorescence, we hypothesized that GA could be used to measure the synchronized Ca2+ transients without the need to stop heart beating, thus, conserving the physiological mechano-electrical feedback mechanisms. However, we anticipated that it might be challenging to achieve sufficient reconstitution with aequorin’s substrate CTZ in the presence of constant Ca2+ cycling, since aequorin is consumed once it emits light.
In this study, we have generated a transgenic zebrafish line expressing GA to image continuously ventricular Ca2+ levels in vivo (cardioluminescence). Ca2+ was measured as the heart was performing its mechanical function in three-, four-, and five-days post-fertilization (dpf) larvae. To improve the efficiency of aequorin reconstitution with CTZ, a protocol was devised to decrease temporarily Ca2+ cycling in the heart. The zebrafish line Tg(myl7:GA) allowed imaging both the time-averaged levels and the systolic Ca2+ transients continuously for several hours in control conditions, in response to drugs, and in a model of heart failure induced by terfenadine.

2. Materials and Methods

2.1. Zebrafish Husbandry

Fish used in this study were housed under standard conditions as previously described [32].

2.2. Generation of Tg(myl7:GA) Zebrafish Line

The Ca2+ biosensor GFP-aequorin (GA) [33] was cloned into the pT2A-Tol2-myl7-MCS transposon vector (0.8 kb myl7 promoter), using XhoI and EcoRI restriction sites. To generate stable transgenic zebrafish, tol2-myl7:GA plasmid (12.5 ng/µL) was co-injected with transposase mRNA (12.5 ng/µL) in fertilized eggs of Tübingen zebrafish. Injected embryos were screened by fluorescence for GA expression in the heart and grown to adulthood (F0). The adult F0 generation was outcrossed to wild-type zebrafish to identify founders with insertions in the germline. F2 Tg(myl7:GA) heterozygous larvae were used throughout the study.

2.3. Synthesis of Diacetyl CTZ-h

CTZ-h was synthesized using the procedures in a previous report [34]. h-CTZ (73.2 mg, 0.180 mmol) and DMAP (60.0 mg, 0.491 mmol) in acetic anhydride (2.50 mL, 26.4 mmol) were stirred overnight at 20 °C under a N2 atmosphere. After removal of all the volatiles, the residue was dissolved in ethyl acetate and washed with 2 M HCl, saturated aqueous NaHCO3, and brine, with the organic layer then dried over Na2SO4, filtered, and evaporated in vacuo. The residue was purified by silica gel column chromatography using 5–10% ethyl acetate in dichloromethane as eluent to afford diacetyl h-CTZ as a yellow-brown solid (64.3 mg, 0.131 mmol, 73%). 1H NMR (500 MHz, CDCl3): δ 7.87 (d, J = 9.0 Hz, 2H), 7.73 (s, 1H), 7.84 (d, J = 7.5 Hz, 2H), 7.30–7.20 (m, 8H), 7.15 (d, J = 9.0 Hz, 2H), 4.60 (s, 2H) 4.18 (s, 2H) 2.29 (s, 3H), 2.12 (s, 3H). MS (ESI+) Calcd for [M + H]+, 492.19; found 492.19.

2.4. Aequorin Reconstitution with Coelenterazine

A stock of diacetyl h-CTZ was prepared at 7.4 mM in dimethyl sulfoxide (DMSO). The stocks of native-, hcp-, fcp-, h-, and f-CTZ analogues (Biotium, Fremont, CA, USA) were prepared at 5 mM in methanol. All CTZ were stored at −80 °C in 5 µL aliquots and were used at 50 µM final concentration. For aequorin reconstitution, Tg(myl7:GA) zebrafish larvae at 3, 4, and 5 dpf were rinsed in nominally zero Ca2+ E3 (E30Ca) medium (E30Ca medium: 5 mM NaCl, 0.17 mM KCl, 0.33 mM MgSO4, 0.002% methylene blue, pH 7.4 in double distilled H2O). Subsequently, larvae were incubated in 1 mL of E30Ca medium containing 25 µM nifedipine for 30 min at room temperature in the dark (nifedipine period). Larvae whose heart was completely stopped after this treatment were washed out five times to remove nifedipine and incubated in E30Ca medium containing 50 µM CTZ for 2 h at room temperature in the dark (CTZ incubation period). Finally, the larvae were incubated in complete E3 medium (5 mM NaCl, 0.17 mM KCl, 0.33 mM MgSO4, 0.33 mM CaCl2, 0.002% methylene blue, pH 7.4 in double distilled H2O) for 30 min at 28.5 °C (heart recovery period).

2.5. Bioluminescence Imaging

After aequorin reconstitution, Tg(myl7:GA) larvae were embedded in 100 µL of 0.3% low melting point agarose prepared in E3 medium and transferred to an 8-well glass bottom plate (ibidi, Gräfelfing, Germany). When the agarose solidified, 100 µL of E3 medium was added and a small portion of agarose surrounding the heart was cut out to improve diffusion of drugs or Triton X-100. Bioluminescence images were acquired as previously described [29] with a custom-built microscope (Low Light Microscope [35]) equipped with an EM-CCD camera (512 × 512 pixels, EMC9100-13, Hamamatsu Photonics, Hamamatsu, Japan). All microscope components were acquired from Thorlabs GmbH (Dachau, Germany). A 4× CFI PlanApo Lambda air objective (Nikon, Tokyo, Japan) was used as the tube lens, and an air 20× Nikon CFI PlanApo Lambda (0.75 NA) as the objective. The magnification of these combined lenses (f tube lense/f objective lens) was 5×. This microscope was equipped with a LED lamp for transmitted light. The microscope was housed in a light-tight box to maintain complete darkness during bioluminescence imaging. The larvae were maintained from 26 to 28 °C during imaging. The bioluminescence images were acquired continuously in 16 bits with 4×4 binning, 255 EM gain, at a rate of 25, 17, 12, 9, 2, or 1 Hz (frames/s). With this configuration, the resolution of the images was 12.8 µm × 12.8 µm/pixel. For the signal-to-noise ratio (SNR) calculation, bioluminescence images were acquired at 9 Hz for 1 min. For longer recordings, drugs were added after 1–10 min basal tracking of luminescence. At the end of every recording, Triton X-100 (5%) was added to break embryo membranes. The released aequorin, in contact with extracellular Ca2+, emits all remaining luminescence counts.

2.6. GCaMP Fluorescence Imaging

Tg(myl7:GCaMP)s878 adult zebrafish were outcrossed to wild-type strain and fertilized eggs at 1-cell stage were injected with 2 ng of the morpholino oligomer tnnt2a (5′-CATGTTTGCTCTGATCTGACACGCA-3′). Larvae at 24 h post-fertilization were placed in 0.003% N-phenylthiourea to prevent pigmentation. For nifedipine titration, 3 dpf larvae were incubated in E3 or E30Ca medium containing 10, 25, or 100 µM nifedipine for 30 min. Then, larvae were embedded in 1% low melting point agarose and transferred to an 8-well glass bottom plate (ibidi, Gräfeling, Germany). To study the recovery of Ca2+ dynamics with GCaMP, the aequorin reconstitution protocol described above was applied to 3 dpf larvae, without addition of CTZ. Fluorescence images were acquired at a rate of 200 Hz with a CSU X1 spinning disc confocal microscope (Carl Zeiss, Oberkochen, Germany) equipped with a Hamamatsu ORCA Flash4.0 sCMOS camera (Hamamatsu Photonics, Japan) in 16 bits with 2×2 binning.

2.7. Reagents

Chemical compounds were dissolved in DMSO to prepare stocks of 10 mM nifedipine (Sigma-Aldrich N7634, Darmstadt, Germany), 20 mM Bay K8644 (Tocris 1544), 10 mM propranolol (Sigma-Aldrich P0884, Darmstadt, Germany), 50 mM terfenadine (Tocris 3948), and 7.5% N-phenylthiourea (Sigma-Aldrich, Darmstadt, Germany).

2.8. Heart Failure Induced by Treatment with Terfenadine

Embryos at 24 h post-fertilization were placed in 0.003% N-phenylthiourea in E3 medium to prevent pigmentation. At 3 dpf, larvae were transferred to a 6-well plate, 10 larvae per well, with 5 mL of N-phenylthiourea solution containing 10 µM terfenadine or 0.02% DMSO, for 24 h. For bioluminescence experiments, aequorin reconstitution was done during the last 3 h of terfenadine or DMSO treatment.

2.9. Data Analysis

Videos in TIFF format were analysed in Fiji-ImageJ (U.S. National Institutes of Health, Bethesda, MD, USA) [36]. For GCaMP image analysis, regions of interest (ROI) were drawn in the atrium and in the ventricle to obtain mean intensity values. An exponentially weighted moving average smoothing with a factor of 0.7 was applied and data was transformed into ΔF/F0:
ΔF/F0 = (Ft − F0)/F0,
where Ft is the fluorescence at a given time and F0 is the minimum diastolic fluorescence value of the whole recording. For characterization of the Ca2+ transients, ΔF/F0 data were analysed with Clampfit 10.7 (Molecular Devices, San José, CA, USA) to determine peak amplitude ((Fsystole − F0)/F0), rise time 10% to 90%, and decay time 90% to 10% (Figure S2D).
For bioluminescence image analysis and calculation of SNR, a time-projection of the image stack was performed to draw the ROIs over the ventricle and atrium (Signal). Then, ROIs of identical size were placed in six different locations far from the larva to obtain average background intensity values (Background) and their SD. The SNR for each frame was calculated as:
SNR = (Signal − Background)/SD Background.
Luminescence Signal (in relative light units, RLU) was transformed into Luminescence rate (L, in counts per second). The Total counts (Ltotal, in RLU) were obtained as the sum of luminescence along the experiment. Lconsumed, the sum of all L values from time zero to any given time point, was calculated. It represents the aequorin that has already been spent in each time point. Finally, Lmax was calculated as Ltotal − Lconsumed at each time point. Lmax represents the aequorin available at each time point: the sum of counts from that time point to the end of the experiment.
The hemodynamic parameters were analysed in Fiji-ImageJ by measuring the major and minor diameters (D), and the area (A) on the ventricular cavity at end-systole and end-diastole in three transmitted light or fluorescence images in each larva, as indicated. The major and minor diameters were measured in the longitudinal and transverse directions of the ventricle, respectively. Images were acquired at 50 Hz in a wide-field fluorescence microscope (DMIRE-2, Leica Microsystems, Wetzlar, Germany). Ventricular fractional shortening (FS) was calculated from major or minor end-diastolic (Ddiastole) and end-systolic (Dsystole) diameters, as:
FS = (Ddiastole − Dsystole)/Ddiastole.
Fractional area change was calculated as:
FAC = (Adiastole − Asystole)/Adiastole.
End-systolic volume (ESV) and end-diastolic volume (EDV) were calculated as the volume of an ellipsoid of revolution, as reported [37]:
Volume = (π/6) × (major diameter) × (minor diameter)2
The stroke volume and cardiac output were:
Stroke volume = (EDV) − (ESV).
Cardiac output = stroke volume × HR.

2.10. Statistics

The Shapiro–Wilk statistic was used to test for normality. Differences between two groups were analysed using the unpaired or paired two-tailed t-test, as indicated. One-way ANOVA and two-way ANOVA with Holm–Sidak post hoc correction for multiple comparisons and multiple t-tests were used where indicated. Correlation between two datasets was analysed using linear regression. Datasets of total counts were transformed into log10 values. Data are presented as mean ± SD and p < 0.05 was considered statistically significant. * p < 0.05, ** p < 0.01, *** p < 0.001, **** p < 0.0001. N indicates the number of embryos or larvae used per dataset. Data were analysed in Graphpad Prism 6 (GraphPad Software, Inc.; La Jolla, CA, USA).

3. Results

3.1. Tg(myl7:GA) Zebrafish Line Generation

We generated a transgenic zebrafish line expressing GA under the control of the cardiomyocyte-specific promoter myl7. Upon Ca2+ binding to aequorin, there is energy transfer between the excited state of CTZ and the GFP so that light emission is shifted to the green (Figure 1A) [27,33,38]. The reporter GA is bifunctional: GFP fluorescence is used to determine its localization and expression level, while luminescence reports the Ca2+ levels. The expression of GA was observed in the cardiac tube from 24 h post-fertilization and no fluorescence was seen in other organs (Figure 1B). The ventricle was brighter than the atrium at 3, 4, and 5 dpf, due to its thicker wall (Figure 1C). Both the HR and the ventricular fractional shortening (FS) of heterozygous GA larvae were like those observed in wild-type siblings (Figure 1D,E), suggesting that the expression of GA did not affect cardiac function.

3.2. Aequorin Reconstitution Protocol

Apoaequorin needs to be reconstituted with its substrate CTZ in the presence of oxygen to yield the Ca2+-sensitive photoprotein [39]. However, when 3 dpf Tg(myl7:GA) zebrafish larvae were incubated in 50 μM diacetyl h-CTZ in E3 medium for 2 h, spontaneous Ca2+-dependent bioluminescence from the heart was not detected (Figure 2A). Triton-X100 (5%), added to break membranes and bring aequorin into contact with extracellular Ca2+, released few counts. We reasoned that, as Ca2+ rises during each systole, the rate of aequorin consumption might be faster than the reconstitution rate. Therefore, we hypothesized that limiting Ca2+ transients during aequorin reconstitution would improve light output.

3.2.1. Suppressing Ca2+ Rise in the Heart with an LTCC Blocker

A protocol was devised to blunt Ca2+ transients by incubating larvae with 25 µM nifedipine in nominally zero Ca2+ E3 (E30Ca) medium (Figure 2B). Figure S1 shows the optimization of this treatment with different concentrations of nifedipine, with and without Ca2+ in the fish water. After 30 min in nifedipine, non-beating larvae were transferred to a plate containing 50 µM CTZ in E30Ca medium for 2 h (Figure 2B). At the end of this period, the heart remained motionless in 84% of the larvae. Then, larvae were placed in complete E3 medium for 30 min to allow the heartbeat to recover. The Ca2+ levels during this protocol were monitored with the Ca2+ biosensor GCaMP in the Tg(myl7:GCaMP)s878 zebrafish line (Figure 2C). The Ca2+ transients were indeed abrogated by the treatment with nifedipine and restored after the heart recovery period.

3.2.2. Larvae Treated with the Aequorin Reconstitution Protocol Recovered Heart Function after Restoring Ca2+ into the Medium

We tested the recovery of cardiac function in Tg(myl7:GA) larvae subjected to the aequorin reconstitution protocol. The HR was similar before and after the aequorin reconstitution protocol in 3 dpf (170 ± 9 bpm before vs. 166 ± 15 bpm after; p = 0.387), 4 dpf (192 ± 16 bpm before vs. 179 ± 29 bpm after; p = 0.163), and 5 dpf larvae (191 ± 16 bpm before vs. 181 ± 24 bpm after; p = 0.071) (Figure S2A). In addition, the ventricular FS was restored after the recovery period at 3 dpf (0.23 ± 0.02 for control vs. 0.24 ± 0.02 for Aeq protocol; p = 0.832), 4 dpf (0.30 ± 0.04 for control vs. 0.29 ± 0.02 for Aeq protocol; p = 0.315), and 5 dpf (0.31 ± 0.02 for control vs. 0.31 ± 0.02 for Aeq protocol; p = 0.878) (Figure S2B). Analysis of Ca2+ transients in 3 dpf Tg(myl7:GCaMP)s878 larvae indicated that Ca2+ transients and their kinetics were similar in the controls and in larvae subjected to the aequorin reconstitution protocol (Figure S2C,E,F). These results suggest that the heart regained normal Ca2+ transients, HR and contractility during the recovery period.

3.2.3. Imaging Individual Ventricular Ca2+ Transients in the Heart

We tested the efficiency of the reconstitution protocol by imaging the bioluminescence. Zebrafish Tg(myl7:GA) larvae were incubated in 50 µM diacetyl h-CTZ for 2 h with or without the previous incubation with 25 µM nifedipine. Cardioluminescence, the spontaneous bioluminescent flashes due to beat-to-beat Ca2+ oscillations during the cardiac cycle, was detected only in the ventricle of larvae preincubated with nifedipine (Figure 3A). The signal-to-noise ratio (SNR) of these recordings, a measure of the sensitivity of the method (see Section 2) was higher in larvae treated with nifedipine at 3, 4, and 5 dpf (Figure 3B). Triton X-100 was added to compare the amount of reconstituted aequorin in each case. Larvae preincubated with nifedipine released 5- to 18-fold more counts than the controls (Figure 3C). These results confirmed that limiting the Ca2+ transients during the incubation with CTZ increased the amount of functional GA, such that individual ventricular Ca2+ transients could be observed. However, spontaneous luminescence from the atrium was not detected in most larvae (Figure S3A–C). Total counts in the atrium after Triton X-100 were 6-fold less than those in the ventricle but were detectable (Figure S3D,E), showing the need to separate spatially the origin of the luminescence. In contrast to photometry, imaging allowed us to draw ROIs over the atrium and ventricle to discriminate their contribution.
Decreasing the image acquisition frequency can improve the SNR of low emitting samples. In fact, a strong inverse correlation was observed between SNR and the acquisition frequency (R2 = 0.911; p = 0.045) (Figure S4A). In contrast, L/Lmax, which is proportional to Ca2+ levels, was independent of the image acquisition frequency (R2 = 0.03; p = 0.824) (Figure S4B).

3.3. Testing Different CTZ Analogues

Different CTZ synthetic analogues afford varying chemical stability, Ca2+ sensitivity and membrane permeability. We, therefore, tested various analogues (Figure S5) to optimize larvae cardioluminescence. The Ca2+ sensitivity of h-, f-, fcp-, and hcp-CTZ has been shown to be 16-, 20-, 135-, and 190-fold higher than that of native-CTZ, respectively [40]. The rate of reconstitution is also affected by the analogue used: native-CTZ was 7- to 10-fold faster in cultured cells than f- and h-CTZ, respectively [41]. Furthermore, f-CTZ was reported to have nearly 2-fold more membrane permeability than native- and h-CTZ [42]. The addition of protective acetyl groups to h-CTZ was reported to inhibit autooxidation, improving its chemical stability, and providing a constant supply of substrate [43]. Therefore, we decided to synthesize this analogue to allow long-term imaging. The SNR and the total counts obtained in Tg(myl7:GA) larvae from 3 to 5 dpf reconstituted with native-, h-, fcp-, hcp-, f- and diacetyl h-CTZ were evaluated (Figure 4). Both f- and diacetyl h-CTZ provided the most cardioluminescence, with robust light output at physiological Ca2+ levels and high SNR. Therefore, we used diacetyl h-CTZ in further experiments.

3.4. GA Reports the Effect of Drugs Acting on LTCC in the Zebrafish Ventricle

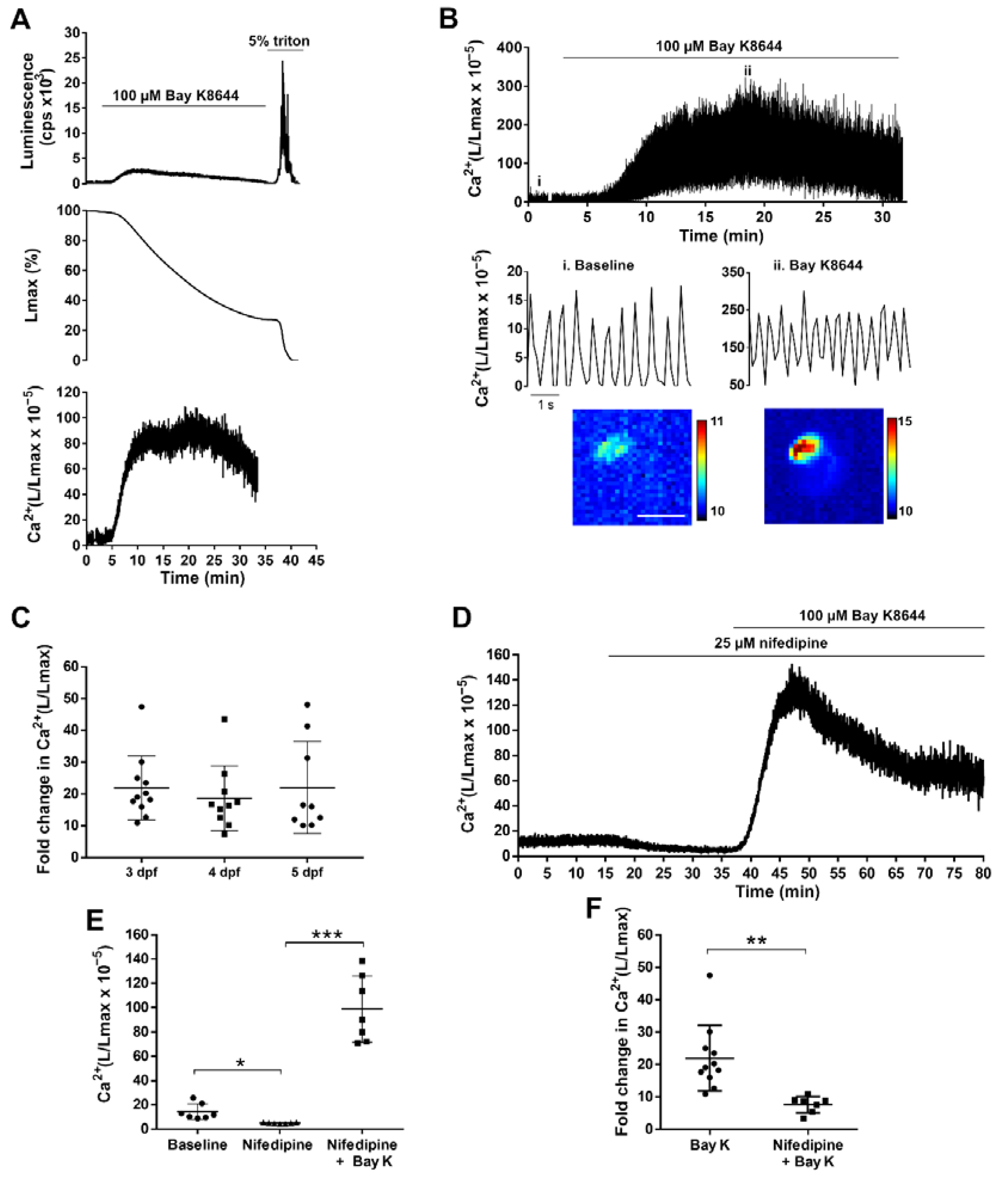

To validate the functionality and sensitivity of the Tg(myl7:GA) line, we used two drugs known to increase and decrease Ca2+ levels: the LTCC activator Bay K8644 and the LTCC antagonist nifedipine. Figure 5A shows the rationale and analysis of an aequorin experiment in a 3 dpf larva recorded at 2 images/s (2 Hz). This low acquisition frequency was used to track the time-averaged Ca2+ levels. The pharmacological approach in zebrafish usually requires higher concentration of drugs than single-cell studies, since drugs must diffuse through the agarose layer, the skin, and tissues to reach the heart. Thus, we used 100 µM Bay K8644 to trigger an increase in luminescence. Then, addition of 5% Triton X-100 caused the release of the remaining aequorin light. It is worth noting that luminescence values have no meaning in terms of Ca2+ levels until they are transformed into L/Lmax. This ratio, which is proportional to Ca2+ concentration [28], was independent of the total amount of functional aequorin in the sample (Figure S6). To record the effect of Bay K8644 on individual ventricular Ca2+ transients, images were acquired at 9 frames/s (9 Hz) (Figure 5B). The Ca2+ transient amplitude gradually increased after drug addition, as well as the diastolic and systolic Ca2+ levels. Bay K8644 triggered a similar increase in L/Lmax at 3, 4, and 5 dpf (21.9-, 18.7-, and 20.8-fold, respectively) (Figure 5C).
In contrast with Bay K8644, nifedipine (25 μM) decreased the time-averaged Ca2+ levels in 3 dpf larvae imaged at 1 Hz (L/Lmax 14.34 ± 6.49 before nifedipine vs. 4.96 ± 0.50 after nifedipine; p = 0.015) (Figure 5D). As images were acquired uninterruptedly, we monitored the reversal of the effect of nifedipine by Bay K8644 (100 μM) on the same larva. The L/Lmax was 4.96 ± 0.50 for nifedipine vs. 98.83 ± 27.33 after Bay K8644 (p = 0.0002) (Figure 5D,E). As expected, the increase in L/Lmax induced by Bay K8644 was lower in the presence of nifedipine (7.64-fold ± 2.49 with nifedipine vs. 21.92-fold ± 10.07 without nifedipine; p = 0.002) (Figure 5F). Therefore, the Tg(myl7:GA) line was sensitive enough to detect both increases and decreases of Ca2+ levels, as was shown by modulating Ca2+ influx with Bay K8644 and nifedipine.
Figure S7 compares the effect of Bay K8644 in 3 dpf larvae by cardioluminescence and by fluorescence imaging with GCaMP under similar conditions (heart beating was not stopped). The former allowed continuous recording whereas for GCaMP two periods of imaging (of 5 s duration) were acquired to minimize photobleaching. The GCaMP experiment resolved better the individual Ca2+ transients, although it was affected by motion artifacts. A shoulder in the decay phase was observed compared to stopped hearts (cf. Figure S7B and Figure 2C). Bioluminescence of GA allowed us to record Ca2+ for extended periods; this is a significant advantage as it would be difficult to perform continuous imaging experiments lasting more than 80 min with fluorescent biosensors under widefield microscopy.

3.5. Decreasing Adrenergic Tone with Propranolol

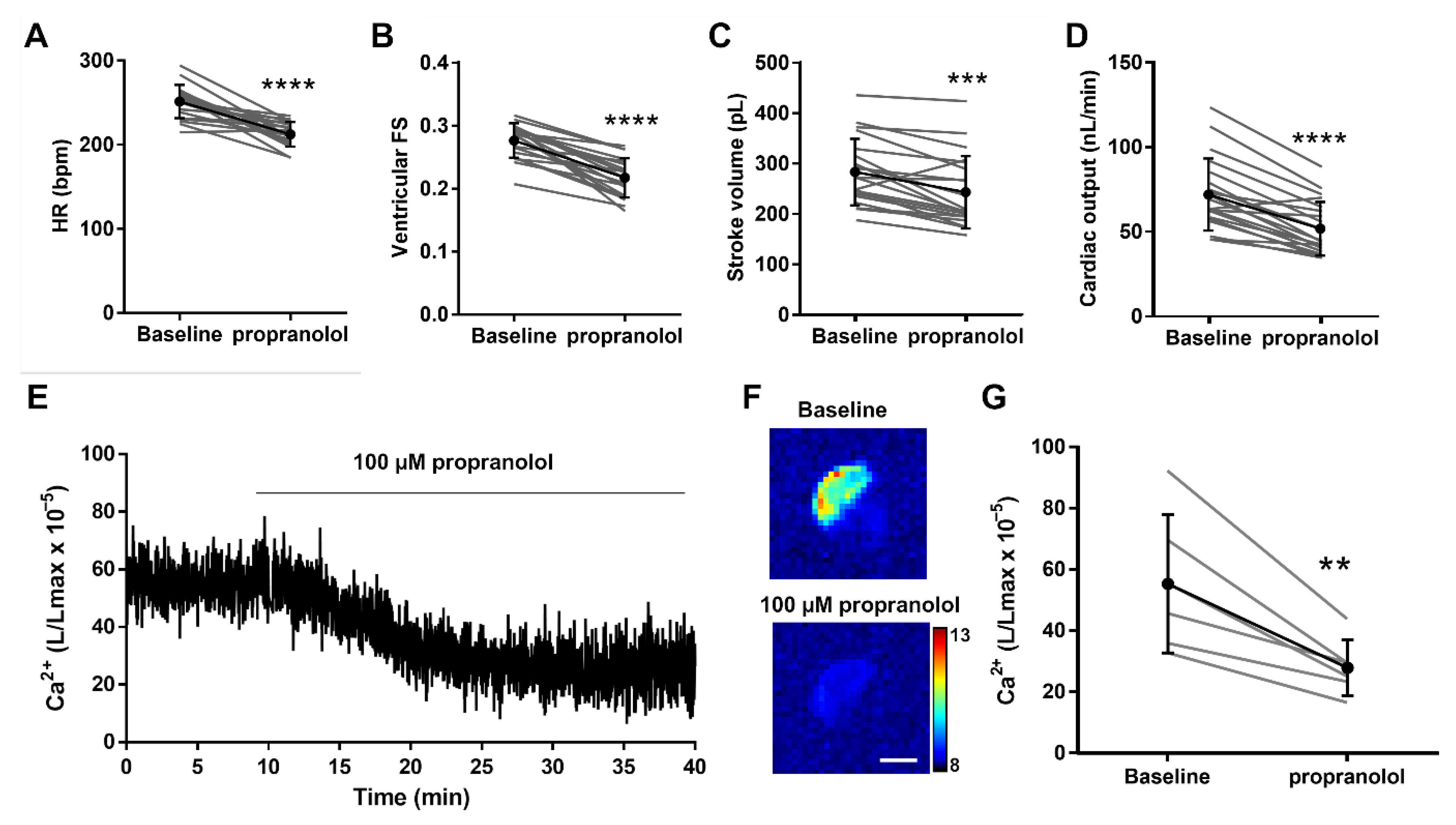

We and others reported that the β-adrenergic blocker propranolol decreased systolic and diastolic Ca2+ levels in 3 dpf zebrafish larvae using fluorescent biosensors [19,24]. We evaluated the effects of propranolol on cardiac and hemodynamic parameters using the fluorescence of GA in 4 dpf Tg(myl7:GA) larvae and tested their Ca2+ levels by cardioluminescence. Figure 6A–D and Table 1 shows that the HR, the ventricular FS and fractional area change (FAC), the stroke volume, and the cardiac output decreased after 30 min of incubation with 100 µM propranolol. In agreement with these functional changes, propranolol reduced the Ca2+ levels (Figure 6E,F). The L/Lmax decreased 46% (56.8 ± 24.5 baseline vs. 26.1 ± 5.7 after propranolol; p = 0.01) (Figure 6G). These results also show that the heart of 4 dpf larvae had some basal adrenergic tone.

3.6. Ca2+ Levels in a Terfenadine-Induced Heart Failure Model

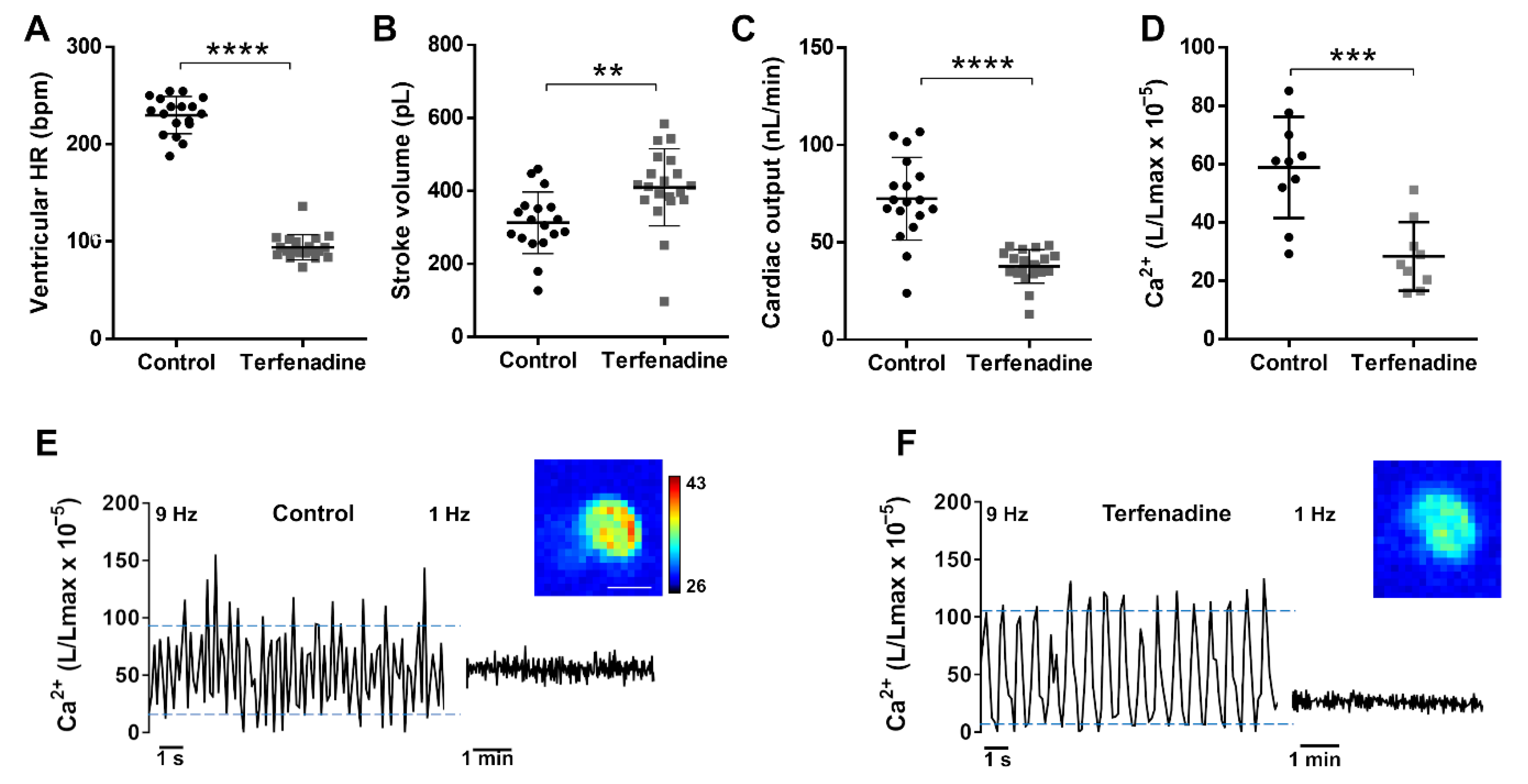

It has been reported that the treatment of 3 dpf zebrafish larvae with 10 µM terfenadine for 24 h reproduced some features of heart failure, including heart chamber dilatation, reduced FS, arrhythmia, and apoptosis [44,45], but potential changes in Ca2+ levels were not assessed. Terfenadine is a potent hERG blocker and can induce prolongation of the QT interval as well as 2:1 atrioventricular block [46]. We measured the hemodynamic parameters and Ca2+ levels in this model. The treatment with terfenadine caused bradycardia and a decrease in the atrio-ventricular HR ratio (0.51 ± 0.11) in 94% of the larvae, indicating a 2:1 atrio-ventricular block (Figure 7A). During the missing ventricular excitation, the ventricle remained contracted, suggesting that it was in refractory period due to a prolonged plateau phase and delayed repolarization. The stroke volume was higher in terfenadine-treated larvae than in the controls (Figure 7B). However, since the HR fell markedly, the cardiac output was lower in the terfenadine group than in the controls (Figure 7C). We examined Ca2+ levels by cardioluminescence both at high and low image acquisition rate. Terfenadine-treated larvae had lower time-averaged Ca2+ levels than the controls; L/Lmax values were 0.48-fold lower in terfenadine larvae (Table 1 and Figure 7D). In contrast, the amplitude of the Ca2+ transients increased 2-fold, largely because of increased systolic Ca2+ levels (Figure 7E,F and Table 1); this change was in accordance with the enhanced stroke volume.
Both acute incubation with propranolol (Figure 6) and 24 hr treatment with terfenadine (Figure 7) caused decreased cardiac output, but by different mechanisms. In propranolol-treated larvae, the changes observed agree with the expected reduction in adrenergic tone and the measured decrease in average Ca2+ levels (0.46-fold decrease) (Table 1). While the end-systolic volume increased 1.29-fold, indicating reduced FAC, the end-diastolic volume did not change, resulting in lower stroke volume (0.86-fold) and ejection fraction (0.86-fold) (Table 1). Since the HR also decreased (0.84-fold, negative chronotropic effect), the cardiac output was 72% of control, and there was no arrhythmia (the atrio-ventricular HR ratio was 1). In the terfenadine model of heart failure, there was an altered contraction pattern, since the FS measured with the major diameter decreased, whereas the FS with the minor diameter increased. Nonetheless, for overall ventricular function the change in ventricular area (and volume) is more meaningful than the FS along the minor or major axis. The FAC increased 1.19-fold. In addition, the end-systolic volume did not change but the end-diastolic volume increased by 1.23-fold, thus, raising the stroke volume (1.31-fold) (Table 1). As the ventricular HR had fallen to 41% of the control value, the cardiac output (stroke volume × HR) dropped to 0.52-fold of control, but the ejection fraction was maintained. While the average Ca2+ levels (measured at 1 Hz image acquisition) also decreased (as with propranolol), the amplitude of the Ca2+ transients markedly rose (Table 1). Thus, propranolol and terfenadine reduced cardiac output, but the defining changes caused by terfenadine were the 2:1 arrhythmia causing higher end-diastolic volume and enhanced Ca2+ amplitude and stroke volume.

4. Discussion

Imaging the heart of zebrafish larvae with a HR of about 3–4 Hz (180–240 bpm) requires acquiring images at high speed. In a previous report using widefield fluorescence microscopy with LED illumination at 50 images/s, we obtained excellent SNR and spatial resolution, but recording was limited to short duration periods (~10 s) to avoid photobleaching [24]. Photobleaching was worse when we used laser illumination in scanning or spinning disc confocal microscopy. Thus, when studying the effect of slow-acting drugs, which have to diffuse through the agarose and skin to reach the heart, 10-s imaging periods were acquired every few minutes [24], which made it difficult to detect random arrhythmic events. Light sheet fluorescence microscopy has been shown to be much less harmful than widefield or confocal microscopy, allowing to image cell motion in beating larva hearts, or Ca2+ levels in non-contracting hearts [20]. Indeed, Ca2+ imaging in the heart with intensiometric fluorescence biosensors requires stopping contraction with drugs or morpholinos against myosin to avoid motion artifacts [19,21]. Another limitation we observed was the autofluorescence of the vitello, which affected mostly the atrium in 3 dpf larvae [24]. The antifungal methylene blue, commonly used in the fish water, and drugs like para-amino blebbistatin also increased autofluorescence. To overcome these issues, here we have used bioluminescence imaging of aequorin fused to GFP (GA) to monitor continuously Ca2+ levels in experiments of up to 2 h in 3–5 dpf larvae. In these experiments, the heart was performing its mechanical function and the mechano-electrical feedback was preserved.
Reconstitution of apoaequorin with CTZ in single-cells or in vivo is not generally a major problem [26,29,30,32,47]. However, we failed to obtain luminescence in larval hearts with standard protocols and hypothesized that aequorin was rapidly consumed during the reconstitution step as Ca2+ is oscillating continuously. It has been previously reported that nifedipine-treated larvae restored the frequency and amplitude of heart Ca2+ transients after drug washout [19]. Therefore, we treated larvae with nifedipine in free-Ca2+ medium to temporarily abolish Ca2+ transients during reconstitution. No deleterious effects on heart function were observed after this aequorin reconstitution procedure (Figure S2). A second possible cause of poor luminescence output was the instability of CTZ in solution. We synthesized diacetyl h-CTZ, since the acetyl groups have been shown to protect CTZ from autooxidation and improve luminescence [43]. Thus, an optimized reconstitution protocol with nifedipine incubation to lower Ca2+ levels, and using diacetyl h-CTZ as the substrate, resulted in high levels of active aequorin. Notably, diacetyl h-CTZ enhanced the SNR and total counts compared to h-CTZ (Figure 4), allowing long-term Ca2+ imaging in the heart of live larvae. Hence, the diacetyl derivative of f-CTZ might further augment cardioluminescence since f-CTZ was comparable to diacetyl h-CTZ in our results (Figure 4).
As the SNR decreased at high acquisition frequencies (i.e., 25 Hz, Figure S4A), we chose 9 images/s (9 Hz) to maintain a balance between the ability to resolve individual Ca2+ transients and the SNR. Lower frame rates (1–2 Hz) increased the SNR and provided information about the time-averaged Ca2+ levels, as was shown with both nifedipine and propranolol. This highlights the versatility of GA bioluminescence to monitor oscillatory Ca2+ transients or averaged levels.
Incubation of 3 dpf zebrafish larvae with the antihistamine drug terfenadine for 24 h has been reported to induce heart failure [44,45], involving arrhythmia and systolic dysfunction, but potential changes in cytosolic Ca2+ were not investigated. The proarrhythmic risk of terfenadine may arise from its numerous effects on cardiomyocyte electrophysiology: block of Na+ and L-type Ca2+ currents that slows ventricular conduction and promotes non-Torsades de pointes ventricular tachycardia and fibrillation [46]; increased frequency of spontaneous Ca2+ release from the sarcoplasmic reticulum and enhanced NCX spontaneous currents inducing afterdepolarizations [48]; and block of hERG with QT prolonging effects [46]. In zebrafish, prolonged repolarization results in atrio-ventricular block [49]. Our results indeed showed a 2:1 atrio-ventricular block and decreased ventricular HR (Figure 7 and Table 1). This caused a decrease in average ventricular Ca2+ levels but increased Ca2+ transient amplitude, resulting in increased stroke volume. The reduction of HR prolongs the diastole, Ca2+ extrusion, and reuptake into the sarcoplasmic reticulum, and has been shown to decrease diastolic Ca2+ levels [6]. In addition, prolongation of the plateau phase of the action potential by inhibition of zERG would increase the systolic Ca2+ levels (Table 1). As a result of the markedly reduced HR, cardiac output decreased. In contrast with terfenadine, the adrenergic block with propranolol caused reduced average Ca2+ levels, but a negative inotropic effect (reduced stroke volume).
Since the bioluminescence reaction of aequorin is triggered by three Ca2+ ions [50], the steepness of the Ca2+-response curve confers it an excellent SNR. However, in Ca2+ microdomains near sarcolemmal Ca2+ channels or ryanodine receptors on the sarcoplasmic reticulum surface (Ca2+ sparks) [51], a small fraction of total aequorin may be exposed to very high Ca2+ concentrations. Thus, L/Lmax may be dominated by these microdomains and may not represent the average cytoplasmic Ca2+ levels. In fact, the experiments with Bay K8644, which induced a 20-fold change in L/Lmax, suggest the existence of such microdomains.
The main limitation of aequorin luminescence methods compared to fluorescence is their low photon yield. The atrium, being thinner than the ventricle, contains fewer cells and thus, less GA. Therefore, we focused on the ventricular Ca2+ levels because atrial bioluminescence was under the limit of detection of our imaging system. Nevertheless, atrial bioluminescence was observed when Ca2+ levels were increased with Bay K8644. Imaging, in contrast to photometry, allowed us to quantify ventricular Ca2+ by setting appropriate ROIs, eliminating any contribution from the atrium. Luminescence may also be close to noise levels when Ca2+ levels decrease by drugs (i.e., nifedipine) or in a pathological model, precluding accurate measurements. In the future, the sensitivity issue may be overcome by increasing aequorin’s Ca2+ affinity with mutagenesis or with appropriate CTZ analogues [27] and by the continuous development of more sensitive detectors.
In view of the above, the choice of a fluorescent (GCaMP, Twitch-4) or a bioluminescent (GA) biosensor would depend on the research question. Bioluminescence would be preferred when a continuous record of Ca2+ is desired (as depicted in Figure S7), for instance, when searching for a paroxysmal arrhythmia. A fluorescence experiment would likely miss these events since short imaging periods of a few seconds every few minutes are normally acquired to avoid photobleaching. In contrast, to see changes on the shape of the transients, like the effect of drugs or mutations prolonging action potential, fluorescence would be better than bioluminescence.
In conclusion, we describe a transgenic model to study Ca2+ physiology and pathophysiology in the embryonic zebrafish heart by bioluminescence, as a complementary method to the popular fluorescent Ca2+ biosensors. The devised reconstitution protocol increased the amount of functional aequorin without causing deleterious heart effects. Ventricular Ca2+ dynamics in beating hearts were imaged continuously for hours in 3–5 dpf larvae. Both the time-averaged Ca2+ levels and individual Ca2+ transients were monitored and, as a proof-of-concept, we studied changes induced by drugs acting on LTCC and sympathetic input. Tg(myl7:GA) larvae also revealed a decrease in time-averaged Ca2+ levels, but an increase in Ca2+ transient amplitude and stroke volume in a model of heart failure induced by terfenadine. Fluorescence and luminescence imaging have each particular benefits and constraints but are orthogonal techniques able to interrogate different aspects of pathophysiological processes. Cardioluminescence in particular avoids autofluorescence and photobleaching and allows monitoring heart Ca2+ for longer periods of time.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/biomedicines9101294/s1, Figure S1: Dose-response of nifedipine on Ca2+ transients measured with GCaMP, Figure S2: Restoration of the heart mechanical function and the Ca2+ transients after the recovery period of the aequorin reconstitution protocol, Figure S3: Luminescence in the atrium and the ventricle of 3 dpf Tg(myl7:GA) embryos subjected to the aequorin reconstitution protocol, Figure S4: Dependency of SNR and L/Lmax on the image acquisition frequency, Figure S5: Structure of the coelenterazines used in this study, Figure S6: Correlation of the basal L/Lmax values versus the total counts in 3 dpf Tg(myl7:GA) zebrafish embryos, Figure S7: Comparison of the effect of Bay K8644 (100 µM) in 3 dpf GA expressing embryos and by fluorescence imaging in 3 dpf GCaMP expressing embryos under similar conditions.

Author Contributions

M.V. generated the transgenic zebrafish line. M.M. and K.K. synthesized diacetyl coelenterazine-h. B.D. and J.L. set up the bioluminescence microscope. M.V., B.D. and J.L. designed the experiments. M.V. performed the bioluminescence experiments. J.S.-A. and A.M.-S. performed the hemodynamic experiments with GA. M.V. and M.M.C. performed the GCaMP experiments. M.V., B.D. and J.L. analyzed the data and wrote the manuscript. B.D. and J.L. obtained funding. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Ministry of Science, Innovation and Universities, Spain (grant numbers BFU2015-69874-R and PID2019-111456RB-100, co-funded by EU FEDER-ERDF), by Consejería de Educación, Cultura y Deportes, Junta de Comunidades de Castilla-La Mancha (grant number SBPLY/19/180501/000223, co-funded by EU FEDER-ERDF) and by grants for research groups from the University of Castilla-La Mancha (UCLM) (2019-GRIN-27019, 2020-GRIN-29186 and 2021-GRIN-31151, co-funded by EU FEDER-ERDF).

Institutional Review Board Statement

All animal procedures were conducted according to institutional and national ethical and animal welfare guidelines (approval document dated 16 March 2020, Consejería de Agricultura, Agua y Desarrollo Rural, JCCM, Spain; and Max Planck Gesellschaft and the Ethics Committee for Regierungspräsidium Darmstadt, Germany).

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study is contained within the article or in Supplementary Material.

Acknowledgments

J.S.-A. held a predoctoral fellowship from the University of Castilla-La Mancha (UCLM). A.M-S. held a M.Sc. fellowship from UCLM, reference 537800 [2020/10774]. M.V. obtained a fellowship from UCLM to visit the Max Planck Institute for Heart and Lung Research, Bad Nauheim, Germany. We thank Didier Stainier for use of the Tg(myl7:GCaMP)s878 line at the Max Planck Institute for Heart and Lung Research. We thank Pierre Vincent and Eduardo Nava for valuable suggestions, and Carmen Cifuentes for expert technical assistance.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

Abbreviations

CTZ: coelenterazine; DMSO, dimethyl sulfoxide; dpf, days post-fertilization; E30Ca medium, nominally zero Ca2+ E3 medium; FAC, fractional area change; FS, fractional shortening; GA, GFP-Aequorin; GFP, green fluorescent protein; HR, heart rate; LTCC, L-type voltage-dependent calcium channel; RLU, relative luminescence unit; ROI, region of interest; SNR, signal-to-noise ratio.

References

  1. Eisner, D.A. Ups and downs of calcium in the heart. J. Physiol. 2018, 596, 19–30. [Google Scholar] [CrossRef] [Green Version]
  2. Eisner, D.A.; Caldwell, J.L.; Trafford, A.W.; Hutchings, D.C. The control of diastolic calcium in the heart: Basic mechanisms and functional implications. Circ. Res. 2020, 126, 395–412. [Google Scholar] [CrossRef] [PubMed]
  3. Trafford, A.W.; Díaz, M.E.; Eisner, D.A. Coordinated control of cell Ca2+ loading and triggered release from the sarcoplasmic reticulum underlies the rapid inotropic response to increased L-Type Ca2+ current. Circ. Res. 2001, 88, 195–201. [Google Scholar] [CrossRef] [Green Version]
  4. Shinnawi, R.; Huber, I.; Maizels, L.; Shaheen, N.; Gepstein, A.; Arbel, G.; Tijsen, A.J.; Gepstein, L. Monitoring Human-induced pluripotent stem cell-derived cardiomyocytes with genetically encoded calcium and voltage fluorescent reporters. Stem. Cell Rep. 2015, 5, 582–596. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Bedut, S.; Seminatore-Nole, C.; Lamamy, V.; Caignard, S.; Boutin, J.A.; Nosjean, O.; Stephan, J.-P.; Coge, F. High-throughput drug profiling with voltage- and calcium-sensitive fluorescent probes in human IPSC-derived cardiomyocytes. Am. J. Physiol. Heart Circ. Physiol. 2016, 311, H44–H53. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Zhang, P.-C.; Llach, A.; Sheng, X.Y.; Hove-Madsen, L.; Tibbits, G.F. Calcium handling in zebrafish ventricular myocytes. Am. J. Physiol. Regul. Integr. Comp. Physiol. 2010, 300, R56–R66. [Google Scholar] [CrossRef] [Green Version]
  7. Brown, D.R.; Samsa, L.A.; Qian, L.; Liu, J. Advances in the study of heart development and disease using zebrafish. J. Cardiovasc. Dev. Dis. 2016, 3, 13. [Google Scholar] [CrossRef]
  8. Burns, C.G.; Milan, D.J.; Grande, E.J.; Rottbauer, W.; MacRae, C.A.; Fishman, M.C. High-throughput assay for small molecules that modulate zebrafish embryonic heart rate. Nat. Chem. Biol. 2005, 1, 263–264. [Google Scholar] [CrossRef]
  9. Panáková, D.; Werdich, A.A.; Macrae, C.A. Wnt11 patterns a myocardial electrical gradient through regulation of the L-type Ca(2+) channel. Nature 2010, 466, 874–878. [Google Scholar] [CrossRef] [Green Version]
  10. Driever, W.; Solnica-Krezel, L.; Schier, A.F.; Neuhauss, S.C.; Malicki, J.; Stemple, D.L.; Stainier, D.Y.; Zwartkruis, F.; Abdelilah, S.; Rangini, Z.; et al. A genetic screen for mutations affecting embryogenesis in zebrafish. Dev. Camb. Engl. 1996, 123, 37–46. [Google Scholar]
  11. Chi, N.C.; Shaw, R.M.; Jungblut, B.; Huisken, J.; Ferrer, T.; Arnaout, R.; Scott, I.; Beis, D.; Xiao, T.; Baier, H.; et al. Genetic and physiologic dissection of the vertebrate cardiac conduction system. PLoS Biol. 2008, 6, e109. [Google Scholar] [CrossRef] [Green Version]
  12. Parker, T.; Libourel, P.-A.; Hetheridge, M.J.; Cumming, R.I.; Sutcliffe, T.P.; Goonesinghe, A.C.; Ball, J.S.; Owen, S.F.; Chomis, Y.; Winter, M.J. A multi-endpoint in vivo larval zebrafish (Danio Rerio) model for the assessment of integrated cardiovascular function. J. Pharmacol. Toxicol. Methods 2014, 69, 30–38. [Google Scholar] [CrossRef] [PubMed]
  13. Collins, M.M.; Ahlberg, G.; Hansen, C.V.; Guenther, S.; Marín-Juez, R.; Sokol, A.M.; El-Sammak, H.; Piesker, J.; Hellsten, Y.; Olesen, M.S.; et al. Early sarcomere and metabolic defects in a zebrafish Pitx2c cardiac arrhythmia model. Proc. Natl. Acad. Sci. USA 2019, 116, 24115–24121. [Google Scholar] [CrossRef] [PubMed]
  14. Alday, A.; Alonso, H.; Gallego, M.; Urrutia, J.; Letamendia, A.; Callol, C.; Casis, O. Ionic channels underlying the ventricular action potential in zebrafish embryo. Pharmacol. Res. 2014, 84, 26–31. [Google Scholar] [CrossRef] [PubMed]
  15. Hodgson, P.; Ireland, J.; Grunow, B. Fish, the better model in human heart research? Zebrafish heart aggregates as a 3D spontaneously cardiomyogenic in vitro model system. Prog. Biophys. Mol. Biol. 2018, 138, 132–141. [Google Scholar] [CrossRef] [PubMed]
  16. Nemtsas, P.; Wettwer, E.; Christ, T.; Weidinger, G.; Ravens, U. Adult zebrafish heart as a model for human heart? An electrophysiological study. J. Mol. Cell. Cardiol. 2010, 48, 161–171. [Google Scholar] [CrossRef]
  17. Haverinen, J.; Hassinen, M.; Dash, S.N.; Vornanen, M. Expression of calcium channel transcripts in the zebrafish heart: Dominance of T-Type channels. J. Exp. Biol. 2018, 221, jeb179226. [Google Scholar] [CrossRef] [Green Version]
  18. Van Opbergen, C.J.M.; van der Voorn, S.M.; Vos, M.A.; de Boer, T.P.; van Veen, T.A.B. Cardiac Ca2+ signalling in zebrafish: Translation of findings to man. Prog. Biophys. Mol. Biol. 2018, 138, 45–58. [Google Scholar] [CrossRef]
  19. Van Opbergen, C.J.M.; Koopman, C.D.; Kok, B.J.M.; Knöpfel, T.; Renninger, S.L.; Orger, M.B.; Vos, M.A.; van Veen, T.A.B.; Bakkers, J.; de Boer, T.P. Optogenetic sensors in the zebrafish heart: A novel in vivo electrophysiological tool to study cardiac arrhythmogenesis. Theranostics 2018, 8, 4750–4764. [Google Scholar] [CrossRef]
  20. Weber, M.; Scherf, N.; Meyer, A.M.; Panáková, D.; Kohl, P.; Huisken, J. Cell-accurate optical mapping across the entire developing heart. eLife 2017, 6, e28307. [Google Scholar] [CrossRef]
  21. Kamel, S.M.; Koopman, C.D.; Kruse, F.; Willekers, S.; Chocron, S.; Bakkers, J. A Heterozygous mutation in cardiac troponin T Promotes Ca2+ dysregulation and adult cardiomyopathy in zebrafish. J. Cardiovasc. Dev. Dis. 2021, 8, 46. [Google Scholar] [CrossRef] [PubMed]
  22. Sehnert, A.J.; Huq, A.; Weinstein, B.M.; Walker, C.; Fishman, M.; Stainier, D.Y.R. Cardiac troponin T is essential in sarcomere assembly and cardiac contractility. Nat. Genet. 2002, 31, 106–110. [Google Scholar] [CrossRef] [PubMed]
  23. Várkuti, B.H.; Képiró, M.; Horváth, I.Á.; Végner, L.; Ráti, S.; Zsigmond, Á.; Hegyi, G.; Lenkei, Z.; Varga, M.; Málnási-Csizmadia, A. A highly soluble, non-phototoxic, non-fluorescent blebbistatin derivative. Sci. Rep. 2016, 6, 26141. [Google Scholar] [CrossRef] [Green Version]
  24. Salgado-Almario, J.; Vicente, M.; Vincent, P.; Domingo, B.; Llopis, J. Mapping calcium dynamics in the heart of zebrafish embryos with ratiometric genetically encoded calcium indicators. Int. J. Mol. Sci. 2020, 21, 6610. [Google Scholar] [CrossRef]
  25. Kiepas, A.; Voorand, E.; Mubaid, F.; Siegel, P.M.; Brown, C.M. Optimizing live-cell fluorescence imaging conditions to minimize phototoxicity. J. Cell Sci. 2020, 133, jcs242834. [Google Scholar] [CrossRef] [PubMed]
  26. Brini, M. Calcium-sensitive photoproteins. Methods San Diego Calif. 2008, 46, 160–166. [Google Scholar] [CrossRef]
  27. Bakayan, A.; Domingo, B.; Vaquero, C.F.; Peyriéras, N.; Llopis, J. Fluorescent protein–photoprotein fusions and their applications in calcium imaging. Photochem. Photobiol. 2017, 93, 448–465. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  28. Alvarez, J.; Montero, M. Measuring [Ca2+] in the endoplasmic reticulum with aequorin. Cell Calcium 2002, 32, 251–260. [Google Scholar] [CrossRef] [PubMed]
  29. Webb, S.E.; Cheung, C.C.Y.; Chan, C.M.; Love, D.R.; Miller, A.L. Application of complementary luminescent and fluorescent imaging techniques to visualize nuclear and cytoplasmic Ca2+ signalling during the in vivo differentiation of slow muscle cells in zebrafish embryos under normal and dystrophic conditions. Clin. Exp. Pharmacol. Physiol. 2012, 39, 78–86. [Google Scholar] [CrossRef] [PubMed]
  30. Naumann, E.A.; Kampff, A.R.; Prober, D.A.; Schier, A.F.; Engert, F. Monitoring neural activity with bioluminescence during natural behavior. Nat. Neurosci. 2010, 13, 513–520. [Google Scholar] [CrossRef] [Green Version]
  31. Bakayan, A.; Domingo, B.; Miyawaki, A.; Llopis, J. Imaging Ca(2+) activity in mammalian cells and zebrafish with a novel red-emitting aequorin variant. Pflugers Arch. 2015, 467, 2031–2042. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  32. Vicente, M.; Salgado-Almario, J.; Soriano, J.; Burgos, M.; Domingo, B.; Llopis, J. Visualization of mitochondrial Ca2+ signals in skeletal muscle of zebrafish embryos with bioluminescent indicators. Int. J. Mol. Sci. 2019, 20, 5409. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Baubet, V.; Mouellic, H.L.; Campbell, A.K.; Lucas-Meunier, E.; Fossier, P.; Brûlet, P. Chimeric green fluorescent protein-aequorin as bioluminescent Ca2+ reporters at the single-cell level. Proc. Natl. Acad. Sci. USA 2000, 97, 7260–7265. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Adamczyk, M.; Akireddy, S.R.; Johnson, D.D.; Mattingly, P.G.; Pan, Y.; Reddy, R.E. Synthesis of 3,7-dihydroimidazo [1,2a]Pyrazine-3-ones and their chemiluminescent properties. Tetrahedron 2003, 59, 8129–8142. [Google Scholar] [CrossRef]
  35. Kim, T.J.; Türkcan, S.; Pratx, G. Modular low-light microscope for imaging cellular bioluminescence and radioluminescence. Nat. Protoc. 2017, 12, 1055–1076. [Google Scholar] [CrossRef] [Green Version]
  36. Schneider, C.A.; Rasband, W.S.; Eliceiri, K.W. NIH image to ImageJ: 25 Years of image analysis. Nat. Methods 2012, 9, 671–675. [Google Scholar] [CrossRef] [PubMed]
  37. Kurnia, K.A.; Saputra, F.; Roldan, M.J.M.; Castillo, A.L.; Huang, J.-C.; Chen, K.H.-C.; Lai, H.-T.; Hsiao, C.-D. Measurement of multiple cardiac performance endpoints in daphnia and zebrafish by kymograph. Inventions 2021, 6, 8. [Google Scholar] [CrossRef]
  38. Manjarrés, I.M.; Chamero, P.; Domingo, B.; Molina, F.; Llopis, J.; Alonso, M.T.; García-Sancho, J. Red and green aequorins for simultaneous monitoring of Ca2+ signals from two different organelles. Pflüg. Arch. Eur. J. Physiol. 2008, 455, 961–970. [Google Scholar] [CrossRef] [Green Version]
  39. Shimomura, O.; Johnson, F.H.; Saiga, Y. Extraction, purification and properties of aequorin, a bioluminescent protein from the luminous hydromedusan, aequorea. J. Cell. Comp. Physiol. 1962, 59, 223–239. [Google Scholar] [CrossRef]
  40. Shimomura, O.; Musicki, B.; Kishi, Y.; Inouye, S. Light-emitting properties of recombinant semi-synthetic aequorins and recombinant fluorescein-conjugated aequorin for measuring cellular calcium. Cell Calcium 1993, 14, 373–378. [Google Scholar] [CrossRef]
  41. Shimomura, O.; Kishi, Y.; Inouye, S. The relative rate of aequorin regeneration from apoaequorin and coelenterazine analogues. Biochem. J. 1993, 296, 549–551. [Google Scholar] [CrossRef] [Green Version]
  42. Shimomura, O. Membrane permeability of coelenterazine analogues measured with fish eggs. Biochem. J. 1997, 326, 297–298. [Google Scholar] [CrossRef] [Green Version]
  43. Takai, A.; Nakano, M.; Saito, K.; Haruno, R.; Watanabe, T.M.; Ohyanagi, T.; Jin, T.; Okada, Y.; Nagai, T. Expanded Palette of nano-lanterns for real-time multicolor luminescence imaging. Proc. Natl. Acad. Sci. USA 2015, 112, 4352–4356. [Google Scholar] [CrossRef] [Green Version]
  44. Gu, G.; Na, Y.; Chung, H.; Seok, S.H.; Lee, H.-Y. Zebrafish larvae model of dilated cardiomyopathy induced by terfenadine. Korean Circ. J. 2017, 47, 960–969. [Google Scholar] [CrossRef] [Green Version]
  45. Quan, H.; Oh, G.C.; Seok, S.H.; Lee, H.-Y. Fimasartan, an angiotensin II Receptor antagonist, ameliorates an in vivo zebrafish model of heart failure. Korean J. Intern. Med. 2020, 35, 1400–1410. [Google Scholar] [CrossRef]
  46. Lu, H.R.; Hermans, A.N.; Gallacher, D.J. Does terfenadine-induced ventricular tachycardia/fibrillation directly relate to its QT prolongation and torsades de pointes? Br. J. Pharmacol. 2012, 166, 1490–1502. [Google Scholar] [CrossRef] [Green Version]
  47. Webb, S.E.; Fluck, R.A.; Miller, A.L. Calcium signaling during the early development of medaka and zebrafish. Biochimie 2011, 93, 2112–2125. [Google Scholar] [CrossRef]
  48. Hove-Madsen, L.; Llach, A.; Molina, C.E.; Prat-Vidal, C.; Farré, J.; Roura, S.; Cinca, J. The proarrhythmic antihistaminic drug terfenadine increases spontaneous calcium release in human atrial myocytes. Eur. J. Pharmacol. 2006, 553, 215–221. [Google Scholar] [CrossRef]
  49. Jou, C.J.; Barnett, S.M.; Bian, J.-T.; Weng, H.C.; Sheng, X.; Tristani-Firouzi, M. An in vivo cardiac assay to determine the functional consequences of putative long QT syndrome mutations. Circ. Res. 2013, 112, 826–830. [Google Scholar] [CrossRef] [Green Version]
  50. Deng, L.; Vysotski, E.S.; Markova, S.V.; Liu, Z.-J.; Lee, J.; Rose, J.; Wang, B.-C. All three Ca2+-binding loops of photoproteins bind calcium ions: The crystal structures of calcium-loaded apo-aequorin and apo-obelin. Protein Sci. Publ. Protein Soc. 2005, 14, 663–675. [Google Scholar] [CrossRef] [Green Version]
  51. Rizzuto, R.; Pozzan, T. Microdomains of intracellular Ca2+: Molecular determinants and functional consequences. Physiol. Rev. 2006, 86, 369–408. [Google Scholar] [CrossRef] [PubMed]
Biomedicines 09 01294 g001 550

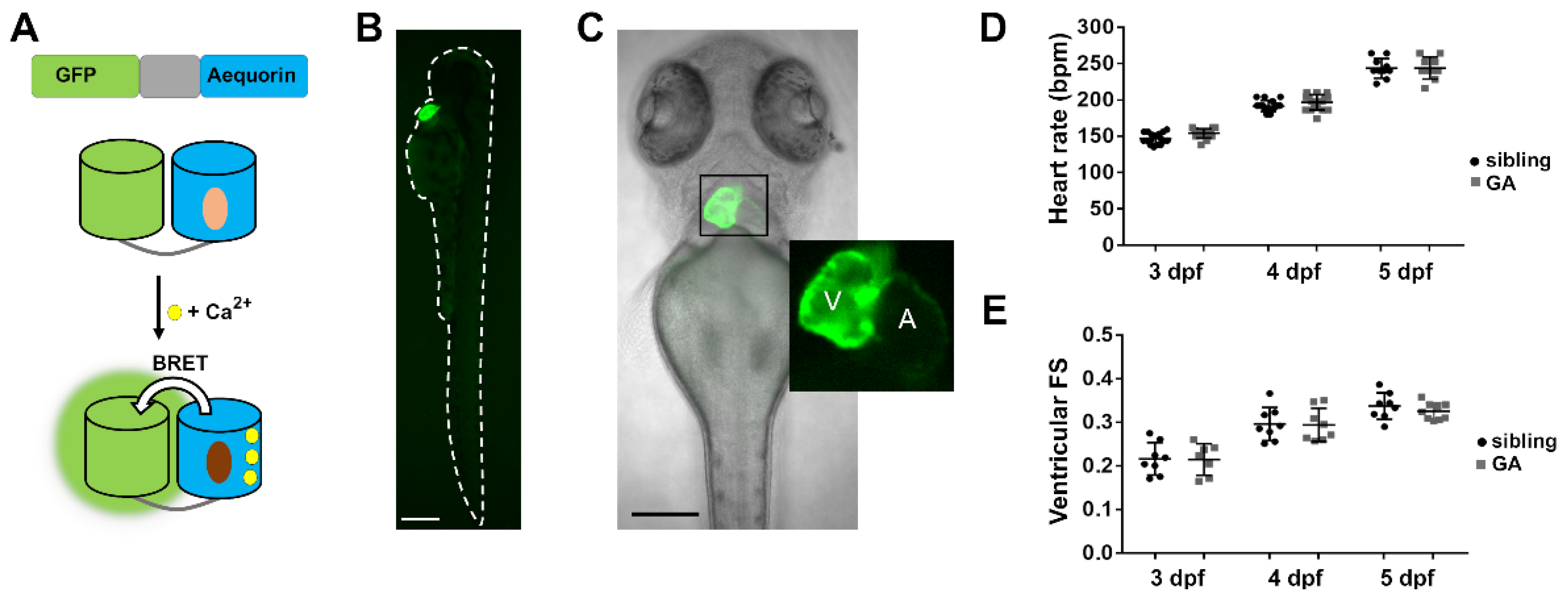

Figure 1. Expression of GA in the heart of zebrafish larvae. (A) DNA construct of the chimera GA and scheme of Ca2+-dependent bioluminescence. BRET, bioluminescence resonance energy transfer. Light and dark brown ovals represent CTZ and its excited state product. (B) GFP fluorescence of a 3 dpf Tg(myl7:GA) zebrafish larva. (C) Superimposed GFP fluorescence and transmitted light images of a 3 dpf Tg(myl7:GA) zebrafish larva. The inset shows the atrium (A) and ventricle (V). (D) HR of GA heterozygous and wild-type siblings at 3, 4, and 5 dpf. Data are shown as mean ± SD (n = 17 for 3 and 4 dpf; n = 10 for 5 dpf). (E) Ventricular fractional shortening (FS), measured with the major diameter, of GA heterozygous and sibling larvae at 3, 4, and 5 dpf. Data are shown as mean ± SD (sibling n = 8 for 3, 4, and 5 dpf; GA n = 7 for 3, n = 8 for 4 dpf and n = 9 for 5 dpf). Statistical analysis was performed using an unpaired t-test in (D) and (E) and no statistical differences were found between GA-expressing and sibling larvae (p > 0.05). The bar scale in (B) and (C) indicates 250 µm and 150 µm, respectively.
Figure 1. Expression of GA in the heart of zebrafish larvae. (A) DNA construct of the chimera GA and scheme of Ca2+-dependent bioluminescence. BRET, bioluminescence resonance energy transfer. Light and dark brown ovals represent CTZ and its excited state product. (B) GFP fluorescence of a 3 dpf Tg(myl7:GA) zebrafish larva. (C) Superimposed GFP fluorescence and transmitted light images of a 3 dpf Tg(myl7:GA) zebrafish larva. The inset shows the atrium (A) and ventricle (V). (D) HR of GA heterozygous and wild-type siblings at 3, 4, and 5 dpf. Data are shown as mean ± SD (n = 17 for 3 and 4 dpf; n = 10 for 5 dpf). (E) Ventricular fractional shortening (FS), measured with the major diameter, of GA heterozygous and sibling larvae at 3, 4, and 5 dpf. Data are shown as mean ± SD (sibling n = 8 for 3, 4, and 5 dpf; GA n = 7 for 3, n = 8 for 4 dpf and n = 9 for 5 dpf). Statistical analysis was performed using an unpaired t-test in (D) and (E) and no statistical differences were found between GA-expressing and sibling larvae (p > 0.05). The bar scale in (B) and (C) indicates 250 µm and 150 µm, respectively.
Biomedicines 09 01294 g001
Biomedicines 09 01294 g002 550

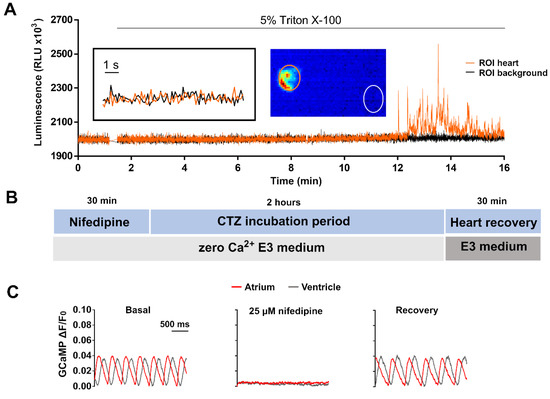

Figure 2. Limiting Ca2+ transients in the heart with nifedipine and aequorin reconstitution protocol. (A) Representative luminescence of a beating heart in a 3 dpf Tg(myl7:GA) larva incubated with 50 µM diacetyl h-CTZ in E3 medium for 2 h. Images were acquired at 9 Hz. The image represents the integrated luminescence of the entire experiment, including Triton X-100. Regions of interest (ROI) from heart and background are shown. (B) Scheme of the aequorin reconstitution protocol comprising a 30-min incubation with nifedipine in E30Ca medium to block Ca2+ transients, 2 h for aequorin reconstitution with CTZ, and 30 min for recovery of the Ca2+ transients in Ca2+-containing E3 medium. (C) Representative Ca2+ transients of a 3 dpf Tg(myl7:GCaMP)s878 larva in basal conditions incubated with 25 μM nifedipine for 30 min in E30Ca medium, and after the heart recovery period. The fluorescence images were acquired at 200 Hz in a spinning disk confocal microscope; GCaMP fluorescence was measured in a ROI drawn over the ventricle.
Figure 2. Limiting Ca2+ transients in the heart with nifedipine and aequorin reconstitution protocol. (A) Representative luminescence of a beating heart in a 3 dpf Tg(myl7:GA) larva incubated with 50 µM diacetyl h-CTZ in E3 medium for 2 h. Images were acquired at 9 Hz. The image represents the integrated luminescence of the entire experiment, including Triton X-100. Regions of interest (ROI) from heart and background are shown. (B) Scheme of the aequorin reconstitution protocol comprising a 30-min incubation with nifedipine in E30Ca medium to block Ca2+ transients, 2 h for aequorin reconstitution with CTZ, and 30 min for recovery of the Ca2+ transients in Ca2+-containing E3 medium. (C) Representative Ca2+ transients of a 3 dpf Tg(myl7:GCaMP)s878 larva in basal conditions incubated with 25 μM nifedipine for 30 min in E30Ca medium, and after the heart recovery period. The fluorescence images were acquired at 200 Hz in a spinning disk confocal microscope; GCaMP fluorescence was measured in a ROI drawn over the ventricle.
Biomedicines 09 01294 g002
Biomedicines 09 01294 g003 550

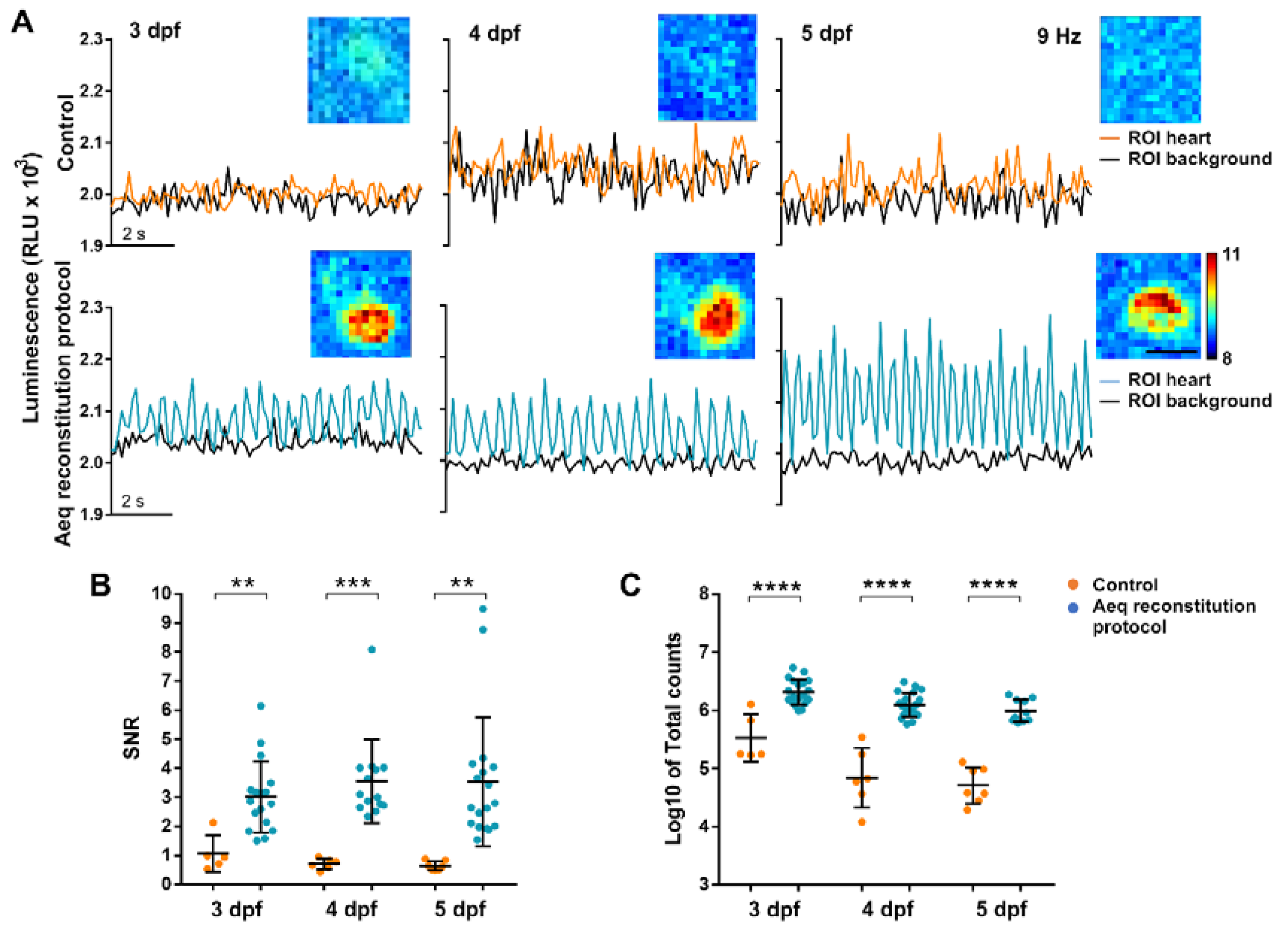

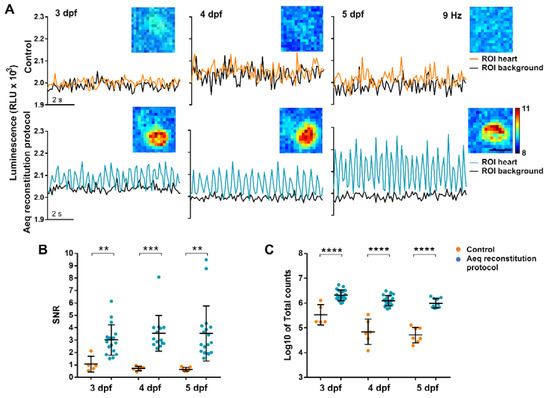

Figure 3. Bioluminescence imaging in the heart of 3, 4, and 5 dpf Tg(myl7:GA) zebrafish larvae treated with the aequorin reconstitution protocol. Diacetyl h-CTZ was used for reconstitution and images were acquired at 9 Hz. (A) Luminescence of CTZ-incubated larvae either with the aequorin reconstitution protocol or in full E3 medium (control). The black lines indicate the luminescence in background ROIs drawn out of the larvae; orange and blue lines show ventricular luminescence. Inset images show the integrated luminescence for 1 min over the heart. The scale bar represents 50 µm and the colour scale indicates RLU. (B) SNR of the control (orange) and aequorin reconstitution protocol (blue) larvae at 3, 4, and 5 dpf. Data are shown as mean ± SD (control n = 5 for 3 dpf, n = 6 for 4 dpf, and n = 7 for 5 dpf; aequorin reconstitution protocol n = 17 for 3 dpf; n = 14 for 4 dpf, and n = 18 for 5 dpf). (C) Log10 of total counts released in the control (orange) and aequorin reconstitution protocol (blue) groups at 3, 4, and 5 dpf. Data are shown as mean ± SD (control n = 5 for 3 dpf, n = 6 for 4 dpf, and n = 7 for 5 dpf; aequorin reconstitution protocol n = 19 for 3 dpf; n = 21 for 4 dpf, and n = 10 for 5 dpf). Statistical analysis was performed using a two-tailed unpaired t-test in (b) and (c). ** p < 0.01; *** p < 0.001 and **** p < 0.0001.
Figure 3. Bioluminescence imaging in the heart of 3, 4, and 5 dpf Tg(myl7:GA) zebrafish larvae treated with the aequorin reconstitution protocol. Diacetyl h-CTZ was used for reconstitution and images were acquired at 9 Hz. (A) Luminescence of CTZ-incubated larvae either with the aequorin reconstitution protocol or in full E3 medium (control). The black lines indicate the luminescence in background ROIs drawn out of the larvae; orange and blue lines show ventricular luminescence. Inset images show the integrated luminescence for 1 min over the heart. The scale bar represents 50 µm and the colour scale indicates RLU. (B) SNR of the control (orange) and aequorin reconstitution protocol (blue) larvae at 3, 4, and 5 dpf. Data are shown as mean ± SD (control n = 5 for 3 dpf, n = 6 for 4 dpf, and n = 7 for 5 dpf; aequorin reconstitution protocol n = 17 for 3 dpf; n = 14 for 4 dpf, and n = 18 for 5 dpf). (C) Log10 of total counts released in the control (orange) and aequorin reconstitution protocol (blue) groups at 3, 4, and 5 dpf. Data are shown as mean ± SD (control n = 5 for 3 dpf, n = 6 for 4 dpf, and n = 7 for 5 dpf; aequorin reconstitution protocol n = 19 for 3 dpf; n = 21 for 4 dpf, and n = 10 for 5 dpf). Statistical analysis was performed using a two-tailed unpaired t-test in (b) and (c). ** p < 0.01; *** p < 0.001 and **** p < 0.0001.
Biomedicines 09 01294 g003
Biomedicines 09 01294 g004 550

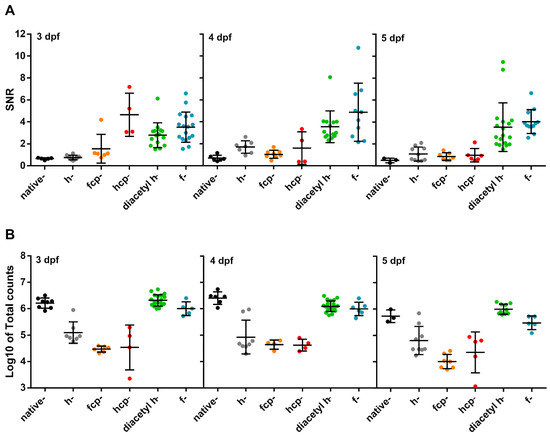

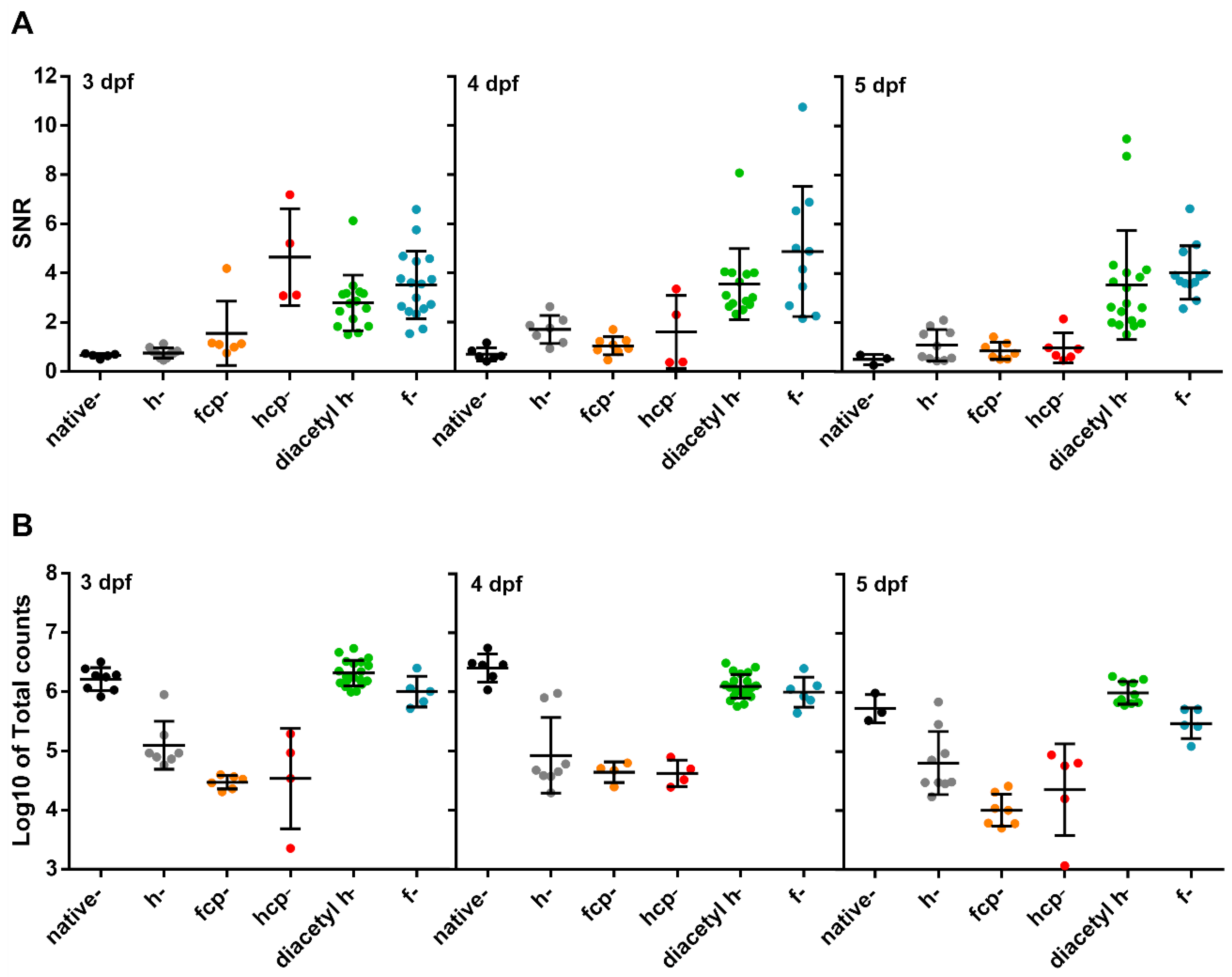

Figure 4. Test of CTZ analogues in 3, 4, and 5 dpf Tg(myl7:GA) zebrafish larvae. (A) SNR from larvae incubated with the CTZ analogues for 2 h with the aequorin reconstitution protocol. Images were acquired at 9 Hz. (Native-CTZ n = 5, 6, and 3; h-CTZ n = 10, 7, and 10; fcp-CTZ n = 6, 8, and 7; hcp-CTZ n = 4, 4, and 5; diacetyl h-CTZ n = 15, 14, and 18; and f-CTZ n = 17, 10, and 12; for 3, 4, and 5 dpf, respectively). Data are shown as mean ± SD. (B) Total counts released by the addition of 5% Triton X-100 in larvae incubated with the CTZ analogues for 2 h. (Native-CTZ n = 8, 6, and 3; h-CTZ n = 7, 8, and 9; fcp-CTZ n = 6, 4, and 7; hcp-CTZ n = 4, 4, and 5; diacetyl h-CTZ n = 19, 21, and 10; and f-CTZ n = 5, 6, and 5; for 3, 4, and 5 dpf, respectively). Data are shown as mean ± SD of Log10 of total counts.
Figure 4. Test of CTZ analogues in 3, 4, and 5 dpf Tg(myl7:GA) zebrafish larvae. (A) SNR from larvae incubated with the CTZ analogues for 2 h with the aequorin reconstitution protocol. Images were acquired at 9 Hz. (Native-CTZ n = 5, 6, and 3; h-CTZ n = 10, 7, and 10; fcp-CTZ n = 6, 8, and 7; hcp-CTZ n = 4, 4, and 5; diacetyl h-CTZ n = 15, 14, and 18; and f-CTZ n = 17, 10, and 12; for 3, 4, and 5 dpf, respectively). Data are shown as mean ± SD. (B) Total counts released by the addition of 5% Triton X-100 in larvae incubated with the CTZ analogues for 2 h. (Native-CTZ n = 8, 6, and 3; h-CTZ n = 7, 8, and 9; fcp-CTZ n = 6, 4, and 7; hcp-CTZ n = 4, 4, and 5; diacetyl h-CTZ n = 19, 21, and 10; and f-CTZ n = 5, 6, and 5; for 3, 4, and 5 dpf, respectively). Data are shown as mean ± SD of Log10 of total counts.
Biomedicines 09 01294 g004
Biomedicines 09 01294 g005 550
Figure 5. Effect of LTCC activator and antagonist on ventricular Ca2+ dynamics of 3, 4, and 5 dpf Tg(myl7:GA) zebrafish larvae. (A) Analysis of a bioluminescence experiment (3 dpf larva) in which 100 µM Bay K8644 was added from 2 to 33 min, followed by Triton X-100 incubation to release all remaining luminescence counts. Upper panel: Luminescence in counts per s (L, cps); middle panel: remaining counts along the experiment (% of Lmax). Lower panel: L/Lmax, which is proportional to Ca2+ levels. Images were acquired at 2 Hz. (B) Effect of 100 μM Bay K8644 on the ventricular Ca2+ levels. Images were acquired at 9 Hz. The lower panels zoom in the baseline (i) and 100 μM Bay K8644 (ii, min 19). Images of the integrated luminescence during 1 min in baseline and 100 μM Bay K8644 (min 19–20) are shown below. The scale bar represents 100 µm and the colour scale indicates RLU. (C) Maximal fold change of the L/Lmax value over basal of larvae treated with 100 μM Bay K8644 at 3, 4, and 5 dpf. Statistical analysis was performed using a one-way ANOVA with Holm–Sidak post hoc correction for multiple comparisons and multiple t-tests. Data are shown as mean ± SD (n = 11 for 3 and 4 dpf, and n = 9 for 5 dpf). (D) Representative experiment showing the effect of 25 µM nifedipine followed by 100 µM Bay K8644 in a 3 dpf larva. Images were acquired at 1 Hz. (E) Maximal effect of 25 µM nifedipine and 100 µM Bay K8644 on ventricular Ca2+ levels in 3 dpf larvae treated as in (D). Statistical analysis was performed using a repeated measures one-way ANOVA test. Data are shown as mean ± SD (n = 7). (F) Fold change in Ca2+ (L/Lmax) of 100 µM Bay K 8644 in the absence (n = 11) or presence (n = 7) of 25 µM nifedipine. Statistical analysis was performed using a two-tailed unpaired t-test. Data are shown as mean ± SD. All experiments in this figure were performed with diacetyl h-CTZ. * p < 0.05, ** p < 0.01 and *** p < 0.001.
Figure 5. Effect of LTCC activator and antagonist on ventricular Ca2+ dynamics of 3, 4, and 5 dpf Tg(myl7:GA) zebrafish larvae. (A) Analysis of a bioluminescence experiment (3 dpf larva) in which 100 µM Bay K8644 was added from 2 to 33 min, followed by Triton X-100 incubation to release all remaining luminescence counts. Upper panel: Luminescence in counts per s (L, cps); middle panel: remaining counts along the experiment (% of Lmax). Lower panel: L/Lmax, which is proportional to Ca2+ levels. Images were acquired at 2 Hz. (B) Effect of 100 μM Bay K8644 on the ventricular Ca2+ levels. Images were acquired at 9 Hz. The lower panels zoom in the baseline (i) and 100 μM Bay K8644 (ii, min 19). Images of the integrated luminescence during 1 min in baseline and 100 μM Bay K8644 (min 19–20) are shown below. The scale bar represents 100 µm and the colour scale indicates RLU. (C) Maximal fold change of the L/Lmax value over basal of larvae treated with 100 μM Bay K8644 at 3, 4, and 5 dpf. Statistical analysis was performed using a one-way ANOVA with Holm–Sidak post hoc correction for multiple comparisons and multiple t-tests. Data are shown as mean ± SD (n = 11 for 3 and 4 dpf, and n = 9 for 5 dpf). (D) Representative experiment showing the effect of 25 µM nifedipine followed by 100 µM Bay K8644 in a 3 dpf larva. Images were acquired at 1 Hz. (E) Maximal effect of 25 µM nifedipine and 100 µM Bay K8644 on ventricular Ca2+ levels in 3 dpf larvae treated as in (D). Statistical analysis was performed using a repeated measures one-way ANOVA test. Data are shown as mean ± SD (n = 7). (F) Fold change in Ca2+ (L/Lmax) of 100 µM Bay K 8644 in the absence (n = 11) or presence (n = 7) of 25 µM nifedipine. Statistical analysis was performed using a two-tailed unpaired t-test. Data are shown as mean ± SD. All experiments in this figure were performed with diacetyl h-CTZ. * p < 0.05, ** p < 0.01 and *** p < 0.001.
Biomedicines 09 01294 g005
Biomedicines 09 01294 g006 550
Figure 6. Effect of the β-adrenergic antagonist propranolol on hemodynamic parameters and ventricular Ca2+ levels in 4 dpf Tg(myl7:GA) zebrafish larvae. Heart rate (HR) (A), ventricular fractional shortening (FS) measured with the major diameter (B), stroke volume (C), and cardiac output (D) before (baseline) and after 30 min incubation with 100 µM propranolol. Data are shown as mean ± SD (n = 20). (E) Representative experiment of the effect of 100 µM propranolol on ventricular Ca2+ levels (L/Lmax) (1 Hz image acquisition frequency). (F) The images show the integrated luminescence from baseline (min 0–10) and propranolol (min 30–40) periods of the experiment in (E). The scale bar represents 100 µm and the colour scale indicates RLU. (G) Ca2+ levels (L/Lmax) after 30 min of treatment with 100 µM propranolol. Data are shown as mean ± SD (n = 6). These experiments were performed using diacetyl h-CTZ. Statistical analysis was performed using a two-tailed paired t-test. ** p <0.01, *** p < 0.001 and **** p < 0.0001.
Figure 6. Effect of the β-adrenergic antagonist propranolol on hemodynamic parameters and ventricular Ca2+ levels in 4 dpf Tg(myl7:GA) zebrafish larvae. Heart rate (HR) (A), ventricular fractional shortening (FS) measured with the major diameter (B), stroke volume (C), and cardiac output (D) before (baseline) and after 30 min incubation with 100 µM propranolol. Data are shown as mean ± SD (n = 20). (E) Representative experiment of the effect of 100 µM propranolol on ventricular Ca2+ levels (L/Lmax) (1 Hz image acquisition frequency). (F) The images show the integrated luminescence from baseline (min 0–10) and propranolol (min 30–40) periods of the experiment in (E). The scale bar represents 100 µm and the colour scale indicates RLU. (G) Ca2+ levels (L/Lmax) after 30 min of treatment with 100 µM propranolol. Data are shown as mean ± SD (n = 6). These experiments were performed using diacetyl h-CTZ. Statistical analysis was performed using a two-tailed paired t-test. ** p <0.01, *** p < 0.001 and **** p < 0.0001.
Biomedicines 09 01294 g006
Biomedicines 09 01294 g007 550
Figure 7. Hemodynamic parameters and Ca2+ levels in a terfenadine-induced heart failure model. Tg(myl7:GA) larvae (3 dpf) were treated with 10 µM terfenadine for 24 h. Ventricular HR (A), stroke volume (B), and cardiac output (C) of control and terfenadine-treated larvae. Data are shown as mean ± SD (n = 18 in control and n = 19 in terfenadine). (D) Time-averaged Ca2+ levels (L/Lmax) of control and terfenadine-treated larvae (1 Hz image acquisition frequency). Data are shown as mean ± SD (n = 7 in both groups). Representative experiments of control sibling (E) and terfenadine-treated (F) larvae showing individual Ca2+ transients (9 Hz image acquisition, left part of traces) and the time-averaged levels (1 Hz image acquisition, right part of traces). Upper and lower blue lines indicate the average systolic and diastolic levels. Images of the integrated luminescence during 1 min are shown. The luminescence experiments shown in D, E, and F were performed using diacetyl h-CTZ. The scale bar (E) represents 100 µm and the colour scale indicates RLU. Statistical analysis was performed using a two-tailed unpaired t-test. ** p < 0.01; *** p < 0.001 and **** p < 0.0001.
Figure 7. Hemodynamic parameters and Ca2+ levels in a terfenadine-induced heart failure model. Tg(myl7:GA) larvae (3 dpf) were treated with 10 µM terfenadine for 24 h. Ventricular HR (A), stroke volume (B), and cardiac output (C) of control and terfenadine-treated larvae. Data are shown as mean ± SD (n = 18 in control and n = 19 in terfenadine). (D) Time-averaged Ca2+ levels (L/Lmax) of control and terfenadine-treated larvae (1 Hz image acquisition frequency). Data are shown as mean ± SD (n = 7 in both groups). Representative experiments of control sibling (E) and terfenadine-treated (F) larvae showing individual Ca2+ transients (9 Hz image acquisition, left part of traces) and the time-averaged levels (1 Hz image acquisition, right part of traces). Upper and lower blue lines indicate the average systolic and diastolic levels. Images of the integrated luminescence during 1 min are shown. The luminescence experiments shown in D, E, and F were performed using diacetyl h-CTZ. The scale bar (E) represents 100 µm and the colour scale indicates RLU. Statistical analysis was performed using a two-tailed unpaired t-test. ** p < 0.01; *** p < 0.001 and **** p < 0.0001.
Biomedicines 09 01294 g007
Table
Table 1. Hemodynamic parameters and Ca2+ level values of embryos incubated with 100 µM propranolol (30 min) or 10 µM terfenadine (24 h).
Table 1. Hemodynamic parameters and Ca2+ level values of embryos incubated with 100 µM propranolol (30 min) or 10 µM terfenadine (24 h).
FSFSFACEDVESVSVHRCOEFA/V HRAver.CaCaT ampCa systCa diast
major diam.minor diam. pLpLpL/beatbpmnL/min L/LmaxL/LmaxL/LmaxL/Lmax
Controlmean0.280.330.39420.9137.5283.325172.00.671.0056.8n.d.n.d.n.d.
SD0.030.060.0589.639.766.02021.30.070.0024.5
n202020202020202020206
Propranololmean0.220.270.34420.7177.2243.521251.80.581.0026.1n.d.n.d.n.d.
SD0.030.060.0594.745.271.91515.80.080.005.7
n202020202020202020206
p value<0.0001<0.00010.0010.979<0.00010.0001<0.0001<0.0001<0.0001 0.0139
Fold changePropranolol/ control0.790.810.871.001.290.860.840.720.861.000.46
Controlmean0.360.370.39422.1109.3312.8229.972.40.741.0058.961.071.610.6
SD0.040.050.04115.339.684.219.121.20.050.0017.328.336.012.0
n1818181818181818181810161616
Terfenadinemean0.270.460.47518.7108.8409.994.137.70.780.5128.4121.5125.14.0
SD0.060.050.08127.631.7105.712.98.70.060.1111.821.421.12.4
n191919191919191919199999
p value<0.0001<0.00010.00090.0190.960.0037<0.0001<0.00010.38<0.00010.0004<0.00010.00050.12
Fold changeTerfenadine/ control0.751.251.191.231.001.310.410.521.060.510.481.991.750.38
SD, standard deviation; n, number of larvae; FS, fractional shortening; FAC, fractional area change; EDV, end-diastolic volume; ESV, end-systolic volume; SV, stroke volume; HR, heart rate; CO, cardiac output; EF, ejection fraction; A/V HR, atrio-ventricular heart rate ratio; Aver.Ca, average Ca2+ level; CaT amp., Ca2+ transient amplitude; Ca syst, systolic Ca2+ level; Ca diast, diastolic Ca2+ level; major diam., ventricle longitudinal diameter; minor diam., ventricle transverse diameter; bpm, beats per minute; n.d., not determined. Statistical analysis was performed using a two-tailed paired t-test for propranolol, and a two-tailed unpaired t-test for terfenadine.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Vicente, M.; Salgado-Almario, J.; Collins, M.M.; Martínez-Sielva, A.; Minoshima, M.; Kikuchi, K.; Domingo, B.; Llopis, J. Cardioluminescence in Transgenic Zebrafish Larvae: A Calcium Imaging Tool to Study Drug Effects and Pathological Modeling. Biomedicines 2021, 9, 1294. https://doi.org/10.3390/biomedicines9101294

AMA Style

Vicente M, Salgado-Almario J, Collins MM, Martínez-Sielva A, Minoshima M, Kikuchi K, Domingo B, Llopis J. Cardioluminescence in Transgenic Zebrafish Larvae: A Calcium Imaging Tool to Study Drug Effects and Pathological Modeling. Biomedicines. 2021; 9(10):1294. https://doi.org/10.3390/biomedicines9101294

Chicago/Turabian Style

Vicente, Manuel, Jussep Salgado-Almario, Michelle M. Collins, Antonio Martínez-Sielva, Masafumi Minoshima, Kazuya Kikuchi, Beatriz Domingo, and Juan Llopis. 2021. "Cardioluminescence in Transgenic Zebrafish Larvae: A Calcium Imaging Tool to Study Drug Effects and Pathological Modeling" Biomedicines 9, no. 10: 1294. https://doi.org/10.3390/biomedicines9101294

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
