A Novel In Vitro Potency Assay Demonstrating the Anti-Fibrotic Mechanism of Action of CDCs in Deramiocel

Abstract

Background/Objectives: Duchenne muscular dystrophy (DMD) is characterized by progressive skeletal and cardiac muscle degeneration driven by inflammation and fibrosis, ultimately leading to cardiomyopathy and premature death. Deramiocel, an allogeneic cell therapy composed of cardiosphere-derived cells (CDCs), has demonstrated potent anti-fibrotic and immunomodulatory effects in preclinical models and clinical trials, including HOPE-2 and its open-label extension (HOPE-2 OLE), where Deramiocel treatment significantly attenuated progression of skeletal and cardiac muscle dysfunction. Methods: CDCs in Deramiocel were cultured to generate CM enriched with secreted exosomes and factors, which was subsequently applied to primary human dermal fibroblasts (HDFs). Following co-culture, ex-pression of collagen type I alpha 1 (COL1A) and collagen type III alpha 1 (COL3A) was measured by qRT-PCR. Non-conditioned media serves as a control in the assay. Reduction in COL1A and COL3A expression therefore provides a direct and clinically relevant measure of the anti-fibrotic activity of Deramiocel. Results: A novel in vitro potency assay was developed to quantify the anti-fibrotic activity of Deramiocel. Conditioned media (CM) from over one hundred Deramiocel manufacturing lots significantly suppressed expression of collagen type I alpha 1 (COL1A) and collagen type III alpha 1 (COL3A) in primary human dermal fibroblasts compared with non-conditioned media controls, establishing a robust, reproducible readout of anti-fibrotic activity. The effect was dose-dependent and abrogated by sequential depletion of exosomes and soluble proteins, implicating both as critical mediators of Deramiocel’s mechanism of action. Importantly, CDCs in Deramiocel lots classified as potent by this assay were shown to exert a clinically meaningful benefit in DMD patients in the HOPE-2 and HOPE-2 OLE studies. Conclusions: This assay represents a mechanistically informative, therapeutically relevant, reproducible, scalable, and regulatory-compliant approach for assessing Deramiocel potency, enabling consistent manufacturing, and facilitating the continued development of Deramiocel as a disease-modifying therapy for DMD.

1. Introduction

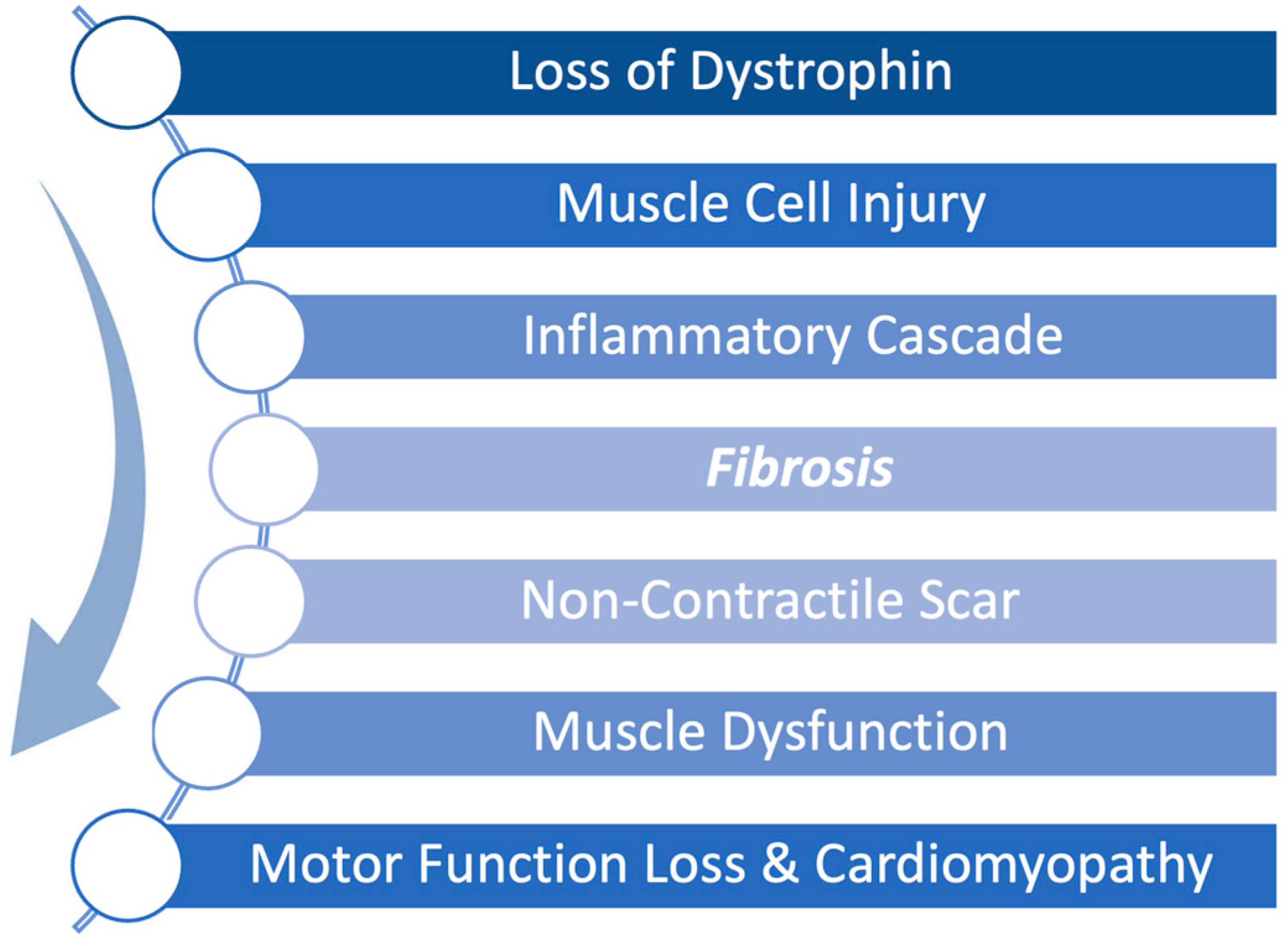

Duchenne muscular dystrophy (DMD) is a severe, X-linked disease caused by mutations in the dystrophin gene resulting in progressive skeletal and cardiac muscle degeneration. The pathophysiology of DMD is such that the absence of dystrophin leads to accelerated injury to muscle cells resulting in a continuous cycle of muscle breakdown followed by inflammation and fibrosis. Early fibrosis is subsequently replaced by fibrofatty scar tissue as the disease progresses leading to both skeletal and cardiac muscle dysfunction as shown in Figure 1 [1]. This fibrofatty, non-contractile scarring of the myocardium leads to progressive weakening of the heart muscle, in particular the left ventricle, resulting in ever worsening cardiomyopathy. Cardiomyopathy is a universal feature of DMD and is the leading cause of death in DMD [2]. Thus, while new therapies have focused on restoration of dystrophin to address the primary disease, it is equally important to treat the inflammation and fibrosis that occurs in conjunction with the constant breakdown of muscle to preserve muscle function.

Deramiocel is a human allogeneic cell therapy containing cardiosphere-derived cells (CDCs) derived from heart tissue which has been shown in numerous publications to have anti-fibrotic and immunomodulatory activity, which in turn aids in muscle survival and regeneration [3,4,5,6]. CDCs were originally developed as a therapeutic agent for myocardial infarction and cardiac dysfunction [7]. In early clinical trials focused on myocardial infarction, the efficacy of CDCs was demonstrated by a reduction in fibrotic scar size in infarcted hearts using contrast-enhanced cardiac MRI [8].

Evidence of the efficacy and bioactivity of CDCs to treat DMD first arose in several non-clinical studies (unpublished; [9,10]) using the mdx mouse model which mimics the skeletal, respiratory, and cardiac dysfunction in DMD [11,12]. In these studies, CDCs were shown to improve skeletal muscle function as demonstrated by improved exercise capacity. Importantly, CDC treatment improved global cardiac function, similar to efficacy demonstrated in preclinical MI models and early clinical trials. Analysis of ejection fraction (EF) in the mdx mouse model after treatment with CDCs showed that EF improved within three weeks of treatment, driven largely by improvements in end-systolic volume (unpublished; [9,10]). In contrast, vehicle-treated mice continued to decline. The overall results of the studies showed that the baseline EF was sustained in CDC-treated mice (2 administrations) over a six-month period. Importantly, a statistically significant reduction in myocardial fibrosis was observed in CDC-treated mdx mice as evidenced by reductions in both histological fibrosis and collagen content in the hearts of mice treated with CDCs [10]. This reduction in fibrosis observed in vivo in CDC-treated hearts clearly demonstrates the anti-fibrotic mechanism of action of CDCs, aligning with the published literature.

Data from the first clinical trial on DMD, the HOPE-Duchenne clinical trial, provided further evidence that CDCs, the active ingredient in Deramiocel, have anti-fibrotic activity as shown by a reduction in cardiac scarring and overall improvement in both cardiac and skeletal muscle function in DMD patients. Likewise, data from the HOPE-2, phase 2 randomized double-blind and placebo-controlled clinical trial, published in LANCET, demonstrated that DMD patients treated with Deramiocel over 12 months experienced significant attenuation of disease progression. Skeletal muscle function, as measured by mid-level performance of upper limb (PUL), showed a 71% slowing of decline (p = 0.014). Importantly, the HOPE-2 trial showed significant preservation of cardiac function across multiple cardiac endpoints, including a 107% slowing of cardiac disease progression as measured by the left ventricular ejection fraction (LVEF) (p = 0.002). The preservation of cardiac function with Deramiocel treatment is likely a result of the reduction in inflammation and fibrosis imparted by CDCs which in turn results in reduced non-contractile scarring of the myocardium. Together, these findings highlight the clinically meaningful and statistically significant therapeutic benefit of Deramiocel [2,13].

Following the HOPE-2 trial, 13 patients continued on open-label treatment with Deramiocel for up to 48 months. The therapeutic benefit of Deramiocel was maintained in both cardiac and skeletal muscle function. Skeletal muscle outcomes, assessed by PUL 2.0, showed a consistent reduction in disease progression: the mean decline was 1.8 points in Year 1, 1.2 points in Year 2, 1.1 points in Year 3, and 0.6 points in Year 4. Among 10 patients with centrally read cardiac MRI assessments, the median change in LVEF after 48 months was strikingly only −0.5%, clearly demonstrating the long-term cardiac stability of DMD patients treated with Deramiocel [14]. These findings provide strong evidence that long-term Deramiocel therapy can slow the progression of both skeletal and cardiac muscle disease in patients with DMD. The stabilization of cardiac function in DMD patients for over four years is unprecedented and provides an opportunity for improved quality of life and decreased mortality in DMD patients.

Exosomes isolated from CDCs have been shown to be necessary and sufficient for the bioactivity of CDCs. In fact, CDC exosomes alone were able to reproduce improvements in cardiac and skeletal myopathy observed with CDCs using mdx mice [15]. CDC exosomes have been demonstrated to track to sites of injury and to be rapidly taken up by cardiac and skeletal muscle cells following injury in multiple mouse studies (unpublished, [15]). CDC exosome treatment improved contractile force in mdx soleus muscles, reduced interstitial fibrosis, and preserved muscle architecture. Importantly, treatment with CDC exosomes reduced myocardial collagen content, reduced myocardial scarring, and improved LVEF to the same levels as CDC treatment alone [16,17,18]. Consistent with these effects, collagen I and III levels were reduced in CDC exosome-treated mdx hearts [9]. In addition, the improvements in LVEF in the mouse model observed after CDC treatment were attenuated when exosome secretion was inhibited [16]. Similar therapeutic benefits have been observed in large-animal models, including reduced scarring, anti-fibrotic effects, and improved LVEF [18]. Mechanistically, this finding suggests that exosomes secreted by CDCs play a critical anti-fibrotic role in stabilizing muscle function through suppression of collagen expression [10].

Similarly, paracrine signaling via growth factor secretion by CDCs has been implicated in the immunomodulatory and anti-fibrotic mechanism of action of CDCs in the published literature. CDCs have been shown to secrete large amounts of VEGF, HGF, TIMP-2, IGF-1, SDF-1, angiopoietin 2, and bFGF [19,20]. In particular, VEGF, reduces ischemia-driven fibroblast activation and plays an indirect yet significant anti-fibrotic role; HGF, inhibits TGF-β-induced fibroblast-to-myofibroblast transition and collagen deposition and acts as a potent anti-fibrotic cytokine; and TIMP-2, which, in combination with matrix metalloproteinases (MMPs), helps maintain a balanced extracellular matrix, supports scar remodeling, and prevents excessive collagen cross-linking [21]. Additionally, other factors such as IL-10 and IGF-1 were identified as indirect suppressors of fibrosis through their anti-inflammatory and pro-survival effects, respectively. The signaling of all of these secreted factors aligns with the anti-fibrotic activity of Deramiocel, suggesting that the soluble factors secreted by Deramiocel also play a critical role in its mechanism of action.

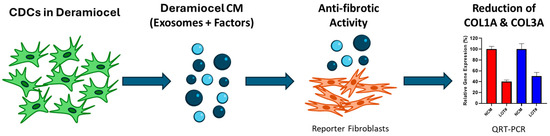

In this paper, an in vitro cell-based assay was developed and subsequently validated using conditioned media (CM) from Deramiocel to assess its anti-fibrotic activity. Our findings demonstrate that CDCs in Deramiocel exert quantifiable anti-fibrotic activity in vitro, mediated through exosome and soluble factors in a dose-dependent manner. The anti-fibrotic activity observed in vitro using this assay aligns with data from non-clinical pharmacodynamic studies and importantly the clinical trial results observed in HOPE-2 and HOPE-2 OLE. The validated cell-based anti-fibrosis assay employed herein offers a controlled and reproducible platform enabling a mechanistically informative assessment of Deramiocel’s potency.

2. Materials and Methods

2.1. Cell Culture

Primary human dermal fibroblasts (HDFs) and human cardiac fibroblasts (HCFs; two donors) were obtained from PromoCell (Heidelberg, Germany) and ATCC, respectively. ATCC media to grow HDF and HCF were prepared according to manufacturer’s recommendations (ATCC/PCS-201-030 and ATCC/PCS-201-041, Manassas, VA, USA). Cells were maintained at 37 °C in a humidified atmosphere containing 5% CO₂. For Deramiocel cells, they are cultured in our proprietary culture media with 20% of FBS and were maintained at 37 °C with 5% CO₂ and 5% O₂ with humidity.

2.2. Preparation of Conditioned Media

Human CDCs were thawed and seeded at 0.5 × 10⁶ cells per T75 flask in standard growth medium. After 24 h, the medium was aspirated, cells were washed once with DPBS (Gibco/14040-133, Carlsbad, CA, USA) and 22 mL of fresh culture medium was added. Flasks were incubated for 72 h, after which supernatant was collected and clarified by centrifugation at 300× g for 5 min followed by 3000× g for 15 min. The resulting supernatant was filtered through a 0.22 µm Steriflip filter (Thermo Fisher Scientific/569-0020, Waltham, MA, USA), aliquoted into 15 mL tubes, and stored at −80 °C until use.

2.3. Preparation of Non-Conditioned Media with Varying FBS Concentrations

To generate non-conditioned control media, CDC growth medium was prepared with 5%, 10%, 15%, or 20% FBS while keeping all other components identical. Media were clarified by centrifugation at 300× g for 5 min and 3000× g for 15 min, filtered through a 0.22 µm filter Thermo Fisher Scientific/569-0020, aliquoted, and stored at −80 °C. Non-conditioned media with 20% FBS serves as a control in each assay.

2.4. Positive Control for Anti-Fibrosis Assay

Recombinant human EGF (rh EGF) was used as a positive control to confirm assay functionality. rh EGF from the Endothelial Cell Growth Kit-BBE (ATCC/PCS-100-040, VA, USA) was diluted 1:500 into non-conditioned medium immediately prior to use.

2.5. Treatment of Human Dermal Fibroblasts (HDFs)

HDFs were seeded at 2.5 × 10⁴ cells per well in 24-well plates and cultured overnight. The following treatment groups were applied: (i) Deramiocel CM, (ii) non-conditioned control medium, and (iii) CM from human cardiac fibroblasts. For dose–response experiments, Deramiocel CM was serially diluted (1:2, 1:5, 1:100) in non-conditioned medium. rh EGF was included in selected experiments as a positive control.

2.6. Exosome Depletion and Filtration Studies

To dissect the contribution of exosomes and soluble protein factors to the anti-fibrotic activity of Deramiocel CM, sequential filtration was performed. CM from two independent manufacturing lots (LOT-0193 and LOT-0196, Capricor Therapeutics, Beverly Hills, CA, USA) was processed using Amicon Ultra centrifugal filters (MilliporeSigma/UFC8010 and UFC8100, Burlington, MA, USA) with molecular weight cut-offs of 100 kDa and 10 kDa. For exosome depletion, CM was passed through a 100 kDa filter, and both the retentate (enriched in exosomes) and flow-through (exosome-depleted fraction) were collected and tested for biological activity in anti-fibrosis assays. For further resolution, CM was sequentially filtered through 100 kDa and 10 kDa cut-offs, yielding a 100 kDa retentate (exosome-enriched), a 100 kDa flow-through (exosome-depleted), and a 10 kDa flow-through (depleted of both exosomes and most soluble proteins). Each fraction, along with unprocessed CM and non-conditioned medium, was evaluated in the anti-fibrosis assay, with rh EGF included as a positive control.

2.7. RNA Extraction and qRT-PCR

After 72 h of treatment, total HDF RNA was extracted using the RNeasy Micro Kit (Qiagen/74004 and 79656, Germantown, MD, USA) according to the manufacturer’s instructions. RNA concentration and purity were measured using a NanoDrop spectrophotometer (Thermo Fisher, Wilmington, DE, USA). To proceed with cDNA synthesis the RNA concentration must be ≥20 ng/µL and the A260/A280 between 1.8 and 2. Complementary DNA (cDNA) was synthesized from RNA using the iScript cDNA Synthesis Kit (Bio-Rad/1708891, Hercules, CA, USA) according to the manufacturer’s instructions. qRT-PCR was performed using TaqMan Gene Expression Mastermix (Applied Biosystems/4369016, Foster City, CA, USA) on a QuantStudio 7 Flex Real-Time PCR System (Thermo Fisher, Carlsbad, CA, USA). qPCR probes for COL1A (FAM), COL3A (FAM), and GAPDH (VIC) were ordered (Thermo Fisher, MA, USA). GAPDH was used as a housekeeping control. Relative expression levels were calculated using the 2^−ΔΔCt method against NCM. As part of the assay qualification and validation qPCR suitability criteria were established. A standard curve must show a slope of −3.2 to −3.9, technical triplicates must have a SD ≤ 0.5 (one may be removed from analysis). No-template control samples must have a Cq ≥ 35/undetermined. Biological triplicates must have a standard deviation of Cq ≤ 20%. Lastly, the positive control (rh EGF) must show ≤50% relative gene expression for COL1A and COL3A.

2.8. Lengendplex Flow Assay

Further characterization of secreted factors was performed using the LEGENDplex™ Human Angiogenesis Panel 1 (Biolegend/741214, San Diego, CA, USA). Non-conditioned media and conditioned media from three Deramiocel lots were incubated per the manufacturer’s instructions undiluted and diluted 1:1. The beads were gated based on scattering and the fcs files were analyzed using the LEGENDplex™ online software (version 2025-05-01). The level of expression of the secreted factors in Deramiocel conditioned media was normalized to non-conditioned media.

2.9. Statistical Analysis

All assays were performed in biological triplicates, with each biological replicate measured in technical triplicates. Data are expressed as mean ± standard deviation (SD). Statistical analyses were conducted using GraphPad Prism 9.1. Group comparisons involving more than two groups were analyzed using one-way ANOVA, followed by Dunnett’s post hoc test to correct for multiple comparisons. Pairwise comparisons were conducted using two-tailed unpaired t-tests. A p-value < 0.05 was considered statistically significant, with significance levels denoted as follows: **** p < 0.0001; *** p < 0.0005; ** p < 0.001; * p < 0.05; ns = not significant.

For the established anti-fibrotic potency assay, historical performance data were analyzed across up to 32 HOPE-2 and HOPE-2 OLE clinical lots (with up to 36 months of clinical data) and 58 additional lots produced using up to five fibroblast working cell banks (WCBs) derived from a single fibroblast donor. For each lot, COL1A and COL3A inhibition values were log2-transformed to stabilize variance and normality was confirmed. To establish donor-level reference statistics, inhibition data from multiple WCBs were combined using weighted means and weighted standard deviations, where weights reflected the number of replicate assay runs per WCB. Acceptance criteria were defined as the pooled mean minus three standard deviations (Mean − 3 SD) for each marker, corresponding to the lower 99.7% of historical data distribution under the assumption of approximate normality. For reporting purposes, these inhibition-based thresholds (COL1A inhibition threshold was set at ≥25% and for COL3A threshold at ≥28%) were converted to the corresponding relative expression levels (corresponds to COL1A gene expression threshold at <75% and for COL3A at <72%).

The anti-fibrotic assay has been fully developed, validated, and performed under quality control conditions. To date, it has been applied to over 100 Deramiocel lots, with representative lots presented in this study to demonstrate the reproducibility and robustness of the assay.

3. Results

3.1. Anti-Fibrotic Activity of CDCs in Deramiocel Correlates with Preclinical and Clinical Potency

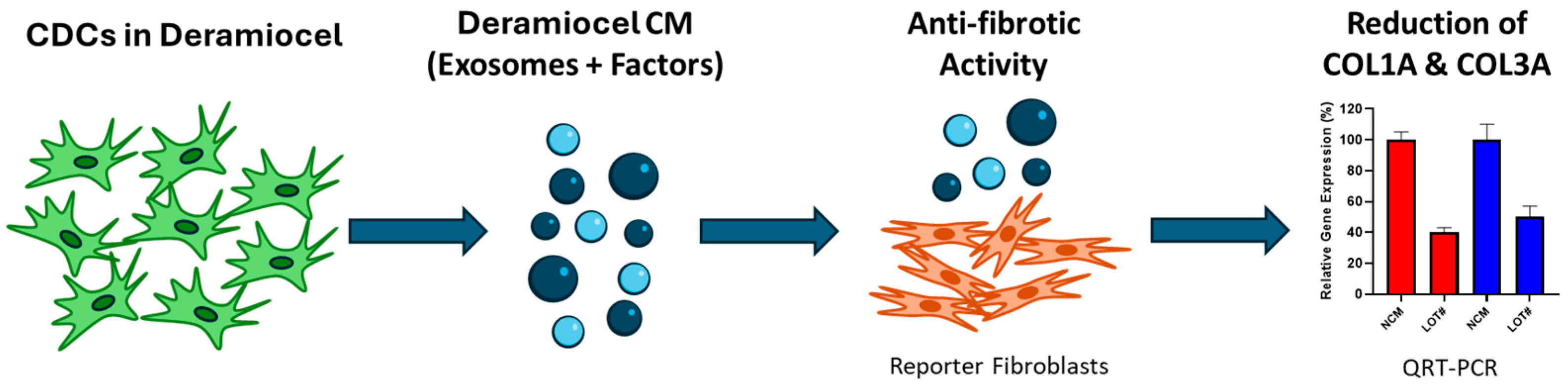

To evaluate the anti-fibrotic activity of CDCs, an in vitro assay was developed using a co-culture system of fibroblasts with conditioned media (CM) collected from CDCs in Deramiocel (Figure 2). Briefly, CDCs in Deramiocel were cultured to generate CM enriched with secreted exosomes and factors, which was subsequently applied to primary human dermal fibroblasts (HDFs). HDFs were selected as the reporter cell line because fibroblasts are the principal effector cells in fibrosis and dermal fibroblasts provide a reproducible, well-characterized, and scalable system for in vitro testing. Following co-culture, expression of collagen type I alpha 1 (COL1A) and collagen type III alpha 1 (COL3A) was measured by qRT-PCR. These genes were chosen as readouts because they represent the major extracellular matrix proteins deposited during fibrotic remodeling and are widely recognized biomarkers of fibroblast activation. Non-conditioned media serves as a control in the assay. Reduction in COL1A and COL3A expression, therefore, provides a direct and clinically relevant measure of the anti-fibrotic activity of Deramiocel.

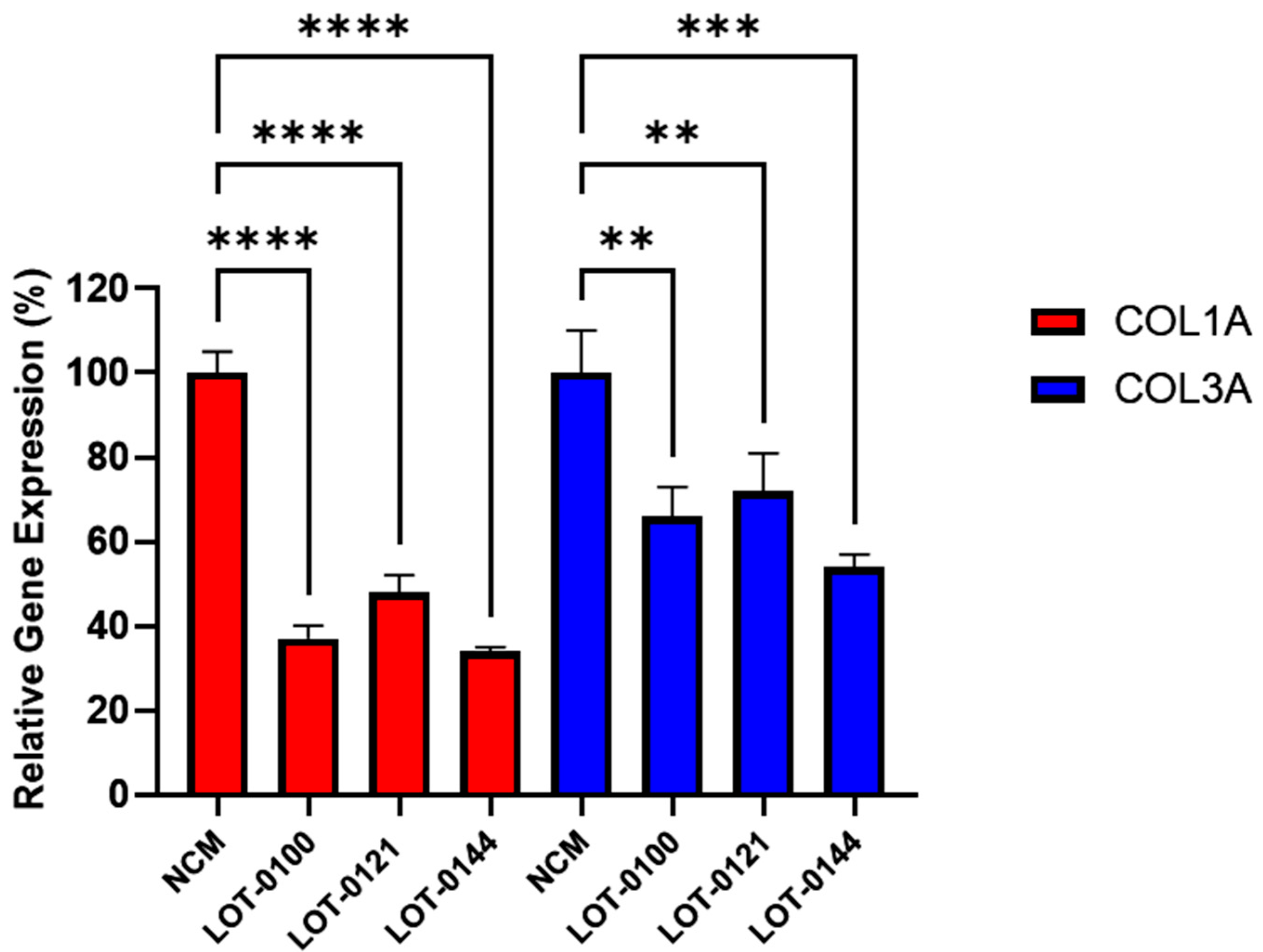

The bioactivity of three Deramiocel lots, LOT-0121 (utilized in the HOPE-2 trial), LOT-0144 (utilized in the HOPE-2 open-label extension [OLE]), and LOT-0100 (not yet tested clinically), were initially assessed in the anti-fibrosis assay. As shown in Figure 3, conditioned media collected from all three lots of Deramiocel significantly reduced the expression of both COL1A and COL3A compared with the non-conditioned media control (NCM). Notably, the two lots employed in HOPE-2 and HOPE-2 OLE were classified as potent both in the anti-fibrosis assay and in a mouse myocardial infarction (MI) model and were also demonstrated to be clinically effective [9,13,14,22]. Thus, the anti-fibrotic activity as demonstrated by the reduction in collagen expression observed with these two Deramiocel lots is consistent with the potency demonstrated by the in vivo MI mouse model and with the clinical potency.

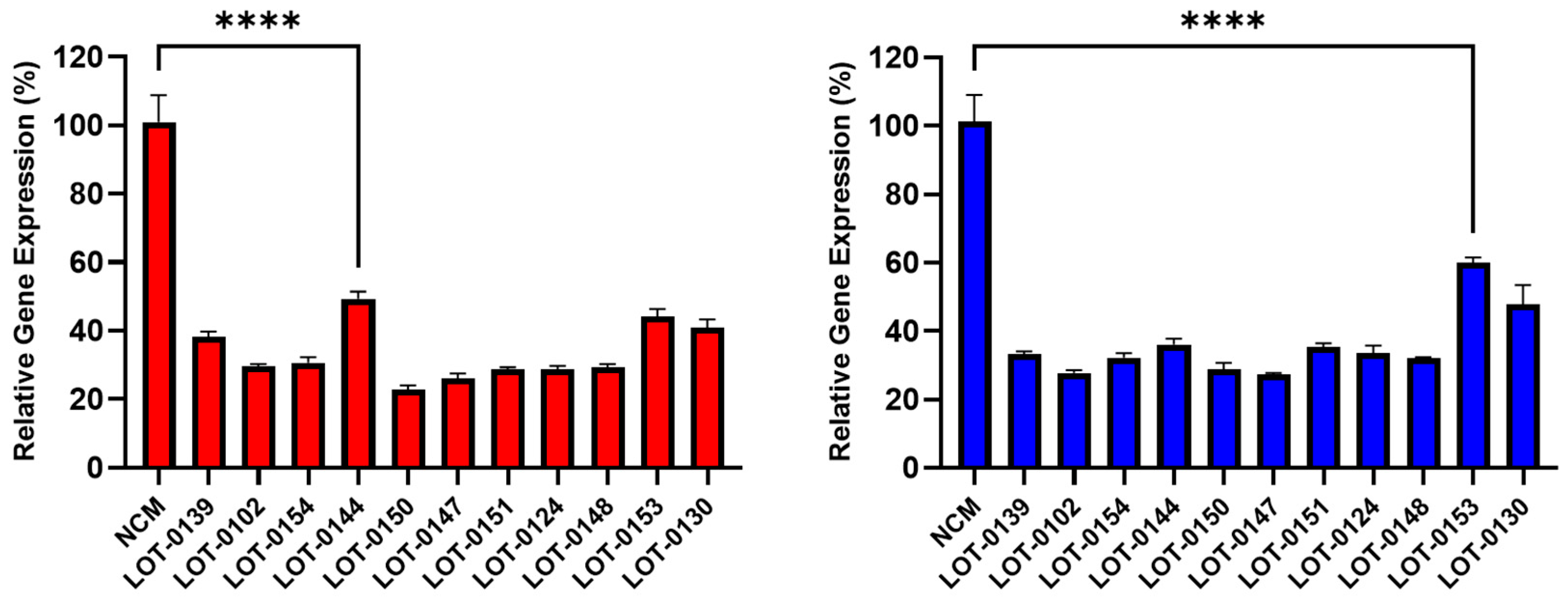

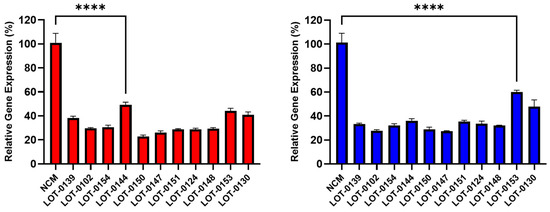

Building on these findings, 11 additional lots of Deramiocel were subsequently evaluated, including LOT-0144 (used in HOPE-2 OLE; repeated for reproducibility), LOT-0124 (used in HOPE-2), LOT-0139 (used in HOPE-2 OLE), and LOT-0147 (used in HOPE-2 OLE). As shown in Figure 4, CM from all 11 lots significantly decreased COL1A (left panel) and COL3A (right panel) expression relative to the non-conditioned media (NCM) control. Importantly, results obtained with LOT-0144 were reproducible in this independent study, further demonstrating the reproducibility of the assay. Consistent with earlier observations, the four lots used clinically in HOPE-2 or HOPE-2 OLE were classified as potent in the in vivo mouse MI model and were shown to be effective clinically. Collectively, the anti-fibrotic activity as demonstrated by the reduction in collagen expression induced by these four Deramiocel lots is consistent with potency classified by the in vivo mouse MI model and with clinical potency.

To confirm data presented in Figure 4, independent vials of Deramiocel were thawed and CM collected for evaluation in an independent anti-fibrosis assay. CM collected from all repeats lots induced a statistically significant reduction in both COL1A and COL3A expression when compared to the non-conditioned media (NCM) control; demonstrating that the assay and data are consistent and reproducible.

3.2. Anti-Fibrotic Effect Is Attributed to Deramiocel Secreted Factors

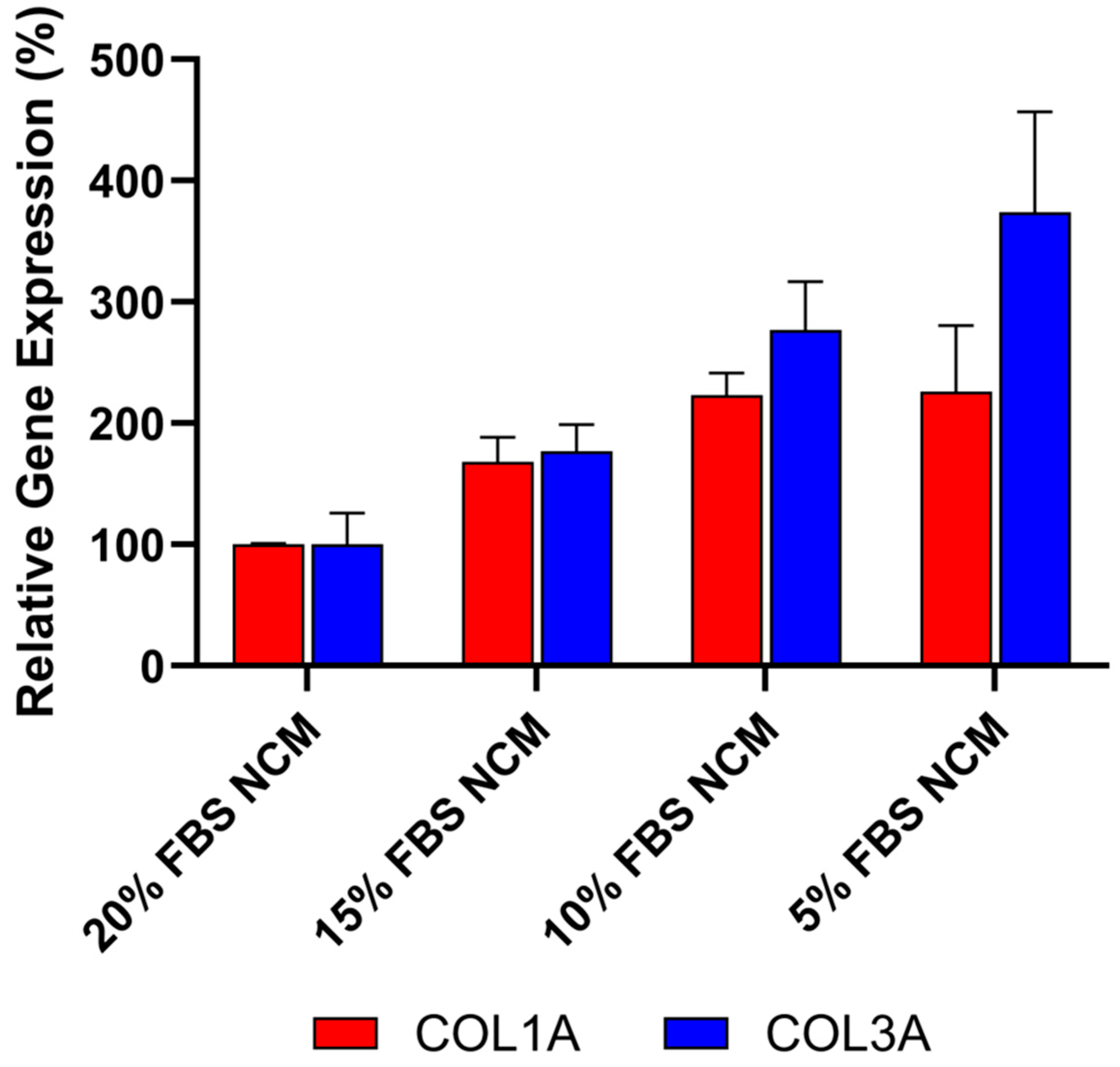

To ensure that the anti-fibrotic activity observed in these studies was not due to protein or nutrient depletion in the conditioned media, the effect of reduced fetal bovine serum (FBS) concentrations was evaluated to mimic potential nutrient loss in CDC media. As shown in Figure 5, decreasing FBS concentrations from 20% to 5% in non-conditioned CDC media (NCM) resulted in increased expression of both COL1A and COL3A, as measured by qRT-PCR. These findings indicate that the reduction in collagen expression is not caused by protein or nutrient loss. Furthermore, the data supports the conclusion that the anti-fibrotic effect is primarily mediated by bioactive factors secreted by CDCs in Deramiocel, such as exosomes and growth factors.

3.3. Assay Specificity Demonstrated Using Non-Deramiocel Cells

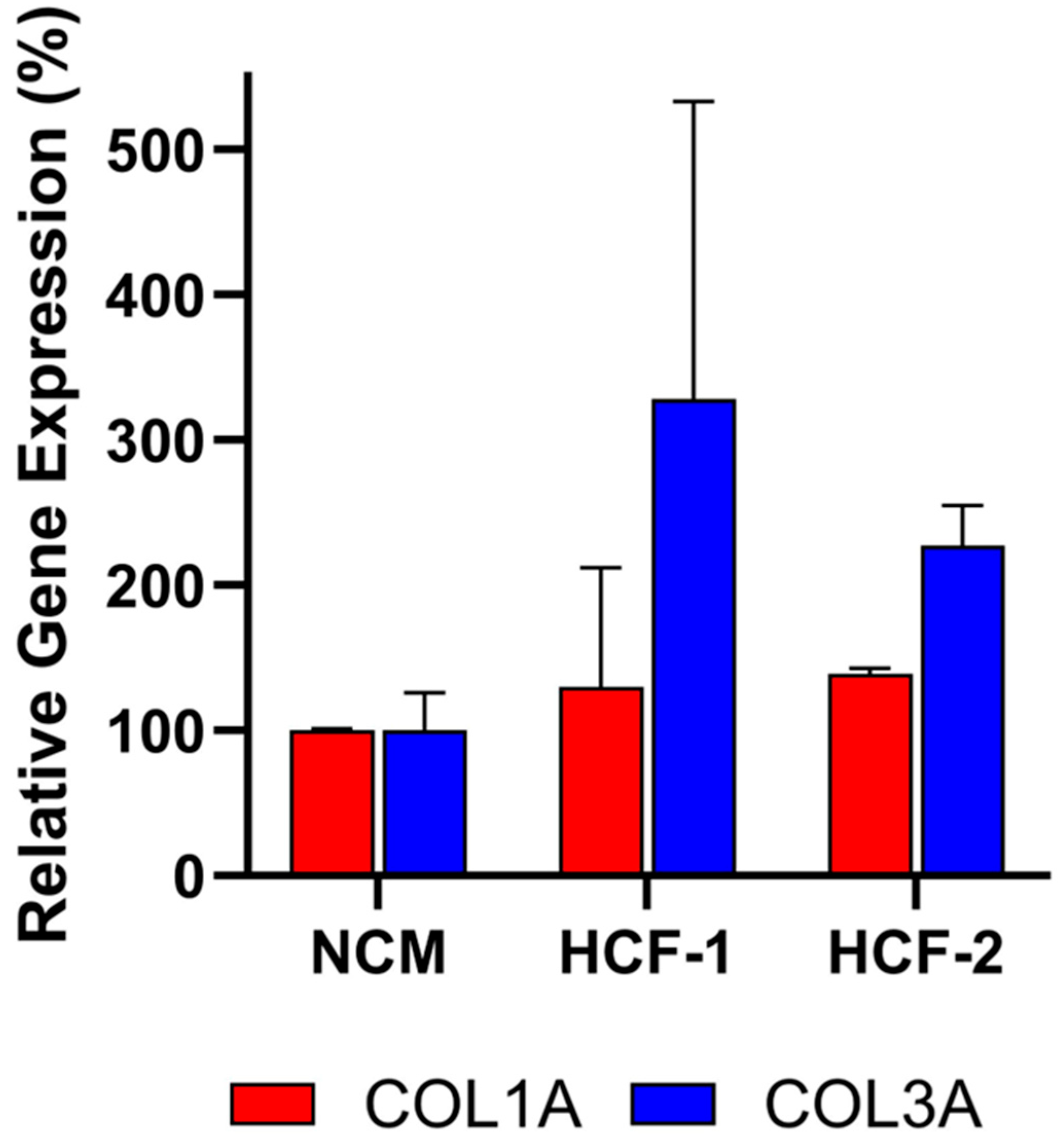

To evaluate the specificity of the assay, conditioned media (CM) from non-CDCs was tested. Human cardiac fibroblasts (HCF) were selected to evaluate in the assay since they are also derived from human hearts. Note that other cells from the heart could not be evaluated in the assay due to the inability of those cells to grow in CDC media required for the assay. As shown in Figure 6, CM from primary HCFs derived from two donors did not inhibit COL1A or COL3A expression relative to the non-conditioned media (NCM) control, as assessed by qRT-PCR. Accordingly, these HCFs would be classified as non-potent due to the absence of anti-fibrotic activity, supporting the assay’s specificity for CDC-mediated effects.

3.4. Dose-Dependent Activity of Deramiocel CM in the Anti-Fibrosis Assay

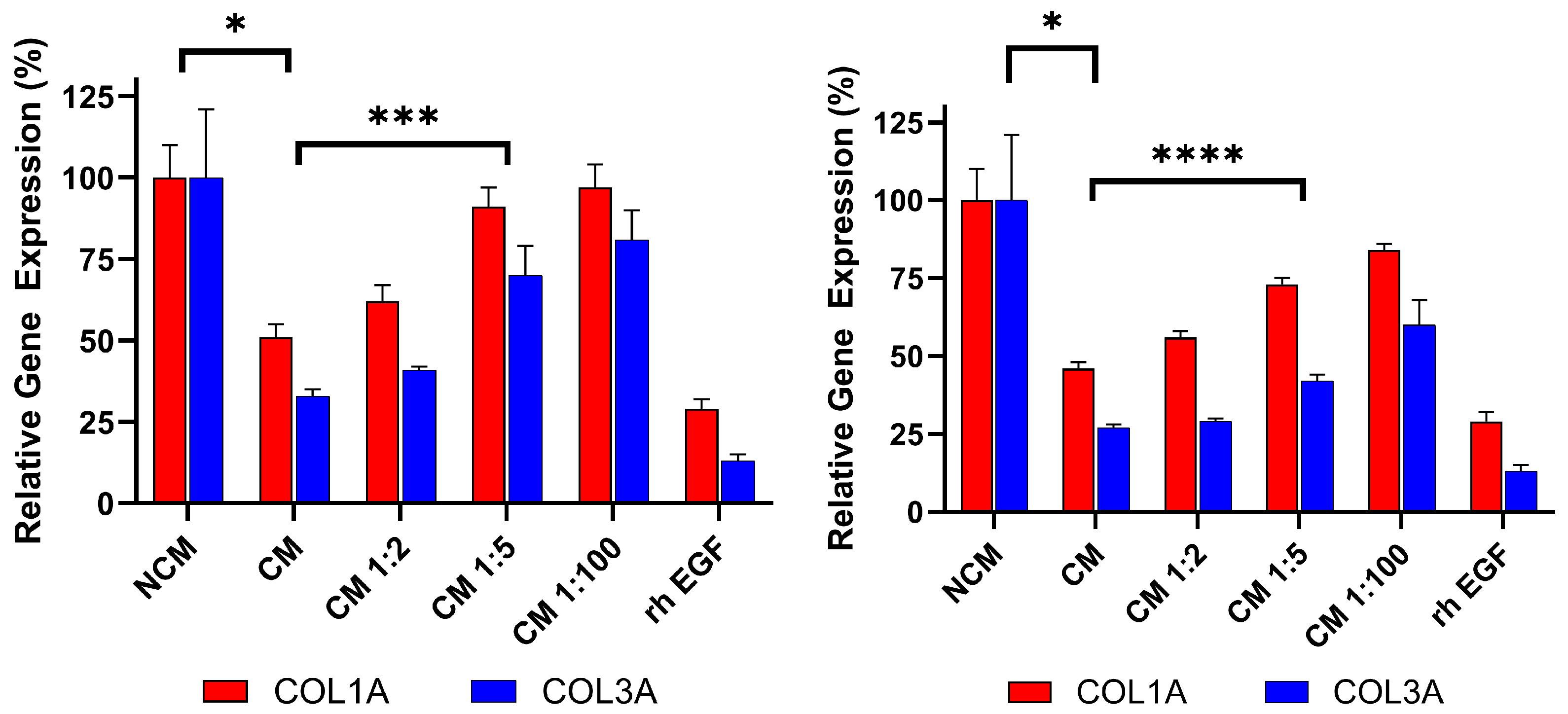

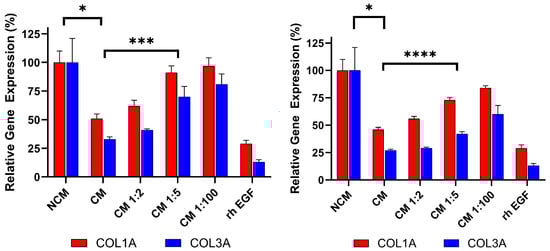

To demonstrate that the anti-fibrosis assay can detect changes in Deramiocel conditioned media (CM), CM from CDCs in two Deramiocel lots—LOT-0193 and LOT-0196—was serially diluted and evaluated in the assay. As shown in Figure 7, both lots exhibited dose-dependent inhibition of COL1A and COL3A expression. Non-diluted CM from both lots significantly suppressed collagen expression, confirming expected potency. Notably, increased dilution of both lots of CM resulted in less inhibition of COL1A and COL3A. At a CM dilution of 1:5 or higher, little inhibition of collagen was observed. These CMs would therefore be classified as non-potent. Since both transcripts are taken together in the assay, significance is determined when both are significantly different from undiluted CM. These results indicate that the assay is sensitive to changes in Deramiocel CM, such as reduced secretion of exosomes or growth factors, which are characteristic of less potent cells. Collectively, these findings support that the anti-fibrotic effect is mediated by secreted factors from CDCs in Deramiocel in a dose-dependent manner.

For this study, recombinant human EGF (rh EGF) was used as a positive control for anti-fibrotic activity. The selection of rh EGF was guided by our preliminary studies using conditioned media (CM) from other cell types, such as human primary aortic endothelial cells (HAECs). When HDFs were treated with HAEC CM, we noted inhibition of COL1A and COL3A expression. Systematic component dilution experiments identified rh EGF as the mediator of collagen inhibition, leading to its adoption as a positive control to monitor if the assay is working properly. Mechanistically, EGF engagement of the EGFR signaling pathway is known to modulate fibroblast activity and suppress excessive collagen production. Previous studies have demonstrated that EGF downregulates type I procollagen mRNA and protein levels in cultured human fibroblasts [23]. Other cardiac cell types were excluded due to the presence of EGF in their media formulations.

3.5. Exosomes and Soluble Proteins Are Responsible for Anti-Fibrotic Activity

Deramiocel conditioned media (CM) contains two major components: (1) exosomes (and potentially other extracellular vesicles) released by CDCs in Deramiocel, and (2) soluble proteins, including growth factors secreted by CDCs in Deramiocel. Both components have been shown to contribute to Deramiocel’s mechanism of action [16,21,24]. Data presented above clearly demonstrate that Deramiocel CM, containing exosomes and growth factors, has anti-fibrotic activity.

To determine which components in CM mediate this effect, the role of exosomes in collagen inhibition was investigated first. CM from Deramiocel LOT-0193 and LOT-0196 was filtered using an Amicon 100 kDa column, which retains extracellular vesicles, including exosomes, ensuring the flow-through is exosome-free. The bioactivity of the exosome-free flow-through was then assessed in the anti-fibrosis assay. The rh EGF positive control inhibited collagen expression compared to the NCM as expected, confirming assay functionality. Importantly, exosome-free CM exhibited increased COL3A expression compared to CM containing exosomes (i.e., CM, without Amicon treatment), suggesting that exosomes contribute to collagen inhibition (subsequent studies shown in Figure 8). These experiments were repeated three times across two lots, consistently showing increased COL3A expression following exosome depletion. Notably, COL1A expression was reduced to similar levels with both CM and exosome-free CM, indicating a differential effect of exosomes on collagen isoforms. These data strongly suggest that exosomes present in CM play a role in COL3A inhibition.

To further dissect the contribution of exosomes and soluble proteins in CDCs CM on anti-fibrotic activity, CM from the same lots was sequentially filtered through an Amicon 100 kDa column removing extracellular vesicles (e.g., exosomes), followed by a Amicon 10 kDa column, which removes most soluble proteins (e.g., growth factors) from CM. Three fractions were collected from the sequential filtration: (1) exosomes retained in the 100 kDa filter (labeled Exos in Figure 8), (2) exosome-free 100 kDa flow-through (labeled CM, No Exos in Figure 8), and (3) exosome- and soluble protein-free 10 kDa flow-through (labeled CM, No Exos/Soluble Proteins in Figure 8). Bioactivity was assessed for each fraction alongside (unfiltered) CM as shown in Figure 8. The rh EGF positive control inhibited collagen expression compared to the NCM, confirming assay functionality.

As expected, unfiltered CM containing both exosomes and soluble proteins significantly reduced COL1A (p < 0.0001) and COL3A (p < 0.0001) expression compared to non-conditioned media (Figure 8). Importantly, exosomes (labeled Exos in Figure 8) collected from the 100 kDa retentate induced a statistically significant reduction in COL1A (p < 0.0001) and COL3A (p = 0.032) expression compared to non-conditioned media (NCM). This reduction was not significantly different from CM, demonstrating that CDC exosomes are necessary and sufficient for the bioactivity of CDCs, in alignment with in vivo studies [9,16].

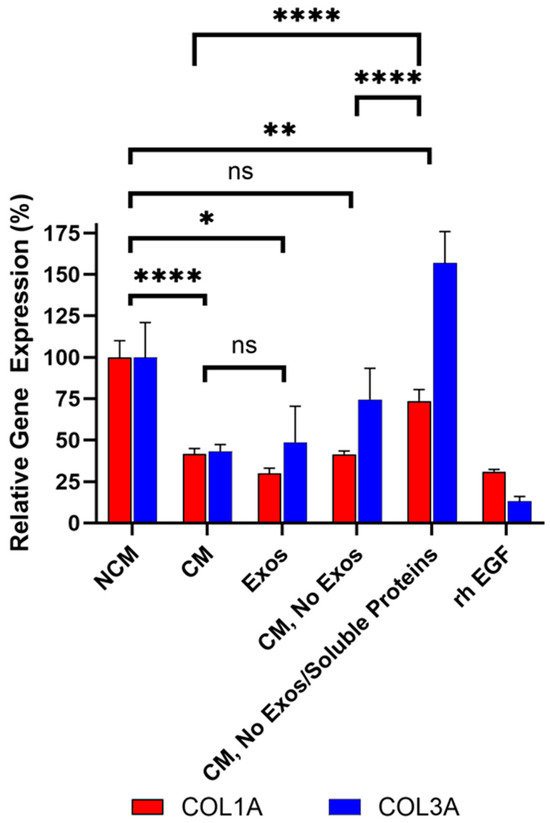

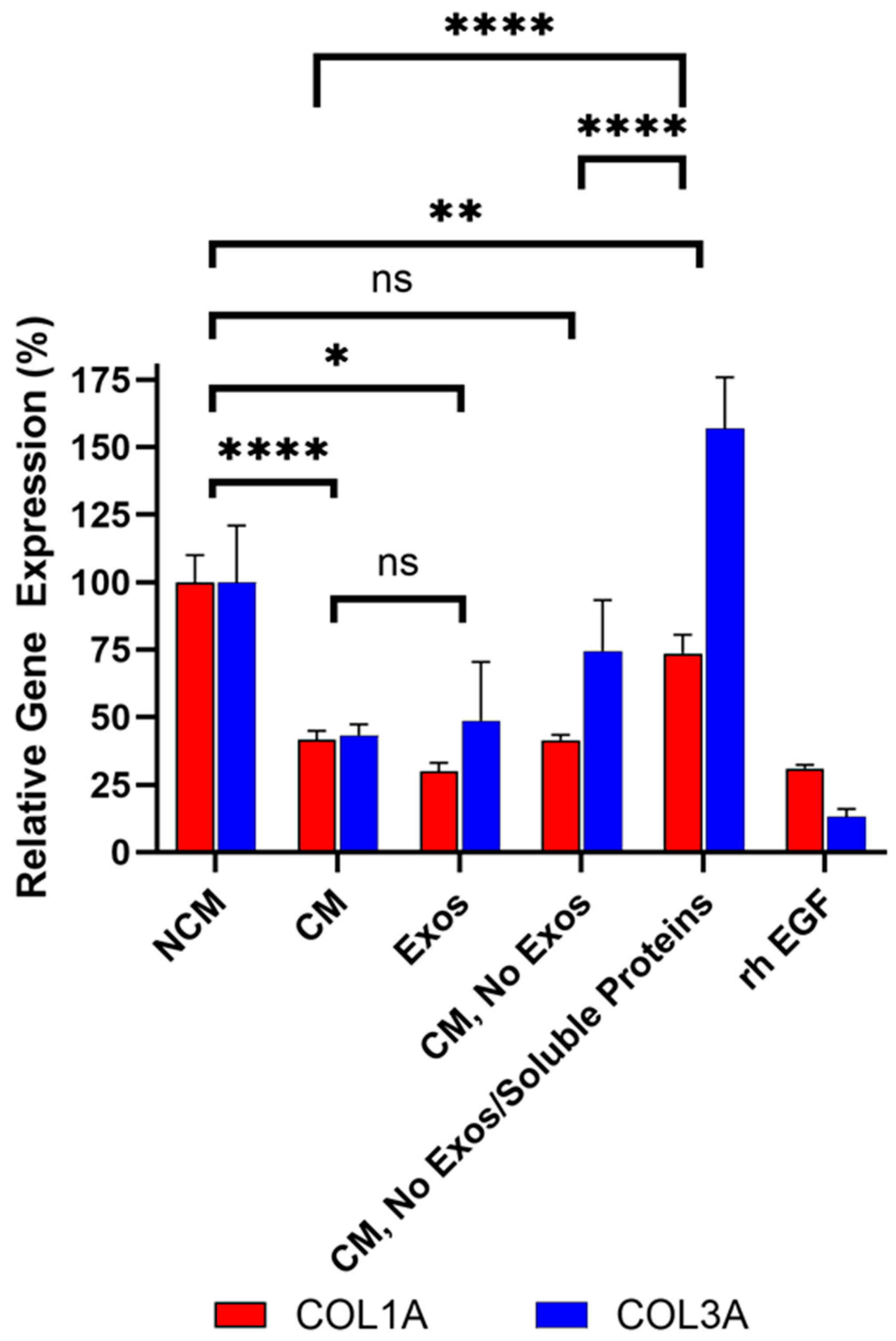

In alignment with initial filtration studies described above, exosome-free CM (100 kDa flow-through; labeled CM, No Exos in Figure 8) exhibited increased COL3A expression relative to CM containing exosomes. This data confirms that exosomes present in CDCs CM play a role in COL3A inhibition. The observation that exosome depletion affected COL3A but not COL1A is likely due to the substantially higher baseline expression of COL1A in HDFs, which may limit the detectable fold change for this gene. In addition, exosome-mediated regulation is often cargo-specific. The exosomes released by CDCs may contain factors that preferentially modulate COL3A expression—such as miRNAs or other regulators targeting COL3A or its upstream activators.

Finally, when both exosomes and soluble proteins were removed from CM (10 kDa flow-through, labeled CM, No Exos/Soluble Proteins in Figure 8) COL1A and COL3A expression significantly increased compared to the CM and CM without exosomes (CM, No Exos, p < 0.0001 for both COL1A and COL3A), indicating that both exosomes and soluble proteins contribute to the overall anti-fibrotic activity of Deramiocel, and that depletion of either fraction diminishes potency. COL1A was significantly higher and COL3A was significantly lower than NCM, thus overall can be interpreted as overall no inhibition.

Collectively, these sequential filtration studies clearly demonstrate that both exosomes and soluble proteins, including growth factors, present in Deramiocel CM inhibit collagen expression, suggesting cooperative contributions for the anti-fibrosis mechanism of action.

3.6. Secreted Proteins Are Involved in Anti-Fibrosis

Additionally, a multi-panel flow assay on Deramiocel CM used in the anti-fibrosis assay revealed specific factors associated with anti-fibrosis, immunomodulation, and muscle survival. Similarly to the anti-fibrosis assay, CM was compared with non-conditioned media (NCM) in the flow panel. As shown in

Table 1. Secreted factors known to play a role in the anti-fibrotic activity of Deramiocel CM.

Factor	Category	Role in Anti-Fibrosis, Immunomodulation, or Muscle Survival	Range Fold-Change: CDC CM vs. NCM	Supporting Reference(s)
bFGF (FGF-2)	Growth factor	Potent anti-fibrotic; inhibits TGF-β–induced myofibroblast activation, preventing ECM production; promotes regeneration and tissue repair	1.1–6.1	[25,26]
EGF	Growth factor	Enhances tissue survival and repair, limiting scar formation; modulates immune cell recruitment, attenuating inflammatory fibrotic cascade	1.3–5.0	[27]
VEGF	Growth factor	Maintains vasculature and reduces hypoxia-driven fibrosis	179–562	[28]
IL-6	Cytokine	Limits cardiac fibrosis Reduces myocardial scarring	104–424	[29,30]
CXCL8 (IL-8)	Chemokine	Modulates immune response in heart Prevents chronic inflammation, Promotes cytokine release key to fibrotic regulation	55.7–417	[31]
PECAM-1	Adhesion molecule	Reduces chronic inflammatory cell infiltration resulting in reduced fibrosis, Role in anti-inflammatory signaling; supports vascular repair	4.2–15.3	[32]

, six factors known to play direct or indirect roles in anti-fibrosis were observed to have an increased signal compared with NCM at different degrees, with the largest increases observed for VEGF, IL-6, and CXCL8 (IL-8). The data shows the range of increased secretion compared with NCM as fold-change using six lots of Deramiocel. Growth factors (FGF, EGF, and VEGF) are involved in anti-fibrosis via inhibition of myofibroblast activation, attenuation of the inflammatory fibrotic pathway, and reduction in hypoxia-driven fibrosis, respectively, and have been shown to be anti-fibrotic following injury [25,26,27,28]. The cytokine IL-6 has been shown to be directly involved in the mechanism of action of CDCs by reducing myocardial scarring [29,30]. The chemokine CXCL8 (IL-8) is known to be immunomodulatory and has been shown to be associated with improved left-ventricle ejection fraction (LVEF) following injury [31]. PECAM-1 inhibits endothelial to mesenchymal transition thus maintaining vasculature and reducing chronic inflammatory cell infiltration, both of which indirectly inhibit fibrosis [32]. These results, in conjunction with the filtration studies above, provide further evidence that the anti-fibrotic bioactivity of CDCs in Deramiocel is mediated by exosomes and secreted soluble factors.

3.7. Potency and Efficacy of CDCs in Deramiocel Lots Utilized in Clinical Trials

Together, these findings demonstrate the anti-fibrotic activity of exosomes and soluble factors secreted by CDCs in Deramiocel. The anti-fibrosis assay was subsequently qualified and validated as a potency assay to assess the bioactivity of CDCs in every lot Deramiocel for product release. Analysis of the anti-fibrotic activity of multiple clinical lots from the HOPE-2 trial and HOPE-2 open label extension study that have been shown to be clinical beneficial in DMD patients were used to set the acceptance criteria [13,14]. Acceptance criteria for the anti-fibrosis potency assay correspond to <75% expression for COL1A and <72% expression for COL3A (equivalent to ≥25% and ≥28% inhibition, respectively) and were established based on historical lot performance across five working cell banks of reporter fibroblasts.

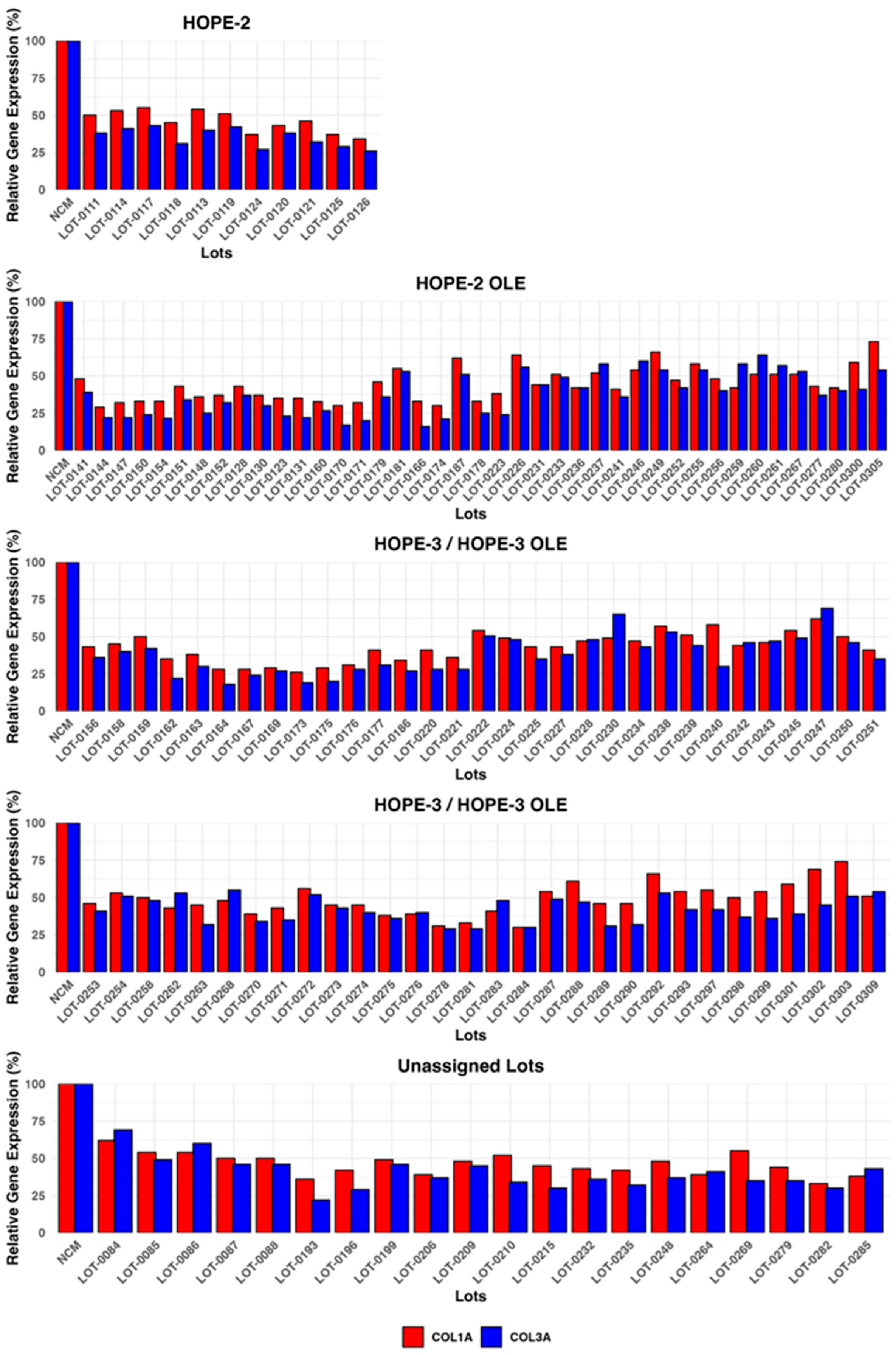

Figure 9 presents collagen expression values for Deramiocel lots utilized in the HOPE-2 trial, HOPE-2 open label extension (OLE) study, HOPE-3 ongoing clinical trial, HOPE-3 OLE study, and additional lots that were not assigned to a clinical study. The potency of Deramiocel lots administered in the HOPE-2 and HOPE-2 OLE studies was consistently observed in the anti-fibrosis assay with substantial reduction in expression of COL1A and COL3A observed in reporter fibroblasts after treatment with conditioned medium. These trials demonstrated that DMD patients treated with Deramiocel experienced significant attenuation of disease progression, both in skeletal and muscle function. Importantly, long-term cardiac stability in DMD patients treated with Deramiocel was observed over 48 months in HOPE-2 OLE. This clinical effect, particularly in cardiac function, is attributable to the anti-fibrotic mechanism of action of CDCs as demonstrated in vitro by the anti-fibrosis potency assay. Thus, the anti-fibrotic activity induced in vitro is consistent with clinical potency. The potency assay developed here was reviewed by FDA during regulatory interactions and was accepted as suitable for use as a potency assay for product release.

In addition, data from the anti-fibrosis potency assay from all clinical Deramiocel lots utilized in the ongoing HOPE-3 clinical trial, as well as lots that were not assigned to clinical trials, are shown in Figure 9. These data again demonstrate the consistent reduction in COL1A and COL3A by exosomes and soluble factors secreted by CDCs in Deramiocel. Importantly, the inhibition of COL1 and COL3 met the acceptance criteria, deeming all lots as potent. All lots presented in Figure 9 were derived from master cell banks generated from >10 donor hearts, underscoring the reproducibility of the Deramiocel manufacturing process. In total, conditioned media collected from CDCs in over 130 lots of deramocel were shown to induce a significant reduction in collagen when compared to non-conditioned media. The totality of this data demonstrates the potency of CDCs in Deramiocel and the anti-fibrotic mechanism of action of CDCs observed in vitro, in vivo in pharmacodynamic studies, and importantly in clinical trials.

4. Discussion

In this study, we demonstrate that conditioned media (CM) derived from CDCs in Deramiocel exerts robust anti-fibrotic activity in primary human fibroblasts. Across multiple independent lots, Deramiocel CM consistently suppressed expression of COL1A and COL3A, two canonical markers of extracellular matrix deposition, while non-conditioned media or cardiac fibroblast-derived CM had no effect. These findings support the notion that the paracrine secretome of cardiosphere-derived cells (CDCs) harbors potent anti-fibrotic factors and provide mechanistic evidence for the therapeutic potential of Deramiocel.

Potency testing is defined as the ability of a product to achieve its intended therapeutic effect, demonstrated through appropriate laboratory assays (FDA guidelines and 21 CFR 600.3(s), 21 CFR 610.10). Regulations require that potency be assessed using in vitro or in vivo tests specifically designed for each product, ensuring a valid measure of therapeutic activity.

Initially, an in vivo myocardial infarction (MI) mouse model was utilized as a potency test for Deramiocel. MI is characterized by ischemic cardiomyocyte loss followed by adverse remodeling, including scar formation and ventricular stiffening. A major contributor to this remodeling is the excessive deposition of type I and type III collagens (COL1A and COL3A), which are key drivers of fibrosis and impaired cardiac function. Data from this model was used to assess and select Deramiocel lots for use in early clinical studies and the completed HOPE-2 clinical trial. However, this model presents multiple limitations: it is labor-intensive, time-consuming (approximately several months per experiment), requires specialized surgical skills, relies on subjective echocardiographic measurements in small animals, and can yield variable, hard-to-validate results [33]. Moreover, the MI model does not replicate the progressive fibrosis characteristic of DMD-associated pathology [34,35]. Indeed, mdx mouse models, the most common DMD model, demonstrate only mild, non-progressive skeletal muscle degeneration and do not faithfully recapitulate human disease, further reducing relevance for predicting clinical potency [36]. Therefore, development of a reliable and robust in vitro assay was required to assess the potency of each lot of Deramiocel for product release.

Earlier work from the Marbán laboratory established that CDCs act largely through paracrine signaling rather than direct engraftment, with key mediators including epidermal growth factor (EGF), interleukin-6 (IL-6), and CXC chemokine ligand 8 (CXCL8/IL-8) [16,37,38]. In those studies, EGF secretion was linked to enhanced angiogenesis and cardioprotection, while IL-6 and CXCL8 contributed to immunomodulation and remodeling of the myocardial niche. Our results extend these insights by demonstrating a direct anti-fibrotic action of the Deramiocel secretome, as evidenced by downregulation of collagen gene expression in dermal fibroblasts. Importantly, we show that this activity is dose-dependent, exosome-associated, and robust across donor fibroblasts and Deramiocel manufacturing lots, thereby strengthening the translational relevance of these findings [16,39]. Interestingly, we also detected high levels of IL6 and CXCL8 secretion in Lengendplex Flow Assay, which aligns well with the Deramiocel identity release assay using IL6 and CXCL8 as readouts. The assay measures these factors in RNA isolated from Deramiocel cell lysate by qPCR and demonstrates a strong fold-increase versus the negative control fibroblast RNA. EGF, measured by the Legendplex assay is also used as a positive control in the anti-fibrosis assay, further indicating its importance in the Deramiocel anti-fibrosis pathway.

The observation that CDC exosomes alone can recapitulate the anti-fibrotic activity of CDCs CM and that exosome depletion abrogated the anti-fibrotic effects of Deramiocel CM highlights the central role of exosomes as vehicles for paracrine signaling [16,37,39,40]. While prior reports emphasized soluble cytokines such as EGF [23], our data indicates that exosome-enclosed mediators may be the dominant contributors to the anti-fibrotic phenotype. Exosomes can encapsulate not only proteins, such as IL-6 and CXCL8, but also microRNAs, such as mi146a and mi148a [41,42,43,44], and other regulatory cargos that suppress fibroblast activation and reduce collagen expression [16,38,45]. Thus, Deramiocel exosomes may represent a convergent delivery system integrating both cytokine signaling and gene regulatory programs.

The inclusion of fibroblasts from multiple donors in our study also provides a novel perspective, addressing biological variability often overlooked in earlier single-donor experiments. The reproducibility of Deramiocel’s anti-fibrotic effect across diverse fibroblast populations suggests that its paracrine activity is robust and donor-independent, an important consideration for clinical translation [37,39]. Furthermore, the observation that cardiac fibroblast-derived CM failed to attenuate collagen expression underscores the uniqueness of the Deramiocel secretome relative to fibroblast paracrine signaling [39,40].

Taken together, our work builds upon the foundation laid by the Marbán group by moving beyond descriptive profiling of CDC-secreted factors to a functional demonstration of anti-fibrotic activity in primary fibroblasts. The innovation of our study lies in: (1) Establishing lot-to-lot consistency of Deramiocel CM in suppressing fibrosis-related gene expression. (2) Demonstrating that the effect is dose-dependent and exosome-associated, distinguishing Deramiocel from conventional soluble-factor therapy. (3) Providing the first evidence that cytokines previously linked to CDC identity and function (EGF, IL-6, CXCL8) may participate in a broader anti-fibrotic signaling network, especially when delivered via exosomes [16,38,39,40,45].

The mechanistic evidence supporting dual contributions of exosomes and soluble factors in the anti-fibrotic activity of CDCs is based on fractionation and filtration analyses, which do not fully demonstrate causality. Future work will focus on identifying specific molecular mediators through proteomic and RNA profiling of active fractions. Importantly, in vivo validation of the role of CDCs and CDC exosomes has been demonstrated in MI models from multiple animals and in the mdx mouse model in the literature, aligning with the role of CDC exosomes presented here. While this study is the first study demonstrating the key role of CDC-secreted soluble factors in the anti-fibrotic mechanism of action of CDCs, the identification of these factors is well supported by multiple publications. The published evidence, in combination with the in vitro data presented herein from multiple independent studies using over 100 Deramiocel manufacturing lots strengthen the mechanistic understanding and translational relevance of Deramiocel’s anti-fibrotic action.

Importantly, the clinically meaningful improvements in cardiac and skeletal function observed in the HOPE-2 and HOPE-2 OLE clinical studies are directly attributable to the anti-fibrotic mechanism of action of CDCs in Deramiocel. The anti-fibrotic activity of CDCs observed in the in vitro potency assay aligns with multiple in vivo pharmacodymanic studies in the mdx mouse model and large animal models, which demonstrate a decrease in fibrosis leading to a reduction in muscle scarring and consequently improved skeletal and cardiac muscle function. Importantly, the in vitro and in vivo anti-fibrotic mechanism of action of CDCs aligns with the therapeutic benefit observed in DMD patients after treatment with Deramiocel.

5. Conclusions

In summary, the validated cell-based anti-fibrosis assay described in this study provides a controlled, reproducible, and mechanistically informative platform for assessing the potency of Deramiocel. This assay establishes a direct link between the product’s in vitro activity and its intended therapeutic effect, supporting both scientific understanding and regulatory compliance.
