Neutrophils and Lymphocytes: Yin and Yang of Lung Fibrosis and Patient Outcome in Diffuse Interstitial Lung Diseases

by
Erika M. Novoa-Bolivar
1,†,
José A. Ros
2,†,
Sonia Pérez-Fernández
3,
José A. Campillo
1,
Ruth López-Hernández
1,
Rosana González-López
1,
Almudena Otalora-Alcaraz
1,
Cristina Ortuño-Hernández
1,
Lourdes Gimeno
1,4,
Inmaculada Ruiz-Lorente
1,
Diana Ceballos-Francisco
1,
Manuel Muro
1,
Pablo Martínez-Camblor
5 and
Alfredo Minguela
1,*
1
Immunology Service, Virgen de la Arrixaca University Clinical Hospital (HCUVA), Biomedical Research Institute of Murcia (IMIB), 30120 Murcia, Spain
2
Pneuomology Service, Virgen de la Arrixaca University Clinical Hospital (HCUVA), Biomedical Research Institute of Murcia (IMIB), 30120 Murcia, Spain
3
Department of Statistics and Operations Research and Mathematics Didactics, University of Oviedo, 33007 Asturias, Spain
4
Human Anatomy Department, University of Murcia, 30100 Murcia, Spain
5
Department of Biomedical Data Science, Geisel School of Medicine at Dartmouth, 7 Lebanon Street, Suite 309, Hinman Box 7261, Hanover, NH 03755, USA
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Biomedicines 2024, 12(11), 2439; https://doi.org/10.3390/biomedicines12112439
Submission received: 1 October 2024 / Revised: 18 October 2024 / Accepted: 22 October 2024 / Published: 24 October 2024
(This article belongs to the Special Issue Editorial Board Members' Collection Series: Cell Biology and Pathology (2nd Edition))
Browse Figures
Review Reports Versions Notes

Abstract

:
Objective: Antifibrotics can improve the outcome of patients with idiopathic pulmonary fibrosis (IPF) and other fibrosing interstitial lung diseases (F-ILDs), but predictive biomarkers at diagnosis are needed to guide the use of immunomodulating and antifibrotic therapies. Methods: Flow cytometry quantification of lymphocytes and neutrophils in bronchoalveolar lavage (BAL) of 145 IPFs, 561 non-IPF-ILDs (125 F-ILDs), and 112 BAL controls were retrospectively correlated with the incidence of fibrosis and third-quartile overall survival (Q3–OS). Results: The incidence of IPF was directly proportional (9.6%, 22.2%, and 42.6%, p < 0.001) to BAL neutrophil counts (<5%, 5–15%, and >15%), but inversely proportional (34.1%, 18.6%, and 8.8%, p < 0.001) to BAL lymphocyte counts (<7%, 7–20%, and >20%). Elevated neutrophils (>5%) with low lymphocytes (<7%) were associated with an increasingly higher incidence of IPF (10.0–56.3%, p < 0.001) in patients aged 40 to 80, compared to the rest of patients (13.0–17.1%). Lymphocytes >20% compared to lymphocytes <7% strongly protected patients with neutrophils >15% (59.7% vs. 20.7%, p < 0.001) from IPF. In contrast, the incidence of F-ILD was not clearly related to BAL lymphocyte/neutrophil counts. Although, IPF and F-ILD showed a shorter Q3–OS (1.8 ± 0.3 and 4.6 ± 0.8 years; p < 0.001) than non-fibrotic-ILDs (11.1 ± 1.3 years), lymphocyte and neutrophil counts were associated with a longer and shorter Q3–OS of non-fibrotic-ILDs (p < 0.03) and F-ILDs (p < 0.04), respectively, but not with a Q3–OS of IPF patients (p < 0.708). Corticosteroids in patients with fibrosis showed a shorter Q3–OS than other immunomodulators (2.4 ± 0.3 vs. 4.0 ± 1.8 years, p = 0.011). Conclusions: Accurate counting of BAL lymphocytes and neutrophils by flow cytometry in ILD patients at diagnosis could help guide immunomodulatory and antifibrotic therapies.

1. Introduction

The term interstitial lung disease (ILD) describes a large and heterogeneous group of disorders affecting the lung parenchyma with overlapping clinical, radiographic, and histopathologic manifestations that commonly involve the pulmonary interstitium and, less frequently, also the alveolar and vascular epithelium. Repair processes are involved in the disease, with varying degrees of inflammation and fibrosis [1,2,3], which can be progressive in some cases [4,5,6]. Features of progressive fibrosing ILD (PF-ILD) include a decline in lung function as measured by forced vital capacity (FVC) or diffusing capacity of the lung for carbon monoxide (DLCO), radiographic progression, or worsening symptoms despite treatment [7]. Idiopathic pulmonary fibrosis (IPF), the most typical PF-ILD, is characterized by a pattern of usual interstitial pneumonia (UIP) on high-resolution computed tomography (HRCT) or histopathology and it is not associated with an identifiable etiology [8]. Risk factors for IPF include increasing age, oxygen use at rest, lower or a decline in FVC, and lower DLCO [9], but the clinical course can be complicated by episodes of acute respiratory deterioration or acute exacerbations [10]. Many studies have described that a diverse proportion of fibrosis and progressive fibrosis can also take place among connective tissue disease-related (CTD)-ILD, unclassifiable-ILD, idiopathic interstitial pneumonia, and chronic hypersensitivity pneumonitis (HP), or sarcoidosis [11,12,13,14,15]. Risk factors for non-IPF PF-ILDs include UIP pattern, body mass index, oxygen desaturation during the 6 MWT, and lung function parameters such as FVC and DLCO [14].
Different cells of the immune system are involved in the pathophysiology of ILD. Macrophages play a significant role in fibrosing lung diseases, although their roles may vary in distinct inflammatory microenvironments or with the composition of macrophage subpopulation types [16,17,18]. Neutrophils are also capable of triggering inflammatory mechanisms and lung fibrogenesis [19]. Neutrophil elastase [20], neutrophil extracellular traps [21], and the balance of matrix metalloproteinases and tissue inhibitors of metalloproteinases [22] contribute to fibrosis and to fibrosis progression. Neutrophil chemoattractant interleukin-8, the granulocyte colony-stimulating factor (G-CSF) and the number of neutrophils are higher in an IPF lung [22], but a greater presence of neutrophils is also related to fibrosis in HP [23]. In IPF, even the number of circulating neutrophils correlated positively with the extension and the progression of fibrosis [24]. In contrast, the role of lymphocytes in ILD is contradictory, with either favorable or harmful effects depending on the proportion of Th1, Th2, Th9, Th17, Th22, or regulatory T cells [25]. Nonetheless, increased lymphocyte counts in bronchoalveolar lavage (BAL) have been associated with a significantly lower probability of disease progression in patients with non-extensive fibrosis or with non-UIP patterns [26], as well as with better outcomes in patients with acute respiratory failure [27] or acute exacerbation [28].
Corticosteroids are the most common therapy in non-IPF ILDs, while other immunomodulators (mycophenolate mofetil, cyclophosphamide, azathioprine, or tocilizumab) and antifibrotics (nintedanib and pirfenidone) are mostly reserved for CTD-ILD and IPF, respectively. Nonetheless, antifibrotics are being explored in non-IPF fibrosing ILDs (F-ILDs) [6,29,30].
The present study shows the results of BAL flow cytometry analysis at diagnosis in a large series of ILD patients, indicating that lymphocytes and neutrophils play opposing roles in the development of fibrosis, particularly in IPF, but also in the survival of patients with F-ILDs. The predictive value of these results at diagnosis could lead to better personalized immunomodulating and antifibrotic treatments.

2. Materials and Methods

2.1. Specimens

This retrospective and observational study from real-life medicine included clinical, radiological, and anatomopathological data from patients referred from public hospitals in the Murcia Region, Spain. A total of 1500 consecutive BAL samples were analyzed by flow cytometry between 2000 and 2018. Samples from patients with pulmonary infections at the moment of BAL procedure (n = 229), lung or other cancers (n = 211), asthma (n = 86), chronic obstructive pulmonary disease (n = 82), or tuberculosis (n = 30) were excluded. Finally, the study included 706 BAL samples from patients with ILDs. As a control BAL group, 112 BAL samples were included from patients with suspected lung disease (mainly due to the presence of micronodules on radiological images) that, after years of follow-up, did not show clinicopathological evidence of lung disease in the electronic medical record. In addition, to compare the outcome of ILD patients, 243 patients with monoclonal gammopathy of undetermined significance (MGUS), without pulmonary disease and free of adverse prognostic factors [31], were included as a survival control of the general population.
The BAL sampling procedure was performed following the official American Thoracic Society clinical practice guidelines [32].
The end of evolutionary data collection was on 1 April 2023. Anamnesis, clinical examination, radiology (radiography and high-resolution computed tomography, HRCT), BAL cytomorphology and microbiology, and anatomopathological and functional pulmonary studies were performed according to clinical practice in each hospital. Pulmonary fibrosis was computed with the presence of reticular changes, traction bronchiectasis, and honeycombing in the radiological study. IPF and other F-ILDs were studied separately. Diagnostic criteria of the ILD subtype were based on the ATS/ERS classification [33]. Immunomodulatory treatment was administered according to standard practice [34]. Antifibrotics were available from 2014 onwards with limited access according to local restrictions. Based on information from the electronic medical record, patients were grouped into 3 treatment groups: (1) patients who did not require systemic immunomodulatory treatment; (2) patients who only received corticosteroids; and (3) patients who required other immunomodulatory treatments (rituximab, azathioprine, mycophenolate mofetil, cyclophosphamide, or tacrolimus) after corticosteroids.

2.2. Immunophenotype Studies

BAL samples were centrifuged, the cell pellet was washed with FACSFlow (Becton Dickinson; BD; San Jose, CA, USA) and resuspended in 0.5 mL of FACSFlow, and 50 µL of the sample was stained in a TrueCount tube (BD, San Jose, CA, USA) with the following monoclonal antibodies: CD1a-PE (HI149), CD3-BV510 (SK7), CD4-APC (SK3), CD8-PE-Cy7 (SK1), CD16-V450 (3G8), CD19-APC (SJ25C1), CD20-FITC (L27), CD45-APCH7 (2D1), and HLA-DR-PerCp (L243) from BD and CD66abce-FITC (Kat4c) from Dako (Santa Clara, CA, USA). A minimum of 0.5 million events were acquired in an 8-color FACSCanto-II flow cytometer (BD, San Jose, CA, USA) adjusted on a daily basis as previously described [31]. The analysis in Diva-Software 9.0 (BD, San Jose, CA, USA), following the gating strategy described in Figure 1, included both alive and dead cells (identified by the loss of FSC and SSC), as long as they maintained the expression of leukocyte markers.

2.3. Statistical Analysis

Data were collected in Excel 2010 (Microsoft Corporation, Redmond, WA, USA) and analyzed in SPSS 21.0 (Armonk, NY, USA). Kaplan–Meier and Log-Rank tests were used for survival estimation. Overall survival (OS) was defined as the time from the first BAL analysis to death, with living patients censored on the date of the last follow-up. The 75th percentile of the OS (Q3–OS) was used to compare groups. The incidence of death in each group was estimated as the number of deaths divided by the sum of the follow-up times of the patients in the group. Comparisons between quantitative variables were performed by an ANOVA. p < 0.05 was considered statistically significant.

3. Results

3.1. Clinical, Biological, and Therapeutic Characteristics of Study Groups

Table 1 presents the biological and clinical characteristics of the patient and control groups as well as the incidence of fibrosis (fibrosis, UIP, reticular or honeycomb patterns in the HRCT) and the main immunomodulating treatment in each pulmonary pathology. As expected, pulmonary fibrosis was present in all patients with IPF, but it was also observed in a variable proportion of other ILDs, with the highest incidence detected in NSIP (33.8%), HP (28.8%), and U-ILD (25.0%). Some pathologies were predominantly present among men, such as pneumoconiosis (96.3%), IPF (75.9%), eosinophilic ILD (76.5%), PLCH (66.7%), and LIP (64.9%). Comparable age was observed among groups, although patients with PLCH were younger (36.7 years) compared to the rest of patients (53.8 years).

3.2. BAL Leukocyte Profiles with a Predominance of Neutrophils Increase with Age

Figure 2A shows the leukocyte content of BAL in individuals without lung disease (Figure 2A). A predominance of macrophages (89.7 + 0.74%) and counts below 3% of the other myeloid and lymphoid subsets were observed. However, in patients with ILD, mean values of total lymphocytes were about 20% and neutrophils about 10%. Sarcoidosis, hypersensitivity pneumonitis (HP), cryptogenic organizing pneumonia (COP), and lymphocytic interstitial pneumonia (LIP) showed a lymphocytic profile (mean lymphocytes > 20.5 ± 1.3%). IPF and respiratory bronchiolitis–ILD (RB-ILD) showed neutrophilic profiles (mean neutrophils > 9.04 ± 0.7%) (Figure 2B). Although lymphocyte counts remained stable, neutrophil counts increased gradually from 7.20 ± 0.68% to 9.75 ± 1.06% and 10.73 ± 0.78% (p < 0.001) with the age of patients from <55 to 55–65 and >65 years, respectively (Figure 2C). As a consequence, a significant reduction in the proportion of lymphocytic ILDs (38.2%, 28.9%, and 21.9%, p < 0.001) and a significant increment in neutrophilic ILDs (15.4%, 25.0%, and 37.0%, p < 0.001) were observed as patient age increased from <55 to 55–65 and >65 years, respectively (Figure 2D).

3.3. Lymphocytes Counteract the Deleterious Effect of Lung-Infiltrating Neutrophils

ROC analysis revealed cut-offs of 7.0% and 5.0% for lymphocytes and neutrophils, respectively, associated with favorable and unfavorable prognostic values for the OS (see Figure 3A for details). The combination of neutrophil and lymphocyte cut-offs showed four groups with different survival rates (Figure 3B): patients with neutrophils < 5% and lymphocytes > 7% showed the longest Q3–OS (10.0 ± 0.9 years, p < 0.001); patients with neutrophils > 5% and lymphocytes < 7% showed the shortest Q3–OS (1.9 ± 0.4 years); and patients with neutrophils < 5% and lymphocytes < 7% (5.1 ± 0.8 years) or neutrophils > 5% and lymphocytes > 7% (5.6 ± 0.9 years) showed intermediate Q3–OS. Therefore, lymphocytes seemed to counteract the deleterious effect of lung-infiltrating neutrophils.

3.4. Lymphocytes Counteract the Harmful Effect of Neutrophils, Delaying the Onset of Lung Fibrosis and Death of ILD Patients

As expected, the proportion of ILD patients free of pulmonary fibrosis progressively decreased from 84.8% in patients aged under 40 to 41.9% in patients aged over 90 years (Figure 4A). This was mainly due to the increasing incidence of IPF from 3.3% in patients aged under 40 to 37.2% in patients aged over 90, with the most pronounced increase between 50 and 60 years of age, from 6.7% to 21%. In contrast, the incidence of F-ILD slightly increased from 12.0% in patients under 40 to 20.9% in patients over 90. As a consequence, the incidence of death in patients with IPF was much higher at earlier ages (0.1, 0.13, and 0.21 for patients in their 60s, 70s, and 80s, respectively) than in patients with F-ILD (0.045, 0.047, and 0.12) and in patients free of fibrosis (0.01, 0.028, and 0.084) or the general population (0.004, 0.008, and 0.025). Patients with F-ILD showed a similar incidence of death to that of patients without pulmonary fibrosis until they reached an age older than 80, when they showed a higher incidence of death (0.27 vs. 0.128). Patients with ILDs free of fibrosis showed a similar incidence of death to that of the general population until their 80s (0.084 vs. 0.025) and older (0.128 vs. 0.093), when they showed a slightly higher incidence of death.
The incidence of IPF was inversely proportional to the BAL lymphocyte counts (34.1%, 18.6%, and 8.8% for lymphocytes <7%, 7–20%, and >20%, respectively), but directly proportional to BAL neutrophil counts (9.6%, 22.2%, and 42.6% for neutrophils <5%, 5–15%, and >15%, respectively). In contrast, the incidence of F-ILD was not clearly related to BAL lymphocyte or neutrophil counts (Figure 4B).
Kaplan–Meier curves showed that ILD patients without pulmonary fibrosis presented life expectancy comparable to that of the general population (Q3–OS of 11.1 ± 1.3 years vs. not reached), whilst patients with F-ILD (4.6 ± 0.8 years) and IPF (1.8 ± 0.3 years; p < 0.001) showed shorter survivals (Figure 4C).
Therefore, although BAL neutrophils or lymphocytes at diagnosis are related to the diagnosis of IPF but not of F-ILD, both fibrotic processes were associated with shorter lifespans of ILD patients.
To further investigate the role of lymphocytes and neutrophils in the incidence of F-ILD and IPF, the combined effect of increasing amounts of neutrophils (<5%, 5–15%, and >15%) and lymphocytes (<7%, 7–20%, and >20%) were studied. Although the combined amounts of neutrophils and lymphocytes were not clearly associated with the development of fibrosis in non-IPF LDs during aging, the amounts of neutrophils above 5% and of lymphocytes below 7% were associated with increasingly higher incidences of IPF in ILD patients in their 50s and older, with incidences of IPF greater than 50% in patients in their 70s and older (p < 0.001). However, in patients with neutrophil counts above 5% but lymphocytes above 7%, the incidence of IPF remained between 15% and 20% in patients in their 40s to their 80s. A similar situation occurred in all patients with neutrophil counts below 5%, regardless of lymphocyte counts (Figure 5A).
When the role of BAL neutrophil and lymphocyte counts was assessed regardless of patient age, neutrophils >5% were associated with slightly higher rates of F-ILD (≈22%, p = 0.016) compared with neutrophils <5% (≈12%), regardless of lymphocyte counts. However, the incidence of IPF increased in parallel with neutrophil counts but was strongly counterbalanced by lymphocytes. Thus, IPF rates for neutrophil counts <5%, 5–15%, and >15% were 13.2%, 40.6%, and 59.7%, respectively, if lymphocyte counts were below 7%; but 10%, 18.8%, and 31.6% if lymphocyte counts were between 7% and 20%; or 6.5%, 8.4%, and 20.7% if lymphocyte counts were over 20% (p < 0.001). This demonstrates a dose–response effect both of neutrophils in inducing IPF and of lymphocytes in protecting against the deleterious effect of neutrophils (Figure 5B).

3.5. Neutrophil and Lymphocyte Counts Were Associated with Patient Overall Survival in Non-IPF ILD, but Not in IPF

Next, we evaluated the influence of the combined neutrophil and lymphocyte counts on the patient’s overall survival. In patients without fibrosis or with F-ILD, neutrophil and lymphocyte counts were negatively and positively associated with patient survival, respectively. Thus, the Q3–OS for patients with neutrophils < 5% and lymphocytes > 7%, neutrophils < 5% and lymphocytes < 7%, neutrophils > 5% and lymphocytes > 7%, and neutrophils > 5% and lymphocytes < 7% for patients without fibrosis were 16.0 ± 4.3, not reached, 6.4 ± 1.7, and 6.4 ± 2.4 years (p = 0.03), respectively; and for patients with F-ILD, the values were 8.7 ± 1.7, 3.5 ± 1.2, 5.0 ± 1.5, and 1.6 ± 0.4 years (p = 0.04), respectively. However, in IPF patients, once the disease was diagnosed, survival was much shorter regardless of the neutrophil and lymphocyte counts (p = 0.708, Figure 6).

3.6. The Type of Immunomodulatory Treatment Differentially Influenced Overall Survival in Patients With or Without Fibrosis

The type of immunomodulating therapies, consisting mainly of corticosteroids or other types of immunosuppressants (rituximab, azathioprine, mycophenolate mofetil, cyclophosphamide, or tacrolimus), was not associated with the differential OS of patients without fibrosis (p = 0.634). However, patients with fibrosis (F-ILD and IPF) treated with corticosteroids showed a shorter Q3–OS (2.4 ± 0.3 vs. 4.0 ± 1.9 years, p = 0.011) than patients treated with other immunosuppressants (Figure 7).

4. Discussion

Although the course of the disease for an IPF patient cannot currently be predicted at diagnosis, data from clinical trials and observational studies indicate that antifibrotic therapies can improve life expectancy [14]. However, many individuals with IPF remain untreated, either because the physician perceives that the disease is stable or because they are concerned about its potential side effects [35]. Early treatment is critical to preserving patients’ lung function, reducing the risk of acute exacerbations, and improving outcomes of this disease that induce irreversible and fatal damage. Data from this manuscript and others [36] make it clear that once IPF is diagnosed, the survival of these patients in relation to the general population or other ILDs is drastically shortened. Therefore, the availability of adequate prognostic markers could help clinicians to prescribe antifibrotic treatments. In this sense, our data can support early antifibrotic treatment since young patients with a greater probability of developing fibrosis or having more rapidly progressive fibrosis are identified at diagnosis, due to the mere fact that they have a high number of neutrophils infiltrating the lung without the control that lymphocytes exert on these harmful cells. However, the fact that current clinical guidelines indicate that patients with a clear UIP pattern do not require BAL analysis poses a challenge [32], as it could help with prognosis, therapy guidance, and the discrimination of overlapping UIP patterns in IPF and other ILDs [30]. In fact, in our series, up to 14% of IPF patients with lymphocytes >20% were detected in BAL. In these patients, the analysis of the cellular content of BAL could have helped to diagnose this pathology more correctly [37].
It has been described that alveolar macrophages play an important antifibrotic role and contribute to alveolar homeostasis [36], so it could be thought that any reduction in their numbers could be associated with fibrosis. Our results show that as long as this reduction is made by neutrophils, a profibrotic state is established at an early age; however, when this reduction is due to lymphocytes, the fibrotic processes are attenuated. More importantly, when both neutrophils and lymphocytes are elevated, the presence of lymphocytes was associated with a reduction in the fibrosis rates in a dose–response manner. Although there is no clear evidence that lymphocytes may protect patients from fibrosis, beyond the role described for type-II innate lymphocytes (ILCs2) [38], our data seem to demonstrate that the infiltration of the lung by lymphocytes might be associated with less fibrosis. This fact could be connected with the longer OS observed in patients with fibrosis treated with non-corticosteroid immunomodulators [14], also observed in our series.
IPF and F-ILDs have overlapping genetics, pathophysiological mechanisms, and clinical behavior [30,39]. However, the data described in this study show that the results of lung-infiltrating lymphocytes or neutrophils are different in these pathologies. Although, in both clinical entities, high counts of lymphocytes and neutrophils had either favorable or unfavorable predictive value, respectively; in IPF, these cells were critical for an earlier development of the disease but were not so clearly associated with the patient’s overall survival once the disease was diagnosed. In contrast, the development of F-ILD did not seem to be clearly related to lymphocyte and neutrophil counts; nonetheless, high neutrophil counts were associated with shorter overall survival and a greater amount of lymphocytes appeared to decrease the negative contribution of neutrophils. Although the beneficial effect of lymphocytes could be due to a better response to immunomodulating treatments in lymphocytic lung pathologies [37,40], the fact is that patients with both high numbers of neutrophils and high numbers of lymphocytes were associated with a lower rate of IPF and longer survival in F-ILDs. Therefore, the identification of factors secreted by lymphocytes or their interactions in the lung microenvironment [36] could contribute to the development of new therapies to mitigate fibrogenesis and improve patient outcomes.
Unfortunately, in this retrospective study it has not been possible to establish the progressive condition in all F-ILD cases, so we cannot know whether neutrophils and lymphocytes may be involved in the development of progressive F-ILD. However, the shorter survival in both fibrotic and non-fibrotic ILDs associated with high counts of neutrophils, improved with higher lymphocyte counts, suggests that these cells, like in IPF, may be involved in the development of progressive F-ILD. This should be evaluated in new and future studies. In addition, our study was also unable to assess the impact of modern antifibrotics, due to the limited availability of this treatment during the study period. However, conducting clinical trials evaluating antifibrotics in progressive F-ILDs [29,30] would benefit from the analysis of BAL cell content as their results could be different depending on the inflammatory microenvironment of the lung.
In conclusion, the results of our study suggest that accurate counting of BAL lymphocytes and neutrophils by flow cytometry in ILD patients at diagnosis could help guide immunomodulatory and antifibrotic therapies. However, further studies will be necessary to confirm our results and identify the molecular mechanisms involved.

Author Contributions

Conceptualization, E.M.N.-B., J.A.R. and A.M.; methodology, E.M.N.-B., A.O.-A., C.O.-H., I.R.-L., D.C.-F., R.G.-L. and M.M.; software, S.P.-F. and L.G.; validation, J.A.C., A.M. and R.L.-H.; formal analysis, A.M., J.A.C. and E.M.N.-B.; investigation, E.M.N.-B., I.R.-L., A.M. and J.A.R.; data curation, E.M.N.-B. and J.A.R.; writing—original draft preparation, E.M.N.-B., I.R.-L., L.G. and A.M.; writing—review and editing, A.M. and J.A.R.; visualization, P.M.-C. and S.P.-F.; supervision, J.A.R. and A.M. All authors have read and agreed to the published version of the manuscript.

Funding

The Biomedical Informatics and Bioinformatics department at IMIB was funded by Consejería de Salud de la Comunidad Autónoma de la Región de Murcia.

Institutional Review Board Statement

This study was approved by the ethics committee of the Clinic University Hospital Virgen de la Arrixaca (IRB-00005712).

Informed Consent Statement

Written informed consent was obtained from all patients in accordance with the Declaration of Helsinki.

Data Availability Statement

The data that support the findings of this study are available from the corresponding author upon reasonable request.

Acknowledgments

We would like to thank the attending clinicians in lung pathology from all public hospitals in the Murcia Region for sending samples to our flow cytometry unit; all laboratory technicians, particularly Carmen Martínez Solano, Alba Fernández Torres, and José Moya Martínez; and the Biomedical Informatics and Bioinformatics department at the Biomedical Research Institute of Murcia Pascual Parrilla (IMIB).

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Bagnato, G.; Harari, S. Cellular interactions in the pathogenesis of interstitial lung diseases. Eur. Respir. Rev. 2015, 24, 102–114. [Google Scholar] [CrossRef] [PubMed]
  2. Moss, B.J.; Ryter, S.W.; Rosas, I.O. Pathogenic Mechanisms Underlying Idiopathic Pulmonary Fibrosis. Annu. Rev. Pathol. Mech. Dis. 2022, 17, 515–546. [Google Scholar] [CrossRef] [PubMed]
  3. Lederer, D.J.; Martinez, F.J. Idiopathic Pulmonary Fibrosis. N. Engl. J. Med. 2018, 378, 1811–1823. [Google Scholar] [CrossRef]
  4. Cottin, V.; Hirani, N.A.; Hotchkin, D.L.; Nambiar, A.M.; Ogura, T.; Otaola, M.; Skowasch, D.; Park, J.S.; Poonyagariyagorn, H.K.; Wuyts, W.; et al. Presentation, diagnosis and clinical course of the spectrum of progressive-fibrosing interstitial lung diseases. Eur. Respir. Rev. 2018, 27, 180076. [Google Scholar] [CrossRef]
  5. Wells, A.U.; Flaherty, K.R.; Brown, K.K.; Inoue, Y.; Devaraj, A.; Richeldi, L.; Moua, T.; Crestani, B.; Wuyts, W.A.; Stowasser, S.; et al. Nintedanib in patients with progressive fibrosing interstitial lung diseases—Subgroup analyses by interstitial lung disease diagnosis in the INBUILD trial: A randomised, double-blind, placebo-controlled, parallel-group trial. Lancet Respir. Med. 2020, 8, 453–460. [Google Scholar] [CrossRef]
  6. Case, A.H. Clinical Overview of Progressive Fibrotic Interstitial Lung Disease. Front. Med. 2022, 9, 858339. [Google Scholar] [CrossRef]
  7. Brown, K.K.; Martinez, F.J.; Walsh, S.L.; Thannickal, V.J.; Prasse, A.; Schlenker-Herceg, R.; Goeldner, R.-G.; Clerisme-Beaty, E.; Tetzlaff, K.; Cottin, V.; et al. The natural history of progressive fibrosing interstitial lung diseases. Eur. Respir. J. 2020, 55, 2000085. [Google Scholar] [CrossRef]
  8. Raghu, G.; Remy-Jardin, M.; Myers, J.L.; Richeldi, L.; Ryerson, C.J.; Lederer, D.J.; Behr, J.; Cottin, V.; Danoff, S.K.; Morell, F.; et al. Diagnosis of Idiopathic Pulmonary Fibrosis. An Official ATS/ERS/JRS/ALAT Clinical Practice Guideline. Am. J. Respir. Crit. Care Med. 2018, 198, e44–e68. [Google Scholar] [CrossRef]
  9. Snyder, L.; Neely, M.L.; Hellkamp, A.S.; O’brien, E.; de Andrade, J.; Conoscenti, C.S.; Leonard, T.; Bender, S.; Gulati, M.; Culver, D.A.; et al. Predictors of death or lung transplant after a diagnosis of idiopathic pulmonary fibrosis: Insights from the IPF-PRO Registry. Respir. Res. 2019, 20, 105. [Google Scholar] [CrossRef]
  10. Collard, H.R.; Ryerson, C.J.; Corte, T.J.; Jenkins, G.; Kondoh, Y.; Lederer, D.J.; Lee, J.S.; Maher, T.M.; Wells, A.U.; Antoniou, K.M.; et al. Acute Exacerbation of Idiopathic Pulmonary Fibrosis. An International Working Group Report. Am. J. Respir. Crit. Care Med. 2016, 194, 265–275. [Google Scholar] [CrossRef]
  11. Pérez, E.R.F.; Travis, W.D.; Lynch, D.A.; Brown, K.K.; Johannson, K.A.; Selman, M.; Ryu, J.H.; Wells, A.U.; Huang, Y.-C.T.; Pereira, C.A.; et al. Diagnosis and Evaluation of Hypersensitivity Pneumonitis. Chest 2021, 160, e97–e156. [Google Scholar] [CrossRef] [PubMed]
  12. Nasser, M.; Larrieu, S.; Si-Mohamed, S.; Ahmad, K.; Boussel, L.; Brevet, M.; Chalabreysse, L.; Fabre, C.; Marque, S.; Revel, D.; et al. Progressive fibrosing interstitial lung disease: A clinical cohort (the PROGRESS study). Eur. Respir. J. 2021, 57, 2002718. [Google Scholar] [CrossRef] [PubMed]
  13. Sève, P.; Pacheco, Y.; Durupt, F.; Jamilloux, Y.; Gerfaud-Valentin, M.; Isaac, S.; Boussel, L.; Calender, A.; Androdias, G.; Valeyre, D.; et al. Sarcoidosis: A Clinical Overview from Symptoms to Diagnosis. Cells 2021, 10, 766. [Google Scholar] [CrossRef]
  14. Rajan, S.K.; Cottin, V.; Dhar, R.; Danoff, S.; Flaherty, K.R.; Brown, K.K.; Mohan, A.; Renzoni, E.; Mohan, M.; Udwadia, Z.; et al. Progressive pulmonary fibrosis: An expert group consensus statement. Eur. Respir. J. 2023, 61, 2103187. [Google Scholar] [CrossRef]
  15. Shumar, J.N.; Chandel, A.; King, C.S. Antifibrotic Therapies and Progressive Fibrosing Interstitial Lung Disease (PF-ILD): Building on INBUILD. J. Clin. Med. 2021, 10, 2285. [Google Scholar] [CrossRef]
  16. Ogawa, T.; Shichino, S.; Ueha, S.; Matsushima, K. Macrophages in lung fibrosis. Int. Immunol. 2021, 33, 665–671. [Google Scholar] [CrossRef]
  17. Misharin, A.V.; Morales-Nebreda, L.; Reyfman, P.A.; Cuda, C.M.; Walter, J.M.; McQuattie-Pimentel, A.C.; Chen, C.-I.; Anekalla, K.R.; Joshi, N.; Williams, K.J.N.; et al. Monocyte-derived alveolar macrophages drive lung fibrosis and persist in the lung over the life span. J. Exp. Med. 2017, 214, 2387–2404. [Google Scholar] [CrossRef]
  18. Bain, C.C.; MacDonald, A.S. The impact of the lung environment on macrophage development, activation and function: Diversity in the face of adversity. Mucosal Immunol. 2022, 15, 223–234. [Google Scholar] [CrossRef]
  19. Ding, L.; Yang, J.; Zhang, C.; Zhang, X.; Gao, P. Neutrophils Modulate Fibrogenesis in Chronic Pulmonary Diseases. Front. Med. 2021, 8, 616200. [Google Scholar] [CrossRef]
  20. Chua, F.; Dunsmore, S.E.; Clingen, P.H.; Mutsaers, S.E.; Shapiro, S.D.; Segal, A.W.; Roes, J.; Laurent, G.J. Mice Lacking Neutrophil Elastase Are Resistant to Bleomycin-Induced Pulmonary Fibrosis. Am. J. Pathol. 2007, 170, 65–74. [Google Scholar] [CrossRef]
  21. Yan, S.; Li, M.; Liu, B.; Ma, Z.; Yang, Q. Neutrophil extracellular traps and pulmonary fibrosis: An update. J. Inflamm. 2023, 20, 2. [Google Scholar] [CrossRef] [PubMed]
  22. Jegal, Y. The role of neutrophils in the pathogenesis of IPF. Korean J. Intern. Med. 2022, 37, 945–946. [Google Scholar] [CrossRef] [PubMed]
  23. Pardo, A.; Barrios, R.; Gaxiola, M.; Segura-Valdez, L.; Carrillo, G.; Estrada, A.; Mejía, M.; Selman, M. Increase of Lung Neutrophils in Hypersensitivity Pneumonitis Is Associated with Lung Fibrosis. Am. J. Respir. Crit. Care Med. 2000, 161, 1698–1704. [Google Scholar] [CrossRef]
  24. Achaiah, A.; Fraser, E.; Saunders, P.; Hoyles, R.K.; Benamore, R.; Ho, L.-P. Neutrophil levels correlate with quantitative extent and progression of fibrosis in IPF: Results of a single-centre cohort study. BMJ Open Respir. Res. 2023, 10, e001801. [Google Scholar] [CrossRef]
  25. Xu, Y.; Lan, P.; Wang, T. The Role of Immune Cells in the Pathogenesis of Idiopathic Pulmonary Fibrosis. Medicina 2023, 59, 1984. [Google Scholar] [CrossRef]
  26. Barnett, J.L.; Maher, T.M.; Quint, J.K.; Adamson, A.; Wu, Z.; Smith, D.J.F.; Rawal, B.; Nair, A.; Walsh, S.L.F.; Desai, S.R.; et al. Combination of BAL and Computed Tomography Differentiates Progressive and Non-progressive Fibrotic Lung Diseases. Am. J. Respir. Crit. Care Med. 2023, 208, 975–982. [Google Scholar] [CrossRef]
  27. Hirasawa, Y.; Nakada, T.-A.; Shimazui, T.; Abe, M.; Isaka, Y.; Sakayori, M.; Suzuki, K.; Yoshioka, K.; Kawasaki, T.; Terada, J.; et al. Prognostic value of lymphocyte counts in bronchoalveolar lavage fluid in patients with acute respiratory failure: A retrospective cohort study. J. Intensive Care 2021, 9, 21. [Google Scholar] [CrossRef]
  28. Kono, M.; Miyashita, K.; Hirama, R.; Oshima, Y.; Takeda, K.; Mochizuka, Y.; Tsutsumi, A.; Miwa, H.; Miki, Y.; Hashimoto, D.; et al. Prognostic significance of bronchoalveolar lavage cellular analysis in patients with acute exacerbation of interstitial lung disease. Respir. Med. 2021, 186, 106534. [Google Scholar] [CrossRef]
  29. Finnerty, J.P.; Ponnuswamy, A.; Dutta, P.; Abdelaziz, A.; Kamil, H. Efficacy of antifibrotic drugs, nintedanib and pirfenidone, in treatment of progressive pulmonary fibrosis in both idiopathic pulmonary fibrosis (IPF) and non-IPF: A systematic review and meta-analysis. BMC Pulm. Med. 2021, 21, 411. [Google Scholar] [CrossRef]
  30. Collins, B.F.; Raghu, G. Antifibrotic therapy for fibrotic lung disease beyond idiopathic pulmonary fibrosis. Eur. Respir. Rev. 2019, 28, 190022. [Google Scholar] [CrossRef]
  31. Vasco-Mogorrón, M.A.; Campillo, J.A.; Periago, A.; Cabañas, V.; Berenguer, M.; García-Garay, M.C.; Gimeno, L.; Soto-Ramírez, M.F.; Martínez-Hernández, M.D.; Muro, M.; et al. Blood-based risk stratification for pre-malignant and symptomatic plasma cell neoplasms to improve patient management. Am. J. Cancer Res. 2021, 11, 2736–2753. [Google Scholar] [PubMed]
  32. Meyer, K.C.; Raghu, G.; Baughman, R.P.; Brown, K.K.; Costabel, U.; du Bois, R.M.; Drent, M.; Haslam, P.L.; Kim, D.S.; Nagai, S.; et al. An Official American Thoracic Society Clinical Practice Guideline: The Clinical Utility of Bronchoalveolar Lavage Cellular Analysis in Interstitial Lung Disease. Am. J. Respir. Crit. Care Med. 2012, 185, 1004–1014. [Google Scholar] [CrossRef] [PubMed]
  33. Travis, W.D.; Costabel, U.; Hansell, D.M.; King, T.E., Jr.; Lynch, D.A.; Nicholson, A.G.; Ryerson, C.J.; Ryu, J.H.; Selman, M.; Wells, A.U.; et al. An official American Thoracic Society/European Respiratory Society statement: Update of the international multidisciplinary classification of the idiopathic interstitial pneumonias. Am. J. Respir. Crit. Care Med. 2013, 188, 733–748. [Google Scholar] [CrossRef]
  34. van den Bosch, L.; Luppi, F.; Ferrara, G.; Mura, M. Immunomodulatory treatment of interstitial lung disease. Ther. Adv. Respir. Dis. 2022, 16, 17534666221117002. [Google Scholar] [CrossRef]
  35. Maher, T.M.; Strek, M.E. Antifibrotic therapy for idiopathic pulmonary fibrosis: Time to treat. Respir. Res. 2019, 20, 205. [Google Scholar] [CrossRef]
  36. Zhang, Y.; Wang, J. Cellular and Molecular Mechanisms in Idiopathic Pulmonary Fibrosis. Adv. Respir. Med. 2023, 91, 26–48. [Google Scholar] [CrossRef]
  37. Sobiecka, M.; Szturmowicz, M.; Lewandowska, K.B.; Barańska, I.; Zimna, K.; Łyżwa, E.; Dybowska, M.; Langfort, R.; Radwan-Röhrenschef, P.; Roży, A.; et al. Bronchoalveolar Lavage Cell Count and Lymphocytosis Are the Important Discriminators between Fibrotic Hypersensitivity Pneumonitis and Idiopathic Pulmonary Fibrosis. Diagnostics 2023, 13, 935. [Google Scholar] [CrossRef]
  38. Silver, J.S.; Kearley, J.; Copenhaver, A.M.; Sanden, C.; Mori, M.; Yu, L.; Pritchard, G.H.; Berlin, A.A.; Hunter, C.A.; Bowler, R.; et al. Inflammatory triggers associated with exacerbations of COPD orchestrate plasticity of group 2 innate lymphoid cells in the lungs. Nat. Immunol. 2016, 17, 626–635. [Google Scholar] [CrossRef]
  39. Newton, C.A.; Batra, K.; Torrealba, J.; Kozlitina, J.; Glazer, C.S.; Aravena, C.; Meyer, K.; Raghu, G.; Collard, H.R.; Garcia, C.K. Telomere-related lung fibrosis is diagnostically heterogeneous but uniformly progressive. Eur. Respir. J. 2016, 48, 1710–1720. [Google Scholar] [CrossRef]
  40. Yamagata, A.; Arita, M.; Tachibana, H.; Tokioka, F.; Sugimoto, C.; Sumikawa, H.; Tanaka, T.; Yasui, H.; Fujisawa, T.; Nakamura, Y.; et al. Impact of bronchoalveolar lavage lymphocytosis on the effects of anti-inflammatory therapy in idiopathic non-specific interstitial pneumonia, idiopathic pleuroparenchymal fibroelastosis, and unclassifiable idiopathic interstitial pneumonia. Respir. Res. 2021, 22, 115. [Google Scholar] [CrossRef]
Biomedicines 12 02439 g001

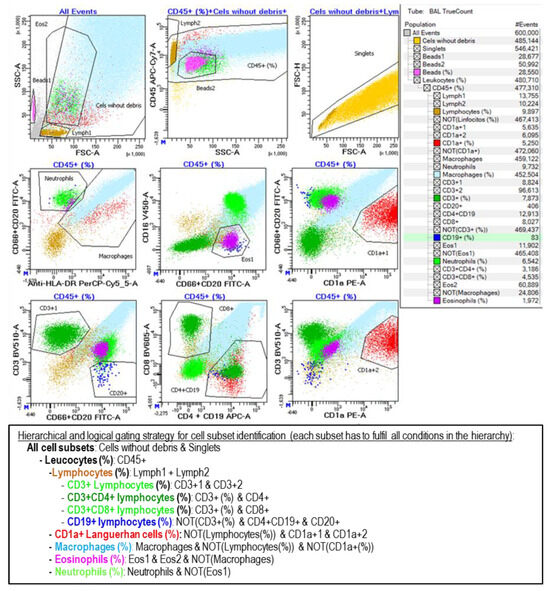

Figure 1. Flow cytometry analysis of the leukocyte subsets contained in BAL samples. Cell subsets were selected and colored as follows: lymphocytes in light brown (CD45++ SSClow), macrophages in cyan (DR+ SSHigh), neutrophils in light green (CD66+ CD16+ DR−), eosinophils in magenta (CD16− CD66dim), Langerhans cells in red (CD1a+), T lymphocytes in dark green (CD3+), and B lymphocytes in dark blue (CD19+ CD20+). Additionally, the CD3+CD4+ and CD3+CD8+ T subpopulations were detected. Likewise, the beads contained in the TrueCount tube were identified with a pink color, which was used to calculate the absolute cell count per microliter of the sample. Analysis gates were combined hierarchically and logically as shown on the right side and described at the bottom of the figure.
Figure 1. Flow cytometry analysis of the leukocyte subsets contained in BAL samples. Cell subsets were selected and colored as follows: lymphocytes in light brown (CD45++ SSClow), macrophages in cyan (DR+ SSHigh), neutrophils in light green (CD66+ CD16+ DR−), eosinophils in magenta (CD16− CD66dim), Langerhans cells in red (CD1a+), T lymphocytes in dark green (CD3+), and B lymphocytes in dark blue (CD19+ CD20+). Additionally, the CD3+CD4+ and CD3+CD8+ T subpopulations were detected. Likewise, the beads contained in the TrueCount tube were identified with a pink color, which was used to calculate the absolute cell count per microliter of the sample. Analysis gates were combined hierarchically and logically as shown on the right side and described at the bottom of the figure.
Biomedicines 12 02439 g001
Biomedicines 12 02439 g002

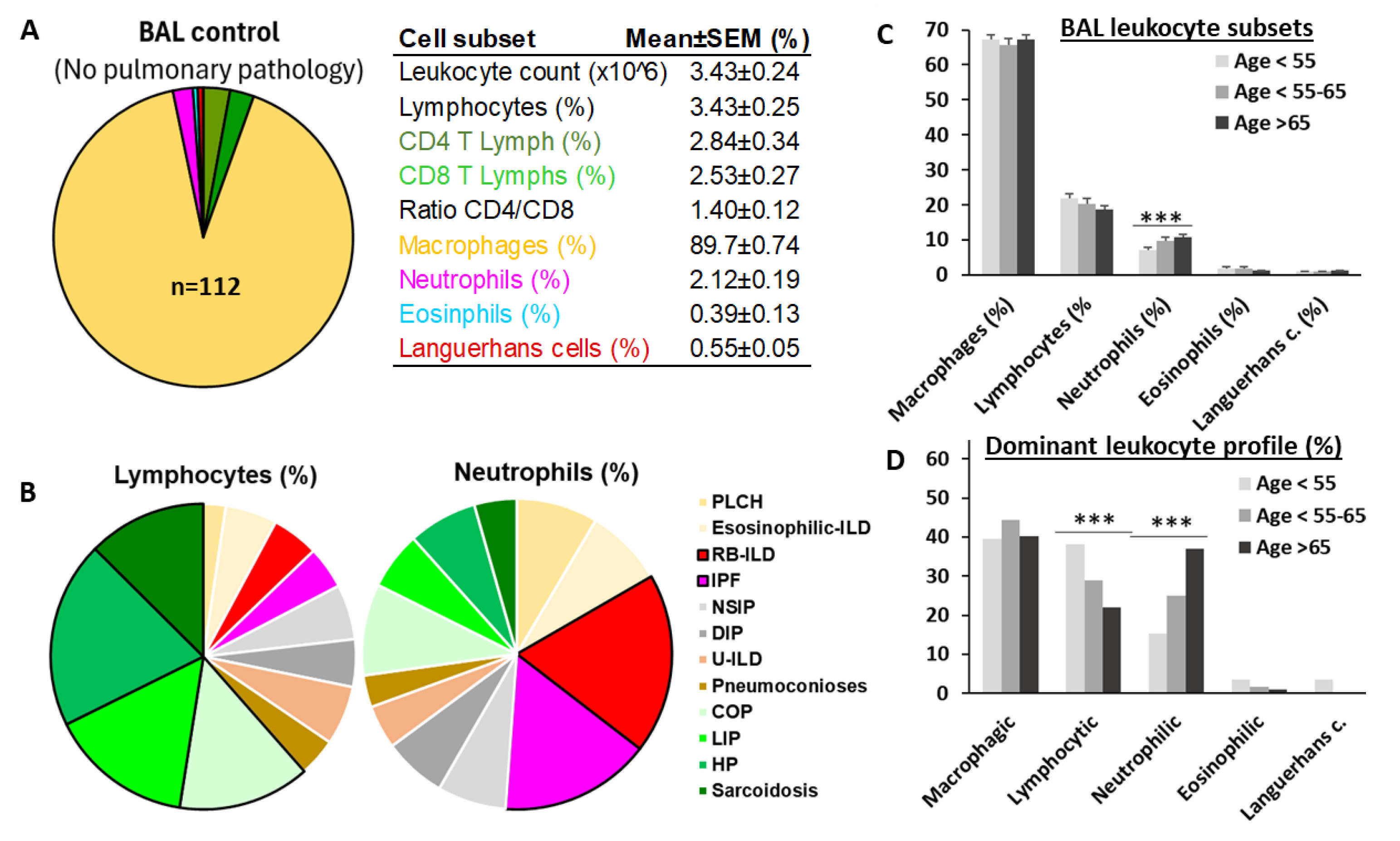

Figure 2. Lymphocytic ILDs decrease and neutrophilic ILDs increase with aging. (A) Mean values of leukocyte subset in bronchoalveolar lavage (BAL) of individuals without pulmonary pathology; (B) mean BAL lymphocyte and neutrophil values in patients with different types of interstitial lung disease (ILD); (C) mean values of macrophages, lymphocytes, neutrophils, eosinophils, and CD1a+ Langerhans cells in the BAL of total ILD patients according to age, at <55, 55–65, and >65 years; and (D) proportion of patients with lymphocytic (lymphocytes > 20%), neutrophilic (neutrophils > 10%), eosinophilic (eosinophils > 3%), and Langerhans cells (>1.5%) profiles, for patients aged <55, 55–65, and >65. ***, indicate p < 0.001 in the ANOVA test.
Figure 2. Lymphocytic ILDs decrease and neutrophilic ILDs increase with aging. (A) Mean values of leukocyte subset in bronchoalveolar lavage (BAL) of individuals without pulmonary pathology; (B) mean BAL lymphocyte and neutrophil values in patients with different types of interstitial lung disease (ILD); (C) mean values of macrophages, lymphocytes, neutrophils, eosinophils, and CD1a+ Langerhans cells in the BAL of total ILD patients according to age, at <55, 55–65, and >65 years; and (D) proportion of patients with lymphocytic (lymphocytes > 20%), neutrophilic (neutrophils > 10%), eosinophilic (eosinophils > 3%), and Langerhans cells (>1.5%) profiles, for patients aged <55, 55–65, and >65. ***, indicate p < 0.001 in the ANOVA test.
Biomedicines 12 02439 g002
Biomedicines 12 02439 g003

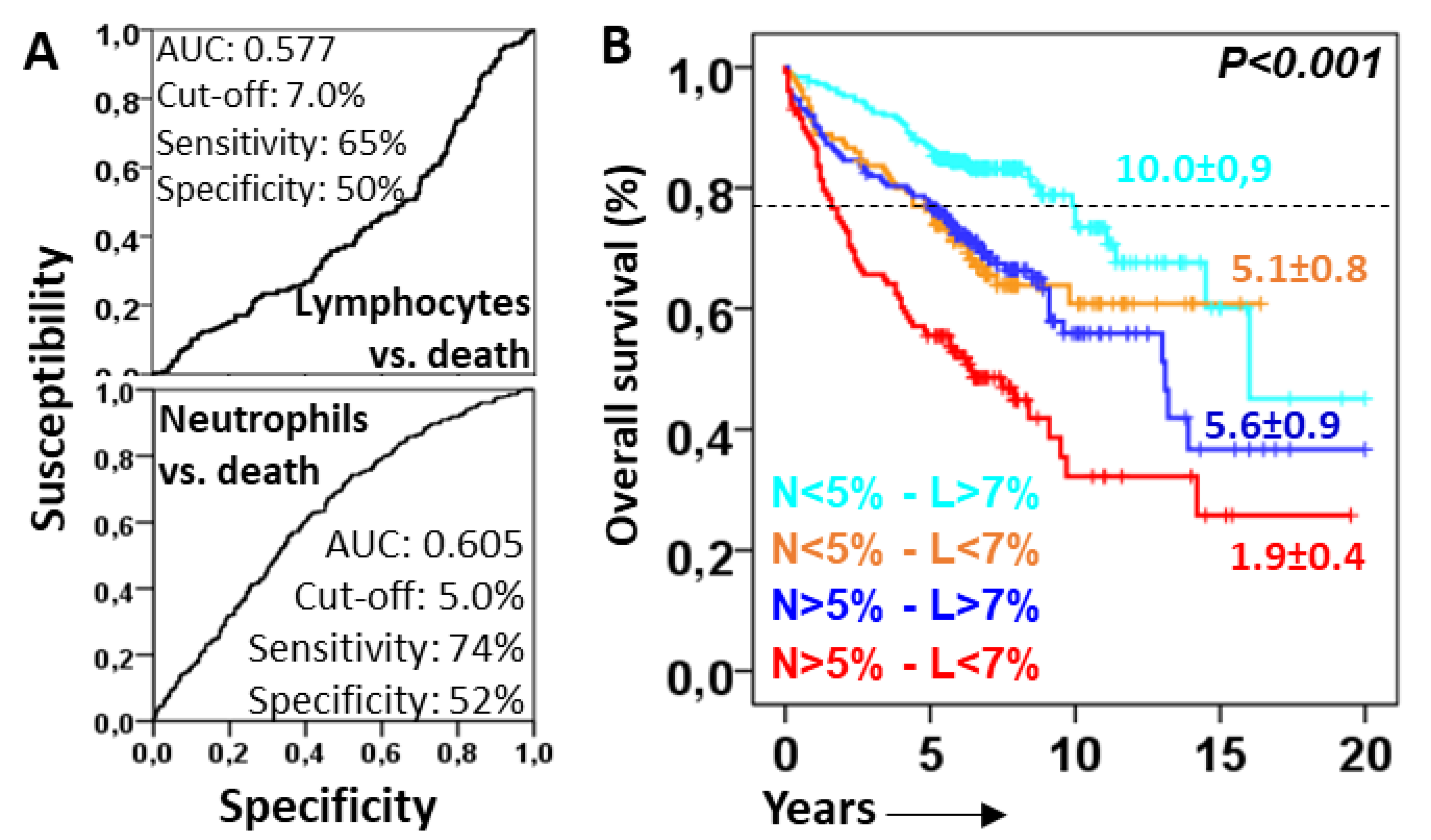

Figure 3. Lymphocytes protect from the deleterious effect of lung-infiltrating neutrophils. (A) Receiver operating characteristic curve (ROC) of lymphocytes and neutrophils related to overall survival (OS). Area under the curve (AUC) cut-offs with the highest sensitivity and specificity are shown; (B) Kaplan–Meier and Log-Rank tests for the OS of ILD patients according to the combinations of lymphocytes (above or below 7%) and neutrophils (above or below 5%). The 75th percentile OS is shown for each case.
Figure 3. Lymphocytes protect from the deleterious effect of lung-infiltrating neutrophils. (A) Receiver operating characteristic curve (ROC) of lymphocytes and neutrophils related to overall survival (OS). Area under the curve (AUC) cut-offs with the highest sensitivity and specificity are shown; (B) Kaplan–Meier and Log-Rank tests for the OS of ILD patients according to the combinations of lymphocytes (above or below 7%) and neutrophils (above or below 5%). The 75th percentile OS is shown for each case.
Biomedicines 12 02439 g003
Biomedicines 12 02439 g004

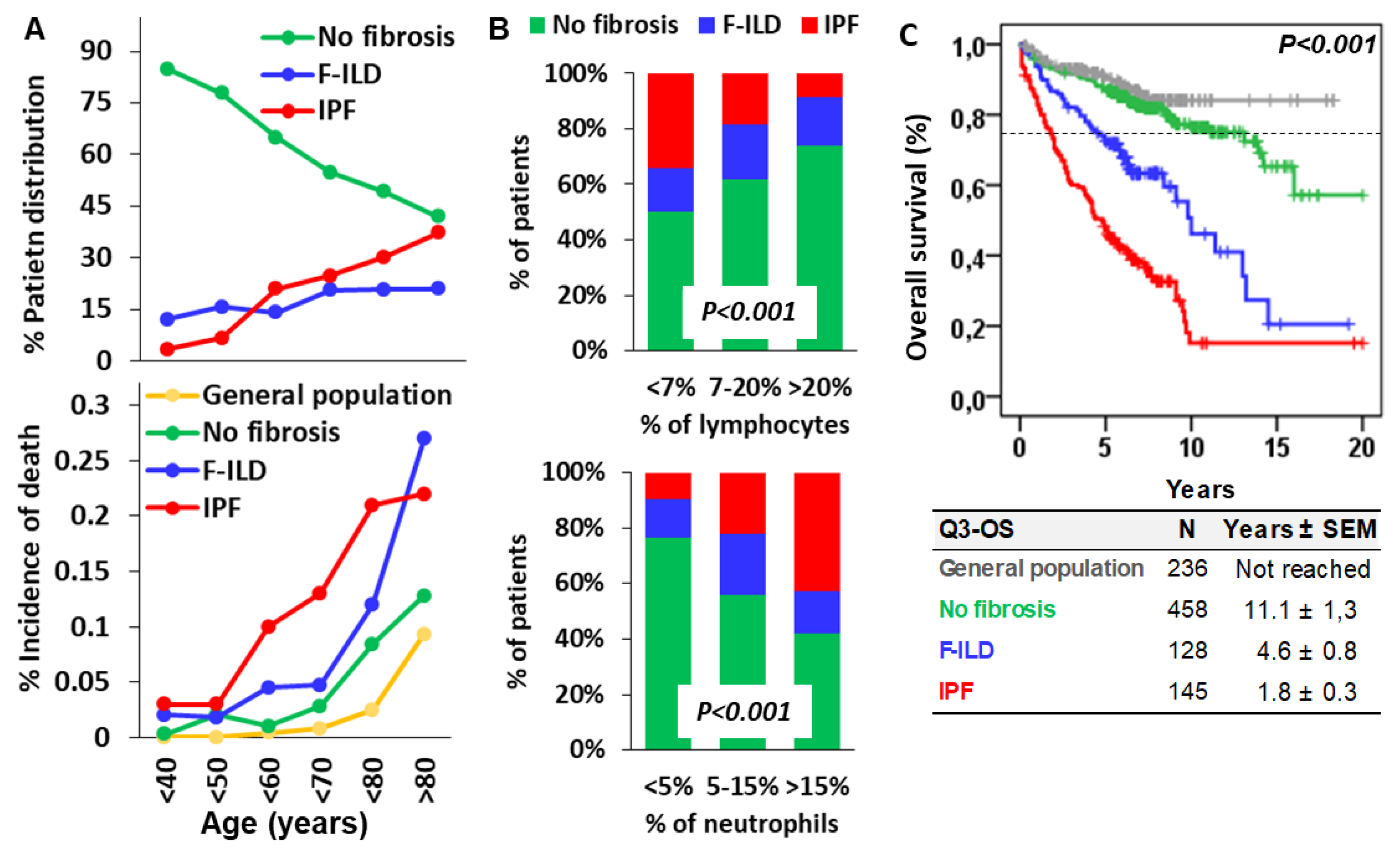

Figure 4. Incidence of fibrotic ILD (F-ILD), idiopathic pulmonary fibrosis (IPF), and death according to the age and the counts of lymphocytes and neutrophils in the BAL of patients. (A) Incidence of F-ILD, IPF, and death (estimated as the percentage of the sum of deaths divided by the sum of follow-up times of patients) according to the age of ILD patients; (B) incidence of F-ILD and IPF in patients according to the counts of lymphocytes (<7%, 7–20%, or >20%) and neutrophils (<5%, 5–15%, or >15%) in the BAL at diagnosis. p < 0.001 in the Chi-square test; and (C) Kaplan–Meier and Log-Rank tests for overall survival (OS) of the general population, ILD patients without fibrosis, and F-ILD and IPF patients. Pulmonary fibrosis was computed with the presence of reticular changes, traction bronchiectasis, and honeycombing in the radiological study. The 75th percentile OS (Q3–OS) is shown for each case.
Figure 4. Incidence of fibrotic ILD (F-ILD), idiopathic pulmonary fibrosis (IPF), and death according to the age and the counts of lymphocytes and neutrophils in the BAL of patients. (A) Incidence of F-ILD, IPF, and death (estimated as the percentage of the sum of deaths divided by the sum of follow-up times of patients) according to the age of ILD patients; (B) incidence of F-ILD and IPF in patients according to the counts of lymphocytes (<7%, 7–20%, or >20%) and neutrophils (<5%, 5–15%, or >15%) in the BAL at diagnosis. p < 0.001 in the Chi-square test; and (C) Kaplan–Meier and Log-Rank tests for overall survival (OS) of the general population, ILD patients without fibrosis, and F-ILD and IPF patients. Pulmonary fibrosis was computed with the presence of reticular changes, traction bronchiectasis, and honeycombing in the radiological study. The 75th percentile OS (Q3–OS) is shown for each case.
Biomedicines 12 02439 g004
Biomedicines 12 02439 g005
Figure 5. Lymphocytes counteract neutrophil-promoted idiopathic pulmonary fibrosis (IPF) during aging. (A) Incidence of F-ILD and IPF according to the age of ILD patients and the combined counts of neutrophils (>5%) and lymphocytes (>7%) in the BAL; (B) incidence of F-ILD and IPF in ILD patients according to the combined counts of neutrophils (<5%, 5–15%, or >15%) and lymphocytes (<7%, 7–20%, or >20%) in the BAL of ILD patients at diagnosis. Pulmonary fibrosis was computed with the presence of reticular changes, traction bronchiectasis, and honeycombing in the radiological study p estimated using the Chi-square test. Dashed lines indicate the mean incidence of fibrosis in total patients.
Figure 5. Lymphocytes counteract neutrophil-promoted idiopathic pulmonary fibrosis (IPF) during aging. (A) Incidence of F-ILD and IPF according to the age of ILD patients and the combined counts of neutrophils (>5%) and lymphocytes (>7%) in the BAL; (B) incidence of F-ILD and IPF in ILD patients according to the combined counts of neutrophils (<5%, 5–15%, or >15%) and lymphocytes (<7%, 7–20%, or >20%) in the BAL of ILD patients at diagnosis. Pulmonary fibrosis was computed with the presence of reticular changes, traction bronchiectasis, and honeycombing in the radiological study p estimated using the Chi-square test. Dashed lines indicate the mean incidence of fibrosis in total patients.
Biomedicines 12 02439 g005
Biomedicines 12 02439 g006

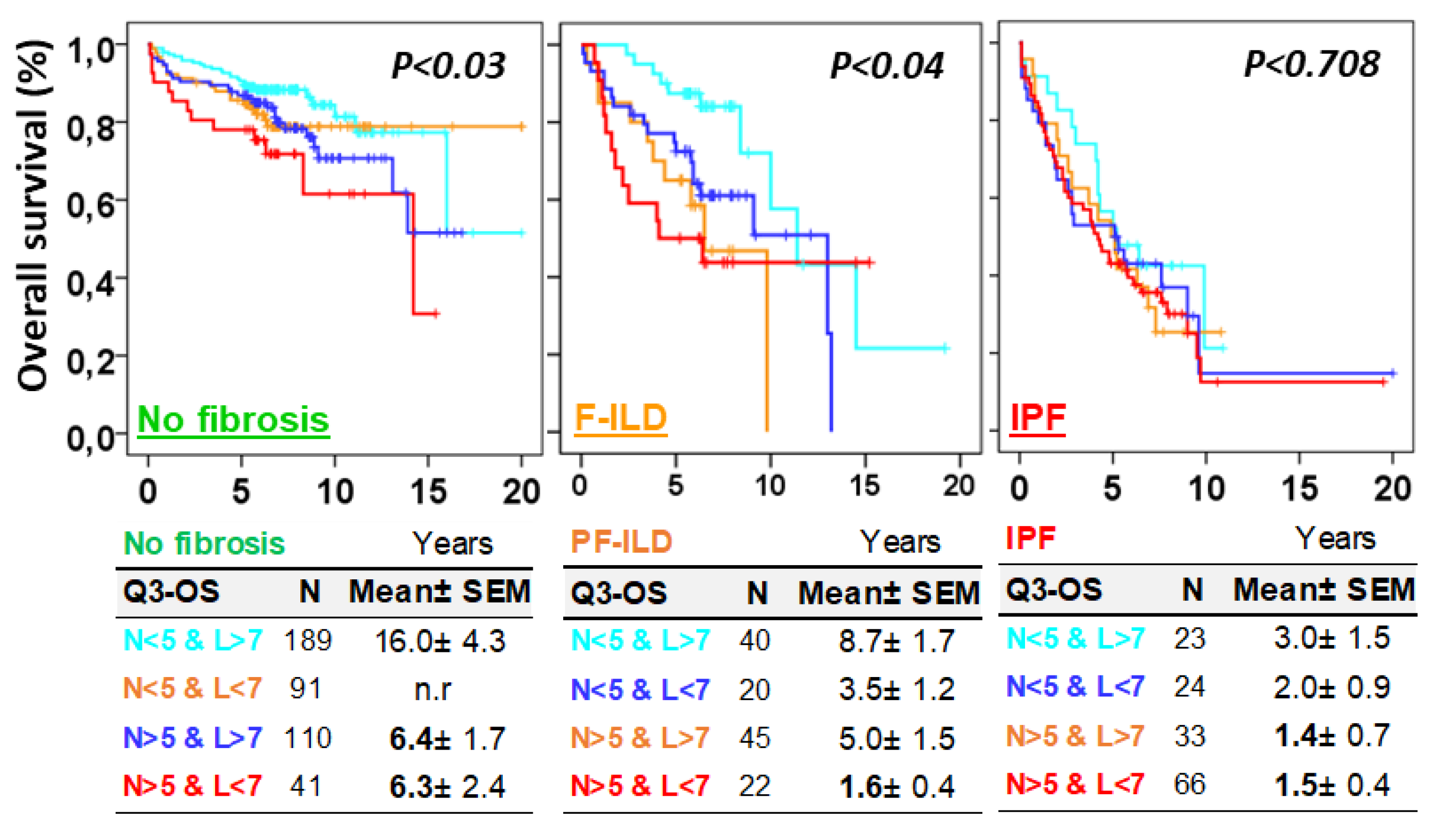

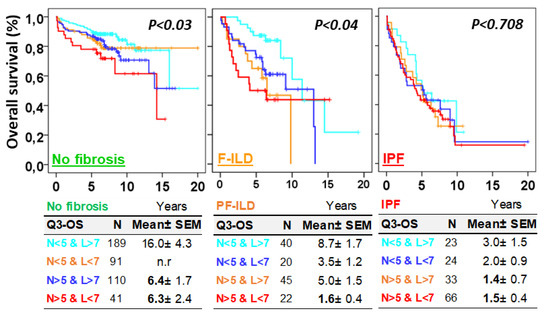

Figure 6. Neutrophil and lymphocyte counts were associated with the overall survival (OS) of ILD patients without fibrosis and with pulmonary fibrosis associated with ILDs (F-ILDs), but not with the OS of patients with idiopathic pulmonary fibrosis (IPF). Kaplan–Meier and Log-Rank tests for the OS of ILD patients according to the combinations of lymphocytes (above or below 7%) and neutrophils (above or below 5%) and the type of fibrotic process (F-ILD or IPF). Pulmonary fibrosis was computed with the presence of reticular changes, traction bronchiectasis, and honeycombing in the radiological study.
Figure 6. Neutrophil and lymphocyte counts were associated with the overall survival (OS) of ILD patients without fibrosis and with pulmonary fibrosis associated with ILDs (F-ILDs), but not with the OS of patients with idiopathic pulmonary fibrosis (IPF). Kaplan–Meier and Log-Rank tests for the OS of ILD patients according to the combinations of lymphocytes (above or below 7%) and neutrophils (above or below 5%) and the type of fibrotic process (F-ILD or IPF). Pulmonary fibrosis was computed with the presence of reticular changes, traction bronchiectasis, and honeycombing in the radiological study.
Biomedicines 12 02439 g006
Biomedicines 12 02439 g007

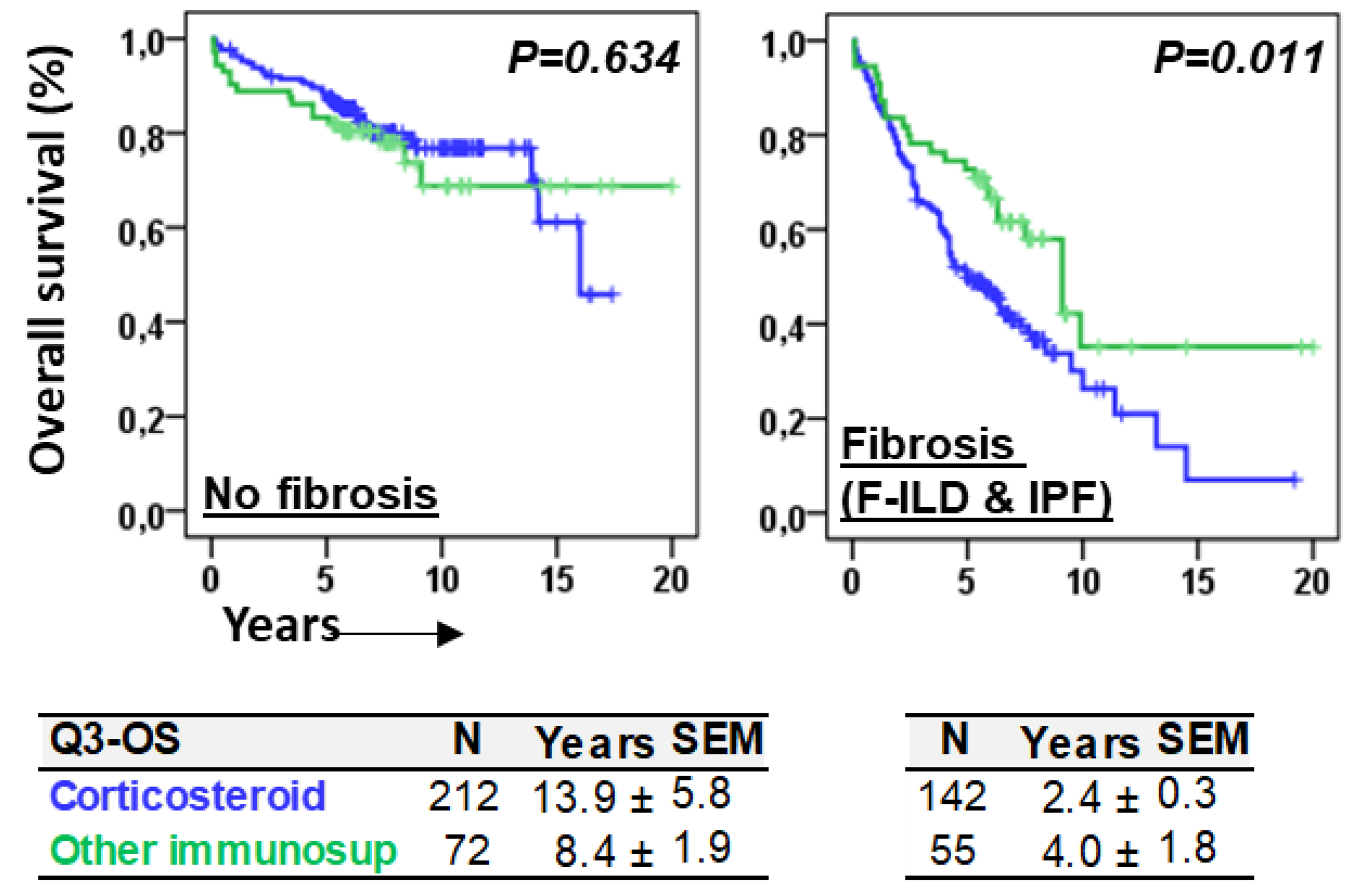

Figure 7. Immunomodulating therapies were differentially associated with overall survival in patients with or without fibrosis. Kaplan–Meier and Log-Rank tests for the overall survival (OS) of ILD patients according to the type of immunomodulatory treatment, corticosteroids vs. other immunosuppressants (rituximab, azathioprine, mycophenolate mofetil, cyclophosphamide, or tacrolimus), and the presence of fibrosis. The 75th percentile of the OS (Q3–OS) is shown for each case.
Figure 7. Immunomodulating therapies were differentially associated with overall survival in patients with or without fibrosis. Kaplan–Meier and Log-Rank tests for the overall survival (OS) of ILD patients according to the type of immunomodulatory treatment, corticosteroids vs. other immunosuppressants (rituximab, azathioprine, mycophenolate mofetil, cyclophosphamide, or tacrolimus), and the presence of fibrosis. The 75th percentile of the OS (Q3–OS) is shown for each case.
Biomedicines 12 02439 g007
Table 1. Biological, clinical, and therapeutic characteristics of patient and control groups.
Table 1. Biological, clinical, and therapeutic characteristics of patient and control groups.
Patients (n)Sex
(% Man)		Age
(Mean ± SD)		Fibrosis 1
n (%)		Incidence of Death 2Treatments (%) 3
NTICSCOther
Control groups 34353.2%61.2 ± 13.5 0.023
    General population 424353.1%67.9 ± 12.3 0.021
    BAL control 511252.70%53.5 ± 16.6 0.027
Idiopathic pulmonary fibrosis (IPF)14575.90%66.4 ± 10.9145 (100%)0.14736315127
Other interstitial lung diseases (ILDs)56154.60%57.3 ± 17.1125 (22.3%)0.0351899317799
  Sarcoidosis8247.60%55.6 ± 14.816 (19.5%)0.01628113112
  Hypersensitivity pneumonitis (HP)4854.20%49.7 ± 17.615 (28.8%)0.032613226
  Organized cryptogenic pneumonia (COP)4443.20%62.3 ± 17.48 (18.6%)0.04884239
  Lymphocytic interstitial pneumonia (LIP)3764.90%53.2 ± 15.93 (7.9%)0.02518496
  Respiratory bronchiolitis ILD (RB-ILD)2540.0%53.3 ± 22.82 (8%)0.0299592
  Desquamative interstitial pneumonia (DIP)3551.40%54.4 ± 20.82 (5.6%)0.03516586
  Nonspecific interstitial pneumonia (NSIP) 615649.40%59.3 ± 15.552 (33.8%)0.04448184347
  Pneumoconiosis2796.3%56.5 ± 16.05 (19.2%)0.05211861
  Pulmonary Langerhans c. histiocytosis (PLCH)966.7%36.7 ± 15.81 (11.1%)0.0336111
  Eosinophilic ILD1776.50%51.2 ± 22.71 (5.9%)0.03003131
  Unclassifiable ILD (U-ILD)8060.0%61.3 ± 12.420 (25%)0.0383921128
1 Pulmonary fibrosis was computed with the presence of reticular changes, traction bronchiectasis, and honeycombing in the radiological study. 2 Number of deaths divided by the sum of follow-up years of patients in each group. 3 NT: no treatment; IC: inhaled corticoid; SC: systemic corticoid. Other immunosuppressants: rituximab, azathioprine, mycophenolate mofetil, cyclophosphamide, or tacrolimus. 4 Patients with monoclonal gammopathy with a good prognosis (without cytogenetic alterations or tumor circulating plasma cells in the peripheral blood). 5 BAL was performed for etiological affiliation but with no evident ILD pathology during follow-up. 6 Patients with connective tissue disease–ILD were included mostly in this group.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Novoa-Bolivar, E.M.; Ros, J.A.; Pérez-Fernández, S.; Campillo, J.A.; López-Hernández, R.; González-López, R.; Otalora-Alcaraz, A.; Ortuño-Hernández, C.; Gimeno, L.; Ruiz-Lorente, I.; et al. Neutrophils and Lymphocytes: Yin and Yang of Lung Fibrosis and Patient Outcome in Diffuse Interstitial Lung Diseases. Biomedicines 2024, 12, 2439. https://doi.org/10.3390/biomedicines12112439

AMA Style

Novoa-Bolivar EM, Ros JA, Pérez-Fernández S, Campillo JA, López-Hernández R, González-López R, Otalora-Alcaraz A, Ortuño-Hernández C, Gimeno L, Ruiz-Lorente I, et al. Neutrophils and Lymphocytes: Yin and Yang of Lung Fibrosis and Patient Outcome in Diffuse Interstitial Lung Diseases. Biomedicines. 2024; 12(11):2439. https://doi.org/10.3390/biomedicines12112439

Chicago/Turabian Style

Novoa-Bolivar, Erika M., José A. Ros, Sonia Pérez-Fernández, José A. Campillo, Ruth López-Hernández, Rosana González-López, Almudena Otalora-Alcaraz, Cristina Ortuño-Hernández, Lourdes Gimeno, Inmaculada Ruiz-Lorente, and et al. 2024. "Neutrophils and Lymphocytes: Yin and Yang of Lung Fibrosis and Patient Outcome in Diffuse Interstitial Lung Diseases" Biomedicines 12, no. 11: 2439. https://doi.org/10.3390/biomedicines12112439

APA Style

Novoa-Bolivar, E. M., Ros, J. A., Pérez-Fernández, S., Campillo, J. A., López-Hernández, R., González-López, R., Otalora-Alcaraz, A., Ortuño-Hernández, C., Gimeno, L., Ruiz-Lorente, I., Ceballos-Francisco, D., Muro, M., Martínez-Camblor, P., & Minguela, A. (2024). Neutrophils and Lymphocytes: Yin and Yang of Lung Fibrosis and Patient Outcome in Diffuse Interstitial Lung Diseases. Biomedicines, 12(11), 2439. https://doi.org/10.3390/biomedicines12112439

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
