Article

The Safe Values of Quantitative Perfusion Parameters of ICG Angiography Based on Tissue Oxygenation of Hyperspectral Imaging for Laparoscopic Colorectal Surgery: A Prospective Observational Study

by
Gyung Mo Son
1,2,*,
Armaan M. Nazir
3,
Mi Sook Yun
2,
In Young Lee
2,
Sun Bin Im
4,
Jae Yeong Kwak
5,
Sang-Ho Park
5,
Kwang-Ryul Baek
5 and
Ines Gockel
6
1
Department of Surgery, Pusan National University Yangsan Hospital, Pusan National University School of Medicine, Yangsan 50612, Republic of Korea
2
Research Institute for Convergence of Biomedical Science and Technology, Pusan National University Yangsan Hospital, Yangsan 50612, Republic of Korea
3
School of Medicine, Royal College of Surgeons in Ireland, University of Medicine and Health Sciences, D02 YN77 Dublin, Ireland
4
Department of Medicine, Pusan National University School of Medicine, Yangsan 50612, Republic of Korea
5
Department of Electronics Engineering, Pusan National University, Busan 46241, Republic of Korea
6
Department of Visceral, Transplantation, Thoracic and Vascular Surgery, University Hospital Leipzig, 04103 Leipzig, Germany
*
Author to whom correspondence should be addressed.
Biomedicines 2023, 11(7), 2029; https://doi.org/10.3390/biomedicines11072029
Submission received: 20 June 2023 / Revised: 13 July 2023 / Accepted: 14 July 2023 / Published: 19 July 2023
(This article belongs to the Special Issue Colorectal Adenocarcinoma: From Pathophysiology to Novel Therapeutic Approaches)
Browse Figures
Review Reports Versions Notes

Abstract

:
Background: Safe values for quantitative perfusion parameters of indocyanine green (ICG) angiography have not been fully defined, and interpretation remains at the surgeon’s discretion. This prospective observational study aimed to establish the safe values for the quantitative perfusion parameters by comparing tissue oxygenation levels from HSI images in laparoscopic colorectal surgery. Methods: ICG angiography was performed using a laparoscopic near-infrared (NIR) camera system with ICG diluted in 10 mL of distilled water. For quantitative perfusion parameters, the changes in fluorescence intensity with perfusion times were analyzed to plot a time–fluorescence intensity graph. To assess real-time tissue oxygen saturation (StO2) in the colon, the TIVITA® Tissue System was utilized for hyperspectral imaging (HSI) acquisition. The StO2 levels were compared with the quantitative perfusion parameters derived from ICG angiography at corresponding points to define the safe range of ICG parameters reflecting good tissue oxygenation. Results: In the regression analysis, T1/2MAX, TMAX, slope, and NIR perfusion index were correlated with tissue oxygen saturation. Using this regression model, the cutoff values of quantitative perfusion parameters were calculated as T1/2MAX ≤ 10 s, TMAX ≤ 30 s, slope ≥ 5, and NIR perfusion index ≥50, which best reflected colon StO2 higher than 60%. Diagnostic values were analyzed to predict colon StO2 of 60% or more, and the ICG perfusion parameters T1/2MAX, TMAX, and perfusion TR showed high sensitivity values of 97% or more, indicating their ability to correctly identify cases with acceptable StO2. Conclusion: The safe values for quantitative perfusion parameters derived from ICG angiography were T1/2MAX ≤ 10 s and TMAX ≤ 30 s, which were associated with colon tissue oxygenation levels higher than 60% in the laparoscopic colorectal surgery.

1. Introduction

Indocyanine green (ICG) angiography can be used to assess colonic perfusion status and predict whether sufficient blood flow can be delivered to the tissue through the collateral circuit after vascular ligation during colorectal surgery [1]. If the blood flow in the colon segment is poor, the risk of anastomotic complications could increase after surgery [2]. Using intraoperative perfusion assessments, surgeons can identify poorly perfused or ischemic regions and decide to adjust the transection line to avoid poorly perfused areas at the anastomosis site to optimize surgical outcomes in colorectal surgery [3].
The introduction of ICG fluorescence imaging has provided an objective assessment of bowel perfusion in the surgical field [4]. However, quantitative analysis of ICG perfusion parameters still requires clinical validation and standardization. Safe values for quantitative perfusion parameters reflecting good perfusion have not been fully defined, and interpretation of the data remains at the surgeon’s discretion. Furthermore, the range of quantitative perfusion parameters obtained from ICG angiography varies depending on the fluorescence camera system, angiography protocol, external conditions, and the patient’s characteristics [5].
Hyperspectral imaging (HSI) is a technique that can be used to analyze wavelengths of light and provide detailed information regarding tissue oxygenation levels. By analyzing the spectral response of tissues across a range of wavelengths, non-invasive and real-time assessment of tissue oxygenation can be achieved with a short wait time of around 15 s. This technology has potential applications in a range of medical fields, including colorectal surgery [6].
By analyzing the ICG perfusion parameters in conjunction with tissue oxygenation levels obtained from HSI image, “safe values” for the ICG perfusion parameters could be established [7,8,9]. These safe values will serve as standardized guidelines, enabling clinicians to interpret the quantitative perfusion parameters of ICG angiography more effectively and consistently when assessing the perfusion status of the colon. This standardized perfusion assessment would enhance the clinical utility of ICG angiography for assessing colon perfusion, potentially leading to more informed surgical decision making and improved clinical outcomes [10].
This prospective observational study aimed to establish the safe values for the quantitative perfusion parameters of ICG angiography by comparing tissue oxygenation levels from HSI images in the laparoscopic colorectal surgery.

2. Materials and Methods

2.1. Patients

This prospective observational study included 68 patients with colorectal cancer between January 2021 and December 2022. The inclusion criteria were patients aged 19–80 years who had sigmoid colon or rectal cancer and underwent laparoscopic surgery with or without diverting ileostomy. The exclusion criteria were hemodynamic instability, emergency surgery, and pregnancy. All patients enrolled in the study were screened for any history of allergies or adverse effects to either the contrast agent used for computed tomography (CT) or iodine-containing drugs used to reduce the risk of cross-reaction with ICG. Written informed consent was obtained from all patients included in this study. The study was conducted after receiving approval from the Institutional Review Board of the Pusan National University Yangsan Hospital.

2.2. ICG Angiography

ICG angiography was performed using a laparoscopic near-infrared (NIR) camera system (1588 AIM camera system, Stryker, Kalamazoo, MI, USA) with ICG (25 mg, Daiichi Sankyo, Tokyo, Japan) diluted in 10 mL of distilled water. The minimum dose was 0.2 mg/kg, which was injected into the peripheral vein of the forearm. After the injection, 20 mL of normal saline was infused to flush the injection line. Colonic perfusion was monitored for 2 min using the endoscopic NIR visualization (ENV) mode, and a fluorescence perfusion video was obtained. For quantitative perfusion parameters, the changes in fluorescence intensity with perfusion times were analyzed to plot a time–fluorescence intensity graph using ICG Analyzer Program 8.0 (designed by the Microprocessor Application Laboratory, Pusan National University, Busan, Republic of Korea) [11]. The perfusion time factors were calculated as TMAX (time from first fluorescence increase to maximum), T1/2MAX (time to reach half of the maximum), and perfusion TR (time ratio, T1/2MAX/TMAX). The fluorescence intensity factors were FMAX (maximal intensity) and slope (calculated as ΔF/ΔT = FMAX/TMAX) (Figure 1). During ICG angiography, a standardized protocol was applied to minimize the impact of external factors and improve the accuracy and reliability of the measurements of fluorescence intensity. In this study, the surrounding room lights were turned off, and ICG-specific ENV modes with a laser source were used. Keeping a constant distance of 4–5 cm from the target tissue to the NIR camera lens was also Important in order to maintain consistent fluorescence imaging and reduce variability when measuring fluorescence intensity.

2.3. Hyperspectral Imaging (HSI)

To assess real-time tissue oxygen saturation (StO2) in the colon, the TIVITA® Tissue System (Diaspective Vision GmbH, Am Salzhaff, Germany) was utilized for HSI acquisition (Figure 1). HSI is a technique that captures images at multiple wavelengths, allowing for the analysis of the spectral content of the image. The HSI operates in the visible to near-infrared (VNIR) regions with approximately 400–1000 nm of the electromagnetic spectrum. In the visible range (approximately 400–750 nm), light can penetrate the surface of the colon to a depth of 1 mm. NIR spectroscopy uses NIR wavelength regions (approximately 750–1000 nm) to measure the NIR perfusion index as the status of microcirculation in tissues. NIR light can penetrate tissues to a depth of 3–4 mm [6]. A hyperspectral camera captures images at multiple wavelengths, and the spectral unmixing process separates the spectral components of oxyhemoglobin and deoxyhemoglobin. By analyzing the changes in light intensity, the device can calculate the relative amount of oxygenated and deoxygenated hemoglobin, providing an estimate tissue perfusion status. The analysis of StO2 and NIR perfusion index was performed using the Automatic Data Extraction & Visualization Program 2.0 (designed by the Microprocessor Application Laboratory, Pusan National University, Busan, Republic of Korea). These levels were automatically analyzed and reconstructed as a color map on the monitor screen within 15 s (Figure 2). The system includes small red and green laser sources around the main camera lens, and the operator can adjust the camera location to overlap these two colored points, ensuring a constant distance between the camera lens and the colon around 45 cm.

2.4. Colonic Perfusion Assessment Protocol

During the laparoscopic colorectal surgery, the inferior mesenteric artery (IMA) was ligated at a high level (high ligation) or a low level with left colic artery preservation (low ligation), depending on the cancer stage and tumor location. Then, the left-sided colon was mobilized, and the proximal colon transection was prepared by mesenteric division. After transection of the distal colorectal segment with sufficient surgical resection margin, the proximal segment of the colon was extracted from the abdominal cavity through the transumbilical mini-laparotomy site. The study protocol included the use of both ICG angiography and HSI to assess colonic perfusion status. If the colonic StO2 of HSI was more than 60% and the T1/2MAX of ICG angiography was less than 10 s, it was considered to indicate good perfusion. Based on these criteria, colorectal anastomosis was performed on the planned transection line. If the colonic StO2 was less than 50% and the T1/2MAX was delayed more than 25 s, it was determined as being poor perfusion, and the transection line was moved to the proximal colon and repeated perfusion evaluations were performed. If the colonic StO2 of the changed transection line was maintained at 60% or higher and the T1/2MAX was within 25 s during the second HSI test and ICG angiography, we determined a good or intermediate perfusion status as being acceptable, and colorectal anastomosis was performed (Figure 3). The cutoff for safe StO2 to maintain the viability of the colon has been reported to be between 60% and 80% [8,12]. Therefore, the cutoff for safe colonic StO2 was set at 60% in this study.

2.5. Comparison of StO2 Levels and Quantitative Perfusion Parameters

The StO2 levels were compared with the quantitative perfusion parameters derived from ICG angiography at corresponding points to define the safe range of ICG parameters reflecting good tissue oxygenation. Five points were manually selected along the center of the proximal colon segment on the StO2 color map of the HSI image. These points, labeled 1–5, were placed from the proximal colon towards the distal end, with point 5 always positioned on top of the transection line. Colonic areas covered with mesenteric fat and colonic appendage were avoided to ensure that the points were placed entirely over areas of the colon wall to obtain more accurate StO2 measurements. For the quantitative perfusion parameters of ICG angiography, the same points on the colon segment were analyzed as those selected in the StO2 color map of the HSI image. The ICG analysis program automatically calculated the quantitative perfusion parameters at each of these points (Figure 2).

2.6. Anastomotic Complications

Postoperative complications were evaluated using the Clavien-Dindo classification system. Anastomotic complications were defined as pelvic abscess, anastomotic leakage, anastomotic dehiscence, colon ischemia, and necrosis. These complications were confirmed through CT scan and sigmoidoscopy.

2.7. Statistical Analysis

Pearson’s Chi-square or Fisher’s exact test were used to evaluate the comparison between clinical factors and perfusion status causing transection line changes and perfusion parameters are presented mean and standard deviation. To determine the safe cutoff values for the perfusion parameters of ICG angiography, a criterion of good perfusion was set based on matching colon StO2 of 60% or higher. Regression analysis was used to assess the cutoff levels of the quantitative perfusion parameters reflecting tissue StO2 from 60% to 80%. We evaluated the validity of sensitivity, specificity, positive predictive value (PPV) and negative predictive value (NPV) using cutoff values for the perfusion parameters of ICG angiography and StO2 values greater than 60%. Additionally, the area under the curve (AUC) values and confidence intervals were determined by means of receiver operating characteristic (ROC) curve analysis. Network analyses were performed and heatmaps were produced based on robust Spearman correlation (rho) measures for all collected parameters. Positive (rho < 0.2) and negative (rho < −0.2) associations are represented by blue and red lines (edges), respectively. SPSS 27.0 (Statistical Package for Social Science Version 27.0, IBM SPSS, Armonk, NY, USA) and R software (version 4.3.0, R Foundation for Statistical Computing, Vienna, Austria) was used for statistical analysis and graphic, and the significance level was two-tailed, with p < 0.05.

3. Results

Laparoscopic low anterior resection (LAR, 46 cases) and anterior resection (22 cases) were performed and diverting ileostomy (24 cases) was performed in 52.2% of the LAR patients. Intraoperative perfusion assessment identified a poor perfusion segment in six patients (8.8%), and the transection line was moved to the proximal colon (Table 1).
In the group of patients (n = 6) for whom the transection line was changed, one patient (16.7%) experienced an anastomotic leak. Primary anastomosis was performed in the remaining 62 patients, who initially had good perfusion status of the colon. Anastomosis complications occurred in four patients (6.5%), who were initially considered to have good perfusion. Therefore, five patients (7.4%) had major anastomotic complications requiring postoperative intensive treatment. Anastomotic complications included transmural ischemia (n = 1), anastomotic leak (n = 4), and delayed pelvic abscess (n = 1). Reoperation was required in two cases (3.5%), and one of them happened after the liver metastasis resection following colon surgery, iatrogenic marginal artery damage and transmural ischemia of the left colon occurred due to excessive traction of the mesentery of the transverse colon, requiring subtotal resection (n = 1) for colonic necrosis (Figure 3).
In the regression analysis, T1/2MAX, TMAX, slope, and NIR perfusion index were correlated with tissue oxygen saturation (Figure 4). Using this regression model, the cutoff values of quantitative perfusion parameters were calculated as T1/2MAX ≤ 10 s, TMAX ≤ 30 s, slope ≥ 5, and NIR perfusion index ≥ 50, which best reflected colon StO2 higher than 60% (Table 2). However, the distributions of the perfusion TR and FMAX were scattered and unpredictable to derive equation in the regression model. This non-normal distribution pattern makes it difficult to determine the suitability of the cutoff level for colon StO2 (≥60%) using the regression model. Therefore, the cutoff values of perfusion TR and FMAX were estimated considering a 95% CI range (Table 3).
The cutoff values of T1/2MAX, TMAX, perfusion TR, slope, and NIR perfusion index were significantly related with StO2 (≥60%) (Table 4). Additionally, diagnostic values were analyzed to predict colon StO2 of 60% or more, and ICG perfusion parameters as T1/2MAX and TMAX showed high sensitivity values of 97% or more, indicating their ability to correctly identify cases with acceptable StO2. However, the perfusion TR and FMAX value were limited specificity and NPV. The slope had the highest specificity and PPV to predict the acceptable tissue oxygenation (Table 5). On the ROC curve analysis, T1/2MAX, TMAX, and slope demonstrated higher area under the curve values, indicating relatively reliable predictive performance (Table 6).
Using the step-by-step analysis algorithm for quantitative ICG perfusion parameters, the prediction of tissue oxygenation was correct at 99% when both T1/2MAX and TMAX were within the safe range (Figure 5). When both T1/2MAX and TMAX were over the cutoff levels, the tissue oxygenation was significantly worse at 45.5% (p < 0.001). When only one of T1/2MAX and TMAX was within the safe range, the detecting rate of poor tissue oxygenation was 36.4% and the slope parameter was capable of accurately discriminating poor tissue oxygenation cases in these situations.
Bivariate analysis represents the correlation coefficient between the quantitative perfusion parameters of the perfusion assessment points (n = 340) and the corresponding clinical factors. Network analysis was performed using the correlation coefficients of the statistically correlated factors. The initial tissue oxygenation (StO2 < 60%) requiring transection line change demonstrated a complex correlation with several perfusion parameters, male, and old age as the critical node-forming major island. Network analysis also found complex correlations between anastomotic complications and several factors, including atherosclerotic risk score, NIR perfusion index, high ligation of IMA, old age, and preoperative chemoradiation therapy (Figure 6).

4. Discussion

The quantitative analysis for ICG angiography was based on the fluorescence intensity and perfusion time required for ICG to reach the target tissue and increase to the maximal fluorescence intensity. However, the criteria of the quantitative perfusion parameter for determining the adequacy of tissue oxygenation have not yet been clarified, and the normal range of ICG perfusion parameters obtained from quantitative analysis is not fully defined. This is because ICG perfusion parameters could be affected by various anatomical and physical conditions of patients, as well as other technical conditions such as the injection amount of ICG, fluorescence equipment, and other external conditions [5]. Tissue oxygenation levels are essential and reliable indicators of perfusion status for determining tissue viability [12]. Recently, the real-time StO2 of the colon could be measured using the HSI technique in the operating room [13]. Therefore, this study was conducted to establish a safe range of ICG perfusion parameters reflecting the adequate oxygenation level of the colon by analyzing the quantitative perfusion parameter at the point where the StO2 of the colon tissue was 60% or higher.
In this study, T1/2MAX and TMAX adequately reflected the tissue oxygenation levels of the colon. The safe ranges of T1/2MAX and TMAX for adequate StO2 (≥60%) were analyzed as being within 10 s and 30 s, respectively. In previous studies, the cutoff of T1/2MAX for predicting the risk of anastomotic complications has been suggested to be 18 s. In this study, the cutoff for predicting safe tissue StO2 (≥60%) was 10 s. However, T1/2MAX existed between 10 and 25 s at some perfusion sites where tissue StO2 was maintained above 60%. Although this was classified as an intermediate perfusion status, postoperative anastomotic complications did not occur.
Indeed, it is essential to consider various factors that can influence T1/2MAX and TMAX values, even in the colon, where adequate StO2 is maintained. In this study, prolongation of T1/2MAX and TMAX occurred even when tissue oxygenation was adequate, which occurred when the ICG dose used in the patient was insufficient, or when the patient’s systemic systolic blood pressure temporarily dropped below 70 mmHg at the time of perfusion assessment. During general anesthesia, fluctuations in cardiovascular conditions such as hypotension and vasoconstriction can compromise mesenteric blood flow and subsequently affect T1/2MAX values. Certain patient conditions, such as hypovolemia, anemia, or pre-existing vascular diseases, can also contribute to altered perfusion parameters [2]. In addition, the patient’s excessive posture change, systemic blood pressure, injected ICG volume, distance of camera to tissue, fluorescence camera system, and type of light source as Xenon, light-emitting diode (LED), or laser should be considered to interpret the ICG perfusion parameter. It is important for surgeons to interpret T1/2MAX values cautiously in conjunction with the patient’s clinical and overall hemodynamic status. While a cutoff of 10 s may indicate safe tissue oxygenation in this study, the potential confounding factors should be considered when assessing perfusion parameters. Therefore, even if T1/2MAX and TMAX are prolonged, it should be considered that other perfusion parameter and clinical factors such as the bowel color, peristalsis, and arterial pulsation for determining the perfusion status by surgeon.
A perfusion TR of 0.6, the cutoff in a previous study, was associated with anastomotic complications. However, the range of perfusion TR reflecting tissue oxygenation in this study required more careful attention. When the blood flow was insufficient, TMAX and T1/2MAX were simultaneously delayed, and the perfusion TR showed the same result as normal blood flow. Therefore, the interpretation of T1/2MAX and TMAX should be prioritized over perfusion TR. In a previous study, T1/2MAX showed the highest sensitivity, while perfusion TR showed the highest specificity to predict anastomosis complications [1]. Therefore, it is necessary to review the various perfusion parameters of ICG angiography using step by step algorithm of quantitative analysis to predict tissue oxygenation level and the risk of anastomosis complications.
FMAX is an indicator of fluorescence intensity and is the parameter most affected by external environmental factors [5]. In this study, despite the application of the standardized ICG angiography protocol, a scattered distribution was observed, and there was no correlation with tissue StO2 in the regression model. Nevertheless, the increasing slope, which simultaneously reflects perfusion time and fluorescence intensity, was significantly correlated with tissue StO2. When the ICG angiography image was obtained using an open NIR camera system, the slope was found to be the most significant perfusion factor reflecting the colonic blood flow [14]. This is presumed to be due to the difference in fluorescence light intensity between the laparoscopic and open NIR cameras. The use of several powerful LED lights in the open NIR camera can minimize the variation errors caused by external confounding factors. Intensified LED lights provide a stable and consistent source of illumination, which can result in a reliable fluorescence intensity [15]. Therefore, it is possible that the values of FMAX and slope may be underestimated in this study due to the use of a laparoscopic NIR camera, which typically uses a weak fluorescence light source within a low-caliber scope. This limitation can result in a lower recorded FMAX and potentially affect the accuracy of the slope. If future advancements in technology lead to improvements in fluorescence light intensity and the light source used in laparoscopic NIR cameras, it is likely that fluorescence intensity measurements will become more stable and reliable. This would minimize the variations caused by external confounding factors and enhance the accuracy and reproducibility of the ICG perfusion parameters.
The quantitative perfusion parameters of ICG angiography, such as perfusion time or fluorescence intensity, do not directly reflect tissue StO2. While both ICG angiography and HSI provide valuable information about tissue perfusion, they measure different aspects of tissue perfusion and are not considered interchangeable [16]. ICG angiography captures the immediate transit of the fluorescence dye through the vasculature, so the ICG perfusion parameter may not perfectly match with the tissue oxygenation status. Additionally, tissue oxygenation levels can be influenced by factors such as oxygen consumption, local metabolism, and tissue perfusion dynamics, which may not be directly reflected in ICG perfusion parameters [17,18,19]. Therefore, the measurement of tissue StO2 will be beneficial for assessing whether adequate blood flow reaches tissue microcirculation levels [20]. However, as the commercial prevalence and clinical application of HSI are quite limited to date, the StO2 of the colon is not routinely measured as part of standard diagnostic evaluations in clinical practice. Recently, laparoscopic NIR camera systems have rapidly become popular in the surgical field. Therefore, the development and validation of more accurate and reliable perfusion parameter of ICG angiography is an urgent task at present [21,22,23]. In particular, the verification of ICG perfusion parameters that reflect the appropriate oxygenation to maintain colon viability can help surgeons make critical decisions for colonic perfusion status and surgical strategy in the operating room [24]. Therefore, the strength of this study is that it compared perfusion parameters from ICG angiography to tissue oxygenation from HSI simultaneously. In this aspect, this study could provide valuable safe values of ICG perfusion parameters to predict adequate oxygen supply for colon tissue viability.
A wide range of StO2 values in the colon were reported, ranging from approximately 20% to 80% [12]. However, it is difficult to establish a definitive normal range for StO2 in the colon because of the variability in measurement methods and lack of standardized criteria for interpreting the results. Therefore, the StO2 level required for the colon viability is not precisely known. Generally, StO2 in the colon is lower than that in other parts of the body because of the presence of colonic bacteria that consume oxygen during fermentation. The range of StO2 in a healthy colon can vary depending on individual factors; however, the normal StO2 level in the colon is typically considered between 60% and 80%. The minimum StO2 level at which colonic ischemia can occur has not been well established. Some studies have suggested that the colon typically requires an StO2 level of at least 50% for adequate tissue perfusion and function [25]. Another study reported that a reduction in oxygen delivery to the colon to 50% of baseline for a persistent period could result in colonic ischemia [26]. In this study, the StO2 cutoff was set at 60% to define the safe cutoff values of the ICG perfusion parameters. Interestingly, when colon StO2 was below 50%, significant delays in T1/2MAX and TMAX were observed. Therefore, delays of T1/2MAX and TMAX outside the safe range should be considered a potential indication of compromised tissue oxygenation below 50%.

4.1. Study Limitations

This study has several limitations. First, this study was conducted in a single institution and with a small patient group. This observational study can provide valuable preliminary data, but further research with larger and more diverse patient cohorts is needed to validate and strengthen the findings. Second, discrepancies between the ICG perfusion parameter and tissue StO2 were observed at certain points of perfusion assessments. These discrepancies can arise from various external factors and limitations of each measurement technique. During the acquisition of ICG angiography, patient respiration and minute shaking on the part of the examiner could create respiration-induced motion artifacts that could affect the alignment and registration of images acquired at different points, leading to discrepancies when comparing specific points of interest between ICG angiography and the StO2 level of HSI [27]. This limitation can make it difficult to achieve a precise and accurate comparison between the same points in the ICG and HSI images. Third, the fluorescence intensity can be influenced by various external confounding factors, especially the intensity and type of light source of the NIR camera system. In this study, a laparoscopic NIR camera system equipped with a weak intensity of fluorescence and laser light source. Consequently, the cutoff values could not directly be applied to other NIR camera systems that utilize different intensity and type of fluorescence light source. Fourth, tissue oxygenation assessment did not demonstrate an effect in reducing anastomotic complications in this study. Anastomosis complications still existed even after optimizing tissue oxygenation using ICG angiography and HSI. The effectiveness of ICG angiography in reducing anastomotic complications remains controversial [28]. The causes of anastomosis complications are combined by various clinical factors and hypoperfusion or poor tissue oxygenation must be one of critical issues [29]. This study identified anastomotic complications as complex network core nodes, indicating that multiple clinical factors contribute to these complications. Interestingly, the need to change the transection line due to poor initial StO2 was not found to be correlated with anastomosis complications. This suggests that adjusting the transection line based on initial perfusion status may help reduce the risk of anastomotic complications caused by inadequate blood supply to the colon. Studies focusing on optimizing perfusion have reported a significantly lower incidence of anastomotic complications [30]. This highlights the potential importance of evaluating blood flow during colorectal surgery to decrease complications [31]. Therefore, it is expected that perfusion assessment should become an essential surgical procedure for ensuring patient safety in colorectal surgery [32].

4.2. Conclusions

The safe values for quantitative perfusion parameters were derived from ICG angiography as T1/2MAX ≤ 10 s and TMAX ≤ 30 s, which were associated with colon tissue oxygenation levels higher than 60% in the laparoscopic colorectal surgery.

Author Contributions

Conceptualization: G.M.S. and I.G.; methodology: G.M.S., I.G., J.Y.K., S.-H.P. and K.-R.B.; software: J.Y.K., S.-H.P. and K.-R.B.; formal analysis: G.M.S., S.B.I. and M.S.Y.; investigation: G.M.S., A.M.N. and S.B.I.; Date curation: G.M.S., A.M.N. and I.Y.L.; writing—original draft: G.M.S. and A.M.N.; writing—review and editing G.M.S., A.M.N., I.Y.L., M.S.Y. and I.G.; visualization: I.Y.L.; supervision: G.M.S.; project administration: I.Y.L. All authors have read and agreed to the published version of the manuscript.

Funding

This study was supported by a Research Institute for Convergence of Biomedical Science and Technology Grant (30-2022-017), Pusan National University Yangsan Hospital.

Institutional Review Board Statement

The study protocol conformed to the ethical guidelines of the 1975 Declaration of Helsinki and was approved by Institutional Review Board of the Pusan National University Yangsan Hospital; approval code number 05-2020-103; approval date 14 May 2020.

Informed Consent Statement

All individuals gave their informed consent to participate.

Data Availability Statement

The data presented in this study are available on request from the corresponding author. The data are not publicly available due to ethical and privacy reasons.

Acknowledgments

The authors appreciate Kyung Hee Kim and Hyun Seok Jung for technical assistance of fluorescence image guided surgery in the surgical field.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Son, G.M.; Kwon, M.S.; Kim, Y.; Kim, J.; Kim, S.H.; Lee, J.W. Quantitative analysis of colon perfusion pattern using indocyanine green (ICG) angiography in laparoscopic colorectal surgery. Surg. Endosc. 2019, 33, 1640–1649. [Google Scholar] [CrossRef]
  2. Son, G.M.; Kim, T.U.; Park, B.S.; Jung, H.J.; Lee, S.S.; Yoon, J.U.; Lee, J.W. Colonic hypoperfusion following ligation of the inferior mesenteric artery in rectosigmoid colon cancer patients. Ann. Surg. Treat. Res. 2019, 97, 74–82. [Google Scholar] [CrossRef] [PubMed]
  3. Son, G.M.; Ahn, H.M.; Lee, I.Y.; Ha, G.W. Multifunctional Indocyanine Green Applications for Fluorescence-Guided Laparoscopic Colorectal Surgery. Ann. Coloproctol. 2021, 37, 133–140. [Google Scholar] [CrossRef] [PubMed]
  4. Son, G.M.; Ahn, H.M.; Lee, I.Y.; Lee, S.M.; Park, S.H.; Baek, K.R. Clinical effect and standardization of indocyanine green angiography in the laparoscopic colorectal surgery. J. Minim. Invasive Surg. 2021, 24, 113–122. [Google Scholar] [CrossRef] [PubMed]
  5. Ahn, H.M.; Son, G.M.; Lee, I.Y.; Park, S.H.; Kim, N.S.; Baek, K.R. Optimization of indocyanine green angiography for colon perfusion during laparoscopic colorectal surgery. Color. Dis. 2021, 23, 1848–1859. [Google Scholar] [CrossRef] [PubMed]
  6. Jansen-Winkeln, B.; Germann, I.; Köhler, H.; Mehdorn, M.; Maktabi, M.; Sucher, R.; Barberio, M.; Chalopin, C.; Diana, M.; Moulla, Y.; et al. Comparison of hyperspectral imaging and fluorescence angiography for the determination of the transection margin in colorectal resections-a comparative study. Int. J. Color. Dis. 2021, 36, 283–291. [Google Scholar] [CrossRef] [PubMed]
  7. Pfahl, A.; Radmacher, G.K.; Köhler, H.; Maktabi, M.; Neumuth, T.; Melzer, A.; Gockel, I.; Chalopin, C.; Jansen-Winkeln, B. Combined indocyanine green and quantitative perfusion assessment with hyperspectral imaging during colorectal resections. Biomed. Opt. Express 2022, 13, 3145–3160. [Google Scholar] [CrossRef]
  8. Sherwinter, D.; Chandler, P.; Martz, J. The use of tissue oxygen measurements compared to indocyanine green imaging for the assessment of intraoperative tissue viability of human bowel. Surg. Endosc. 2022, 36, 2192–2196. [Google Scholar] [CrossRef]
  9. Hennig, S.; Jansen-Winkeln, B.; Köhler, H.; Knospe, L.; Chalopin, C.; Maktabi, M.; Pfahl, A.; Hoffmann, J.; Kwast, S.; Gockel, I.; et al. Novel Intraoperative Imaging of Gastric Tube Perfusion during Oncologic Esophagectomy—A Pilot Study Comparing Hyperspectral Imaging (HSI) and Fluorescence Imaging (FI) with Indocyanine Green (ICG). Cancers 2021, 14, 97. [Google Scholar] [CrossRef]
  10. Soares, A.S.; Bano, S.; Clancy, N.T.; Stoyanov, D.; Lovat, L.B.; Chand, M. Multisensor perfusion assessment cohort study: Preliminary evidence toward a standardized assessment of indocyanine green fluorescence in colorectal surgery. Surgery 2022, 172, 69–73. [Google Scholar] [CrossRef]
  11. Park, S.H.; Park, H.M.; Baek, K.R.; Ahn, H.M.; Lee, I.Y.; Son, G.M. Artificial intelligence based real-time microcirculation analysis system for laparoscopic colorectal surgery. World J. Gastroenterol. 2020, 26, 6945–6962. [Google Scholar] [CrossRef] [PubMed]
  12. Khosrawipour, T.; Li, S.; Steward, E.; Chaudhry, H.; Nguyen, D.; Khosrawipour, V.; Jafari, M.D.; Pigazzi, A. Assessment of Anastomotic Viability with Spectroscopic Real-time Oxygen Saturation Measurement in a Porcine Study. Surg. Innov. 2022, 30, 349–355. [Google Scholar] [CrossRef] [PubMed]
  13. Thomaßen, M.T.; Köhler, H.; Pfahl, A.; Stelzner, S.; Mehdorn, M.; Thieme, R.; Jansen-Winkeln, B.; Gockel, I.; Chalopin, C.; Moulla, Y. In vivo evaluation of a hyperspectral imaging system for minimally invasive surgery (HSI-MIS). Surg. Endosc. 2023, 37, 3691–3700. [Google Scholar] [CrossRef] [PubMed]
  14. Wada, T.; Kawada, K.; Takahashi, R.; Yoshitomi, M.; Hida, K.; Hasegawa, S.; Sakai, Y. ICG fluorescence imaging for quantitative evaluation of colonic perfusion in laparoscopic colorectal surgery. Surg. Endosc. 2017, 31, 4184–4193. [Google Scholar] [CrossRef]
  15. Wada, T.; Kawada, K.; Hoshino, N.; Inamoto, S.; Yoshitomi, M.; Hida, K.; Sakai, Y. The effects of intraoperative ICG fluorescence angiography in laparoscopic low anterior resection: A propensity score-matched study. Int. J. Clin. Oncol. 2019, 24, 394–402. [Google Scholar] [CrossRef]
  16. Gonzalez-Jacobo, A.; Chandler, P.; Martz, J.; Sherwinter, D. Tissue Oximetry as a Potential Alternative to Indocyanine Green (ICG) Perfusion Assessment in Colorectal Anastomotic Cases. Surg. Laparosc. Endosc. Percutaneous Tech. 2023, 33, 207–210. [Google Scholar] [CrossRef]
  17. Gräfitsch, A.; Kirchhoff, P.; Soysal, S.D.; Däster, S.; Hoffmann, H. Dynamic Serosal Perfusion Assessment during Colorectal Resection Using Visible Light Spectroscopy. Eur. Surg. Res. 2021, 62, 25–31. [Google Scholar] [CrossRef]
  18. Tavy, A.L.; de Bruin, A.F.; Boerma, E.C.; Ince, C.; Hilty, M.P.; Noordzij, P.G.; Boerma, D.; van Iterson, M. Association between serosal intestinal microcirculation and blood pressure during major abdominal surgery. J. Intensive Med. 2021, 1, 59–64. [Google Scholar] [CrossRef]
  19. Seeliger, B.; Agnus, V.; Mascagni, P.; Barberio, M.; Longo, F.; Lapergola, A.; Mutter, D.; Klymchenko, A.S.; Chand, M.; Marescaux, J.; et al. Simultaneous computer-assisted assessment of mucosal and serosal perfusion in a model of segmental colonic ischemia. Surg. Endosc. 2020, 34, 4818–4827. [Google Scholar] [CrossRef]
  20. Barberio, M.; Felli, E.; Pizzicannella, M.; Agnus, V.; Al-Taher, M.; Seyller, E.; Moulla, Y.; Jansen-Winkeln, B.; Gockel, I.; Marescaux, J.; et al. Quantitative serosal and mucosal optical imaging perfusion assessment in gastric conduits for esophageal surgery: An experimental study in enhanced reality. Surg. Endosc. 2021, 35, 5827–5835. [Google Scholar] [CrossRef]
  21. Gomez-Rosado, J.C.; Valdes-Hernandez, J.; Cintas-Catena, J.; Cano-Matias, A.; Perez-Sanchez, A.; Del Rio-Lafuente, F.J.; Torres-Arcos, C.; Lara-Fernandez, Y.; Capitan-Morales, L.C.; Oliva-Mompean, F. Feasibility of quantitative analysis of colonic perfusion using indocyanine green to prevent anastomotic leak in colorectal surgery. Surg. Endosc. 2022, 36, 1688–1695. [Google Scholar] [CrossRef] [PubMed]
  22. Garoufalia, Z.; Wexner, S.D. Indocyanine Green Fluorescence Guided Surgery in Colorectal Surgery. J. Clin. Med. 2023, 12, 494. [Google Scholar] [CrossRef] [PubMed]
  23. Flores-Rodríguez, E.; Garrido-López, L.; Sánchez-Santos, R.; Cano-Valderrama, O.; Rodríguez-Fernández, L.; Nogueira-Sixto, M.; Paniagua-García Señorans, M.; Vigorita, V.; Moncada-Iribarren, E. Is ICG essential in all colorectal surgery? A 3-year experience in a single center: A cohort study. Int. J. Color. Dis. 2023, 38, 67. [Google Scholar] [CrossRef] [PubMed]
  24. Kondo, A.; Kumamoto, K.; Asano, E.; Feng, D.; Kobara, H.; Okano, K. Indocyanine green fluorescence imaging during laparoscopic rectal cancer surgery could reduce the incidence of anastomotic leakage: A single institutional retrospective cohort study. World J. Surg. Oncol. 2022, 20, 397. [Google Scholar] [CrossRef] [PubMed]
  25. Singh, D.B.; Stansby, G.; Bain, I.; Harrison, D.K. Intraoperative measurement of colonic oxygenation during bowel resection. Adv. Exp. Med. Biol. 2009, 645, 261–266. [Google Scholar]
  26. Lee, E.S.; Bass, A.; Arko, F.R.; Heikkinen, M.; Harris, E.J.; Zarins, C.K.; van der Starre, P.; Olcott, C. Intraoperative colon mucosal oxygen saturation during aortic surgery. J. Surg. Res. 2006, 136, 19–24. [Google Scholar] [CrossRef]
  27. Köhler, H.; Pfahl, A.; Moulla, Y.; Thomaßen, M.T.; Maktabi, M.; Gockel, I.; Neumuth, T.; Melzer, A.; Chalopin, C. Comparison of image registration methods for combining laparoscopic video and spectral image data. Sci. Rep. 2022, 12, 16459. [Google Scholar] [CrossRef]
  28. Kim, J.C.; Lee, J.L.; Kim, C.W.; Kim, H.M.; Park, I.J.; Yoon, Y.S. Interpretation and clinical utility of indocyanine-green fluorescence imaging (IFI) in robot-assisted anorectal-function saving operations (ASOs): A propensity-score matched analysis of 872 prospectively enroled patients undergoing IFI. Int. J. Med. Robot. 2023, 19, e2515. [Google Scholar] [CrossRef]
  29. Kitaguchi, D.; Ito, M. Optimal anastomotic technique in rectal surgery to prevent anastomotic leakage. Ann. Coloproctol. 2023, 39, 97–105. [Google Scholar] [CrossRef]
  30. Alekseev, M.; Rybakov, E.; Khomyakov, E.; Zarodnyuk, I.; Shelygin, Y. Intraoperative fluorescence angiography as an independent factor of anastomotic leakage and a nomogram for predicting leak for colorectal anastomoses. Ann. Coloproctol. 2022, 38, 380–386. [Google Scholar] [CrossRef]
  31. Varela, C.; Kim, N.K. Surgical Treatment of Low-Lying Rectal Cancer: Updates. Ann. Coloproctol. 2021, 37, 395–424. [Google Scholar] [CrossRef] [PubMed]
  32. Faber, R.A.; Tange, F.P.; Galema, H.A.; Zwaan, T.C.; Holman, F.A.; Peeters, K.C.M.J.; Tanis, P.J.; Verhoef, C.; Burggraaf, J.; Mieog, J.S.D.; et al. Quantification of indocyanine green near-infrared fluorescence bowel perfusion assessment in colorectal surgery. Surg. Endosc. 2023; epub ahead of print. [Google Scholar] [CrossRef]
Biomedicines 11 02029 g001
Figure 1. Schematic diagram of colon perfusion assessment using indocyanine green (ICG) angiography and hyperspectral imaging (HSI). Intravenous ICG binds to intravascular globulin or albumin and remains in the vascular circulation. A near-infrared (NIR) ray with a wavelength of 806 nm (red line) is emitted from the laparoscopic camera, causing ICG in the blood vessel to emit a wavelength of 830 nm (green line), and the fluorescence image is displayed on the monitor. The quantitative analysis for ICG angiography is based on the fluorescence intensity and perfusion time required for ICG to reach the target tissue and increase to the maximal fluorescence intensity as a time–fluorescence intensity graph. The perfusion time factors are calculated as TMAX (time from first fluorescence increase to maximum), T1/2MAX (time to reach half of the maximum), and perfusion TR (time ratio, T1/2MAX/TMAX). The fluorescence intensity factors are FMAX (maximal intensity) and slope (calculated as ΔF/ΔT = FMAX/TMAX). HSI is a technique that captures images at multiple wavelengths from Xenon lamp (blue line) in the visible to NIR regions with approximately 400–1000 nm of the electromagnetic spectrum. The StO2 (blue line) and NIR perfusion index (blue dotted line) are calculated by analyzing the changes in light intensity. The device can calculate the relative amount of oxygenated and deoxygenated hemoglobin, providing an estimate of perfusion status at colon depths of 1 mm and 3–4 mm.
Figure 1. Schematic diagram of colon perfusion assessment using indocyanine green (ICG) angiography and hyperspectral imaging (HSI). Intravenous ICG binds to intravascular globulin or albumin and remains in the vascular circulation. A near-infrared (NIR) ray with a wavelength of 806 nm (red line) is emitted from the laparoscopic camera, causing ICG in the blood vessel to emit a wavelength of 830 nm (green line), and the fluorescence image is displayed on the monitor. The quantitative analysis for ICG angiography is based on the fluorescence intensity and perfusion time required for ICG to reach the target tissue and increase to the maximal fluorescence intensity as a time–fluorescence intensity graph. The perfusion time factors are calculated as TMAX (time from first fluorescence increase to maximum), T1/2MAX (time to reach half of the maximum), and perfusion TR (time ratio, T1/2MAX/TMAX). The fluorescence intensity factors are FMAX (maximal intensity) and slope (calculated as ΔF/ΔT = FMAX/TMAX). HSI is a technique that captures images at multiple wavelengths from Xenon lamp (blue line) in the visible to NIR regions with approximately 400–1000 nm of the electromagnetic spectrum. The StO2 (blue line) and NIR perfusion index (blue dotted line) are calculated by analyzing the changes in light intensity. The device can calculate the relative amount of oxygenated and deoxygenated hemoglobin, providing an estimate of perfusion status at colon depths of 1 mm and 3–4 mm.
Biomedicines 11 02029 g001
Biomedicines 11 02029 g002
Figure 2. Quantitative analysis of colonic perfusion assessment using ICG angiography and HSI imaging: (A) RGB image of HSI imaging; (B) color map of StO2; (C) color map of NIR perfusion index; (D) tissue StO2 analysis on the five points (black circles) along the proximal colon segment using the Automatic Data Extraction & Visualization Program 2.0 (designed by the Microprocessor Application Laboratory, Pusan National University, Busan, Republic of Korea); (E) quantitative perfusion analysis of ICG angiography using the ICG Analyzer Program 8.0 (designed by the Microprocessor Application Laboratory, Pusan National University, Busan, Republic of Korea).
Figure 2. Quantitative analysis of colonic perfusion assessment using ICG angiography and HSI imaging: (A) RGB image of HSI imaging; (B) color map of StO2; (C) color map of NIR perfusion index; (D) tissue StO2 analysis on the five points (black circles) along the proximal colon segment using the Automatic Data Extraction & Visualization Program 2.0 (designed by the Microprocessor Application Laboratory, Pusan National University, Busan, Republic of Korea); (E) quantitative perfusion analysis of ICG angiography using the ICG Analyzer Program 8.0 (designed by the Microprocessor Application Laboratory, Pusan National University, Busan, Republic of Korea).
Biomedicines 11 02029 g002
Biomedicines 11 02029 g003

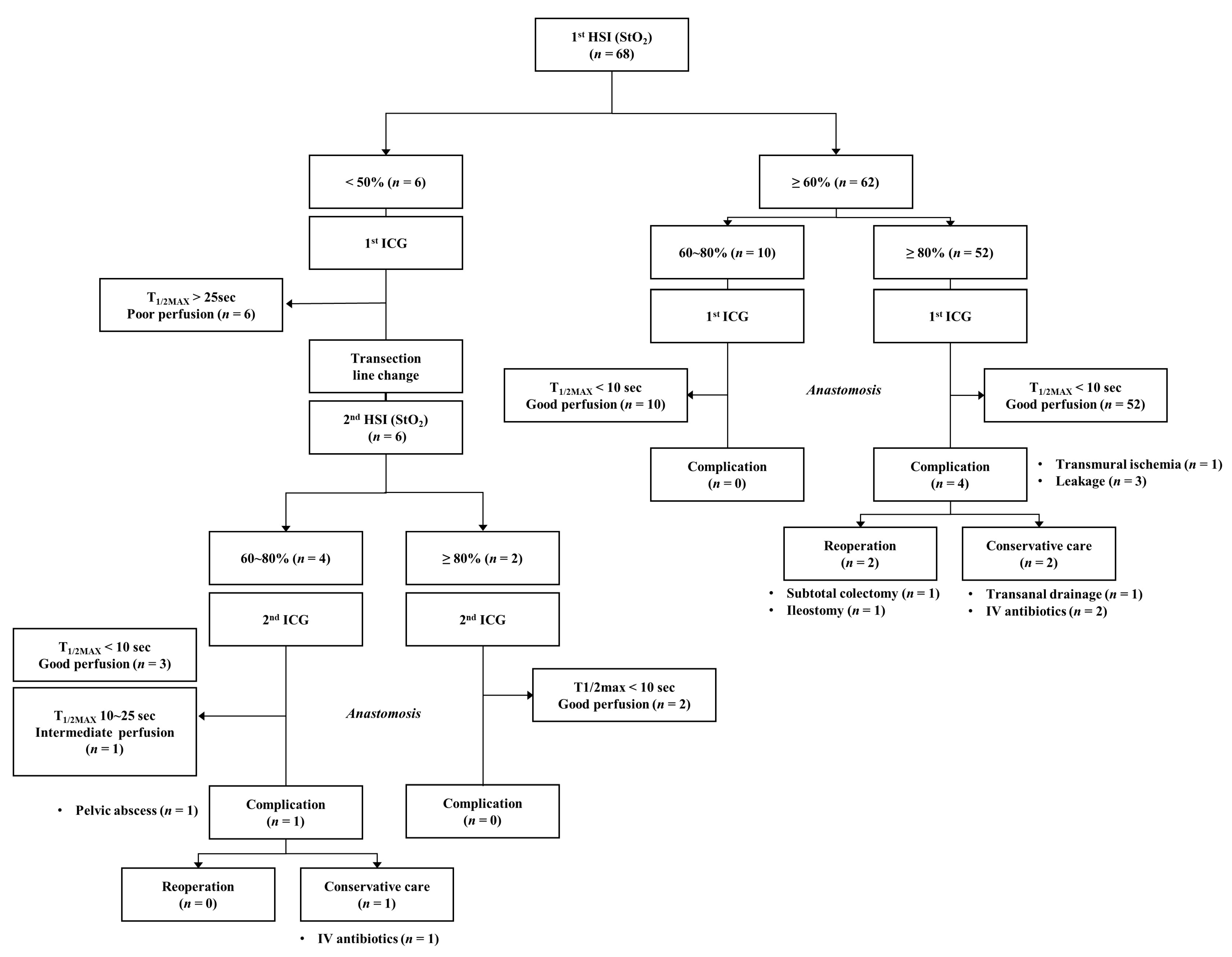

Figure 3. Flowchart of colonic perfusion assessment protocol using ICG angiography and HSI imaging. If the colonic StO2 is greater than 60% and the T1/2MAX of ICG angiography is less than 10 s, colorectal anastomosis is performed on the planned transection line with favorable perfusion. If the colonic StO2 is less than 50% and the T1/2MAX is delayed more than 25 s, it is determined to be poor perfusion, and the transection line is changed to the proximal colon, and second perfusion evaluations are performed.
Figure 3. Flowchart of colonic perfusion assessment protocol using ICG angiography and HSI imaging. If the colonic StO2 is greater than 60% and the T1/2MAX of ICG angiography is less than 10 s, colorectal anastomosis is performed on the planned transection line with favorable perfusion. If the colonic StO2 is less than 50% and the T1/2MAX is delayed more than 25 s, it is determined to be poor perfusion, and the transection line is changed to the proximal colon, and second perfusion evaluations are performed.
Biomedicines 11 02029 g003
Biomedicines 11 02029 g004

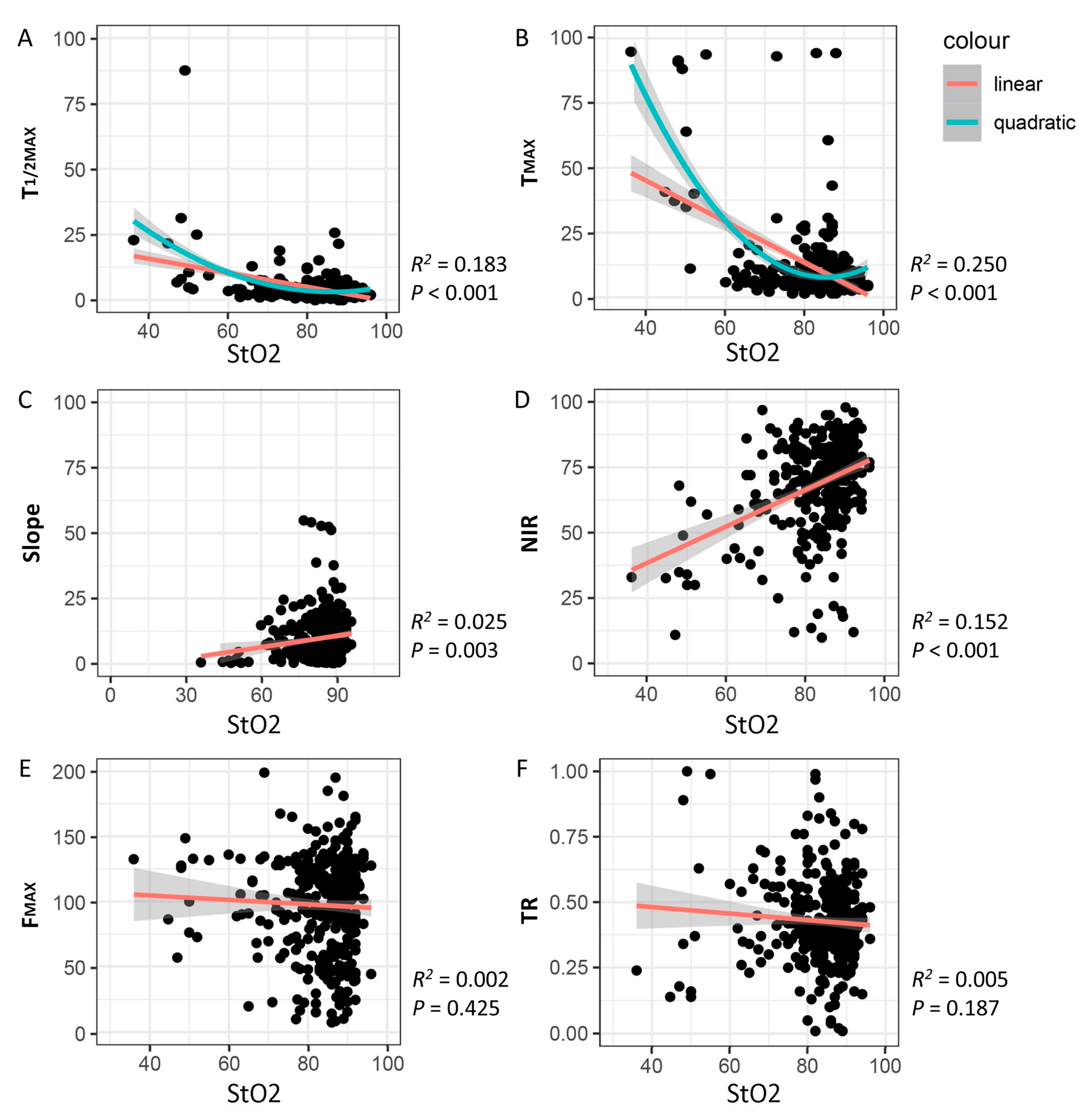

Figure 4. Scatter plot of quantitative perfusion parameters and colonic StO2 in regression analysis. (A) T1/2MAX, (B) TMAX, (C) slope, and (D) NIR perfusion index exhibit significant correlations with colonic StO2. However, the distributions of (E) FMAX and (F) perfusion TR are currently distracting and unpredictable, making it challenging to derive an equation in the regression model. The orange line represents the regression line of the linear model, while the green line represents the regression line of the quadratic model.
Figure 4. Scatter plot of quantitative perfusion parameters and colonic StO2 in regression analysis. (A) T1/2MAX, (B) TMAX, (C) slope, and (D) NIR perfusion index exhibit significant correlations with colonic StO2. However, the distributions of (E) FMAX and (F) perfusion TR are currently distracting and unpredictable, making it challenging to derive an equation in the regression model. The orange line represents the regression line of the linear model, while the green line represents the regression line of the quadratic model.
Biomedicines 11 02029 g004
Biomedicines 11 02029 g005

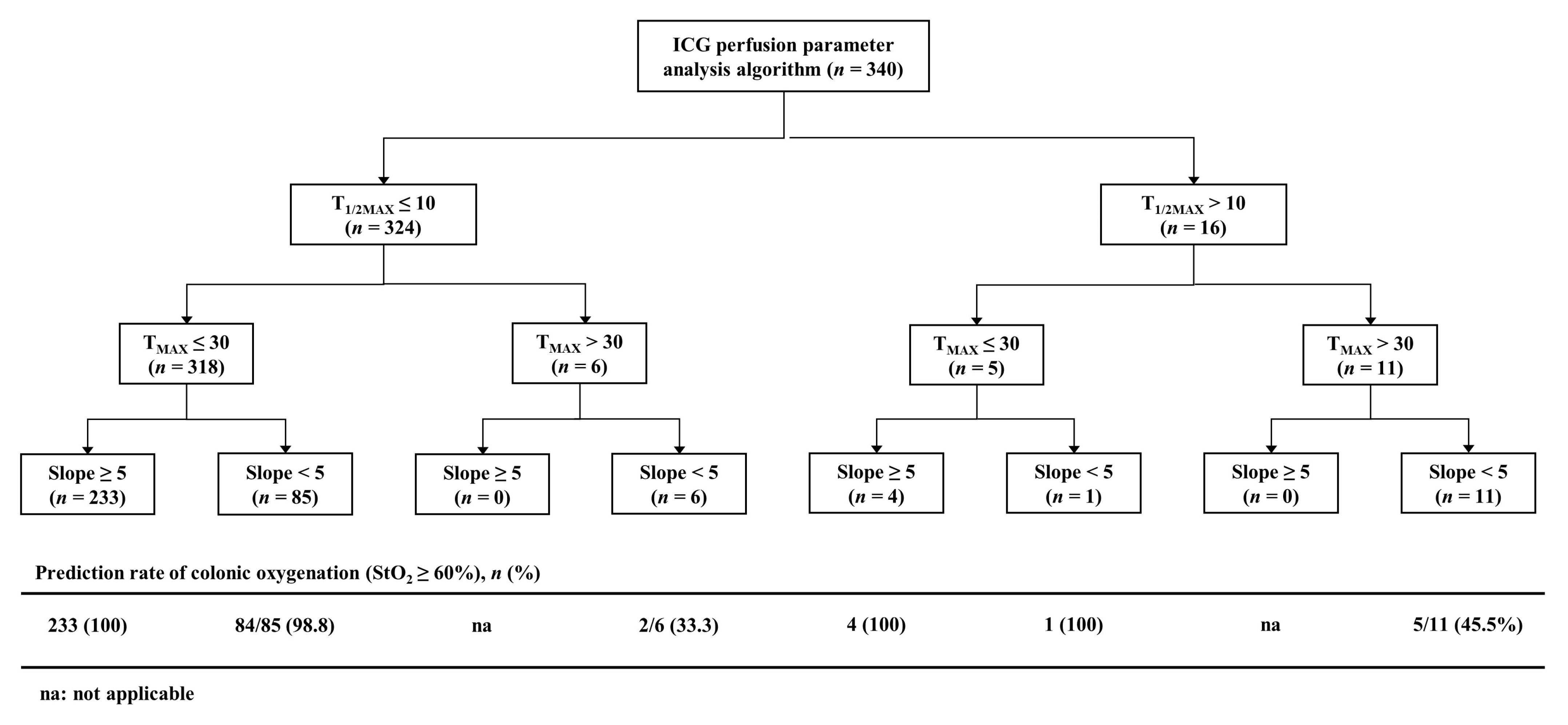

Figure 5. Step-by-step analysis algorithm for quantitative ICG perfusion parameters (T1/2MAX, TMAX, and slope) for the prediction of colonic oxygenation (StO2 ≥ 60%).
Figure 5. Step-by-step analysis algorithm for quantitative ICG perfusion parameters (T1/2MAX, TMAX, and slope) for the prediction of colonic oxygenation (StO2 ≥ 60%).
Biomedicines 11 02029 g005
Biomedicines 11 02029 g006

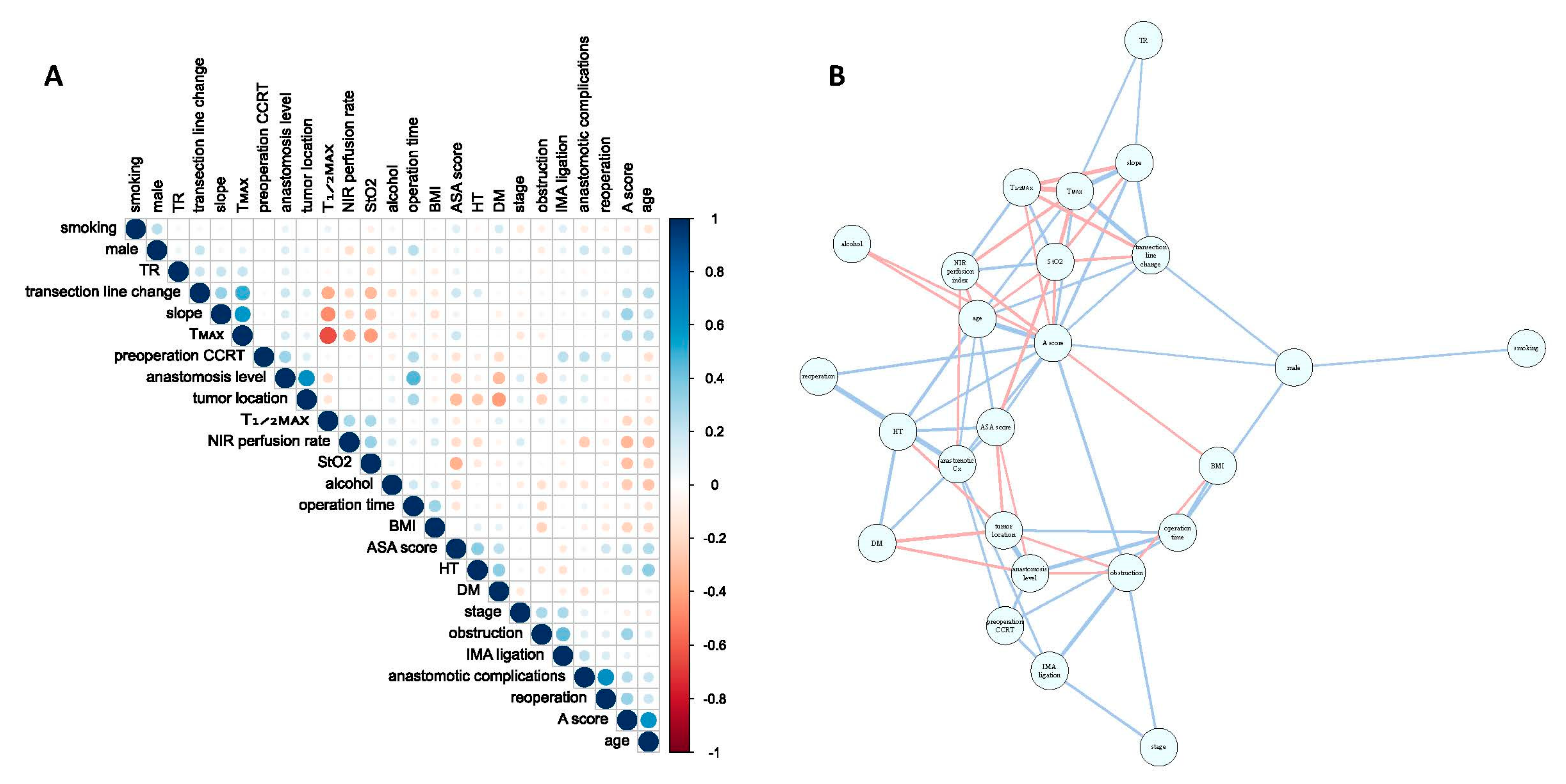

Figure 6. Correlation plot and network analysis. (A) Bivariate analysis represents the Spearman correlation coefficient between the quantitative perfusion parameters of the perfusion assessment points (n = 340) and the corresponding clinical factors. (B) Network analysis of Spearman’s coefficients currently shows a complex correlation link between transection line change and various clinical factors. The blue line reflects significant correlation with a coefficient > 0.2, while the red line reflects reverse correlation with a coefficient < −0.2. A score, atherosclerotic risk score; Cx, complication.

Figure 6. Correlation plot and network analysis. (A) Bivariate analysis represents the Spearman correlation coefficient between the quantitative perfusion parameters of the perfusion assessment points (n = 340) and the corresponding clinical factors. (B) Network analysis of Spearman’s coefficients currently shows a complex correlation link between transection line change and various clinical factors. The blue line reflects significant correlation with a coefficient > 0.2, while the red line reflects reverse correlation with a coefficient < −0.2. A score, atherosclerotic risk score; Cx, complication.
Biomedicines 11 02029 g006
Table 1. Patients’ characteristics.
Table 1. Patients’ characteristics.
Clinical FactorInitial StO2, n (%)p-Value †
StO2 (≥60%), n = 62StO2 (<60%), n = 6
Age (≥70 yr)25 (40.3)5 (83.3)0.080
Male:Female41:216:00.186
BMI (≥25 kg/m2)22 (35.5)1 (16.7)0.856
ASA score (≥3)7 (11.3)2 (33.3)0.177
Hypertension26 (41.9)4 (66.7)0.394
Diabetes13 (21.0)1 (16.7)1.000
Smoking7 (11.3)1 (16.7)0.543
Alcohol drinking13 (100)0 (0)0.587
Total cholesterol (≥220 mg/dL)11 (17.7)0 (0)0.579
Atherosclerotic risk score (≥20)12 (19.4)3 (50.0)0.116
Stage (≥III)26 (41.9)2 (33.3)1.000
Cancer location
    Sigmoid25 (96.2)1 (3.8)0.395
    Rectum37 (88.1)5 (11.9)
PCRT8 (12.9)1 (16.7)1.000
Cancer obstruction14 (22.6)1 (16.7)1.000
Operation (LAR)41 (66.1)5 (83.3)0.656
Anastomotic level (<5 cm)22 (35.5)4 (66.7)0.193
Diverting ileostomy20 (32.3)4 (66.7)0.175
IMA ligation (high)36 (58.1)4 (66.7)1.000
Anastomotic complication4 (6.5)1 (16.7)0.379
Reoperation2 (3.2)01.000
BMI, body mass index; ASA, American Society of Anesthesiologists; PCRT, preoperative chemoradiation therapy; LAR, low anterior resection; IMA, inferior mesenteric artery; †, Fisher’s exact test.
Table 2. Regression analysis for cutoff level of quantitative perfusion parameters.
Table 2. Regression analysis for cutoff level of quantitative perfusion parameters.
Regression AnalysisCutoff Value, Mean (95% CI)
Model (n)EquationR2StO2 60%StO2 65%StO2 70%StO2 75%StO2 80%
T1/2MAX (s)linear
(n = 340)		T1/2MAX = 26.351 − 0.267 × StO20.18310.318.987.646.304.97
(8.79, 11.83)(7.73, 10.22)(96.66, 8.63)(5.55, 7.06)(4.37, 5.57)
quadratic
(n = 340)		T1/2MAX = 82.801 − 1.851 × StO2 + 0.011(StO2)20.26010.407.865.854.393.46
(8.95, 11.85)(6.61, 9.10)(4.74, 6.97)(3.42, 5.35)(2.70, 4.22)
TMAX
(s)		linear
(n = 340)		TMAX = 76.287 − 0.785
× StO2		0.25029.18 25.25 21.33 17.40 13.48
(25.52, 32.84)(22.26, 28.25)(18.96, 23.70)(15.58, 19.22)(12.03, 14.92)
quadratic
(n = 340)		T MAX = 252.715 − 5.736
× StO2 + 0.034(StO2)2		0.36929.4521.7615.74 11.41 8.76
(26.09, 32.81)(18.87, 24.64)(13.17, 18.32)(9.18, 13.65)(6.99, 10.52)
Slope
(s/AU)		linear
(n = 340)		Slope = −2.236 + 0.144
× StO2		0.0256.38 7.10 7.82 8.54 9.26
(3.98, 8.79)(5.13, 9.07)(6.26, 9.38)(7.34, 9.73)(8.31, 10.20)
linear
(n = 335)		Slope = −3.087 + 0.146
× StO2		0.0435.68 6.41 7.14 7.87 8.60
(3.81, 7.55)(4.88, 7.94)(5.92, 8.35)(6.93, 8.80)(7.86, 9.34)
NIR perfusion indexlinear
(n = 340)		NIR = 10.515 + 0.699
× StO2		0.15252.48 55.98 59.48 62.98 66.47
(48.05, 56.92)(52.35, 59.62)(56.60, 62.35)(60.77, 65.19)(64.72, 68.23)
linear
(n = 332)		NIR = 13.125 + 0.683
× StO2		0.18554.12 57.54 60.96 64.37 67.79
(50.22, 58.03)(54.35, 60.73)(58.43, 63.48)(62.44, 66.31)(66.27, 69.31)
AU, arbitrary unit.
Table 3. Cutoff level of quantitative perfusion parameters for tissue oxygenation (StO2 ≥ 60%).
Table 3. Cutoff level of quantitative perfusion parameters for tissue oxygenation (StO2 ≥ 60%).
Perfusion ParameterMean ± SDRange95% CI of MeanCutoff Level
(StO2 ≥ 60%)
T1/2MAX (s)4.07 ± 5.850.03–87.673.45–4.70≤10 s a
TMAX (s)10.85 ± 14.681.57–94.779.28–12.41≤30 s a
Perfusion TR0.43 ± 0.160.01–1.000.41–0.44≤0.8 b
FMAX (AU)97.21 ± 37.007.62–199.0193.26–101.16≥25 b
Slope (AU/s)9.74 ± 8.460.33–54.958.83–10.64≥5 a
NIR perfusion index68.82 ± 16.7610.0–98.067.03–70.60≥50 a
SD, standard deviation; CI, confidence interval; a, cutoff value derived from regression model; b, cutoff value estimated considering a 95% CI range.
Table 4. Comparisons of quantitative perfusion parameters with tissue oxygenation (StO2 ≥ 60%).
Table 4. Comparisons of quantitative perfusion parameters with tissue oxygenation (StO2 ≥ 60%).
Perfusion ParameterCut Off LevelStO2, n (%)p-Value
<60%≥60%
T1/2MAX (s)≤105 (1.5)319 (98.5)<0.001
>106 (37.5)10 (62.5)
TMAX (s)≤301 (0.3)322 (99.7)<0.001
>30 10 (58.8)7 (41.2)
Perfusion TR≤0.88 (2.4)322 (97.6)<0.001
>0.83 (30.0)7 (70.0)
FMAX (AU)≤250 (0)15 (100)0.469
>2511 (3.4)314 (96.6)
Slope (s/AU)<511 (10.4)95 (89.6)<0.001
≥50 (0)234 (100)
NIR perfusion index<508 (18.6)35 (81.4)<0.001
≥503 (1.0)294 (99.0)
Total 11 (3.2)329 (96.8)
Table 5. Diagnostic values of quantitative ICG perfusion parameters for predicting tissue oxygenation (StO2 ≥ 60%).
Table 5. Diagnostic values of quantitative ICG perfusion parameters for predicting tissue oxygenation (StO2 ≥ 60%).
Perfusion ParameterCutoff LevelSensitivitySpecificityPPVNPVAccuracy
T1/2MAX (s)≤1097.054.598.537.595.6
(94.5, 98.5)(23.4, 83.3)(96.4, 99.5)(15.2, 64.6)(92.8. 97.5)
TMAX (s)≤3097.990.999.758.897.6
(95.7, 99.1)(58.7, 99.8)(98.3, 100)(32.9, 81.6)(95.4, 98.9)
Perfusion TR≤0.897.927.397.630.095.6
(95.7, 99.1)(6.0, 61.0)(95.3, 98.9)(6.7, 65.2)(92.8, 97.5)
FMAX (AU)>2595.4096.6092.4
(96.2, 99.4)(0, 28.5)(94.6, 98.3)(0, 21.8)(89.0, 94.9)
Slope (AU/s)≥571.110010010.472.1
(65.9, 76.0)(71.5, 100)(98.4, 100)(5.3, 17.8)(67.0, 76.8)
PPV, positive predictive value; NPV, negative predictive value; Diagnostic values expressed as mean (95% CI).
Table 6. Receiver operating characteristic (ROC) curve analysis.
Table 6. Receiver operating characteristic (ROC) curve analysis.
Perfusion ParameterAUC95% CIp-Value
T1/2MAX (s)0.9440.894–0.994<0.001
TMAX (s)0.9760.949–1.000<0.001
Perfusion TR0.4280.176–0.6790.415
FMAX (AU)0.4040.234–0.5790.277
Slope (AU/s)0.9480.905–0.991<0.001
AUC, area under the curve.
