Nanocomposite Materials Based on Electrochemically Synthesized Graphene Polymers: Molecular Architecture Strategies for Sensor Applications

by
André Olean-Oliveira
1,
Gilberto A. Oliveira Brito
2,
Celso Xavier Cardoso
3 and
Marcos F. S. Teixeira
1,*
1
Department of Chemistry and Biochemistry, School of Science and Technology, Sao Paulo State University (UNESP), Rua Roberto Simonsen, 305, Presidente Prudente 19060-900, SP, Brazil
2
Department of Chemistry, Pontal Institute of Exact and Natural Sciences, Federal University of Uberlândia (UFU), Uberlandia 38408-100, MG, Brazil
3
Department of Physic, School of Science and Technology, Sao Paulo State University (UNESP), Rua Roberto Simonsen, 305, Presidente Prudente 19060-900, SP, Brazil
*
Author to whom correspondence should be addressed.
Chemosensors 2021, 9(6), 149; https://doi.org/10.3390/chemosensors9060149
Submission received: 4 May 2021 / Revised: 25 May 2021 / Accepted: 28 May 2021 / Published: 18 June 2021
(This article belongs to the Collection Sensing Materials: Advances in Synthesis, Functionalities, and Applications)
Browse Figures
Review Reports Versions Notes

Abstract

:
The use of graphene and its derivatives in the development of electrochemical sensors has been growing in recent decades. Part of this success is due to the excellent characteristics of such materials, such as good electrical and mechanical properties and a large specific surface area. The formation of composites and nanocomposites with these two materials leads to better sensing performance compared to pure graphene and conductive polymers. The increased large specific surface area of the nanocomposites and the synergistic effect between graphene and conducting polymers is responsible for this interesting result. The most widely used methodologies for the synthesis of these materials are still based on chemical routes. However, electrochemical routes have emerged and are gaining space, affording advantages such as low cost and the promising possibility of modulation of the structural characteristics of composites. As a result, application in sensor devices can lead to increased sensitivity and decreased analysis cost. Thus, this review presents the main aspects for the construction of nanomaterials based on graphene oxide and conducting polymers, as well as the recent efforts made to apply this methodology in the development of sensors and biosensors.

1. Introduction

Since its first appearance in the literature in 2004, the scientific and technological transformation driven by graphene has been remarkable in recent years [1,2,3]. This success has been due to the impressive and extraordinary properties presented by this carbon material with a sp2 single layer of hexagonally arranged carbon atoms [4,5]. Its impressive theoretical surface area can be highlighted, in comparison, to carbon nanotubes (CNTs), for which the inner area of the tube is not readily accessible for reactions or modifications. In addition, graphene also has impressive electron mobility along its π-conjugated network, drawing attention to applications in electronic devices [3,4,5,6,7].
In addition to its exceptions and exciting properties, modifications to the structure of graphene have been made to expand the possibilities for applications [4,8,9,10]. For applications in electronic devices, high-quality graphene is not applicable due to the absence of a band gap [11,12]. Modifications to its structure are needed to decrease its conductive ability to transform it into a semiconductor [11,12,13]. Another concern for technological applications is that graphene is not reactive. Graphene has a relative chemical inertia due to its π-conjugated network. In this regard, significant efforts have been made, and a variety of graphene-based species have been synthesized and investigated, such as graphene quantum dots (QDGs), graphene doped with heteroatoms (N-doped graphene, S-doped graphene, etc.), graphene nanopallets, graphene oxide and others [14,15].
With the functionalization of graphene sheets, a new horizon of possibilities has opened up, allowing the incorporation of graphene in different systems to improve the properties and characteristics of different materials. Thus, a new field has been formed: (nano)composite materials based on graphene [7]. Graphene-based composites include the use of inorganic materials, organic crystals, organometallic structures (MOFs), biomaterials and polymers [16]. These materials are extensively exploited in applications such as batteries [17], supercapacitors [18], fuel cells [19], photovoltaics [20], sensing platforms [21], and others.
In particular, graphene oxide (GO) has received constant attention. As previously mentioned, GO has emerged as a viable alternative to incorporate and apply graphene in different systems and materials [1,2]. Obtaining GO is simple and low cost compared to graphene, making it possible to produce it industrially. Its structure consists of a single layer of sp2 and sp3 atoms with oxygenated functional groups distributed over the basal plane (mainly hydroxyl and hydroxy) and the edges of the GO sheets (mainly carboxy, carbonyl, phenol, lactone and quinone) (Figure 1) [22]. The ease of handling and low cost of synthesis of graphene oxide comes at the cost of a drastic decrease in the electronic conductivity of GO compared to high-quality graphene. However, an increase in the conductivity of GO can be obtained by reducing the functional groups oxygenated by chemical (rGO) and electrochemical (rGO or ERGO) processes after incorporating GO into the desired system [23].
The graphene-composite material synthesis step is a fundamental part of modulating the properties and characteristics that allow the material to achieve maximum efficiency. Among the various synthesis strategies, electrochemical syntheses have interesting and remarkable characteristics, mainly for the construction of thin films intended for applications in optical electronic devices, data and energy storage and as sensors [6,24,25]. Low-cost syntheses, with few preparation steps, added to the possibility of control over the electrosynthesized material, make electrochemical methods attractive alternatives for the construction of reduced graphene oxide-based materials [25].
Graphene-polymer (nano)composites have been the focus of attention and intense studies [7,25,26]. This interest mainly arises from the synergistic effect generated by filling a polymer matrix with graphene, which results in a 3D material with improved mechanical, thermal, electrical and optical properties for the polymer [27]. For example, aimed at the use of a graphene-polymer couple in electrochemical sensors, the improvement in a material produced by the introduction of graphene into its structure may lead to increased sensitivity to the molecule of interest, since there is an improvement in the electronic communication of the material [25,28]. In addition, the incorporation of graphene can also act to improve a material’s robustness due to increased mechanical and thermal stability [29]. In fact, the graphene-polymer set demonstrates exceptional skills for the construction and application of wearable sensors since they have high biocompatibility and remarkable flexibility [30].
Despite the diverse and interesting advantages, at present, there is still no review work addressing the focus of electrochemical strategies to synthesize graphene-polymer (nano)materials for sensing applications. In view of this, the present review aims to highlight the main characteristics of electrochemical techniques for the electrosynthesis of graphene oxide-based materials, perform an overview of the details to be considered during the electrodeposition of graphene oxide, and present the main highlights in the field of sensors based on graphene-based materials in the past 5 years, pointing out their advantages, possibilities, challenges and presenting a future perspective on the subject.

2. Electrochemical Synthesis

2.1. Main Aspects

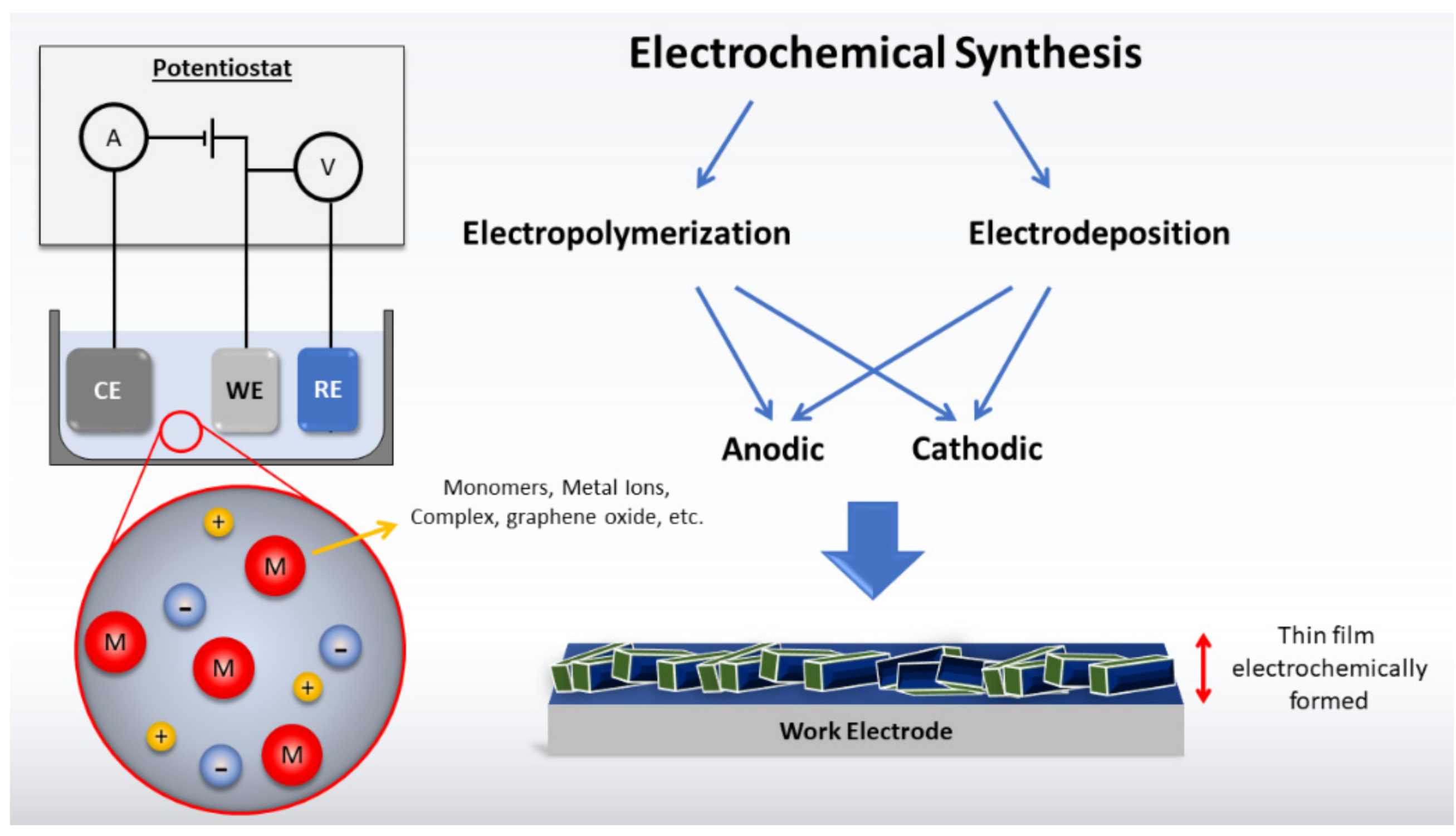

The synthesis of materials on conductive substrates via electrochemical methods has been shown to be a consolidated field in recent decades [31,32,33,34,35,36]. For applications in electronic devices, electrosynthesis is attractive because the sensitive material, at the end of the synthesis process, is deposited onto the desired substrate surface. This avoids the loss of material and reduces steps such as filtration, washing, purification and others, and just involves the final deposition of the material onto the target substrate. For electrochemical sensors and capacitors, step-shortening results in a better cost/benefit ratio for the built device [37,38,39]. For example, in comparison with other coating techniques, such as dip, spin and spray coating, several steps of processing can result in low reproducibility and material waste [40]. On the other hand, electrochemical techniques offer ample control over the deposited material, allowing the construction of nanometric films as well as a high reproducibility of the response due to the control over deposition and low material waste.
Electrodeposition and electrosynthesis, more specifically, can be performed by applying potentials (potentiometric methods) or by applying current (galvanostatic methods) (Figure 2) [41,42,43]. These techniques can be easily modulated and are can be used to deposit various materials in solution in a controlled manner using different deposition potentials. There is also the possibility of mixing these techniques in the same electrosynthesis, further expanding the horizon for the possible applications of these techniques. Another advantage is the possibility of observing the progress of electrosynthesis in real time using graphs provided as voltammograms and chronoamperograms, which, in turn, is not possible in chemical syntheses.

2.2. Electrodeposition of Graphene Oxide

As highlighted above, the use of electrochemical deposition techniques has the advantage of real-time monitoring of the progress of electrosynthesis [6]. Through these methods, it is possible to check the increase or decrease in the current values, check the time necessary for saturation or obtain a desired amount of material. By using voltammetry, there is still the possibility of visualizing oxidation and reduction peaks for oxygenated groups present in graphene oxide sheets [44,45,46].
Regardless of the electrochemical technique intended to be used for the construction of a sensor, some details must be taken into account to obtain a suitable electrodeposition. Figure 3 schematically draws attention to some important points to be considered prior to the electrodeposition of graphene oxide sheets, and, consequently, of a graphene-material composite.
The solvent is the first highlight. Thus, it is a necessary condition that the materials that will constitute the nanocomposite film can be solubilized or can easily form stable dispersions in an electrolytic solution. In the case of one-step routes, the solvent must necessarily meet this need for both the monomer (or nanoparticle) and graphene oxide since the two materials will share the same solution.
Electrosynthesis that makes use of environmentally friendly solvents, such as water, is preferable. In this sense, graphene oxide has a great advantage in terms of forming stable dispersions in aqueous solution due to the strong hydrogen bonding of its oxygenated groups with water molecules, mostly via hydroxyl groups (Figure 4) [5,47,48,49]. In addition to solubility in water, graphene oxide also has stability and easy dispersion properties in other solvents, such as ethylene glycol, dimethylformamide (DMF), N-methyl-2-pyrrolidone (NMP) and tetrahydrofuran (THF) [49].

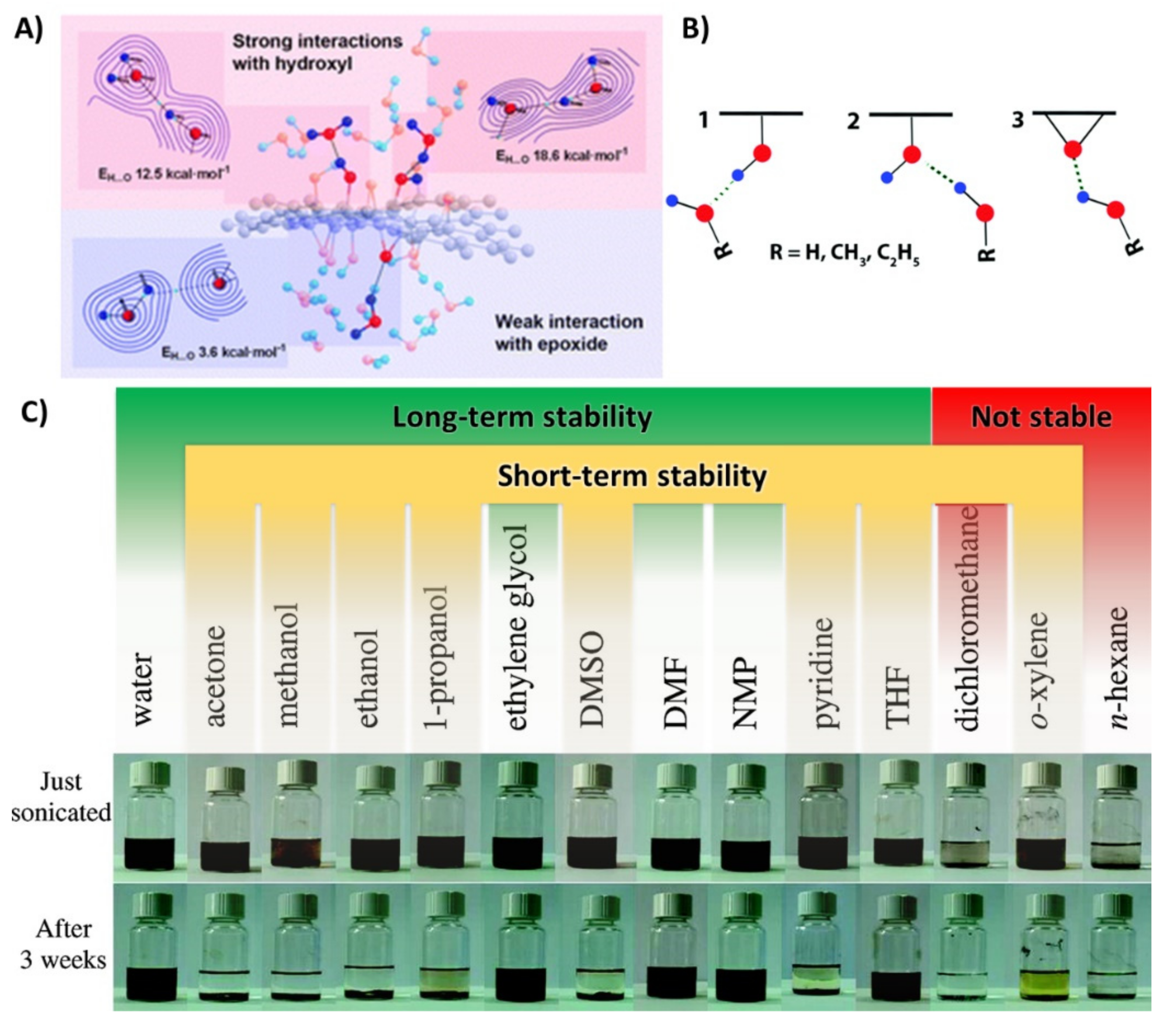

Prior to the electrosynthesis process, exfoliation of graphene oxide in solution is necessary to ensure that the sheets are dispersed, reducing the possibility of aggregation to achieve more efficient electrodeposition. This step is extremely important to achieve electrodeposition of a few layers of graphene oxide. This issue is easily resolved by applying an ultrasound bath for a brief period that can vary from a few minutes to a few hours, depending on the conditions of electrosynthesis and the power of the ultrasound device. However, it is important to note that the application of ultrasound can also alter the characteristics of graphene oxide sheets, such as changes in the oxidation rate of GO and generation of defects in the sheets, and both parameters play a significant role in the formation of the composite as well as the desired characteristics [50,51].
Graphene oxide influences the pH of the medium on its sheets as a function of the proton balance with its oxygenated groups [48,52,53]. Thus, for the direct electrodeposition of graphene oxide sheets on conductive electrode substrates (glassy carbon, Pt, Au, Ni, etc.), the chosen pH value will influence the residual charge of the graphene oxide sheets depending on whether or not their oxygenated groups are protonated [54,55]. This will directly influence the potential required for electrodeposition, as well as the interaction between graphene oxide and the monomer/polymer during the formation of the composite material [48]. For most studies of electrodeposition of graphene oxide on electrodes, phosphate buffer solutions (PBS) at pH values close to 7 are commonly used [46,56]. The pH 7 buffer solution is used to ensure that the H+ concentration in the solution does not change during the process of reducing oxygenated groups. However, several studies have shown satisfactory electrodeposition at varying pH values [6,57,58,59,60,61,62]. Indeed, Hilder and collaborators demonstrated that graphene oxide is stable and has no disadvantage in electrodeposition performance in the pH range of 1.5 to 12.5 [44].
Another key point is the applied potential, or potential range, in the graphene electrodeposition process. The values for this parameter vary widely between different studies, depending on the chemical constitution of the chosen electrode and the pH values of the medium, but most studies report the application of a potential of approximately −1.0 V (vs. SCE) [56]. The intense cathodic potential aims to promote the reduction of the oxygenated groups of the graphene oxide sheets, making their deposition on the electrode possible [61,63,64,65,66]. When reduced or partially reduced (depending on the conditions, the electrodeposited graphene oxide will be partially reduced), the sheets become more insoluble and stick to the surface of the conductive material [56,61,64,65]. However, it was verified in a recent study by our research group that electrodeposition with cathodic limit potentials of −0.30 V (vs. SCE) is also viable [67]. Indeed, some studies have shown graphene oxide electrodeposition in the anodic regime due to the electrostatic attraction between the positively charged electrode surface and negatively charged graphene oxide sheets [68,69].
The amount of electrodeposited material (the number of layers or its thickness) on an electrode surface will depend mainly on the application time of the cathodic potential (time or number of cycles used), which may result in the deposition of a few monolayers or coarse deposits [70]. Again, the choice of morphology will depend on the need and purpose of applying the material. However, thicker deposits tend not to show satisfactory electrochemical responses. One possibility to guarantee the deposition of only a few sheets of graphene onto an electrode is to apply electroexfoliation after electrodeposition. This occurs by means of pulses of cathodic potentials applied to force the removal of graphene sheets with low conductivity quality [70]. Through the application of an alternating pulse, sufficiently cathodic potentials are applied in small time intervals, sufficient for local generation of H2 gas in the conductive regions and exfoliation of the material. However, there is not enough time for total material degradation. The result is that reduced graphene monolayers are obtained on the electrode surface (Figure 5).

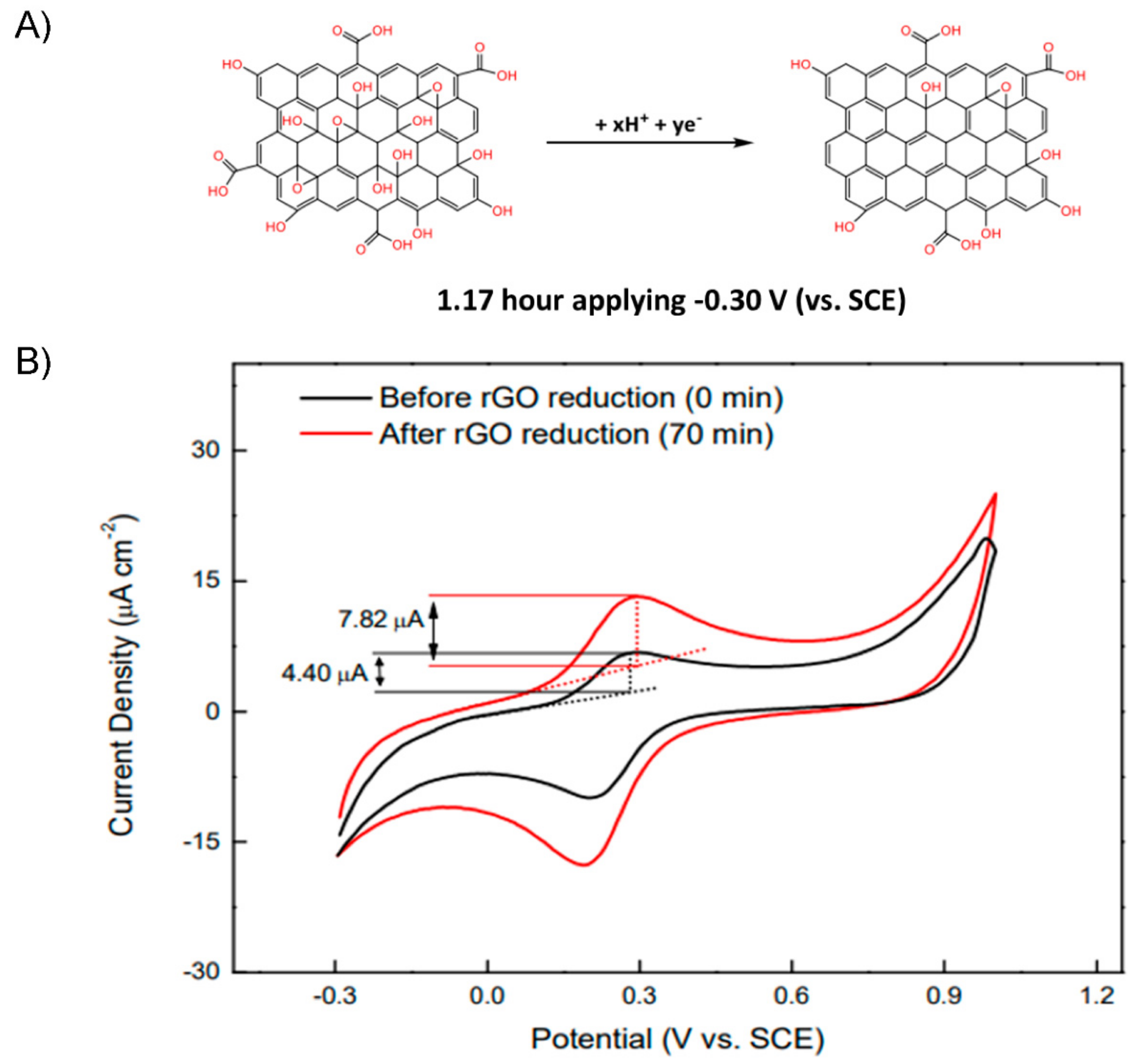

As mentioned, the reduction of graphene sheets plays a significant role in the deposition mechanism. Additionally, the conductivity of graphene oxide has a direct relationship with the number of oxygen species present in its sheets, and this step can be strategically used to modulate or achieve certain desired characteristics in the material (Figure 6) [71,72,73,74]. In this sense, in electrochemical sensors, the common aim of the presence of graphene oxide is to guarantee good charge transfer in the system [25,75,76]. Thus, with the intention of reaching the highest conductivity, some works carry out the electrochemical reduction process after electrodeposition [6,70,77]. To perform electroreduction, a constant cathodic potential is applied for periods that can vary from a few minutes to a few hours to ensure that graphene is at its lowest oxidation state. This process occurs in an electrolytic solution similarly to electrodeposition; however, GO species dispersed in solution are absent. Afterwards, electrochemically reduced graphene oxide (called rGO or ERGO) is obtained [56]. The electroreduction method, in addition to being simple and of low cost, also avoids the need to handle harmful reagents such as hydrazine and other reagents used during conventional chemical reduction.

3. Nanocomposite Architecture

As previously mentioned, synthesis based on electrochemical methods allows the creation of different molecular architectures via control of the applied electrochemical parameters. At the level of nanocomposites, it is possible to form structures by alternating the order in which they are electrodeposited, in multiple stages, or even simultaneously in a single stage. Next, we will discuss in detail the possibilities explored in recent works.

3.1. Multiple-Step Strategy

The molecular architecture of a device may vary according to the researcher’s objective and may involve one or more processing steps [56,58,77,78]. Construction in two or more steps, as with the first addition of a reduced graphene oxide layer onto an electrode surface followed by electropolymerization of a polymer on an electrode/rGO structure, can be carried out, for example, with the aim of increasing the active area of the electrode and improving the electronic response of the material.

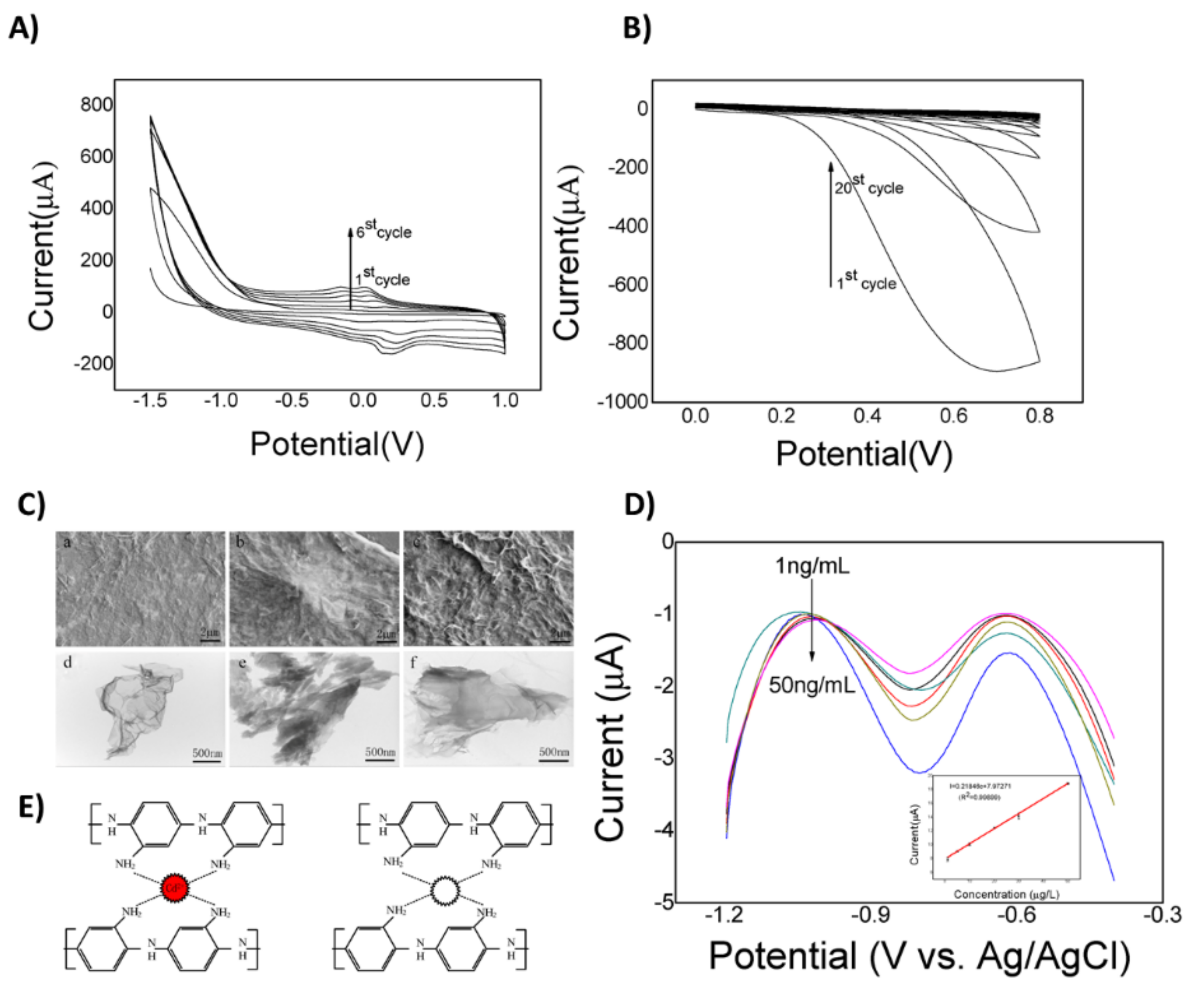

In this sense, Chen and collaborators [79] used cyclic voltammetry to electrodeposit a reduced graphene oxide layer onto a glassy carbon electrode by applying 8 potential cycles in an interval from 0.6 V to −1.5 V (vs. Ag/AgCl), with a scan rate of 25 mV s−1. The results obtained showed an increase in the capacitance of the system, which is related to the increase in the surface area of the material. Scanning electron microscopy (SEM) images showed the effective deposition of graphene sheets. Afterwards, the authors successfully realized electropolymerization of polypyrrole (PPy) onto the electrode, applying 8 cycles between −0.2 V and 0.8 V at 100 mV s−1. An increase in the electrochemical performance of the sensor due to the presence of reduced graphene oxide was verified.
Eryiğit and collaborators built their sensory platform based on the strategy of first depositing a poly(3,4-ethyleneoxythiophene) (PEDOT) film followed by the electrodeposition of reduced graphene oxide [80]. For this, a fixed potential of +1.3 V (vs. Ag/AgCl) was applied for 30 s in a solution containing 10 mmol L−1 3,4-ethyleneoxythiophene (EDOT) monomer (acetonitrile (ACN)/LiClO4 0.1 mol L−1), forming a first layer of conductive polymer on the surface of a gold electrode. Afterwards, the Au-PEDOT set was immersed in a 2.0 mg mL−1 GO solution and a −1.0 V cathodic potential (vs. Ag/AgCl) was applied for 60 s, giving rise to a Au-PEDOT-ERGO sensor (Figure 7).
A similar approach was presented by Zhang et al. [81], where first the surface of a glass carbon electrode (GCE) was modified with L-lysine followed by the incorporation of graphene oxide. Modification by L-lysine occurred through electropolymerization by cyclic voltammetry, applying 7 potential cycles in a potential range from −1.0 V to 2.2 V (vs. Ag/AgCl) with a scan rate of 50 mV s−1. Afterwards, the electrode was washed and immersed in a solution of 1.0 mg mL−1 graphene oxide, and 10 cycles of potentials were applied in an interval of 0.6 V to −1.5 V (vs. Ag/AgCl) at a speed of 25 mV s−1. Electrochemical performance was evaluated comparatively with an electrode containing only graphene oxide and subsequently applied to the simultaneous determination of ascorbic acid, dopamine and uric acid.
Another widely used form is that of the modification reaction, functionalization of graphene sheets with the polymer in a chemical step prior to the electrochemical step. Due to the widespread presence of oxygenated species in graphene oxide sheets (and their derivatives), they can be easily covalently functionalized via chemical reactions such as esterification, amidation, click chemistry, nitrene chemistry, etc. [82] or even functionalized non-covalently through π-aromatic interactions [83,84].
In this sense, Hu and collaborators [85] modified graphene oxide prior to the electrochemical step (Figure 8). A rGO-Polypyrrole set was obtained by adding 500 μL of pyrrole monomer to 10 mL of GO solution. The set was taken to a hydrothermal process in an autoclave for 12 h at a temperature of 180 °C. After this period, a 3D material rGO-polypyrrole hydrogel pillar was obtained. This material was used as an electrode and immersed in PBS solution, and electropolymerization of the Py present in the structure was conducted by applying a constant potential of +0.8 V for a period of 30 min.
Li and collaborators [86] functionalized graphene oxide by a condensation dehydration reaction to obtain a covalent bond between the carboxylic groups and the amine group of the aminophenylboronic acid (APBA) molecule. The resulting composite, called GO-APBA, was dispersed in Na2SO4 0.10 mol L−1 solution, and, afterwards, potential cycles were applied in a potential range from −1.2 V to +1.2 V (50 mV s−1). The platform formed was evaluated against different glucose concentrations using electrochemical impedance spectroscopy.

3.2. One-Step Approach

Recently, the number of works using the one-step approach has increased. This approach consists of a single step for obtaining the graphene-polymer composite through simultaneous synthesis and deposition (or alternating layers) of the graphene oxide and polymer species by simply modulating the applied electrochemical potential [6,41,78,87,88,89,90,91,92,93,94,95].
This approach aims to reduce steps, time and cost involved in the construction of the composite material. With this approach, it is possible to build films with a 3D architecture with alternating layers (layers-by-layers), obtaining a remarkable filling of the polymer matrix with the reduced graphene oxide layers [93]. Imae and collaborators built a platform based on graphene-PEDOT through a one-step approach. In a KCl solution containing 3.0 mg mL−1 GO and 20 mmol L−1 EDOT monomer, pulsed potentials of +1.0 and −1.1 V were repeatedly applied, resulting in the formation of a multilayer PEDOT-graphene film.
Recently, in our laboratory, one-step electrosynthesis was performed to build a graphene nanocomposite film with an azopolymer [6,96,97]. By cyclic voltammetry electropolymerization, a sensory platform was obtained via alternating deposition reduced graphene oxide and poly(azo-Bismark Brown Y) layers (Figure 9). During the cathodic scan, graphene oxide sheets were electrodeposited, and during the anodic scan, a poly(azo-BBY) layer was obtained. The increase in the conductivity of the material, due to π-π orbital interactions between reduced graphene oxide and π-conjugated azopolymer chains, allowed its application in the sensing of superoxide using electrochemical impedance spectroscopy.

4. Sensing Applications

Electrochemical sensor-based graphene-polymer composites have shown increasing adhesion due to their versatility and ability to identify and quantify a diversity of analytes, ranging from small inorganic molecules to biological molecules. Below, some recent research related to electrochemically manufactured sensors is summarized in Table 1, and some is highlighted.
Acetaminophen is a drug widely used worldwide due to its analgesic and antipyretic properties. In this sense, Ly and collaborators [94] built a graphene polymer-based sensory platform to detect acetaminophen in traditional medicines. The sensorial platform was built in a single step using an electrochemical cyclic voltammetry technique. The electropolymerization solution consisted of 1.0 mg mL−1 GO and 10 mmol L−1 EDOT monomer in phosphate-buffered saline (pH 7.4). The solution was sonified for 30 min before electrosynthesis, in which 10 cycles of potentials were applied in a potential range of −1.2 V to +1.5 V (vs. Ag/AgCl) with a scan rate of 50 mV s−1. From the obtained voltammogram, the authors identified the typical behavior for the formation of the PEDOT polymer as well as the irreversible peak characteristic of the reduction of the oxygenated groups present in the graphene oxide sheets. The effective formation of the film was confirmed by Fourier transform infrared spectroscopy (FTIR) and SEM. For the detection of the drug, the PEDOT-rGO device presented a sensitivity of 23,515 μA μmol L−1 cm−2 and a detection limit of 5.74 μmol L−1, which is sufficient for application in real samples of commercial drugs.
Essousi and collaborators [111] developed a graphene-polymer device based on a molecular imprinting technique to determine a widely used drug, amoxicillin. In a two-stage construction strategy, the authors first formed a reduced graphene oxide layer on the electrode surface. The electroreduction of graphene oxide sheets on a GCE surface was obtained after the application of 15 cycles of potential in PBS 0.1 mol L−1 solution in a potential range of +0.6 V to −0.7 V (vs. Ag/AgCl). Then, the molecularly imprinted polymer (MIP) was applied to build the device on the GCE/rGO electrode by applying potential cycles (10 scans) in a potential range of −0.2 V to +0.9 V in solution having the pyrrole monomer and the drug amoxycillin as a template molecule. After that, gold nanoparticles were added to the composite. The sensor had a detection limit of 1.22 μmol L−1 over a wide concentration range. The sensor was applied to determine the drug in samples of human serum and milk.
Wang and collaborators [75] used electrodeposition and electropolymerization techniques to develop an ion-printed sensor for the identification and quantification of trace concentrations of Cd(II) metal in river water. The sensor was built in two stages: the first involved the electrodeposition of reduced graphene oxide layers onto the GCE electrode surface by applying a potential range from −1.5 V to +1.0 V at 50 mV s−1 for 10 cycles in 2.0 mg mL−1 graphene oxide solution (KCl 0.1 mol L−1). Subsequently, the GCE/ERGO electrode was washed, dried in a flow of N2 and immersed in a solution containing 40 mmol L−1 of the monomer o-phenylenediamine (acetate buffer pH 5.4 as electrolyte) to form poly(o-phenylenediamine) (PoPD) on the GCE/ERGO electrode surface by applying 20 cycles in a 0.0 V to +0.8 V potential window (vs. Ag/AgCl) at 50 mV s−1. At the end of the sensor construction, the template ion was removed, and the analytical characteristics of the sensor were investigated (Figure 10). The sensor had an impressive detection limit of 0.13 ng/mL in addition to expressive selectivity compared to other ions, such as Hg(II), Fe(II), Cu(II) and Ni(II), depending on the printed cavity built specifically for the Cd(II) ion. With these skills, the sensor was applied to real water samples collected from rivers in the Beijing region.

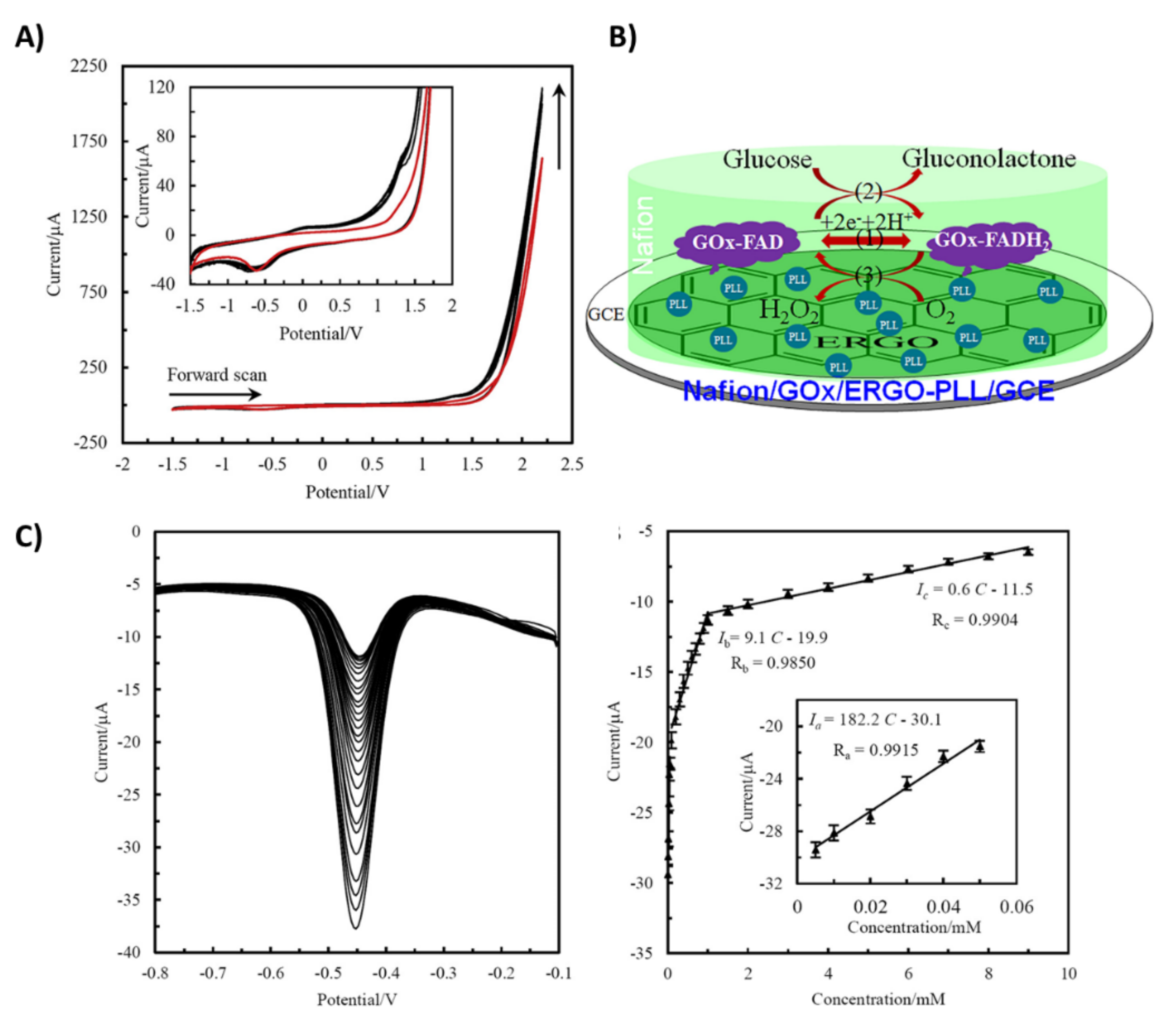

Figure 11 shows the one-step approach for the glucose sensor developed by Zhang and collaborators [112]. The GCE electrode was first modified by cyclic voltammetry (8 cycles, range from −1.5 V to +2.2 V vs. Ag/AgCl) in PBS solution containing 1.0 mg mL−1 of GO and 1.0 mmol L−1 of L-lysine. After the construction of the sensor, the enzyme glucose oxidase was immobilized on the surface. Finally, a last layer of Nafion was applied to the GCE/ERGO-PLL/GOx set to protect against sensor degradation. SEM verified the alternate deposition of materials, resulting in a 3D structure that had a positive effect on the electrochemical response performance of the composite. The sensor showed impressive sensitivity compared to some other composite glucose biosensors.

5. Conclusions

The main strategies for the electrochemical synthesis of thin films based on reduced graphene oxide nanocomposites with conductive polymers are discussed in this review. The construction of nanocomposite films by electrochemical techniques has several advantages over conventional methodologies based on chemical synthesis. The main benefits include the formation of a nanocomposite film directly on the surface of the desired substrate, with the possibility of high control over its structure, which increases the reaction yield and decreases the process time and cost. Electrochemical sensors are crucial components for achieving low-cost analysis. Electrochemical synthesis also facilitates the modeling and architecture of sensory platforms. Different configurations can be achieved using different solutions and techniques or even different techniques in a single solution (one-spot). From the presented well-illustrated examples, it is possible to follow a variety of construction strategies for realizing sensory platforms as well as infer a wide possibility for applications, ranging from metal ions to biological molecules.
Despite this, the variety of polymers used for the construction of sensorial platforms had been enough explored. Main work had limited to the use of conductive polymers based on EDOT, PPy and PANI. Thus, new conductive polymers need could be study for. For example, polymers with different functional groups could achieve new properties and characteristics, in addition to enabling new ways of anchoring biomolecules. Recently, works increase the use of photosensitive materials in sensory applications. In this sense, for example, the use of polymers with photoresponse characteristics could expand the range of applications or even improve the sensitive response to the analyte, bringing to a photosensitive system all the advantages presented by the graphene-polymer set.
In addition, a promising perspective on composite materials due to the constant improvement of electrochemical equipment. Increased resolution and reduced device dimensions, plus the ease of acquisition and management of the data generated for different platforms make the graphene-polymer nanofilms a promising material for application in miniaturized, smart, and wearable devices.

Author Contributions

A.O.-O.: Visualization, Discussion, Writing—Original Draft. G.A.O.B.: Visualization, Discussion, Funding acquisition. C.X.C.: Visualization, Discussion, Funding acquisition. M.F.S.T.: Writing—Review & Editing, Supervision, Project administration, Funding acquisition. All authors have read and agreed to the published version of the manuscript.

Funding

Sao Paulo Research Foundation—FAPESP (2016/09017-1); CEPID-FAPESP (2013/07296-2); The National Council for Scientific and Technological—CNPq (303282/2020-7); Higher Education Improvement Coordination—CAPES (88882.434480/2019-01).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

The authors acknowledge FAPESP (2016/09017-1); CEPID-FAPESP (2013/07296-2) and CNPq (303282/2020-7) for their financial support. A.O.O. thanks CAPES (88882.434480/2019-01) for PhD fellowship. SJT and NSA.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Gao, W. The Chemistry of Graphene Oxide. Graphene Oxide 2015, 61–95. [Google Scholar] [CrossRef]
  2. Catania, F.; Marras, E.; Giorcelli, M.; Jagdale, P.; Lavagna, L.; Tagliaferro, A.; Bartoli, M. A Review on Recent Advancements of Graphene and Graphene-Related Materials in Biological Applications. Appl. Sci. 2021, 11, 614. [Google Scholar] [CrossRef]
  3. Olabi, A.; Abdelkareem, M.A.; Wilberforce, T.; Sayed, E.T. Application of graphene in energy storage device—A review. Renew. Sustain. Energy Rev. 2021, 135, 110026. [Google Scholar] [CrossRef]
  4. Hartmann, S.J.; Iurchenkova, A.A.; Kallio, T.; Fedorovskaya, E.O. Electrochemical Properties of Nitrogen and Oxygen Doped Reduced Graphene Oxide. Energies 2020, 13, 312. [Google Scholar] [CrossRef] [Green Version]
  5. Mouhat, F.; Coudert, F.-X.; Bocquet, M.-L. Structure and chemistry of graphene oxide in liquid water from first principles. Nat. Commun. 2020, 11, 1–9. [Google Scholar] [CrossRef]
  6. Olean-Oliveira, A.; Brito, G.A.O.; Teixeira, M.F.S. Mechanism of Nanocomposite Formation in the Layer-by-Layer Single-Step Electropolymerization of π-Conjugated Azopolymers and Reduced Graphene Oxide: An Electrochemical Impedance Spectroscopy Study. ACS Omega 2020, 5, 25954–25967. [Google Scholar] [CrossRef]
  7. Lawal, A.T. Graphene-based nano composites and their applications. A review. Biosens. Bioelectron. 2019, 141, 111384. [Google Scholar] [CrossRef]
  8. Karimzadeh, A.; Hasanzadeh, M.; Shadjou, N.; de la Guardia, M. Optical bio(sensing) using nitrogen doped graphene quantum dots: Recent advances and future challenges. TrAC Trends Anal. Chem. 2018, 108, 110–121. [Google Scholar] [CrossRef]
  9. Lonkar, S.P.; Deshmukh, Y.S.; Abdala, A.A. Recent advances in chemical modifications of graphene. Nano Res. 2015, 8, 1039–1074. [Google Scholar] [CrossRef]
  10. Punetha, V.D.; Rana, S.; Yoo, H.J.; Chaurasia, A.; McLeskey, J.T.; Ramasamy, M.S.; Sahoo, N.G.; Cho, J.W. Functionalization of carbon nanomaterials for advanced polymer nanocomposites: A comparison study between CNT and graphene. Prog. Polym. Sci. 2017, 67, 1–47. [Google Scholar] [CrossRef]
  11. Xu, X.; Liu, C.; Sun, Z.; Cao, T.; Zhang, Z.; Wang, E.; Liu, Z.; Liu, K. Interfacial engineering in graphene bandgap. Chem. Soc. Rev. 2018, 47, 3059–3099. [Google Scholar] [CrossRef] [PubMed]
  12. Méndez-Romero, U.A.; Pérez-García, S.A.; Xu, X.; Wang, E.; Licea-Jiménez, L. Functionalized reduced graphene oxide with tunable band gap and good solubility in organic solvents. Carbon 2019, 146, 491–502. [Google Scholar] [CrossRef]
  13. Hasan, T.; Senger, B.J.; Ryan, C.; Culp, M.; Gonzalez-Rodriguez, R.; Coffer, J.L.; Naumov, A.V. Optical Band Gap Alteration of Graphene Oxide via Ozone Treatment. Sci. Rep. 2017, 7, 1–8. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Farjadian, F.; Abbaspour, S.; Sadatlu, M.A.A.; Mirkiani, S.; Ghasemi, A.; Hoseini-Ghahfarokhi, M.; Mozaffari, N.; Karimi, M.; Hamblin, M.R. Recent Developments in Graphene and Graphene Oxide: Properties, Synthesis, and Modifications: A Review. ChemistrySelect 2020, 5, 10200–10219. [Google Scholar] [CrossRef]
  15. Shende, P.; Augustine, S.; Prabhakar, B. A review on graphene nanoribbons for advanced biomedical applications. Carbon Lett. 2020, 30, 465–475. [Google Scholar] [CrossRef]
  16. Huang, X.; Qi, X.; Boey, F.; Zhang, H. Graphene-based composites. Chem. Soc. Rev. 2011, 41, 666–686. [Google Scholar] [CrossRef] [PubMed]
  17. Pumera, M. Graphene-based nanomaterials for energy storage. Energy Environ. Sci. 2010, 4, 668–674. [Google Scholar] [CrossRef]
  18. Liu, C.; Yu, Z.; Neff, D.; Zhamu, A.; Jang, B.Z. Graphene-Based Supercapacitor with an Ultrahigh Energy Density. Nano Lett. 2010, 10, 4863–4868. [Google Scholar] [CrossRef]
  19. Zhou, X.; Qiao, J.; Yang, L.; Zhang, J. A Review of Graphene-Based Nanostructural Materials for Both Catalyst Supports and Metal-Free Catalysts in PEM Fuel Cell Oxygen Reduction Reactions. Adv. Energy Mater. 2014, 4, 1301523. [Google Scholar] [CrossRef]
  20. Liu, Z.; Liu, Q.; Huang, Y.; Ma, Y.; Yin, S.; Zhang, X.; Sun, W.; Chen, Y. Organic Photovoltaic Devices Based on a Novel Acceptor Material: Graphene. Adv. Mater. 2008, 20, 3924–3930. [Google Scholar] [CrossRef]
  21. Huang, X.; Yin, Z.; Wu, S.; Qi, X.; He, Q.; Zhang, Q.; Yan, Q.; Boey, F.; Zhang, H. Graphene-Based Materials: Synthesis, Characterization, Properties, and Applications. Small 2011, 7, 1876–1902. [Google Scholar] [CrossRef]
  22. Aliyev, E.; Filiz, V.; Khan, M.M.; Lee, Y.J.; Abetz, C.; Abetz, V. Structural Characterization of Graphene Oxide: Surface Functional Groups and Fractionated Oxidative Debris. Nanomaterials 2019, 9, 1180. [Google Scholar] [CrossRef] [Green Version]
  23. Dong, Y.Z.; Kim, J.N.; Choi, H.J. Graphene Oxide and Its Inorganic Composites: Fabrication and Electrorheological Response. Materials 2019, 12, 2185. [Google Scholar] [CrossRef] [Green Version]
  24. Zhou, H.; Chen, L.; Li, S.; Huang, S.; Sun, Y.; Chen, Y.; Wang, Z.; Liu, W.; Li, X. One-step electroreduction preparation of multilayered reduced graphene oxide/gold-palladium nanohybrid as a proficient electrocatalyst for development of sensitive hydrazine sensor. J. Colloid Interface Sci. 2020, 566, 473–484. [Google Scholar] [CrossRef]
  25. Zamiri, G.; Haseeb, A.S.M.A. Recent Trends and Developments in Graphene/Conducting Polymer Nanocomposites Chemiresistive Sensors. Materials 2020, 13, 3311. [Google Scholar] [CrossRef]
  26. Zhang, M.; Li, Y.; Su, Z.; Wei, G. Recent advances in the synthesis and applications of graphene–polymer nanocomposites. Polym. Chem. 2015, 6, 6107–6124. [Google Scholar] [CrossRef]
  27. Sun, X.; Huang, C.; Wang, L.; Liang, L.; Cheng, Y.; Fei, W.; Li, Y. Recent Progress in Graphene/Polymer Nanocomposites. Adv. Mater. 2021, 33, 2001105. [Google Scholar] [CrossRef]
  28. Wang, M.; Duan, X.; Xu, Y.; Duan, X. Functional Three-Dimensional Graphene/Polymer Composites. ACS Nano 2016, 10, 7231–7247. [Google Scholar] [CrossRef]
  29. Wang, J.; Jin, X.; Li, C.; Wang, W.; Wu, H.; Guo, S. Graphene and graphene derivatives toughening polymers: Toward high toughness and strength. Chem. Eng. J. 2019, 370, 831–854. [Google Scholar] [CrossRef]
  30. Barakzehi, M.; Montazer, M.; Sharif, F.; Norby, T.; Chatzitakis, A. A textile-based wearable supercapacitor using reduced graphene oxide/polypyrrole composite. Electrochim. Acta 2019, 305, 187–196. [Google Scholar] [CrossRef]
  31. Aguilar, L.E. Nanotechnology in improving medical devices for smart drug delivery. In Biomimetic Nanoengineered Materials for Advanced Drug Delivery; Unnithan, A.R., Sasikala, A.R.K., Park, C.H., Kim, A.D.D., Eds.; Elsevier: Amsterdam, The Netherlands, 2019; pp. 73–90. [Google Scholar] [CrossRef]
  32. Zhao, M.; Zhang, H.; Gu, C.; Ma, Y. Electrochemical polymerization: An emerging approach for fabricating high-quality luminescent films and super-resolution OLEDs. J. Mater. Chem. C 2020, 8, 5310–5320. [Google Scholar] [CrossRef]
  33. Cosnier, S. Biomolecule immobilization on electrode surfaces by entrapment or attachment to electrochemically polymerized films. A review. Biosens. Bioelectron. 1999, 14, 443–456. [Google Scholar] [CrossRef]
  34. Ramanavicius, S.; Ramanavicius, A. Conducting Polymers in the Design of Biosensors and Biofuel Cells. Polymers 2020, 13, 49. [Google Scholar] [CrossRef] [PubMed]
  35. Satoh, M.; Kaneto, K.; Yoshino, K. Dependences of electrical and mechanical properties of conducting polypyrrole films on conditions of electrochemical polymerization in an aqueous medium. Synth. Met. 1986, 14, 289–296. [Google Scholar] [CrossRef]
  36. Bidan, G. Electroconducting conjugated polymers: New sensitive matrices to build up chemical or electrochemical sensors. A review. Sens. Actuators B Chem. 1992, 6, 45–56. [Google Scholar] [CrossRef]
  37. Varsha, M.V.; Nageswaran, G. Review—Direct Electrochemical Synthesis of Metal Organic Frameworks. J. Electrochem. Soc. 2020, 167, 155527. [Google Scholar] [CrossRef]
  38. Yu, Y.; Zhong, J.; Xu, K.; Yuan, Y.; Ye, K. Recent Advances in the Electrochemical Synthesis and Functionalization of Indole Derivatives. Adv. Synth. Catal. 2020, 362, 2102–2119. [Google Scholar] [CrossRef]
  39. Chen, Z.; Villani, E.; Inagi, S. Recent progress in bipolar electropolymerization methods toward one-dimensional conducting polymer structures. Curr. Opin. Electrochem. 2021, 28, 100702. [Google Scholar] [CrossRef]
  40. Barroso, G.; Li, Q.; Bordia, R.K.; Motz, G. Polymeric and ceramic silicon-based coatings—A review. J. Mater. Chem. A 2018, 7, 1936–1963. [Google Scholar] [CrossRef]
  41. Chen, J.; Wang, Y.; Cao, J.; Liu, Y.; Zhou, Y.; Ouyang, J.-H.; Jia, D. Facile Co-Electrodeposition Method for High-Performance Supercapacitor Based on Reduced Graphene Oxide/Polypyrrole Composite Film. ACS Appl. Mater. Interfaces 2016, 9, 19831–19842. [Google Scholar] [CrossRef]
  42. Wu, Z.-S.; Ren, W.; Wang, D.-W.; Li, F.; Liu, B.; Cheng, H.-M. High-Energy MnO2Nanowire/Graphene and Graphene Asymmetric Electrochemical Capacitors. ACS Nano 2010, 4, 5835–5842. [Google Scholar] [CrossRef]
  43. Zhou, H.; Han, G.; Xiao, Y.; Chang, Y.; Zhai, H.-J. Facile preparation of polypyrrole/graphene oxide nanocomposites with large areal capacitance using electrochemical codeposition for supercapacitors. J. Power Sources 2014, 263, 259–267. [Google Scholar] [CrossRef]
  44. Hilder, M.; Winther-Jensen, B.; Li, D.; Forsyth, M.; Macfarlane, D.R. Direct electro-deposition of graphene from aqueous suspensions. Phys. Chem. Chem. Phys. 2011, 13, 9187–9193. [Google Scholar] [CrossRef]
  45. Chen, L.; Tang, Y.; Wang, K.; Liu, C.; Luo, S. Direct electrodeposition of reduced graphene oxide on glassy carbon electrode and its electrochemical application. Electrochem. Commun. 2011, 13, 133–137. [Google Scholar] [CrossRef]
  46. Wang, Q.; Zhang, J.; Xu, Y.; Wang, Y.; Wu, L.; Weng, X.; You, C.; Feng, J.-J. A one-step electrochemically reduced graphene oxide based sensor for sensitive voltammetric determination of furfural in milk products. Anal. Methods 2021, 13, 56–63. [Google Scholar] [CrossRef]
  47. Neklyudov, V.V.; Khafizov, N.R.; Sedov, I.A.; Dimiev, A.M. New insights into the solubility of graphene oxide in water and alcohols. Phys. Chem. Chem. Phys. 2017, 19, 17000–17008. [Google Scholar] [CrossRef] [Green Version]
  48. Paredes, J.I.; Villar-Rodil, S.; Martínez-Alonso, A.; Tascon, J.M.D. Graphene Oxide Dispersions in Organic Solvents. Langmuir 2008, 24, 10560–10564. [Google Scholar] [CrossRef]
  49. Konkena, B.; Vasudevan, S. Understanding Aqueous Dispersibility of Graphene Oxide and Reduced Graphene Oxide through pKa Measurements. J. Phys. Chem. Lett. 2012, 3, 867–872. [Google Scholar] [CrossRef]
  50. Bakhshandeh, R.; Shafiekhani, A. Ultrasonic waves and temperature effects on graphene structure fabricated by electrochemical exfoliation method. Mater. Chem. Phys. 2018, 212, 95–102. [Google Scholar] [CrossRef]
  51. Mellado, C.; Figueroa, T.; Baez, R.; Meléndrez, M.; Fernández, K. Effects of probe and bath ultrasonic treatments on graphene oxide structure. Mater. Today Chem. 2019, 13, 1–7. [Google Scholar] [CrossRef]
  52. Shih, C.-J.; Lin, S.; Sharma, R.; Strano, M.S.; Blankschtein, D. Understanding the pH-Dependent Behavior of Graphene Oxide Aqueous Solutions: A Comparative Experimental and Molecular Dynamics Simulation Study. Langmuir 2012, 28, 235–241. [Google Scholar] [CrossRef]
  53. Hu, X.; Yu, Y.; Hou, W.; Zhou, J.; Song, L. Effects of particle size and pH value on the hydrophilicity of graphene oxide. Appl. Surf. Sci. 2013, 273, 118–121. [Google Scholar] [CrossRef]
  54. Man, S.C.; Ly, D.; Whittaker, M.R.; Thickett, S.C.; Zetterlund, P.B. Nano-sized graphene oxide as sole surfactant in miniemulsion polymerization for nanocomposite synthesis: Effect of pH and ionic strength. Polymers 2014, 55, 3490–3497. [Google Scholar] [CrossRef]
  55. Ai, Y.; Liu, Y.; Lan, W.; Jin, J.; Xing, J.; Zou, Y.; Zhao, C.; Wang, X. The effect of pH on the U(VI) sorption on graphene oxide (GO): A theoretical study. Chem. Eng. J. 2018, 343, 460–466. [Google Scholar] [CrossRef]
  56. Toh, S.Y.; Loh, K.S.; Kamarudin, S.K.; Daud, W.R.W. Graphene production via electrochemical reduction of graphene oxide: Synthesis and characterisation. Chem. Eng. J. 2014, 251, 422–434. [Google Scholar] [CrossRef]
  57. Liu, C.; Wang, K.; Luo, S.; Tang, Y.; Chen, L. Direct Electrodeposition of Graphene Enabling the One-Step Synthesis of Graphene-Metal Nanocomposite Films. Small 2011, 7, 1203–1206. [Google Scholar] [CrossRef]
  58. Oliveira, Y.A.; Olean-Oliveira, A.; Teixeira, M.F. Short communication: Molecular architecture based on palladium-salen complex/graphene for low potential water oxidation. J. Electroanal. Chem. 2021, 880, 114928. [Google Scholar] [CrossRef]
  59. Zhang, Y.; Zeng, G.M.; Tang, L.; Chen, J.; Zhu, Y.; He, X.X.; He, Y. Electrochemical Sensor Based on Electrodeposited Graphene-Au Modified Electrode and NanoAu Carrier Amplified Signal Strategy for Attomolar Mercury Detection. Anal. Chem. 2014, 87, 989–996. [Google Scholar] [CrossRef]
  60. Zhou, Y.; Ma, M.; He, H.; Cai, Z.; Gao, N.; He, C.; Chang, G.; Wang, X.; He, Y. Highly sensitive nitrite sensor based on AuNPs/RGO nanocomposites modified graphene electrochemical transistors. Biosens. Bioelectron. 2019, 146, 111751. [Google Scholar] [CrossRef]
  61. Nia, P.M.; Jenatabadi, H.S.; Woi, P.M.; Abouzari-Lotf, E.; Alias, Y. The optimization of effective parameters for electrodeposition of reduced graphene oxide through Taguchi method to evaluate the charge transfer. Measurement 2019, 137, 683–690. [Google Scholar] [CrossRef]
  62. Carrizo, R.; Ramírez, D.; Hernández, L.; Lobos, G.; Häberle, P.; Dalchiele, E.A.; Riveros, G. Electrodeposition and Characterization of a Tin Sulfide-Electrochemically Reduced Graphene Oxide Heterojunction. ChemElectroChem 2019, 6, 1047–1056. [Google Scholar] [CrossRef]
  63. Alonso, R.M.; San-Martín, M.I.; Sotres, A.; Escapa, A. Graphene oxide electrodeposited electrode enhances start-up and selective enrichment of exoelectrogens in bioelectrochemical systems. Sci. Rep. 2017, 7, 13726. [Google Scholar] [CrossRef] [Green Version]
  64. Shukla, R.P.; Cazelles, R.; Kelly, D.L.; Ben-Yoav, H. A reduced-graphene oxide-modified microelectrode for a repeatable detection of antipsychotic clozapine using microliters-volumes of whole blood. Talanta 2020, 209, 120560. [Google Scholar] [CrossRef]
  65. Pruna, A.I.; Rosas-Laverde, N.M.; Mataix, D.B. Effect of Deposition Parameters on Electrochemical Properties of Polypyrrole-Graphene Oxide Films. Materials 2020, 13, 624. [Google Scholar] [CrossRef] [Green Version]
  66. Della Noce, R.; Eugénio, S.; Siwek, K.; Silva, T.; Carmezim, M.; Sakita, A.; Lavall, R.; Montemor, M. Direct electrodeposition of hydrogenated reduced graphene oxide from unsonicated solution and its electrochemical response. Diam. Relat. Mater. 2020, 104, 107740. [Google Scholar] [CrossRef]
  67. Olean-Oliveira, A.; Olean-Oliveira, T.; Moreno, A.C.R.; Seraphim, P.M.; Teixeira, M.F.S. A Chemiresistor Sensor Based on Azo-Polymer and Graphene for Real-Time Monitoring of Mitochondrial Oxygen Consumption. ACS Sens. 2018, 4, 118–125. [Google Scholar] [CrossRef]
  68. Kim, Y.-S.; Kim, J.-G. Electroplating of reduced-graphene oxide on austenitic stainless steel to prevent hydrogen embrittlement. Int. J. Hydrog. Energy 2017, 42, 27428–27437. [Google Scholar] [CrossRef]
  69. Golkhatmi, S.Z.; Khalaj, M.; Izadpanahi, A.; Sedghi, A. One-step electrodeposition synthesis of high performance Graphene/Cu2O nanocomposite films on copper foils as binder-free supercapacitor electrodes. Solid State Sci. 2020, 106, 106336. [Google Scholar] [CrossRef]
  70. Li, Y.; Martens, I.; Cheung, K.C.; Bizzotto, D. Electrodeposition of reduced graphene oxide onto gold electrodes: Creating thin electrochemically active and optically transparent overlayers. Electrochim. Acta 2019, 319, 649–656. [Google Scholar] [CrossRef]
  71. Guex, L.G.; Sacchi, B.; Peuvot, K.F.; Andersson, R.L.; Pourrahimi, A.M.; Ström, V.; Farris, S.; Olsson, R.T. Experimental review: Chemical reduction of graphene oxide (GO) to reduced graphene oxide (rGO) by aqueous chemistry. Nanoscale 2017, 9, 9562–9571. [Google Scholar] [CrossRef] [Green Version]
  72. Xu, Y.; Sheng, K.; Li, C.; Shi, G. Highly conductive chemically converted graphene prepared from mildly oxidized graphene oxide. J. Mater. Chem. 2011, 21, 7376–7380. [Google Scholar] [CrossRef]
  73. Compton, O.C.; Nguyen, S.T. Graphene Oxide, Highly Reduced Graphene Oxide, and Graphene: Versatile Building Blocks for Carbon-Based Materials. Small 2010, 6, 711–723. [Google Scholar] [CrossRef] [PubMed]
  74. Dos Santos, P.L.; Timm, R.A.; Kubota, L.T.; Bonacin, J.A. Modulation of Electrochemical Properties of Graphene Oxide by Photochemical Reduction Using UV-Light Emitting Diodes. ChemistrySelect 2016, 1, 1168–1175. [Google Scholar] [CrossRef]
  75. Wang, J.; Hu, J.; Hu, S.; Gao, G.; Song, Y. A Novel Electrochemical Sensor Based on Electropolymerized Ion Imprinted PoPD/ERGO Composite for Trace Cd(II) Determination in Water. Sensors 2020, 20, 1004. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  76. Chauhan, N.; Chawla, S.; Pundir, C.; Jain, U. An electrochemical sensor for detection of neurotransmitter-acetylcholine using metal nanoparticles, 2D material and conducting polymer modified electrode. Biosens. Bioelectron. 2017, 89, 377–383. [Google Scholar] [CrossRef] [PubMed]
  77. Shi, R.; Liang, J.; Zhao, Z.; Liu, A.; Tian, Y. An electrochemical bisphenol A sensor based on one step electrochemical reduction of cuprous oxide wrapped graphene oxide nanoparticles modified electrode. Talanta 2017, 169, 37–43. [Google Scholar] [CrossRef]
  78. Zhang, Q.; Li, Y.; Feng, Y.; Feng, W. Electropolymerization of graphene oxide/polyaniline composite for high-performance supercapacitor. Electrochim. Acta 2013, 90, 95–100. [Google Scholar] [CrossRef]
  79. Chen, X.; Li, D.; Ma, W.; Yang, T.; Zhang, Y.; Zhang, D. Preparation of a glassy carbon electrode modified with reduced graphene oxide and overoxidized electropolymerized polypyrrole, and its application to the determination of dopamine in the presence of ascorbic acid and uric acid. Microchim. Acta 2019, 186, 407. [Google Scholar] [CrossRef]
  80. Eryiğit, M.; Çepni, E.; Urhan, B.K.; Doğan, H.Ö.; Özer, T. Öznülüer Nonenzymatic glucose sensor based on poly(3,4-ethylene dioxythiophene)/electroreduced graphene oxide modified gold electrode. Synth. Met. 2020, 268, 116488. [Google Scholar] [CrossRef]
  81. Zhang, D.; Li, L.; Ma, W.; Chen, X.; Zhang, Y. Electrodeposited reduced graphene oxide incorporating polymerization of l-lysine on electrode surface and its application in simultaneous electrochemical determination of ascorbic acid, dopamine and uric acid. Mater. Sci. Eng. C 2017, 70, 241–249. [Google Scholar] [CrossRef]
  82. Layek, R.K.; Nandi, A.K. A review on synthesis and properties of polymer functionalized graphene. Polymers 2013, 54, 5087–5103. [Google Scholar] [CrossRef] [Green Version]
  83. Liu, Y.; Hao, W.; Yao, H.; Li, S.; Wu, Y.; Zhu, J.; Jiang, L. Solution Adsorption Formation of a π-Conjugated Polymer/Graphene Composite for High-Performance Field-Effect Transistors. Adv. Mater. 2017, 30, 1705377. [Google Scholar] [CrossRef]
  84. Ghosh, A.; Jana, B.; Maiti, S.; Bera, R.K.; Ghosh, H.N.; Patra, A. Light Harvesting and Photocurrent Generation in a Conjugated Polymer Nanoparticle-Reduced Graphene Oxide Composite. ChemPhysChem 2017, 18, 1308–1316. [Google Scholar] [CrossRef]
  85. Hu, J.; Li, Y.; Gao, G.; Xia, S. A Mediated BOD Biosensor Based on Immobilized B. Subtilis on Three-Dimensional Porous Graphene-Polypyrrole Composite. Sensors 2017, 17, 2594. [Google Scholar] [CrossRef] [Green Version]
  86. Li, S.; Zhang, Q.; Lu, Y.; Ji, D.; Zhang, D.; Wu, J.; Chen, X.; Liu, Q. One step electrochemical deposition and reduction of graphene oxide on screen printed electrodes for impedance detection of glucose. Sens. Actuators B Chem. 2017, 244, 290–298. [Google Scholar] [CrossRef]
  87. Yang, T.; Kong, Q.; Li, Q.; Wang, X.; Chen, L.; Jiao, K. One-step electropolymerization of xanthurenic acid–graphene film prepared by a pulse potentiostatic method for simultaneous detection of guanine and adenine. Polym. Chem. 2014, 5, 2214–2218. [Google Scholar] [CrossRef]
  88. Gan, Z.; Song, N.; Zhang, H.; Ma, Z.; Wang, Y.; Chen, C. One-Step Electrofabrication of Reduced Graphene Oxide/Poly(N-methylthionine) Composite Film for High Performance Supercapacitors. J. Electrochem. Soc. 2020, 167, 085501. [Google Scholar] [CrossRef]
  89. Zhou, H.; Zhang, W.; Chang, Y.; Fu, D. Graphene oxide incorporated polypyrrole composite materials: Optimizing the electropolymerization conditions for improved supercapacitive properties. J. Mater. Sci. Mater. Electron. 2018, 30, 1109–1116. [Google Scholar] [CrossRef]
  90. Zhang, Z.; Li, J.; Luan, C.; Wang, H.; Cheng, X.; Fang, L.; Wang, L.; Zhao, B.; Ma, C.; Zhang, H.; et al. Preparation and characterization of palladium/polypyrrole-reduced graphene oxide/foamed nickel composite electrode and its electrochemical dechlorination of triclosan. Arab. J. Chem. 2020, 13, 3963–3973. [Google Scholar] [CrossRef]
  91. Lv, Z.; Chen, Y.; Wei, H.; Li, F.; Hu, Y.; Wei, C.; Feng, C. One-step electrosynthesis of polypyrrole/graphene oxide composites for microbial fuel cell application. Electrochim. Acta 2013, 111, 366–373. [Google Scholar] [CrossRef]
  92. Kakaei, K.; Hamidi, M.; Kakaei, N. Simultaneous electro-synthesis of polyaniline graphene nanocomposite in dilute graphene oxide as dopant and aniline by electrochemical method and its high specific capacitance. Mater. Res. Express 2019, 6, 085623. [Google Scholar] [CrossRef]
  93. Imae, I.; Fujimoto, D.; Zhang, L.; Harima, Y. Electrosynthesis of a multilayer film stacked alternately by poly(3,4-ethylenedioxythiophene) and reduced graphene oxide from aqueous solution. Electrochem. Commun. 2017, 81, 65–69. [Google Scholar] [CrossRef]
  94. Ly, C.T.; Phan, C.T.; Vu, C.N.; Le, H.S.; Nguyen, T.T.; Tran, D.L.; Le, L.A.; Vu, T.T. Electrodeposition of PEDOT-rGO film in aqueous solution for detection of acetaminophen in traditional medicaments. Adv. Nat. Sci. Nanosci. Nanotechnol. 2019, 10, 015013. [Google Scholar] [CrossRef]
  95. Duan, Q.; Wang, L.; Wang, F.; Zhang, H.; Lu, K. Facile One-Step Electrodeposition Preparation of Cationic Pillar [6]arene-Modified Graphene Films on Glassy Carbon Electrodes for Enhanced Electrochemical Performance. Front. Chem. 2020, 8, 430. [Google Scholar] [CrossRef]
  96. Olean-Oliveira, A.; Pacheco, J.C.; Seraphim, P.M.; Teixeira, M.F. Synergistic effect of reduced graphene oxide/azo-polymer layers on electrochemical performance and application as nonenzymatic chemiresistor sensors for detecting superoxide anion radicals. J. Electroanal. Chem. 2019, 852. [Google Scholar] [CrossRef]
  97. Olean-Oliveira, A.; Teixeira, M.F. Development of a nanocomposite chemiresistor sensor based on π-conjugated azo polymer and graphene blend for detection of dissolved oxygen. Sens. Actuators B Chem. 2018, 271, 353–357. [Google Scholar] [CrossRef] [Green Version]
  98. Essousi, H.; Barhoumi, H.; Karastogianni, S.; Girousi, S.T. An Electrochemical Sensor Based on Reduced Graphene Oxide, Gold Nanoparticles and Molecular Imprinted Over-oxidized Polypyrrole for Amoxicillin Determination. Electroanalysis 2020, 32, 1546–1558. [Google Scholar] [CrossRef]
  99. Tığ, G.A.; Pekyardımcı, Ş. An electrochemical sandwich-type aptasensor for determination of lipocalin-2 based on graphene oxide/polymer composite and gold nanoparticles. Talanta 2020, 210, 120666. [Google Scholar] [CrossRef]
  100. Phetsang, S.; Jakmunee, J.; Mungkornasawakul, P.; Laocharoensuk, R.; Ounnunkad, K. Sensitive amperometric biosensors for detection of glucose and cholesterol using a platinum/reduced graphene oxide/poly(3-aminobenzoic acid) film-modified screen-printed carbon electrode. Bioelectrochemistry 2019, 127, 125–135. [Google Scholar] [CrossRef]
  101. Wen, Y.; Liao, X.; Deng, C.; Liu, G.; Yan, Q.; Li, L.; Wang, X. Imprinted voltammetric streptomycin sensor based on a glassy carbon electrode modified with electropolymerized poly(pyrrole-3-carboxy acid) and electrochemically reduced graphene oxide. Microchim. Acta 2017, 184, 935–941. [Google Scholar] [CrossRef]
  102. Ran, G.; Li, Y.; Xia, Y. Graphene oxide and electropolymerized p-aminobenzenesulfonic acid mixed film used as dopamine and serotonin electrochemical sensor. Mon. Chem. Chem. Mon. 2020, 151, 293–299. [Google Scholar] [CrossRef]
  103. Ji, Z. Electropolymerized Molecular Imprinting & Graphene Modified Electrode for Detection of Melamine. Int. J. Electrochem. Sci. 2017, 12, 11942–11954. [Google Scholar] [CrossRef]
  104. Tang, X.; Raskin, J.-P.; Kryvutsa, N.; Hermans, S.; Slobodian, O.; Nazarov, A.N.; Debliquy, M. An ammonia sensor composed of polypyrrole synthesized on reduced graphene oxide by electropolymerization. Sens. Actuators B Chem. 2020, 305, 127423. [Google Scholar] [CrossRef]
  105. Zaidi, S.A. Utilization of an environmentally-friendly monomer for an efficient and sustainable adrenaline imprinted electrochemical sensor using graphene. Electrochim. Acta 2018, 274, 370–377. [Google Scholar] [CrossRef]
  106. Nemakal, M.; Aralekallu, S.; Mohammed, I.; Swamy, S.; Sannegowda, L.K. Electropolymerized octabenzimidazole phthalocyanine as an amperometric sensor for hydrazine. J. Electroanal. Chem. 2019, 839, 238–246. [Google Scholar] [CrossRef]
  107. Pereira, T.C.; Stradiotto, N. Electrochemical sensing of lactate by using an electrode modified with molecularly imprinted polymers, reduced graphene oxide and gold nanoparticles. Microchim. Acta 2019, 186, 764. [Google Scholar] [CrossRef]
  108. Kumar, D.R.; Dhakala, G.; QuangNguyenab, V.; Shima, J.-J. Molecularly imprinted hornlike polymer@ electrochemically reduced graphene oxide electrode for the highly selective determination of an antiemetic drug. Anal. Chim. Acta 2021, 1141, 71–82. [Google Scholar] [CrossRef]
  109. Wu, B.; Hou, S.; Xue, Y.; Chen, Z. Electrodeposition–Assisted Assembled Multilayer Films of Gold Nanoparticles and Glucose Oxidase onto Polypyrrole-Reduced Graphene Oxide Matrix and Their Electrocatalytic Activity toward Glucose. Nanomaterials 2018, 8, 993. [Google Scholar] [CrossRef] [Green Version]
  110. Ghanbari, M.H.; Norouzi, Z. Using a nanocomposite consist of Boron-doped reduced graphene oxide and electropolymerized β-cyclodextrin for Flunitrazepam electrochemical sensor. Microchem. J. 2020, 156, 104994. [Google Scholar] [CrossRef]
  111. Shohibuddin, I.U.S.; Salim, W.W.A.W. Tailoring the Electrochemical and Morphological Properties of Electropolymerized and Dropcast Reduced Graphene Oxide-Poly(3,4-ethylene dioxythiophene):polystyrenesulfonate Transducers for Ion-Selective Sensors. Proceedings 2020, 60, 11. [Google Scholar] [CrossRef]
  112. Zhang, D.; Chen, X.; Ma, W.; Yang, T.; Li, D.; Dai, B.; Zhang, Y. Direct electrochemistry of glucose oxidase based on one step electrodeposition of reduced graphene oxide incorporating polymerized l-lysine and its application in glucose sensing. Mater. Sci. Eng. C 2019, 104, 109880. [Google Scholar] [CrossRef] [PubMed]
Chemosensors 09 00149 g001 550

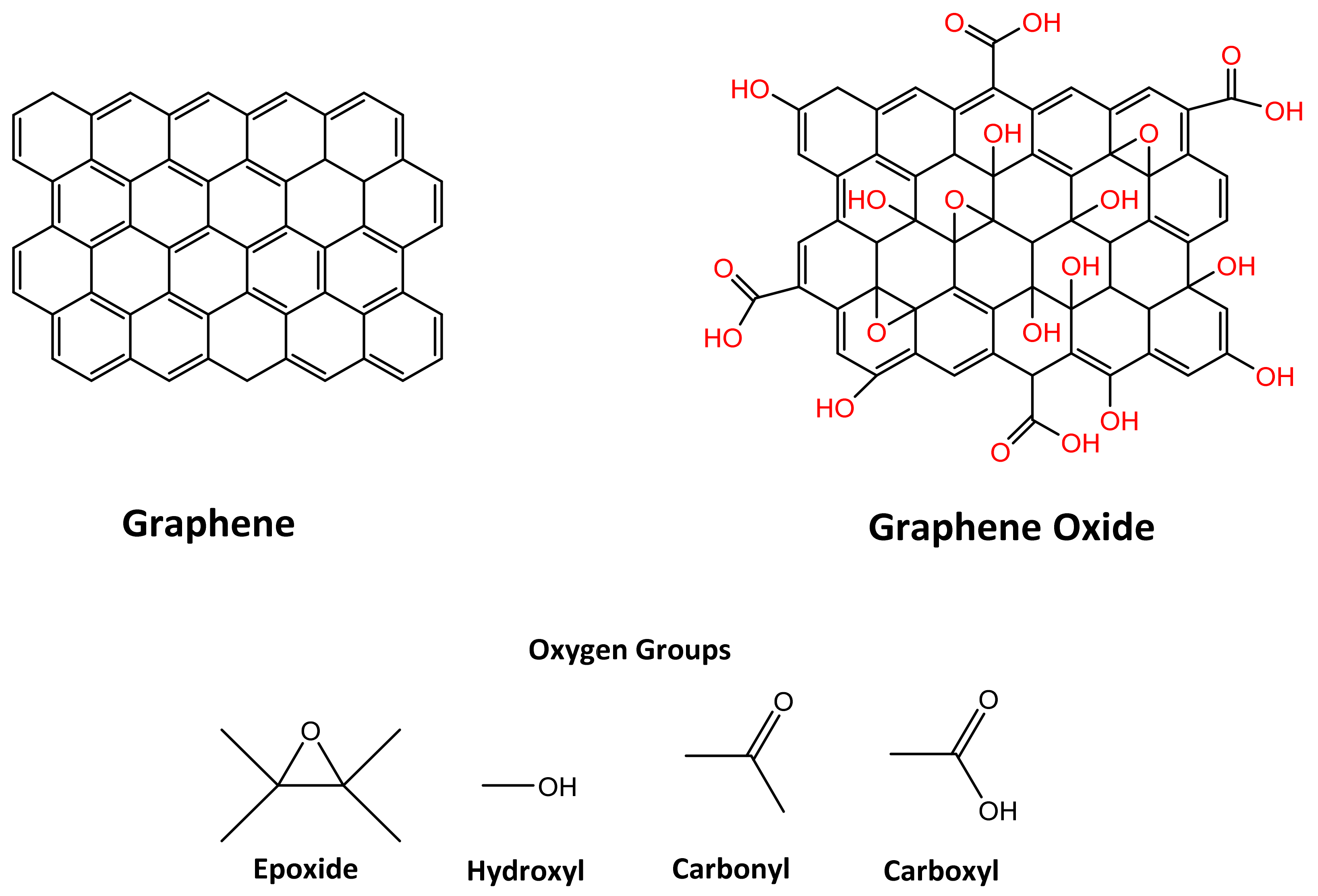

Figure 1. Graphene and graphene oxide structures and graphene oxide oxygenated groups.
Figure 1. Graphene and graphene oxide structures and graphene oxide oxygenated groups.
Chemosensors 09 00149 g001
Chemosensors 09 00149 g002 550
Figure 2. Schematic representation of the main components of a conventional electrochemical cell used for performing electrosynthesis. The main techniques used are highlighted, and in all of these methods, it is possible to obtain the thin film formation for the electrodeposited/electropolymerized material.
Figure 2. Schematic representation of the main components of a conventional electrochemical cell used for performing electrosynthesis. The main techniques used are highlighted, and in all of these methods, it is possible to obtain the thin film formation for the electrodeposited/electropolymerized material.
Chemosensors 09 00149 g002
Chemosensors 09 00149 g003 550

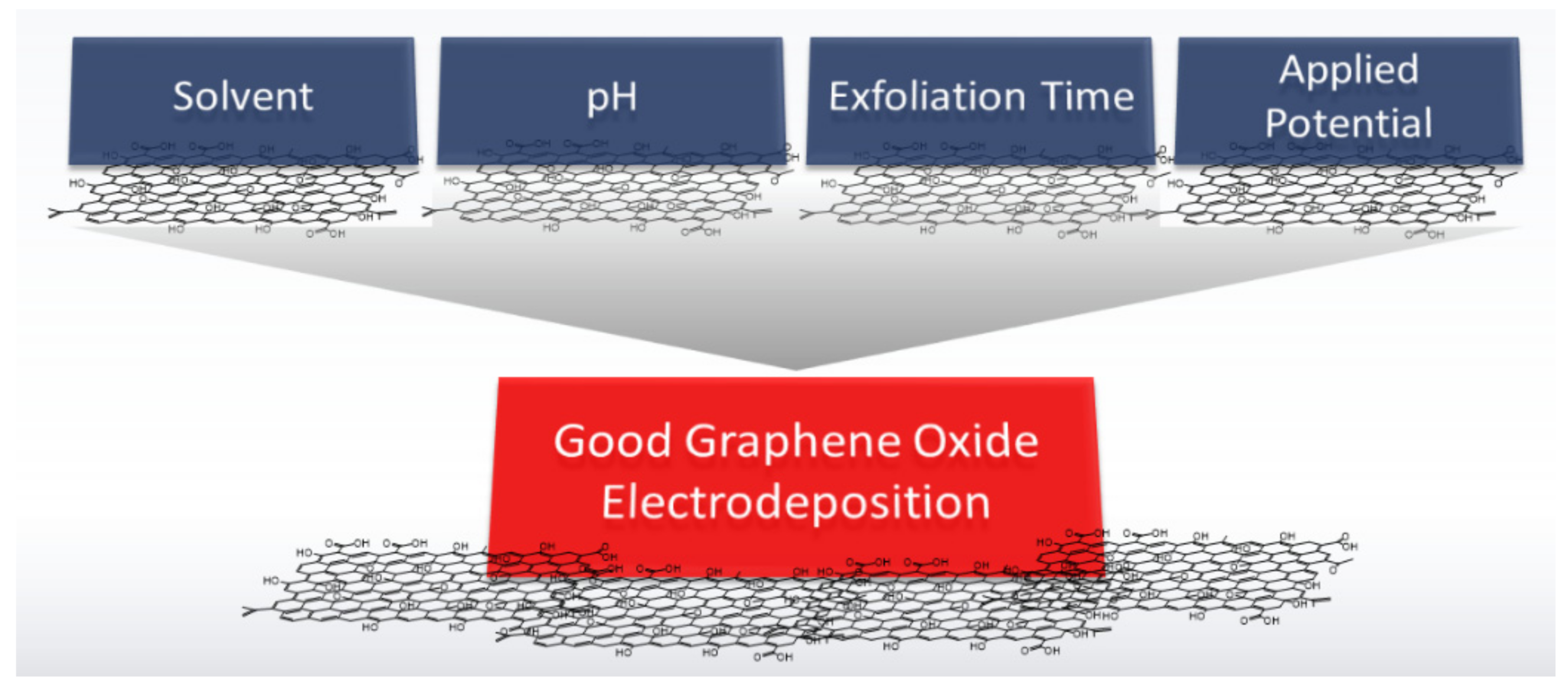

Figure 3. The main concerns that must be considered for obtaining an acceptable electrodeposition of graphene oxide on conductive substrates using electrochemical techniques.
Figure 3. The main concerns that must be considered for obtaining an acceptable electrodeposition of graphene oxide on conductive substrates using electrochemical techniques.
Chemosensors 09 00149 g003
Chemosensors 09 00149 g004 550
Figure 4. (A) Optimized structures of the solvates of graphene oxide with water based on a theoretical approach (B) Schematic representation of the three types of hydrogen bonding in the graphene oxide (GO) solvates. where red balls denote O atoms and blue balls denote H atoms. (1) and (2) show the bonding to the tertiary alcohol. (3) shows the bonding to the epoxide group. Reprinted (adapted) with permission from [47]. (C) Graphene oxide relative stability in different solvents immediately after sonication and after 3 weeks. Reprinted (adapted) with permission from Ref. [49] Copyright 2012 American Chemical Society.
Figure 4. (A) Optimized structures of the solvates of graphene oxide with water based on a theoretical approach (B) Schematic representation of the three types of hydrogen bonding in the graphene oxide (GO) solvates. where red balls denote O atoms and blue balls denote H atoms. (1) and (2) show the bonding to the tertiary alcohol. (3) shows the bonding to the epoxide group. Reprinted (adapted) with permission from [47]. (C) Graphene oxide relative stability in different solvents immediately after sonication and after 3 weeks. Reprinted (adapted) with permission from Ref. [49] Copyright 2012 American Chemical Society.
Chemosensors 09 00149 g004
Chemosensors 09 00149 g005 550

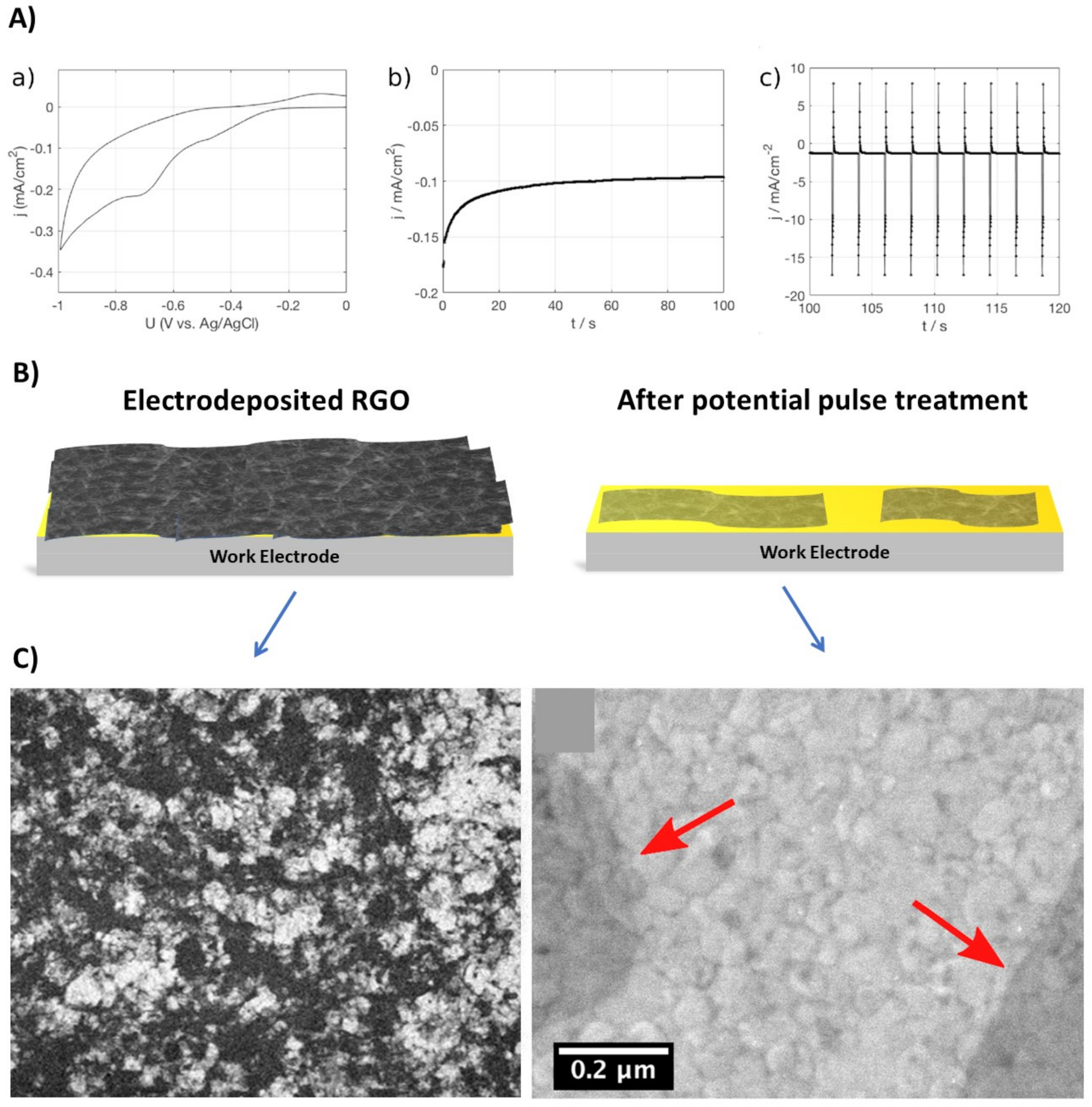

Figure 5. (A) (a) Cyclic voltammogram (50 mV/s) for a gold electrode in 1 mg/mL GO immediately before deposition, (b) reduction of GO onto gold at −0.8 V/Ag/AgCl for 100 s in 0.1 M phosphate-buffered saline (PBS) electrolyte, (c) current during the 20 s time period during the pulse treatment period between −0.5 V Ag/AgCl for 2 s and −1.5 V Ag/AgCl for 0.1 s on a graphene/GO-modified gold electrode in 0.1 M phosphate buffer (pH = 7.4). (B) Schematic representation of an electrode modified with graphene before and after the application of a potential pulse. (C) Scanning electron microscopy of electrodes covered with graphene before and after application of a potential pulse. Reprinted with permission from Ref. [70] Copyright 2019 Elsevier Ltd.
Figure 5. (A) (a) Cyclic voltammogram (50 mV/s) for a gold electrode in 1 mg/mL GO immediately before deposition, (b) reduction of GO onto gold at −0.8 V/Ag/AgCl for 100 s in 0.1 M phosphate-buffered saline (PBS) electrolyte, (c) current during the 20 s time period during the pulse treatment period between −0.5 V Ag/AgCl for 2 s and −1.5 V Ag/AgCl for 0.1 s on a graphene/GO-modified gold electrode in 0.1 M phosphate buffer (pH = 7.4). (B) Schematic representation of an electrode modified with graphene before and after the application of a potential pulse. (C) Scanning electron microscopy of electrodes covered with graphene before and after application of a potential pulse. Reprinted with permission from Ref. [70] Copyright 2019 Elsevier Ltd.
Chemosensors 09 00149 g005
Chemosensors 09 00149 g006 550

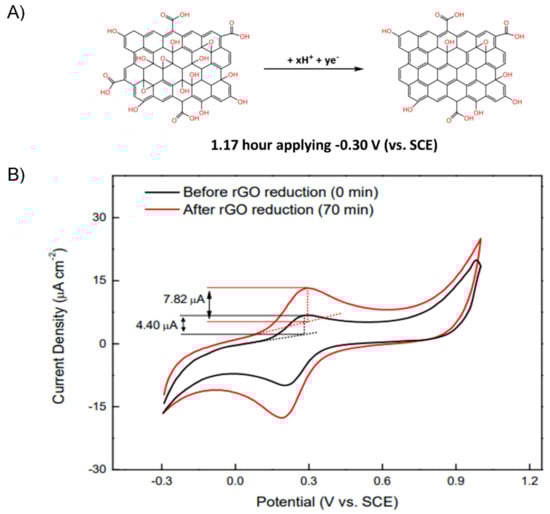

Figure 6. (A) Graphene electrochemical reduction representation after applying a fixed potential of −0.30 V (vs. saturated calomel electrode). (B) Voltammetric response to poly(azo-BBY)-rGO in KCl 0.50 mol L−1 (pH 2.0) solution under N2 atm before (black line) and after (red line) electrochemical reduction. Scan rate = 25 mV s−1. Reprinted (adapted) with permission from Ref. [6] Copyright 2020 from the American Chemical Society.
Figure 6. (A) Graphene electrochemical reduction representation after applying a fixed potential of −0.30 V (vs. saturated calomel electrode). (B) Voltammetric response to poly(azo-BBY)-rGO in KCl 0.50 mol L−1 (pH 2.0) solution under N2 atm before (black line) and after (red line) electrochemical reduction. Scan rate = 25 mV s−1. Reprinted (adapted) with permission from Ref. [6] Copyright 2020 from the American Chemical Society.
Chemosensors 09 00149 g006
Chemosensors 09 00149 g007 550
Figure 7. (A) Schematic presentation of the experimental procedure used and (B) scanning electron microscopy for formed films, (a) poly(3,4-ethyleneoxythiophene) (PEDOT), (b) electrochemically reduced graphene oxide (ERGO) and (c) PEDOT-ERGO. Reprinted (Adapted) with permission from Ref. [80] Copyright 2020 Elsevier B.V.
Figure 7. (A) Schematic presentation of the experimental procedure used and (B) scanning electron microscopy for formed films, (a) poly(3,4-ethyleneoxythiophene) (PEDOT), (b) electrochemically reduced graphene oxide (ERGO) and (c) PEDOT-ERGO. Reprinted (Adapted) with permission from Ref. [80] Copyright 2020 Elsevier B.V.
Chemosensors 09 00149 g007
Chemosensors 09 00149 g008 550

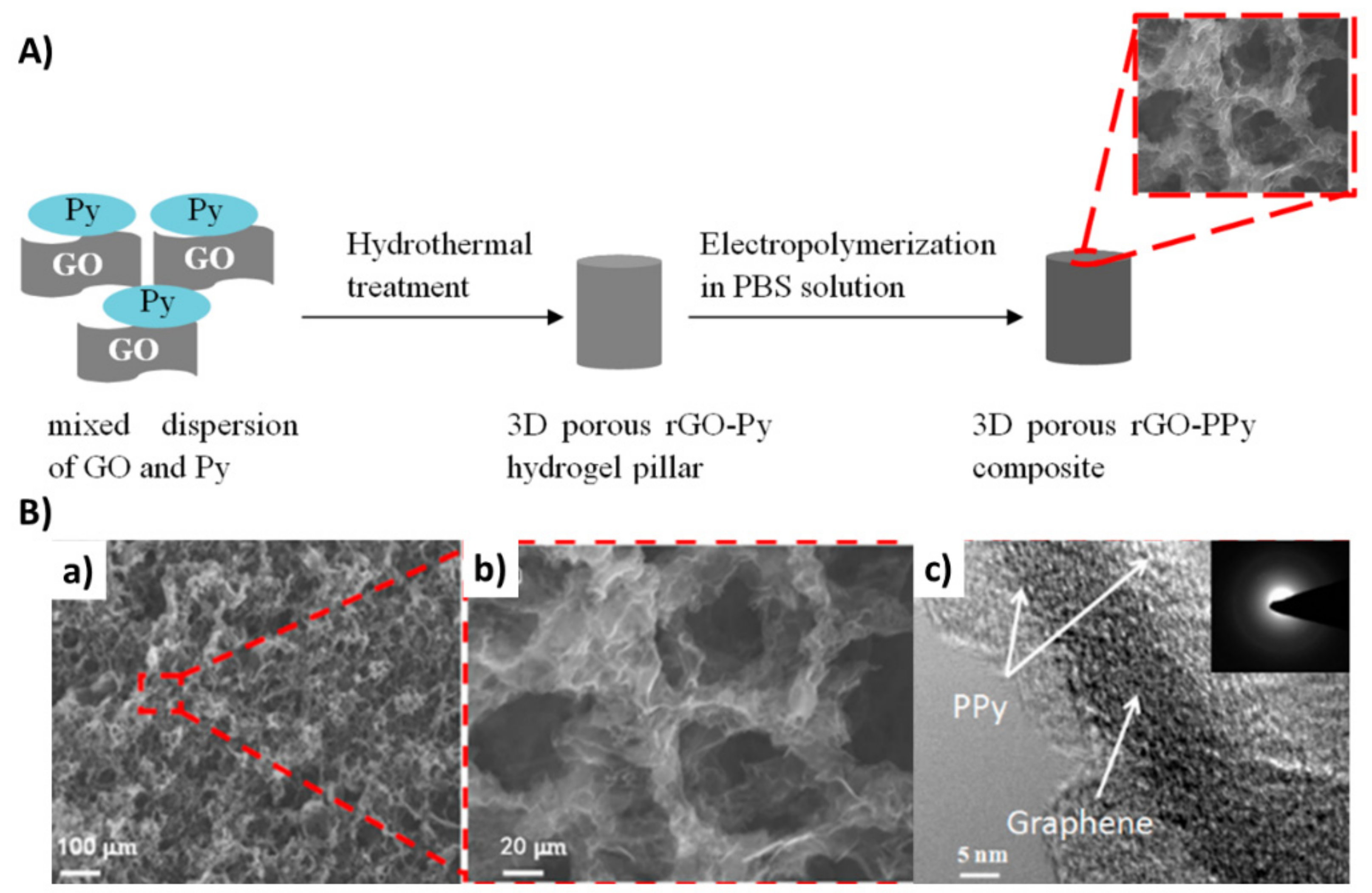

Figure 8. (A) Scheme for the preparation of the three-dimensional (3D) porous graphene-polypyrrole (rGO-PPy) composite and its microscopic analysis (B) for (a) PPY film, (b) rGO-PPY and (c) rGO-PPY. Reprinted (adapted) with permission from [85].
Figure 8. (A) Scheme for the preparation of the three-dimensional (3D) porous graphene-polypyrrole (rGO-PPy) composite and its microscopic analysis (B) for (a) PPY film, (b) rGO-PPY and (c) rGO-PPY. Reprinted (adapted) with permission from [85].
Chemosensors 09 00149 g008
Chemosensors 09 00149 g009 550

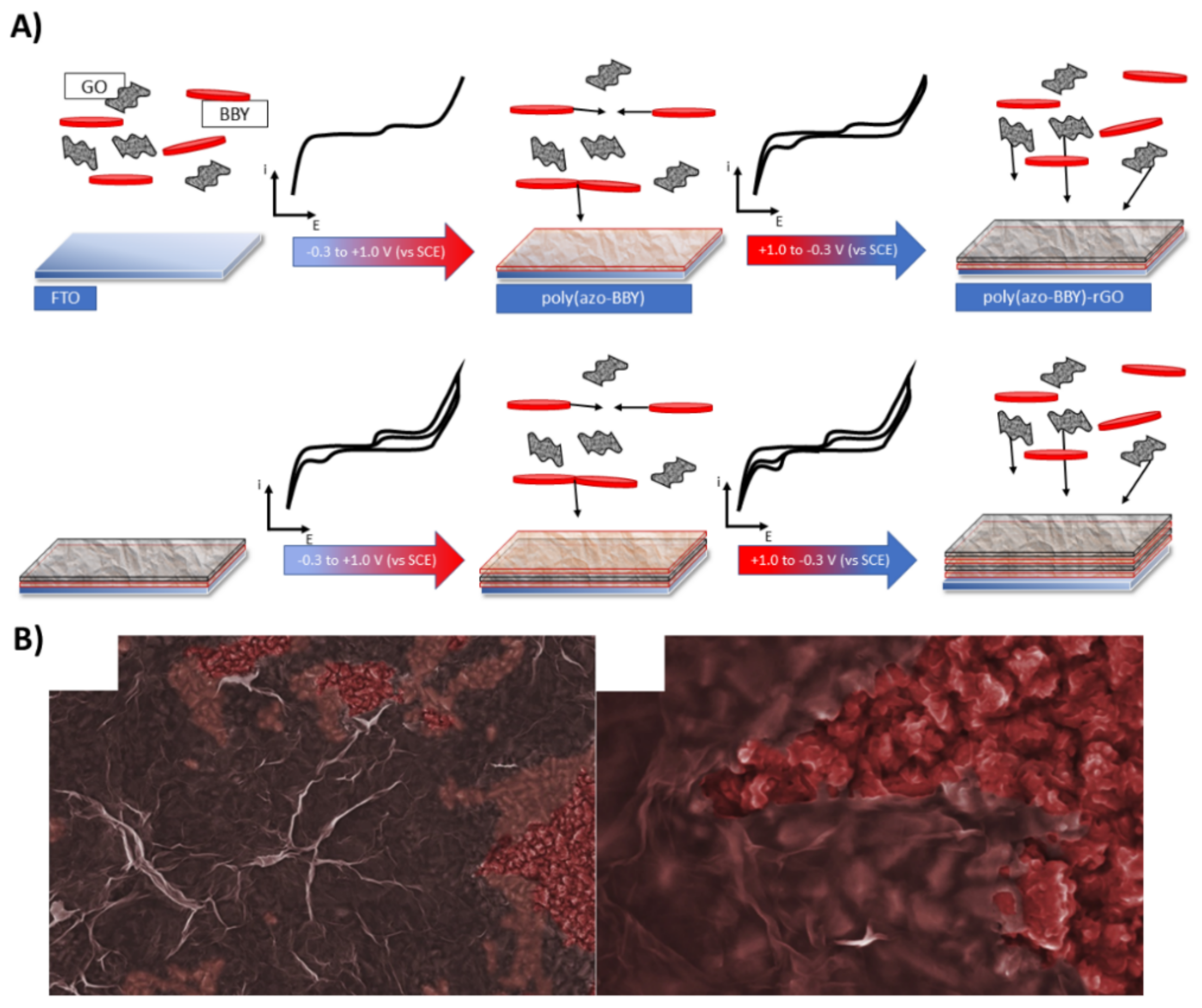

Figure 9. (A) Representative scheme for the formation of a sensory platform via a one-step approach. (B) Scanning electron microscopy (artificially colored) highlighting the graphene sheets over the polymeric film. Reprinted (adapted) with permission from Ref. [96] Copyright 2019 Elsevier B.V.
Figure 9. (A) Representative scheme for the formation of a sensory platform via a one-step approach. (B) Scanning electron microscopy (artificially colored) highlighting the graphene sheets over the polymeric film. Reprinted (adapted) with permission from Ref. [96] Copyright 2019 Elsevier B.V.
Chemosensors 09 00149 g009
Chemosensors 09 00149 g010 550
Figure 10. Cyclic voltammetry for GO electrodeposition (A) and o-phenylenediamine (oPD) electropolymerization (B) steps. (C) Morphological characterization of the PoPD/ERGO/GCE sensor. (D) Square wave anode stripping voltammetry (SWASV) response curves at different concentrations. The inset shows the linear relationship between the current response and concentration. (E) Schematic representation of the response mechanism. Reprinted (adapted) with permission from [75].
Figure 10. Cyclic voltammetry for GO electrodeposition (A) and o-phenylenediamine (oPD) electropolymerization (B) steps. (C) Morphological characterization of the PoPD/ERGO/GCE sensor. (D) Square wave anode stripping voltammetry (SWASV) response curves at different concentrations. The inset shows the linear relationship between the current response and concentration. (E) Schematic representation of the response mechanism. Reprinted (adapted) with permission from [75].
Chemosensors 09 00149 g010
Chemosensors 09 00149 g011 550
Figure 11. (A) Cyclic voltammogram for the GO-L-lysine electrosynthesis process. (B) Schematic representation of a glucose sensor. (C) Sensor response and analytical curve. Reprinted (adapted) with permission from Ref. [112] Copyright 2019 Elsevier B.V.
Figure 11. (A) Cyclic voltammogram for the GO-L-lysine electrosynthesis process. (B) Schematic representation of a glucose sensor. (C) Sensor response and analytical curve. Reprinted (adapted) with permission from Ref. [112] Copyright 2019 Elsevier B.V.
Chemosensors 09 00149 g011
Table
Table 1. Comparison of electrochemical sensors manufactured with different electrochemical synthesis approaches.
Table 1. Comparison of electrochemical sensors manufactured with different electrochemical synthesis approaches.
Electrochemical ApproachPlatformAnalyteLimit of DetectionRef
One-stepP(ATT)-GO aLipocalin-20.3 nmol mL−1[98]
Pt/rGO/P3ABA bGlucose/Cholesterol44.3/40.5 μmol L−1[99]
Poly(BBY)-rGO cDissolved Oxygen0.36 μmol L−1[100]
Two-stepsPPy3C/ERGO dStreptomycin0.5 nmol L−1[97]
GO-poly(p-ABSA) eDopamine/Serotonin0.09/0.2 μmol L−1[101]
MIPPy/GR/GCE fMelamine10.2 nmol L−1[102]
PPy/rGONH31 ppm[103]
Multiple stepsMIP-rGO/GCEAdrenaline3 nmol L−1[104]
r-GO/poly(CoOBImPc) gHydrazine33 nmol L−1[105]
MIP/AuNPs/RGO/GCELactic acid8.9 × 10−11 mol L−1[106]
MIP@ERGO/GCDomperidone3.8 nmol L−1[107]
PPy-RGO-(AuNPs-GOD)4/GCEGlucose5.6 μmol L−1[108]
Eβ-CD/B-RGO/GCE hFlunitrazepam0.6 nmol L−1[109]
rGO:PSS-PEDOT:PSSIon-sensor-[110]
a ATT—3-amino-1,2,4-triazole-5-thiol; b 3ABA—(3-aminobenzoic acid); c BBY—Bismark Brown Y; d Py3C—poly(pyrrole-3-carboxy acid); e ABSA—aminobenzenesulfonic acid; f GR-graphene; g CoOBImPc—octabenzimidazole phthalocyanine; h Eβ-CD—β cyclodextrin.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Olean-Oliveira, A.; Oliveira Brito, G.A.; Cardoso, C.X.; Teixeira, M.F.S. Nanocomposite Materials Based on Electrochemically Synthesized Graphene Polymers: Molecular Architecture Strategies for Sensor Applications. Chemosensors 2021, 9, 149. https://doi.org/10.3390/chemosensors9060149

AMA Style

Olean-Oliveira A, Oliveira Brito GA, Cardoso CX, Teixeira MFS. Nanocomposite Materials Based on Electrochemically Synthesized Graphene Polymers: Molecular Architecture Strategies for Sensor Applications. Chemosensors. 2021; 9(6):149. https://doi.org/10.3390/chemosensors9060149

Chicago/Turabian Style

Olean-Oliveira, André, Gilberto A. Oliveira Brito, Celso Xavier Cardoso, and Marcos F. S. Teixeira. 2021. "Nanocomposite Materials Based on Electrochemically Synthesized Graphene Polymers: Molecular Architecture Strategies for Sensor Applications" Chemosensors 9, no. 6: 149. https://doi.org/10.3390/chemosensors9060149

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
