1. Introduction
The need for a precise, rapid, and trustworthy method to detect alcohol levels is crucial across various domains such as the food-processing industry, clinical settings, medical research, and environmental and agricultural evaluations [
1,
2,
3]. Consequently, continuous monitoring of atmospheric alcohol content is vital for safeguarding workplace health [
4,
5,
6,
7]. Numerous methods for detecting alcohol have been utilized to examine different substances within complex samples. These techniques include chromatography, immunochromatography, mass spectrometry, nuclear magnetic resonance, polymerase chain reaction, ultraviolet–visible spectroscopy, Fourier-transform infrared spectroscopy (FTIR), standard infrared spectroscopy, surface-enhanced Raman spectroscopy (SERS), Raman spectroscopy, circular dichroism spectroscopy, spectrofluorimetry, and more, all of which remain highly pertinent [
8,
9,
10,
11,
12,
13,
14,
15,
16,
17,
18].
Despite their usefulness, these methods have constraints, with some suffering from insufficient precision and accuracy issues. Issues related to ease of movement, delayed reaction times, and complex operational steps emphasize the necessity for fresh analytical strategies that offer swift targeted assessments and clear understanding of outcomes. Exploring the creation of optical fiber sensors as an alternative to established techniques is a potential solution to overcome these difficulties [
19,
20]. One of the key benefits of optical sensors is their heightened sensitivity and selectivity, enabling exact detection and measurement. These sensors operate in a non-intrusive manner, preserving the original state of the sample and preventing any contamination. They also stand out due to their robust resistance to electromagnetic interference, guaranteeing precise functionality even in adverse conditions. With their long-lasting durability and minimal maintenance needs, optical sensors have solidified their reputation as a dependable option across various sectors [
21]. These advantages showcase optical fiber’s significant potential for application in both chemical and biological sensing fields.
Optical sensing techniques have long been recognized for their effectiveness in alcohol detection. Fiber optic near-infrared spectroscopy was introduced as a tool for measuring alcohol levels about three decades ago [
22]. Since then, significant advancements have been made to enhance sensitivity. A remarkable innovation was the integration of fiber optics with multi-walled carbon nanotubes and Co
3O
4, which achieved heightened sensitivity—35 counts per ppm for ethanol and 51 counts per ppm for ammonia—while also offering exceptional discriminatory capabilities in gaseous substance analysis [
23]. Another sensor in alcohol detection technology includes an surface plasmon resonance (SPR)-enabled glass rod sensor design, where the sensor excelled in selectively sensing water and ethanol [
24]. Another optical configuration involved an alcohol sensor constructed with lipophilic Reichardt’s dyes embedded in polymer membranes, but its functionality is constrained by the influence of pH variations in the solution [
25]. Penza et al. combined single-walled carbon nanotubes with silica optical fiber and a quartz crystal microbalance to create a novel alcohol sensor design [
26]. Furthermore, an optical microfiber sensor was employed for the detection of alcohol [
27]. However, the number of researchers has detected alcohol based on the refractive index change to modulate the optical power intensity.
These sensors work based on the principle that alcohol presence or concentration can change how light travels through a material. Specifically, alcohol alters the material’s refractive index. By measuring this change in the refractive index, the sensors can accurately determine the level of alcohol present [
28,
29,
30]. Morisawa et al. [
28] reported a polymer optical fiber-based alcohol sensor in their work, wherein changes in the refractive index were induced by Nonolac resin, which swells upon exposure to alcohol. The SPR optical fiber sensor system is also used for alcohol detection, with an integrated gold layer developed. Notably, this design omitted the need for a rotating stage or spectrometer. Its efficacy in precisely quantifying various alcohol types was then successfully demonstrated through validation tests [
29]. A demonstration showcased a tapered fiber optic sensor proficient in identifying aliphatic alcohols, including methanol, ethanol, 1-propanol, and 2-propanol [
30]. The sensor operates by detecting alterations in the refractive index within the evanescent field of the fiber’s tapered zone, induced by the presence of these alcohols, which in turn modifies the output power. These illustrations demonstrate the advancement in and potential of optical sensing systems in alcohol detection, although with several challenges to overcome.
This research utilizes a POF RI sensor to detect various types of alcohol. The sensor design uses the fiber-twisting technique to obtain intensity variation as the different types of alcohol used for detection purposes. Extensive experimental results were conducted to evaluate the sensor’s response and evaluate the sensor’s sensitivity performance. This paper’s second section discusses the sensor’s design and fabrication process, as well as its underlying operational principles and the specifics of the experimental setup. Results and discussions are subsequently presented in the third section.
2. Fabrication and Operation Principle
2.1. Sensor Fabrication
This research employs a commercial POF (1 mm step-index SK-40) manufactured by Mitsubishi Co., Ltd. In the SK-40 step-index fiber, the RI experiences an abrupt shift at the interface of the core and cladding layers. Here, the fiber core portion is responsible for light transmission and is made up of polymethyl methacrylate (PMMA), a prevalent transparent polymer material, and the cladding is made of a fluorinated polymer exhibiting a reduced refractive index. This difference ensures the occurrence of total internal reflection of the light rays. Specifically, the POF has a core diameter of 98 μm, paired with a refractive index of 1.49. The core is an encircled 20 μm-thick cladding layer with a refractive index of 1.41, which establishes the vital optical disparity crucial for efficacious light guidance.
For the sensing probe, two POF fibers are used to create twisting structures, as a single fiber is not able to detect alcohol. The twisting creates a coupling structure where the coupled power is affected by a coupling medium. Creating a twist in two POFs involves intertwining them to form a helical structure, similar to how one might twist together two strands of rope or wire. This process can be beneficial for several reasons in optical fiber applications. The twisting structure keeps the fibers closely bound, preventing gaps from forming between them. In contrast, a parallel fiber structure carries the risk of separation between the fibers. When a twisted pair of fibers is bent or pulled, the twist helps distribute the mechanical forces evenly between the fibers, reducing the likelihood of damage. In certain specialized applications, intentionally twisting fibers can enhance the coupling efficiency of light between fibers.
The process of creating a twist in POFs typically involves manually rotating one fiber around the other while maintaining tension control to ensure even twisting and prevent over-twisting. The number and tightness of the twist (number of twists per unit length) can be adjusted based on the specific application requirements. We kept 1 cm for one twist. In the case of the third configuration (extended length), there were 5 twists and the length was 50 mm. After twisting, the fibers can be secured in position using a sheathing material to maintain the twisted configuration. The light source was coupled to the first fiber, and the intensity was measured from the forward end of the fiber. A visual representation of the completed work is provided in

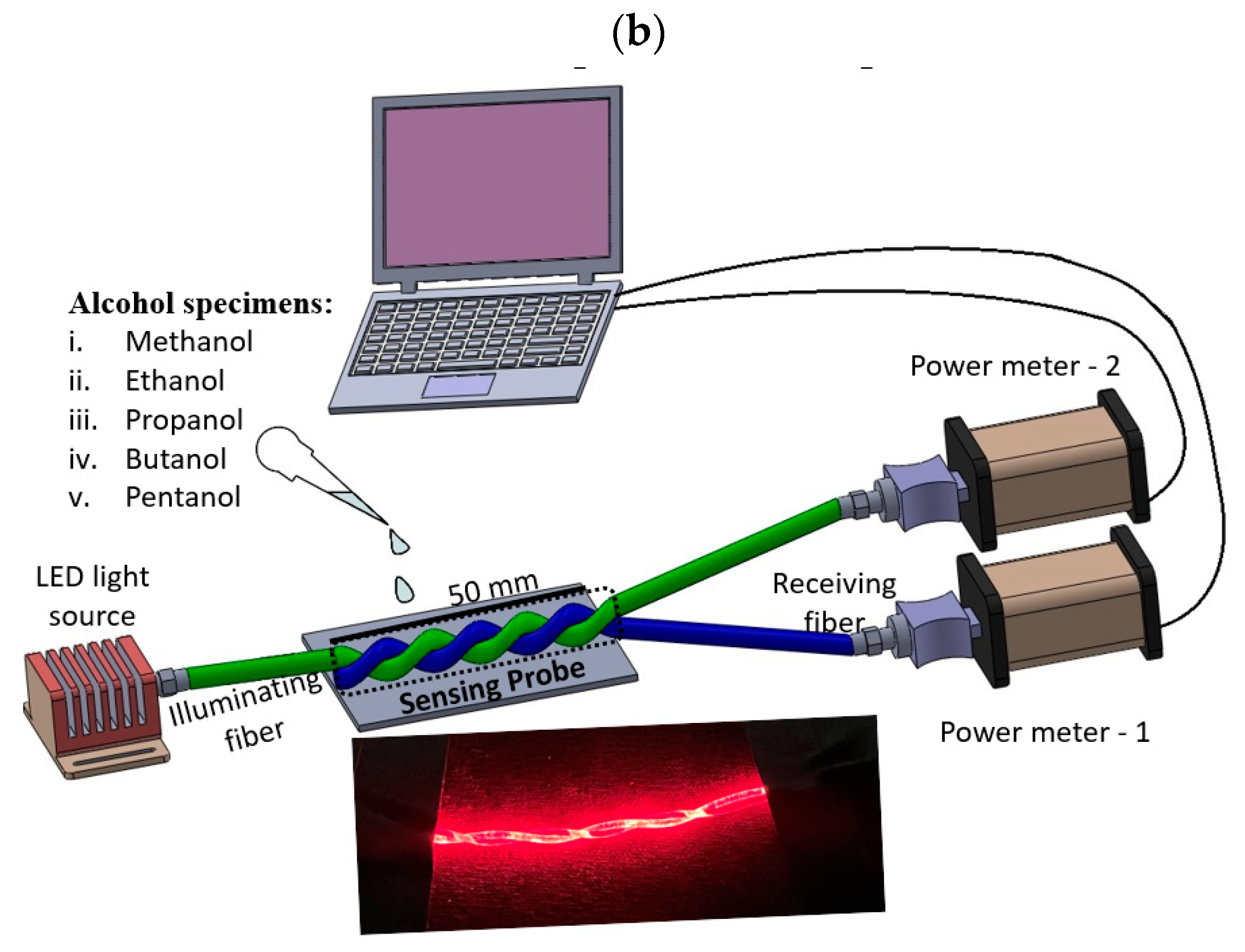

Figure 1. A laser diode operating at 635 nanometers (TLS001-635 Thorlabs) was connected with the illuminating fiber and a pair of photodiodes (S120 Thorlabs) was connected with the forward end of the fibers. In previous research efforts [
31,
32,
33,
34], the concept of a twisted structure has been employed by various scientists for diverse applications.
2.2. Sensor Principle
The twisting structure depends on three sensing mechanisms. In a few cases, the twisted structure was used for a rotational sensor [
31,
32], where the sensing mechanism relies on the coupling of macrobend loss. The continuous bending of the fiber to induce light leakage is a means of detecting movement or rotational motion. In another work [
34], a force sensor was developed specifically to work on the principle of cladding mode frustrating total internal reflection. This refers to a situation where the total internal reflection of light within the fiber is disturbed by the introduction of a perturbation in term of force, allowing some light to escape. Contrasting with these prior works, our present study introduces a different operational principle. Instead of relying on macrobend loss or cladding mode disruptions, we employ a change in the refractive index as the fundamental mechanism driving our sensor’s function. This approach offers unique advantages and sensing capabilities tailored to the detection and measurement of variations in the refractive properties of the medium surrounding or interacting with the optical fiber.
Boundary Conditions: In coupled mode theory, solving the differential equations for governing power transfer between fibers requires appropriate boundary conditions specific to the sensor’s configuration. For our twisted POF sensor, the boundary conditions are established based on the physical setup of the fibers and the light propagation behavior:
Input Condition: At the start of the illuminated fiber , the power in the illuminating fiber is equal to the input power from the light source. This is defined as , where is the optical power injected into the illuminated fiber.
Coupled Power Condition: At the receiving fiber’s output (
where
L is the length of the twisted region), the coupled power
is measured. This is influenced by the coupling coefficient κ and the refractive index of the surrounding medium. The conditions are:
In our experiments, the coupling coefficient is directly influenced by the refractive index of the surrounding alcohol medium. For instance, higher refractive indices (e.g., butanol, pentanol) result in increased , leading to higher power transfer. Lower refractive indices (e.g., ethanol, water) exhibit reduced , leading to lower coupled power. Moreover, the boundary conditions for the twist length (L) and fiber geometry (diameters of the illuminating and receiving fibers) are varied experimentally to optimize coupling efficiency.
Coupled Mode Theory Derivation: When a POF undergoes twisting, its functionality evolves into that of an efficient coupling mechanism. In coupled mode theory, the coupling between two optical fibers is affected by several factors, including changes in the surrounding refractive index. In our case, each alcohol sample has a unique RI. When the refractive index of the medium surrounding the fibers changes, it can alter the coupling efficiency between the fibers by impacting the propagation constant and the overlap of the evanescent fields. This relationship can be described using coupled mode equations. For two coupled fibers, the power transfer between them can be expressed as [
35]:
where
and
are the optical powers in fibers 1 and 2, respectively, z is the propagation direction, and
(kappa) is for the coupling coefficient between the fibers. The coupling coefficient
depends on the overlap of the mode fields and the surrounding refractive index.
Coupling Coefficient Dependency on Refractive Index: For a refractive index n, the coupling coefficient
can be approximated as:
where
is the refractive index of the fiber core;
is the refractive index of the surrounding medium, which is alcohol’s RI; and
is a constant that depends on the fiber geometry and other parameters.
As the refractive index of the surrounding medium approaches that of the fiber core , the coupling coefficient increases, allowing more power to transfer between the fibers. Conversely, if the surrounding refractive index is significantly different from the core’s refractive index, the evanescent fields are less effective in overlapping, reducing the coupling efficiency.
Evanescent Field Penetration Depth and Its Role: The evanescent field associated with cladding modes penetrates the external medium adjacent to the fiber. The penetration depth
of this evanescent field is a measure of how far into the external medium this field extends before its intensity drops to a negligible level. This depth is crucial for understanding and designing sensors. The penetration depth
can be mathematically expressed as [
36]:
where
is the wavelength of the light in a vacuum,
is the refractive index of the cladding,
is the refractive index of the external medium, and
is the incident angle. Thus, a change in the refractive index of the surrounding medium directly affects the amount of power coupled between the fibers. This principle is particularly used in our sensing applications, where changes in the surrounding refractive index can modulate coupling efficiency, enabling the detection of different alcohols.
2.3. Characterization of Alcohol Species
The research encompassed investigations on five distinct alcohol species: methanol, ethanol, propanol, butanol, and pentanol. These diverse alcohol specimens were acquired from Sinopharm Chemical Reagent Co., Ltd., Shanghai, China. The refractive indices of pure alcohol forms were determined utilizing an Abbe refractometer, with all readings taken at ambient temperature (20 °C). The refractive indices of various alcohols are important for understanding their optical properties. The RIs of methanol (methyl alcohol), ethanol (ethyl alcohol), propanol (propyl alcohol), butanol (butyl alcohol), and pentanol (amyl alcohol) are approximately 1.329, 1.361, 1.377, 1.397, and 1.410, respectively as shown in

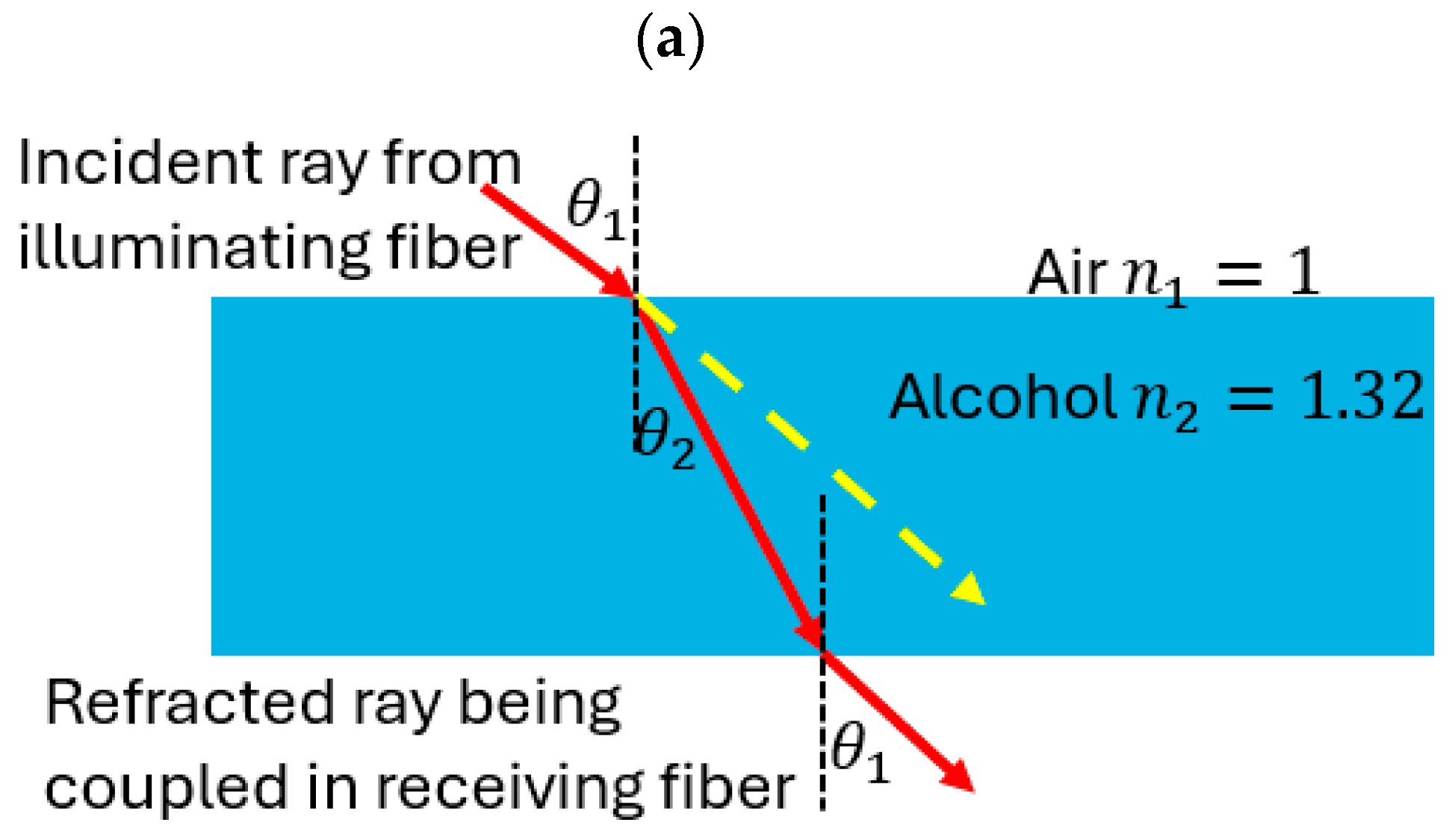

Table 1. To conduct the tests, a precise quantity of the alcohol sample was extracted from the flask using a dropper and applied to the twisted structure’s sensing probe. Light propagated from one fiber to another fiber is disrupted with a specific RI medium, as shown in
Figure 1b. These observed modifications are fundamentally linked to changes in the refractive index and alcohol-specific absorption traits.
3. Results and Discussion
Fiber irregularities, including cuts or adjustments similar to those employed in sophisticated technologies such as SPR sensors or D-shaped sensors, can impact the sensor’s output [
37,
38]. Nonetheless, these methods are typically associated with high expenses or fiber damage. In response to non-destructive and cost-effective sensing techniques, the fiber-twisting approach is an alternative option. This approach entails establishing a deliberate coupling zone within the fiber, designed to facilitate enhanced light interaction with the ambient medium, such as water or alcohol, thereby optimizing sensing capabilities.

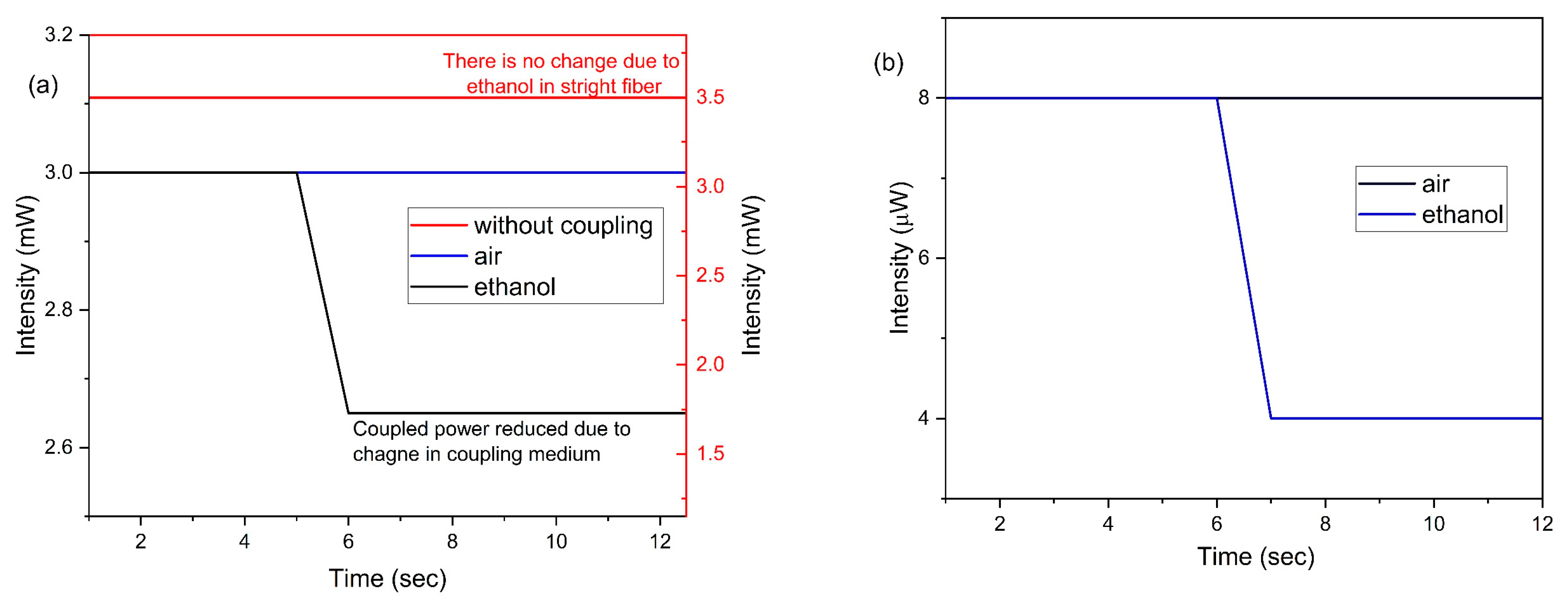

Figure 2 shows the primary sensor detection response to alcohol, where a straight fiber was also tested.
Figure 2 displays the intensity (mW) at the forward end of the illumination fiber over time (sec) under different conditions: without coupling, and with coupling in air and alcohol. The coupled power, denoted as normalized optical power (P
2/P
1), was calculated using the outputs, where P
2 represents the final output power and P
1 the initial output power from the same port. The sensor’s sensitivity was defined as:
where
denotes the change in the RI of the tested alcohol, and
represents the alteration in the coupling ratio. There is no response to the presence of alcohol (see the red curve of
Figure 2a). The red line shows a constant intensity over time, indicating that when the fiber is straight and connected to a light source and power meter without any imperfections or coupling, it is not sensitive to the alcohol application in this setup. The sensor response to detecting alcohol is shown in black in
Figure 2. The blue and black lines show variations in coupled power when alcohol is applied to the fiber sensor section. The blue line indicates the response when air is replaced with alcohol in the coupling region, showing a noticeable drop in intensity, which demonstrates the sensor’s sensitivity to alcohol.

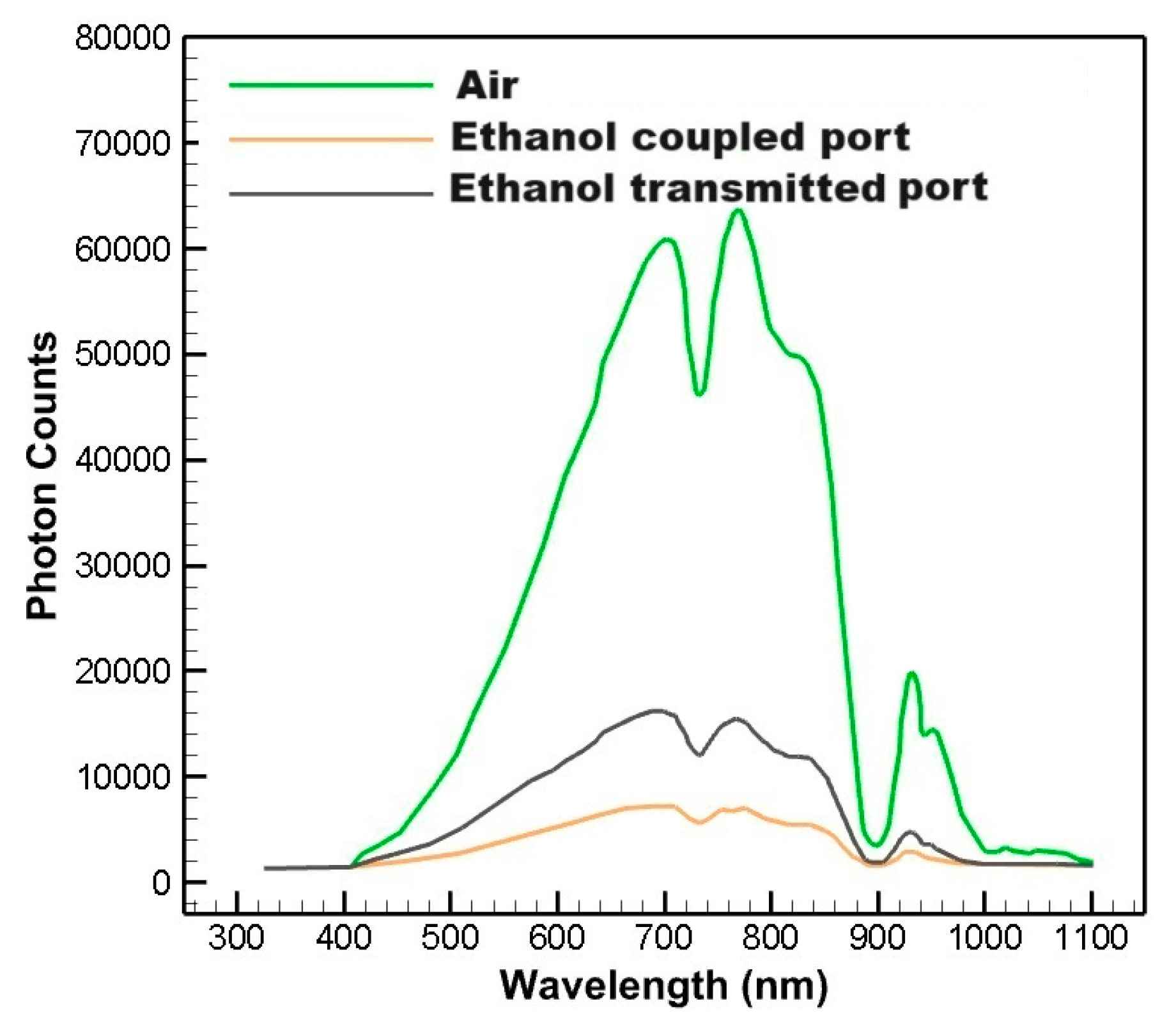

Investigation of the spectral characteristics of the twisted structure was conducted and the experimental setup featured a broadband light source (Ocean Optics DH-2000) that spanned wavelengths ranging from 215 to 2000 nanometers, alongside a spectrometer (Ideaoptics NOVA) for spectral analysis. This setup facilitated exact measurements of the optical responses of the fiber system to various media. The experimental protocol involved illumination connected with a broadband light source, and each forward end was connected with a spectrometer. The resultant data are presented in
Figure 3. In
Figure 3, the vertical axis labeled “Photon Counts” represents the number of photons detected by the photodetector during the measurement process. Photon counts are directly proportional to the intensity of light that is transmitted through the POF and subsequently detected in the receiving fiber. It reflects the decrease in photon counts as light interacts with the alcohol medium surrounding the fiber. In the twisted structure, the transmitting and coupling ends exhibit a significant increase in coupled loss compared to an untwisted fiber when alcohol is added. The coupling power is further reduced in the receiving fiber when alcohol is added.

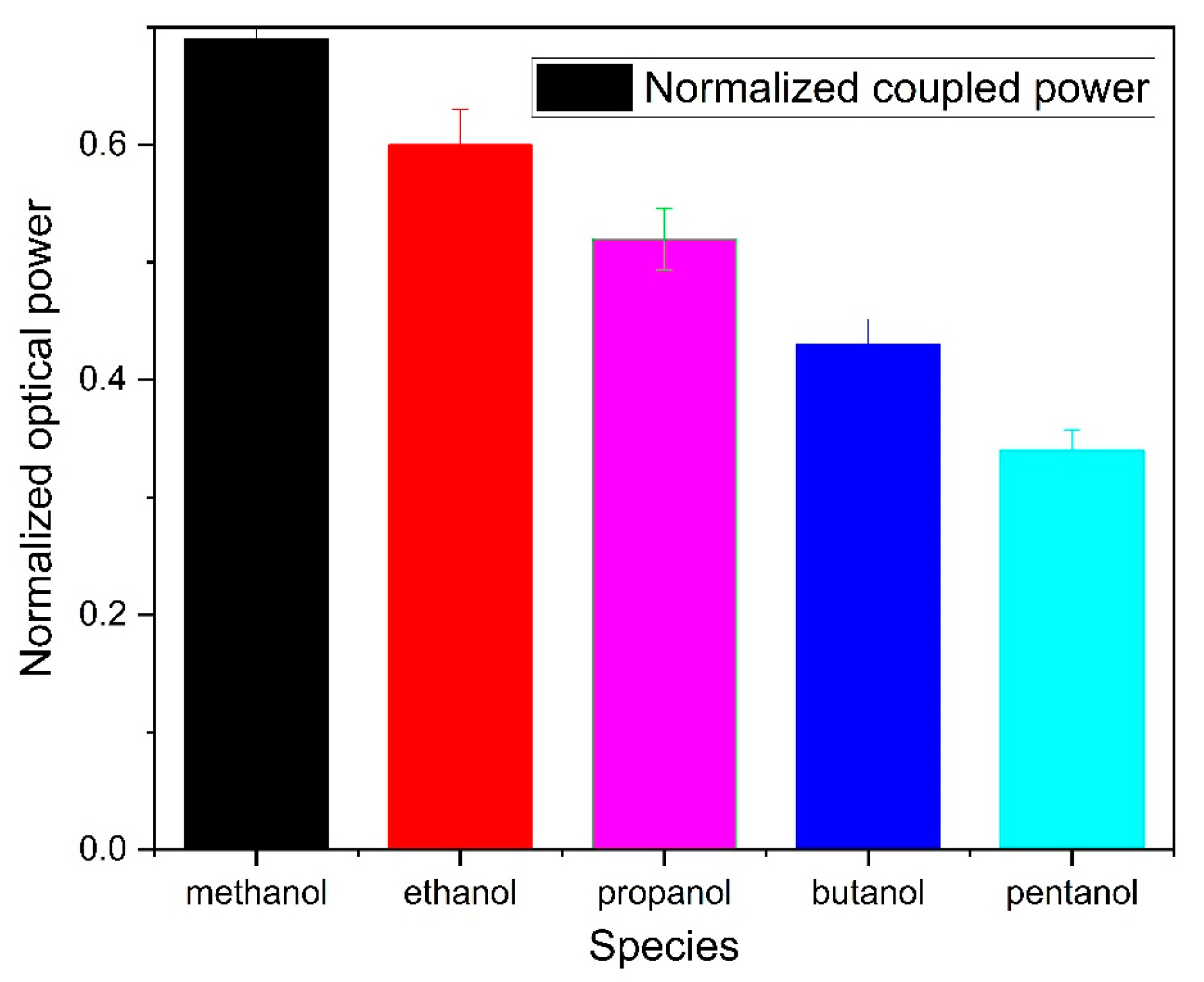

The operational effectiveness of this sensor in distinguishing between different types of alcohol is visually demonstrated in
Figure 4. The twisting of the fiber structure introduces a considerable improvement in sensing technology. By intentionally introducing twists, a specialized region is created within the fiber where light can couple or interact more dynamically with the substance outside the fiber, such as alcohol. This coupling region functions as a sensing probe, enabling the fiber to perceive alterations in the external environment. When alcohol is added to the coupling region, it causes a significant decrease in the coupled intensity. This decline in light intensity is in response to the presence of alcohol. Consequently, this methodology offers an economically prudent and fiber-preserving strategy for harnessing optical fibers in sensing applications. Further, a series of different detailed assessments and characterizations were executed to analyze the sensor’s performance and credibility. These assessments are aimed at analyzing the sensor’s sensitivity response, which could be useful for customizing the parameters depending on specific requirements.

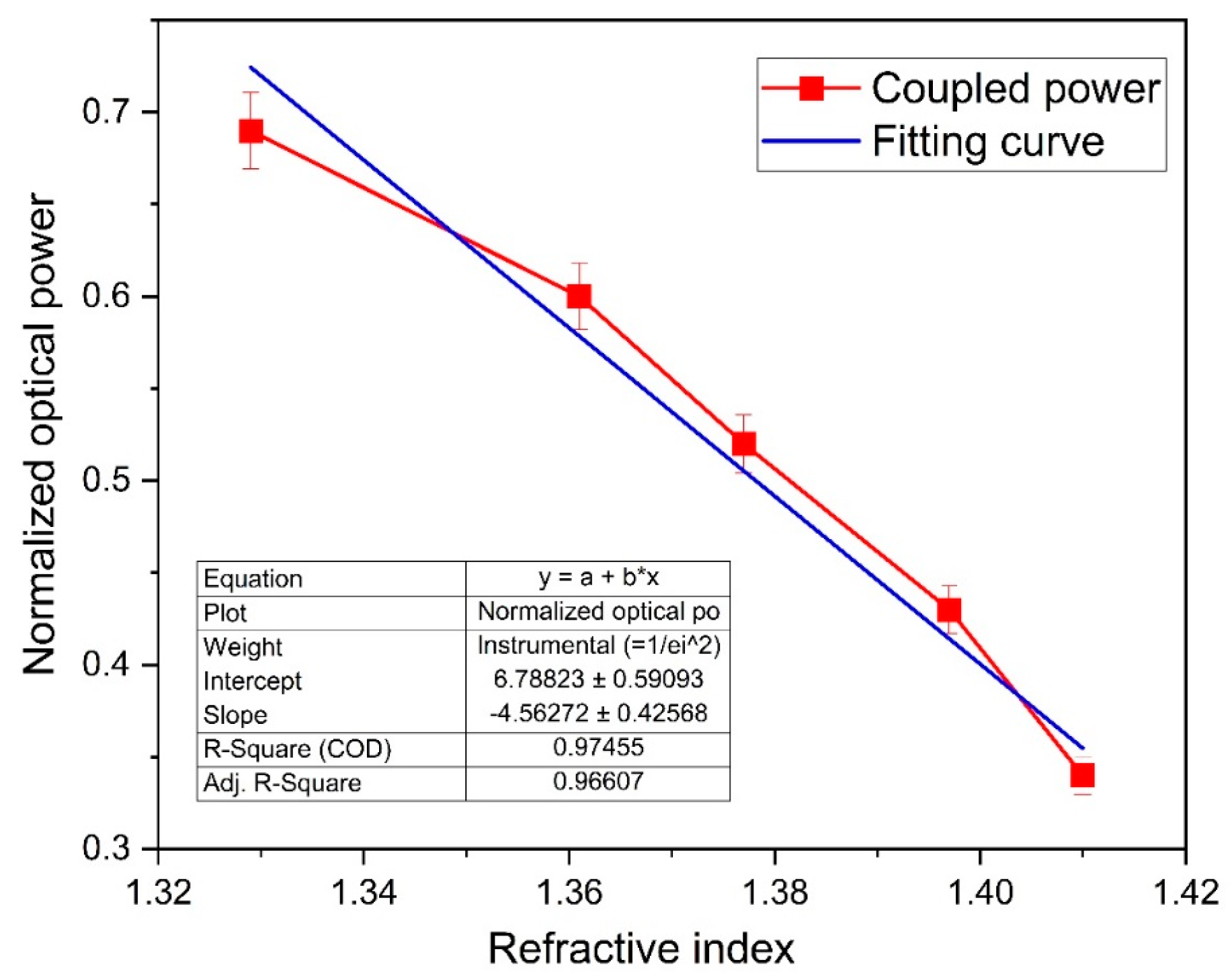

Figure 5 illustrates the alcohol-sensing capabilities of the sensor, which is configured with an illuminated fiber and a receiving fiber.
Figure 5 highlights the sensor’s ability to differentiate between various alcohols based on their refractive indices and the corresponding changes in power output. With the twisted section measuring precisely 8 mm, the graph discloses a clear linear correlation between the coupling ratio, expressed as normalized optical power, and the RI of the external medium. Notably, as the RI ascends beyond 1.329, coinciding with the POF’s cladding RI, there is a decline in normalized optical power. On the flip side, in cases where the RI dips beneath 1.410, as observed with pentanol, an increase in normalized optical power is evident. This observed trend stems from the conversion of cladding modes into radiation modes, a phenomenon triggered when the RI of the surrounding alcohol matches the cladding RI, thereby lessening the coupling efficiency. Thus, the sensor excels in detecting RIs that exceed the inherent RI of the fiber cladding. Moreover, the sensor manifests a linear response within the RI spectrum spanning from 1.329 to 1.410.
Figure 6 illustrates the results of alcohol-sensing experiments conducted on a series of sensors, all featuring an illuminating fiber with a different bend radius. These sensors incorporated bending with four different radii: 10 mm, 15 mm, 20 mm, and 25 mm. When an optical fiber is bending, some of the guided light is radiated out of the core, leading to bending loss. The amount of light that is lost depends on the radius of the bend; smaller bend radii cause greater bend loss due to the tighter curvature. In a twisted optical fiber sensor, the bending induces more significant radiation loss. Meanwhile more radiated power will be coupled. The light-coupling intensity has a direct impact on the bend radii. Thus, for a smaller bend radius, the optical power loss increases more rapidly as the refractive index of the surrounding medium changes. This is because the evanescent field, which extends into the surrounding medium, is more strongly affected by the refractive index changes in a tightly bent fiber.
As the refractive index increases, more light is coupled out of the core, leading to a larger change in the detected optical power. Therefore, sensors with smaller bend radii (10 mm and 15 mm) exhibit higher sensitivity to refractive index changes, as even slight variations in the surrounding medium’s refractive index cause significant changes in the optical power. In contrast, sensors with larger bend radii (20 mm and 25 mm) experience less bend loss and weaker mode coupling. The evanescent field interaction with the surrounding medium is less pronounced, resulting in smaller changes in optical power for the same refractive index variations. As a result, these sensors show reduced sensitivity to refractive index changes because the optical power remains relatively stable, even as the surrounding medium’s refractive index changes. Overall, the sensitivity response of the sensors is shown in
Table 2.
It was observed that the sensor’s sensitivity improves when the smaller bend radius is based on the experimental outcomes, whereas the reverse scenario leads to reduced sensitivity. Because a small bend radius generates a higher radiation mode. Meanwhile, it is worth noting that the sensing length also effects the sensor’s performance [
32,

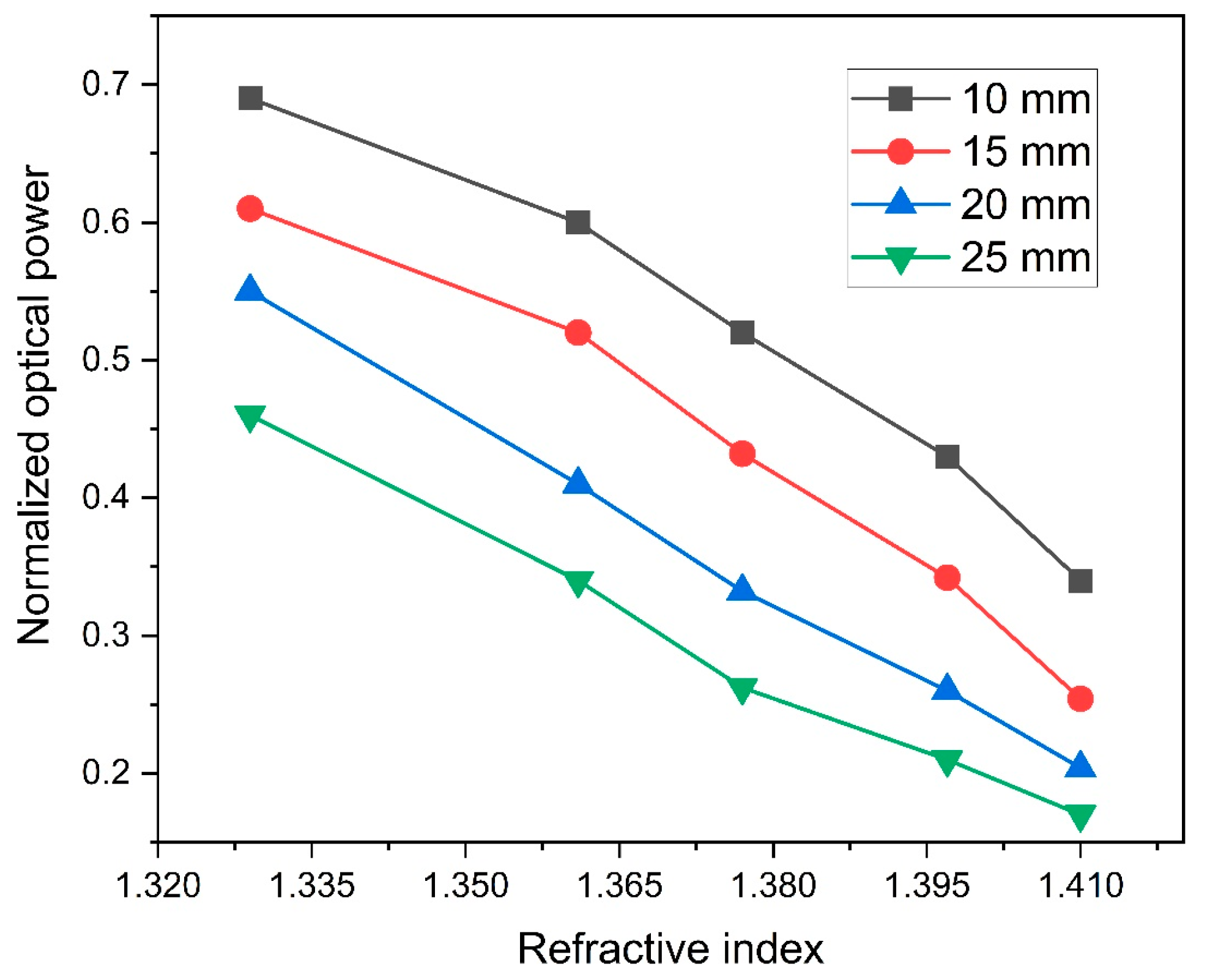

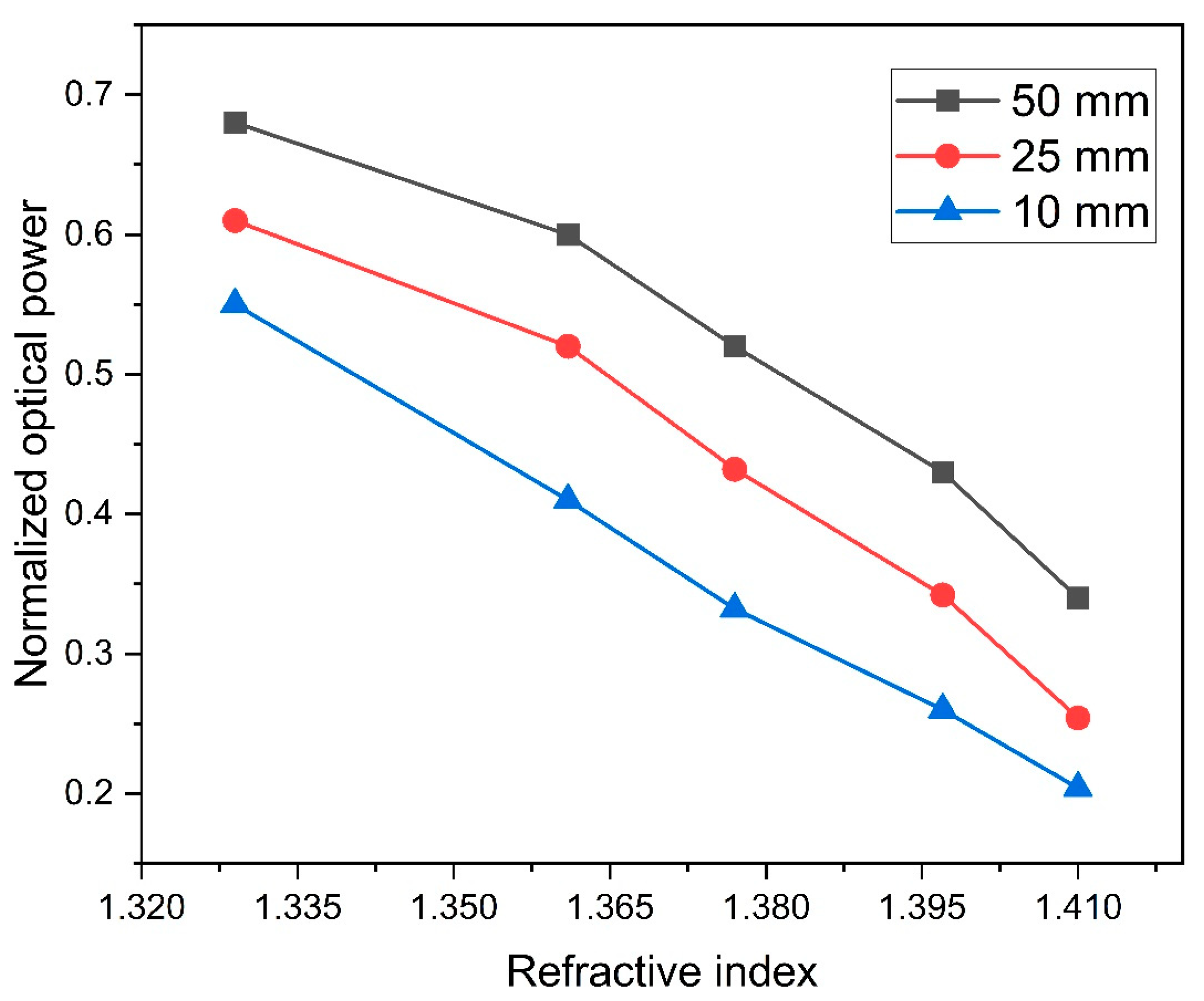

33]. In the context of optical fiber sensors, the influence of the twisted region’s length on sensing performance was also investigated, as shown in
Figure 7. With increased twisted region length, the interaction between the light in the core and the surrounding medium (i.e., the alcohol solution) is enhanced, as the twisting causes the light to repeatedly interact with the cladding and the external environment. This results in more significant changes in the optical power in response to variations in the RI of the surrounding medium.
A longer twisted region means that the cumulative effect of the twisting perturbations on the light propagation is greater. Each twist contributes to the modulation of the light path, increasing the sensitivity of the sensor to changes in the external refractive index. As the length of the twisted region increases from 10 mm to 50 mm, the overall effect of the twisting is more pronounced, leading to higher sensitivity. This is because the longer twisted region allows for more substantial light interaction with the surrounding medium, amplifying the sensor’s response to refractive index changes. The twisted region effectively increases the interaction length between the guided light and the surrounding medium. A longer interaction length means that even small changes in the refractive index can cause more significant alterations in the light propagation, resulting in higher sensitivity. The sensitivity of the alcohol-sensing performance increases with the length of the twisted region due to enhanced mode coupling, accumulated effects of twisting, and increased interaction length. These factors collectively amplify the sensor’s response to changes in the surrounding medium’s refractive index, leading to higher sensitivity with longer twisted regions.

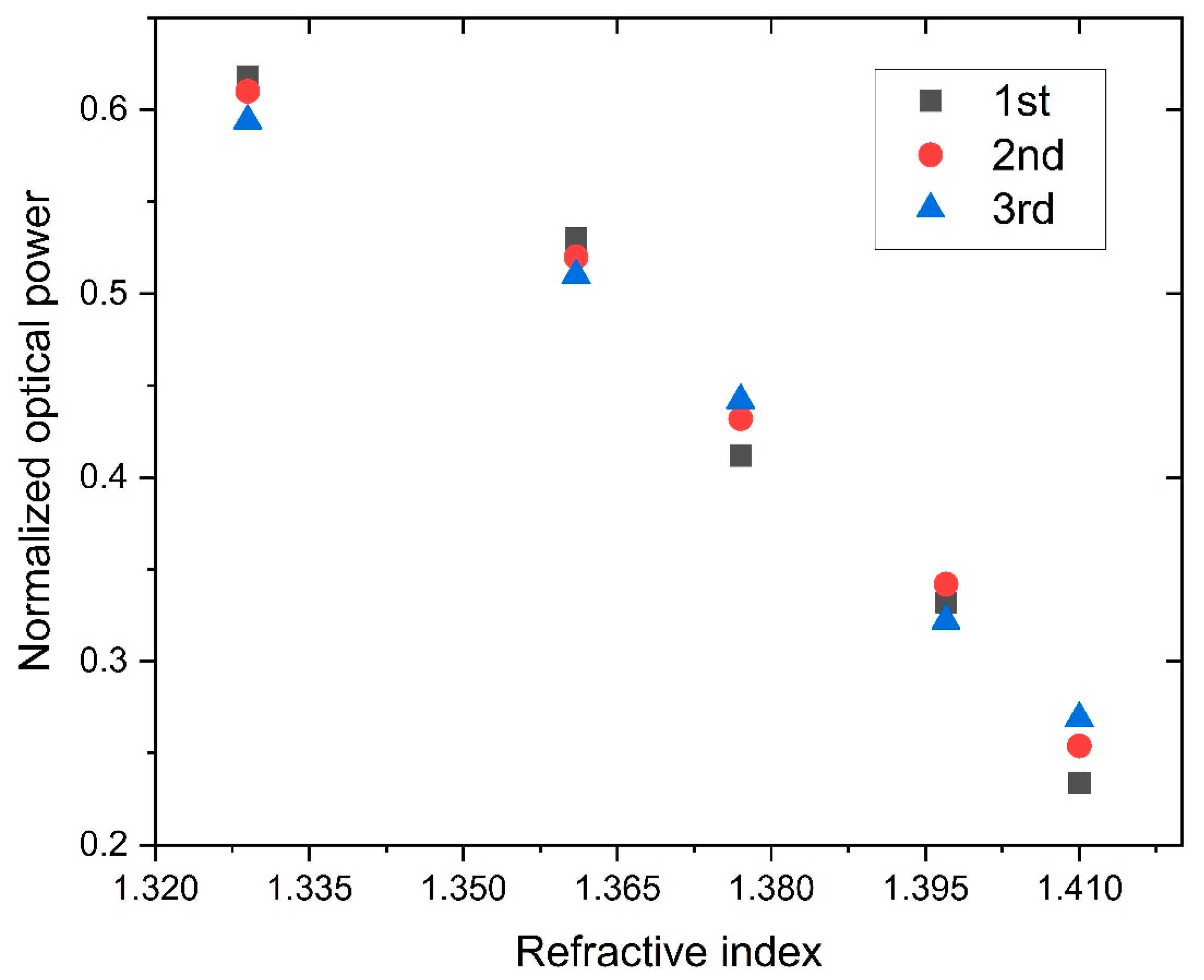

Figure 8 demonstrates the sensor’s repeatability by illustrating that the sensor consistently responds when the same alcohol is tested multiple times. The error bars in this figure represent the variability observed across repeated trials, which underscores the reliability and consistency of the sensor’s performance. The normalized optical power is plotted against the refractive index of the alcohol samples for three successive measurements, denoted as the first, second, and third time. The data points for the first (squares), second (circles), and third (triangles) measurements show consistent trends across the different refractive indices. This indicates good repeatability of the sensor, as the results from the three measurements are closely aligned. The overlap of data points from the three measurements for each refractive index value demonstrates the sensor’s ability to produce reproducible results. There is minimal deviation between the measurements, which signifies the sensor’s reliability in repeated use. As the refractive index increases from 1.329 to 1.410, the normalized optical power decreases, following a consistent pattern across all three measurements. This consistent decrease highlights the sensor’s sensitivity and stable performance in detecting changes in refractive index.

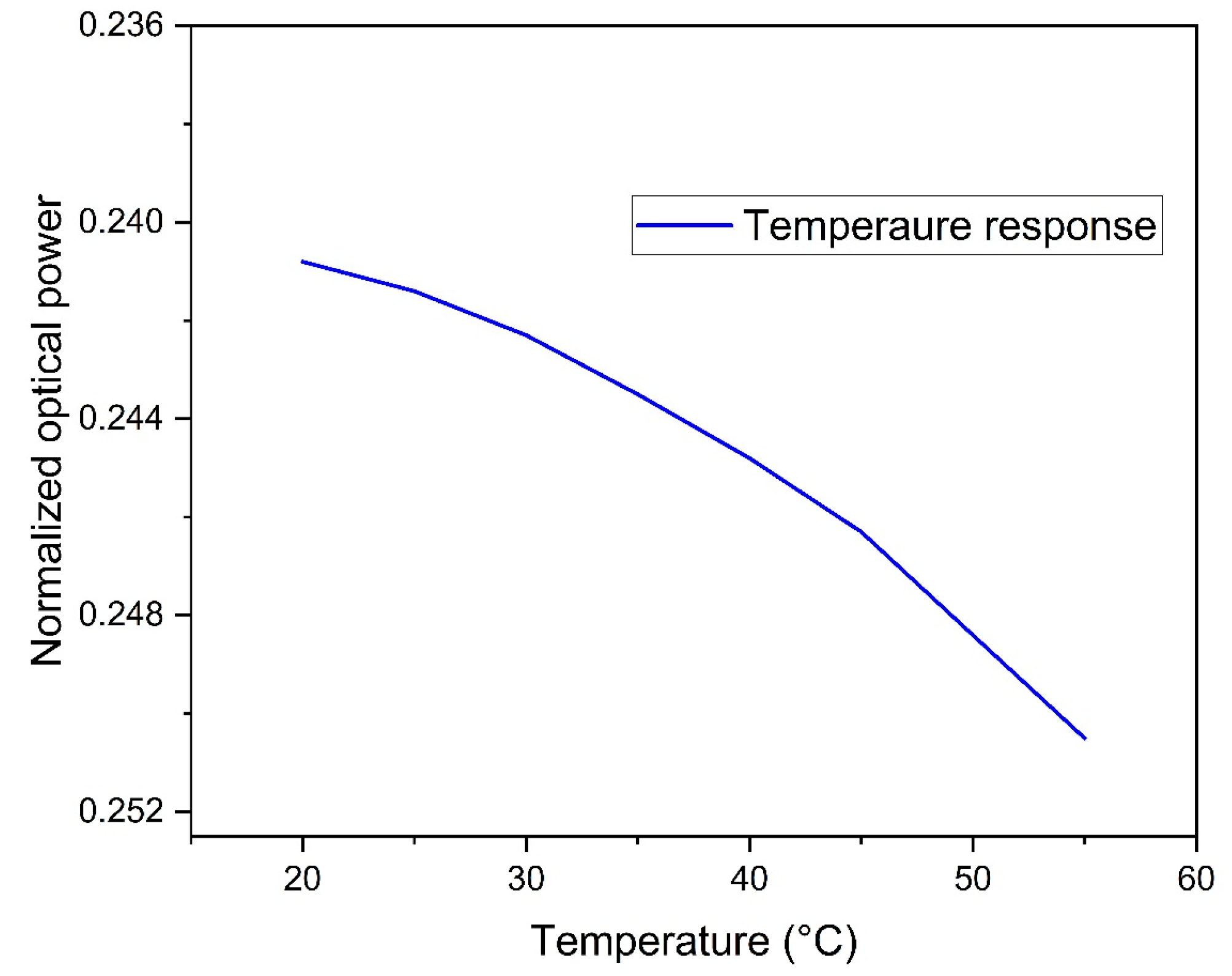

Figure 9 illustrates the effect of the temperature on the sensor’s sensing capability. For the temperature response, the twisted region was placed on a heating plate, and we slowly changed the temperature from 20 °C to 55 °C. We found that for every 5 °C the temperature changes, the sensor’s response changes a little. This small change happens because of two main reasons: the thermo-optic effect and heat, which makes the fiber grow or shrink a bit (thermal expansion). When it is warmer, the fiber’s ability to bend light changes, which can change light propagated inside the fiber. Also, as the fiber heats up or cools down, it gets bigger or smaller, causing tiny changes in its shape. Temperature changes also cause physical expansion or contraction of the fiber material due to thermal expansion. In the case of twisted structure, this can lead to minute adjustments in the fiber’s geometry, such as its diameter, the tightness of the twist (pitch), or the spacing between fibers. These geometric alterations can disrupt the way light is guided and coupled within the fiber, thereby influencing the sensor’s output and contributing to its temperature sensitivity.
A comparison of fiber optic-based alcohol sensors is shown in
Table 3. Its non-intrusive design supports repeated use, and its simplicity in manufacturing promises affordability. It also has a negligible response to temperature fluctuations, flexible fiber configurations, and a mostly straightforward reaction pattern, so integrating this sensor into monitoring equipment is effortless. It is also chemically resilient, compatible with a wide array of solvents, and can be adjusted to suit specific needs, making it a formidable asset for meticulous alcohol detection in applications like chemical analyses, quality checks, and healthcare diagnostics. The sensor’s working principle is based on intensity modulation, and concentration and different kinds of isomers are not considered in this study. The sensor’s structure will be modified to investigate isomers or concentrations of alcohol. Further studies could involve the incorporation of surface modifications or coatings specifically tailored to interact with certain chemical groups present in alcohol but absent in other volatile organic compounds (VOCs). By introducing these modifications, the sensor can interact with alcohols through additional mechanisms such as hydrogen bonding, hydrophobic interactions, or specific binding, rather than just relying on changes in the refractive index. This approach can significantly enhance the specificity of the sensor, allowing it to distinguish between alcohol and other VOCs more effectively.
