Review

Metal–Organic Frameworks-Based Analytical Devices for Chiral Sensing and Separations: A Review (2012–2022)

Department of Analytical Chemistry, Faculty of Science, Palacký University Olomouc, 17. listopadu 12, 77146 Olomouc, Czech Republic
*
Author to whom correspondence should be addressed.
These authors contributed equally to this work.
Chemosensors 2023, 11(1), 29; https://doi.org/10.3390/chemosensors11010029
Received: 7 November 2022 / Revised: 23 December 2022 / Accepted: 26 December 2022 / Published: 29 December 2022

Abstract

:
Metal–organic frameworks (MOFs), as high-surface-area materials, have shown promise in various areas of application, such as chiral sensing and separation, due to their flexibility in design and organized porous cages. Researchers have been striving to design and develop high-performance enantiorecognition and separation analytical techniques in chiral science fields. The main aim of this review is to provide a comprehensive overview of chirality, state-of-the-art MOFs in chirality, and chiral analysis in the past decade, 2012–2022. The classification of this review includes chirality, principles of chiral analysis, the attraction of functional materials in chirality, MOFs in chiral analysis, MOFs for designing enantioselective sensors (fluorescence, circular dichroism, quartz crystal microbalance, electrochemical), and MOFs as chiral stationary phases (CSPs) for chromatographic enantioseparation (high-performance liquid chromatography, gas chromatography, and capillary electrochromatography). Finally, this review covers the vital progress of these materials with attention to the available opportunities and challenges in this topic.

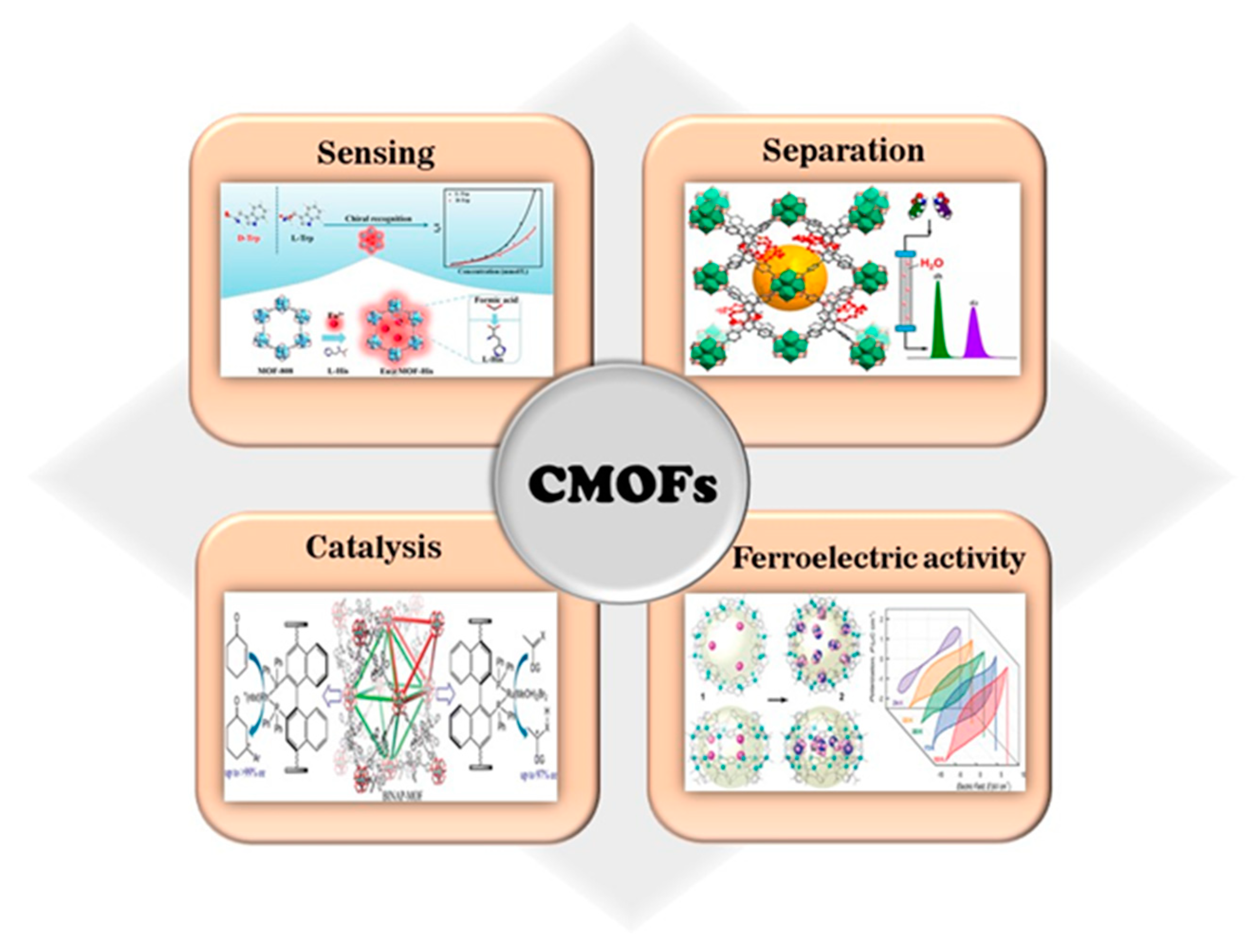

Graphical Abstract

1. Chirality

Chirality is one of the universal and fundamental phenomena in the natural world. It serves a vital role in chemistry, biology, pharmacology, medicine, and food science [1]. The word “chirality” is derived from the Greek word χɛιρ (kheir), “hand” in English, and explains the concept that it is impossible to superimpose a molecule onto its mirror image, which is a crucial feature of an asymmetric molecules [2]. Molecular chirality was initially discovered by French scientists Jean-Baptiste Biot and Louis Pasteur in 1848. However, when the “thalidomide disaster” happened in the 1960s, scientists realized the importance of chirality. At present, chirality is considered one of the crucial attributes of a living system, since it is well-known that many “building blocks of life”, such as amino acids, carbohydrates, proteins, and nucleotides, are chiral [2].
Chiral compounds are a pair of a specific type of stereoisomer termed enantiomers or optical isomers (D- and L-forms or R- and S-forms). They are non-superimposable mirror images of each other in 3 dimensions (3D). Although enantiomers possess identical compositions and functional groups, they have distinct, similar, or even reverse biological, pharmacological, and physiological performances in chiral environments, such as the human body, because of various interaction pathways with enzymes or receptors [3,4]. Mainly, a single pure isomer (D-form or L-form) is the active constituent of one molecule and may have desirable features. In contrast, the other isomer may be dysfunctional or exhibit adverse and severe side effects [5]. Most drugs and amino acids (AAs) are generally active in an optically pure form and present as mixtures or racemates with the ineffectual or toxic contrary enantiomer [6]. The enantiomeric purity of various composites has a pivotal role in producing pesticides, food additives, pharmaceuticals, and stereo-specific synthesis. In contrast, only one of the enantiomers may have satisfactory interaction [7]. Due to their diversity in physiological and pharmacological activities, there is a growing need to separate enantiomeric molecules as single enantiomers. Therefore, chiral analysis and chirality are paramount in chemical, biological, and pharmaceutical technologies and modern chemistry. However, because enantiomers have the same chemical and physical characteristics in an achiral environment, chiral separation has long been believed to be one of the most complicated analytical separations. Nevertheless, numerous improved techniques have been developed by creating an exceptional chiral climate using various chiral solid substances. Subsequently, analytical methods play an indispensable role in differentiating enantiomers as more scientists become aware of the significance of chirality [2].

2. Principles of Chiral Analysis

Chiral studies refer to stereoisomer separation. Two enantiomers have the same physicochemical characteristics, such as molecular weight and substituent groups. The enantiomers lead to the rotation of polarized light in the reverse direction with diversely substituent groups orientated in a 3D space. However, these groups are oriented diversely in the area. According to this feature, they lead to polarized light rotation in the opposite direction. Therefore, for the separation of chiral analytes, creating or selecting a suitable chiral environment is of paramount importance due to the potential of enantiomers having a stereo-specific interaction with that chiral environment [8].
The enantiomers can be separated by applying two approaches: indirect and direct resolution. In an indirect resolution, a chiral compound reacts with the chiral derivatization agent and produces stable diastereomeric complexes; chemical bonds are formed. Generally, chiral derivatization requires easily derivatizable functional groups, such as carboxylic acids, amines, thiols, and hydroxyls, in the analyte that is in contiguity with the stereogenic center [2]. In a direct approach, enantiomers interact with a chiral selector (CS), which leads to the production of labile diastereomeric compounds with weak bonds included. The environment of the separation system contains the chiral selector. [9].
From a mechanistic point of view, chiral identification is commonly assumed to necessitate a three-point interaction arising from the stereogenic centers of the chiral analyte and selector. Therefore, generating transient diastereomers as exploits of chiral separations usually needs a primary docking mechanism between the chiral analyte and the CS, together with a mixture of secondary interactions describing the stereo-specificity of the interaction [10]. These mechanisms contain a π-acid:π-base, an electrostatic or an inclusion complexation. However, suchlike instruments often rely on the primary interaction between the chiral chemical and the CS in a given experimental setting. However, the secondary interactions involve hydrogen bonding steric, dispersion, or dipole-dipole interactions, so they are commonly weaker than the primary docking mechanism [2]. Most of the chiral selectors provide various possible interaction sites. Chiral compounds may have non-stereo-specific interactions with the chiral moiety of the CS if the relative orientations of their stereogenic aspects prevent stereo-specific interactions. Non-stereo-specific interactions between the CS and the chiral compounds are usually parasitical to the enantioseparation [2]. It is worth noting that alterations in the experimental conditions can cause changes in the primary docking mechanism. For instance, alterations in pH that change the ionization of different functionalities within the CS or the chiral compound affect the primary docking mechanism, thereby converting enantiomer separation [11].
In selecting the most well-suited methods for the discrimination of enantiomers, the first step is to consider which analytes’ properties should be separated, such as their solubility and volatility. Numerous analytical methods have been developed for chirality determination and separation throughout the last many decades. These approaches include high-performance liquid chromatography (HPLC) [12], capillary electrophoresis [13], capillary electrochromatography (CEC) [14], fluorescence spectrometry [15], gas chromatography (GC) [16], supercritical fluid chromatography [17], high-speed countercurrent chromatography [18], chemiluminescence [19], nuclear magnetic resonance spectroscopy [20], mass spectrometry [21], immunoassays [22], and electrochemistry [23]. This article reviews chiral recognition techniques, such as sensors, HPLC, GC, and CEC, to analyze biologically active compounds (e.g., racemic drugs, amino acids, and biological molecules) using so-called functional materials.

3. The Attraction of Functional Materials in Chirality

In the 21st century, materials science is one of the most attractive search fields in natural sciences. A survey of the literature from the past years clearly shows that the application of functional materials in chiral recognition techniques has also become the center of researchers’ attention. A variety of functional materials involving nanoparticles (NPs), MOFs, molecularly imprinted polymers, ionic liquids (ILs), covalent organic frameworks (COFs), deep-eutectic solvents (DESs), porous organic cages (POCs), and some other porous organic materials (like metal–organic cages), have been successfully employed in chiral sensors, CE, and HPLC [24,25,26,27]. There are two driving forces behind this: one is the continuous progress of functional materials and the steady stream of novel capabilities that are being recognized, and the second is the innate flexibility of the mentioned strategies (sensors, CE, and HPLC) that guarantees the use of these materials.
Theoretically, there is an infinite variety of advanced materials for screening and evaluating. More significantly, researchers can adjust the enantio-separation ability of these functional materials by managing their morphologies or structures. Thus, the growth of new chiral selectors is based more on a “design-driven” approach than the “screening-based” method, which is much more appealing and proficient [24]. Moreover, to be used as CSPs/CSs, these advanced materials can also act as additional additives for modification of the electroosmotic flow or to enhance peak shapes (such as NPs, DESs, ILs), as background electrolytes (like ILs), or as support/coating/packing materials for improving the mass transfer and phase ratio during separations (for instance COFs, MOFs, NPs) [26,28,29]. According to these attributes, the potential of advanced materials in chiral analysis seems boundless. Therefore, this article offers an overview of the state-of-art MOFs in chiral science, focusing on sensors, CEC, and chromatographic technologies. The authors will focus on inventive concepts and highlight important topics in this field, especially in the preceding decade.

4. Metal–Organic Frameworks in Chiral Analysis

MOFs, also called porous coordination polymers, are a novel category of microporous crystalline materials employed in chiral separation. MOFs are one-dimensional (1D), two-dimensional (2D), or 3D inorganic–organic porous hybrid materials assembled from rigid metal clusters or metal ions (nodes) and flexible organic linkers (such as phosphonates or carboxylates) [30]. They provide unique chemical characteristics with substantial and permanent inner porosity. Additionally, MOF structures have exceptional diversity due to their functionalization and framework architecture [31]. Due to their numerous novel properties, including having a large surface area, excellent thermal and chemical stability, high porosity, non-toxic nature, and available cavities and tunnels, MOFs are attractive substances for chiral separation. Their ultra-high surface areas of up to 10,000 m2 g−1 are one of the main factors making them superior to other porous materials [32]. MOFs’ structural differences, crystalline nature, and structural details make them an appropriate candidate in various areas, such as chemical sensing, separation, drug carrying, biomedicine, proton conduction process, and catalysis, in the last two decades [33].
Combining MOFs’ porosity with chirality offers platforms that initiate the design of chiral MOFs (CMOFs) or chiral porous coordination polymers. These types of MOF-based chiral compounds can be created with numerous constituents that can form distinct frameworks with different usages, such as enantiomer separation and asymmetric catalysis [34]. CMOFs are a more significant part of chiral inorganic-organic hybrid compounds and a subset of MOFs possessing extreme enantiomer separation functions. CMOFs have attracted considerable scientific attention, especially in the last decade, for two chief reasons: first, the significance of the structure, either in topology or architecture; and second, their applications in a broad spectrum of fields, such as enantioseparation, chiral sensing, asymmetric catalysis, and ferroelectric area (Figure 1) [35]. Furthermore, there are other recent advances in the use of CMOFs in a variety of topics, such as second-order nonlinear optics (NLO), circularly polarized luminescence (CPL), photoelectrochemical sensing, drug delivery (DD), green analytical chemistry (GAC), such as analytical sample preparation (as unique sorbents) and microextraction (micro-solid-phase extraction (µ-SPE)) techniques [36,37].
In principle, chirality in CMOFs can emerge because of chiral agents in an asymmetric environment, precursors (sometimes both) and through specific alignments of achiral precursors that result in instinctive discrimination [38]. CMOFs can be synthesized through three strategies (Figure 2): (I) The spontaneous resolution and chiral induction method (SR and CI), the formation of chirality over spontaneous resolution, or crystal growth that can be referred to as the physical arrangement and nature of precursors. It indicates that the spatial placement of an achiral building block via enantiospecific supramolecular interaction causes crystallizing MOFs in a chiral set. (II) The indirect method is the post-synthetic modification (PSM) method in which achiral frameworks are formed, and external chiral agents (chiral guest, temperature, solvent, and auxiliary pendant) are employed to produce stereogenic centers. (III) The most significant, effective, and reliable methods for generating CMOFs include applying a chiral node (either metal cluster or ion), linker, or combination. This process is the last technique and is named the direct method (DM) of chiralization. Research has confirmed that this method results in CMOFs with novel characteristics [39]. It is worth noting that crystallographic measurements are accurate and crucial proofs for the confirmation of the chirality generated in the structure. Hence, the metal’s electronic/geometric configuration at the node position of metal–organic frameworks might alter their characteristics with asymmetric orientation formed throughout crystallization, which is a crucial agent in creating SR-derived CMOFs [40].

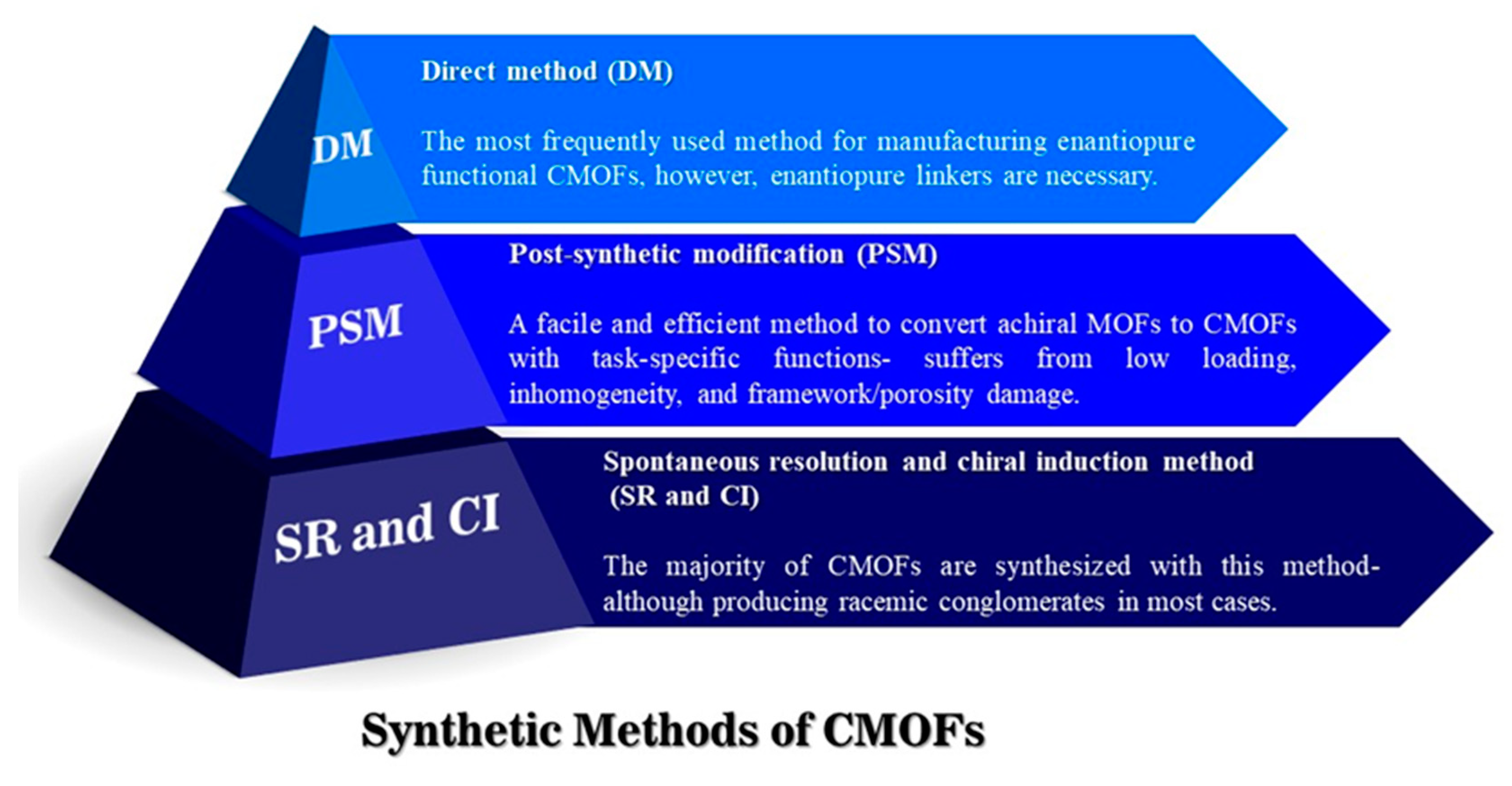

Furthermore, CMOFs can be categorized into two major classes based on chirality type: heterochiral and homochiral. The outcome of chiral organic moieties with the same handedness can be homochirality, which additionally possesses optical centers; they can have conformational rigidity and considerable length [41]. However, in heterochirality, ligands with opposite handedness create a heterochiral complex configuration [42]. Although the fabrication of homochiral configurations is preferable in the literature, sometimes heterochirality leads to novel and practical attributes that homochirality does not display. In this compound, heterochiral interactions serve an efficient role in the construction of crystalline racemates. In racemate configurations, heterochiral interactions demonstrate the capability of overcoming homochiral interactions [41]. The main factor that makes chiral materials so popular is their extremely fascinating potential applications. According to the characteristic attributes of MOFs alongside their chirality performance, CMOFs provide extraordinary opportunities for novel applications. However, employing CMOFs and focusing on their specific properties have been under discussion in the past. Nevertheless, it is a real challenge for researchers to obtain CMOFs with the lowest cost and highest performance. Fabrication techniques, pore size, type, and functionality, in addition to the MOF nature, are significant parameters affecting the choice of application [43].
Regarding the significance of chiral recognition of active compounds, as described in the previous sections, in the production of pharmaceuticals, especially biological processes, determining one enantiomer from the racemic composite is paramount in chirotechnology. More precisely, enantiomers with identical chemical and physical characteristics present researchers with a significant challenge. To overcome this problem, chiral recognition and separation methods require efficient compounds with the separating capability of enantiomers in addition to great enantioselectivity. At first, chiral zeolites were used for this purpose. Still, since the merits (such as high surface area, diverseness in pore size and structure, selective adsorption affinity, and special microporosity) of MOFs/CMOFs were higher than zeolites, researchers have become enthusiastic about employing them [44,45]. The chiral discrimination and separation are related to the two enantiomers’ differing orientations and binding energies inside the MOF’s microenvironment. However, the orientation and potential map of the (S)-enantiomer differ significantly from those of the (R)-enantiomer, and the specific binding energies differ. Consequently, enantioselective adsorption is predicted due to changes in binding energy and orientation [46]. Based on the literature in the past few years, MOFs can be used as the perfect candidates for the enantioseparation of different compounds [47]. Thus, chiral recognition and separation using CMOFs are within the scope of this review. This property of CMOFs refers to their ability to interact with guest molecules, such as ion exchange; electrostatic mechanism forming inclusion complexes; hydrogen bonding; dipole-dipole, steric, and hydrophobic interactions. Herein, we discussed the application of CMOFs for chiral recognition and the separation of racemate compounds using sensors, chromatographic techniques, and CEC.

5. Metal–Organic Frameworks for Designing Enantioselective Sensors

This section reviews the application of CMOFs for the chiral recognition of racemate compounds using different types of sensors. Generally, the chiral sensing phenomenon depends on two primary processes: signal transduction and molecular recognition. Designing molecular structures providing sites for enantioselective recognition with various interaction affinity for enantiomers of racemic materials is the fundamental factor in fabricating reliable chiral (bio)sensors [48]. It is essential to have a chiral surface or environment for differentiating the enantiomers. In the sensors, possessing the signal of enantioselective identification requires specific interactions of enantiomers with a chiral selector. Therein, it is worth noting that the “lock-key” rule and phenomenon of the “three points interactions” are facilitated methods suggested so far for the enantioselective interaction scenario. Hence, chirality-based (bio)sensors generally relate to host-guest chemistry via non-covalent interactions, such as π-π interactions and hydrogen bonding. Numerous driving forces reinforce the interactions between guest and host molecules, leading to enantioselective identification. To develop selective and efficient enantiomer recognition, the host’s structure needs to create several driving forces with guest molecules [49].
Recently, a variety of strategies have been employed for developing chiral sensors. Herein, MOFs have emerged as an exciting material because of their porosity, high surface area, and capability of adsorbing guest molecules to design susceptible platforms named chirality-based sensors [49]. In general, MOFs possess different chemical and physical features and topological structures. CMOFs show enormous potential in the chiral identification field [50]. MOFs’ porous structure can preconcentrate the target to obtain improved sensitivity. Meanwhile, the channels and pores can render an ideal medium for accommodating the target molecules, which provokes special recognition. The selectivity of sensors developed based on MOFs is derived from (i) the chirality of the framework, (ii) channel size exclusion, (iii) host-guest chemistry in the MOF cavity, (iv) target-specific signal response, and (v) hydrogen bonding or specific coordination of analytes to the framework [51]. Principally, any alterations in the properties of MOFs based on the type of guest molecule should be evaluated as a sensing signal. The sensitivity of MOF detection mainly relates to the sensing technique employed for signal transduction [31].
In this section, we will summarize developed CMOF-based enantioselective (bio)sensors and discuss the fundamentals of their performances. For the sake of specificity, this section is in parts: fluorescence, electrochemical, quartz crystal microbalance (QCM), and circular dichroism (CD) (bio)sensors based on thenal transduction.

5.1. Fluorescence Enantioselective (Bio)Sensor

Fluorescence (bio)sensors are label-based optical (bio)sensors that have been offered as an alternative to the electrochemical approaches discussed below. These (bio)sensors utilize quantum dots (QDs), fluorescence proteins, and dyes as labels. Some characteristics, such as the real-time and direct detection of various chemical and biological materials, provide them a distinct edge over traditional analytical procedures [52,53]. Fluorescence offers several signaling modes for detecting substrate than electronic absorption, including fluorescence amplification, quenching, exciplexes, excimers, and lifetimes. The sensitivity of fluorescence methods needs relatively small amounts of sensor molecules. Recently, there has also been an increase in interest in developing fluorescence sensors for the enantioselective detection of chiral compounds. These sensors have the potential to provide a real-time approach for the recognition of the enantiomeric composition of racemic compounds, which might considerably allow quick analysis of chiral molecules [54,55]. Chiral biphenyl or binaphthyl composites are popular fluorophores commonly applied as optical (bio)sensors for enantiomer recognition because of their innate particularities, such as rigid enantiomeric conformation, excellent emission efficiency, C2 axial chirality, and easily selective functionalization [37]. In 2012, Lin et al. hypothesized that an outstanding procedure for enantioselective sensing could be supplied by making use of CMOFs as well as the internment effect of the framework and rigid configuration of sensing moieties for increasing stereoselectivity [56]. A secondary building unit, a cadmium carboxylate infinite-chain, and 1,1′-bi-2-naphthol-derived chiral tetracarboxylate bridging ligand was used for the construction of a fluorescent and highly porous MOF (Figure 3). Amino alcohols led to the efficient quenching of the fluorescence of the fabricated MOF through hydrogen binding with the binaphthol moieties decorating it. This resulted in the fabrication of a binaphthol-based homogeneous platform as a remarkable enantiomer recognition sensor for amino alcohols with highly improved enantioselectivity and sensitivity. The R and S enantiomers various amino alcohols, including 2-amino-1-propanol, 2-amino-2-phenylethanol, 2-amino-3-phenylpropanol, and 2-amino-3-methyl-1-butanol, underwent enantioselective recognition by the MOF-based chiral fluorescence sensor. Various amounts of amino alcohol quenchers were used to measure the fluorescence signals of the MOF suspensions. The created MOF was a very sensitive fluorescent sensor with excellent fluorescence quenching thanks to the four chiral amino alcohols. This was followed by Stern-Volmer (SV) behavior, which provides precious information in the clarification of the photocatalytic reaction mechanism in the concentration range of 0–4 μM with remarkably high KSV (SV constants) of 490–31,200 M−1 due to analyte absorption and preconcentration inside the cavities of the MOF. At the same time, its higher enantioselectivity is assumed to be a result of increased enantiomer discrimination related to the confinement effect of the cavity and the rigid configuration of the binaphthol moieties in the framework.

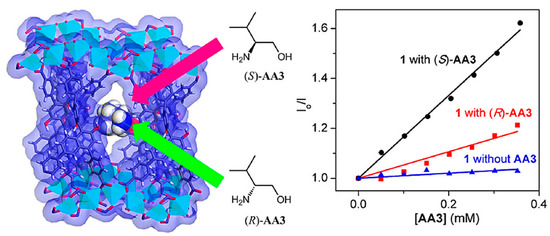

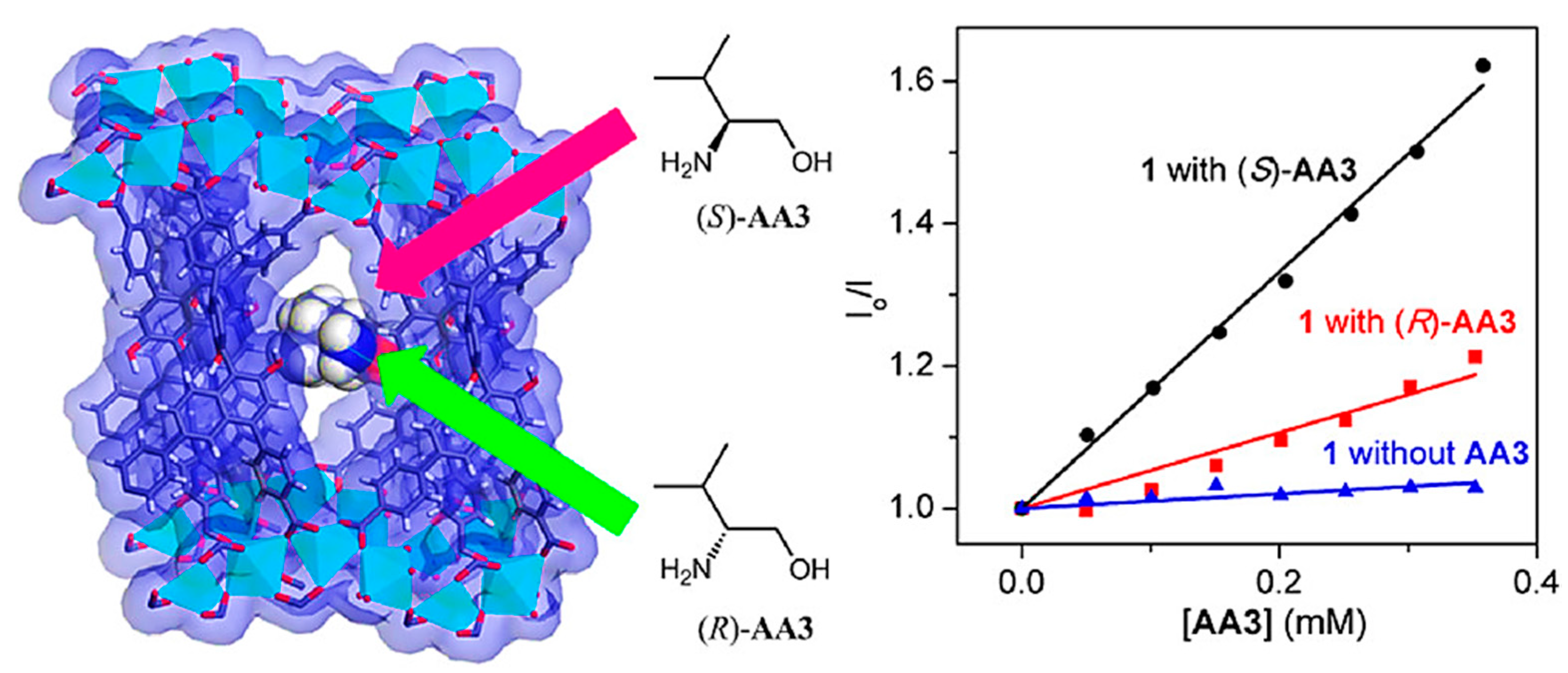

Approximately four years later, Moorthy and colleagues designed a water-stable and incredibly luminescent homochiral anionic CMOF termed Zn-MOF. For instance, Zn-PLA was based on the metal-assisted self-assembly of a fluorescent chiral pyrene-tetralactic acid (H4PLA), which naturally inspects concave structures for guest inclusion, with Zn(NO3)2 to investigate the chiral sensing of amino acids through fluorescence quenching [57]. Treatment of the organic linker H4PLA with Zn(NO3)2 resulted in the creation of luminescent and porous crystals of Zn-PLA. Among all amino acids, such as cysteine (Cys), histidine (His), tryptophan (Trp), and tyrosine (Tyr), His led to the selective fluorescence quenching of Zn-PLA aqueous dispersion due to the exchange of the cationic species of dimethylammonium (DMA) in the MOF crystals through His, which is protonated in water. DMA was stabilized inside the voids through robust hydrogen binding with the carboxyl groups of PLA. The cationic imidazolium ring of His is believed to contribute to charge-transfer interactions with the excited state of protected pyrene fluorophore for observing quenching. The selective sensing of His is of paramount importance because of its relation to different biological functions. The chirality of MOF, which is related to lactic acid groups, resulted in the enantioselective sensing of the D and L enantiomers of His with an enantioselectivity ratio of 1.8 from the SV quenching plots.
For the first time, in 2018, for the fluorescent enantioselective sensing of chiral α-ethylbenzylamine, Bu and colleagues generated a whole new class of stereoisomeric porous homochiral MOFs, including isoreticular, diastereomeric, and enantiomeric MOFs, with various metal nodes in the absence or presence of a secondary linker [58]. Isocamphorate generates unpredictable framework topologies from regular inorganic building blocks, and isocamphoric acid enables the achievement of numerous novel homochiral compounds. Generally, the 3D CMOF constructed of copper dimers and RR-cam supported by 4,4-bipyridine ligands, named CPM-332-RR or [Cu2(RR-cam)2(bpy)], exhibited enantioselective fluorescent quenching for α-ethylbenzylamine enantiomers. Moreover, these easily accessible chiral ligands, created from converting previously existing chiral ligands, will pave the way for incrementing MOF-based enantioselective platforms. Recently, Shi and colleagues reported the integration of chirality and luminescence in MOFs for improving luminescent sensors [59]. For this purpose, five chiral sites containing N-benzylquininium chloride were introduced into an anionic luminescent Zn-based MOF through a simple cation exchange method. A CMOF was fabricated with dual luminescent centers composed of the Tb3+ ions and ligand (Zn-MOF-C-Tb). Significantly, the designed luminescent and chiral bifunctional dual luminescent centered-MOF exhibited the enantioselective identification of amino alcohol enantiomers and cinchonidine and cinchonine epimers. In all cases, the developed Zn-MOF-C-Tb demonstrated wonderful enantioselectivity. The N-benzylcinchoninium chloride, S-2-amino-1-propanol, and S-2-amino-1-butanol had faster fluorescence quenching than their related enantiomers, indicating the broader usage of the suggested bifunctional MOF platform. The relative standard deviation (RSD) for the I544/I354 (intensity 544 nm/intensity 354) ratio was considerably lower than that of employing just the I544 emission. This showed the benefit of reduced system errors in the ratiometric sensing platform. The quenching capability of Zn-MOF-C-Tb was evaluated by recycling experiments and stability tests in the presence of cinchonidine and cinchonine with 6 cycles at 544 nm. The ratio of quenching was between 97.1% and 98.1%. The bifunctional Zn-MOF-C-Tb showed a method for the enantioselective recognition of chiral molecules with reusability and excellent stability.

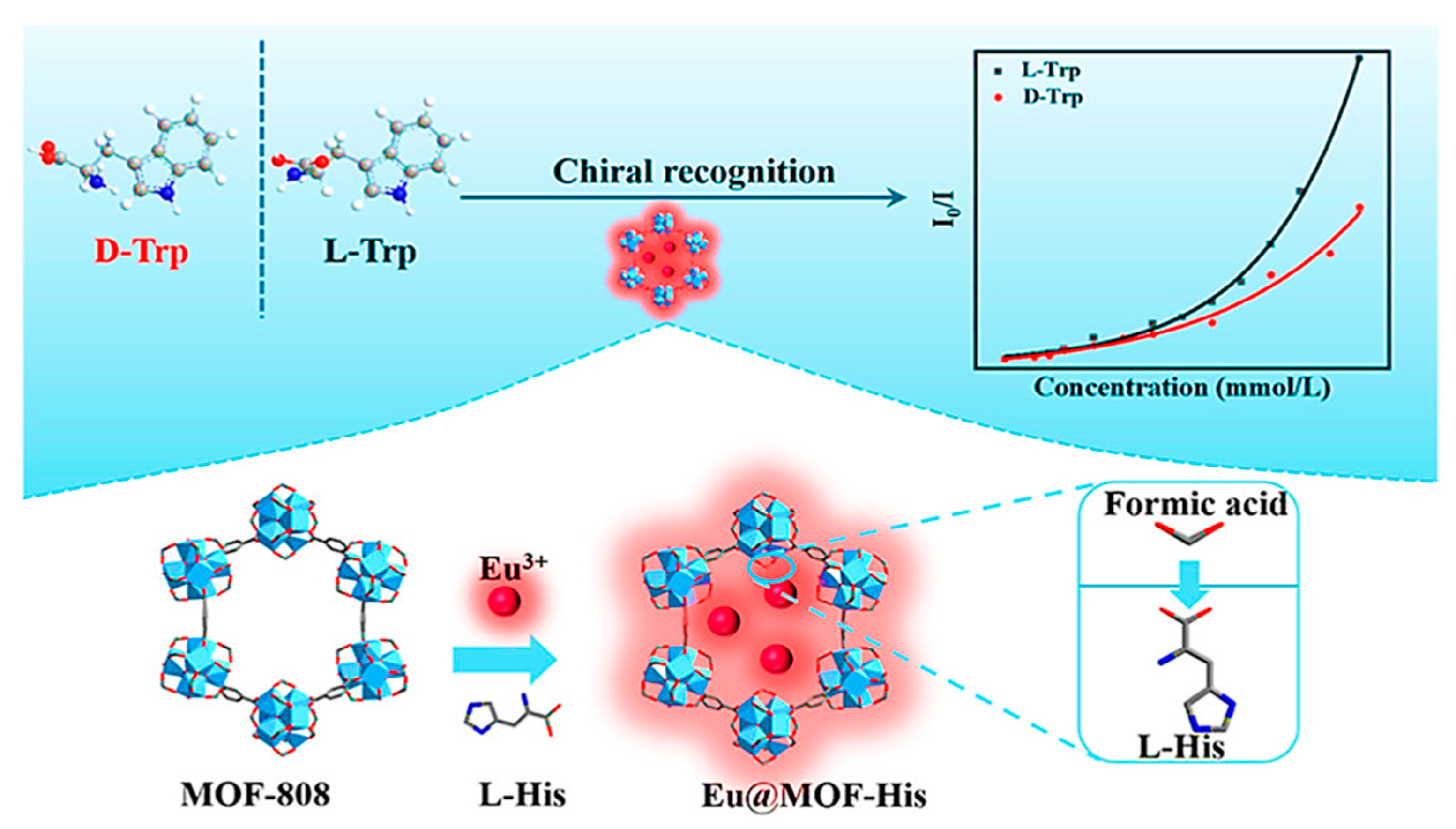

In 2022, Yan et al. developed a CMOF-His through post-synthetic ligand exchange using L-His as a chiral center and its immobilization into a zirconium (Zr)-based MOF [60]. For this purpose, water-stable and modifiable MOF-808 as a Zr(IV)-based MOF with high inherent peroxidase-like catalytic activity under alkaline, neutral, and acidic conditions was employed as the parent skeleton, and L-His was partially replaced with the formic acid ligand. Then Eu3+ ions were introduced as a new luminescence center by hybridizing then with MOF-His to have the final composite [email protected] (Figure 4). The bifunctional [email protected] had both enantioselective luminescence and chiral characteristics among many amino acids. By decreasing the enantiomer concentration to the range of 0–0.35 mM, there was a good linear relationship between the fluorescence intensity of the prepared MOF in the water (I0)/substrate solution (I) at 614 nm (I0/I) and the substrate concentration. The quenching constants KSV of D-Trp and L-Trp were 12,547 and 19,154 M−1, respectively. The quenching constants ratio of L-Trp/D-Trp was 1.53, indicating that the two enantiomers had discrepant quenching rates. The detection limit of [email protected] for D-Trp and L-Trp was 4.1 and 2.7 μM, respectively. Therefore, [email protected] was appropriate for the Trp enantiomers detection in a low concentration. Based on the obtained results, enantiomers of Trp can efficiently quench the Eu3+ ion’s red-light emission. Moreover, the quenching rates were different, stemming from the diversity of the analytes’ interactions with the chiral recognition sites. [email protected] restored its fluorescence intensity to 614 nm after 4 cycles, demonstrating that the prepared MOF can be used to detect Trp enantiomers. The designed [email protected] displayed the potential of being a tremendous fluorescent sensor for recognizing Trp enantiomers due to its high sensitivity, rapid response, and reusability.

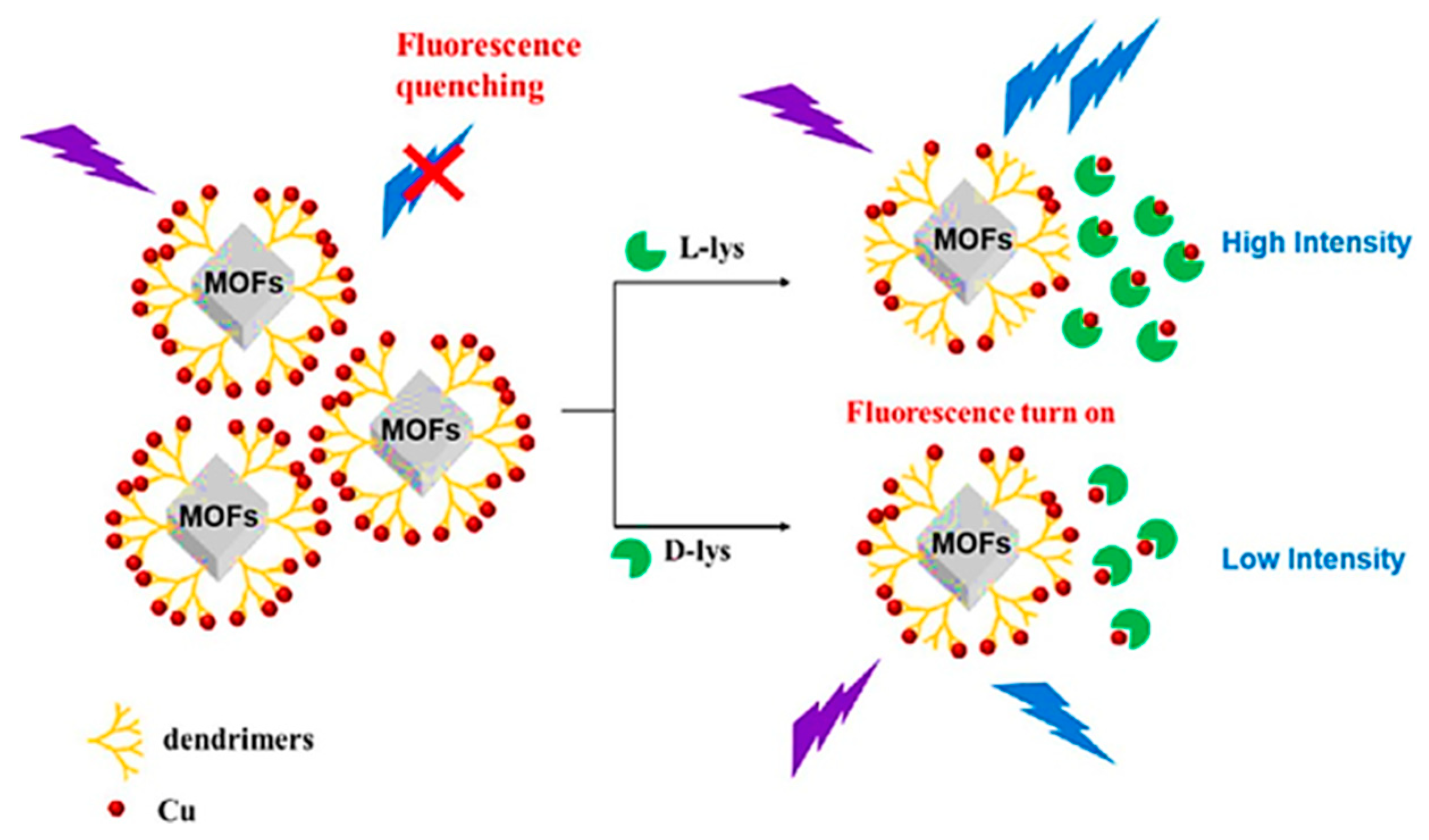

In 2022, Zhu et al. synthesized poly (amidoamine) (PAMAM) dendrimers-functionalized achiral luminescent MOF, termed MIL-53(Al)-NH2, for the fast enantioselective sensing of lysine (Lys). MIL-53(Al)-NH2 was an Al-based MOF that was synthesized with 2-aminoterephtalic acid and AlCl3 (Figure 5) [61]. Then, the modification of the synthesized MOF with PAMAM, called PLMOF, led to the enhancement of fluorescence intensity, and by the dispersion of PAMAM-modified MIL-53(Al)-NH2 to water, the achieved solution showed excellent stability and fluorescence intensity. The fluorescence of the luminescent MOF solution was quenched for amino acid detection by adding the Cu2+ concentration. Adding the Lys enantiomers to the PLMOF solution caused the partial restoration of the quenched fluorescence signal due to the powerful chelation between Cu2+ and Lys. In such circumstances, the fluorescent signal of the unique fluorescence MIL-53(Al)-NH2-PAMAM-Cu2+ sensor entered “turn-on” mode due to the various chelation potentials, which led to the sensitive enantioselective determination of d-Lys and l-Lys by fluorescence intensities. The results exhibited successful enantioselective detection of d/l-Lys with good linearity and detection limits of 12.2 and 7.52 μM for d-Lys and l-Lys, respectively. The PAMAM-grafted luminescent MOFs demonstrated good fluorescence intensity stability under prolonged UV irradiation. The RSDs of interday and intraday fluorescence intensities were 1.01% and 1.07%, respectively, expressing the excellent repeatability and stability of PAMAM-grafted luminescent MOFs in the detection process.

5.2. Circular Dichroism Enantioselective (Bio)Sensor

CD spectroscopy is one of the robust techniques in stereochemical analysis and is usually for molecular recognition and absolute configuration assignment [62]. It is among the existing approaches for enantioselective recognition, such as capillary electrophoresis, chromatography, and fluorescence. Conventional CE and chromatography techniques are efficient for the racemic resolution of a broad spectrum of chiral analytes. However, these systems have several limitations, including complex programming, high cost, and time consumption, which hinder convenience and quick and easy enantioselective recognition. Although fluorescence (bio)sensors can recognize the enantiomers effectively and quickly, the downside of this approach is that the only suitable candidates for this type of (bio)sensor are vigorous luminescent materials. In addition, the visual reflection of stereochemical signs related to detected chiral molecules cannot be obtained from fluorescence (bio)sensors [63]. CD is the most frequently employed technique for visual chirality with a broad spectrum of applications in exploring charge-transfer transitions [64], the secondary structure of proteins [65], and the electronic and geometric structure of compounds [66]. Fluorescence exhibits attributes such as rapidity and the molecular absolute configuration of probed chiral substances [66]. In general, the sensing procedure of CD-(bio)sensors is achieved by forming a coordinative or covalent bond via pesky chemical reactions between originally UV-active and CD-silent molecules. This can result in an asymmetric induction to generate a favored chiral structure population with different chiroptical yields. Therefore, it is significant to advance an appropriate and faster technique to obtain effective sensing in which weak supramolecular interactions are introduced into the inclusion composites. On this matter, CMOFs with numerous chiral recognition sites and a limited effect are great candidates for CD sensors [67].

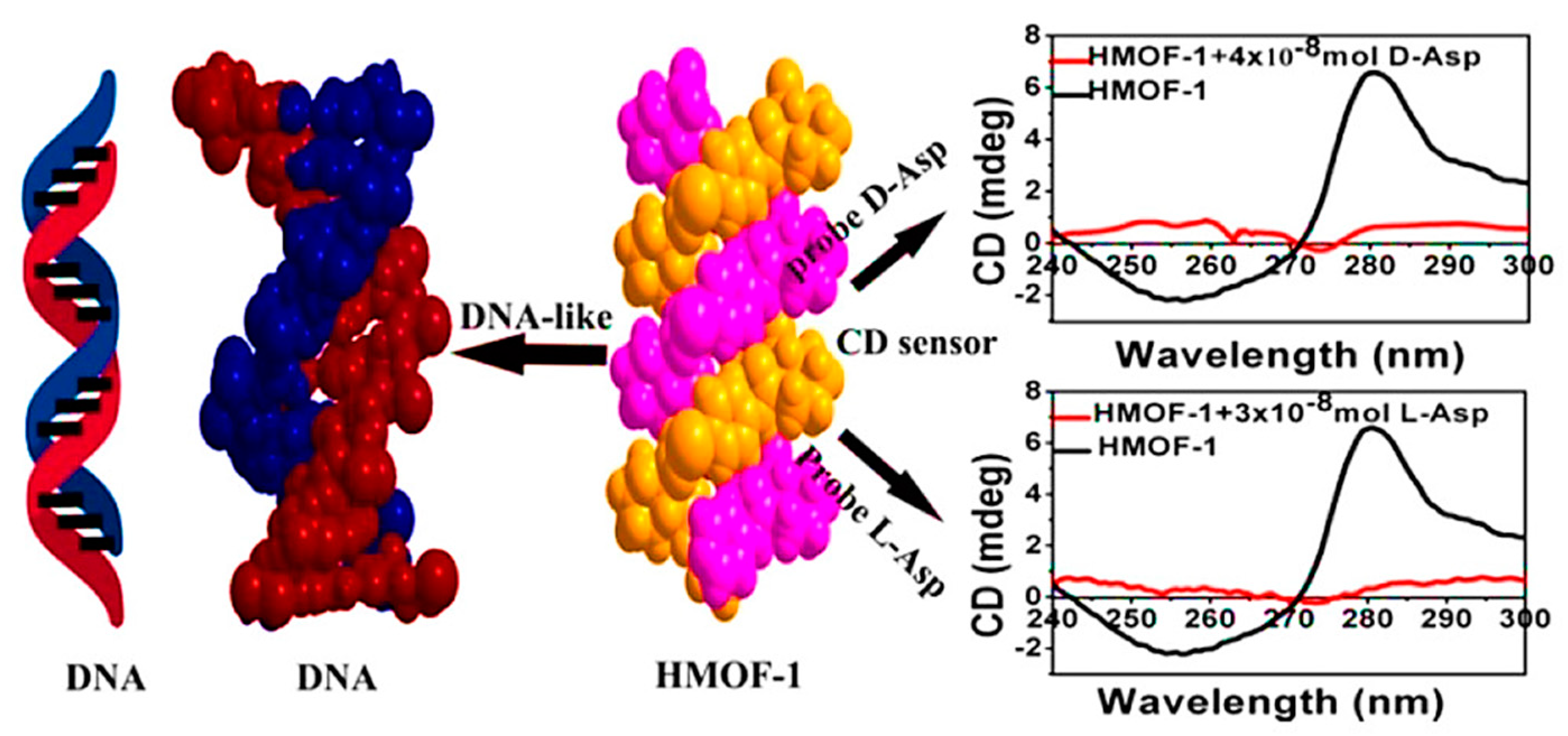

The first application of a CMOF for an enantioselective CD-(bio)sensor was reported by Zhang and colleagues in 2015 [67]. A pair of homochiral zeolitic imidazolate-related frameworks (HZIrFs) with sodalite topology, including (R)-2-(1-hydroxyethyl) benzimidazole [(R)-OH-bim] and (S)-2-(1-hydroxyethyl) benzimidazole [(S)-OH-bim], was achieved by both chiral benzimidazole and tetrazole ligands. The successful accomplishment of bulky zeotype and homochirality configurations in HZIrFs was influenced by the assistance of another ligand, 5-methyltetrazole, and adding a chiral C center into the benzimidazole ligand. The homochiral zeolitic imidazolate-related framework topological configuration with abundant H-bonding medium in the ethanol solutions of chiral carvone exhibited CD-sensitivity. By adding the HZIrFs-R, the CD signals remarkably decreased for both L- and D-carvone. Nonetheless, L-carvone showed a significant signal decrease compared to D-carvone, proposing a strong interaction between L-carvone and the CMOF. Based on the obtained results, the chiral recognition happened on the external surface of HZIrFs-R because its small window size blocks the entry of carvone. The same research team expanded this procedure for synthesizing a series of more microporous homochiral zeolitic CMOFs (ZMOFs) [68]. They synthesized four types of homochiral ZMOFs by mixing 5-methyltetrazole ligand and various amino acids, including L-alanine, D-alanine, L-serine, and L-valine, as linkers named Zn4(5-mtz)6(L-Ala)2·2(DMF), Zn4(5-mtz)6(D-Ala)2·2(DMF), Zn4(5-mtz)6(L-Ser)2·2(DMF), and Zn4(5-mtz)6(L-Val)2·2(DMF) for the chiral sensing of the carvone. For the chiral determination of the carvone, the CD signal of a solution of L-carvone or D-carvone and four as-synthesized samples was recorded. The result indicated that D-carvone and L-amino acid-based samples had stronger interactions than the interactions of L-carvone and L-amino acid-based samples. At the same time, L-carvone had stronger interactions with Zn4(5-mtz)6(D-Ala)2·2(DMF). The separation enantiomeric excess (ee) values of L-amino acid-based samples, including Zn4(5-mtz)6(L-Ser)2·2(DMF), Zn4(5-mtz)6(L-Ala)2·2(DMF), and Zn4(5-mtz)6(L-Val)2·2(DMF), were 43.2%, 18.6%, and 25.8%, respectively. Zn4(5-mtz)6(L-Ser)2·2(DMF) had the most significant separation capability due to the −OH groups improving the Zn4(5-mtz)6(L-Ser)2·2(DMF) interaction with the carvone.
Two years later, Zhang et al. presented a systematic study of CMOF-based CD sensors for eight pairs of L/D-amino acids [69]. Self-assembly of (1R,2R)-2-(pyridine-4-ylcarbamoyl) cyclohexanecarboxylic acid (RR-PCCHC), a rationally created chiral ligand, with Zn(NO3)2 resulting in the fabrication of a 2D water-stable homochiral MOF [Zn(RR-PCCHC)2] (HMOF-1), which is composed of a DNA-like right-handed double-helix structure. The synthesized HMOF-1 demonstrated great thermal and solvent stability, as well as stability in weak basic, weak acidic, and neutral aqueous solutions. Moreover, emulsified HMOF-1 exhibited a strong innate CD signal in an aqueous solution. Adding various amino acids decreased the strength of HMOF-1’s CD signals. Notably, the emulsified HMOF-1 determined aspartic acid (Asp) with a limit of detection (LOD) of 13.31 ppm and 92.1% recognition efficiency for L-Asp (Figure 6). By doing titration studies using α-hydroxyl carboxylic acids, d/l-lactic acid, and (R,R)/(S,S)-tartaric acid, the universality of the proposed CD-sensor application was tested. By adding various volumes of α-hydroxyl carboxylic acids, emulsified HMOF-1 showed a similar CD signal intensity alteration. The CD signal intensity of emulsified HMOF-1 significantly decreased as a result of (R, R)/(S, S)-tartaric acid, with (S, S)-tartaric acid having a more significant impact than (R, R)-tartaric acid. At the same time, d/l-lactic acid resulted in a minimal effect on the CD signal’s intensity. Recognition efficiency (η) of (R,R)-tartaric acid was 37.5%, while that of (S,S)-tartaric acid was 53.2%. The obtained results showed the ability of HMOF-1 in the sensitive recognition of enantiomeric carboxylic acids. DNA-like HMOF-1 demonstrated an interaction mechanism with probed amino acids like the groove binding of DNA with a targeting drug.
After a short time, the same research group focused on the preparation of three new chiral 3D metal-carboxylate frameworks termed [M2(bptc)(H2O)(MeOH)]·3H2O (M = Ni, Co, CoNi, bptc4− = 3,3′,5,5′-biphenyltetracarboxylate), which spotlight chiral 4-fold helical metal chains, such as SBUs (secondary building units), for enantioselective CD-sensors [70]. The reaction of biphenyl-3,3,5,5-tetracarboxylic acid as an achiral ligand with Ni2+, Co2+ and their mixture created three stable, isostructural porous chirality-enriched MOFs: Ni-MOF, Co-MOF, and CoNi-MOF. Specifically, Co-MOF exhibited sensitive and fast CD sensing of a variety of racemic α-hydroxy/amino acids, and 38.59% was the largest relative difference in the CD signals of L/D-mandelic acid. In 2021, Jiao and co-workers developed an enantioselective CD sensor by designing a homochiral MOF named [Zn(L)(2,2′-bipy)]·H2O (LNNU-1) in which (H2L = HOOC-C6H4-CH2PO(OH)(OC2H5) and 2,2′-bipy = 2,2′-bipyridine were used as two organic ligands with aromatic ring and carboxy phosphonic groups. LNNU-1 had several noncovalent interactions with Trp [71]. They did not observe any induced circular dichroism (ICD) signals for all-natural amino acids, DL-Trp, and D-Trp pure aqueous solutions, as well as aqueous solutions of LNNU-1 without enantiomers of Trp. However, adding LNNU-1 to the mixture of Trp enantiomers and all other natural amino acids aqueous solution led to the observation of a strong ICD signal. Blood plasma was used to test LNNU-1’s selectivity for common compounds that did not exhibit an ICD signal, except signals of the enantiomers of Trp. Numerous noncovalent interactions between chiral Trp and LNNU-1 led to the emergence of an intense, induced CD signal. This resulted in the precise detection of the absolute configuration and enantiomeric ratio of nonracemic Trp specimens in blood plasma constituents and the mixture of natural amino acids’ aqueous solution. Moreover, the enantioselectivity mechanism of the sensor was also examined. It is worth noting that the designed CD sensor resolves the problems related to traditional determination techniques for amino acids, including non-repeatability, high cost, complex operation, and time-consumption. The developed system showed high selectivity and reliability for enantiomers sensing through homochiral MOF-ICD sensors.

5.3. Quartz Crystal Microbalance Enantioselective (Bio)Sensor

The QCM is a portable and ultrasensitive device for chemical sensors with the potential to sense mass alterations in the range of nanograms. It has been pleasantly employed for various applications, especially the selective sensing of enantiomers. The chiral recognition layer on the surface of quartz is one of the cardinal parameters for obtaining high specificity and sensitivity. Various chiral substances, such as synthetic macromolecules, molecular imprinting polymers, amino acids, and proteins, have been widely used to fabricate chiral QCM sensors. CMOFs with tunable and abundant recognition sites are for such functions [72,73]. The proliferation of a thin film of CMOFs on a quartz surface is named surface-mounted MOFs (SURMOFs), which empower the development of CMOF-based QCM sensors [74].
In 2012, an early report on integrating a QCM-sensor and a CMOF was conducted by Fischer and Wöll et al. [73]. The layer-by-layer liquid-phase epitaxial (LPE) growth technique was applied for the growth of enantiopure SURMOF coatings of [{Zn2((−)cam)2(dabco)}n] and [{Zn2((+)cam)2(dabco)}n] through dipping the QCM substrate with a dabco linker, equimolar chiral camphoric acid, and Zn(Ac)2. The thin film of an enantiopure surface-mounted MOF [{Zn2((±)cam)2(dabco)}n] on the surface of the QCM enabled the enantioadsorption of the selected enantiomeric probe molecules S-HDO ((2S,5S)-2,5-hexanediol) and R-HDO ((2R,5R)-2,5-hexanediol) from the vapor phase in a continuous flow mode using nitrogen gas as a carrier. Based on the achieved results, [{Zn2((+)cam)2(dabco)}n] had almost 1.5-fold higher adsorption for R-HDO than S-HDO. Dissimilarity in the rate of absolute uptake and absorption for the chosen enantiomeric target molecules resulted in the discovered enantioselectivity. Extending this procedure by Gu and Xu et al. in 2019, thin films of [Zn2Cam2DAP]n, an azapyrene-based CMOF, were grown on the functionalized substrate for the development of a QCM-sensor, which was termed SURchirMOF [Zn2Cam2DAP]n [75]. The designed SURchirMOF [Zn2Cam2DAP]n was based on chiral camphoric acid layers and 2,7-diazapyrene ligands through an LPE layer-by-layer technique similar to the structure of [{Zn2((+)cam)2(dabco)}n]. d/l-methyl-lactate enantiomers were used for evaluation. D-SURchirMOF-4 had the adsorption amount of ∼3.54 (ML) and ∼2.08 (MD) μg/cm2 for L- and D-methyl-lactate, respectively. Additionally, d/l-methyl-lactate enantiomers were employed for investigating the L-SURchirMOF-4 enantioselective adsorption, which showed ∼2.02 (ML) and ∼3.62 (MD) μg/cm2, the adsorption amounts for L- and D-methyl-lactate, respectively. The disparate adsorption amount demonstrated the significant enantioselective adsorption of SURchirMOF-4 for one enantiomer of methyl-lactate. The ee of D-SURchirMOF-4 and L-SURchirMOF-4 for methyl-lactate was 26% and 28%, respectively. Based on the results, SURchirMOF-4 exhibited good enantioselective adsorption toward d/l-methyl-lactate enantiomers.
For the first time, Bräse and colleagues reported a planar-chiral building block employed for CMOFs in which 4,7-disubistuted paracyclophane, a planar-chiral linker, directly integrated into a CMOF and exhibited its application in an enantioselective QCM sensor [76]. A thin film of smooth SURMOF Zn(PcTPDC) was fabricated by a similar LPE growth strategy on the QCM substrate for the chiral determination of limonene. An achiral SURMOF Cu(DMTPDC) was employed as a seeding layer to assist the growth and improve the crystallinity of chiral Zn(PcTPDC). According to the obtained results, the combination of the chiral features of the planar linker and the porous structure of the MOF showed the chiral character and function, as well as a selective enantioadsorption for racemic nonpolar limonene. To guarantee the reproducibility of the results, the (S)- or (R)-limonene uptakes were studied three times. The average uptake of (S)-limonene was 0.024 ± 0.003 g per g SURMOF, while it was 0.041 ± 0.004 g R-limonene per g SURMOF. Therefore, the ee of R vs. S was 26%. In the same period, Yan and co-workers designed a 3D porous CMOF (Zn2(bdc)(L-lac)(dmf)·DMF)-coated QCM sensor for the enantioselective recognition of three pairs of amine enantiomers and one pair of alcohol enantiomers [72]. Otherwise, an easy drop-coating strategy is used for coating the gold surface of quartz crystal with a homogeneous and dense chiral thin film of (Zn2(bdc)(L-lac)(dmf)·DMF). The chiral selectivity factors of the developed QCM sensor for S/R-1-(1-naphthyl)ethylamine and S/R-1-phenylethylamine were 1.36 and 2.20, respectively. An increment in the analyte concentration led to an increase in the selectivity factor, while the temperature rise caused its decrease. The proposed method underlined CMOFs’ potential as unique sorbents for QCM sensors.
Recently, Xie and colleagues prepared a pair of chiral UiO-MOF-based QCM sensors to effectively recognize Cys enantiomers [77]. The post-modification of UiO-66-NH2 with tartaric acid enantiomers resulted in the preparation of the D- and L-UiO-tart (chiral UiO-MOF enantiomers). Coating chiral UiO-MOF onto the gold surface resulted in the development of two enantioselective QCM sensors (D- and [email protected]). The UiO-tart coating layer served the role of a chiral selector for the enantioselective adsorption of a Cys enantiomer. The reaction between the Au layer and captured Cys enantiomer led to the significant mass growth of the whole system. Applying the QCM technique allowed the monitoring of the gravimetric alteration of the system and, consequently, the enantioselective distinguishing of Cys. The enantioselective factor (ef) refers to the division of the value of the preferential uptake by the other. Preferential uptakes of L-Cys by [email protected] had a 5.9a 7 ± 0.54 efL value, while the enantioselective adsorption preference of [email protected] became D-Cys and provided a 5.63 ± 0.73 efD value. On the contrary, [email protected] showed an efL value of 1.01 ± 0.08, meaning there was an equal uptake of D- and L- enantiomers without any obvious enantioselectivity. The results confirmed the chiral sensing performances of D- and [email protected] In 2021, Heinke et al. developed an enantioselective electronic nose (e-nose), an artificial nose based on QCM sensors coated with six types of nanoporous achiral and homochiral MOF thin films [78]. SURMOFs were fabricated using the layer-by-layer method to prepare MOF thin films on the QCM sensors directly. The e-nose was used for the examination of five pairs of chiral odor molecules: (R/S)-1-phenylethanol, (R/S)-limonene, (R/S)-1-phenylethylamine, (R/S)-2-octanol, and (R/S) methyl lactate, totally 10 volatile organic compounds. Each chiral film enabled discrimination between the chiral odor molecules enantiomers based on providing diverse feedback for each enantiomer. The achiral MOF film coated QCM sensors achieved similar responses for isomers of one chiral odor molecule. In contrast, the homochiral MOF film coated sensors exhibited disparate responses to various enantiomers. The developed CMOF e-nose shows the potential of enantioselective discrimination of chiral odors and is a powerful strategy for improved odor sensing.

5.4. Electrochemical Enantioselective (Bio)Sensor

Electrochemical (bio)sensors have attracted researchers’ attention to detect diverse compounds. Compared with other methods, the cardinal virtues of electrochemical (bio)sensors to be extolled are their high sensitivity and reliability, capability of a simple combination with different sensing platforms, low cost, and simple operation [48]. Other merits of this type of biosensor are low specimen need, portability, and ability to be miniaturized. Based on the type of transducer used, electrochemical biosensors are classified as voltammetric, impedimetric, amperometric, conductometric, or potentiometric. Voltage, potential, and current in the transducer system are all affected by redox processes [79]. Lately, electrochemical (bio)sensing platforms have been used for the enantioselective sensing of chiral compounds [48]. Most enantioselective electrochemical recognition platforms depend on supporting electrodes coated with a chiral interface, termed chiral sensors. The most crucial step in constructing chiral electrochemical (bio)sensors is to fabricate a chiral surface possessing recognition sites; therefore, the conformation of chiral selectors serves a determinant role in the preparation of chiral interfaces [80]. Various chiral interfaces have been generated to fabricate chiral (bio)sensors for enantioselective recognition. In general, in the light of interactions between chiral enantiomers and selectors, electrochemical enantiomer sensing can be chiefly categorized into chiral ligand exchange recognition, host-guest recognition, chiral biological macromolecule adsorption recognition, molecularly imprinted recognition, and MOFs that exhibit excellent performance in electrochemical sensing [80].
In recent years, MOFs have drawn much attention for their exploitation in electrochemical (bio)sensors. MOFs with ultrahigh porosity, surface area, unparalleled tunability, and simple modification offer a novel opportunity to generate 3D cavities as host matrices that can catalyze targets or load guest molecules for sensitive electrochemical detection [81]. Thus, MOFs introduce redox and catalytically active sites from ligands or metal ions, which are beneficial for electrochemical (bio)sensors. However, since most MOFs do not have chemical stability in water and most electrochemical sensing platforms need aqueous electrolytes, the water-stable MOFs become a primary concern for their application in electroanalysis. MOF structures are generally vulnerable to water molecule attacks, resulting in phase shifts, ligand displacement, and structural disintegration. A water-stable MOF structure must be robust enough to prevent water molecules from entering the framework and causing crystallinity and overall porosity losses. MOF structures with high stability often include vigorous coordination bonds (thermodynamic stability) or considerable steric hindrance (kinetic stability) to avoid the harmful hydrolysis process that destroys the metal-ligand interactions [82]. Furthermore, MOFs have conventionally been believed to be poor electrical conductors because of their ligand-insulating properties. Consequently, several studies have introduced other mechanically durable and highly conductive substances in MOFs to overcome drawbacks, such as low electronic conductivity, poor water stability, and inadequate electrocatalytic potential. Meanwhile, some MOFs demonstrate good electrochemical activity for designing unique electrochemical (bio)sensors if organic linkers and metal ions are included [83,84]. With a better knowledge of the structural stability of MOFs in water systems and ongoing efforts, the number of research papers on water-stable MOFs is increasing, and many more are published yearly [82]. An early report on integrating MOFs into electrochemical sensors was done by Shi et al. in 2017, in which they synthesized a new guest-free homochiral MOF (Cu4L4)n, where l-H2L (N-(2-hydroxybenzyl)-L-leucine]) was used as a starting material [85]. The synthesized CMOF showed excellent stability in water and air. Then, an enantioselective electrochemical sensor was fabricated by the direct modification of a glass carbon electrode (GCE) with (Cu4L4)n nanocrystals without further post-modification and desolvation for the recognition of α-methylbenzylamine (MBA) enantiomers. The developed CMOF-modified electrochemical chiral sensor exhibited great electro-conducting properties and specific oxidation signals for S(−)/R(+)-α-MBA enantiomers with a detection limit of 1.3 μM and a 0.002 to 0.1 mM concentration range. The (Cu4L4)n nanocrystals-based electrochemical sensor showed the capability of enantioselective discrimination and enabled the fast quantitative recognition of ee in the mixture of chiral amine.

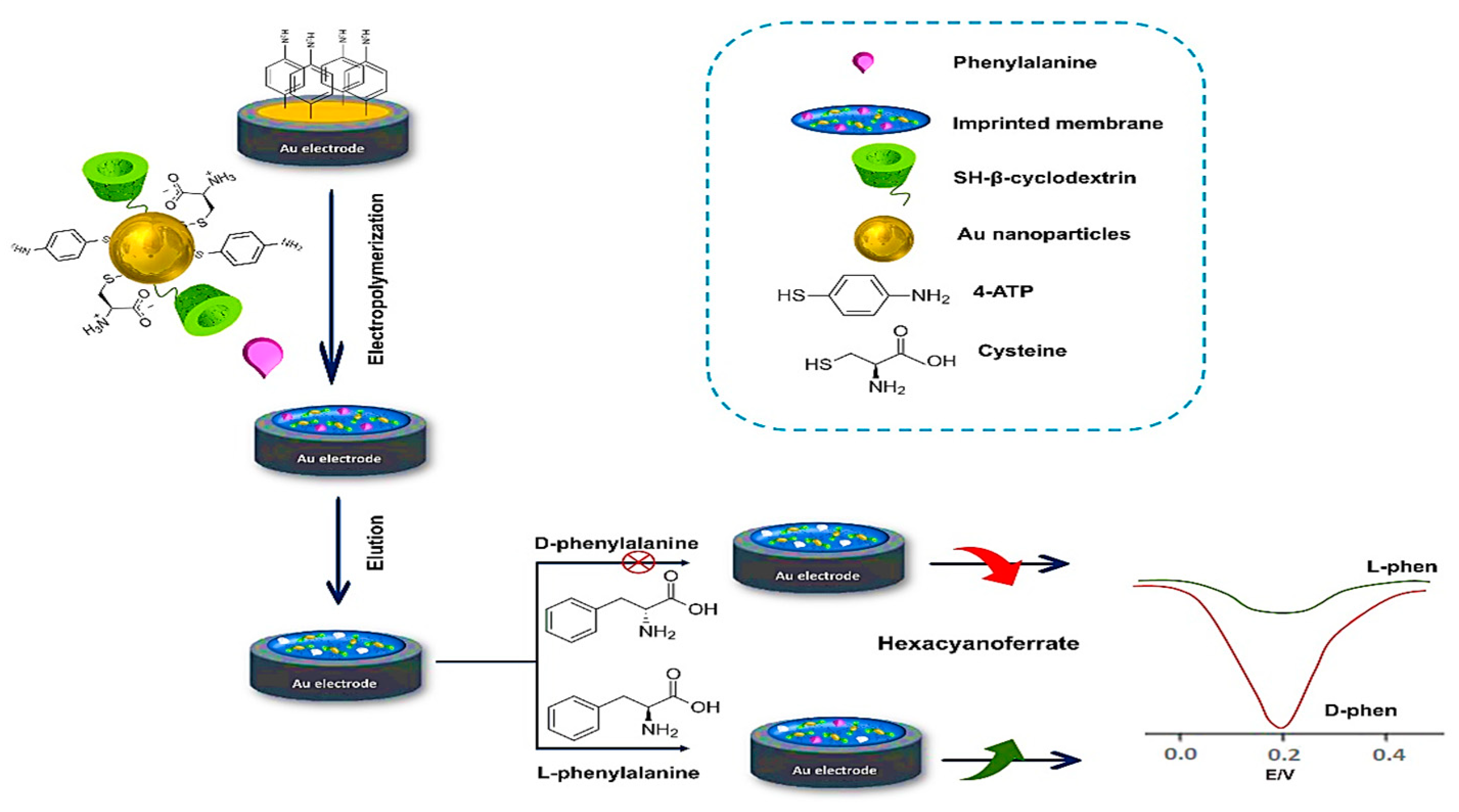

In the same period, Li and colleagues employed a combination of β-cyclodextrin (β-CD) and MOF for developing a molecularly imprinted electrochemical sensor for the enantioselective determination of L-phenylalanine (L-Phe) for the first time [86]. Gold-thiol chemistry was employed for functionalizing gold nanoparticles (Au NPs) by L-Cys and thiolated β-cyclodextrin to serve as a basis for the microporous MOF formation. Preparation of the molecularly imprinted-MOF (MI-MOF) was done by depositing the functionalized Au NPs through electropolymerization in the existence of L-Phe and 4-aminothiophenol as a template molecule and functional monomer, respectively (Figure 7). During the enantiomeric recognition procedure, the phenyl ring of L-Phe integrated into cyclodextrin’s hydrophobic cavity, while L-Cys captured the other end of L-Phe through electrostatic interaction. The imprinted electrochemical sensor indicated great enantiomeric selectivity and high precision with a 0.33 pM LOD for recognition to L-Phe.

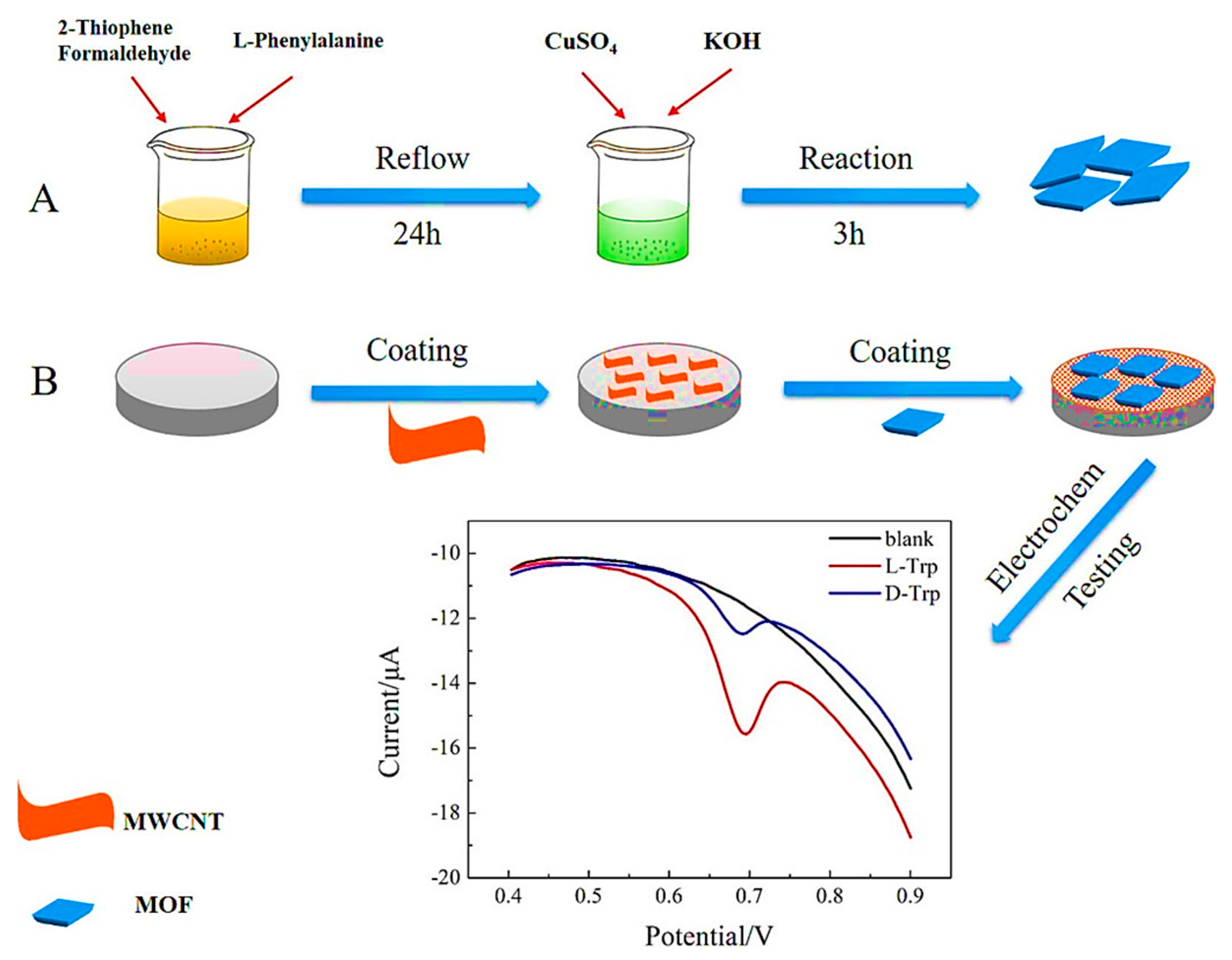

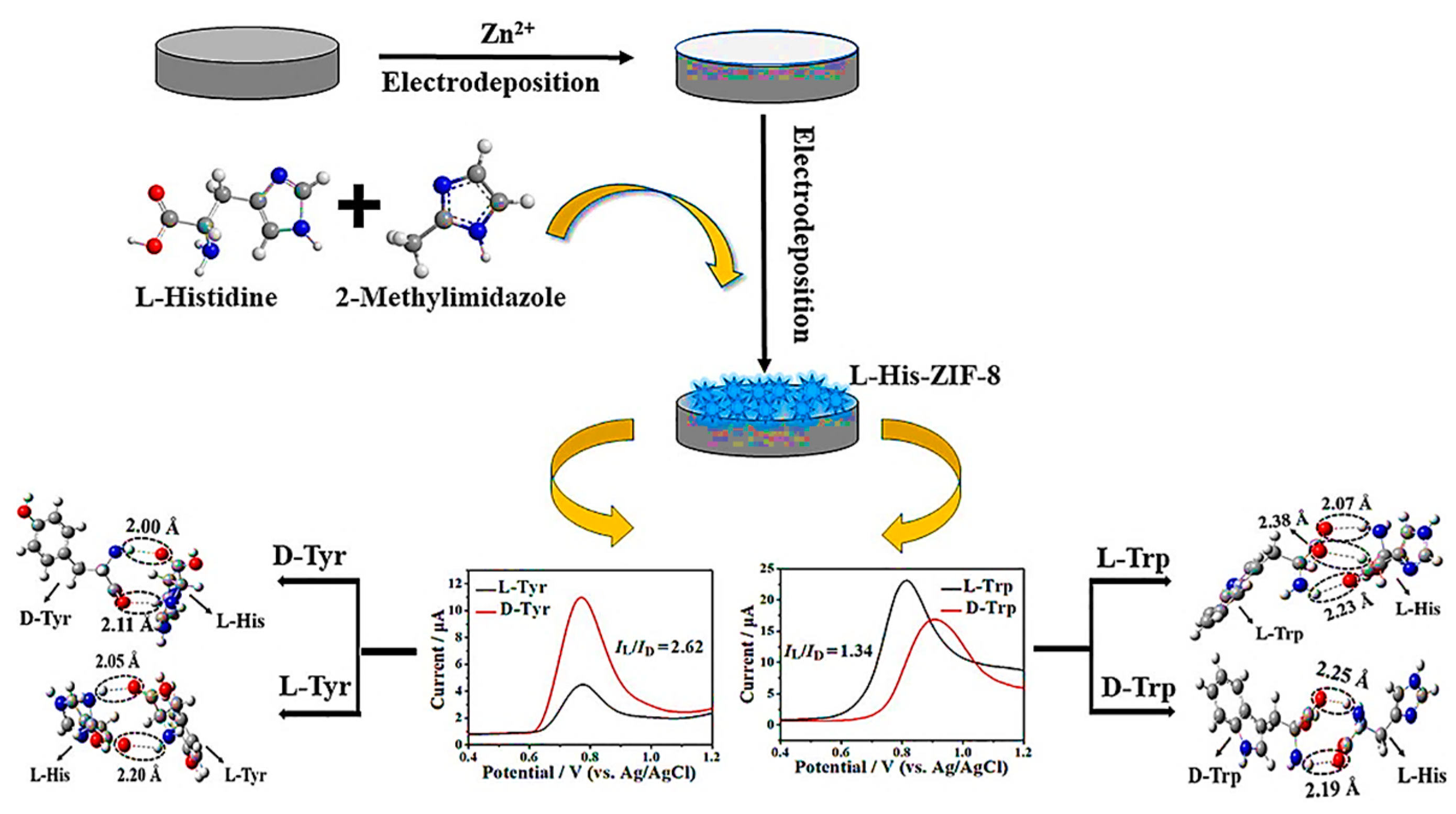

In 2021, Liu et al. designed a highly selective and efficient electrochemical sensor based on the integration of CMOFs with a multi-walled carbon nanotube (MWCNT) for the sensitive chiral sensing of d/l-Trp [87]. Several MOFs were synthesized in various conditions to achieve electrochemical chiral determination. For the enantio-specificity, different amino acids were introduced into the MOFs’ skeletons using the hydrothermal technique. Figure 8 shows an experimental process of grain-like L-Phe-MOF (grain-CMOF) synthesis by adding L-Phe to inorganic metals (CuSO4.3H2O) and organic ligands. Integrating the CMOF with MWCNT resulted in a functional electrosensing interface with enhanced conductivity. The enantioselective determination of d/l-Trp with a linear range between 0.4–19 μM and a detection limit of 0.16 μM for D-Trp and 0.11 μM for L-Trp was obtained by an MCNT/CMOF-based electrochemical sensor. The prepared sensor exhibited remarkable selectivity and reproducibility for recognizing Trp enantiomers.
Kuang and co-workers recently developed an enantioselective electrochemical sensor with two chiral sites, including a chiral skeleton for self-assembled CMOF (Ca-sacc/MeOH) and a chiral cavity for β-CD based on the electrochemical oxidation of β-CD onto Ca-sacc/MeOH [88]. The designed multi-chiral β[email protected]/MeOH-modified GCE was employed for the simultaneous enantiomeric recognition of penicillamine (Pen) and Trp. According to the achieved results, the linear range for d/l-Trp and d/l-Pen was 0.01 to 0.5 mM, and the low limits of detection were 0.23 μM for D-Trp, 0.098 μM for L-Trp, 0.79 μM for D-Pen, and 0.18 μM for L-Pen, respectively. The prepared β[email protected]/MeOH-based chiral sensor demonstrated excellent chiral recognition capability of the isomers d/l-Pen and d/l-Trp, as well as high stability and repeatability. Combining multi-chiral sources is essential for constructing unique platforms for the simultaneous chiral recognition of two distinct compounds. In 2022, Wang et al. reported a new MOF (Phe-Cu-PTA) structure that was fabricated by the organic ligands (1.10-Phe [pheanthroline], PTA [terephthalic acid]) and metal ion Cu2+, which were applied to differentiate d/l-Trp enantiomers [89]. The excellent chiral recognition selectivity and sensitivity realization were made possible by successfully combining the two organic monomers with Cu2+. Phe-Cu-PTA is securely anchored on GCE as an electrosensing interface to overcome the instability of MOF material in high humidity or aqueous environments. Due to the various steric configuration of the d/l-Trp enantiomers, MOFs (host)-Trp enantiomers (guest) interactions are different for D- and L-Trp. Peak currents steadily rose with increasing concentrations of D-Trp or L-Trp, as the concentration of Trp increased from 1 mM to 6 mM. Trp-enantiomers D-Trp and L-Trp had detection limits of 0.34 M and 0.12 M, respectively. Therefore, based on the results of the proposed MOF, Phe-Cu-PTA exhibited a considerably greater binding force toward D-Trp than L-Trp and achieved significant enantioselectivity efficacy.

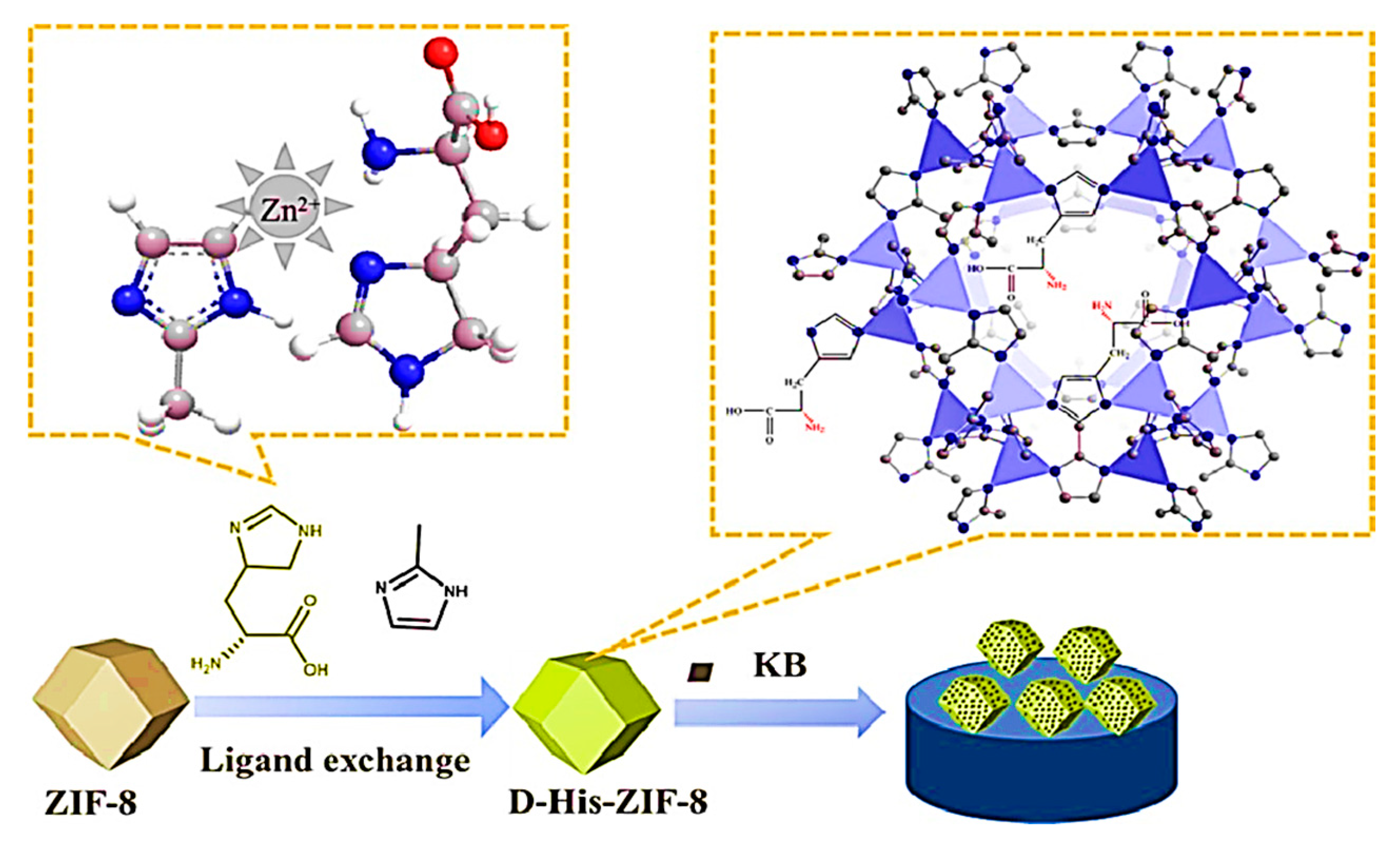

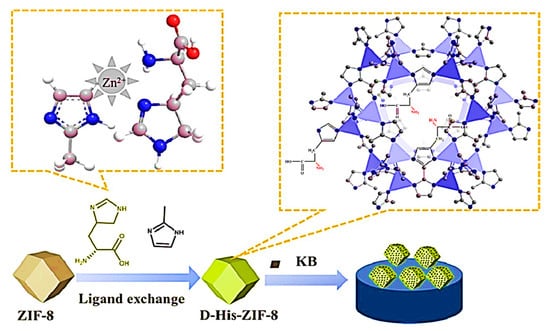

In the same year, Wang and colleagues synthesized a CMOF (D-His-ZIF-8) by a one-pot method through the in situ exchange of 2-methylimidazole on ZIF-8 with D-His for the development of a chiral electrochemical sensor [90]. Introducing Ketjen Black (KB) to the D-His-ZIF-8 electrosensing interface as a conductive substrate substance enhanced the conductivity of the CMOF (Figure 9). The chiral electrochemical sensor indicated that KB/D-His-ZIF-8 had the potential for the enantioselective recognition of amino acids. Trp enantiomers exhibited the highest recognition efficiency. Trp’s higher recognition effectiveness (5.78) compared to other amino acids can be attributed to its relatively larger size. Based on the mechanism of enantiomeric recognition, the binding of D-His-ZIF-8 with an L-amino acid resulted in the determination of chiral molecules of various configurations. According to the results, the enantiomer recognition ability of the KB/D-His-ZIF-8/GCE for d/l-Trp showed a linear range between 0.01 and 5.0 mM with detection limits of 0.23 μM for D-Trp and 0.51 μM for L-Trp. This study paves the way for developing chiral electrochemical sensing platforms based on D-His-ZIF-8.
In another study, Cai et al. reported the successful preparation of the L-His-ZIF-8 CMOF for the enantiodiscrimination of Tyr and Trp isomers via a two-step electrodeposition technique by utilizing L-His as a chiral selector [91]. The L-His-ZIF-8-based electrochemical chiral sensor recognized the Trp and Tyr isomers. Still, interestingly, they exhibited contrasted voltammetric behavior on the differential pulse voltammograms (ID-Tyr > IL-Tyr, whereas ID-Trp < IL-Trp), which was described by the density functional theory (Figure 10). Subsequently, to achieve the highest determination efficacy of the L-His-ZIF-8-modified GCE toward the Tyr and Trp isomers, both the electrodeposition time and the pH were optimized. However, the isomers of both amino acids were successfully differentiated with the designed electrochemical chiral sensor. Still, the sensor could only be recognized at the mM level because of the insufficient conductivity of synthesized CMOF ZIF-8. Table 1 shows a summary of MOF-based enantioselective sensors. Table 1 shows a summary of MOF-based enantioselective sensors.

6. Metal–Organic Frameworks as Chiral Stationary Phases for Chromatographic Enantioseparation

By considering the significance of enantioseparation, scientists have devoted much time and energy into developing CMOF-based separation techniques. Among all the enantioseparation methods, chromatographic separation on CSPs has been widespread because of its high effectiveness in the enantiomeric purity measurement and racemates separation [111]. During the last few years, MOFs have been investigated as new CSPs for chromatographic separations, but more recently, CMOFs’ utmost potential for the enantioseparation of racemic mixtures using chromatographic techniques has been inspired due to their enantioselective adsorptive separation abilities [112]. Therefore, MOFs with overall stability, intrinsic chiral activity, structural diversity, ease of fabrication, and selective adsorption capability based on physical coating or chemical bonding are ideal CSP candidates in HPLC, GC, and CEC [113].

6.1. High-Performance Liquid Chromatography Chiral Separation

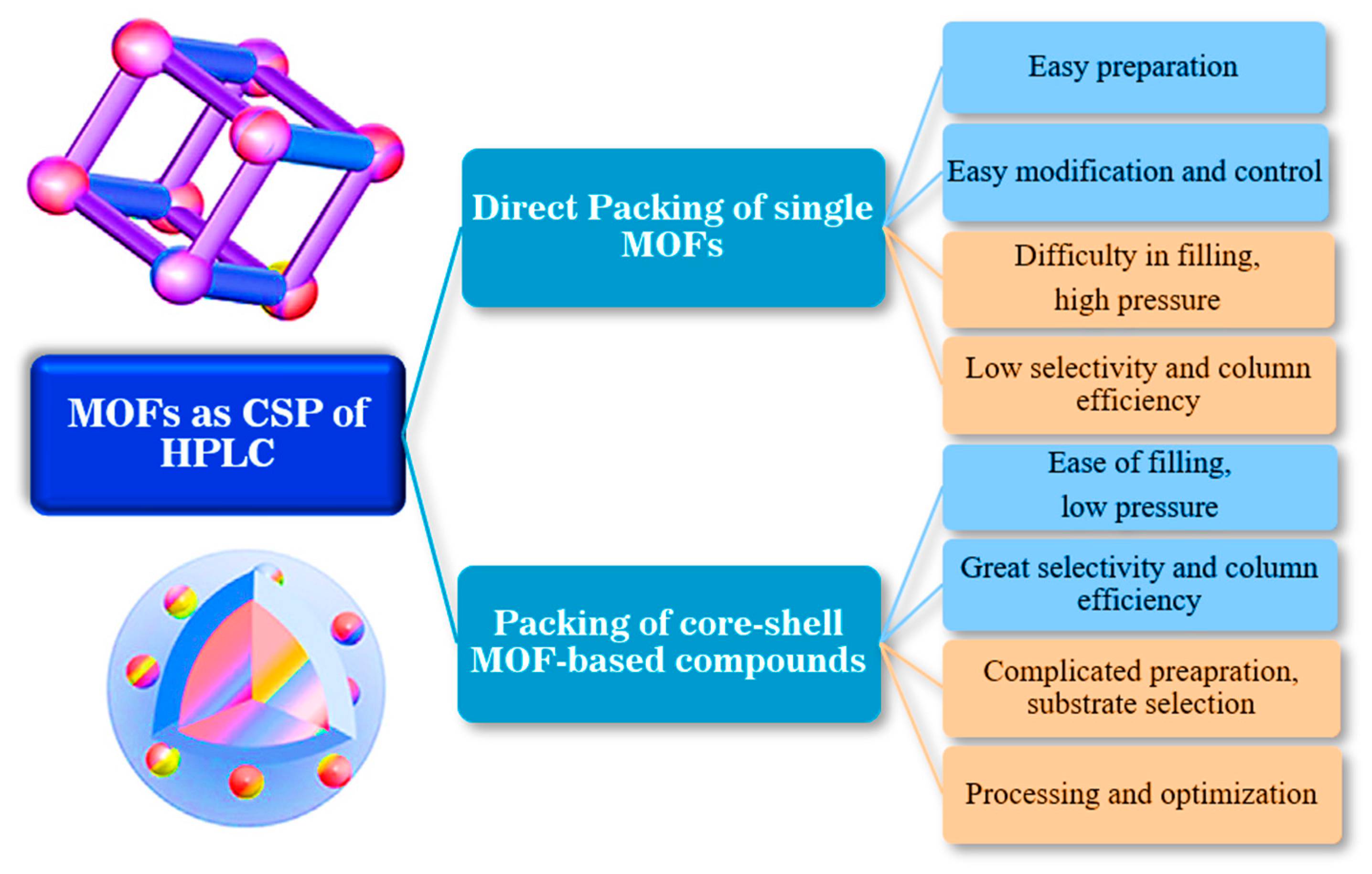

High-performance LC is well-known as the most effective and fastest chromatographical technique. With the expansion of CMOFs for enantioseparation, there are more researchers who prefer using HPLC for enantioselective separations compared to GC because the chiral recognition mechanism is mainly related to the liquid phase [114]. The significant dissimilarity between GC and HPLC is that GC utilizes a gaseous mobile phase and liquid stationary phase, whereas HPLC employs a liquid mobile phase and solid stationary phase. Moreover, high-performance LC can deal with most soluble materials despite their volatility while also analyzing volatile compounds. This feature immensely broadens the operational capacities of HPLC compared to those of GC [114]. CMOFs have become one of the most stunning chiral separation materials for HPLC due to their homogeneous structural cavities, superior thermal and chemical stabilities, large surface area, and selective enantioseparation of racemic mixtures. Direct packing of MOFs with broad size distributions, sub-micrometer sizes, and irregular forms results in unfavorable peak morphologies, inefficient separations, and excessive column backpressures. As a solution, a layer-by-layer deposition technique can be used to regulate the growth of thin films of MOF onto core-shell silica particles [115].

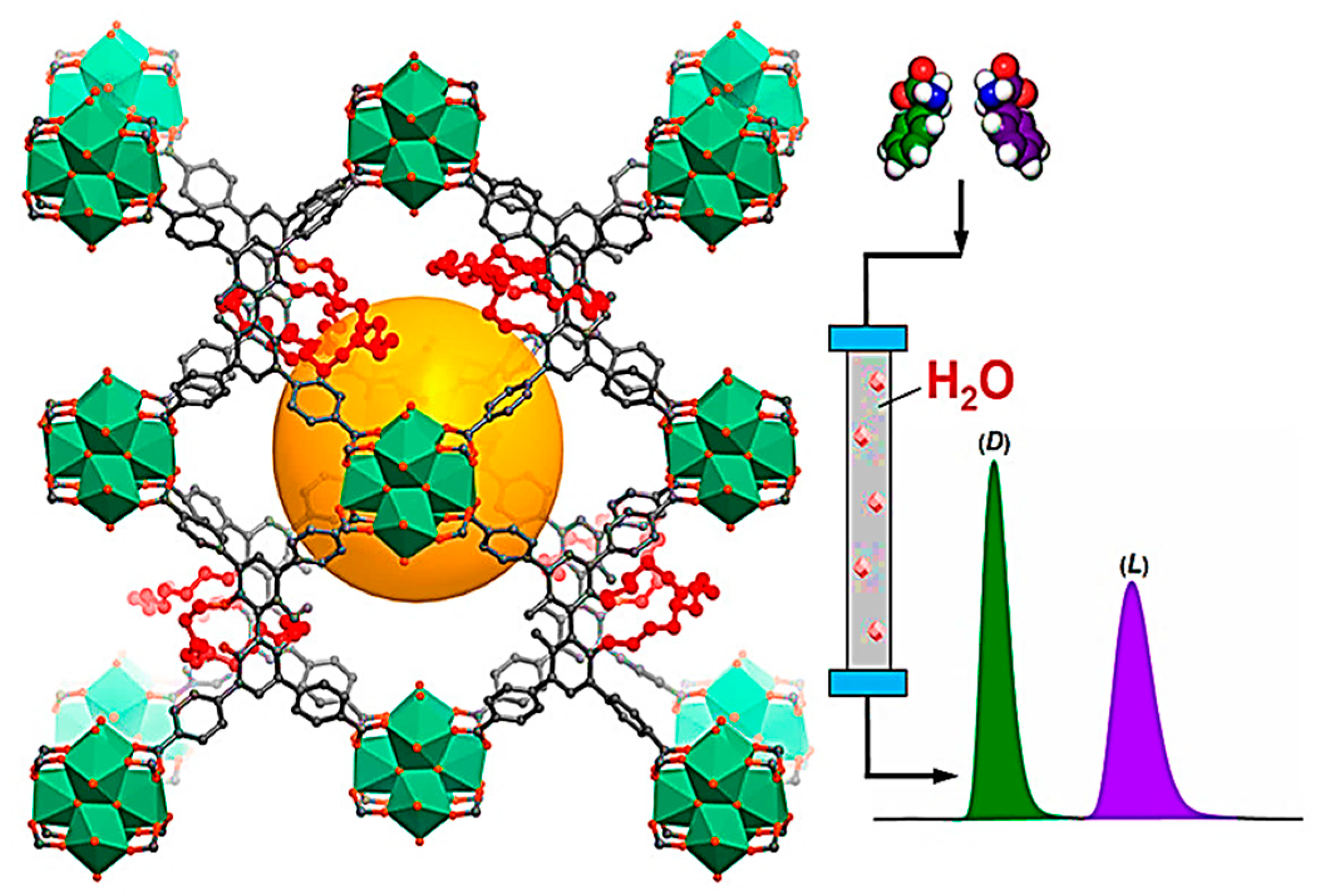

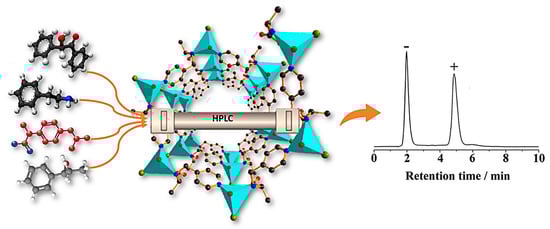

The first analytical approaches based on applying MOFs as CSPs for chromatographic separation or as sample preparation materials usually depend on the direct packing of MOFs into the HPLC column. MOFs’ unique pore structure paves the way for separating structurally similar substances like positional isomers. This novel selectivity is assigned to the combination of adsorption and molecular sieves effects [116]. Nonetheless, the critical limitations of these packaging include the requirement for high mobile phase pressure and low column efficiency due to the irregular forms of packing crystals. To solve these problems and reduce limitations, core-shell MOF-based compounds have emerged as alternative materials for chromatographic separation. The core-shell MOF-based compounds as HPLC stationary phase hydrophilic and mixed modes have superior attributes compared to single MOF materials with low column efficiency and high column pressure dilemmas. The advantages and disadvantages of each HPLC column are shown in Figure 11 [116].

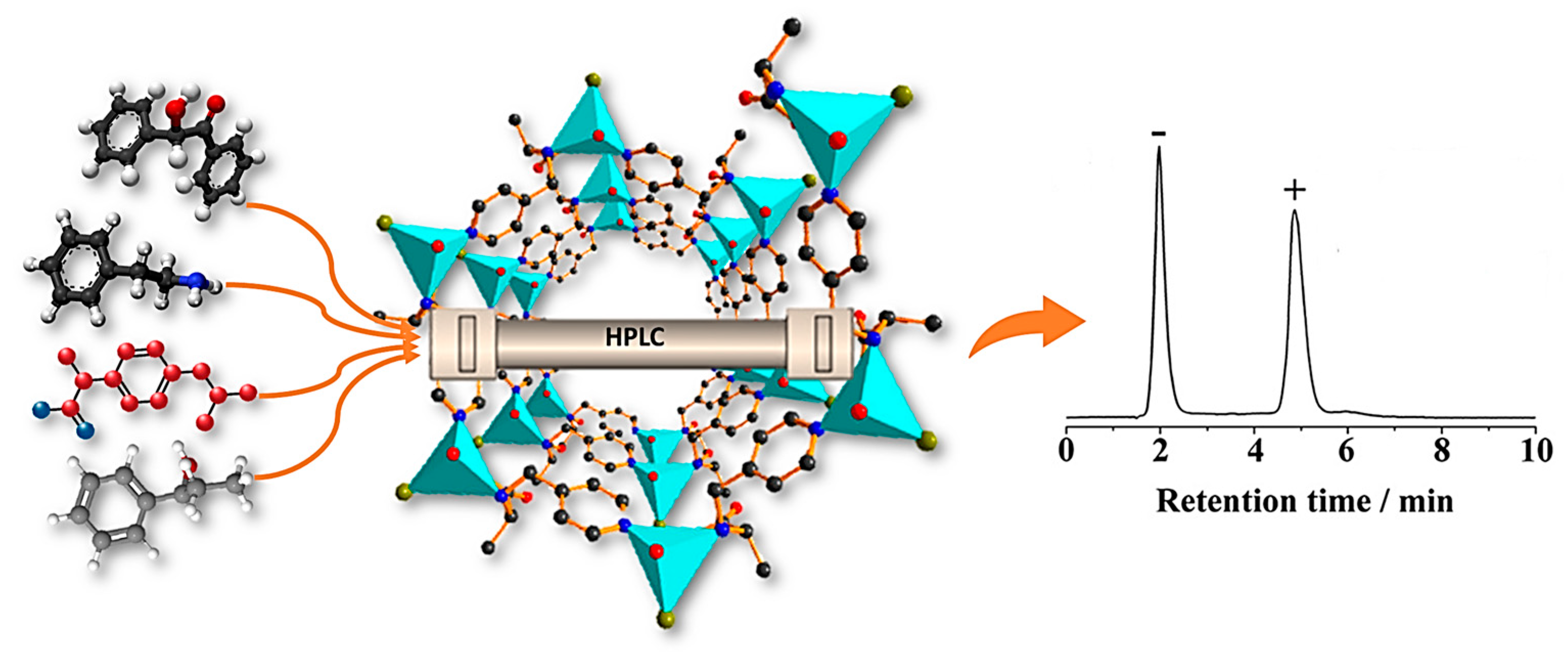

In 2007, Fedin and colleagues reported the first successful liquid chromatographic determination of enantiomers by utilizing a homochiral Zn-organic framework as a CSP [117]. They managed to package a pre-established CMOF into a chromatographic column for the enantiomeric separation of many sulfoxides. Only methyl phenyl sulfoxide (PhSOMe), one of the sulfoxides, had baseline separation. In contrast, the addition of any substituents in the aromatic ring caused a reduction in both enantioselectivity and the sorption constant. This pioneering research verified the possibility of CMOFs as a chiral stationary phase for enantioselective HPLC separation.
It was not until five years later, in 2012, that another example of employing a CMOF as a CPS for enantioselective high-performance liquid chromatographic separation emerged. Tanaka et al. synthetized a homochiral (R)-MOF-silica composite to use as a CSP for the selective enantiomeric resolution of different sulfoxides (phenyl methyl sulfoxide, o-MePhSOMe, p-MePhSOMe, p-MeOPhSOMe, m-ClPhSOMe, p-ClPhSOMe, p-NO2PhSOMe, o-MeOPhSOMe, o-ClPhSOMe, phenyl vinyl sulfoxide, benzyl methyl sulfoxide, benzyl phenyl sulfoxide, naphthyl methyl sulfoxide, and dialkyl sulfoxides) [118]. The enantiomeric separation was examined using two eluents. Fortunately, 9 out of 16 types of sulfoxides showed complete enantioseparation by utilizing Eluent I (hexane-EtOH (50/50)) as the mobile phase. However, the other two were efficiently separated by the less polar Eluent II (hexane-EtOH (50/50)), and the rest of the sulfoxides demonstrated the poor separation of their enantiomers in both solvent systems. This result may be a promising future for CMOF compounds in the enantioselective separation of different chiral substances. Considering CMOFs’ outstanding performance, Cui et al. employed two isostructural 1,1′-biphenol-based CMOFs decorated with chiral dimethoxy or dihydroxyl groups, including 1D-nanosized channels [46]. The chiral dihydroxyl-group-decorated framework serves the role of the chiral stationary phase of HPLC for the enantiomeric resolution of racemic amines with high enantioselectivity and as a solid-state host, which can adsorb and resolve racemic aromatic and aliphatic amines. The present adsorption separation technique was employed for the enantioseparation of racemic 1-phenylethylamine. Experimental results and molecular simulations reveal that the inherent chiral identification and separation referred to the various orientations of enantiomers and their binding energies in the microenvironment of the CMOF.
In 2014, Tang and co-workers developed a 3D-molecular sieve-like homochiral CMOF, [(ZnLBr)·H2O]n [119]. The synthesized 3D-CMOF was employed as a CSP for HPLC to the enantiomeric resolution of racemic drugs, including ibuprofen, phenylethylamine, phenyl-1-propanol, and benzoin, with molecular sieving performances based on the relative sizes of the resolved molecules and the chiral channels. The molecular sieve-like CMOF-packed column showed excellent efficiency in the enantioseparation of the racemic mixtures with a minimum kinetic diameter (MKD) and gave baseline separation (Figure 12). Racemic naproxen and ketoprofen did not exhibit enantioseparation despite having close minimum kinetic diameters (9.7 and 9.4 Å, respectively) to chiral channels (~9.8 Å). This suggests that they could not penetrate the interior of the chiral pores to exhibit a molecular sieve-like manner.
In 2016, Stoddart and colleagues reported a novel, renewable, and green CMOF consisting of γ-cyclodextrin (γ-CD) and alkali metal salts, termed CD-MOF, that accomplishes the efficient HPLC separation of a broad range of mixtures, such as ethylbenzene from styrene, haloaromatics, terpinenes, pinenes, four isomers, and other chiral compounds [120]. It should be noted that each γ-CD torus has 40 stereogenic centers, which can lead to the enantioselective recognition of each pinene regioisomer. The capability of CD-MOF to operate as a separation phase for a broad spectrum of materials, such as vinyl-, alkyl-, haloaromatics, unsaturated and saturated alicyclic substances, and chiral composites, differentiated it from most other frameworks utilized as CSPs in separations. Considering that the CD-MOF is a homochiral MOF, it can enhance the enantiomeric resolution of chiral analytes involving those of 1-phenylethanol and limonene. These CD-MOFs-based stationary phases could be low-cost and simple for preparation in comparison to other CSPs, including CD-bonded silica particles. In addition to the great properties of CMOFs in chiral separation, the non-uniformity and irregular morphology of synthesized MOFs lead to increased column backpressure and decreased column efficacy for MOF-packed columns, which considerably influences their performance for separation.

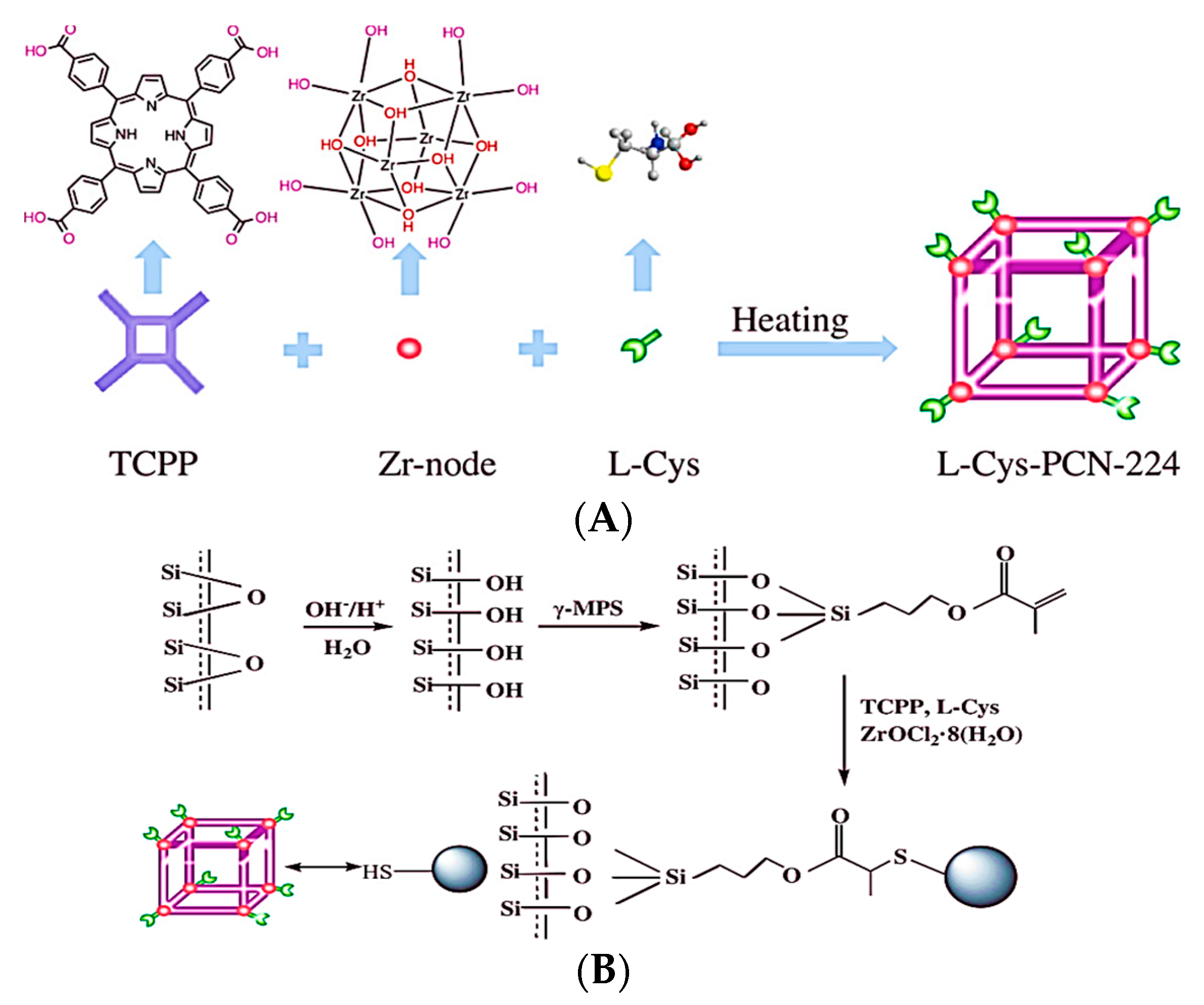

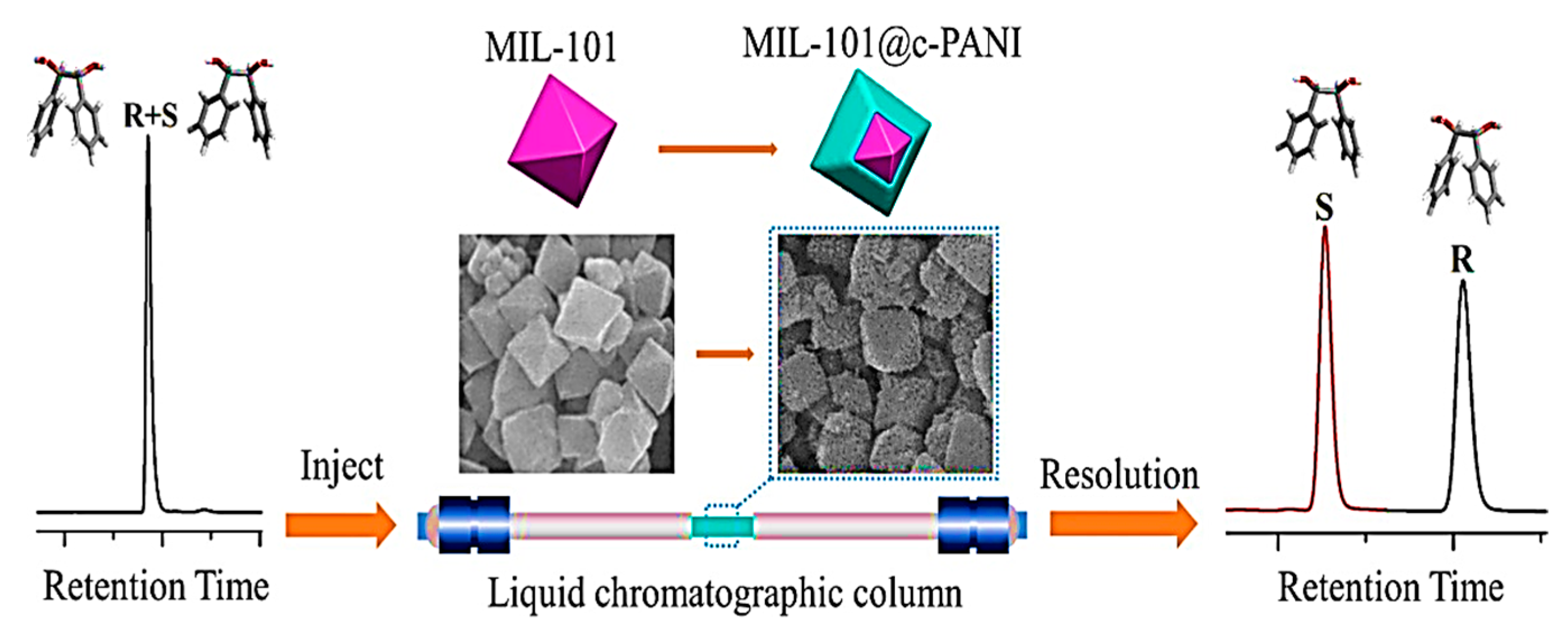

In later years, Zhang and co-workers demonstrated the effective one-pot technique for immobilizing CMOF [Cu2((+)-Cam)2Dabco] (Cu2C2D) onto silica microspheres or, in other words, the layer-by-layer growth coating method of Cu2C2D on microspheric SiO2 [121]. Finally, a uniform SiO2@[email protected] core-shell-microsphere was generated as a chiral stationary phase for HPLC (Figure 13). Controlling the [Cu2((+)-Cam)2Dabco] growth cycles led to the reasonable regulation of column efficiency and shell thickness. The separation performance improved with the increment of the CMOF’s growth cycles. Based on the mechanism of chromatographic separation, such as hydrogen and hydrophobic bonding, the developed CSP successfully separated various racemic substances, including labetalol hydrochloride, malic acid, and indole derivatives, under normal phase LC conditions. The RSD of retention time was less than 1.1%, demonstrating the good stability and repeatability of the chiral SiO2@Cu2C2D-2 column for chiral separation by HPLC. Moreover, the SiO2@Cu2C2D-2-packed column exhibited high column efficacy and low back pressure.
In 2020, Yuan et al. synthesized homochiral [email protected]2 core-shell microspheres, named [email protected]2, as a CSP of HPLC for the enantioseparation of 18 racemates with different structures (phenol, alcohol, organic acid, ketone, and amine) [122]. As a chiral ligand, D-His was embedded in the ZIF-8 framework. The D-His-ZIF-8 was a suitable silica-based core-shell compound because of its excellent features, including a simple synthesis process, nano-scale size of crystal particles, ease of surface modification, and stability of the framework structure. Although the [email protected]2-packed column showed results for the chiral separation of the racemates, the [email protected]2-packed column demonstrated high enantioselectivity, great resolution for racemates, and complementary to the commercial Chiralpak AD column. Therefore, the [email protected]2-packed column exhibited good stability, reproducibility, and great resolution potential for the efficient and fast HPLC chiral separation of a variety of racemates. The [email protected]2 column showed 0.89% RSD of the retention times through repetitive analyte separation (50th, 100th, 150th, 200th, and 250th injections). Thus, fabricating [email protected]2 core-shell microspheres is an efficient method for improving homochiral CMOFs application as CSPs in the chromatographic techniques.
By extension of the valuable methods for the fabrication of CMOFs for improved chiral HPLC separation, Cui and co-workers were the first to demonstrate the highly stable and robust Zr(IV)-based CMOFs as an efficient CSP for reversed-phase HPLC (RP-HPLC) [123]. These Zr(IV)-based CMOFs could obtain exceptional enantioseparation of a wide range of N-containing drugs and amino acids under acidic aqueous eluent conditions. Crown ether-modified bisphenol scaffolds were used for the reticular synthesis of a series of these MOFs (Figure 14). The performance of Zr(IV)-based CMOF-packed columns were evaluated after 1 year of shelf life and more than 4000 injections, which shows its good durability. The separation performance decreased with reduced α/Rs from 5.25/6.31 → 4.23/3.93. The RSDs of peak area, selectivity factor, theoretical plate number, and peak height were <2.0%, confirming the stability of the Zr-CMOF-packed column. The Zr-CMOF-packed HPLC columns rendered high selectivity, resolution, and durability for the enantioseparation of various racemates. The density functional theory calculations propose that Zr-based CMOF offers a confined space for combination with chiral crown ether moieties devoted to the selectivity of separation. This research draws attention to the distinctive potential of robust MOF decoration with chiral crown ether functional groups to ease the RP-HPLC separation of effective racemic pharmaceuticals and chemicals.
In 2021, Yuan and colleagues were the first to employ a post-modification strategy for the modification of an achiral MOF (MIL-101) surface by utilizing chiral polyaniline (c-PANI) for the synthesis of a chiral [email protected] core-shell material, which was employed as an HPLC stationary phase for enantiomeric resolution (Figure 15) [124]. The [email protected] column provided good resolution with baseline separation for 1,2-diphenyl-1,2-ethanediol, 3-(benzyloxy)-1,2-propanediol, ketoprofen, and amlodipine. 3-(Benzyloxy)-1,2-propanediol had the highest resolution value of 3.35. The [email protected] column separated a broad range of chiral compounds, such as ketones, alcohols, aldehydes, esters, amines, and organic acids, with good enantiomer resolution potential. The separation factors of most of the racemates on the [email protected] column were higher than the commercial tris(3,5-dimethylphenylcarbamoyl) amylose-packed column. In addition, the commercial tris(3,5-dimethylphenylcarbamoyl) amylose-packed column was unable to separate 2-phenylpropanal, ofloxacin, and 1-(1-naphthyl) ethanol, while the [email protected] column could. Additionally, the designed stationary phase exhibited great selectivity for the positional isomers’ separation, such as dinitrobenzene and toluidine. The [email protected] compound increased the synergistic effect by integrating the benefits of MIL-101 and c-PANI, which is suitable for improving the enantiomer resolution performance. The RSDs of the retention times for praziquantel and 1,2-diphenyl-1,2-ethanediol after the 50th, 100th, 150th, 200th, and 250th injections were 0.28 and 0.59%, respectively. Their retention times did not significantly alter after hundreds of separations on the [email protected] column, revealing that the [email protected] column had good reproducibility for HPLC separations.

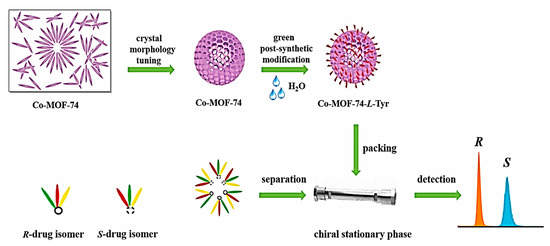

For the first time in 2022, Ouyang and colleagues developed a rapid strategy to achieve the unusually spherical crystal morphology of Co-MOF-74 with a size of around 5 µm by adjusting the ratio of reactants, synthetic pathway, temperature, and the amount of 2-methylimidazole (2-MI) [125]. Then, they integrated L-Tyr into the Co-MOF-74 parent framework through an easy, green PSM method for functionalizing the Co-MOF-74 with L-Tyr, termed Co-MOF-74-L-Tyr crystal, in water to make a chiral microenvironment. The Co-MOF-74-L-Tyr-packed column exhibited increased column efficacy and declined backpressure. The developed homochiral Co-MOF-74-L-Tyr CSP showed excellent enantiomeric resolution for eight drug racemates and drug intermediates, including benzoin, nimodipine, nitrendipine, bi-2-naphthol, and 2,2′-furoin, under normal phase condition (Figure 16). The remarkable stability and repeatability of the Co-MOF-74-L-Tyr were evaluated by replicating the chiral separation of flavanone and nimodipine. There was no significant change in the retention times and resolutions of the 50th, 100th, 150th, 200th, and 250th injections. The resolutions and retention times’ RSD values were 1.12% and 0.85%, respectively. The morphology/size-controlled method paired with the green PSM opens new avenues for fabricating target CMOFs with predesigned functional groups as an efficient complement for the CSPs preparation in chiral chromatographic techniques. Table 2 demonstrates a summary of MOF-based composites as CSPs for racemates resolution by HPLC.

6.2. Gas Chromatography Enantioseparation

The use of GC enantiomer resolution with chiral MOFs is relatively new, and few studies currently exist. However, this is a beneficial method for separating molecules that can simply vaporize without decomposition [37]. In general, chiral capillary GC provides several advantages, including excellent resolution, sensitivity, efficiency, and the lack of liquid mobile phases. In practice, chiral capillary GC is mostly utilized to examine volatile and thermally stable racemic mixtures. Furthermore, because chiral capillary GC may be linked with mass spectrometry (MS) and solid-phase microextraction (SPME), it is an optimal method for the enantioseparation of enantiomers in complicated real samples. MOFs as stationary phases in GC show outstanding performance. The direct utilization of most of the “as-synthesized” MOFs, powders with heterogeneous particle sizes, in packed column GC as stationary-phase materials leads to displeasing gas resistance. The tight packing of tiny, irregularly sized particles of MOF results in a significant pressure decrease, especially in particles with a wide range of particle sizes. MOF-thin-coated capillary columns as a solution can help enhance separation efficiency [115,146]. MOFs as stationary phases in GC show outstanding performance. MOF-coated GC columns lead to a reduction in cost because of their low consumption for GC separation. Gas chromatographic separation is a simple and accessible platform for evaluating the interactions of MOF stationary phases with analytes compared to HPLC, because no liquid mobile phases in GC omit the interactions from solvents [147].
In recent years, different CMOFs have been employed in GC for enantiomer resolution because of their high thermal and chemical stability and great chiral framework structure. The standard processes of enantioseparation by GC possess four sections: (i) coating the internal GC column wall with CMOFs; (ii) applying a noble gas (e.g., helium (He), neon (Ne), argon (Ar), krypton (Kr), xenon (Xe), etc.) for the vaporization and infusion of racemates; (iii) the flow of racemates in the CMOF-coated column and their interaction with a CMOF for effective enantiomer resolution; and (iv) signal identification by a computer terminal [37]. Yuan and colleagues have made numerous contributions to this field. By applying the dynamic coating method, they coated four varieties of 3D-helical CMOFs, such as [(CH3)2NH2][Cd(bpdc)1.5]·2DMA, MOF [Cd(LTP)2]n, Co(D-Cam)1/2(bdc)1/2(tmdpy), and Ni(D-cam)(H2O)2, on fused silica columns with success [148,149,150,151]. In brief, there was an introduction step of an ethanol suspension of each MOF into the column under gas pressure. After this, a wet coating layer on the inner wall of the column was obtained by pushing it through the column. As a restrictor, a long buffer tube was connected to the end of the capillary column to prevent the expedited solution from plugging near the column end. Last, nitrogen was used for flushing the MOF-coated fused silica column. These CMOFs exhibited great performance in the enantiomer resolution of a broad spectrum of racemates, such as camphor, citronellal, alanine, isoleucine, leucine, 2-methyl-1-butanol, 1-phenyl-1,2-ethanediol, phenylsuccinic acid isopropyl ester, proline trifluoroacetyl isopropyl ester derivatives, and 1-phenylethanol trifluoroacetyl derivatives, which mostly showed baseline separation. It is worth noting that the outcomes of some chromatographic separations were much better than those obtained with the commercial Chirasil-L-Val column. This strongly indicated the potential of CMOFs in racemate separation by GC.

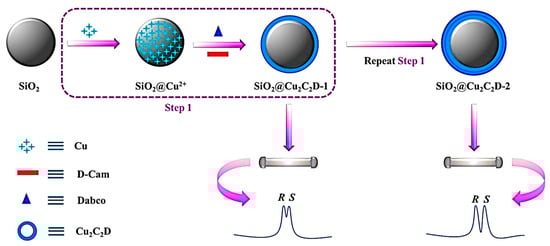

In another study by Yuan and co-workers, a porous CMOF InH(D-C10H14O4)2 (D-C10H14O4 = D-(+)-camphoric acid (D-H2Cam)) was developed to coat the open tubular (OT) GC column for the enantioselective separation of racemates with high resolution because of its large surface area, great thermal stability, and remarkable chiral attributes [152]. InH(D-C10H14O4)2 has a left-handed helical channel with an anion-typed diamond network. The dynamic coating approach was used for coating OT columns with various lengths or inner diameters by InH(D-C10H14O4)2 for the gas chromatographic separation of various organic substances, such as alcohols, alkanes, isomers, and Grob’s test compound. The separation factors (α) of citronellal, 1-phenyl-1,2-ethandiol, 1-phenyl-ethanol, 2-amino-1-butanol, limonene, methionine, and proline with the InH(D-C10H14O4)2 CSP were in the range of 1.10 to 1.44. A comparison between the chiral recognition capability of InH(D-C10H14O4)2 and the Chirasil-L-Val CSP indicated that proline and methionine had higher separation factors on prepared InH(D-C10H14O4)2 than on the Chirasil-L-Val CSP. Limonene and 1-phenylethanol did not show any separation on the Chirasil-L-Val CSP, whereas the InH(D-C10H14O4)2 CSP had good separation. All chiral separations on the developed CSP had short retention times of about 1.5 min and baseline separation for 2-amino-1-butanol, 1-phenylethanol, and 1-phenyl-1,2-ethandiol. The results revealed that the developed CSP possesses high selectivity and great recognition potential for these organic materials, especially for chiral substances. Moreover, Yuan et al. also reported the application of Zn(ISN)2·2H2O with a huge left-handed channel (~8.6 Å), a simple CMOF as a CSP for high-resolution gas chromatographic enantioseparation [153]. The dynamic coating strategy was employed for coating a fused-silica capillary column with Zn(ISN)2·2H2O. Then, the Zn(ISN)2·2H2O-coated capillary column was applied for the enantiomer resolution of racemates (such as 1-phenyl-1,2-ethanediol, 1-phenylethanol, phenyl-succinic acid, citronellal, proline, and alanine), positional isomers, alcohols, and alkanes. The RSDs for five repeated alanine separations were 2.6% and 0.32% for peak area and retention time, respectively. The separation factors (α) of citronellal, phenyl-succinic acid, alanine, 1-phenyl-1,2-ethanediol, 1-phenylethanol, and proline with the Zn(ISN)2·2H2O CSP were in the range of 1.18 to 1.46. The chiral separation ability of the Zn(ISN)2·2H2O CSP was better than the Chirasil-L-Val CSP due to a higher separation factor of proline and alanine and great separation of 1-phenylethanol in the Zn(ISN)2·2H2O-modified column. All analytes, except phenyl-succinic acid, had baseline separation. The developed novel chiral stationary phase demonstrated excellent selectivity, reproducibility, excessive column efficiency, and excellent chiral separation potential based on the obtained results.
In another study, Yuan and co-workers combined the excellent characteristics of CMOF InH(D-C10H14O4)2 with the novel features of peramylated β-CD to make a unique CSP for improved gas chromatographic enantioseparation [154]. Three capillary GC columns, including InH(D-C10H14O4)2, peramylated β-CD, and combined InH(D-C10H14O4)2 with peramylated β-CD, were employed for evaluating their racemate separation potentials. Seven racemates, including citronellal, dihydrocarvyl acetate, limonene, methyl L-β-hydroxyisobutyrate, menthol, DL-leucine, and 1-phenylethanol, were used for enantioseparation with the prepared columns. All the racemates had poor separation in column InH(D-C10H14O4)2, which showed the displayed separation of only three enantiomers. The second column contained peramylated β-CD and NaCl and separated five racemates, while the third column with InH(D-C10H14O4)2 and peramylated β-CD separated all seven compounds. For instance, 1-phenylethanol did not separate in columns InH(D-C10H14O4)2 or peramylated β-CD but separated in column InH(D-C10H14O4)2 incorporated with peramylated β-CD. In addition, the InH(D-C10H14O4)2 incorporated with peramylated β-CD column provided higher resolution for the separations of DL-leucine and dihydrocarvyl acetate in comparison to the peramylated β-CD column. Moreover, citronellal separated columns InH(D-C10H14O4)2 and InH(D-C10H14O4)2 incorporated with peramylated β-CD but did not separate in the peramylated β-CD column. Therefore, applying InH(D-C10H14O4)2 in cooperation with peramylated β-CD as a unique mixed chiral stationary phase enhanced the GC chiral separation and increased column efficiency. The chromatograms of column InH(D-C10H14O4)2 incorporated with peramylated β-CD demonstrated good peaks with a minimum of 50% valley separation. This suggested that InH(D-C10H14O4)2 with a left-handed helical structure and diamond network exhibited the capacity for increasing the enantioselectivity and chiral recognition capability of peramylated β-CD. The RSDs of the column-to-column and run-to-run for the InH(D-C10H14O4)2 incorporated with peramylated β-CD column were 2.50% and 0.50%, respectively, which proved the good reproducibility of the prepared column. Moreover, Yuan et al. also combined another one of their developed CMOFs, Co(D-Cam)1/2(bdc)1/2(tmdpy), with peramylated β-CD for the GC enantioseparation of 10 chiral compounds: (RS)-linalool, (RS)-2-hexanol, (RS)-menthol, (RS)-citronellal, (RS)-limonene, (RS)-rose oxide, DL-leucin, DL-valine, (RS)-methyl L-β-hydroxyisobutyrate, and (RS)-dihydrocarvyl acetate [155]. The separation factor of the Co(D-Cam)1/2(bdc)1/2(tmdpy) incorporated with peramylated β-CD column was between 1.00 and 1.10. The separation of all enantiomers was poor in column Co(D-Cam)1/2(bdc)1/2(tmdpy), except for the citronellal separation that had a higher separation factor (column Co(D-Cam)1/2(bdc)1/2(tmdpy) (1.11)>column Co(D-Cam)1/2(bdc)1/2(tmdpy) incorporated with peramylated β-CD (1.08)>column peramylated β-CD (1.00)). Columns Co(D-Cam)1/2(bdc)1/2(tmdpy) and peramylated β-CD had the ability of four and six racemates separation, respectively. The Co(D-Cam)1/2(bdc)1/2(tmdpy) incorporated with peramylated β-CD column separated nine enantiomers with good peaks, baseline or minimum of 60% valley separation, enhanced resolution, and good column efficacy. For repeatability, the RSDs of the CMOF-combined peramylated β-CD column were obtained from five successive linalool separations of 2.2% and 0.31% for the peak area and retention time, respectively. Additionally, the RDS for the column-column reproducibility was 6.2%. Based on these results, the developed method was reproducible and reliable. Thus, the use of Co(D-Cam)1/2(bdc)1/2(tmdpy) served an important role in the increased separation of chiral compounds. The intrinsic properties of Co(D-Cam)1/2(bdc)1/2(tmdpy), including a 3D-chiral network, perfect helicity, remarkable integration of molecular chirality, and high surface area, enable the cooperation of Co(D-Cam)1/2(bdc)1/2(tmdpy) with peramylated β-cyclodextrin to fabricate an attractive column for improved GC racemate separation.

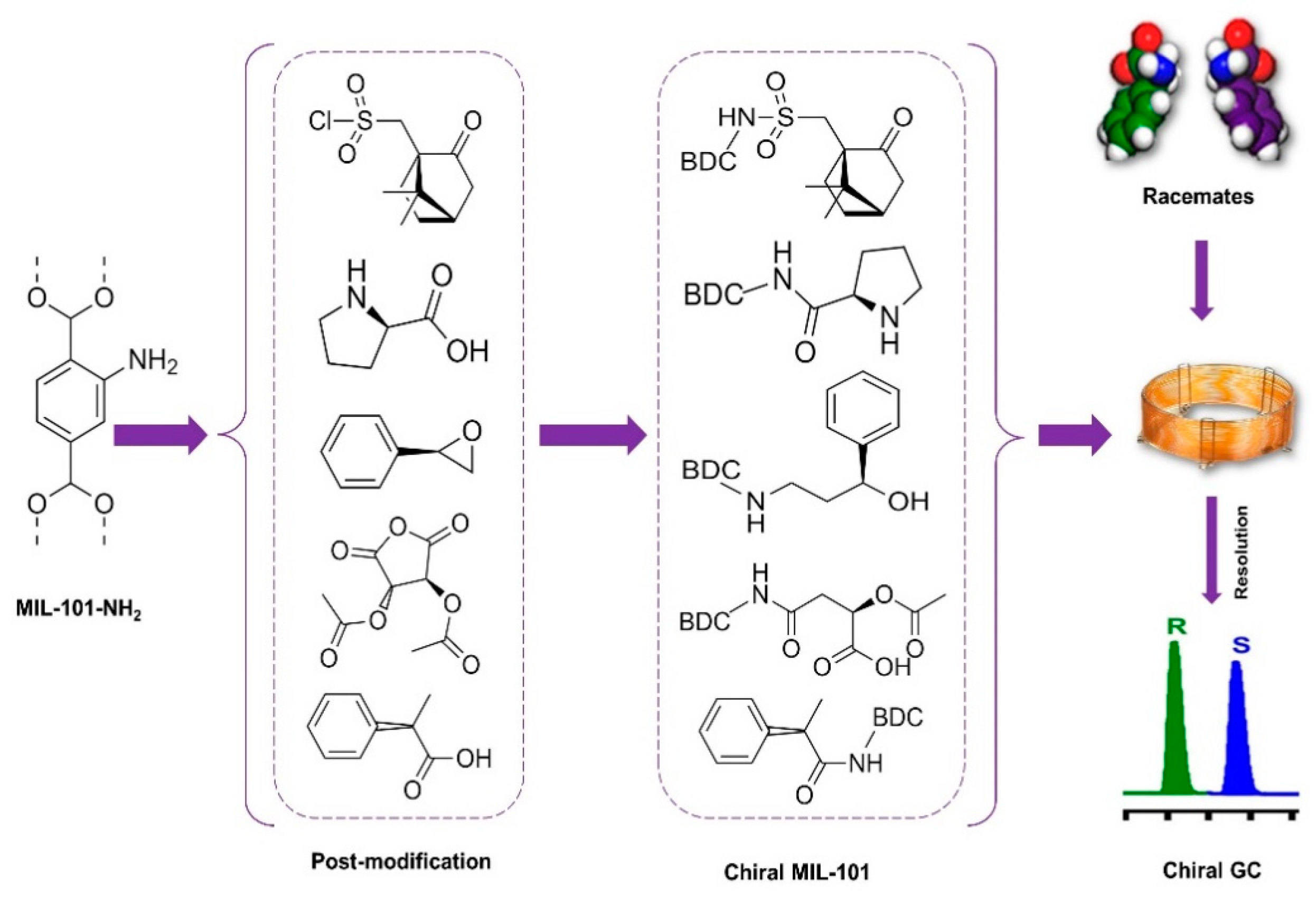

Finally, in 2018, Yan et al. developed a PSM strategy for synthesizing CMOFs with various chiral sites for racemate resolution [156]. The parent MOF, MOF (MIL-101(Al)-NH2), was employed due to its highly active amino groups and great structure. Then, based on the PSM of MIL-101(Al)-NH2 and immobilization of various chiral ligands to the identical parent MOF, five different CMOFs were designed (Figure 17). The synthesized CMOFs were used for the fabrication of capillary columns for enantiomer resolution and analysis of several kinds of racemates with various chiral recognition sites. The CMOF-coated capillary GC columns showed superior enantioselective separation capability for different racemates compared to the commercial Cyclosil B and β-dex 225 chiral capillary columns. The CMOF-coated column showed good reproducibility for the chiral separation of citronellal with RSDs of 4.4%, 5.1%, and 0.2% for the peak area, peak height, and retention time, respectively. The RSDs of column-to-column and day-to-day for the citronellal separation CMOF-coated column were 5.0–7.1% and 2.0–2.6%, respectively. The results indicated that the PSM method is helpful for creating pre-designed functional CMOFs, as novel CSPs provide a broad spectrum of chromatographic racemates separation.

6.3. Capillary Electrochromatography Racemate Resolution

Capillary electrophoresis (CE) has various separation modes offering multiple options for separating analytes. In CEC, a stationary phase is applied to enhance separation performance. CEC is an analytical method combining the excellent separation efficacy of CE with the selectivity provided by LC [157]. The application of MOFs as CSPs in CEC has been confirmed to be useful for racemate resolution analysis. However, an efficient strategy is deficient for capillary column modification with MOFs. Mainly, MOF-based capillary columns are classified into three types: packed columns, OT columns, or monolithic columns.
In 2014, Yuan and co-workers employed a homochiral-helical MOF [Zn2(D-(+)-camphoric acid)2(4,4՛- bipyridine)]n as a CSP in OT-CEC (a homochiral MOF-coated OT-CEC) for the resolution of positional isomers (e.g., nitrophenol and ionone) and two chiral compounds, flavanone and praziquantel [158]. The reported homochiral-helical MOF was composed of homochiral layers with pillars of bipyridine ligands for creating two kinds of 3D six-connected self-permeable structures. The inner wall of the OT-column was pretreated with a sodium silicate solution to have a stable layer of stationary phase, which was an MOFs’ post-coated process for the fabrication of the [Zn2(D-(+)-camphoric acid)2(4,4՛-bipyridine)]n-coated OT column. The baseline separation of praziquantel and flavanone with [Zn2(D-(+)-camphoric acid)2(4,4՛-bipyridine)]n-coated OT-CEC showed great column efficacy and enhanced resolution. Different chromatographic parameters, including pH, the concentration of buffer, and the addition of organic modifiers, were evaluated to achieve the best separation. The RSDs for the column-to-column, day-to-day, and retention time of run-to-run were 3.07%, 2.16%, and 1.04%, respectively. The results showed that CMOFs are useful for enantiomer resolution in CEC.
In 2016, Zong et al. synthesized a homochiral MOF [Zn2(D-Cam)2(4,4′-bpy)]n with a large particle size covalently linked to the capillary inner walls [159]. The [Zn2(D-Cam)2(4,4′-bpy)]n-modified capillary column showed successful enantioseparation performance for DL-Tyr and DL-Phe. The MOF [Zn2(D-Cam)2(4,4′-bpy)]n-coated capillary column demonstrated a broad linear range and excellent thermal stability. The intraday, interday, and column-to-column stability of the MOF-coated capillary column for DL-Phe and DL-Tyr were 0.57–12.13% and 0.45–9.93%, respectively. A recent study by Chen and colleagues used a pepsin-ZIF-8-modified poly(GMA-co-EDMA) monolithic column [160]. Poly(glycidyl methacrylate)-co-ethylene dimethacrylate monoliths were employed as support for the growth of MOF ZIF-8 (zeolitic imidazolate framework-8) through layer-by-layer self-assembly (Figure 18). The Schiff base method was employed for the covalent linkage of pepsin, which served as a chiral selector on the amino-functionalized ZIF-8 surface. The amino groups for the functionalization of ZIF-8 were provided by N-(3-aminopropyl)imidazole. Zeolitic imidazolate framework-8 supplied stable conditions for enantioseparation and improved the chiral resolution. The pepsin-ZIF8-poly(GMA-co-EDMA) column showed the capability for the enantiomer separation of six racemic drugs, chloroquine, nefopam, hydroxychloroquine, clenbuterol, amlodipine, and hydroxyzine, within 15 min. The pepsin-ZIF8-poly(GMA-co-EDMA) column demonstrated great improvement of resolution compared to the pepsin-poly(GMA-co-EDMA) column (without ZIF-8). Compared to the pepsin-poly(GMA-co-EDMA) column (without ZIF-8), there was considerable resolution enhancement (hydroxychloroquine: 0.34 → 2.50; chloroquine: 0.45 → 1.97; hydroxyzine: 0.39 → 1.43; nefopam: 0.27 → 0.81; clenbuterol: 0 → 0.81; amlodipine: 0.16 → 0.72). The day-to-day and run-to-run reproducibility of RSDs and Rs were both <4.50%. Five batches of [email protected] columns with the same procedure were run to evaluate column-to-column reproducibility. The RSDs values of Rs and the retention time of four columns were less than 7.63% and 7.12%. These results exhibit the good reproducibility of the [email protected] columns.
In 2021, Chen et al. developed a homochiral MOF L-His-NH-MIL-53-based capillary column for racemate separation by CEC [161]. Achiral nanocrystalline MIL-53 was synthesized through a PSM procedure, and it resulted in the fabrication of a homochiral MOF termed L-His-NH-MIL-53. L-His-NH-MIL-53 was used as a chiral coating of OT-CEC for the enantioselective separation of D-/L-Trp; D-/L-Phe; and four basic drugs: metoprolol, amlodipine, esmolol, and bisoprolol. The porous structure of the fabricated homochiral MOF L-His-NH-MIL-53 served as a crucial feature in advancing the enantiorecognition potential of L-His because it can render adequate sites for interactions of L-His with enantiomers. This research not only employed a new homochiral MOF for the coating of the OT-capillary column but also demonstrated that the enantioselectivity of L-His as a weak chiral recognition reagent can be considerably improved through integration with MOFs. In 2022, Bingbing et al. synthesized a novel type of chiral zirconium-based homogeneous CMOF, L-Cys-PCN-222, in which PCN-222 and L-Cys were employed as a framework and chiral modifier, respectively, through the solvent-assisted ligand incorporation approach [162]. L-Cys-PCN-222 was used as the CSP through bonding to the inner wall of the OT-column in CEC for the enantioseparation of amino acids (such as serine, methionine, threonine, Asp, Lys, glutamic acid, His, and arginine); herbicide pesticides (like imazameth, imazethapyr, imazamox, quizalofop-p-ethyl, and diclofop); and fluoroquinolone drugs, including lomefloxacin hydrochloride, ofloxacin, flumequine, and gatifloxacin. Based on the results, L-Cys-PCN-222 showed advantages, including thermal stability, high specific surface area, good crystallinity, and chiral separation performance. The separation factor (α) and degree of separation (Rs) of the analytes differed in the ranges of 1.07 to 3.27 and 0.61 to 26.0, respectively. The maximum degree of separation (26.0) pointed to the outstanding enantioseparation performance of the L-Cys-PCN-222-bonded OT column. The RSDs of the column efficiencies for runs, column-to-column, day-to-day, and run-to-run were 2.73%, 6.62%, 2.37%, and 1.39%, respectively. In addition, there was no obvious alteration after 200 runs. The results demonstrated higher column efficacy and prolonged lifetime of the innovative zirconium-based stationary phase for enantiomer resolution.
Du and colleagues synthesized a homochiral Fe-CD-MOF (iron-based γ-CD MOF) with mesoporous as a CSP of OT-CEC for the enantioseparation of 1 chiral alcohol and 14 racemic drugs, including anisodamine, ephedrine, pseudoephedrine, ritodrine, promethazine, sotalol, galantamine, laudance, synephrine, quinine/quinidine, oxybutynin, cinchonine/cinchonidine, (RS)-pseudotropine, nefopam, terbutaline, and octopamine [163]. The 3D-cubic homochiral Fe-CD-MOF was covalently attached to the isocyanate propyl triethoxy silane (IPTS)-modified capillary inner wall ([email protected] capillary column). For the first time, γ-cyclodextrin-based MOF containing Fe (III) ions were employed for stereoisomer separation. The designed [email protected] OT-column demonstrated excellent stability and repeatability with RSDs of <1.7%, <3.5%, and <6.5% for run-to-run, day-to-day, and column-to-column, respectively. The [email protected] column showed great separation performance for chiral alcohol and 14 racemic drugs. The best Rs of anisodamine, ephedrine/pseudoephedrine, and ritodrine were 17.07, 6.93, and 7.65. The retention time was less than seven minutes, demonstrating the high efficiency of the [email protected] column. Furthermore, the enantiomer resolution mechanism of the homochiral Fe-CD-MOF-coated column was studied using adsorption kinetic experiments. According to the results, renewable and homochiral Fe-CD-MOF showed outstanding potential in the chiral stationary-phase racemate separation with CEC. Another study by Du et al. showed a water-stable achiral zeolite-imidazole MOF-like metal salt (4, 5-IMD-Zn) in cooperation with a natural chiral selector carboxymethyl (CM)-β-CD, creating a great synergistic system for OT-CEC [164]. For preparing the coated columns, the growth of MOF NPs was provoked on the inner wall of the imidazolyl functional column. The synergistic separation system resulted in the baseline resolutions of atenolol, ofloxacin, and hydroxychloroquine. Based on the results, the separation resolution of three basic drugs improved compared to the bare capillary. The RSDs were 2.1, 2.6, and 5.2% for the run-to-run, day-to-day, and column-to-column retention time, respectively. The stability of the 4, 5-IMD-Zn-modified OT-column was evaluated by keeping the prepared column at 4 °C for more than four months and then employed to test the Rs of atenolol. Compared to the data from four months ago, the RSD of the Rs was <5.1%, demonstrating the good stability of the prepared column up to four months at 4 °C. This study expanded achiral MOFs performance in CEC for enantiomer resolution and supplied an affordable synergistic separation system for commercial application.

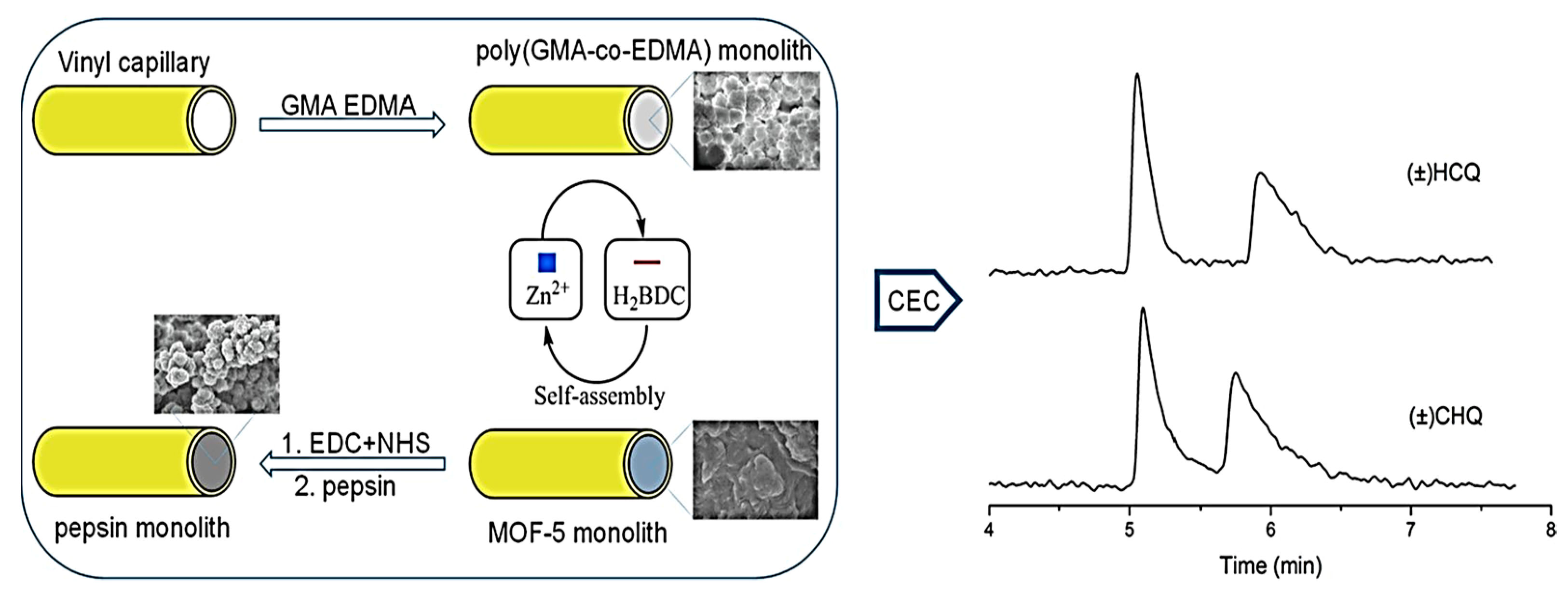

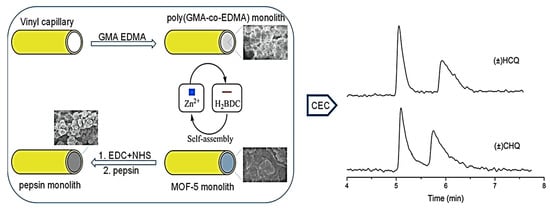

Du and co-workers also designed a novel capillary monolith column with a combination of properties of MOF-5 and pepsin as a chiral selector for racemate resolution [165]. The layer-by-layer self-assembly approach was employed for inducing the growth of MOF-5 on the original monolith of poly(GMA-co-EDMA) (poly (glycidyl methacrylate-co-ethylene dimethacrylate)). Then, pepsin was covalently attached to the MOF-5 carboxyl group by an amidation reaction under the catalysis of N-(3-dimethylaminopropyl)-N’-ethylcarbodiimide and N-hydroxysuccinimide (Figure 19). Ultimately, the developed [email protected]@poly(GMA-co-EDMA) column was employed for the enantiomer separation of six basic racemic drugs: chloroquine, hydroxychloroquine, clenbuterol, nefopam, hydroxyzine, and chlorpheniramine. The RSDs of Rs and migration time for interday and intraday were <4.0%, whereas the RSDs of column-to-column were <6.6%, demonstrating the good repeatability of the developed column. The pepsin-MOF-5-modified column obtained great chromatographic resolutions (Rs = 1.74 and 2.41) for chloroquine and hydroxychloroquine under optimal conditions, respectively. Moreover, the prepared column showed rapid enantioseparation within 15 min. This reveals that the modification of capillary monolithic columns with MOFs causes good racemates separation by CEC.

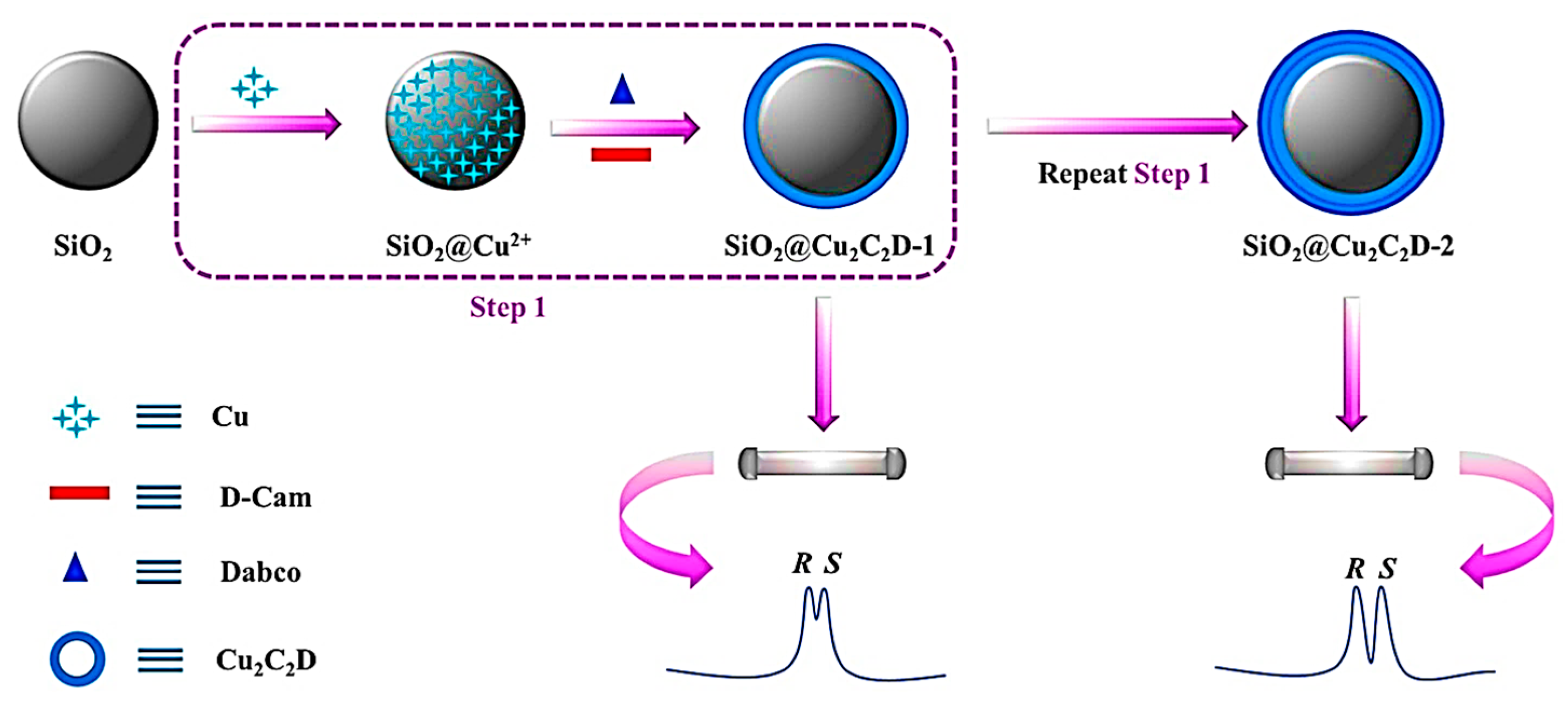

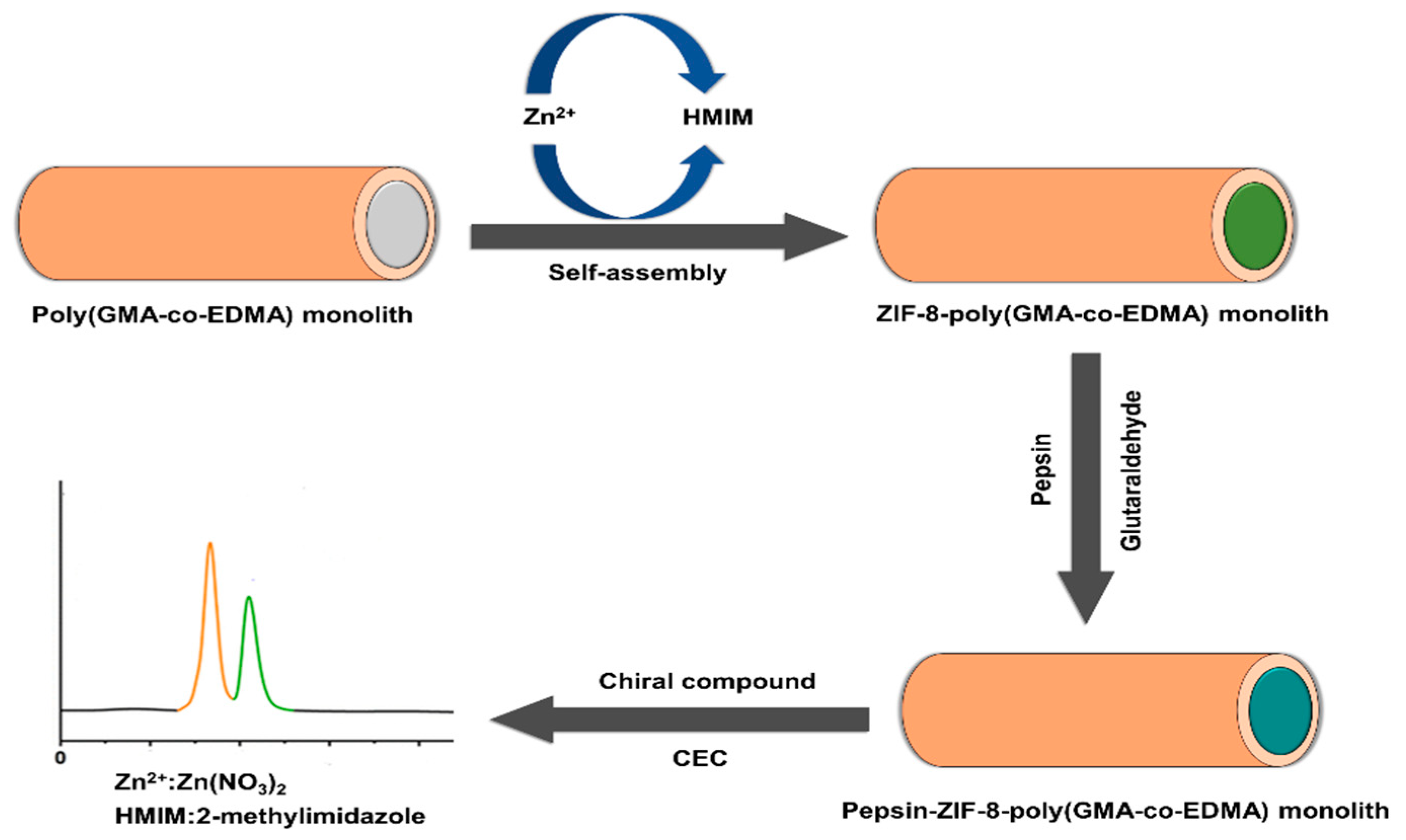

Wang and colleagues fabricated a new chiral stationary phase of a zirconium (Zr)-based MOF named L-Cys-PCN-224 using the one-pot procedure for enantiomer resolution by CEC [166]. The L-Cys-PCN-224 was attached to the OT-column and used for the enantiomer separation of nine types of natural amino acids, including neutral leucine, glutamine, methionine, Trp, proline, phenylalanine, valine, basic His, and acidic Asp (Figure 20). Based on the achieved results, the prepared chiral stationary phase possessed a high specific surface area, excellent crystallinity, and thermal stability. Meanwhile, the scanning electron microscope confirmed the successful linkage of the L-Cys-PCN-224 to the inner walls of the OT column. The RSDs for the average column efficiency and the migration time of column-to-column, day-to-day, and run-to-run were 0.62–9.14%. The lifetime of the l-Cys-PCN-224-modified column was evaluated by the RSDs of migration time, and the column efficiency for 200 successive injections was <4.38% and <7.81%, respectively. According to the obtained results, the L-Cys-PCN-224-linked OT column demonstrated a longer lifetime, good reproducibility, and stability. Chiral resolution performance was proved for the neutral, acidic, and basic amino acids with a resolution of 1.38–13.9. These results demonstrated that the CSP had excellent potential in the chiral separation field. The results show the essential roles of hydrogen bonding, steric fit, electrostatic interaction, and π-π interaction between the analytes and the CSP crystal structure. Table 3 provides a summary of CMOFs as CSPs for CEC.

7. Conclusions and Future Perspectives

This thoroughly summarized review discussed MOFs and their applications, especially in chiral analysis. Although the research application of MOFs is only from the last two decades, no comprehensive review has been presented on MOFs in the sub-branches of chiral recognition and separation techniques. MOFs are emerging as the latest class of crystalline nanoporous materials and a very efficient substance for diverse chiral recognition and separation applications. The high modularity, inherent chirality, and simplicity of CMOFs’ functionalization allow the improvement of many unique chiral materials for advanced applications. In comparison to conventional chiral solid substances, including chiral carbons, chiral zeolites, and chiral amorphous polymers, CMOFs are prominent and outstanding because of their capacity for the perfect combination of tunability, excessive enantiopurity, single crystallinity, excellent designability, and limitless pore/structural diversity. These characteristics enable the superb tuning of material features and the accurate knowledge of relationships between property and structure at the molecular level. We compressively summarized chirality, the principles of chiral analysis, and the state-of-the-art accomplishments of MOFs in an extensive scope of enantioselective performances, with the primary space allotted to chiral recognition and separation.
The growing demand for enantiopure composites has provoked rapid progress in applying functional materials for enantioseparation strategies. Using chromatographic methods, natural and synthetic polymers have long had the capacity for enantioselective resolution by roughly 90%. Even though chiral polymer-based racemic resolutions have made outstanding accomplishments, there are still difficulties regarding the separation mechanism. Considering this, CMOFs with manageable chiral cavities and specific crystalline configurations are the most appropriate candidates for preparative and analytical separations of racemates. It is hoped that a thorough examination of the racemic separation mechanism at the molecular level would remarkably expedite and extend CMOF-based enantioseparation.
In modern chemical analysis, the enantioselective sensing field has emerged because of the highest level of chirality complexity, and enantiospecific determination between racemic materials is incorporated in approximately every chiral process. Subsequently, the enantiorecognition of racemic molecules through the application of suitable analytical approaches, including fluorescence, electrochemical, QCM, and CD methods, has received substantial attention from researchers. It seems that CMOFs are intrinsically sensitive to chiral guests because of their concentration capacity of various targets at higher levels. However, the virtuous potential of CMOFs as enantioselective sensors has not completely manifested due to insufficient principles of design as well as inadequate chiral systems.
Nevertheless, integrating MOFs with chiral recognition and separation technologies is progressively assumed to be a promising avenue toward high-performance enantioselective determination and separations. In the following decades, it is optimistic that CMOFs will become one of the pivotal substances in chirotechnology. In this respect, close cooperation between engineers and scientists from various disciplines is exceedingly needed to solve challenges and evaluate the actual performance of MOFs in related areas.
