Deep Learning-Based Prediction of Diabetic Retinopathy Using CLAHE and ESRGAN for Enhancement

Department of Computer Science, College of Computer and Information Sciences, Jouf University, Sakakah 72341, Al Jouf, Saudi Arabia
Department of Electrical Engineering, Faculty of Engineering at Shoubra, Benha University, Cairo 11672, Egypt
Department of Information Systems, College of Computer and Information Sciences, Jouf University, Sakakah 72341, Al Jouf, Saudi Arabia
Author to whom correspondence should be addressed.
Healthcare 2023, 11(6), 863;
Received: 1 February 2023 / Revised: 11 March 2023 / Accepted: 13 March 2023 / Published: 15 March 2023


Vision loss can be avoided if diabetic retinopathy (DR) is diagnosed and treated promptly. The main five DR stages are none, moderate, mild, proliferate, and severe. In this study, a deep learning (DL) model is presented that diagnoses all five stages of DR with more accuracy than previous methods. The suggested method presents two scenarios: case 1 with image enhancement using a contrast limited adaptive histogram equalization (CLAHE) filtering algorithm in conjunction with an enhanced super-resolution generative adversarial network (ESRGAN), and case 2 without image enhancement. Augmentation techniques were then performed to generate a balanced dataset utilizing the same parameters for both cases. Using Inception-V3 applied to the Asia Pacific Tele-Ophthalmology Society (APTOS) datasets, the developed model achieved an accuracy of 98.7% for case 1 and 80.87% for case 2, which is greater than existing methods for detecting the five stages of DR. It was demonstrated that using CLAHE and ESRGAN improves a model’s performance and learning ability.

1. Introduction

The progressive eye disease known as DR is a direct result of having mellitus. Increases in blood glucose occur chronically in people with diabetes mellitus where the pancreas does not generate or release enough blood adrenaline [1,2]. Most diabetics go blind from DR, especially those of retirement age in low-income nations. Early identification is crucial for preventing the consequences that can arise from chronic diseases such as diabetes [3,4].
Retinal vasculature abnormalities are the hallmark of DR, which can progress to irreversible vision loss due to scarring or hemorrhage [1,5]. This may cause gradual vision impairment and, in its most severe form, blindness. It is not possible to cure the illness, so treatment focuses on preserving the patient’s present level of eyesight [6,7]. In most cases, a patient’s sight may be saved if DR is diagnosed and treated as soon as possible. In order to diagnose DR, an ophthalmologist should inspect images of the retina manually, which is an expensive and time-consuming process [8]. The majority of ophthalmologists today still use the tried-and-true method of analyzing retinal pictures for the presence and type of different abnormalities in order to diagnose DR. Microaneurysms (MIA), hemorrhages (HEM), soft exudates (SOX), and hard exudates (HEX) are the four most common forms of lesions identified [1,9], which can be identified as the following:
  • In earlier DR, MA appear as tiny, red dots on the retina due to a weakening in the vessel walls. The dots have distinct borders and a dimension of 125 μm or less. There are six subtypes of microaneurysms, but the treatment is the same for all of them [10,11].
  • In contrast to MA, HM are characterized by big spots on the retina with uneven edge widths of more than 125 μm. A hemorrhage can be either flame or blot, according to whether the spots are on the surface or deeper in the tissue [12,13].
  • The swelling of nerve fibers causes soft exudates, which appear as white ovals on the retina as defined as SX [1,9].
  • Yellow spots on the retina, known as EX, are the result of plasma leakage. They extend across the periphery of the retina and have defined borders [1,2].
  • Lesions caused by MA and HM tend to be red, while blemishes caused by the two forms of exudates tend to be bright. There are five distinct stages of DR that can be detected: no DR, mild DR, moderate DR, severe DR, and proliferative DR [13], as shown in Figure 1.
  • For DR diagnosis to be performed manually, experts in the field are needed, even though the most expert ophthalmologists have problems due to DR variability. Accurate machine learning techniques for automated DR detection have the ability to those defects [2,8].
  • Our objective was to develop a quick, fully automated DL based DR categorization that may be used in practice to aid ophthalmologists in assessing DR. DR can be prevented if it is detected and treated quickly after it first appears. To achieve this goal, we trained a model using innovative image preprocessing techniques and an Inception-V3 [14,15] model for diagnosis using the publicly available APTOS dataset [16].
Below, we highlight the original contributions of our study.
  • To generate high-quality images for the APTOS dataset, we used the (CLAHE) [17] filtering algorithm in conjunction with enhanced super-resolution generative adversarial networks (ESRGAN) [18], which is the main contribution of the presented work.
  • By employing the technique of augmentation, we ensured that the APTOS dataset contained a consistent amount of data.
  • Accuracy (Acc), confusion matrix (CM), precision (Prec), recall (Re), top n accuracy, and the F1-score (F1sc) were the indicators used in a comprehensive comparative study to determine the viability of the proposed system.
  • Pre-trained networks trained on the APTOS data set were fine-tuned with the use of an Inception-V3 weight-tuning algorithm.
  • By adopting a varied training procedure backed by various permutations of training strategies, the general reliability of the suggested method was enhanced, and overfitting was avoided (e.g., learning rate, data augmentation, batch size, and validation patience).
  • The APTOS dataset was used during both the training and evaluation phases of the model’s development. By employing stringent 80:20 hold-out validation, the model achieved a remarkable 98.71% accuracy of classification using enhancement techniques and 80.87% without using enhancement techniques.
This research presents two cases scenarios. In case 1, an optimal technique for DR stage enhancement using CLAHE followed by ESRGAN techniques was developed. In case 2 no enhancement was applied to the images. Due to the class imbalance in the dataset, oversampling was required using augmentation techniques. In addition, we trained the weights of each model using Inception-V3, and the results of the models were compared using APTOS dataset images. Section 2 provides context for the subsequent discussion of the related work. Section 4 presents and analyzes the results of the technique described in Section 3, and Section 5 summarizes the research.

2. Related Work

There are various issues with DR picture detection when done manually. Numerous patients in underdeveloped nations face challenges due to a shortage of competence (trained ophthalmologists) and expensive tests. Because of the importance of timely detection in the fight against blindness, automated processing methods have been devised to facilitate accessibility for accurate and speedy diagnosis and treatment. Automated DR classification accuracy has recently been achieved by Machine Learning (ML) models trained on ocular fundus pictures. A lot of work has gone into developing automatic methods that are both efficient and inexpensive [19,20,21].
This means that these methods are now universally superior to their traditional counterparts. Following, we present a deeper examination of the two primary schools of thought in DR categorization research: classical, specialist approaches, and state-of-the-art, machine-learning-based approaches. For instance, Kazakh-British et al. [22], performed experimental studies with a relevant processing pipeline that extracted arteries from fundus pictures, and then a CNN model was trained to recognize lesions. Other work presented by Alexandr et al. [23] contrasted two widely-used classic designs (DenseNet and ResNet) with a new, enhanced structure (EfficientNet). Use of the APTOS symposium dataset allowed for the retinal image to be classified into one of five categories. Local binary convolutional neural network (LBCNN) deterministic filter generation was introduced by Macsik et al. [24] which mimicked the successfulness of the CNN with a smaller training set and less memory utilization, making it suitable for systems with limited memory or computing resources. Regarding binary classification of retinal fundus datasets into healthy and diseased groups, they compared their method with traditional CNN and LBCNN that use probabilistic filter sequence.
Al-Antary & Yasmine [19] suggested a multi-scale attention network (MSA-Net) for DR categorization. The encoder network embeds the retina image in a high-level representational space, enriching it with mid- and high-level characteristics. A multi-scale feature pyramid describes the retinal structure in another location. In addition to high-level representation, a multi-scale attention mechanism improves feature representation discrimination. The model classifies DR severity using cross-entropy loss. The model detects healthy and unhealthy retina pictures as an extracurricular assignment using weakly annotations. This surrogate task helps the model recognize non-healthy retina pictures. EyePACS and APTOS datasets performed well with the proposed technique. Medical DR identification was the focus of an investigation by Khalifa et al. [25] on deep transfer learning models. A series of experiments was conducted with the help of the APTOS 2019 dataset. Five different neural network architectures (AlexNet, Res-Net18, SqueezeNet, GoogleNet, VGG16, and VGG19) were used in this research. Selecting models with fewer layers than DenseNet and Inception-Resnet was a key factor. Model stability and overfitting were both enhanced by additional data. Hemanth et al. [26] presented a convolutional neural network–based approach to DR detection and classification. They employed HIST and CLAHE to improve contrast in the images, and the resulting CNN model achieved 97% accuracy in classification and a 94% F-measure. Maqsood et al. [27] introduced a new 3D CNN model to localize hemorrhages, an early indicator of DR, using a pre-trained VGG-19 model to extract characteristics from segmented hemorrhages. Their studies used 1509 photos from HRF, DRIVE, STARE, MESSIDOR, DIARETDB0, and DIARETDB1 databases and averaged 97.71% accuracy. Das et al. [28] suggested a unique CNN for categorizing normal and abnormal patients utilizing the fundus images. The blood arteries were recovered from the images using a maximal principal curvature approach. Adaptive histogram equalization and morphological opening were used to correct improperly segmented regions. The DIARETDB1 dataset was considered, and an accuracy and precision of 98.7% and 97.2%, respectively, was attained.
Wang et al. [29] created Lesion-Net to improve the encoder’s representational power by including lesion detection into severity grading. InceptionV3 trained and verified the design. Liu et al. [30] used TL with different models to investigate DR from EyePACS. A new cross-entropy loss function and three hybrid model structures classified DR with 86.34% accuracy.
Table 1 summarizes the many attempts to detect DR anomalies in photos using various DL techniques [19,24,31,32,33,34,35,36,37]. According to the results of the research into DR identification and diagnostic methods, there are still a lot of loopholes that need to be investigated. For example, there has been minimal emphasis on constructing and training a bespoke DL model entirely from the beginning because of a lack of a large amount of data, even though numerous researchers have obtained excellent dependability values with pre-trained models using transfer-learning.
Ultimately, training DL models with raw images instead of preprocessed images severely restricts the final classification network’s scalability, as was the case in nearly all of these studies. In order to resolve these problems, the current research created a lightweight DR detection system by integrating multiple layers into the architecture of pre-trained models. This leads to a more efficient and effective proposed system that meets users’ expectations.

3. Research Methodology

For the DR detection system to operate, as shown in Figure 2, a transfer DL strategy (Inception-V3) was retrained in the image dataset to learn discriminative and usable feature representations. This section offers a concise summary of the method followed when working with the provided dataset. The preprocessing stage is then clearly outlined, and implementation specifics of the proposed system are covered. These include the two cases scenarios used in this context, the preprocessing techniques proposed, the basic design, and the training methodology for the approach that was ultimately chosen.

3.1. Data Set Description

Selecting a dataset with a sufficient number of high-quality photos is crucial. This study made use of the APTOS 2019 (Asia Pacific Tele-Ophthalmology Society) Blindness Detection Dataset [16], a publicly available Kaggle dataset that incorporates a huge number of photos. In this collection, high-resolution retinal pictures are provided for the five stages of DR, classified from 0 (none) to 4 (proliferate DR), with labels 1–4 corresponding to the four levels of severity. There are 3662 retinal pictures in total; 1805 are from the “no DR” group, 370 are from the “mild DR” group, 999 are from the “moderate DR” group, 193 are from the “severe DR” group, and 295 are from the “proliferate DR” group, as illustrated in Table 2. Images are 3216 × 2136 pixels in size, and Figure 1 shows some examples of these kind of pictures. There is background noise in the photographs and the labels, much like any real-world data set. It is possible that the provided images will be flawed in some way, be it with artifacts, blurriness, improper exposure, or some other issue. The photos were collected over a long period of time from a number of different clinics using different cameras, all of which contribute to the overall high degree of diversity.

3.2. Proposed Methodology

An automatic DR classification model was developed using the dataset referenced in this paper; its general process is demonstrated in Figure 1. It demonstrates two different scenarios: case 1 in which the preprocessing step is performed using CLAHE followed by ESRGAN is used, and case 2 in which neither step is performed, while using augmentation of the images to prevent overfitting in both scenarios. Lastly, images were sent into the Inception-V3 model for classification step.

3.2.1. Preprocessing Using CLAHE and ESRGAN

Images of the retinal fundus are often taken from several facilities using various technologies. Consequently, given the high intensity variation in the photographs used by the proposed method, it was crucial to enhance the quality of DR images and get rid of various types of noise. All images in case 1 underwent a preliminary preprocessing phase prior to augmentation, and training necessitated various stages:
  • Resize each picture to 224 × 224 × 3 pixels.
  • Normalization
Figure 3 shows that first, CLAHE (shown in Figure 4) was used to improve the DR image’s fine details, textures, and low contrast by redistributing the input image’s lightness values [38]. Utilizing CLAHE, the input image was first sectioned into four small tiles. Each tile underwent histogram equalization with a clip limit, which involved five steps: computation, excess calculation, distribution, redistribution, and scaling and mapping using a cumulative distribution function (CDF). For each tile, a histogram was calculated, where bins value above the clip limit were aggregated and spread to other bins. Histogram values were then calculated using CDF for the input image pixel scale and then mapped tile to CDF values. To boost contrast, bilinear interpolation stitched the tiles together [39]. This technique improved local contrast enhancement while also making borders and slopes more apparent. Following this, all photos were scaled to suit the input of the learning model, which was 224 × 224 × 3. Figure 3 depicts the subsequent application of ESRGAN on the output of the preceding stage. ESRGAN [40] (shown in Figure 5) pictures can more closely mimic image artifacts’ sharp edges [41]. To improve performance, ESRGAN adopted the basic architecture of SRResNet, in which Residual-in-Residual Dense Blocks are substituted for the traditional ESRGAN basic blocks, as shown in Figure 5. Intensity differences between images can be rather large, thus images were normalized so that their intensities fell within the range −1 to 1. This kept the data within acceptable bounds and removed noise. As a result of normalization, the model was less sensitive to variations in weights, making it easier to tune. Since the method shown in Figure 3 improved the image’s contrast while simultaneously emphasizing the image’s boundaries and arcs, it yielded more accurate findings.

3.2.2. Data Augmentation

Data augmentation was implemented on the training set to increase the number of images and alleviate the issue of an imbalanced dataset before exposing Inception-V3 to the dataset images. In most cases, deeper learning models perform better when given more data to learn from. We can utilize the characteristics of DR photos by applying several modifications to each image. A deep neural network (DNN) is unaffected by any changes made to the input image, including scaling it up or down, flipping it horizontally or vertically, or rotating it by a certain number of degrees. Regulating the data, minimizing overfitting, and rectifying imbalances in the dataset are all accomplished through the use of data augmentations (i.e., shifting, rotating, and zooming). One of the transformations used in this investigation was horizontal shift augmentation, which involves shifting the pixels of an image horizontally while maintaining the image’s aspect ratio, with the step size being specified by an integer between 0 and 1. Another kind of transformation is rotation, in which the image is arbitrarily rotated by an angle between 0 and 180 degrees. To create fresh samples for the network, all prior alterations to the training set’s images were applied.
In this study, two scenarios were utilized to train Inception-V3. The first was to apply augmentation to the enhanced images, as depicted in Figure 6, and the second was to apply augmentation to the raw images, as depicted in Figure 7. Both Figure 4 and Figure 5 are attempts to expand data volume by making slightly modified copies of current data or by synthesizing data generated from existing data while keeping all other parameters constant (Figure 4 and Figure 5), with the same total number of images in both cases.
In a second use of data augmentation techniques, the issues of inconsistent sample sizes and complicated classifications were resolved. As seen in Table 2, the APTOS dataset exemplifies the “imbalanced class” because the samples are not distributed evenly throughout the several classes. After applying augmentation techniques to the dataset, the classes are obviously balanced for both scenarios, as depicted in Figure 8.

3.2.3. Learning Model (Inception-V3)

In this section, the approach’s fundamental theory is outlined and explained. Inception-v3 [11,12] is among transfer learning pretrained models, superseding the original architecture for Inception-v1 [42] and Inception-v2 [43]. The Inception-v3 model is trained using the ImageNet datasets [44,45], which contain the information required for identifying one thousand classes. The error rate for the top five in ImageNet is 3.5%, while the error rate for the top one was lowered to 17.3%.
Inception was influenced in particular by technique of Serre et al. [46], which processes information in several stages. By adopting the Lin et al. [47] method, the developers of Inception were able to improve the model precision of the neural networks, making them a significant design requirement. As a result of the dimension reduction to 1*1 convolutions, this also protected them from computing constraints. Researchers were able to significantly reduce the amount of time and effort spent on DL picture classification using Inception [48]. Using only the theoretical explanations offered by Arora et al. [49], they emphasized discovering an optimal spot between the typical technique of improving performance—increasing both depth and size—and layer separability. When utilized independently, both procedures are computationally expensive. This was the fundamental goal of the 22-layer architecture employed by the Inception DL system, in which all filters are learned. On the basis of research by Arora et al. [49], a correlation statistical analysis was developed to generate highly associated categories that were input into the subsequent layer. The 1 × 1 layer, the 3 × 3 layer, and the 5 × 5 convolution layer were all inspired by the concept of multiscale processing of visual data. Each of these layers eventually becomes a set of 1 × 1 convolutions [48] following a process of dimension reduction.

4. Experimental Results

4.1. Instruction and Setup of Inception-V3

To demonstrate the effectiveness of the deployed DL system and to compare results to industry standards, tests were carried out on the APTOS dataset. The dataset was divided into three categories in accordance with the suggested training method. Eighty percent of the data was utilized for training (9952 photographs), ten percent for testing (1012 photos), and the remaining ten percent was randomly selected and used as a validation set (1025 photos) to evaluate performance and save the best weight combinations. All photographs were reduced in size during the training process to 224 × 224 × 3 pixel resolution. We tested the proposed system’s TensorFlow Keras implementation on a Linux desktop equipped with a GPU RTX3060 and 8 GB of RAM.
Using the Adam optimizer and a method that slows down training when learning has stalled for too long, the proposed framework was first trained on the APTOS dataset (i.e., validation patience). Throughout the entirety of the training process, hyperparameters were input into the Adam optimizer. We used a range of 1 × 103 to 1 × 105 for the learning rate, 2–64 for the batch size (with an increase of 2× the previous value), 50 epochs, 10 for patience, and 0.90 for momentum. Our arsenal of anti-infectious measures was completed by a method known as “batching” for the dissemination of infectious forms.

4.2. Evaluative Parameters

This section describes the evaluation methods and their results. Classifier accuracy (Acc) is a standard performance measure. It is determined by dividing the number of successfully categorized instances (images) by the total number of examples in the dataset (Equation (1)). Picture categorization systems are often evaluated using precision (Prec) and recall (Re). As demonstrated in Equation (2), precision improves with the number of accurately labeled photos, whereas recall is the ratio of properly categorized images in the dataset to those related numerically (3). The higher the F1-score, the more reliable the system is at making predictions about the future. The F1-score can be determined using Equation (4), (F1sc). With respect to the study’s last criterion, top N accuracy, it was found that the highest probability answers from model N should coincide with the expected softmax distribution. An accurate classification is made if at least one of N predictions corresponds to the target label.
A c c u r a c y = T p + T n T p + T n + F p   + F n
P r e c i s i o n = T p T p + F p
R e c a l l = T p T p + F n
F 1 - s c o r e = 2 P r e c R e P r e c + R e
True positives, represented by the symbol (Tp), are successfully anticipated positive cases, and true negatives (Tn) are effectively predicted negative scenarios. False positives (Fp) are falsely predicted positive situations, whereas false negatives (Fn) are falsely projected negative situations.

4.3. Performance of Inception-V3 Model Outcomes

Considering the APTOS dataset, two distinct cases sets were investigated, in which Inception-V3 was applied to our dataset in two distinct scenarios, the first with enhancement (CLAHE + ESRGAN) and the second without enhancement (CLAHE + ESRGAN), as depicted in Figure 2. We split it up this way to cut down on the total amount of time needed to conduct the project. To train a model, 50 epochs were used, with learning rates ranging from 1 × 103 to 1 × 105, and batch sizes varying from 2 to 64. To achieve the highest possible level of precision, Inception-V3 was further tweaked by freezing between 140 and 160 layers. Several iterations of the same model with the same parameters were used to generate a model ensemble, since random weights were generated for each iteration, the precision fluctuated from iteration to iteration. Mean and standard deviation statistics for this procedure are displayed in Table 3 and Table 4, respectively, for the cases where the first 143 layers were frozen with CLAHE + ESRGAN and the cases where they were not.
The top performance from each iteration was saved and is shown in Table 5 and Table 6, for case 1 and case 2, respectively, revealing that the best results produced with and without preprocessing using CLAHE + ESRGAN were 98.7% and 80.87%, respectively. Figure 9 depicts the optimal outcome for the two scenarios based on the utilized evaluation metrics case 1 using CLAHE and ESRGAN, and case 2 without using them.
Figure 10 and Figure 11 show the confusion matrix with and without using CLAHE + ESRGAN, respectively.
Table 7 and Table 8 show the total number of photos utilized for testing in each class for the APTOS dataset. According to the data, it is clear that the No DR class has the most images with 504, and its Prec, Re, and F1sc give the highest values of 99 100 and 100% for case 1, and 97, 97, and 97% for case 2.
Using retinal pictures to improve the accuracy with which ophthalmologists identify infections, while reducing their effort, was demonstrated to be practical in real-world scenarios.

4.4. Evaluation Considering a Variety of Other Methodologies

Effectiveness was compared to that of other methods. According to Table 9, our method exceeds other alternatives in terms of effectiveness and performance. The proposed inception model achieved an overall accuracy rate of 98.7%, surpassing the present methods.

5. Discussion

Based on CLAHE and ESRGAN, a novel DR categorization scheme is presented in this research. The developed model was tested on the DR images founded in the APTOS 2019 dataset. There were two training scenarios: case 1 with CLAHE + ESRGAN applied to the APTOS dataset, and case 2 without CLAHE + ESRGAN. Through 80:20 hold-out validation, the model attained a five-class accuracy rate of 98.7% for case 1 and 80.87% for case 2. The proposed method classified both cases scenarios using the pretrained Inception-V3 infrastructure. Throughout model construction, we evaluated the classification performance of two distinct scenarios and found that enhancement techniques produced the best results (Figure 9). The main contributing element in our methodology was the general resolution enhancement of CLAHE + ESRGAN, which we proved, with evidence, is responsible for the great improvement in the accuracy.

6. Conclusions

By identifying retinal images displayed in the APTOS dataset, we established a strategy for quickly and accurately diagnosing five distinct forms of cancer. The proposed method employs case 1 with images enhanced with CLAHE and ESRGAN, and case 2 with original images. The case 1 scenario employs four-stage picture enhancement techniques to increase the image’s luminance and eliminate noise. CLAHE and ESRGAN were the two stages with the best impact on accuracy, as demonstrated by experimental results. State-of-the-art techniques in preprocessed medical imagery were employed to train Inception-V3 with augmentation techniques that helped reduce overfitting and raised the entire competencies of the suggested methodology. This solution showed that when using Inception-V3, the conception model achieved a correctness of 98.7% ≈ 99% for the case 1 scenario and 80.87% ≈ 81% for the case 2 scenario, both of which are in line with the accuracy of trained ophthalmologists. The use of CLAHE and ESRGAN in the preprocessing step further contributed to the study’s novelty and significance. The proposed methodology outperformed established models, as evidenced by a comparison of their respective strengths and weaknesses. To prove the effectiveness of the proposed method, it must be tested on a sizable and intricate dataset, ideally consisting of a significant number of potential DR instances. In the future, new datasets may be analyzed using DenseNet, VGG, or ResNet, as well as additional augmentation approaches. Additionally, ESRGAN and CLAHE can be conducted independently to determine their impact on the classification procedure.

Author Contributions

Conceptualization, W.G.; Data curation, W.G.; Formal analysis, G.A. and W.G.; Funding acquisition, G.A.; Methodology, W.G. and M.H.; Project administration, M.H.; Supervision, W.G. and M.H.; Writing—original draft, W.G.; Writing—review & editing, W.G. and M.H. All authors have read and agreed to the published version of the manuscript.


The authors extend their appreciation to the Deputyship for Research & Innovation, Ministry of Education in Saudi Arabia for funding this research work through the project number 223202.

Institutional Review Board Statement

Not Applicable.

Informed Consent Statement

Not Applicable.

Data Availability Statement

Will be furnished on request.


The authors extend their appreciation to the Deputyship for Research & Innovation, Ministry of Education in Saudi Arabia for funding this research work through the project number 223202.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Atwany, M.Z.; Sahyoun, A.H.; Yaqub, M. Deep learning techniques for diabetic retinopathy classification: A survey. IEEE Access 2022, 10, 28642–28655. [Google Scholar] [CrossRef]
  2. Amin, J.; Sharif, M.; Yasmin, M. A review on recent developments for detection of diabetic retinopathy. Scientifica 2016, 2016, 6838976. [Google Scholar] [CrossRef] [PubMed][Green Version]
  3. Kharroubi, A.T.; Darwish, H.M. Diabetes mellitus: The epidemic of the century. World J. Diabetes 2015, 6, 850. [Google Scholar] [CrossRef] [PubMed]
  4. Alwakid, G.; Gouda, W.; Humayun, M. Enhancement of Diabetic Retinopathy Prognostication Utilizing Deep Learning, CLAHE, and ESRGAN. Preprints 2023, 2023020218. [Google Scholar] [CrossRef]
  5. Mamtora, S.; Wong, Y.; Bell, D.; Sandinha, T. Bilateral birdshot retinochoroiditis and retinal astrocytoma. Case Rep. Ophthalmol. Med. 2017, 2017, 6586157. [Google Scholar] [CrossRef]
  6. Taylor, R.; Batey, D. Handbook of Retinal Screening in Diabetes: Diagnosis and Management; John Wiley & Sons: Hoboken, NJ, USA, 2012. [Google Scholar]
  7. Imran, M.; Ullah, A.; Arif, M.; Noor, R. A unified technique for entropy enhancement based diabetic retinopathy detection using hybrid neural network. Comput. Biol. Med. 2022, 145, 105424. [Google Scholar]
  8. Alyoubi, W.L.; Shalash, W.M.; Abulkhair, M.F. Diabetic retinopathy detection through deep learning techniques: A review. Inform. Med. Unlocked 2020, 20, 100377. [Google Scholar] [CrossRef]
  9. Dubow, M.; Pinhas, A.; Shah, N.; Cooper, R.F.; Gan, A.; Gentile, R.C.; Hendrix, V.; Sulai, Y.N.; Carroll, J.; Chui, T.Y. Classification of human retinal microaneurysms using adaptive optics scanning light ophthalmoscope fluorescein angiography. Investig. Ophthalmol. Vis. Sci. 2014, 55, 1299–1309. [Google Scholar] [CrossRef]
  10. Mazhar, K.; Varma, R.; Choudhury, F.; McKean-Cowdin, R.; Shtir, C.J.; Azen, S.P.; Group, L.A.L.E.S. Severity of diabetic retinopathy and health-related quality of life: The Los Angeles Latino Eye Study. Ophthalmology 2011, 118, 649–655. [Google Scholar] [CrossRef][Green Version]
  11. Willis, J.R.; Doan, Q.V.; Gleeson, M.; Haskova, Z.; Ramulu, P.; Morse, L.; Cantrell, R.A. Vision-related functional burden of diabetic retinopathy across severity levels in the United States. JAMA Ophthalmol. 2017, 135, 926–932. [Google Scholar] [CrossRef]
  12. Vora, P.; Shrestha, S. Detecting diabetic retinopathy using embedded computer vision. Appl. Sci. 2020, 10, 7274. [Google Scholar] [CrossRef]
  13. Murugesan, N.; Üstunkaya, T.; Feener, E.P. Thrombosis and hemorrhage in diabetic retinopathy: A perspective from an inflammatory standpoint. Semin. Thromb. Hemost. 2015, 41, 659–664. [Google Scholar] [CrossRef][Green Version]
  14. Szegedy, C.; Ioffe, S.; Vanhoucke, V.; Alemi, A.A. Inception-v4, inception-resnet and the impact of residual connections on learning. In Proceedings of the Thirty-First AAAI Conference on Artificial Intelligence, San Francisco, CA, USA, 4–9 February 2017; Association for the Advancement of Artificial Intelligence: Washington, DC, USA, 2017. [Google Scholar]
  15. Xia, X.; Xu, C.; Nan, B. Inception-v3 for flower classification. In Proceedings of the 2017 2nd International Conference on Image, Vision and Computing (ICIVC), Chengdu, China, 2–4 June 2017; pp. 783–787. [Google Scholar]
  16. APTOS 2019 Blindness Detection Detect Diabetic Retinopathy to Stop Blindness before It’s too Late. 2019. Available online: (accessed on 28 August 2022).
  17. Pizer, S.M.; Amburn, E.P.; Austin, J.D.; Cromartie, R.; Geselowitz, A.; Greer, T.; ter Haar Romeny, B.; Zimmerman, J.B.; Zuiderveld, K. Adaptive histogram equalization and its variations. Comput. Vis. Graph. Image Process. 1987, 39, 355–368. [Google Scholar] [CrossRef]
  18. Ledig, C.; Theis, L.; Huszár, F.; Caballero, J.; Cunningham, A.; Acosta, A.; Aitken, A.; Tejani, A.; Totz, J.; Wang, Z. Photo-realistic single image super-resolution using a generative adversarial network. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, Honolulu, HI, USA, 21–26 July 2017; pp. 4681–4690. [Google Scholar]
  19. Al-Antary, M.T.; Arafa, Y. Multi-scale attention network for diabetic retinopathy classification. IEEE Access 2021, 9, 54190–54200. [Google Scholar] [CrossRef]
  20. Gargeya, R.; Leng, T. Automated identification of diabetic retinopathy using deep learning. Ophthalmology 2017, 124, 962–969. [Google Scholar] [CrossRef]
  21. Ali, R.; Hardie, R.C.; Narayanan, B.N.; Kebede, T.M. IMNets: Deep learning using an incremental modular network synthesis approach for medical imaging applications. Appl. Sci. 2022, 12, 5500. [Google Scholar] [CrossRef]
  22. Kazakh-British, N.P.; Pak, A.; Abdullina, D. Automatic detection of blood vessels and classification in retinal images for diabetic retinopathy diagnosis with application of convolution neural network. In Proceedings of the 2018 International Conference on Sensors, Signal and Image Processing, Prague, Czech Republic, 12–14 October 2018; pp. 60–63. [Google Scholar]
  23. Pak, A.; Ziyaden, A.; Tukeshev, K.; Jaxylykova, A.; Abdullina, D. Comparative analysis of deep learning methods of detection of diabetic retinopathy. Cogent Eng. 2020, 7, 1805144. [Google Scholar] [CrossRef]
  24. Macsik, P.; Pavlovicova, J.; Goga, J.; Kajan, S. Local Binary CNN for Diabetic Retinopathy Classification on Fundus Images. Acta Polytech. Hung. 2022, 19, 27–45. [Google Scholar]
  25. Khalifa, N.E.M.; Loey, M.; Taha, M.H.N.; Mohamed, H.N.E.T. Deep transfer learning models for medical diabetic retinopathy detection. Acta Inform. Med. 2019, 27, 327. [Google Scholar] [CrossRef]
  26. Hemanth, D.J.; Deperlioglu, O.; Kose, U. An enhanced diabetic retinopathy detection and classification approach using deep convolutional neural network. Neural Comput. Appl. 2020, 32, 707–721. [Google Scholar] [CrossRef]
  27. Maqsood, S.; Damaševičius, R.; Maskeliūnas, R. Hemorrhage detection based on 3D CNN deep learning framework and feature fusion for evaluating retinal abnormality in diabetic patients. Sensors 2021, 21, 3865. [Google Scholar] [CrossRef] [PubMed]
  28. Das, S.; Kharbanda, K.; Suchetha, M.; Raman, R.; Dhas, E. Deep learning architecture based on segmented fundus image features for classification of diabetic retinopathy. Biomed. Signal Process. Control 2021, 68, 102600. [Google Scholar] [CrossRef]
  29. Wang, Y.; Yu, M.; Hu, B.; Jin, X.; Li, Y.; Zhang, X.; Zhang, Y.; Gong, D.; Wu, C.; Zhang, B. Deep learning-based detection and stage grading for optimising diagnosis of diabetic retinopathy. Diabetes/Metab. Res. Rev. 2021, 37, e3445. [Google Scholar] [CrossRef] [PubMed]
  30. Liu, H.; Yue, K.; Cheng, S.; Pan, C.; Sun, J.; Li, W. Hybrid model structure for diabetic retinopathy classification. J. Healthc. Eng. 2020, 2020, 8840174. [Google Scholar] [CrossRef]
  31. Saranya, P.; Umamaheswari, K.; Patnaik, S.C.; Patyal, J.S. Red Lesion Detection in Color Fundus Images for Diabetic Retinopathy Detection. In Proceedings of the International Conference on Deep Learning, Computing and Intelligence, Chennai, India, 7–8 January 2021; pp. 561–569. [Google Scholar]
  32. Thomas, N.M.; Albert Jerome, S. Grading and Classification of Retinal Images for Detecting Diabetic Retinopathy Using Convolutional Neural Network. In Advances in Electrical and Computer Technologies; Springer: Singapore, 2022; pp. 607–614. [Google Scholar]
  33. Crane, A.; Dastjerdi, M. Effect of Simulated Cataract on the Accuracy of an Artificial Intelligence Algorithm in Detecting Diabetic Retinopathy in Color Fundus Photos. Investig. Ophthalmol. Vis. Sci. 2022, 63, 2100–F0089. [Google Scholar]
  34. Majumder, S.; Kehtarnavaz, N. Multitasking deep learning model for detection of five stages of diabetic retinopathy. IEEE Access 2021, 9, 123220–123230. [Google Scholar] [CrossRef]
  35. Deshpande, A.; Pardhi, J. Automated detection of Diabetic Retinopathy using VGG-16 architecture. Int. Res. J. Eng. Technol. 2021, 8, 3790–3794. [Google Scholar]
  36. Yadav, S.; Awasthi, P.; Pathak, S. Retina Image and Diabetic Retinopathy: A Deep Learning Based Approach. Available online: (accessed on 28 July 2022).
  37. Kobat, S.G.; Baygin, N.; Yusufoglu, E.; Baygin, M.; Barua, P.D.; Dogan, S.; Yaman, O.; Celiker, U.; Yildirim, H.; Tan, R.-S. Automated Diabetic Retinopathy Detection Using Horizontal and Vertical Patch Division-Based Pre-Trained DenseNET with Digital Fundus Images. Diagnostics 2022, 12, 1975. [Google Scholar] [CrossRef]
  38. Reza, A.M. Realization of the contrast limited adaptive histogram equalization (CLAHE) for real-time image enhancement. J. VLSI Signal Process. Syst. Signal Image Video Technol. 2004, 38, 35–44. [Google Scholar] [CrossRef]
  39. Tondin, B.; Barth, A.; Sanches, P.; Júnior, D.; Müller, A.; Thomé, P.; Wink, P.; Martins, A.; Susin, A. Development of an Automatic Antibiogram Reader System Using Circular Hough Transform and Radial Profile Analysis. In Proceedings of the XXVII Brazilian Congress on Biomedical Engineering: CBEB 2020, Vitória, Brazil, 26–30 October 2020; pp. 1837–1842. [Google Scholar]
  40. Wang, X.; Yu, K.; Wu, S.; Gu, J.; Liu, Y.; Dong, C.; Qiao, Y.; Change Loy, C. Esrgan: Enhanced super-resolution generative adversarial networks. In Proceedings of the European Conference on Computer Vision (ECCV) Workshops, Munich, Germany, 8–14 September 2018; Springer: Cham, Switzerland. [Google Scholar]
  41. Jolicoeur-Martineau, A. The relativistic discriminator: A key element missing from standard GAN. arXiv 2018, arXiv:1807.00734. [Google Scholar]
  42. Ioffe, S.; Szegedy, C. Batch normalization: Accelerating deep network training by reducing internal covariate shift. In Proceedings of the International Conference on Machine Learning, Lille, France, 7–9 July 2015; pp. 448–456. [Google Scholar]
  43. Krause, J.; Sapp, B.; Howard, A.; Zhou, H.; Toshev, A.; Duerig, T.; Philbin, J.; Fei-Fei, L. The unreasonable effectiveness of noisy data for fine-grained recognition. In Proceedings of the 14th European Conference on Computer Vision, Amsterdam, The Netherlands, 11–14 October 2016; pp. 301–320. [Google Scholar]
  44. Krizhevsky, A.; Sutskever, I.; Hinton, G.E. Imagenet classification with deep convolutional neural networks. In Proceedings of the 25th International Conference on Neural Information Processing Systems, Lake Tahoe, NV, USA, 3–6 December 2012; Volume 25. [Google Scholar]
  45. Simonyan, K.; Zisserman, A. Very deep convolutional networks for large-scale image recognition. arXiv 2014, arXiv:1409.1556. [Google Scholar]
  46. Serre, T.; Wolf, L.; Bileschi, S.; Riesenhuber, M.; Poggio, T. Robust object recognition with cortex-like mechanisms. IEEE Trans. Pattern Anal. Mach. Intell. 2007, 29, 411–426. [Google Scholar] [CrossRef]
  47. Lin, M.; Chen, Q.; Yan, S. Network in network. arXiv 2013, arXiv:1312.4400. [Google Scholar]
  48. Szegedy, C.; Liu, W.; Jia, Y.; Sermanet, P.; Reed, S.; Anguelov, D.; Erhan, D.; Vanhoucke, V.; Rabinovich, A. Going deeper with convolutions. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, Boston, MA, USA, 7–12 June 2015; pp. 1–9. [Google Scholar]
  49. Arora, S.; Bhaskara, A.; Ge, R.; Ma, T. Provable bounds for learning some deep representations. In Proceedings of the International Conference on Machine Learning, Beijing, China, 21–26 June 2014; pp. 584–592. [Google Scholar]
  50. Adak, C.; Karkera, T.; Chattopadhyay, S.; Saqib, M. Detecting Severity of Diabetic Retinopathy from Fundus Images using Ensembled Transformers. arXiv 2023, arXiv:2301.00973. [Google Scholar]
  51. Maqsood, Z.; Gupta, M.K. Automatic Detection of Diabetic Retinopathy on the Edge. In Cyber Security, Privacy and Networking; Springer: Singapore, 2022; pp. 129–139. [Google Scholar]
  52. Lahmar, C.; Idri, A. Deep hybrid architectures for diabetic retinopathy classification. Comput. Methods Biomech. Biomed. Eng. Imaging Vis. 2022, 11, 166–184. [Google Scholar] [CrossRef]
  53. Oulhadj, M.; Riffi, J.; Chaimae, K.; Mahraz, A.M.; Ahmed, B.; Yahyaouy, A.; Fouad, C.; Meriem, A.; Idriss, B.A.; Tairi, H. Diabetic retinopathy prediction based on deep learning and deformable registration. Multimed. Tools Appl. 2022, 81, 28709–28727. [Google Scholar] [CrossRef]
  54. Gangwar, A.K.; Ravi, V. Diabetic retinopathy detection using transfer learning and deep learning. In Evolution in Computational Intelligence; Springer: Singapore, 2021; pp. 679–689. [Google Scholar]
  55. Lahmar, C.; Idri, A. On the value of deep learning for diagnosing diabetic retinopathy. Health Technol. 2022, 12, 89–105. [Google Scholar] [CrossRef]
  56. Canayaz, M. Classification of diabetic retinopathy with feature selection over deep features using nature-inspired wrapper methods. Appl. Soft Comput. 2022, 128, 109462. [Google Scholar] [CrossRef]
  57. Escorcia-Gutierrez, J.; Cuello, J.; Barraza, C.; Gamarra, M.; Romero-Aroca, P.; Caicedo, E.; Valls, A.; Puig, D. Analysis of Pre-trained Convolutional Neural Network Models in Diabetic Retinopathy Detection through Retinal Fundus Images. In Proceedings of the 21st International Conference on Computer Information Systems and Industrial Management, Barranquilla, Colombia, 15–17 July 2022; Springer International Publishing: Cham, Switzerland; pp. 202–213. [Google Scholar]
  58. Lin, C.-L.; Wu, K.-C. Development of Revised ResNet-50 for Diabetic Retinopathy Detection. Res. Sq. 2023. [Google Scholar] [CrossRef]
  59. Salluri, D.K.; Sistla, V.; Kolli, V.K.K. HRUNET: Hybrid Residual U-Net for automatic severity prediction of Diabetic Retinopathy. Comput. Methods Biomech. Biomed. Eng. Imaging Vis. 2022, 1–12. [Google Scholar] [CrossRef]
  60. Yadav, S.; Awasthi, P. Diabetic retinopathy detection using deep learning and inception-v3 model. Int. Res. J. Mod. Eng. Technol. Sci. 2022, 4, 1731–1735. [Google Scholar]
Figure 1. The five phases of diabetic retinopathy, listed by severity.
Figure 1. The five phases of diabetic retinopathy, listed by severity.
Healthcare 11 00863 g001

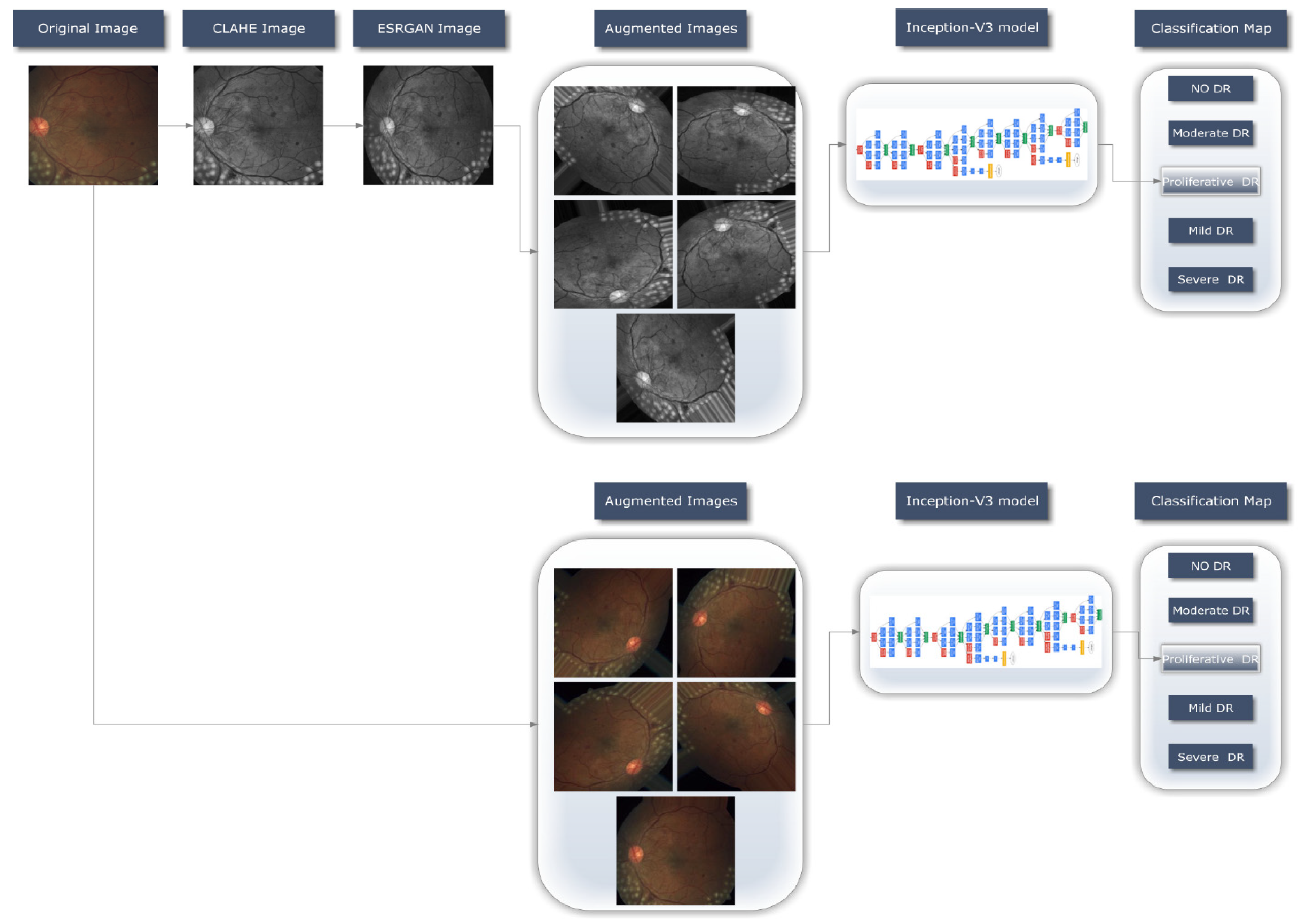

Figure 2. An illustration of the DR detecting system process.
Figure 2. An illustration of the DR detecting system process.
Healthcare 11 00863 g002

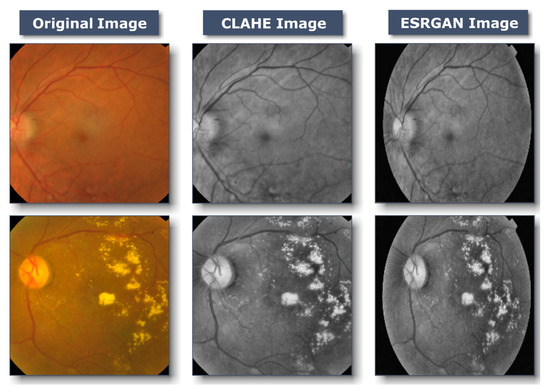

Figure 3. Samples of the proposed image-enhancement techniques: original, unedited image; then rendition of this same image with CLAHE; finally final enhanced image after applying ESRGAN.
Figure 3. Samples of the proposed image-enhancement techniques: original, unedited image; then rendition of this same image with CLAHE; finally final enhanced image after applying ESRGAN.
Healthcare 11 00863 g003

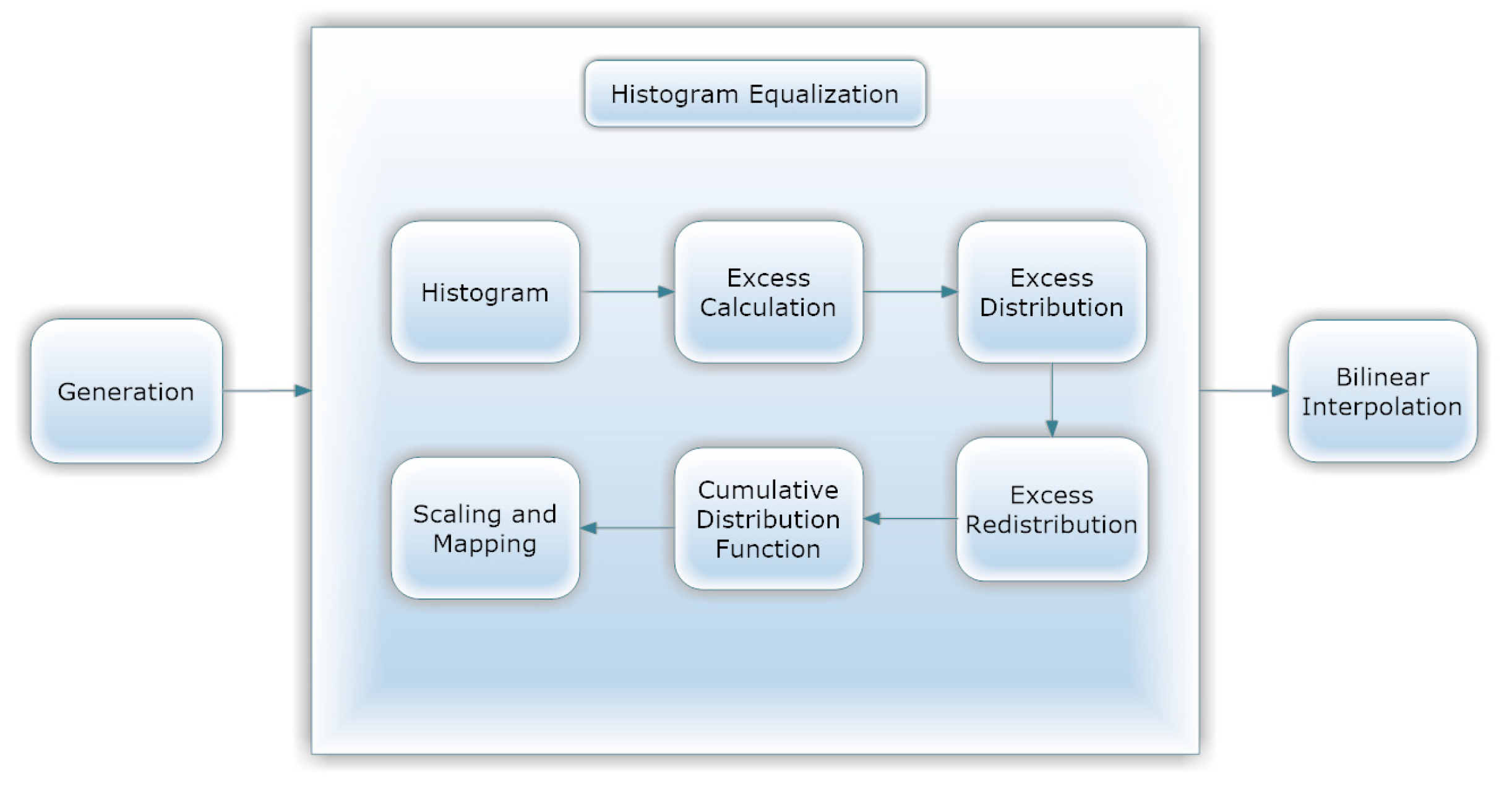

Figure 4. CLAHE architecture.
Figure 4. CLAHE architecture.
Healthcare 11 00863 g004

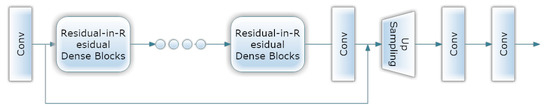

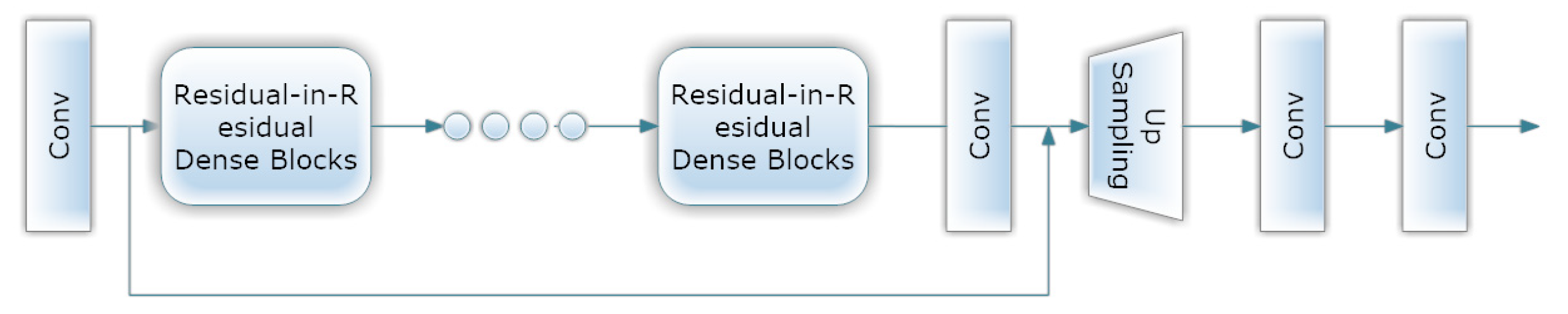

Figure 5. ESRGAN architecture.
Figure 5. ESRGAN architecture.
Healthcare 11 00863 g005

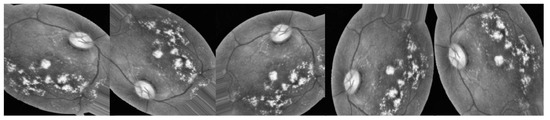

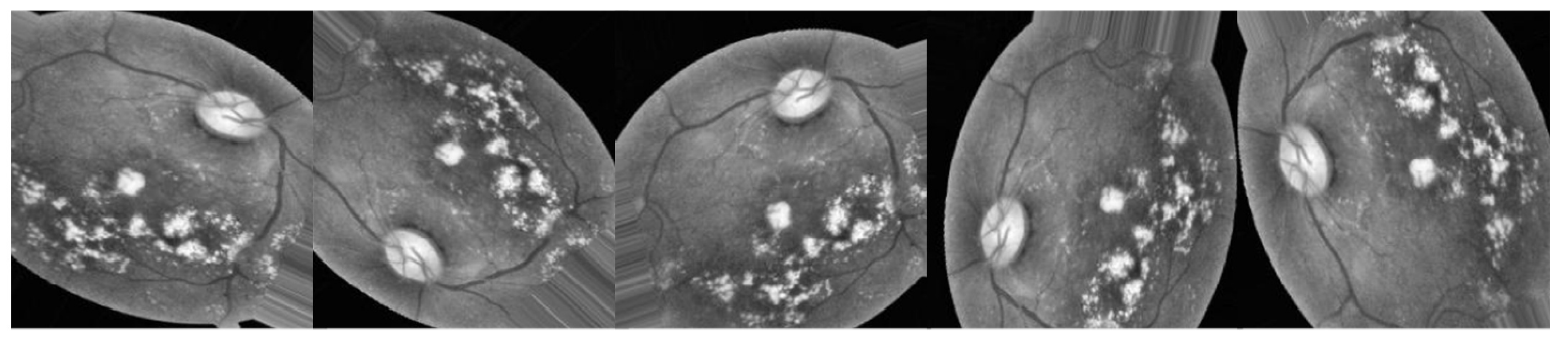

Figure 6. Illustrations of the same image, augmented with enhancement.
Figure 6. Illustrations of the same image, augmented with enhancement.
Healthcare 11 00863 g006

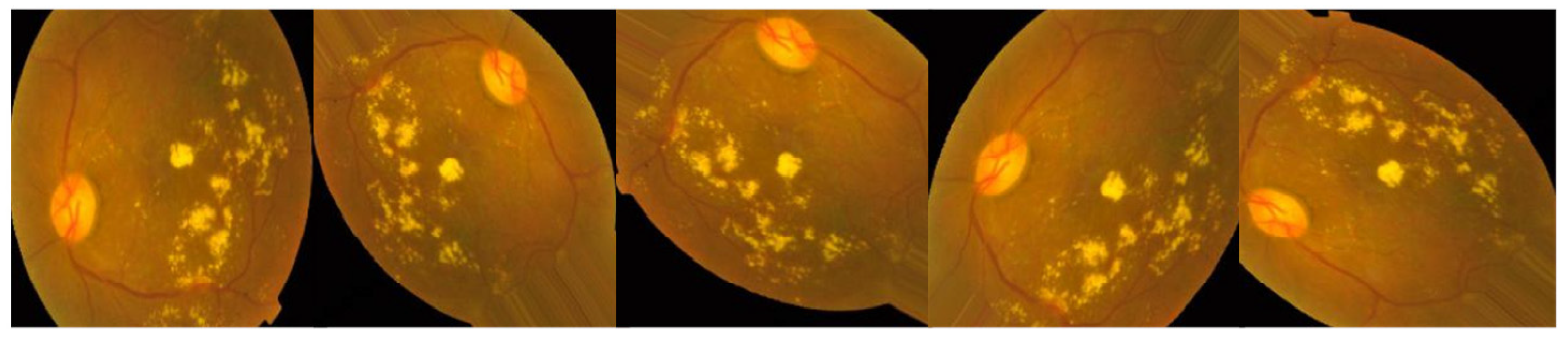

Figure 7. Illustrations of the same image augmented without enhancement.
Figure 7. Illustrations of the same image augmented without enhancement.
Healthcare 11 00863 g007

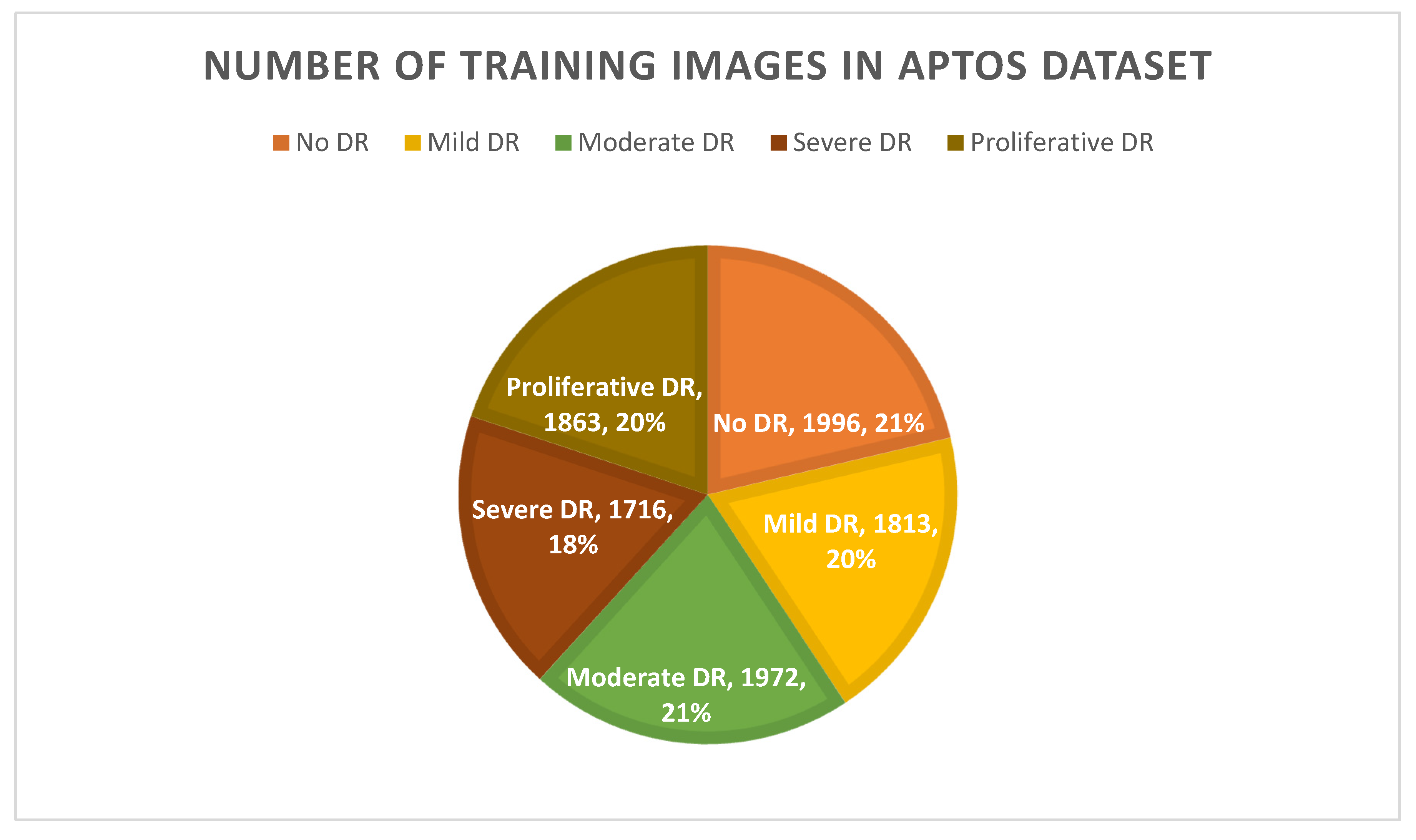

Figure 8. Number of training images after using augmentation techniques.
Figure 8. Number of training images after using augmentation techniques.
Healthcare 11 00863 g008

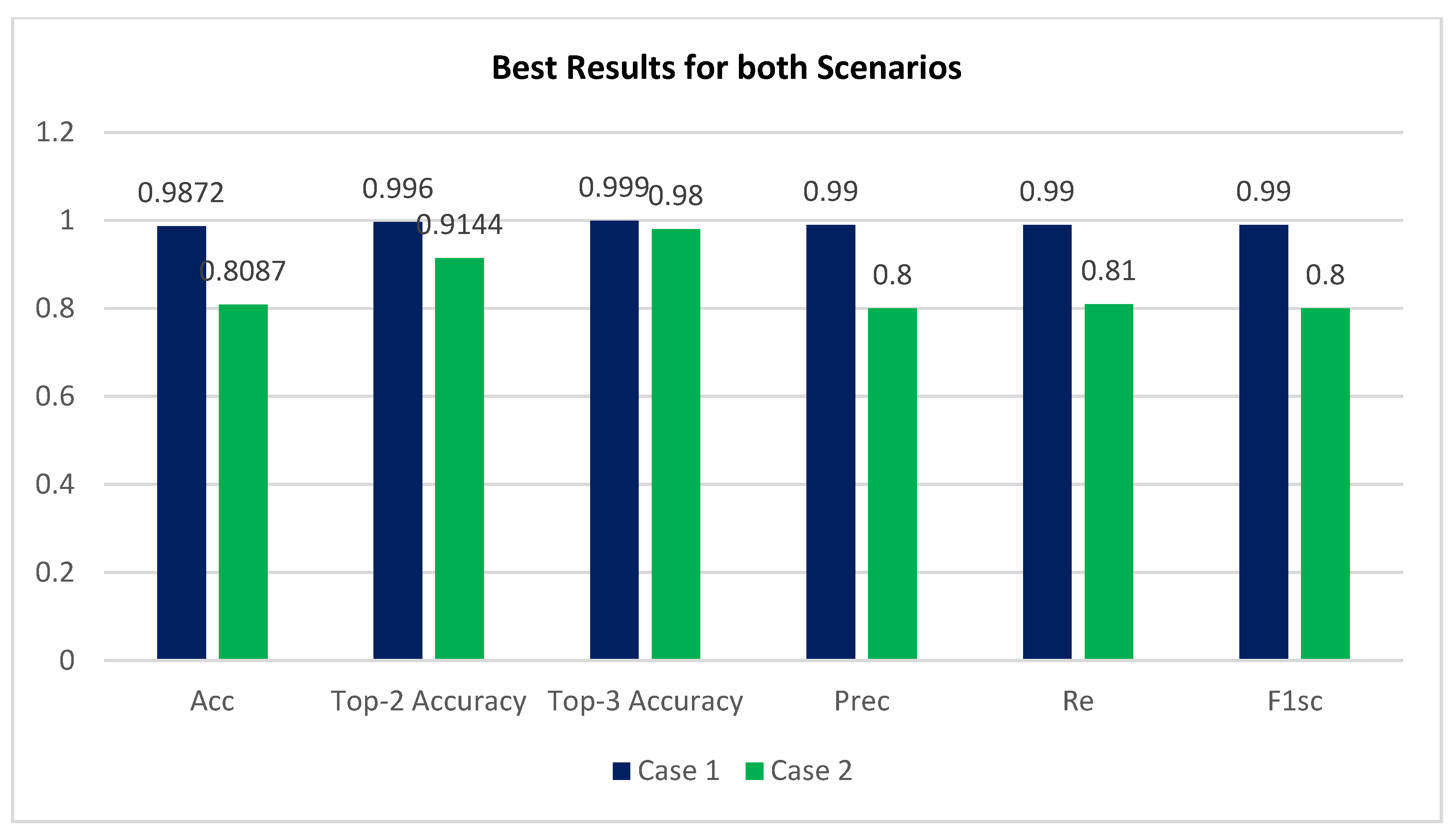

Figure 9. Best results for both scenarios.
Figure 9. Best results for both scenarios.
Healthcare 11 00863 g009

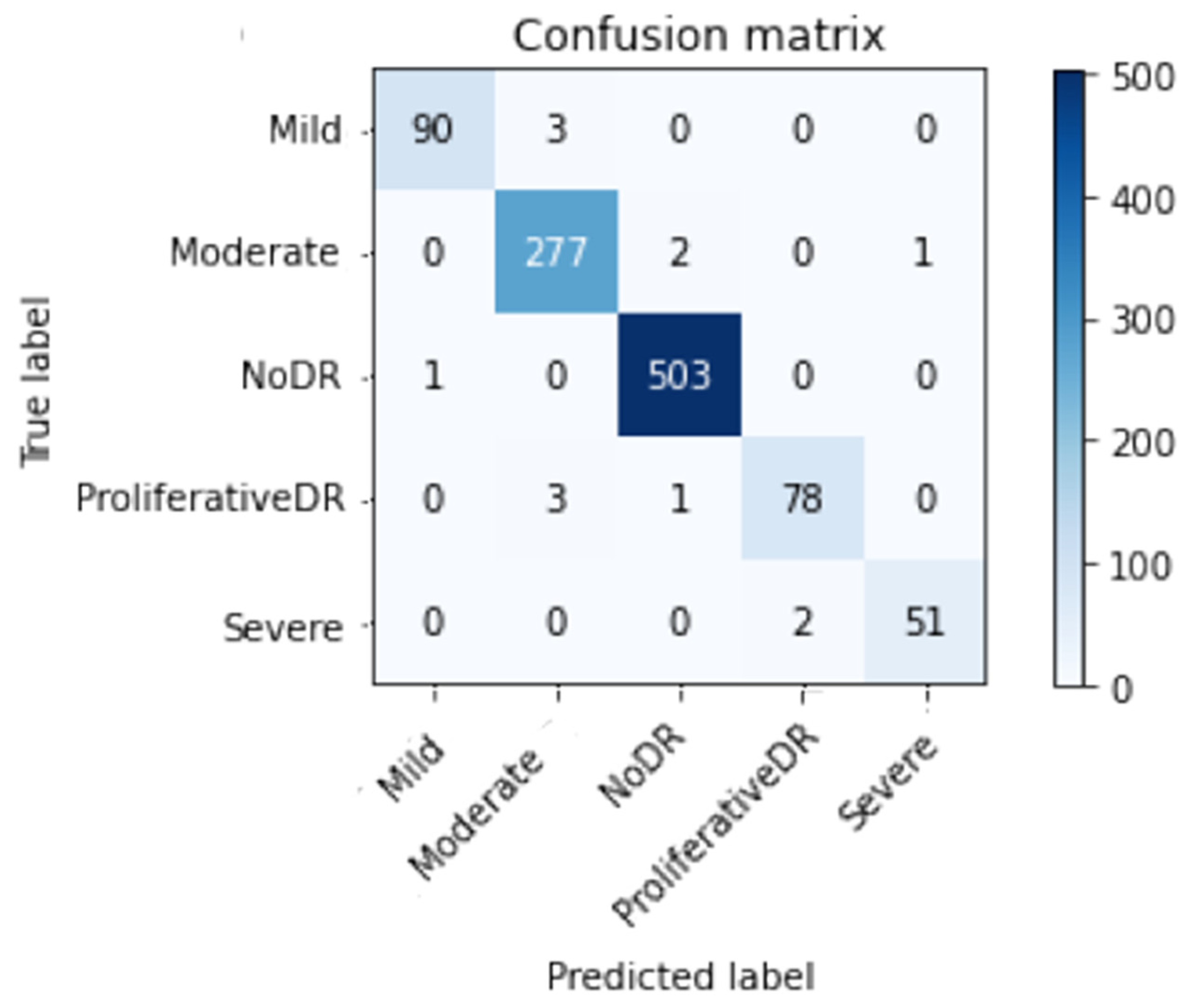

Figure 10. Best confusion matrix of Inception-V3 with enhancement (with CLAHE + ESRGAN).
Figure 10. Best confusion matrix of Inception-V3 with enhancement (with CLAHE + ESRGAN).
Healthcare 11 00863 g010

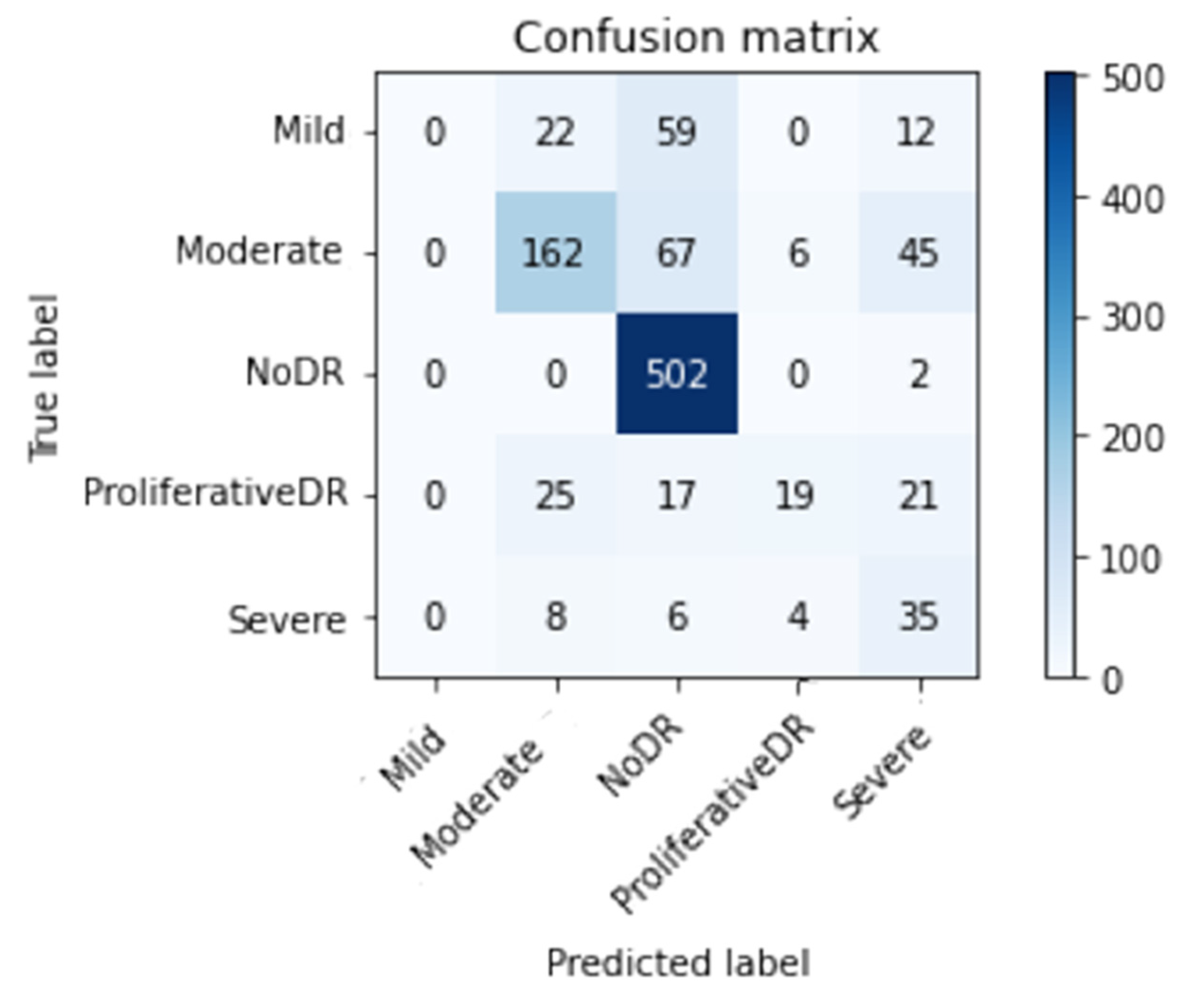

Figure 11. Best confusion matrix of Inception-V3 without enhancement (without CLAHE + ESRGAN).
Figure 11. Best confusion matrix of Inception-V3 without enhancement (without CLAHE + ESRGAN).
Healthcare 11 00863 g011
Table 1. A review of the literature comparing several DR diagnostic techniques.
Table 1. A review of the literature comparing several DR diagnostic techniques.
ReferenceYearTechniqueTotal Number of ImagesClassesDatasetAccuracyPrecisionRecallReceiver Operating Characteristic
[19]2021Multi-scale attention network (MSA-Net) 5APTOS84.6%90.5%91%-
[24]2022Local binary convolutional neural network (LBCNN) 2APTOS97.41%96.59%94.63%98.71%
[31]2022Support vector machine (SVM)Test: 19282APTOS94.5% 75.6%
Test: 103IDRiD93.3% 78.5%
[32]2022CNN 2APTOS95.3%
[33]2022Inception-ResNet-v2 5APTOS82.18%
[34]2021Squeeze Excitation Densely Connected
deep CNN
5APTOS 96%
EyePACS 93%
[35]2021VGG-16Test = 17285APTOS74.58%
[36]2022VGG16 13,6262APTOS73.26%99%99%
23553New Dataset94.06%94.74%94.45%
Table 2. Class-Wide Image Distribution.
Table 2. Class-Wide Image Distribution.
Class IndexDR Level# Images
0No DR1805
1Mild DR370
2Moderate DR999
3Severe DR193
4Proliferate DR295
# = number of images.
Table 3. Average and standard deviation accuracy with enhancement (CLAHE + ESRGAN).
Table 3. Average and standard deviation accuracy with enhancement (CLAHE + ESRGAN).
Batch SizeLearning RateAccuracyMeanStandard Deviation
Table 4. Average and standard deviation accuracy without enhancement (CLAHE + ESRGAN).
Table 4. Average and standard deviation accuracy without enhancement (CLAHE + ESRGAN).
FreezeBatch SizeLearning RateAccuracyMeanStandard Deviation
Table 5. Best accuracy with enhancement (CLAHE + ESRGAN).
Table 5. Best accuracy with enhancement (CLAHE + ESRGAN).
AccPrecReF1scTop-2 AccuracyTop-3 Accuracy
Table 6. Best accuracy without enhancement (CLAHE + ESRGAN).
Table 6. Best accuracy without enhancement (CLAHE + ESRGAN).
AccPrecReF1scTop-2 AccuracyTop-3 Accuracy
Table 7. Detailed results for each class using CLAHE + ESRGAN.
Table 7. Detailed results for each class using CLAHE + ESRGAN.
PrecReF1scTotal Images
Mild DR0.99 0.97 0.9893
Moderate DR0.98 0.99 0.98280
No DR0.99 1.00 1.00504
Proliferative DR0.97 0.95 0.9682
Severe DR0.98 0.96 0.9753
Average0.99 0.990.991012
Table 8. Detailed results for each class without using CLAHE + ESRGAN.
Table 8. Detailed results for each class without using CLAHE + ESRGAN.
PrecReF1scTotal Images
Mild DR0.58 0.62 0.6093
Moderate DR0.70 0.78 0.74280
No DR0.97 0.970.97504
Proliferative DR0.680.480.5682
Severe DR0.43 0.31 0.3653
Average0.80 0.81 0.801012
Table 9. Comparison of system performance to previous research using the APTOS Dataset.
Table 9. Comparison of system performance to previous research using the APTOS Dataset.
Reference TechniqueAccuracy
[36]VGG16 73.26%
[50]Vision Transformer, Bidirectional Encoder representation for image
Transformer, Class-Attention in Image Transformers, Data efficient image Transformers
[52]SVM classifier and MobileNet_V2 for feature extraction88.80%
[53]Densenet-121, Xception, Inception-v3, Resnet-5085.28%
[56]EfficientNet and DenseNet96.32%
[59]Hybrid Residual U-Net94%
Proposed MethodologyInception-V3 (without using CLAHE + ESRGAN) Case 280.87%
Inception-V3 (using CLAHE + ESRGAN) Case 198.7%
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Alwakid, G.; Gouda, W.; Humayun, M. Deep Learning-Based Prediction of Diabetic Retinopathy Using CLAHE and ESRGAN for Enhancement. Healthcare 2023, 11, 863.

AMA Style

Alwakid G, Gouda W, Humayun M. Deep Learning-Based Prediction of Diabetic Retinopathy Using CLAHE and ESRGAN for Enhancement. Healthcare. 2023; 11(6):863.

Chicago/Turabian Style

Alwakid, Ghadah, Walaa Gouda, and Mamoona Humayun. 2023. "Deep Learning-Based Prediction of Diabetic Retinopathy Using CLAHE and ESRGAN for Enhancement" Healthcare 11, no. 6: 863.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
