Double Solutions and Stability Analysis of Micropolar Hybrid Nanofluid with Thermal Radiation Impact on Unsteady Stagnation Point Flow

Abstract

The mathematical modeling of unsteady flow of micropolar Cu–Al₂O₃/water nanofluid driven by a deformable sheet in stagnation region with thermal radiation effect has been explored numerically. To achieve the system of nonlinear ordinary differential equations (ODEs), we have employed some appropriate transformations and solved it numerically using MATLAB software (built-in solver called bvp4c). Influences of relevant parameters on fluid flow and heat transfer characteristic are discussed and presented in graphs. The findings expose that double solutions appear in shrinking sheet case in which eventually contributes to the analysis of stability. The stability analysis therefore confirms that merely the first solution is a stable solution. Addition of nanometer-sized particle (Cu) has been found to significantly strengthen the heat transfer rate of micropolar nanofluid. When the copper nanoparticle volume fraction increased from 0 to 0.01 (1%) in micropolar nanofluid, the heat transfer rate increased roughly to an average of 17.725%. The result also revealed that an upsurge in the unsteady and radiation parameters have been noticed to enhance the local Nusselt number of micropolar hybrid nanofluid. Meanwhile, the occurrence of material parameter conclusively decreases it.

1. Introduction

For a number of years, the studies of micropolar fluid flow have captivated the attention of numerous scientists in understanding the fluid behavior especially in the study of rheological complex fluids, as, for example, the colloidal fluids, polymeric suspension, liquid crystals, animal blood, etc. [1]. In sight of these important applications, Eringen [2,3] was the first who originated the microfluid theory in his papers of simple microfluids and theory of micropolar fluids. This kind of fluids demonstrate the micro-rotational effect and micro-rotational inertia. Afterwards, this theory was then extended by Eringen [4] by taking into account the thermal effect and thus established the thermomicropolar fluids theory. Implementing the idea of Eringen, the micropolar fluid flow using a boundary layer approximation has been derived by many researchers in various problems such as in stagnation region [5], semi-infinite plate [6], cylinder [7], and rotating surface [8]. After some years, Nazar et al. [9] initiated the theoretical study of micropolar fluid flow when the sheet is stretch in the stagnation region, and soon after, Ishak et al. [10] and Yacob and Ishak [11] analyzed the same fluid induced by a shrinking sheet and observed the existence of nonunique solutions. Afterwards, Sandeep and Sulochana [12] undertook a numerical research of unsteady magnetohydrodynamic (MHD) micropolar fluid in both permeable shrinking and stretching sheet. The heat transfer characteristic of micropolar fluid flow driven by a shrinking sheet was discussed by Mishra et al. [13]. Soon after, Lund et al. [14] noticed the existence of triple solutions at specific values of suction parameter in micropolar fluid when the sheet is shrunk exponentially and conducted the stability analysis. Further, a number of attempts toward this path have been made in the investigations of [15,16,17].

The inclusion of nanoparticles in a conventional fluid can literally change the flow and heat transfer capabilities, thereby can boost the thermal conductivity of the conventional fluid. It seems that Choi and Eastman [18] was the earlier person who conceived the idea of nanofluid, i.e., nanoparticle suspended in base fluid. Since then, nanofluids have been widely used in industrial cooling application [19], biomedical technology [20], solar thermal application [21], and many more. Numerous researchers, such as Gangadhar et al. [22], Chaudhary and Kanika [23], Naqvi et al. [24] and Anuar et al. [25,26], have scrutinized the concept of nanofluid flow and its heat transfer in their work. However, less studies are observed in micropolar nanofluid. The investigation of micropolar nanofluid driven by a stretching sheet was explored numerically by Hussain et al. [27]. Afterwards, Bourantas and Loukopoulos [28] and Noor et al. [29] scrutinized the micropolar nanofluid flow in an inclined square and vertical plate, respectively. The numerical investigation of micropolar nanofluid driven by a shrinking and stretching sheet have been made by Gangadhar et al. [30] and they pointed out that double solutions exist in certain range of parameters. Meanwhile, Dero et al. [31] point out the existence of triple solutions in their research involving micropolar nanofluid when the sheet is stretch/shrunk exponentially. The studies of micropolar nanofluid in an inclined stretching/shrinking have been scrutinized by Lund et al. [32] with consideration of convective boundary conditions. They also observed the occurrence of nonunique solutions in their work and performed the stability analysis. Recently, Abdal et al. [33], Amjad et al. [34], Rafique et al. [35] and many others have explored the micropolar nanofluid flow problem in different surfaces and aspects.

Nevertheless, a new modern kind of nanofluid which can efficiently improve the heat transfer are later being introduced in the industry are recognized as hybrid nanofluid, i.e., mixture of two types of nanoparticle dispersed into a base fluid. This new kind of fluid, however, shows a great advance in heat conductivity and it proved by the work of Madhesh and Kalaiselvam [36], Tahat and Benim [37], Devi and Devi [38], etc. Following this, mathematical investigation specifically in boundary layer flow in hybrid nanofluid has attracted a few researchers to explore it in various surfaces such as in stretching/shrinking sheet [39], curved surface [40], thin needle [41], Riga plate [42], etc. By opting the novel idea of hybrid nanofluid, Subhani and Nadeem [43] scrutinized the behavior of hybrid nanofluid (Cu-TiO₂/water) in micropolar fluid in a porous medium past an exponentially stretching sheet and point out that the heat transfer rate for micropolar hybrid nanofluid is greater than micropolar nanofluid. Afterwards, by taking into attention the simultaneous effects of MHD and slip, Nadeem and Abbas [44] examined the micropolar hybrid nanofluid flow past a circular cylinder. In another study of Abbas et al. [45] and Al-Hanaya [46], a theoretical investigation of micropolar hybrid nanofluid using carbon nanotubes (SWCNT and MWCNT) as a nanoparticle over an exponentially stretching Riga plate and curved stretching sheet have been investigated. Apparently, the research related to micropolar hybrid nanofluids are limited in number. Hence, the principal goal of this investigation is to address the behavior of micropolar hybrid nanofluid in a deformable sheet, i.e., stretching and shrinking. It is important to note that deformable sheet is not a new crucial topic among the researchers in the fluid field since their applications are well recognized in processing industries especially in polymer processing, glass fiber production, cooling, and drying of paper and many others [47].

The impact of thermal radiation is also discussed in this paper, where this effect is crucial in solar power technology, electrical power generation, astrophysical flows, and other industrial fields. In the scenario of high-temperature flow processes, thermal radiation effects are also extremely important [48]. There is a lot of comprehensive literature now available that concerns with the thermal radiation effect on the flow of the boundary layer. For instance, Sajid and Hayat [49] have been analyzing the thermal radiation effect on the viscous flow as the sheet is stretch exponentially and realized that the thermal boundary layer thickness thickens as the radiation parameter increase. Afterwards, Nadeem et al. [50] extend the investigations of [49] by considering it in Jeffrey fluid. The numerical investigation of micropolar nanofluid over the stretching sheet with the effect of thermal radiation, MHD, and heat source/sink have been examined by Pal and Mandal [51]. Again, Gireesha et al. [52] addresses the Jeffrey nanofluids problem driven by a nonlinearly permeable stretching sheet under the effect of radiation and magnetohydrodynamic. In a recent study, Yashkun et al. [53] noticed the occurrence of dual solutions in their work of MHD hybrid nanofluid past a deformable sheet with thermal radiation effect. Hence, motivated by the aforementioned work, our aim here is to scrutinize the influence of thermal radiation towards the heat transfer of micropolar hybrid nanofluid.

In brief, this research paper is an extended work of Nazar et al. [9] to the case of unsteady two-dimensional hybrid nanofluid in shrinking sheet and take into attention the effect of thermal radiation. Given the above-mentioned study, the utilization of hybrid nanofluid (Cu and Al₂O₃) as the new heat transfer fluid for the micropolar flow problem with the thermal radiation effect, has not been performed up to now. In addition, this analysis also comprises a novel era for scientists to discover the shrinking features of micropolar hybrid nanofluids. Furthermore, the novelty of this study can also be seen in the discovery of non-unique solutions and the execution of stability analysis. To the best of authors’ knowledge, the results of the present work is new and still not considered and published by any researchers. Therefore, current studies are expected to bring good benefits to researchers who are experimentally working on micropolar hybrid nanofluids, and these results are also expected to reduce the cost of experimental work in the future.

2. Mathematical Framework

2.1. Basic Equations

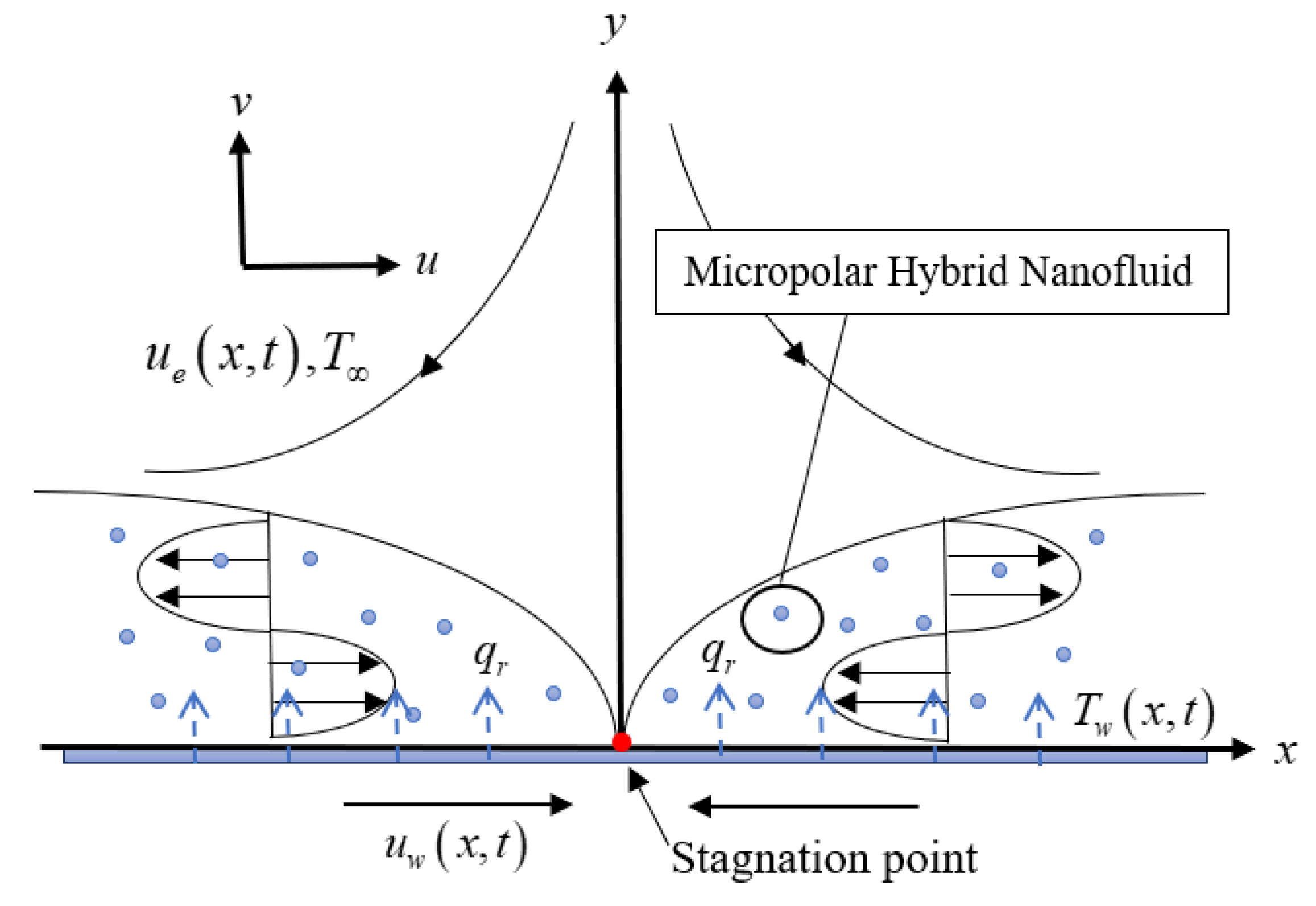

The unsteady two-dimensional flow of micropolar Cu–Al₂O₃/water nanofluid past a deformable sheet in the stagnation region with the influence of thermal radiation impact are investigated in this work as exemplified in Figure 1. The Cartesian coordinates used are $x$ and $y$, given that $x-$axis is considered along the sheet while $y-$axis normal to it, respectively, the sheet is located in the plane $y=0$ and the fluid fill the half space at $y\ge 0$. The temperature far from the surface (inviscid flow) and at the surface are represented by $T_{\infty }$ and $T_w\left(x,t\right)$. The sheet is stretch and shrunk along the $x-$axis with velocity $u_w\left(x,t\right)$ and the free stream velocity is denoted by $u_e\left(x,t\right)$.

From all of the above circumstance, the partial differential equations which govern the flow are stated as (see Nazar et al. [9], Bhattacharyya et al. [54], Roy et al. [55]):

$$\frac{\partial u}{\partial x}+\frac{\partial v}{\partial y}=0$$

(1)

$$\frac{\partial u}{\partial t}+u\frac{\partial u}{\partial x}+v\frac{\partial u}{\partial y}=\frac{\partial u_e}{\partial t}+u_e\frac{\partial u_e}{\partial x}+\frac{{\mu }_{hnf}+\kappa }{{\rho }_{hnf}}\frac{{\partial }^{2}u}{\partial y^2}+\frac{\kappa }{{\rho }_{hnf}}\frac{\partial N}{\partial y}$$

(2)

$$\frac{\partial N}{\partial t}+u\frac{\partial N}{\partial x}+v\frac{\partial N}{\partial y}=\frac{\varsigma }{{\rho }_{hnf}j}\frac{{\partial }^{2}N}{\partial y^2}-\frac{\kappa }{{\rho }_{hnf}j}\left(2N+\frac{\partial u}{\partial y}\right)$$

(3)

$$\frac{\partial T}{\partial t}+u\frac{\partial T}{\partial x}+v\frac{\partial T}{\partial y}=\frac{k_{hnf}}{{\left(\rho C_p\right)}_{hnf}}\frac{{\partial }^{2}T}{\partial y^2}-\frac{1}{{\left(\rho C_p\right)}_{hnf}}\frac{\partial q_r}{\partial y}$$

(4)

Here, the velocity component in the $x$ direction is denoted as $u$ whereas $v$ is the velocity component along $y$ axis, t and $T$ are time and temperature, $N$ refers to the angular velocity (microrotation) in the $x y-$plane, $q_r$ signifies the radiative heat flux, $\kappa$ is the vortex viscosity and $j$ is the micro inertial density. In addition, $\varsigma$ is the spin gradient viscosity given by (Ahmadi [6])

$$\varsigma =\left({\mu }_f+\frac{\kappa }{2}\right)j$$

(5)

where $j={\nu }_f/u_e$ is specified as the reference length. Further, $k_{hnf},\hspace{0.17em}{\rho }_{hnf},\hspace{0.17em}{\mu }_{hnf}$ and ${\left(\rho C_p\right)}_{hnf}$ are the thermal conductivity, density, dynamic viscosity, and heat capacity of Cu–Al₂O₃/water.

The accompanying conditions are

$$\begin{array}{c}u=u_w\left(x,t\right),\hspace{1em}v=0,\hspace{1em}N=-n\frac{\partial u}{\partial y},\hspace{1em}T=T_w\left(x,t\right)\hspace{1em}\mathrm{as}\hspace{1em}y=0\\ u\to u_e\left(x,t\right),\hspace{1em}N\to 0,\hspace{1em}T\to T_{\infty }\hspace{1em}\mathrm{as}\hspace{1em}y\to \infty \end{array}$$

(6)

where $n$ is the constant in the range of $\left[0, 1\right]$. It is worthwhile to note that for $n=0$ which implies that $N=0$ near the wall, exemplifies the microelements near the wall surface are incapable to rotate, i.e., concentrated particle flows (Jena and Mathur [56]) or also denoted as strong concentration of microelements (Guram and Smith [57]). However, for the case $n=0.5$ which refer to a weak concentration of microelements, the disappearing of anti-symmetric part of the stress tensor is noted (Ahmadi [6]). Further, the case $n=1$ is utilized for the modelling of turbulent boundary layer flows (Peddieson [58]). While the velocity of deformable sheet, free stream and temperature at the surface are referred from the work of Zainal et al. [59] which given as

$$u_w\left(x,t\right)=\frac{cx}{1-bt},\hspace{1em}{u}_e\left(x,t\right)=\frac{ax}{1-bt},\hspace{1em}{T}_w\left(x,t\right)=T_{\infty }+\frac{T_{0}a{x}^2}{2{\nu }_f{\left(1-bt\right)}^{3/2}}$$

(7)

here, $a\left(>0\right)$ and $c\left(>0\right)$ are constants, $b$ measures the unsteadiness of the problem and $T_0>0$ is the reference temperature.

Using the Rosseland’s approximation (Brewster [60]), the $q_r$ term can be expressed clearly as below

$$q_r=-\frac{4\hspace{0.17em}{\sigma }^{*}}{3\hspace{0.17em}{k}^{*}}\frac{\partial T^4}{\partial y}$$

(8)

where ${\sigma }^{*}$ and $k^{*}$ signify the constant of Stefan–Boltzmann and mean absorption’s coefficient. Implementing the Taylor series and ignored the higher-order terms, $T^4$ is expanded about $T_{\infty };$ hence, we have $T^4\approx 4T_{\infty }^{3}T-3T_{\infty }^4$. Subsequently, Equation (4) become

$$\frac{\partial T}{\partial t}+u\frac{\partial T}{\partial x}+v\frac{\partial T}{\partial y}=\frac{k_{hnf}}{{\left(\rho C_p\right)}_{hnf}}\frac{{\partial }^{2}T}{\partial y^2}+\frac{16\hspace{0.17em}{\sigma }^{*}{T}_{\infty }^3}{3\hspace{0.17em}{k}^{*}{\left(\rho C_p\right)}_{hnf}}\frac{{\partial }^{2}T}{\partial y^2}$$

(9)

2.2. Thermophysical Traits of Hybrid Nanofluid

The physical traits of hybrid nanofluids are prescribed in

Table 1. Physical traits of hybrid nanofluids (Devi and Devi [38]).

Properties	Hybrid Nanofluid
Density	${\rho }_{hnf}=\left(1-{\phi }_2\right)\left[\left(1-{\phi }_1\right){\rho }_f+{\phi }_1{\rho }_{s1}\right]+{\phi }_2{\rho }_{s2}$
Heat capacity	${\left(\rho C_p\right)}_{hnf}={\phi }_2{\left(\rho C_p\right)}_{s2}+\left(1-{\phi }_2\right)\left[\left(1-{\phi }_1\right){\left(\rho C_p\right)}_f+{\phi }_1{\left(\rho C_p\right)}_{s1}\right]$
Dynamic viscosity	${\mu }_{hnf}=\frac{{\mu }_f}{{\left(1-{\phi }_1\right)}^{2.5}{\left(1-{\phi }_2\right)}^{2.5}}$
Thermal conductivity	$\frac{k_{hnf}}{k_{bf}}=\frac{k_{s2}+2k_{bf}-2{\phi }_2\left(k_{bf}-k_{s2}\right)}{k_{s2}+2k_{bf}+{\phi }_2\left(k_{bf}-k_{s2}\right)}$ where $\frac{k_{bf}}{k_f}=\frac{k_{s1}+2k_f-2{\phi }_1\left(k_f-k_{s1}\right)}{k_{s1}+2k_f+{\phi }_1\left(k_f-k_{s1}\right)}$

. In Table 1, the subscript $hnf,\hspace{0.17em}nf,\hspace{0.17em}f$ and $s$ signify the hybrid nanofluid, nanofluid, fluid and nanoparticle, whereas $s1$ and $s2$ symbolize the first nanoparticle and second nanoparticle, respectively. Furthermore, ${\phi }_1$ represents the first nanoparticle volume fraction while ${\phi }_2$ denotes the second nanoparticle volume fraction. In this investigation, copper (Cu) is picked as the second nanoparticle volume fraction, alumina (Al₂O₃) is picked as the first nanoparticle volume fraction and water act as a base fluid.

Table 2. Thermo physical properties (Oztop and Abu-Nada [61]).

	Physical Properties
	${\mathit{C}}_{\mathit{p}}\left(\mathbf{J}\hspace{0.17em}{\mathbf{kg}}^{-1}{\mathbf{K}}^{-1}\right)$	$\mathbf{\rho }\left(\mathbf{kg}\hspace{0.17em}{\mathbf{m}}^{-3}\right)$	$\mathbf{k}\left(\mathbf{W}\hspace{0.17em}{\mathbf{m}}^{-1}{\mathbf{K}}^{-1}\right)$
water	4179	997.1	0.613
Cu	385	8933	400
Al2O3	765	3970	40

displays the thermophysical traits of nanoparticles and base fluid. It is important to note that Al₂O₃ is originally disseminated into the water to achieve the appropriated hybrid nanofluid, i.e., Cu-Al₂O₃/water, and then Cu is disseminated into the Al₂O₃/water nanofluid. Additionally, the volume fraction of Al₂O₃ nanoparticle is set to 1% and Cu is fluctuated from 0 to 2%.

2.3. Similarity Solutions

In this work, the subsequent similarity transformation is introduced (Roy et al. [55])

$$\eta ={\left(\frac{a}{{\nu }_f\left(1-bt\right)}\right)}^{1/2}y,\hspace{1em}\psi ={\left(\frac{a{\nu }_f}{1-bt}\right)}^{1/2}x\hspace{0.17em}f\left(\eta \right),\hspace{1em}N={\left(\frac{a}{{\nu }_f\left(1-bt\right)}\right)}^{1/2}\frac{a}{\left(1-bt\right)}x\hspace{0.17em}h\left(\eta \right),\hspace{1em}\theta \left(\eta \right)=\frac{T-T_{\infty }}{T_w-T_{\infty }}$$

(10)

where ${\nu }_f$ and $\eta$ are the fluid kinematic viscosity and similarity variable, while $f,\hspace{0.17em}h$ and $\theta$ are the dimensionless function. Further, primes signify the differentiation with respect to $\eta$, while the stream function $\psi$ is specified as $v=-\partial \psi /\partial x$ and $u=\partial \psi /\partial y$.

Invoking the similarity variables (10), Equation (1) is identically fulfilled and Equations (2), (3) and (9) are reduced into the following similarity equations

$$\frac{{\mu }_{hnf}/{\mu }_f}{{\rho }_{hnf}/{\rho }_f}\left(1+K\right)f^{‴}-{f^{\prime }}^2+f\hspace{0.17em}{f}^{″}+1-A\left(f^{\prime }-1+\frac{1}{2}\eta f^{″}\right)+\frac{K}{{\rho }_{hnf}/{\rho }_f}{h}^{\prime }=0$$

(11)

$$\frac{1}{{\rho }_{hnf}/{\rho }_f}\left(\frac{{\mu }_{hnf}}{{\mu }_f}+\frac{K}{2}\right)h^{″}+f h^{\prime }-f^{\prime } h-\frac{A}{2}\left(3h+\eta h^{\prime }\right)-\frac{K}{{\rho }_{hnf}/{\rho }_f}\left(2h+f^{″}\right)=0$$

(12)

$$\frac{1}{\mathrm{Pr}{\left(\rho C_p\right)}_{hnf}/{\left(\rho C_p\right)}_f}\left(\frac{k_{hnf}}{k_f}+\frac{4}{3}Rd\right){\theta }^{″}+f{\theta }^{\prime }-2f^{\prime }\theta -\frac{A}{2}\left(3\theta +\eta {\theta }^{\prime }\right)=0$$

(13)

Here, the material parameter, unsteady parameter, Prandtl number and radiation parameter which denoted by $K,\hspace{0.17em}A,\hspace{0.17em}\mathrm{Pr}$ and $Rd$ are defined by

$$K=\frac{\kappa }{{\mu }_f},\hspace{1em}A=\frac{b}{a},\hspace{1em}\mathrm{Pr}=\frac{{\nu }_f}{{\alpha }_f},\hspace{1em}Rd=\frac{4{\sigma }^{*}{T}_{\infty }^3}{k_f{k}^{*}},$$

(14)

The conditions (6) become

$$\begin{array}{c}{f}^{\prime }\left(0\right)=c/a=\lambda ,f\left(0\right)=0,h\left(0\right)=-n{f}^{″}\left(0\right),\theta \left(0\right)=1,\\ f^{\prime }\left(\eta \right)\to 1,h\left(\eta \right)\to 0,\theta \left(\eta \right)\to 0\mathrm{as}\eta \to \infty \end{array}$$

(15)

where the stretching/shrinking parameter is denoted by $\lambda$ with $\lambda >0$ signifies the sheet is stretch, $\lambda =0$ refers to static plate and $\lambda <0$ denotes the sheet is shrunk.

In this investigation, the physical quantities of interest are specified as

$$C_f=\frac{1}{{\rho }_f{u}_e^2}{\left[\left({\mu }_{hnf}+\kappa \right)\left(\frac{\partial u}{\partial y}\right)+\kappa N\right]}_{y=0},\hspace{1em}N{u}_x=\frac{x}{k_f\left(T_w-T_{\infty }\right)}\left[-k_{hnf}{\left(\frac{\partial T}{\partial y}\right)}_{y=0}+{q_r|}_{y=0}\right]$$

(16)

here, $C_f$ is the skin friction coefficient and $N{u}_x$ is the Nusselt number. Using variables (10) and (16), the following local skin friction coefficient and local Nusselt number (heat transfer rate) are achieved

$$C_f{\mathrm{Re}}_x^{1/2}=\left(\frac{{\mu }_{hnf}}{{\mu }_f}+K\right)f^{″}\left(0\right)+K h\left(0\right),\hspace{1em}N{u}_x{\mathrm{Re}}_x^{-1/2}=-\left(\frac{k_{hnf}}{k_f}+\frac{4}{3}Rd\right){\theta }^{\prime }(0)$$

(17)

where ${\mathrm{Re}}_x=u_{e}x/{\nu }_f$ is the local Reynolds number.

3. Stability of the Solutions

Due to the occurrence of non-uniqueness in the present research, the stability analysis is executed by referring to the work of Merkin [62], Weidman et al. [63], and Harris et al. [64]. These analyses have been implemented by other researchers too (see for example the work of [14,15,16,25,26,32,39,59]). Some important steps are implemented to identify the stability of solutions, i.e., (i) introducing a new dimensionless time variables and similarity variables, (ii) implement the linear eigenvalue equations, and (iii) relax the boundary conditions.

3.1. New Similarity Transformation

A new dimensionless time variable $\tau$ need to be introduced as follows (Zainal et al. [59])

$$\tau =\frac{a}{1-bt}t$$

(18)

while the similarity variables (10) are replaced by

$$\eta ={\left(\frac{a}{{\nu }_f\left(1-bt\right)}\right)}^{1/2}y,\hspace{0.17em}\psi ={\left(\frac{a{\nu }_f}{1-bt}\right)}^{1/2}x\hspace{0.17em}f\left(\eta ,\tau \right),\hspace{0.17em}N={\left(\frac{a}{{\nu }_f\left(1-bt\right)}\right)}^{1/2}\frac{a}{\left(1-bt\right)}x\hspace{0.17em}h\left(\eta ,\tau \right),\hspace{1em}\theta \left(\eta ,\tau \right)=\frac{T-T_{\infty }}{T_w-T_{\infty }}$$

(19)

By applying Equations (18) and (19) in Equations (1)–(3) and (9), the new transformed differential equations are attained

$$\frac{{\mu }_{hnf}/{\mu }_f}{{\rho }_{hnf}/{\rho }_f}\left(1+K\right)\frac{{\partial }^{3}f}{\partial {\eta }^3}+f\frac{{\partial }^{2}f}{\partial {\eta }^2}-{\left(\frac{\partial f}{\partial \eta }\right)}^2+1-A\left(\frac{\partial f}{\partial \eta }+\frac{1}{2}\eta \frac{{\partial }^{2}f}{\partial {\eta }^2}-1\right)+\frac{K}{{\rho }_{hnf}/{\rho }_f}\frac{\partial h}{\partial \eta }-\left(A\tau +1\right)\frac{{\partial }^{2}f}{\partial \eta \partial \tau }=0$$

(20)

$$\frac{1}{{\rho }_{hnf}/{\rho }_f}\left(\frac{{\mu }_{hnf}}{{\mu }_f}+\frac{K}{2}\right)\frac{{\partial }^{2}h}{\partial {\eta }^2}+f\frac{\partial h}{\partial \eta }-\frac{\partial f}{\partial \eta }h-\frac{A}{2}\left(3h+\eta \frac{\partial h}{\partial \eta }\right)-\frac{K}{{\rho }_{hnf}/{\rho }_f}\left(2h+\frac{{\partial }^{2}f}{\partial {\eta }^2}\right)-\left(A\tau +1\right)\frac{\partial h}{\partial \tau }=0$$

(21)

$$\frac{1}{\mathrm{Pr}{\left(\rho C_p\right)}_{hnf}/{\left(\rho C_p\right)}_f}\left(\frac{k_{hnf}}{k_f}+\frac{4}{3}Rd\right)\frac{{\partial }^2\theta }{\partial {\eta }^2}+f\frac{\partial \theta }{\partial \eta }-2\frac{\partial f}{\partial \eta }\theta -\frac{A}{2}\left(3\theta +\eta \frac{\partial \theta }{\partial \eta }\right)-\left(A\tau +1\right)\frac{\partial \theta }{\partial \tau }=0$$

(22)

and the conditions become

$$\begin{array}{c}f\left(0,\tau \right)=0,\hspace{1em}\frac{\partial f}{\partial \eta }\left(0,\tau \right)=\lambda ,\hspace{1em}h\left(0,\tau \right)=-n \frac{{\partial }^{2}f}{\partial {\eta }^2}\left(0,\tau \right),\hspace{1em}\theta \left(0,\tau \right)=1,\\ \frac{\partial f}{\partial \eta }\left(\eta ,\tau \right)\to 1,\hspace{1em}h\left(\eta ,\tau \right)\to 0,\hspace{1em}\theta \left(\eta ,\tau \right)\to 0\hspace{1em}\mathrm{as}\hspace{1em}\eta \to \infty \end{array}$$

(23)

3.2. Introducing Linear Eigenvalue Equations

The stability of the steady flow solutions can be explored by setting $f\left(\eta \right)=f_0\left(\eta \right)$, $h\left(\eta \right)=h_0\left(\eta \right)$ and $\theta \left(\eta \right)={\theta }_0\left(\eta \right)$, where it satisfied the boundary value problems (11)–(13) and (15). Thus, the following equations are introduced (Weidman et al. [63]):

$$f\left(\eta ,\tau \right)=f_0\left(\eta \right)+e^{-\gamma \tau }F\left(\eta ,\tau \right),\hspace{1em}h\left(\eta ,\tau \right)=h_0\left(\eta \right)+e^{-\gamma \tau }H\left(\eta ,\tau \right),\hspace{1em}\theta \left(\eta ,\tau \right)={\theta }_0\left(\eta \right)+e^{-\gamma \tau }G\left(\eta ,\tau \right),$$

(24)

where $F\left(\eta ,\tau \right),\hspace{0.17em}H\left(\eta ,\tau \right),\hspace{0.17em}G\left(\eta ,\tau \right)$ and their derivatives are small then $f_0\left(\eta \right),$ $h_0\left(\eta \right)$ and ${\theta }_0\left(\eta \right)$. In addition, $\gamma$ is the unknown eigenvalue which will be used to specify the stability of the solutions. Substitute Equation (24) into (20)–(22) and let $\tau \to 0$, in which $F\left(\eta \right)=F_0\left(\eta \right)$, $H\left(\eta \right)=H_0\left(\eta \right)$ and $G\left(\eta \right)=G_0\left(\eta \right)$, thereby the linearized eigenvalue equations relevant to the problem are

$$\frac{{\mu }_{hnf}/{\mu }_f}{{\rho }_{hnf}/{\rho }_f}\left(1+K\right)F_0{}^{\prime \prime \prime }+\left(f_0+\frac{A}{2}\eta \right)F_0{}^{\prime \prime }+F_0{f}_0{}^{\prime \prime }-\left(2f_0{}^{\prime }+A-\gamma \right)F_0{}^{\prime }+\frac{K}{{\rho }_{hnf}/{\rho }_f}{H}_0{}^{\prime }=0$$

(25)

$$\frac{1}{{\rho }_{hnf}/{\rho }_f}\left(\frac{{\mu }_{hnf}}{{\mu }_f}+\frac{K}{2}\right)H_0{}^{\prime \prime }+\left(f_0-\frac{A}{2}\eta \right)H_0{}^{\prime }+F_0{h}_0{}^{\prime }-F_0{}^{\prime }{h}_0-\left(f_0{}^{\prime }+\frac{3}{2}A-\gamma \right)H_0-\frac{K}{{\rho }_{hnf}/{\rho }_f}\left(2H_0+F_0{}^{\prime \prime }\right)=0$$

(26)

$$\frac{1}{\mathrm{Pr}{\left(\rho C_p\right)}_{hnf}/{\left(\rho C_p\right)}_f}\left(\frac{k_{hnf}}{k_f}+\frac{4}{3}Rd\right)G_0{}^{\prime \prime }+\left(f_0-\frac{A}{2}\eta \right)G_0{}^{\prime }+F_0{\theta }_0{}^{\prime }-2F_0{}^{\prime }{\theta }_0-\left(2f_0{}^{\prime }+\frac{3}{2}A-\gamma \right)G_0=0$$

(27)

The conditions now take the following form

$$\begin{array}{c}{F}_0{}^{\prime }\left(0\right)=0,\hspace{1em}{F}_0\left(0\right)=0,\hspace{1em}{H}_0\left(0\right)=-n\hspace{0.17em}{F}_0{}^{\prime \prime }\left(0\right),\hspace{1em}{G}_0\left(0\right)=0,\\ F_0{}^{\prime }\left(\eta \right)\to 0,\hspace{1em}{H}_0\left(\eta \right)\to 0,\hspace{1em}{G}_0\left(\eta \right)\to 0,\hspace{1em}\mathrm{as}\hspace{1em}\eta \to \infty \end{array}$$

(28)

3.3. Relaxation of Boundary Conditions

To solve the stability model, we need to relax the boundary conditions as proposed by Harris et al. [64]. For that reason, the conditions $F_0{}^{\prime }\left(\eta \right)\to 0$ as $\eta \to \infty$ can be replaced by new conditions $F_0{}^{\prime \prime }\left(0\right)=1$. It must be pointed out that the linearized boundary value problem (25)–(28) together with new conditions $F_0{}^{\prime \prime }\left(0\right)=1$ will yield the unlimited set of unknown eigenvalues $\left({\gamma }_1<{\gamma }_2<{\gamma }_3<\dots \right)$. If the smallest eigenvalues $\gamma$ show a positive sign, the solutions observed an initial decay of perturbation and accordingly indicates a stable solution. On the other hand, as the smallest eigenvalues $\gamma$ show a negative sign, an early growth of disruption is noticed which consequently signifies unstable solution.

4. Numerical Solutions

To solve the boundary value problems (11)–(13) with boundary conditions given by (15), we have adopted a built-in function called bvp4c from Matlab package. Further, to access the precision of current algorithm, the current results of skin friction coefficient $f^{″}\left(0\right)$ are compared with previously reported solutions of Ishak et al. [10], who used Keller-box method in their work, Mahapatra and Nandy [65], who pursued the shooting method for their computation and Zainal et al. [59] which employed the bvp4c solver. These comparative solutions are revealed in

Table 3. Comparison values of $f^{″}\left(0\right)$ when $A=K=n=0$ and ${\phi }_1={\phi }_2=0$ for different $\lambda$ values.

$\mathit{\lambda }$	Refs. [10] (Keller-Box Method)	Refs. [65] (Shooting Method)	Refs. [59] (bvp4c Solution)	Present Result (bvp4c Solution)
−0.25	1.402241	1.402242	1.402241	1.402241
−0.5	1.495670	1.495672	1.495670	1.495670
−0.75	1.489298	1.489296	1.489298	1.489298
−1	1.328817 [0]	1.328819 [0]	1.328817 [0]	1.328817 [0]
−1.1	1.186681 [0.049229]	1.186680 [0.049229]	1.186680 [0.049229]	1.186680 [0.049229]
−1.15	1.082231 [0.116702]	1.082232 [0.116702]	1.082231 [0.116702]	1.082231 [0.116702]
−1.2	0.932474 [0.233650]	0.932470 [0.233648]	0.932473 [0.233650]	0.932473 [0.233650]
−1.246	-	0.584374 [0.554215]	0.609826 [0.529035]	0.609826 [0.529035]
−1.2465	0.584295 [0.554283]	-	-	0.584282 [0.554296]

‘[ ]’ Second solution.

for selected values of shrinking parameter $\left(\lambda <0\right)$. It can be point out from these tables that there is good agreement with these methods (error is relatively small), thereby confirming the consistency of the approach used. Furthermore, this validates the present model and proves the accuracy of the bvp4c solver in solving a boundary layer problem as the present results able to withstand the Keller-box method and shooting method which have been employed by Ishak et al. [10] and Mahapatra and Nandy [65]. In this part, the results of local skin friction $C_f{\mathrm{Re}}_x^{1/2}$, Nusselt number $N{u}_x{\mathrm{Re}}_x^{-1/2}$, velocity profile $f^{\prime }\left(\eta \right),$ microrotation profile $h\left(\eta \right)$ as well as temperature profile $\theta \left(\eta \right)$ are illustrated graphically to explore the influence of some governing parameters such as Cu nanoparticle volume fraction $\left({\phi }_2\right),$ unsteady parameter $\left(A\right)$, material parameter $\left(K\right)$ and radiation parameter $\left(Rd\right)$.

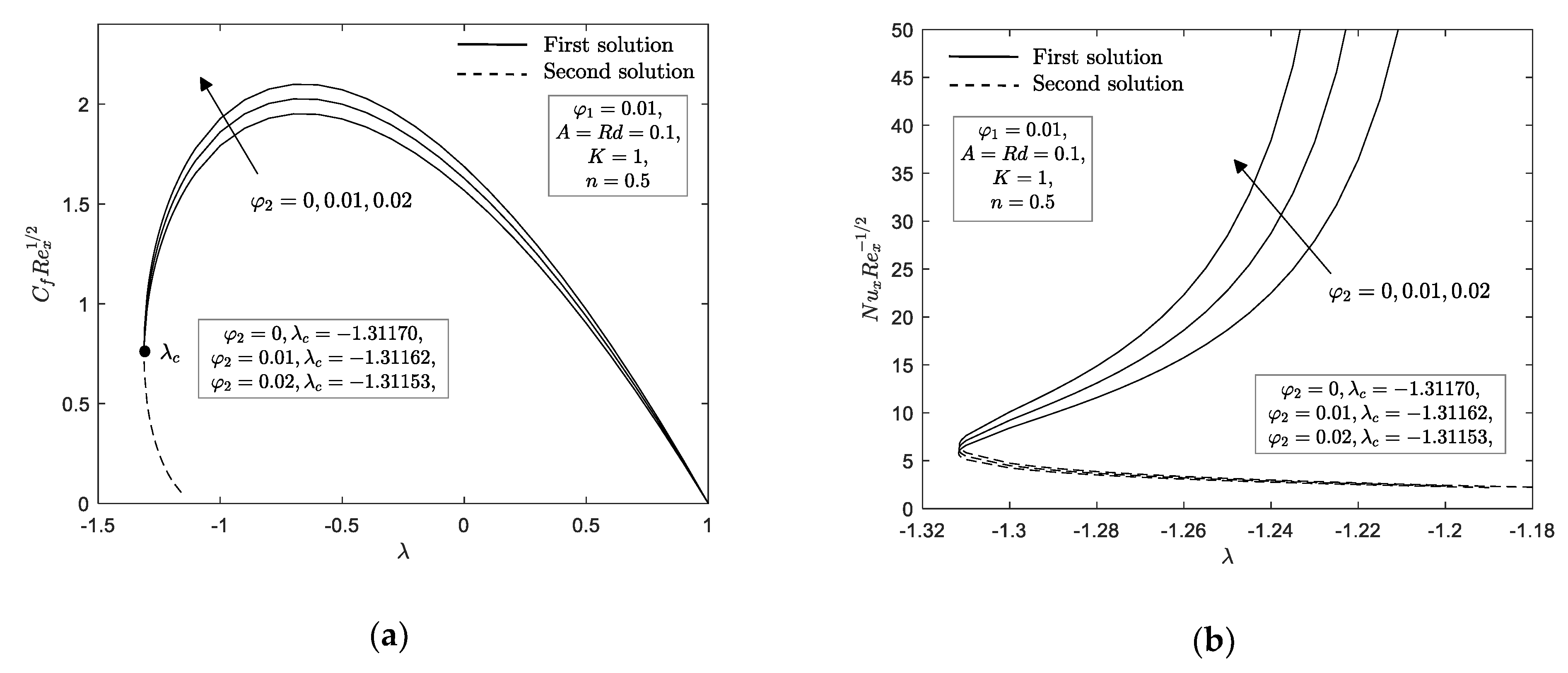

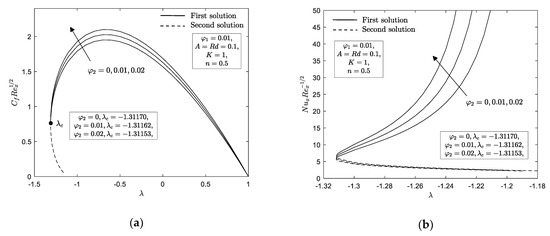

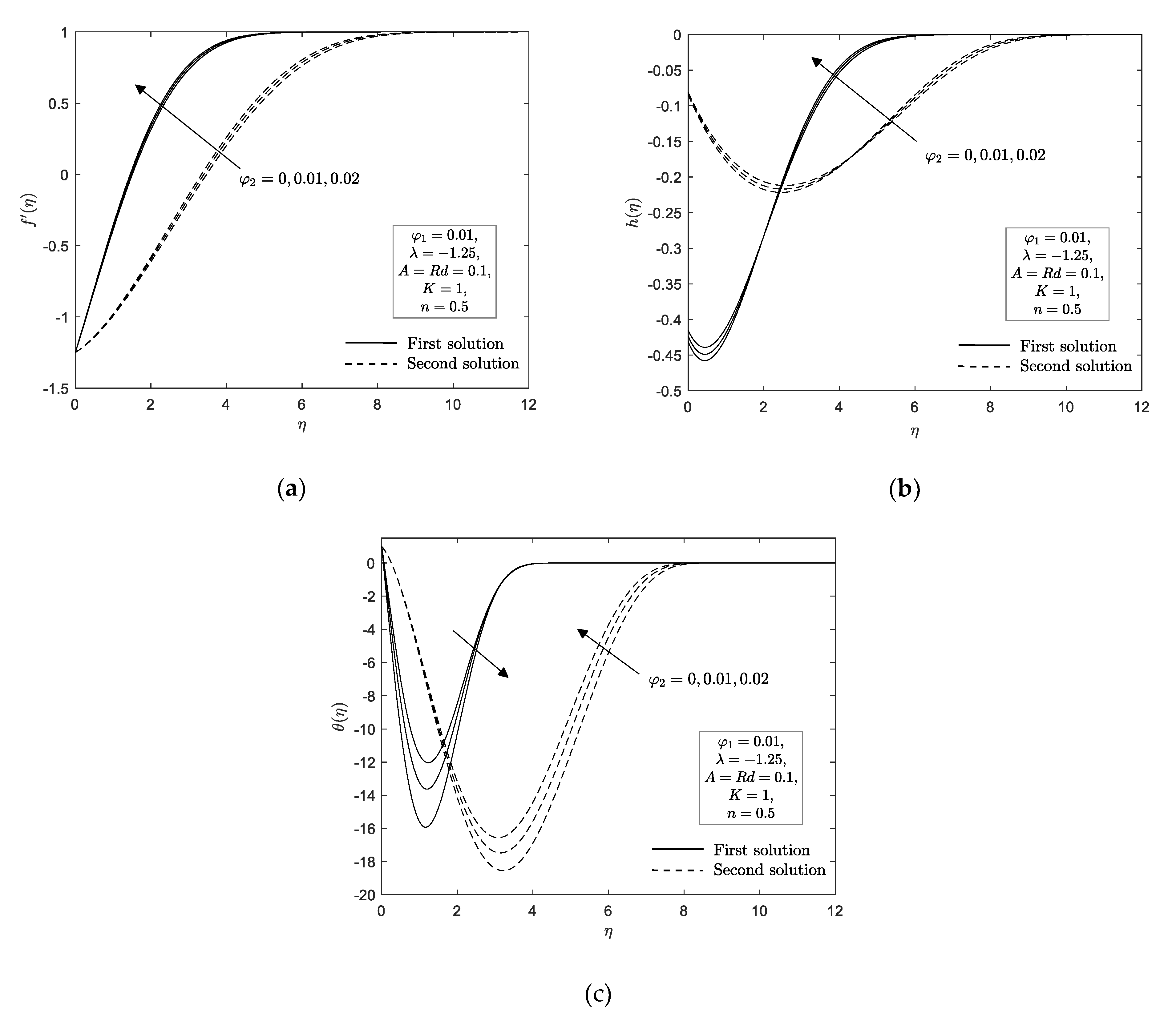

The effect of Cu nanoparticle volume fraction ${\phi }_2$ against stretching or shrinking parameter $\lambda$ on the local skin friction $C_f{\mathrm{Re}}_x^{1/2}$ and Nusselt number $N{u}_x{\mathrm{Re}}_x^{-1/2}$ as given in Equation (17) are shown in Figure 2a,b. It is apparent from these figures that for shrinking parameter $\left(\lambda <0\right),$ the occurrence of dual solutions is noted. However, it is remarked that no solution exists when $\lambda <{\lambda }_c,$ which indicates that the boundary layer is detach from the surface and the principle of boundary layer theory are no longer valid. Moreover, ${\lambda }_c$ is the critical point that connected the first and second solutions. In addition, a unique solution is noticed when the sheet is stretched $\left(\lambda >0\right)$. It is clear that for ${\phi }_2=0,$ the problem reduces to the micropolar nanofluid. From these figures, it is discovered that upsurge in Cu nanoparticle volume fraction ${\phi }_2$ enhances the local skin friction $C_f{\mathrm{Re}}_x^{1/2}$ and local Nusselt number $N{u}_x{\mathrm{Re}}_x^{-1/2}$ for all domains of stretching and shrinking parameter $\lambda$ in first solution but a small change is noted for the second solution. This finding proves that the increment of Cu nanoparticle volume fraction ${\phi }_2$ can improve the heat transfer efficiency. This also implies that hybrid nanofluid provides a better heat performance than nanofluid. Furthermore, the enhancement of Cu nanoparticle volume fraction ${\phi }_2$ on local skin friction $C_f{\mathrm{Re}}_x^{1/2}$ and Nusselt number $N{u}_x{\mathrm{Re}}_x^{-1/2}$ fasten the detachment of boundary layer flow. Figure 3a–c exemplify the impact of Cu nanoparticle volume fraction parameter ${\phi }_2$ on the velocity profile $f^{\prime }\left(\eta \right)$, microrotation profile $h\left(\eta \right)$ and temperature profile $\theta \left(\eta \right)$ for shrinking sheet $\left(\lambda =-1.25\right)$. It reveals that augmentation of Cu nanoparticle volume fraction ${\phi }_2$ depreciates the momentum and microrotation boundary layer thickness in first and second solutions. Meanwhile, the thermal boundary layer thickness increases as Cu nanoparticle volume fraction ${\phi }_2$ increases for the first solution, however a contrary observation is noted for the second solution. Furthermore, one can see that the boundary layer thickness of the first solution was slimmer than second solution. In addition, all the profiles published are asymptotically satisfied the boundary conditions (15) and eventually supported the findings obtained in Figure 2a,b.

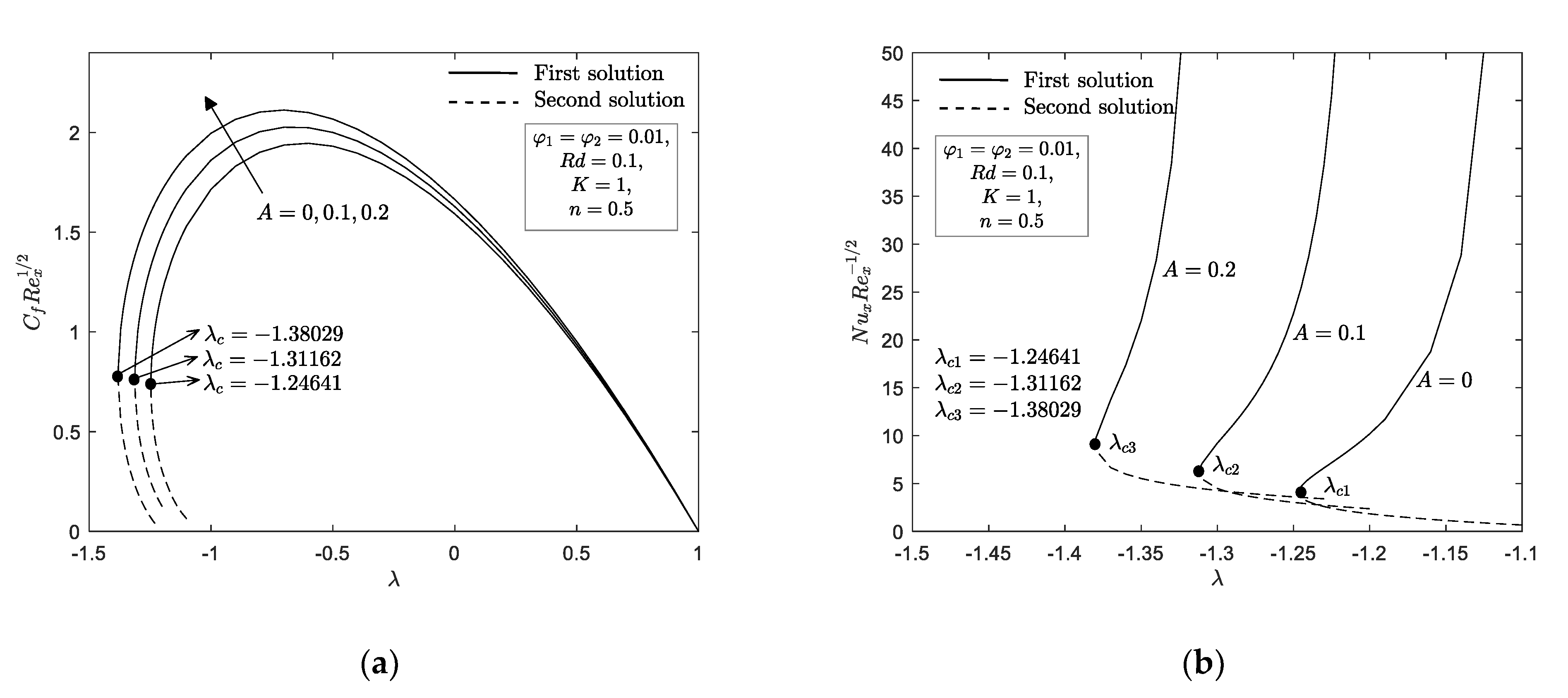

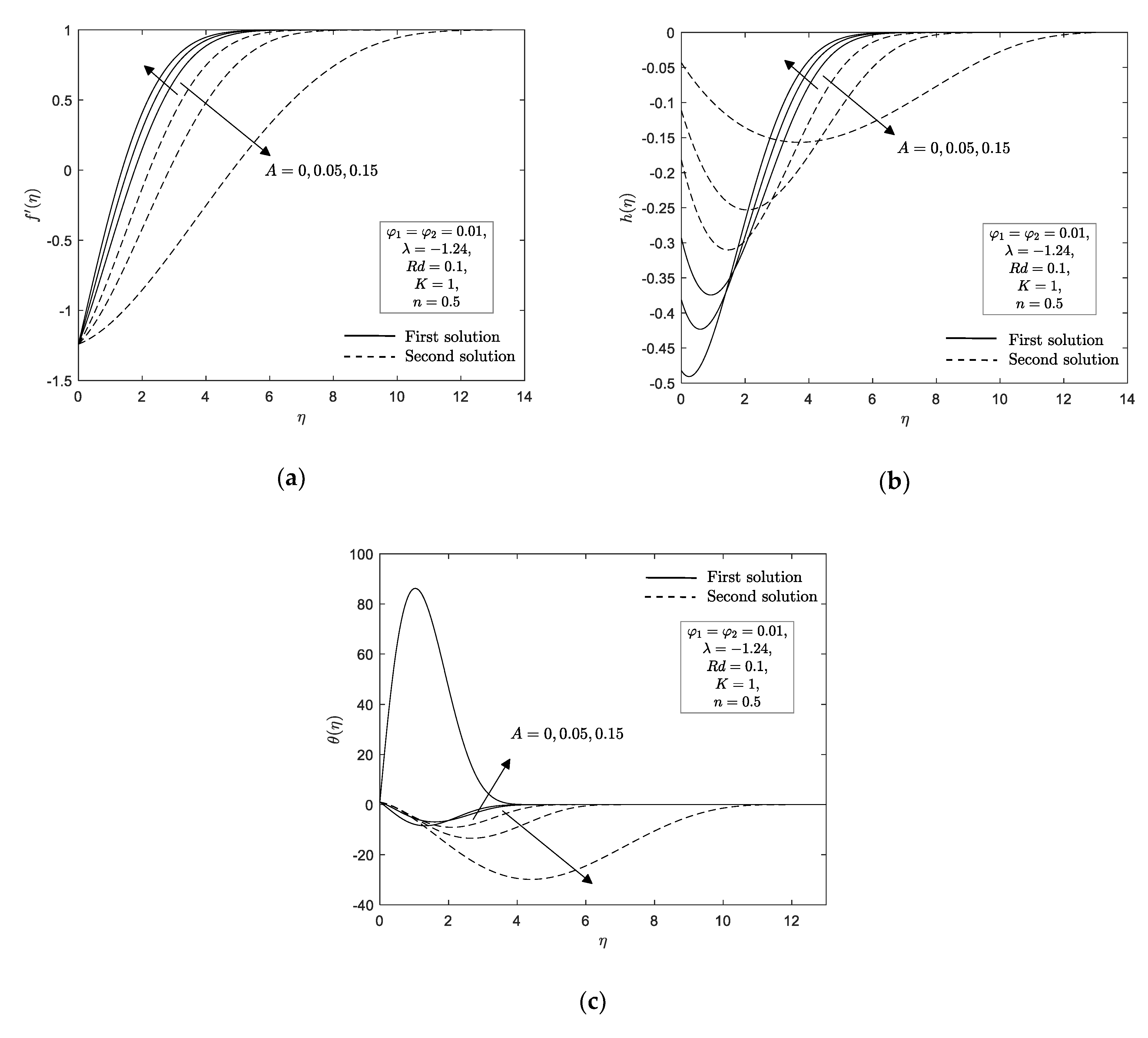

Figure 4a,b show the impact of unsteady parameter $A=0,\hspace{0.17em}0.1,\hspace{0.17em}0.2$ on the local skin friction $C_f{\mathrm{Re}}_x^{1/2}$ and Nusselt number $N{u}_x{\mathrm{Re}}_x^{-1/2}$ towards stretching/shrinking parameter $\lambda$. The occurrence of unsteady parameter $A$ consequently elevates the local skin friction $C_f{\mathrm{Re}}_x^{1/2}$ and Nusselt number $N{u}_x{\mathrm{Re}}_x^{-1/2}$. It must be noted that the flow corresponds to the steady micropolar flow when $A=0$ and it is numerically observed that dual solution exists as $-1.24641<\lambda <-1$ and a unique solution exists when $\lambda \ge -1$. However, the physical character of flow changes when the flow becomes unsteady. For instance, as the unsteadiness parameter increase, i.e., $A=0.1$ and $A=0.2$, the range of similarity solutions to exist also increases where dual solutions is observed in the range of $-1.31162<\lambda <-1$ and $-1.38029<\lambda <-1$, respectively. The unique solution however only exists as $\lambda \ge -1$ for both case of $A$ and concurrently no solution is noticed when $\lambda <{\lambda }_c$. In short, a raise in unsteady parameter $A$ act in postponing the boundary layer detachment. On the other side, Figure 5a–c portray the discrepancy of velocity $f^{\prime }\left(\eta \right)$, microrotation $h\left(\eta \right)$ and temperature $\theta \left(\eta \right)$ profiles when unsteady parameter $A$ fluctuates from 0 to 0.15. For the first solution, the diminished of momentum boundary layer thickness is observed when the unsteady parameter $A$ increases as shown in Figure 5a, but a reverse observation is remarked for the second solution. Furthermore, the microrotation boundary layer thickness diminishes with an increment of unsteady parameter $A$ values in the first solution except near the sheet, while an opposing trend is remarked for the second solution. It is also interesting to observe from these figures that for both solutions, the thermal boundary layer thickness increase with an upsurge of unsteady parameter $A.$

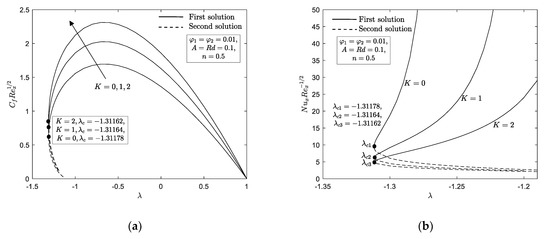

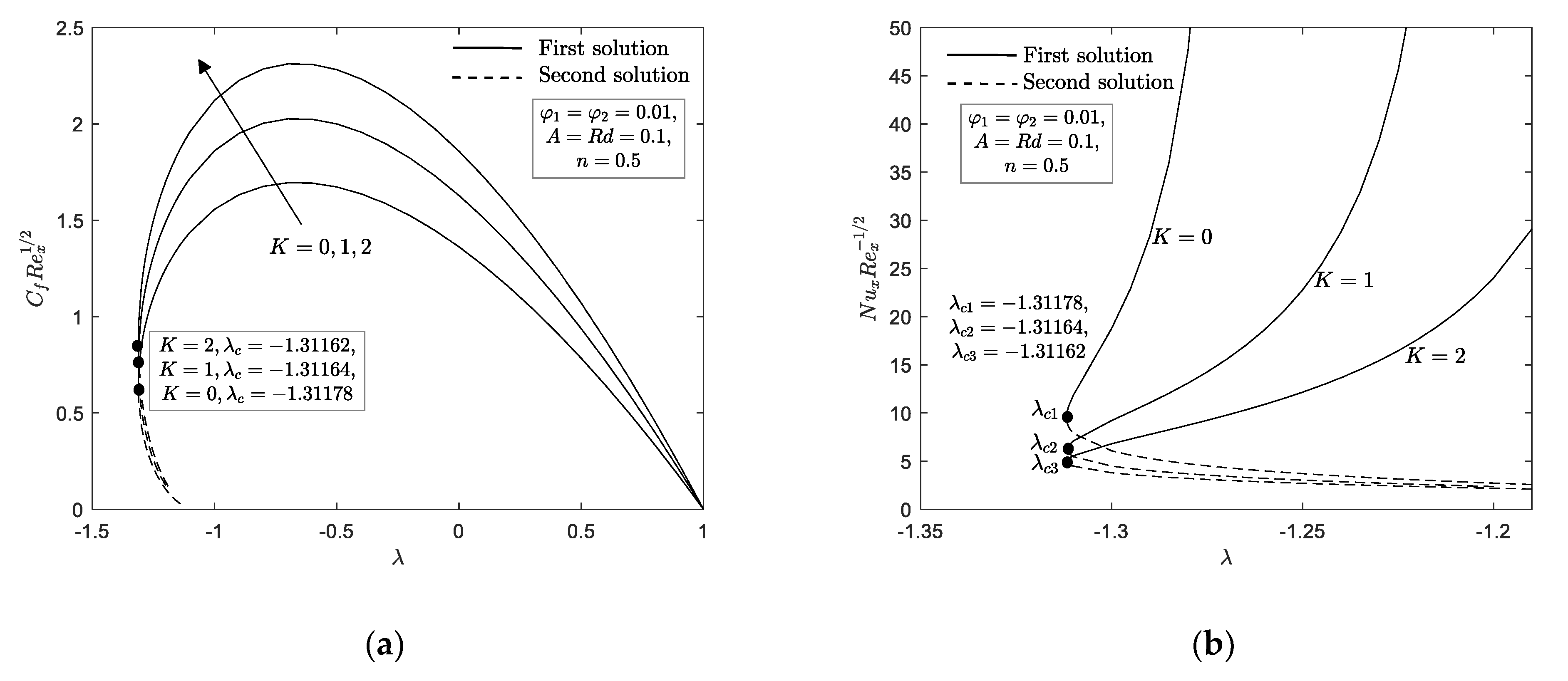

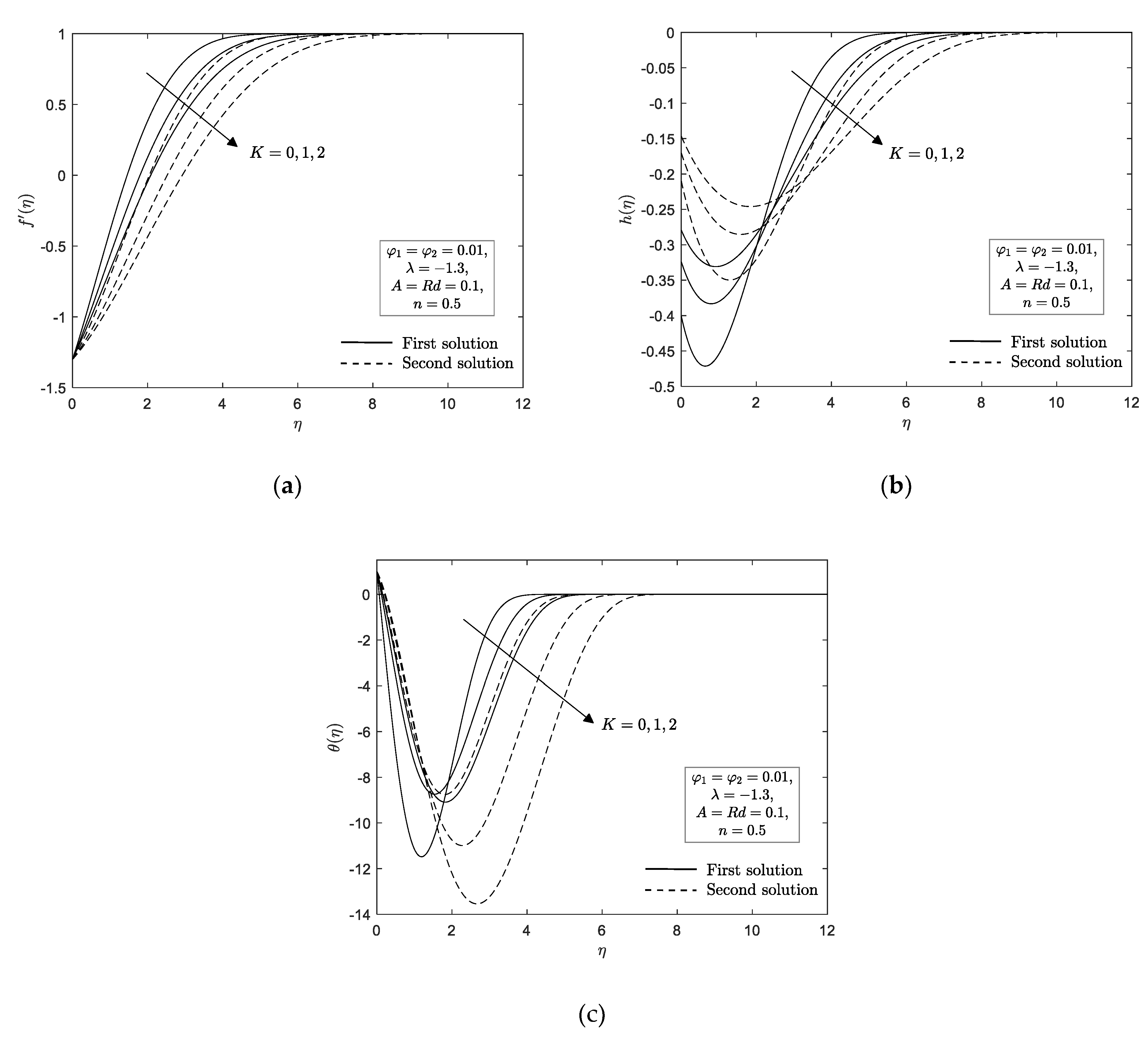

Figure 6a,b and Figure 7a–c are portray to discuss the effect of material parameter $K$ on the local skin friction $C_f{\mathrm{Re}}_x^{1/2}$, local Nusselt number $N{u}_x{\mathrm{Re}}_x^{-1/2}$, velocity profile $f^{\prime }\left(\eta \right)$, microrotation profile $h\left(\eta \right)$ and temperature profile $\theta \left(\eta \right)$ for Cu-Al₂O₃/water. It is obvious that existence of material parameter $\left(K=1,\hspace{0.17em}2\right)$ give rises to the local skin friction $C_f{\mathrm{Re}}_x^{1/2}$ if compared to the absence of material parameter $\left(K=0\right)$, i.e., no vortex viscosity. However, different results are observed for the local Nusselt number $N{u}_x{\mathrm{Re}}_x^{-1/2}$ where the nonexistence of micropolar fluid $\left(K=0\right)$ cause an enhancement in comparison with the existence of material parameter $\left(K=1,\hspace{0.17em}2\right)$. This phenomenon reveals the fact that upsurge value of material parameter gives rise on the vortex viscosity in the fluid flow which consequently enhance the skin friction at the wall and decrease the rate of heat transfer at the wall. Additionally, we observed that an upsurge values of material parameter prompt the domain of similarity solutions to exist become narrow. For instance, the similarity solutions in the nonexistence of material parameter are noted in the range of $-1.31178\le \lambda \le 1,$ while in the existence of material parameter $\left(K=1,\hspace{0.17em}2\right)$, the range of solutions are observed to be $-1.31164\le \lambda \le -1$ and $-1.31162\le \lambda \le -1$. Furthermore, an upsurge values of material parameter $K$ causing the thickness of the momentum and thermal boundary layer to increase in first and second solutions. We can see from Figure 7b that the microrotation boundary layer thickness for first and second solutions near the sheet decreases when this parameter rises while the contrary trend is observed for the large $\eta$.

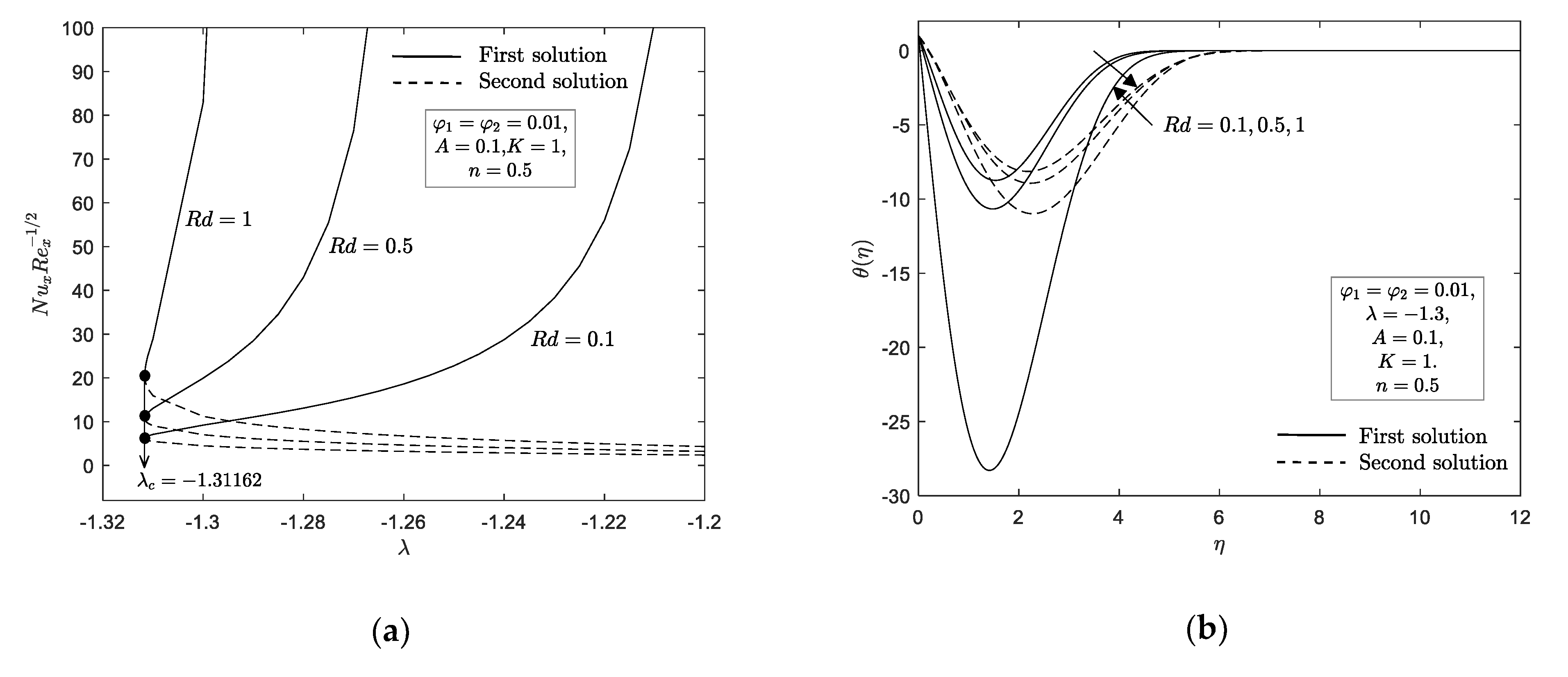

The influence of radiation parameter $Rd$ on the local Nusselt number $N{u}_x{\mathrm{Re}}_x^{-1/2}$ and temperature profile $\theta \left(\eta \right)$ are portrayed in Figure 8a,b, respectively. We have noticed that the radiation parameter $Rd$ has no control on the flow field, which is evident from Equations (11)–(13). The local Nusselt number is discovered to increase with an upsurge values in radiation parameter $Rd$. Furthermore, the thermal boundary layer thickness become thicker when this parameter raises in the first solution and it became slimmer in the second solution. As can be seen from Figure 8b, this parameter however does not give effect on the range of similarity solutions to occur, i.e., the critical value for stretching/shrinking parameter ${\lambda }_c$ is the same for all values of radiation parameter $Rd$. It is noteworthy that the distribution of temperature in the fluid is significantly affected by the radiation parameter $Rd$. Physically, this is due to the fact that the heat is produced due to the radiation process and therefore, enhances the fluid temperature.

The boundary value problems (11)–(13) together with boundary conditions (15) observe the occurrence of non–unique solutions for some governing parameters. The phenomenon of non-unique solutions namely first and second solutions are proved and portrayed as in Figure 2, Figure 3, Figure 4, Figure 5, Figure 6, Figure 7 and Figure 8. Accordingly, an investigation on the stability analysis has been executed in this present work so that we can identified the most stable solutions. Therefore, the linearized Equations (25)–(27) along with conditions (28) have been solved with the aid of the bvp4 function in MATLAB numerically. The smallest eigenvalues $\gamma$ on the selected parameter $A$ and $\lambda$ from Figure 4a,b are listed in

Table 4. Smallest eigenvalues $\gamma$ for selected $A$ and $\lambda$ when ${\phi }_1={\phi }_2=0.01$, $Rd=0.1$, $K=1$ and $n=0.5$.

$\mathit{A}$	$\mathit{\lambda }$	1st Solution	2nd Solution
0	−1.2462	0.0174	−0.0583
	−1.246	0.0323	−0.0728
	−1.24	0.1893	−0.2253
0.1	−1.3112	0.0036	−0.1086
	−1.311	0.0156	−0.1204
	−1.31	0.0577	−0.1616
0.2	−1.3785	0.0224	−0.2193
	−1.378	0.0385	−0.2348
	−1.37	0.1950	−0.3832

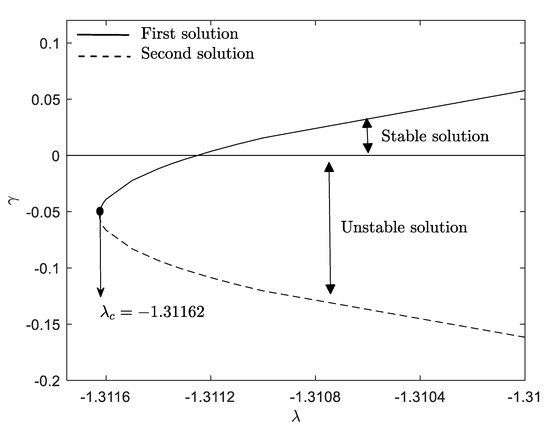

. This table shown that the second solution displays the negative values of $\gamma$, whereas the first solution demonstrates the positive values of $\gamma$. The smallest eigenvalues $\gamma$ against $\lambda$ have been plotted in Figure 9. This figure eventually supported the findings obtained from Table 4 except when the values of stretching/shrinking parameter $\lambda$ approach its critical value where we observed unstable solutions for both solutions. In reference from the previous literature, we can deduce that the first solution is stable, on the contrary, the second solution is unstable. It worth noting that this analysis is important in identifying the stable solution when there is exist non-unique solutions so that the flow behavior can be predict accurately.

5. Conclusions

Theoretical studies of unsteady micropolar Cu–Al₂O₃/water flow over a deformable sheet with thermal radiation effect has been examined numerically. The similarity solutions were produced by utilizing the bvp4c function from MATLAB software. The impact of emerging parameters has been examined and illustrated graphically. Thus, the conclusions can be outlined as follows:

• The presence of double solutions is noticeable for shrinking sheet whereas a unique solution is observed for stretching sheet.
• The stability analysis was carried out and the first solution has proven to be a stable solution, whereas the other solution is not a stable solution.
• A raise in Cu nanoparticle volume fraction ${\phi }_2$ in micropolar nanofluid has tendency to improve the local Nusselt number and local skin friction for all domain of stretching/shrinking parameter $\lambda$.
• The heat transfer rate increased roughly to an average of 17.725% when the copper nanoparticle volume fraction increased from 0 to 0.01 (1%) in a micropolar nanofluid.
• The rising of unsteady parameter $A$ and radiation parameter $Rd$ in micropolar hybrid nanofluid increase the local Nusselt number while the reverse trend is observed with an increase of material parameter $K$.
• The local skin friction enhances as the value of unsteady parameter $A$ and material parameter $K$ increase.
• The domains of the similarity solutions decrease with a raise in Cu nanoparticle volume fraction ${\phi }_2$ and material parameter $K$, therefore fastens the boundary layer separation. However, upsurge value of unsteady parameter $A$ delays the boundary layer separation.
