Sparse HJ Biplot: A New Methodology via Elastic Net
Abstract
:1. Introduction
2. Materials and Methods

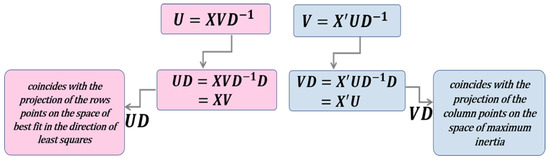

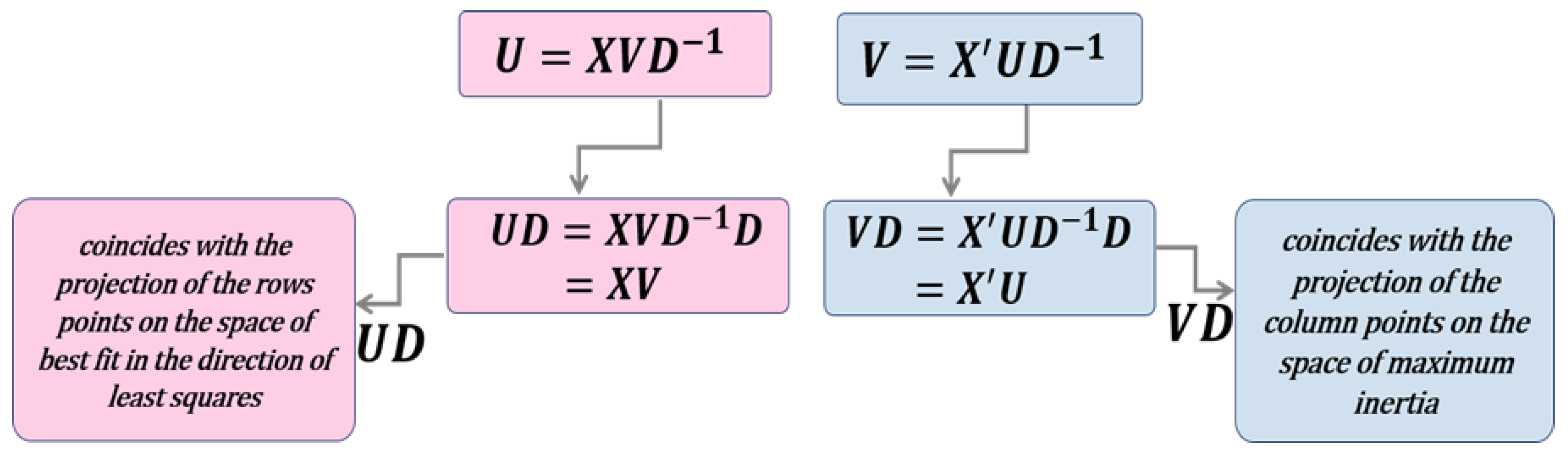

2.1. Biplot and HJBiplot
 $X$: is the data matrix
 $U$: is the matrix of data whose columns contain the eigenvectors of $X{X}^{T}$
 $V$: is the matrix of data whose columns contain the eigenvectors of ${X}^{T}X$
 $D$: is the diagonal matrix containing the eigenvalues of $X$
 $U$ and $V$ must be orthonormal, that is, ${U}^{T}U=I$ and ${V}^{T}V=I,$ to guarantee the uniqueness of the factorisation.
 The proximity between the points that represent the row markers is interpreted as the similarity between them. Consequently, nearby points allow the identification of clusters of individuals with similar profiles.
 The standard deviation of a variable can be estimated by the module of the vector which represents it.
 Correlations between variables can be captured from the angles between vectors. If two variables are correlated, they will have an acute angle; if the angle they form is obtuse the variables will present a negative correlation; and, if the angle is a right angle it indicates that the variables are not correlated.
 The points orthogonally projected onto a variable approximates the position of the sample values in that variable.

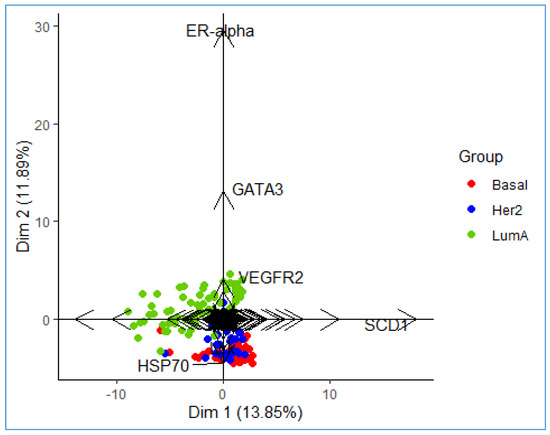

2.2. Disjoint HJ Biplot

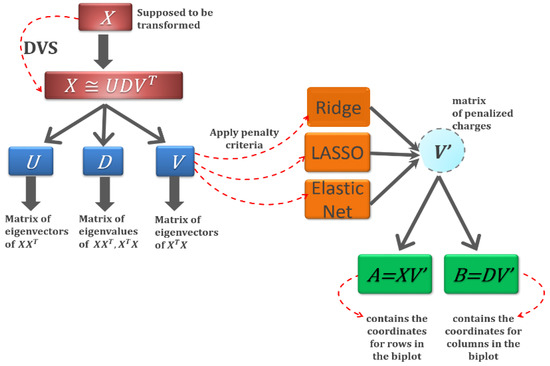

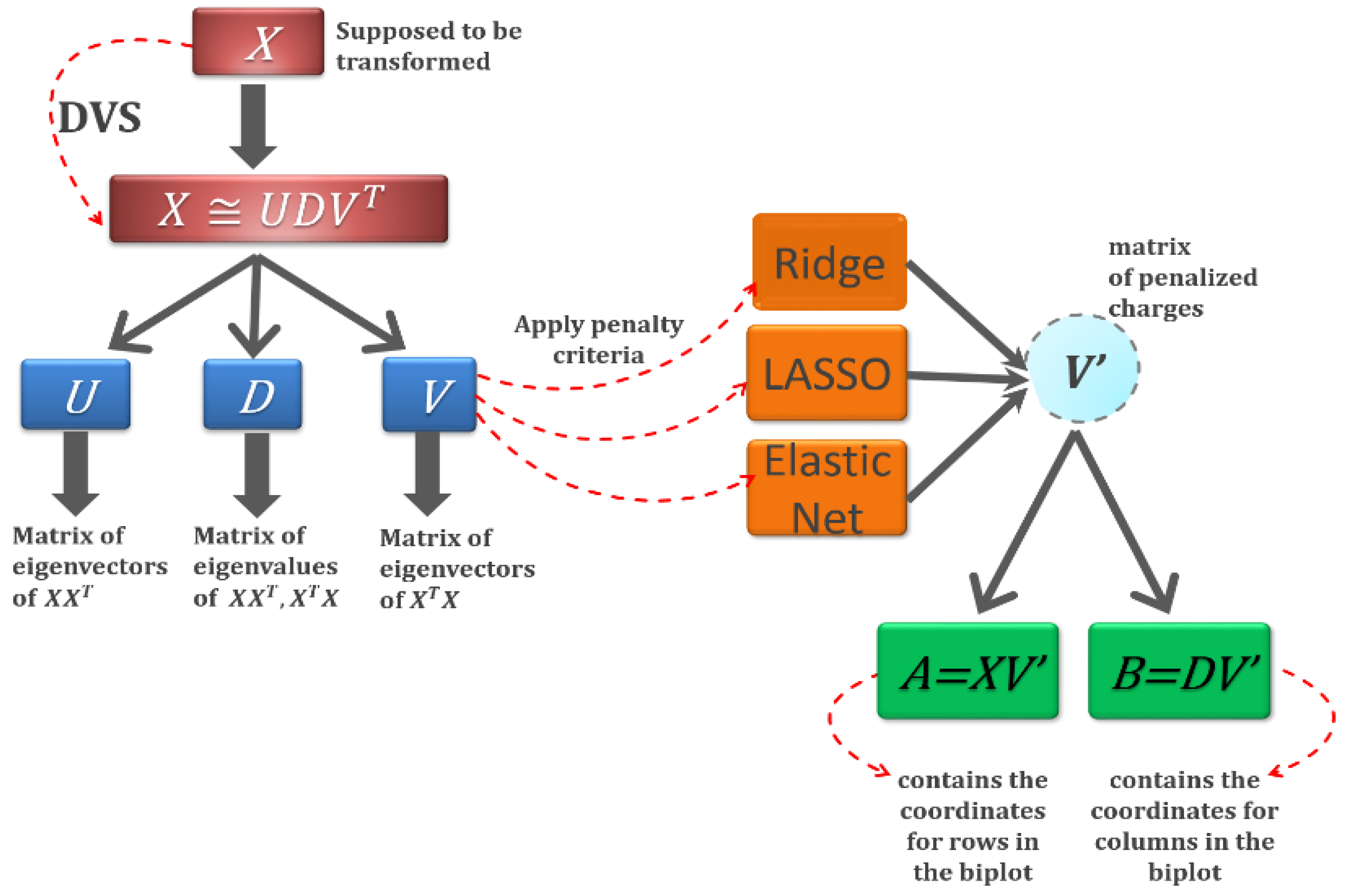

2.3. Sparse HJ Biplot
Algorithm 1 Sparse HJ biplot algorithm using elastic net regularisation.
1. Consider a $nxp$ data matrix.
2. A tolerance value is set (1 × 10^{−5}).
3. The data is transformed (centred or standardised).
4. Decomposition of the original data matrix is performed via SVD.
5. A is taken as the loadings of the first k components V[, 1:k].
6. ${\beta}_{j}$ is calculated by:
$${\beta}_{j}={({\alpha}_{j}{\beta}_{j})}^{T}{X}^{T}X\left({\alpha}_{j}{\beta}_{j}\right)+{\lambda}_{2}\left\right{\beta}_{j}\left\right{}^{2}+{\lambda}_{1,j}\left\right{\beta}_{j}\left\right{}_{1}$$

7. A is updated via SVD of ${X}^{T}X\beta $:
$${X}^{T}X\beta =UD{V}^{T}\to A=U{V}^{T}$$

8. The difference between A and B is updated:
$$di{f}_{AB}=\frac{1}{p}{\displaystyle \sum}_{i=1}^{p}\frac{1}{{\left{\beta}_{i}\right}^{2}{\left{\alpha}_{i}\right}^{2}}{\displaystyle \sum}_{j=1}^{m}{\beta}_{ij}{\alpha}_{ij}$$

9. Steps 4, 5 and 6 are repeated until $di{f}_{AB}<$ tolerance.
10. The columns are normalized using ${\widehat{V}}_{J}^{EN}=\frac{{\beta}_{j}}{\left\right{\beta}_{j}\left\right},j=1,\dots ,k$
11. We then calculate the row markers and column markers.

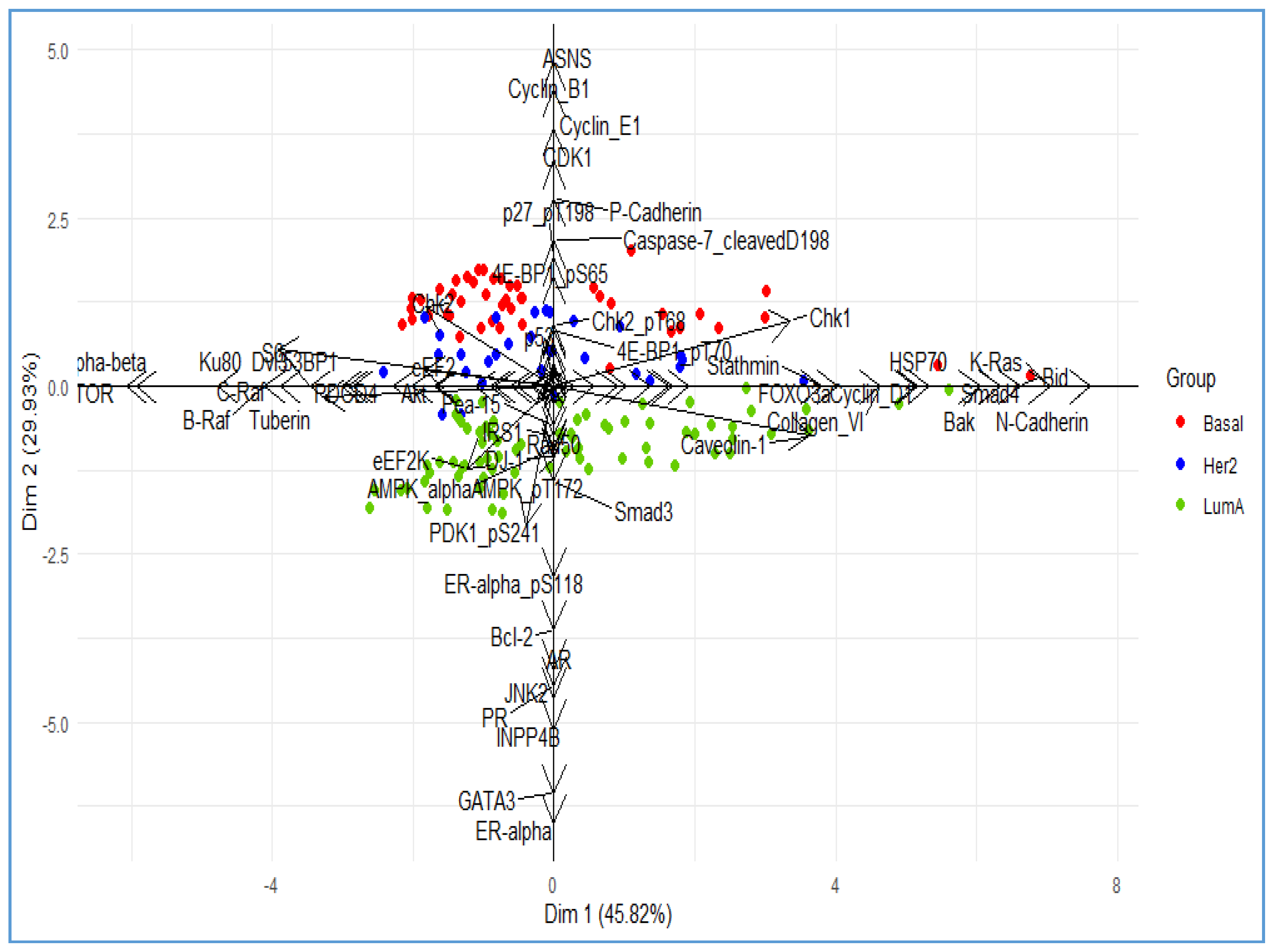

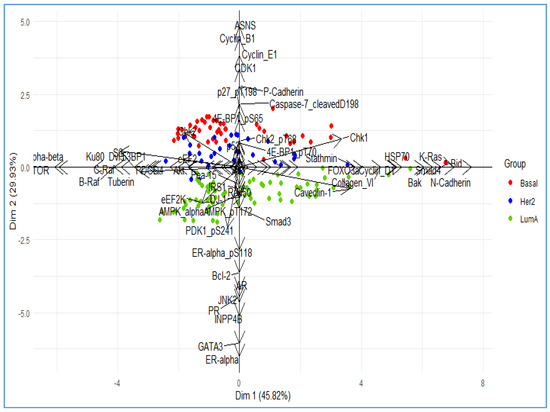

12. The elastic net HJ biplot obtained by the previous steps is plotted.
2.4. Software

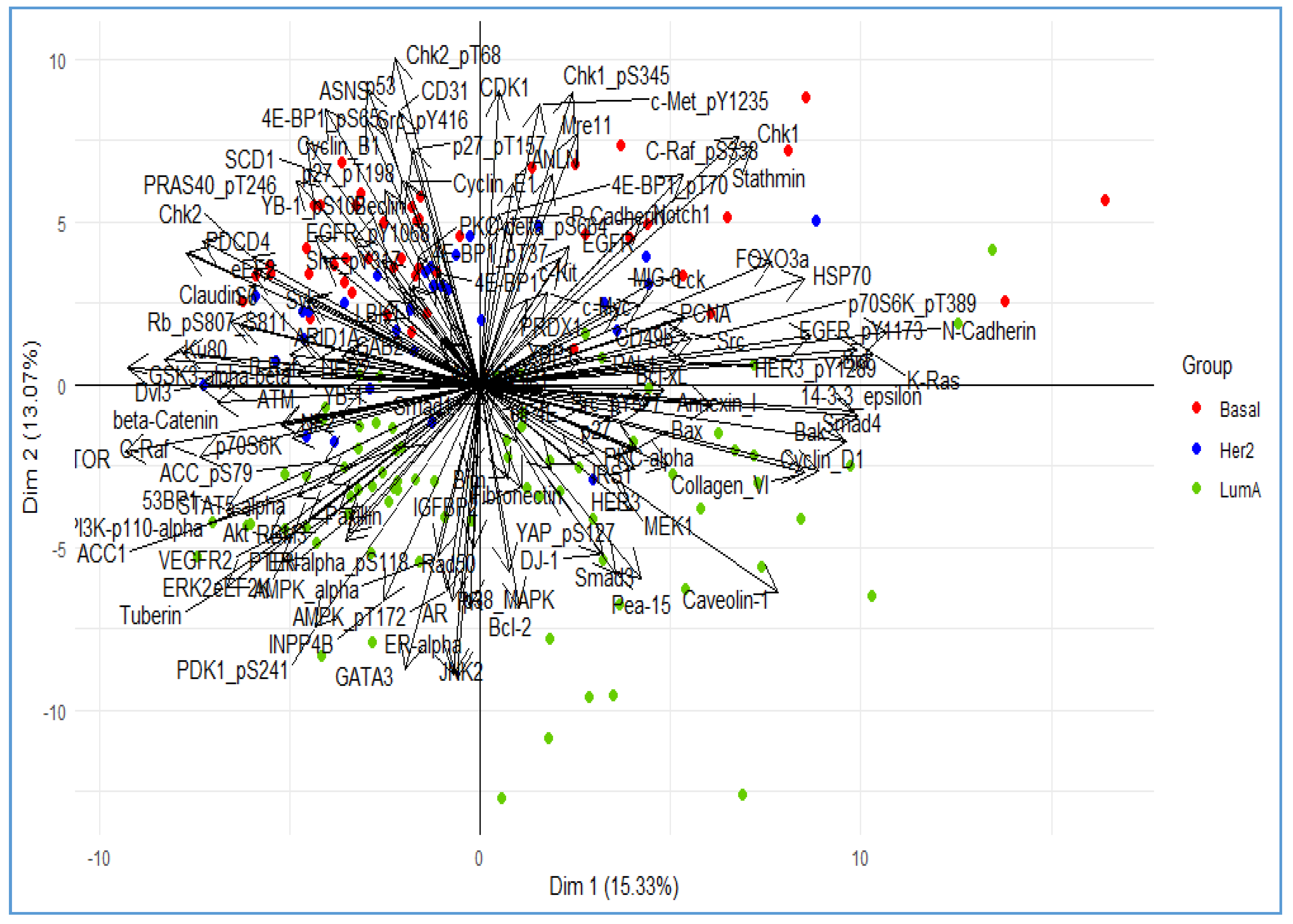

3. Illustrative Example
4. Conclusions and Discussion
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
References
 Pearson, K.F.R.S. LIII. On lines and planes of closest fit to systems of points in space. Lond. Edinb. Dublin Philos. Mag. J. Sci. 1901, 2, 559–572. [Google Scholar] [CrossRef] [Green Version]
 Hotelling, H. Analysis of a Complex of Statistical Variables into Principal Components. J. Educ. Psychol. 1933, 24, 417. [Google Scholar] [CrossRef]
 Jolliffe, I. Principal Component Analysis; Wiley Online Library: Hoboken, NJ, USA, 2002. [Google Scholar]
 Eckart, C.; Young, G. The approximation of one matrix by another of lower rank. Psychometrika 1936, 1, 211–218. [Google Scholar] [CrossRef]
 Hausman, R.E. Constrained Multivariate Analysis. In Optimisation in Statistics; Zanakis, S.H., Rustagi, J.S., Eds.; NorthHolland Publishing Company: Amsterdam, The Netherlands, 1982; pp. 137–151. [Google Scholar]
 Vines, S.K. Simple principal components. J. R. Stat. Soc. Ser. C Appl. Stat. 2000, 49, 441–451. [Google Scholar] [CrossRef]
 McCabe, G.P. Principal Variables. Technometrics 1984, 26, 137–144. [Google Scholar] [CrossRef]
 Cadima, J.; Jolliffe, I.T. Department of Mathematical Sciences Loading and correlations in the interpretation of principle compenents. J. Appl. Stat. 1995, 22, 203–214. [Google Scholar] [CrossRef]
 Jolliffe, I.T. Rotation of principal components: Choice of normalization constraints. J. Appl. Stat. 1995, 22, 29–35. [Google Scholar] [CrossRef]
 Tibshirani, R. Regression Shrinkage and Selection Via the Lasso. J. R. Stat. Soc. Ser. B Stat. Methodol. 1996, 58, 267–288. [Google Scholar] [CrossRef]
 Jolliffe, I.T.; Uddin, M. The Simplified Component Technique: An Alternative to Rotated Principal Components. J. Comput. Graph. Stat. 2000, 9, 689–710. [Google Scholar] [CrossRef]
 Jolliffe, I.T.; Trendafilov, N.; Uddin, M. A Modified Principal Component Technique Based on the LASSO. J. Comput. Graph. Stat. 2003, 12, 531–547. [Google Scholar] [CrossRef] [Green Version]
 Zou, H.; Hastie, T.; Tibshirani, R. Sparse Principal Component Analysis. J. Comput. Graph. Stat. 2006, 15, 265–286. [Google Scholar] [CrossRef] [Green Version]
 Zou, H.; Hastie, T. Regularization and variable selection via the elastic net. J. R. Stat. Soc. Ser. B Stat. Methodol. 2005, 67, 301–320. [Google Scholar] [CrossRef] [Green Version]
 Efron, B.; Hastie, T.; Johnstone, I.; Tibshirani, R. Least Angle Regression. Ann. Stat. 2004, 32, 407–499. [Google Scholar] [CrossRef] [Green Version]
 Moghaddam, B.; Weiss, Y.; Avidan, S. Spectral Bounds for Sparse PCA: Exact and Greedy Algorithms. Adv. Neural Inf. Process. Syst. 2006, 18, 915. [Google Scholar]
 D’Aspremont, A.; El Ghaoui, L.; Jordan, M.; Lanckriet, G.R.G. A Direct Formulation for Sparse PCA Using Semidefinite Programming. SIAM Rev. 2007, 49, 434–448. [Google Scholar] [CrossRef] [Green Version]
 Shen, H.; Huang, J.Z. Sparse principal component analysis via regularized low rank matrix approximation. J. Multivar. Anal. 2008, 99, 1015–1034. [Google Scholar] [CrossRef] [Green Version]
 Witten, D.M.; Tibshirani, R.; Hastie, T. A penalized matrix decomposition, with applications to sparse principal components and canonical correlation analysis. Biostatistics 2009, 10, 515–534. [Google Scholar] [CrossRef]
 Farcomeni, A. An exact approach to sparse principal component analysis. Comput. Stat. 2009, 24, 583–604. [Google Scholar] [CrossRef]
 Qi, X.; Luo, R.; Zhao, H. Sparse principal component analysis by choice of norm. J. Multivar. Anal. 2013, 114, 127–160. [Google Scholar] [CrossRef]
 Vichi, M.; Saporta, G. Clustering and disjoint principal component analysis. Comput. Stat. Data Anal. 2009, 53, 3194–3208. [Google Scholar] [CrossRef]
 Mahoney, M.W.; Drineas, P. CUR matrix decompositions for improved data analysis. Proc. Natl. Acad. Sci. USA 2009, 106, 697–702. [Google Scholar] [CrossRef] [Green Version]
 Trendafilov, N.T. From simple structure to sparse components: A review. Comput. Stat. 2014, 29, 431–454. [Google Scholar] [CrossRef]
 Zhang, Z.; Xuelong, L.; Yang, J.; Li, X.; Zhang, D. A Survey of Sparse Representation: Algorithms and Applications. IEEE Access 2015, 3, 490–530. [Google Scholar] [CrossRef]
 Abdi, H.; Williams, L.J. Principal component analysis. Wiley Interdiscip. Rev. Comput. Stat. 2010, 2, 433–459. [Google Scholar] [CrossRef]
 Gabriel, K.R. The Biplot Graphic Display of Matrices with Application to Principal Component Analysis. Biometrika 1971, 58, 453–467. [Google Scholar] [CrossRef]
 GalindoVillardón, P. Una Alternativa de Representacion Simultanea: HJBiplot. Qüestiió Quad. D’Estad. I Investig. Oper. 1986, 10, 13–23. [Google Scholar]
 NietoLibrero, A.B.; Sierra, C.; VicenteGalindo, M.; RuízBarzola, O.; GalindoVillardón, M.P. Clustering Disjoint HJBiplot: A new tool for identifying pollution patterns in geochemical studies. Chemosphere 2017, 176, 389–396. [Google Scholar] [CrossRef] [PubMed]
 Cancer Genome Atlas Network. Comprehensive Molecular Portraits of Human Breast Tumours. Nature 2012, 490, 61. [Google Scholar] [CrossRef] [PubMed] [Green Version]
 Rohart, F.; Gautier, B.; Singh, A.; Cao, K.A.L. mixOmics: An R package for ‘omics feature selection and multiple data integration. PLoS Comput. Biol. 2017, 13, e1005752. [Google Scholar] [CrossRef] [Green Version]
 GalindoVillardón, P.; Cuadras, C.M. Una Extensión del Método Biplot y su relación con otras técnicas. Publ. Bioestad. Biomatemática 1986, 17, 13–23. [Google Scholar]
 Greenacre, M.J. Correspondence analysis. Wiley Interdiscip. Rev. Comput. Stat. 2010, 2, 613–619. [Google Scholar] [CrossRef]
 CubillaMontilla, M.; NietoLibrero, A.B.; GalindoVillardón, M.P.; Galindo, M.P.V.; GarciaSanchez, I.M. Are cultural values sufficient to improve stakeholder engagement human and labour rights issues? Corp. Soc. Responsib. Environ. Manag. 2019, 26, 938–955. [Google Scholar] [CrossRef]
 CubillaMontilla, M.I.; GalindoVillardón, P.; NietoLibrero, A.B.; Galindo, M.P.V.; GarcíaSánchez, I.M. What companies do not disclose about their environmental policy and what institutional pressures may do to respect. Corp. Soc. Responsib. Environ. Manag. 2020, 27, 1181–1197. [Google Scholar] [CrossRef]
 MurilloAvalos, C.L.; CubillaMontilla, M.; Sánchez, M.; Ángel, C.; VicenteGalindo, P. What environmental social responsibility practices do large companies manage for sustainable development? Corp. Soc. Responsib. Environ. Manag. 2021, 28, 153–168. [Google Scholar] [CrossRef]
 NietoLibrero, A.B.; GalindoVillardón, P.; Freitas, A. Package biplotbootGUI: Bootstrap on Classical Biplots and Clustering Disjoint Biplot. Available online: https://CRAN.Rproject.org/package=biplotbootGUI (accessed on 4 April 2021).
 Erichson, N.B.; Zheng, P.; Manohar, K.; Brunton, S.L.; Kutz, J.N.; Aravkin, A.Y. Sparse Principal Component Analysis via Variable Projection. SIAM J. Appl. Math. 2020, 80, 977–1002. [Google Scholar] [CrossRef]
 CubillaMontilla, M.; TorresCubilla, C.A.; GalindoVillardón, P.; NietoLibrero, A.B. Package SparseBiplots. Available online: https://CRAN.Rproject.org/package=SparseBiplots (accessed on 4 April 2021).
 Wickham, H. Ggplot2. Wiley Interdiscip. Rev. Comput. Stat. 2011, 3, 180–185. [Google Scholar] [CrossRef]
 Gligorijević, V.; MalodDognin, N.; Pržulj, N. Integrative methods for analyzing big data in precision medicine. Proteomics 2016, 16, 741–758. [Google Scholar] [CrossRef]
 McCue, M.E.; McCoy, A.M. The Scope of Big Data in One Medicine: Unprecedented Opportunities and Challenges. Front. Veter Sci. 2017, 4, 194. [Google Scholar] [CrossRef] [Green Version]
 Montilla, M.I.C. Contribuciones al Análisis Biplot Basadas en Soluciones Factoriales Disjuntas Y en Soluciones Sparse. Ph.D. Thesis, Universidad de Salamanca, Salamanca, Spain, 2019. [Google Scholar]
 González García, N. Análisis Sparse de Tensores Multidimensionales. Ph.D. Thesis, Universidad de Salamanca, Salamanca, Spain, 2019. [Google Scholar]
 HernándezSánchez, J.C.; VicenteVillardón, J.L. Logistic biplot for nominal data. Adv. Data Anal. Classif. 2016, 11, 307–326. [Google Scholar] [CrossRef] [Green Version]
 Lavit, C.; Escoufier, Y.; Sabatier, R.; Traissac, P. The Act (Statis Method). Comput. Stat. Data Anal. 1994, 18, 97–119. [Google Scholar] [CrossRef]
 Jaffrenou, P.A. Sur l’analyse Des Familles Finies de Variables Vectorielles: Bases Algébriques et Application à La Description Statistique. Ph.D. Thesis, Thèse de Troisième Cycle, Université de Lyon, Lyon, France, 1978. [Google Scholar]
 Tucker, L.R. Some mathematical notes on threemode factor analysis. Psychometrika 1966, 31, 279–311. [Google Scholar] [CrossRef] [PubMed]
 Kroonenberg, P.M.; De Leeuw, J. Principal component analysis of threemode data by means of alternating least squares algorithms. Psychometrika 1980, 45, 69–97. [Google Scholar] [CrossRef]
 Harshman, R.A. Foundations of the PARAFAC Procedure: Models and Conditions for an “Explanatory” MultiModal Factor Analysis. Work. Pap. Phon. 1970, 16, 1–84. [Google Scholar]
Proteins  HJ Biplot  Disjoint Biplot  Elastic Net HJ Biplot

D1  D2  D3  D1  D2  D3  D1  D2  D3
1433_epsilon  9.835  −0.791  0.698  1  0  0  6.330  0  0
4EBP1  −1.127  3.408  −0.752  0  0  1  0  0  0
4EBP1_pS65  −2.074  6.317  −2.116  0  0  1  0  1.633  0
4EBP1_pT37  −1.862  2.997  −5.079  0  0  1  0  0  0
4EBP1_pT70  0.486  5.227  −1.753  0  0  1  0  0.832  0
53BP1  −6.654  −3.875  1.235  0  0  1  −3.015  0  0
ARaf_pS299  −4.47  2.681  −1.221  0  1  0  0  0  0
ACC1  −4.007  −3.042  −0.894  0  0  1  0  0  0
ACC_pS79  −4.094  −2.386  −2.147  0  0  1  0  0  0
AMPK_alpha  −1.103  −5.287  1.69  1  0  0  0  −0.917  0
AMPK_pT172  −0.86  −6.362  1.486  1  0  0  0  −1.075  0
ANLN  0.877  6.213  5.348  1  0  0  0  0  2.111
AR  −0.729  −6.68  4.084  1  0  0  0  −4.209  0
ARID1A  −3.643  0.852  1.409  1  0  0  0  0  0
ASNS  −4.067  8.449  −1.908  0  0  1  0  4.819  0
ATM  −5.234  −1.222  −0.396  0  1  0  −1.118  0  0
Akt  −5.513  −4.694  −0.288  0  0  1  −1.664  0  0
Akt_pS473  −1.049  1.326  −7.186  0  0  1  0  0  0
Akt_pT308  −1.782  3.054  −5.25  0  0  1  0  0  0
Annexin_I  6.102  −0.652  −4.703  1  0  0  1.919  0  0
BRaf  −7.829  0.995  2.763  1  0  0  −4.104  0  0
Bak  9.633  −1.78  −1.534  1  0  0  6.042  0  0
Bax  4.12  −1.972  −2.539  1  0  0  0  0  0
Bcl2  1.021  −6.875  4.678  1  0  0  0  −3.623  0
BclxL  4.824  −0.207  1.384  1  0  0  0.189  0  0
Beclin  −3.283  4.485  6.71  1  0  0  0  0  2.459
Bid  9.885  1.076  1.13  1  0  0  6.612  0  0
Bim  0.715  −2.899  3.656  1  0  0  0  0  0
CRaf  −7.355  −2.215  −0.384  1  0  0  −3.880  0  0
CRaf_pS338  5.312  6.464  3.593  1  0  0  1.686  0  2.060
CD31  −2.116  8.398  7.088  1  0  0  0  0  4.871
CD49b  3.632  2.32  3.552  0  0  1  0  0  0
CDK1  0.488  9.008  −0.729  1  0  0  0  3.351  0.892
Caspase7_cleavedD198  1.906  6.466  −1.048  1  0  0  0  2.174  0
Caveolin1  7.827  −6.415  −1.311  1  0  0  3.643  −0.742  −0.702
Chk1  6.792  7.605  1.289  1  0  0  3.358  0.985  0.563
Chk1_pS345  2.418  8.966  5.551  1  0  0  0  0  4.071
Chk2  −6  3.914  −2.176  1  0  0  −1.815  1.190  0
Chk2_pT68  −2.247  10.009  4.991  1  0  0  0  0.914  4.810
Claudin7  −4.187  0.804  4.021  1  0  0  0  0  0
Collagen_VI  8.506  −2.722  −0.097  1  0  0  4.628  0  0
Cyclin_B1  −4.571  7.465  −2.745  1  0  0  0  4.414  0
Cyclin_D1  8.872  −2.678  2.491  1  0  0  5.170  0  0
Cyclin_E1  −1.927  6.257  −3.637  1  0  0  0  3.837  0
DJ1  3.216  −5.246  2.356  1  0  0  0  −1.053  0
Dvl3  −7.369  −0.063  −0.467  1  0  0  −3.462  0  0
ECadherin  −4.731  1.337  3.855  1  0  0  −0.142  0  0
EGFR  2.315  4.231  −2.325  0  0  1  0  0.244  0
EGFR_pY1068  −0.772  1.862  −2.4  0  0  1  0  0  0
EGFR_pY1173  8.702  1.484  1.23  0  1  0  5.321  0  0
ERalpha  −0.686  −8.918  5.329  0  1  0  0  −6.509  0
ERalpha_pS118  −3.542  −4.816  6.177  1  0  0  0  −2.834  0
ERK2  −4.911  −4.53  −1.404  0  1  0  −0.903  0  0
FOXO3a  7.666  3.783  1.127  1  0  0  4.027  0  0
Fibronectin  1.852  −2.596  −0.897  1  0  0  0  0  0
GAB2  −3.465  1.083  −0.098  1  0  0  0  0  0
GATA3  −1.972  −8.738  5.216  0  1  0  0  −6.058  0
GSK3alphabeta  −9.243  0.501  −0.787  1  0  0  −5.924  0  0
GSK3alphabeta_pS21_S9  −6.718  −0.029  −4.263  0  0  1  −2.273  0  0
HER2  −3.51  −0.115  0.883  0  0  1  0  0  0
HER2_pY1248  −0.973  1.28  −0.442  0  0  1  0  0  0
HER3  3.995  −3.859  0.899  0  1  0  0  0  0
HER3_pY1289  5.381  0.692  −1.768  0  0  1  1.365  0  0
HSP70  8.525  3.238  0.181  0  1  0  5.127  0  0
IGFBP2  1.102  −3.158  1.768  1  0  0  0  0  0
INPP4B  −2.524  −6.657  6.597  1  0  0  0  −5.098  0
IRS1  4.045  −2.6  5.377  1  0  0  0  −0.741  0
JNK2  −0.584  −9.036  1.984  1  0  0  0  −4.625  −0.041
JNK_pT183_pT185  2.476  −2.463  −0.011  1  0  0  0  0  0
KRas  10.304  0.949  0.456  1  0  0  7.040  0  0
Ku80  −8.303  0.743  0.447  1  0  0  −4.768  0  0
LBK1  −2.52  1.968  7.864  1  0  0  0  0  1.173
Lck  4.528  3.158  −3.052  0  1  0  0.055  0  0
MAPK_pT202_Y204  −0.304  −2.731  −3.607  1  0  0  0  0  0
MEK1  2.993  −2.122  −2.706  1  0  0  0  0  0
MEK1_pS217_S221  −5.209  −1.263  −2.992  0  0  1  −0.514  0  0
MIG6  4.206  2.429  1.513  0  1  0  0  0  0
Mre11  2.55  7.729  7.37  1  0  0  0  0  4.444
NCadherin  10.669  1.608  0.799  1  0  0  7.616  0  0
NFkBp65_pS536  −4.992  0.915  −2.066  0  0  1  −0.330  0  0
NF2  −4.468  −1.197  1.559  0  0  1  −0.284  0  0
Notch1  4.22  5.154  0.049  0  1  0  0  0.221  0
PCadherin  0.692  5.044  −4.532  1  0  0  0  2.793  0
PAI1  2.668  0.836  −1.01  1  0  0  0  0  0
PCNA  5.345  2.069  −2.278  1  0  0  0.893  0  0
PDCD4  −7.3  4.39  2.29  1  0  0  −2.851  0  0.807
PDK1_pS241  −4.328  −7.468  1.103  0  0  1  −0.406  −2.068  0
PI3Kp110alpha  −2.045  −1.893  −0.058  0  1  0  0  0  0
PKCalpha  4.107  −2.008  −2.34  1  0  0  0  0  0
PKCalpha_pS657  2.787  −0.643  −0.587  1  0  0  0  0  0
PKCdelta_pS664  −1.622  3.93  6.058  1  0  0  0  0  1.686
PR  −0.264  −6.858  5.072  0  0  1  0  −4.465  0
PRAS40_pT246  −4.816  6.243  −2.556  0  1  0  0  0.549  0
PRDX1  1.244  2.609  −0.483  1  0  0  0  0  0
PTEN  −3.443  −4.129  0.798  1  0  0  0  0  0
Paxillin  −3.448  −4.577  −2.127  1  0  0  0  0  0
Pea15  3.573  −5.791  0.144  1  0  0  0  −0.581  0
RBM3  −3.695  −3.794  0.379  1  0  0  0  0  0
Rad50  −0.172  −5.001  2.657  0  1  0  0  −0.962  0
Rb_pS807_S811  −6.574  1.905  −2.987  1  0  0  −2.009  0  0
S6  −7.718  4.048  −0.745  1  0  0  −3.914  0.543  0
S6_pS235_S236  −2.383  2.566  −6.953  1  0  0  0  0.644  0
S6_pS240_S244  −2.97  2.075  −7.177  1  0  0  0  0.350  0
SCD1  −4.54  6.624  4.302  1  0  0  0  0  2.683
STAT3_pY705  4.967  −2.48  −2.268  1  0  0  0.564  0  0
STAT5alpha  −4.779  −3.47  −2.199  0  0  1  −0.608  0  0
Shc_pY317  −4.083  3.86  2.936  0  1  0  0  0  0.740
Smad1  0.205  −0.579  2.104  1  0  0  0  0  0
Smad3  4.219  −5.98  2.297  1  0  0  0  −1.414  0
Smad4  9.908  −0.979  −1.163  1  0  0  6.333  0  0
Src  5.433  1.57  −0.883  1  0  0  1.023  0  0
Src_pY416  −2.997  8.115  2  1  0  0  0  0.303  2.653
Src_pY527  4.385  −0.67  −5.883  1  0  0  0.282  0  0
Stathmin  7.149  7.29  4.099  1  0  0  3.795  0  1.895
Syk  −4.569  2.55  −4.518  0  0  1  −0.140  0.699  0
Transglutaminase  −2.552  3.844  −0.091  0  1  0  0  0  0
Tuberin  −6.672  −6.243  −0.289  1  0  0  −3.259  −0.161  0
VEGFR2  −4.498  −4.125  2.757  0  1  0  −0.236  −0.168  0
XBP1  1.892  1.07  4.482  1  0  0  0  0  0
XRCC1  1.111  −0.622  2.963  0  0  1  0  0  0
YAP_pS127  0.955  −1.745  −1.806  0  1  0  0  0  0
YB1  −3.686  −0.954  1.81  0  1  0  0  0  0
YB1_pS102  −2.047  2.807  −6.06  1  0  0  0  0  0
alphaCatenin  −4.342  4.573  7.605  1  0  0  0  0  3.159
betaCatenin  −6.877  −0.545  0.895  1  0  0  −2.921  0  0
cKit  2.082  3.856  −2.432  1  0  0  0  0.042  0
cMet_pY1235  1.579  8.612  6.828  1  0  0  0  0  4.546
cMyc  1.778  2.82  2.362  1  0  0  0  0  0
eEF2  −5.963  3.474  −1.39  1  0  0  −1.832  0.245  0
eEF2K  −5.193  −5.415  2.727  0  1  0  −1.232  −1.218  0
eIF4E  1.789  −0.64  −1.43  1  0  0  0  0  0
mTOR  −9.332  −2.094  2.38  1  0  0  −6.073  0  0
mTOR_pS2448  −4.804  0.348  −1.92  1  0  0  0  0  0
p27  3.678  −0.86  2.963  1  0  0  0  0  0
p27_pT157  −1.764  7.218  4.386  1  0  0  0  0  2.536
p27_pT198  −2.494  5.968  −1.246  1  0  0  0  1.908  0
p38_MAPK  0.767  −5.788  −0.57  1  0  0  0  0  −0.006
p38_pT180_Y182  0.215  −1.303  −3.117  1  0  0  0  0  0
p53  −2.966  9.064  4.314  1  0  0  0  0.846  3.663
p70S6K  −4.922  −1.661  1.338  1  0  0  −0.838  0  0
p70S6K_pT389  5.575  1.371  −1.5  1  0  0  1.619  0  0
p90RSK_pT359_S363  −6.319  1.839  −1.653  1  0  0  −1.687  0  0
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.
© 2021 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).
Share and Cite
CubillaMontilla, M.; NietoLibrero, A.B.; GalindoVillardón, M.P.; TorresCubilla, C.A. Sparse HJ Biplot: A New Methodology via Elastic Net. Mathematics 2021, 9, 1298. https://doi.org/10.3390/math9111298
CubillaMontilla M, NietoLibrero AB, GalindoVillardón MP, TorresCubilla CA. Sparse HJ Biplot: A New Methodology via Elastic Net. Mathematics. 2021; 9(11):1298. https://doi.org/10.3390/math9111298
Chicago/Turabian StyleCubillaMontilla, Mitzi, Ana Belén NietoLibrero, M. Purificación GalindoVillardón, and Carlos A. TorresCubilla. 2021. "Sparse HJ Biplot: A New Methodology via Elastic Net" Mathematics 9, no. 11: 1298. https://doi.org/10.3390/math9111298
