New Analytical Solutions for Longitudinal Vibration of a Floating Pile in Layered Soils with Radial Heterogeneity

Abstract

Based on the theory of wave propagation in three-dimensional (3D) continuum, a new analytical approach for the longitudinal vibration characteristics of a floating pile in layered soils with radial heterogeneity is developed by employing a viscous-type damping model. Firstly, an analytical solution for the longitudinal complex impedance at the pile head is deduced by employing the Laplace transform and complex stiffness technique with the compatibility conditions of the pile and radially inhomogeneous surrounding soil. Secondly, a semi-analytical solution in the time domain is further acquired by using the inverse Fourier transform method. Furthermore, the corresponding analytical solutions are validated through contrasts with previous solutions. Finally, parametric analyses are underway to investigate the effect of radial heterogeneity of surrounding soils on longitudinal vibration characteristics of floating piles. It is indicated that the proposed approach and corresponding solutions can provide a more wide-ranging application than the simple harmonic vibration for longitudinal vibration analysis of a floating pile in soils.

1. Introduction

Structures such as bridges, tall buildings, and offshore platform often have piles as foundations that experience dynamic loads from traffic, earthquakes, and mechanical oscillations. The dynamic response of pile–soil interactions has always been a hot topic in research fields of geotechnical engineering and soil dynamics; it has great reference value and guidance for pile dynamic detection, earthquake-resistance design, and dynamic foundation design [1,2,3]. Many approaches for the dynamic interaction systems of pile–soil vibration have been proposed by many scholars in which the soil is commonly considered to be radially homogeneous [4,5,6,7,8,9]. The Winkler model has been widely used due to its convenience, considering the surrounding soil as a series of spring–dashpot elements [10]. Nevertheless, the wave propagation within the soil around the pile is completely ignored in the Winkler model [11,12]. Novak and Nogami [13] further presented a plane–strain model by assuming the surrounding soils as thin visco-elastic layers with hysteretic-type damping. Manna and Baidya [14] found the performance of the Novak’s model was unsatisfactory in a certain high-frequency range for neglecting the longitudinal wave propagation between thin layers. Subsequently, various simplified models for pile vibration were proposed to consider the effect of 3D wave propagation within surrounding soil [15,16]. Furthermore, Zheng et al. [17], Cai et al. [18], Yang et al. [19], and Cui et al. [20,21] examined the dynamic behavior of foundations (e.g., piles and plates) in a saturated mediu under longitudinal excitation by regarding the soil layer as porous saturated media.

However, there still exist some physical reactions occurring naturally in the disturbed environment [22,23,24]. When the construction operations cause soil disturbance within the vicinity of the pile shaft, the influence of soil radial inhomogeneity on the characteristics of pile–soil systems should not be ignored [25]. Novak and Sheta [26] developed a simple massless boundary zone model to take the radial heterogeneity of surrounding soil into account. Subsequently, Veletsos and Dotson [27] proposed a new model by dividing the surrounding soil into two layers, a semi-infinite outer undisturbed zone and an inner disturbed zone. To eliminate wave reflection at the interface of the boundary zone, Han and Sabin [28] presented a mechanical model of softening the boundary region without reflective phenomenon, in which the shear modulus and material damping are described as a change in the parabola. Furthermore, EI Naggar [29] employed annular sub-layers to examine the strengthened effect of surrounding soil on the longitudinal complex impedance of the soil layer. Moreover, the research team of Wang [30,31] pointed out the defects of EI Naggar’s model and then presented a new method for the longitudinal vibration of the pile–soil interaction system by utilizing the complex stiffness method in the hysteretic-damping soil. Afterwards, based on Wang’s model, Li et al. [32] developed a new method to research the longitudinal vibration characteristics of a large-diameter pile in radially heterogeneous media.

Significantly, most of above mentioned research adopted hysteretic-type damping to describe the material damping, which is only satisfactory for harmonic excitation and is independent of the frequency [33]. On the contrary, viscous-type damping is appropriate for pile vibration which is subjected to a non-harmonic excitation load [34]. Therefore, Cui et al. [35] developed a new method for the longitudinal response of a pipe pile embedded in radially heterogeneous media with a viscous-type damping model.

To date, based on the theory of 3D wave propagation and the viscous-type damping model, there is little work on the longitudinal vibration of piles embedded in radially heterogeneous media. In this paper, a new analytical approach for the longitudinal vibration of a floating pile embedded in bidirectional heterogeneous soil with a viscous-type damping model is proposed, by extending the complex stiffness transfer method, inverse Fourier transform, and the theory of 3D wave propagation in continuum. Extensive parametric analyses were also conducted to study the longitudinal vibration characteristics of a floating pile in longitudinally layered soils with radial heterogeneity. The proposed model can simulate the complicated working conditions better than the homogeneous media in the subgrade and can provide a reference and guide for practical engineering.

2. Simplified Mechanical Model and Basic Assumptions

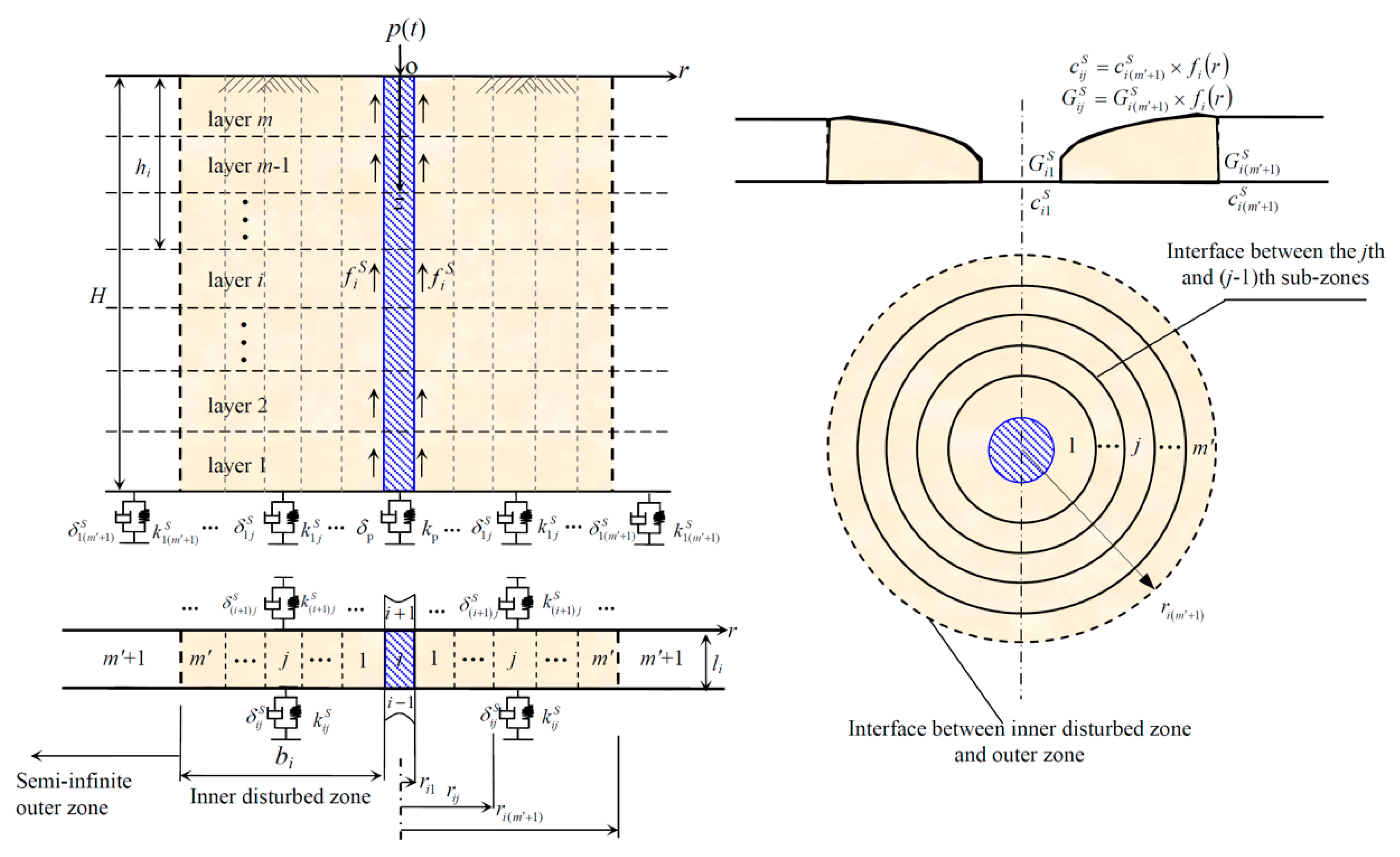

Figure 1 depicts a new simplified computational model of the coupled system of pile and soil. This interaction system is divided into m layers and segments in a longitudinal direction, of the surrounding soil and pile shaft, respectively, numbered 1, 2, …, i, …, m. The thickness and the upper interface depth of the ith soil layer are l_i and h_i, respectively. $r_{i1}$ and $r_{i(m^{\prime }+1)}$ are the radii of the ith pile segment and disturbed zone, respectively, of the ith soil layer. The ith soil layer with radial thickness b_i is further subdivided into m’ radial sub-layers, ordered 1, 2, …, j, …, m’. $r_{ij}$ represents the radius of the inner interface for the jth subzone within the ith vertical soil layer. $G_{ij}^S\left(r\right)$ and $c_{ij}^S\left(r\right)$ are the shear modulus and viscous damping coefficient, respectively, which satisfy the following expressions:

$$G_{ij}^S\left(r\right)=\{\begin{array}{c}{G}_{i1}^S\begin{array}{cc}\begin{array}{cc}\begin{array}{cc}& \end{array}& \end{array}& r=r_{i1}\end{array}\\ G_{i(m^{\prime }+1)}^S\times f_i\left(r\right)\begin{array}{cc}& r_{i1}<r<r_{i(m^{\prime }+1)}\end{array}\\ G_{i(m^{\prime }+1)}^S\begin{array}{cc}& r\ge r_{i(m^{\prime }+1)}\end{array}\end{array}$$

(1)

$$c_{ij}^S\left(r\right)=\{\begin{array}{c}{c}_{i1}^S\begin{array}{cc}\begin{array}{cc}\begin{array}{cc}& \end{array}& \end{array}& r=r_{i1}\end{array}\\ c_{i(m^{\prime }+1)}^S\times f_i\left(r\right)\begin{array}{cc}& r_{i1}<r<r_{i(m^{\prime }+1)}\end{array}\\ c_{i(m^{\prime }+1)}^S\begin{array}{cc}& r\ge r_{i(m^{\prime }+1)}\end{array}\end{array}$$

(2)

where $f_i(r)$ is a parabolic function [31]. The shear modulus and viscous damping coefficient of each radial sub-zone which is homogeneous inside, are determined by Equations (1) and (2) with respect to the corresponding radius $r_{ij}$. The interaction between the interfaces of longitudinal layers is assumed to follow the Kelvin–Voigt model. $k_{ij}^S$ and ${\delta }_{ij}^S$ are visco-elastic constants of the Kelvin–Voigt model at the interface between the ith and (i−1)th layers, of the jth sub-zone. Similarly, the corresponding constants of visco-elastic supports beneath the pile toe are δ_p and k_p. $p(t)$ denotes the uniformly distributed excitation load.

In this paper, some assumptions are given in the presented mechanical model:

(1)

The soil around the pile consists of two zones, one is a semi-infinite area, the other is an inner disturbed area.

(2)

The inner disturbed zone is subdivided into a series of annular sub-zones, and each annular region is deemed to be homogeneous, linear viscoelastic, and isotropic [30,31].

(3)

The displacement and shear stress at the interface between neighboring annular sub-zones are continuous.

(4)

The surrounding soils are linear visco-elastic continuums with frequency-dependent viscous-type damping [36].

(5)

The deformations of the soil–pile system are small. There is no interface sliding between the pile and soils.

3. Governing Equations

According to the elastodynamic theory of 3D continuums, the governing equation of the jth surrounding soil in the axisymmetric conditions is established as follows:

$$({\lambda }_{ij}^S+2G_{ij}^S)\frac{{\partial }^2}{\partial z^2}{u}_{ij}^S(r,z,t)+G_{ij}^S(\frac{1}{r}\frac{\partial }{\partial r}+\frac{{\partial }^2}{\partial r^2})u_{ij}^S(r,z,t)+c_{ij}^S\frac{\partial }{\partial t}\left[\left(\frac{{\partial }^2}{\partial r^2}+\frac{1}{r}\frac{\partial }{\partial r}+\frac{{\partial }^2}{\partial z^2}\right)u_{ij}^S\left(r,z,t\right)\right]={\rho }_{ij}^S\frac{{\partial }^2}{\partial t^2}{u}_{ij}^S\left(r,z,t\right)$$

(3)

where $u_{ij}^S\left(r,z,t\right)$, ${\rho }_{ij}^S$, ${\lambda }_{{}^{{}_{ij}}}^S$, $G_{ij}^S$, $c_{ij}^S$, ${\mu }_{{}_{ij}}^S$ are the longitudinal displacement, density, Lame’s constant, shear modulus, viscous damping coefficient, and Poisson’s ratio, respectively; ${\lambda }_{{}^{{}_{ij}}}^S=2G_{{}_{ij}}^S{\mu }_{{}_{ij}}^S/(1-2{\mu }_{{}_{ij}}^S)$.

The longitudinal shear stress at the interface between the first radial sub-zone and pile segment is

$${\tau }_{i1}^S\left(r,z,t\right)=G_{i1}^S\frac{\partial u_1^S\left(r,z,t\right)}{\partial r}+c_{i1}^S\frac{{\partial }^2{u}_{i1}^S\left(r,z,t\right)}{\partial t\partial r}$$

(4)

The vibration behavior of the ith pile segment can be written by

$$E_i^P{A}_i^P\frac{{\partial }^2{u}_i^P(z,t)}{\partial z^2}-m_i^P\frac{{\partial }^2{u}_i^P(z,t)}{\partial t^2}-2\pi r_{i1}{f}_i^S(z,t)=0$$

(5)

where $E_i^p$ and $A_i^p$ denote the elastic modulus and cross-section area, respectively; the shear stress at the interface between the first radial sub-zone of soil and the ith pile segment $f_i^S\left(z,t\right)$ satisfies $f_i^S(z,t)={\tau }_{i1}^S(r,z,t)|{}_{r=r_{i1}}$; $m_i^P={\rho }_i^P{A}_i^P$, $A_i^P=\pi r_{i1}^2$.

4. Boundary and Initial Conditions

The boundary condition at the interface between the ith and (i + 1)th vertical layers of the jth radial sub-zone can be given by

$$\frac{\partial u_{ij}^S\left(r,z,t\right)}{\partial z}|{}_{z=h_i}=-[\frac{{\delta }_{(i+1)j}^S}{E_{ij}^S}\frac{\partial u_{ij}^S\left(r,z,t\right)}{\partial t}+\frac{k_{(i+1)j}^S}{E_{ij}^S}{u}_{ij}^S\left(r,z,t\right)]$$

(6)

where $E_{ij}^S$ is Young’s modulus.

The boundary condition at the lower interface of ith vertical layers, within the jth radial sub-zone, can be given by

$$\frac{\partial u_{ij}^S\left(r,z,t\right)}{\partial z}|{}_{z=h_i+l_i}=-[\frac{k_{ij}^S{u}_{ij}^S\left(r,z,t\right)}{E_{ij}^S}+\frac{{\delta }_{ij}^S}{E_{ij}^S}\frac{\partial u_{ij}^S\left(r,z,t\right)}{\partial t}]$$

(7)

For the ith vertical layer of soil, the completely coupled conditions are:

$$G_{ij}^S\frac{\partial u_{ij}^S}{\partial r}+c_{ij}^S\frac{{\partial }^2{u}_{ij}^S}{\partial t\partial r}|{}_{r=r_{i(j+1)}}=G_{i(j+1)}^S\frac{\partial u_{i(j+1)}^S}{\partial r}+c_{i(j+1)}^S\frac{{\partial }^2{u}_{i(j+1)}^S}{\partial t\partial r}|{}_{r=r_{i(j+1)}}$$

(8)

$$u_{ij}^S(r,z,t)|{}_{r=r_{i(j+1)}}=u_{i(j+1)}^S(r,z,t)|{}_{r=r_{i(j+1)}}$$

(9)

The completely coupled conditions at the interface between the ith pile segment and the first radial sub-zone of the ith vertical layer are:

$$u_{i1}^S(r,z,t)|{}_{r=r_{i1}}=u_i^P(z,t)$$

(10)

$$f_i^S(z,t)={\tau }_{i1}^S(r,z,t)|{}_{r=r_{i1}}$$

(11)

The fringe conditions of the ith pile segment satisfy the following expressions.

$${\frac{d{u}_i^P}{dz}|}_{z=h_i}=-\frac{z_i^P{u}_i^P}{E_i^P{A}_i^P}$$

(12)

$${\frac{d{u}_i^P}{dz}|}_{z=h_i+l_i}=-\frac{z_{i-1}^P{u}_i^P}{E_i^P{A}_i^P}$$

(13)

where $z_{i-1}^P$ and $z_i^P$ are the displacement impedance functions at the top and toe of the ith pile segment, respectively.

5. Solution of the Governing Soil

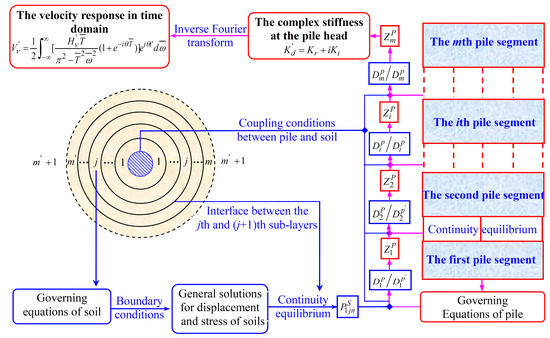

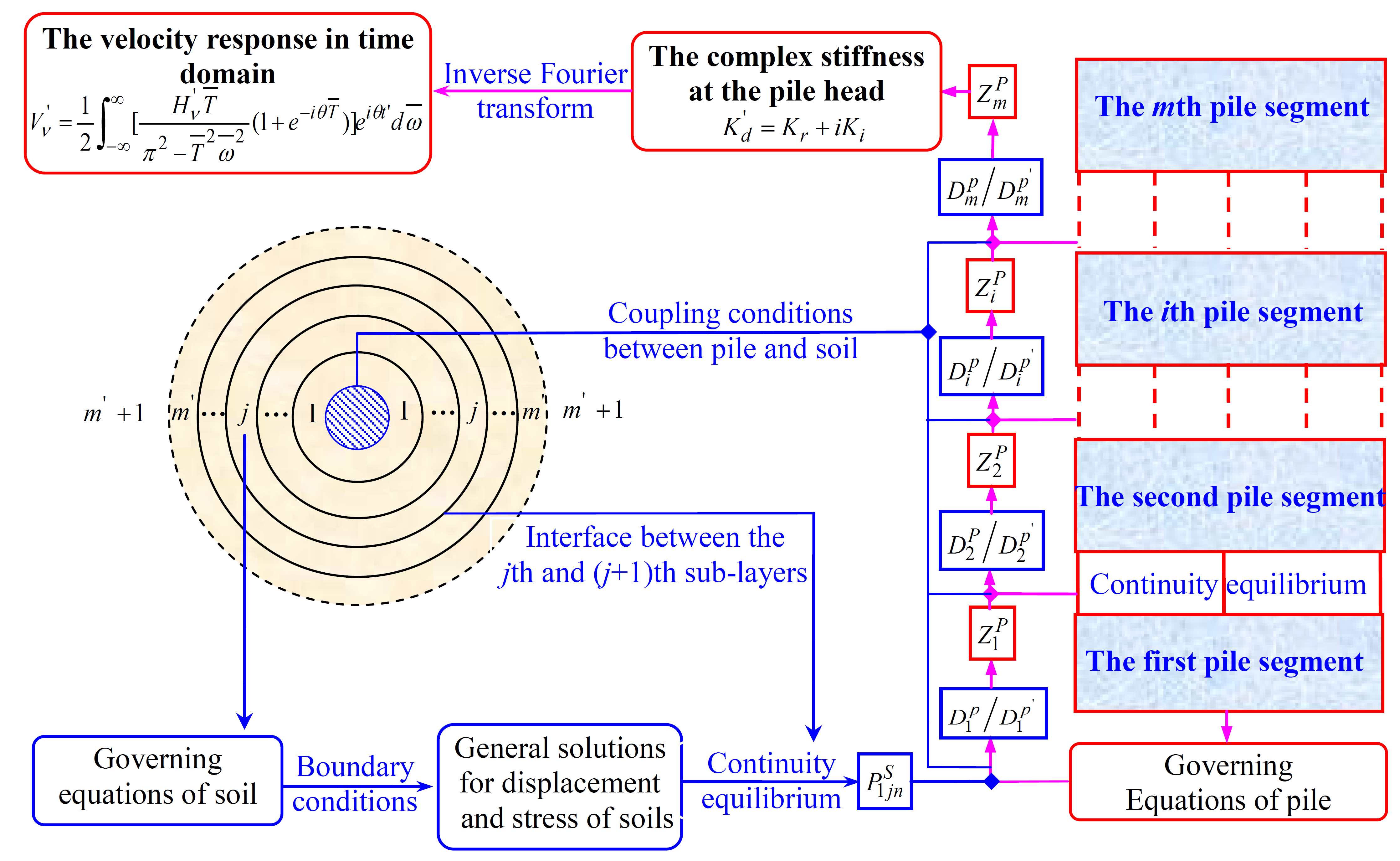

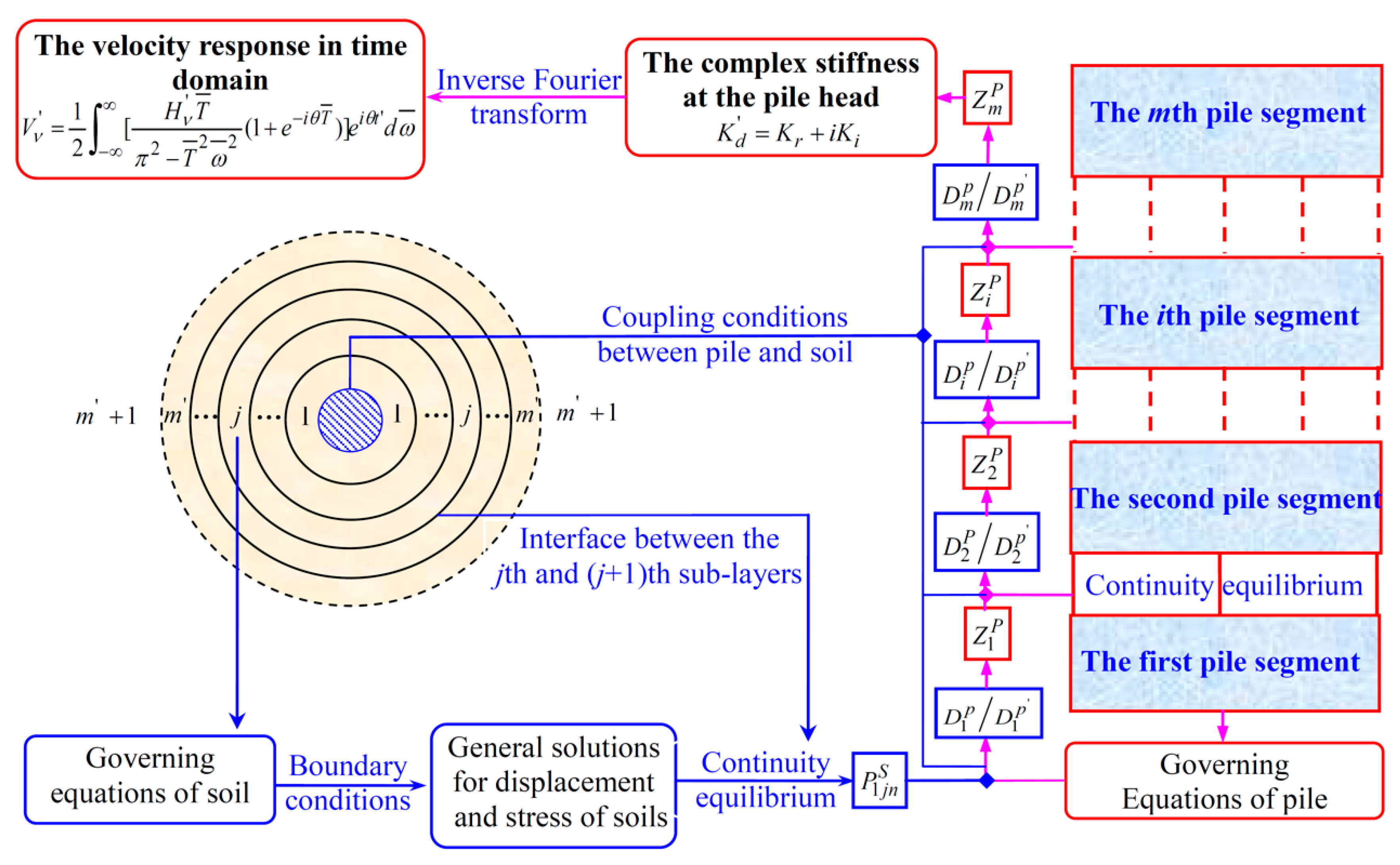

The derivation procedure of the analytical solution is shown in Figure 2.

Taking the Laplace transform, Equation (4) can be rewritten as

$$({\lambda }_{ij}^S+2G_{ij}^S)\frac{{\partial }^2}{\partial z^2}{U}_{ij}^S(r,z,s)+G_{ij}^S(\frac{1}{r}\frac{\partial }{\partial r}+\frac{{\partial }^2}{\partial r^2})U_{ij}^S(r,z,s)+c_{ij}^{S}s(\frac{{\partial }^2}{\partial r^2}+\frac{1}{r}\frac{\partial }{\partial r}+\frac{{\partial }^2}{\partial z^2})U_{ij}^S(r,z,s)={\rho }_{ij}^S{s}^2{U}_{ij}^S(r,z,s)$$

(14)

where $s=i\omega$, $i=\sqrt{-1}$, $U_{ij}^S$ is the Laplace transform of $u_{ij}^S$.

Applying the separation variable method, the displacement of the jth radial sub-zone within the first vertical layer can be viewed in Appendix A.

Thus, the shear stress at the inner interface of the jth radial sub-zone within the first vertical layer yields:

$${\tau }_{1j}^S=\{\begin{array}{l}(G_{1j}^S+c_{1j}^{S}s){\displaystyle \sum _{n=1}^{\infty }{A}_{1jn}^S{q}_{1jn}^S{K}_1(q_{1jn}^{S}r)\cos (h_{1jn}^S{z}^{\prime }-{\phi }_{1jn}^S)\begin{array}{cc}& (j=m^{\prime }+1)\end{array}}\\ \begin{array}{cc}(G_{1j}^S+c_{1j}^{S}s){\displaystyle \sum _{n=1}^{\infty }{q}_{1jn}^S[-B_{1jn}^S{I}_1(q_{1jn}^{S}r)+C_{1jn}^S{K}_1(q_{1jn}^{S}r)]\cos (h_{1jn}^S{z}^{\prime }-{\phi }_{1jn}^S)}& (j=m^{\prime },\dots ,2,1)\end{array}\end{array}$$

(15)

where $I_1(q_{1jn}^{S}r)$ represents modified Bessel functions of the first kind of order one; $K_1(q_{1jn}^{S}r)$ represents modified Bessel functions of the second kind of order one.

Considering the boundary conditions listed in Equations (8) and (9), we have:

if $j=m^{\prime }$:

$$P_{1m^{\prime }n}^S=\frac{\begin{array}{l}(G_{1m^{\prime }}^S+c_{1m^{\prime }}^{S}s)q_{1m^{\prime }n}^S{K}_1(q_{1m^{\prime }n}^S{r}_{1(m^{\prime }+1)})K_0(q_{1(m^{\prime }+1)n}^S{r}_{1(m^{\prime }+1)})-(G_{1(m^{\prime }+1)}^S\\ \\ \\ +c_{1(m^{\prime }+1)}^{S}s)K_0(q_{1m^{\prime }n}^S{r}_{1(m^{\prime }+1)})K_1(q_{1(m^{\prime }+1)n}^S{r}_{1(m^{\prime }+1)})\end{array}}{\begin{array}{l}(G_{1m^{\prime }}^S+c_{1m^{\prime }}^{S}s)q_{1m^{\prime }n}^S{I}_1(q_{1m^{\prime }n}^S{r}_{1(m^{\prime }+1)})K_0(q_{1(m^{\prime }+1)n}^S{r}_{1(m^{\prime }+1)})+(G_{1(m^{\prime }+1)}^S\\ \\ \\ +c_{1(m^{\prime }+1)}^{S}s)q_{1(m^{\prime }+1)n}^S{I}_0(q_{1m^{\prime }n}^S{r}_{1(m^{\prime }+1)})K_1(q_{1(m^{\prime }+1)n}^S{r}_{1(m^{\prime }+1)})\end{array}}$$

(16)

if $j=m^{\prime }-1,\dots ,2,1$:

$$P_{1jn}^S=\frac{-(G_{1(j+1)}^S+c_{1(j+1)}^{S}s)q_{1(j+1)n}^S{K}_0(q_{jn}^S{r}_j)\times [P_{1(j+1)n}^S{I}_1(q_{1(j+1)n}^S{r}_{1(j+1)})-K_1(q_{1(j+1)n}^S{r}_{1(j+1)})]}{\begin{array}{l}(G_{1j}^S+c_{1j}^{S}s)q_{1jn}^S{I}_1(q_{1jn}^S{r}_{1(j+1)})[P_{1(j+1)n}^S{I}_0(q_{1(j+1)n}^S{r}_{1(j+1)})+K_0(q_{1(j+1)n}^S{r}_{1(j+1)})]-(G_{1(j+1)}^S\\ \\ \\ +[-K_1(q_{1(j+1)n}^S{r}_{1(j+1)})+P_{1(j+1)n}^S{I}_1(q_{1(j+1)n}^S{r}_{1(j+1)})]\times c_{1(j+1)}^{S}s)q_{1(j+1)n}^S{I}_0(q_{1jn}^S{r}_{1(j+1)})\end{array}}$$

(17)

Substituting Equation (15) into Equation (5) and taking the Laplace transform produces

$${(V_1^P)}^2\frac{{\partial }^2{U}_1^P(z^{\prime },s)}{\partial {z^{\prime }}^2}-s^2{U}_1^P(z^{\prime },s)-\frac{2\pi r_{11}}{{\rho }_1^P{A}_1^P}(G_{11}^S+c_{11}^{S}s){\displaystyle \sum _{n=1}^{\infty }{q}_{11n}^S}\{[-B_{11n}^S{I}_1(q_{11n}^S{r}_{11})+C_{11n}^S{K}_1(q_{11n}^S{r}_{11})]\cos (h_{11n}^S{z}^{\prime }-{\phi }_{11n}^S)\}=0$$

(18)

where $V_1^P=\sqrt{E_1^P/{\rho }_1^P}$, $U_1^P$ is the Laplace transform of $u_1^P$.

The general solution for Equation (18) is obtained by:

$$U_1^{P^{\prime }}=D_1^P\cos (\frac{\omega }{V_1^P}{z}^{\prime })+D_1^{P^{\prime }}\sin (\frac{\omega }{V_1^P}{z}^{\prime })$$

(19)

In addition, the corresponding particular solution can be given by

$$U_1^{P*}={\displaystyle \sum _{n=1}^{\infty }{M}_{1n}^S}\cos (h_{11n}^S{z}^{\prime }-{\phi }_{11n}^S)$$

(20)

where $M_{1n}^S=\frac{2\pi r_{11}{q}_{11n}^S}{{\rho }_1^P{A}_1^P}\frac{(G_{11}^S+i\omega \times c_{11}^S)}{{(V_1^P{h}_{11n}^S)}^2-{\omega }^2}[B_{11n}^S{I}_1(q_{11n}^S{r}_{11})-C_{11n}^S{K}_1(q_{11n}^S{r}_{11})]$.

Therefore, the solution for Equation (18) can be obtained as

$$U_1^P={\displaystyle \sum _{n=1}^{\infty }{M}_{1n}^S\cos (h_{11n}^S{z}^{\prime }-{\phi }_{11n}^S)}+D_1^P\cos (\frac{\omega }{V_1^P}{z}^{\prime })+D_1^{P^{\prime }}\sin (\frac{\omega }{V_1^P}{z}^{\prime })$$

(21)

Furthermore, according to the continuity conditions in Equation (10), the following expression can be given by

$$\begin{array}{l}{\displaystyle \sum _{n=1}^{\infty }[B_{11n}^S{I}_0(q_{11n}^S{r}_{11})+C_{11n}^S{K}_0(q_{11n}^S{r}_{11})]\cos (h_{11n}^S{z}^{\prime }-{\phi }_{11n}^S)}\\ =D_1^P\cos (\frac{\omega }{V_1^P}{z}^{\prime })+D_1^{P^{\prime }}\sin (\frac{\omega }{V_1^P}{z}^{\prime })+{\displaystyle \sum _{n=1}^{\infty }{M}_{1n}^S\cos (h_{11n}^S{z}^{\prime }-{\phi }_{11n}^S)}\end{array}$$

(22)

Combining Equations (16), (17), (21), and (22) yields

$$U_1^P=D_1^P[{\displaystyle \sum _{n=1}^{\infty }{\gamma }_{1n}^{\prime }}\cos (h_{11n}^S{z}^{\prime }-{\phi }_{11n}^S)+\cos (\frac{\omega }{V_1^P}{z}^{\prime })]+D_1^{P^{\prime }}[-{\displaystyle \sum _{n=1}^{\infty }{\gamma }_{1n}^{″}}\cos (h_{11n}^S{z}^{\prime }-{\phi }_{11n}^S)+\sin (\frac{\omega }{V_1^P}{z}^{\prime })]$$

(23)

where ${\gamma }_{1n}^{\prime }$ and ${\gamma }_{1n}^{″}$ are presented in Appendix B.

Performing the recursion of the transfer function method, $Z_m^p$ is obtained as

$$Z_m^p(\omega )=\frac{F_m}{U_m^p}=-E_m^P{A}_m^P\frac{\frac{D_m^P}{D_m^{P\prime }}{\displaystyle \sum _{n=1}^{\infty }{\gamma }_{mn}^{\prime }}{h}_{m1n}^S\sin ({\phi }_{m1n}^S)+\frac{\omega }{V_m^p}-{\displaystyle \sum _{n=1}^{\infty }{\gamma }_{mn}^{″}}{h}_{m1n}^S\sin ({\phi }_{m1n}^S)}{\frac{D_m^P}{D_m^{P\prime }}(1+{\displaystyle \sum _{n=1}^{\infty }{\gamma }_{mn}^{\prime }}\cos ({\phi }_{m1n}^S))-{\displaystyle \sum _{n=1}^{\infty }{\gamma }_{mn}^{″}}\cos ({\phi }_{m1n}^S)}=\frac{E_m^P{A}_m^P}{l_m}{K}_d^{\prime }$$

(24)

where $K_d^{\prime }=\frac{\frac{D_m^P}{D_m^{P\prime }}{\displaystyle \sum _{n=1}^{\infty }{\gamma }_{mn}^{\prime }}{\overline{h}}_{m1n}^S\sin ({\phi }_{m1n}^S)+{\theta }_m-{\displaystyle \sum _{n=1}^{\infty }{\gamma }_{mn}^{″}}{\overline{h}}_{m1n}^S\sin ({\phi }_{m1n}^S)}{\frac{D_m^P}{D_m^{P\prime }}(1+{\displaystyle \sum _{n=1}^{\infty }{\gamma }_{mn}^{\prime }}\cos ({\phi }_{m1n}^S))-{\displaystyle \sum _{n=1}^{\infty }{\gamma }_{mn}^{″}}\cos ({\phi }_{m1n}^S)}$ is the dimensionless complex impedance; $\frac{D_m^P}{D_m^{P\prime }}=\frac{{\theta }_m\cos ({\theta }_m)+{\displaystyle \sum _{n=1}^{\infty }{\gamma }_{mn}^{″}}{\overline{h}}_{m1n}^S\sin ({\overline{h}}_{m1n}^S-{\phi }_{m1n}^S)+\frac{Z_{m-1}^P{l}_m}{E_m^P{A}_m^P}[\sin ({\theta }_m)-{\displaystyle \sum _{n=1}^{\infty }{\gamma }_{mn}^{″}}\cos ({\overline{h}}_{m1n}^S-{\phi }_{m1n}^S)]}{{\theta }_m\sin ({\theta }_m)+{\displaystyle \sum _{n=1}^{\infty }{\gamma }_{mn}^{\prime }}{\overline{h}}_{m1n}^S\sin ({\overline{h}}_{m1n}^S-{\phi }_{m1n}^S)-\frac{Z_{m-1}^P{l}_m}{E_m^P{A}_m^P}[\cos ({\theta }_m)+{\displaystyle \sum _{n=1}^{\infty }{\gamma }_{mn}^{\prime }}\cos ({\overline{h}}_{m1n}^S-{\phi }_{m1n}^S)]}$, $F_m$ denotes the Laplace transform of $p(t)$; The displacement impedance function of the first and ith pile segments is given in Appendix C.

Further, the dimensionless complex impedance $K_d^{\prime }$ can be expressed as

$$K_d^{\prime }=K_r+i{K}_i$$

(25)

where $K_r$ denotes the true stiffness, and $K_i$ represents the equivalent damping.

With respect to the semi-sine wave $p(t)=Q_{\max }\times \sin (\pi t/T)$, the velocity response in the time domain is obtained by the inverse Fourier transform:

$$V_v(t)=Q_{\max }IFT[-\frac{1}{{\rho }_m^P{A}_m^P{V}_m^P}{H}_v^{\prime }\frac{\pi T}{{\pi }^2-T^2{\omega }^2}(1+e^{-i\omega T})]=-\frac{Q_{\max }}{{\rho }_m^P{A}_m^P{V}_m^P}{V}_v^{\prime }$$

(26)

where $V_{\nu }^{\prime }=0.5\times {\displaystyle {\int }_{-\infty }^{\infty }[\frac{(1+e^{-i\theta \overline{T}})\overline{T}}{{\pi }^2-{\overline{T}}^2{\overline{\omega }}^2}{H}_{\nu }^{\prime }]}{e}^{i\theta t^{\prime }}d\overline{\omega }$; $Q_{\max }$ denotes the amplitude of the exciting pressure; $T$ represents the impulse width of the exciting pressure; $\overline{T}=T/T_c$ denotes the corresponding dimensionless impulse width; $V_m^P=\sqrt{E_m^P/{\rho }_m^P}$; $T_c={\displaystyle \sum _{i=1}^m{t}_{ic}}$; $t^{\prime }=t/T_c$ represents dimensionless time; $\overline{\omega }=\omega T_c$; the dimensionless frequency response function $H_v^{\prime }(\omega )$ is given in Appendix D.

6. Results and Discussion

Numerical analyses are illustrated to verify the acquired solutions by comparison with prior solutions and to investigate the characteristics of a floating pile in bidirectional heterogeneous media with a viscous-type damping model. EI Naggar [29] and Wang et al. [30] pointed out that stable solutions can be obtained if $m^{\prime }>20$. Hence, the value of $m^{\prime }$ is taken as 20 in this paper. The coefficient of the disturbance degree ${\xi }_i^S$ is defined as:

$${\xi }_i^S=\sqrt{G_{i1}^S/G_{i(m^{\prime }+1)}^S}=\sqrt{c_{i1}^S/c_{i(m^{\prime }+1)}^S}=V_{i1}^S/V_{i(m^{\prime }+1)}^S\left(i=1,2,\dots ,m\right)$$

(27)

If ${\xi }_i{}^S<1$, the soil layer is weakened; if ${\xi }_i{}^S>1$, the soil layer is strengthened; if ${\xi }_i{}^S=1$, the soil layer is radially homogeneous.

Unless otherwise specified, some parameters are employed in the following analyses:

$r_{i1}=b_i=0.5 \mathrm{m}$, ${\rho }_i^p=2500 \mathrm{kg}/{\mathrm{m}}^3$, $V_i^p=3200 \mathrm{m}/\mathrm{s}$, H = 20 m, $k_{\mathrm{p}}^{}=1\times {10}^5 \mathrm{kN}/{\mathrm{m}}^3$, ${\delta }_{\mathrm{p}}^{}=1\times {10}^5 \mathrm{kN}\cdot \mathrm{s}/{\mathrm{m}}^2$, ${\rho }_{ij}^S=2000 \mathrm{kg}/{\mathrm{m}}^3$, $V_{i(m^{\prime }+1)}^{}=100 \mathrm{m}/\mathrm{s}$, ${\mu }_{ij}^S=0.4$, $c_{i(m^{\prime }+1)}^{}=1 \mathrm{kN}\cdot \mathrm{s}/{\mathrm{m}}^2$, ${\xi }_i^S=0.6$, $m=5$, $m^{\prime }=20$.

6.1. Verification of the Solution

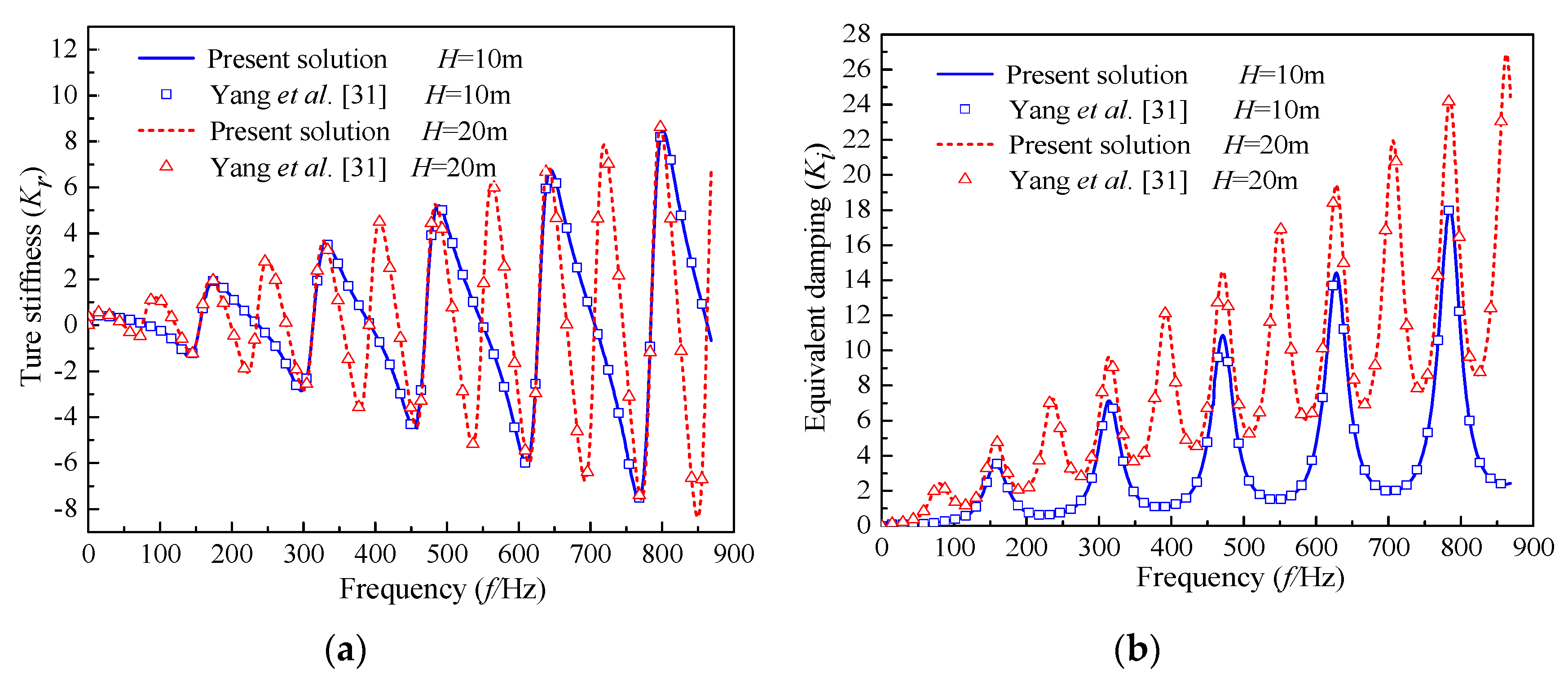

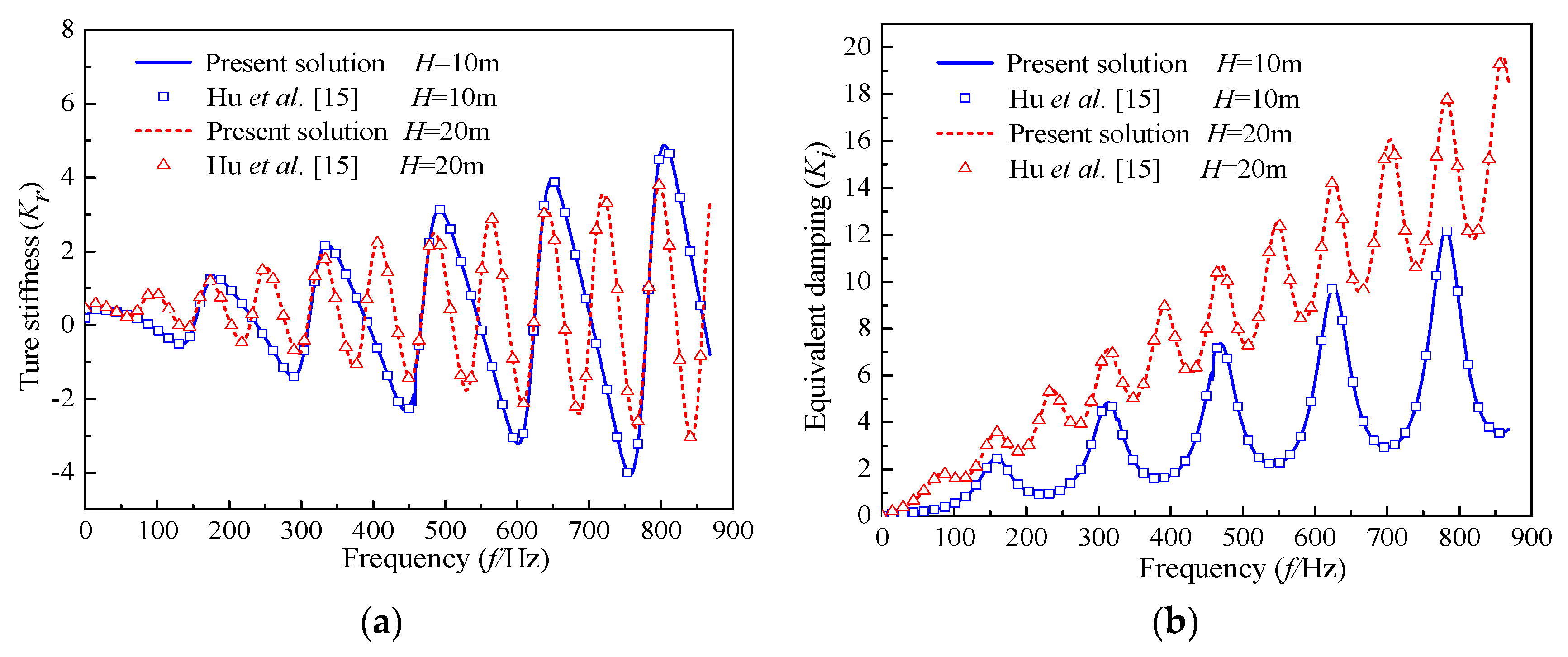

The dimensionless complex impedance ${K^{\prime }}_{\mathrm{d}}$ written in Equation (25) is degenerated to depict the longitudinal dynamic characteristics in homogeneous soil by setting ${\xi }_i^S\to 1$$\left(i=1,2,\dots ,m\right)$. Then, the present solution of ${K^{\prime }}_{\mathrm{d}}$ is validated by comparing it with the solution of Hu et al. [15]. It is very clear from Figure 3 that with different values of pile length H, the present solution agrees well with that derived by Hu et al. [15]. Furthermore, Figure 4 show that the present solution also agrees well with the existing solution of Yang et al. [31] by setting $c_{ij}^S\to 0$. Hence, the validity of the present solution has been examined with the contrasts above.

6.2. Parametric Analyses

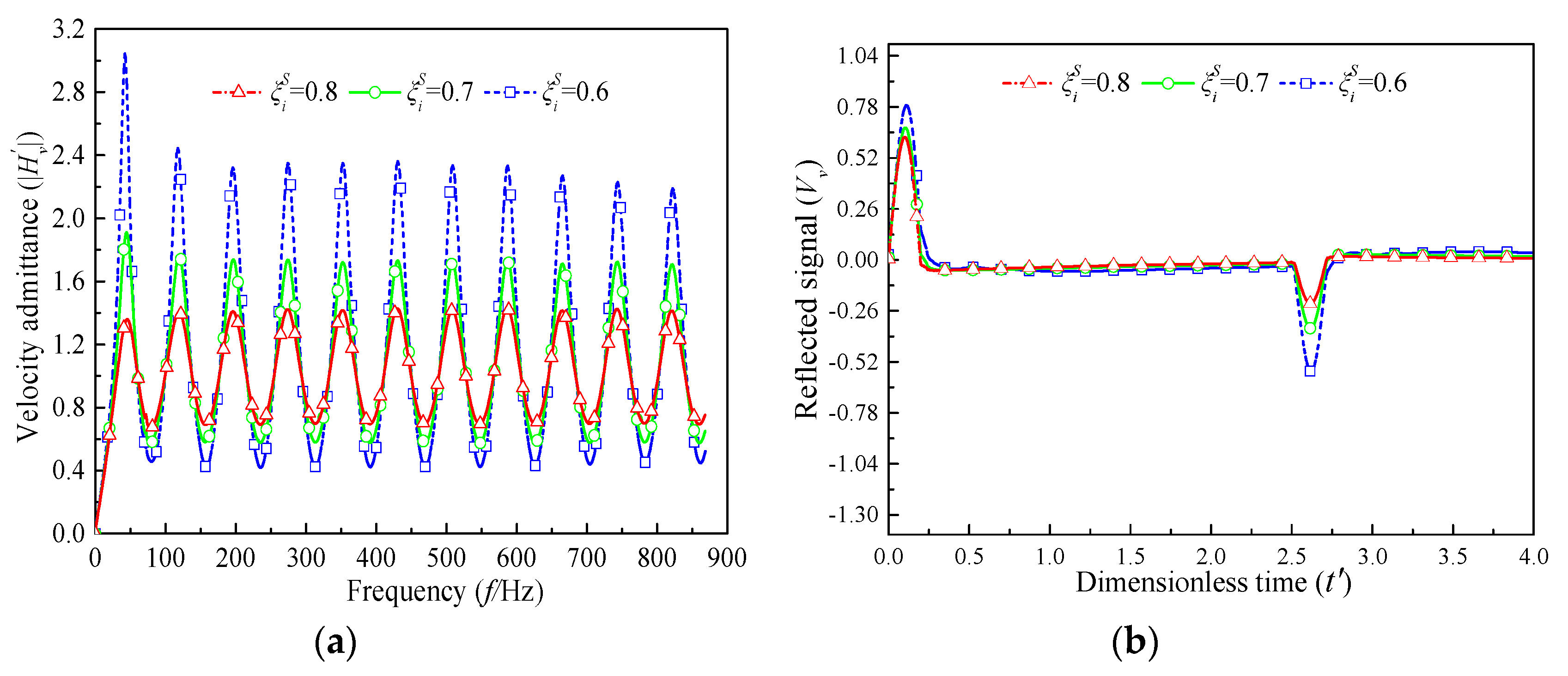

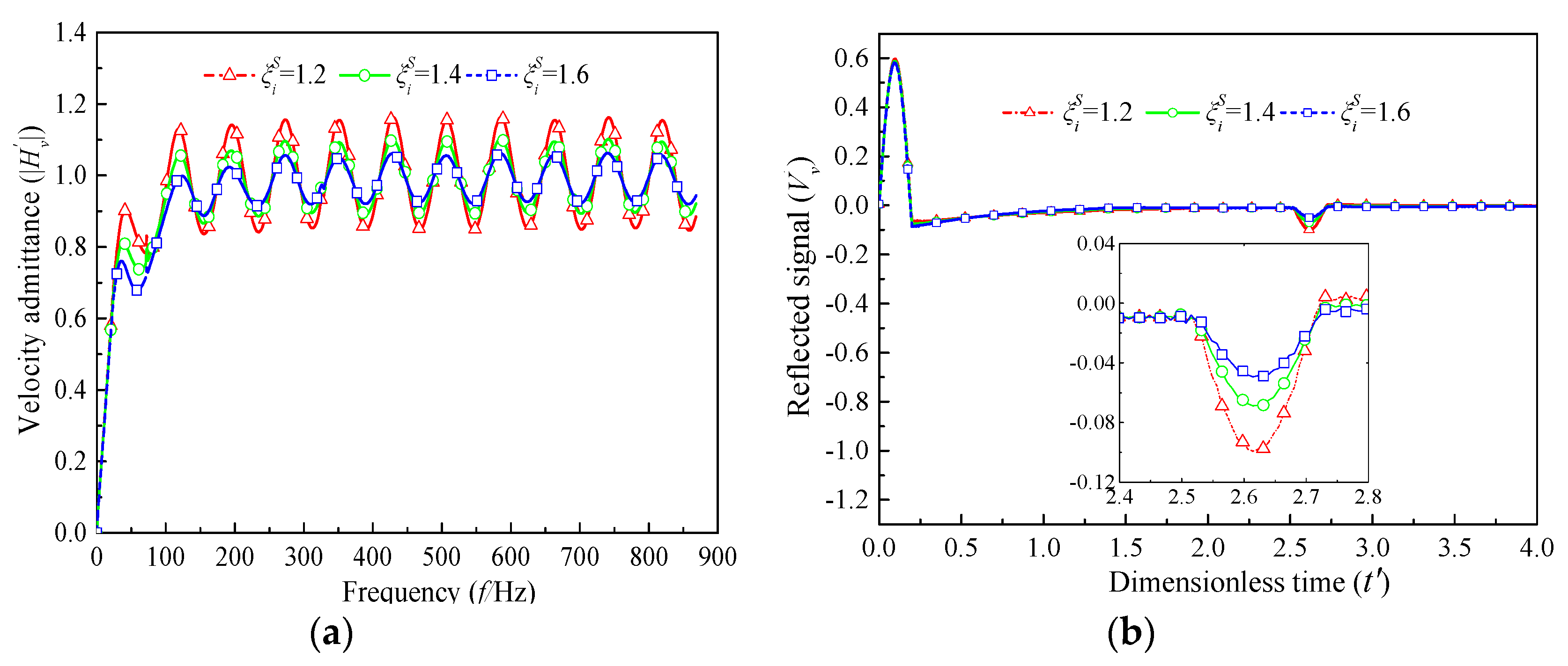

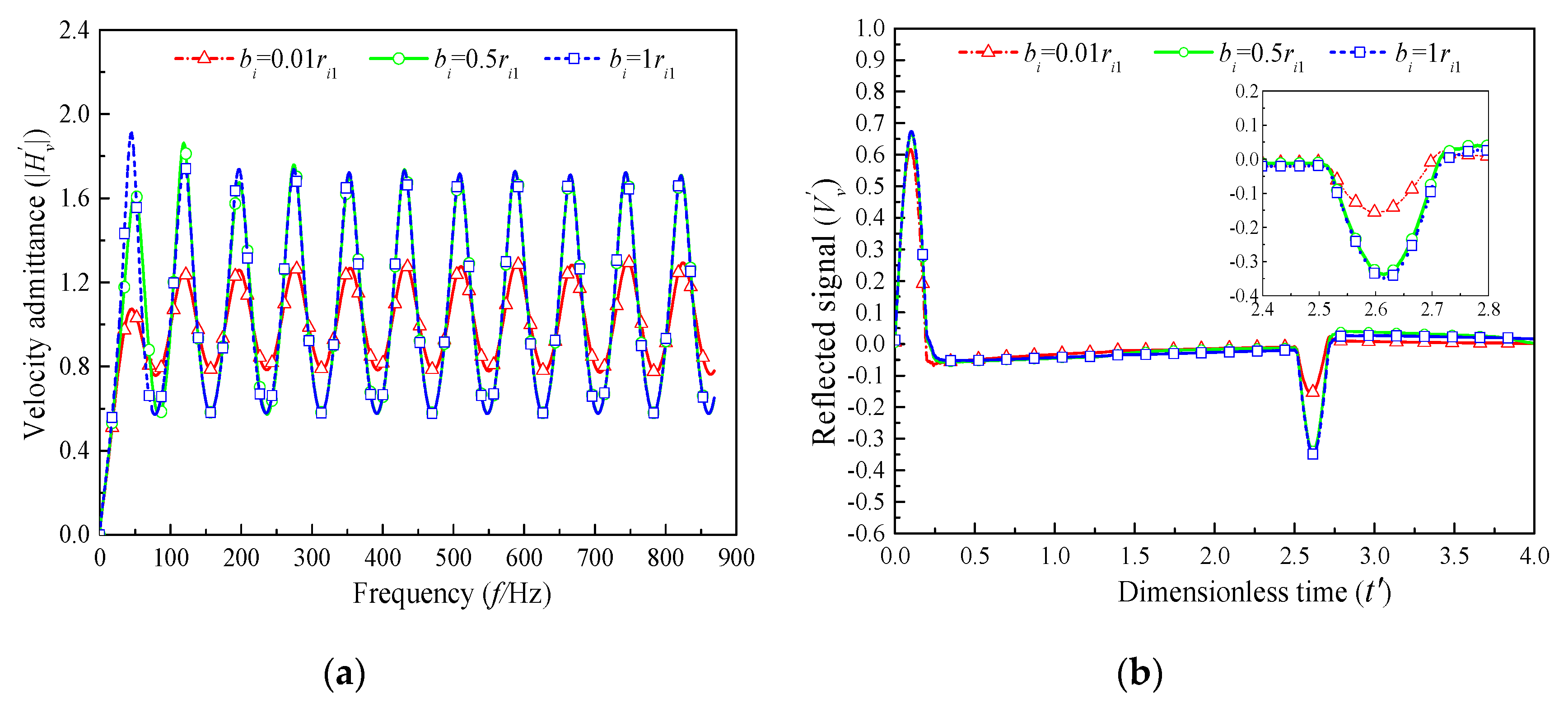

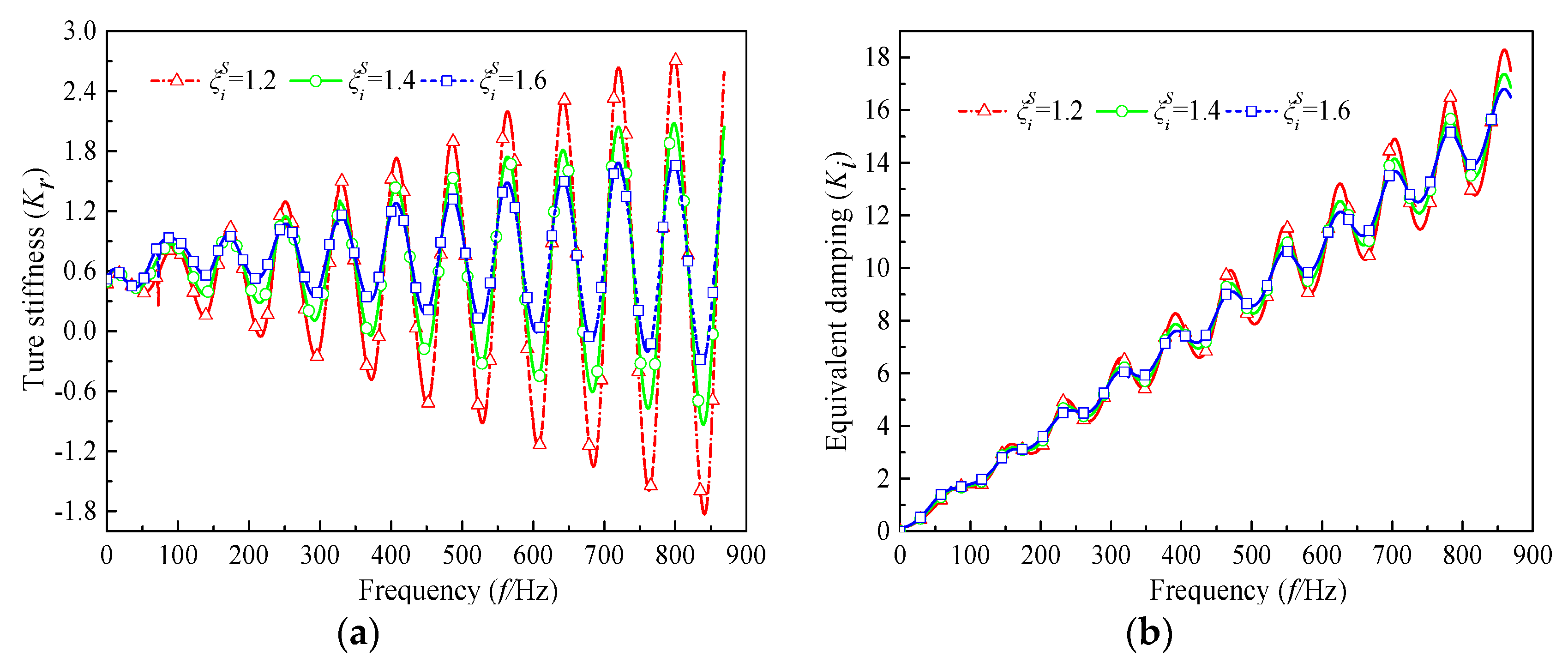

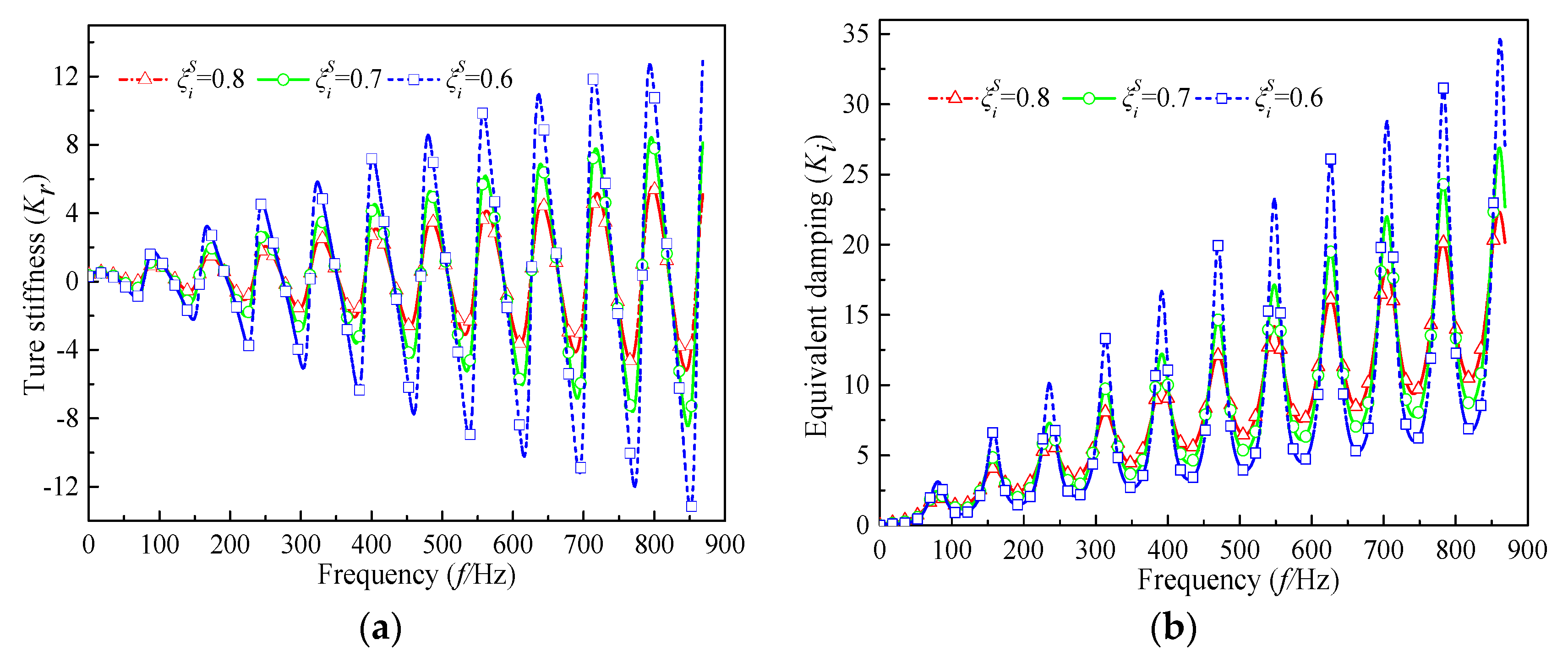

Figure 5 and Figure 6 show the influence of the soil weakening degree on the complex impedance and dynamic response, respectively. It is found that the weakening degree has a significant impact on both the complex impedance and dynamic response. The oscillation amplitudes of the complex impedance and dynamic response rise with an increasing weakening degree. Figure 7 and Figure 8 show the effect of the soil strengthening degree on the complex impedance and dynamic response, respectively, of the pile shaft. It can be seen that both the complex impedance and dynamic response evidently depend on the strengthening degree. Specifically, the oscillation amplitudes of the complex impedance and dynamic response decrease with increasing strengthening degree. It is very clear that this phenomenon is consistent with the existing results of Yang et al. [31].

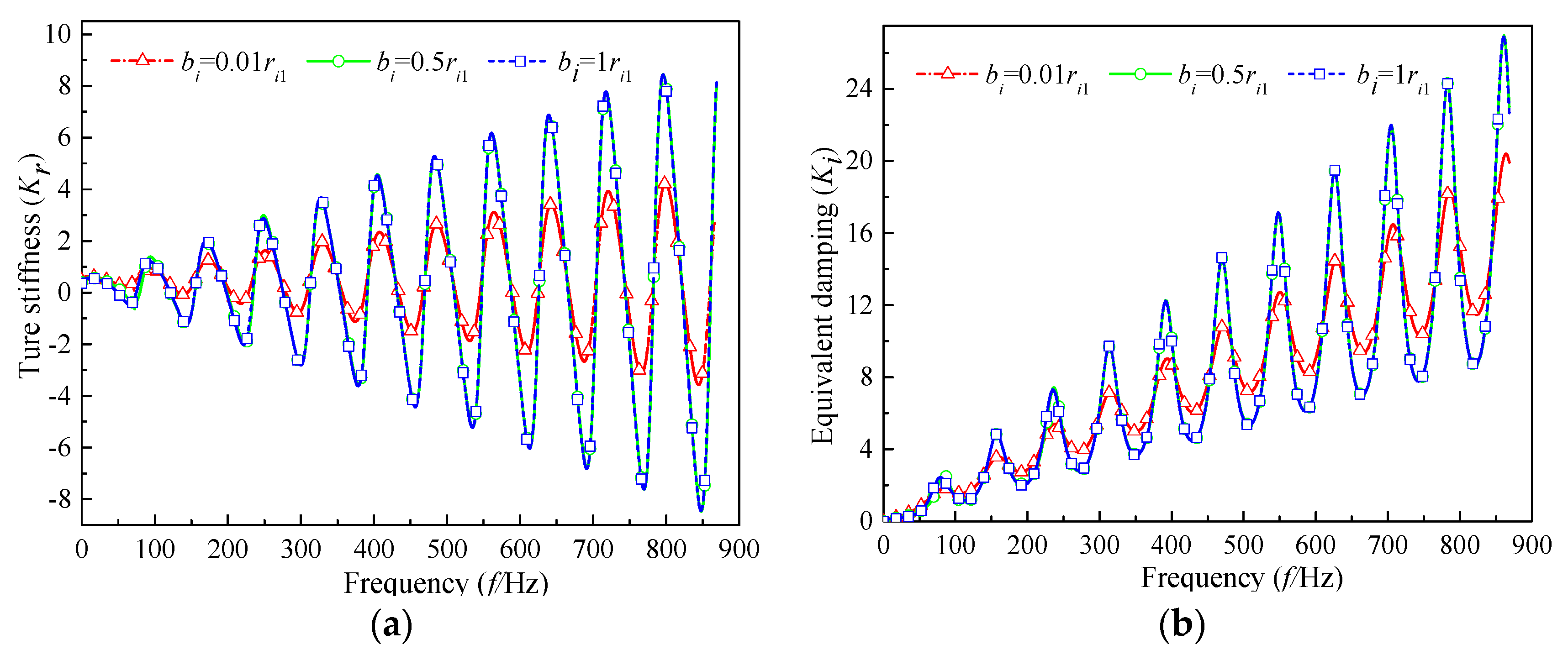

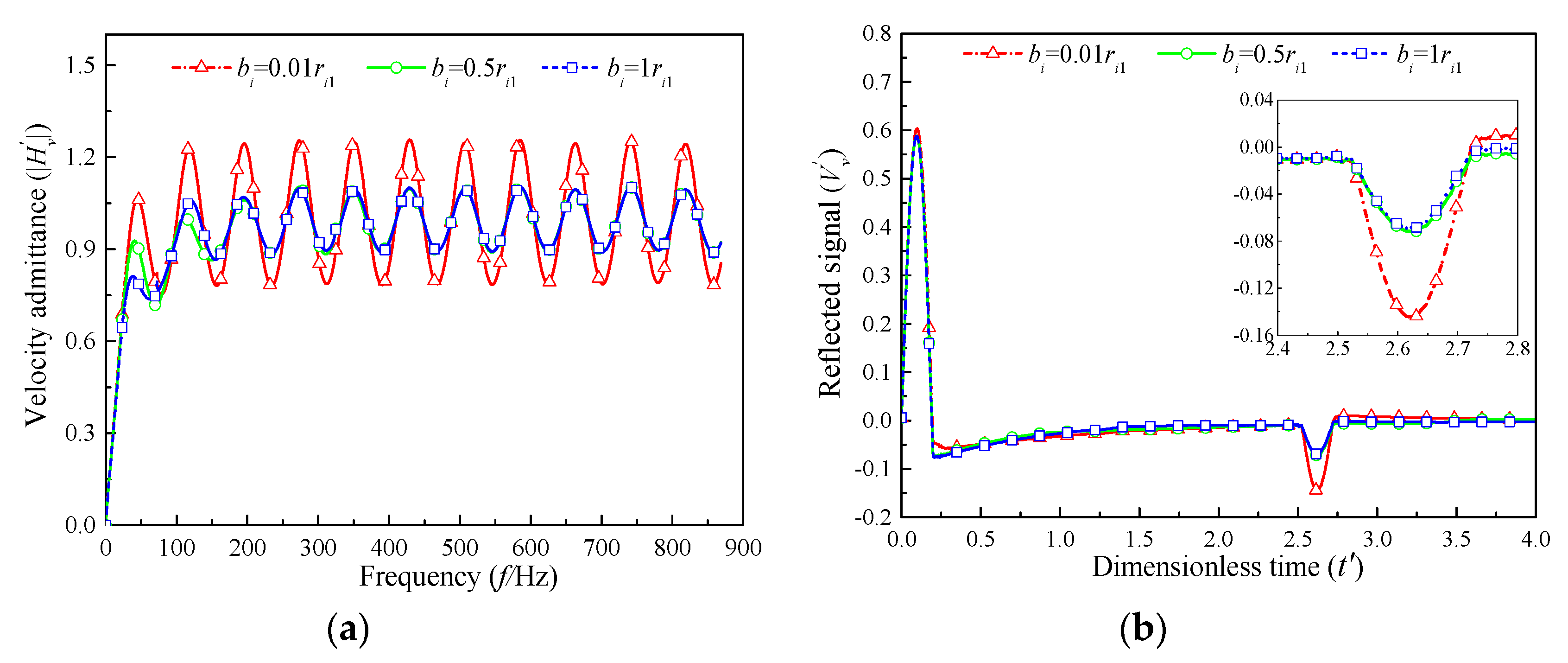

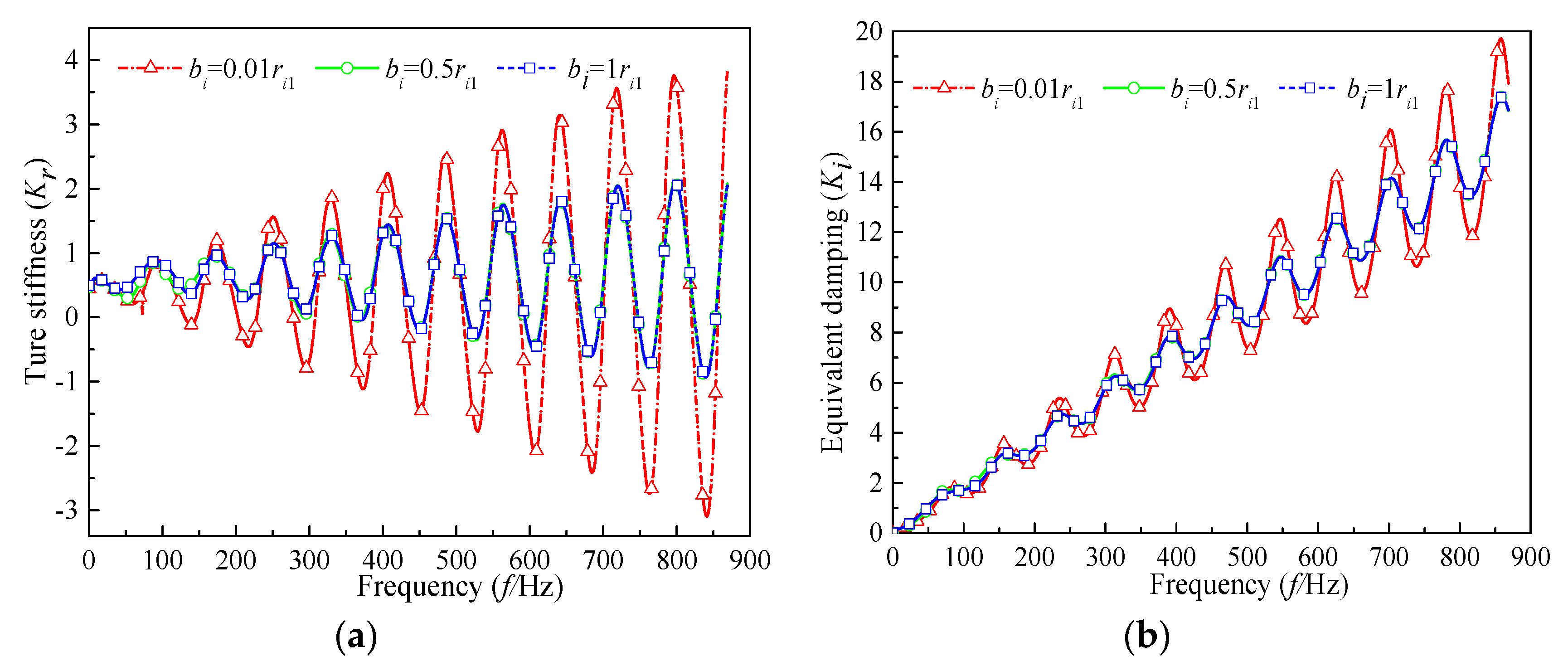

For a given coefficient of the disturbance degree, i.e., ${\xi }_i^S$ = 0.6, the effects of the weakened soil radius on complex impedance and the dynamic response are shown in Figure 9 and Figure 10, respectively. It is very clear that the oscillation amplitudes of the complex impedance and dynamic response become greater with the increase of the softened radius of disturbed zone. Figure 11 and Figure 12 depict the effect of the strengthened soil radius of the disturbed zone on the complex impedance and dynamic response, respectively, of the pile shaft. In contrast, the oscillation amplitudes of the complex impedance and dynamic response increase with the decrease of the strengthened radius. Moreover, the effect of the softened or strengthened radius on the resonance frequencies of complex impedance and velocity admittance is negligible. Furthermore, the change of the disturbance radius of soil induces no further additional effects on the complex impedance and dynamic response when the disturbance radius reaches a critical value, e.g., $b_i=0.5r_{i1}$.

7. Conclusions

Based on the theory of wave propagation in a 3D continuum, a new approach for the longitudinal vibration of a floating pile is proposed by extending the complex stiffness method with the viscous-type damping model. The analytical solutions for the longitudinal impedance and dynamic response are achieved and validated by comparison with prior solutions.

The results of parametric analyses show that: (i) the oscillation amplitudes of the complex impedance and dynamic response of the pile shaft decline with the increase in the soil disturbance degree; (ii) the oscillation amplitudes of the complex impedance and dynamic response for the pile shaft depend significantly on the disturbance radius of the surrounding soil, while the effect on the resonance frequencies of the complex impedance and velocity admittance is nearly negligible; (iii) It is essential to take the influence of the construction effects on the pile into consideration to improve the rationality and reliability of pile design.

The presented approach and corresponding solutions can provide a more wide-ranging application for longitudinal vibration analysis of a floating pile in layered soils with radial inhomogeneity, which can be easily degenerated to examine the integrity detection for the longitudinal vibration of a floating pile or an end-bearing pile in layered soils with radial homogeneity. The heterogeneous effect model can also be extended to some important research fields (such as biophysics and physical chemistry, etc.) where diffusion may become abnormal due to crowded heterogeneity.
