# On the Folded Normal Distribution

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. The Folded Normal

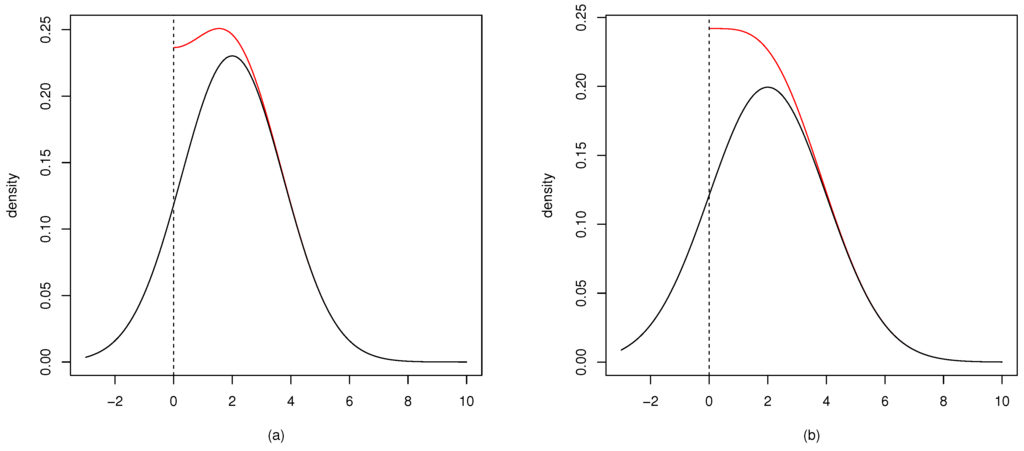

**Figure 1.**The black line is the density of the $N\left(\right)open="("\; close=")">\mu ,{\sigma}^{2}$ and the red line of the $FN\left(\right)open="("\; close=")">\mu ,{\sigma}^{2}$. The parameters in the left figure (

**a**) are $\mu =2$ and ${\sigma}^{2}=3$ and in the right figure (

**b**) $\mu =2$ and ${\sigma}^{2}=4$.

#### 2.1. Relations to Other Distributions

#### 2.2. Mode of the Folded Normal Distribution

#### 2.3. Characteristic Function and Other Related Functions of the Folded Normal Distribution

- The moment generating function of Equation (2) exists and is equal to:$$\begin{array}{c}\hfill {M}_{x}\left(t\right)={\phi}_{x}\left(\right)open="("\; close=")">-it={e}^{\frac{{\sigma}^{2}{t}^{2}}{2}+\mu t}\left(\right)open="["\; close="]">1-\Phi \left(\right)open="("\; close=")">-\frac{\mu}{\sigma}-\sigma t\\ +{e}^{\frac{{\sigma}^{2}{t}^{2}}{2}-\mu t}\left(\right)open="["\; close="]">1-\Phi \left(\right)open="("\; close=")">\frac{\mu}{\sigma}-\sigma t\end{array}$$
- The cumulant generating function is simply the logarithm of the moment generating function:$$\begin{array}{c}\hfill {K}_{x}\left(t\right)=log{M}_{x}\left(t\right)=\left(\right)open="("\; close=")">\frac{{\sigma}^{2}{t}^{2}}{2}+\mu tlog\left(\right)open="\{"\; close="\}">1-\Phi \left(\right)open="("\; close=")">-\frac{\mu}{\sigma}-\sigma t& +{e}^{-2\mu t}\left(\right)open="["\; close="]">1-\Phi \left(\right)open="("\; close=")">\frac{\mu}{\sigma}-\sigma t\end{array}$$
- The Laplace transformation can easily be derived from the moment generating function and is equal to:$$\begin{array}{c}\hfill E\left(\right)open="("\; close=")">{e}^{-tx}={e}^{\frac{{\sigma}^{2}{t}^{2}}{2}-\mu t}\left(\right)open="["\; close="]">1-\Phi \left(\right)open="("\; close=")">-\frac{\mu}{\sigma}+\sigma t\\ +{e}^{\frac{{\sigma}^{2}{t}^{2}}{2}+\mu t}\left(\right)open="["\; close="]">1-\Phi \left(\right)open="("\; close=")">\frac{\mu}{\sigma}+\sigma t\end{array}$$
- The Fourier transformation is:$$\begin{array}{c}\hfill \widehat{f}\left(t\right)={\int}_{-\infty}^{\infty}{e}^{-2\pi ixt}f\left(x\right)dx=E\left(\right)open="("\; close=")">{e}^{-2\pi iXt}\end{array}$$$$\begin{array}{c}\hfill \widehat{f}\left(t\right)={\varphi}_{x}\left(\right)open="("\; close=")">-2\pi t=\\ & {e}^{\frac{-4{\pi}^{2}{\sigma}^{2}{t}^{2}}{2}-i2\pi \mu t}\left(\right)open="["\; close="]">1-\Phi \left(\right)open="("\; close=")">-\frac{\mu}{\sigma}-i2\pi \sigma t\hfill \end{array}$$$$\begin{array}{ccc}& +& {e}^{-\frac{4{\pi}^{2}{\sigma}^{2}{t}^{2}}{2}+i2\pi \mu t}\left(\right)open="["\; close="]">1-\Phi \left(\right)open="("\; close=")">\frac{\mu}{\sigma}-i2\pi \sigma t\hfill \end{array}$$
- The mean residual life is given by:$$\begin{array}{c}\hfill E\left(\right)open="("\; close=")">X-t|Xt=E\left(\right)open="("\; close=")">X|Xt& -t\end{array}$$$$\begin{array}{c}\hfill E\left(\right)open="("\; close=")">X|Xt={\int}_{t}^{\infty}\frac{xf\left(x\right)}{P\left(\right)open="("\; close=")">xt}& dx={\int}_{t}^{\infty}\frac{xf\left(x\right)}{1-F\left(t\right)}dx\end{array}$$$$\begin{array}{ccc}\hfill {\int}_{t}^{\infty}xf\left(x\right)dx& =& {\int}_{t}^{\infty}x\frac{1}{\sqrt{2\pi {\sigma}^{2}}}{e}^{-\frac{1}{2{\sigma}^{2}}{\left(\right)}^{x}2}dx+{\int}_{t}^{\infty}x\frac{1}{\sqrt{2\pi {\sigma}^{2}}}{e}^{-\frac{1}{2{\sigma}^{2}}{\left(\right)}^{x}2}\hfill & dx\end{array}$$$$\begin{array}{ccc}& =& \frac{\sigma}{\sqrt{2\pi}}{e}^{\frac{{\left(\right)}^{t}}{2}}+\mu \left(\right)open="["\; close="]">1-\Phi \left(\right)open="("\; close=")">\frac{t-\mu}{\sigma}\hfill \\ +\frac{\sigma}{\sqrt{2\pi}}{e}^{\frac{{\left(\right)}^{t}}{2}}\end{array}-\mu \Phi \left(\right)open="("\; close=")">\frac{t-\mu}{\sigma}$$$$\begin{array}{ccc}& =& \sqrt{\frac{2}{\pi}}\sigma {e}^{\frac{{\left(\right)}^{t}}{2}}+\mu \left(\right)open="["\; close="]">1-2\Phi \left(\right)open="("\; close=")">\frac{t-\mu}{\sigma}\hfill \end{array}$$$$\begin{array}{c}\hfill E\left(\right)open="("\; close=")">X-t|Xt=\frac{\sqrt{\frac{2}{\pi}}\sigma {e}^{\frac{{\left(\right)}^{t}}{2}}}{+}\\ 1-\frac{1}{2}\left(\right)open="["\; close="]">erf\left(\right)open="("\; close=")">\frac{x-\mu}{\sqrt{2{\sigma}^{2}}}+erf\left(\right)open="("\; close=")">\frac{x+\mu}{\sqrt{2{\sigma}^{2}}}\end{array}$$

## 3. Entropy and Kullback–Leibler Divergence

#### 3.1. Entropy

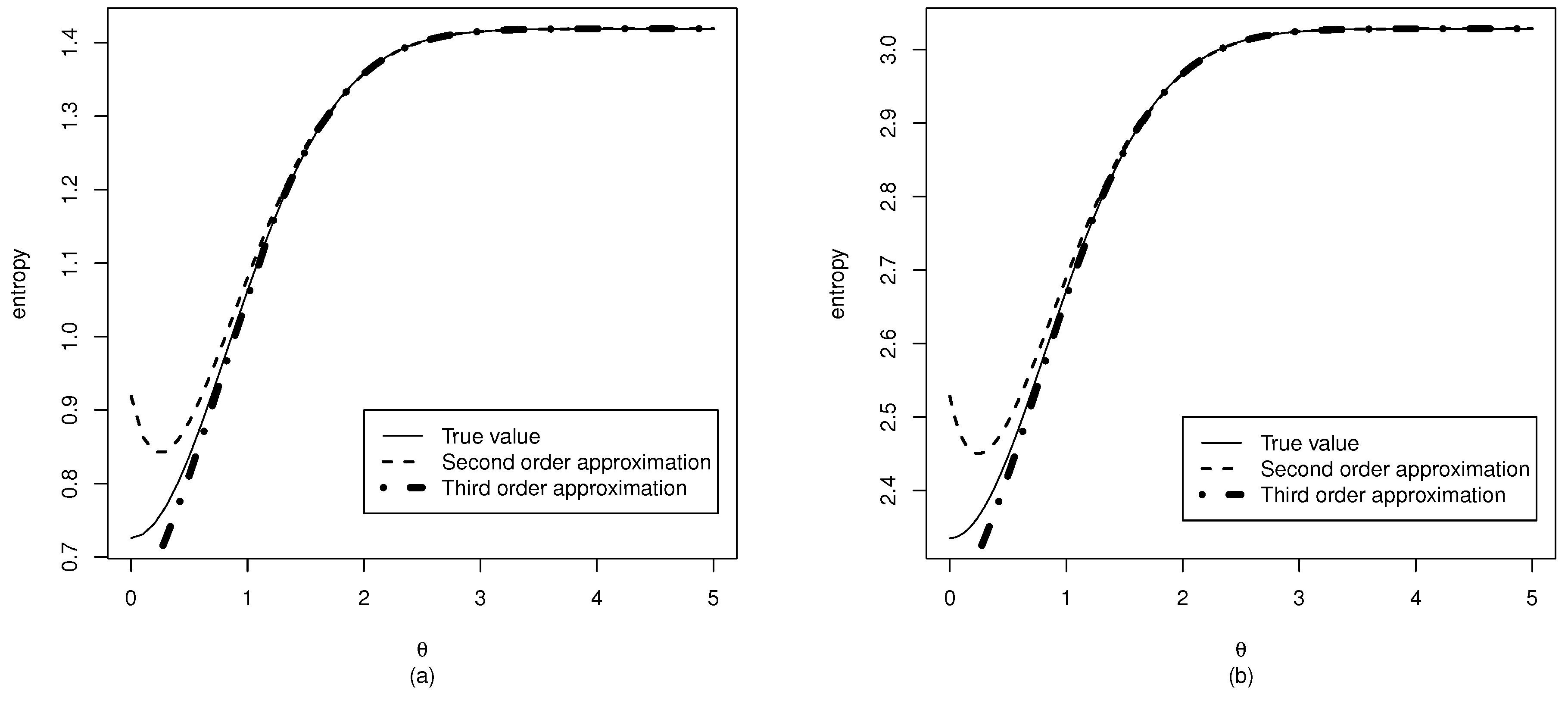

**Figure 2.**Entropy values for a range of values of $\theta =\frac{\mu}{\sigma}$ with $\sigma =1$ (

**a**) and $\sigma =5$ (

**b**).

#### 3.2. Kullback–Leibler Divergence from the Normal Distribution

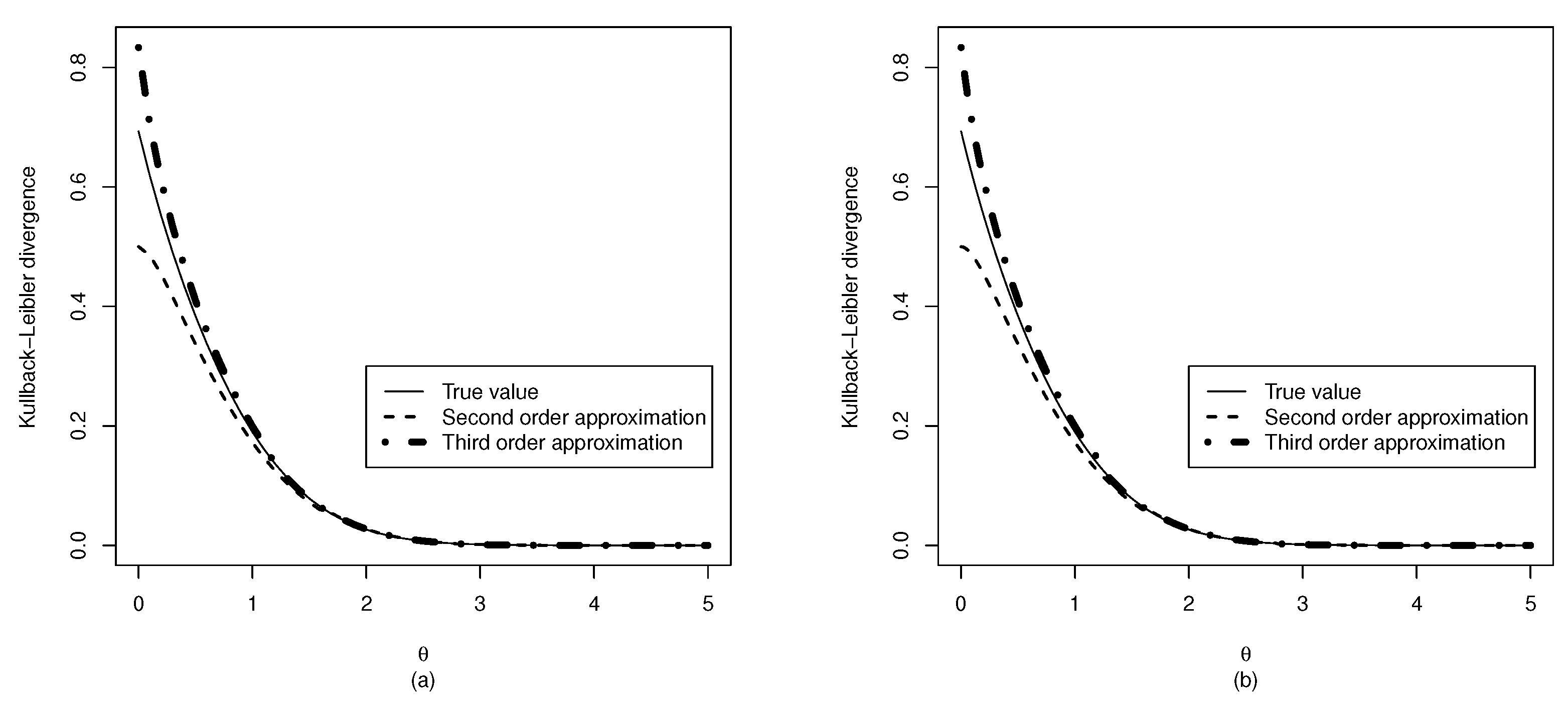

**Figure 3.**Kullback–Leibler divergence from the normal for a range of values of $\theta =\frac{\mu}{\sigma}$ with $\sigma =1$ (

**a**) and $\sigma =5$ (

**b**).

#### 3.3. Kullback–Leibler Divergence from the Half Normal Distribution

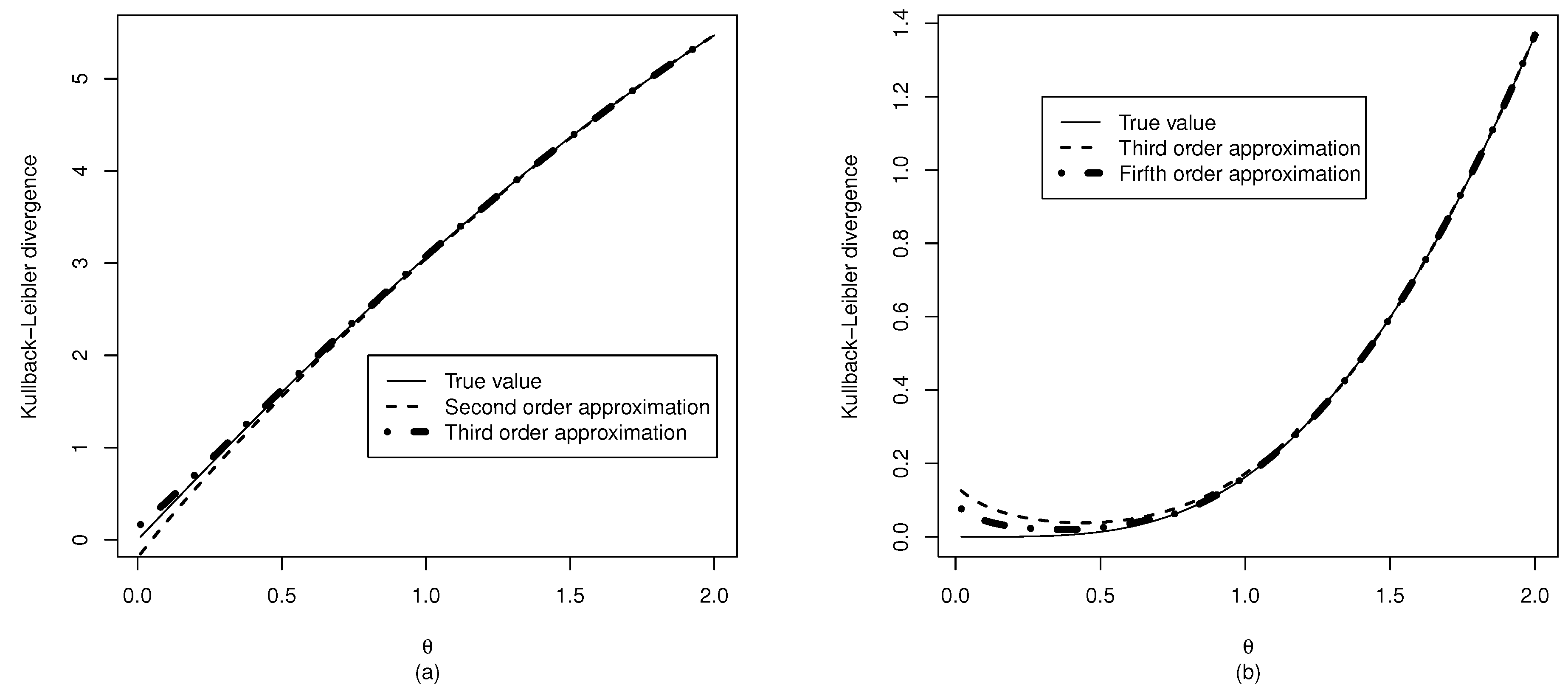

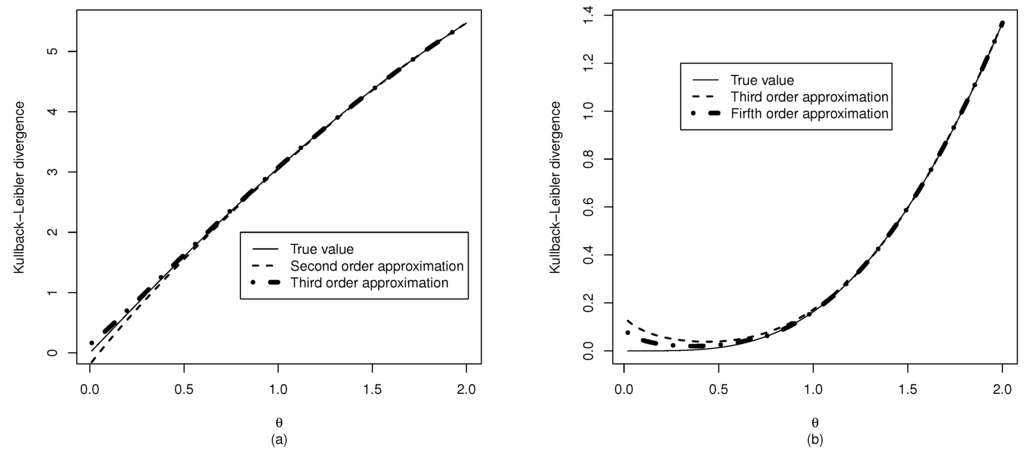

**Figure 4.**Kullback–Leibler divergence from the half normal for a range of values of $\theta =\frac{\mu}{\sigma}$ with $\sigma =1$ (

**a**) and $\sigma =5$ (

**b**).

## 4. Parameter Estimation

#### 4.1. An Example with Simulated Data

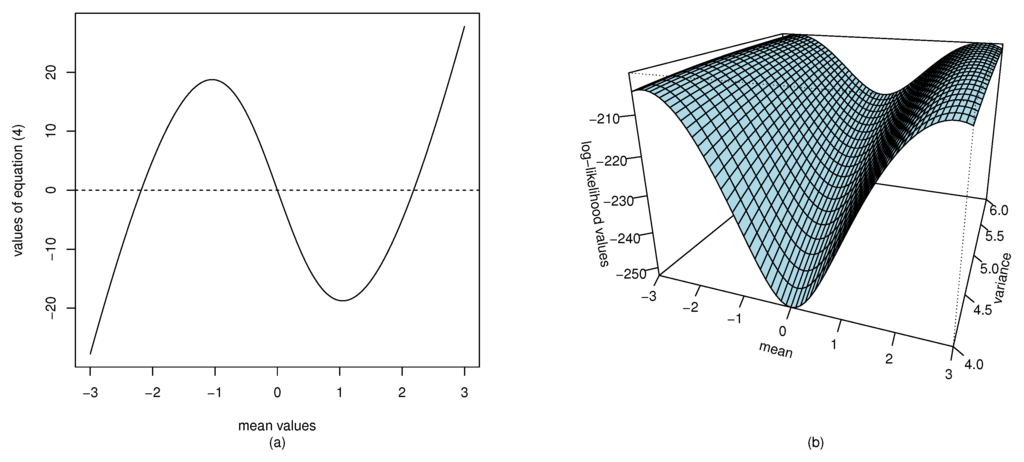

**Figure 5.**The left graph (

**a**) shows the three solutions of the log-likelihood. The right three-dimensional figure (

**b**) shows the values of the log-likelihood for a range of mean and variance values.

#### 4.2. Simulation Studies

**Table 1.**Estimated coverage probability of the $95\%$ confidence intervals for the mean parameter, μ, using the observed information matrix.

Values | of | θ | ||||||
---|---|---|---|---|---|---|---|---|

Sample size | 0.5 | 1 | 1.5 | 2 | 2.5 | 3 | 3.5 | 4 |

20 | 0.689 | 0.930 | 0.955 | 0.931 | 0.926 | 0.940 | 0.930 | 0.948 |

30 | 0.679 | 0.921 | 0.949 | 0.943 | 0.925 | 0.926 | 0.941 | 0.915 |

40 | 0.690 | 0.916 | 0.936 | 0.933 | 0.941 | 0.948 | 0.944 | 0.928 |

50 | 0.718 | 0.944 | 0.955 | 0.938 | 0.933 | 0.948 | 0.946 | 0.946 |

60 | 0.699 | 0.950 | 0.968 | 0.948 | 0.949 | 0.941 | 0.942 | 0.946 |

70 | 0.721 | 0.931 | 0.956 | 0.939 | 0.939 | 0.939 | 0.949 | 0.945 |

80 | 0.691 | 0.930 | 0.950 | 0.940 | 0.946 | 0.936 | 0.945 | 0.939 |

90 | 0.720 | 0.932 | 0.960 | 0.949 | 0.949 | 0.939 | 0.954 | 0.944 |

100 | 0.738 | 0.945 | 0.949 | 0.938 | 0.943 | 0.926 | 0.946 | 0.952 |

**Table 2.**Estimated coverage probability of the bootstrap $95\%$ confidence intervals for the mean parameter, μ, using the percentile method.

Values | of | θ | ||||||
---|---|---|---|---|---|---|---|---|

Sample size | 0.5 | 1 | 1.5 | 2 | 2.5 | 3 | 3.5 | 4 |

20 | 0.890 | 0.925 | 0.939 | 0.921 | 0.918 | 0.940 | 0.929 | 0.942 |

30 | 0.894 | 0.931 | 0.933 | 0.943 | 0.926 | 0.922 | 0.942 | 0.910 |

40 | 0.910 | 0.925 | 0.927 | 0.933 | 0.941 | 0.947 | 0.946 | 0.928 |

50 | 0.914 | 0.943 | 0.942 | 0.934 | 0.934 | 0.945 | 0.946 | 0.943 |

60 | 0.904 | 0.949 | 0.953 | 0.950 | 0.941 | 0.938 | 0.943 | 0.944 |

70 | 0.893 | 0.934 | 0.943 | 0.936 | 0.937 | 0.938 | 0.949 | 0.939 |

80 | 0.918 | 0.940 | 0.939 | 0.939 | 0.944 | 0.935 | 0.946 | 0.938 |

90 | 0.920 | 0.934 | 0.952 | 0.948 | 0.946 | 0.939 | 0.951 | 0.947 |

100 | 0.918 | 0.940 | 0.936 | 0.932 | 0.946 | 0.925 | 0.945 | 0.949 |

**Table 3.**Estimated coverage probability of the $95\%$ confidence intervals for the variance parameter, ${\sigma}^{2}$, using the observed information matrix.

Values | of | θ | ||||||
---|---|---|---|---|---|---|---|---|

Sample size | 0.5 | 1 | 1.5 | 2 | 2.5 | 3 | 3.5 | 4 |

20 | 0.649 | 0.765 | 0.854 | 0.853 | 0.876 | 0.870 | 0.862 | 0.885 |

30 | 0.697 | 0.794 | 0.870 | 0.898 | 0.892 | 0.898 | 0.894 | 0.896 |

40 | 0.723 | 0.849 | 0.893 | 0.914 | 0.919 | 0.913 | 0.909 | 0.902 |

50 | 0.751 | 0.867 | 0.916 | 0.907 | 0.911 | 0.924 | 0.899 | 0.912 |

60 | 0.745 | 0.865 | 0.911 | 0.913 | 0.916 | 0.906 | 0.920 | 0.933 |

70 | 0.769 | 0.874 | 0.928 | 0.928 | 0.912 | 0.930 | 0.926 | 0.935 |

80 | 0.776 | 0.883 | 0.927 | 0.919 | 0.934 | 0.936 | 0.916 | 0.924 |

90 | 0.795 | 0.901 | 0.931 | 0.932 | 0.925 | 0.930 | 0.940 | 0.941 |

100 | 0.824 | 0.904 | 0.927 | 0.933 | 0.925 | 0.936 | 0.932 | 0.942 |

**Table 4.**Estimated coverage probability of the bootstrap $95\%$ confidence intervals for the variance parameter, ${\sigma}^{2}$, using the percentile method.

Values | of | θ | ||||||
---|---|---|---|---|---|---|---|---|

Sample size | 0.5 | 1 | 1.5 | 2 | 2.5 | 3 | 3.5 | 4 |

20 | 0.657 | 0.814 | 0.862 | 0.842 | 0.840 | 0.832 | 0.818 | 0.824 |

30 | 0.701 | 0.850 | 0.885 | 0.891 | 0.882 | 0.867 | 0.869 | 0.866 |

40 | 0.743 | 0.881 | 0.896 | 0.913 | 0.912 | 0.886 | 0.881 | 0.878 |

50 | 0.772 | 0.895 | 0.921 | 0.916 | 0.897 | 0.901 | 0.885 | 0.892 |

60 | 0.797 | 0.907 | 0.912 | 0.910 | 0.906 | 0.897 | 0.907 | 0.916 |

70 | 0.807 | 0.904 | 0.925 | 0.915 | 0.909 | 0.918 | 0.908 | 0.924 |

80 | 0.822 | 0.895 | 0.925 | 0.914 | 0.925 | 0.917 | 0.909 | 0.909 |

90 | 0.869 | 0.916 | 0.932 | 0.922 | 0.919 | 0.915 | 0.934 | 0.929 |

100 | 0.873 | 0.915 | 0.918 | 0.925 | 0.906 | 0.931 | 0.920 | 0.939 |

**Table 5.**Estimated correlations between the two parameters obtained from the observed information matrix.

Values | of | θ | ||||||
---|---|---|---|---|---|---|---|---|

Sample size | 0.5 | 1 | 1.5 | 2 | 2.5 | 3 | 3.5 | 4 |

20 | −0.600 | −0.495 | −0.272 | −0.086 | −0.025 | −0.006 | −0.001 | 0.000 |

30 | −0.638 | −0.537 | −0.262 | −0.089 | −0.022 | −0.005 | −0.001 | 0.000 |

40 | −0.695 | −0.548 | −0.251 | −0.081 | −0.021 | −0.005 | −0.001 | 0.000 |

50 | −0.723 | −0.580 | −0.259 | −0.076 | −0.020 | −0.005 | −0.001 | 0.000 |

60 | −0.750 | −0.597 | −0.251 | −0.075 | −0.019 | −0.004 | −0.001 | 0.000 |

70 | −0.771 | −0.588 | −0.256 | −0.073 | −0.019 | −0.004 | −0.001 | 0.000 |

80 | −0.774 | −0.604 | −0.253 | −0.074 | −0.019 | −0.004 | −0.001 | 0.000 |

90 | −0.796 | −0.599 | −0.245 | −0.073 | −0.018 | −0.004 | −0.001 | 0.000 |

100 | −0.804 | −0.611 | −0.252 | −0.072 | −0.019 | −0.004 | −0.001 | 0.000 |

Values | of | θ | |||||
---|---|---|---|---|---|---|---|

0.5 | 1 | 1.5 | 2 | 2.5 | 3 | 3.5 | 4 |

0.309 | 0.159 | 0.067 | 0.023 | 0.006 | 0.001 | 0.000 | 0.000 |

## 5. Application to Body Mass Index Data

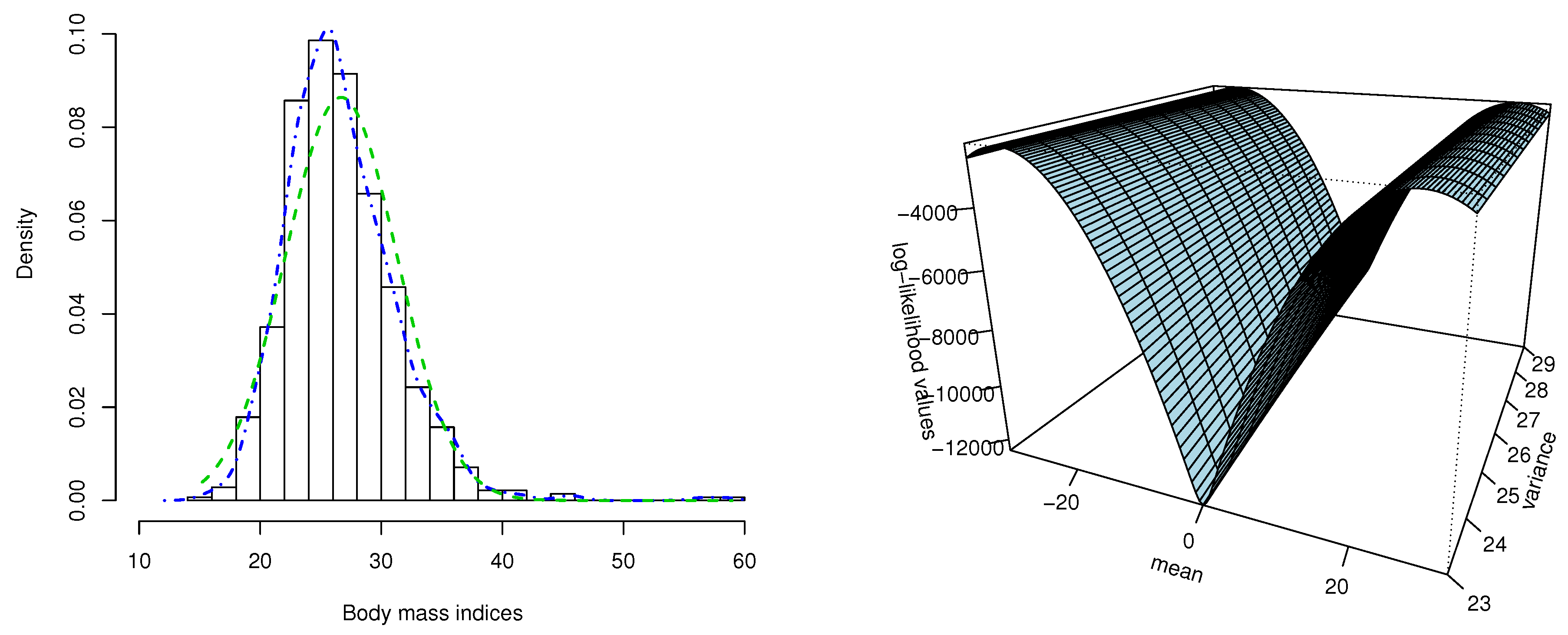

**Figure 6.**The histogram on the left shows the body mass indices of 700 New Zealand adults. The green line is the fitted folded normal and the blue line is the kernel density. The perspective plot on the right shows the log-likelihood of the body mass index data as a function of the mean and the variance.

## 6. Discussion
