ARFGCN: Adaptive Receptive Field Graph Convolutional Network for Urban Crowd Flow Prediction
Abstract
:1. Introduction
- We propose a novel framework (ARFGCN) for urban crowd flow prediction. To the best of our knowledge, this is the first approach to simultaneously consider dynamic receptive fields in both spatial and temporal dimensions.
- We propose a time-aware adaptive receptive field gating mechanism to enable each region to independently and adaptively determine its receptive field size, considering temporal dynamics to capture intricate spatial dependencies.
- We conduct extensive experiments on two real-world datasets to evaluate the effectiveness of ARFGCN for urban crowd flow prediction. The empirical findings validate that the proposed ARFGCN exhibits notable enhancements relative to the benchmarked methodologies.
2. Related Works
3. Problem Overview

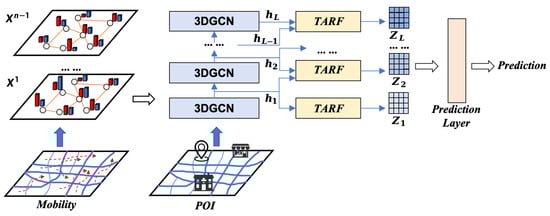

4. Method
4.1. Graph Construction
4.2. Stacked 3DGCN

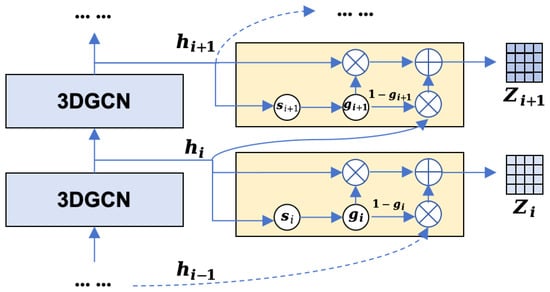

4.3. TARF
4.4. Prediction Layer
4.5. Loss and Training

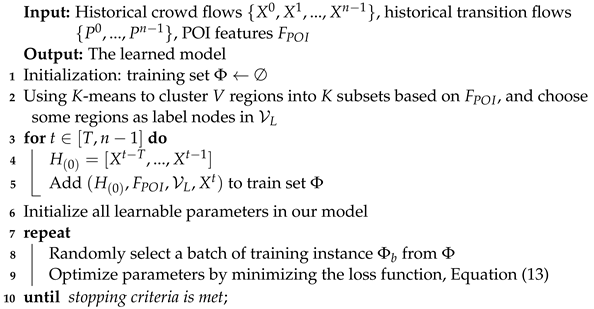

Algorithm 1: Training process of ARFGCN |
5. Experimental Setup
5.1. Experimental Data
5.2. Baseline Methods
- HA (Historical Average) [37]: This approach employs the historical average of inflow and outflow as the predicted future crowd flow.
- VAR (Vector Autoregression) [38]: A data-driven time-series prediction model that captures interdependencies among multiple time series.
- STGCN [26]: A spatio-temporal prediction method based on GCNs, combining graph convolutions and gated temporal convolutions to model spatial and temporal dependencies.
- DCRNN [30]: Leverages RNNs to capture temporal dependencies and bidirectional random walks on graphs to model spatial dependencies.
- MVGCN [28]: A deep learning model for non-grid-based crowd flow prediction, utilizing multi-view data from various time scales.
- AGCRN [31]: A deep spatio-temporal model capable of automatically capturing spatial and temporal correlations in time-series data without predefined graph structures.
- 3DGCN [13]: A model for non-grid-based crowd flow prediction that generalizes 3D CNNs from structured data to graph-structured data to capture spatio-temporal correlations.
5.3. Parameters
6. Experimental Results
6.1. Overall Performance
6.2. Ablation Study

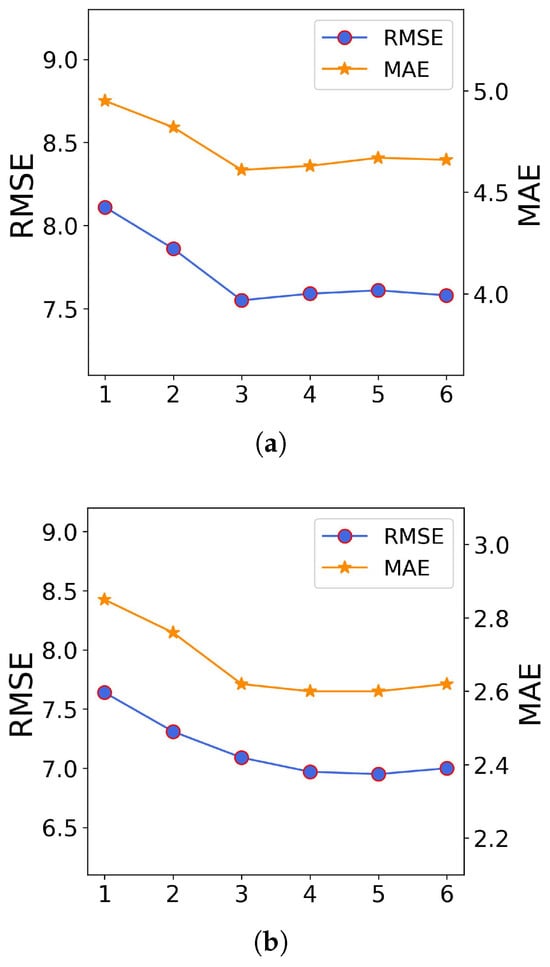

6.3. The Effect of the Number of Layers

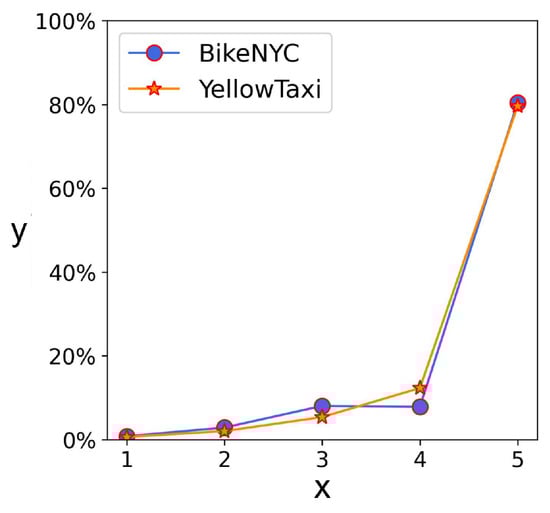

6.4. Analysis of Learned Adaptive Receptive Field
7. Conclusions
Author Contributions
Funding
Data Availability Statement
Conflicts of Interest
