PN-BBN: A Petri Net-Based Bayesian Network for Anomalous Behavior Detection
Abstract
:1. Introduction
2. Related Work
3. Background Knowledge

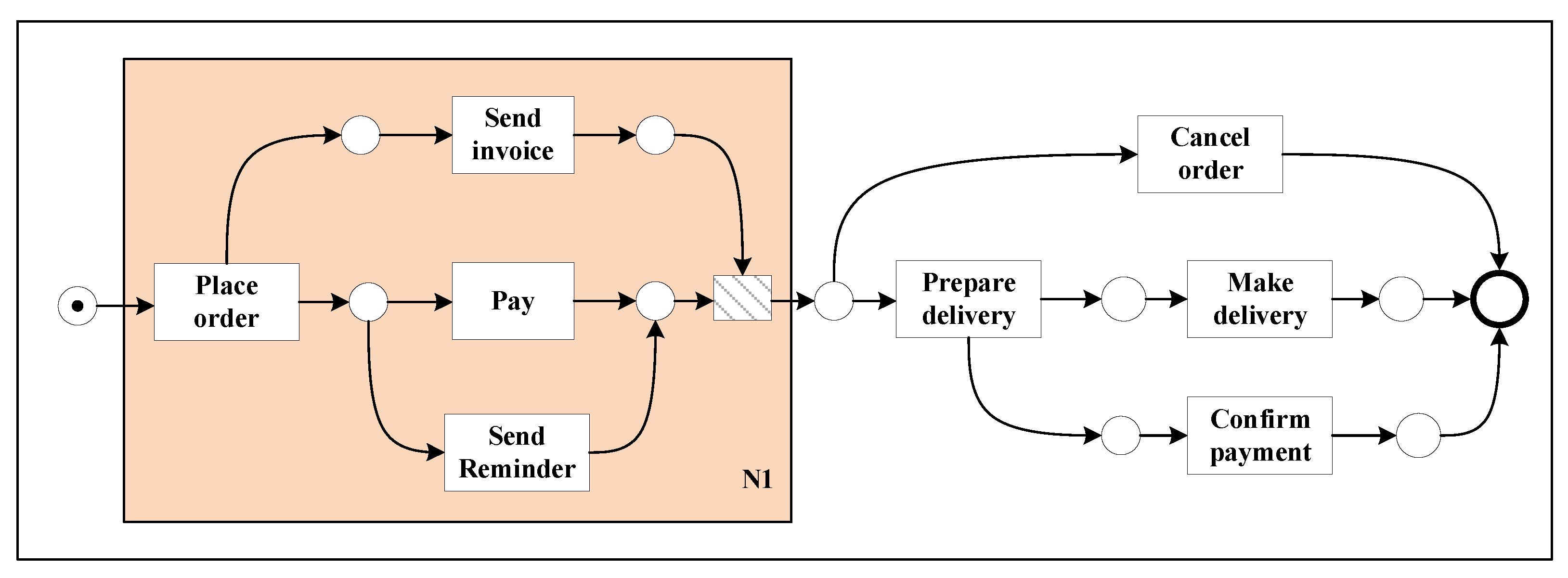

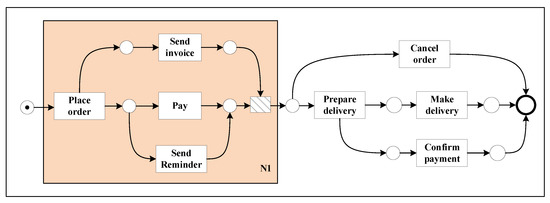

3.1. Petri Net Model

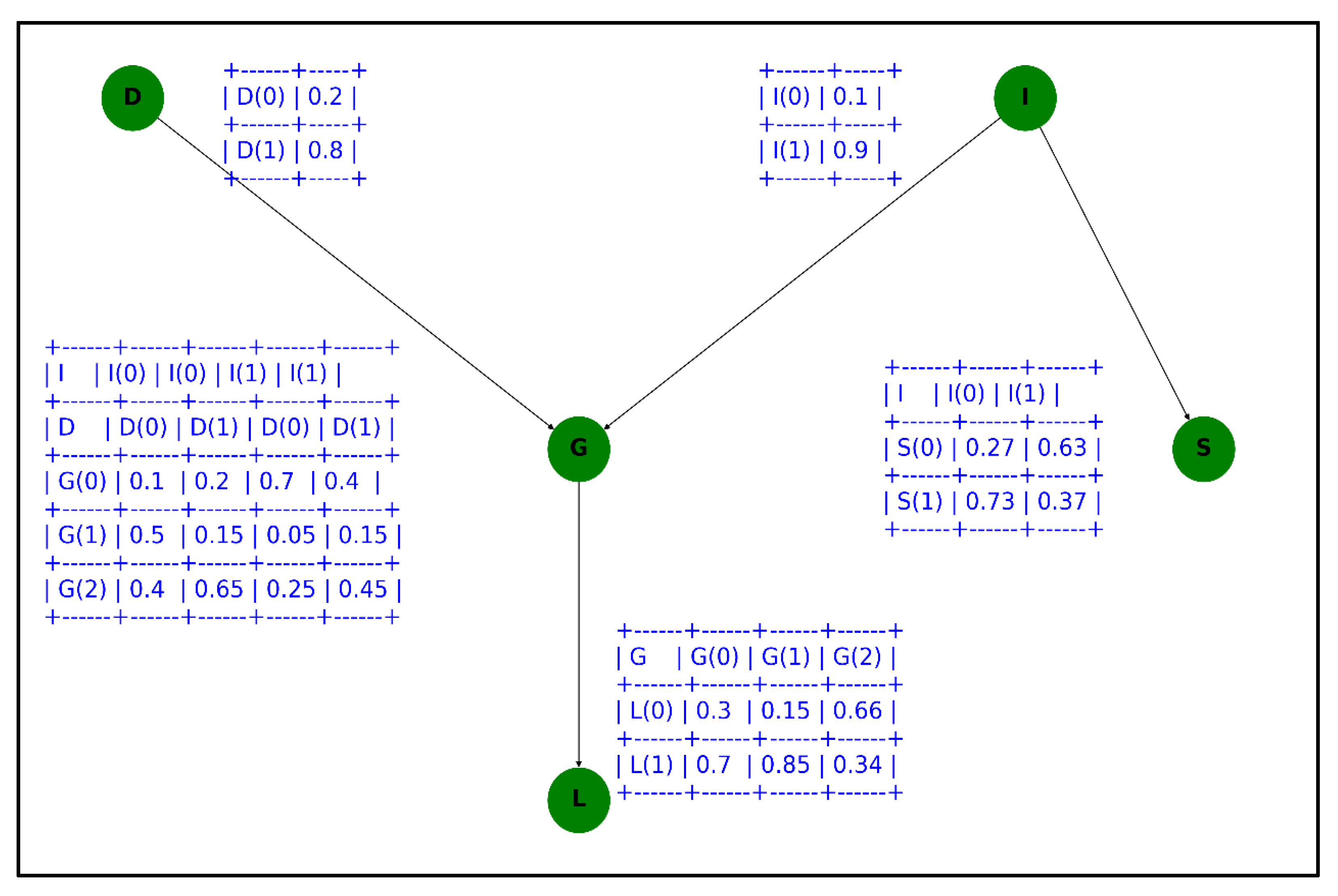

3.2. Bayesian Networks
4. Detecting Abnormal Behavior using Petri Net-Based Bayesian Network

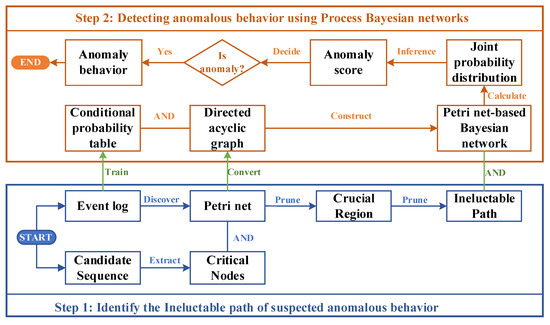

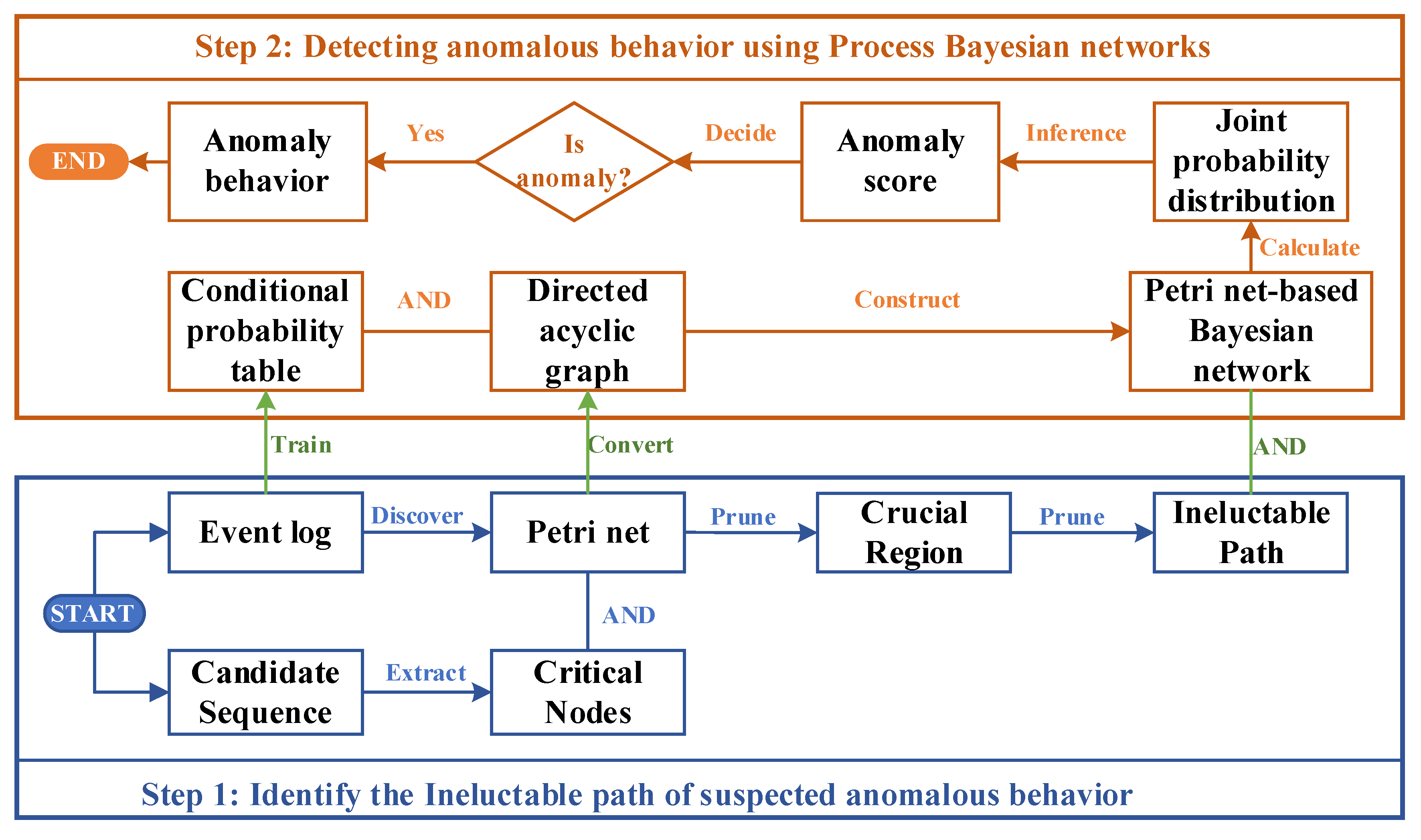

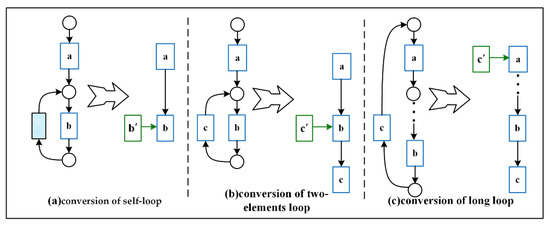

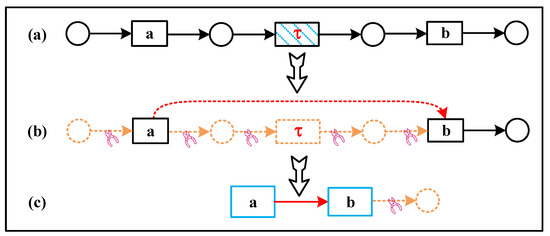

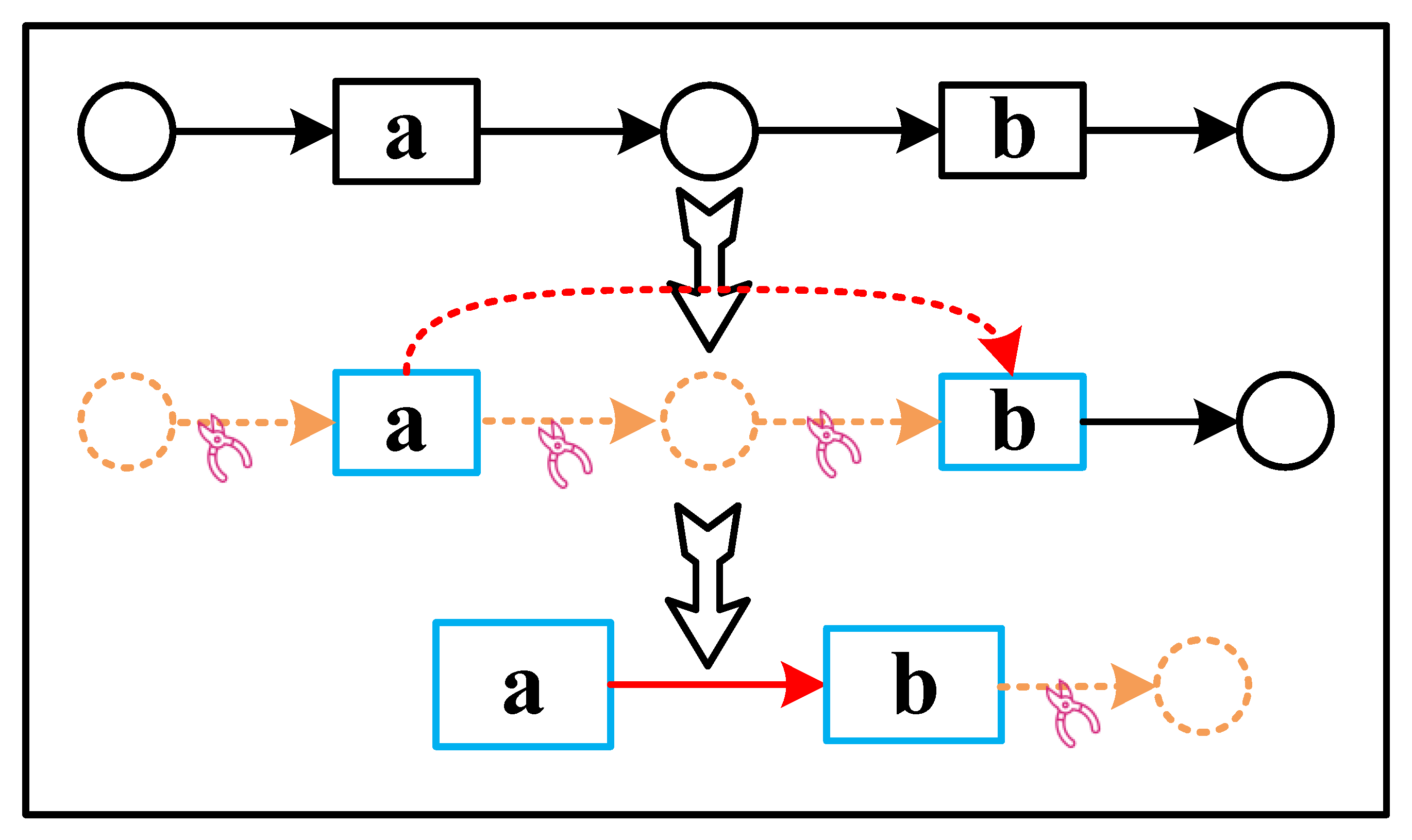

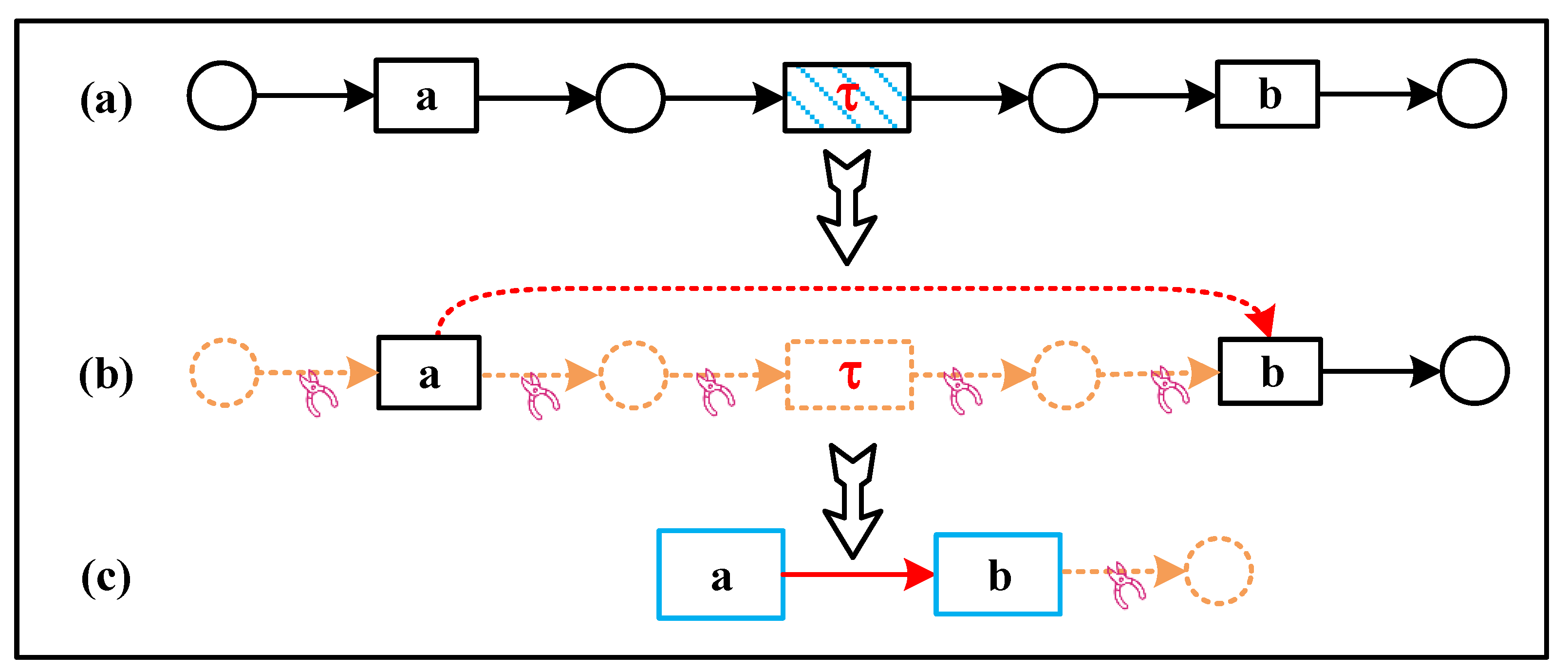

4.1. Using Behavior Profiles to Determine Behavior Context

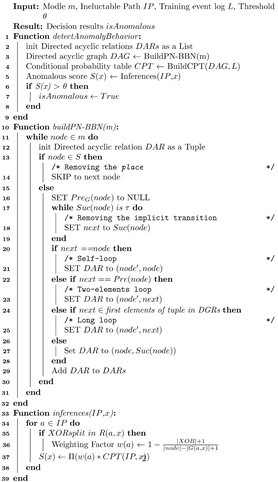

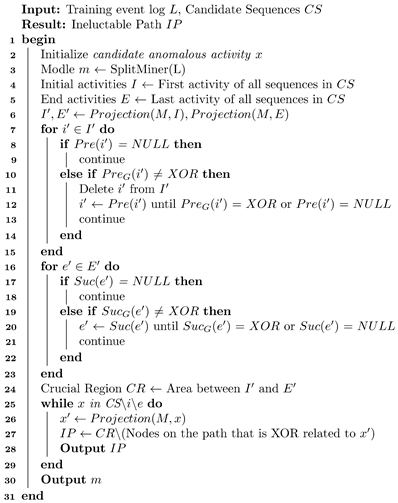

Algorithm 1: Ineluctable Path Identification. |

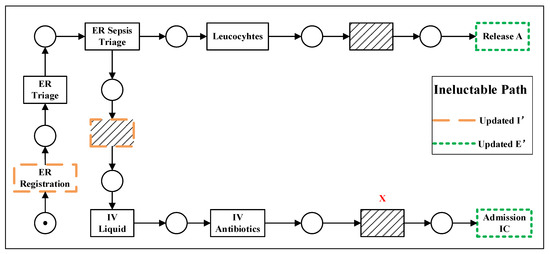

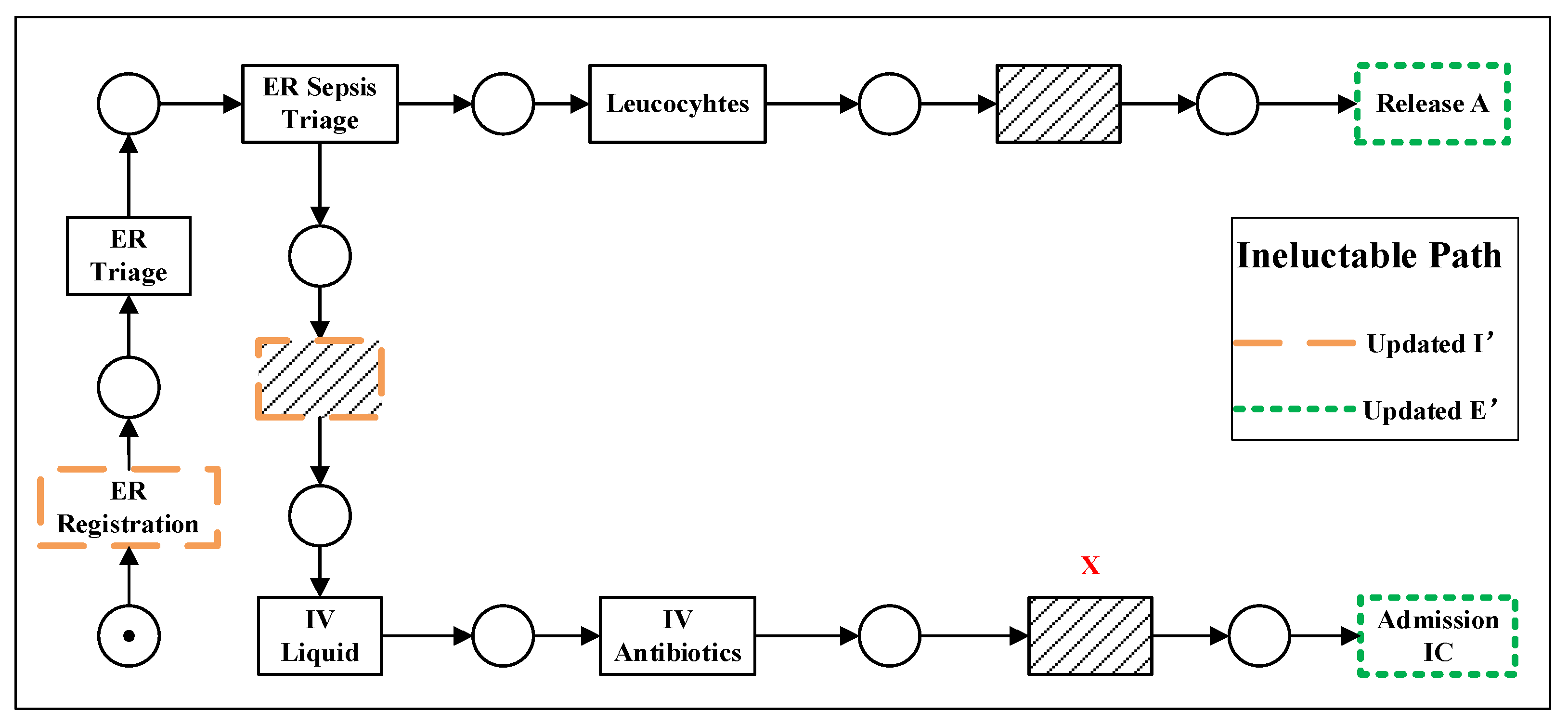

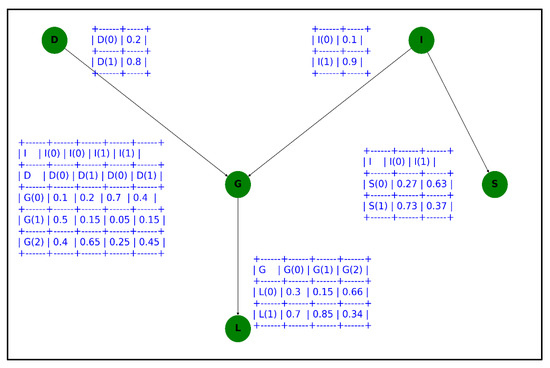

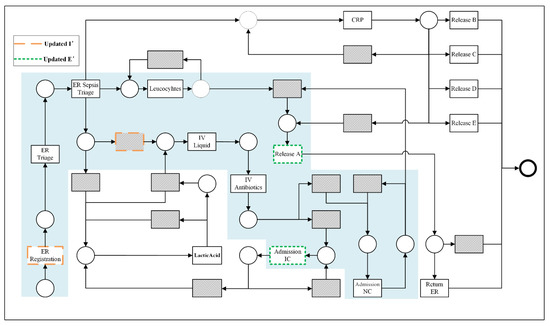

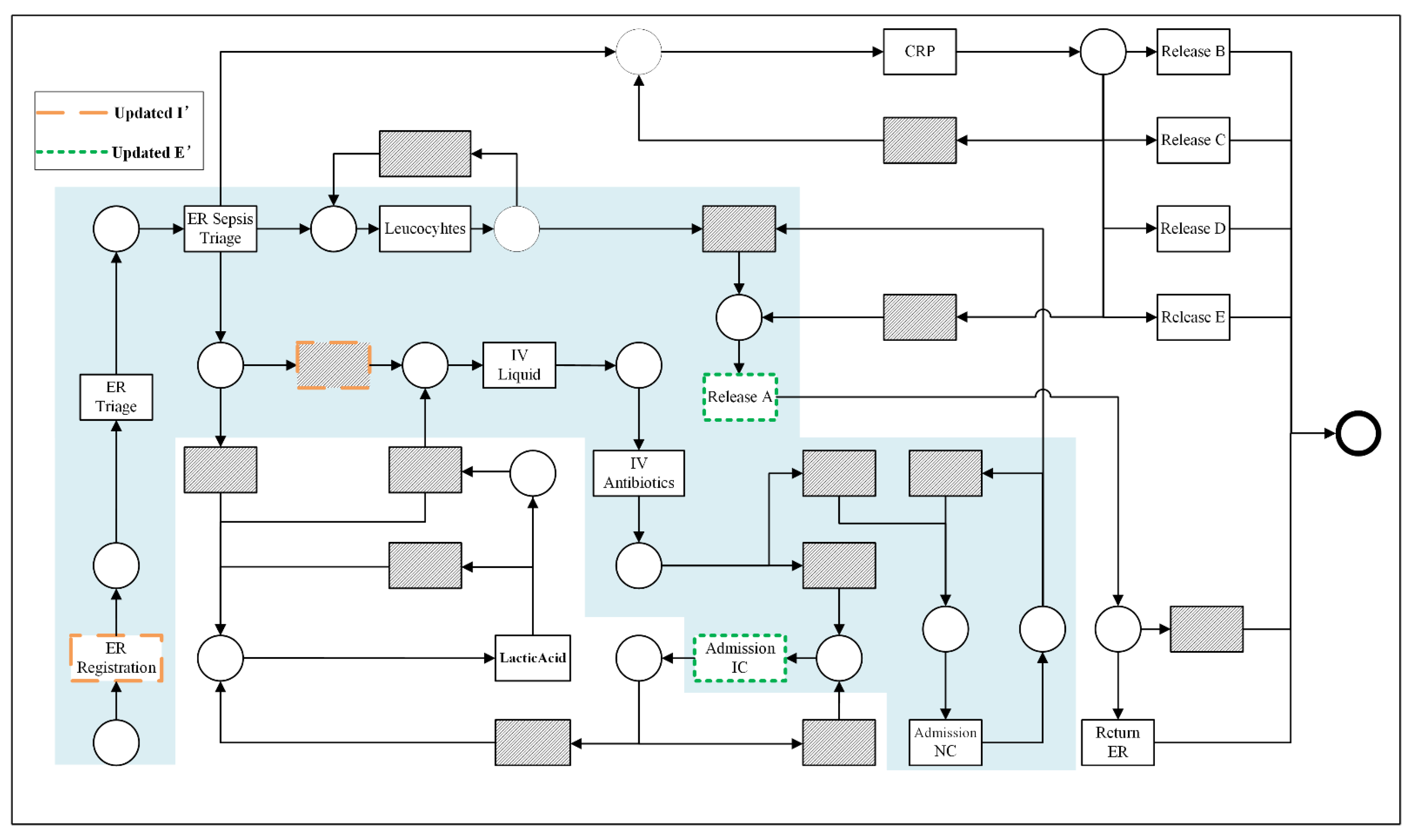

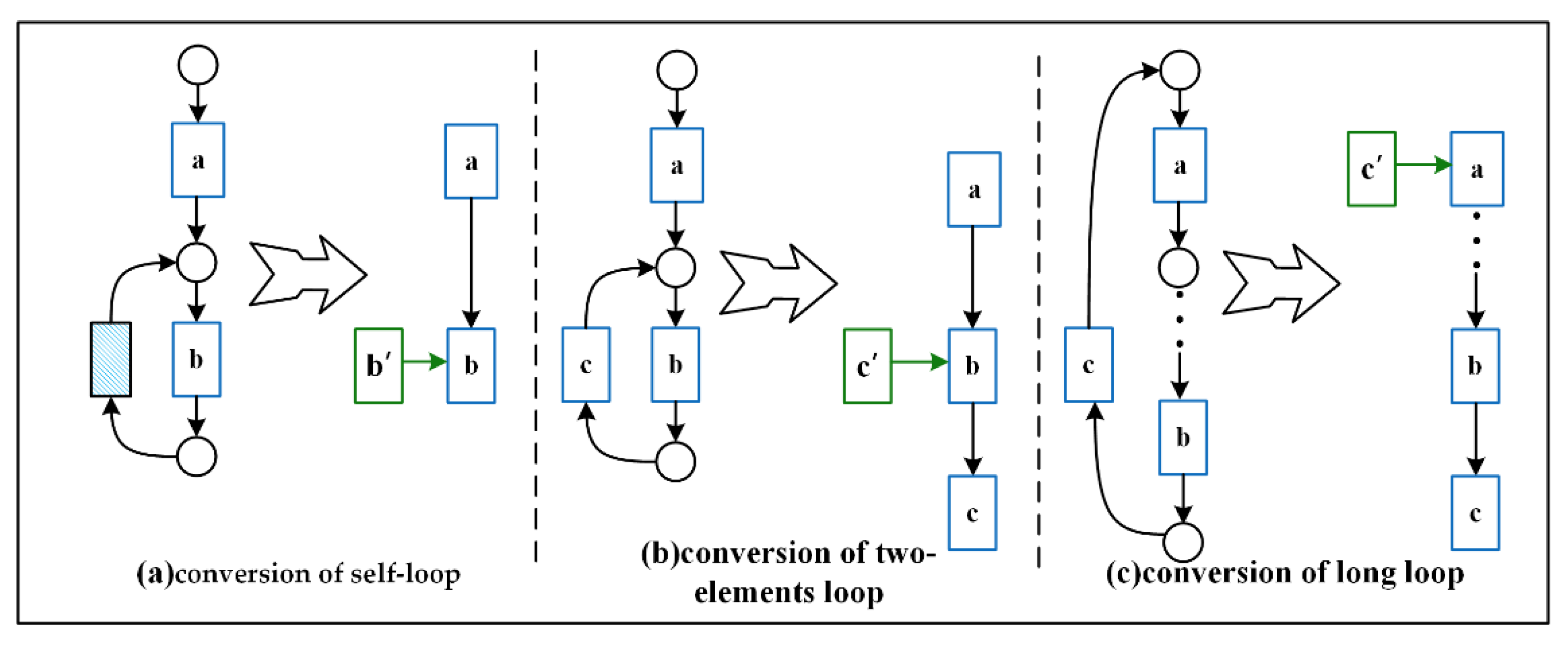

4.2. Constructing Petri Net-Based Bayesian Networks for Anomaly Detection
Algorithm 2: Anomalous behavior detection leveraging probabilistic inference. |
5. Evaluation
5.1. Event Log
5.2. Evaluation Indicators

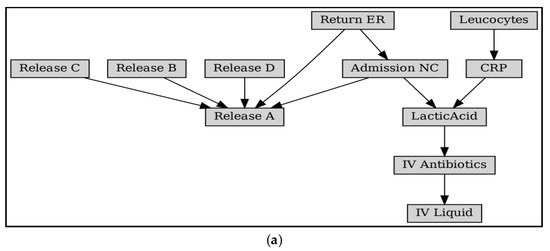

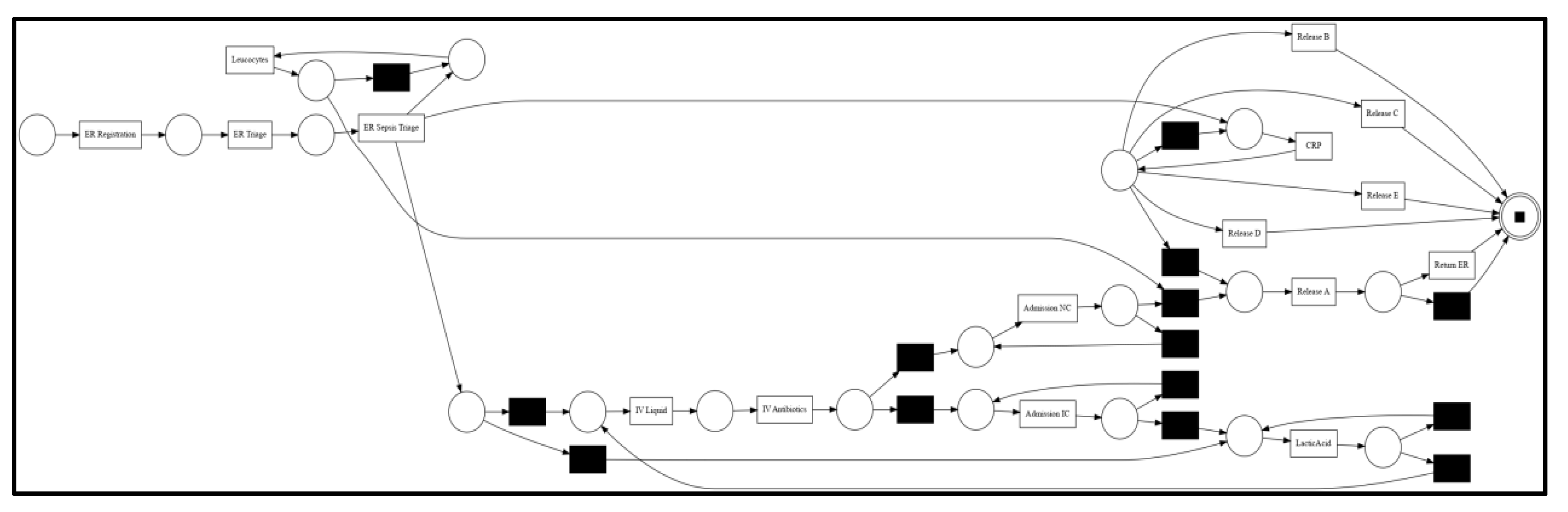

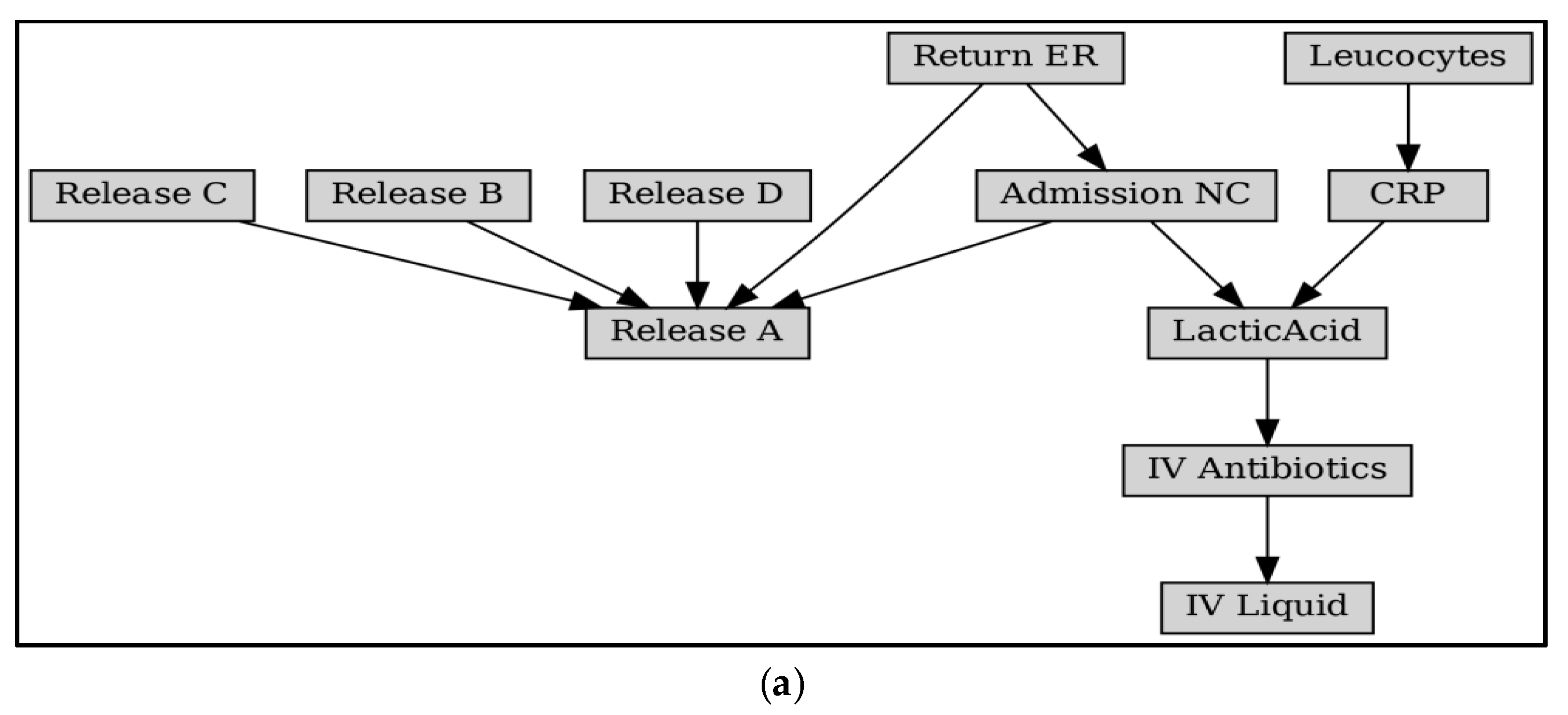

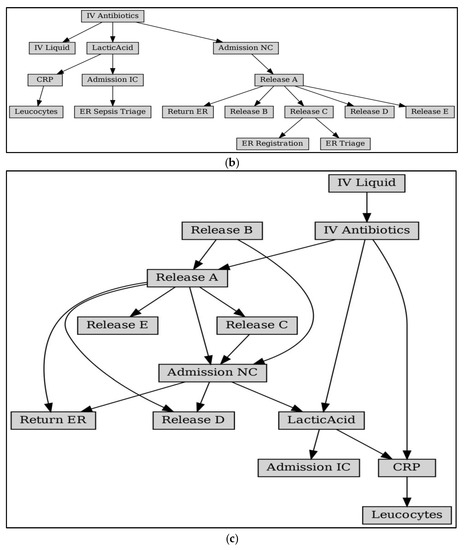

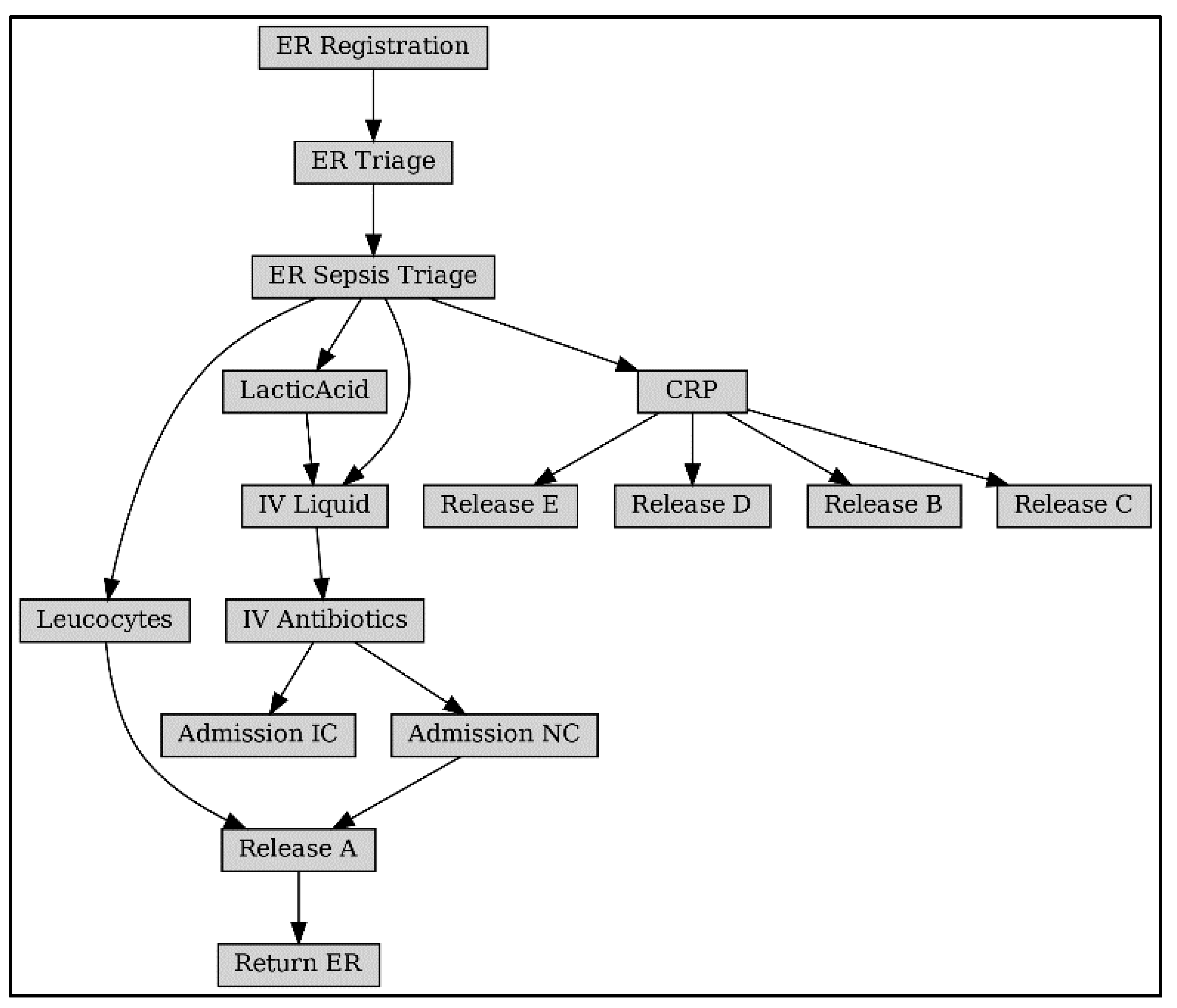

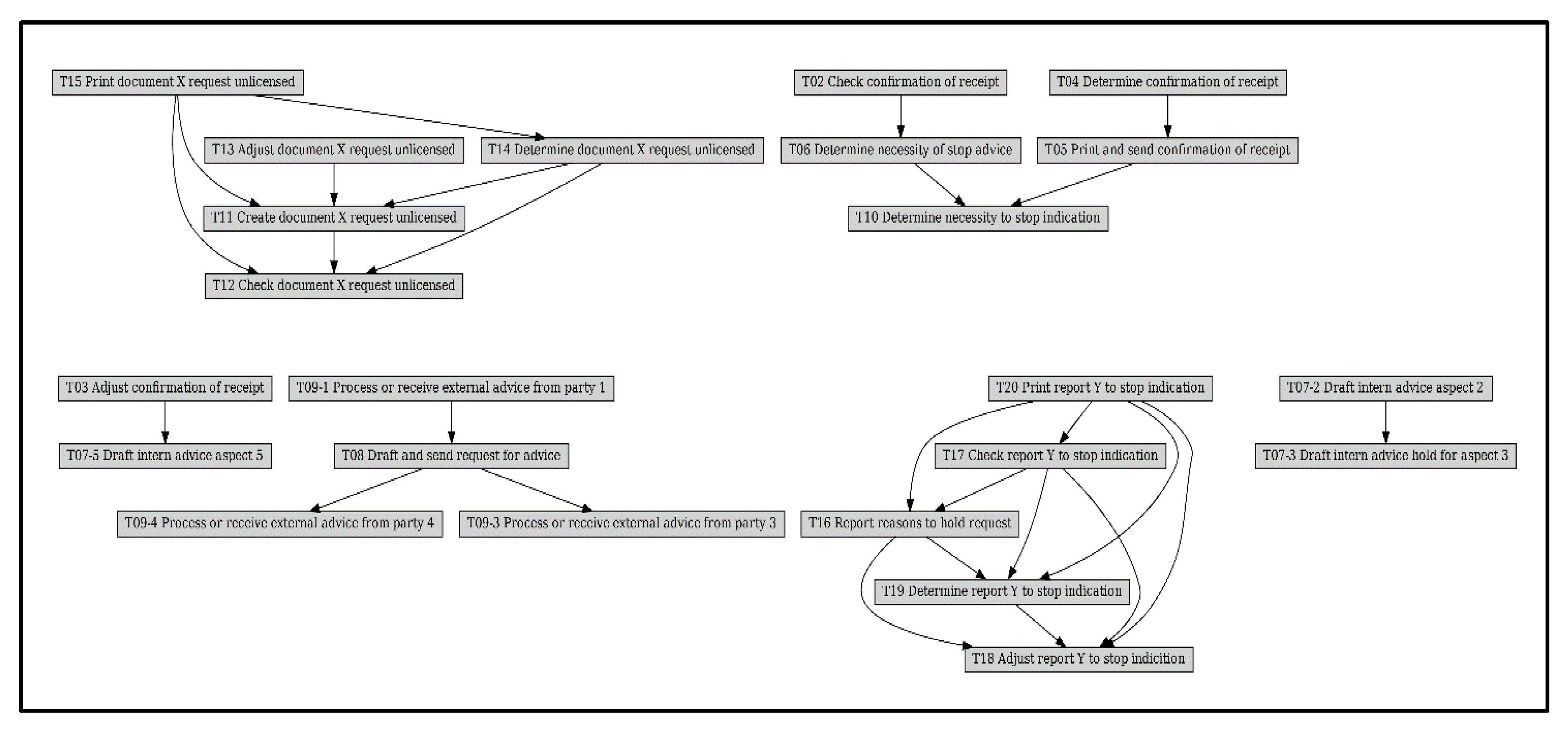

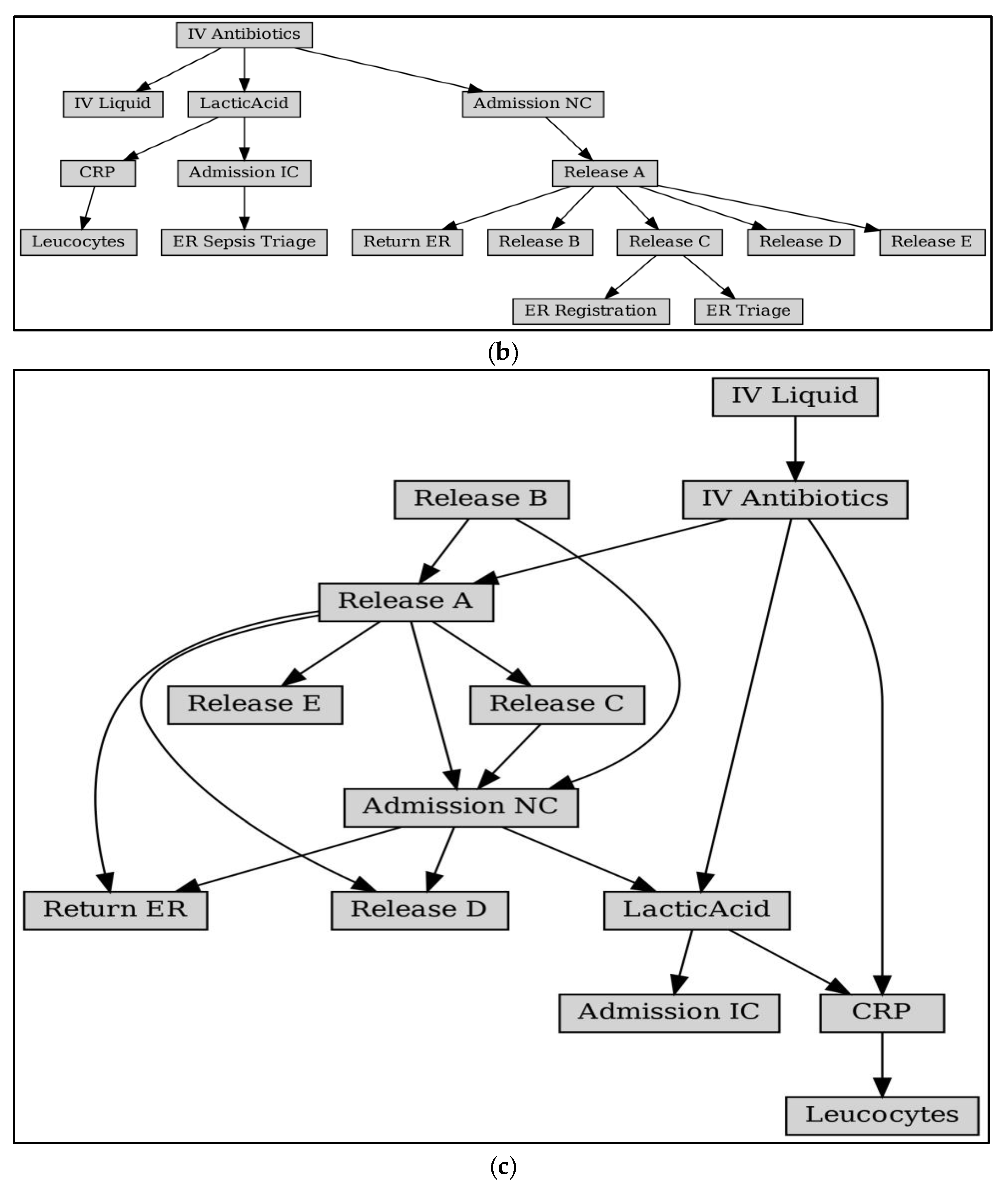

5.3. Bayesian Structural Analysis

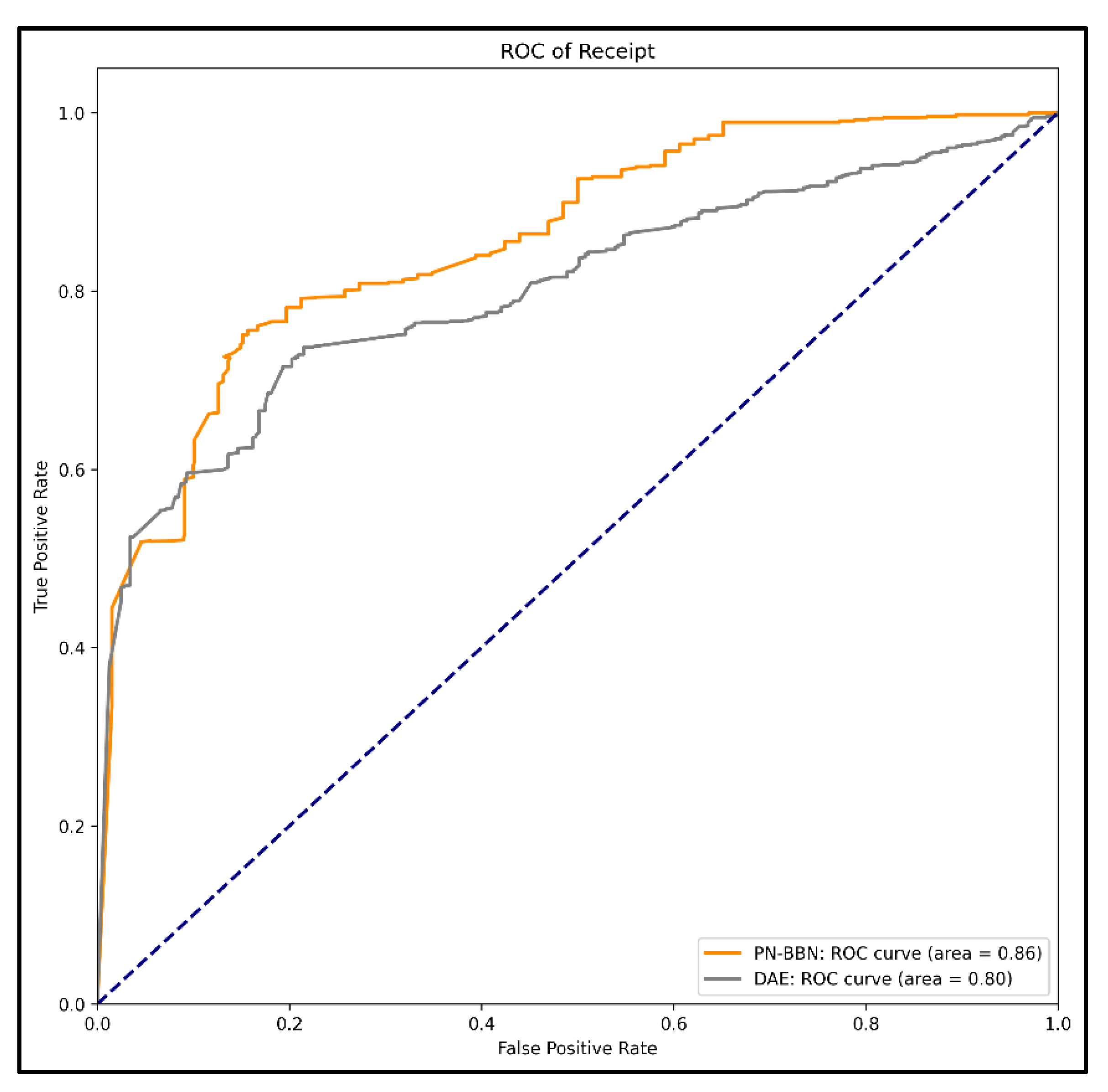

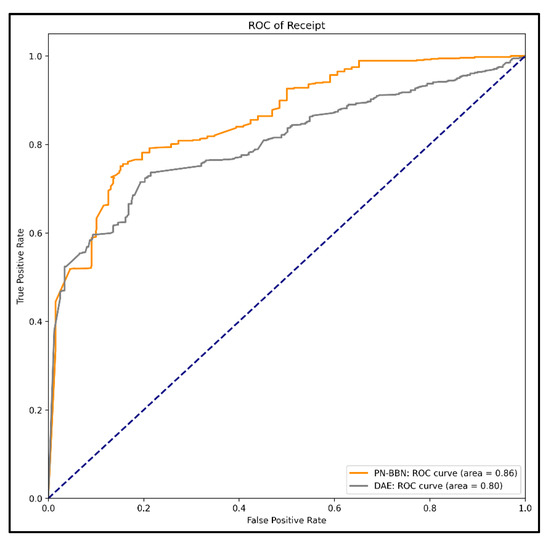

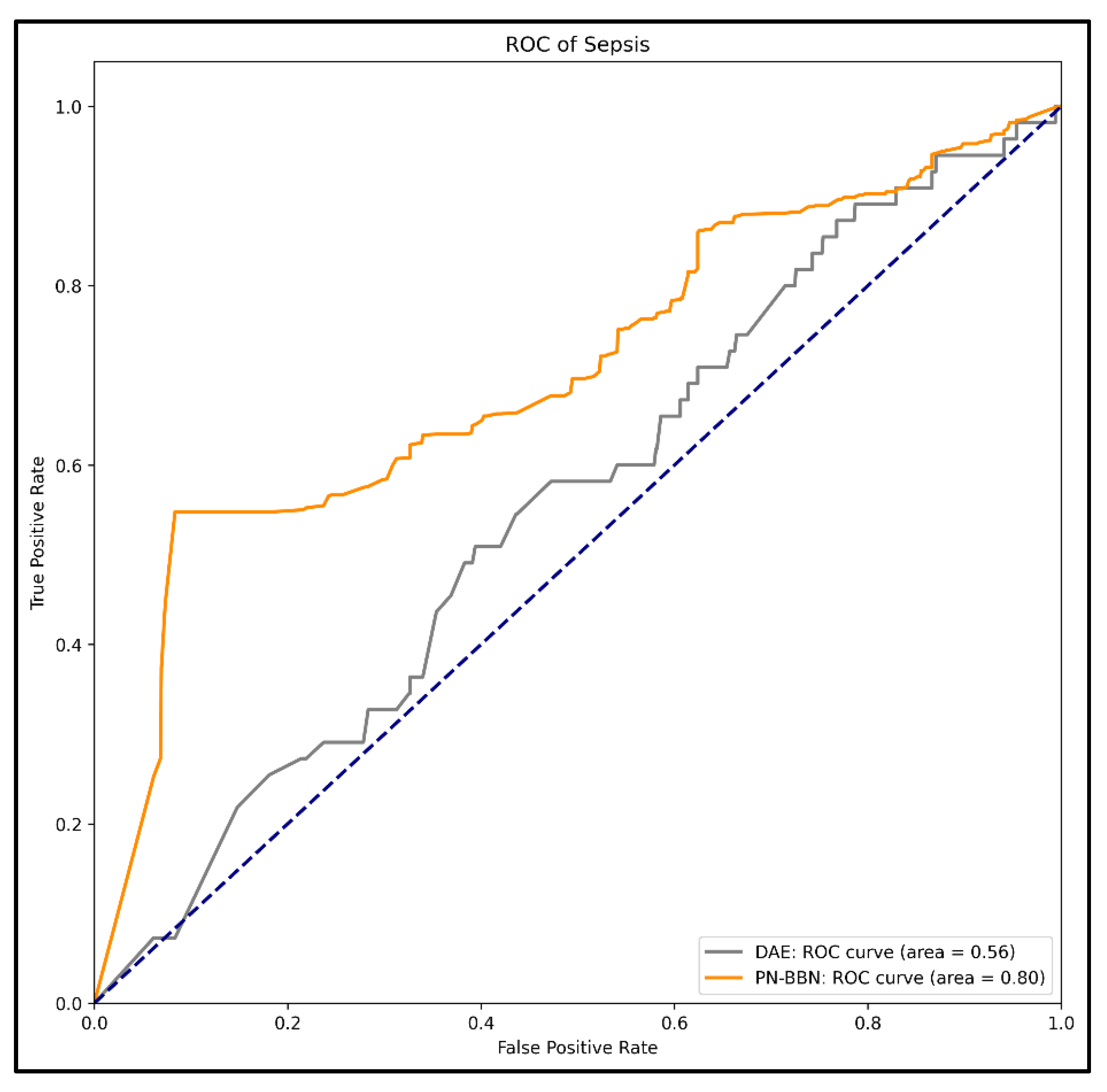

5.4. Anomaly Detection Results
6. Summary
Author Contributions
Funding
Data Availability Statement
Conflicts of Interest
References
