Modified Bernstein–Durrmeyer Type Operators

Abstract

We constructed a summation–integral type operator based on the latest research in the linear positive operators area. We establish some approximation properties for this new operator. We highlight the qualitative part of the presented operator; we studied uniform convergence, a Voronovskaja-type theorem, and a Grüss–Voronovskaja type result. Our subsequent study focuses on a direct approximation theorem using the Ditzian–Totik modulus of smoothness and the order of approximation for functions belonging to the Lipschitz-type space. For a complete image on the quantitative estimations, we included the convergence rate for differential functions, whose derivatives were of bounded variations. In the last section of the article, we present two graphs illustrating the operator convergence.

1. Introduction

The polynomial approximation of continuous functions represents an important part of numerical analyses. It is based on a famous theorem, stated, proved, and published by Karl Weierstrass in 1885. The result expresses the possibility of uniform approximation for a continuous function f by polynomials, on a bounded and closed interval $[a,b]$ of the real axis, playing a fundamental role in the development of mathematical analyses. In 1912, Bernstein [1] constructed for the real-valued function $\varphi :[0,1]\to R$ the positive linear operators

$${\displaystyle B_n(\varphi ;u)=\sum _{j=0}^n{p}_{n,j}\left(u\right)\varphi \left(\frac{j}{n}\right)=\sum _{j=0}^n\left(\genfrac{}{}{0pt}{}{n}{j}\right)u^j{(1-u)}^{n-j}\varphi \left(\frac{j}{n}\right),}$$

(1)

as a remarkable tool for the proof of the Weierstrass approximation theorem. Bernstein polynomials (1) ushered in a new era of the approximation theory, inspiring thousands of interesting articles to date. Bernstein polynomials, together with Bézier curves, are used in computer-aided geometric designs and other areas of computer science. Powerful algorithms (i.e., due to their constructions and visualizations) are available in the literature. Some generalizations (approximation of integrable functions, approximation of measurable functions, degenerate Bernstein polynomials, classical Bernstein polynomials), as well as many other applications of the Bernstein polynomials (1), can be consulted in the excellent book [2]. An exceptional historical perspective is provided in [3] on the evolution of the Bernstein polynomials. The construction of the approximation processes (of linear positive operators) is in a continuous expansion, determined only by the versatility of the existing functions. Consequently, there are dozens of operators in the literature; new operators can be built, all with direct contributions to the uniform approximation of the function. An interesting new modification of the Bernstein operator was brought to light by Usta [4]; it is given by

$${\mathcal{B}}_n^{*}(\varphi ;u)=\sum _{j=0}^n{p}_{n,j}^{*}\left(u\right)\varphi \left(\frac{j}{n}\right),u\in (0,1),$$

(2)

where ${\displaystyle p_{n,j}^{*}\left(u\right)={\displaystyle \frac{1}{n}}\left(\genfrac{}{}{0pt}{}{n}{j}\right){(j-nu)}^2{u}^{j-1}{(1-u)}^{n-j-1}}$ are the fundamental polynomials. In order to obtain an approximation process in the spaces of integrable functions on the interval $[0,1]$, based on this new modification (2), for any non-negative fixed real parameter $\alpha$, we present the following Bernstein–Durrmeyer type operator

$$\begin{array}{c}\hfill {\mathcal{B}}_{n,\alpha }^{*}(\varphi ;u)=\sum _{j=0}^n{p}_{n,j}^{*}\left(u\right){\int }_0^1{\Theta }_{n,\alpha }\left(s\right)\varphi \left(s\right)ds,\end{array}$$

(3)

where ${\Theta }_{n,\alpha }\left(s\right)={\displaystyle \frac{s^{j\alpha }{(1-s)}^{(n-j)\alpha }}{\beta \left(j\alpha +1,(n-j)\alpha +1\right)}}$ and $\beta \left(j\alpha +1,(n-j)\alpha +1\right)$ are the Beta functions. We should note that (3) is a summation–integral linear positive type operator and its construction is based on many attempts to verify the hypotheses of an approximation process. The aim of the present paper was to establish some approximation properties of the Bernstein–Durrmeyer type operator (3). We highlight the qualitative part of the presented operator, studying uniform convergence, a Voronovskaja-type theorem, and a Grüss–Voronovskaja-type result. Our subsequent study focuses on a direct approximation theorem using the Ditzian–Totik modulus of smoothness, on the order of approximation for functions belonging to the Lipschitz-type space. For a complete image about the quantitative estimations, we include the convergence rates for differential functions whose derivatives were of bounded variations. In the last section of the article, we present two graphs illustrating the operator convergence.

2. Auxiliary Results

Let $\mathbb{N}$ be the set of positive integers and ${\mathbb{N}}_0=\mathbb{N}\cup \left\{0\right\}$. In this section, we present some auxiliary results. Let $I\subset \mathbb{R}$ be a nonempty interval of the real axis. We consider $C\left(I\right)$ the space of all real-valued functions continuous on I, endowed with uniform norm $\parallel f\parallel ={sup}_{x\in I}\left|f\left(x\right)\right|$. The mapping $L:C\left(I\right)\to C\left(I\right)$ is called an operator. The operator L is linear if $L\left({\alpha }_1{f}_1+{\alpha }_2{f}_2\right)={\alpha }_{1}L\left(f_1\right)+{\alpha }_{2}L\left(f_2\right)$, for $f_1,f_2\in C\left(I\right)$, ${\alpha }_1,{\alpha }_2\in \mathbb{R}$. The operator L is positive if $L\left(f_1\right)\ge 0$, for any $f\in C\left(I\right)$, f being positive. The next quantities represent indispensable tools for the study of uniform approximation of the functions by linear positive operators:

• The images of the monomials $e_m\left(u\right)=u^m$ (called also Korovkin test functions) by operator L, written $L(e_m;u)$, for $m\in {\mathbb{N}}_0$.
• The central moments of order m, $L\left({(e_1-u)}^m;u\right)$, for $m\in {\mathbb{N}}_0$.

Below, we present two results concerning the computations of the monomials images, as well as the central moments by linear positive operator ${\mathcal{B}}_{n,\alpha }^{*}$.

Lemma 1.

The Bernstein–Durrmeyer-type operators (3) hold:

${\mathcal{B}}_{n,\alpha }^{*}(e_0;u)=1;{\mathcal{B}}_{n,\alpha }^{*}(e_1;u)=\frac{\left(n-2\right)\alpha u}{\alpha n+2}+\frac{\alpha +1}{\alpha n+2};$

${\mathcal{B}}_{n,\alpha }^{*}(e_2;u)=\frac{\left(n^2-7n+6\right){\alpha }^2{u}^2}{\left(\alpha n+3\right)\left(\alpha n+2\right)}+\frac{\left(\left(5n-6\right){\alpha }^2+\left(3n-6\right)\alpha \right)u}{\left(\alpha n+3\right)\left(\alpha n+2\right)}+\frac{{\alpha }^2+3\alpha +2}{\left(\alpha n+3\right)\left(\alpha n+2\right)};$

$$\begin{gathered} {\mathcal{B}}_{n,\alpha }^{*}(e_3;u)=\frac{\left(n^3-15n^2+38n-24\right){\alpha }^3{u}^3}{\left(\alpha n+2\right)\left(\alpha n+3\right)\left(\alpha n+4\right)}+\frac{\left(\left(12n^2-48n+36\right){\alpha }^3+\left(6n^2-42n+36\right){\alpha }^2\right)u^2}{\left(\alpha n+2\right)\left(\alpha n+3\right)\left(\alpha n+4\right)} \\ +\frac{\left(\left(13n-14\right){\alpha }^3+\left(30n-36\right){\alpha }^2+\left(11n-22\right)\alpha \right)u}{\left(\alpha n+2\right)\left(\alpha n+3\right)\left(\alpha n+4\right)}+\frac{{\alpha }^3+6{\alpha }^2+11\alpha +6}{\left(\alpha n+2\right)\left(\alpha n+3\right)\left(\alpha n+4\right)}; \end{gathered}$$

$$\begin{gathered} {\mathcal{B}}_{n,\alpha }^{*}(e_4;u)=\frac{\left(n^4-26n^3+131n^2-226n+120\right){\alpha }^4{u}^4}{\left(\alpha n+2\right)\left(\alpha n+3\right)\left(\alpha n+4\right)\left(\alpha n+5\right)} \\ +\frac{\left(\left(22n^3-186n^2+404n-240\right){\alpha }^4+\left(10n^3-150n^2+380n-240\right){\alpha }^3\right)u^3}{\left(\alpha n+2\right)\left(\alpha n+3\right)\left(\alpha n+4\right)\left(\alpha n+5\right)} \\ +\frac{\left(\left(61n^2-211n+150\right){\alpha }^4+\left(120n^2-480n+360\right){\alpha }^3+\left(35n^2-245n+210\right){\alpha }^2\right)u^2}{\left(\alpha n+2\right)\left(\alpha n+3\right)\left(\alpha n+4\right)\left(\alpha n+5\right)} \\ +\frac{\left(\left(29n-30\right){\alpha }^4+\left(130n-140\right){\alpha }^3+\left(175n-210\right){\alpha }^2+\left(50n-100\right)\alpha \right)u}{\left(\alpha n+2\right)\left(\alpha n+3\right)\left(\alpha n+4\right)\left(\alpha n+5\right)}+\frac{{\alpha }^4+10{\alpha }^3+35{\alpha }^2+50\alpha +24}{\left(\alpha n+2\right)\left(\alpha n+3\right)\left(\alpha n+4\right)\left(\alpha n+5\right)}. \end{gathered}$$

Proof.

Achieving the presented results requires the ability to operate with different types of mathematical software (Maple or Mathematica). □

As for the central moments of the operators (3), for brevity, in the sequel, we will write ${\tau }_{n,\alpha ,m}\left(u\right)={\mathcal{B}}_{n,\alpha }^{*}\left({(e_1-u)}^m;u\right)$, with $n\ge 1$, $m\ge 0$ and $u\in (0,1)$.

Lemma 2.

For the Bernstein–Durrmeyer-type operators (3), they hold:

$$\begin{gathered} {\tau }_{n,\alpha ,1}\left(u\right)=\frac{(1+\alpha )(1-2u)}{\alpha n+2}; \\ {\tau }_{n,\alpha ,2}\left(u\right)=\frac{\left(\left(-3n+6\right){\alpha }^2+\left(-n+12\right)\alpha +6\right)u^2}{\left(\alpha n+2\right)\left(\alpha n+3\right)}+\frac{\left(\left(3n-6\right){\alpha }^2+\left(n-12\right)\alpha -6\right)u}{\left(\alpha n+2\right)\left(\alpha n+3\right)}+\frac{{\alpha }^2+3\alpha +2}{\left(\alpha n+2\right)\left(\alpha n+3\right)}; \end{gathered}$$

$$\begin{gathered} {\tau }_{n,\alpha ,4}\left(u\right)=\frac{\left(\left(15n^2-130n+120\right){\alpha }^4+\left(18n^2-436n+480\right){\alpha }^3+\left(3n^2-464n+720\right){\alpha }^2+\left(-86n+480\right)\alpha +120\right)u^4}{\left(\alpha n+2\right)\left(\alpha n+3\right)\left(\alpha n+4\right)\left(\alpha n+5\right)} \\ +\frac{\left(\left(-30n^2+260n-240\right){\alpha }^4+\left(-36n^2+872n-960\right){\alpha }^3+\left(-6n^2+928n-1440\right){\alpha }^2+\left(172n-960\right)\alpha -240\right)u^3}{\left(\alpha n+2\right)\left(\alpha n+3\right)\left(\alpha n+4\right)\left(\alpha n+5\right)} \\ +\frac{\left(\left(15n^2-155n+150\right){\alpha }^4+\left(18n^2-542n+640\right){\alpha }^3+\left(3n^2-595n+1050\right){\alpha }^2+\left(-112n+800\right)\alpha +240\right)u^2}{\left(\alpha n+2\right)\left(\alpha n+3\right)\left(\alpha n+4\right)\left(\alpha n+5\right)} \\ +\frac{\left(\left(25n-30\right){\alpha }^4+\left(106n-160\right){\alpha }^3+\left(131n-330\right){\alpha }^2+\left(26n-320\right)\alpha -120\right)u}{\left(\alpha n+2\right)\left(\alpha n+3\right)\left(\alpha n+4\right)\left(\alpha n+5\right)}+\frac{{\alpha }^4+10{\alpha }^3+35{\alpha }^2+50\alpha +24}{\left(\alpha n+2\right)\left(\alpha n+3\right)\left(\alpha n+4\right)\left(\alpha n+5\right)}. \end{gathered}$$

Proof.

We use the results in Lemma 1. Taking ${\tau }_{n,\alpha ,m}\left(u\right)={\mathcal{B}}_{n,\alpha }^{*}\left({(e_1-u)}^m;u\right)$, for $m=1,2$, and 4 into account, we obtain the desired equalities. The computations were performed with Maple software. □

Lemma 3.

For every $u\in (0,1)$, applying the limit as $n\to \infty$, we have

$$\begin{array}{c}{\displaystyle \underset{n\to \infty }{lim}n·{\tau }_{n,\alpha ,1}\left(u\right)={\displaystyle \frac{(1-2u)(1+\alpha )}{\alpha }},\underset{n\to \infty }{lim}n·{\tau }_{n,\alpha ,2}\left(u\right)={\displaystyle \frac{(1-u)u(1+3\alpha )}{\alpha }},}\\ {\displaystyle \underset{n\to \infty }{lim}{n}^2·{\tau }_{n,\alpha ,4}\left(u\right)={\displaystyle \frac{3{(1-u)}^2{u}^2\left(1+6\alpha +5{\alpha }^2\right)}{{\alpha }^2}}.}\end{array}$$

Proof.

The equalities follow directly from Lemma 2, by applying the limit as $n\to \infty$. □

Lemma 4.

For $n\in \mathbb{N}$, we have

$${\mathcal{B}}_{n,\alpha }^{*}\left({(e_1-u)}^2;u\right)\le \frac{{\mathcal{Y}}_{\alpha }·u(1-u)}{\alpha n+2},$$

where ${\mathcal{Y}}_{\alpha }$ is a positive constant depending on the non-negative fixed real parameter α.

Proof.

The second order central moment of the Bernstein–Durrmeyer type operator (3) (see the result in Lemma 2), can be written in the following form

$$\begin{array}{cc}\hfill {\tau }_{n,\alpha ,2}\left(u\right)& ={\mathcal{B}}_{n,\alpha }^{*}\left({(e_1-u)}^2;u\right)=\frac{\left(\left(-3n+6\right){\alpha }^2+\left(-n+12\right)\alpha +6\right)u^2}{\left(\alpha n+2\right)\left(\alpha n+3\right)}+\frac{\left(\left(3n-6\right){\alpha }^2+\left(n-12\right)\alpha -6\right)u}{\left(\alpha n+2\right)\left(\alpha n+3\right)}+\frac{{\alpha }^2+3\alpha +2}{\left(\alpha n+2\right)\left(\alpha n+3\right)}\hfill \\ & =\frac{\left(\left(3n-6\right){\alpha }^2+\left(n-12\right)\alpha -6\right)u(1-u)}{\left(\alpha n+2\right)\left(\alpha n+3\right)}+\frac{{\alpha }^2+3\alpha +2}{\left(\alpha n+2\right)\left(\alpha n+3\right)}=\frac{(3\alpha +1)u(1-u)}{\alpha n+2}+\frac{{\alpha }^2+3\alpha +2-\left(6{\alpha }^2+21\alpha +9\right)u(1-u)}{(\alpha n+2)(\alpha n+3)}\hfill \\ & \le \frac{(3\alpha +1)u(1-u)}{\alpha n+2}-\frac{2{\alpha }^2+9\alpha +1}{4(\alpha n+2)(\alpha n+3)}\le \frac{{\mathcal{Y}}_{\alpha }·u(1-u)}{\alpha n+2},\hfill \end{array}$$

with ${\mathcal{Y}}_{\alpha }=3\alpha +1$ being a positive constant and $0<\frac{2{\alpha }^2+9\alpha +1}{4(\alpha n+2)(\alpha n+3)}<1$. □

The following result provides the simplest and strongest criteria for establishing the convergence of a linear positive operator to the identity one. It was developed and demonstrated independently by three mathematicians: T. Popoviciu [5] in 1951, H. Bohman [6] in 1952, and P.P. Korovkin [7] in 1953.

Theorem 1.

Let ${\left(L_n\right)}_{n\in \mathbb{N}}$ be a sequence of linear positive operators, such that $L_n:C[a,b]\to C[a,b]$. If

• $L_n(e_0;u)=1+v_n\left(u\right),$
• $L_n(e_1;u)=u+w_n\left(u\right),$
• $L_n(e_2;u)=u^2+z_n\left(u\right),$

such that $\underset{n\to \infty }{lim}{v}_n\left(u\right)=\underset{n\to \infty }{lim}{w}_n\left(u\right)=\underset{n}{lim}\left(u\right)=0$, then for any $f\in C[a,b]$ and $u\in [a,b]$, $\underset{n\to \infty }{lim}{L}_n(f;u)=f\left(u\right)$ uniformly on $[a,b]$.

Remark 1.

This classical result is known in the literature as Bohman–Korovkin’s theorem, because Popoviciu’s contribution remained unknown for a long period of time.

The power of this qualitative result impressed many mathematicians and, hence, during the last seventy years, a considerable amount of research extended this theorem in different directions.

3. Main Results

In the following, we present a series of qualitative and quantitative results, which confirm that the linear positive operator (3) is an approximation process in the space of integrable functions on $[0,1]$.

Theorem 2.

If $\varphi \in C(0,1)$, then ${\displaystyle \underset{n\to \infty }{lim}{\mathcal{B}}_{n,\alpha }^{*}(\varphi ;u)=\varphi \left(u\right)}$ uniformly on $(0,1)$.

Proof.

Taking the results presented in Lemma 1 into account, we have

$${\mathcal{B}}_{n,\alpha }^{*}(1;u)\to 1,{\mathcal{B}}_{n,\alpha }^{*}(e_1;u)\to u,{\mathcal{B}}_{n,\alpha }^{*}(e_2;u)\to u^2,\mathrm{as}n\to \infty \mathrm{uniformly}\mathrm{in}(0,1).$$

Next, applying Bohman–Korovkin–Popoviciu criterion (Theorem 1), it follows that

$${\mathcal{B}}_{n,\alpha }^{*}(\varphi ;u)\to \varphi \left(u\right),\mathrm{as}n\to \infty \mathrm{uniformly}\mathrm{on}(0,1).$$

□

Theorem 3.

Let $\varphi :(0,1)\to \mathbb{R}$. If $\varphi \in C^2(0,1)$, then

$${\displaystyle \underset{n\to \infty }{lim}n\left({\mathcal{B}}_{n,\alpha }^{*}(\varphi ;u)-\varphi \left(u\right)\right)={\displaystyle \frac{(1-2u)(1+\alpha )}{\alpha }}{\varphi }^{\prime }\left(u\right)+{\displaystyle \frac{(1-u)u(1+3\alpha )}{2\alpha }}{\varphi }^{″}\left(u\right).}$$

(4)

Proof.

Using Taylor’s expansion of the function $\varphi$, we can write

$$\begin{array}{c}\hfill \varphi \left(s\right)=\varphi \left(u\right)+{\varphi }^{\prime }\left(u\right)(s-u)+\frac{1}{2}{\varphi }^{″}\left(u\right){(s-u)}^2+\varpi (s,u){(s-u)}^2,\end{array}$$

(5)

$\varpi (s,u):=\varpi (s-u)$ being a bounded function, with ${\displaystyle \underset{s\to u}{lim}\varpi (s,u)=0}$. Applying the linear operator ${\mathcal{B}}_{n,\alpha }^{*}$ to the relation (5), we have

$$\begin{array}{c}\hfill {\mathcal{B}}_{n,\alpha }^{*}(\varphi ;u)-\varphi \left(u\right)={\mathcal{B}}_{n,\alpha }^{*}\left((e_1-u);u\right){\varphi }^{\prime }\left(u\right)+\frac{1}{2}{\mathcal{B}}_{n,\alpha }^{*}\left({(e_1-u)}^2;u\right){\varphi }^{″}\left(u\right)+{\mathcal{B}}_{n,\alpha }^{*}\left(\varpi (s,u){(e_1-u)}^2;u\right).\end{array}$$

The Cauchy–Schwarz inequality for linear positive operators implies

$$n·{\mathcal{B}}_{n,\alpha }^{*}\left(\varpi (s,u){(s-u)}^2;u\right)\le \sqrt{{\mathcal{B}}_{n,\alpha }^{*}\left({\varpi }^2(s,u);u\right)}·\sqrt{n^2·{\mathcal{B}}_{n,\alpha }^{*}\left({(e_1-u)}^4;u\right)}.$$

Based on the uniform convergence proved in Theorem 2, we have ${\displaystyle \underset{n\to \infty }{lim}{\mathcal{B}}_{n,\alpha }^{*}\left({\varpi }^2(s,u);u\right)}$= ${\varpi }^2(u,u)=0$, once $\varpi (s,u)\to 0$ as $s\to u$. For every $u\in (0,1)$, we know from Lemma 3 that

$${\displaystyle \underset{n\to \infty }{lim}{n}^2·{\mathcal{B}}_{n,\alpha }^{*}\left({(e_1-u)}^4;u\right)={\displaystyle \frac{3{(1-u)}^2{u}^2\left(1+6\alpha +5{\alpha }^2\right)}{{\alpha }^2}}.}$$

Hence, it follows that

$$n·{\mathcal{B}}_{n,\alpha }^{*}\left(\varpi (s,u){(e_1-u)}^2;u\right)=0.$$

The results proved in Lemma 3:

$${\displaystyle \underset{n\to \infty }{lim}n{\mathcal{B}}_{n,\alpha }^{*}\left(e_1-u;u\right)={\displaystyle \frac{(1-2u)(1+\alpha )}{\alpha }},\underset{n\to \infty }{lim}n{\mathcal{B}}_{n,\alpha }^{*}\left({(e_1-u)}^2;u\right)={\displaystyle \frac{(1-u)u(1+3\alpha )}{\alpha }},}$$

leads us to

$${\displaystyle \underset{n\to \infty }{lim}n\left({\mathcal{B}}_{n,\alpha }^{*}(\varphi ;u)-\varphi \left(u\right)\right)={\displaystyle \frac{(1-2u)(1+\alpha )}{\alpha }}{\varphi }^{\prime }\left(u\right)+{\displaystyle \frac{(1-u)u(1+3\alpha )}{2\alpha }}{\varphi }^{″}\left(u\right).}$$

□

We present a Grüss–Voronovskaja-type result for the Bernstein–Durrmeyer-type operators.

Theorem 4.

Let $\varphi ,g:(0,1)\to \mathbb{R}$. If $\varphi ,g\in C^2(0,1)$, then

$$\underset{n\to \infty }{lim}n·\left({\mathcal{B}}_{n,\alpha }^{*}(\left(\varphi g\right);u)-{\mathcal{B}}_{n,\alpha }^{*}(\varphi ;u)·{\mathcal{B}}_{n,\alpha }^{*}(g;u)\right)={\varphi }^{\prime }\left(u\right)·g^{\prime }\left(u\right){\displaystyle \frac{(1-u)u(1+3\alpha )}{\alpha }}.$$

Proof.

The following relation holds

$$\begin{array}{c}{\displaystyle {\mathcal{B}}_{n,\alpha }^{*}(\varphi g;u)-{\mathcal{B}}_{n,\alpha }^{*}(\varphi ;u)·{\mathcal{B}}_{n,\alpha }^{*}(g;u)={\mathcal{B}}_{n,\alpha }^{*}(\varphi g;u)-\varphi \left(u\right)g\left(u\right)-{\left(\varphi g\right)}^{\prime }\left(u\right){\tau }_{n,\alpha ,1}\left(u\right)-\frac{1}{2}{\left(\varphi g\right)}^{″}\left(u\right){\tau }_{n,\alpha ,2}\left(u\right)}\\ -g\left(u\right)\left({\displaystyle {\mathcal{B}}_{n,\alpha }^{*}(\varphi ;u)-\varphi \left(u\right)-{\varphi }^{\prime }\left(u\right){\tau }_{n,\alpha ,1}\left(u\right)-\frac{1}{2}{\varphi }^{″}\left(u\right){\tau }_{n,\alpha ,2}\left(u\right)}\right)\\ -{\mathcal{B}}_{n,\alpha }^{*}(\varphi ;u)\left({\displaystyle {\mathcal{B}}_{n,\alpha }^{*}(g;u)-g\left(u\right)-g^{\prime }\left(u\right){\tau }_{n,\alpha ,1}\left(u\right)-\frac{1}{2}{g}^{″}\left(u\right){\tau }_{n,\alpha ,2}\left(u\right)}\right)\\ {\displaystyle +\frac{1}{2}{\tau }_{n,\alpha ,2}\left(u\right)\left(\varphi \left(u\right)g^{″}\left(u\right)+2{\varphi }^{\prime }\left(u\right)g^{\prime }\left(u\right)-g^{″}\left(u\right){\mathcal{B}}_{n,\alpha }^{*}(\varphi ;u)\right)+{\tau }_{n,\alpha ,1}\left(u\right)\left(\varphi \left(u\right)g^{\prime }\left(u\right)-g^{\prime }\left(u\right){\mathcal{B}}_{n,\alpha }^{*}(\varphi ;u)\right).}\end{array}$$

Next, using the uniform convergence from Theorem 2, the Voronovskaja-type theorem from Theorem 3, and the results presented in Lemma 3, we have

$$\begin{array}{c}\underset{n\to \infty }{lim}n\left\{{\mathcal{B}}_{n,\alpha }^{*}(\varphi g;u)-{\mathcal{B}}_{n,\alpha }^{*}(\varphi ;u){\mathcal{B}}_{n,\alpha }^{*}(g;u)\right\}=\underset{n\to \infty }{lim}n{\varphi }^{\prime }\left(u\right)g^{\prime }\left(u\right){\tau }_{n,\alpha ,2}\left(u\right)\\ {\displaystyle +\underset{n\to \infty }{lim}\frac{1}{2}n{g}^{″}\left(u\right)\left(\varphi \left(u\right)-{\mathcal{B}}_{n,\alpha }^{*}(\varphi ;u)\right){\tau }_{n,\alpha ,2}\left(u\right)+\underset{n\to \infty }{lim}n{g}^{\prime }\left(u\right)\left(\varphi \left(u\right)-{\mathcal{B}}_{n,\alpha }^{*}(\varphi ;u)\right){\tau }_{n,\alpha ,1}\left(u\right)}\\ ={\varphi }^{\prime }\left(u\right)g^{\prime }\left(u\right){\displaystyle \frac{(1-u)u(1+3\alpha )}{\alpha }}.\end{array}$$

□

In order to present some quantitative estimates of the Bernstein–Durrmeyer type operators, we recall the definitions of the Ditzian–Totik first order modulus of smoothness and the appropriate K-functional, taken from [8]. Let $\vartheta \left(u\right)=\sqrt{u(1-u)}$ and $\varphi \in C(0,1).$ The first order modulus of smoothness is

$${\omega }_{\vartheta }(\varphi ,\delta )=\underset{0<h\le s}{sup}\underset{u\pm (h/2)\vartheta \left(u\right)\in (0,1)}{sup}\left\{\left|\varphi \left(u+\frac{h\vartheta \left(u\right)}{2}\right)-\varphi \left(u-\frac{h\vartheta \left(u\right)}{2}\right)\right|,\delta >0\right\}$$

and the appropriate K-functional is defined by

$${\overline{K}}_{\vartheta }(\varphi ,\delta )=\underset{g\in W_{\vartheta }}{inf}\{\parallel \varphi -g\parallel +\delta \parallel \vartheta g^{\prime }\parallel +{\delta }^2\parallel g^{\prime }\parallel \}(\delta >0),$$

where $W_{\vartheta }=\{g:g\in A{C}_{loc},\parallel \vartheta g^{\prime }\parallel <\infty ,\parallel g^{\prime }\parallel <\infty \}$ and $\parallel ·\parallel$ is the uniform norm on $C(0,1)$. It is known (from Theorem 3.1.2, [8]) that ${\overline{K}}_{\vartheta }(\varphi ,\delta )\sim {\omega }_{\vartheta }(\varphi ,\delta )$, which means that there exists a constant $M>0$, such that

$$M^{-1}{\omega }_{\vartheta }(\varphi ,\delta )\le {\overline{K}}_{\vartheta }(\varphi ,\delta )\le M{\omega }_{\vartheta }(\varphi ,\delta ).$$

(6)

We establish the order of approximation with the aid of the Ditzian–Totik modulus of smoothness.

Theorem 5.

If $\varphi \in C(0,1)$ and $\vartheta \left(u\right)=\sqrt{u(1-u)}$, then

$$\left|{\mathcal{B}}_{n,\alpha }^{*}(\varphi ;u)-\varphi \left(u\right)\right|\le C·{\omega }_{\vartheta }\left(\varphi ,\sqrt{\frac{{\mathcal{Y}}_{\alpha }}{\alpha n+2}}\right),$$

with ${\mathcal{Y}}_{\alpha }$ being defined in the Lemma 4 and C is a positive constant.

Proof.

Using the relation ${\displaystyle g\left(s\right)=g\left(u\right)+{\int }_u^s{g}^{\prime }\left(w\right)dw}$ and the fact that Bernstein–Durrmeyer type operators (3) preserve constants (see Lemma 1), we may write

$$\left|{\mathcal{B}}_{n,\alpha }^{*}(g;u)-g\left(u\right)\right|=\left|{\mathcal{B}}_{n,\alpha }^{*}\left({\int }_u^s{g}^{\prime }\left(w\right)dw;u\right)\right|.$$

(7)

For any $u,s\in (0,1)$, we have

$$\left|{\int }_u^s{g}^{\prime }\left(w\right)dw\right|\le \parallel \vartheta g^{\prime }\parallel ·\left|{\int }_u^s\frac{1}{\vartheta \left(w\right)}dw\right|.$$

(8)

Therefore,

$$\begin{array}{cc}\hfill \left|{\int }_u^s\frac{1}{\vartheta \left(w\right)}dw\right|& =\left|{\int }_u^s\frac{1}{\sqrt{w(1-w)}}dw\right|\le \left|{\int }_u^s\left(\frac{1}{\sqrt{w}}+\frac{1}{\sqrt{1-w}}\right)dw\right|\le 2\left(\left|\sqrt{s}-\sqrt{u}\right|+\left|\sqrt{1-s}-\sqrt{1-u}\right|\right)\hfill \\ & =2|s-u|\left(\frac{1}{\sqrt{s}+\sqrt{u}}+\frac{1}{\sqrt{1-s}+\sqrt{1-u}}\right)<2|s-u|\left(\frac{1}{\sqrt{u}}+\frac{1}{\sqrt{1-u}}\right)\le \frac{2\sqrt{2}|s-u|}{\vartheta \left(u\right)}.\hfill \end{array}$$

(9)

Combining (7)–(9) and applying the Cauchy–Schwarz inequality for linear positive operators, we have

$$|{\mathcal{B}}_{n,\alpha }^{*}(g;u)-g\left(u\right)|<2\sqrt{2}\parallel \vartheta g^{\prime }\parallel {\vartheta }^{-1}\left(u\right){\mathcal{B}}_{n,\alpha }^{*}\left(\right|e_1-u|;u)\le 2\sqrt{2}\parallel \vartheta g^{\prime }\parallel {\vartheta }^{-1}\left(u\right){\left({\mathcal{B}}_{n,\alpha }^{*}\left({(e_1-u)}^2;u\right)\right)}^{1/2}.$$

Using the result presented in the Lemma 4, we have

$$|{\mathcal{B}}_{n,\alpha }^{*}(g;u)-g\left(u\right)|<C·\sqrt{\frac{{\mathcal{Y}}_{\alpha }}{\alpha n+2}}\parallel \vartheta g^{\prime }\parallel .$$

(10)

It is clear that

$$|{\mathcal{B}}_{n,\alpha }^{*}\left(\varphi \right)-\varphi |\le \left|{\mathcal{B}}_{n,\alpha }^{*}(\varphi -g;u)\right|+|\varphi -g|+|{\mathcal{B}}_{n,\alpha }^{*}(g;u)-g\left(u\right)|\le C·\left(\parallel \varphi -g\parallel +\sqrt{\frac{{\mathcal{Y}}_{\alpha }}{\alpha n+2}}\parallel \vartheta g^{\prime }\parallel \right),$$

where the relation (10) is used. Taking infimum on the right-hand side of the above relation over all $g\in W_{\vartheta }$, we may write

$$|{\mathcal{B}}_{n,\alpha }^{*}(\varphi ;u)-\varphi \left(u\right)|\le C·{\overline{K}}_{\vartheta }\left(\varphi ;\sqrt{\frac{{\mathcal{Y}}_{\alpha }}{\alpha n+2}}\right).$$

(11)

Taking $\overline{K_{\vartheta }}(\varphi ,s)\sim {\omega }_{\vartheta }(\varphi ,s)$ into account, we have the desired estimate. □

Let us consider the Lipschitz-type space defined as:

$$Li{p}_M^{({\kappa }_1,{\kappa }_2)}\left(\sigma \right):=\left\{\varphi \in C(0,1):|\varphi \left(s\right)-\varphi \left(u\right)|\le M\frac{{|s-u|}^{\sigma }}{{(s+{\kappa }_1{u}^2+{\kappa }_{2}u)}^{\frac{\sigma }{2}}},s\in (0,1),u\in (0,1)\right\},\mathrm{with}0<\sigma \le 1.$$

Theorem 6.

If $\varphi \in Li{p}_M^{({\kappa }_1,{\kappa }_2)}\left(\sigma \right)$, then

$$\left|{\mathcal{B}}_{n,\alpha }^{*}(\varphi ;u)-\varphi \left(u\right)\right|\le M·{\left(\frac{{\tau }_{n,\alpha ,2}\left(u\right)}{{\kappa }_1{u}^2+{\kappa }_{2}u}\right)}^{\sigma /2}.$$

Proof.

Using Hölder’s inequality with $p=\frac{2}{\sigma }$ and $q=\frac{2}{2-\sigma }$, for $0<\sigma \le 1$ we show that

$$\begin{array}{c}{\displaystyle \left|{\mathcal{B}}_{n,\alpha }^{*}(\varphi ;u)-\varphi \left(u\right)\right|\le \sum _{j=0}^n{p}_{n,j}^{*}\left(u\right){\int }_0^1\left|\varphi \left(s\right)-\varphi \left(u\right)\right|{\Theta }_{n,\alpha }\left(s\right)ds\le \sum _{j=0}^n{p}_{n,j}^{*}\left(u\right){\left({\displaystyle {\int }_0^1{\left|\varphi \left(s\right)-\varphi \left(u\right)\right|}^{\frac{2}{\sigma }}{\Theta }_{n,\alpha }\left(s\right)ds}\right)}^{\frac{\sigma }{2}}}\\ \le {\left({\displaystyle \sum _{j=0}^n{p}_{n,j}^{*}\left(u\right){\int }_0^1{\left|\varphi \left(s\right)-\varphi \left(u\right)\right|}^{\frac{2}{\sigma }}{\Theta }_{n,\alpha }\left(s\right)ds}\right)}^{\frac{\sigma }{2}}·{\left({\displaystyle \sum _{j=0}^n{p}_{n,j}^{*}\left(u\right){\int }_0^1{\Theta }_{n,\alpha }\left(s\right)ds}\right)}^{\frac{2-\sigma }{2}}\\ ={\left({\displaystyle \sum _{j=0}^n{p}_{n,j}^{*}\left(u\right){\int }_0^1{\left|\varphi \left(s\right)-\varphi \left(u\right)\right|}^{\frac{2}{\sigma }}{\Theta }_{n,\alpha }\left(s\right)ds}\right)}^{\frac{\sigma }{2}}\le M{\left({\displaystyle \sum _{j=0}^n{p}_{n,j}^{*}\left(u\right){\int }_0^1\frac{{(s-u)}^2}{(s+{\kappa }_1{u}^2+{\kappa }_{2}u)}{\Theta }_{n,\alpha }\left(s\right)ds}\right)}^{\frac{\sigma }{2}}\\ \le \frac{M}{{\left({\kappa }_1{u}^2+{\kappa }_{2}u\right)}^{\frac{\sigma }{2}}}{\left({\displaystyle \sum _{j=0}^n{p}_{n,j}^{*}\left(u\right){\int }_0^1{(s-u)}^2{\Theta }_{n,\alpha }\left(s\right)ds}\right)}^{\frac{\sigma }{2}}=\frac{M}{{\left({\kappa }_1{u}^2+{\kappa }_{2}u\right)}^{\frac{\sigma }{2}}}{\mathcal{B}}_{n,\alpha }^{*}{\left({(e_1-u)}^2;u\right)}^{\frac{\sigma }{2}}\\ =\frac{M}{{\left({\kappa }_1{u}^2+{\kappa }_{2}u\right)}^{\frac{\sigma }{2}}}{\left({\tau }_{n,\alpha ,2}\left(u\right)\right)}^{\frac{\sigma }{2}}.\end{array}$$

□

Theorem 7.

If $\varphi \in C^1(0,1)$, then

$$\left|{\mathcal{B}}_{n,\alpha }^{*}(\varphi ;u)-\varphi \left(u\right)\right|\le \left|{\displaystyle \frac{1-2u}{n\alpha +2}}\right|·\left|{\varphi }^{\prime }\left(u\right)\right|+2\sqrt{{\tau }_{n,\alpha ,2}\left(u\right)}·\omega \left({\varphi }^{\prime },\sqrt{{\tau }_{n,\alpha ,2}\left(u\right)}\right).$$

(12)

Proof.

For any $s,u\in (0,1)$, we can write

$$\varphi \left(s\right)-\varphi \left(u\right)={\varphi }^{\prime }\left(u\right)(s-u)+{\int }_u^s\left({\varphi }^{\prime }\left(w\right)-{\varphi }^{\prime }\left(u\right)\right)dw.$$

Applying ${\mathcal{B}}_{n,\alpha }^{*}(·;u)$ on both sides of the above relation, we have

$${\mathcal{B}}_{n,\alpha }^{*}\left(\varphi \left(s\right)-\varphi \left(u\right);u\right)={\varphi }^{\prime }\left(u\right){\mathcal{B}}_{n,\alpha }^{*}(e_1-u;u)+{\mathcal{B}}_{n,\alpha }^{*}\left({\int }_u^s\left({\varphi }^{\prime }\left(w\right)-{\varphi }^{\prime }\left(u\right)\right)dw;u\right)$$

Using the well-known inequality of modulus of continuity $|\varphi \left(s\right)-\varphi \left(u\right)|\le \omega (\varphi ,\delta )\left(\frac{|s-u|}{\delta }+1\right)$, $\delta >0$, yields

$$\left|{\int }_u^s\left({\varphi }^{\prime }\left(w\right)-{\varphi }^{\prime }\left(u\right)\right)dw\right|\le \omega ({\varphi }^{\prime },\delta )\left(\frac{{(s-u)}^2}{\delta }+|s-u|\right).$$

Therefore,

$$\left|{\mathcal{B}}_{n,\alpha }^{*}(\varphi ;u)-\varphi \left(u\right)\right|\le |{\varphi }^{\prime }\left(u\right)|·|{\mathcal{B}}_{n,\alpha }^{*}(e_1-u;u)|+\omega ({\varphi }^{\prime },\delta )\left(\frac{1}{\delta }{\mathcal{B}}_{n,\alpha }^{*}\left({(e_1-u)}^2;u\right)+{\mathcal{B}}_{n,\alpha }^{*}\left(\right|e_1-u|;u)\right).$$

Applying the Cauchy–Schwarz inequality for linear positive operators, we have

$$\left|{\mathcal{B}}_{n,\alpha }^{*}(\varphi ;u)-\varphi \left(u\right)\right|\le |{\varphi }^{\prime }\left(u\right)|·|{\mathcal{B}}_{n,\alpha }^{*}(e_1-u;u)|+\omega ({\varphi }^{\prime },\delta )\left({\displaystyle \frac{1}{\delta }}\sqrt{{\mathcal{B}}_{n,\alpha }^{*}\left({(e_1-u)}^2;u\right)}+1\right)\sqrt{{\mathcal{B}}_{n,\alpha }^{*}\left({(e_1-u)}^2;u\right)}.$$

Choosing $\delta =\sqrt{{\tau }_{n,\alpha ,2}\left(u\right)}$, the desired result follows. □

Let $DBV(0,1)$ be the class of all absolutely continuous functions defined on $(0,1)$, whose derivatives have bounded variation on $(0,1)$. If $\varphi \in DBV(0,1)$, then

$$\varphi \left(u\right)={\int }_0^{x}g\left(s\right)ds+\varphi \left(0\right),$$

where $g\in BV(0,1)$, which means that g is a function with a bounded variation on $(0,1)$. Moreover, the operators ${\mathcal{B}}_{n,\alpha }^{*}\varphi$ admit the integral representation

$$\begin{array}{c}\hfill {\mathcal{B}}_{n,\alpha }^{*}(\varphi ;u)={\int }_0^1{\mathcal{V}}_{n,\alpha }(u,s)\varphi \left(s\right)ds,\end{array}$$

(13)

where the kernel ${\mathcal{V}}_{n,\alpha }(u,s)$ is given by ${\mathcal{V}}_{n,\alpha }(u,s)={\sum }_{j=0}^n{p}_{n,j}^{*}\left(u\right){\Theta }_{n,\alpha }\left(s\right).$

Lemma 5.

For a fixed $u\in (0,1)$ and sufficiently large n, it follows

(i)${\displaystyle {\eta }_{n,\alpha }(u,y)={\int }_0^y{\mathcal{V}}_{n,\alpha }(u,s)ds\le {\displaystyle \frac{{\mathcal{Y}}_{\alpha }}{\alpha n+2}}·{\displaystyle \frac{u(1-u)}{{(u-y)}^2}},0\le y<u,}$

(ii)${\displaystyle 1-{\eta }_{n,\alpha }(u,z)={\int }_z^1{\mathcal{V}}_{n,\alpha }(u,s)ds\le \frac{{\mathcal{Y}}_{\alpha }}{\alpha n+2}}·{\displaystyle \frac{u(1-u)}{{(z-u)}^2}},u<z<1.$

Proof.

$\left(i\right)$ Using the result from Lemma 4, we have

$${\eta }_{n,\alpha }(u,y)=\underset{0}{\overset{y}{\int }}{\mathcal{V}}_{n,\alpha }(u,s)ds\le {\int }_0^y{\left(\frac{u-s}{u-y}\right)}^2{\mathcal{V}}_{n,\alpha }(u,s)ds=\frac{{\mathcal{B}}_{n,\alpha }^{*}\left({(e_1-u)}^2;u\right)}{{(u-y)}^2}\le {\displaystyle \frac{{\mathcal{Y}}_{\alpha }}{\alpha n+2}}·{\displaystyle \frac{u(1-u)}{{(u-y)}^2}}.$$

$\left(ii\right)$ The proof’s argumentation is similar to $\left(i\right)$; hence, the details are omitted. □

Theorem 8.

Let ϕ$\in DBV(0,1)$. If $u\in (0,1)$ and n is sufficiently large, then

$$\begin{array}{cc}\hfill |{\mathcal{B}}_{n,\alpha }^{*}(\varphi ;u)-\varphi \left(u\right)|\le & \frac{1-2u}{\alpha n+2}·\frac{|{\varphi }^{\prime }(u+)+{\varphi }^{\prime }(u-)|}{2}+\sqrt{\frac{{\mathcal{Y}}_{\alpha }·u(1-u)}{\alpha n+2}}·\frac{|{\varphi }^{\prime }(u+)-{\varphi }^{\prime }(u-)|}{2}\hfill \\ & +\frac{{\mathcal{Y}}_{\alpha }(1-u)}{\alpha n+2}\sum _{j=1}^{\left[\sqrt{n}\right]}\underset{u-(u/j)}{\overset{u}{\bigvee }}\left({\varphi }_u^{\prime }\right)+\frac{u}{\sqrt{n}}\underset{u-(u/\sqrt{n})}{\overset{u}{\bigvee }}\left({\varphi }_u^{\prime }\right)\hfill \\ & +\frac{{\mathcal{Y}}_{\alpha }u}{\alpha n+2}\sum _{j=1}^{\left[\sqrt{n}\right]}\underset{u}{\overset{u+\left(\right(1-u)/j)}{\bigvee }}\left({\varphi }_u^{\prime }\right)+\frac{(1-u)}{\sqrt{n}}\underset{u}{\overset{u+((1-u)/\sqrt{n})}{\bigvee }}\left({\varphi }_u^{\prime }\right),\hfill \end{array}$$

where ${\displaystyle \underset{c}{\overset{d}{\bigvee }}}\left({\varphi }_u^{\prime }\right)$ denotes the total variation of ${\varphi }_u^{\prime }$ on $[c,d]$ and ${\varphi }_u^{\prime }$ is defined by

$${\varphi }_u^{\prime }\left(s\right)=\left\{\begin{array}{cc}{\varphi }^{\prime }\left(s\right)-{\varphi }^{\prime }(u-),& 0\le s<u\\ 0,& s=u\\ {\varphi }^{\prime }\left(s\right)-{\varphi }^{\prime }(u+),& u<s<1.\end{array}\right.$$

(14)

Proof.

Since ${\mathcal{B}}_{n,\alpha }^{*}(1;u)=1$, using (13), for every $u\in (0,1)$ we may write

$${\mathcal{B}}_{n,\alpha }^{*}(\varphi ;u)-\varphi \left(u\right)={\int }_0^1{\mathcal{V}}_{n,\alpha }(u,s)(\varphi \left(s\right)-\varphi \left(u\right))ds={\int }_0^1{\mathcal{V}}_{n,\alpha }(u,s)\left({\int }_u^s{\varphi }^{\prime }\left(w\right)dw\right)ds.$$

(15)

If $\varphi \in DBV(0,1)$, then using (14) we have

$$\begin{array}{cc}\hfill {\varphi }^{\prime }\left(w\right)=& {\varphi }_u^{\prime }\left(w\right)+\frac{1}{2}({\varphi }^{\prime }(u+)+{\varphi }^{\prime }(u-))+\frac{1}{2}({\varphi }^{\prime }(u+)-{\varphi }^{\prime }(u-))sgn(w-u)\hfill \\ \hfill & +{\delta }_u\left(w\right)[{\varphi }^{\prime }\left(w\right)-\frac{1}{2}({\varphi }^{\prime }(u+)+{\varphi }^{\prime }(u-))],\hfill \end{array}$$

(16)

with

$${\delta }_u\left(w\right)=\left\{\begin{array}{c}1,w=u\\ 0,w\ne u.\end{array}\right.$$

Therefore,

$${\int }_0^1\left({\int }_u^s\left({\varphi }^{\prime }\left(w\right)-\frac{1}{2}({\varphi }^{\prime }(u+)+{\varphi }^{\prime }(u-))\right){\delta }_u\left(w\right)dw\right){\mathcal{V}}_{n,\alpha }(u,s)ds=0.$$

By (13) and simple calculations we find

$$\begin{array}{cc}\hfill {\int }_0^1\left({\int }_u^s\frac{1}{2}({\varphi }^{\prime }(u+)+{\varphi }^{\prime }(u-))dw\right){\mathcal{V}}_{n,\alpha }(u,s)ds& =\frac{1}{2}({\varphi }^{\prime }(u+)+{\varphi }^{\prime }(u-)){\int }_0^1(s-u){\mathcal{V}}_{n,\alpha }(u,s)ds\hfill \\ \hfill & =\frac{1}{2}({\varphi }^{\prime }(u+)+{\varphi }^{\prime }(u-)){\mathcal{B}}_{n,\alpha }^{*}(e_1-u;u)\hfill \end{array}$$

and

$$\begin{array}{c}{\displaystyle \left|{\int }_0^1{\mathcal{V}}_{n,\alpha }(u,s)\left({\int }_u^s\frac{1}{2}({\varphi }^{\prime }(u+)-{\varphi }^{\prime }(u-))sgn(w-u)dw\right)ds\right|\le \frac{1}{2}|{\varphi }^{\prime }(u+)-{\varphi }^{\prime }(u-)|{\int }_0^1|s-u|{\mathcal{V}}_{n,\alpha }(u,s)ds}\\ \le \frac{1}{2}|{\varphi }^{\prime }(u+)-{\varphi }^{\prime }(u-)|{\mathcal{B}}_{n,\alpha }^{*}\left(|e_1-u|;u\right)\le \frac{1}{2}|{\varphi }^{\prime }(u+)-{\varphi }^{\prime }(u-)|{\left({\mathcal{B}}_{n,\alpha }^{*}\left({(e_1-u)}^2;u\right)\right)}^{1/2}.\end{array}$$

Using Lemma 4 and the relations (15), (16), we have

$$\begin{array}{cc}\hfill |{\mathcal{B}}_{n,\alpha }^{*}(\varphi ;u)-\varphi \left(u\right)|\le & \frac{1}{2}|{\varphi }^{\prime }(u+)-{\varphi }^{\prime }(u-)|\sqrt{\frac{{\mathcal{Y}}_{\alpha }u(1-u)}{(2+n\alpha )}}+|{\int }_0^u\left({\int }_u^s{\varphi }_u^{\prime }\left(w\right)dw\right){\mathcal{V}}_{n,\alpha }(u,s)ds\hfill \\ & +{\int }_u^1\left({\int }_u^s{\varphi }_u^{\prime }\left(w\right)dw\right){\mathcal{V}}_{n,\alpha }(u,s)ds|.\hfill \end{array}$$

(17)

Let

$${\mathcal{S}}_{n,\alpha }({\varphi }_u^{\prime },u)={\int }_0^u\left({\int }_u^s{\varphi }_u^{\prime }\left(w\right)dw\right){\mathcal{V}}_{n,\alpha }(u,s)ds\mathrm{and}{\mathcal{T}}_{n,\alpha }({\varphi }_u^{\prime },u)={\int }_u^1\left({\int }_u^s{\varphi }_u^{\prime }\left(w\right)dw\right){\mathcal{V}}_{n,\alpha }(u,s)ds.$$

To complete the proof, it is sufficient to determine the terms ${\mathcal{S}}_{n,\alpha }({\varphi }_u^{\prime },u)$ and ${\mathcal{T}}_{n,\alpha }({\varphi }_u^{\prime },u).$ Since ${\int }_c^d{d}_s{\eta }_{n,\alpha }(u,s)\le 1$ for all $[c,d]\subseteq (0,1),$ applying the integration by parts and Lemma 5 with $y=u-(u/\sqrt{n})$, we have

$$\begin{array}{cc}\hfill \left|{\mathcal{S}}_{n,\alpha }({\varphi }_u^{\prime },u)\right|& =\left|{\int }_0^u\left({\int }_u^s{\varphi }_u^{\prime }\left(w\right)dw\right)d_s{\eta }_{n,\alpha }(u,s)\right|=\left|{\int }_0^u{\eta }_{n,\alpha }(u,s){\varphi }_u^{\prime }\left(s\right)ds\right|\hfill \\ & \le \left({\int }_0^y+{\int }_y^u\right)|{\varphi }_u^{\prime }\left(s\right)\left|\right|{\eta }_{n,\alpha }(u,s)|ds\le \frac{{\mathcal{Y}}_{\alpha }u(1-u)}{\alpha n+2}{\int }_0^y\underset{s}{\overset{u}{\bigvee }}\left({\varphi }_u^{\prime }\right){(u-s)}^{-2}ds+{\int }_y^u\underset{s}{\overset{u}{\bigvee }}\left({\varphi }_u^{\prime }\right)ds\hfill \\ \hfill & \le \frac{{\mathcal{Y}}_{\alpha }u(1-u)}{\alpha n+2}{\int }_0^{u-(u/\sqrt{n})}\underset{s}{\overset{u}{\bigvee }}\left({\varphi }_u^{\prime }\right){(u-s)}^{-2}ds+\frac{u}{\sqrt{n}}\underset{u-(u/\sqrt{n})}{\overset{u}{\bigvee }}\left({\varphi }_u^{\prime }\right).\hfill \end{array}$$

By the substitution of $w=u/(u-s),$ we have

$$\begin{array}{c}\frac{{\mathcal{Y}}_{\alpha }u(1-u)}{\alpha n+2}{\int }_0^{u-(u/\sqrt{n})}{(u-s)}^{-2}\underset{s}{\overset{u}{\bigvee }}\left({\varphi }_u^{\prime }\right)ds=\frac{{\mathcal{Y}}_{\alpha }(1-u)}{\alpha n+2}{\int }_1^{\sqrt{n}}\underset{u-(u/w)}{\overset{u}{\bigvee }}\left({\varphi }_u^{\prime }\right)dw\\ \le \frac{{\mathcal{Y}}_{\alpha }(1-u)}{\alpha n+2}\sum _{j=1}^{\left[\sqrt{n}\right]}{\int }_j^{j+1}\underset{u-(u/w)}{\overset{u}{\bigvee }}\left({\varphi }_u^{\prime }\right)dw\le \frac{{\mathcal{Y}}_{\alpha }(1-u)}{\alpha n+2}\sum _{j=1}^{\left[\sqrt{n}\right]}\underset{u-(u/j)}{\overset{u}{\bigvee }}\left({\varphi }_u^{\prime }\right).\end{array}$$

Thus,

$$\begin{array}{c}\hfill |{\mathcal{S}}_{n,\alpha }({\varphi }_u^{\prime },u)|\le \frac{{\mathcal{Y}}_{\alpha }(1-u)}{\alpha n+2}\sum _{j=1}^{\left[\sqrt{n}\right]}\underset{u-(u/j)}{\overset{u}{\bigvee }}\left({\varphi }_u^{\prime }\right)+\frac{u}{\sqrt{n}}\underset{u-(u/\sqrt{n})}{\overset{u}{\bigvee }}\left({\varphi }_u^{\prime }\right).\end{array}$$

(18)

Using the integration by parts and Lemma 5 with $z=u+((1-u)/\sqrt{n}),$ we can write

$$\begin{array}{c}|{\mathcal{T}}_{n,\alpha }({\varphi }_u^{\prime },u)|=|{\int }_u^1\left({\int }_u^s{\varphi }_u^{\prime }\left(w\right)dw\right){\mathcal{V}}_{n,\alpha }(u,s)ds|\\ =|{\int }_u^z\left({\int }_u^s{\varphi }_u^{\prime }\left(w\right)dw\right)d_s(1-{\eta }_{n,\alpha }(u,s))+{\int }_z^1\left({\int }_u^s{\varphi }_u^{\prime }\left(w\right)dw\right)d_s(1-{\eta }_{n,\alpha }(u,s))|\\ =|{\left[{\int }_u^t{f}_u^{\prime }\left(w\right)(1-{\eta }_{n,\alpha }(u,s))dw\right]}_u^z-{\int }_u^z{\varphi }_u^{\prime }\left(s\right)(1-{\eta }_{n,\alpha }(u,s))ds+{\int }_z^1\left({\int }_u^s{\varphi }_u^{\prime }\left(w\right)dw\right)d_s(1-{\eta }_{n,\alpha }(u,s))|\\ =|{\int }_u^z{f}_u^{\prime }\left(w\right)dw(1-{\eta }_{n,\alpha }(u,z))-{\int }_u^z{\varphi }_u^{\prime }\left(s\right)(1-{\eta }_{n,\alpha }(u,s))ds+{\left[{\int }_u^s{\varphi }_u^{\prime }\left(w\right)dw(1-{\eta }_{n,\alpha }(u,s))\right]}_z^1\\ -{\int }_z^1{\varphi }_u^{\prime }\left(s\right)(1-{\eta }_{n,\alpha }(u,s))ds|\\ =|{\int }_u^z{\varphi }_u^{\prime }\left(s\right)(1-{\eta }_{n,\alpha }(u,s))ds+{\int }_z^1{\varphi }_u^{\prime }\left(s\right)(1-{\eta }_{n,\alpha }(u,s))ds|\\ \le \frac{{\mathcal{Y}}_{\alpha }u(1-u)}{(2+n\alpha )}{\int }_z^1\underset{u}{\overset{s}{\bigvee }}\left({\varphi }_u^{\prime }\right){(s-u)}^{-2}ds+{\int }_u^z\underset{u}{\overset{s}{\bigvee }}\left({\varphi }_u^{\prime }\right)ds\\ =\frac{{\mathcal{Y}}_{\alpha }u(1-u)}{(2+n\alpha )}{\int }_{u+((1-u)/\sqrt{n})}^1\underset{u}{\overset{s}{\bigvee }}\left({\varphi }_u^{\prime }\right){(s-u)}^{-2}ds+\frac{(1-u)}{\sqrt{n}}\underset{u}{\overset{u+((1-u)/\sqrt{n})}{\bigvee }}\left({\varphi }_u^{\prime }\right).\end{array}$$

By the substitution of $v=(1-u)/(s-u),$ we have

$$\begin{array}{cc}\hfill \left|{\mathcal{T}}_{n,\alpha }({\varphi }_u^{\prime },u)\right|& \le \frac{{\mathcal{Y}}_{\alpha }u(1-u)}{\alpha n+2}{\int }_1^{\sqrt{n}}\underset{u}{\overset{u+\left(\right(1-u)/v)}{\bigvee }}\left({\varphi }_u^{\prime }\right){(1-u)}^{-1}dv+\frac{(1-u)}{\sqrt{n}}\underset{u}{\overset{u+((1-u)/\sqrt{n})}{\bigvee }}\left({\varphi }_u^{\prime }\right)\hfill \\ \hfill & \le \frac{{\mathcal{Y}}_{\alpha }u}{\alpha n+2}\sum _{j=1}^{\left[\sqrt{n}\right]}{\int }_j^{j+1}\underset{u}{\overset{u+\left(\right(1-u)/v)}{\bigvee }}\left({\varphi }_u^{\prime }\right)dv+\frac{(1-u)}{\sqrt{n}}\underset{u}{\overset{u+((1-u)/\sqrt{n})}{\bigvee }}\left({\varphi }_u^{\prime }\right)\hfill \\ \hfill & =\frac{{\mathcal{Y}}_{\alpha }u}{\alpha n+2}\sum _{j=1}^{\left[\sqrt{n}\right]}\underset{u}{\overset{u+\left(\right(1-u)/j)}{\bigvee }}\left({\varphi }_u^{\prime }\right)+\frac{(1-u)}{\sqrt{n}}\underset{u}{\overset{u+\left((1-u)\right)/\sqrt{n}}{\bigvee }}\left({\varphi }_u^{\prime }\right).\hfill \end{array}$$

(19)

Combining (17)–(19), we obtain the desired relation. □

4. Numerical Examples

Example 1.

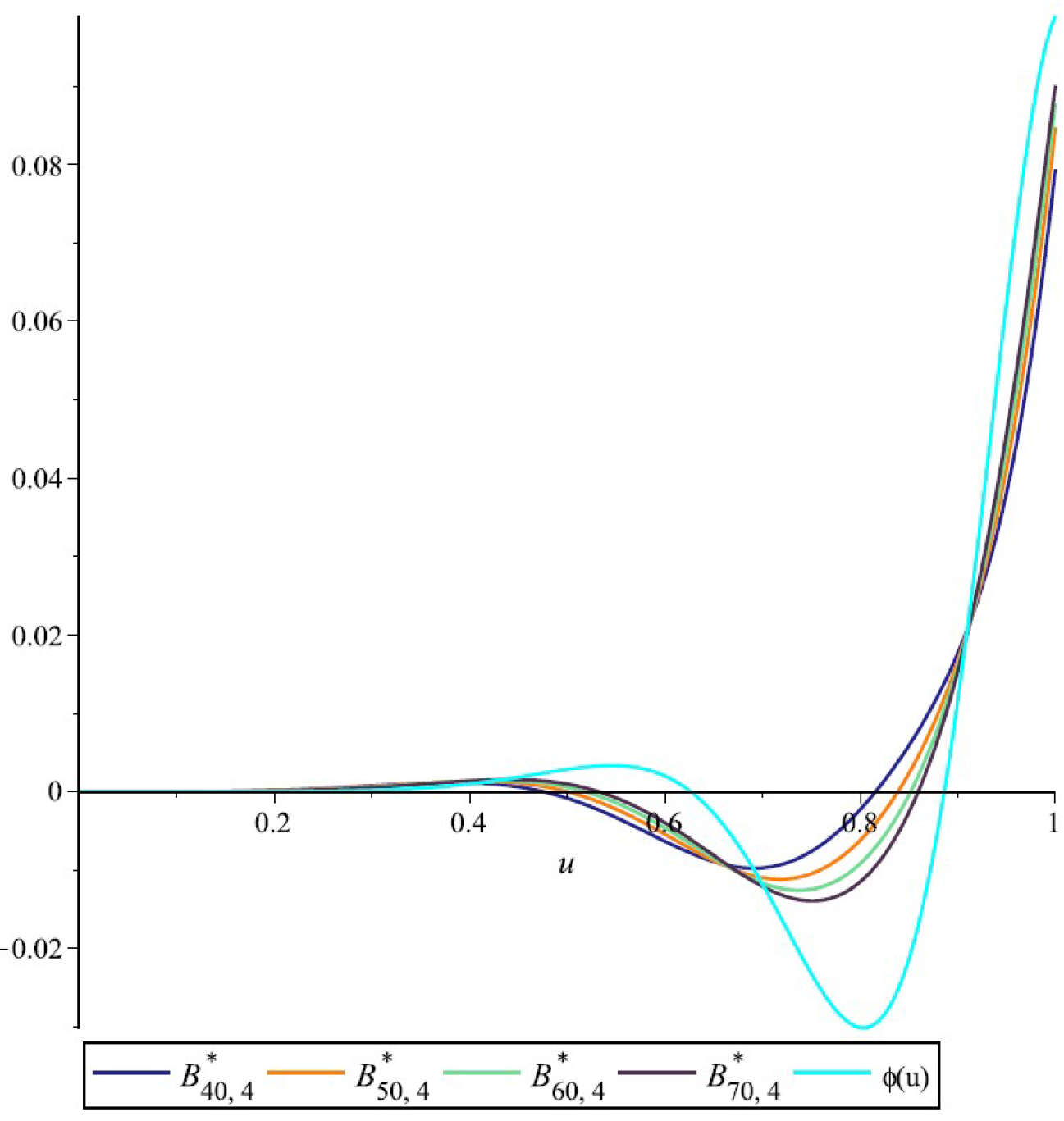

Figure 1 illustrates the convergence of the Bernstein–Durrmeyer type operators ${\mathcal{B}}_{n,\alpha }^{*}(\varphi ;u)$ to the function $\varphi \left(u\right)={\displaystyle \frac{u^5}{10}}·sin\left(8u^2\right)$, for various nodes, and a fixed parameter α.

Figure 1. Approximation process.

Example 2.

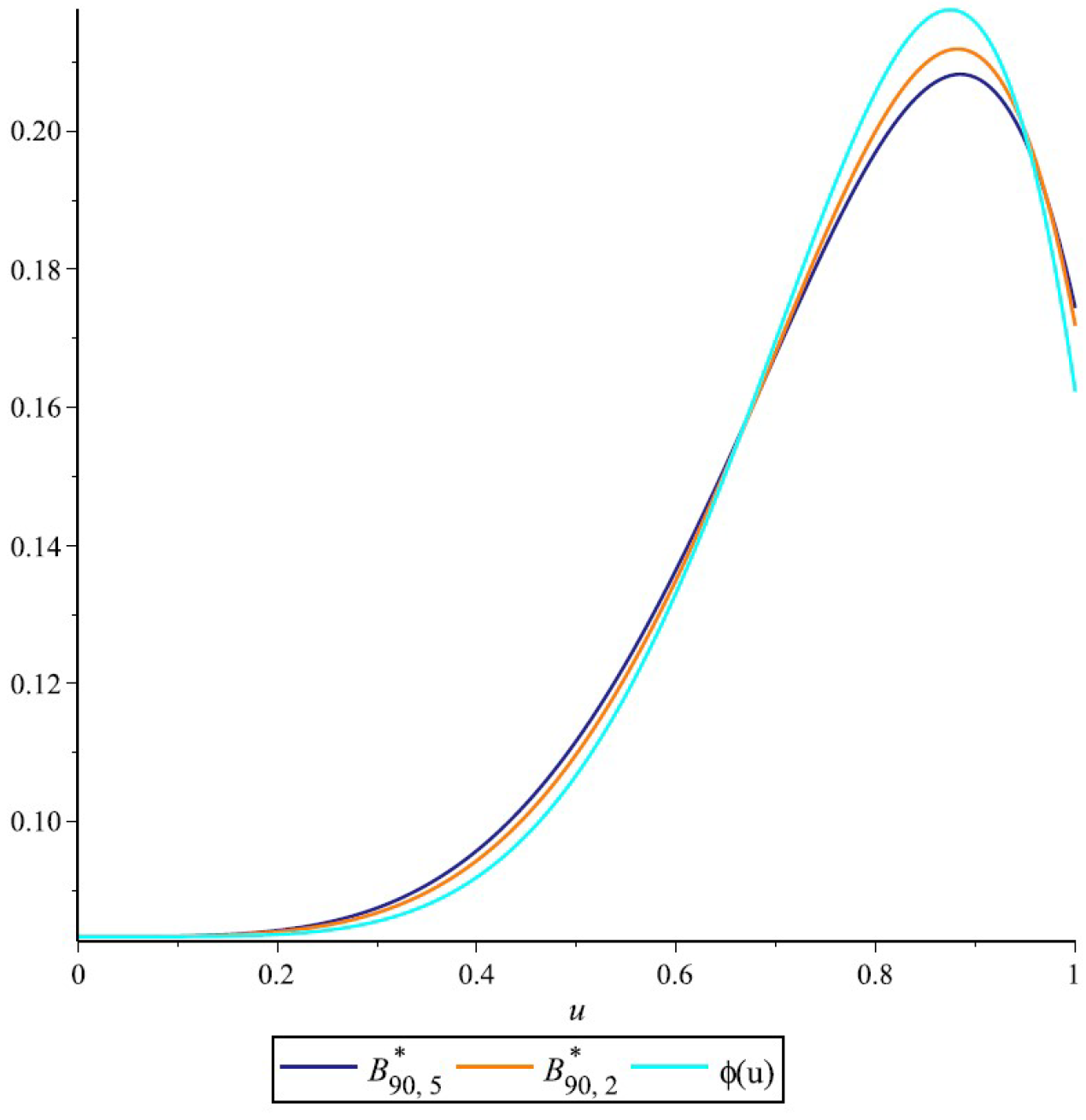

Figure 2 illustrates the convergence of the Bernstein–Durrmeyer type operators ${\mathcal{B}}_{n,\alpha }^{*}(\varphi ;u)$ to the function $\varphi \left(u\right)={\displaystyle \frac{1}{12}}+u^5-u^7·cos\left({\displaystyle \frac{2u^3}{5}}\right)$, for various parameters, and a fixed number of nodes.

Figure 2. Approximation process.

5. Conclusions

In this paper, we introduced a summation–integral linear positive-type operator. Any research related to the approximation of functions by linear positive operators involves highlighting two distinct parts. We proved the uniform convergence of the operators as well as a Voronovskaja-type theorem and Grüss–Voronovskaja-type results, which belong to the qualitative side. To obtain a complete picture of the quantitative estimates, we pointed out the orders of approximation of the new linear positive operators, using the Ditzian–Totik modulus of smoothness, as well as the convergence rate for differential functions whose derivatives were of bounded variations.
