Proteomes 2016, 4(4), 34; https://doi.org/10.3390/proteomes4040034

Review
Arabidopsis Regenerating Protoplast: A Powerful Model System for Combining the Proteomics of Cell Wall Proteins and the Visualization of Cell Wall Dynamics
Laboratory of Plant Cell Wall Biology, Graduate School of Life Sciences, Tohoku University, Sendai 890-8578, Japan
*
Author to whom correspondence should be addressed.
Academic Editor: Jacek R. Wisniewski
Received: 15 August 2016 / Accepted: 4 November 2016 / Published: 17 November 2016

Abstract

:
The development of a range of sub-proteomic approaches to the plant cell wall has identified many of the cell wall proteins. However, it remains difficult to elucidate the precise biological role of each protein and the cell wall dynamics driven by their actions. The plant protoplast provides an excellent means not only for characterizing cell wall proteins, but also for visualizing the dynamics of cell wall regeneration, during which cell wall proteins are secreted. It therefore offers a unique opportunity to investigate the de novo construction process of the cell wall. This review deals with sub-proteomic approaches to the plant cell wall through the use of protoplasts, a methodology that will provide the basis for further exploration of cell wall proteins and cell wall dynamics.
Keywords:
protoplast; cell wall; sub-proteomics; imaging technique

1. Introduction

Plant cell walls are complex and dynamic cellular structures that play a critical role not only in determining cell shape, but also in developmental processes, intercellular communication and defensive responses [1,2,3,4]. One of the main features of the plant cell wall is a framework composed of cellulose microfibrils embedded in a matrix of polysaccharides, such as hemicelluloses and pectins [5,6,7,8,9]. However, approaches to visualizing the structural dynamics of this framework remain underdeveloped, despite its essential roles in determining the physical properties and regulating the biological functions of the cell wall. Thus, the development of a new, reliable method enabling the visualization of cell wall dynamics is a high priority of research aimed at a more refined understanding of cell wall formation, both in terms of the synthesis and integration of new polysaccharides and the assembly of the polysaccharide network.
The assembly and rearrangement of the cell wall structure are mainly achieved in muro via the actions of extracellular cell wall proteins [10]. The abundance and diversity of cell wall proteins, which account for approximately 10% of the cell wall mass, contribute to the structural and functional diversity of the cell wall [11]. Each of the complete plant genome sequences reported to date is estimated to contain at least several thousand genes encoding putative extracellular proteins [12]. Only a limited number of these extracellular proteins has so far been characterized for function, particularly regarding cell wall dynamics [9,13], and thus, a full picture of how cell wall dynamics result from the concerted action of such proteins is not yet attainable.
Protoplasts isolated enzymatically from the tissues and cultured cells of plants are capable of forming new cell walls and therefore offer a unique opportunity to study various steps of cell wall construction de novo. We previously produced protoplasts from suspension-cultured cells of Arabidopsis and, using histochemical staining techniques and electron microscopy, observed cell wall dynamics at the cell surface during cell wall regeneration [14]. Furthermore, using two-dimensional polyacrylamide gel electrophoresis (2D PAGE) and matrix-assisted laser desorption ionization-time-of-flight/mass spectrometry (MALDI-TOF/MS), we successfully identified approximately three hundred extracellular proteins derived from regenerated protoplasts and suspension-cultured cells. In this review, we will introduce these techniques, summarize some applications involved in recent developments and, finally, discuss some open problems.

2. Preparation of Protoplasts and Cell Wall Regeneration from Protoplasts

The suspension-cultured Alex cell line of Arabidopsis, which was established by Mathur et al. [15], has proven highly useful for analyzing large quantities of relatively uniform Arabidopsis cells. In a previous study, we prepared protoplasts from suspension-cultured Alex cells; the protocol is available at the website (https://www.plantcellwall.jp/protocol/pdf/protocol_11.pdf) [16]. In this system, the protoplasts produce a new cell wall in a short time and also show a relatively high level of synchrony of cell wall regeneration. The merits of using protoplasts include the ability to treat cells directly with chemical reagents or cell wall enzymes, such as glycoside hydrolases; for example, protoplasts treated with 2,6-dichlorobenzonitrile (DCB), an inhibitor of cellulose synthase [17], immediately ceased synthesis of cellulose, and this was followed by changes in the expression pattern of cell wall proteins (Figure 1).
The application of reverse genetics to the protoplast-based cell wall regeneration system also provides an attractive approach for characterizing cell wall proteins. It is not easy, however, to establish a suspension culture cell line with specific genes knocked out. We therefore recently developed an improved procedure for the regeneration of cell walls in protoplasts derived from mesophyll cells of Arabidopsis rosette leaves [18] to take advantage of T-DNA insertion lines, which are currently available for more than 20,000 genes in Arabidopsis (http://signal.salk.edu/index.html) [19]. Using this procedure, a large amount of protoplasts can easily be prepared from fully-expanded rosette leaves of three- to five-week-old Arabidopsis plants. Although the protoplasts derived from leaf mesophyll cells show slightly lower levels of synchrony of cell wall regeneration than cultured cells, the efficiency of cell wall regeneration is high, and more than 90% of protoplasts regenerate cell walls. In addition, transcriptomic analysis using microarray technology confirmed that most of the genes identified by proteomic analysis as encoding cell wall proteins in regenerating protoplasts derived from suspension-cultured Alex cells were also expressed in protoplasts derived from mesophyll (Table S1). This improved protoplast system is thus amenable to reverse genetics.

3. Visualization of Cell Wall Dynamics in Regenerating Protoplast

The understanding of the structural aspects of the plant cell wall has been inspired and guided by biochemical analysis. In our study, simple measurements of the sugar composition of cell walls from the protoplasts suggested gradual changes in the proportion of cell wall polysaccharides, such as pectin, with progress in regeneration (Tables S2 and S3). However, it is notoriously difficult to elucidate cell wall dynamics convincingly using only biochemical analysis (Tables S2 and S3). To gain insight into the dynamic aspects of cell wall formation, we used histochemical methods to visualize β-glucans deposited on the surface of protoplasts. Cell wall-regenerating protoplasts were stained with either Calcofluor White M2R or aniline blue, which preferentially stain cellulose and β-1,3 glucan, respectively. Both epifluorescent images were observed under a fluorescence microscope equipped with a UV fluorescence filter set (excitation filter: 350 nm; barrier filter: 430 nm). The deposition of glucans, as determined by fluorescent staining, appeared within 1 h of cell wall regeneration, and the extent of deposition increased and spread across the surface over 3 h of regeneration [14].
Recently, we examined in more detail the sequence of deposition of cellulose microfibrils in regenerating protoplasts using a confocal laser scanning microscope [18]. The protoplasts showed a random orientation of cellulose microfibrils in the early stages, followed by partially unidirectional reorientation of cellulose microfibrils. This implies that ordered cellulose deposition may be responsible for the early polarization of protoplasts and the oriented expansion of regenerated protoplasts.
Visualization of cellulose microfibrils using fluorescence staining with Calcofluor White has been performed in many plant species [20,21,22]. Although this procedure is simple and robust, Calcofluor White has the disadvantage of specificity for cellulose microfibril and toxic properties that might be injurious to the live cells. Recently, fluorescence staining with Pontamine Fast Scarlet 4 BS (S4B) combined with spinning disk confocal microscopy has been used successfully to observe cellulose patterning [23]. This fluorescent dye binds cellulose with high specificity and has the potential to permit the staining of living cells [24]. The S4B staining protocol may be more valuable for real-time imaging of cellulose microfibrils of living cells. These studies strongly support the hypothesis that oriented deposition of cellulose microfibrils determines the direction of cell elongation [25]. However, the dynamics of the matrix polysaccharides associated with cellulose microfibrils during the early stage of the cell wall formation remain elusive, as do the subsequent dynamics of the reorientation of the cellulose microfibrils themselves.
In addition to staining with fluorescent compounds, immunofluorescence analysis using monoclonal antibodies is a broadly useful technique for visualizing cell wall polysaccharides [26,27,28]. The use of a disk-shaped plasma membrane sheet, prepared by the lysis of cell wall-regenerating protoplasts in a low osmotic medium, has greatly facilitated immunofluorescence analysis of cell wall polysaccharides [29,30].
These tools have helped identify cell wall polysaccharides in regenerating protoplasts and provided new insights into the organization of polysaccharides. Further progress in integrating the dynamics of each component into a complete picture of cell wall dynamics, however, may require new approaches. Quantitative imaging is one of the most useful techniques for evaluating the configuration and dynamics of the entire cell wall (Figure 2). Visualizing the dynamics of actin microfilaments and cortical microtubules, including their elongation, severing, buckling and straightening, is important in building up a complete picture of the cell wall [31,32]. The dynamic images acquired will provide a rich source of information, leading to a precise understanding of how the spatiotemporal organization of cell wall polysaccharides is governed by an ensemble of cell wall proteins.

4. Preparation of Cell Wall Proteins

4.1. Conventional Extraction Procedure for Cell Wall Proteins

The cell wall proteins loosely bound to the cell wall can be easily extracted with a series of solvents from the suspension cell culture medium and from intact cells [33,34]. In addition, the use of this non-destructive extraction procedure without disrupting cellular integrity can avoid contamination from cytoplasmic proteins. Robertson et al. [35] initially reported the systematic extraction of the cell wall proteins with a series of solvents, including aqueous solutions of 200 mM calcium chloride, 50 mM 1,2-cyclohexanediaminetetraacetic acid (CDTA), 2 mM dithiothreitol (DTT), 1 M sodium chloride and 200 mM borate buffer. This sequential washing approach, with some modifications, has been extensively used to obtain the cell wall proteins [36,37].
Bayer et al. [38] also summarized critical paths in plant cell wall proteomics: (1) sampling of plant tissues comprised of mixtures of cell types with differing cell wall characteristics; (2) preparation in pure form of the cell wall; (3) isolation and characterization of many proteins tightly associated with the cell wall; (4) the resolving ability of 2-DE for separation of some hydrophobic and many basic proteins. In view of the above problems associated with the sampling and preparation of the cell wall proteins, the use of uniform protoplasts, which can undergo synchronized regeneration of the cell wall, has proven to be useful in obtaining highly pure protein samples at the specific stage of the cell wall formation.

4.2. Extraction Procedure for Cell Wall Proteins from Protoplast

Comparison of the extraction efficiency and specificity of cell wall proteins from cell wall-regenerating protoplasts between various extraction solutions indicates that the highly efficient extraction of cell wall proteins can only be achieved using an extraction solution containing 1 M KCl. Glucose-6-phosphate dehydrogenase (G6PDH), a marker enzyme for contamination by cytoplasmic proteins, is used to determine the occurrence and extent of the leakage of cytosolic proteins from the protoplasts during the extraction processes [39]. In typical extraction experiments, the specific G6PDH activity in 1 M KCl extracts from protoplasts is less than 1% of that in cytosolic extracts.
A similar extraction method of cell wall proteins has also been used to study plant defense responses using suspension-cultured cells, to easily obtain the cell wall proteins secreted by the application of various stimuli [40,41]. In these studies, cell wall proteins could be extracted from the suspension-cultured cells, following the application of fungal elicitors, with calcium chloride. Thus, the use of protoplasts and cell cultures has been useful to easily obtain cell wall proteins. However, since the plasma membrane may easily be ruptured in these procedures, we should validate whether cytosolic proteins leak out of the protoplasts and the suspension-cultured cells during protein extraction processes. Today, we can use a number of different types of cytosolic markers [42] and discriminate between intracellular and extracellular proteins through bio-informatics analyses [43,44].

4.3. Problem of the Extraction Procedure for Cell Wall Proteins

Although the non-destructive solvent extraction approach is very useful for obtaining cell wall proteins without contamination, it may not be a satisfactory method for the comprehensive identification of all cell wall proteins. Some proteins are tightly linked to the cell wall architecture, even in the early stages of cell wall regeneration in protoplasts, and others are anchored to the plasma membrane. To overcome these problems, intrinsic to proteins tightly bound to the cell wall, modified series of solvents have been successfully used for non-destructive extraction [33,45,46]. Another problem intrinsic to the non-destructive extraction of proteins from protoplasts at early stages of cell wall regeneration is contamination with cytosolic proteins due to the rupture of the plasma membrane during sample handling [33,47].

4.4. Cell Wall Protein Purification Techniques

Some disruptive purification approaches coupled with a specific recovery procedure for cell wall proteins may produce a more comprehensive sample of isolated cell wall proteins. For example, N-glycosylation is a common post-translational modification for proteins trafficking through the secretory pathway, and therefore, most cell wall proteins are thought to be glycosylated in the apoplast [48,49,50]. For this reason, lectin-based affinity chromatography appears a promising method for obtaining cell wall proteins from a crude protein extract. More than one hundred glycoproteins were isolated from mature stems of Arabidopsis thaliana by affinity chromatography using Concanavalin A Sepharose [51]. Fluid-phase partitioning methods have also been widely used to isolate cell wall-related proteins, such as glycosylphosphatidyl inositol-anchored proteins (GAPs) and membrane proteins [52,53,54,55]. Finally, one of the most widely-available approaches is the extraction of proteins from a cell wall fraction, which has been separated from cell homogenates [56]. This approach has been further developed to enable the extraction of cell wall proteins with differing degrees of affinity to the cell wall fraction [57,58]. In Saccharomyces cerevisiae and other fungi, the extraction of proteins tightly bound to the cell wall has been achieved by enzymatic digestion of the isolated cell wall fraction [59,60,61]. Such an enzymatic digestion can also be applied to the extraction of cell wall proteins from plant cell homogenates.

4.5. Improved Extraction Procedure for Cell Wall Protein from Protoplasts

In general, a complete cell wall proteome cannot be obtained using a single protocol. Thus, to increase the efficiency of the extraction of cell wall proteins from protoplasts, it may be necessary to use a combination of non-destructive and disruptive procedures. One challenge to our sub-proteomic approach is the application of enzymatic digestion techniques to the non-disruptive method of extraction. By using enzymes capable of degrading cell wall polysaccharides, we sought to isolate proteins that were tightly associated with the cell wall from intact protoplasts. Although additional cell wall proteins could be isolated by this procedure, a decrease in cellular integrity caused by enzyme treatment may cause contamination with intracellular proteins. We need to further investigate the optimum enzymatic digestion technique to avoid contamination.

5. Protein Separation and Mass Spectrometry for Identification

In our study, cell wall proteins were separated by 2D PAGE using immobilized isoelectric point gradient strips (pI 3–10 and pI 6–11) for the first dimension separation and 12% SDS-PAGE for the second separation. After staining with coomassie brilliant blue (CBB) to visualize the protein spots, we mapped each protein in the 2D gels using Image Master 2D-Elite software (Amersham Pharmacia Biotech, Buckinghamshire, UK, v4.01). Individual protein spots were picked and in-gel digested with trypsin, and protein sequences and genes encoding the proteins were identified using MALDI-TOF/MS analysis coupled with a database search using the Mascot sequence database search program (Matrix Science, Boston, MA, USA). As a result, 108 protein spots were identified from protoplasts regenerated for 1 h and 116 spots from those regenerated for 3 h, while 55 protein spots were identified from the suspension-cultured Alex cells [14]. The identified proteins were classified according to the predicted families of the cell-wall related proteins [62] and other families, including proteases, esterases, kinases and oxidoreductases.
In our experiment, some spots in the 2D gels resulted in frustrated attempts to identify the corresponding protein by the peptide mass mapping using MALDI-TOF/MS. There are useful complements to this standard procedure. An alternative to the peptide mass mapping using MALDI-TOF/MS is de novo sequencing by electrospray ionization tandem mass spectrometry (ESI)-MS/MS. ESI-MS/MS yields amino acid sequences of the separated peptides, allowing more definitive identification of the protein [47]. The additional level of separation offered by liquid chromatography is thought to have several advantages for the increased resolving of the digested peptides. Additionally, recently, a method for the pre-fractionation of proteins previous to LC, such as a filter-aided sample preparation (FASP), may facilitate accurate mass spectrometers [63]. Thus, liquid chromatography coupled with tandem mass spectrometry (LC-MS/MS) may become one of the essential tools in our proteomic analysis.
There are also some problems particular to the cell wall proteins in the cell wall proteomics approach. For example, arabinogalactan proteins (AGPs), in which up to 90% of the polysaccharides are linked to the protein by O-glycosylation, are not revealed by staining with CBB and are instead recognized by the β-glucosyl Yariv reagent [64]. Identification of proteoglycans with high O-glycosylation, such as AGPs, requires deglycosylation prior to digestion with trypsin; anhydrous hydrogen fluoride treatment can be used for chemical deglycosylation of AGPs [65]. Additionally, recent progress in pre-fractionation of proteins may also be useful for identifying some particular cell wall proteins. Multidimensional Protein Identification Technology (MudPIT) is a good example of peptide pre-fractionation methods and can be used to resolve peptide mixtures prior to LC-MS analysis [66]. 2D PAGE analysis followed by peptide mass mapping using MALDI-TOF/MS is the simplest approach for the comparative identification of proteins in proteomic analysis. Its combination with additional techniques for specific applications may increase the coverage and accuracy of cell wall proteomics.
The Arabidopsis cell wall proteins, which are identified by means of proteomics, can be characterized by The Arabidopsis Information Resource (TAIR; http://arabidopsis.org). Although the biological functions of many of these proteins identified a decade ago have not yet been determined [14], recent progress in Arabidopsis genes has begun to shed light on the functions of these proteins. A good example is the characterization of AtMSR2 (At1g51630), which was annotated as an “unknown” gene in 2005 [14] and was recently demonstrated to be involved in the biosynthesis of galactomannan [67]. Table 1 summarizes the genes encoding carbohydrate-related enzymes whose functions have been re-characterized based on the recent studies.
In the TAIR database, however, there are still many cell wall proteins, which have no experimentally-defined function. Although it is difficult to elucidate the precise enzymatic function and biological role of each cell wall protein in muro, in silico analysis may generate a more comprehensive catalog of the cell wall proteins. The ATTED-II database (http://atted.jp/) of genes co-expressed in Arabidopsis is used to identify potential interactions among the list of the target genes [78,79]. If there are well-characterized proteins in a network of the target genes, knowledge of the well-characterized proteins can be useful for the subsequent assignment of function to the other unknown proteins in an interaction network. Furthermore, an empirically-determined protein-protein interaction database will facilitate the functional characterization of the unknown proteins [80]. In our study, we filtered the associated genes, which were identified in the regenerating protoplasts, through the ATTED-II co-expression database and constructed a large network (Figure S2). The enriched Gene Ontology (GO) terms for the large network included ‘cell wall’ (GO:0005618, p-value = 1.3 × 10−17) and ‘carbohydrate metabolic process’ (GO: 0005975, p-value = 2.2 × 10−17). In the network, we could find the well-characterized genes involved in the metabolism of cell wall polysaccharides, such as xyloglucan.

6. Xyloglucan Metabolism in Regenerating Protoplasts

Xyloglucan is the major hemicellulose for forming a basic framework of the cell wall. We focused on the elucidation of linking the identified proteins involved in xyloglucan metabolism during early stages of cell wall regeneration. AtXTH11 (At3g48580) has been identified as a member of the endotransglucosylase/hydrolase (XTH) family of proteins [81,82,83], which can mediate splitting and/or reconnection of xyloglucan crosslinks [84,85,86,87,88]. This enzyme was present in both cell wall-regenerating protoplasts and suspension culture cells, implying that the metabolism of xyloglucan molecules is involved in cell walls.
AtXYL1 (At1g68560) and BGAL10 (At5g63810) have been confirmed as chiefly responsible for xyloglucan α-xylosidase activity and xyloglucan β-galactosidase activity, respectively [74,76,89]. Several potentially phosphorylated protein spots on the 2D polyacrylamide gel were identified as AtXYL1 by staining with Pro-Q Diamond dye (Molecular Probes, Eugene, OR, USA), and thus, this protein was predicted to undergo extensive post-translational modification [14]. Recent studies showed that dephosphorylation by purple acid phosphatase (PAP) decreased the activity levels of xyloglucan α-xylosidase, subsequently increasing the levels of xyloglucan oligosaccharides [90]. We confirmed that PAP1 (At1g13750) appears in both protoplasts regenerated for 1 h and in suspension culture cells, but not in protoplasts regenerated for 3 h. It should be noted that xyloglucan oligosaccharides, which are potential substrates of xyloglucan α-xylosidase and XTH, are incorporated into the cell plate and involved in the construction of the new cell wall, thereby promoting cell division, as well as cell expansion [91,92]. In addition, XTH itself is found not only in expanding tissues [93], but also in the cell plate during the construction of the new cell wall [94,95]. All of these observations suggest that the metabolism of xyloglucan molecules contributes considerably to the early construction of the cell wall in regenerating protoplasts.
The presence of xyloglucan molecules in the cell plate has been reported in earlier studies [96,97,98]. On the other hand, our analysis of the immune-disk recently showed that xyloglucan molecules stick to cellulose microfibrils at a very early stage of cell wall regeneration in protoplasts (Figure S1). Further imaging analysis, combined with reverse genetics, will provide new insights into the biological function of xyloglucan-related enzymes and, particularly, how xyloglucan molecules are modified and how the xyloglucan/cellulose networks are assembled during the early stages of cell wall construction.

7. Concluding Remarks

A wide range of cell wall proteomic approaches have been developed, leading to our current understanding of plant cell walls [99,100,101]. These approaches have been complemented by the availability of an advanced database (WallProtDB; http://www.polebio.lrsv.ups-tlse.fr/WallProtDB/) [102]. Arabidopsis cell wall proteins, identified by means of proteomics, can also be characterized using The Arabidopsis Information Resource (TAIR; http://arabidopsis.org). In addition, the ATTED-II database (http://atted.jp/) of co-expressed genes in Arabidopsis may be used to identify potential interactions between genes [94,95]. We filtered the genes encoding proteins for a putative secretory signal peptide, which were identified in the regenerating protoplasts, through the ATTED-II co-expression database and constructed a large network (Figure S2). The enriched GO terms for this network included “cell wall” and “carbohydrate metabolic process”. Although a combination of proteomic approaches and in silico analysis is generating a more comprehensive catalog of cell wall proteins, it remains difficult to elucidate the precise enzymatic function and biological role of each protein in muro.
Protoplasts are a useful model system for the comprehensive identification of cell wall proteins and for visualizing cell wall dynamics. Further progress in integrating reverse genetics into this approach will greatly facilitate the assignment of precise biological roles to these proteins and a better understanding of cell wall dynamics (Figure 3).
Finally, the recent extensive availability of complete genome sequences, and subsequent integrated omics analyses, will allow this protoplast system to be applied to other plant species. The diversity of cell wall composition and structure between plant species is well known [103,104,105,106]; as, for example, cell walls of commelinoid monocots, such as rice (Oryza sativa), contain relatively little xyloglucan and instead include a large amount of glucuronoarabinoxylan [2,107,108]. We have already developed an imaging technique for rice protoplasts and clarified some differences in the pattern of cellulose deposition (unpublished). Application of the protoplast system will provide new insights into the significant differences in cell wall dynamics between plant species.

Supplementary Materials

The following are available online at www.mdpi.com/2227-7382/4/4/34/s1: Table S1: Comparison of cell wall proteins of protoplasts derived from suspension-cultured cells and mesophyll cells in Arabidopsis; Table S2: Composition of the supernatant collected after every extraction step of the cell wall preparation; Table S3: Proportion of monosaccharides in the pectin fraction; Figure S1: Localization of xyloglucan molecules and β-glucan on plasma membrane sheets of the regenerating protoplasts; Figure S2: The co-expression network of the genes identified in the regenerating protoplasts.

Acknowledgments

This study was supported by the Ministry of Education, Culture, Sports, Science and Technology (MEXT, Japan), Grant-in-Aid for Scientific Research on Innovative Areas “Plant Cell Wall” (Nos. 24114001 and 24114005) to K.N. and a Grant-in-Aid for Scientific Research (C) (16K07389) to R.Y.

Author Contributions

R.Y. and K.N. conceived of and planned this review article and wrote the manuscript. H.K. contributed to experiments in Table 1, Figure 2 and Figure 3, with occasional discussion with R.Y., T.K. and K.N. T.K. commented on the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Somerville, C.; Bauer, S.; Brininstool, G.; Facette, M.; Hamann, T.; Milne, J.; Osborne, E.; Paredez, A.; Persson, S.; Raab, T.; et al. Toward a systems approach to understanding plant cell walls. Science 2004, 306, 2206–2211. [Google Scholar] [CrossRef] [PubMed]
  2. Le Gall, H.; Philippe, F.; Domon, J.M.; Gillet, F.; Pelloux, J.; Rayon, C. Cell wall metabolism in response to abiotic stress. Plants 2015, 16, 112–166. [Google Scholar] [CrossRef] [PubMed]
  3. Bethke, G.; Thao, A.; Xiong, G.; Li, B.; Soltis, N.E.; Hatsugai, N.; Hillmer, R.A.; Katagiri, F.; Kliebenstein, D.J.; Pauly, M.; Glazebrook, J. Pectin biosynthesis is critical for cell wall integrity and immunity in Arabidopsis thaliana. Plant Cell 2016, 28, 537–556. [Google Scholar] [CrossRef] [PubMed]
  4. Bidhendi, A.J.; Geitmann, A. Relating the mechanics of the primary plant cell wall to morphogenesis. J. Exp. Bot. 2016, 67, 449–461. [Google Scholar] [CrossRef] [PubMed]
  5. Carpita, N.C.; Gibeaut, D.M. Structural models of primary cell walls in flowering plants: Consistency of molecular structure with the physical properties of the walls during growth. Plant J. 1993, 3, 1–30. [Google Scholar] [CrossRef] [PubMed]
  6. Cosgrove, D.J. Growth of the plant cell wall. Nature Reviews: Mol. Cell Biol. 2005, 6, 850–861. [Google Scholar] [CrossRef] [PubMed]
  7. Caffall, K.H.; Mohnen, D. The structure, function, and biosynthesis of plant cell wall pectic polysaccharides. Carbohydr. Res. 2009, 344, 1879–1900. [Google Scholar] [CrossRef] [PubMed]
  8. Scheller, H.V.; Ulvskov, P. Hemicelluloses. Annu. Rev. Plant Biol. 2010, 61, 263–289. [Google Scholar] [CrossRef] [PubMed]
  9. Cosgrove, D.J. Plant cell wall extensibility: Connecting plant cell growth with cell wall structure, mechanics and the action of wall-modifying enzymes. J. Exp. Bot. 2016, 67, 463–476. [Google Scholar] [CrossRef] [PubMed]
  10. Yokoyama, R.; Shinohara, N.; Asaoka, R.; Narukawa, H.; Nishitani, K. The biosynthesis and function of polysaccharide components of the plant cell wall. In Plant Cell Wall Patterning and Cell Shape; Fukuda, H., Ed.; John Wiley & Sons, Ltd.: Chichester, UK, 2015; pp. 3–34. [Google Scholar] [CrossRef]
  11. Jamet, E.; Canut, H.; Boudart, G.; Pont-Lezica, R.F. Cell wall proteins: A new insight through proteomics. Trends Plant Sci. 2006, 1, 33–39. [Google Scholar] [CrossRef] [PubMed]
  12. Goodstein, D.M.; Shu, S.; Howson, R.; Neupane, R.; Richard, D.; Hayes, R.D.; Mitros, T.; Dirks, W.; Hellsten, U.; Putnam, N.; et al. Phytozome: A comparative platform for green plant genomics. Nucleic Acids Res. 2012, 40, D1178–D1186. [Google Scholar] [CrossRef] [PubMed]
  13. Voxeur, A.; Höfte, H. Cell wall integrity signaling in plants: “To grow or not to grow that’s the question”. Glycobiology 2016, 26, 950–960. [Google Scholar] [CrossRef] [PubMed]
  14. Kwon, H.-K.; Yokoyama, R.; Nishitani, K. A proteomic approach to apoplastic proteins involved in cell wall regeneration in protoplasts of Arabidopsis suspension-cultured cells. Plant Cell Physiol. 2005, 46, 843–857. [Google Scholar] [CrossRef] [PubMed]
  15. Mathur, J.; Szabados, L.; Schaefer, S.; Grunenberg, B.; Lossow, A.; Jonas-Straube, E.; Schell, J.; Koncz, C.; Koncz-Kalman, Z. Gene identification with sequenced T-DNA tags generated by transformation of Arabidopsis cell suspension. Plant J. 1998, 13, 707–716. [Google Scholar] [CrossRef] [PubMed]
  16. The Plant Cell Wall Biology Laboratory, Tohoku University. Protoplastl Isolation and Cell Wall Regeneration. Available online: https://www.plantcellwall.jp/protocol/pdf/protocol_11.pdf (accessed on 15 November 2016).
  17. DeBolt, S.; Gutierrez, R.; Ehrhardt, D.W.; Somerville, C. Nonmotile cellulose synthase subunits repeatedly accumulate within localized regions at the plasma membrane in Arabidopsis hypocotyl cells following 2,6-dichlorobenzonitrile treatment. Plant Physiol. 2007, 145, 334–338. [Google Scholar] [CrossRef] [PubMed]
  18. Kuki, H.; Higaki, T.; Yokoyama, R.; Nishitani, K. Tohoku University, Sendai, Japan. Unpublished work, 2016. [Google Scholar]
  19. Alonso, J.M.; Stepanova, A.N.; Leisse, T.J.; Kim, C.J.; Chen, H.; Shinn, P.; Stevenson, D.K.; Zimmerman, J.; Barajas, P.; Cheuk, R.; et al. Genome-wide insertional mutagenesis of Arabidopsis thaliana. Science 2003, 301, 653–657. [Google Scholar] [CrossRef] [PubMed]
  20. Nagata, T.; Takebe, I. Cell wall regeneration and cell division in isolated tobacco mesophyll protoplasts. Planta 1970, 92, 301–308. [Google Scholar] [CrossRef] [PubMed]
  21. Hahne, G.; Hert, W.; Hoffmann, F. Wall formation and cell division in fluorescence-labelled plant protoplasts. Protoplasma 1983, 115, 217–221. [Google Scholar] [CrossRef]
  22. Van Amstel, T.N.M.; Kengen, H.M.P. Callose deposition in the primary wall of suspension cells and regenerating protoplasts, and its relationship to patterned cellulose synthesis. Can. J. Bot. 1996, 74, 1040–1049. [Google Scholar] [CrossRef]
  23. Anderson, C.T.; Carroll, A.; Akhmetova, L.; Somerville, C. Real-time imaging of cellulose reorientation during cell wall expansion in Arabidopsis roots. Plant Physiol. 2010, 152, 787–796. [Google Scholar] [CrossRef] [PubMed]
  24. Liesche, J.; Ziomkiewicz, I.; Alexander Schulz, A. Super-resolution imaging with Pontamine Fast Scarlet 4BS enables direct visualization of cellulose orientation and cell connection architecture in onion epidermis cells. BMC Plant Biol. 2013, 13, 226. [Google Scholar] [CrossRef] [PubMed]
  25. Baskin, T.I. Anisotropic expansion of the plant cell wall. Ann. Rev. Cell Dev. Biol. 2005, 21, 203–222. [Google Scholar] [CrossRef] [PubMed]
  26. Knox, J.P. The use of antibodies to study the architecture and developmental regulation of plant cell walls. Int. Rev. Cytol. 1997, 171, 79–120. [Google Scholar] [CrossRef] [PubMed]
  27. Moller, I.; Marcus, S.E.; Haeger, A.; Verhertbruggen, Y.; Verhoef, R.; Schols, H.; Ulvskov, P.; Mikkelsen, J.D.; Knox, J.P.; Willats, W. High-throughput screening of monoclonal antibodies against plant cell wall glycans by hierarchical clustering of their carbohydrate microarray binding profiles. Glycoconj. J. 2008, 25, 37–48. [Google Scholar] [CrossRef] [PubMed]
  28. Pattathil, S.; Avci, U.; Baldwin, D.; Swennes, A.G.; McGill, J.A.; Popper, Z.; Bootten, T.; Albert, A.; Davis, R.H.; Chennareddy, C.; et al. A comprehensive toolkit of plant cell wall glycan-directed monoclonal antibodies. Plant Physiol. 2010, 153, 514–525. [Google Scholar] [CrossRef] [PubMed]
  29. Hirai, N.; Sonobe, S.; Hayashi, T. In situ synthesis of β-glucan microfibrils on tobacco plasma membrane sheets. Proc. Natl. Acad. Sci. USA 1998, 95, 15102–15106. [Google Scholar] [CrossRef] [PubMed]
  30. Kaida, R.; Satoh, Y.; Bulone, V.; Yamada, Y.; Kaku, T.; Hayashi, T.; Kaneko, T.S. Activation of β-glucan synthases by wall-bound purple acid phosphatase in tobacco cells. Plant Physiol. 2009, 150, 1822–1830. [Google Scholar] [CrossRef] [PubMed]
  31. Higaki, T.; Sano, T.; Hasezawa, S. Actin microfilament dynamics and actin side-binding proteins in plants. Curr. Opin. Plant Biol. 2007, 10, 549–556. [Google Scholar] [CrossRef] [PubMed]
  32. Wasteneys, G.O.; Ambrose, J.C. Spatial organization of plant cortical microtubules: Close encounters of the 2D kind. Trends Cell Biol. 2009, 19, 62–71. [Google Scholar] [CrossRef] [PubMed]
  33. Lee, S.J.; Saravanan, R.S.; Damasceno, C.M.B.; Yamane, H.; Kim, B.D.; Rose, J.K.C. Digging deeper into the plant cell wall proteome. Plant Physiol. Biochem. 2004, 42, 979–988. [Google Scholar] [CrossRef] [PubMed]
  34. Jamet, E.; Albenne, C.; Boudart, G.; Irshad, M.; Canut, H.; Pont-Lezica, R. Recent advances in plant cell wall proteomics. Proteomics 2008, 8, 893–908. [Google Scholar] [CrossRef] [PubMed]
  35. Robertson, D.; Mitchell, G.P.; Gilroy, J.S.; Gerrish, C.; Bolwell, G.P.; Slabas, A.R. Differential extraction and protein sequencing reveals major differences in patterns of primary cell wall proteins from plants. J. Biol. Chem. 1997, 272, 15841–15848. [Google Scholar] [CrossRef] [PubMed]
  36. Boudart, G.; Jamet, E.; Rossignol, M.; Lafitte, C.; Borderies, G.; Jauneau, A.; Esquerré-Tugayé, M.T.; Pont-Lezica, R. Cell wall proteins in apoplastic fluids of Arabidopsis thaliana rosettes: Identification by mass spectrometry and bioinformatics. Proteomics 2005, 5, 212–221. [Google Scholar] [CrossRef] [PubMed]
  37. Printz, B.; Morais, R.D.S.; Wienkoop, S.; Sergeant, K.; Stanley Lutts, S.; Hausman, J.-F.; Renaut, J. An improved protocol to study the plant cell wall proteome. Front. Plant Sci. 2015, 6, 237. [Google Scholar] [CrossRef] [PubMed]
  38. Bayer, E.M.; Bottrill, A.R.; Walshaw, J.; Vigouroux, M.; Naldrett, M.J.; Thomas, C.L.; Maule, A.J. Arabidopsis cell wall proteome defined using multidimensional protein identification technology. Proteomics 2006, 6, 301–311. [Google Scholar] [CrossRef] [PubMed]
  39. Li, Z.C.; McClure, J.W.; Hagerman, A.E. Soluble and bound apoplastic activity for peroxidase, β-D-glucosidase, malate dehydrogenase, and nonspecific arylesterase, in barly (Hordeum vulgare L.) and oat (Avena sativa L.) primary leaves. Plant Physiol. 1989, 90, 185–190. [Google Scholar] [CrossRef] [PubMed]
  40. Chivasa, S.; Ndimba, B.K.; Simon, W.J.; Robertson, D.; Yu, X.-L.; Knox, J.P.; Bolwell, P.; Slabas, A.R. Proteomic analysis of the Arabidopsis thaliana cell wall. Electrophoresis 2002, 23, 1754–1765. [Google Scholar] [CrossRef]
  41. Ndimba, B.K.; Chivasa, S.; Hamilton, J.M.; Simon, W.J.; Slabas, A.R. Proteomic analysis of changes in the extracellular matrix of Arabidopsis cell suspension cultures induced by fungal elicitors. Proteomics 2003, 3, 1047–1059. [Google Scholar] [CrossRef] [PubMed]
  42. Cho, W.K.; Hyun, T.K.; Kumar, D.; Rim, Y.; Chen, X.Y.; Jo, Y.; Kim, S.; Lee, K.W.; Park, Z-Y.; Lucas, W.J.; Kim, J-Y. Proteomic analysis to identify tightly-bound cell wall protein in Rice calli. Mol. Cells 2015, 38, 685–696. [Google Scholar] [CrossRef] [PubMed]
  43. Horton, P.; Park, K.J.; Obayashi, T.; Fujita, N.; Harada, H.; Adams-Collier, C.J.; Nakai, K. WoLF PSORT: Protein localization predictor. Nucleic Acids Res. 2007, 35, W485–W487. [Google Scholar] [CrossRef] [PubMed]
  44. Emanuelsson, O.; Nielsen, H.; Brunak, S.; von Heijne, G. Predicting subcellular localization of proteins based on their N-terminal amino acid sequence. J. Mol. Biol. 2000, 300, 1005–1016. [Google Scholar] [CrossRef] [PubMed]
  45. Watson, B.S.; Lei, Z.; Dixon, R.A.; Sumner, L.W. Proteomics of Medicago sativa cell walls. Phytochemistry 2004, 65, 1709–1720. [Google Scholar] [CrossRef] [PubMed]
  46. Charmont, S.; Jamet, E.; Pont-Lezica, R.; Canut, H. Proteomic analysis of secreted proteins from Arabidopsis thaliana seedlings: Improved recovery following removal of phenolic compounds. Phytochemistry 2005, 66, 453–461. [Google Scholar] [CrossRef] [PubMed]
  47. Rose, J.K.C.; Bashir, S.; Giovannoni, J.J.; Jahn, M.M.; Saravanan, R.S. Tackling the plant proteome: Practical approaches, hurdles and experimental tools. Plant J. 2004, 39, 715–733. [Google Scholar] [CrossRef] [PubMed]
  48. Catalá, C.; Howe, K.; Hucko, S.; Rose, J.K.C.; Thannhauser, T. Towards characterization of the glycoproteome of tomato (Solanum lycopersicum) fruit using Concanavalin A lectin affinity chromatography and LC-MALDI-MS/MS analysis. Proteomics 2011, 11, 1530–1544. [Google Scholar] [CrossRef]
  49. Zhang, Y.; Giboulot, A.; Zivy, M.; Valot, B.; Jamet, E.; Albenne, C. Combining various strategies to increase the coverage of the plant cell wall glycoproteome. Phytochemistry 2011, 72, 1109–1123. [Google Scholar] [CrossRef] [PubMed]
  50. Kumar, S.; Kumar, K.; Pandey, P.; Rajamani, V.; Padmalatha, K.; Dhandapani, G.; Kanakachari, M.; Leelavathi, S.; Kumar, P.; Reddy, V. Glycoproteome of elongating cotton fibre cells. Mol. Cell. Proteomics 2013, 12, 3677–3789. [Google Scholar] [CrossRef] [PubMed]
  51. Minic, Z.; Jamet, E.; Negroni, L.; Der Garabedian, P.A.; Zivy, M.; Jouanin, L. A sub-proteome of Arabidopsis thaliana trapped on Concanavalin A is enriched in cell wall glycoside hydrolases. J. Exp. Bot. 2007, 58, 2503–2512. [Google Scholar] [CrossRef] [PubMed]
  52. Borner, G.H.H.; Lilley, K.S.; Stevens, T.J.; Dupree, P. Identification of glycosylphosphatidylinositol-anchored proteins in Arabidopsis. A proteomic and genomic analysis. Plant Physiol. 2003, 132, 568–577. [Google Scholar] [CrossRef] [PubMed]
  53. Borner, G.H.H.; Sherrier, D.J.; Weimar, T.; Mchaelson, L.V.; Hawkins, N.D.; MacAskill, A.; Napier, J.A.; Beale, M.H.; Lilley, K.S.; Dupree, P. Analysis of detergent-resistant membranes in Arabidopsis: Evidence for plasma membrane lipid rafts. Plant Physiol. 2005, 137, 104–116. [Google Scholar] [CrossRef] [PubMed]
  54. Marmagne, A.; Ferro, M.; Meinnel, T.; Bruley, C.; Kuhn, L.; Garin, J.; Barbier-Brygoo, H.; Ephritikhine, G. A high content in lipid-modified peripheral proteins and integral receptor kinases features in the Arabidopsis plasma membrane proteome. Mol. Cell. Proteomics 2007, 6, 1980–1996. [Google Scholar] [CrossRef] [PubMed]
  55. Komatsu, S.; Wada, T.; Yann, A.; Nouri, M.Z.; Nanjo, Y.; Nakayama, N.; Shimamura, S.; Yamamoto, R.; Nakamura, T.; Furukawa, K. Analysis of plasma membrane proteome in soybean and application to flooding stress response. J. Proteome Res. 2009, 8, 4487–4499. [Google Scholar] [CrossRef] [PubMed]
  56. Rose, J.K.C.; Lee, S.J. Straying off the highway: Trafficking of secreted plant proteins and complexity in the plant cell wall proteome. Plant Physiol. 2010, 153, 433–436. [Google Scholar] [CrossRef] [PubMed]
  57. Feiz, L.; Irshad, M.; Pont-Lezica, R.F.; Canut, H.; Jamet, E. Evaluation of cell wall preparations for proteomics: A new procedure for purifying cell walls from Arabidopsis hypocotyls. Plant Methods 2006, 2, 10. [Google Scholar] [CrossRef] [PubMed]
  58. Kong, F.J.; Oyanagi, A.; Komatsu, S. Cell wall proteome of wheat roots under flooding stress using gel-based and LC MS/MS-based proteomics approaches. Biochim. Biophys. Acta 2010, 1804, 124–136. [Google Scholar] [CrossRef] [PubMed]
  59. Pardo, M.; Ward, M.; Bains, S.; Molina, M.; Blackstock, W.; Gil, C.; Nobela, C. A proteomic approach for the study of Saccharomyces cerevisiae cell wall biogenesis. Electrophoresis 2000, 21, 3396–3410. [Google Scholar] [CrossRef]
  60. Pitarch, A.; Sanchez, M.; Nombela, C.; Gil, C. Sequential fractionation and two-dimensional gel analysis unravels the complexity of the dimorphic fungus Candida albicans cell wall proteome. Mol. Cell. Proteomics 2002, 1, 967–982. [Google Scholar] [CrossRef] [PubMed]
  61. Pitarch, A.; Nombela, C.; Gil, C. Cell wall fractionation for yeast and fungal proteomics. Methods Mol. Biol. 2008, 425, 217–239. [Google Scholar] [CrossRef] [PubMed]
  62. Yokoyama, R.; Nishitani, K. Genomic basis for cell-wall diversity in plants. A comparative approach to gene families in rice and Arabidopsis. Plant Cell Physiol. 2004, 45, 1111–1121. [Google Scholar] [CrossRef] [PubMed]
  63. Manza, L.L.; Stamer, S.L.; Ham, A.L.; Codreanu, S.G.; Liebler, D.C. Sample preparation and digestion for proteomic analyses using spin filters. Proteomics 2005, 5, 1742–1745. [Google Scholar] [CrossRef] [PubMed]
  64. Kitazawa, K.; Tryfona, T.; Yoshimi, Y.; Hayashi, Y.; Kawauchi, S.; Antonov, L.; Tanaka, H.; Takahashi, T.; Kaneko, S.; Dupree, P.; Tsumuraya, Y.; Kotake, T. β-Galactosyl Yariv reagent binds to the β-1,3-galactan of arabinogalactan proteins. Plant Physiol. 2013, 161, 1117–1126. [Google Scholar] [CrossRef] [PubMed]
  65. Schultz, C.J.; Ferguson, K.L.; Lahnstein, J.; Bacic, A. Posttranslational modifications of arabinogalactan-peptides of Arabidopsis thaliana. Endoplasmic reticulum and glycosylphosphatidylinositol-anchor signal cleavage sites and hydroxylation of proline. J. Biol. Chem. 2004, 279, 45503–45511. [Google Scholar] [CrossRef] [PubMed]
  66. Graumann, J.; Dunipace, L.A.; Seol, J.H.; McDonald, W.H.; Yates, J.R., III; Wold, B.J.; Deshaies, R.J. Applicability of tandem affinity purification MudPIT to pathway proteomics in yeast. Mol. Cell. Proteomics 2004, 3, 226–237. [Google Scholar] [CrossRef] [PubMed]
  67. Wang, Y.; Mortimer, J.C.; Davis, J.; Dupree, P.; Keegstra, K. Identification of an additional protein involved in mannan biosynthesis. Plant J. 2013, 73, 105–117. [Google Scholar] [CrossRef] [PubMed]
  68. Ogasawara, K.; Yamada, K.; Christeller, J.T.; Kondo, M.; Hatsugai, N.; Hara-Nishimura, I.; Nishimura, M. Constitutive and inducible ER bodies of Arabidopsis thaliana accumulate distinct beta-glucosidases. Plant Cell Physiol. 2009, 50, 480–488. [Google Scholar] [CrossRef] [PubMed]
  69. Lewis, D.R.; Olex, A.L.; Lundy, S.R.; Turkett, W.H.; Fetrow, J.S.; Muday, G.K. A kinetic analysis of the auxin transcriptome reveals cell wall remodeling proteins that modulate lateral root development in Arabidopsis. Plant Cell 2013, 25, 3329–3346. [Google Scholar] [CrossRef] [PubMed]
  70. Yokoyama, R.; Uwagaki, Y.; Sasaki, H.; Harada, T.; Hiwatashi, Y.; Hasebe, M.; Nishitani, K. Biological implications of the occurrence of 32 members of the XTH (xyloglucan endotransglucosylase/hydrolase) family of proteins in the bryophyte Physcomitrella patens. Plant J. 2010, 64, 658–669. [Google Scholar] [CrossRef] [PubMed]
  71. Takenaka, Y.; Nakano, S.; Tamoi, M.; Sakuda, S.; Fukamizo, T. Chitinase gene expression in response to environmental stresses in Arabidopsis thaliana: Chitinase inhibitor allosamidin enhances stress tolerance. Biosci. Biotechnol. Biochem. 2009, 73, 1066–1071. [Google Scholar] [CrossRef] [PubMed]
  72. Cao, J. The pectin lyases in Arabidopsis thaliana: Evolution, selection and expression profiles. PLoS ONE 2012, 7, e46944. [Google Scholar] [CrossRef] [PubMed]
  73. Ferrari, S.; Sella, L.; Janni, M.; De Lorenzo, G.; Favaron, F.; D’Ovidio, R. Transgenic expression of polygalacturonase-inhibiting proteins in Arabidopsis and wheat increases resistance to the flower pathogen Fusarium graminearum. Plant Biol. 2012, 14, 31–38. [Google Scholar] [CrossRef] [PubMed]
  74. Günl, M.; Pauly, M. AXY3 encodes a α-xylosidase that impacts the structure and accessibility of the hemicellulose xyloglucan in Arabidopsis plant cell walls. Planta 2011, 233, 707–719. [Google Scholar] [CrossRef] [PubMed]
  75. Mazola, Y.; Guirola, O.; Palomares, S.; Chinea, G.; Menéndez, C.; Hernández, L.; Musacchio, A. A comparative molecular dynamics study of thermophilic and mesophilic β-fructosidase enzymes. J. Mol. Model. 2015, 21, 228. [Google Scholar] [CrossRef] [PubMed]
  76. Sampedro, J.; Gianzo, C.; Iglesias, N.; Guitián, E.; Revilla, G.; Zarra, I. AtBGAL10 is the main xyloglucan β-galactosidase in Arabidopsis, and its absence results in unusual xyloglucan subunits and growth defects. Plant Physiol. 2012, 158, 1146–1157. [Google Scholar] [CrossRef] [PubMed]
  77. Lombard, V.; Golaconda Ramulu, H.; Drula, E.; Coutinho, P.M.; Henrissat, B. The Carbohydrate-active enzymes database (CAZy) in 2013. Nucl. Acids Res. 2014, 42, D490–D495. [Google Scholar] [CrossRef] [PubMed]
  78. Obayashi, T.; Kinoshita, K.; Nakai, K.; Shibaoka, M.; Hayashi, S.; Saeki, M.; Shibata, D.; Saito, K.; Ohta, H.; et al. ATTED-II: A database of co-expressed genes and cis elements for identifying co-regulated gene groups in Arabidopsis. Nucl. Acids Res. 2007, 35, D863–D869. [Google Scholar] [CrossRef] [PubMed]
  79. Obayashi, T.; Hayashi, S.; Saeki, M.; Ohta, H.; Kinoshita, K. ATTED-II provides coexpressed gene networks for Arabidopsis. Nucl. Acids Res. 2009, 37, D987–D991. [Google Scholar] [CrossRef] [PubMed]
  80. Arabidopsis Interactome Mapping Consortium. Evidence for Network Evolution in an Arabidopsis Interactome Map. Science 2011, 333, 601–607. [Google Scholar] [CrossRef]
  81. Yokoyama, R.; Nishitani, K. Functional diversity of xyloglucan-related proteins and its implications in the cell wall dynamics in plants. Plant Biol. 2000, 2, 598–604. [Google Scholar] [CrossRef]
  82. Yokoyama, R.; Nishitani, K. A comprehensive expression analysis of all members of a gene family encoding cell-wall enzymes allowed us to predict cis-regulatory regions involved in cell-wall construction in specific organs of Arabidopsis. Plant Cell Physiol. 2001, 42, 1025–1033. [Google Scholar] [CrossRef] [PubMed]
  83. Eklöf, J.M.; Brumer, H. The XTH gene family: An update on enzyme structure, function, and phylogeny in xyloglucan remodeling. Plant Physiol. 2010, 153, 456–466. [Google Scholar] [CrossRef] [PubMed]
  84. Nishitani, K.; Tominaga, R. Endoxyloglucan transferase, a novel class of glycosyltransferase that catalyzes transfer of a segment of xyloglucan molecule to another xyloglucan molecule. J. Biol. Chem. 1992, 267, 21058–21064. [Google Scholar] [PubMed]
  85. Fry, S.C.; Smith, R.C.; Renwick, K.F.; Martin, D.J.; Hodge, S.K.; Matthews, K.J. Xyloglucan endotransglycosylase, a new wall-looseniing enzyme activity from plants. Biochem. J. 1992, 282, 821–828. [Google Scholar] [CrossRef] [PubMed]
  86. Nishitani, K. The role of endoxyloglucan transferase in the organization of plant cell wall. Int. Rev. Cytol. 1997, 173, 157–206. [Google Scholar] [CrossRef] [PubMed]
  87. Rose, J.K.C.; Braam, J.; Fry, S.; Nishitani, K. The XTH family of enzymes involved in xyloglucan endotransglucosylation and endohydrolysis: Current perspectives and a new unifying nomenclature. Plant Cell Physiol. 2002, 43, 1421–1435. [Google Scholar] [CrossRef] [PubMed]
  88. Nishitani, K. A brief history of the XTH gene family. In The Science and Lore of the Plant Cell Wall; Hayashi, T., Ed.; Brown Walker Press: Boca Raton, FL, USA, 2006; pp. 148–154. [Google Scholar]
  89. Sampedro, J.; Sieiro, C.; Revilla, G.; Gonzalez-Villa, T.; Zarra, I. Cloning and expression pattern of a gene encoding an α-xylosidase active against xyloglucan oligosaccharides from Arabidopsis. Plant Physiol. 2001, 126, 910–920. [Google Scholar] [CrossRef] [PubMed]
  90. Kaida, R.; Serada, S.; Norioka, N.; Norioka, S.; Neumetzler, L.; Pauly, M.; Sampedro, J.; Zarra, I.; Hayashi, T.; Kaneko, T.S. Potential role for purple acid phosphatase in the dephosphorylation of wall proteins in tobacco cells. Plant Physiol. 2010, 153, 603–610. [Google Scholar] [CrossRef] [PubMed]
  91. Kaida, R.; Sugawara, S.; Negoro, K.; Maki, H.; Hayashi, T.; Kaneko, T.S. Acceleration of cell growth by xyloglucan oligosaccharides in suspension-cultured tobacco cells. Mol. Plant 2010, 3, 549–554. [Google Scholar] [CrossRef] [PubMed]
  92. Hayashi, T.; Kaida, R. Functions of xyloglucan in plant cells. Mol. Plant 2011, 4, 17–24. [Google Scholar] [CrossRef] [PubMed]
  93. Nishitani, K.; Vissenberg, K. Roles of the XTH protein family in the expanding cell. In The Expanding Cell; Verbelen, J.-P., Vissenberg, K., Eds.; Springer-Verlag: Vienna, Austria, 2006; pp. 89–116. [Google Scholar]
  94. Yokoyama, R.; Nishitani, K. Endoxyloglucan transferase is localized both in the cell plate and in the secretory pathway destined for the apoplast in tobacco cells. Plant Cell Physiol. 2001, 42, 292–300. [Google Scholar] [CrossRef] [PubMed]
  95. Yokoyama, R.; Tanaka, D.; Fujino, T.; Itoh, T.; Nishitani, K. Cell Wall Dynamics in Tobacco BY-2 Cells. In Biotechnology in Agriculture and Forestry; Nagata, T., Hasezawa, S., Inzé, D., Eds.; Springer-Verlag: Vienna, Austria, 2003; Volume 53, pp. 217–230. [Google Scholar]
  96. Moore, P.J.; Darvill, A.G.; Albersheim, P.; Staehelin, A.S. Immunogold localization of xyloglucan and rhamnogalacturonan I in the cell walls of suspension-cultured sycamore cells. Plant Physiol. 1986, 82, 787–794. [Google Scholar] [CrossRef] [PubMed]
  97. Otegui, M.; Andrew Staehelin, A. Syncytial-type cell plates: A novel kind of cell plate involved in endosperm cellularization of Arabidopsis. Plant Cell 2000, 12, 933–947. [Google Scholar] [CrossRef] [PubMed]
  98. Sonobe, S.; Nakayama, N.; Shimmen, T.; Sone, Y. Intracellular distribution of subcellular organelles revealed by antibody against xyloglucan during cell cycle in tobacco BY-2 cells. Protoplasma 2000, 213, 218–227. [Google Scholar] [CrossRef]
  99. Albenne, C.; Canut, H.; Jamet, E. Plant cell wall proteomics: The leadership of Arabidopsis thaliana. Front. Plant Sci. 2013, 4, 111. [Google Scholar] [CrossRef] [PubMed]
  100. Albenne, C.; Canut, H.; Hoffmann, L.; Jamet, E. Plant cell wall proteins: A large body of data, but what about runaways? Proteomes 2014, 2, 224–242. [Google Scholar] [CrossRef][Green Version]
  101. Guerra-Guimarães, L.; Pinheiro, C.; Chaves, I.; Barros, D.R.; Ricardo, C.P. Protein dynamics in the plant extracellular space. Proteomes 2016, 4, 22. [Google Scholar] [CrossRef]
  102. Clemente, H.S.; Jamet, E. WallProtDB, a database resource for plant cell wall proteomics. Plant Methods 2015, 11, 2. [Google Scholar] [CrossRef] [PubMed]
  103. Sarkar, P.; Bosneaga, E.; Auer, M. Plant cell walls throughout evolution: Towards a molecular understanding of their design principles. J. Exp. Bot. 2009, 60, 3615–3635. [Google Scholar] [CrossRef] [PubMed]
  104. Popper, Z.A.; Michel, G.; Hervé, C.; Domozych, D.S.; Willats, W.G.; Tuohy, M.G.; Kloareg, B.; Stengel, D.B. Evolution and diversity of plant cell walls: From algae to flowering plants. Annu. Rev. Plant. Biol. 2011, 62, 567–590. [Google Scholar] [CrossRef] [PubMed]
  105. Fangel, J.U.; Ulvskov, P.; Knox, J.P.; Mikkelsen, M.D.; Harholt, J.; Popper, Z.A.; Willats, W.G.T. Cell wall evolution and diversity. Front. Plant Sci. 2012, 3, 152. [Google Scholar] [CrossRef] [PubMed]
  106. Yokoyama, R.; Narukawa, H.; Nishitani, K. Disclosing two typical cell wall polysaccharides, pectin and β-1,3/1,4 mixed linked glucan, individually by immunological localization in two angiosperms, Arabidopsis thaliana and Oryza sativa. In Atlas of Plant Cell Structure; Noguchi, T., Kawano, S., Tsukaya, H., Matsunaga, S., Sakai, A., Karahara, I., Hayashi, Y., Eds.; Springer-Verlag: Vienna, Austria, 2014; pp. 150–151. [Google Scholar]
  107. Yokoyama, R.; Rose, J.K.C.; Nishitani, K. A surprising diversity and abundance of xyloglucan endotransglucosylase/hydrolases in rice. Classification and expression analysis. Plant Physiol. 2004, 134, 1088–1099. [Google Scholar] [CrossRef] [PubMed]
  108. Hara, Y.; Yokoyama, R.; Osakabe, K.; Toki, S.; Nishitani, K. Function of xyloglucan endotransglucosylase/hydrolases in rice. Ann. Bot. 2014, 114, 1309–1318. [Google Scholar] [CrossRef] [PubMed]

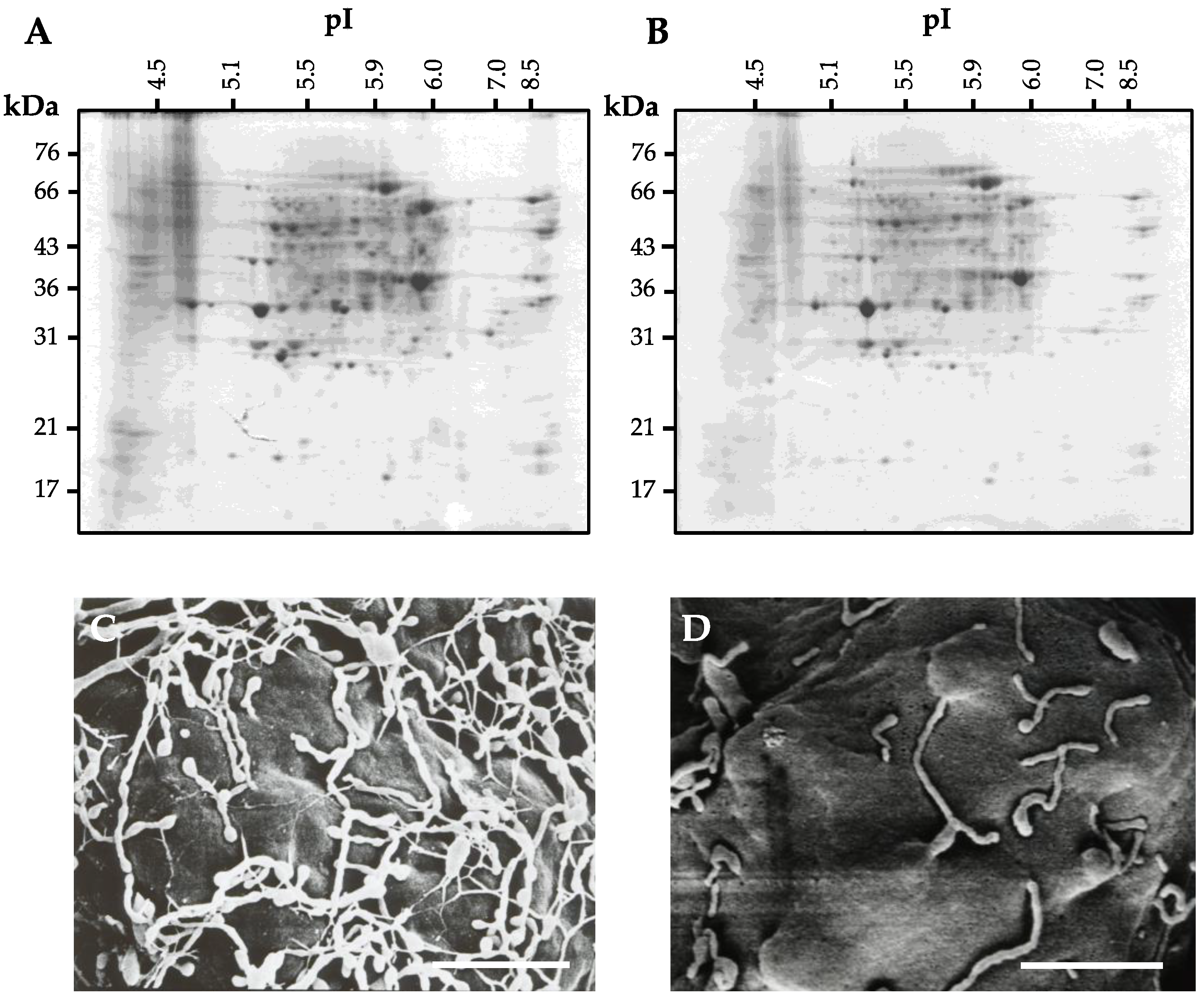

Figure 1. Comparative expression pa/erns of cell wall proteins and scanning electron microscope images of cell walls in the protoplasts regenerated for 3 h in the absence (A,C) or presence (B,D) of 1 μM DCB. 2-D PAGE analysis of cell wall proteins from the 3-h cell-wall regenerated protoplasts (A) and the 3-h cell-wall regenerated protoplast treated with 1 μM DCB (B). The cell wall proteins were prepared using the nonBdisruptive extraction with 1 M KCl, and separated on a 3–10 linear pI gradient in the first dimension and visualized using Coomassie staining. Scanning electron microscope images of the protoplasts regenerated in the absence of DCB was adapted from Kwon et al. [14]. Scanning electron microscopic analysis was performed according to a similar procedure described by Kwon et al. [14]. Bar = 1.5 µm.
Figure 1. Comparative expression pa/erns of cell wall proteins and scanning electron microscope images of cell walls in the protoplasts regenerated for 3 h in the absence (A,C) or presence (B,D) of 1 μM DCB. 2-D PAGE analysis of cell wall proteins from the 3-h cell-wall regenerated protoplasts (A) and the 3-h cell-wall regenerated protoplast treated with 1 μM DCB (B). The cell wall proteins were prepared using the nonBdisruptive extraction with 1 M KCl, and separated on a 3–10 linear pI gradient in the first dimension and visualized using Coomassie staining. Scanning electron microscope images of the protoplasts regenerated in the absence of DCB was adapted from Kwon et al. [14]. Scanning electron microscopic analysis was performed according to a similar procedure described by Kwon et al. [14]. Bar = 1.5 µm.
Proteomes 04 00034 g001
Figure 2. Schematic outline of the quantitative image analysis used in this study. (A) Histochemical or immunohistochemical staining of the cell wall components, and acquisition of serial optical image sections using confocal laser scanning microscopy; (B) Stacks of the serial optical sections; (C) Image processing and optimization; (D) Quantitative image analysis for total length, parallelness and straightening of the cell wall components.
Figure 2. Schematic outline of the quantitative image analysis used in this study. (A) Histochemical or immunohistochemical staining of the cell wall components, and acquisition of serial optical image sections using confocal laser scanning microscopy; (B) Stacks of the serial optical sections; (C) Image processing and optimization; (D) Quantitative image analysis for total length, parallelness and straightening of the cell wall components.
Proteomes 04 00034 g002
Figure 3. Strategies of cell wall sub-proteomic approaches of the cell wall, combined with the quantitative imaging technique and reverse genetics, using Arabidopsis mesophyll protoplast. Two approaches result in the comprehensive identification of the cell wall proteins and visualization of cell wall dynamics in the same stages of the protoplasts, leading to the prediction of the relationship between cell wall dynamics and the actions of the cell wall proteins. Furthermore, by use of the protoplasts derived from the T-DNA-insertion line, in which a certain gene of interest is disrupted, quantitative imaging analysis of cell wall regeneration would facilitate the identification of cell wall-related genes responsible for cell wall dynamics and help assign the precise biological role to the gene product.
Figure 3. Strategies of cell wall sub-proteomic approaches of the cell wall, combined with the quantitative imaging technique and reverse genetics, using Arabidopsis mesophyll protoplast. Two approaches result in the comprehensive identification of the cell wall proteins and visualization of cell wall dynamics in the same stages of the protoplasts, leading to the prediction of the relationship between cell wall dynamics and the actions of the cell wall proteins. Furthermore, by use of the protoplasts derived from the T-DNA-insertion line, in which a certain gene of interest is disrupted, quantitative imaging analysis of cell wall regeneration would facilitate the identification of cell wall-related genes responsible for cell wall dynamics and help assign the precise biological role to the gene product.
Proteomes 04 00034 g003
Table 1. Carbohydrate-related proteins in the regenerating protoplasts and suspension-cultured cells.
Table 1. Carbohydrate-related proteins in the regenerating protoplasts and suspension-cultured cells.
Family *AGIDescription **Protein Name1 h2 hNativeReferences
GH1At1g66280β-GlucosidaseBglu22++
GH1At2g44450β-GlucosidaseBglu15 +
GH1At3g09260β-GlucosidaseBglu23/PYK10 + Ogasawara et al., 2009 [68]
GH3At5g20950β-Xylosidase +++
GH9At1g71380β-1,4-GlucanaseCEL3 +Lewis et al., 2013 [69]
GH16At3g48580XyloglucanXTH11+++Yokoyama et al., 2010 [70]
endotransglucosylase/hydrolase
GH18At5g24090ChitinaseCHIA +Takenaka et al., 2009 [71]
GH19At2g43610Chitinase +
GH27At5g08380α-GalactosidaseAGAL1+++
GH28 At5g41870Polygalacturonase +Cao, 2012 [72]
GH28At5g06860PolygalacturonasePGIP1 +Ferrari et al., 2012 [73]
GH31At1g68560α-XylosidaseAXY3/XYL1+++Günl and Pauly, 2011 [74]
GH32At3g13790β-FructosidaseCWI+++Mazola et al., 2015 [75]
GH35At5g63810β-GalactosidaseBGAL10+++Sampedro et al., 2012 [76]
GH38At3g26720α-Mannosidase +++
EXPAt3g45970ExpansinEXPL1 +
* Gene family names are defined in the Carbohydrate-Active Enzymes (CAZy) database [77], except for expansin; ** Descriptions are based on the descriptions of definition lines provided for characterized members of the family, as well as gene annotation records. The proteins identified in the 1-h regenerated protoplasts, the 3-h regenerated protoplasts and suspension cells are represented by + in the 1 h, 3 h and Native columns, respectively.
Proteomes EISSN 2227-7382 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
