Dynamic Dependency between the Shariah and Traditional Stock Markets: Diversification Opportunities during the COVID-19 and Global Financial Crisis (GFC) Periods

Abstract

The aim of the present research is to highlight whether there exist any diversification opportunities from investing in developed and developing countries’ Shariah-compliant and non-Shariah-compliant stock markets during global financial crisis (GFC) and the COVID-19 pandemic periods. For this purpose, we employ daily data for both Shariah and non-Shariah indices from 29 October 2007 to 31 December 2021. The study uses multivariate GARCH-DCC and wavelet approaches to examine if there exist diversification opportunities in the selected markets. Evidence from this study shows that although the developing markets’ stock returns experience high volatility of a similar degree, the conventional indices of Malaysia have the highest volatility among them. This shows that Shariah indices have less exposure to risk and higher possibilities of diversification compared to their conventional counterparts. Regarding developed markets, the Japanese conventional index and the U.S. Shariah indices are more volatile compared to other indices in the market. Moreover, the results of the wavelet power spectrum show significant and higher volatility during the COVID-19 pandemic rather than the GFC. Similarly, the Chinese conventional market experienced minimum variance during the GFC and COVID-19 pandemic period. On the other hand, the results of wavelet-coherence transform indicate that the Japanese Shariah-based market offered better portfolio opportunities for U.S. traders during the GFC and the COVID-19 pandemic periods. Hence, opportunities for investment in this selected market are basically close to zero. Therefore, investors should carefully choose which stocks they can include in their investment portfolio.

1. Introduction

The global financial crisis (GFC) in 2007–2009 and the recent COVID-19 pandemic unprecedentedly affected global financial markets (Borio 2020; Shahzad and Naifar 2022). The nature, consequences, and causes of both crises are different, but the consequences and disturbances of the real economy are prominent in these markets. For instance, many security markets, in both developed and developing economies have faced a sharp decline of at least 30 percent in total assets (IMF 2020). Therefore, an optimum level of co-movement is required for portfolio implications in different asset classes’ dynamics or linkages during crisis periods. In this regard, contemporary empirical research has paid considerable attention to the importance of including new or alternative asset classes in the portfolio, for example, crypto-currencies (Garcia-Jorcano and Benito 2020; Mensi et al. 2020; among others), clean energy indices (Asl et al. 2021; Nguyen et al. 2020; among others), and Islamic indices ( Al-Yahyaee et al. 2020; among others). Interestingly, Islamic products and services have gained popularity from both Muslim and non-Muslim investors due to their unique characteristics. Islamic financial products and services are guided by the principles of Shariah. The Shariah principles condemn any products and services that have elements of Riba (e.g., interest), Gharar (e.g., uncertainty), and Mysir (e.g., gambling or speculation), which are fundamentally prohibited in Islamic finance. Moreover, investment in Islamic financial instruments is less dependent on leverage; rather, it encourages profit and loss-sharing businesses, which have to meet two-stages screening criteria (Hasan et al. 2021). The growth in Islamic finance assets has been remarkable in recent decades (Naz and Gulzar 2022). The Islamic finance industry has shown substantial growth and touched the milestone of an estimated USD 3958 billion in total assets in 2021. Moreover, the growth rate of the Islamic finance industry maintained a double-digit growth rate of approximately 14% that proved resilient during the COVID-19 pandemic in 2020 (IFDI 2022).

Despite this significant growth recorded by the Islamic finance industry, it is not immune to the changing paradigm of financial and economic crises. This motivates us to investigate the dynamic dependency between Shariah and traditional stock indices for portfolio diversification implications in a time-frequency environment. Investors and financial managers usually look to diversify their investments in cross-country economies into different asset classes to save their investments from extreme losses during periods of turmoil. A handful of studies have investigated the time-varying relationship between Shariah and traditional equity markets and arrived at different conclusions (see Ali et al. 2021; Erdoğan et al. 2020; Tuna et al. 2021). The current study is unique from earlier studies because it analyzes the two most important crises that have put stress on the financial market, namely the GFC and the COVID-19 pandemic. To bridge this gap, the current study examines the dependency of the Shariah and traditional equity markets in developed and developing countries by covering the above-mentioned crises by using daily stock price data from 2007 to 2021. Hence, the study employs two techniques, namely (1) multivariate GARCH-DCC and (2) cross-wavelet approaches, which significantly address the research questions due to the dynamic nature of financial data. We therefore discern our study from the existing literature by examining dynamic linkages between cross-country datasets and different asset lines for portfolio diversification (Khan and Jan 2022). The rest of the study is designed as follows. In Section 2, we present theoretical underpinning and empirical related literature on the Shariah and traditional stock markets. We present the empirical methodology in Section 3. In Section 4, we present the results and discussion and finally, we conclude our study in Section 5.

2. Theoretical Underpinning and Related Literature Review

The financial market experiences erratic movement and is hardly predictable. In addition, spontaneous movement may bring a market crash apparently without any vast changes in the essential parameters of an economy. In the international financial literature, the capital asset pricing model (CAPM) is widely used, such as that applied by Sharpe (1964) and Lintner (1965). The main purpose of this theory is to develop a theoretical underpinning between the expected rates of return and systematic risk on asset prices. Furthermore, this theory supports efficient decision making in well-diversified asset lines for better portfolio benefits. However, it provides a comprehensive framework to explain the risk–return trade-off between two investment horizons. The empirical findings suggest that there is a significant and positive relationship between realized return and systematic risk, in line with the linear combination of return and risk. Nevertheless, the CAPM emphasizes market risk (e.g., systematic risk) and the implication of total risk is not in doubt as the return is positively related to both types of risk. Again, an identified drawback is that investors do not embrace the assumptions of the CAPM, even though this does not reduce the importance of the theory. However, analysis of the security market line is also not relevant to the bond analysis, though bonds are included in investors’ portfolios. However, besides some criticisms, the CAPM has become a significant approach for investment-management strategies in the computation of comparative performance and portfolio diversification among the asset classes (Rossi 2016).

The efficient market hypothesis (EMH) theory enunciates that financial markets have informational efficiency, which means that the required information should be accurately assimilated into prices. Moreover, over- or under-reaction may befall, seemingly by noise, traders at any time, who essentially emerge in the market to grant liquidity to rational stakeholders. From experience, pragmatic evidence illustrates that the stock market is not emphatically pronounced by normal random walk theory and normal distribution (Johnson and Soenen 2003; Mantegna 1999; Mantegna and Stanley 1997). Market collapses may occur off and on with zero movement in economic imperatives. Volatility and discrepancies in market price can be triggered by assuming herding behavior, which is directed by the unspecified market system. To explicate the above spectacle and the impasse of the financial market, the FMH as voluminous theoretical and quantitative compensations over the EMH by demonstrating and scrutinizing data. In the FMH, stock markets are delineated as multifaceted vigorous systems that express that the augmentation of mystification could be inevitable (Münnix et al. 2012).

A fractal technique is engaged to evaluate financial time series by employing various intervals of time resolutions. This leads to the heterogeneous market hypothesis, in which several market participants and contributors investigate earlier proceedings and innovative proceedings with different time prospects. Weron and Weron (2000) revealed and introduced a new common technique for the return of assets in the context of the FMH. In modern times, time-series prediction has been a prominent field of research regarding statistics and operational research. Furthermore, the literature on empirical work tries to observe the volatility among Shariah and traditional stock market indices, where different emerging researchers arrive at different conclusions and consequences. Jawadi et al. (2014) used Shariah and traditional stock indices in three leading regions, namely the world, America, and Europe, by employing and approaching several progress ratios and CAPM-GARCH models. Moreover, their study captures pre- and post-recent crisis periods and their findings showed that stock markets’ performance depends on financial risk time-variation and investment horizons. While Islamic stock markets outperformed during the onset of the sub-prime crisis, conventional stock markets performed better during the pre-crisis period. Additionally, their research specified that the influence of the worldwide financial crisis (2007–2009) exposes significant differences between Shariah and traditional stock markets. Another study by Rana and Akhter (2015) found that the performance of Shariah and traditional stock indices from pragmatic evidence of a struggling economy (Pakistan) by applying risk-adjusted methods, e.g., Sharpe ratio, Treynor ratio, MM performance ratio, and GARCH (1,1) analysis, for the period of 2008 to 2013. Empirical evidence shows that the traditional stock index achieves more than the Shariah stock index.

Moreover, Majdoub and Sassi (2017) envisioned volatility spillover between Asian Islamic equity indices and China by employing a bivariate VARMA-BEKK-AGARCH model for the time span of 2011–2016. Considering the conditional volatility of the returns series, they added the effectiveness of portfolio diversification among variables. The evidence shows that there are significant direct and adverse return spillovers from China to selected Asian Shariah stock markets and bidirectional volatility spillovers among China, Korea, and Thailand stock markets. For worldwide portfolio divergence and hedging approaches, they recommended that stockholders in Asia should hold supplementary stocks in the Chinese market in comparison to other stock markets in Asia in order to diminish the hazard without dropping the projected revenues of their portfolios.

El-Alaoui et al. (2018) investigated the leverage consequence of financial shock waves in the framework of a European portfolio by employing mean-variance efficient frontier, the Sharpe ratio, and capital market line inspection. They used 320 firms as an observation by considering 8 European states, e.g., UK, Sweden, Switzerland, Italy, Germany, France, and Austria. Their numeric outcomes revealed that embarking on leverage lessens portfolio incomes, unpredictability, and importance at menace. Additionally, they presumed that optimum portfolio alignment is acquired via a high fraction of minimum debt resources as a consequence of two distinct equity funds, e.g., minimum leverage and maximum leverage portfolios. Using different data from different regions and continents. Dewandaru et al. (2014a), Abbes and Trichilli (2015), and Antar and Alahouel (2019) studied the deviation advantages of capitalizing in different international capital markets. For example, Antar and Alahouel (2019) analyzed the MENA region index with seven other global indices. They found the presence of diversification benefits among the stocks. The authors recommended incorporating the U.S., Canada, and emerging market indices in the MENA index so as to gain the benefit of portfolio diversification. Similarly, Rahim and Masih (2016) employed data from Shariah-compliant stock in Malaysia and compared it with its main trading partners. The authors found no long-term diversification opportunities for Malaysian investors seeking to invest in the selected markets. However, they may gain limited diversification benefits for a very short time period.

Many studies have been made to determine risk and return connections by employing the CAPM strategy (Rahman et al. 2006; Rhaiem et al. 2007; Chang et al. 2011). Compared to the emergence of Islamic stocks, there exists less literature regarding the Islamic market compared to traditional stock. Several studies have explored the progress of Shariah funds and matched their progress with traditional stock. On the other hand, some more scholars have inspected Shariah funds with few Shariah indices as determinants and matched them with non-Shariah funds. Few researchers, e.g., Ismaila and Shakranib (2003) have found the link between return and beta for Shariah component trusts in Malaysia with both provisional CAPM and no provisional CAPM. They established a horizontal, non-provisional, and insignificant liaison between beta and risk premium, whereas with provisional CAMP scrutiny, there is a significant and direct rapport between beta and return. Their consequences also specified that stockholders in Shariah component trusts are risk opposed because of their preparedness to invest in indices with a minimum degree of threat.

Hammoudeh et al. (2014) showed time-varying dependency between Islamic and traditional stock indices, while Saiti et al. (2014) reported evidence that traditional stock markets are mostly affected by the contagious effect rather than the Shariah-based markets during the U.S. sub-prime crisis period in 2007–2009. Al-Yahyaee et al. (2020) supported the evidence that during the crisis and post-crisis periods, the Shariah-based equity markets showed better performance, while the traditional equity markets showed outperformance during the pre-crisis period. In contrast, Shahzad et al. (2017) rejected the decoupling hypothesis between Shariah and traditional stock markets. Similarly, Hasan et al. (2021) pointed out that Shariah and traditional markets are highly associated with risk factors during crisis periods. They suggested that Shariah-based markets fail to provide healthy immunity against economic crises, such as GFC and the COVID-19 pandemic.

The findings of dependency between the Shariah and traditional stock markets are still inconclusive. In a nutshell, the empirical literature has found different results on the relationship between Shariah and traditional stock markets during the 2007/2008 global financial crisis and the recent COVID-19 pandemic. Moreover, previous studies mostly relied on standard time series (Abbes and Trichilli 2015; Saiti et al. 2014), the CAPM (Aarif et al. 2021; Al-Yahyaee et al. 2020; Suryadi et al. 2021), and traditional GARCH model (Ben Rejeb and Arfaoui 2019; Jabeen and Kausar 2022) to investigate the relationship between the Shariah and traditional stock markets. Therefore, to fill the gap, we further investigate the dependency between the Shariah and traditional stock markets in a time-frequency-based dynamic environment.

3. Methodology

3.1. Multivariate GARCH—DCC

The GARCH model has a long and noteworthy history and consists of a big family, including GARCH (1,1), EGARCH, FGARCH, GRACG-BEKK, and others (Dritsaki 2017). Among this big family, the GARCH (1,1) model is a very popular model, which captures the volatility of time-series data. It covers the shortfall of the ARCH model as it captures past information in the time-varying conditional-variance model. However, they are not free from limitations. For example, it cannot capture the asymmetric and dynamic relationship among the variables that arise from the bad or good news from the markets. MGARCH is a developed version of the GARCH model introduced by Bollerslev (1990) that can cover the conditional correlation among the variables. This new model, MGARCH, keeps the correlation among the variables fixed but allows the correlation coefficient to vary over time. However, this mode makes certain estimation assumptions too simple without considering the complexity of reality (Longin and Solnik 2001). Hence, the MGARCH-DCC model was proposed by Engle, which takes care of the dynamic nature of time-series data.

The model is written as follows:

$$r_t={\beta }_{0 }+{\displaystyle \sum }_{ki=1}^k{\beta }_{i }{r}_{t-1 }+u_{t }={\mu }_{t }-u_t$$

$${\mu }_t=E [ r_{t }|\Omega r_{t-1 }]$$

$${\mu }_{t } | {\Omega }_{t-1 }~ N \left(0, H_{t }\right)$$

$$H_{t }=G_t{R}_t{G}_t$$

$$G_{t } diag \left\{ \sqrt{h_{ii,t} }\right\}$$

$$Z_t=G_{t }^{-1} u_t$$

Source: Ku (2008).

Where $h_{ii,t}$ represents the estimated univariate GARCH models of conditional variance, $G_t$ represents the diagonal matric of conditional standard deviations, the time-varying conditional correlation coefficient matrix of returns is represented by $R_t$, while $Z_t$ is a vector for standardized residuals with zero mean and variance of one. Therefore, the DCC model of dynamic correlation coefficient matrix can be written as follows:

$$R_t={(diag \left(Q_{t }\right))}^{-\frac{1}{2}}{Q}_{t }{(diag \left(Q_t\right))}^{-\frac{1}{2}}$$

$$Q_t=\left(q_{ij,t}\right)$$

$${\begin{array}{c}diag\left(Q_t\right){)}^{-\frac{1}{2}}=diag \left(\frac{1}{\sqrt{q11,t_{ }}},\dots .., \frac{1}{\sqrt{qnn,t } }\right)\\ \end{array}}_{ }^{ }$$

$$q_{ij,t}={\rho }_{ij}+\alpha (z_{i,t-1}{z}_{j,t-1}-{\rho }_{ij})$$

$$+\beta \left( q_{ij, t-1 }-{\rho }_{ij }\right)$$

where ${\rho }_{ij}$ represents the unconditional correlation coefficient, while ${\rho }_{i,j,t}\sqrt{q11,t_{}}$ is the time varying conditional correlation. In order to take care of the leptokurtic nature of the time series data, t distribution is introduced in to the model to solve the problem. Therefore, ${\mu }_t|{\Omega }_{t-1}~N(0,H_t)$ is replaced by ${\mu }_t|{\Omega }_{t-1}~f_{student-1}(u_t:v)$, where v represents the degree of freedom.

3.2. Wavelet Approach

We use the wavelet power spectrum (WPS) technique to measure the single-assets market variations. The WPS technique is very popular and widely applicable to illustrate the local variations between two series in time-frequency spaces. We can define the WPS as:

$$WP{S}_{x\left(\tau ,s\right)={\left[W_{x\left(\tau , s\right)}\right]}^2}$$

Here, the WPS is the wavelet power spectrum for the wavelet transform W_X(τ,s).

$$W_{X(\tau ,s)}={{\displaystyle \int }}_{-\infty }^{+\infty }x\left(t\right)\psi \left(\frac{\mathrm{t}-\mathsf{\tau }}{s}\right)dt,\mathsf{\tau },\mathrm{s}\mathsf{ϵ}\mathrm{R},\mathrm{S}/=0$$

Here, $\psi$ denotes the mother wavelet; τ and s represent the translation parameter and scaling; and the asterisk represents complex conjugation (Karamti and Belhassine 2022).

$$WSC={\mathrm{R}}^2{}_{xy\left(\tau ,s\right)}=\frac{|\mathcal{S}(s^{-1}{\mathcal{W}}^{𝓍/𝓎}𝓃\left(s\right){|}^2}{\mathcal{S}(s^{-1}\left|\mathcal{W}{𝓃}^{𝓍}\left(s\right)\right|·\mathcal{S}(s^{-1}|\mathcal{W}𝓃{\left(s\right)}^{𝓎}{|}^2}$$

Here, R² presents the wavelets coherence, and S contains the smoothing operator.

3.3. Data

This study employs daily data for stock prices of Shariah equity indices and traditional equity indices from three developed (U.S., UK, and Japan) and three developing countries (Malaysia, Indonesia, and China). This sample spans from 29 October 2007 to 31 December 2021. All data were obtained from DataStream. In order to provide a matched-pair comparison, the research limited the duration of the study to a similar duration for both traditional and Islamic indices. The Dow Jones Shariah index and the traditional index are used to represent the U.S., while in the United Kingdom, the Dow Jones Shariah Index and the FTSE100 Composite Index are used for both Shariah and traditional indices. In Japan, the FTSE Shariah index and the Tokyo price index are used. In developing countries, the FTSE Bursa Malaysia Hijarah Shariah index and the FTSE Bursa Malaysia KLCI Composite Index are used as a proxy for the Malaysian indices, while the Jakarta Islamic Index and the Indonesia Composite Index are used from Indonesia. Finally, the FTSE Shariah Index and Shanghai Composite Index are used as proxies for China (see

Table 1. List of variables.

Country of Origin	Shariah-Compliant Stock Indices	Ticker	Non-Shariah-Compliant Stock Indices	Ticker
Developed countries
U.S.	Dow Jones Islamic Index	USDI	Dow Jones Composite Index	USDC
UK	Dow Jones Islamic Index	UKDI	FTSE100 Composite Index	UKFC
Japan	Japan FTSE Shariah index	JPNI	Tokyo Price Index (TOPIX), Japan	TOPX
Developing countries
Malaysia	FTSE Bursa Malaysia Hijarah Shariah index	BMHS	FTSE Bursa Malaysia KLCI Composite Index	MKLC
Indonesia	Jakarta Islamic Index	JAKI	Indonesia Composite Index	INDX
China	FTSE Shariah Index, China	FTCI	Shanghai Composite Index	SCHN

Note: Authors’ own calculation.

).

Stock outcomes were considered by taking the differences of the logarithmic of the daily closing prices of the indices. However, the daily return is measured as follows:

R_t = ln(P_t/(P_t − 1) × 100, where R_t unveils the daily return and P_t and (P_t − 1) denote the present and previous day’s prices, respectively.

The time-series plots of each index are transformed into log form and are presented in Figure 1, which shows that all the returns are non-stationary. Furthermore, the index shows heightened volatility during the 2007–2008 financial crisis, as evidenced by spikes recorded during that period.

4. Statistical Findings and Discussion

4.1. Descriptive Statistics

Table 2. Summary of statistical properties.

	Islamic Stock Markets					Conventional Stock Markets
	Mean	SD	Skew	Kurt	JB	Mean	SD	Skew	Kurt	JB
Developed countries
U.S.	0.0163	0.5485	−0.4383	16.3059	27,198.4900	0.0100	0.5433	−0.4776	18.1393	35,197.1500
UK	0.0100	0.6867	5.2541	157.5857	3,672,098.0000	0.0011	0.5197	−0.3857	13.2120	16,042.2200
Japan	0.0032	0.6006	−0.3215	11.4497	10,979.3600	0.0024	0.5935	−0.3638	10.7932	9370.7250
Developing countries
Malaysia	0.0021	0.3457	−0.8410	18.2865	36,175.6100	0.0014	0.3167	−0.8869	18.3184	36,373.2500
Indonesia	0.0023	0.6511	−0.4067	10.7598	9311.5310	0.0110	0.5407	−0.5540	12.6270	14,363.500
China	−0.0027	0.8745	−0.3190	84.9092	1,026,277.0000	0.0078	0.5943	−0.7787	8.4811	4966.2480

presents the results of the descriptive statistics for the return series. Four of the series have direct positive returns, while two have negative average returns. The highest and lowest mean returns for developed markets are found in the U.S. index, with a value of 0.0163, and the Japan index for both the Shariah and traditional stock index; meanwhile, for developing markets, China has the lowest return (0.0027). The highest standard deviation (0.6867) is from the UK Shariah index, while the lowest is from Malaysia at 0.3167. The results of Table 2 indicate that the distribution of all indices is negatively skewed except the UK Shariah index, which expresses that stock price distributions are not symmetric, thus leading to relatively higher volatility and risk. Shariah and traditional stock market indices are leptokurtic (peaked) of the price distribution. In both situations, prices are not normally distributed and consequently, there exists price variability.

4.2. MGARCH-DCC

Table 3. Student’s t-distribution for developed Islamic and conventional markets.

Parameter	Country	Estimate	T-Ratio
Lambda 1 (λ1)	U.S. Islamic	0.87923	70.5778
	UK Islamic	0.93639	115.1142
	Japan Islamic	0.91181	97.7216
	U.S. Conventional	0.88181	71.3517
	UK Conventional	0.92103	101.7882
	Japan Conventional	0.91133	87.5851
Lambda 2 (λ2)	U.S. Islamic	0.10869	10.1986
	UK Islamic	0.053841	8.2698
	Japan Islamic	0.075973	10.2299
	U.S. Conventional	0.10794	10.0019
	UK Conventional	0.066979	9.2411
	Japan Conventional	0.075578	9.2759
Delta 1 (δ1)		0.91279	120.7646
Delta 2 (δ2)		0.033373	14.3188
Degree of Freedom (df)		6.6533	21.6897
Maximum Log Likelihood		63,057.5

Note: Authors’ own calculation.

and

Table 4. Student’s t-distribution for developing Islamic and conventional countries.

Parameter	Countries	Estimates	T-Ratio
lambda 1 (λ 1)	China Islamic	0.89505	72.8431
	Indonesia Islamic	0.89085	59.8594
	Malaysia Islamic	0.91045	79.0092
	China Conventional	0.93739	112.3559
	Indonesia Conventional	0.88501	54.5649
	Malaysia Conventional	0.89438	57.0745
Lambda 2 (λ 2)	China Islamic	0.09694	8.8604
	Indonesia Islamic	0.08325	8.0656
	Malaysia Islamic	0.07655	8.2102
	China Conventional	0.05757	7.856
	Indonesia Conventional	0.09229	7.6813
	Malaysia Conventional	0.08674	7.2524
Delta 1 (δ1)		0.92211	98.38
Delta 2 (δ2)		0.02334	11.7945
Degree of Freedom (df)		6.1721	22.0576
Maximum Log Likelihood		60086.8

Note: Authors’ Own Calculations.

show the results obtained from Student’s t-distribution test. It depicts the maximum-likelihood estimates for both Shariah and traditional stock returns in developed and developing states. The maximum likelihood obtained is 63,057.5, which is within the acceptable region. In addition, the level of freedom for the t-distribution is 6.653, which is less than the 30-point mark. This makes it a suitable model for capturing and indicating the fat-tailed nature of the normal distribution of stock returns (Najeeb et al. 2015).

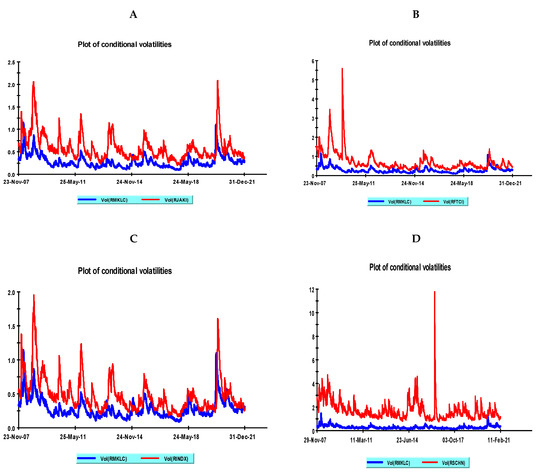

Figure 2 shows the conditional volatility between Shariah and traditional stock returns for developing markets represented in four regions (A–D). In Figure 2 of region A, which plots RMKLC and RJAKI, the results show that both markets moved in the same direction during both crises (GFC and COVID-19 pandemic). The former experienced sharper spikes during the crisis period compared to the latter. This makes it more volatile and riskier compared to the latter. This is because the RMKCL market has more international exposure compared to RJAKI. Shock emanating from international markets affected it more than it did RJAKI. This result is consistent with the findings in the literature which show that Shariah-compliant stocks fared better compared to their conventional counterpart during the crisis (Mirza et al. 2022; Dewandaru et al. 2014b; Jawadi et al. 2014). In both markets, volatility tends to decrease after a crisis has subsided, an indication that investors have started feeling confident about the markets. Region B plots RMKLC and FTCI, which are also similar to the plots in region A. The only difference is that the latter has less volatility in relation to the former. Although COVID-19 originated in China, the Chinese Shariah index did not exhibit much volatility compared to other Shariah markets in the region. Both markets witnessed spiked volatility during the crisis; however, they exhibited stable volatility after the crisis subsided. Region C shows the results of MKLC and of INDX. Both markets moved in a similar fashion during both crises. The Malaysian conventional index had the highest volatility among all the indices analyzed during the crises, making it have less of a diversification opportunity for investors desiring to invest in the market. Finally, region D shows the volatility between Malaysia and China’s conventional indices, where the former exhibited higher volatility than the former. In fact, the volatility in the former was stable and lesser. This makes it preferable to investors seeking diversification opportunities. Figure 3 compares the conditional correlations between Shariah-compliant and traditional stock returns for developing markets. Region A shows the plots of Malaysia’s and Indonesia’s Shariah indices. Region B shows the plots for the Malaysia and China Shariah index, and region C shows the plots for the Jakarta Shariah and Malaysia conventional indices. The indices of Figure 2 show that both indices move in a similar fashion. The figure also suggests that in both markets, the correlations among them decline and reach −0.18 for all in the first two regions. In region C, the plots show that Malaysia’s and Indonesia’s conventional indices have the most intense correlation, reaching almost −0.2. Interestingly, region D exhibits a negative conditional correlation, especially from the start of the GFC up to year 2008, peaking at −0.068 in mid-2008 and later recording a slight positive correlation from 2009 to 2016.

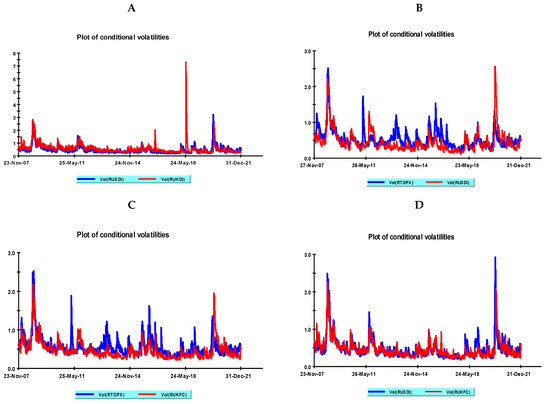

Figure 4 shows the conditional volatility between Shariah and traditional stock returns for developed markets. Region A shows both conditional correlations for Shariah index for the U.S. and UK. The UK index exhibits the highest volatility compared to that of the U.S., even before the outbreak of the pandemic. Although the GFC period also shows a rise in volatility among both indices, they moved in a similar fashion prior to and during the pandemic period. Region B shows the plots of Japan’s non-Shariah index and the U.S.’s Shariah index. Both indices experienced spikes in returns of a similar magnitude during the GFC, while the U.S. Shariah index experienced higher volatility than the Japan indices. However, as the crisis subsided after the pandemic, the volatility of the U.S. index became less intense compared to that of Japan. Region C plots the results of the UK and Japan conventional indices. During the GFC, both indices witnessed increased volatility of a similar power, with the Japan index moving a bit higher than the UK index. Interestingly, in mid-2011, the role was reversed, and Japanese index exhibited a high spark, an indication of the onset of the tsunami earthquake. This makes the UK index far better than the Japanese index. However, as the pandemic struck, the volatility of the UK index surpassed that of the Japanese index. Region D plots the U.S. Shariah and the UK conventional indices. In both crisis periods, the indices experienced high volatility, with the U.S. Shariah index experiencing the highest volatility compared to the UK conventional index. The volatility of the U.S. Shariah index reached almost 3.0 in comparison to 2.2 for the UK index.

Figure 5 shows a conditional correlation between the Shariah and traditional stock returns for developed markets. Region A through to region D of Figure 5 represents markets for the Japan, U.S., and UK Shariah and non-compliant stock returns, respectively. Both plots show a negative correlation among them, with the B and D region having higher correlations of about −0.02 and −0.01, respectively. On the contrary, region A and region C of the same figure depict a lower conditional correlation of around −0.2, an indication of more diversification opportunities among these markets compared to the earlier mentioned regions. This suggests that better possibilities of diversification are more present in the Japan and UK conventional markets and the U.S. Shariah market. The lower correlation between the U.S. and Japanese stock markets indicates that both markets have shown performances that are from each other. Market heterogeneity offers better diversification benefits. Moreover, capital flow from different regions might offer better opportunities than the same region. This is because of similar paths of risk–return profiles (Donadelli and Paradiso 2014; Hasan et al. 2021).

Figure 6 presents the local variance intensity of a single asset for the developed markets using color-coded images for a particular period. The horizontal axis depicts the time scale, while the vertical axis exhibits the frequency scale. The upper bound (e.g., 2–4 days) of the images indicates the higher scale and the lower bound (e.g., 64–1024 days) expresses the lower frequency. The color code from blue to red indicates low to high intensity. The white thick contour confirms the 5% significant level. The empirical evidence exhibits significant and higher volatility during the COVID-19 pandemic rather than the GFC.

Figure 7 exhibits the local variance intensity of a single asset for developing economies using color-coded images for a particular period. The results show that the Chinses and Malaysian Shariah-based markets experienced less volatility during the COVID-19 pandemic period.

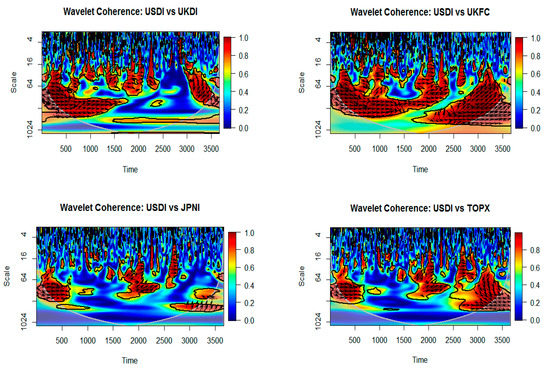

Figure 8 presents the wavelet-coherence results between the Shariah and traditional stock markets for the developed countries. The red regions show a higher correlation, and the blue zones indicate weaker integration between the two markets. The results indicate that the Japanese Shariah-based market offered better portfolio opportunities for U.S. traders during the GFC and the COVID-19 pandemic period, which is in line with the results of the MGARCH-DCC method. The black arrow indicates the lead–lag relationship between the two series. The right-pointing-upwards arrow (⬈) and left-pointing-downwards arrow (⬋) indicate that the first variable is in the leading positions (e.g., U.S. Shariah index leading on the UK and Japanese Shariah and traditional stock indices), while the left-pointing-upwards arrow (⬉) and the right-pointing-downwards arrow (⬊) indicate that the second variable or series is in the leading position (Shaik et al. 2023).

Figure 9 exhibits the wavelet-coherence results between the Shariah and traditional stock markets for developing countries. The results indicate that the Chinese Shariah and traditional markets offered better portfolio opportunities for U.S. traders during the GFC and the COVID-19 pandemic period, which is in line with the results of the MGARCH-DCC method. However, developing countries, such as Malaysia and Indonesia, offer more diversification opportunities overall for investments to U.S. investors. This might be due to the fact they have multiple Islamic asset classes that can meet the demand of different investors’ tastes. The availability of these investable assets makes these markets more competitive and attracts investors from around the globe, thereby increasing the depth and breadth of the market. This also increases the liquidity of the market. As such, investors who are intending to invest in the U.S. have a good chance of benefiting from capital gains when investing in these markets. Overall, this study provides significant insights for policymakers, financial portfolio managers, and investors when making investment decision strategies during crisis periods, such as the GFC and the COVID-19 pandemic. Particularly, as crises are hard to predict, policymakers are advised to be more proactive in taking corrective measures against crises. During the recent COVID-19 pandemic, policymakers could take protective measures in order to contain the crisis. Measure such as extending lockdown, increasing access to health care, providing affordable or free medical care to the old and less privileged, and providing cash handouts or free foodstuffs, especially to those in remote areas, can go a long way in limiting the severity of the crisis. On the monetary policy front, policymakers can liberalize monetary policy by making more funds available to the business sector to boost market trends and maintain investors’ confidence to avoid panic selling of assets in the financial market, which will have a negative impact on the economy as a whole.

5. Conclusions

This study examines the relationship between developing countries’ (Malaysia, Indonesia, and China) and developed countries’ (U.S., UK, and Japan) Shariah and traditional stock market returns. It used daily data for both Shariah-compliant and non-Shariah-compliant stocks index returns from 29 October 2007 to 31 December 2021. The study used multivariate GARCH-DCC, the wavelet power spectrum, and coherence transform techniques to study the extent to which these markets move together. From the volatility findings obtained from MGARCH-DCC, it is shown that although the developing markets’ stock returns experienced high volatility of a similar degree, the conventional indices of Malaysia had the highest volatility among them. This shows that Shariah indices have lesser exposure to risk and higher possibilities of diversification compared to their conventional counterpart. Furthermore, the MGARCH-DCC conditional correlation results show that minimal diversification opportunities exist for investors in the conventional Malaysia and Indonesia markets. The conditional volatility findings for developed Shariah markets show that the Japanese conventional index and the Shariah indices are more volatile compared to other indices in the market. Regarding the conditional correlation of the developed markets, Japan’s conventional index, the UK’s conventional index, and the U.S.’s Shariah indices offer better possibilities for investments as evidenced by their low correlations. Moreover, the results of the wavelet power spectrum show that volatility was higher during the COVID-19 pandemic than during the GFC. However, the Chinese and Malaysian Shariah-based markets experienced lesser volatility during the COVID-19 pandemic period. On the other hand, the wavelet-coherence transform results indicate that the Japanese Shariah-based market offered better portfolio opportunities for U.S. traders during the GFC and the COVID-19 pandemic period, which is in line with the results of the MGARCH-DCC method. However, in the context of developing countries, Chinese Shariah and traditional markets offer better portfolio opportunities for U.S.-based investors during crisis periods. The results obtained from the present research have implications for multiple stakeholders who desire to invest in the selected markets and policymakers alike. For the former, investing in any of these markets yields little diversification opportunities for them. Therefore, it is worthwhile for them to scrutinize these markets when making investment decisions. Including them solely in their portfolio will not yield much return except for the U.S. and Japanese markets, which offer minimal diversification opportunities for them. Therefore, policymakers need to formulate strategies that will increase the possibilities for investors to gain from investing outside the shores of their countries. Future research can add more indices from different asset classes, such as oil, gold, Sukuk, and bonds. Furthermore, researchers may investigate connectedness and volatility spillover using more advanced econometric methods.
