Abstract
Road quality plays an important role, especially in rural areas where most poor households are situated. This study aims to calculate the Rural Access Index (RAI), an indicator of rural road quality (SDG indicator 9.1.1), at the district level, to evaluate the implementation of the Nawacita programme in Indonesia from 2014–2020. The RAI describes the proportion of rural residents who live within 2 km of an all-season road. This study recommends the utilisation of road network maps, urban–rural boundary maps, three road network condition datasets, and WorldPop data to calculate the RAI. The results show that during this period, the RAI increased and its inequality decreased, specifically in the regions of priority for this programme (Papua and West Papua). The results also capture a strong pattern of regional convergence. To ensure the future success of this implementation, the government can create regulations to designate several road infrastructure projects as a national strategy, as well as increase tax collection and private sector investment as sources of road infrastructure development funding.
1. Introduction
Limited road connectivity can result in high transportation costs and long travel times, which may impact sectoral productivity (Bell and van Dillen 2014; Haughton and Khandker 2009), employment (Mu and Van de Walle 2011) and poverty (Dercon et al. 2012; Khandker and Koolwal 2011). A lack of access to the outside market, for instance, makes it difficult for people to find new jobs and discourages investment, especially in rural areas where most poor households are situated.
Roberts et al. (2006) estimated that 68.3 per cent of rural residents lack access to the global road network. Almost a billion people reside in rural areas without access to paved national roads (Asher and Novosad 2020). As shown in Table 1, in 2011, 43.27 per cent of Indonesia’s rural areas did not have access to paved road networks. Rural road construction was also unequal. In eastern Indonesia, 77 per cent of rural areas lacked access to paved roads connecting villages. Similarly, 62.16 per cent of Borneo Island’s rural areas lacked access to paved roads connecting villages. Other islands had paved roads connecting villages in less than 46 per cent of rural areas.
Table 1.
The percentage of Indonesian rural areas by inter-village road condition and regional group.
The government has been implementing the Nawacita programme by reducing fuel subsidies since 2014 to boost infrastructure development (Salim and Negara 2018). This policy prioritises accelerating connectivity between peripheries and growth centres so that inter-regional inequality can be reduced, particularly in rural areas and eastern Indonesia (Bappenas 2014). State spending on infrastructure has increased significantly, from 8 per cent of the total state budget in 2014 to 19 per cent of the total state budget in 2017. Moreover, the President of Indonesia has created the Committee for the Acceleration of Priority Infrastructure Delivery (KPPIP), a special task force with the responsibility of coordinating policies among various stakeholders and unblocking stalled national strategic projects and priority projects (Salim and Negara 2018). In the 2015–2019 National Medium-Term Development Plan, the government committed to building 2600 km of roads. To balance the geographic concentration of investment, at least half of the government expenditure went to areas outside the capital region (Bappenas 2014), such as outside Java.
After the Nawacita programme’s implementation, access to paved inter-village roads in rural areas grew significantly. The percentage of Indonesia’s rural areas that did not have access to paved road networks fell to 43.27, but road inequity persisted. Eastern Indonesia has lagged behind western Indonesia in terms of rural road infrastructure development. Unfortunately, information about Indonesian rural roads’ connectivity and inequality to support this opinion, other than the data in Table 1, is currently unavailable.
Few regional indicators measure rural road connectivity correctly. Conventional measurements are total road length and the proportion of paved roads (Iimi et al. 2016), which are not good predictors for rural roads (World Bank 2016). These indicators barely change over time, although the government has spent a lot of money upgrading the road network (Iimi et al. 2016). The quality of roads is often unknown and a matter of concern in developing countries (World Bank 2016). In Indonesia, besides total road length and the proportion of paved roads, the government uses steady-road condition data to indicate road connectivity. These data are only available for the national road network by province, without rural–urban separation. They are calculated from the International Roughness Index (IRI) and used as an indicator of sustainable development goals (SDGs), namely 9.1.1 (Bappenas 2017, 2020), even though the United Nations (UN) recommendation uses the Rural Access Index (RAI).
The objectives of this study were to calculate the RAI and its regional inequality. The RAI was used as an indicator of rural road connectivity in Indonesia. It shows the proportion of rural residents who live within 2 km, usually equal to a walk of 20–25 min, of an all-season road. The term “all-season road” refers to a road that is drivable all year round by the prevailing rural transport mode (Iimi et al. 2016; Roberts et al. 2006; Workman et al. 2019; World Bank 2016). The RAI is a new rural road connectivity measurement method based on Geographic Information Systems (GIS) data. This method resolves the limitations of conventional measurements. Iimi et al. (2016) and Mikou et al. (2019) calculated the RAI by utilising rural population distribution data from WorldPop or LandScan and road network data from the government or OpenStreetMap (OSM).
The best policies for rural road access improvement require estimates for local regions, such as at the district level. This is the first study conducted in Indonesia to provide such estimates. Because the Nawacita policy places a high priority on reducing inequality in certain areas (e.g., eastern Indonesia), this study also provides rural road connectivity inequality by regional group. Indonesia is divided into seven regional groups, each with multiple provinces. Each province has a number of districts, and each district consists of several subdistricts, which include rural and urban areas. National roads are under the authority of the central government and connect the capitals of the provinces. The provincial government has the jurisdiction to construct provincial roads connecting provincial capitals to district capitals. Finally, the district government is responsible for managing local roads. Because of data limitations, this study used only national and provincial roads to calculate the RAI.
This study aims to identify districts with poor rural road quality and regional groups with high rural road inequality. With these data, the government can evaluate the effects of the Nawacita programme and determine priority regions for rural road construction.
2. Methodology
The first step was to calculate the RAI at the district level. The RAI needs several datasets: population distribution maps, urban–rural classification data, village maps, road maps, and road network condition data. Step-by-step procedures for calculating the RAI are shown in Figure 1.

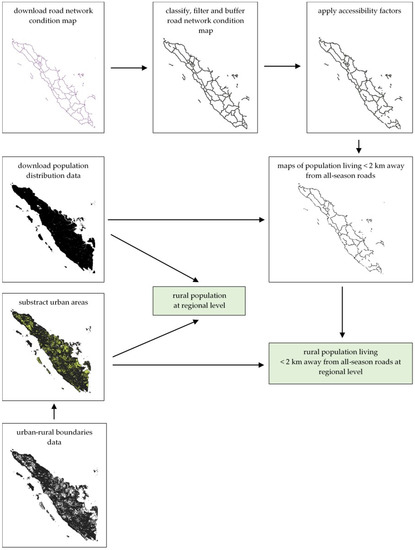

Figure 1.
Overview of step-by-step procedures for calculating the RAI.
We used population distribution maps from WorldPop, which is the most robust dataset available, according to Mikou et al. (2019) and World Bank (2016). WorldPop uses the latest national census data and other data from countries to produce 100 m × 100 m of population distribution data. It can be downloaded freely and used in QGIS software (Workman et al. 2019). This study also conducted a robustness check by using 1 km × 1 km of population distribution data from LandScan.
We applied the urban–rural classification data from the Regulation of the Head of BPS-Statistics Indonesia Number 37 Year 2010. Then, we combined the village map with the urban–rural classification data. From this combination, we chose only rural areas to create the rural map. The intersection of the population distribution data and the rural map results in the total rural population.
This study utilised a road map from the Directorate General of Highways. Although Iimi et al. (2016), Li et al. (2022), Mikou et al. (2019) and Workman et al. (2019) recommend using OSM data, this study did not utilise it because Indonesian OSM data from 2014 to 2020 were inconsistent. This inconsistency is shown in Figure A1. We then buffered the road map with a 2-km radius.
All-season road identification uses data from the Directorate General of Highways and refers to paved roads with an IRI of less than 6 m per kilometre, unpaved roads with an IRI of less than 13 m per kilometre, paved roads in excellent, good, or fair condition, and unpaved roads in excellent or good condition (Workman et al. 2019). We also used Podes survey data from BPS-Statistics Indonesia for all-season road identification, specifically the existence of inter-village roads that can be traversed by motorised vehicles with four or more wheels throughout the year. This study applied all methods to specify all-season national roads in 2018. The results show that when data on the surface type and roughness of regional roads are not available, we can use the last method as a substitute to identify all-season roads in Indonesia.
The intersection between the road map with a 2-km radius and all-season road data produced the all-season road map. In the next step, we overlaid this map with a population layer, removed urban areas, and counted the population in the buffer (World Bank 2016). This resulted in the total rural population living within 2 km of all-season roads. Finally, the ratio between the total rural population living within 2 km of all-season roads and the total rural population resulted in the RAI.
The next step was to examine the impact of the Nawacita programme, which is part of the second objective. This study employed the variance coefficient (Equation (1)), the Gini coefficient (Equation (2)), the Lorenz curve, and the Theil index (Equation (3)) to measure rural road inequality. These methods are frequently used to quantify inequity in the transportation sector (e.g., Jang et al. 2017; Mestre 2021; Simon and Natarajan 2017; Zimm 2019). By analysing the inequality values of these different approaches, we can understand how well Indonesia’s rural roads are being constructed. In addition, this study also used the decomposition of the inequality indicator (Equation (4)) and convergence analysis (Equations (5) and (6)) to evaluate the implementation of the Nawacita programme.
are the mean, standard deviation, coefficient of variance, Gini coefficient and Theil index year t, respectively. is the cumulative proportion of the population variable in the smaller region i = 1, …, n year t with and . is the cumulative proportion of the RAI variable in the smaller region i = 1, …, n year t with and . should be indexed in non-decreasing order () and is generated by arranging regions in ascending order based on the RAI values. A lower variation coefficient value indicates a more equitable distribution.
The Gini coefficient is a simple mathematical metric representing the overall degree of inequality, whereas the Lorenz curve is a visual representation of equality. The Gini coefficient is usually calculated from the Lorenz curve. The Gini coefficient is the ratio of the segment between the 45° line of equality and the Lorenz curve over the entire segment under the 45° line. It has a value from 0 to 1, where 0 stands for perfect equality and 1 denotes perfect inequality. The higher the Gini coefficient, the further away the Lorenz curve is from the 45° line. The Lorenz curve is a valuable and essential visualisation tool because different Lorenz curves can have the same Gini coefficient (Zimm 2019). A Gini value of less than 0.20 stands for low inequality, a value from 0.20 to 0.50 shows medium inequality, and a value above 0.50 indicates high inequality.
The Theil index is part of a larger family of measures referred to as the general entropy class. If the Gini coefficient computes the deviation, the Theil index describes the entropic distance between a situation and the ideal egalitarian situation (Mestre 2021). Like the Gini coefficient, the Theil index also ranges from 0 to 1, where 0 stands for perfect equality and 1 denotes perfect inequality.
The decomposition of the inequality indicator assesses the contribution of within-inequality, between-inequality, and a residual term to total inequality (Bellu and Liberati 2006), as shown in Equation (4). Within-inequality captures disparity due to the variability of the RAI within each regional group. Between-inequality shows disparity due to the variability of the RAI across different regional groups. The coefficient of variance and the Gini index are not perfectly decomposable (Bellu and Liberati 2006; Cowell 2011), hence only the Theil index was decomposed. Let us assume that there are m regional groups. The Theil index can be decomposed as follows:
is the number of smaller regions in the regional group k. is the Theil index of regional group k in year t. is calculated by replacing each actual RAI of the regional group with the corresponding means, then computing the Theil index of this fictitious RAI distribution (Bellu and Liberati 2006).
We also checked whether the convergence of the RAI occurred. Convergence measurements can use convergence (Equation (5)) and convergence (Equation (6)). Because convergence cannot indicate the significance of convergence itself, this study also used convergence. convergence refers to the decline in the cross-sectional dispersion (disparity) of a rural road access indicator across regions, that is, whether .
The concepts of and convergences are related. Intuitively, we can see that if the RAI levels of 2 regions become more similar over time, it must be the case that the poor region is growing faster. As an illustration, the RAI in region A starts out being higher than the RAI in region B. There is an initial distance or dispersion between the 2 levels of the RAI. If the growth rate of the RAI in region A is smaller than the growth rate of the RAI in region B between times t and t + T, we say that there is convergence. Because dispersion at t + T is smaller than at time t, we also say that there is convergence. In other words, convergence is a necessary condition for convergence (Sala-i-Martin 1996).
Suppose that convergence holds for a group of regions , where , the RAI in region at time , corresponding perhaps to annual data, can be approximated by:
where is an intercept and is a disturbance term. The annual growth rate of RAI between t and t + T is inversely related to ln RAI at time t . The negative sign of the coefficient on ln RAI exhibits convergence (Sala-i-Martin 1996). On the contrary, the positive sign of this coefficient indicates divergence. Equation (6) assumes that all regions are structurally similar. They have the same steady state and differ only in terms of their initial conditions. It depicts unconditional convergence (Tselios 2009).
3. Results and Discussion
3.1. Best Approach for Calculating the RAI
We calculated the RAI for a selection of districts in 2018 using various population distribution data, such as WorldPop and LandScan population distribution data. Because of the absence of regional road quality data, this study utilised the national road network map from the Directorate General of Highways and the accessibility data from the Directorate General of Highways and BPS-Statistics Indonesia. The results, displayed in Table 2, show similar values. The Indonesian RAI ranged from 18.94 per cent to 25 per cent. According to WorldPop data, the proportion of the Indonesian rural population in 2018 was 60.61 per cent. In the same year, LandScan data showed that the percentage of the Indonesian rural population was 64.75 per cent. The RAI using LandScan is higher than the RAI using WorldPop data, whichever RAI methods are used, because the WorldPop dataset has the lowest concentration of population in rural areas. This result is in line with Mikou et al. (2019). In general, with the same method, RAIs using different population distribution datasets have the same pattern, as shown in Figure A2 and Figure A3. Table 2 also displays the Pearson correlations of the RAI between different population distribution datasets for each method over 0.8.
Table 2.
2018 Indonesian RAI by road network condition data and population distribution data.
WorldPop data were chosen for the population layer because the computational process underlying the WorldPop data is fully transparent (Stevens et al. 2015), and the model is considered to be the most accurate and robust among the currently available datasets (World Bank 2016). From three methods using WorldPop data, the descriptive statistics of RAI at the district level were similar. The RAI using IRI, road condition, and Podes data had means of 23.41 per cent, 25.21 per cent, and 25.71 per cent, respectively. These data are also in line with the scatter plots in Figure 2. The Pearson correlation between RAI using Podes data and RAI using IRI data was 0.9475. Furthermore, the correlation between RAI using Podes data and RAI using road condition data was also positive, with a Pearson correlation coefficient value of 0.9833. A one-way analysis of variance (ANOVA) was also used to assess whether there were differences between the three methods. The results concluded that there were no differences between the group means (F (2,1322) = 2.01, p = 0.135)1.

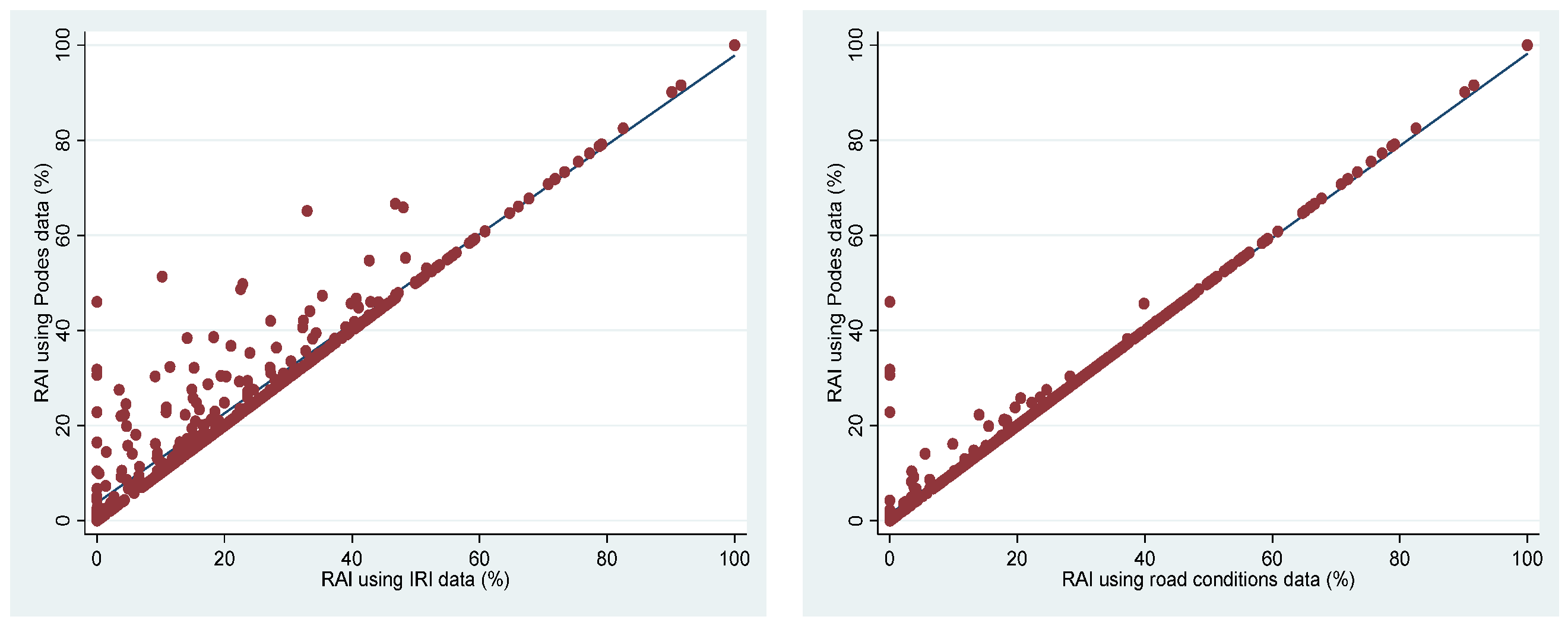

Figure 2.
Scatter plots between RAI using Podes-WorldPop data and RAI using other methods-WorldPop data in 2018. Source: Author’s calculation.
Provincial road quality data from the Directorate General of Highways was unavailable. Based on previous results, this study used population distribution maps from WorldPop, the national and provincial road maps from the Directorate General of Highways, and road network condition data from BPS-Statistics Indonesia to calculate the RAI in 2014, 2018, 2019, and 2020. Table A1 shows the results.
3.2. Road Infrastructure Access across Districts in Rural Indonesia

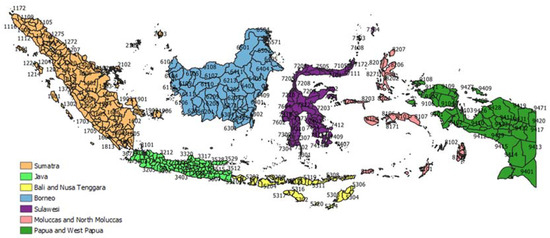

For analysis, this study divided Indonesia into seven regional groups2. Figure A4 shows the district locations in each regional group. The results in Figure 3 show that in 2020, rural residents in 3.31 per cent of districts did not live within a two-kilometre radius of all-season national and provincial roads. This data was lower than the 8.56 per cent recorded in 2014. The RAI median also increased from 29.43 per cent in 2014 to 33.68 per cent in 2020. The paired t-test results reached the same conclusion. The 2020 RAI was significantly higher than the 2014 RAI, with a p-value of less than 0.001.

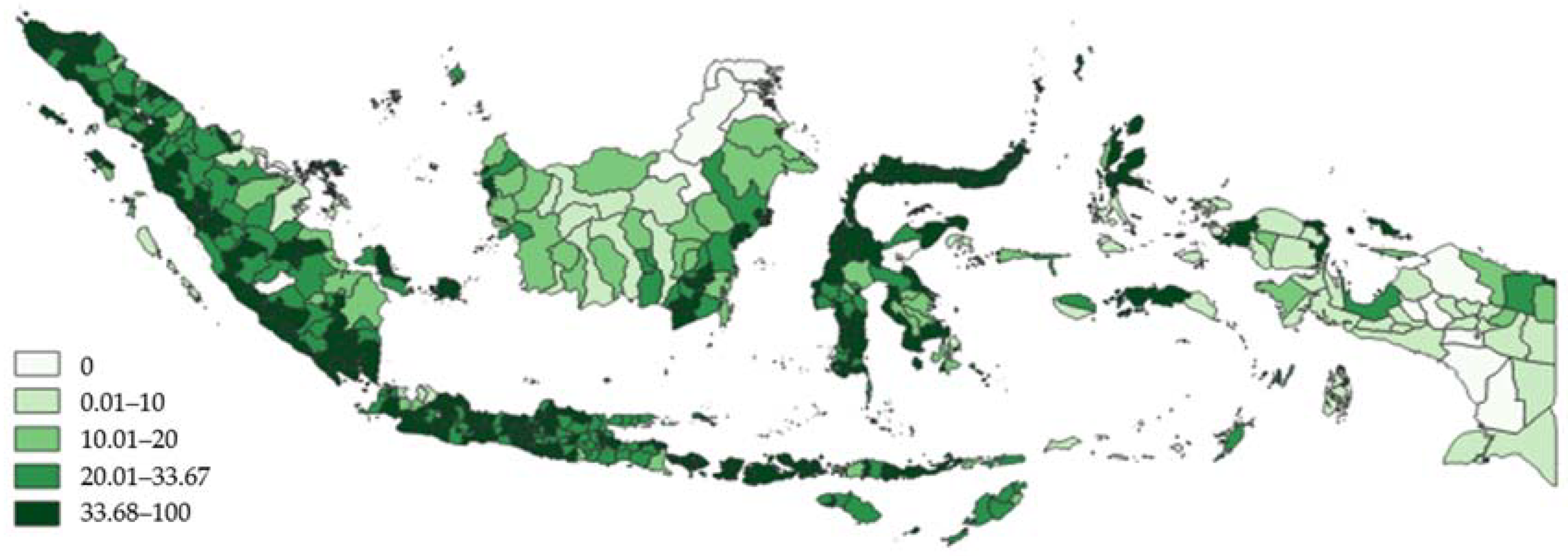

Figure 3.
2020 Indonesian RAI by district (per cent). Source: Author’s calculation.
The majority of districts with a high RAI are located in four regional groups: Sumatra, Java, Bali and Nusa Tenggara, and Sulawesi. RAI was low in most districts in Borneo, Moluccas, North Moluccas, Papua, and West Papua. During the same time period, 77.38 per cent of districts had a higher RAI. The positive change in RAI occurred in districts with a low RAI, namely in eastern Indonesia, which is the priority of the Nawacita programme (see Figure 4). This shows that the Nawacita programme implementation was relatively successful.
Figure 4.
Change in the RAI during 2014–2020 by district. Source: Author’s calculation.
3.3. Road Infrastructure Access Inequality in Rural Indonesia
This study uses the following indicators of inequality to establish the evolution of road infrastructure access inequality in rural Indonesia for 2014–2020: the coefficient of variance, the Gini coefficient, and the Theil index. We decomposed the inequality indicator by region subgroups, using the decomposition technique of Bellu and Liberati (2006); Cowell (2011) and Haughton and Khandker (2009) to analyse the contributions of each region’s disparity to total inequality.
The RAI in all regional groups increased significantly after the Nawacita programme’s implementation. Bali and Nusa Tenggara had the highest RAI, which increased from 37.62 per cent in 2014 to 44.99 per cent in 2020. Papua and West Papua had the lowest RAI, which reached 9.23 per cent in 2014 and increased to 10.23 per cent in 2020. The policy had a positive impact, reducing Indonesia’s inequality between 2014 and 2020. As described in Table 3, the coefficient of variance decreased from 0.665 to 0.587, the Gini coefficient decreased from 0.37 to 0.325, and the Theil index went down from 0.164 to 0.16. Indonesia’s Gini coefficient was categorised as “medium inequality”. Figure 5 represents the shifts in the Lorenz curve from 2014 to 2020. The results also indicate that inequality fell between 2014 and 2020.
Table 3.
Inequality indicators in 2014–2020 by regional group.

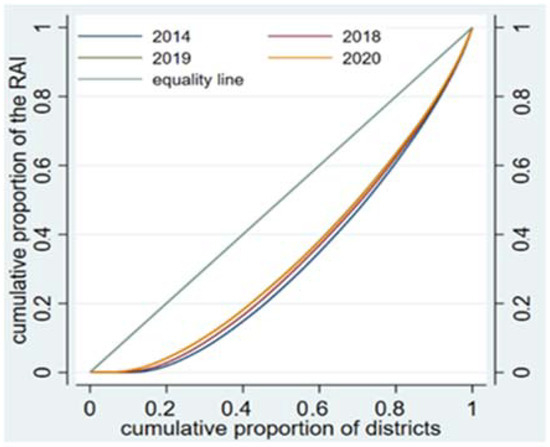

Figure 5.
Lorenz curve of the RAI. Source: Author’s calculation.
Since 2014, as shown in Table 3, all indicators have demonstrated a consistent declining trend across all Indonesian regions. Java had the lowest level of inequality, while Papua and West Papua had the greatest. Even though Papua and West Papua’s rural regions had the lowest RAI and the greatest inequality, this value had decreased. This trend is stronger in this region than in the others.
The Theil index can be broken down into within-regional and between-region RAI inequalities. In 2020, for instance, we can deduce that Indonesia’s inequality was primarily driven (80.77 per cent) by within-regional inequality. In contrast, between-region inequality made a lower contribution to overall inequality at 19.23 per cent. The contribution of within-region inequality has decreased consistently. This trend indicates that the inequality reduction in Indonesia since 2014 has been uniform across geographical locations, whereas the gap between regional groups has risen slightly in recent years.
3.4. Convergence of Road Infrastructure Access across Indonesian Districts
Our district analysis captured a strong pattern of regional convergence. As shown in Figure 6, the convergence of the RAI decreased over time. In 2014, this value was 1.054, and it reached 0.975 in 2020. Table 4 describes the equation of convergence. The regression of the change in the RAI as a function of its initial level confirms the convergence in which the coefficient of the initial value is negative and statistically significant at the 1 per cent level. This means that the rate of increase in the RAI was faster in the district with an initially low RAI and vice versa. The negative trend of convergence and the negative coefficient of the initial value in the equation of convergence reinforce the previous statement that the Nawacita programme implementation reduced regional inequality during 2014–2020.

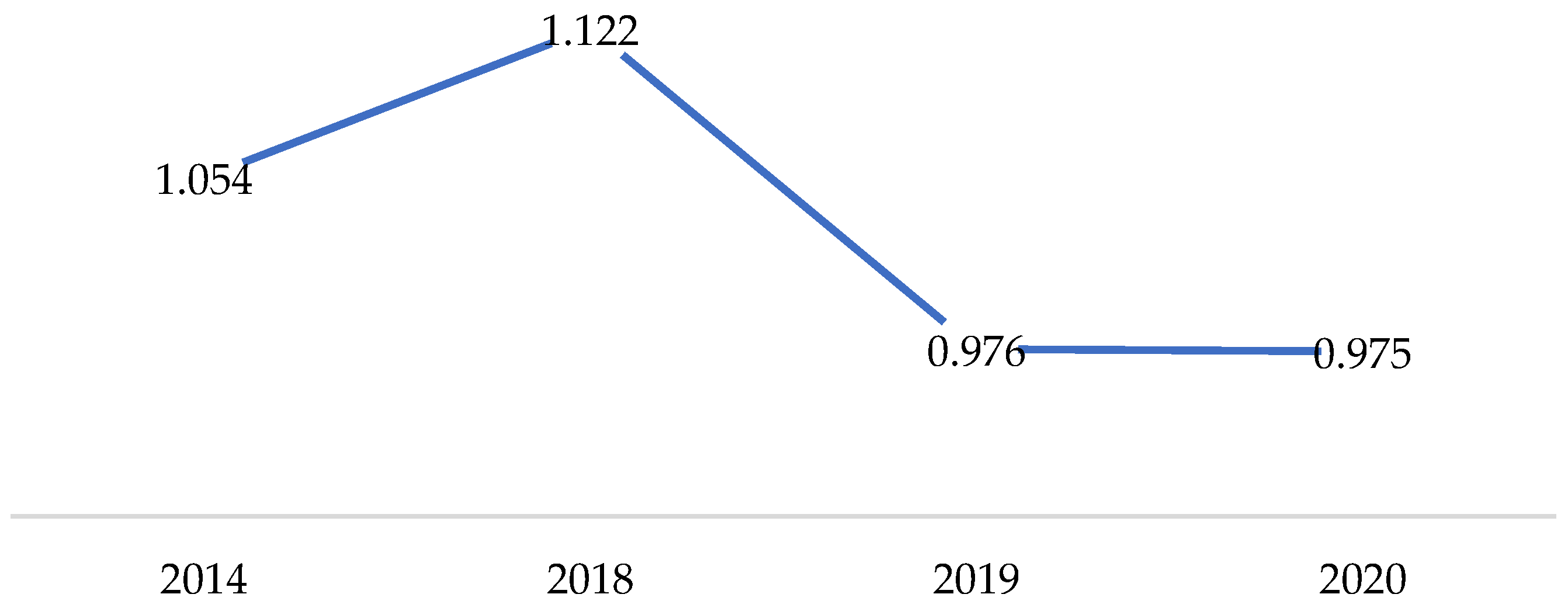

Figure 6.
The convergence of RAI across Indonesian districts in 2014–2020. Source: Author’s calculation.
Table 4.
convergence of RAI across Indonesian districts in 2014–2020.
3.5. Discussion
From the RAI formula, the change in total rural populations and the change in total rural populations who live within 2 km of all-season roads may drive the inequality reduction and convergence phenomenon of the RAI between districts. Table 5 shows that the median annual growth rate in total rural populations who lived within 2 km of all-season roads between 2014 and 2018 was faster than the median annual growth rate in total rural populations, especially in Papua and West Papua. Based on data from BPS-Statistics Indonesia, the government built 24,557 km of roads between 2014 and 2018, including the Trans-Sumatra, Trans-Borneo, Trans-Sulawesi, Trans-Moluccas, and Trans-Papua roads. This road construction facilitated rural populations’ access to all-season roads so that the proportion living within 2 km of all-season roads increased, and improved RAI scores. This argument fits with the values in Table 6 for the Pearson correlations between the RAI and its individual parts. The RAI is strongly linked to rural populations who live within 2 km of all-season roads.
Table 5.
Median annual growth rate in rural populations and rural populations within 2 km of all-season roads at the district level by regional group (per cent).
Table 6.
Pearson correlation between the RAI and constituent variables.
Besides road construction, the government can boost the RAI by improving the quality of rural roads. We can use the step-by-step procedures in Figure 1 to calculate the RAI by assuming that the government repairs all existing rural roads so that all rural roads are equal to all-season roads. As shown in Figure 7, the results demonstrate that the increase in all rural road quality did not significantly increase the RAI. The median RAI in Papua and West Papua was still the lowest. Table 7 shows that indicators of inequality decreased slowly. For example, in 2020, the coefficient of variance, Gini coefficient, and Theil index only decreased by 0.051, 0.028 and 0.019, respectively.
Figure 7.
The median of the RAI when all rural roads are all-season roads. Source: Author’s calculation.
Table 7.
Real condition and simulation of inequality indicators in 2014–2020.
Analysing the link between the RAI and the District Fiscal Capacity Index (DFCI)3 can help the government decide on the policy priority: new road construction or old road maintenance. For example, as shown in Figure 8, in 2020, the number of districts with low RAI and low DFCI in Moluccas, North Moluccas, Papua, and West Papua was higher than the number of districts in other regional groups. This indicates that the government needs to prioritise the construction of new national and provincial roads in these areas because the district’s ability to fund local road development is low. In general, the construction of national and provincial roads is right on target because it is carried out in districts with a low DFCI. However, the construction of national and provincial roads in Bali, Nusa Tenggara, and Borneo requires collaboration between the central, provincial, and district governments because, financially, the fiscal capacity of districts in these regional groups is relatively good. Coordination can prevent road construction from being concentrated in certain areas and guarantee connectivity between national and regional roads.

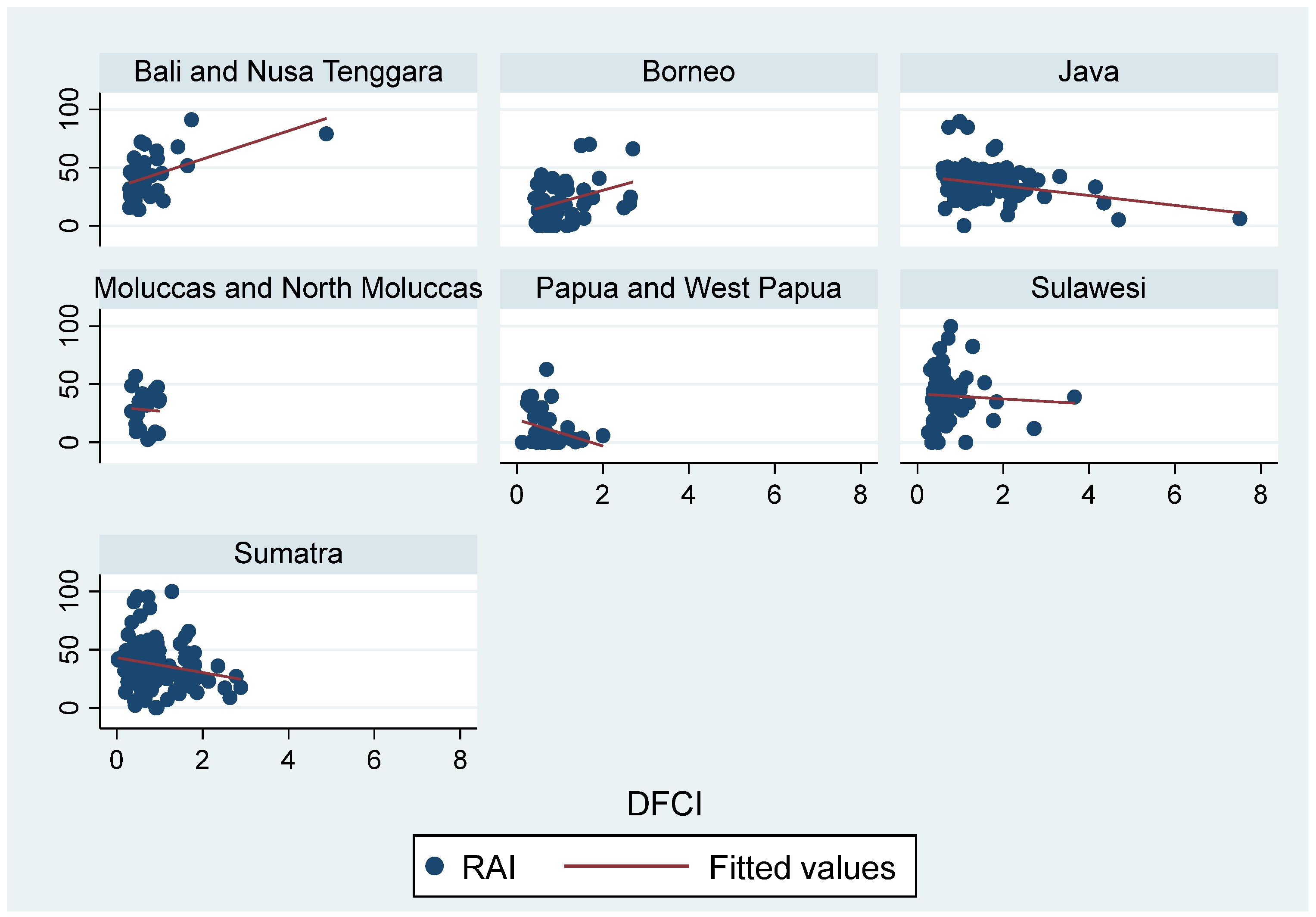

Figure 8.
Scatter plots between the RAI and DFCI by regional group. Source: Author’s calculation.
4. Conclusions
The RAI, as SDG indicator 9.1.1, is a relatively good predictor of rural road quality. Due to data limitations, it is challenging to calculate this predictor at the regional level. This study attempted to determine the RAI for each district in Indonesia during 2014–2020. The results show that since the implementation of the Nawacita programme, the RAI has increased, inequality has declined, and there has been a strong pattern of regional convergence. To ensure the future success of this implementation, the government can create regulations to designate several road infrastructure projects as a national strategy. This regulation can specify the types of permits and non-permits that can be expedited by a minister, head of a national agency, or mayor of a region, as well as spatial planning compliance, land availability, and procurement methods. Since most road infrastructure spending comes from the government budget, there needs to be more long-term work to increase tax collection, such as the tax amnesty programme. To encourage more public–private partnerships, the government can also use fiscal policies, such as government guarantees for direct loans.
Author Contributions
Conceptualization, R.N.T.W., M.I., A.D. and K.K.; methodology, R.N.T.W.; software, R.N.T.W.; validation, M.I., A.D. and K.K.; formal analysis, R.N.T.W.; investigation, M.I., A.D. and K.K.; resources, R.N.T.W.; data curation, R.N.T.W.; writing—original draft preparation, R.N.T.W.; writing—review and editing, R.N.T.W., M.I., A.D. and K.K.; visualization, R.N.T.W.; supervision, M.I., A.D. and K.K.; project administration, R.N.T.W.; funding acquisition, R.N.T.W. All authors have read and agreed to the published version of the manuscript.
Funding
This research received no external funding.
Informed Consent Statement
Not applicable.
Data Availability Statement
Not applicable.
Conflicts of Interest
The author declares no conflict of interest.
Appendix A
Table A1.
Indonesian RAI using the national road network map, WorldPop, and Podes by district (per cent).
Table A1.
Indonesian RAI using the national road network map, WorldPop, and Podes by district (per cent).
| Code | District | 2014 | 2018 | 2019 | 2020 | Code | District | 2014 | 2018 | 2019 | 2020 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1101 | Simeulue | 32.3 | 37.8 | 45.5 | 45.0 | 3672 | Cilegon | 0.0 | 0.0 | 0.0 | 0.0 |
| 1102 | Aceh Singkil | 13.2 | 12.9 | 16.0 | 15.8 | 3673 | Serang | 35.6 | 36.5 | 37.2 | 37.5 |
| 1103 | Aceh Selatan | 36.1 | 37.9 | 42.4 | 41.6 | 5101 | Jembrana | 57.9 | 58.5 | 57.7 | 57.6 |
| 1104 | Aceh Tenggara | 28.0 | 29.0 | 29.0 | 28.5 | 5102 | Tabanan | 69.5 | 70.0 | 70.0 | 70.2 |
| 1105 | Aceh Timur | 33.9 | 35.5 | 33.0 | 32.0 | 5103 | Badung | 78.7 | 78.9 | 78.9 | 79.0 |
| 1106 | Aceh Tengah | 39.8 | 46.2 | 47.0 | 46.2 | 5104 | Gianyar | 86.5 | 91.4 | 91.4 | 91.2 |
| 1107 | Aceh Barat | 27.4 | 28.2 | 30.5 | 29.8 | 5105 | Klungkung | 24.6 | 24.5 | 24.1 | 25.0 |
| 1108 | Aceh Besar | 64.6 | 65.6 | 61.6 | 61.1 | 5106 | Bangli | 65.3 | 66.6 | 72.3 | 72.1 |
| 1109 | Pidie | 42.4 | 43.9 | 44.2 | 43.1 | 5107 | Karang Asem | 67.3 | 67.3 | 66.7 | 67.3 |
| 1110 | Bireuen | 42.3 | 44.7 | 55.0 | 55.0 | 5108 | Buleleng | 67.5 | 68.0 | 67.7 | 67.8 |
| 1111 | Aceh Utara | 33.7 | 34.8 | 37.5 | 36.8 | 5201 | Lombok Barat | 39.7 | 40.5 | 64.2 | 64.3 |
| 1112 | Aceh Barat Daya | 46.2 | 47.9 | 55.7 | 55.5 | 5202 | Lombok Tengah | 28.4 | 39.2 | 44.8 | 44.9 |
| 1113 | Gayo Lues | 30.6 | 32.3 | 32.0 | 31.0 | 5203 | Lombok Timur | 30.4 | 30.0 | 51.6 | 51.6 |
| 1114 | Aceh Tamiang | 13.3 | 14.1 | 14.3 | 13.5 | 5204 | Sumbawa | 40.1 | 43.0 | 43.3 | 43.2 |
| 1115 | Nagan Raya | 34.9 | 43.7 | 46.2 | 45.4 | 5205 | Dompu | 52.7 | 54.6 | 54.3 | 54.2 |
| 1116 | Aceh Jaya | 33.1 | 30.6 | 35.2 | 34.3 | 5206 | Bima | 46.3 | 48.5 | 49.5 | 49.3 |
| 1117 | Bener Meriah | 24.3 | 34.8 | 41.6 | 41.2 | 5207 | Sumbawa Barat | 37.9 | 37.8 | 37.3 | 37.3 |
| 1118 | Pidie Jaya | 55.2 | 57.7 | 56.2 | 55.5 | 5208 | Lombok Utara | 44.6 | 48.5 | 50.7 | 50.3 |
| 1172 | Sabang | 59.4 | 91.2 | 91.2 | 91.1 | 5272 | Bima | 57.3 | 58.7 | 57.8 | 58.3 |
| 1173 | Langsa | 41.1 | 39.8 | 72.7 | 73.5 | 5301 | Sumba Barat | 52.0 | 55.1 | 47.8 | 46.3 |
| 1174 | Lhokseumawe | 57.5 | 53.9 | 52.5 | 52.6 | 5302 | Sumba Timur | 30.5 | 31.2 | 32.2 | 32.6 |
| 1175 | Subulussalam | 43.8 | 45.3 | 45.6 | 45.0 | 5303 | Kupang | 30.3 | 31.7 | 30.5 | 29.6 |
| 1201 | Nias | 25.2 | 31.0 | 39.5 | 38.9 | 5304 | Timor Tengah Selatan | 18.3 | 18.5 | 21.6 | 21.4 |
| 1202 | Mandailing Natal | 36.8 | 38.5 | 39.7 | 39.0 | 5305 | Timor Tengah Utara | 29.1 | 31.7 | 31.3 | 31.1 |
| 1203 | Tapanuli Selatan | 34.3 | 34.5 | 33.6 | 33.5 | 5306 | Belu | 31.3 | 32.3 | 30.4 | 30.1 |
| 1204 | Tapanuli Tengah | 49.4 | 51.3 | 50.3 | 50.1 | 5307 | Alor | 17.1 | 19.7 | 22.5 | 21.9 |
| 1205 | Tapanuli Utara | 40.2 | 42.9 | 43.5 | 43.3 | 5308 | Lembata | 11.5 | 21.4 | 15.9 | 15.7 |
| 1206 | Toba Samosir | 44.6 | 44.6 | 47.0 | 45.8 | 5309 | Flores Timur | 34.2 | 40.3 | 42.9 | 43.2 |
| 1207 | Labuhan Batu | 24.7 | 25.5 | 28.6 | 28.1 | 5310 | Sikka | 38.6 | 39.9 | 40.5 | 40.1 |
| 1208 | Asahan | 26.7 | 28.1 | 27.0 | 26.0 | 5311 | Ende | 43.5 | 44.6 | 43.8 | 44.4 |
| 1209 | Simalungun | 30.6 | 31.7 | 32.8 | 32.0 | 5312 | Ngada | 38.8 | 39.9 | 39.3 | 39.2 |
| 1210 | Dairi | 29.5 | 31.0 | 28.8 | 28.4 | 5313 | Manggarai | 37.5 | 40.2 | 38.6 | 38.0 |
| 1211 | Karo | 41.8 | 42.7 | 43.9 | 43.2 | 5314 | Rote Ndao | 22.2 | 33.4 | 31.8 | 31.7 |
| 1212 | Deli Serdang | 25.4 | 26.5 | 29.2 | 29.3 | 5315 | Manggarai Barat | 12.9 | 15.0 | 14.6 | 13.7 |
| 1213 | Langkat | 20.8 | 25.1 | 25.7 | 25.0 | 5316 | Sumba Tengah | 22.2 | 22.9 | 25.0 | 24.4 |
| 1214 | Nias Selatan | 16.6 | 17.8 | 19.5 | 19.2 | 5317 | Sumba Barat Daya | 22.4 | 23.0 | 26.0 | 25.7 |
| 1215 | Humbang Hasundutan | 26.6 | 26.5 | 26.6 | 26.6 | 5318 | Nagekeo | 45.5 | 45.6 | 45.5 | 46.1 |
| 1216 | Pakpak Bharat | 30.3 | 29.9 | 30.3 | 30.0 | 5319 | Manggarai Timur | 23.9 | 25.8 | 28.5 | 28.2 |
| 1217 | Samosir | 30.7 | 33.3 | 46.3 | 45.8 | 5320 | Sabu Raijua | 14.6 | 47.2 | 39.8 | 40.4 |
| 1218 | Serdang Bedagai | 36.9 | 36.9 | 38.7 | 37.7 | 5321 | Malaka | 0.0 | 0.0 | 15.9 | 15.9 |
| 1219 | Batu Bara | 32.1 | 32.1 | 34.2 | 34.4 | 5371 | Kota Kupang | 8.5 | 40.1 | 92.9 | 92.9 |
| 1220 | Padang Lawas Utara | 32.4 | 33.4 | 31.6 | 30.7 | 6101 | Sambas | 11.2 | 18.7 | 20.2 | 19.5 |
| 1221 | Padang Lawas | 34.5 | 35.5 | 39.9 | 39.8 | 6102 | Bengkayang | 10.6 | 25.0 | 23.9 | 23.5 |
| 1222 | Labuhan Batu Selatan | 22.8 | 23.9 | 22.4 | 22.0 | 6103 | Landak | 14.9 | 16.0 | 16.4 | 15.8 |
| 1223 | Labuhan Batu Utara | 17.8 | 17.8 | 16.9 | 17.0 | 6104 | Pontianak | 41.8 | 44.2 | 48.6 | 47.8 |
| 1224 | Nias Utara | 33.0 | 33.5 | 38.9 | 38.3 | 6105 | Sanggau | 16.7 | 18.7 | 18.3 | 17.8 |
| 1225 | Nias Barat | 28.3 | 29.1 | 20.6 | 20.3 | 6106 | Ketapang | 11.3 | 11.7 | 10.5 | 10.5 |
| 1276 | Binjai | 19.9 | 20.3 | 19.8 | 20.2 | 6107 | Sintang | 6.0 | 6.3 | 6.6 | 6.5 |
| 1277 | Padangsidimpuan | 72.5 | 72.3 | 72.4 | 72.4 | 6108 | Kapuas Hulu | 13.4 | 13.8 | 14.5 | 14.5 |
| 1278 | Gunungsitoli | 64.4 | 66.0 | 64.8 | 64.3 | 6109 | Sekadau | 8.9 | 10.8 | 10.3 | 9.9 |
| 1301 | Kepulauan Mentawai | 0.0 | 7.6 | 6.0 | 5.8 | 6110 | Melawi | 2.5 | 2.6 | 4.4 | 4.4 |
| 1302 | Pesisir Selatan | 16.5 | 18.7 | 30.6 | 29.2 | 6111 | Kayong Utara | 19.3 | 21.3 | 22.2 | 21.9 |
| 1303 | Solok | 39.9 | 44.0 | 43.4 | 41.9 | 6112 | Kubu Raya | 11.3 | 11.9 | 19.9 | 19.6 |
| 1304 | Sijunjung | 36.2 | 38.7 | 40.6 | 38.6 | 6172 | Singkawang | 36.0 | 38.0 | 37.1 | 36.0 |
| 1305 | Tanah Datar | 58.1 | 59.9 | 59.3 | 58.2 | 6201 | Kotawaringin Barat | 19.0 | 19.8 | 19.8 | 19.7 |
| 1306 | Padang Pariaman | 49.4 | 50.4 | 57.0 | 56.1 | 6202 | Kotawaringin Timur | 14.2 | 14.5 | 19.4 | 19.4 |
| 1307 | Agam | 38.2 | 38.6 | 40.1 | 39.3 | 6203 | Kapuas | 5.0 | 6.5 | 10.2 | 9.9 |
| 1308 | Lima Puluh Kota | 34.7 | 36.6 | 34.8 | 34.0 | 6204 | Barito Selatan | 9.1 | 12.0 | 12.5 | 12.4 |
| 1309 | Pasaman | 31.4 | 34.5 | 32.4 | 30.6 | 6205 | Barito Utara | 3.2 | 5.7 | 16.8 | 16.7 |
| 1310 | Solok Selatan | 28.1 | 30.8 | 31.3 | 29.5 | 6206 | Sukamara | 2.7 | 2.7 | 2.6 | 2.5 |
| 1311 | Dharmasraya | 24.4 | 25.6 | 25.8 | 25.6 | 6207 | Lamandau | 14.5 | 13.4 | 13.5 | 13.7 |
| 1312 | Pasaman Barat | 36.1 | 37.8 | 40.3 | 39.3 | 6208 | Seruyan | 1.6 | 1.6 | 6.2 | 6.5 |
| 1371 | Padang | 46.0 | 46.6 | 46.7 | 47.3 | 6209 | Katingan | 2.4 | 3.9 | 4.6 | 4.5 |
| 1372 | Solok | 40.3 | 41.0 | 40.1 | 39.8 | 6210 | Pulang Pisau | 28.6 | 33.1 | 34.0 | 33.7 |
| 1373 | Sawah Lunto | 44.6 | 46.3 | 46.7 | 46.7 | 6211 | Gunung Mas | 7.7 | 9.4 | 17.8 | 17.8 |
| 1374 | Padang Panjang | 100.0 | 95.4 | 95.3 | 95.6 | 6212 | Barito Timur | 9.3 | 10.2 | 18.3 | 18.2 |
| 1376 | Payakumbuh | 58.4 | 62.4 | 31.4 | 31.5 | 6213 | Murung Raya | 3.4 | 2.6 | 2.9 | 2.6 |
| 1377 | Pariaman | 67.3 | 78.3 | 78.2 | 79.0 | 6271 | Palangka Raya | 16.7 | 16.5 | 30.9 | 30.6 |
| 1401 | Kuantan Singingi | 23.0 | 25.2 | 26.4 | 25.9 | 6301 | Tanah Laut | 34.9 | 42.0 | 41.6 | 40.7 |
| 1402 | Indragiri Hulu | 28.2 | 24.8 | 26.0 | 26.1 | 6302 | Kota Baru | 20.4 | 22.3 | 19.8 | 19.2 |
| 1403 | Indragiri Hilir | 5.9 | 4.4 | 7.1 | 7.2 | 6303 | Banjar | 32.9 | 36.4 | 39.5 | 38.4 |
| 1404 | Pelalawan | 15.3 | 15.2 | 14.7 | 14.7 | 6304 | Barito Kuala | 27.6 | 29.3 | 33.3 | 32.9 |
| 1405 | Siak | 24.5 | 26.7 | 30.3 | 30.1 | 6305 | Tapin | 25.3 | 29.6 | 31.5 | 30.9 |
| 1406 | Kampar | 24.6 | 32.4 | 32.5 | 31.6 | 6306 | Hulu Sungai Selatan | 43.7 | 45.9 | 44.7 | 43.7 |
| 1407 | Rokan Hulu | 20.3 | 21.6 | 22.4 | 22.7 | 6307 | Hulu Sungai Tengah | 34.3 | 37.3 | 37.7 | 36.7 |
| 1408 | Bengkalis | 18.0 | 17.9 | 8.9 | 8.7 | 6308 | Hulu Sungai Utara | 26.8 | 29.6 | 30.8 | 30.0 |
| 1409 | Rokan Hilir | 25.2 | 27.0 | 26.5 | 26.3 | 6309 | Tabalong | 29.3 | 34.7 | 34.7 | 33.5 |
| 1410 | Kepulauan Meranti | 0.0 | 0.0 | 0.0 | 0.0 | 6310 | Tanah Bumbu | 25.8 | 29.5 | 32.0 | 30.7 |
| 1471 | Pekanbaru | 36.4 | 36.2 | 35.2 | 35.9 | 6311 | Balangan | 33.8 | 37.3 | 38.0 | 36.4 |
| 1473 | Dumai | 23.0 | 23.2 | 61.0 | 60.7 | 6371 | Banjarmasin | 15.4 | 15.9 | 70.1 | 70.1 |
| 1501 | Kerinci | 33.1 | 34.1 | 36.5 | 35.3 | 6372 | Banjar Baru | 77.5 | 78.6 | 78.4 | 78.3 |
| 1502 | Merangin | 26.3 | 25.9 | 27.8 | 28.0 | 6401 | Paser | 22.2 | 24.2 | 24.1 | 24.1 |
| 1503 | Sarolangun | 31.0 | 31.3 | 32.9 | 32.8 | 6402 | Kutai Barat | 16.8 | 17.1 | 19.3 | 19.3 |
| 1504 | Batang Hari | 35.6 | 36.0 | 35.0 | 35.0 | 6403 | Kutai Kartanegara | 23.2 | 24.5 | 24.9 | 24.7 |
| 1505 | Muaro Jambi | 25.1 | 38.0 | 42.5 | 42.0 | 6404 | Kutai Timur | 14.6 | 15.7 | 15.7 | 15.5 |
| 1506 | Tanjung Jabung Timur | 13.6 | 13.2 | 14.4 | 14.5 | 6405 | Berau | 12.9 | 16.8 | 18.3 | 18.0 |
| 1507 | Tanjung Jabung Barat | 15.2 | 16.9 | 29.5 | 29.6 | 6409 | Penajam Paser Utara | 34.4 | 35.6 | 40.5 | 40.7 |
| 1508 | Tebo | 24.3 | 25.7 | 29.1 | 29.4 | 6411 | Mahakam Ulu | 0.0 | 0.0 | 0.0 | 0.0 |
| 1509 | Bungo | 34.4 | 36.2 | 35.8 | 35.2 | 6471 | Balikpapan | 66.1 | 66.5 | 65.8 | 66.2 |
| 1571 | Jambi | 86.9 | 100.0 | 100.0 | 100.0 | 6472 | Samarinda | 9.1 | 9.2 | 68.6 | 69.0 |
| 1572 | Sungai Penuh | 56.0 | 56.8 | 55.6 | 55.6 | 6474 | Bontang | 1.3 | 1.3 | 1.3 | 1.4 |
| 1601 | Ogan Komering Ulu | 24.8 | 26.4 | 26.6 | 25.2 | 6501 | Malinau | 0.0 | 0.0 | 0.0 | 0.0 |
| 1602 | Ogan Komering Ilir | 17.1 | 18.5 | 18.2 | 18.1 | 6502 | Bulungan | 0.0 | 0.0 | 0.0 | 0.0 |
| 1603 | Muara Enim | 25.9 | 27.3 | 26.5 | 26.3 | 6503 | Tana Tidung | 0.0 | 0.0 | 0.0 | 0.0 |
| 1604 | Lahat | 34.5 | 34.9 | 33.9 | 33.7 | 6504 | Nunukan | 0.0 | 0.0 | 0.0 | 0.0 |
| 1605 | Musi Rawas | 21.4 | 22.5 | 22.7 | 22.1 | 6571 | Tarakan | 0.0 | 0.0 | 0.0 | 0.0 |
| 1606 | Musi Banyuasin | 17.1 | 17.7 | 23.4 | 22.9 | 7101 | Bolaang Mongondow | 39.2 | 44.9 | 49.9 | 49.2 |
| 1607 | Banyuasin | 11.0 | 11.2 | 13.6 | 13.1 | 7102 | Minahasa | 45.8 | 46.4 | 70.0 | 70.1 |
| 1608 | Ogan Komering Ulu Selatan | 30.7 | 32.4 | 33.2 | 33.2 | 7103 | Kepulauan Sangihe | 59.8 | 62.4 | 61.9 | 62.2 |
| 1609 | Ogan Komering Ulu Timur | 41.0 | 41.6 | 40.2 | 39.8 | 7104 | Kepulauan Talaud | 53.7 | 56.0 | 65.4 | 66.7 |
| 1610 | Ogan Ilir | 36.2 | 36.6 | 36.5 | 36.1 | 7105 | Minahasa Selatan | 53.9 | 56.2 | 62.4 | 61.7 |
| 1611 | Empat Lawang | 26.9 | 28.9 | 39.9 | 38.9 | 7106 | Minahasa Utara | 59.8 | 61.7 | 61.1 | 60.7 |
| 1612 | Penukal Abab Lematang Ilir | 0.0 | 0.0 | 12.0 | 12.1 | 7107 | Bolaang Mongondow Utara | 57.3 | 56.2 | 56.2 | 55.9 |
| 1613 | Musi Rawas Utara | 0.0 | 0.0 | 0.0 | 0.0 | 7108 | Siau Tagulandang Biaro | 9.6 | 9.5 | 9.2 | 8.9 |
| 1671 | Palembang | 15.9 | 16.1 | 18.0 | 17.5 | 7109 | Minahasa Tenggara | 61.5 | 63.5 | 63.0 | 62.8 |
| 1672 | Prabumulih | 52.9 | 55.6 | 55.6 | 56.7 | 7110 | Bolaang Mongondow Selatan | 46.7 | 52.5 | 44.0 | 43.9 |
| 1673 | Pagar Alam | 51.4 | 52.4 | 51.8 | 51.0 | 7111 | Bolaang Mongondow Timur | 59.9 | 60.6 | 50.6 | 49.9 |
| 1674 | Lubuklinggau | 51.4 | 60.8 | 61.1 | 61.2 | 7171 | Manado | 21.0 | 24.3 | 82.3 | 82.5 |
| 1701 | Bengkulu Selatan | 58.0 | 65.7 | 65.8 | 65.7 | 7172 | Bitung | 38.2 | 38.3 | 38.4 | 39.0 |
| 1702 | Rejang Lebong | 49.2 | 49.9 | 49.4 | 49.4 | 7173 | Tomohon | 80.4 | 80.3 | 80.3 | 80.4 |
| 1703 | Bengkulu Utara | 31.8 | 33.9 | 39.2 | 38.7 | 7174 | Kotamobagu | 59.3 | 89.4 | 89.6 | 89.6 |
| 1704 | Kaur | 49.7 | 47.0 | 51.4 | 53.0 | 7201 | Banggai Kepulauan | 8.8 | 9.0 | 8.8 | 8.5 |
| 1705 | Seluma | 45.5 | 46.7 | 48.6 | 48.1 | 7202 | Banggai | 35.5 | 38.8 | 48.9 | 48.9 |
| 1706 | Mukomuko | 37.8 | 37.7 | 39.8 | 40.0 | 7203 | Morowali | 30.6 | 30.4 | 39.1 | 40.9 |
| 1707 | Lebong | 41.7 | 42.2 | 42.2 | 41.7 | 7204 | Poso | 42.8 | 41.7 | 46.5 | 46.7 |
| 1708 | Kepahiang | 62.3 | 64.6 | 64.0 | 62.9 | 7205 | Donggala | 41.3 | 42.4 | 41.3 | 41.6 |
| 1709 | Bengkulu Tengah | 45.9 | 54.0 | 49.2 | 49.1 | 7206 | Toli-Toli | 35.8 | 37.0 | 46.5 | 46.5 |
| 1771 | Bengkulu | 34.1 | 36.9 | 36.8 | 36.1 | 7207 | Buol | 41.6 | 44.0 | 46.3 | 46.4 |
| 1801 | Lampung Barat | 24.4 | 25.0 | 43.0 | 43.5 | 7208 | Parigi Moutong | 34.8 | 35.2 | 43.7 | 44.2 |
| 1802 | Tanggamus | 34.8 | 38.8 | 47.9 | 47.9 | 7209 | Tojo Una-Una | 25.6 | 26.6 | 25.1 | 25.1 |
| 1803 | Lampung Selatan | 45.3 | 46.3 | 49.4 | 49.4 | 7210 | Sigi | 50.1 | 50.9 | 49.8 | 49.4 |
| 1804 | Lampung Timur | 44.0 | 44.7 | 47.8 | 47.3 | 7211 | Banggai Laut | 0.0 | 0.0 | 0.0 | 0.0 |
| 1805 | Lampung Tengah | 42.3 | 42.2 | 44.1 | 43.7 | 7212 | Morowali Utara | 0.0 | 0.0 | 0.0 | 0.0 |
| 1806 | Lampung Utara | 46.5 | 48.4 | 47.5 | 47.0 | 7271 | Palu | 6.9 | 8.0 | 11.7 | 11.9 |
| 1807 | Way Kanan | 39.2 | 39.5 | 42.4 | 41.9 | 7301 | Kepulauan Selayar | 29.3 | 34.4 | 33.3 | 32.0 |
| 1808 | Tulangbawang | 28.7 | 28.6 | 33.2 | 33.7 | 7302 | Bulukumba | 41.0 | 42.7 | 50.0 | 49.5 |
| 1809 | Pesawaran | 52.2 | 53.2 | 45.4 | 44.9 | 7303 | Bantaeng | 36.0 | 41.0 | 39.3 | 38.3 |
| 1810 | Pringsewu | 48.5 | 49.9 | 59.8 | 59.7 | 7304 | Jeneponto | 51.8 | 53.0 | 51.5 | 51.2 |
| 1811 | Mesuji | 27.9 | 26.1 | 24.7 | 24.8 | 7305 | Takalar | 28.8 | 29.2 | 29.7 | 29.0 |
| 1812 | Tulang Bawang Barat | 44.2 | 45.2 | 44.5 | 44.1 | 7306 | Gowa | 45.0 | 45.3 | 44.6 | 44.6 |
| 1813 | Pesisir Barat | 0.0 | 0.0 | 42.2 | 42.3 | 7307 | Sinjai | 29.4 | 32.9 | 32.3 | 31.4 |
| 1871 | Bandar Lampung | 16.5 | 17.0 | 17.6 | 17.0 | 7308 | Maros | 31.9 | 32.4 | 32.4 | 32.0 |
| 1872 | Metro | 93.9 | 94.8 | 94.8 | 95.1 | 7309 | Pangkajene Dan Kepulauan | 33.5 | 35.2 | 33.7 | 33.0 |
| 1901 | Bangka | 35.4 | 36.1 | 35.9 | 35.7 | 7310 | Barru | 43.0 | 44.4 | 44.5 | 43.8 |
| 1902 | Belitung | 29.2 | 37.3 | 47.3 | 46.1 | 7311 | Bone | 30.9 | 35.5 | 34.5 | 34.1 |
| 1903 | Bangka Barat | 20.9 | 20.0 | 21.4 | 22.3 | 7312 | Soppeng | 41.2 | 43.5 | 47.4 | 46.4 |
| 1904 | Bangka Tengah | 34.3 | 36.0 | 38.2 | 37.3 | 7313 | Wajo | 38.6 | 39.1 | 39.1 | 39.0 |
| 1905 | Bangka Selatan | 29.1 | 29.4 | 28.9 | 28.7 | 7314 | Sidenreng Rappang | 48.0 | 50.3 | 48.1 | 46.6 |
| 1906 | Belitung Timur | 39.8 | 39.5 | 41.7 | 42.1 | 7315 | Pinrang | 32.6 | 33.0 | 34.8 | 34.8 |
| 1971 | Pangkal Pinang | 0.2 | 0.2 | 85.4 | 86.0 | 7316 | Enrekang | 31.8 | 34.9 | 32.7 | 31.8 |
| 2101 | Karimun | 1.8 | 2.3 | 2.2 | 2.1 | 7317 | Luwu | 24.3 | 27.7 | 28.0 | 27.8 |
| 2102 | Bintan | 43.7 | 55.7 | 55.5 | 55.0 | 7318 | Tana Toraja | 24.3 | 23.4 | 28.5 | 28.0 |
| 2103 | Natuna | 23.0 | 24.0 | 24.2 | 24.2 | 7322 | Luwu Utara | 14.9 | 15.4 | 14.3 | 14.0 |
| 2104 | Lingga | 0.0 | 6.6 | 6.4 | 6.3 | 7325 | Luwu Timur | 22.6 | 22.8 | 24.2 | 25.4 |
| 2105 | Kepulauan Anambas | 0.0 | 8.3 | 15.7 | 15.2 | 7326 | Toraja Utara | 15.2 | 17.8 | 19.6 | 18.6 |
| 2171 | Batam | 0.0 | 27.4 | 27.4 | 27.0 | 7371 | Makassar | 0.0 | 0.0 | 0.0 | 0.0 |
| 2172 | Tanjung Pinang | 5.1 | 51.3 | 48.4 | 47.6 | 7372 | Parepare | 6.9 | 73.3 | 72.6 | 72.4 |
| 3201 | Bogor | 17.7 | 18.0 | 19.5 | 19.6 | 7373 | Palopo | 53.1 | 54.7 | 53.9 | 53.0 |
| 3202 | Sukabumi | 30.8 | 39.0 | 42.0 | 41.2 | 7401 | Buton | 19.8 | 21.1 | 16.4 | 17.2 |
| 3203 | Cianjur | 30.2 | 38.2 | 39.8 | 39.2 | 7402 | Muna | 22.6 | 31.2 | 18.9 | 19.3 |
| 3204 | Bandung | 35.8 | 37.8 | 37.3 | 37.2 | 7403 | Konawe | 19.7 | 19.5 | 18.4 | 18.8 |
| 3205 | Garut | 37.2 | 45.6 | 46.1 | 45.7 | 7404 | Kolaka | 36.4 | 38.5 | 40.9 | 41.4 |
| 3206 | Tasikmalaya | 20.4 | 25.8 | 23.6 | 23.3 | 7405 | Konawe Selatan | 39.8 | 41.1 | 39.6 | 40.1 |
| 3207 | Ciamis | 23.2 | 25.0 | 24.4 | 24.4 | 7406 | Bombana | 29.2 | 33.1 | 33.9 | 33.9 |
| 3208 | Kuningan | 33.2 | 35.0 | 36.5 | 36.3 | 7407 | Wakatobi | 0.0 | 21.3 | 20.8 | 20.6 |
| 3209 | Cirebon | 44.6 | 46.1 | 47.9 | 48.2 | 7408 | Kolaka Utara | 40.8 | 39.8 | 42.9 | 43.8 |
| 3210 | Majalengka | 26.3 | 25.6 | 25.9 | 26.5 | 7409 | Buton Utara | 4.9 | 5.1 | 5.2 | 5.6 |
| 3211 | Sumedang | 44.7 | 45.1 | 44.2 | 44.6 | 7410 | Konawe Utara | 16.8 | 16.9 | 14.7 | 15.1 |
| 3212 | Indramayu | 34.5 | 35.4 | 38.3 | 38.5 | 7411 | Kolaka Timur | 0.0 | 0.0 | 17.4 | 18.2 |
| 3213 | Subang | 34.9 | 34.5 | 34.4 | 34.5 | 7471 | Kendari | 85.6 | 85.7 | 55.9 | 55.5 |
| 3214 | Purwakarta | 35.3 | 34.9 | 36.0 | 36.6 | 7472 | Baubau | 49.3 | 51.0 | 64.0 | 64.1 |
| 3215 | Karawang | 6.6 | 8.4 | 8.9 | 9.3 | 7501 | Boalemo | 34.3 | 35.2 | 35.5 | 36.4 |
| 3216 | Bekasi | 4.7 | 4.9 | 5.1 | 5.1 | 7502 | Gorontalo | 46.9 | 47.8 | 51.4 | 51.3 |
| 3217 | Bandung Barat | 24.7 | 25.4 | 29.8 | 29.8 | 7503 | Pohuwato | 38.9 | 43.6 | 45.8 | 46.3 |
| 3218 | Pangandaran | 0.0 | 0.0 | 50.1 | 49.5 | 7504 | Bone Bolango | 44.0 | 44.1 | 49.0 | 49.5 |
| 3278 | Tasikmalaya | 49.5 | 50.4 | 49.5 | 48.9 | 7505 | Gorontalo Utara | 25.0 | 33.8 | 62.4 | 62.6 |
| 3279 | Banjar | 49.5 | 50.1 | 50.2 | 50.4 | 7571 | Gorontalo | 0.0 | 0.0 | 99.6 | 99.6 |
| 3301 | Cilacap | 42.8 | 47.9 | 47.1 | 46.7 | 7601 | Majene | 17.8 | 18.8 | 48.5 | 49.1 |
| 3302 | Banyumas | 51.9 | 50.7 | 49.9 | 49.8 | 7602 | Polewali Mandar | 29.8 | 34.2 | 31.4 | 30.1 |
| 3303 | Purbalingga | 24.8 | 25.7 | 25.2 | 25.5 | 7603 | Mamasa | 15.6 | 21.6 | 29.3 | 30.1 |
| 3304 | Banjarnegara | 48.2 | 49.4 | 49.0 | 48.6 | 7604 | Mamuju | 30.4 | 33.4 | 34.3 | 34.4 |
| 3305 | Kebumen | 20.9 | 21.2 | 20.9 | 21.1 | 7605 | Mamuju Utara | 33.6 | 35.4 | 36.0 | 35.3 |
| 3306 | Purworejo | 38.0 | 37.4 | 38.5 | 38.7 | 7606 | Mamuju Tengah | 0.0 | 0.0 | 38.4 | 37.8 |
| 3307 | Wonosobo | 51.1 | 52.1 | 51.4 | 50.9 | 8101 | Maluku Tenggara Barat | 11.2 | 19.8 | 23.6 | 23.6 |
| 3308 | Magelang | 50.5 | 53.1 | 52.4 | 52.2 | 8102 | Maluku Tenggara | 37.2 | 46.2 | 33.2 | 32.1 |
| 3309 | Boyolali | 29.9 | 34.5 | 32.9 | 32.8 | 8103 | Maluku Tengah | 25.6 | 31.1 | 47.4 | 47.4 |
| 3310 | Klaten | 27.0 | 27.3 | 27.0 | 27.0 | 8104 | Buru | 19.4 | 21.7 | 24.1 | 24.5 |
| 3311 | Sukoharjo | 29.0 | 30.2 | 29.1 | 29.1 | 8105 | Kepulauan Aru | 0.0 | 1.1 | 2.6 | 2.5 |
| 3312 | Wonogiri | 45.2 | 46.7 | 46.5 | 45.8 | 8106 | Seram Bagian Barat | 18.0 | 29.1 | 42.5 | 41.7 |
| 3313 | Karanganyar | 31.6 | 31.9 | 33.4 | 33.2 | 8107 | Seram Bagian Timur | 0.7 | 3.1 | 7.7 | 7.5 |
| 3314 | Sragen | 32.5 | 34.5 | 34.0 | 34.2 | 8108 | Maluku Barat Daya | 0.0 | 5.2 | 3.6 | 3.5 |
| 3315 | Grobogan | 44.6 | 45.5 | 44.7 | 43.9 | 8109 | Buru Selatan | 2.9 | 7.0 | 9.3 | 9.3 |
| 3316 | Blora | 29.9 | 31.6 | 33.2 | 32.9 | 8171 | Ambon | 39.9 | 35.2 | 36.5 | 36.9 |
| 3317 | Rembang | 45.0 | 46.7 | 45.9 | 45.1 | 8172 | Tual | 24.5 | 35.9 | 35.6 | 35.1 |
| 3318 | Pati | 35.8 | 36.9 | 37.4 | 37.5 | 8201 | Halmahera Barat | 15.2 | 17.1 | 16.8 | 16.0 |
| 3319 | Kudus | 40.9 | 44.4 | 44.1 | 44.4 | 8202 | Halmahera Tengah | 29.0 | 48.8 | 45.7 | 44.8 |
| 3320 | Jepara | 16.7 | 19.7 | 20.6 | 20.4 | 8203 | Kepulauan Sula | 12.4 | 25.0 | 27.9 | 26.8 |
| 3321 | Demak | 35.5 | 36.9 | 36.7 | 36.6 | 8204 | Halmahera Selatan | 1.3 | 7.0 | 9.1 | 8.8 |
| 3322 | Semarang | 41.8 | 43.2 | 42.4 | 42.4 | 8205 | Halmahera Utara | 34.7 | 37.1 | 36.4 | 35.5 |
| 3323 | Temanggung | 46.1 | 47.5 | 46.4 | 46.1 | 8206 | Halmahera Timur | 14.4 | 38.5 | 38.1 | 37.1 |
| 3324 | Kendal | 35.0 | 36.1 | 35.7 | 36.1 | 8207 | Pulau Morotai | 19.8 | 41.4 | 49.6 | 48.7 |
| 3325 | Batang | 48.1 | 48.1 | 48.9 | 49.0 | 8208 | Pulau Taliabu | 0.0 | 0.0 | 10.5 | 10.4 |
| 3326 | Pekalongan | 42.7 | 42.5 | 41.5 | 41.3 | 8271 | Ternate | 67.4 | 69.4 | 35.5 | 34.3 |
| 3327 | Pemalang | 33.7 | 34.0 | 33.7 | 33.5 | 8272 | Tidore Kepulauan | 53.8 | 58.6 | 57.2 | 56.8 |
| 3328 | Tegal | 36.9 | 38.4 | 38.0 | 37.7 | 9101 | Fakfak | 11.1 | 22.7 | 13.7 | 13.9 |
| 3329 | Brebes | 44.0 | 43.4 | 46.4 | 46.1 | 9102 | Kaimana | 0.0 | 0.6 | 0.6 | 0.6 |
| 3374 | Semarang | 31.9 | 34.8 | 33.5 | 33.3 | 9103 | Teluk Wondama | 0.0 | 0.0 | 0.9 | 0.9 |
| 3375 | Pekalongan | 0.0 | 0.0 | 14.7 | 14.7 | 9104 | Teluk Bintuni | 1.4 | 1.7 | 1.7 | 1.9 |
| 3401 | Kulon Progo | 83.7 | 83.9 | 84.8 | 84.7 | 9105 | Manokwari | 54.6 | 54.8 | 55.8 | 56.1 |
| 3402 | Bantul | 84.4 | 85.0 | 84.6 | 84.7 | 9106 | Sorong Selatan | 0.7 | 2.4 | 0.8 | 0.7 |
| 3403 | Gunung Kidul | 66.5 | 66.9 | 65.9 | 65.8 | 9107 | Sorong | 18.6 | 29.9 | 34.5 | 34.0 |
| 3404 | Sleman | 67.0 | 68.5 | 67.8 | 68.1 | 9108 | Raja Ampat | 0.0 | 0.0 | 1.8 | 1.9 |
| 3501 | Pacitan | 31.1 | 55.8 | 50.6 | 49.4 | 9109 | Tambrauw | 0.0 | 0.0 | 0.2 | 0.2 |
| 3502 | Ponorogo | 31.4 | 33.0 | 32.5 | 31.5 | 9110 | Maybrat | 0.0 | 13.3 | 20.0 | 19.8 |
| 3503 | Trenggalek | 38.7 | 41.9 | 41.5 | 40.8 | 9111 | Manokwari Selatan | 0.0 | 0.0 | 40.2 | 39.0 |
| 3504 | Tulungagung | 9.7 | 19.3 | 19.3 | 19.1 | 9112 | Manokwari | 0.0 | 0.0 | 0.1 | 0.1 |
| 3505 | Blitar | 13.8 | 24.1 | 23.8 | 23.8 | 9171 | Sorong | 77.3 | 88.2 | 31.8 | 31.6 |
| 3506 | Kediri | 23.5 | 23.8 | 23.4 | 23.6 | 9401 | Merauke | 1.3 | 2.8 | 3.5 | 3.5 |
| 3507 | Malang | 23.2 | 23.7 | 23.3 | 23.0 | 9402 | Jayawijaya | 7.0 | 8.8 | 7.5 | 7.8 |
| 3508 | Lumajang | 22.0 | 32.4 | 32.9 | 32.5 | 9403 | Jayapura | 26.0 | 30.3 | 29.7 | 29.8 |
| 3509 | Jember | 26.4 | 27.2 | 27.2 | 27.1 | 9404 | Nabire | 19.1 | 24.6 | 23.4 | 22.1 |
| 3510 | Banyuwangi | 21.9 | 18.3 | 18.0 | 17.8 | 9408 | Kepulauan Yapen | 11.3 | 12.0 | 13.0 | 12.6 |
| 3511 | Bondowoso | 21.4 | 22.2 | 22.0 | 22.0 | 9409 | Biak Numfor | 32.3 | 40.4 | 40.6 | 39.7 |
| 3512 | Situbondo | 41.4 | 41.6 | 41.1 | 40.8 | 9410 | Paniai | 7.3 | 7.9 | 6.8 | 6.5 |
| 3513 | Probolinggo | 29.0 | 33.3 | 33.3 | 33.2 | 9411 | Puncak Jaya | 0.0 | 1.0 | 2.9 | 3.0 |
| 3514 | Pasuruan | 40.1 | 43.0 | 43.5 | 43.5 | 9412 | Mimika | 1.5 | 5.3 | 5.6 | 5.8 |
| 3515 | Sidoarjo | 19.2 | 24.5 | 24.9 | 24.9 | 9413 | Boven Digoel | 4.1 | 3.6 | 4.6 | 4.9 |
| 3516 | Mojokerto | 33.6 | 34.7 | 34.7 | 35.0 | 9414 | Mappi | 0.0 | 0.0 | 0.0 | 0.0 |
| 3517 | Jombang | 27.5 | 31.3 | 31.2 | 31.5 | 9415 | Asmat | 0.0 | 0.0 | 0.0 | 0.0 |
| 3518 | Nganjuk | 28.6 | 31.7 | 31.0 | 30.6 | 9416 | Yahukimo | 0.0 | 0.6 | 0.5 | 0.5 |
| 3519 | Madiun | 34.0 | 36.5 | 38.7 | 38.3 | 9417 | Pegunungan Bintang | 0.0 | 0.6 | 1.7 | 1.7 |
| 3520 | Magetan | 22.2 | 22.7 | 22.3 | 21.9 | 9418 | Tolikara | 0.0 | 0.5 | 2.4 | 2.4 |
| 3521 | Ngawi | 30.3 | 32.1 | 32.4 | 32.1 | 9419 | Sarmi | 3.4 | 14.1 | 15.8 | 16.0 |
| 3522 | Bojonegoro | 32.9 | 33.1 | 31.7 | 31.0 | 9420 | Keerom | 14.9 | 15.8 | 11.0 | 11.0 |
| 3523 | Tuban | 40.3 | 41.3 | 41.2 | 40.8 | 9426 | Waropen | 0.7 | 0.7 | 1.5 | 1.6 |
| 3524 | Lamongan | 30.4 | 30.7 | 31.0 | 31.3 | 9427 | Supiori | 40.1 | 40.3 | 40.4 | 39.7 |
| 3525 | Gresik | 26.3 | 26.1 | 26.2 | 26.1 | 9428 | Mamberamo Raya | 0.0 | 0.0 | 0.0 | 0.0 |
| 3526 | Bangkalan | 33.4 | 33.7 | 33.4 | 33.1 | 9429 | Nduga | 0.0 | 0.0 | 0.0 | 0.0 |
| 3527 | Sampang | 24.4 | 24.3 | 23.9 | 24.3 | 9430 | Lanny Jaya | 0.0 | 1.8 | 0.9 | 0.9 |
| 3528 | Pamekasan | 23.4 | 24.1 | 23.7 | 23.4 | 9431 | Mamberamo Tengah | 2.9 | 3.1 | 1.4 | 1.5 |
| 3529 | Sumenep | 24.1 | 24.4 | 23.8 | 23.5 | 9432 | Yalimo | 16.4 | 16.8 | 18.9 | 19.0 |
| 3574 | Probolinggo | 91.4 | 90.0 | 89.2 | 89.7 | 9433 | Puncak | 0.0 | 0.0 | 0.0 | 0.0 |
| 3579 | Batu | 45.0 | 47.1 | 45.8 | 44.8 | 9434 | Dogiyai | 4.3 | 5.6 | 8.2 | 7.9 |
| 3601 | Pandeglang | 30.5 | 32.6 | 33.0 | 32.6 | 9435 | Intan Jaya | 0.0 | 0.0 | 0.0 | 0.0 |
| 3602 | Lebak | 34.7 | 37.5 | 38.1 | 37.4 | 9436 | Deiyai | 0.1 | 3.9 | 8.3 | 8.3 |
| 3603 | Tangerang | 5.7 | 5.7 | 5.9 | 6.1 | 9471 | Jayapura | 59.0 | 62.0 | 62.1 | 62.8 |
| 3604 | Serang | 23.1 | 28.3 | 30.0 | 30.6 |
Source: Author’s calculation.

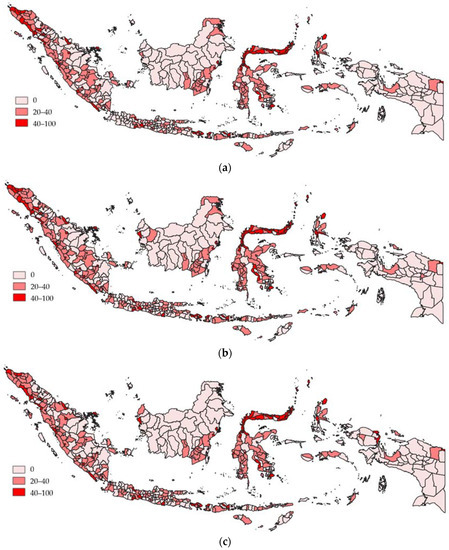

Figure A1.
OSM data inconsistency (a) 2014 (b) 2020 (c) map merger. Note: Authors only use primary, primary link, secondary, and secondary link road classifications. Source: www.geofabrik.de (accessed on 15 November 2021).
Figure A2.
2018 Indonesian RAI using the national road network map, WorldPop, and different road network condition data (per cent): (a) IRI (b) Road condition (c) Podes. Source: Author’s calculation.
Figure A3.
2018 Indonesian RAI using the national road network map, LandScan, and different road network condition data (per cent): (a) IRI (b) Road condition (c) Podes. Source: Author’s calculation.
Figure A4.
Indonesia by regional group and district’s code.
Notes
| 1 | Bartlett’s equal-variances test had = 0.1065 and p-value = 0.948. |
| 2 | Sumatra has district codes 1101–2172, Java has district codes 3201–3673, Bali and Nusa Tenggara have district codes 5101–5371, Borneo has district codes 6101–6571, Sulawesi has district codes 7101–7606, Moluccas and North Moluccas have district codes 8101–8272, and Papua and West Papua have district codes 9101–9471. |
| 3 | According to Ministry of Finance Regulation Number 120/PMK.07/2020 about Regional Fiscal Capacity Maps, where is government revenue—(government revenue that its alocation is determined + specific expenditure) and n is the number of districts in Indonesia. shows the fiscal capacity of district i. |
References
- Asher, Sam, and Paul Novosad. 2020. Rural Roads and Local Economic Development. American Economic Review 110: 797–823. [Google Scholar] [CrossRef]
- Bappenas. 2014. Rencana Pembangunan Jangka Menengah Nasional (RPJMN) 2015–2019. Jakarta: Bappenas. Available online: http://djsn.go.id/storage/app/media/RPJM/BUKU%20I%20RPJMN%202015-2019.pdf (accessed on 9 September 2022).
- Bappenas. 2017. Ringkasan Metadata Indikator Tujuan Pembangunan Berkelanjutan (TPB)/Sustainable Development Goals (SDGs) Indonesia. Jakarta: Bappenas. Available online: http://sdgs.bappenas.go.id/wp-content/uploads/2017/09/Buku_Ringkasan_Metadata_Indikator_TPB.pdf (accessed on 18 October 2021).
- Bappenas. 2020. Pedoman Teknis Penyusunan Rencana Aksi Tujuan Pembangunan Berkelanjutan (TPB)/Sustainable Development Goals (SDGs). Jakarta: Bappenas. Available online: http://sdgs.bappenas.go.id/buku-pedoman-rencana-aksi-sdgs/ (accessed on 11 June 2021).
- Bell, Clive, and Susanne van Dillen. 2014. How Does India’s Rural Roads Program Affect the Grassroots? Findings from A Survey in Upland Orissa. Land Economics 90: 372–94. [Google Scholar] [CrossRef]
- Bellu, Lorenzo Giovanni, and Paolo Liberati. 2006. Policy Impacts on Inequality: Decomposition of Income Inequality by Subgroups. Rome: FAO. Available online: https://www.fao.org/3/a-am342e.pdf (accessed on 1 November 2021).
- Cowell, Frank A. 2011. Measuring Inequality, 3rd ed. New York: Oxford University Press. [Google Scholar] [CrossRef]
- Dercon, Stefan, John Hoddinott, and Tassew Woldehanna. 2012. Growth and Chronic Poverty: Evidence from Rural Communities in Ethiopia. Journal of Development Studies 48: 238–53. [Google Scholar] [CrossRef]
- Haughton, Jonathan, and Shahidur R. Khandker. 2009. Handbook on Poverty and Inequality. Washington, DC: The World Bank. [Google Scholar]
- Iimi, Atsushi, Farhad Ahmed, Edward Charles Anderson, Adam Stone Diehl, Laban Maiyo, Tatiana Peralta-Quirós, and Kulwinder Rao. 2016. New Rural Access Index: Main Determinants and Correlation to Poverty. Policy Research Working Paper. Washington, DC: World Bank Group. [Google Scholar] [CrossRef]
- Jang, Seongman, Youngsoo An, Changhyo Yi, and Seungil Lee. 2017. Assessing the Spatial Equity of Seoul’s Public Transportation Using the Gini Coefficient Based on Its Accessibility. International Journal of Urban Sciences 21: 91–107. [Google Scholar] [CrossRef]
- Khandker, Shahidur R., and Gayatri B. Koolwal. 2011. Estimating the Long-term Impacts of Rural Roads: A Dynamic Panel Approach. Policy Research Working Paper 5867: 1–37. [Google Scholar] [CrossRef]
- Li, Wanjing, Qi Zhou, Yuheng Zhang, and Yijun Chen. 2022. Visualising Rural Access Index and Not Served Rural Population in Africa. Environment and Planning A: Economy and Space 54: 215–18. [Google Scholar] [CrossRef]
- Mestre, Francesc Xavier Salleras. 2021. Accessibility and Equity Assessment in Public Transport Services: A Case Study in Palma de Mallorca. Ph.D. thesis, KTH Royal Institute of Technology, Stockholm, Sweden. Available online: http://kth.diva-portal.org/smash/record.jsf?pid=diva2%3A1617053&dswid=-6534 (accessed on 3 January 2022).
- Mikou, Mehdi, Julie Rozenberg, Elco Eduard Koks, Charles James Edward Fox, and Tatiana Peralta Quiros. 2019. Assessing Rural Accessibility and Rural Roads Investment Needs Using Open Source Data. Policy Research Working Paper 8746. Washington, DC: World Bank. [Google Scholar] [CrossRef]
- Mu, Ren, and Dominique Van de Walle. 2011. Rural Roads and Local Market Development in Vietnam. Journal of Development Studies 47: 709–34. [Google Scholar] [CrossRef]
- Roberts, Peter, Shyam Kc, and Cordula Rastogi. 2006. Rural Access Index: A Key Development Indicator. Transport Paper Series TP-10. Available online: https://openknowledge.worldbank.org/handle/10986/17414 (accessed on 16 January 2022).
- Sala-i-Martin, Xavier X. 1996. Regional Cohesion: Evidence and Theories of Regional Growth and Convergence. European Economic Review 40: 1325–52. [Google Scholar] [CrossRef]
- Salim, Wilmar, and Siwage Dharma Negara. 2018. Infrastructure Development under the Jokowi Administration: Progress, Challenges and Policies. Journal of Southeast Asian Economies 35: 386–401. Available online: https://www.jstor.org/stable/10.2307/26545320 (accessed on 21 February 2022). [CrossRef]
- Simon, Nisha S., and Packirisamy Natarajan. 2017. Nonlinearity between Infrastructure Inequality and Growth. Review of Market Integration 9: 66–82. [Google Scholar] [CrossRef]
- Stevens, Forrest R., Andrea E. Gaughan, Catherine Linard, and Andrew J. Tatem. 2015. Disaggregating Census Data for Population Mapping Using Random Forests with Remotely-Sensed and Ancillary Data. PLoS ONE 10: e0107042. [Google Scholar] [CrossRef] [PubMed]
- Tselios, Vassilis. 2009. Growth and Convergence in Income Per Capita and Income Inequality in the Regions of the EU. Spatial Economic Analysis 4: 343–370. [Google Scholar] [CrossRef]
- Workman, Robin, Kevin McPherson, and TRL. 2019. Rural Access Index (RAI) Supplemental Guidelines: Measuring Rural Access Using New Technologies. ReCAP GEN2. London: ReCAP for DFID. Available online: https://www.research4cap.org/ral/Workmanetal-TRL-2019-RuralAccessIndexSupplementalGuidelines-ReCAP-GEN2033D-191219-compressed.pdf (accessed on 30 December 2021).
- World Bank. 2016. Measuring Rural Access Using New Technologies. Washington, DC: The World Bank. Available online: https://openknowledge.worldbank.org/handle/10986/25187 (accessed on 15 November 2021).
- Zimm, Caroline. 2019. Methodological Issues in Measuring International Inequality in Technology Ownership and Infrastructure Service Use. Development Studies Research 6: 92–105. [Google Scholar] [CrossRef]
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations. |
© 2022 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).
