# The Optimization Design of a Novel Slotted Microstrip Patch Antenna with Multi-Bands Using Adaptive Network-Based Fuzzy Inference System

^{*}

## Abstract

**:**

## 1. Introduction

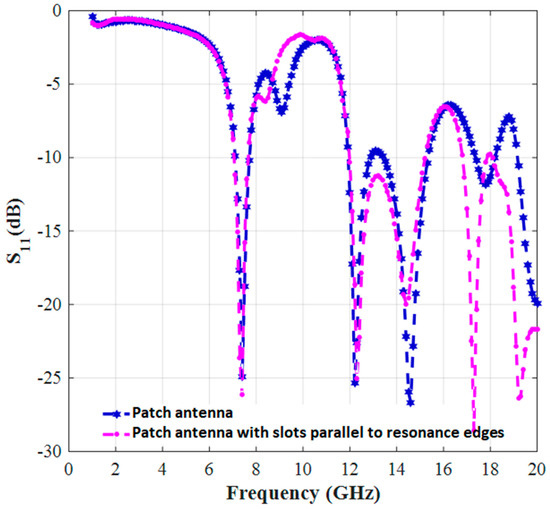

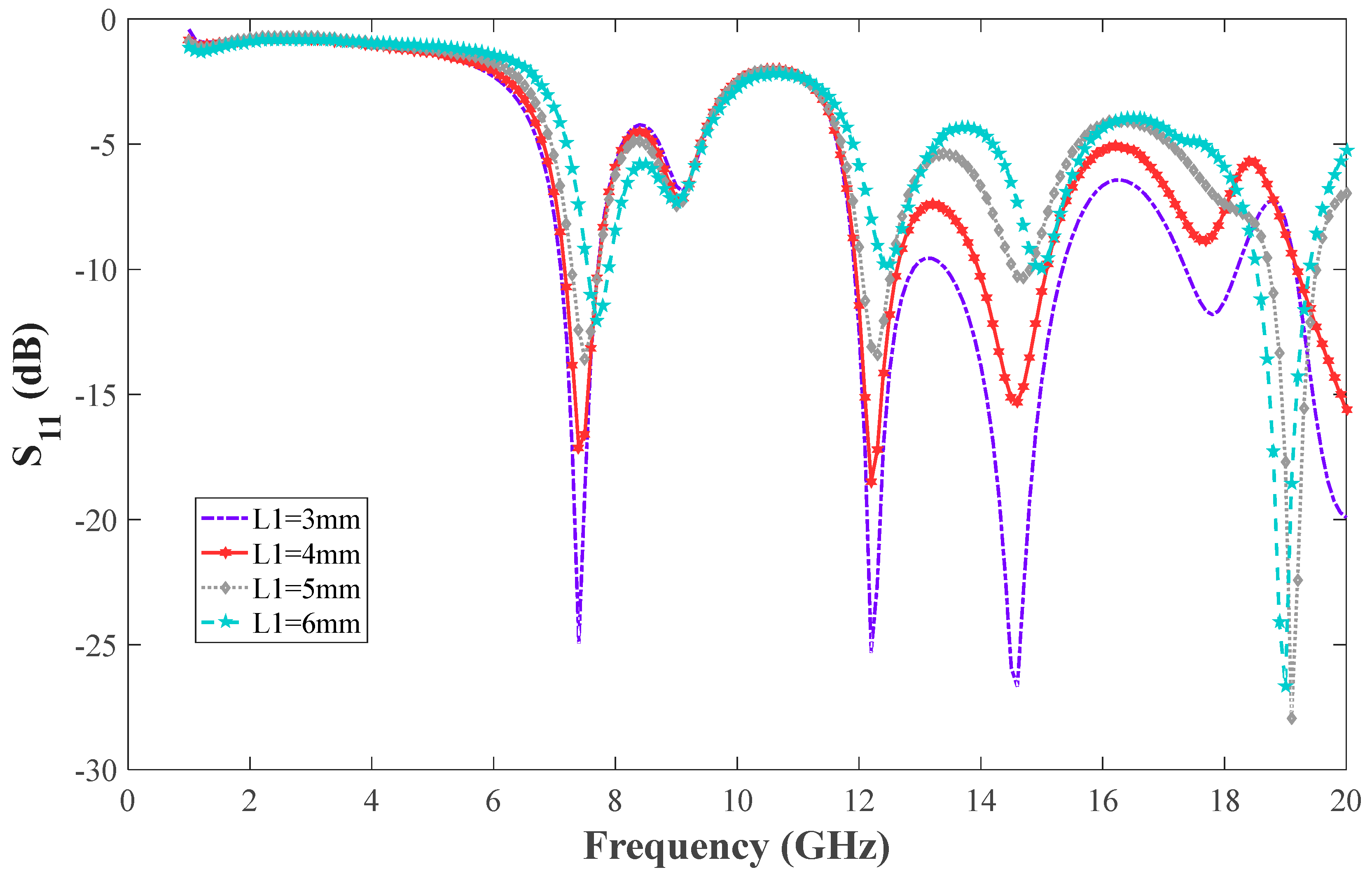

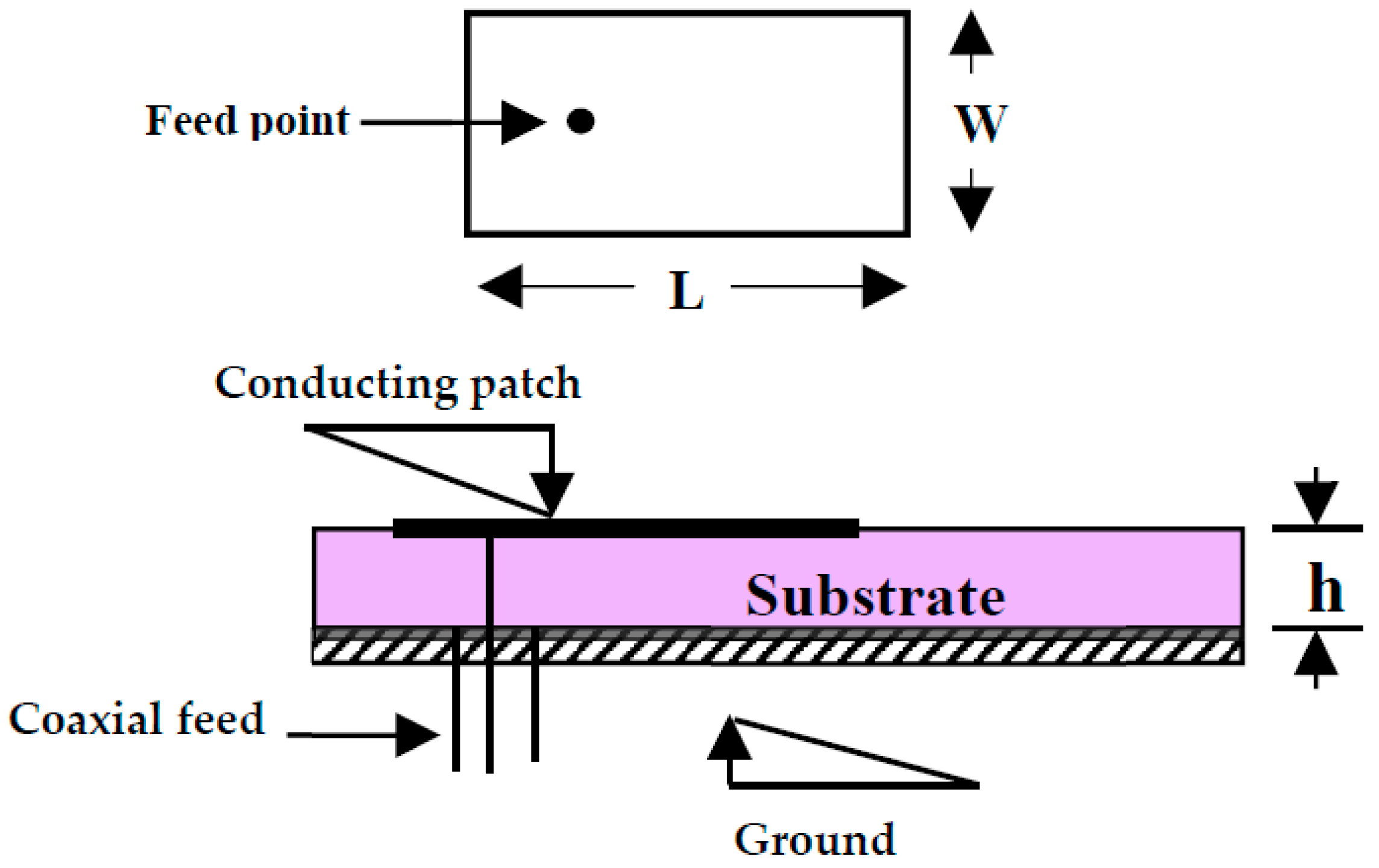

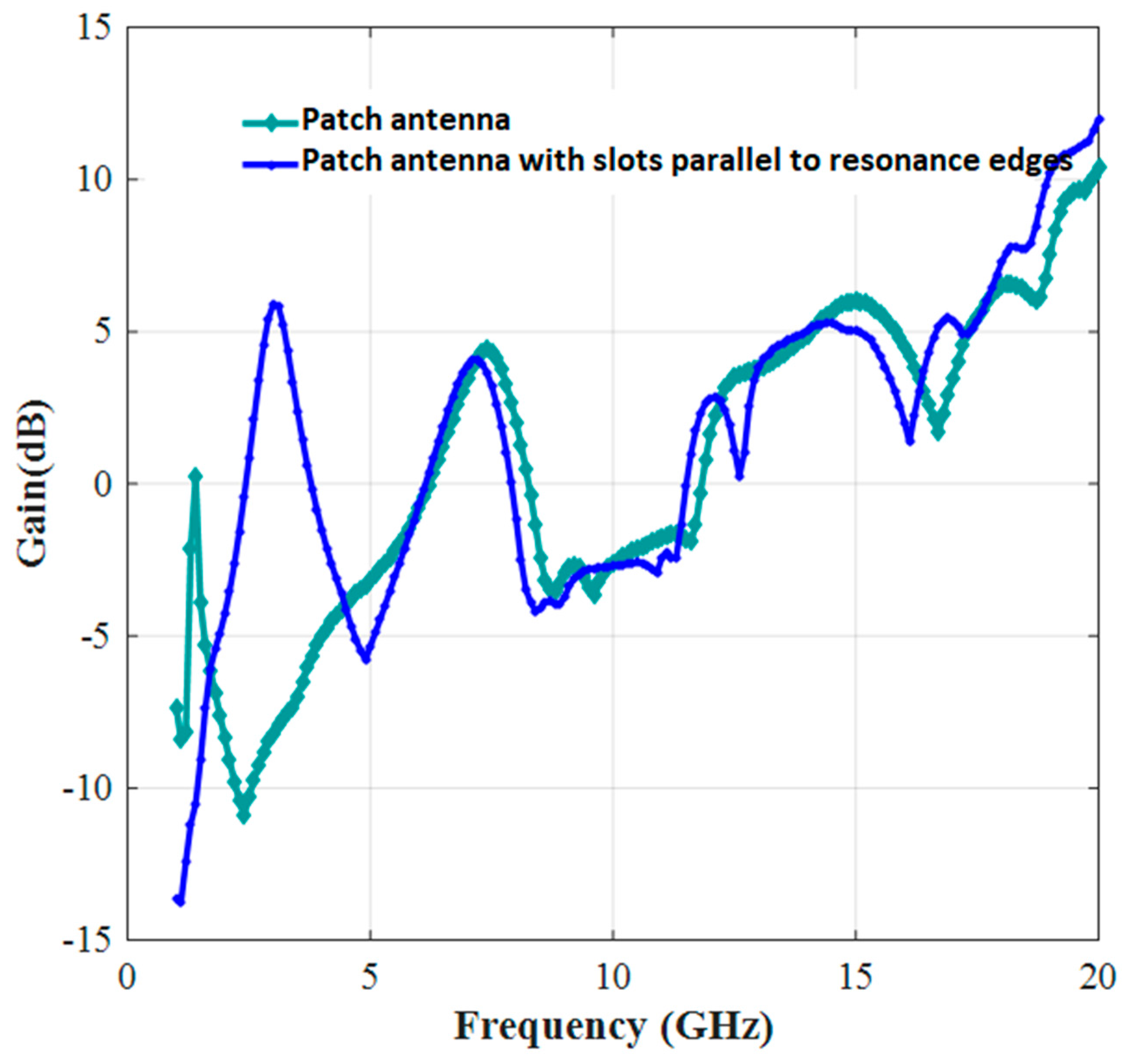

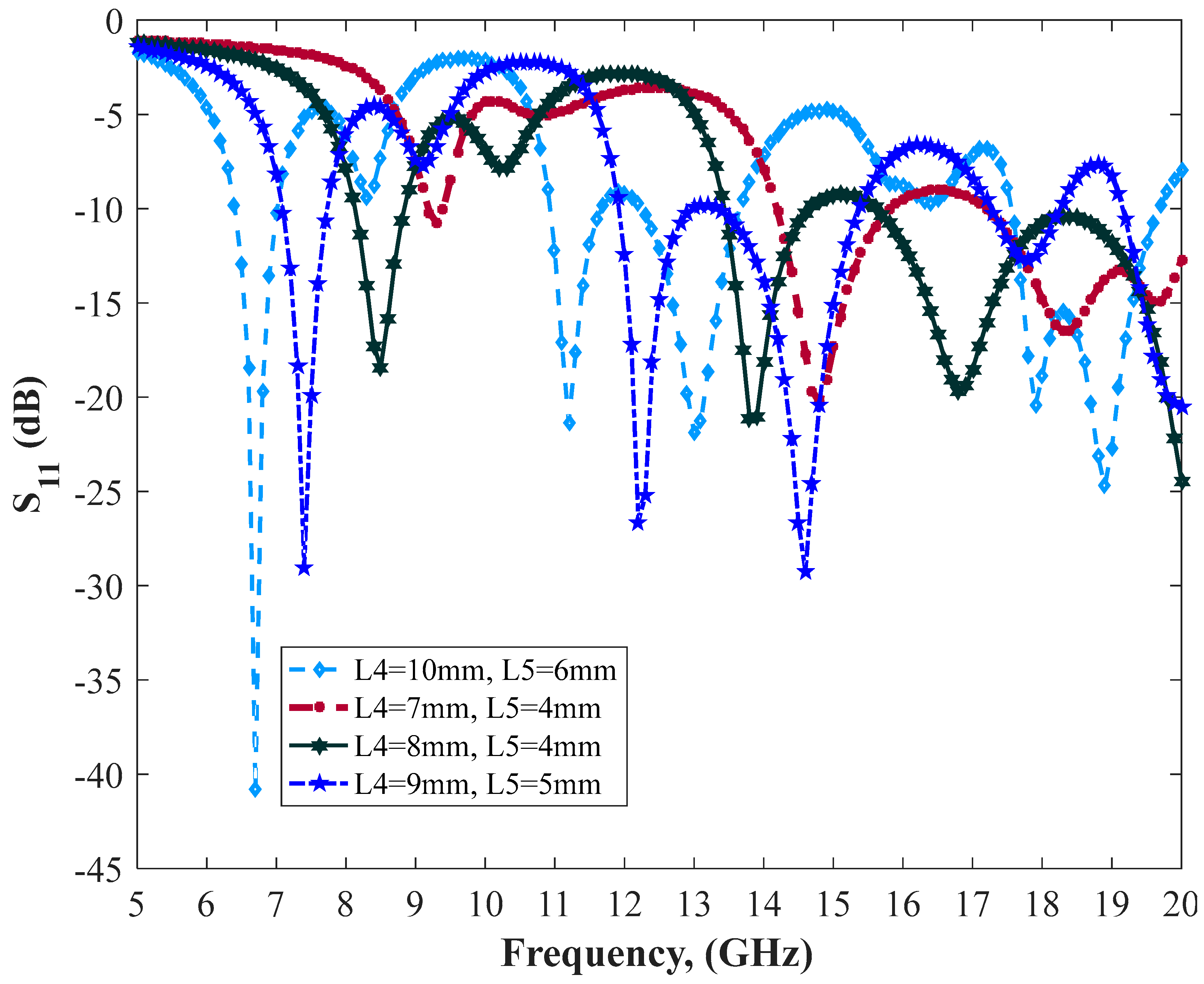

## 2. Resonant Frequency of Rectangular Microstrip Antenna with Slots Parallel to Resonance Edges

_{e}and W

_{e}are the effective dimensions. Reportedly, the width of the patch has direct effect on some important parameters of the antenna such as radiation pattern and the frequency in which the antenna probably resonates. The resonant frequency ${f}_{mn}$ of the antenna at its fundamental TM10 mode can be calculated from Equation (1):

_{e}= L + 2ΔL

_{e}is the effective length showing the field fringing at the end of the patch. They are indicating the effects of the non-uniform medium and the fringing fields at each end of the patch. Two formulas for Equations (2) and (3) presented by Schneider (1969) and Hammerstad (1975) can be used to calculate ${\epsilon}_{e}$ (W) and $\mathsf{\Delta}$L.

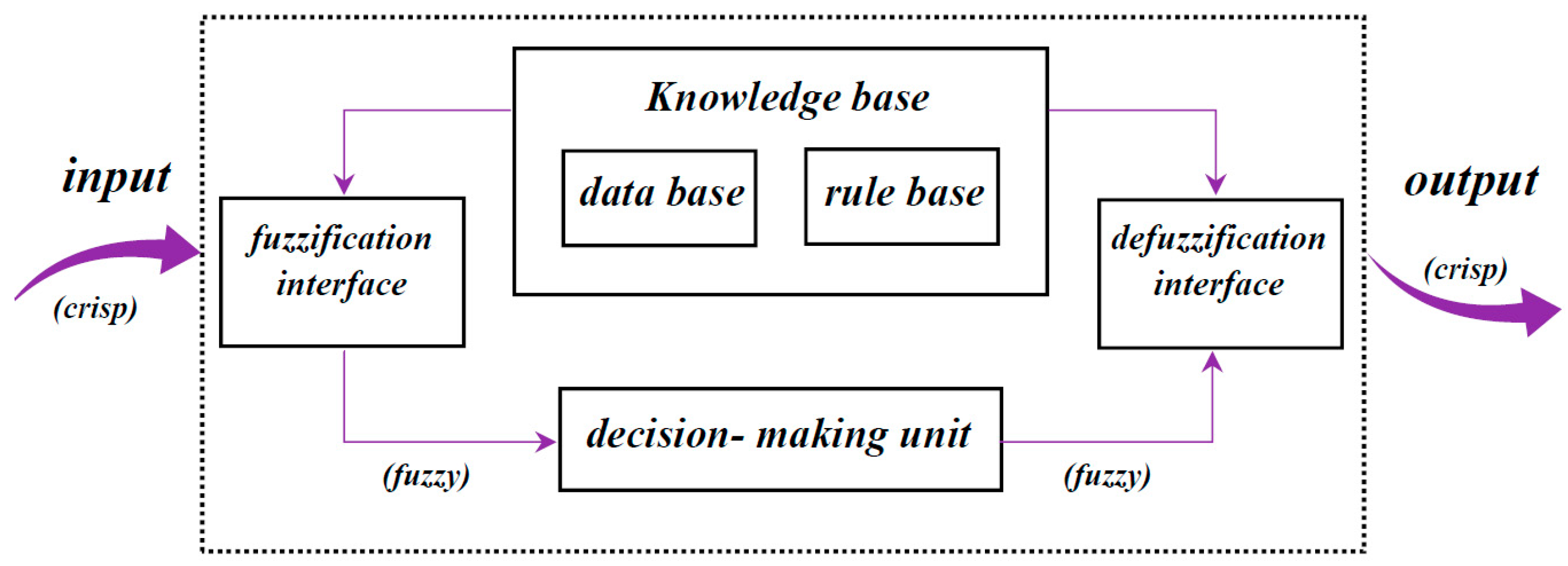

## 3. Adaptive Neuro-Fuzzy Inference System (ANFIS)

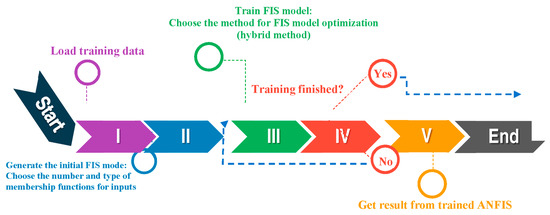

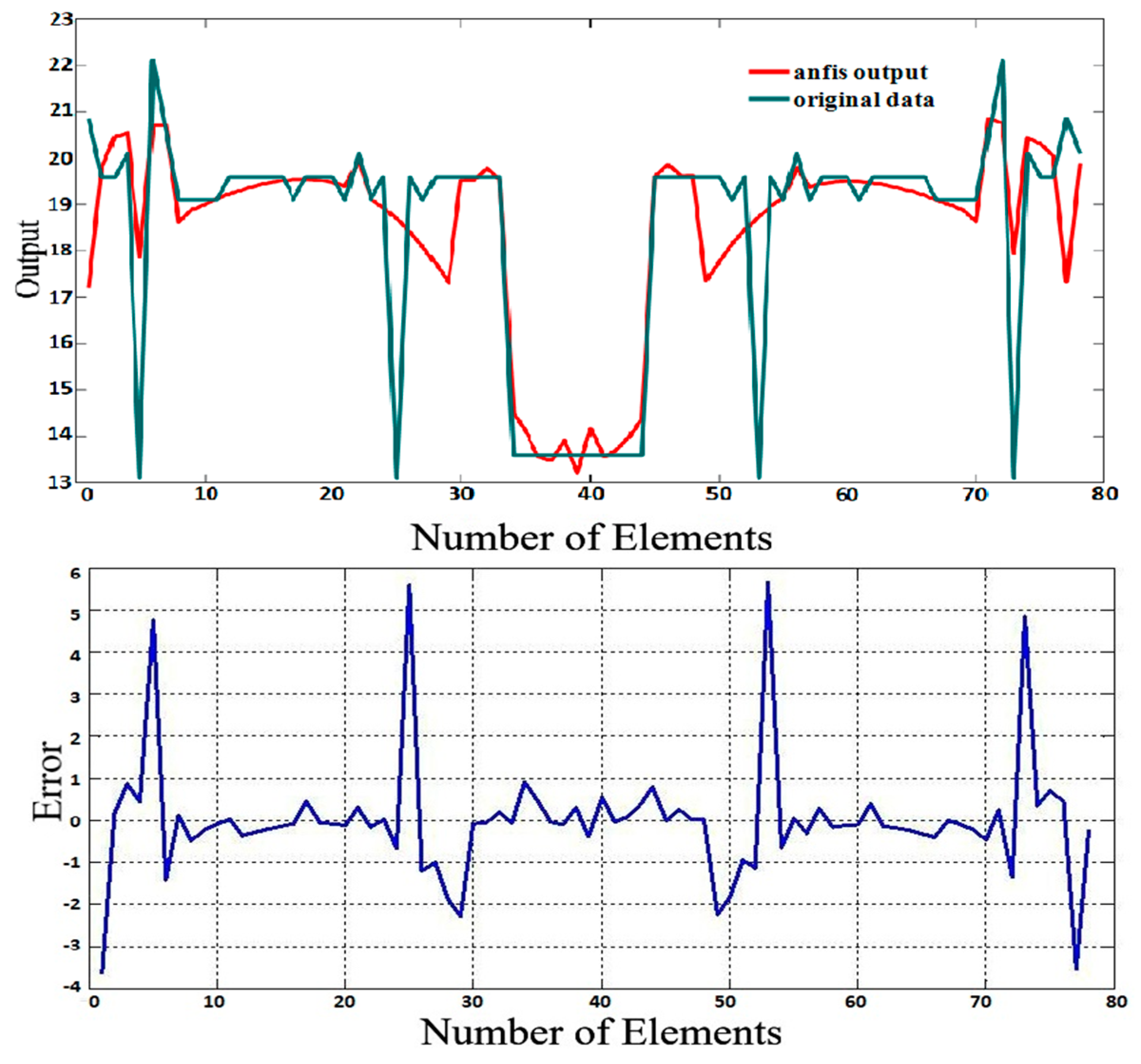

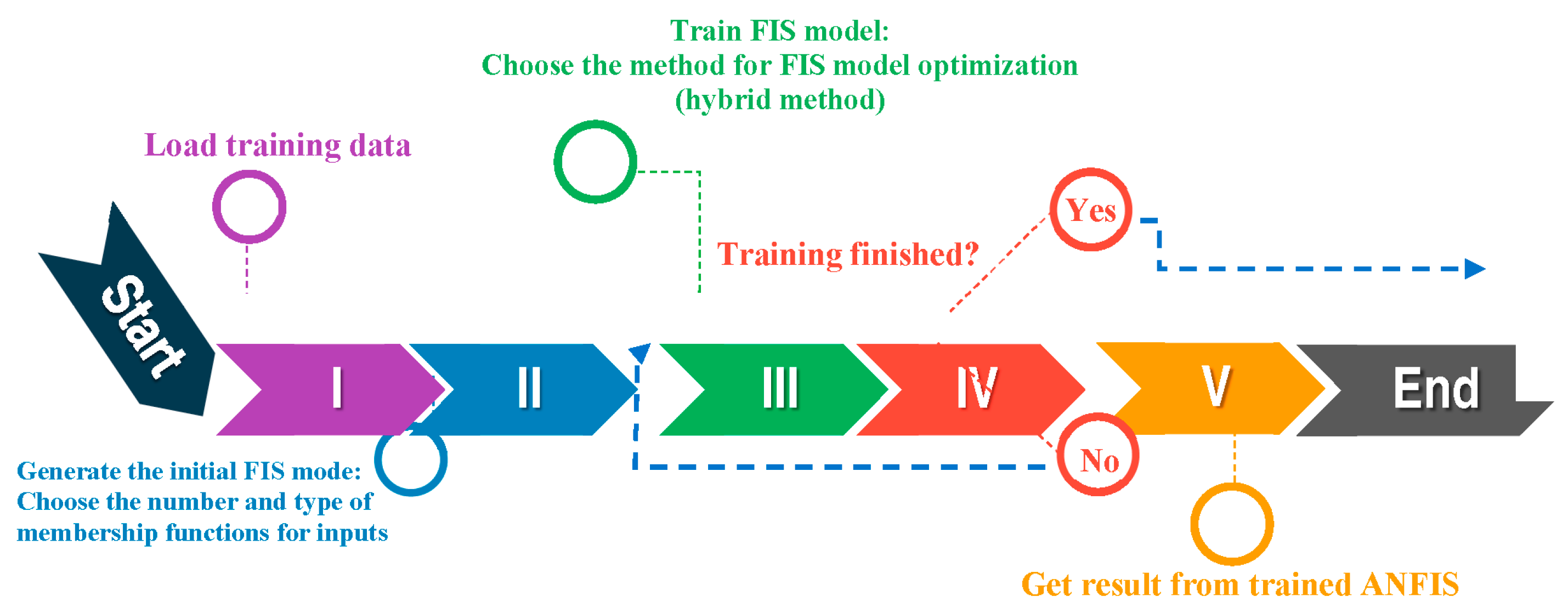

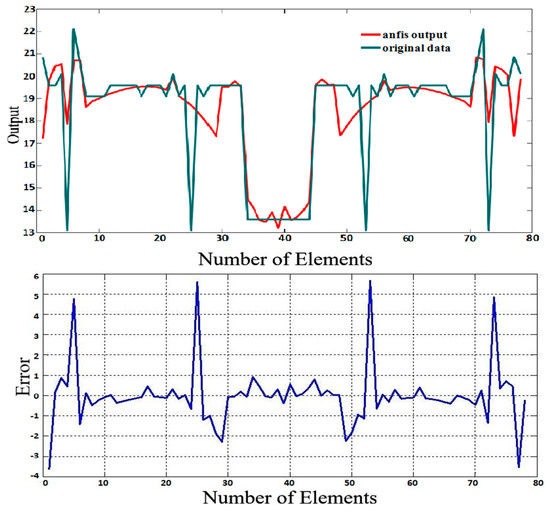

## 4. How to Take Advantage of the ANFIS in Calculating the Resonant Frequency of Rectangular Antennas Operating at Multi Bands

## 5. Conclusions

## Author Contributions

## Conflicts of Interest

## References

- Garg, R.; Bhartia, P.; Bahl, I.; Ittipiboon, A. Microstrip Antenna Design Handbook; Artech House: Norwood, MA, USA, 2001. [Google Scholar]
- Wong, K.L. Compact and Broadband Microstrip Antennas; J. Wiley and Sons: New York, NY, USA, 2002. [Google Scholar]
- Chen, W.S. A novel broadband design of a printed rectangular slot antenna for wireless applications. Microw. J.
**2006**, 49, 122. [Google Scholar] [CrossRef] - Azadegan, R.; Sarabandi, K. Bandwidth Enhancement of Miniaturized Slot Antennas Using Folded, Complementary, and Self-Complementary Realizations. IEEE Trans. Antennas Propag.
**2007**, 55, 2435–2444. [Google Scholar] [CrossRef] - Zhang, L.; Jiao, Y.C.; Zhao, G.; Song, Y.; Wang, X.M.; Zhang, F.-S. A novel CPW-FED monopole antenna for multiband operation. J. Electromagn. Waves Appl.
**2008**, 22, 741–747. [Google Scholar] [CrossRef] - Sze, J.Y.; Wong, K.L. Bandwidth enhancement of a microstrip line-fed printed wide-slot antenna. IEEE Trans. Antennas Propag.
**2001**, 49, 1020–1024. [Google Scholar] [CrossRef] - Guney, K.; Gultekin, S.S. Artificial Neural Networks for Resonant Frequency Calculation of Rectangular Microstrip Antennas with Thin and Thick Substrates. Int. J. Infrared Millim. Waves
**2004**, 25, 1383. [Google Scholar] [CrossRef] - Gultekin, S.S.; Guney, K.; Sagiroglu, S. Neural networks for the calculation of bandwidth of rectangular microstrip antennas. Appl. Comput. Electromagn. Soc. (ACES) J.
**2003**, 18, 46–56. [Google Scholar] - Karaboga, D.; Guney, K.; Sagiroglu, S.; Erler, M. Neural computation of resonant frequency of electrically thin and thick rectangular microstrip antennas. IEE Proc. Microw. Antennas Propagat.
**1999**, 146, 155–159. [Google Scholar] [CrossRef] - Guney, K.; Erler, M.; Sagiroglu, S. Artificial neural networks for the resonant resistance calculation of electrically thin and thick rectangular microstrip antennas. Electromagnetics
**2000**, 20, 387–400. [Google Scholar] [CrossRef] - Guney, K.; Sagiroglu, S.; Erler, M. Comparison of neural networks for resonant frequency computation of electrically thin and thick rectangular microstrip antennas. J. Electromagn. Waves Appl.
**2012**, 15, 1121–1145. [Google Scholar] [CrossRef] - Amanpreet, K.; Gurmohan, S.; Manjit, K. Miniaturized Multiband Slotted Microstrip Antenna for Wireless Applications. Wirel. Pers. Commun.
**2017**. [Google Scholar] [CrossRef] - Jiachen, Y.; Huanling, W.; Zhihan, L.; Huihui, W. Design of Miniaturized Dual-Band Microstrip Antenna for WLAN Application. Sensors
**2016**, 16, 983. [Google Scholar] [CrossRef] - Naresh, K.; Darimireddy, R.; RamanReddy, A.; Mallikarjuna, P. Design of triple-layer double U-slot patch antenna for wireless applications. J. Appl. Res. Technol.
**2015**, 13, 526–534. [Google Scholar] - Liu, S.; Qi, S.S.; Wu, W.; Fang, D.G. Single-Layer Single-Patch Four-Band Asymmetrical U-Slot Patch Antenna. IEEE Trans. Antennas Propag.
**2014**, 62, 4895–4899. [Google Scholar] [CrossRef] - Jang, J.S.R. Anfis: Adaptive-network-based fuzzy inference system. IEEE Trans. Syst. Man Cyber.
**1993**, 23, 665–685. [Google Scholar] [CrossRef] - Jang, J.S.R.; Sun, C.T.; Mizutani, E. Neuro-Fuzzy and Soft Computing: A Computational Approach to Learning and Machine Intelligence; Prentice-Hall: Upper Saddle River, NJ, USA, 1997. [Google Scholar]
- Bassam, A.; May Tzuc, O.; Escalante Soberanis, M. Temperature Estimation for Photovoltaic Array Using an Adaptive Neuro Fuzzy Inference System. Sustainability
**2017**, 9, 1399. [Google Scholar] [CrossRef] - Mashaly, A.F.; Alazba, A.A. Application of adaptive neuro-fuzzy inference system (ANFIS) for modeling solar still productivity. J. Water Supply Res. Technol. AQUA
**2017**, 66, 367–380. [Google Scholar] [CrossRef]

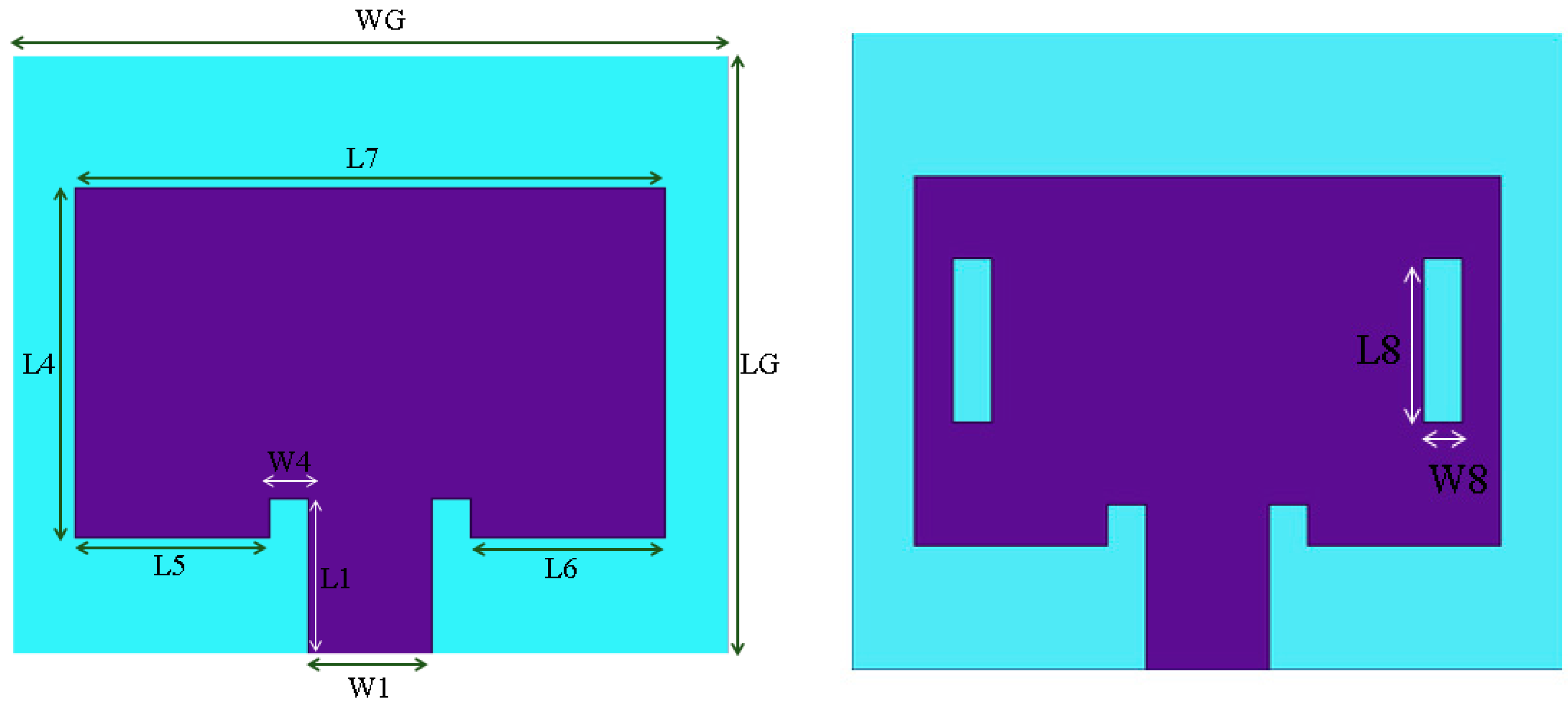

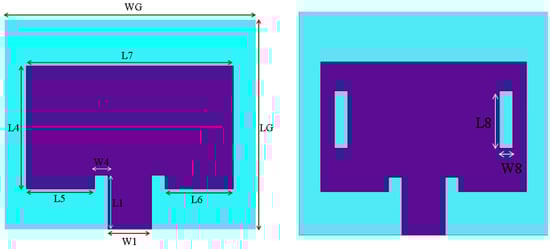

**Figure 2.**Full ground plane microstrip antenna without slots on the left side and with two slots on the right side being parallel to resonance edges fabricated on FR-4 substrate with a thickness of 1.6 mm.

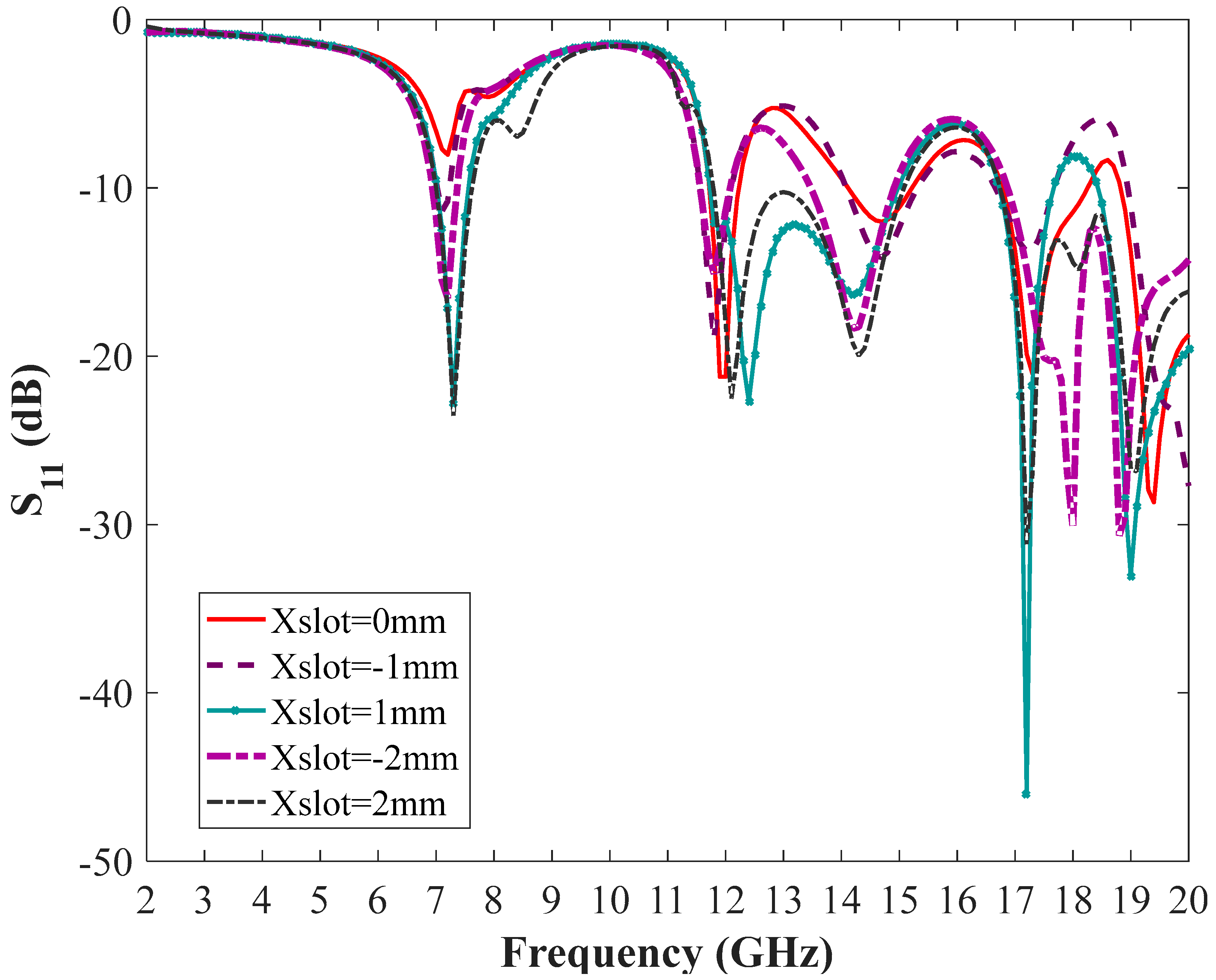

**Figure 5.**Finding the best coordination for Xslot on the patch with two slots being parallel to resonance edges.

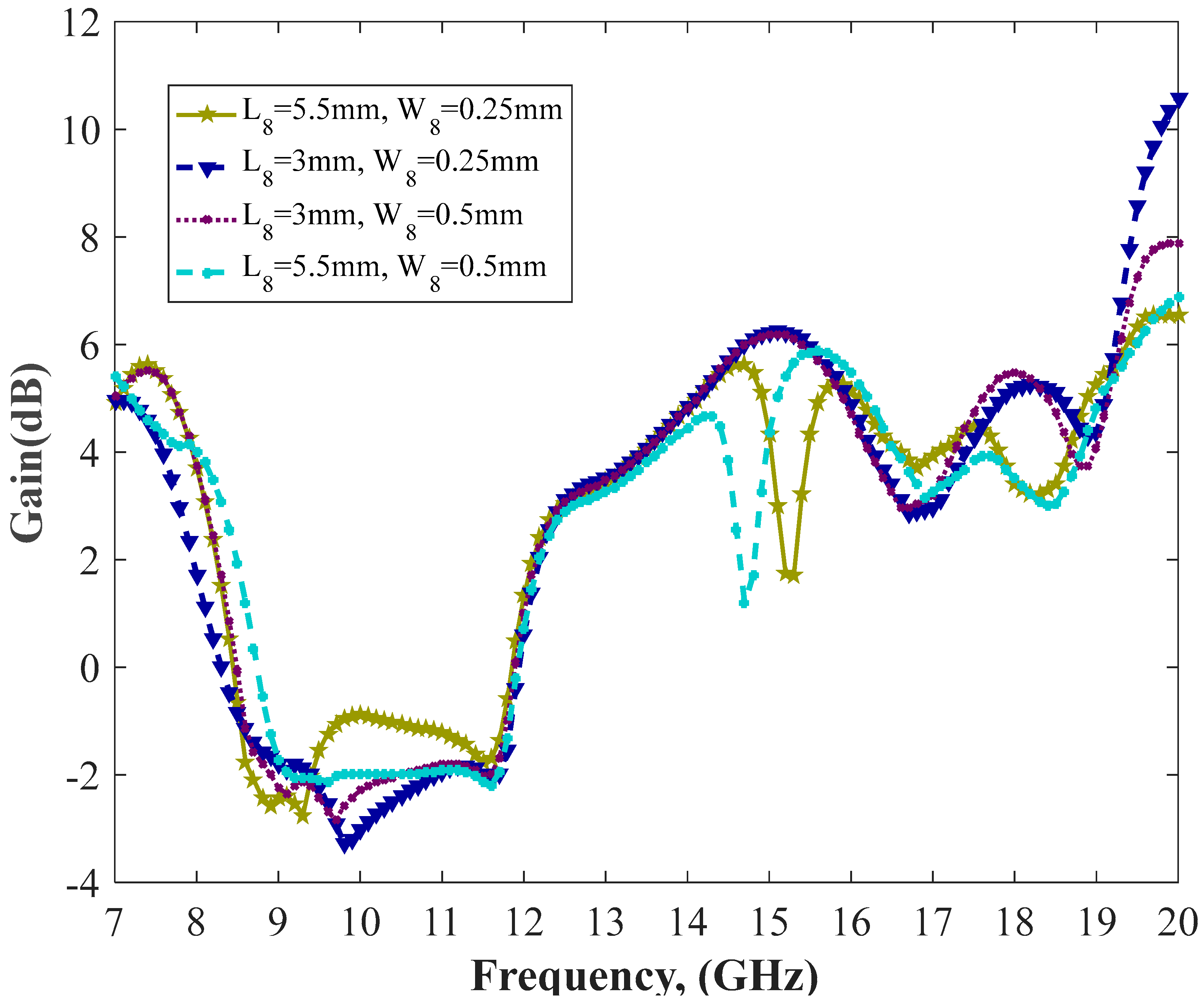

**Figure 6.**The gain of the proposed slotted-patch antenna as the length and the width of the slots are changed.

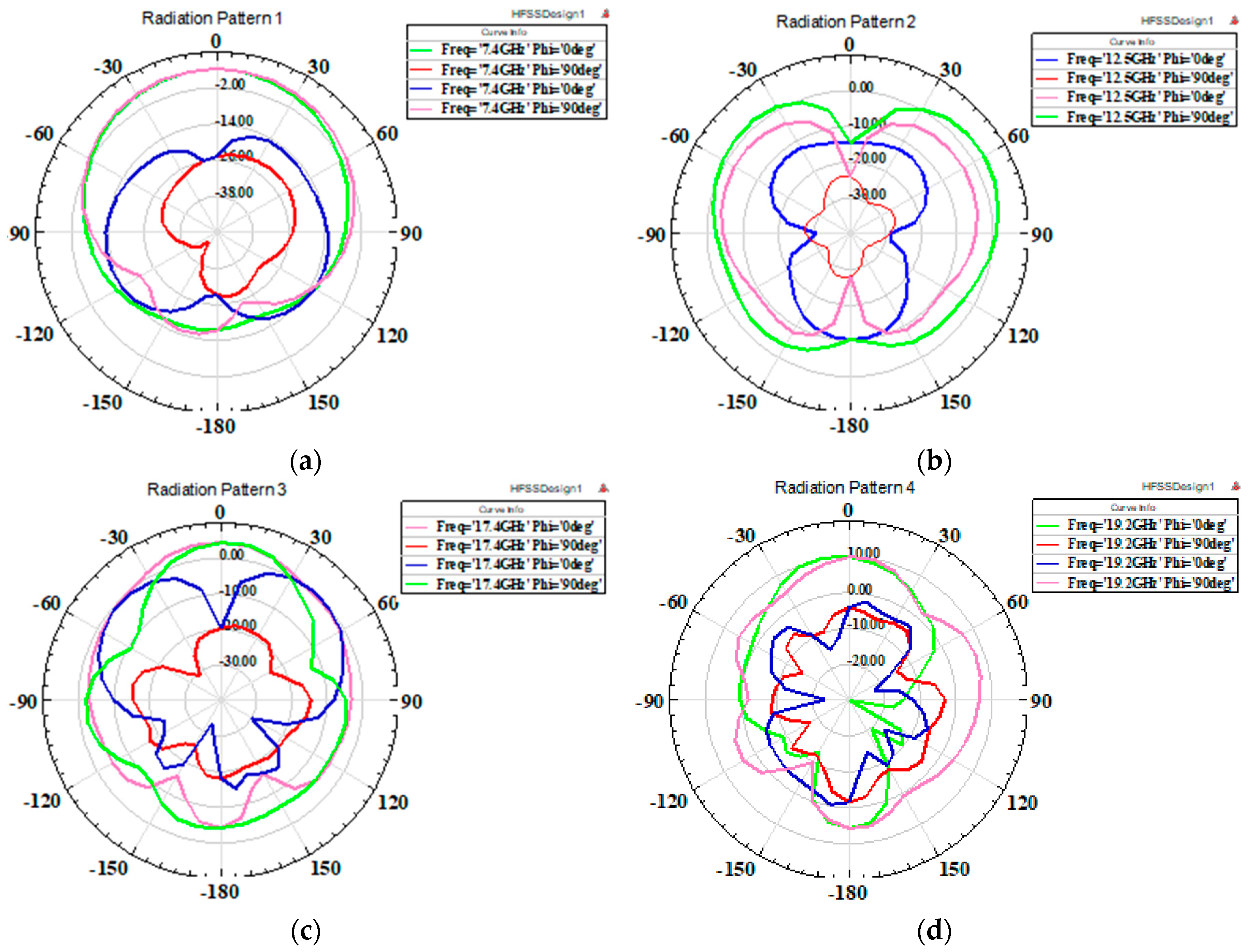

**Figure 9.**Radiation patterns of the proposed microstrip antenna with slots parallel to resonance edges at (

**a**) 7.4 GHz (

**b**) 12.5 GHz (

**c**) 17.4 GHz (

**d**) 19.2 GHz.

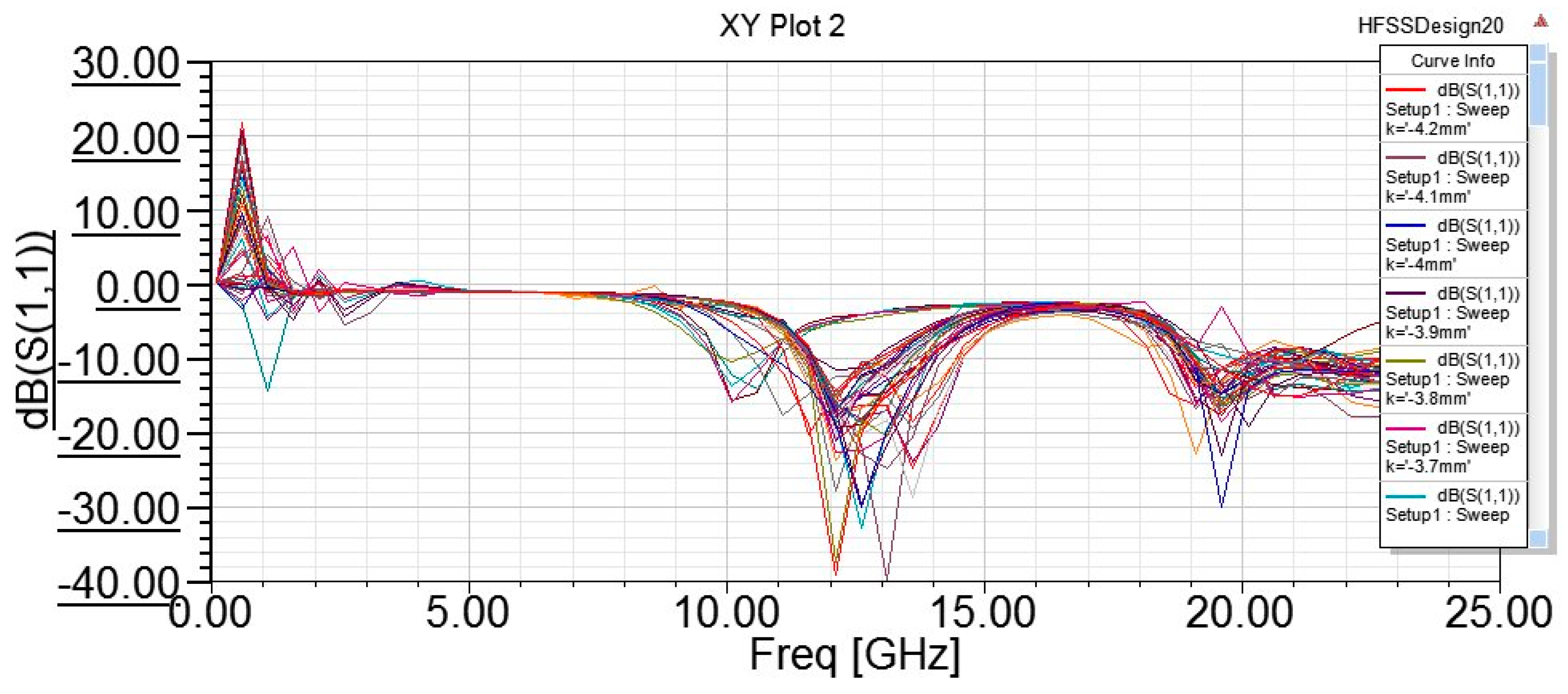

**Figure 11.**S11 obtained from the whole possible cases simulated by High Frequency Electromagnetic Field Simulation software (HFSS).

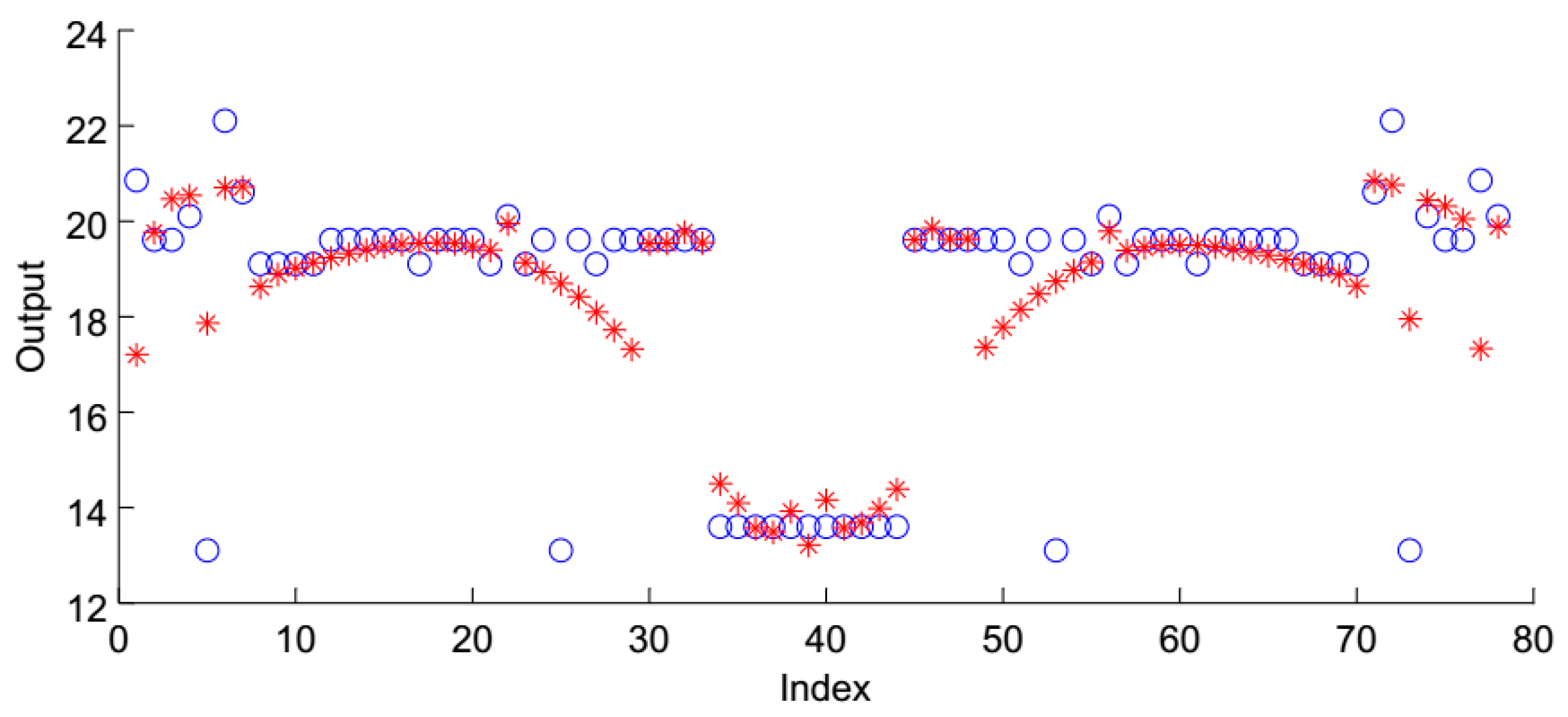

**Figure 13.**Approximation of training data and fuzzy output (O and

*****are symbols representing the trained data and FIS output respectively).

Parameter | mm | Parameter | mm |
---|---|---|---|

L1 = L feed | 3 | LG | 15.528 |

L4 | 9 | WG | 18.44 |

L5 | 5 | W4 | 1 |

L6 | 5 | W1 | 3.2 |

L7 | 15.2 | - |

Microstrip Patch Antenna with Slots (L8 = 7.5 mm, W8 = 0.25 mm) | |||||
---|---|---|---|---|---|

Resonant Frequency (GHz) | 7.4 | 12.2 | 14.6 | 17.5 | 19.3 |

Bandwidth | 7–7.8 | 11.9–13.2 & 13.2–15.5 | 16.9–18 | 18–18.9 | 18.9–20 |

Return loss (dB) | −26 | −33 & −20 | −28 | −18 | −28 |

Gain (dB) | 4 | 2.8 & 5.3 | 5 | 7.75 | 10.8 |

Reference | Resonant Freq | Max Gain dBi | Size (mm^{3}) |
---|---|---|---|

[12] | 3.39/4.29/5.46/5.77 | 8 | 25 × 25 × 1.6 |

[13] | 2.6/5.45/0.08 | 5 | 29 × 16 × 1.6 |

[14] | 1.6/1.9/3.8 | 6.58 | 52 × 71 × 1.6 |

[15] | 3.35/3.70/5.20/5.80 | 9 | 50 × 50 × 5 |

The Proposed Antenna | 7.4/12.2/14.6/17.5/19.3 | 10.8 | 15.528 × 18.44 × 1.6 |

**Table 4.**Results of the adaptive network-based fuzzy inference system (ANFIS) tested with different membership functions.

MFs | |||||||||
---|---|---|---|---|---|---|---|---|---|

Stage | Trapmf | Trimf | Dsigmf | Psigmf | Pimf | Gbellmf | Gaussmf | Gauss2mf | |

training | MAE | 1.5722 | 1.536 | 1.5386 | 1.5385 | 1.5317 | 1.483 | 1.4653 | 1.5012 |

RMSE | 2.6385 | 2.6797 | 2.6823 | 2.616 | 2.6066 | 2.3713 | 2.515 | 2.341 | |

CC | 0.7982 | 0.8213 | 0.8511 | 0.8552 | 0.8695 | 0.8997 | 0.9187 | 0.9234 |
