Genetic Diversity and Population Structure of Maize Inbred Lines with Varying Levels of Resistance to Striga Hermonthica Using Agronomic Trait-Based and SNP Markers

by
Adekemi Stanley
1,2,
Abebe Menkir
2,*,
Agre Paterne
2,
Beatrice Ifie
1,
Pangirayi Tongoona
1,
Nnanna Unachukwu
2,
Silvestro Meseka
2,
Wende Mengesha
2 and
Melaku Gedil
2
1
West Africa Centre for Crop Improvement University of Ghana, Legon PMB 30, Ghana
2
International Institute of Tropical Agriculture (IITA), Ibadan 200001, Nigeria
*
Author to whom correspondence should be addressed.
Plants 2020, 9(9), 1223; https://doi.org/10.3390/plants9091223
Submission received: 14 August 2020 / Revised: 7 September 2020 / Accepted: 14 September 2020 / Published: 17 September 2020
Browse Figures
Versions Notes

Abstract

:
Striga hermonthica is a serious biotic stress limiting maize production in sub-Saharan Africa. The limited information on the patterns of genetic diversity among maize inbred lines derived from source germplasm with mixed genetic backgrounds limits the development of inbred lines, hybrids, and synthetics with durable resistance to S. hermonthica. This study was conducted to assess the level of genetic diversity in a panel of 150 diverse maize inbred lines using agronomic and molecular data and also to infer the population structure among the inbred lines. Ten Striga-resistance-related traits were used for the phenotypic characterization, and 16,735 high-quality single-nucleotide polymorphisms (SNPs), identified by genotyping-by-sequencing (GBS), were used for molecular diversity. The phenotypic and molecular hierarchical cluster analyses grouped the inbred lines into five clusters, respectively. However, the grouping patterns between the phenotypic and molecular hierarchical cluster analyses were inconsistent due to non-overlapping information between the phenotypic and molecular data. The correlation between the phenotypic and molecular diversity matrices was very low (0.001), which is in agreement with the inconsistencies observed between the clusters formed by the phenotypic and molecular diversity analyses. The joint phenotypic and genotypic diversity matrices grouped the inbred lines into three groups based on their reaction patterns to S. hermonthica, and this was able to exploit a broad estimate of the actual diversity among the inbred lines. The joint analysis shows an invaluable insight for measuring genetic diversity in the evaluated materials. The result indicates that wide genetic variability exists among the inbred lines and that the joint diversity analysis can be utilized to reliably assign the inbred lines into heterotic groups and also to enhance the level of resistance to Striga in new maize varieties.

Graphical Abstract

1. Introduction

Maize (Zea mays L.) is an important cereal crop playing a crucial role in global food security and as a source of income for smallholder farmers in sub-Saharan Africa (SSA). It is referred to as the queen of cereals because of its high yield potential, ease in processing, and low cost [1]. Maize is a major source of food and livelihood for over 900 million people in Africa [2]. Its production exceeds that of rice and wheat [3], and it holds a unique position in world agriculture. Maize has enormous genetic diversity due to its prolonged selection [4,5,6], and it has become a model crop for major cereals [7] because its genome harbors tremendous phenotypic and molecular diversity [8]. Its molecular diversity is about fivefold higher than other domesticated crops [8,9].
Maize has the potential to alleviate food insecurity in SSA, but several biotic and abiotic stresses hamper its production. These stresses account for over 50% reduction in grain yield estimated at over USD 7 billion resulting in hunger, malnutrition, and food scarcity [10]. Striga poses severe threat to cereal production in SSA. Among the more than 40 known Striga species worldwide, Striga hermonthica [Del.] Benth is the most destructive, harmful, and widespread in SSA, causing significant yield loss in cereals [11,12]. S. hermonthica is a root hemiparasite plant that parasitizes its host and extracts water and essential nutrients from it, resulting in stunting, wilting, chlorosis, reduction in yield, and death of the host. Grain yield losses due to S. hermonthica can reach up to 100% in susceptible maize cultivars under severe field infestation [13]. The use of resistant varieties, in combination with other control measures, including fertilizer and rotation, is considered a viable approach to combat the menace caused by this parasitic plant. For decades, maize breeders at the International Institute of Tropical Agriculture (IITA) have developed S. hermonthica tolerant and resistant lines. These lines have been developed from populations, composites, a backcross containing Z. diploperennis and synthetics that have been improved for field resistance to S. hermonthica using recurrent selection schemes [14,15]. These source populations were developed from mixtures of diverse maize germplasm without due regard to their heterotic patterns. Assessing the genetic diversity of these inbred lines using agronomic based-traits and molecular data will facilitate the selection of potential parental lines for use in developing desirable bi-parental source populations and also superior hybrids and synthetics with durable resistance to S. hermonthica [16,17].
Genetic diversity is the foundation for crop improvement, and it plays an important role in breeding programs [18]. Information on genetic diversity and relatedness among maize inbred lines have been useful in selecting parental combinations for developing superior hybrids and for assigning inbred lines into heterotic groups [19,20,21]. Population structure analysis also provides a valuable understanding of genetic diversity and serves as a guide for selection [22]. Many assessment methods, including morphological markers, heterosis, pedigree data, and molecular markers, have been used to estimate genetic diversity in plants [23,24]. Morphological markers have been widely used to assess genetic diversity because they are cheap, rapid, and easy to measure [25]. However, they are highly influenced by the environment and several other factors limit their ability to estimate genetic diversity [16]. Molecular markers are a useful tool for assessing genetic diversity because they are stable, polymorphic, readily available in the genome, and are not sensitive to environmental factors [26]. Several types of molecular markers have been used to assess genetic diversity and group maize inbred lines into heterotic groups [27,28,29]. Among the numerous types of molecular markers used are single nucleotide polymorphism (SNP) markers. SNPs are mostly used because of their stability and abundance in the genome [30]. They have been widely used in plants to evaluate genetic diversity, construct linkage maps, and association analysis [31,32]. However, studies have shown that joint analysis of molecular and morphological data provides in-depth insight into population structure and genetic diversity, and this has been used in different crops [33,34,35,36,37]. Belalia et al. [38] demonstrated the usefulness of this method in maize by assessing the genetic diversity of 56 populations using 14 agro-morphological traits and 18 simple sequence repeat (SSR) markers. Both marker systems revealed significant genetic diversity in the maize populations. The objectives of this study were, therefore, to assess the genetic structure and genetic diversity in a panel of tropical maize inbred lines using agronomic traits recorded under Striga-infested conditions and molecular marker (SNPs).

2. Materials and Methods

2.1. Plant Materials

A total of 150 inbred lines at S7 to S9 stages of inbreeding having diverse reactions to S. hermonthica were randomly selected from a large number of lines with different genetic backgrounds and used in the present study. The inbred lines were derived from diverse source populations (Table 1). Ten inbred lines with known resistance (9450), tolerance (5012, 1393, 1368, 4001, 9030, 9071, KU1414-SR, and MMB90) and susceptibility (5057) reactions to S. hermonthica were included as benchmarks to assess the performance of the lines.
Phenotypic Evaluation: The inbred lines were evaluated under Striga-infested conditions at Abuja (9°15′ N, 7°20′ E; 490 m asl) and Mokwa (9°21′ N, 5°10′ E; 210 m asl) in Nigeria during the main rainy seasons of 2017 and 2018. The lines were arranged in a 15 × 10 alpha lattice design with two replications and planted in strips. Within each strip, an inbred line was planted in a 4 m long row, with 0.75 m inter-row spacing and 0.25 m intra-row spacing.
The field was treated with ethylene gas two weeks before planting to remove S. hermonthica seeds from the soil through suicidal germination. S. hermonthica seeds used for artificial infestation of the infested blocks were collected from farmers’ sorghum fields in the previous planting year. Two maize seeds were planted in a 6 cm deep hole injected with 8.5 g of sand mixed with Striga seeds. The mixture contains approximately 3000 germinable Striga seeds. Two weeks after planting, all maize plants were thinned to one plant per hill to attain a population density of 53,333 plant ha−1. Fertilizer was applied at the rate of 30 kg/ha of Nitrogen, 60 kg/ha each of phosphorus and potassium at planting, and an additional 30 kg/ha nitrogen was applied four weeks later. Weeds other than Striga were removed from plots manually throughout the planting season.

2.2. Trait Measurements

Data recorded under Striga-infested conditions include: plant stand, anthesis and silking days, plant height, ear aspect, and grain yield (Supplementary Table S1). The total number of plants was counted in each plot immediately after thinning. Days to anthesis and silking were recorded as the number of days from planting to when 50% of the plants in a plot had anthers shedding pollen and showing emerged silks, respectively. Anthesis–silking interval was calculated as the interval in days between dates of silking and anthesis. Plant height was measured in centimeters as the distance from the base of the plant to the height of the first tassel branch. Ear aspect was scored on a scale of 1 to 5, where 1 = clean, uniform, large and well-filled ears, and 5 = rotten, variable, poorly filled, and small ears. All ears harvested from each plot were shelled to determine per cent moisture, which was used to determine grain yield adjusted to 15% moisture under infested conditions. Striga damage rating was visually rated in each infested row at 8 and 10 weeks after planting using a scale of 1 to 9, where 1 = no visible host plant damage symptom, and 9 = all leaves completely scorched, resulting in premature death [39]. Additionally, the number of emerged S. hermonthica plants was counted in each infested row at 8 and 10 weeks after planting.

2.3. Genotyping

DNA was extracted from young leaves of each inbred line using a modified cetyltrimethylammonium bromide (CTAB) protocol [40]. Purified DNA was sent to Elshire group facility in New Zealand for genotyping-by-sequencing [41]. Genomic DNA was digested with the restriction enzyme ApeK1, and genotyping-by-sequencing libraries were constructed in 96-plex and sequenced on Illumia HiSeq2500 [41]. Raw flow cell output was processed to genotype calls using the trait analysis by association, evolution and linkage (TASSEL)-GBS pipeline [42]. Reads and tags found in each sequencing result were aligned to the Zea mays L. genome reference, version AGPV4 (B73 RefGen v4 assembly).

3. Statistical Analysis

3.1. Phenotypic Analysis

Analyses of variance combined across the four year–location combinations were computed for all traits measured under Striga infested conditions based on mixed-model analysis with the restricted maximum likelihood procedure in SAS version 9.4 [43]. In this analysis, environments, replication (environment), and block (replication × environment) were considered as random effects. Heritability estimates and Least-squares means (Lsmeans) were generated from the combined analysis. The Lsmeans generated from the combined analysis was used for principal component analysis in FactorMiner and missMDA R packages [44]. The optimal number of factors to be retained was determined using the principle of Peres–Nero [45] while the dimdesc function implemented in missMDA was used to assess the contribution of each trait. Using the most discriminant variable, Gower’s dissimilarity matrix was generated using cluster R package, and the count variables were scaled. The final Hierarchical cluster analysis was performed using ward.D2 method in cluster R package [46]. Correlation among the different phenotypic variables was performed using the R software, and results were displayed as a heatmap.

3.2. Quality Control and Genotypic Analysis

Over 560,000 SNPs were received from the Elshire group in New Zealand. To determine the quality of the data, quality control (Q.C.) was performed to retain only bi-allelic sites, SNPs with minor allele frequency (MAF) less than 5% and missing data more than 10% were removed from the data set. In addition, SNPs with high linkage disequilibrium (L.D) were pruned using the indep-pairwise function implemented in PLINK (SNP window size: 50, SNPs shifted per step: 5, r2 thresholds: 0.5) [47]. Based on the above parameter, 16,735 SNP markers were retained for further analysis. Summary statistics, including minor allele frequency (MAF), polymorphic information content (PIC), heterozygosity, and gene diversity, were estimated using”--freq” and “--hardy” functions implemented in plink [47]. Population structure analysis was performed through ADMIXTURE [46] using a cross-validation error (k) ranging from k = 2 to k = 10 [48,49]. The optimal number of clusters was inferred using k-means analysis after varying the possible number of clusters from 2 to 50 using the Bayesian information criterion (BIC). A discriminant analysis of principal components (DAPC) was carried out using the adegenet R package [50]. Membership probabilities of the individuals for the different groups were estimated using a cut-off value of 80% suggested through the DAPC. A pairwise genetic distance matrix was calculated using identity-by-state (IBS). A Ward’s minimum variance hierarchical cluster dendrogram was then generated from the genetic distance matrix using the analyses of phylogenetics and evolution (ape) R package [51,52].

3.3. Joint Analysis of Agronomic-Based and Molecular Data

Genetic groups were defined using a combination of the agronomic trait-based and genotypic dissimilarity matrices. The joint matrix was generated by the summing the genotypic and agronomic trait-based dissimilarity matrices. Similarities between the hierarchical clusters generated from the agronomic trait-based and genotypic data were accessed using the tanglegram function implemented in the dendextend R package [53]. The relationship between the dissimilarity matrices of the agronomic trait-based matrix under Striga infestation, genotypic and joint distance matrices were assessed using a Mantel test based on the Monte-Carlo method with 9999 permutations.

4. Results

4.1. Diversity Based on Agronomic Traits

In the combined analyses of variance, differences among environments and inbred lines were significant for all traits measured under Striga infestation except for ear aspect (Supplementary Table S2). Heritability estimates for agronomic traits varied from 0.78 to 0.90 (Supplementary Table S3). Grain yield ranged from 13 kg ha−1 to 3299 kg ha−1 with an average of 1580 kg ha−1. The Jaccard’s dissimilarity matrix based on the agronomic data revealed the presence of large genetic variability among the inbred lines, with the highest genetic distance (0.81) observed between an IWDS inbred line and a TZLC derived inbred line whereas the lowest genetic distance (0.03) was observed between an IWDS line and a line derived from a composite.
Assessment of the phenotypic diversity using the agronomic traits grouped the inbred lines into five clusters based on their reaction pattern to S. hermonthica (Figure 1). Cluster I consists of a known Striga susceptible line (5057) and a line derived from IWDS that supports the largest number of emerged Striga plants. The two inbred lines in this cluster also had the highest Striga damage symptom rating at 8 and 10 weeks after planting. Cluster II consists of twenty-nine inbred lines that support few emerged Striga plants, with moderate Striga damage symptoms and they produced intermediate grain yield. Inbred lines in this cluster are characterized as tolerant to Striga infestation. Cluster III consists of one hundred and five inbred lines that support fewer emerged Striga plants with varying levels of Striga damage symptoms. These lines are characterized as moderately resistant to Striga infestation. Cluster IV consists of five maize inbred lines with high Striga emergence count and damage symptoms. These lines yielded more than the susceptible lines and they are characterized as moderately susceptible to Striga infestation. Cluster V had nine inbred lines with low Striga emergence and Striga damage symptoms. These lines are characterized as resistant to Striga infestation.
The results of principal component analysis (PCA) showed that the first three components together accounted for 81% of the total phenotypic variation (Table 2). The first principal component explained 49% of the total phenotypic variation with the main contribution from seven variables. Principal component two accounted for 18% of the total variation with traits including days to silking and anthesis-silking interval contributing the most to this component.
Further correlation analysis found a significant and positive correlation between grain yield and ear per plant and also between ear aspect and Striga damage rating at 8 and 10 weeks after planting. In contrast, there was a negative correlation between grain yield and ear aspect, Striga damage rating at 8 and 10 weeks after planting, and Striga count at 8 and 10 weeks after planting (Figure 2).

4.2. Genetic Diversity and Population Structure Based on SNP Markers

The SNP markers used in this study were unequally distributed across the ten maize chromosomes. The highest number of SNPs was found on chromosome 1, with 2532 SNPs, while the lowest was on chromosome 10, with 1208 SNPs. The summary statistics of the 150 inbred lines using the 16,735 SNP markers shows that the minor allele frequency varied from 0.05 to 0.50, with an average of 0.24. The observed heterozygosity rate ranged from 0.00 to 0.98 with an average of 0.10, however, most of the inbred lines (96%) had 1% heterozygosity rate, which is the expected amount of residual heterozygosity in inbred lines. The expected heterozygosity, also known as gene diversity, varied from 0.10 to 0.50, with an average of 0.32. Polymorphic information content values ranged from 0.10 to 0.47, with an average of 0.26 (Table 3).
The population structure analysis performed through Admixture revealed a rapid elbow at k = 5, which grouped all the 150 inbred lines into five clusters (Supplementary Figure S1B). In addition, using the Bayesian information criterion (Supplementary Figure S1A), the optimal number of clusters was obtained at k = 5, which corresponds to the number of the cluster under the DAPC (Figure 3). Estimation of the cluster membership revealed that cluster IV had the highest number of inbred lines (54), and cluster III had the lowest number of inbred lines (8). The genetic distance between pairs of the 150 inbred lines ranged from 0.02 to 0.41, with an average of 0.33. The highest genetic distance (0.41) was observed between an early maturing inbred line (TZEC) and an intermediate maturing inbred line (IWDS) that combines resistance to S. hermonthica with tolerance to drought. The lowest genetic distance (0.02) was observed between two inbred lines showing low emerged Striga plants.
Based on the dissimilarity matrix generated from the SNPs, at a cophenetic coefficient correlation of 0.70 for the ward.D2, the inbred lines were grouped into five clusters (Figure 4A) based on their parental genetic background. Cluster I consists of 22 inbred lines, with 19 of them originating from a backcross containing ZDIP and the remaining three originating from TZLC. All inbred lines in this group had white kernel color, they are also high yielding and support few emerged Striga plants. Cluster II consists of 27 inbred lines derived from an intermediate maturing synthetic (IWDS). Most of the lines in this cluster are high yielding and support fewer emerged Striga plants. Cluster III consists of eight inbred lines, with seven of them originating from an early maturing composite (TZEC) and the remaining from a late-maturing synthetic (TZLC). Inbred lines in cluster II and III all had a white kernel color (Supplementary Table S4). Cluster IV had 54 inbred lines, with varying levels of resistance to S. hermonthica as well as a well-known susceptible line. Most of the inbred lines in this cluster originated from the different source populations. Cluster V consists of 39 inbred lines derived from the late maturing synthetic TZLC. Most of the lines originating from TZLC, they are high yielding and supported few emerged Striga plants (Figure 4A).

4.3. Combined Analysis of Phenotypic and Genotypic Data

The agronomic trait-based hierarchical cluster generated under Striga-infested condition was compared with the genotypic-based cluster analysis. It was observed that the clustering pattern of the inbred lines was different for both agronomic trait-based and the genotypic cluster. However, few inbred lines seven (5%) maintained the same group across both hierarchical clusters (Figure 5). These inbred lines are from diverse source populations with different reactions to Striga infestation. Six of the lines are from the ZDIP and the TZLC groups while the last line is a known susceptible inbred line. Membership and grouping patterns also changed between the agronomic-trait-based and molecular-based analyses. Genetic diversity assessment using the combined agronomic-trait-based and genotypic matrices (joint matrix) showed that the inbred lines clustered into three distinct groups (Figure 6). Cluster I consists of two susceptible and low-yielding inbred lines, whereas cluster II consists of three high yielding and resistant lines that support few emerged Striga plants. Cluster III consists of 145 inbred lines, with most of them having varying resistance reactions to S. hermonthica, but none of them was susceptible to Striga. Further analysis using the Mantel test found a very low correlation (r = 0.001) between the agronomic and the molecular dissimilarity matrices. However, a high correlation (r = 0.85) was observed between the joint matrix and the agronomic dissimilarity matrix, while a moderate correlation (r = 0.50) was observed between the joint matrix and the genotypic data-based matrix (Supplementary Figure S2).

5. Discussion

Analysis of variance under Striga infestation showed that there was significant variation among the inbred lines used in this study. The significant difference observed across environments and genotype X environment interaction for most of the traits measured could be due to seasonal factors [54,55]. The hierarchical cluster analysis based on agronomic characteristics under Striga infestation grouped the inbred lines according to their reaction pattern to S. hermonthica, with most of the inbred lines in each group emanating from different source populations. Cluster I comprises inbred lines that are susceptible to Striga infestation while cluster IV and II contains inbred lines that are tolerant to Striga infestation. Inbred lines in these two clusters yielded more than the susceptible lines but support the emergence of Striga plants and this can increase the Striga seed bank in the soil. Cluster III and V consist of inbred lines that are resistant to Striga infection; they support few emerged Striga plants, less Striga damage symptom rating, and were high yielding. Inbred lines in these two clusters can serve as parental lines in developing durable Striga-resistant maize hybrids and synthetics. Several studies have reported the importance of phenotypic traits in unraveling the diversity and differentiation in maize [25,56].
Phenotypic characterization is essential in describing breeding lines and also serves as meaningful criteria for selecting materials with desirable traits for breeding purposes. However, phenotypic traits are easily influenced by environmental factors. The advent of the molecular marker technique has made the evaluation of genetic diversity easier because environmental factors do not control them. Several types of these markers have been used to assess the level of genetic diversity in different crops ranging from dominant to codominant markers. For this study, 16,735 SNP markers from the genotyping-by-sequencing (GBS) platform were used to assess the genetic diversity and population structure of the inbred lines. The three complementary approaches used to define the optimal number of groups in this study (DAPC, hierarchical cluster analysis, and Admixture ancestry) all grouped the inbred lines into five distinct groups. The assigning of group membership in DAPC is in agreement with the hierarchical cluster analysis; this finding is consistent with reports from other studies [36,57,58]. The high cophenetic correlation coefficient (>0.70) observed for the hierarchical cluster analysis indicates the reliability of this approach to summarize the information of dissimilarity matrices [34]. Moderate levels of admixture were observed among the inbred lines used in this study, this indicate shared ancestry among the inbred lines. Most of the inbred lines used in this study emanated from the hybridization of various source populations that have been subjected to improvement under Striga infestation [15] and these source populations have different genetic backgrounds and exhibit broad genetic diversity.
The combined dissimilarity matrix of the agronomic-trait-based and molecular marker data grouped the inbred lines into three distinct clusters based on their reaction pattern to S. hermonthica. Seven inbred lines maintained the same cluster positions across both hierarchical clusters when compared with each other. The six inbred lines from the ZDIP and the TZLC groups are high yielding and support low emergence of Striga plants; they also have low Striga damage rating. These lines can be used as desirable parents to broaden and diversify the genetic base in Striga resistance breeding programs. The last inbred line is a known susceptible inbred line.
The low correlation observed between the genotypic and agronomic-trait-based distance matrices in this study should not be regarded as a limitation to access the genetic diversity but as an indicator of the complementarity of these methods [59]. The low correlation observed can also be attributed to the ability of the molecular marker to detect variations at the genetic level and they are not liable to natural or artificial selection unlike phenotypic markers [60]. In addition, molecular markers are selectively neutral, whereas the portion of the genome associated with the phenotypic trait is usually subjected to selection under the environmental influence [61,62]. Several authors have suggested that the best way to identify divergence among accessions is the combined use of molecular and phenotypic data, as these tools are complementary [33,34,35,36,37,60,61]. Andrade et al. [34] assessed the genetic diversity among sweet potato genotypes using morphological and molecular data. The study observed a low correlation between the distance matrix obtained with morphological and molecular data and this corroborates with the findings from our study.
The high and moderate correlation observed between the combined dissimilarity matrix and the phenotypic and genotypic dissimilarity matrices, respectively, is an indication that genetic diversity analysis based on the joint matrix is an invaluable tool to cumulatively and reliably allocate genotypic and phenotypic information. This result is consistent with the findings of other studies [36,61,62]. The use of both agronomic trait and molecular data in assessing genetic diversity helps to maximize genetic diversity as well as productivity in crop plants [63]. Studies have also shown the efficiency of combined dissimilarity matrix of morphological and molecular data in deciphering the genetic variability in different crops [33,34,64].
In conclusion, assessment of the genetic diversity using both agronomic traits and molecular data revealed the existence of considerable genetic variability among the evaluated materials. It also provides invaluable information on the reaction patterns of the inbred lines to S. hermonthica. The molecular diversity analysis was able to group the inbred lines based on their genealogy and historical background than the phenotypic diversity analysis. However, the grouping patterns between both clusters were inconsistent due to non-overlapping information between the data types. The joint diversity analysis explores the synergy of the two approaches (molecular and agronomic) by capturing the information to provide a comprehensive understanding of the entire diversity among the inbred lines.

Supplementary Materials

The following are available online at https://www.mdpi.com/2223-7747/9/9/1223/s1, Figure S1: Graph (A) Bayesian information criterion versus the number of clusters and (B) cross-validation error versus K value, Figure S2: Mantel correlation test performed between the different dissimilarity matrices alongside the combined matrix. Sim = similarity coefficient, beacon = Mantel threshold indicating the correlation, Table S1: Traits measured, their description and unit, Table S1: Mean squares from the combined ANOVA for traits recorded under infestation condition for 2 years evaluated in 2 locations, Table S3: Mean and standard errors of variables under Striga infestation and Striga non-infestation across the entire four environments, Table S4: Grouping of the 150 inbred lines using 16,735 SNPs.

Author Contributions

A.M., M.G., B.I. and P.T. designed the research presented here, S.M., W.M., A.S. executed the field research. A.P., N.U. and A.S. conducted the analyses. M.G., N.U., A.P. and A.S. managed the genotyping. A.S. wrote the first draft and all authors read and edited the subsequent versions of the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This research was supported by Deutscher Akademischer Austauschdienst (DAAD) to pursue a Ph.D. in Plant Breeding at WACCI, University of Ghana, Legon, Accra. We acknowledge funding receive from the Bill and Melinda Gates Foundation for supporting Stress Tolerant Maize for Africa (STMA) project through the International Institute of Tropical Agriculture (IITA).

Acknowledgments

The authors are grateful to the West Africa Centre for Crop Improvement (WACCI) and the Stress Tolerant Maize for Africa Project for financing the study. Additionally, the authors are thankful to the staff of the maize improvement program and the Bioscience unit at the International Institute of Tropical Agriculture Nigeria (IITA) for their technical support during this study.

Conflicts of Interest

The authors declare that they have no conflict of interest.

Abbreviations

ANOVAAnalysis of variance
BICBayesian information criterion
CTABCetyltrimethylammonium bromide
DAPCDiscriminant analysis of principal components
DNADeoxyribonucleic acid
GBSGenotyping-by-sequencing
IBSIdentity by State
LDLinkage disequilibrium
SNPSingle nucleotide polymorphism
SSAsub-Saharan Africa
PICPolymorphic information content
TASSELTrait Analysis by aSSociation, Evolution and Linkage

References

  1. Shah, T.R.; Prasad, K.; Kumar, P. Maize: A potential source of human nutrition and health: A review. Cogent Food Agric. 2016, 2, 1166995. [Google Scholar]
  2. Shiferaw, B.; Prasanna, B.M.; Hellin, J.; Bänziger, M. Crops that feed the world 6. Past successes and future challenges to the role played by maize in global food security. Food Secur. 2011, 3, 307. [Google Scholar]
  3. FAOSTAT Food and Agriculture Organization of the United Nations Statistics Division; Economic and Social Development Department: Rome, Italy. Available online: http://faostat3.fao.org/home/E (accessed on 31 December 2016).
  4. Eyre-Walker, A.; Gaut, R.L.; Hilton, H.; Feldman, D.L.; Gaut, B.S. Investigation of the bottleneck leading to the domestication of maize. Proc. Natl. Acad. Sci. USA 1998, 95, 4441–4446. [Google Scholar]
  5. Matsuoka, Y.; Vigouroux, Y.; Goodman, M.M.; Sanchez, J.; Buckler, E.; Doebley, J. A single domestication for maize shown by multilocus microsatellite genotyping. Proc. Natl. Acad. Sci. USA 2002, 99, 6080–6084. [Google Scholar]
  6. Doebley, J. The genetics of maize evolution. Annu. Rev. Genet. 2004, 38, 37–59. [Google Scholar]
  7. Prasanna, B.M. Diversity in global maize germplasm: Characterization and utilization. J. Biosci. 2012, 37, 843–855. [Google Scholar]
  8. Buckler, E.S.; Gaut, B.S.; McMullen, M.D. Molecular and functional diversity of maize. Curr. Opin. Plant Biol. 2006, 9, 172–176. [Google Scholar]
  9. Whitt, S.R.; Wilson, L.M.; Tenaillon, M.I.; Gaut, B.S.; Buckler, E.S. Genetic diversity and selection in the maize starch pathway. Proc. Natl. Acad. Sci. USA 2002, 99, 12959–12962. [Google Scholar]
  10. M’mboyi, F.; Mugo, S.; Mwimali, M.; Ambani, L. Maize Production and Improvement in Sub-Saharan Africa; African Biotechnology Stakeholders Forum (ABSF): Nairobi, Kenya, 2010; Volume 2, pp. 14–17. [Google Scholar]
  11. Sauerborn, J. The economic importance of the phytoparasites Orobanche and Striga. In Proceedings of the 5th International Symposium of Parasitic Weeds, Nairobi, Kenya, 24–30 June 1991; pp. 137–143. [Google Scholar]
  12. Kanampiu, F.; Makumbi, D.; Mageto, E.; Omanya, G.; Waruingi, S.; Musyoka, P.; Ransom, J. Assessment of management options on Striga infestation and maize grain yield in Kenya. Weed Sci. 2018, 66, 516–524. [Google Scholar]
  13. Ransom, J.K. Long-term approaches for the control of Striga in cereals: Field management options. Crop Prot. 2000, 19, 759–763. [Google Scholar]
  14. Kim, S.K.; Winslow, M.D. Progress in breeding maize for tolerance/resistance at IITA. In Proceedings of the Fifth International Symposium on Parasitic Weeds, Nairobi, Kenya, 24–30 June 1991. [Google Scholar]
  15. Kling, J.G.; Fajemisin, J.M.; Badu-Apraku, B.; Diallo, A.; Menkir, A.; Melake-Berhan, A.; Haussmann, B.I. Striga resistance breeding in maize. In Breeding for Striga Resistance in Cereals; Margraf Verlag: Weikersheim, Germany, 2000; pp. 103–118. [Google Scholar]
  16. Mafakheri, K.; Bihamta, M.R.; Abbasi, A.R. Assessment of genetic diversity in cowpea (Vigna unguiculata L.) germplasm using morphological and molecular characterisation. Cogent Food Agric. 2017, 3, 1327092. [Google Scholar]
  17. Mahato, A.; Shahi, J.P.; Singh, P.K.; Kumar, M. Genetic diversity of sweet corn inbreds using agro-morphological traits and microsatellite markers. 3 Biotech 2018, 8, 332. [Google Scholar]
  18. Ali, M.L.; Rajewski, J.F.; Baenziger, P.S.; Gill, K.S.; Eskridge, K.M.; Dweikat, I. Assessment of genetic diversity and relationship among a collection of U.S. sweet sorghum germplasm by SSR markers. Mol. Breed. 2008, 21, 497–509. [Google Scholar]
  19. Menkir, A. Assessment of reactions of diverse maize inbred lines to Striga hermonthica (Del.) Benth. Plant Breed. 2006, 125, 131–139. [Google Scholar]
  20. Semagn, K.; Magorokosho, C.; Vivek, B.S.; Makumbi, D.; Beyene, Y.; Mugo, S.; Prasanna, B.M.; Warburton, M.L. Molecular characterization of diverse CIMMYT maize inbred lines from eastern and southern Africa using single nucleotide polymorphic markers. BMC Genom. 2012, 13, 1. [Google Scholar]
  21. Ertiro, B.T.; Semagn, K.; Das, B.; Olsen, M.; Labuschagne, M.; Worku, M.; Wegary, D.; Azmach, G.; Ogugo, V.; Keno, T.; et al. Genetic variation and population structure of maize inbred lines adapted to the mid-altitude sub-humid maize agro-ecology of Ethiopia using single nucleotide polymorphic (SNP) markers. BMC Genom. 2017, 18, 1. [Google Scholar]
  22. Hayward, M.D.; Breese, E.L. Population structure and variability. In Plant Breeding; Springer: Dordrecht, The Netherlands, 1993; pp. 16–29. [Google Scholar]
  23. Melchinger, A.E.; Gumber, R.K. Overview of heterosis and heterotic groups in agronomic crops. Concepts Breed. Heterosis Crop Plants 1998, 25, 29–44. [Google Scholar]
  24. Nadeem, M.A.; Nawaz, M.A.; Shahid, M.Q.; Doğan, Y.; Comertpay, G.; Yıldız, M.; Hatipoğlu, R.; Ahmad, F.; Alsaleh, A.; Labhane, N.; et al. DNA molecular markers in plant breeding: Current status and recent advancements in genomic selection and genome editing. Biotechnol. Biotechnol. Equip. 2018, 32, 261–285. [Google Scholar]
  25. Rahman, S.; Mia, M.M.; Quddus, T.; Hassan, L.; Haque, M.A. Assessing genetic diversity of maize (Zea mays L.) genotypes for agronomic traits. Res. Agric. Livest. Fish. 2015, 2, 53–61. [Google Scholar]
  26. Govindaraj, M.; Vetriventhan, M.; Srinivasan, M. Importance of genetic diversity assessment in crop plants and its recent advances: An overview of its analytical perspectives. Genet. Res. Int. 2015, 2015, 431487. [Google Scholar]
  27. Giordani, W.; Scapim, C.A.; Ruas, P.M.; Ruas, C.D.; Contreras-Soto, R.; Coan, M.; Fonseca, I.C.; Gonçalves, L.S. Genetic diversity, population structure and AFLP markers associated with maize reaction to southern rust. Bragantia 2019, 78, 183–196. [Google Scholar]
  28. Sserumaga, J.P.; Makumbi, D.; Ji, H.; Njoroge, K.; Muthomi, J.W.; Chemining’wa, G.N.; Si-myung, L.; Asea, G.; Kim, H. Molecular characterization of tropical maize inbred lines using microsatellite DNA markers. Maydica 2014, 59, 267–274. [Google Scholar]
  29. Cömertpay, G.; Baloch, F.S.; Kilian, B.; Ülger, A.C.; Özkan, H. Diversity assessment of Turkish maize landraces based on fluorescent labelled SSR markers. Plant Mol. Biol. Rep. 2012, 30, 261–274. [Google Scholar]
  30. Deschamps, S.; Llaca, V.; May, G.D. Genotyping-by-sequencing in plants. Biology 2012, 1, 460–483. [Google Scholar]
  31. Mengesha, W.A.; Menkir, A.; Unakchukwu, N.; Meseka, S.; Farinola, A.; Girma, G.; Gedil, M. Genetic diversity of tropical maize inbred lines combining resistance to Striga hermonthica with drought tolerance using SNP markers. Plant Breed. 2017, 136, 338–343. [Google Scholar]
  32. Cooper, J.S.; Rice, B.R.; Shenstone, E.M.; Lipka, A.E.; Jamann, T.M. Genome-wide analysis and prediction of resistance to goss’s wilt in maize. Plant Genome 2019, 12, 1–10. [Google Scholar]
  33. Sartie, A.; Asiedu, R.; Franco, J. Genetic and phenotypic diversity in a germplasm working collection of cultivated tropical yams (Dioscorea spp.). Genet. Resour. Crop Evol. 2012, 59, 1753–1765. [Google Scholar]
  34. Andrade, E.K.; Júnior, A.V.C.; Laia, M.L.; Fernandes, J.S.; Oliveira, A.J.; Azevedo, A.M. Genetic dissimilarity among sweet potato genotypes using morphological and molecular descriptors. Acta Sci. Agron. 2017, 39, 447–455. [Google Scholar]
  35. Najaphy, A.; Parchin, R.A.; Farshadfar, E. Comparison of phenotypic and molecular characterizations of some important wheat cultivars and advanced breeding lines. Aust. J. Crop Sci. 2012, 6, 326. [Google Scholar]
  36. Agre, P.; Asibe, F.; Darkwa, K.; Edemodu, A.; Bauchet, G.; Asiedu, R.; Adebola, P.; Asfaw, A. Phenotypic and molecular assessment of genetic structure and diversity in a panel of winged yam (Dioscorea alata) clones and cultivars. Sci. Rep. 2019, 9, 18221. [Google Scholar]
  37. Kwabena, D.; Paterne, A.; Bunmi, O.; Kohtaro, I.; Ryo, M.; Powell, A.; Guillaume, B.; Satoru, M.; Adebola, P.; Asiedu, R.; et al. Comparative assessment of genetic diversity matrices and clustering methods in white Guinea yam (Dioscorea rotundata) based on morphological and molecular markers. Sci. Rep. 2020, 10, 13191. [Google Scholar]
  38. Belalia, N.; Lupini, A.; Djemel, A.; Morsli, A.; Mauceri, A.; Lotti, C.; Khelifi-Slaoui, M.; Khelifi, L.; Sunseri, F. Analysis of genetic diversity and population structure in Saharan maize (Zea mays L.) populations using phenotypic traits and SSR markers. Genet. Resour. Crop Evol. 2019, 66, 243–257. [Google Scholar]
  39. Kim, S.K.; Akintunde, A.Y.; Walker, P. Responses of maize, sorghum and millet host plants to infestation by Striga hermonthica. Crop Prot. 1994, 13, 582–590. [Google Scholar]
  40. Saghai-Maroof, M.A.; Soliman, K.M.; Jorgensen, R.A.; Allard, R.W. Ribosomal DNA spacer-length polymorphisms in barley: Mendelian inheritance, chromosomal location, and population dynamics. Proc. Natl. Acad. Sci. USA 1984, 81, 8014–8018. [Google Scholar]
  41. Elshire, R.J.; Glaubitz, J.C.; Sun, Q.; Poland, J.A.; Kawamoto, K.; Buckler, E.S.; Mitchell, S.E. A robust, simple genotyping-by-sequencing (GBS) approach for high diversity species. PLoS ONE 2011, 6, e19379. [Google Scholar]
  42. Glaubitz, J.C.; Casstevens, T.M.; Lu, F.; Harriman, J.; Elshire, R.J.; Sun, Q.; Buckler, E.S. TASSEL-GBS: A high capacity genotyping by sequencing analysis pipeline. PLoS ONE 2014, 9, e90346. [Google Scholar]
  43. Vargas, M.; Combs, E.; Alvarado, G.; Atlin, G.; Mathews, K.; Crossa, J. META: A suite of SAS programs to analyze multienvironment breeding trials. Agron. J. 2013, 105, 9–11. [Google Scholar]
  44. Lê, S.; Josse, J.; Husson, F. FactoMineR: An R package for multivariate analysis. J. Stat. Softw. 2008, 25, 1–8. [Google Scholar]
  45. Peres-Neto, P.R.; Jackson, D.A.; Somers, K.M. Giving meaningful interpretation to ordination axes: Assessing loading significance in principal component analysis. Ecology 2003, 84, 2347–2363. [Google Scholar]
  46. Maechler, M. Finding Groups in Data: Cluster Analysis Extended Rousseeuw et al. R Package Version 2.0. Available online: ftp://128.61.111.11/pub/CRAN/web/packages/cluster/cluster.pdf (accessed on 7 June 2019).
  47. Purcell, S.; Neale, B.; Todd-Brown, K.; Thomas, L.; Ferreira, M.A.; Bender, D.; Maller, J.; Sklar, P.; de Bakker, P.I.; Daly, M.J.; et al. PlinK: A tool set for whole-genome association and population-based linkage analyses. Am. J. Hum. Genet. 2007, 81, 559–575. [Google Scholar]
  48. Alexander, D.H.; Novembre, J.; Lange, K. Fast model-based estimation of ancestry in unrelated individuals. Genome Res. 2009, 19, 1655–1664. [Google Scholar]
  49. Alexander, D.H.; Lange, K. Enhancements to the ADMIXTURE algorithm for individual ancestry estimation. BMC Bioinform. 2011, 12, 246. [Google Scholar]
  50. Jombart, T.; Devillard, S.; Balloux, F. Discriminant analysis of principal components: A new method for the analysis of genetically structured populations. BMC Genet. 2010, 11, 94. [Google Scholar]
  51. R Core Team. A Language and Environment for Statistical Computing; R Foundation for Statistical Computing: Vienna, Austria, 2018. [Google Scholar]
  52. Paradis, E.; Claude, J.; Strimmer, K. APE: Analyses of phylogenetics and evolution in R language. Bioinformatics 2004, 20, 289–290. [Google Scholar]
  53. Galili, T. Dendextend: An R package for visualizing, adjusting and comparing trees of hierarchical clustering. Bioinformatics 2015, 31, 3718–3720. [Google Scholar]
  54. Menkir, A.; Makumbi, D.; Franco, J. Assessment of reaction patterns of hybrids to Striga hermonthica (Del.) Benth. under artificial infestation in Kenya and Nigeria. Crop Sci. 2012, 52, 2528–2537. [Google Scholar]
  55. Menkir, A.; Meseka, S. Genetic improvement in resistance to Striga in tropical maize hybrids. Crop Sci. 2019, 59, 2484–2497. [Google Scholar]
  56. Al-Naggar, A.M.; Shafik, M.M.; Musa, R.Y. Genetic diversity based on morphological traits of 19 maize genotypes using principal component analysis and G.T. biplot. Annu. Res. Rev. Biol. 2020, 35, 68–85. [Google Scholar]
  57. Wang, C.H.; Zheng, X.M.; Xu, Q.; Yuan, X.P.; Huang, L.; Zhou, H.F.; Wei, X.H.; Ge, S. Genetic diversity and classification of Oryza sativa with emphasis on Chinese rice germplasm. Heredity 2014, 112, 489–496. [Google Scholar]
  58. Fatokun, C.; Girma, G.; Abberton, M.; Gedil, M.; Unachukwu, N.; Oyatomi, O.; Yusuf, M.; Rabbi, I.; Boukar, O. Genetic diversity and population structure of a mini-core subset from the world cowpea (Vigna unguiculata (L.) Walp.) germplasm collection. Sci. Rep. 2018, 8, 16035. [Google Scholar]
  59. Singh, S.P.; Nodari, R.; Gepts, P. Genetic diversity in cultivated common bean: I. Allozymes. Crop Sci. 1991, 31, 19–23. [Google Scholar]
  60. Alves, A.A.; Bhering, L.L.; Rosado, T.B.; Laviola, B.G.; Formighieri, E.F.; Cruz, C.D. Joint analysis of phenotypic and molecular diversity provides new insights on the genetic variability of the Brazilian physic nut germplasm bank. Genet. Mol. Biol. 2013, 36, 371–381. [Google Scholar]
  61. Collard, B.C.; Jahufer, M.Z.; Brouwer, J.B.; Pang, E.C. An introduction to markers, quantitative trait loci (QTL) mapping and marker-assisted selection for crop improvement: The basic concepts. Euphytica 2005, 142, 169–196. [Google Scholar]
  62. Sunil, N.; Sujatha, M.; Kumar, V.; Vanaja, M.; Basha, S.D.; Varaprasad, K.S. Correlating the phenotypic and molecular diversity in Jatropha curcas L. Biomass Bioenergy 2011, 35, 1085–1096. [Google Scholar]
  63. Ristić, D.; Babić, V.; Anđelković, V.; Vančetović, J.; Mladenović-Drinić, S.; Ignjatović-Micić, D. Genetic diversity in maize dent landraces assessed by morphological and molecular markers. Genetika 2013, 45, 811–824. [Google Scholar]
  64. Reis, R.V.; Viana, A.P.; Oliveira, E.J.; Silva, M.G. Phenotypic and molecular selection of yellow passion fruit progenies in the second cycle of recurrent selection. Crop Breed. Appl. Biotechnol. 2012, 12, 17–24. [Google Scholar]
Plants 09 01223 g001 550

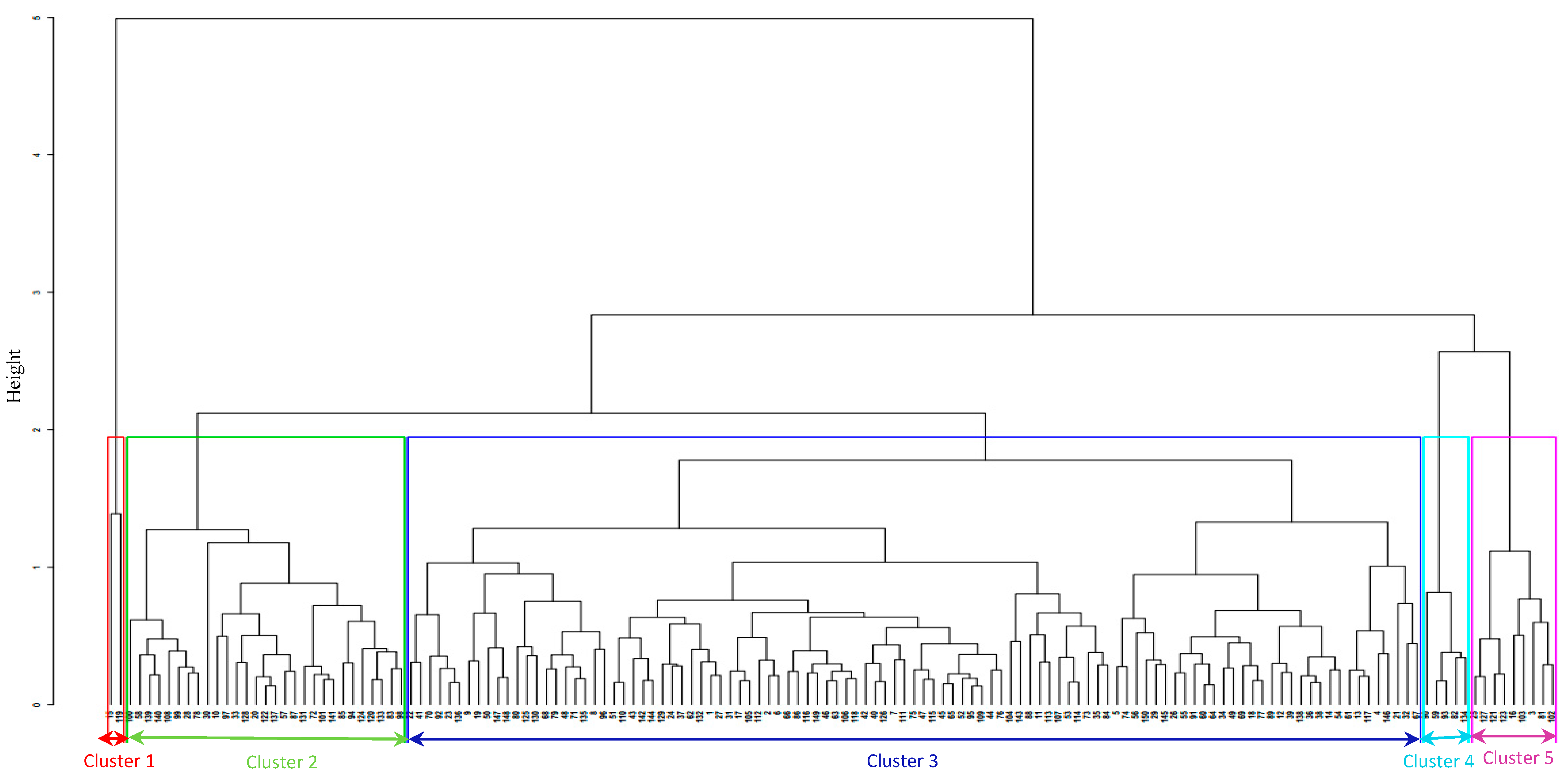

Figure 1. Hierarchical cluster analysis based on agronomic traits measured under Striga infestation condition using ward.D2 method showing the genetic relationships among the 150 inbred lines based on Gower’s dissimilarity matrix.
Figure 1. Hierarchical cluster analysis based on agronomic traits measured under Striga infestation condition using ward.D2 method showing the genetic relationships among the 150 inbred lines based on Gower’s dissimilarity matrix.
Plants 09 01223 g001
Plants 09 01223 g002 550

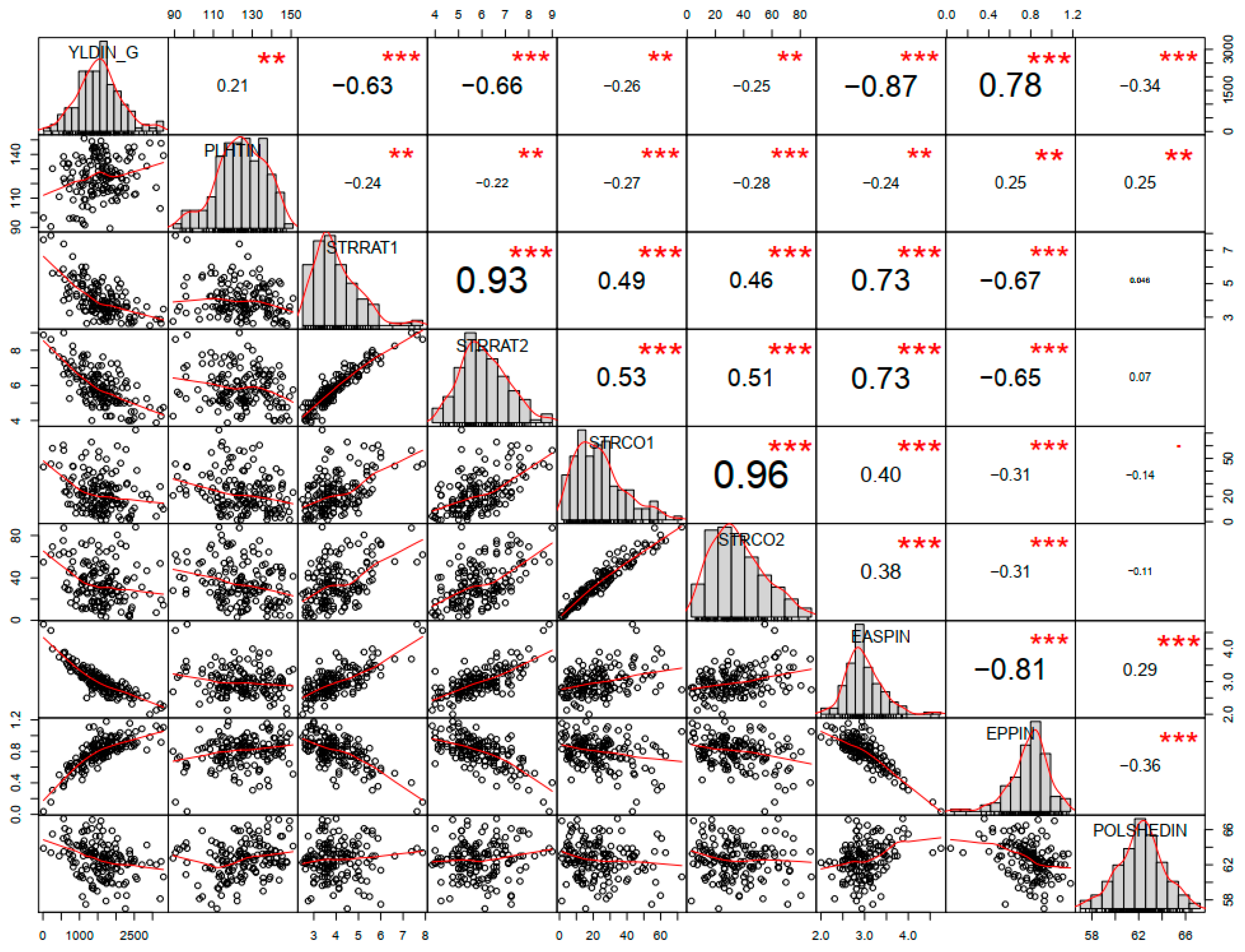

Figure 2. Correlation coefficient under Striga infested. Striga Damage Symptom Rating (STTRAT 1 and 2) = Striga damage rating at 8 and 10; Weeks After Planting (WAP), Striga Count or Emerged Striga plant (STRCO 1 and 2) = Striga count at 8 and 10 WAP, Plant Height Infested (PLHTIN), Ear Per Plant Infested (EPPIN), Ear Aspect Infested (EASPIN), Days to anthesis infested (POLSHEDIN), Grain Yield under Striga Infestation (YLDIN). *** p significant at 0.001, ** p significant at 0.01.
Figure 2. Correlation coefficient under Striga infested. Striga Damage Symptom Rating (STTRAT 1 and 2) = Striga damage rating at 8 and 10; Weeks After Planting (WAP), Striga Count or Emerged Striga plant (STRCO 1 and 2) = Striga count at 8 and 10 WAP, Plant Height Infested (PLHTIN), Ear Per Plant Infested (EPPIN), Ear Aspect Infested (EASPIN), Days to anthesis infested (POLSHEDIN), Grain Yield under Striga Infestation (YLDIN). *** p significant at 0.001, ** p significant at 0.01.
Plants 09 01223 g002
Plants 09 01223 g003 550

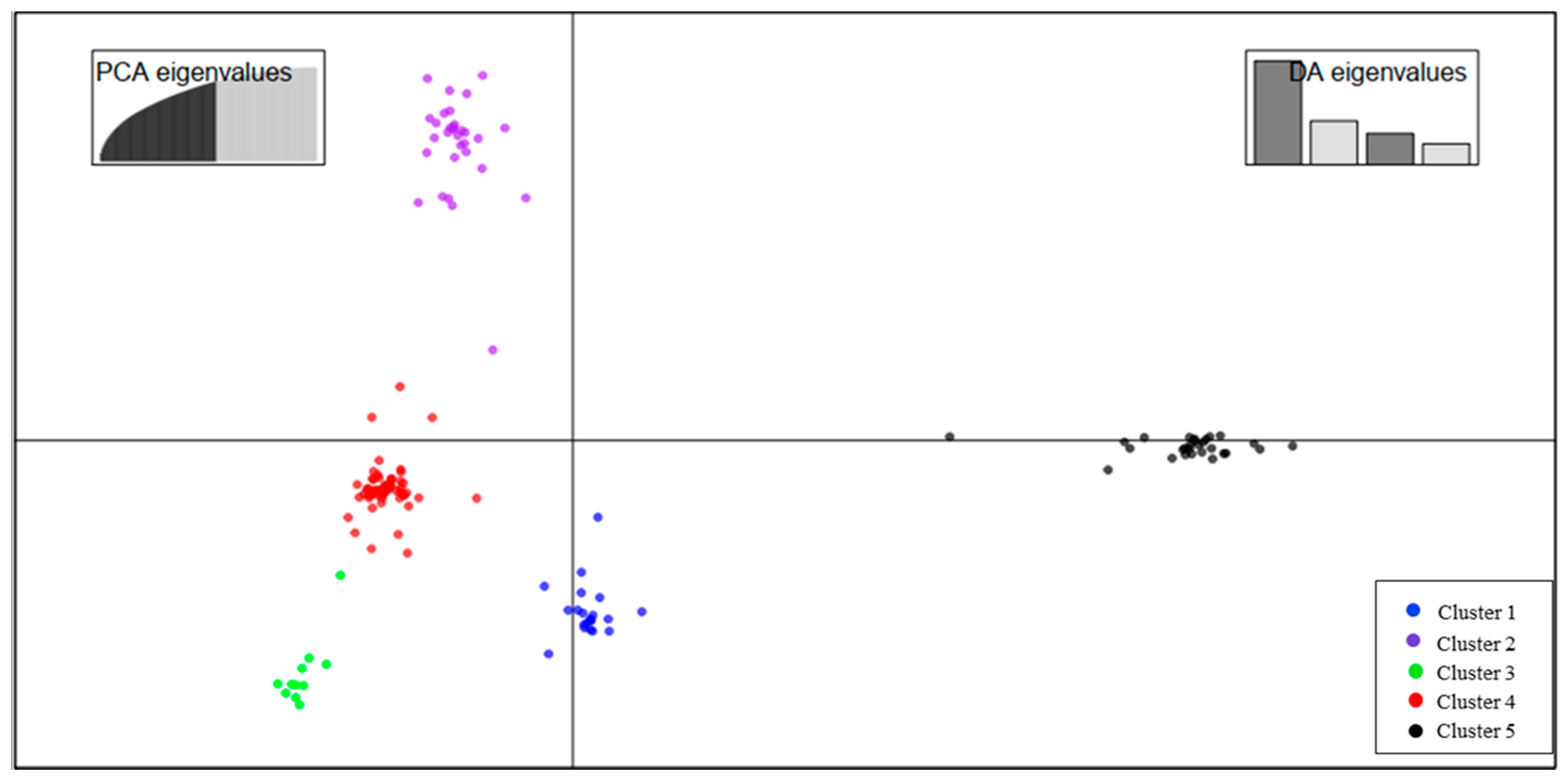

Figure 3. Discriminant analysis of principal component (DAPC) using 16,735 SNP markers. The axes represent the first two linear Discriminant. Each color represents a cluster, and each dot represents an inbred line. Each color represents the different subpopulations identified by DAPC analysis.
Figure 3. Discriminant analysis of principal component (DAPC) using 16,735 SNP markers. The axes represent the first two linear Discriminant. Each color represents a cluster, and each dot represents an inbred line. Each color represents the different subpopulations identified by DAPC analysis.
Plants 09 01223 g003
Plants 09 01223 g004 550

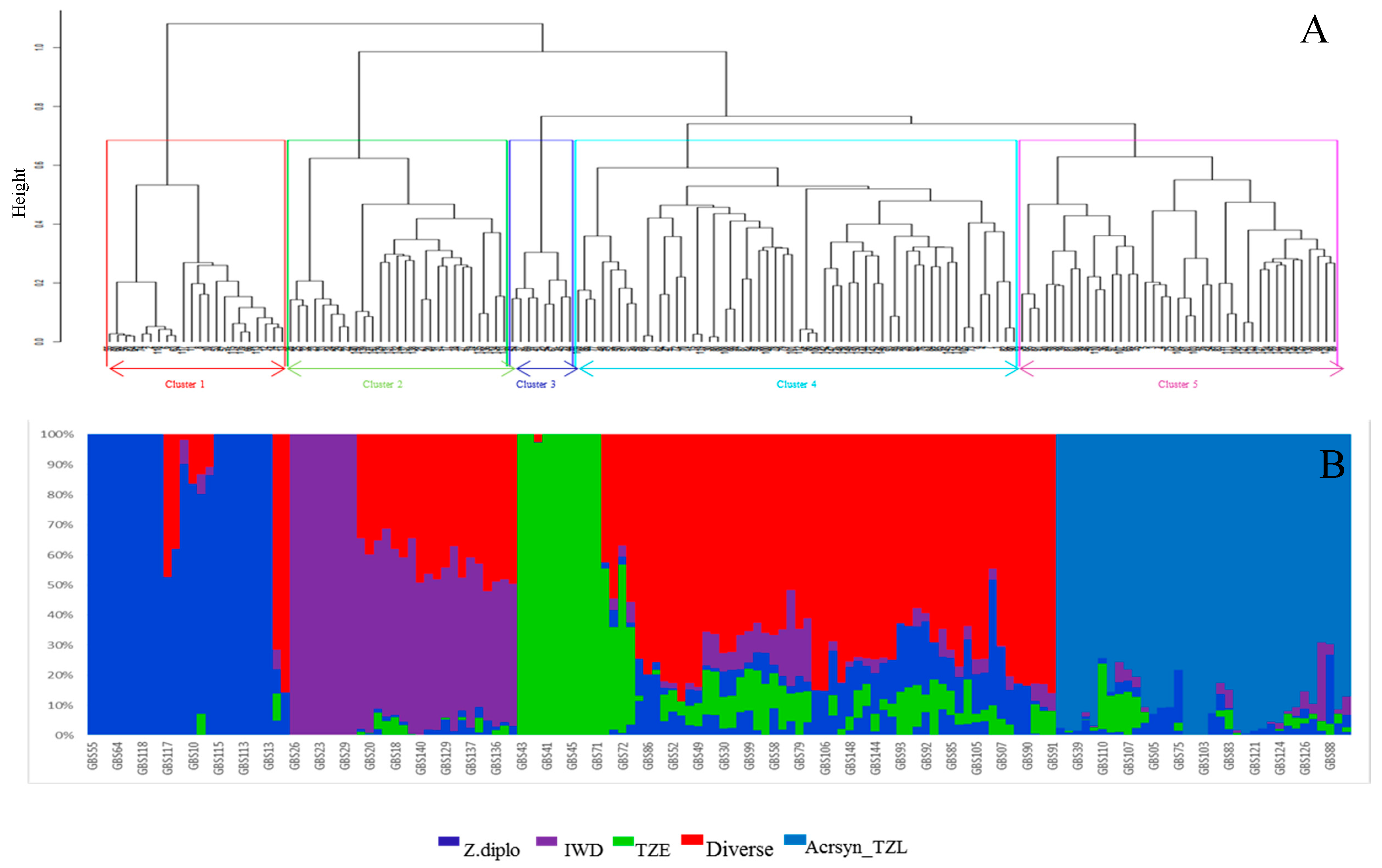

Figure 4. (A) Hierarchical cluster analysis based the genotypic data using ward.D2 method showing the genetic relationship among 150 maize inbred lines based on IBS using 16,735 SNPs. (B) Admixture plot showing clustering of the inbred lines into five clusters based on the cross-validation error and Bayesian-based clustering analysis. A vertical bar represents each inbred line. The colored sections in a bar indicate membership coefficients of the inbred line in the different clusters. Identified subgroups are cluster 1.
Figure 4. (A) Hierarchical cluster analysis based the genotypic data using ward.D2 method showing the genetic relationship among 150 maize inbred lines based on IBS using 16,735 SNPs. (B) Admixture plot showing clustering of the inbred lines into five clusters based on the cross-validation error and Bayesian-based clustering analysis. A vertical bar represents each inbred line. The colored sections in a bar indicate membership coefficients of the inbred line in the different clusters. Identified subgroups are cluster 1.
Plants 09 01223 g004
Plants 09 01223 g005 550

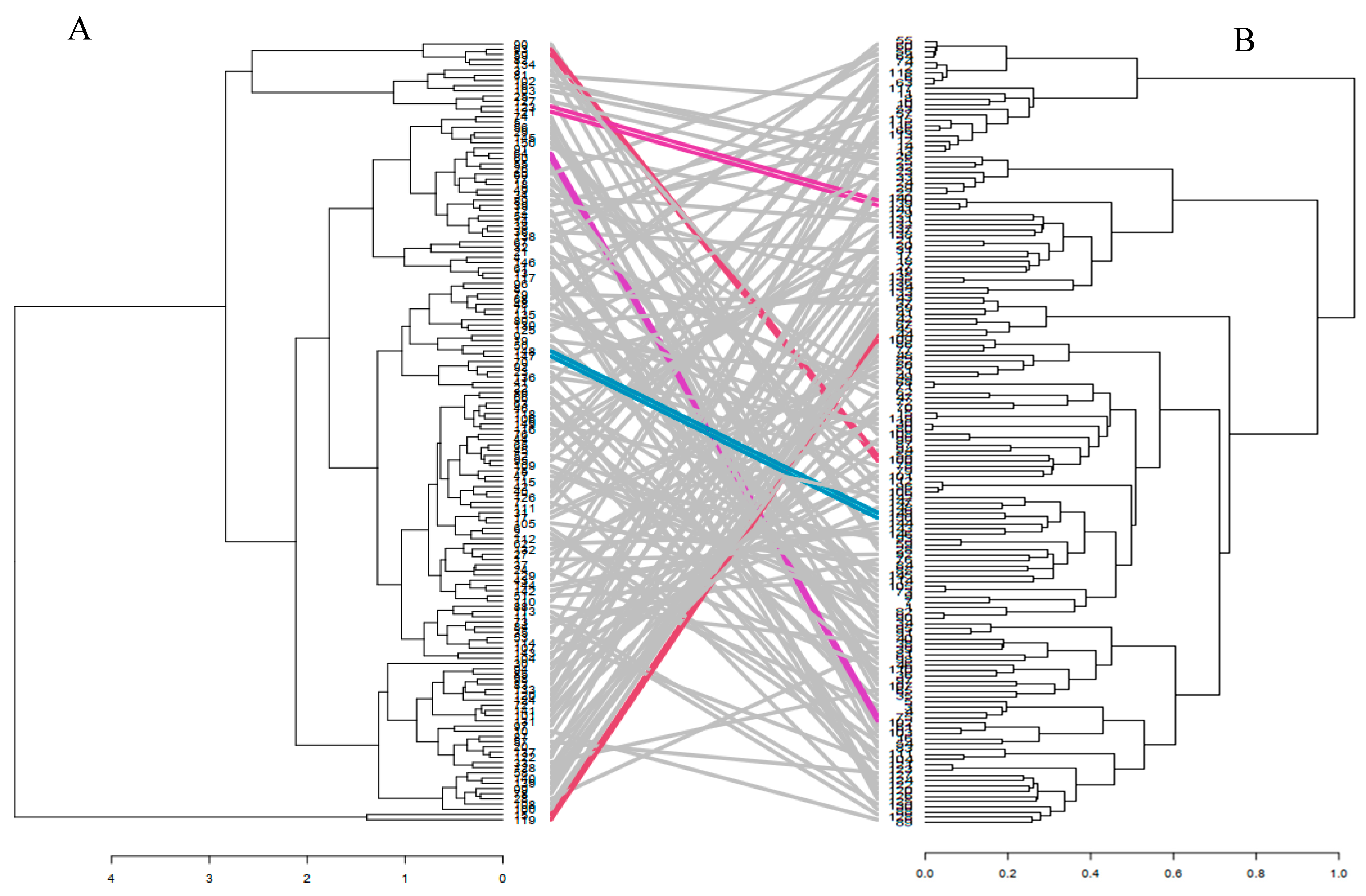

Figure 5. Comparison of hierarchical cluster analysis from the phenotypic under Striga infestation (A) and the genotypic (B). The ash lines in between the two dendrograms represent mismatched inbred lines from the genotypic to the phenotypic while the colored lines are inbred in the same position from phenotypic to the genotypic cluster.
Figure 5. Comparison of hierarchical cluster analysis from the phenotypic under Striga infestation (A) and the genotypic (B). The ash lines in between the two dendrograms represent mismatched inbred lines from the genotypic to the phenotypic while the colored lines are inbred in the same position from phenotypic to the genotypic cluster.
Plants 09 01223 g005
Plants 09 01223 g006 550

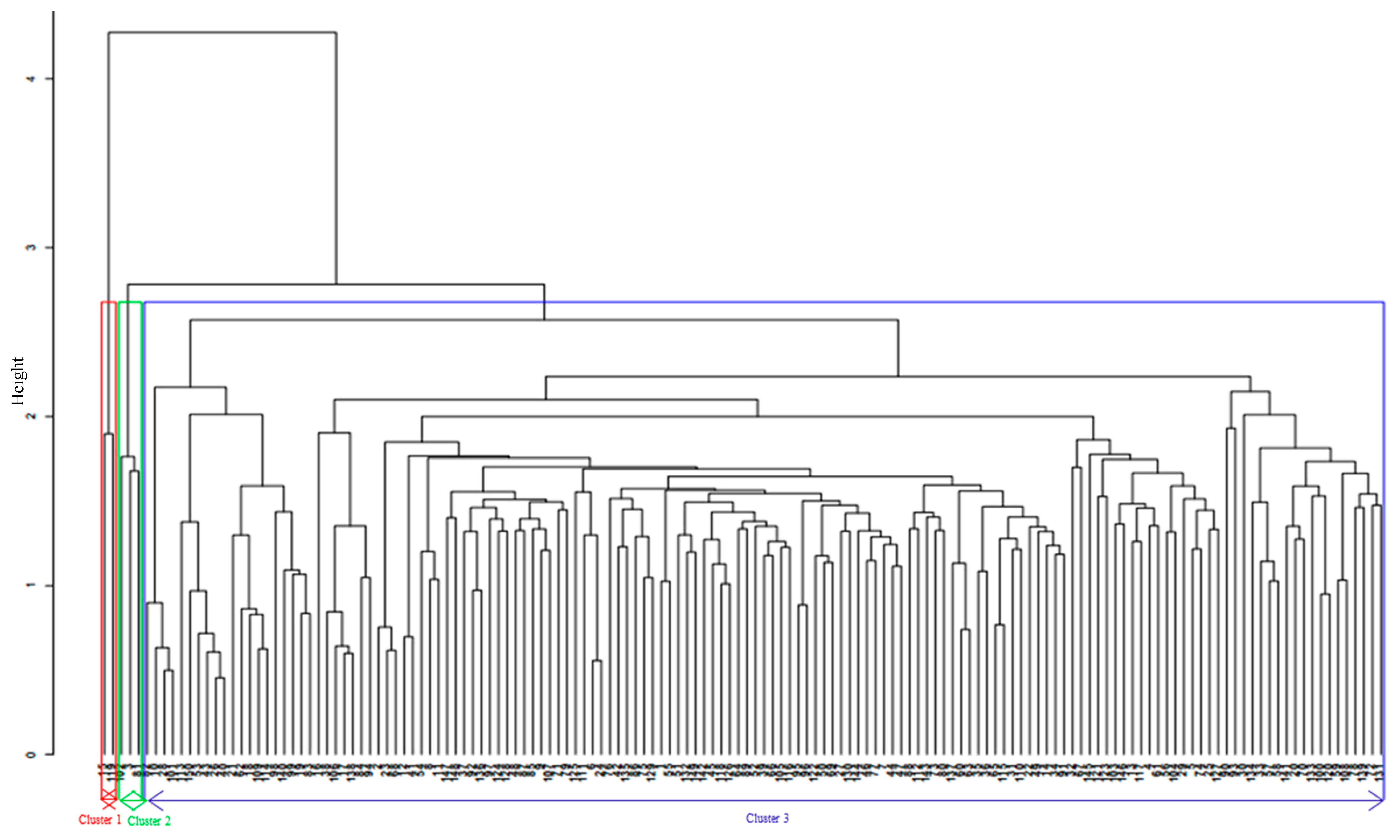

Figure 6. Hierarchical cluster analysis based on combined agronomic and molecular data using ward.D2 method.
Figure 6. Hierarchical cluster analysis based on combined agronomic and molecular data using ward.D2 method.
Plants 09 01223 g006
Table
Table 1. List of source populations for the 150 inbred lines used in this study.
Table 1. List of source populations for the 150 inbred lines used in this study.
Source Population Genetic Background of Source PopulationLines Evaluated
ZDIPLines derived from a backcross (BC4) containing a Z. diploperennis accession as a donor parent plus lines derived from bi-parental crosses involving one parent derived from the same Z. diploperennis backcross39
TZLCA late-maturing composite formed by crossing TZB-SR with seven inbred lines developed for field resistance to S. hermonthica plus lines derived from bi-parental crosses involving one parent derived from the same source populations44
TZEC An early maturing composite formed by crossing TZESR-W C3 with eight inbred lines developed for field resistance to S. hermonthica plus lines derived from bi-parental crosses involving one parent derived from the same composite13
IWDSA synthetic formed from medium maturing white inbred lines and improved for resistance to Striga and drought plus lines derived from bi-parental crosses involving one parent derived from these synthetic30
MIXEDLines derived from diverse source populations plus the tolerant lines expensively used as donors of field resistance to form populations24
Table
Table 2. Principal component analysis and variables contributing the most under Striga infestation.
Table 2. Principal component analysis and variables contributing the most under Striga infestation.
VariablesPC1PC2PC3
Days to silking−0.441 0.855−0.068
Ear aspect 0.884 0.070−0.303
Ear per plant−0.824−0.064 0.324
Plant height−0.388 0.212−0.221
Striga count at 8 WAP 0.651 0.148 0.712
Striga count at 10 WAP 0.633 0.182 0.719
Striga damage at 8 WAP 0.878 0.107−0.092
Striga damage at 10 WAP 0.881 0.201−0.085
Yield−0.786−0.173 0.434
Anthesis silking interval−0.302 0.908 0.014
Eigenvalue4.8861.7451.478
Variance (%)48.86317.45914.784
Cumulative variance (%)48.86366.32181.105
Values in bold indicate the most relevant character (˃0.400) that contribute to the variation of the component.
Table
Table 3. Diversity indices of the 150 inbred lines based on 16,735 single-nucleotide polymorphism (SNP) markers.
Table 3. Diversity indices of the 150 inbred lines based on 16,735 single-nucleotide polymorphism (SNP) markers.
MAFHoHePIC
Minimum0.050.000.100.1
Maximum0.500.980.500.47
Mean0.240.100.320.26
MAF = minor allele frequency, HO = observed heterozygosity, He = expected heterozygosity, PIC = polymorphic information content.

Share and Cite

MDPI and ACS Style

Stanley, A.; Menkir, A.; Paterne, A.; Ifie, B.; Tongoona, P.; Unachukwu, N.; Meseka, S.; Mengesha, W.; Gedil, M. Genetic Diversity and Population Structure of Maize Inbred Lines with Varying Levels of Resistance to Striga Hermonthica Using Agronomic Trait-Based and SNP Markers. Plants 2020, 9, 1223. https://doi.org/10.3390/plants9091223

AMA Style

Stanley A, Menkir A, Paterne A, Ifie B, Tongoona P, Unachukwu N, Meseka S, Mengesha W, Gedil M. Genetic Diversity and Population Structure of Maize Inbred Lines with Varying Levels of Resistance to Striga Hermonthica Using Agronomic Trait-Based and SNP Markers. Plants. 2020; 9(9):1223. https://doi.org/10.3390/plants9091223

Chicago/Turabian Style

Stanley, Adekemi, Abebe Menkir, Agre Paterne, Beatrice Ifie, Pangirayi Tongoona, Nnanna Unachukwu, Silvestro Meseka, Wende Mengesha, and Melaku Gedil. 2020. "Genetic Diversity and Population Structure of Maize Inbred Lines with Varying Levels of Resistance to Striga Hermonthica Using Agronomic Trait-Based and SNP Markers" Plants 9, no. 9: 1223. https://doi.org/10.3390/plants9091223

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
